Model-driven Development of Interactive Web User Interfaces with

HTML5

Michael Huber and Philipp Brune

University of Applied Sciences Neu-Ulm, Wileystraße 1, D-89231 Neu-Ulm, Germany

Keywords:

Model-driven Web Application Development, Model Transformation, Code Generation, Metamodeling, Rich

Web UI.

Abstract:

Graphical user interfaces (GUI) of modern web applications offer a look-and-feel comparable to desktop ap-

plications, mainly by using JavaScript or other Rich internet Applications (RIA) technologies. With W3C’s

upcoming HTML5 standard, even more powerful concepts for browser-side GUI programming are introduced,

e.g. the <canvas>-tag. Model-driven development of web applications and RIA has been studied for many

years. However, all existing approaches for model-driven web and RIA development focus on entire web-

pages. With the increasing complexity of modern web GUIs, the model-driven development of GUI compo-

nents itself comes into focus. Therefore, in this paper a method is proposed for the model-driven development

of interactive, JavaScript-based GUI components based on the <canvas>-tag. Using a metamodel based on

an UML 2.0 proﬁle, the approach is usable together with existing UML-based methods or standalone. The

implementation is described and its feasibility and implications are examined by means of a proof-of-concept

example.

1 INTRODUCTION

In recent years, the graphical user interfaces (GUI)

of web applications have changed dramatically with

respect to their interactivity, functionality and visual

design. By means of technologies like JavaScript or

AJAX (Asynchronous JavaScript and XML) (Mesbah

and van Deursen, 2007) or Rich Internet Application

(RIA) frameworks (Toffetti et al., 2011), web appli-

cations today provide richer and more interactive user

interfaces with many of the characteristics of desktop

application software. In addition, for the increasing

number of mobile devices used as web client plat-

forms, a higher interactivity of the GUI and new types

of user interaction (i.e. gestures) are required (Ortiz

and Garcia De Prado, 2010).

Therefore, the world-wide web consortium

(W3C) is currently working on the speciﬁcation of

a new version of the web markup language known

as HTML5 (Fulton, 2011). Among many other new

features, HTML5 introduces the <canvas>-tag to

create and display individual and interactive graphics

within a web page (Fulton, 2011). Even though the

HTML5 speciﬁcation is not ﬁnally released at the

moment, the <canvas>-tag is already supported by

many modern web browsers.

Model-driven development (MDD) (Sabbah,

2006) has received considerable attention for many

years as a promising paradigm in software en-

gineering. Regarding MDD of web applications

also various approaches have been proposed and

discussed, like WebSA (Melia and Gomez, 2006) or

UWE (UML-based Web Engineering) (Kraus et al.,

2007). Most methods use a graphical notation like

UML for describing the models. Other solutions

are based on speciﬁc notation languages (Wolf-

gang, 2011) or textual notation (Buchwalder and

Petitpierre, 2006; Melia et al., 2008).

In recent years, model-driven development of RIA

applications has attracted increasing attention and

various authors have proposed respective approaches

(Bozzon et al., 2006; Preciado et al., 2008; Linaje

et al., 2007; Melia et al., 2008; Valverde and Pastor,

2009; Ortiz and Garcia De Prado, 2010; Toffetti et al.,

2011). However, all these approaches focus mainly on

two aspects of the model-driven development of RIA

(Valverde and Pastor, 2009), namely 1) the deﬁnition

of the GUI by combining components (widgets) from

a selected RIA technology, and 2) the speciﬁcation

of the handling of interaction events generated by the

user (Koch et al., 2009). Regarding the ﬁrst aspect,

all approaches consider the GUI components itself to

249

Huber M. and Brune P..

Model-driven Development of Interactive Web User Interfaces with HTML5.

DOI: 10.5220/0004311202490252

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2013), pages 249-252

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

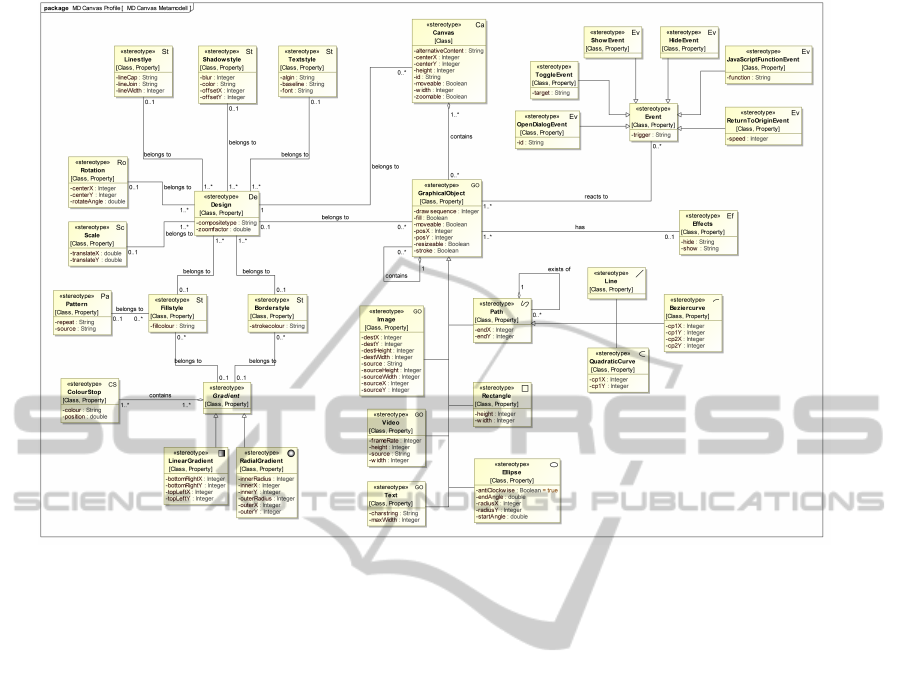

Figure 1: Overview of the UML2 metamodel proposed to describe an interactive HTML5 canvas-tag based GUI component

within a web page.

be atomic. The possibilities for a model-driven devel-

opment of these RIA GUI components itself and their

embedding with the described MDD approaches have

not been examined so far. This holds especially true

for GUI component using upcoming technologies like

the HTML5 <canvas>-tag.

Therefore, in this paper an MDD approach for de-

veloping interactive GUI components using HTML5

and the <canvas>-tag is proposed and examined by

studying a proof-of-concept example. To demonstrate

the integration with a general MDD web development

framework, UWE (Kraus et al., 2007) was chosen,

since it is UML-based, offers a good tool support, is

well documented and supports also recent standards

like Java Server Faces (JSF).

The structure of this paper is as follows: Section

2 presents the proposed UML metamodel and in sec-

tion 3 the model transformation and code generation

is described. In section 4 the proof-of-concept exam-

ple is presented and examined. We conclude with a

summary of our ﬁndings.

2 DESIGN OF THE METAMODEL

To ensure compatibility with UWE, the metamodel

was designed using an UML 2.0 proﬁle. Obviously,

it needs to map all native functions of the <canvas>-

tag, in order not to be restricted compared to man-

ual development. Moreover, it should be possible to

add interactivity actions like click-events or drag-and-

drop to the whole canvas as well as to all its graph-

ical elements. In addition, a good usability expe-

rience during the modeling process is required, like

early error detection or the ability to predeﬁne com-

plex graphical objects like a three-dimensional cylin-

der to use it as one element. Therefore, a modular de-

sign is needed, especially for displayed items on the

canvas and for attachable events triggering different

actions. The model also needs to ensure the seamless

integration with UWE.

Fig. 1 shows an overview of the resulting

UML metamodel. It was designed around ﬁve main

stereotypes, namely Canvas, representing an inter-

active GUI component based on the <canvas>-tag,

GraphicalObject, representing any graphical object

displayed inside the canvas, Design to assign visual

styles to these graphical objects, Effects, modeling

visual effects like fading in or out, and Event, de-

scribing user-triggered interaction events. Standard

events used for navigating in a GUI are modeled as

specializations of the stereotype Event.

A set of multiple Object Constraint Language

(OCL) constraints deﬁning class invariants ensures an

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

250

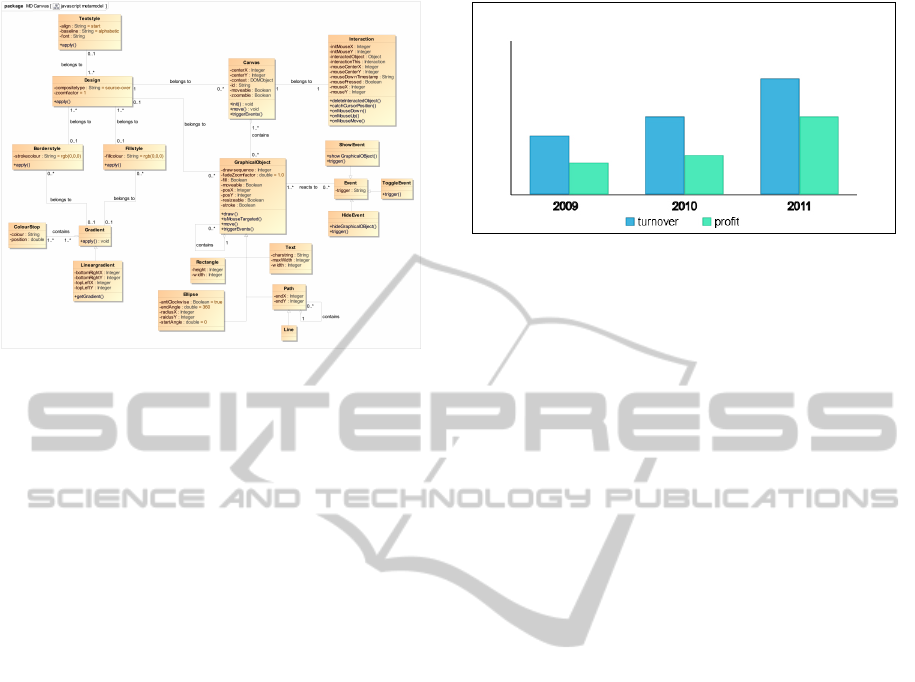

Figure 2: Class diagram of the JavaScript library that mim-

ics the metamodel stereotypes and is used to implement the

generated GUI component within a web page.

error detection during modeling to avoid minor errors,

i.e. an undeﬁned value for the id-attribute of the can-

vas, leading to an incorrect display in the browser.

To improve the practical usability of the pro-

posed approach, the metamodel stereotypes were rep-

resented by a speciﬁc diagram type in MagicDraw

(NoMagic, 2012). This simpliﬁes keeping track of

the elements in a complex model.

3 MODEL TRANSFORMATION

AND CODE GENERATION

Since interactive GUI components usually represent

only parts of a web page, it is necessary to integrate

the present approach into general model-driven web

development methods. The UWE method was se-

lected to evaluate this integration. Therefore, its pre-

sentation model containing all displayed elements on

one page needed to be extended by a new stereotype

representing the canvas element.

For generating code the existing UWE code gen-

erator written in Java by Sebastian Stiegler in 2002

(Stiegler, 2002) was used and extended. By introduc-

ing new conﬁguration parameters it is now possible

to select whether the models provided to the genera-

tor should be interpreted as pure UWE models, canvas

models or both.

In order to efﬁciently transform the model into ex-

ecutable HTML5 and JavaScript code, a JavaScript

runtime library was designed for drawing of the can-

vas elements and processing events. This library

uses the class model shown in Fig. 2 which mim-

ics the relevant stereotypes of the UML metamodel

Figure 3: Screenshot (from Mozilla Firefox 10.0) of the

generated interactive turnover and proﬁt bar chart within a

web browser window. By clicking on the legend entries, the

visibility of the corresponding bars in the chart is toggled.

with JavaScript. While transforming UWE presenta-

tion models containing canvas elements, the genera-

tor creates the <canvas>-tag in the website and then

checks for the corresponding canvas model and gen-

erates the respective JavaScript code using the library.

4 PROOF-OF-CONCEPT

EXAMPLE AND RESULTS

To evaluate the presented approach, an interactive

GUI component was developed showing the last three

years turnover and proﬁt data in an interactive bar

chart diagram like used frequently for business analy-

sis. The result as displayed by a web browser is shown

in Fig. 3. To demonstrate the modeling of user inter-

actions, it is possible to show and hide each data set

by clicking on the corresponding legend entries.

The time needed for modeling and code genera-

tion using the presented approach proved to be sig-

niﬁcantly lower then the time needed for a compara-

ble manual implementation. The time reduction orig-

inates mainly from the use of the JavaScript library

and the overall higher level of abstraction. Addition-

ally, a domain-speciﬁc toolbar was developed which

strongly simpliﬁes routine tasks like the assignment

of stereotypes. The biggest advantage is the sim-

pliﬁed implementation of the user interactions. By

means of the speciﬁed OCL constraints, also errors

related to the tagged values could be identiﬁed and

solved in an early stage during the modeling process.

5 CONCLUSIONS

In conclusion, this paper presented the design and

implementation of a MDD approach for interactive

Model-drivenDevelopmentofInteractiveWebUserInterfaceswithHTML5

251

GUI components based on the HTML5 <canvas>-

tag. The designed metamodel maps the functionality

of the <canvas>-tag appropriately. Based on the Uni-

ﬁed Modeling Language (UML), this approach could

be in principle integrated as an extension into most

existing UML-based model-driven web development

methods. This has been described and veriﬁed for the

UWE method.

Future extensions may add further, more complex

pre-deﬁned graphical elements or frequently used

special events. Also a binding to other HTML ele-

ments for controlling the canvas or the inclusion of

physical behaviour in animations is possible.

So far, the approach mainly operates on the level

of graphics primitives. For an obvious future appli-

cation of the described approach in the development

of interactive online games or virtual online worlds,

higher level (or more domain speciﬁc) graphical ab-

stractions (like support for 3D objects) are required.

Further research is needed to investigate the design

and possibilities of such an extension to the presented

approach.

ACKNOWLEDGEMENTS

The authors would like to thank Prof. Dr. Hennicker

from Ludwig-Maximilians-Universit

at Munich for

kindly providing the source code of the UWE code

generator created by Sebastian Stiegler.

REFERENCES

Bozzon, A., Comai, S., Fraternali, P., and Tofetti Carughi,

G. (2006). Capturing ria concepts in a web modeling

language. In Proceedings of the 15th international

conference on World Wide Web, WWW ’06, pages

907–908, New York, NY, USA. ACM.

Buchwalder, O. and Petitpierre, C. (2006). Weblang: A lan-

guage for modeling and implementing web applica-

tions. In Kang Zhang, G. S. and Visaggio, G., editors,

Proceedings of the Eighteenth International Confer-

ence on Software Engineering and Knowledge Engi-

neering, ICSE 2006, pages 584–590, San Francisco,

California. Skokie, Ill: Knowledge Systems Institute

Graduate School.

Fulton, S. und Fulton, J. (2011). HTML5 canvas. OReilly,

Farnham.

Koch, N., Pigerl, M., Zhang, G., and Morozova, T. (2009).

Patterns for the model-based development of rias. In

Proceedings of the 9th International Conference on

Web Engineering, ICWE ’9, pages 283–291, Berlin,

Heidelberg. Springer-Verlag.

Kraus, A., Knapp, A., and Koch, N. (2007). Model-

driven generation of web applications in uwe. In

Nora Koch, A. V. and Houben, G.-J., editors, Pro-

ceedings of the 3rd International Workshop on Model-

Driven Web Engineering MDWE 2007, Como, Italy.

CEUR-WS.org.

Linaje, M., Preciado, J., and Sanchez-Figueroa, F. (2007).

A method for model based design of rich internet ap-

plication interactive user interfaces. In Baresi, L., Fra-

ternali, P., and Houben, G.-J., editors, Web Engineer-

ing, volume 4607 of Lecture Notes in Computer Sci-

ence, pages 226–241. Springer Berlin / Heidelberg.

Melia, S. and Gomez, J. (2006). The websa approach: Ap-

plying model driven engineering to web applications.

Journal of Web Engineering, 5(2):121–149.

Melia, S., Gomez, J., Perez, S., and Dijaz, O. (2008). A

model-driven development for gwt-based rich internet

applications with ooh4ria. In Daniel Schwabe, F. C.

and Dantzig, P., editors, Proceedings of the Eighth In-

ternational Conference on Web Engineering, ICWE

2008, pages 13–23, Yorktown Heights, New York,

USA. IEEE.

Mesbah, A. and van Deursen, A. (2007). Migrating

multi-page web applications to single-page ajax in-

terfaces. In Proceedings of the 11th European Con-

ference on Software Maintenance and Reengineering,

CSMR ’07, pages 181–190, Washington, DC, USA.

IEEE Computer Society.

NoMagic (2012). Magicdraw. http://www.magicdraw.com.

Ortiz, G. and Garcia De Prado, A. (2010). Improving

device-aware web services and their mobile clients

through an aspect-oriented, model-driven approach.

Information and Software Technology, 52(10):1080–

1093.

Preciado, J. C., Linaje, M., Morales-Chaparro, R., Sanchez-

Figueroa, F., Zhang, G., Kroiß, C., and Koch, N.

(2008). Designing rich internet applications combin-

ing uwe and rux-method. In Proceedings of the 2008

Eighth International Conference on Web Engineering,

ICWE ’08, pages 148–154, Washington, DC, USA.

IEEE Computer Society.

Sabbah, D. (2006). Model-driven software development -

introduction. IBM SYSTEMS JOURNAL, 45(3).

Stiegler, S. (2002). Diploma thesis. http://www.pst.

informatik.uni-muenchen.de/DA Fopra/web-eng-uwe-

generator.pdf.

Toffetti, G., Comai, S., Preciado, J. C., and Linaje, M.

(2011). State-of-the art and trends in the systematic

development of rich internet applications. J. Web Eng.,

10(1):70–86.

Valverde, F. and Pastor, O. (2009). Facing the technological

challenges of web 2.0: A ria model-driven engineer-

ing approach. In Vossen, G., Long, D., and Yu, J.,

editors, Web Information Systems Engineering - WISE

2009, volume 5802 of Lecture Notes in Computer Sci-

ence, pages 131–144. Springer Berlin / Heidelberg.

Wolfgang, U. (2011). Multi-platform model-driven soft-

ware development of web applications. In Proceed-

ings of the 6th International Conference on Software

and Data Technologies (ICSOFT 2011), pages 162–

171. INSTICC Press.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

252
