Application of Model Comparison Techniques

to Model Transformation Testing

Matthew Stephan and James R. Cordy

Queen’s University, Kingston, Ontario, Canada

Keywords:

Model Transformations, Model Comparison, Model Transformation Quality Assurance, Model Transforma-

tion Testing, Metamodel Comparison.

Abstract:

In this paper, we discuss model-to-model comparison techniques that can be used to assist with model-to-

model transformation testing. Using an existing real-world model transformation, we illustrate and qualita-

tively evaluate the comparison techniques, highlighting the associated strengths and weaknesses of each in the

context of transformation testing.

1 INTRODUCTION

Although the area of model transformation testing

(MTT) is relatively new, there already is a consen-

sus that model comparison (MC) is a key and funda-

mental component of it (Baudry et al., 2010; Kolovos

et al., 2006; Mazanek and Rutetzki, 2011). MC en-

tails identifying similarities and differences between

a pair, or multiple, models. There are many differ-

ent MC approaches intended for a variety of differ-

ent purposes (Stephan and Cordy, 2013). However,

there are relatively few that are explicitly intended

to facilitate MTT. Furthermore, there is no consen-

sus as to which techniques are best suited. For exam-

ple, current transformation testing implementations,

such as Transformation Judge

, simply use compar-

ison tools based on the fact that they are “the most

widely used” (Mazanek and Rutetzki, 2011).

In this paper we discuss and qualitatively evalu-

ate the available model comparison approaches that

can be used as part of a MTT oracle, including some

approaches that may not have been intended for this

purpose. We focus on model-to-model (M2M) trans-

formation testing because the veriﬁcation of these

transformations is more challenging than model-to-

code (Lin et al., 2005) and the literature contains more

M2M comparison approaches. Also, M2M transfor-

mations have been identiﬁed as one of the main road

blocks necessary to overcome in facilitating change

evolution in MDE (Sendall and Kozaczynski, 2003).

Our main contribution is an exploration of which

http://sites.google.com/site/transformationjudge/

MC approach(es) are the most promising for a MTT

oracle. To demonstrate and discuss the comparison

approaches in the transformation testing context, we

use a heterogeneous M2M transformation from the

literature and discuss both homogeneous and hetero-

geneous comparisons.

2 BACKGROUND

Model Transformation Testing involves executing

a set of transformations on source models and com-

paring the output of the transformations with the ex-

pected output (Selim et al., 2012). If a generated out-

put model corresponds to expected output, then one

can infer that the transformation has been performed

correctly. Otherwise, the transformation needs to

be updated. Oracle implementation is an outstand-

ing challenge in accomplishing MTT (Baudry et al.,

2006) and can be done in a variety of ways (Mottu

et al., 2008), many involving forms of MC.

Model Comparison involves discovering similar-

ities and differences among different models. Some

applications include model versioning, model clone

detection, model merging, and, to a lesser extent,

MTT (Stephan and Cordy, 2012). In this paper we

consider all of the approaches intended for MTT and

others that we believe can be adapted. We discuss

both the calculation and visualization capabilities of

each approach.

Automatic MC is crucial in achieving MTT be-

cause manual comparison for testing is not practical,

307

Stephan M. and Cordy J..

Application of Model Comparison Techniques to Model Transformation Testing.

DOI: 10.5220/0004313003070311

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2013), pages 307-311

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

nor are character- or line- based comparisons. There

are three different forms of MC being used in the con-

text of an oracle (Mottu et al., 2008): 1] Comparing

an output model with a reference model generated

by a reference transformation; 2] Comparing an in-

put model with a model that was transformed once by

the transformation and again by the inverse transfor-

mation, if the transformation is injective; 3] Compar-

ing an output model with an expected output model,

if available. This list refers to the steps preceding

the comparison. For each of these, the comparisons

themselves do not differ that much: They are likely

homogeneous, or endogenous, meaning they are per-

forming comparisons of models from the same meta-

model. In this paper, we consider both homogeneous

and heterogeneous, or exogenous, comparisons, the

latter being useful for comparing the input and output

model of a heterogeneous transformation.

3 MODEL COMPARISON

TECHNIQUES

Using a recent survey on MC (Stephan and Cordy,

2013), we include any approaches that are intended to

deal with MTT explicitly, meaning the comparisons

are speciﬁcally tailored to provide information that

can help with transformation testing.

C-Saw

is a general-purpose model transforma-

tion engine implemented as a Generic Modeling Envi-

ronment (GME)

plugin, originally intended as an as-

pect weaver for modeling languages. It facilitates the

execution of a model transformation speciﬁcation and

includes a basic model comparison algorithm (Lin

et al., 2005).

DSMDiff (Lin et al., 2007) is a MC tool that is

intended to work with domain-speciﬁc models. It is

built on top of the GME, a tool intended to assist

with developing and managing domain-speciﬁc mod-

els. Although there are attempts to bridge the gap

between GME and EMF (B

ezivin et al., 2005), there

is nothing yet that can convert instance models from

EMF to GME instance models. Thus, we do not in-

clude it in our case study.

EMF Compare (Brun and Pierantonio, 2008) is an

Eclipse project that implements MC for EMF

mod-

els. It avoids using static unique identiﬁers and relies

more on similarity based-matching to add ﬂexibility

and usefulness in more contexts.

http://www.gray-area.org/Research/C-SAW/

http://www.isis.vanderbilt.edu/Projects/gme/

http://www.eclipse.org/emf/

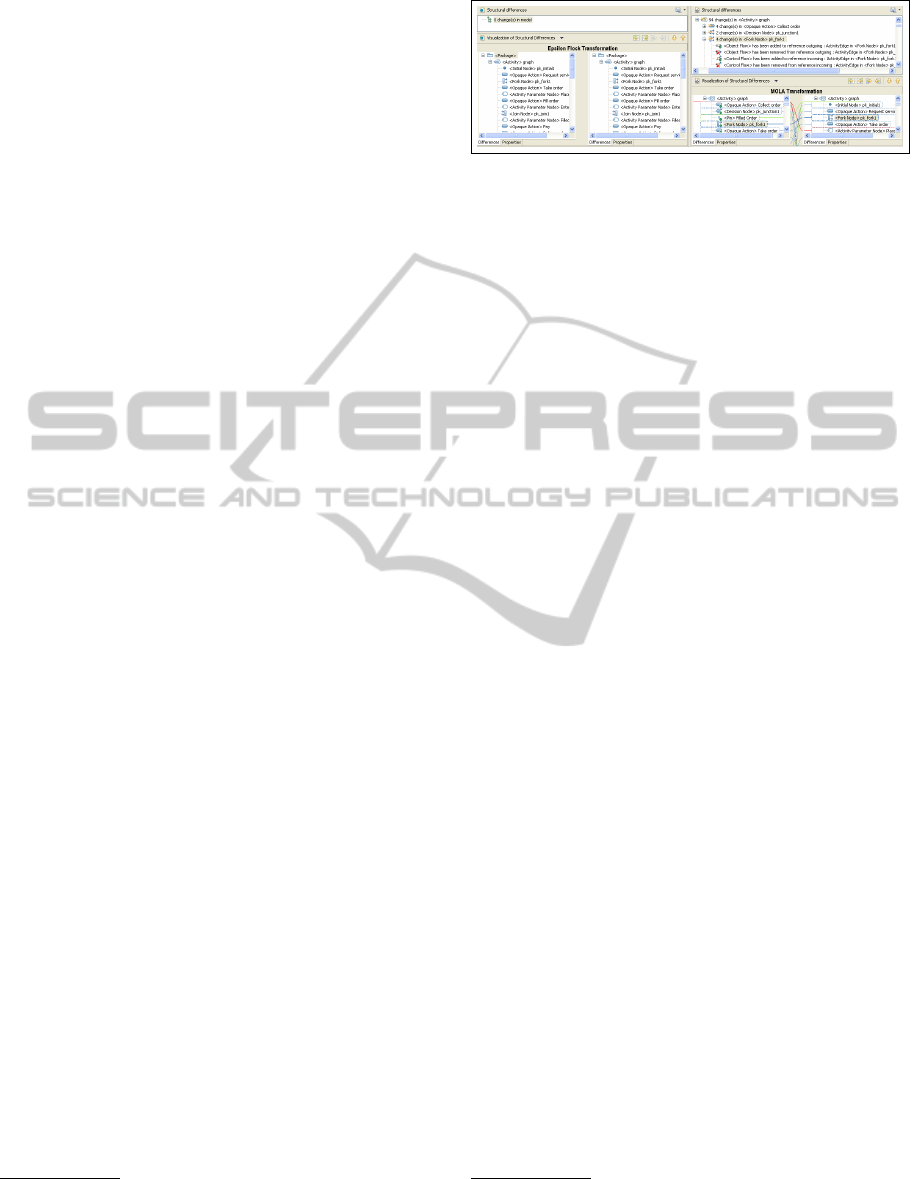

Figure 1: Homogeneous MC using EMF Compare.

The Epsilon Comparison Language(ECL)

is a

rule-based approach to MC. It provides modelers the

ability to utilize language-speciﬁc information to de-

scribe semantics and to make MC more accurate and

efﬁcient (Kolovos, 2009). It allows comparison of

models subscribing to different metamodels.

SmoVer (Reiter et al., 2007) is a technique that

can likely be adapted to perform MC for MTT. In-

tended to assist with model versioning for EMF-based

models, SmoVer performs both syntactic and semantic

comparisons. Semantic comparisons are evaluations

of models that have undergone a model transforma-

tion into semantic views. Unfortunately, much of the

described tool has yet to be implemented including

a lack of adequate visualization of differences

and

having its comparison engine inseparable from its ver-

sion control system. As such, we do not include this

approach in our case study.

4 CASE STUDY

Our case study for comparing EMF Compare and

ECL involves testing transformations for model mi-

gration. Speciﬁcally, we consider migration from

UML 1.4 activity diagrams to UML 2.2 activity di-

agrams (Rose et al., 2010b). We believe this is a rep-

resentative and sufﬁcient example: 1] It was used in a

transformation tool contest in 2010

, meaning it was

viewed as a fair and representative set of transforma-

tions; 2] The transformation is challenging and real-

istic because the differences between the source and

target metamodels are signiﬁcant; and 3] As a result

of it coming from a tool contest, we have a relatively

large set of solutions and output models to work with

via the contest website.

4.1 Homogeneous Comparison

The comparison techniques should perform well as

http://www.eclipse.org/gmt/epsilon/doc/ecl/

http://smover.tk.uni-linz.ac.at/prototype.php

http://planet-mde.org/ttc2010/index.php

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

308

homogeneous MC is much simpler than heteroge-

neous. Any discrepancies between the expected and

actual output models mentioned are not, necessarily, a

reﬂection of the transformation tools, but of the trans-

formations that were submitted to the transformation

tool contest.

4.1.1 EMF Compare

In order to use EMF Compare for MTT, we conﬁg-

ure it to ignore unique identiﬁers. In Figure 1, we

show the comparison results of the expected output

with the output models that resulted from transforma-

tions from two M2M tools, Flock (Rose et al., 2010a)

and MOLA (Kalnins et al., 2005) on the left and right

of the ﬁgure, respectively. The output model from

Flock is identical to our expected output. From a test-

ing perspective, this means that EMF Compare is able

to show when a test case is executed as expected. For

the MOLA transformation, there seems to be a sym-

metric list of changes under many of the model ele-

ments. For example, for every control ﬂow or object

ﬂow reference missing when compared to its corre-

sponding element, a reference addition of the same

type appears. It is likely these differences are triv-

ial and these references are to the same object: EMF

Compare generates false positives, that is, elements

that are identiﬁed as different but should not be. In

addition, it is very difﬁcult to pinpoint the differences.

4.1.2 ECL

While ECL requires more work to deﬁne the rules for

matching models, it excels at matching corner cases

based on domain knowledge and user input (Kolovos,

2009). So, if we are able to ascertain the lower level

problems, we can reduce the number of false positives

using an appropriate ECL rule.

We ﬁnd the lower level problem from our example

in Figure 1: The elements are not matched because

the MOLA transformation sets the name and visibil-

ity of these elements to null and public, respectively,

rather than to unset, as in our expected output. The

issue is not that the MOLA transformation is wrong in

doing this, it is that our comparison method should

interpret them as equal. We specify this using the

ECL as demonstrated in the rule deﬁnitions in Fig-

ure 2. The top rule block accounts for the Object-

Flow false positives while the bottom rule block ac-

counts for ControlFlow false positives. Implement-

ing this rule removes 34 of 95 listed differences out-

lined in our transformation test. Many remaining false

positives can be rectiﬁed with analogous rule deﬁni-

tions to those in Figure 2.

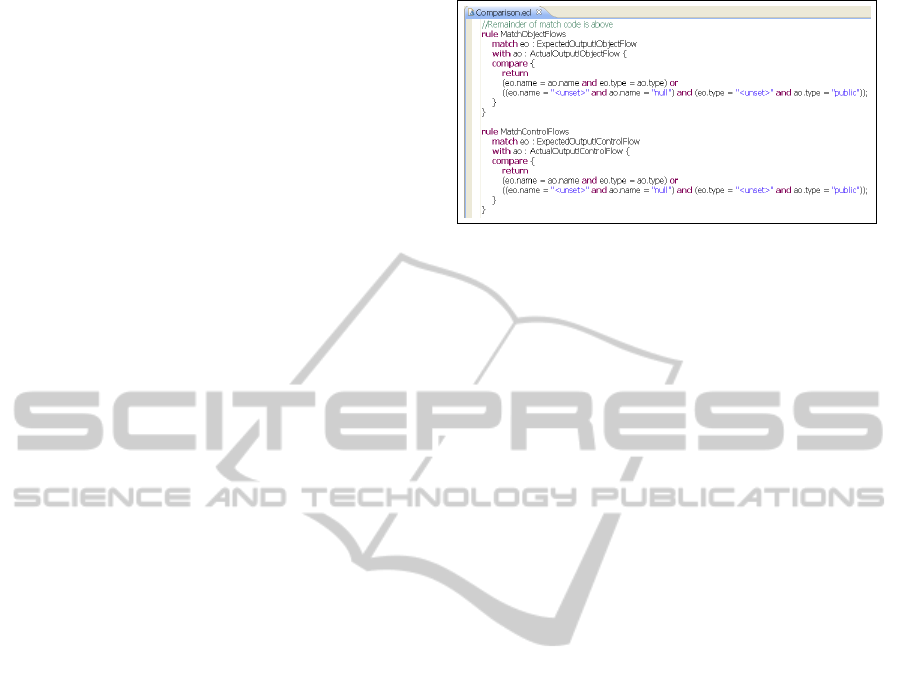

Figure 2: ECL rules to remove false positives.

4.2 Heterogeneous Comparison

An interesting application of MC in MTT that has

yet to be investigated is comparing metamodels in

a heterogeneous transformation and using that to

guide testing input, that is, allow test generation

from metamodel MC. This differs from existing ap-

proaches (Sen et al., 2009). We provide a brief il-

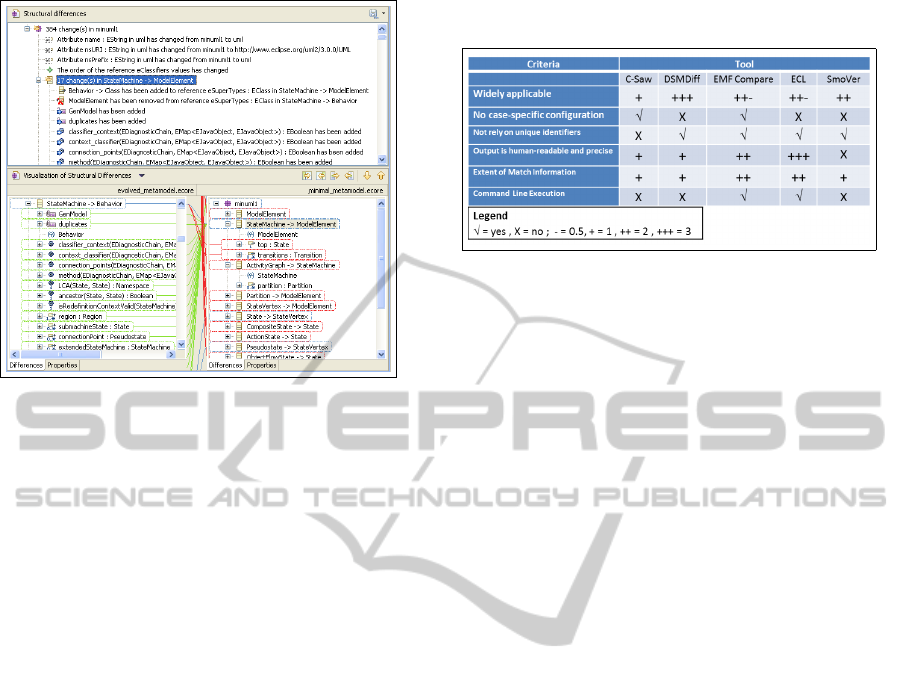

lustration using EMF Compare in Figure 3 showing

MC of the different metamodels from the provided

case study, with the evolved model on the left. This

list of differences might be a good starting place for

test-case generation. For example, to test a model

transformation with respect to the StateMachine el-

ement in isolation, we could write assertions that en-

sure those 17 or so changes have been represented ac-

cordingly.

It is clear that EMF Compare is not well suited

for heterogeneous comparisons. The EMF Compare

matching algorithm produces the same, relatively un-

helpful information in that they fail to match what, se-

mantically, we know should be a match near the top of

the model hierarchy. Only straight-forward matches

are discovered, such as those that have the same or

similar names. For example, StateMachine, State,

and PseudoState are present in both metamodels, but

it is difﬁcult to identify the differences of their chil-

dren and other should-be matches at the same level

are missed.

Thus, we are left with ECL or, possibly, SmoVer, if

it were to be extended appropriately. We would write

rules, like the ones in Figure 2, that match UML 1.4

components to their corresponding 2.2 components.

We can indicate matching metamodel elements at all

levels and will, consequently, be left with more mean-

ingful comparisons. While this is somewhat equiva-

lent to writing the actually transformation itself, it is

done from a comparison and declarative perspective,

allowing for an extra level of veriﬁcation.

ApplicationofModelComparisonTechniquestoModelTransformationTesting

309

Figure 3: Comparison of metamodels.

5 SUMMARY

Our evaluation is summarized in Table 1. The ﬁrst

column lists desirable criteria: For boolean criteria,

a check mark is better than an ’X’. For non-boolean

criteria, the more pluses, the better. In terms of being

widely-applicable, C-Saw limits itself to models with

static identiﬁers. EMF Compare, ECL, and SmoVer

work with EMF only, but the ﬁrst two can be extended

to work with other formats. DSMDiff is the most gen-

eral. C-Saw and EMF Compare are the only ones

that do not require case-speciﬁc conﬁguration. While

the criteria authors state this is positive, we disagree

and believe case-speciﬁc conﬁguration is important

for satisfying the other criteria, notably precision of

matches and differences. For readability and preci-

sion, all of the comparison tools seem to have room

for improvement. We give EMF Compare and ECL

the top scores, giving ECL the advantage because the

lower-level match rules increase precision. None of

the tools provide as much matching data as they could

and should, but EMF Compare and ECL provide the

most. The case study and other examples revealed no

signiﬁcant differences in performance.

MC is key for achieving acceptable MTT. We pre-

sented a subset of MC techniques that are both well-

suited to MTT and representative of the available ap-

proaches. It is clear that C-Saw and SmoVer are cur-

rently inadequate because of their reliance on unique

identiﬁers and lack of implementation, respectively.

Using a UML activity diagram case study, we

discussed EMF Compare’s and ECL’s ability to per-

form heterogeneous and homogeneous comparisons

for MTT. ECL scores the highest out of the ap-

Table 1: Evaluation of MC approaches using the criteria

from Mazanek and Rutetzki (2011).

proaches, however, some may be discouraged by its

need for case-speciﬁc conﬁgurations. We argue that it

is a good trade off, especially in the context of MTT.

A good visualization of both matches and differ-

ences is crucial in the context of MTT. Existing vi-

sualization techniques can be improved and new ones

should be investigated. We also presented the idea

of performing metamodel comparison to achieve test

generation from models. Lastly, a hybrid approach

to MTT by reverse engineering the metamodels and

is built on top of ECL may be very useful. While

some advancement has been made in MTT, this pa-

per shows that there is still some work to be done and

improvements to be made.

REFERENCES

Baudry, B., Dinh-trong, T., Mottu, J.-M., Simmonds, D.,

France, R., Ghosh, S., Fleurey, F., and Traon, Y. L.

(2006). Model transformation testing challenges. In

ECMDA.

Baudry, B., Ghosh, S., Fleurey, F., France, R., Le Traon,

Y., and Mottu, J. (2010). Barriers to systematic model

transformation testing. Comm. ACM, 53(6):139–143.

ezivin, J., Brunette, C., Chevrel, R., Jouault, F., and

Kurtev, I. (2005). Bridging the generic modeling en-

vironment (GME) and the Eclipse modeling framework

(EMF). In OOPSLA.

Brun, C. and Pierantonio, A. (2008). Model differences in

the Eclipse modelling framework. EJIP, pages 29–34.

Kalnins, A., Barzdins, J., and Celms, E. (2005). Model

transformation language MOLA. Model Driven Archi-

tecture, pages 900–915.

Kolovos, D. (2009). Establishing correspondences between

models with the Epsilon Comparison Language. In

MDAFA, pages 146–157. Springer.

Kolovos, D., Paige, R., and Polack, F. (2006). Model com-

parison: a foundation for model composition and model

transformation testing. In IWGIMM, pages 13–20. ACM.

Lin, Y., Gray, J., and Jouault, F. (2007). DSMDiff: a

differentiation tool for domain-speciﬁc models. EJIS,

16(4):349–361.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

310

Lin, Y., Zhang, J., and Gray, J. (2005). A testing framework

for model transformations. MDSD, pages 219–236.

Mazanek, S. and Rutetzki, C. (2011). On the importance

of model comparison tools for the automatic evaluation

of the correctness of model transformations. In IWMCP,

pages 12–15. ACM.

Mottu, J., Baudry, B., and Traon, Y. (2008). Model transfor-

mation testing: oracle issue. In IWSTVV, pages 105–112.

Reiter, T., Altmanninger, K., Bergmayr, A., Schwinger,

W., and Kotsis, G. (2007). Models in conﬂict-detection

of semantic conﬂicts in model-based development. In

WMDEIS, pages 29–40.

Rose, L., Kolovos, D., Paige, R., and Polack, F. (2010a).

Model migration with epsilon ﬂock. TPMT, pages 184–

198.

Rose, L. M., Kolovos, D. S., Paige, R. F., and Polack, F. A.

(2010b). Model migration case for TTC 2010. In Trans-

formation Tool Contest 2010, pages 1–6.

Selim, G., Cordy, J. R., and Dingel, J. (2012). Model trans-

formation testing: The state of the art. In AMT, page 6

pp.

Sen, S., Baudry, B., and Mottu, J. (2009). Automatic model

generation strategies for model transformation testing.

Theory and Practice of Model Transformations, pages

148–164.

Sendall, S. and Kozaczynski, W. (2003). Model transfor-

mation: The heart and soul of model-driven software de-

velopment. IEEE Software, 20(5):42–45.

Stephan, M. and Cordy, J. R. (2012). A survey of methods

and applications of model comparison. Technical report,

Queen’s University. TR. 2011-582 Rev. 2.

Stephan, M. and Cordy, J. R. (2013). A survey of model

comparison approaches and applications. In Model-

sward. to appear.

ApplicationofModelComparisonTechniquestoModelTransformationTesting

311
