Energy Analysis of a Real-time Multiprocessor Control of Idle States

Jabran Khan, Sébastien Bilavarn, Khurram Bhatti and Cécile Belleudy

Laboratoire d'Electronique, Antennes et Télécommunication, Université de Nice, Sophia Antipolis, France

Keywords: Linux, Low Power, DPM.

Abstract: This paper focuses on the analysis of a dynamic low power switching technique called assertive dynamic

power management (AsDPM) on ARM based platforms. The availability of ready tasks during the

execution of a program is random. The choice to when exactly a ready task is executed on certain processor

and how many processors are required for the remaining tasks can save a significant amount of energy

utilization. This paper focuses on the energy efficiency of AsDPM strategy for real-time tasks, which

decides when exactly a ready task shall execute; thereby reducing the number of active processors, which

eventually reduces energy consumption. We will analyze the energy gains resulting from the

implementation of this AsDPM power strategy for different ARM based multiprocessor platforms

(ARM1176JZF-S, CortexA9). Results show significant amounts of gains up to 60% for different execution

conditions*.

1 INTRODUCTION

As applications are becoming more and more

complex, processing power is continuously

increasing having a significant impact on embedded

device battery life. The battery technology has not

been able to match the advancement race in modern

hardware devices, therefore puts more burden on

implementation of new algorithms to cope with the

demand. Dynamic power switching (DPS) that is the

selective shutdown of system components that are

idle or underutilized, has proven to be an effective

technique for reducing power dissipation in such

scenarios.

This paper presents a power optimization study

for real-time embedded applications on ARM based

platforms. Our goal is to implement a power

management strategy on real development platforms

in order to analyze and evaluate its operational

behaviour. The work will mainly focus on finding

out the conditions for energy gains for different

platforms. An assertive dynamic power management

(AsDPM) technique proposed by (Bhatti, 2009) is

shown to be able to bring significant energy savings,

while satisfying real time constraints for different

applications. In this paper, we analyze the potential

of AsDPM across different platforms based on

recent generations of ARM processors. The

availability to monitor the actual core power

consumption inspired us to use the ARM based

platforms in our work. We will also analyze the

AsDPM strategy in different platform configurations

(i.e. 2, 3 and 4 processors), to observe the efficiency

of the strategy in a real multiprocessor environment.

The paper addresses these issues in the following

manner. Section 2 state previous work and

investigation efforts in energy and power

management. Section 3 is divided into three parts;

Section 3.1 explains briefly the AsDPM strategy and

test applications used for the experiments, Section

3.2 puts light on different platforms used (i.e.

ARM1176JZf-S, QEMU) and Section 3.3 focuses on

the implementation of AsDPM on these platforms.

In section 4, we detail the results and analyze the

conditions of energy gains based on real measures

and in section 5 we present our conclusions and

future perspectives.

2 STATE OF ART

Research has been focused on estimating power and

energy consumption using system level events

This work is carried out under the COMCAS project (CA501), a project labeled within the framework of CATRENE, the EUREKA

cluster for Application and Technology Research in Europe on NanoElectronics.

125

Khan J., Bilavarn S., Bhatti K. and Belleudy C..

Energy Analysis of a Real-time Multiprocessor Control of Idle States.

DOI: 10.5220/0004314001250130

In Proceedings of the 3rd International Conference on Pervasive Embedded Computing and Communication Systems (PECCS-2013), pages 125-130

ISBN: 978-989-8565-43-3

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

(Joseph and Martonosi, 2001), event counters

(Benini et al., 1998) or at the instruction level

(Tiwari, 1994). However, allowing OS and related

software to gain control over power is really gaining

more and more interest these days, as energy

reduction is one of the prime concerns in embedded

systems. At the processor level, two popular

techniques are mainly employed: Dynamic Power

Switching (DPS) to switch off the power supply of a

part of the circuit (Benini et al., 2000), and Dynamic

Voltage and Frequency Scaling (DVFS) to tune a

processor clock speed and its corresponding voltage

according to the requirements such as the workload

(expected or actual) or the battery charge. Usually,

the techniques based on DVFS are widely used to

reduce power and energy consumption while DPS is

used to solve thermal dissipation problems (Yang et

al. 2009). (Benini and Micheli, 1997), as well as

(Irani, Shukla and Gupta, 2003) have presented

research on evaluating DPS techniques at processor

level. Similarly, (Hwang and Wu, 2001) used a

regressive analysis of the running tracks that rely on

task activity prediction, to put hardware in sleep

mode when possible.

Microprocessor manufacturers have provided

different solutions to make use of the DPS and

DVFS techniques. For example, (ARM, 2006)

provided a policy manager called Intelligent Energy

Manager (IEM), which handle system configuration

according to the actual and/or predicted workload.

(Intel, 2004) proposed a similar technology

Enhanced Intel SpeedStep (EIST), that is integrated

in the Pentium M-series processors to manage

power. A variety of power management strategies

are also available today in popular operating systems

to control the power consumption of the CPU and its

devices. For example Linux OS, by the help of

ACPI, provides governors to use DPS and DVFS

techniques. Similarly in Windows OS, we have

different schemes (Max Battery, Performance, etc.)

to manage power and energy, with the help of ACPI.

These strategies have an advantage of being

applicable in all cases (general purpose), but the

drawback is probably a certain level of inefficiency.

Most of these strategies are defined on the basis of

overall workload on which their efficiency varies.

However, there are very few techniques that provide

power management within an application while it is

executing.

The use of application specific power

management strategy provides an extra room for

power management by utilizing the idle time more

efficiently. (Cheng and Goddard, 2006) showed that

DPS techniques achieve energy conservation in

embedded computing systems by selectively putting

its components into power-efficient states, sufficient

to meet functional requirements. In our work, we

will implement a DPS based AsDPM technique, that

mainly considers the processors for power and

energy consumption, during execution of a certain

application. It works on the principle of admission

control for ready tasks by delaying the execution of

ready tasks as much as possible. This controls the

maximum number of active/running processors in

the system at any time instant. Next section details

the implementation of this technique.

3 AsDPM IMPLEMENTATION

In this section, we describe a real implementation of

a power management strategy called AsDPM for

multiprocessor low power scheduling. With this

implementation, experiments and simulations have

been carried out with mainly two objectives in mind.

(a) To compare the efficiency and behavior of our

real ARM1176JZF-S platform with the virtual

QEMU_ARM1176 platform, (b) To implement our

strategy on multiprocessor platforms to verify the

feasibility and correctness of our AsDPM strategy

on different multi-core platforms.

3.1 AsDPM Strategy and Test

Applications

AsDPM strategy is DPS based power strategy in

which the number of processors to use, depends

upon the amount of remaining tasks and their

deadlines. AsDPM technique exploits the idle time

intervals within an application. Conventional DPS

techniques can exploit idle intervals only once they

occur on a processor. Upon detecting idle time

intervals, these techniques decide whether to

transition target processor(s) to power-eﬃcient state.

AsDPM technique, on the other hand, aggressively

extracts most of the idle time intervals from some

processors and clusters them on some other

processors of the platform to elongate the duration

of idle time.

At every scheduling event, the strategy performs

a test of whether the remaining tasks to be executed

are schedulable on either one processor, two or more

processors. The required numbers of processors for

the remaining tasks are calculated based on this test.

Afterwards the highest priority task using EDF

scheduler (having shortest deadline) is allocated to

the first processor and so on. If system requires only

one processor, the second highest priority task is

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

126

executed on the same processor after finishing the

first one. If system requires two processors, the first

higher priority task is executed on the first

processor, the second priority task on second and

similarly the process goes on until the completion of

the remaining tasks. By this way we execute our

program on the least number of processors required,

hence minimizing the energy utilization. At the end

as higher priority tasks finish earlier, meaning the

one on processor one will complete earlier.

Therefore when a scheduling event occurs, the task

on second processor is moved to the first processor

for its completion. Hence we minimize the total

number of needed processors after each scheduling

event as well as at the end.

To evaluate AsDPM strategy in the real

implementation world, we have used four test

applications and three different platform

configurations. Example.1 and the video encoder

H.264 example consists of four tasks running on two

processor configuration. Example.3 contains six

tasks to be executed on three processors and

Example.4 contains eight tasks and needs four

processors. We used an ARM1176JZF-S based real

platform and two QEMU (Gligor et al., 2010) based

virtual platforms to test the scheduler. However the

virtual platforms should not be confused with high

level application simulators. The QEMU based

virtual platforms used in our work are provided by

our COMCAS project partners TIMA labs. The

virtual platforms (QEMU_ARM1176 and

QEMU_CortexA9) performance and functionalities

match to those of the real hardware platform

baseboards.

3.2 Platforms used

We have used in total three platforms to study the

energy behavior of AsDPM. The first one is a real

ARM1176JZF-S platform and the two others are

QEMU based virtual platforms: one composed of

ARM1176 processors and other of CortexA9

processors. We used the virtual platforms due to the

unavailability of platforms supporting multi-core

execution and processor power measurement

features at the same time. The latest embedded

Linux (2.6.33) is used as an operating system for the

platforms. The programs are compiled using the

code sorcery cross compiler for the target platforms.

The code is compatible on both real hardware and

virtual platforms. Similarly it can be used and run by

any other platform using Linux OS by cross

compiling for that specific platform. However such

systems (Laptops, PCs etc.) do not allow access to

the real time processor power utilization (energy

consumption could not analyzed).

To evaluate our strategy, we first experimented

an EDF scheduler using a mono-processor platform

with power measurement facilities (ARM1176JZF-

S) in order to compare with an identical virtual

platform, and to quantify the accuracy of QEMU

power estimations. Afterwards, we used two virtual

platforms in multi-core configurations (ARM1176,

CortexA9) to evaluate the energy gains in multi-core

execution scenarios. We will analyze and compare

the percentage energy gains with and without our

strategy implementations. As an illustration the

energy consumed by our applications using EDF

scheduler is compared with the energy consumed by

the applications with our AsDPM strategy.

3.2.1 ARM1176JZF-S

The platform baseboard PB ARM1176JZF-S

contains an ARM1176JZF-S core and a Virtex-4

XC4VLX40 FPGA. It also contains the Intelligent

Energy management (IEM) technology which is in

charge of controlling the power supply. The

platform baseboard also contains the main memory

system i.e. 128MB of 3bit wide Mobile DDR RAM,

8MB of 32-bit PSRAM and two 64MB of 32-bit

NOR flash, bus control (AMBA AXI) and other

peripherals with their controllers (implemented on

the FPGA). The ARM1176JZF-S processor has a

maximum frequency of 265 MHz It also contains

built-in registers connected directly to processor to

monitor core current and voltage hence the power

consumption of the main core. A Linux driver has

been developed in order to poll these registers at

regular interval of times and provide reliable power

consumption profiles.

3.2.2 QEMU Platforms

QEMU is a generic and open source machine

emulator and Virtualizer. When used as a machine

emulator, QEMU can run the OS and programs

made for one machine (e.g. on PC) on a different

machine (e.g. an ARM board). In our case, we have

two virtual platform configurations namely

QEMU_ARM1176 and QEMU_CortexA9.

QEMU_ARM1176 matches the specifications of a

real ARM1176JZF-S platform whereas

QEMU_CortexA9 matches the specifications of the

ARM CortexA9 platform. The processor frequency

along with the corresponding power levels with and

without load are shown in Table 1. These values

have been derived directly from the real measures on

an ARM1176JZF-S PB and on a Snowball platform

EnergyAnalysisofaReal-timeMultiprocessorControlofIdleStates

127

with Dual Cortex A9 (ST-Ericson, 2011). The

differences in power consumption, shown in table 1,

also affect the energy consumption by the platforms.

The platform characteristics plays an important role

in overall energy gains as discussed in detail by

(Khan and Bilavarn, 2012).

Table 1: Power consumption for QEMU_ARM1176 and

QEMU_CortexA9 platforms.

QEMU Frequency Power (No Load) Power (Load)

Platforms MHz mWatt mWatt

ARM1176 265 252 330

CortexA9 1000 90 320

The availability of the Linux CPUIdle governor

allows DPS switching in ARM1176JZF-S platform,

however, QEMU platforms allows DPS and power

consumption estimates using its own customizable

drivers. We have thus developed a control driver

PM_Driver to change the required processor state to

our desired level (i.e. Idle, Sleep, Running) and

PM_Monitor driver to monitor power and energy. A

test example is executed on both real ARM1176JZF-

S and QEMU_ARM1176 platform before

implementing the AsDPM strategy in a multi-

processor configuration. The example application is

similar to those used for analyzing the AsDPM

strategy later on. The actual execution (AET) of the

test example was changed from best case to worst

case. The energy and timing results for both

platforms are summarized in Table 2.

Table 2: Energy and Performance Analysis of real

ARM1176JFZ-S and QEMU_ARM1176 platform.

AET

Energy Time Power % Error

mJ ms mW Energy Time

Conf 1 2730.72 309.99 8.809

0.31 0.034

2722.29 308.93 8.812

Conf 2 2792.58 317.05 8.808

0.31 0.034

2783.96 315.96 8.811

Conf 3 2801.42 318.05 8.808

0.31 0.023

2792.77 317.00 8.810

Conf 4 2810.25 319.02 8.809

0.31 0.023

2801.58 317.96 8.811

Conf 5 2819.09 309.99 8.810

0.31 0.011

2810.39 318.96 8.811

Analysis proved that both the platforms showed

similar behavior in terms of energy consumption and

performance. There was a negligible error of 0.03%

in timing analysis. Similarly, the energy consumed

was also similar on both platforms with an error or

0.31% (8 to 10 milli joules that can be neglected).

3.3 AsDPM Implementation and

Energy Measurements

In order to implement the AsDPM strategy on the

considered platforms, a PM_Scheduler program

(containing AsDPM strategy) is loaded to the

platforms. The drivers to choose between different

power C-states and to monitor power and measure

energy are also loaded at the start of this program.

The PM_Monitor driver was also able to measure

the instantaneous power consumption and the mean

power between two defined points (i.e. from the start

of simulation to end). Consequently it can also

derive the corresponding energy consumption. When

the entire execution of the test application (i.e.

Example.1, 2, 3 or H264 encoder etc.) is completed,

the power management program PM_scheduler calls

the PM_Monitor driver to stop and return the mean

power and energy by the processor(s) to the console.

The measured values are stored in a file for future

analysis.

To experiment with the AsDPM strategy, we will

first implement three test examples (Example.1,

Example.2 and Example.3) in order to analyze the

energy and application behavior in different multi-

core configuration (2, 3 and 4 processors).

Afterwards we will use the H.264 encoder examples

on both platforms in order to measure and analyze

energy gains for the video encoder. The examples

used are based on the algorithm defined by (Bhatti,

2009). In our work, we focus on analyzing the

behavior of the AsDPM strategy on different

platforms, the parameters affecting the energy gain,

and compatibility with different multi-core

configurations. Therefore we will not detail the

example structure in our work. However some of the

application parameters are listed on which the

energy gain depends like worst case execution time

(WCET), Actual execution time (AET), Best case

execution time (BCET) etc. We have used variable

length example applications as the total execution

time does not affect the overall energy consumption.

4 RESULTS

We started implementing our examples on both

QEMU_ARM1176 and QEMU_CortexA9 platforms

by varying our actual execution time (AET) from

best case execution time (BCET) to worst case

execution time WCET. By this means, we can have

a range of minimum and maximum energy gains for

our strategy. In Example.1, the tasks are defined in

such a way that the first two tasks are parallel and

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

128

the third and fourth tasks are randomly chosen. By

this way the Example.1 requires two processors for

execution at the beginning. Afterwards the

PM_Scheduler takes the decision of either using one

or two processors for the remaining tasks by

minimizing the number of processors. The

percentage energy gain with and without our

AsDPM strategy is shown in Figure 1 for both

platforms. Figure 1, shows the results of the

implementations of Example.1 on both

QEMU_ARM1176 and QEMU_CortexA9

platforms. The energy gains are between 24.88% to

34.67% for QEMU_ARM1176 and 12.58% to

28.11% for QEMU_CortexA9 platform.

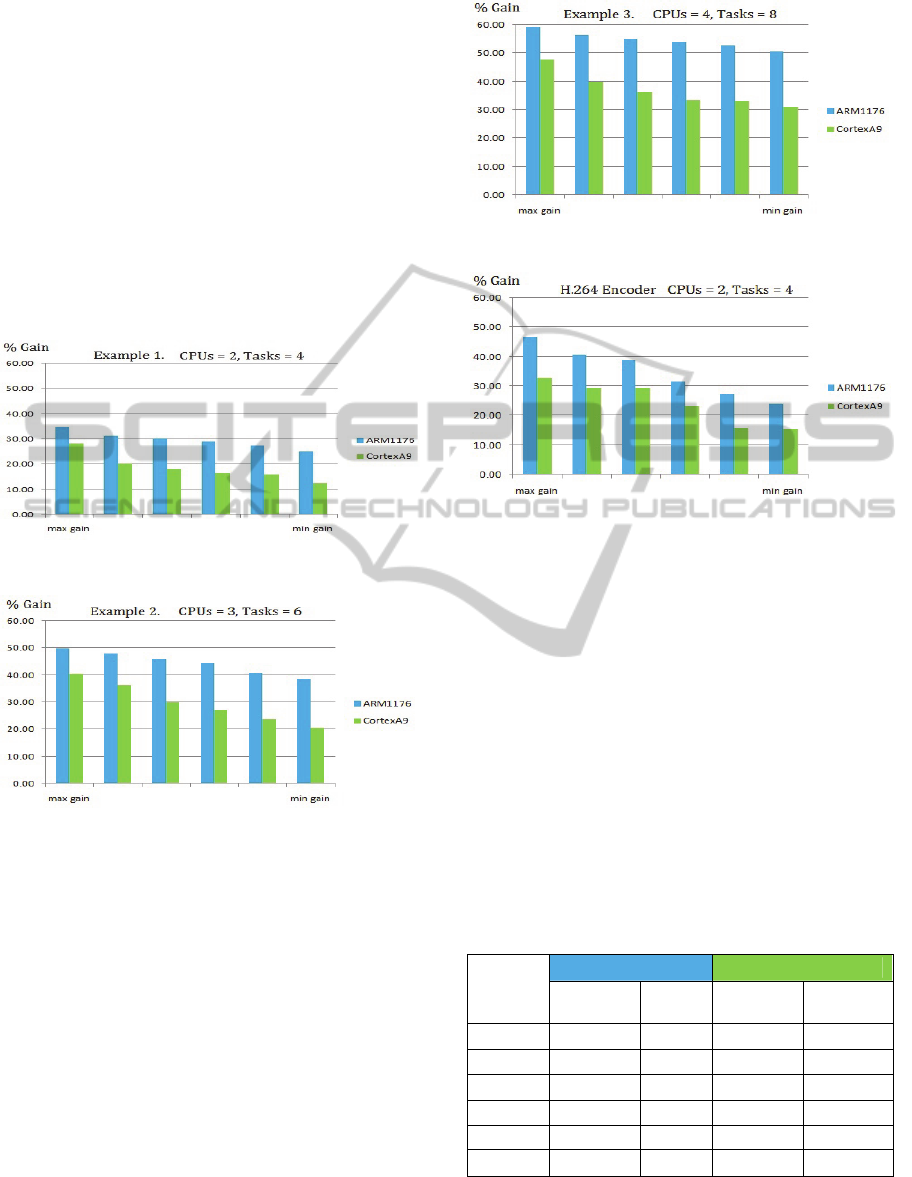

Figure 1: Percentage Energy gain for Example 1.

Figure 2: Percentage Energy gain of Example 2.

Figure 2 shows the energy gain of Example.2 for

both platforms. It consists of 6 tasks executed on

platform configuration having three processors.

Results show energy gains ranging between 38.65%

to 49.88% for QEMU_ARM1176 and between

20.51% to 40.55% for QEMU_CortexA9 platform.

Similarly, figure 3 shows results of Example.3

having eight tasks implemented on platform having

four processors. Percentage energy gain ranges

between 50.64% to 59.18% for QEMU_ARM1176

and between 30.95% to 47.69% for

QEMU_CortexA9 platform. We have therefore

shown the compatibility of AsDPM strategy for

different multi-core scenarios (up to 4 processors).

The results provided significant energy gains as

well.

Figure 3: Percentage Energy gain of Example 3.

Figure 4: Percentage Energy gain of H.264 Encoder.

In Figure 4, savings for an H.264 encoder

containing four tasks implemented on two processor

configuration is shown. The percentage energy

energy gain ranges between 24.05% to 46.73% for

QEMU_ARM1176 platform and 15.32% to 32.72%

for QEMU_CortexA9 platform.

It should be noted that the percentage energy

gains are higher in case of QEMU_ARM1176

platform in comparison to QEMU_CortexA9

platform. The reason is related to the operating

points of the ARM1176 core (Idle vs. Load power

level). Table 3, provides few results obtained by

changing AET for the H.264 encoder example for

both platforms.

Table 3: Energy consumption of H.264 encoder on

QEMU_ARM1176 and QEMU_Cortex A9 Platforms

AET

QEMU_ARM1176 QEMU_CortexA9

Energy

(mJ)

Gain

Energy

(mJ)

% Gain

Conf 1 7350.12 5080.23

3915.76 46.73 3417.94 32.72

Conf 2 7866.55 5746.56

4660.13 40.76 4052.16 29.49

Conf 3 8022.68 6461.38

6092.99 24.05 5471.44 15.32

Results show the total energy consumed by the

H.264 encoder example, with and without the

EnergyAnalysisofaReal-timeMultiprocessorControlofIdleStates

129

AsDPM strategy. QEMU_ARM1176 consumes

more power while the processor is in running state

whereas QEMU_CortexA9 consumes much less

power (Table 1). The difference between load power

and idle power of both platforms explains the

differences in percentage energy gains. If a

processor on one platform consumes more power

while executing certain application than on another,

it will provide more power savings when it is idle as

shown in Table 3. However in terms of total energy

consumption by an application, the QEMU_Cortex

platform is more efficient. As an illustration, the

total energy consumption of H.264 Encoder for

QEMU_ARM1176 with and without AsDPM

strategy is 6.62 Joules and 8.02 Joules respectively.

However the same energy consumption for

QEMU_CortexA9 platform was 5.7Joules and 6.2

Joules (much lower due to efficient platform).

5 CONCLUSIONS AND FUTURE

PERSPECTIVES

We have presented and analyzed the effectiveness of

a DPS based AsDPM power strategy on different

applications (including video encoding) for different

ARM based platforms. We have also validated the

execution of the real ARM1176JZF-S platform with

our virtual QEMU_ARM1176 platform. The results

show the same behavior on both platforms having a

negligible deviation of 0.03% of time and 0.31%

(few milli-joules) for energy consumption. We have

also shown that our strategy is compatible with

different configuration of multi-core platforms (i.e.

QEMU_ARM1176 and QEMU_CortexA9) and

provided significant energy gains ranging between

minimum gains of 12.58% to a maximum gain of

60% under different operating conditions. Using the

virtual platform, we have thus explored the

efficiency of the DPS strategy for different

applications implemented under several platform

configurations (2, 3 and 4 processors). The power

strategy provides gain that ranges up to 60%

depending upon the different values of the actual

execution time as well as the number of processors.

Other perspectives of this work are to implement

and study power strategies like presented by (Khan,

2012) and (Chéour, 2011) on real hardware

platforms boards like the ARM1176JZF-S and the

ARM11 CortexA9 in order to explore their

effectiveness in the real development world.

REFERENCES

M. K. Bhatti, M. Farooq, C. Belleudy, M. Auguin,

O.Mbarek, 2009, "AsDPM strategy for globally

scheduled RT multiprocessor systems", In proceedings

of 19th international conference of ICSD,PATMOS'09.

R. Joseph, M.Martonosi, 2001, “Runtime Power

Estimation in High Performance Microprocessors”,

Symposium on Low Power Electronics and Design.

L. Benini, A. Bogliolo, and G. De Micheli, 1998,

“Monitoring system activity of OS-directed dynamic

power management”, International Symposium on

Low Power Electronics and Design.

V. Tiwari, S. Malik, and A. Wolfe, 1994, “Power analysis

of embedded software: a first step towards software

power minimization”, IEEE Transactions on Very

Large Scale Integration (VLSI) systems.

L. Benini, G. De Michelli, 2000, “A survey of Design

Techniques for System-Level DPM”, IEEE

Transactions on VLSI systems, Vol.8, No.3.

C. Y. Yang, J. J. Chen, T. W. Kuo, L. Thiele, 2009, “An

Approximation Scheme for Energy-Efficient

Scheduling of Real-Time Tasks in Heterogeneous

Multiprocessor Systems”, DATE '09.

L. Benini and G. De Micheli, 1997, “Dynamic Power

Management: Design Techniques and CAD Tools”,

Springer; 1st edition.

S. Irani, S. K. Shukla, and R. K. Gupta, 2003, “Online

strategies for DPM in systems with multiple power-

saving states”. ACM Trans. Embed. Syst.

C. H. Hwang, A.C-H.Wu, 2001, “A predictive system

shutdown method for energy saving of event driven

Computation”, In proceedings of TODAES’01.

ARM, 2006, “Intelligent Energy Manager (IEM) in the

ARM1176JZF-S Development Chip. Application Note

172. http://infocenter.arm.com.

INTEL, 2004, Enhanced Intel Speed Step (EIST) for multi-

core processors with unified Level 2 cache.

http://www.intel.com/support/processors.

H. Cheng and S. Goddard, 2006, “Online energy-aware i/o

device scheduling for hard real-time systems”, In

proceedings of DATE ’06, Belgium.

M. Gligor, N. Fournel, F. Pétrot, F. Colas-bigey, A.M.

Fouilliart, P.Teninge, M.Copolla, 2010, “Practical

Design space exploration of Handheld devices using

Virtual Platform”, Lecture notes in CS; Vol

5953/2010.

ST-Erricson, 2011, “Hardware Reference Manual SKY-

S9500-ULP-CXX” (aka Snowball PDK-SDK),

Revision 1.0.

J. Khan, S.Bilavarn, C. Belleudy, 2012, “Impact of

Operating Points on DVFS Power Managemeng”, in

International conference DTIS’12), Tunisia.

J. Khan, S. Bilavarn, C.Belleudy, 2012, "Energy analysis

of a DVFS based power strategy on ARM platforms"

in 11th IEEE conference FTFC, Paris France.

R. Chéour, S. Bilavarn, M. Abid, 2011, “Exploitation of

the EDF scheduling in the wireless sensors networks”,

Measurement Science Technology Journal (IOP),

Special Issue: Devices, Signals and Materials.

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

130
