Making Task Models and Dialog Graphs Suitable for Generating

Assistive and Adaptable User Interfaces for Smart Environments

Michael Zaki and Peter Forbrig

Department of Computer Science, Rostock University, Albert-Einstein Str.22, Rostock, Germany

Keywords:

Smart Meeting Room, Explicit Interaction, Implicit Interaction, Assistive User Interface, Task Model, Dialog

Graph, Activity Pattern, HCI Pattern, User Proﬁle.

Abstract:

Nowadays smart environments are gaining special attention among the various ubiquitous computing environ-

ment types. The main tenet of a given smart environment is to deliver proper assistance to the resident users

while performing their daily life tasks. The environment aims to implicitly infer the user’s intention and based

on that information, it offers the optimal feasible assistance which helps the user performing his/her task. Task

models seem to be a convenient starting point for developing applications for those environments, as they give

the developer the opportunity to focus on the user tasks to be assisted. Already existing approaches offer so-

lutions to make the transition between task models and the ﬁnal user interfaces. However, smart environments

are dynamic environments in which the inclusion of new user or device types is probable. Consequently, an

optimal application to be operated in such an environment is required to consider the extensibility aspect within

its design. Additionally, the implicit interaction technique has to be taken into account. Thus, in this paper we

provide an attempt to include the implicit interaction paradigm within the design of our application as well as

to ensure the extensibility needed to encounter the variation of the surrounding environmental settings.

1 INTRODUCTION

In the last few decades, the topic of smart environ-

ments has become a hot research ﬁeld. A lot of work

has been accomplished by researchers in order to de-

velop prototypes of such environments assisting the

users performing their daily life tasks (e.g. (Das et al.,

2002), (Bobick et al., 1999), (Srivastava et al., 2001)

and (Waibel et al., 2003) ). The notion of smart en-

vironment has been inspired by the work of (Weiser,

1999), when he motivated the idea of ubiquitous com-

puting environments by declaring that “Machines that

ﬁt the human environment instead of forcing humans

to enter theirs will make using a computer as refresh-

ing as taking a walk in the woods”. Afterwards,

(Cook and Das, 2004) deﬁned the term “smart envi-

ronment” as a “a small world where different kinds

of smart devices are continuously working to make

inhabitants’ lives more comfortable”. In contrast to

various approaches in the HCI ﬁeld adopting an ex-

plicit user-machine interaction technique, several at-

tempts suggesting an implicit interaction technique

between the user and the hidden application have also

been presented (Schmidt, 2000). Implicit interaction

as deﬁned by Schmidt is “an action, performed by

the user that is not primarily aimed to interact with

a computerized system but which such a system un-

derstands as input”. The main advantage offered by

the implicit interaction paradigm is the application’s

transparency. The resident users do not have to do

extra-tasks in order to ask for assistance (e.g. press-

ing a button on a user interface). Instead, the environ-

ment is equipped with sensors perceiving the user and

the state of the environment, and based on that infor-

mation the system can infer the task being currently

executed by the user and thus acts accordingly. Ac-

cording to (Kirste et al., 2001) the level of smartness

associated to a given environment is measured by its

capability to react to the user’s objectives and not to

pure sensor data.

Despite the many advantages of the implicit inter-

action technique, experiments have shown that users

usually prefer to have control over the system they

are using. The user gets a negative impression about

the application if he/she feels being controlled by the

environment. Moreover, if the system fails to infer

the right intention of the user, then the application

cannot react in the expected way which can be very

distracting for the user. Therefore, getting continuous

feedback from the end user and giving him/her the op-

Zaki M. and Forbrig P..

Making Task Models and Dialog Graphs Suitable for Generating Assistive and Adaptable User Interfaces for Smart Environments.

DOI: 10.5220/0004315100660075

In Proceedings of the 3rd International Conference on Pervasive Embedded Computing and Communication Systems (PECCS-2013), pages 66-75

ISBN: 978-989-8565-43-3

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

portunity to explicitly adjust the system is still highly

desirable. From our point of view, an optimal design

of the application to be operated in a given smart en-

vironment has to satisfy the required equilibration be-

tween the explicit and implicit interaction paradigms.

Such an equilibration enables the minimization of the

burden of performing the tasks without totally taking

the control from the user.

A pre-requisite for developing an application for

smart environments is to analyze the nature of tasks

to be performed by the resident users. Only a thor-

ough understanding of the activities the user wants to

perform and the goal he/she wants to achieve enables

the application designer to provide the proper assis-

tance to be offered for that user. Therefore, task mod-

els seem to be a convenient starting point for the de-

velopment of such an application, since they give the

developer the opportunity to focus on the user’s tasks.

Whereas task models have initially been introduced

as a tool to elicit requirements in the early analysis

stages (Kato and Ogawa, 1993), they are nowadays

considered as an appropriate starting point for inter-

active processes development (Cafﬁau et al., 2007;

Paterno, 2000). Various task model notations exist

(e.g. HTA (Annett and Duncan, 1967), GOMS (Card

et al., 2000), CTT (Patern

o et al., 1997),UAN (Hart-

son and Gray, 1992) ,...etc.). Considering its hierar-

chical structure and its huge set of temporal opera-

tors, CTT has become one of the most widely used

task model notations as it gives the developer the op-

portunity to deﬁne the execution order of the tasks to

be performed.

In the context of our work, we strive to develop

an application to be operated in a smart meeting room

(smart lab in our university). Smart meeting rooms

are a speciﬁc subset of smart environments where the

main goal is the beneﬁcial exchange of information

among the resident users (Nijholt et al., 2004). Sev-

eral requirements have to be fulﬁlled by the desired

application in order to achieve the optimal conceiv-

able assistive system which then leads to the user’s

satisfaction with the environment. Among those re-

quirements, we focus in this paper on two crucial

points: The application’s adaptability and scalability

and also the equilibration between the explicit and the

implicit interaction techniques and the smooth transi-

tion between them. As already discussed, a typical

smart environment is enriched with various devices

and user types which are supposed to cooperate to-

gether in order to achieve a ﬁnal shared team goal.

The application should be capable of providing the

needed assistance for every individual within the en-

vironment. However, the individuals are not identi-

cal and can be categorized according to their personal

characteristics (modality preference, impairment type

(if any), level of expertise,...etc). Moreover, the role

being played by every user determines the range of

possible system interventions. For instance, if we take

the example of a smart meeting room and consider the

simple scenario of having a presentation, it is notice-

able that the assistance to be offered by the room to a

speciﬁc user at a given time ‘t’ depends on this user’s

proﬁle (i.e., personal characteristics), the task he/she

is performing at that time and the platform or device

on which the interface is to be rendered. It is note-

worthy to mention that our ultimate goal is to gen-

erate individualized user interfaces for every actor in

the room. In other words, the view displayed for ev-

ery user to help him/her performing a given task has

to be compatible with this user’s personal preferences

and desires and has also to change whenever he/she

starts to perform another task.

Consequently, the application’s adaptability to the

different user and device types is of great interest if

we aim to achieve a tailored assistance to be offered

for every user within the environment depending on

his/her proﬁle. In the context of our work, we do not

refer to “adaptability” only as the ability of the user

interface to get adapted to the various predeﬁned user

and device categories, but also the application’s ex-

tensibility and its ability to get adjusted according to

emerging factors which were unforseen at the primary

design phase. We aim to minimize the effort needed

by the designer if later on he/she decided to extend

the application to serve a totally new user category or

device type.

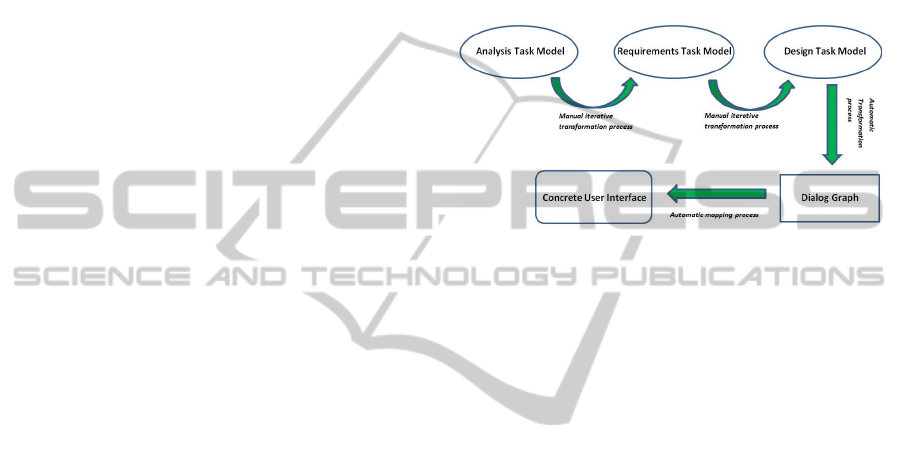

In this paper, we brieﬂy discuss the ﬂow of the de-

velopment of our application for smart meeting rooms

and we propose useful extensions to task models and

dialog graphs (Schlungbaum and Elwert, 1996) in or-

der to make it feasible to achieve an adaptable and

extensible assistive system where a smooth merging

between explicit and implicit interaction techniques

is realized. The paper is structured as follows: In

the next section, previous related approaches and rel-

evant work are being discussed. Section 3 starts

by highlighthing the needed features in task models

and dialog graphs and motivates the extensions which

are then thoroughly explained in subsections 3.1 and

3.2. In those subsections, the application’s adaptabil-

ity and the notion of hybrid interaction technique are

tackled in more details. Afterwards, in section 4 an il-

lustrative example is presented to assimilate the func-

tionality of the assistive application, and also to clar-

ify the contribution of the paper and the beneﬁt gained

out of the suggested extensions. Finally, we conclude

the paper and we summarize the main points we dis-

cussed and the contribution of our work.

MakingTaskModelsandDialogGraphsSuitableforGeneratingAssistiveandAdaptableUserInterfacesforSmart

Environments

2 RELATED WORK

As already mentioned, the usage of task models has

evolved from being just a tool to extract the needed

software requirements to a useful basis on which

the development of interactive user interfaces can

be founded. In the literature, several attempts to

derive ﬁnal user interfaces out of task models ex-

ist (Limbourg and Vanderdonckt, 2003; Wolff and

Forbrig, 2009). In general, those attempts follow

a model-driven development approach. In (Sousa

et al., 2010) the business alignment framework is in-

troduced where the development process starts by a

task model and a supplementary domain model. Af-

terwards an abstract user interface (AUI) is generated

which then should be employed to derive concrete UI

components.

In the context of smart environments, the inter-

action can be divided in explicit or implicit interac-

tion (Sara, 2009). Whereas the above mentioned ap-

proaches are aiming to a ﬁnal user interface where

the tasks should be explicitly triggered by the end

user (explicit interaction), another feasible interaction

technique can be realized by reasoning about the con-

textual data from the surrouding sensors (implicit in-

teraction). According to (Ju and Leifer, 2008) , even if

it is possible to interact using only one of those tech-

niques, both paradigms are needed to implement a ro-

bust and usable system. In Section 3, it is described in

further details how we suggest to design our applica-

tion based on a conceivable merging process between

both interaction paradigms.

The term task can be described as an action the

user performs in order to achieve a desired goal. Task

models in general aim to represent the tasks to be car-

ried out by the user. Being the most used notation

for task models, CTT was prone to several improving

attempts. Initially, CTT distinguished ﬁve task types

namely “abstract”, “user”, “interaction”,‘application”

and “cooperation” tasks. However, several extensions

took place in order to make the notation more suit-

able for speciﬁc purposes. For example, the authors

in (Klug and Kangasharju, 2005) extended the Con-

curTaskTree (CTT) notation to allow the dynamic ex-

ecution of task models. Moreover, in (Bergh and Con-

inx, 2004) an approach extending the CTT notation in

order to integrate the dynamic context within the task-

based design is proposed. As it will be shown in sub-

section 3.1, we also extend the already existing CTT

task types to make the automation of the adaptation

process feasible for our ﬁnal application.

Usually, after the resulting task model of the anal-

ysis phase is modeled, further iterative transformation

processes take place until we reach the most ﬁne-

grained task model in the lowest level of the design

stage where all the technical details of the applica-

tion are deﬁned (Wurdel et al., 2008b). According to

(Wolff et al., 2005), the resulting model can be em-

ployed in addition to other environmental models in

order to derive a dialog graph. The dialog model can

afterwards be transformed to an abstract user inter-

face to be tailored based on the encountered situation

and ﬁnally results in the desired concrete user inter-

face. Fig. 1 illustrates the meta-model of a dialog

graph as it has been introduced by (Wolff and Forbrig,

2009). As it is shown, every dialog graph is composed

of a group of dialog views and transitions between

those views. Only two transition types already exist,

namely the sequential and the concurrent transitions.

Additionally, input and output ports are attached to

the different dialog views. Wheareas a dialog view’s

input port gets the transition from the previous dia-

log view, the output port is responsible to link the

current dialog view to the next one to be displayed.

According to (Luyten et al., 2003) , a dialog model

is deﬁning a sequence of user interactions, or activity

chain that has to be followed to achieve the desired

goal. However, within the existing dialog graphs ap-

proaches, the transition between the views can only

be triggered explicitly when the end user performs a

speciﬁc event. In the context of smart environment

applications, there is an emerging need for the inclu-

sion of the implicit transition possibility in the dialog

models. This aspect is tackled in more details in sub-

section 3.2.

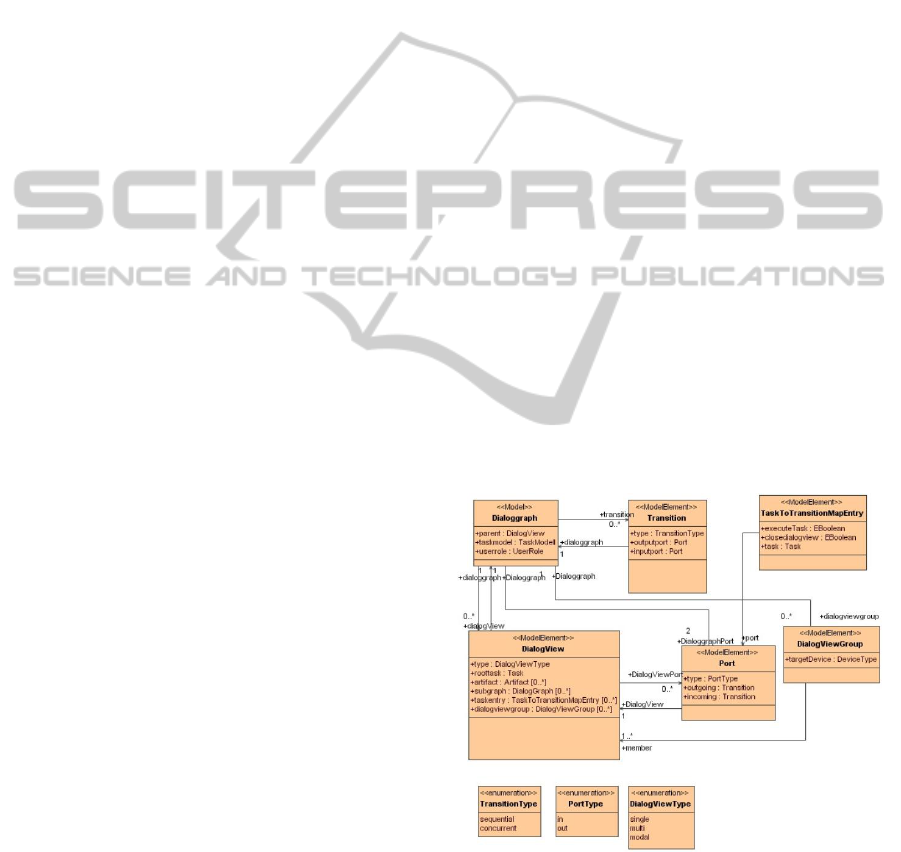

Figure 1: Meta-model of a dialog graph as presented by

Wolff.

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

3 PRACTICAL EXTENSIONS

FOR TASK MODELS AND

DIALOG GRAPHS

First of all, we start by a brief explanation of the inter-

action technique our application aims to realize in the

room. We strive to provide an optimal hybrid interac-

tion technique minimizing the burden on the end user

but still providing him/her the control over the system.

Therefore, our idea is to implicitly infer the role to be

played by every individual in the room, and depend-

ing on his/her role the corresponding assistance is

provided through his/her own user interface. This ap-

proach is better than having a ﬁxed user interface with

all assistance options provided by the room, since our

user interface has the ability to adapt itself according

to the task the user is currently performing and conse-

quently the user is not bothered with a crowded user

interface where a lot of enabled tasks are not relevant

to the goal he/she wants to achieve. In other words,

the room acts neither in a complete implicit way by

providing the assistance required, nor following a to-

tal explicit interaction paradigm where the user has to

specify everything. Instead, the room implicitly infers

the goal the user wants to achieve, and displays only

the relevant supporting tasks from which the user can

take beneﬁt.

As already discussed, the design of a supportive

system for smart environments has to focus on the

tasks the user wants to perform and to follow the user-

centered design guidelines. Therefore, we started our

system’s development process which is captured in

Fig. 2, by analyzing the user’s behavior in our smart

meeting room and collecting information about the

various tasks he/she may want to perform in the con-

text of various scenarios which may take place in such

a room (e.g. conference session, parallel presentation

session, work defense, video session,...etc.). For each

one of those scenarios, various roles have to be played

by the resident actors in order to successfully achieve

the ﬁnal desired common goal. According to (Wurdel

et al., 2008a), approximating the user’s behavior in-

side the room to the role he/she plays is an acceptable

assumption. Thus, we compiled the extracted roles in

the form of task models. Afterwards, we iteratively

convert this model to a design level one by integrat-

ing step by step the assistance the room can provide

for every task to be carried out by the user. Once we

achieve the design level model, a transformation to

dialog graphs describing the logical sequence of tran-

sitions between the different views can take place. Fi-

nally, a simple mapping process of the resulting di-

alog model to ﬁnal UI components is feasible. An

important point to mention is that the transformation

from task models to dialog graphs used to be a task

for the designer as he/she has to decide which tasks

should be included within the same views and how

exactly the transition between all of those views have

to occur. However, as our ultimate goal is to auto-

mate the conversion from the initially compiled task

models to the ﬁnal user interfaces, we follow some

heuristics that are presented in subsection 3.2 in order

to bridge the gap between the task model in the design

level and the corresponding dialog graph.

Figure 2: Our application’s development ﬂow.

Smart environments are dynamic environments in

which the entrance of new device types is probable.

Moreover, the user characteristics have a direct inﬂu-

ence on the way the assistance offered by the room is

about to be displayed to the user. Even if we take the

current conceivable user characteristics into account

while designing our application, new relevant char-

acteristics may be discovered in the future and thus

the application will have to be extended in order to

encompass those new characteristics as well. There-

fore, an optimal solution from our point of view is

to formalize the changes that occur to the tasks in-

ﬂuenced by a given user characteristic in the form of

task patterns abstracting from the speciﬁc context of

use. More details and examples of such a formaliza-

tion are to be discussed in the next subsection. In fact,

the notion of task patterns is not totally new. After the

term “pattern” was initially introduced by (Alexander,

1977) in the domain of urban architecture, patterns

have successfully made their way to the software en-

gineering (Gamma et al., 1995) as well as the HCI

ﬁeld (Borchers, 2001). In their simplest form, task

patterns have been known as “task templates” when

they were ﬁrst presented by Breedvelt in (Breedvelt-

Schouten and Severijns, 1997). Afterwards, several

approaches extending this notion have been suggested

e.g. (Paterno, 2001; Wurdel et al., 2007; Radeke,

2007; Zaki et al., 2011).

In a nutshell, in subsection 3.1, we tackle the ap-

plication’s adaptability issue by suggesting some use-

ful extensions to the CTT notation and presenting our

idea of deﬁning different user characteristics’s effects

MakingTaskModelsandDialogGraphsSuitableforGeneratingAssistiveandAdaptableUserInterfacesforSmart

Environments

on the tasks performance in the format of task pat-

terns. On the other hand, in subsection 3.2, we fur-

ther elaborate the extensions we suggest to the dialog

graph notation to enable the integration of the implicit

interaction paradigm in our development ﬂow of the

application.

3.1 Making Task Models Adaptable to

User Characteristics

No matter how comprehensive the application we de-

sign is in terms of the user characteristics considered,

the environment is always subtle to the inclusion of a

new relevant characteristic or user group type. There-

fore, the application’s extensibility is a crucial fac-

tor to be taken into account. Since the developer can

only consider the already known inﬂuential user char-

acteristics while developing the application, we need

a methodology enabling the inclusion of any given

new aspect which was unforeseen at design time. The

main motivation is to minimize the work and effort

the developer will have to make in order to adjust the

system with respect to the newly introduced aspect.

In our work, we noticed that every speciﬁc user

characteristic (regardeless its type) is affecting the

task model in a systematic way. In other words, any

given characteristic inﬂuences speciﬁc task types (re-

ferring to the CTT notation) and changes them in a

repetitive manner, while other task types remain un-

changeable. To make the point more clear, let us con-

sider the user impairment type criterium. It is note-

worthy to mention that despite the low probability of

having impaired users in a smart meeting room, the

application we develop in our lab should then be gen-

eralized and is supposed to work in other smart envi-

ronment types as well. Smart homes for example are

environments in which the probability of existence of

elderly or impaired people is relatively high. In Fig.

3, a part of the task model at the design level repre-

senting the tasks to be carried out by a default listener

attending a presentation session is depicted. From the

ﬁgure, one can notice that the listener has to sit and

listen to the talk, take his/her own notes and then the

system is going to offer the opportunity to view the

slides of the presentation or even related information

on the user’s own user interface.

How would the model in Fig. 3 look like in case

the user we want to support is suffering from some

hearing problems? In our earlier work in (Zaki and

Forbrig, 2011), we introduced the so-called “user-

oriented accessibility patterns” where some task tem-

plates are suggested and which are supposed to be

manually used by the designer of the application in

case he/she prefers to take impaired people into ac-

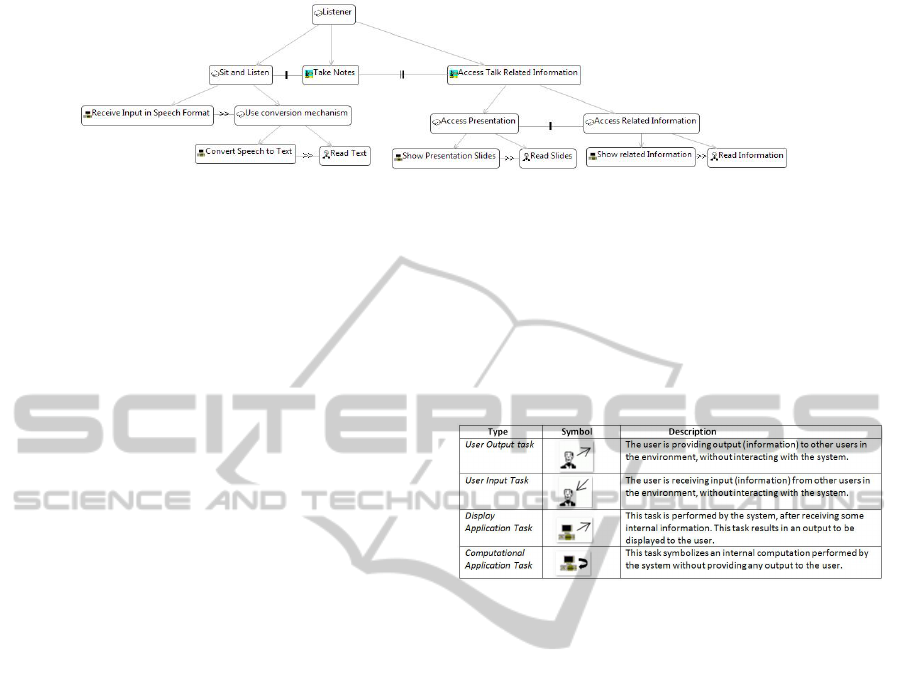

Figure 3: Part of the listener task model in the design level.

count within the design. Brieﬂy, (Zaki and Forbrig,

2011) suggests changing the modality of the informa-

tion from the initial one that the user cannot process

to a new one which can be handled by the impaired

user. This modality conversion is represented using a

task template which can be reused whenever we want

to model the case of a user suffering from the same

problem. Thus, it is possible to represent the user im-

pairment type criterium in the form of one or many

task templates. As an example, the task template to be

employed for replacing a task of type “user” in case

the user is receiving input (information) from the en-

vironment is depicted in Fig. 4.

Figure 4: user-input accessibility pattern.

Moreover, by applying this pattern on the task

model example in Fig. 3, we get the resulting model

in Fig. 5. It is noticeable that only the task “sit and

listen” has been changed while the other tasks remain

the same. This is due to the fact that a deaf user is

able to see the slides, take notes and even browse

the information provided by the assistive user inter-

face without any problems. However, he/she cannot

listen to the presentation and therefore a conversion

mechanism is needed to change the modality of the

information to text (using a software). To summarize,

whenever the developer wants to add a new user char-

acteristic to be considered, he/she will have to deter-

mine which task types (e.g. user, interaction, appli-

cation,...etc.) are affected by the changes and build

a generic task model (task template) to replace those

tasks.

As already mentioned, the main goal of deﬁning

a corresponding task template to be employed for ev-

ery newly introduced user characteristic is to mini-

mize the time and the effort spent by the designer to

integrate a new characteristic. However, to achieve

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

Figure 5: Part of the listener task model in case of a deaf user.

this goal an automation of the transformation process

from task models to ﬁnal user interfaces is manda-

tory. Such automation also guarantees that whenever

the application has to be adjusted to cope with a new

discovered task template or even user characteristic,

the designer will have to make changes only on the

task model level and then the application will be able

to adapt itself accordingly. To achieve the desired au-

tomation, more information about the nature of tasks

is required. (Patern

o et al., 1997) categorizes the tasks

depending on the allocation of their performance. A

pre-requisite for our work is to have more informa-

tion about the tasks included within the task model

which is about to get transformed. The information

we mainly need is related to the effect of this task on

the environment. “Walking from door zone to pre-

sentation zone”, “give talk” and “listen to talk” are

three tasks of the same type “user”. Nevertheless, if

we want to automate the updating process of the ex-

isting task models according to the user impairment

type for example, we must be able to differentiate be-

tween those tasks. The reason is that when the user

walks in the room, only his/her location is changing

but no exchange of information with surrounding en-

vironment is taking place. On the other hand, the user

giving a talk is providing information to the listeners

which are resident entities in the environment. Also

the listeners are getting information from another en-

tity (the presenter) in the environment. Consequently,

if for example the user has some hearing problems,

only the task “listen to talk” has to be replaced by

the new template. As a result, we suggest to sub-

categorize the “user” task type to three distinguish-

able subcategories namely the user task (the one ex-

isting in CTT), the user output task and the user input

task. Similarly, we differentiate between the so-called

“display application task” which is an application task

displaying output to the user, and the “computational

application task” which is for internal processing and

computing. In Fig. 6, the new task types are pre-

sented. We built task models for the user’s activity

patterns we extracted in the analysis phase and we

used the new task types since that stage. In that way,

we are able to adapt our task models to any new in-

cident or criterium by just deﬁning through a wizard

the task types that are affected by the changes and the

corresponding template to replace those tasks. After-

wards, the user interface is automatically adapted to

consider the desired case. An example of a task model

where the new suggested task types are employed is

presented in the context of the system’s application

example discussed in section 4.

Figure 6: Introduced CTT task types.

3.2 Making Dialog Graphs Suitable for

Implicit Interaction

As already discussed, dialog graphs (Schlungbaum

and Elwert, 1996) are an efﬁcient way to illustrate

the logical ﬂow of the application in an abstract way.

They give the developer an overview of the different

views which are about to be displayed to the user and

the way the transition between those views is going

to take place. Thus, the developer is provided with a

comprehensive idea about the user-application inter-

action means.

For the design of our application, such a graph is

of great interest. However, those dialog models have

been usually employed in the context of interactive

applications where the transition among the views is

supposed to occur due to an explicit intervention by

the user (e.g. pressing a button, asking for a ser-

vice,...etc.). Therefore, only two transition types exist

namely the “sequential transition” referring to a tran-

sition from one view to another, where the initial view

disappears, and the “concurrent transition” indicating

a transition from one view to another where the initial

view remains visible but inactive.

Since we want to make it feasible to automati-

cally change the views when the room infers that a

MakingTaskModelsandDialogGraphsSuitableforGeneratingAssistiveandAdaptableUserInterfacesforSmart

Environments

given environmental condition is met (e.g. the user

changes his position), new transition types enabling

such an implicit migration between the views is re-

quired. Consequently, in addition to the already exist-

ing explicit transitions, namely “sequential transition”

and “concurrent transition”, we introduce two new

transition types namely the “implicit sequential tran-

sition” and the “implicit concurrent transition” which

are depicted in Fig. 7.

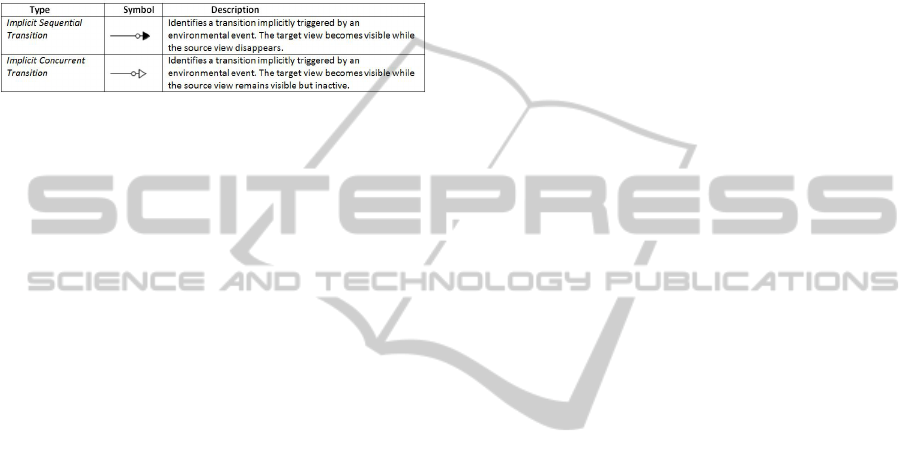

Figure 7: Implicit dialog graph transitions.

From the above ﬁgure, it is noticed that the “im-

plicit sequential transition” is identiﬁed by the empty

ellipse and coloured triangle, while the “implicit con-

current transition” is symbolized by an empty ellipse

and empty triangle. An example of a dialog graph

where the new suggested transition types are em-

ployed is presented in the context of the system’s ap-

plication example discussed in the next section.

Another pre-requisite for automating the whole

process is to automate the conversion of task mod-

els to dialog graphs. Nevertheless, this conversion

has to be guided by well-deﬁned rules to guarantee an

optimal distribution of the tasks (extracted from the

task model) into the various dialog views construct-

ing the resulting dialog graph. For that purpose, we

take advantage of the heuristics provided by (Paterno

and Santoro, 2002) as well as new suggested guide-

lines in order to seamlessly derive the desired dialog

graphs out of the existing task models.

In a nutshell, we start by collecting the so-called

enabled task sets (ETS). An ETS is deﬁned in (Pa-

terno, 2000) to be “ a set of tasks that are logically

enabled to start their performance during the same

period of time”.

Afterwards, heuristics are followed in order to

minimize the number of ETSs gathered. We accom-

plish that by merging some of the resulting ETSs

which are semantically related and thus can be pre-

sented together within the same dialog view. This

merging process forms sets of ETSs, namely Task

Sets (Paterno and Santoro, 2002). In the following,

the guidelines and heuristics controlling the conver-

sion process to the desired dialog graphs are provided

(From 1 to 4 are the heuristics adopted from (Paterno

and Santoro, 2002), while our new suggested heuris-

tics are from 5 to 9):

1. If two ETSs differ for only one element, and those

elements are at the same level connected with an

enabling operator, they could be joined together

with the ordering operator.

2. If an ETS is composed of just one element, it

should be joined with another ETS that shares

some semantic feature.

3. If some ETSs share most elements, they could be

uniﬁed.

4. If there is an exchange of information between

two tasks, they can be put in the same ETS in or-

der to highlight such data transfer.

5. The “user tasks” are not taken into account on

the views, as no visualization of such tasks is re-

quired.

6. Concerning the application tasks, the “display ap-

plication task” results in an object to be displayed,

and thus it should be considered in the view. How-

ever, a “computational application task” is ig-

nored and removed from the ETS.

7. In order to keep a view even after making a transi-

tion to a subsequent one, we have to use a concur-

rent transition and an “exit” task should be added

to the initial view in order to ensure a possible exit

out of that view.

8. If we have one of the enabled sets having only one

“user task”, then this means that this enable set

results in an implicit transition between the previ-

ous view and the next one and the transition takes

place at runtime whenever the post-condition of

the user task is realized.

9. If within the ETS there are redundant tasks, then

we represent the parent tasks within one view so

that the user chooses between the parent tasks and

get redirected to new views were no redundant

tasks exist.

4 APPLICATION EXAMPLE

In this section, we provide a very brief walkthrough

of our application where we highlight the contribution

of the extensions we made for task models and dialog

graphs. Let us assume we have a conference session

to be held in a smart meeting room. The conference

session case is one of the main cases we covered. We

extracted for that case the corresponding task patterns

for all roles which may take place. For the sake of

brevity, we only focus here on the role “presenter”.

After collecting the tasks a presenter has to per-

form in the context of a conference session, we itera-

tively reﬁne this model until we reach the design level.

Due to the lack of space, only a part of the resulting

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

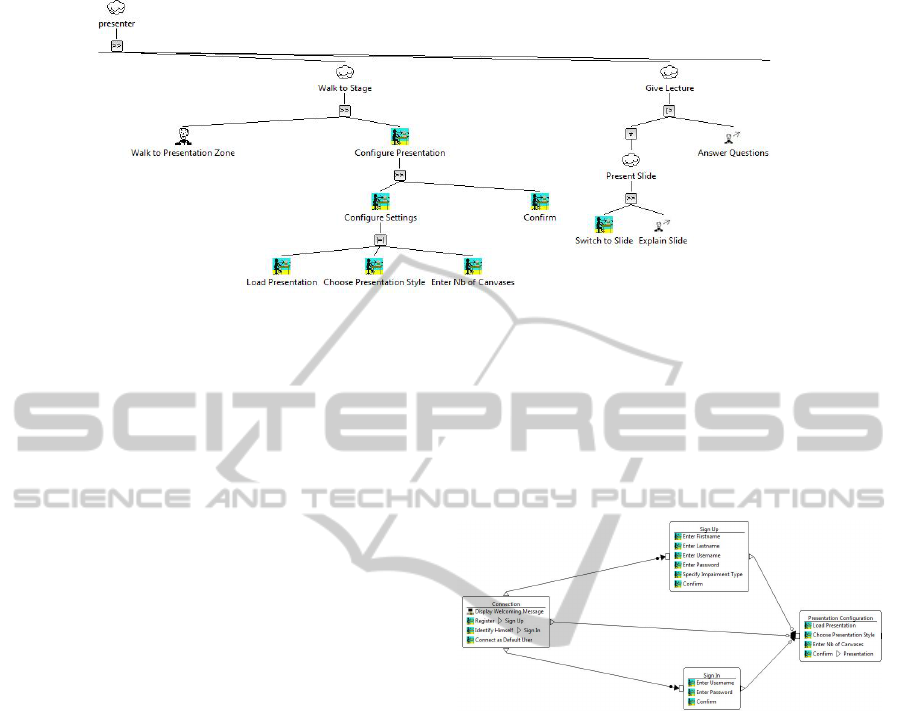

Figure 8: A part of the presenter task model in the design level.

model in the design level is illustrated in Fig.8. We

employ the editor developed by (Wolff et al., 2005)

to create the task models and dialog graphs presented

within the example. The ﬁgure above depicts only

two of the tasks which are carried out by a presenter.

If the user wants to give a talk, he/she will walk to the

presentation zone and then start to give the talk. In

the ﬁgure above, it is distinguished between the user

task “Walk to Presentation Zone” and the user output

tasks “explain slide” and “answer questions”. If the

developer then wants to take deaf (also not speaking)

users into account, then he/she has just to deﬁne the

task template (accessibility pattern) to be employed

and has to specify that only tasks of type “user out-

put” should be subject to those changes.

In that way, the task model will be adapted in a

successful way. Thus, the developer takes advantage

of the user task types categorization. Now, we investi-

gate in more details the abstract task “Walk to Stage”.

When the system infers through the ambient sensors

that the task “Walk to Presentation Zone” has already

been executed (presenter is now at presentation zone),

the assistive user interface should then start to dis-

play the presentation conﬁguration settings as it is

shown in Fig.8. The presenter has thus the opportu-

nity to choose the number of projectors to be used and

also the preferred presentation style to present his/her

slides within the room.

Now let us assume we want to move to the next

step by converting the task model we have to a corre-

sponding dialog graph as a transitional step for deriv-

ing the ﬁnal required user interface. The tasks within

the presenter’s task model should then be distributed

over the various views following the heuristics de-

ﬁned in subsection 3.2. Fig.9 depicts a part of the

dialog graph for the role presenter. If we take a look at

the “Connection” view as an example, it contains the

tasks “Register”, “Identify Himself” and “Connect as

Default User” which are logically related as they all

aim to specify the user’s proﬁle in order to adapt the

assistance according to it. The “Register” task has

an output port leading to the “Sign Up” view which

means that the user has to create his/her user proﬁle,

while the “Identify Himself” task has an output port

leading to the “Sign In” view in order to load the exist-

ing user’s proﬁle in case he/she is already registered.

Figure 9: Part of the dialog graph for the role presenter.

In Fig.9, one can additionally notice the implicit

sequential transition between the connection view and

the presentation styles view. This transition indicates

that the “presentation styles” view is not explicitly

achieved when the user presses a given button on

the “connection” view. Instead, the transition is tak-

ing place after a speciﬁc environmental precondition

is satisﬁed (presenter is at presentation zone in this

case). Thus, having those newly introduced implicit

transitions enables the developer to express an implic-

itly triggered transition which in the context of our ap-

plication is of high interest.

To make the idea of the assistive system more con-

crete to the reader, Fig.10 illustrates the supportive

user interface corresponding to the “Presentation

The window depicted in Fig.10 gives the presen-

ter the opportunity to upload his/her slides to be pre-

sented, to choose the number of canvases to be em-

ployed for the presentation and also the style in which

the slides should be visualized within the room. The

presenter can choose between the default presentation

MakingTaskModelsandDialogGraphsSuitableforGeneratingAssistiveandAdaptableUserInterfacesforSmart

Environments

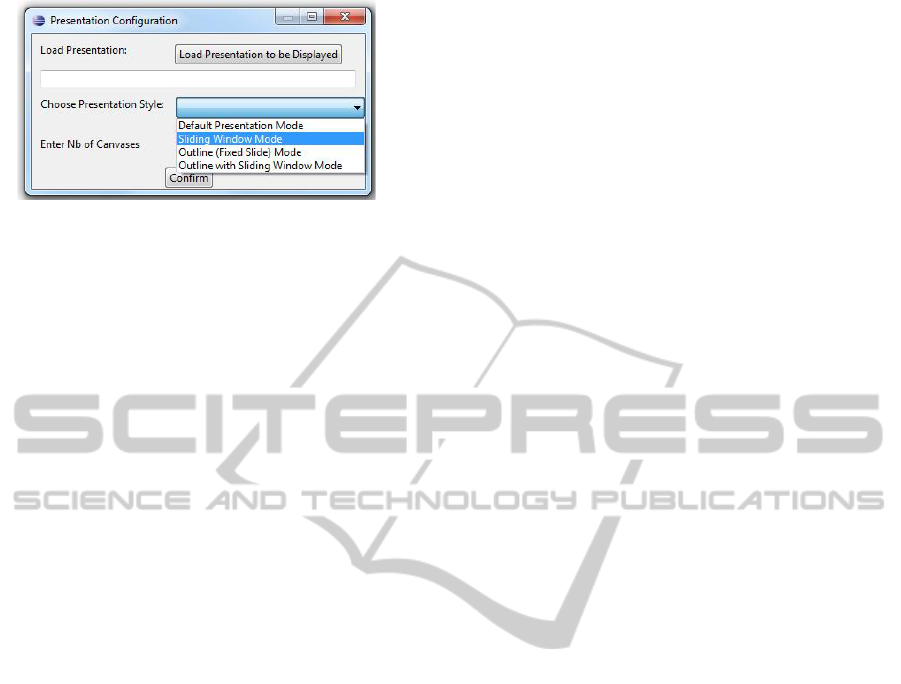

Figure 10: A screenshot of the resulting supportive user in-

terface.

mode, another mode where the outline is always dis-

played on one of the existing screens, the sliding win-

dow mode where the slides are turning in a circle be-

tween the various canvases or even a combination be-

tween two of the existing modes.

5 CONCLUSIONS

In this paper, we presented an attempt for extending

the CTT task model notation as well as dialog graphs

in order to make them suitable for the design of smart

environment applications. We started by giving an

overview of the domain of smart environments. Then,

we motivated our choice of a hybrid interaction tech-

nique to be adopted by the application operated in

such environments. We clariﬁed that having an equi-

libration between the explicit and implicit interaction

paradigms leads to an optimal assistance provided by

the room, where the user can take beneﬁt of the sup-

porting ability of the room without losing his/her con-

trol over it. Additionally, we justiﬁed the choice of

task models as a starting point for the development

of the desired application and we presented the devel-

opment ﬂow we follow in order to achieve the ﬁnal

user interfaces out of the task models we collected in

the analysis phase. Afterwards, we tackled another

crucial requirement to be satisﬁed, which is the ap-

plication’s adaptability and extensibility. We made it

clear that there may appear unforeseen requirements

of support for new user or device types, and there-

fore a well-deﬁned methodology should exist in or-

der to minimize the effort and the time consumption

wasted by the developer to extend the application ac-

cording to the new requirement. Thus, we introduced

the idea of deﬁning the inﬂuence of the new char-

acteristic on the models in the form of an adaptable

task template. After that, we justiﬁed the need for

extending dialog graphs with the possibility of hav-

ing implicit transitions between the different views,

as well as the need to extend the CTT notation with

some new types which are in fact subcategorization

of the already existing types. We made it clear that

those new types will enable automating the adapta-

tion of the application according to newly introduced

characteristics and corresponding templates provided

by the designer. The new dialog graph’s implicit tran-

sition types as well as the new CTT task types have

been presented. As we strive to automate the whole

task model to user interface transformation process,

we presented heuristics that have to be followed in

order to derive dialog graphs out of the ﬁne-grained

task models. In order to highlight the contribution of

the suggested extensions, we provided a brief exam-

ple where we took beneﬁt of the usage of the new

CTT task types and implicit transitions. Our ultimate

goal is to achieve individualized tailored user inter-

faces which serve every individual in the environment

depending on his/her own proﬁle. An evaluation of

the resulting user interfaces is also planned.

REFERENCES

Alexander, C. (1977). A Pattern Language: Towns, Build-

ings, Construction. Center for Environmental Struc-

ture Series. Oxford University Press, USA.

Annett, J. and Duncan, K. (1967). Task analysis and train-

ing design, occupational psychology. volume 411,

pages 211–221.

Bergh, J. V. d. and Coninx, K. (2004). Contextual concur-

tasktrees: Integrating dynamic contexts in task based

design. In Proceedings of the Second IEEE An-

nual Conference on Pervasive Computing and Com-

munications Workshops, PERCOMW ’04, pages 13–,

Washington, DC, USA. IEEE Computer Society.

Bobick, A. F., Intille, S. S., Davis, J. W., Baird, F., Pinhanez,

C. S., Campbell, L. W., Ivanov, Y. A., Schtte, A.,

and Wilson, A. (1999). The kidsroom: Perceptually-

based interactive and immersive story environment. In

PRESENCE, pages 367–391.

Borchers, J. (2001). A Pattern Approach to Interaction De-

sign. John Wiley & Sons, Inc., New York, NY, USA.

Breedvelt-Schouten, I.M., P. F. and Severijns, C. (1997).

Reusable structures in task models. Proceedings of

DSV-IS.

Cafﬁau, S., Girard, P., Scapin, D., and Guittet, L. (2007).

Generating interactive applications from task mod-

els: a hard challenge. TAMODIA’07, pages 267–272,

Berlin, Heidelberg. Springer-Verlag.

Card, S. K., Newell, A., and Moran, T. P. (2000). The Psy-

chology of Human-Computer Interaction. L. Erlbaum

Associates Inc., Hillsdale, NJ, USA.

Cook, D. and Das, S. (2004). Smart Environments: Technol-

ogy, Protocols and Applications (Wiley Series on Par-

allel and Distributed Computing). Wiley-Interscience.

Das, S. K., Cook, D. J., Bhattacharya, A., Heierman, E. O.,

and yun Lin, T. (2002). The role of prediction algo-

rithms in the mavhome smart home architecture. IEEE

Wireless Communications, 9:77–84.

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

Gamma, E., Helm, R., Johnson, R., and Vlissides, J. (1995).

Design patterns: elements of reusable object-oriented

software. Addison-Wesley Longman Publishing Co.,

Inc., Boston, MA, USA.

Hartson, H. R. and Gray, P. D. (1992). Temporal aspects

of tasks in the user action notation. Hum.-Comput.

Interact., 7(1):1–45.

Ju, W. and Leifer, L. (2008). The design of implicit interac-

tions: Making interactive systems less obnoxious.

Kato, K. and Ogawa, K. (1993). Task analysis method us-

ing the goms model with grouping. In Salvendy, G.

and Smith, M. J., editors, HCI (2), pages 891–896.

Elsevier.

Kirste, T., Aarts, E., and Encarnacao, J. L. (2001). Smart

kindergarten: sensor-based wireless networks for

smart developmental problem-solving environments.

In Proceedings of the 7th annual international confer-

ence on Mobile computing and networking, MobiCom

’01, pages 132–138. Springer.

Klug, T. and Kangasharju, J. (2005). Executable task mod-

els. In Proceedings of the 4th international workshop

on Task models and diagrams, TAMODIA ’05, pages

119–122, New York, NY, USA. ACM.

Limbourg, Q. and Vanderdonckt, J. (2003). Comparing

task models for user interface design. In The Hand-

book of Task Analysis for Human-Computer Interac-

tion. Lawrence Erlbaum Associates.

Luyten, K., Clerckx, T., Coninx, K., and Vanderdonckt,

J. (2003). Derivation of a dialog model from a task

model by activity chain extraction. volume 2844,

pages 203–217. DSV-IS 2003 : design, speciﬁcation

and veriﬁcation - interactive systems.

Nijholt, A., Akker, R. O. D., and Heylen, D. (2004). Meet-

ings and meeting modeling in smart surroundings. In

Social Intelligence Design. Proceedings Third Inter-

national Workshop, pages 145–158. ISBN.

Paterno, F. (2000). Model-based design of interactive appli-

cations. Intelligence, 11(4):26–38.

Paterno, F. (2001). Task models in interactive software sys-

tems. In In Handbook Of Software Engineering And

Knowledge. World Scientiﬁc Publishing Co.

Patern

o, F., Mancini, C., and Meniconi, S. (1997). Con-

curtasktrees: A diagrammatic notation for specifying

task models. In Proceedings of the IFIP TC13 Interan-

tional Conference on Human-Computer Interaction,

INTERACT ’97, pages 362–369, London, UK, UK.

Chapman & Hall, Ltd.

Paterno, F. and Santoro, C. (2002). One model, many in-

terfaces. In Kolski, C. and Vanderdonckt, J., editors,

CADUI, pages 143–154. Kluwer.

Radeke, F. (2007). Pattern-driven model-based user-

interface development. Master Thesis, University of

Rostock.

Sara, B. (2009). Smart Sensors For Interoperable Smart

Environment. PhD thesis, University of Bologna.

Schlungbaum, E. and Elwert, T. (1996). Dialogue graphs- a

formal and visual speciﬁcation technique for dialogue

modelling.

Schmidt, A. (2000). Implicit human computer interaction

through context. volume 4, pages 191–199. Springer-

Verlag.

Sousa, K., Mendonc¸a, H., and Vanderdonckt, J. (2010). A

rule-based approach for model management in a user

interface – business alignment framework. In

Proceedings of the 8th international conference on

Task Models and Diagrams for User Interface De-

sign, TAMODIA’09, pages 1–14, Berlin, Heidelberg.

Springer-Verlag.

Srivastava, M., Muntz, R., and Potkonjak, M. (2001).

Smart kindergarten: sensor-based wireless networks

for smart developmental problem-solving environ-

ments. In Proceedings of the 7th annual interna-

tional conference on Mobile computing and network-

ing, MobiCom ’01, pages 132–138, New York, NY,

USA. ACM.

Waibel, A., Schultz, T., Bett, M., Denecke, M., Malkin,

R., Rogina, I., Stiefelhagen, R., and Yang, J. (2003).

Smart: The smart meeting room task at isl. In in

Acoustics, Speech, and Signal Processing (ICASSP

’03). 2003: IEEE, pages 752–755.

Weiser, M. (1999). The computer for the 21st century. SIG-

MOBILE Mob. Comput. Commun. Rev., 3(3):3–11.

Wolff, A. and Forbrig, P. (2009). Deriving user inter-

faces from task models. In Proceedings of the Model

Driven Development of Advanced User Interfaces,

MDDAUI’09.

Wolff, A., Forbrig, P., and Reichart, D. (2005). Tool sup-

port for model-based generation of advanced user in-

terfaces. In The Uniﬁed Modeling Language.

Wurdel, M., Forbrig, P., Radhakrishnan, T., and Sinnig, D.

(2007). Patterns for task- and dialog-modeling.

Wurdel, M., Sinnig, D., and Forbrig, P. (2008a). Ctml:

Domain and task modeling for collaborative environ-

ments.

Wurdel, M., Sinnig, D., and Forbrig, P. (2008b). Interac-

tive systems. design, speciﬁcation, and veriﬁcation.

chapter Task Model Reﬁnement with Meta Operators,

pages 300–305. Springer-Verlag.

Zaki, M., Bruening, J., and Forbrig, P. (2011). Towards

contextual task patterns for smart meeting rooms. In

Pervasive and Embedded Computing and Communi-

cation Systems.

Zaki, M. and Forbrig, P. (2011). User-oriented accessibility

patterns for smart environments. In Proceedings of the

14th international conference on Human-computer in-

teraction: design and development approaches - Vol-

ume Part I, HCII’11, pages 319–327. Springer-Verlag.

MakingTaskModelsandDialogGraphsSuitableforGeneratingAssistiveandAdaptableUserInterfacesforSmart

Environments
