UML Modelling of Design Patterns for Wireless Sensor Networks

John K. Jacoub, Ramiro Liscano, Jeremy S. Bradbury and Jared Fisher

University of Ontario, Institute of Technology, Oshawa, Ontario, Canada

Keywords: Wireless Sensor Network (WSN), Modelling, Design Patterns.

Abstract: Wireless Sensor Network (WSN) systems are deployed to monitor specific phenomena. The design of

WSNs is prone to errors and debugging and is very challenging due to the complex interactions of software

components in a sensor node. This paper presents a set of UML patterns that can be used as a basis for

software design of WSN systems. The UML patterns are used to capture the design components, the

application flow, the components’ behaviour, and the interaction between the components and the

application design. The design patterns for WSNs are justified by applying them to the WSN-RFID

application that integrates RFIDs and sensor nodes in order to support authenticated point-to-point

communication with a sensor node.

1 INTRODUCTION

Wireless sensor networks (WSNs) consist of many

wireless nodes and used to monitor specific

phenomena. The nodes communicate with each

other wirelessly to deliver the sensed data to a

collector node, where the data is normally further

processed or sent to another network. Most sensor

nodes typically contain sensors, an analogue to

digital converter (ADC), and some type of limited

I/O, like LEDs (for debugging purposes), a radio

unit, some form of power source, and a micro-

processor. Applications are programmed into the

micro-processor either directly or by leveraging an

operating system (OS),

The design process of WSN applications is very

challenging for the following reasons; the

development of the application normally occurs at

the coding layer and does not typically go through a

design stage at a higher abstraction layer which

prevents the design to go through the software

development cycle (Losilla et al., 2007), thus the

application design is prone to errors due to the

complexity of WSN systems; debugging the code is

very challenging since sensor nodes are embedded

systems with limited I/O capability to display the

state of the code (Mozumdar et al., 2008); the

application has to operate reliably since it is

difficult to maintain the nodes once they are

deployed in the field.

Modelling of a WSN enables the designer to

capture the design at higher abstraction layers

before the actual implementation of the application.

This facilitates fixing and correcting design errors

using diverse methods of design analysis. Early

model analysis for the design enables the user to

evaluate the design before the actual deployment.

This paper presents a set of design patterns that

help a designer in capturing the WSN system at the

software modelling layer using UML diagrams. We

define a group of stereotype UML classes to capture

the hardware and middleware modules of the WSN.

Also, the system behaviour elements such as timers,

events, and application flow are captured by using

the UML state diagrams. The model patterns are

justified by using a case study deployment example,

called Frequency Identification (RFID) Sensor

Nodes.

The rest of the paper is organized in the

following manner: Section 0 contains the related

work; Section 0 discusses the WSN design model

patterns; Section 0 talks about applying the model

patterns to WSN case study; Section 0 provides the

conclusion and future work.

2 RELATED WORK

In order to better understand the state of the art in

software modeling for sensor networks we did an

extensive survey of the work in that area (Jacoub et

al., 2012) that surveyed 9 modelling techniques for

Jacoub J., Liscano R., Bradbury J. and Fisher J..

UML Modelling of Design Patterns for Wireless Sensor Networks.

DOI: 10.5220/0004316200890093

In Proceedings of the 2nd International Conference on Sensor Networks (SENSORNETS-2013), pages 89-93

ISBN: 978-989-8565-45-7

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

WSNs. The survey classified the modelling

techniques according to the capability to capture the

hardware and middleware components, the network

topology, the node behaviour, and the network

behaviour of a WSN.

A model driven engineering approach has been

developed in Eclipse to generate the nesC code for a

design from the UML diagrams (Losilla et al.,

2007). The design goes through three layers of

models, which are the independent UML model, the

domain specific model, and then the platform

specific model. The paper has specified a group of

rules which control the transformation from one

model to another. The last step in their approach is

to generate the nesC code from the platform specific

model. Our approach has one layer of modelling and

aims to capture the design components and

interaction between the components through using

UML class diagrams and UML state-charts.

Capturing the design behaviour at the UML layer

enables the designer to fix the design error before

the actual implementation.

A UML profile has been developed for voice

wireless communication platforms (Chen,

2010).The profile contains stereotypes, constraints,

and tags for such platforms. The tags contain

information about the bandwidth, throughput,

latency, and power consumption of the components.

The tags are used to verify the system behaviour

after implementation. The profile contain deployed,

component, and class diagrams for the platform. Our

approach has defined stereotypes for WSN systems

and focus on the behaviour side of the full system

(operating system and the deployed applications)

through using the animated state diagrams.

We have also determined that there is no

published material that tries to present a set of

design patterns for WSNs. We have though seen

such design patterns presented in the tinyOS

Programing manual (Levis, 2009)but these design

patterns are very specific to tinyOS programming as

opposed to patterns that can be used at the software

modelling layer.

3 WSN DESIGN PATTERNS

This section presents a set of design patterns, which

can be used to support the modelling and design of

WSNs. We have used class diagrams and state-

charts features to explain these patterns. The UML

state-charts are used to capture the behaviour of both

hardware and middleware modules. We also take

advantage of animated state-charts, which are used

to capture the application design behaviour, the flow

of the data across the system components, and the

interaction between the system components. The

animated state charts enable the designer to test the

flow of the design.

The design patterns came about from experience

in trying to model a WSN application in the tinyOS

environment as well as from the tinyOS

programming guide (Levis, 2009).

Through the process of trying to capture the

model using a language independent notation like

UML we have been able to generalize some tinyOS

specific concepts like the concept of “wiring”, which

is unique to the tinyOS environment, into a general

interface association captured by composite classes.

3.1 WSN Hardware and Middleware

Component Pattern

All WSN applications can be designed from a set of

components that represent hardware or middleware

components. In this work we define a group of

classes that are used as stereotype classes to capture

these hardware and middleware components. The

defined stereotype classes capture the methods,

parameters, and behavioural flow of the

components. The behavioural flow of the

components is captured by using animated state

diagrams. The animated state charts are extremely

useful for the following reasons:

 Validation of the Design Flow. There are many

behavioural flows where events are expected for

normal operation. If these do not occur there is a

design flaw in the application.

 Analysis for Power Consumption. Since the

system application can be animated it is

possible to compute the power consumption for

those deterministic scenarios as explained in the

future work section.

3.1.1 The Hardware Stereotype Classes

Many typical hardware classes are used in WSN

nodes such as radio, LEDs, and ADC modules. As

an example, let us take a specific ADC module

called the MDA used in the crossbow motes for

capturing data. This MDA module has a MDA

interface component that is captured in our design as

a UML class.

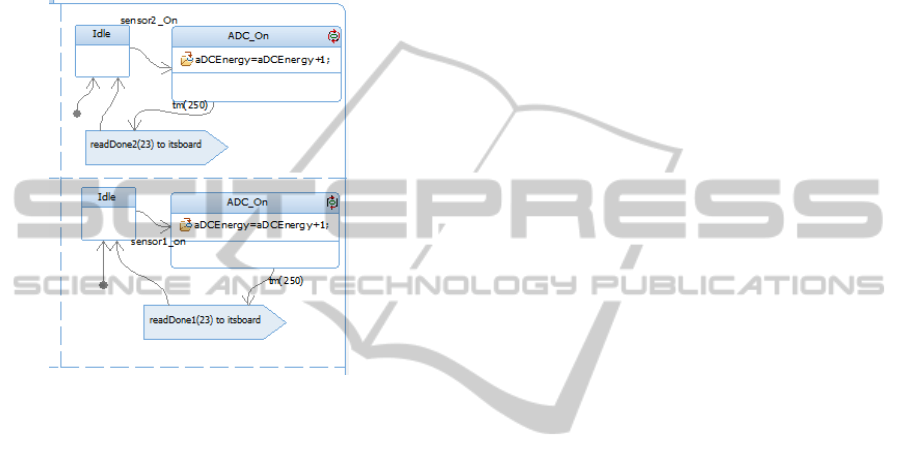

The behaviour of the MDA class is captured by

using state-chart (see Figure 1). The state-chart

contains the triggered operation called sensor_on,

which captures the behaviour of the TinyOS

operation read. Once the method sensor_on is

SENSORNETS2013-2ndInternationalConferenceonSensorNetworks

called, the state diagram changes the state from Idle

to the ADC On state to model the action of sensing.

The application stays in this state for 250 ms and

then triggers the event readDone. The time

parameter 250 is calculated based on real time

measurements for the sensor behaviour in (Zheng et

al., 2010). This state chart also captures the MDA

component’s capability to turn the sensor’s

excitation on and off.

Figure 1: MDA Hardware Component.

3.1.2 The Middleware Stereotype Classes

The middleware stereotype classes are used to

capture any operating system middleware

components. The UML captures the methods,

parameters, and the events of the middleware

component in the same manner as the hardware

components are captured. As an example for the

captured components: the routing components,

sending components, and dissemination

components.

3.2 The TinyOS Component Wiring

Pattern

TinyOS has a group of implemented modules, which

ease accessing common hardware and software

components. Each component has a group of

interfaces which are labelled as inputs or outputs.

TinyOS uses a concept known as wiring to associate

an application module with a particular instance of

an interface. For example in the following NesC

statement,

myApp.RadioControl -> ActiveMessageC

The statement associates the application

component RadioControl to the TinyOS interface

ActiveMessageC. ActiveMessageC is a tinyOS

module which interacts with the link layer of a radio

unit. Therefore, the application component

RadioControl has access to the methods and the

event handles which were developed for the wireless

transmitter.

At a designer level, the concept of tinyOS wiring

resembles an interface specification. This concept

can be captured using a Composite Class, which

captures the internal system objects, the associations

between the system classes, and the collaboration of

the interconnected elements of the modelled system.

The Composite Class supports the creation of a

Class Part. The Class Part is an instance of a class in

another class and is used to capture the interface

between two classes, which are associated to each

other in the Composite Class. When the Class Part is

created, the Class Part name is change based on the

target class name. For example, for a class named

database its instance in a composite class is changed

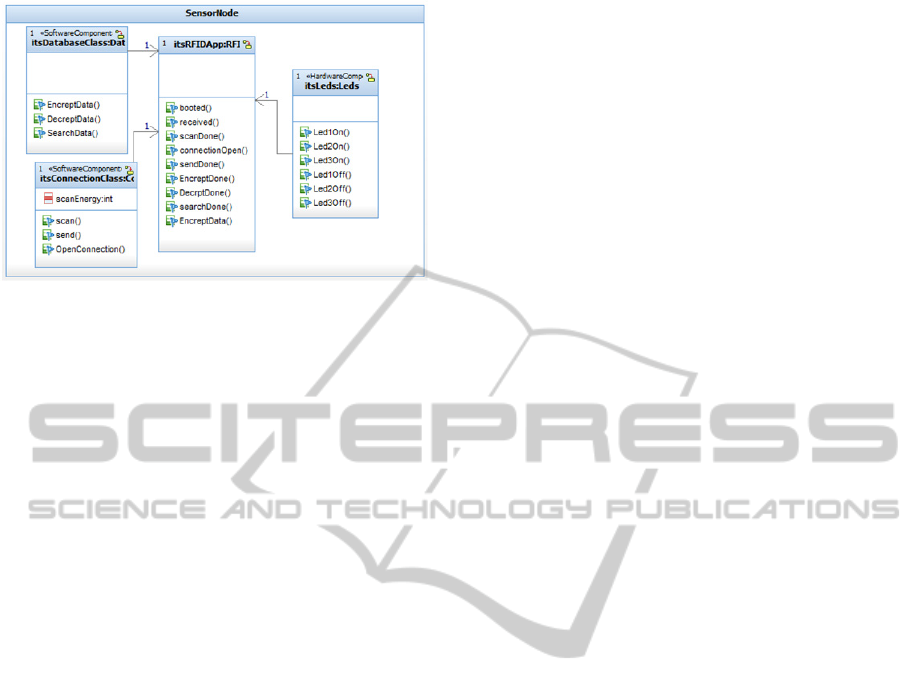

to itsdatabaseClass (see Figure 2). A Composite

Class is used to capture the instance of node’s

hardware components, software components

instances, and the associations between these

components to the application, which reflect the

component wiring design pattern. Moreover, the

designer has to create multiple Class Parts for the

same class. With this approach, the tinyOS-wiring

concept can be captured using the language

independent UML composite class structure.

3.3 Application Synchronization

Pattern

Many WSN applications are similar to embedded

software and therefore are written leveraging event-

based OS or are designed in an event-based form of

design. In the case of TinyOS an application relies

on signalling events either from timers or

middleware or hardware components after finishing

a computation process. After the event is signalled,

the application follows the computation steps coded

in an event handler method.

This same approach has been used to capture the

event in UML. The event is triggered either by, a

timer or one of the stereotyped class state diagrams.

The event translates the state chart from the Idle

state to a main state. The main state contains sub-

states which capture the steps of the event handler.

After the state is executed, the system returns to Idle

and waits for the event to be triggered again.

The event based nature of an embedded OS leads to

the possibility of signalling any event at any instance

based on the hardware computation time. In order to

capture this design pattern, the AND state has been

used. The AND state runs the sub-states

UMLModellingofDesignPatternsforWirelessSensorNetworks

Figure 2: RFID Class Diagram.

concurrently. Therefore, the application state chart is

ready anytime to be signalled by any event captured

in the state machine. Some typical events which are

used in WSNs are signalled by the following

components:

 Timers: Timers generally control the flow of

the entire application. For instance, once the

sensing timer is fired, the application calls

the sensors to read the temperature

 RFID: RFID signals events scanDone once

the tag scanning is done.

 Routing Protocol: The routing protocol

signals an event once the node starts to send

the routing messages to the neighbour nodes.

4 APPLYING THE UML MODEL

PATTERNS TO WSN-RFID

CASE STUDY

This section shows how the proposed WSN UML

patterns are used to capture a software system called

WSN-RFID system. The UML model patterns were

developed in IBM Rational Rhapsody (IBM, 2000-

2009). The system consists of a wireless node

connected to a RFID reader as well as a handheld

device to communicate with the RFID system. The

handheld contains an RFID tag with the handheld’s

node ID programmed into it. The purpose of

outfitting each wireless node with an RFID tag is to

help identify individual WSN nodes that a handheld

device might want to directly communicate with.

This feature is primarily useful when having to

debug or configure a node directly. The RFID add

on also supports validation and authentication of the

handheld device.

4.1 WSN-RFID Hardware

and Middleware Components

and Wiring

The hardware stereotype classes are defined for the

components RFID and the LEDs. The stereotype

class has an animated state chart to capture the

behaviour of the interface modules. For instance, the

state diagram for the RFID is shown in Figure 3;

The RFID module offers the connection, tag scan,

sending methods. Those methods are used by the

application to create the connection to the tag

scanner, trigger the scanning process, and sending

the information to a central node.

The middleware modules used in WSN-RFID are

DatabaseC, Connection. AMSenderC.UML classes

are used to capture the behaviour of those classes in

the same manner as mentioned b

efore.

4.2 WSN-RFID Application

Synchronization

The events of the RFID system is captured by using

the model pattern explained in Section 0. RFID

Application is captured by using the AND state. All

the states of the application is waiting at the state

Idle. Once the event is signalled, the event causes

the transition from Idle to the event handler. For

instance, once the event receive is signalled, the stat-

chart starts to execute the states in the

ReceiveMessage main state which contains, leds_s2,

checkMessage and followed by TriggerScan process

which triggers the tag scanning process. The scan

process implementation is captured in RFID

hardware component as explained in section0. Once

the scan process is finished, the RFID state-chart

signals an event scanDone, which is captured in the

application state-chart (see Figure 3 and Figure 4).

5 CONCLUSIONS AND FUTURE

WORK

This paper presents a UML approach to modelling a

WSN, using class and state diagrams, in order to

perform power analysis during the design stage of

development. Moreover, the paper demonstrates the

capability of animated state diagrams to capture the

interaction between the WSN application software,

the middleware and the hardware components. In the

future we plan to extend the use of animated state

diagrams to analyse the power consumption of WSN

software and middleware components.

SENSORNETS2013-2ndInternationalConferenceonSensorNetworks

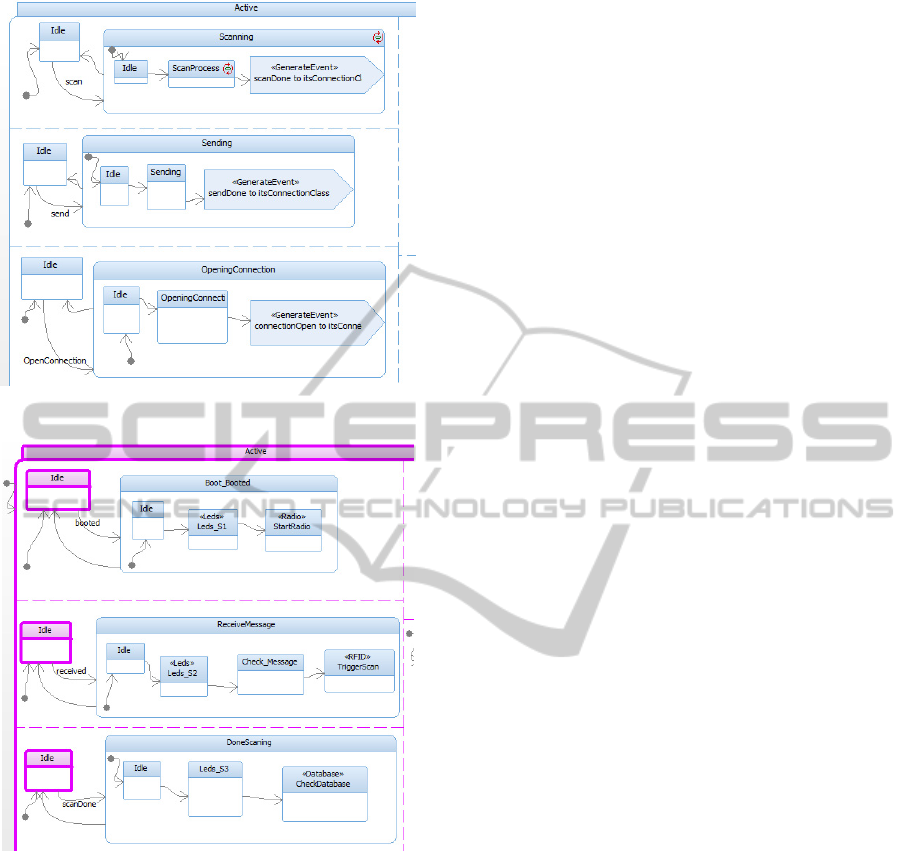

Figure 3: RFID Class State diagram.

Figure 4: Application State-Chart.

This paper also presents a set of design patterns

that can assist in the development of a WSN. These

WSN design patterns describe best practices

regarding the specification of WSN interface

components and their behaviour. In the future we

intend to use these design patterns in the

development of additional WSN software.

ACKNOWLEDGEMENTS

The authors would like to thank the Natural Sciences

and Engineering Research Council of Canada

(NSERC) for funding this research.

REFERENCES

Chen, R., Sgroi, M., Lavagno, L., Martin, G.,

Sangiovanni-Vincentelli, A., Rabaey, J., 'Embedded

System Design using UML and Platforms', in E (ed.),

System Specification & Design Languages, Springer

US.

Demaille, A, Peyronnet, AS & Sigoure. 2006, 'Modeling

of sensor networks using XRM.', In Proc. of 2nd Int.

Symp. on Leveraging Applications of Formal Methods,

Verification and validation.

IBM 2000-2009, 'Rational Rhapsody User Guide', IBM.

Zheng, J., Elliott, C., Dersingh, A., R. Liscano, R.,

Eklund, M. 2010, 'Design of a Wireless Sensor

Network from an Energy Management Perspective',

Communication Networks and Services Research

Conference (CNSR).

Jacoub, J.K. , Liscano, R., Bradbury, J.S. 2012,

'Assessment of Software Modeling Techniques for

Wireless Sensor Networks: A Survey', Sensors &

Transducers Journal, vol 14-2, pp. 18-46.

Levis, P,GD 2009, TinyOS Programming, Combridge

University Press.

Losilla, F., Vicente-Chicote, C., lvarez, B B., Iborra, A.,

Sánchez, P. 2007, 'Wireless sensor network

application development; An architecture-centric mde

approach', In Software Architecture, vol 4758, pp.

197-194.

Mozumdar, M., Gregoretti, F., Lavagno, L., Vanzago,

L.,and Olivieri, S. 2008, 'A framework for modeling,

simulation and automatic code generation of sensor

network application', In Proc. of 5th IEEE Comm. Soc.

Conf. on Sensor, Mesh and Ad-Hoc.

UMLModellingofDesignPatternsforWirelessSensorNetworks
