Arrangements of Finite-state Machines

Semantics, Simulation, and Model Checking

Vladimir Estivill-Castro and Ren

e Hexel

School of ICT, Grifﬁth University, Nathan Campus, 4111 Queensland, Australia

Keywords:

Applications and Software Development, Model-based Testing and Validation, Model Execution and Simula-

tion, Executable UML.

Abstract:

We propose a contrasting approach to the main stream direction that UML and STATEMATE have recently taken

when using ﬁnite-state machines (FSMs) to model behaviour. That is, rather than the event-driven model that

is currently dominant, we suggest to adopt a model of time, a synchronous model. We do support concurrency

in our arrangements of FSMs but eliminate the sources of unpredictable threads of execution. Currently,

such capacity of the dominant semantics actually results in the need to create many language constructs to

regulate threads that, in many cases, even result in imprecise semantics, hampering their use for model-driven

development (MDD). By allowing transitions to only be labeled by statements of logic and by executing

the machines with an ofﬂine schedule, we obtain a simpler language, with less burden for the developer.

This creates far reaching potential for accompanying tools, such as integrated development environments,

simulators, and even formal veriﬁcation through model-checking. Model-checking is of particular importance

as MDD becomes ubiquitous. Model-checking is possible for our FSMs as we do not need to consider all

possible combinations of progress of each of the many threads that the event-driven alternative requires.

1 INTRODUCTION

We present a language of arrangements of ﬁnite-

state machines (FSMs) that aims at offering sim-

plicity of constructs and high versatility. Thus, this

paper introduces a minimal subset of UML 2 and

Harel’s state charts with two signiﬁcant characterisa-

tions. The ﬁrst characterisation is that we adopt the

synchronous model of FSMs as opposed to the asyn-

chronous model (Harel and Naamad, 1996, Section 9,

“Two models of time”). That is, our FSMs are not

waiting in a state to be woken up by the occurrence

of an event. In fact, once an arrangement of FSMs is

present, one step of one of the FSMs is executed in

each time-slot. The other signiﬁcant characterisation

is that transitions are labeled by queries (and not by

events) to an inference engine. The idea of transitions

labeled by queries (and not by events) can probably

be traced to the XABSL modelling language (L

otzsch

et al., 2004; Risler and von Stryk, 2008) for robots and

agents where transitions are labeled by decision trees.

This combines a declarative model (a model that de-

scribes what the software knows about, what concepts

to use, what things mean), with the action model of

FSMs. Minimality is sought to reduce implementa-

tion complexity, maximise ease of adoption and use,

remove implicit assumptions and provide a clear se-

mantics (several authors (von der Beeck, 1994; Es-

huis, 2009; Breen, 2004; Simons, 2000) discuss the

problems with state charts and as a result, there have

been several revisions even to UML state-charts). In

particular our modelling notation seeks agreement

with UML, SXML (W3C, 2012) and Harel’s state

charts to maximise adoption.

2 FINITE-STATE MACHINES

Our state machines are in close proximity with the

mathematical model of behaviour, the so called ﬁnite-

state automata (Hopcroft et al., 1979) that produce

output, also known as transducers. That is, our FSMs

consist of a set S of states, and a transition function

T : S × E → S. There is a distinguished state s

∈ S,

named the initial state. In our case, E is a set of

Boolean expressions (in their most general form, our

FSMs use a decidable logic and allow expressions

from such a logic to label the transitions; for example,

in many case studies we have used a common sense

non-monotonic logic, Defeasible Logic (DPL)). This

is an aspect that characterises our FSMs, and is very

182

Estivill-Castro V. and Hexel R..

Arrangements of Finite-state Machines - Semantics, Simulation, and Model Checking.

DOI: 10.5220/0004317101820189

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2013), pages 182-189

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

state 1

OnEntry { }

OnExit { }

{ }

state 2

OnEntry { }

OnExit { }

{ }

expression_1

expression_2

expression_3

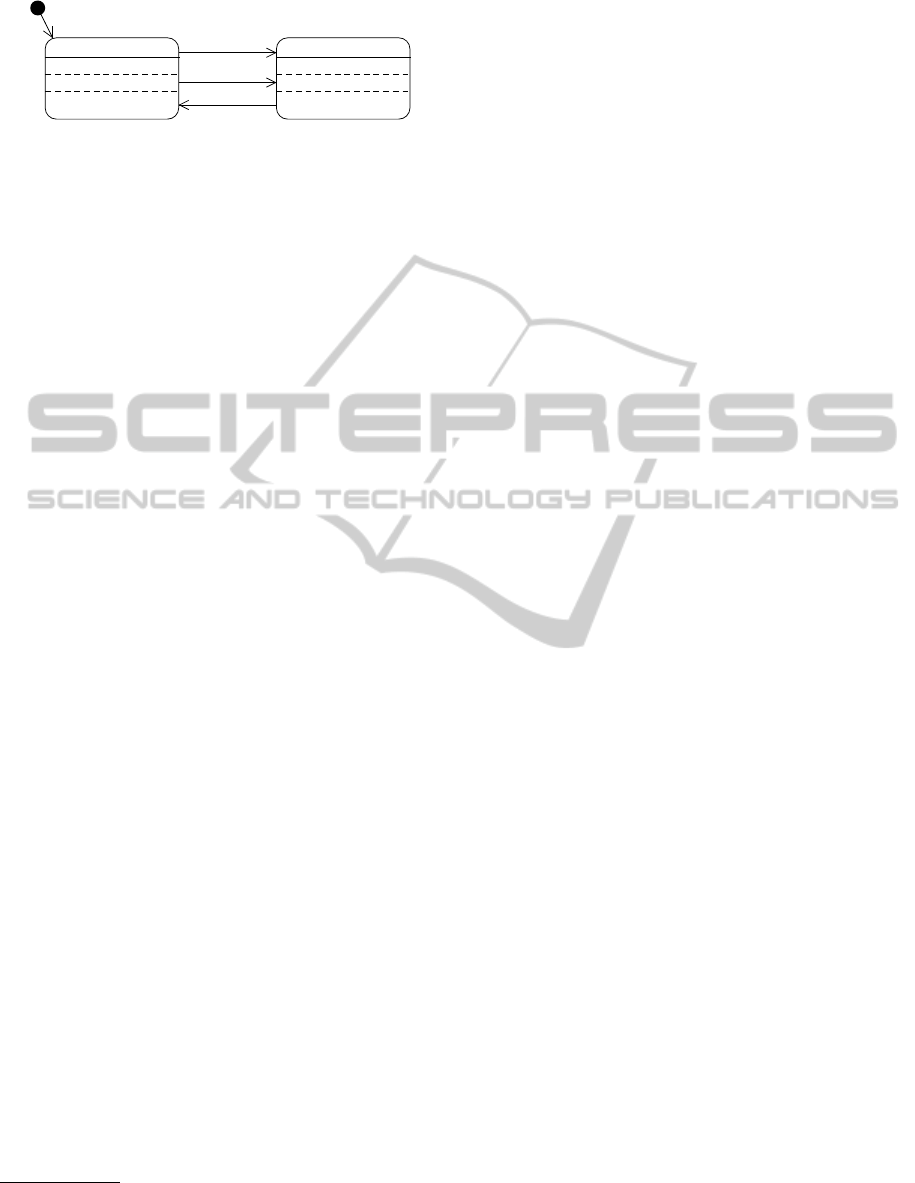

Figure 1: Basic elements of the notation.

useful for declarative modelling.

Our FSMs will be of a synchronous type. The

set E are expressions. T is usually a partial func-

tion, that is, there are pairs (s

) for which T is not

deﬁned; so, T is usually called the transition table.

The standard general description of the semantics for

T (s

) = s

is that when the machine is in state s

∈ S

and if the expression e

evaluates to true, the machine

will move to the state s

. However, this requires that,

(for any t 6= s), if T (s

) and T (s

) are deﬁned

and T (s

) 6= T (s

), then e

and e

never be true

simultaneously (unless one is modelling completely

non-deterministic behaviour).

We simplify the burden for the behaviour designer

by making the projection of T on each state a se-

quence instead. That is, T (s

) = s

will cause a

transition to state s

if e

evaluates to true and no pre-

vious expression e

evaluates to true (∀s < t in the

sequence T (s

,·)). Note that while this is simply syn-

tactic sugar, it does make the task of the behaviour

designer a lot simpler.

In a FSM, each state models a period in time

where an action

takes place. However, there are three

sections where actions are grouped. An OnEntry

section is executed upon arrival to the state, while ac-

tions in the OnExit section are executed as the ma-

chine departs that state. Thus, the actions in these two

sections are executed once and only once. The third

section is a section for internal actions

that are exe-

cuted only if none of the transitions ﬁres. When the

internal actions are completed, execution returns to

evaluate the sequence of expressions that label tran-

sitions out of the state and the cycle is repeated. We

refer to one pass over the cycle as a ringlet.

Because our models consist of arrangements of

FSMs, variables used in each of the sections above

are of 3 types. The ﬁrst type, local variables, are ex-

clusive to one and only one FSM (that is their scope

is only the states of one FSM). Internal variables

are shared by all the FSMs in the arrangement (that

is, their scope is all the states of the FSMs in the ar-

rangement). Finally, external variables are variables

whose scope goes even beyond the arrangement of the

We make no distinction between actions and activities,

and more on this will be discussed later.

In UML known as the do section.

FSMs and in embedded systems, are variables that are

set by external sensors or are set to activate effectors

and actuators. The environment that holds the vari-

ables is named the whiteboard (Hayes-Roth, 1988),

but it also correspond to the software architecture pat-

tern of a repository (Sommerville, 2010).

By design, in one ringlet execution there is only

one read operation by which a local copy of exter-

nal and internal variables in the scope of the current

FSMs is made before the execution of any section or

the evaluation of any expression labelling any transi-

tion. That is, all execution in a ringlet is in the same

context that is not modiﬁed by any other concurrent

FSM or any external event (a new sensor reading, for

example). If no transition ﬁres and the internal actions

complete, when a new ringlet commences, a new read

of the external scope will take place. All writes of

external or internal variables by a FSM take place im-

mediately in the shared context.

The arrangement of FSMs is executed by a round-

robin switch from one ringlet of one FSMs to the

next one in the arrangement. Thus, the arrange-

ment of FSMs is a single sequential execution, exe-

cuted by one thread that interprets the semantics de-

scribed above. It is possible also to indicate a rela-

tive frequency for each FSMs enabling different rates

of progress which are implemented by each FSMs

having a certain number of ringlets performed be-

fore passing the execution token to the next FSM in

the arrangement. Note that this style of execution is

very much in line with the time-triggered architec-

ture (Kopetz and Bauer, 2003) (as opposed, as we

mentioned earlier, to an event-driven architecture).

We make a ﬁrst contrast with other approaches.

Historically, the de-facto standard for FSMs is de-

rived from the STATEMATE model (Harel and Naamad,

1996; Harel et al., 1990) but there have been many al-

ternative proposals (von der Beeck, 1994). There are

several commercial products including QP

(Samek,

2008), BotStudio (Michel, 2004) StateWORKS (Wag-

ner et al., 2006) and MathWorks



StateFlow. The

UML form of FSMs derives from OMT (Rumbaugh

et al., 1991, Chapter 5), and the MDD initiatives of

Executable UML (Mellor and Balcer, 2002). In all

of these, the set E is a set of events, or a set of in-

put symbols. But, in UML 2 and other FSM lan-

guages that enable guard conditions, a need appears

to recommend best practices (Klotzbuecher, 2012),

where the exclusive disjunction of all guard condi-

tions out of a state shall always be true. Also, in

UML 2 and STATEMATE, two transitions from a sin-

gle state that evaluate to true represents a conﬂict and

an invalid conﬁguration. This is not a concern in

our modelling language. Expressions out of a state

ArrangementsofFinite-stateMachines-Semantics,Simulation,andModelChecking

183

form a list (in Fig. 1 we have indicated this by a se-

quence numeral) and thus, the second expressions can

be seen as the conjunction with the negation of the

ﬁrst. MathWorks



, StateFlow with Symlink concurs

with our approach and speciﬁes a sequential evalu-

ation of only one event at a time and a mechanism

to specify priorities in transitions but its larger set of

primitives and its semantics requires complex transla-

tions for performing model-checking (Agrawal et al.,

2004).

Our use of a single-thread execution for the sev-

eral FSMs in the arrangement, as opposed to paral-

lelisation by a semantics that just speciﬁes concur-

rency (that is arbitrary rate of progress for each, as

each is executed within an independent thread) brings

several advantages. It has been argued that from the

design point of view, open concurrency (where the

management of switches between threads is left to

the system) represents an unnecessary cognitive load

in the model designer (Breen, 2004) as it opens all

sorts of needs for communication, synchronisation

and consideration of communication delays. There

is added complexity in ensuring properties like fair-

ness, management of critical sections, no deadlock,

and extermination of starvation. It is also the case

that the execution (that is implementation) is usu-

ally less efﬁcient, as concurrency control mechanisms

consume CPU cycles and may need to manage con-

text switches and communication primitives with na-

tive support from the operating system or the hard-

ware. Perhaps more important is actual formal veri-

ﬁcation that models are correct. Model-checking of

systems that enable concurrent threads must consider

a universe of all possible states of the system, repre-

sented by the Cartesian product of all possible states

of each thread. This combinatorial explosion signif-

icantly complicates the formal veriﬁcation of such a

system. For robotic systems and embedded systems

where there may be several timing requirements, se-

quential execution has been proposed as superior to

the multiplication of threads (Merz et al., 2006).

By using sequential scheduling we maintain

concurrency, and the models produced with the

logic-labelled FSMs can be veriﬁed using model-

checking technology (NuSMV) within a matter of sec-

onds (Estivill-Castro et al., 2012c; Coleman et al.,

2012), while for the same case studies, but using Be-

havior Trees – which have explicit notation for spawn-

ing parallel threads – require several days of CPU to

verify equivalent properties (Grunske et al., 2011).

It is important to note that the approach presented

here is not a departure from the event model of tradi-

tional FSMs. In fact, the ability of our FSMs to use

statements in a decidable common-sense logic allows

for a more complex event deﬁnition with clear value

and temporal semantics (Billington et al., 2010). Sen-

sors that trigger events in an embedded system are

mapped to external variables of which a snapshot is

taken at the read pre-determined point at the start of

the ringlet (Estivill-Castro et al., 2012a). Our choice

to place only one read instance of the variables per

ringlet may seem to contradict the STATEMATE “exe-

cution time” requirement that suggest changes in any

point in time should be reﬂected in the next. How-

ever, STATEMATE’s approach creates serious problems

in robotics applications where there is an open en-

vironment (Klotzbuecher, 2012), and languages like

rFSM also take an approach to evaluate the set of tran-

sitions out of a state in the same context.

3 MODULARISATION

Harel’s state charts (Harel and Politi, 1998) intro-

duced a hierarchy of states, i.e., states that themselves

contain other states; providing abstraction and modu-

larisation for the construction of larger models. Mod-

ularity is a very powerful design tool (Baldwin and

Clark, 2000) and such sub-machines can be re-used,

facilitating the design of behaviours as components.

With our approach, modularity is achieved

through a model of suspension. Each FSM has a

SUSPENDED state. In its SUSPENDED state, a ma-

chine simply passes the execution token to the next

FSM in the arrangement. Our language offers spe-

cialised expressions to control suspension. The ex-

pression suspend(machine id) triggers an implicit

transition in the FSM identiﬁed by machine id from

its current state to its SUSPENDED state, record-

ing what the current state was. The expression

resume(machine id) triggers an implicit transition

of the corresponding machine (from its SUSPENDED

state) back to the recorded, previous state. The ex-

pression restart(machine id) triggers an implicit

transition of the machine from its SUSPENDED state to

the machine’s initial state (effectively restarting the

machine from the beginning).

Because modularity is an important design tool,

and although a hierarchy of FSMs machines is not

enforced, our ﬂexibility enables the construction of

a very powerful notion of submachine. To do

this, the parent machine places the corresponding

restart(sub machine id) in its OnEntry section,

and the corresponding suspend(sub machine id)

in its OnExit section. If the corresponding sub-

machine, creates itself a further level of sub-

machines, then the sub-machine puts suspend in-

structions for its sub-machines in the OnEntry sec-

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

184

state 1

OnEntry { }

OnExit { }

{ }

submachine_ID with

substates

sub_state_1

sub_state_2

expression_1

expression_3

expression_2

state 1

OnEntry { }

OnExit { }

{ }

state invokes submachine

OnEntry { start(submachine_ID); }

OnExit { suspend(submachine_ID); }

{ }

expression_1

expression_3

sub_state_1 sub_state_2

expression_2

suspend

submachine_ID_is_suspended

submachine_ID_shall_restart

Note..

start(submachine_ID)

{

submachine_ID_shall_restart:=true;

submachine_ID_is_suspended:=false;

}

Note..

suspend(submachine_ID)

{

submachine_ID_shall_restart:=false;

submachine_ID_is_suspended:=true;

}

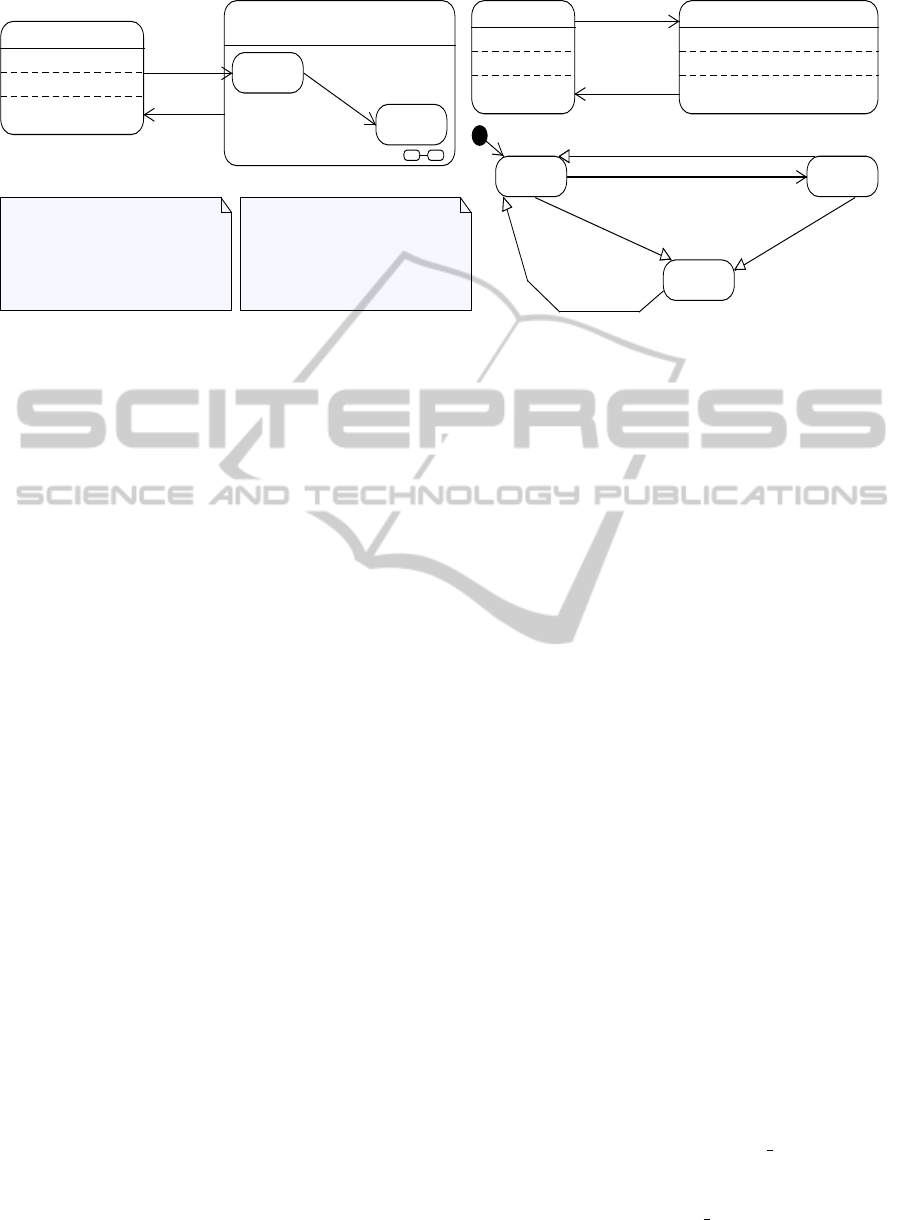

Figure 2: Semantics of the submachines in terms of the basic structures. The code in the notes and the arrows with a triangle

head (which have highest priority for each state) are implicit (they are never drawn; they are embedded in the interpreter).

tion of its own SUSPEND state. This pattern is illus-

trated in Fig. 2. Moreover, the restart, suspend and

resume instructions can create more ﬂexible launch

and suspend patterns in an arrangement of FSMs.

In contrast, the Harel’s sub-machine model sug-

gests a certain level of concurrency (two threads,

one for the submachine and one for the parent ma-

chine). Breen (2004) identiﬁes two issues with this,

(1) broadcasting of events, and (2) a need for struc-

tural priority to resolve which transitions in the stack

of nested states is to be evaluated. We point out to a

third fundamental problem due to nested states im-

plying concurrency or parallel execution. Namely,

the modelling tool, while powerful, leaves open the

scheduling of the threads of control that prescribes the

CPU cycles for each state. As a result, any model-

checking of the hierarchical state-charts must con-

sider all possible combinations of progress of each

thread (at instruction level, i.e. at a much lower level

than even a Kripke structure for the given FSMs).

This results in a combinatorial explosion that compli-

cates (and in most cases makes infeasible) the practice

of formal model-checking.

We do have concurrency in our modelling lan-

guage. But we specify the semantics of the schedule.

First, we have a single thread of control. Second, we

have structured, as a sequence, the transitions lead-

ing out of each state. Thus, we can have machines

in an arrangement that are not required to be sub-

machines, resolving the three fundamental problems

mentioned in the previous paragraph. Note that oth-

ers (Merz et al., 2006) – in particular, the rFSM lan-

guage (Klotzbuecher, 2012) – have also chosen to re-

move the parallelism of state-charts because of these

issues. Also note that while STATEMATE and UML 2

both use structural priority, the order of priorities is

reversed. UML 2 assigns higher priority to transitions

in deeper nested states.

We stress the importance of the semantics of our

submachine model in comparison with UML and

STATEMATE. The hierarchical machines of UML,

with independent threads for the machine and sub-

machines, implies that the evaluation of a transac-

tion in a submachine overlaps with the transition of

higher states in the hierarchy and examples show that

this can lead to stuck execution. UML 2.1 circum-

vents this problem by prohibiting the initial transition

from deﬁning guard conditions, but introduces a se-

mantic point variation that leaves open the semantics

of transitions to composite states without initial con-

ditions. STATEMATE semantics can also lead to code

that gets stuck (there are semantical differences be-

tween simulated and generated code (Harel and Naa-

mad, 1996, page 303)). Our deterministic seman-

tics completely avoids this issue and maintains con-

currency. In robotic systems, and embedded systems

with only one (single-core) processor, parallel execu-

tion is just conceptual, as the system would always

execute a sequential schedule (albeit with the concur-

rency issues pointed out above). We do not lose the

conceptual modularity of several FSMs but add much

clearer modelling capabilities (and reliability due to

execution determinism).

4 TRANSITIONS

Our transitions do not have events, as we indicated,

but an event causes (in our reference implementation)

a change of a Boolean variable event hasHappened

in a whiteboard. Thus, the UML form event [ guard

] / effect of a transition is in fact the conjunction

of the Boolean variable event hasHappened and the

guard. So, the expressivity is the same but we han-

ArrangementsofFinite-stateMachines-Semantics,Simulation,andModelChecking

185

dle the above structure by event hasHappened &&

guard / effect. Consider robotic soccer; the vi-

sion module sets the variable ballIsVisible in the

whiteboard and this is the expression that switches

from a state of searching for the ball to a behaviour

that seeks the ball.

We only have effects with a very clear semantics.

We take the view that the OnEntry for S is executed

once and exactly once. And naturally, the OnExit for

S is part of the transition leaving S. We allow effects

only thus as an intermediate virtual state. That is, ef-

fects are just syntactic sugar for a model with an inter-

mediate state (Fig. 3). This now explains why we do

not distinguish between atomicity and non-atomicity

of the do section of a state as all the executable code

corresponding to the arrangement of FSMs is sched-

uled sequentially and execution of any code in the ar-

rangement cannot be preempted by another section of

code in the model. That is, there is no distinction in

our language between activities and actions.

This makes very clear that in our semantics, tran-

sitions belong to the source state, and ﬁnish in a target

state. We note that other FSM modelling languages

(for example rFSM) require transitions actually to de-

part a set of active states (this is mainly due to the

hierarchical nesting of states discussed earlier).

In contrast, UML’s event-labeled transitions

present challenges. Note that transitions labeled with

the conjunction of events

event 1 && event 2[guard]/effect.

have inspired the debate of “event history” as the tran-

sition would not “ﬁre” unless both events happen “at

the same time”. Thus, even event-based FSMs use

some event-history mechanism, but in our case, the

concerns regarding event-history are removed from

the behaviour designer and are simply handled in the

sensor-rate update of the whiteboard.

The effects component (and also OnEntry and

OnExit sections) usually cause variation points or

undeﬁned semantics. In UML, and its variants, ef-

fects are actions (and thus atomic, the OnEntry and

OnExit sections of states are also atomic), and cannot

be interrupted, to avoid these semantic issues. The

problem of being interrupted is the result of the pos-

sible existence of another thread in the hierarchy of

nested states which can raise an event for which we

have a transition now. The UML, and its variants, de-

clare OnEntry and OnExit sections, like effects, as

parts of the transition. However, even in this case, it

is not always clear that the OnEntry section of a state

S is part of the previous transition that moved control

to the state S. This is extremely important as the cur-

rent state S may have a transition simply labeled true

and with the highest priority.

cond1 / effects 1

condN / effectsN

state 1

OnEntry { action 1.1 }

OnExit{ action 1.2 }

{ action 1.3}

state 2

OnEntry { action 2.1 }

OnExit{ action 2.2 }

{ action 2.3}

state 1

OnEntry { action 1.1 }

OnExit{ }

{ action 1.3}

virtual state cond1

OnEntry {effects 1}

OnExit{ action 1.2 }

{ }

state 2

OnEntry { action 2.1 }

OnExit{ action 2.2 }

{ action 2.3}

virtual state condN

OnEntry {effects N }

OnExit{ action 1.2 }

{ }

cond1

condN

state N

OnEntry { action N.1 }

OnExit{ action N.2 }

{ action N.3}

state N

OnEntry { action N.1 }

OnExit{ action N.2 }

{ action N.3}

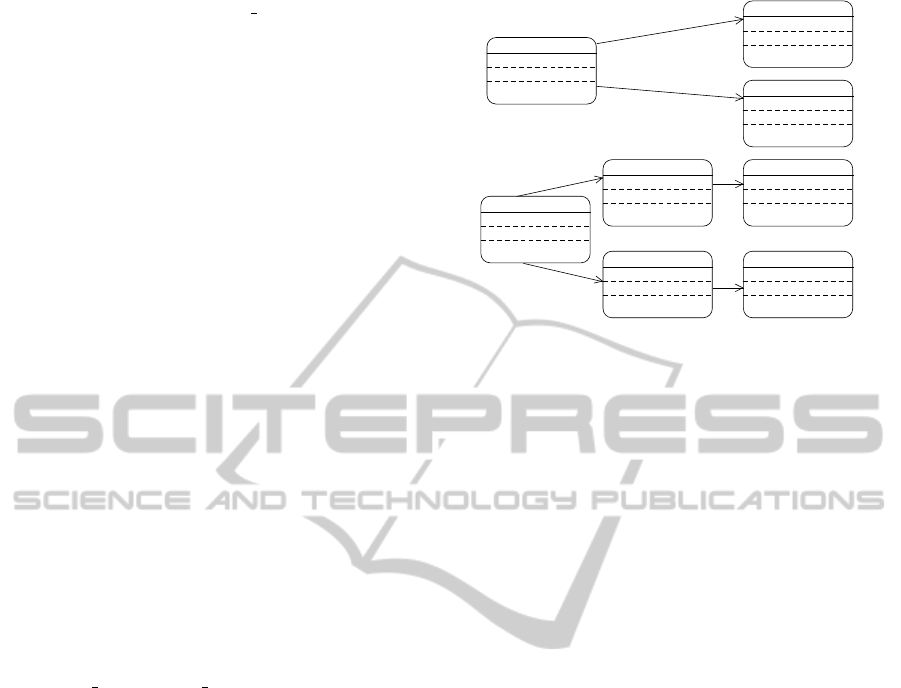

Figure 3: Transition effect part is an OnExit section for

a separate, virtual state.

This also raises the issue of boundary-crossing

transitions. Simons (2000) has already argued the re-

dundancy of these types of transitions as well as the

conceptual challenges caused to behaviour designers

by allowing these. Note also that this use caused re-

vision from UML 2 to UML 2.1 (in particular the in-

troduction of multiple exit points) and that further is-

sues were addressed in UML 2.3 making the owner of

a transition the least-common ancestor (LCA). Note

that our language keeps things simple, and avoids

all these issues completely, siding with Simon’s ar-

gument. That is, boundary-crossing transitions are

impossible to be drawn. The implicit transitions of

the restart and resume mechanism described be-

fore are just syntactic sugar that avoid requiring a sep-

arate, explicit suspend state replicated for every state

in an FSM and corresponding transitions back to the

previous state and the initial state.

The issue of a hierarchy of states and the LCA

is a result of state hierarchies. UML allows internal

transitions (although UML leaves open their priority

with respect to self-transitions), because in a state-

hierarchy these are not redundant; but otherwise they

are (Simons, 2000). Thus, we also do not include in-

ternal transitions in our language. Recall that an in-

ternal transition is a self-transition (that is a transi-

tion with the same source and target state) but where

neither the OnEntry nor the OnExit sections execute

(while a self-transition is an ordinary transition that

executes the OnEntry and the OnExit sections). If

the behaviour designer wishes to express an internal

transition, we suggest the pattern of Fig. 4.

4.1 Pseudo-states

This discussion takes us to the UML concept of

pseudo-states. We do have initial pseudo-states, in-

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

186

departure

state 1

OnEntry { action 1.1 }

OnExit{ action 1.2 }

{ action 1.3}

arrival

state

after

state

before

internal / effects

state 1

OnEntry { action 1.1 }

OnExit{}

{ action 1.3 }

state

before

state

after

virtual state 1

OnEntry { effects }

OnExit{ }

{ action 1.3}

virtual state 2

OnEntry { }

OnExit{ action 1.2}

{ }

departure

internal

arrival

internal

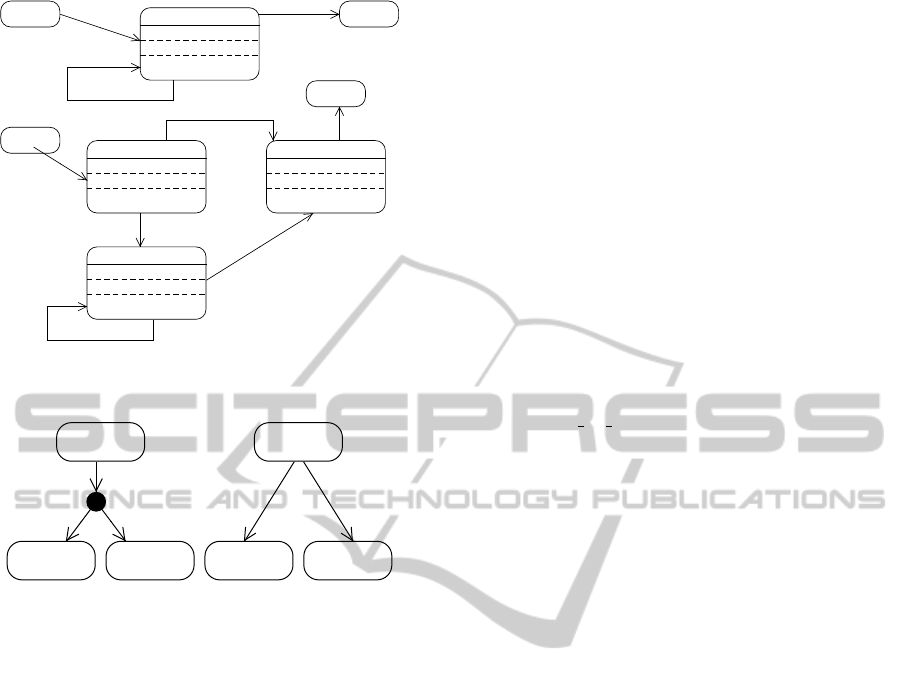

Figure 4: Internal transitions are relevant only for their ef-

fect and can be constructed with this pattern.

b c

T1 T2

a && b a && c

T1 T2

Figure 5: A junction (left) modelled through a common

clause a (right).

dicated by the full-circle. The semantics is clearly

the corresponding point in the ringlet of the state S

pointed by the arrow from the initial pseudo-state

(namely, just before the OnEntry of S). But, we do

not have UML’s choice pseudo-states in our transi-

tions at all. Note that UML recommends the use of an

else transition with the use of choice as execution be-

coming stuck is otherwise a possibility. Without loss

of generality, we simply remove this. Correspond-

ingly, we treat UML’s junction simply as syntactic

sugar to factor out a common clause in a conjunction

(as illustrated in Fig. 5).

Naturally, the issues with the open thread leads to

exit and entry pseudo-states in UML, but with a very

delicate semantics that varies whether the pseudo-

state is drawn inside the sub-state or in the boundary.

This danger has been noticed by rFSM and we follow

their approach by simply eliminating them.

UML then offers a Completion Event as a syn-

chronisation event for the possibility of the do sec-

tion being interrupted and other sub-states waiting for

such completion as well. UML also assumes unre-

alisticly that the departure of a state implies the ar-

rival to an exit pseudo-state of all its sub-machines

(and the termination of their activities). This is unre-

alistic even in the multi-threaded realisation unless a

native operating-system call can abort those threads.

Any other realisation where the sub-thread are actu-

ally waiting for a signal so themselves send a sig-

nal to halt a device (say a thread is in control of the

motor) depends on the priorities given by the thread

management to deliver the signal to the thread, and

for this one to have a sufﬁcient CPU slice in order

for itself to send the halting signal to the motor con-

troller. We claim that our synchronised scheduling is

thus more effective. We can predict how many steps

will be needed for the thread controlling the motor

to become live and perform its read of the signal in

the whiteboard and then shut down the motor. Such

predictability has been demonstrated by our model-

checking of several case studies.

We do not have any explicit representation of ﬁnal

or terminate pseudo-states (similarly to rFSM). Our

arrangement of machines maintains variables of the

form machine ID isRunning that enables the dis-

covery that some machine in the arrangement is in

its suspended state or has reached a ﬁnal state. Such

completion happens when a FSM reaches a state with-

out any transition departing. This effectively removes

the machine form the scheduling.

The UML history pseudo-state is covered by our

resume primitive, but without the need that occurs in

UML of enabling deep and shallow history pseudo-

states (that again are a result of the parallel threads of

hierarchical states). Finally, the synchronous model

proposed here also makes superﬂuous the UML join

and fork pseudo-states, and UML deferred events. An

aspect that UML allows is inheritance between FSMs;

our language currently does not support this, but to

the best of our knowledge, to date, nobody else has

chosen to to include such a facility.

5 EXAMPLES

We have successfully used our approach to model

and implement numerous case studies. Perhaps most

importantly, we have been able to uncover hidden

complexities and errors in prior modelling of soft-

ware engineering problems (Winter and Yatapanage,

; Grunske et al., 2011). To this end, we have both

performed formal model checking (Estivill-Castro

et al., 2012c) as well as simulation of system be-

haviour (Coleman et al., 2012).

The ﬁrst example where we used an arrangement

of FSMs is a widely studied case of a micro-wave

oven. The model can be fully veriﬁed by formal

model-checking (even with integer variables in the

timer) and it can be executed as a Java program on an

NXT robot or a C++ program on a Nao robot. This il-

ArrangementsofFinite-stateMachines-Semantics,Simulation,andModelChecking

187

ORANGE_BLOB_FOUND

OnEntry { extern blobSizeX; extern blobSizeY;

extern blobArea; extern blobNumPixels;

toleranceRatio = 2; densityTolerance = 3;

badProportionXY = blobSizeX/blobSizeY > toleranceRatio;

badProportionYX = blobSizeY/blobSizeX > toleranceRation;

badDensityVsDensityTolerance =

blobArea / blobNumPixels > densityTolerance;

}

OnExit {}

{}

BALL_FOUND

is_it_a_ball

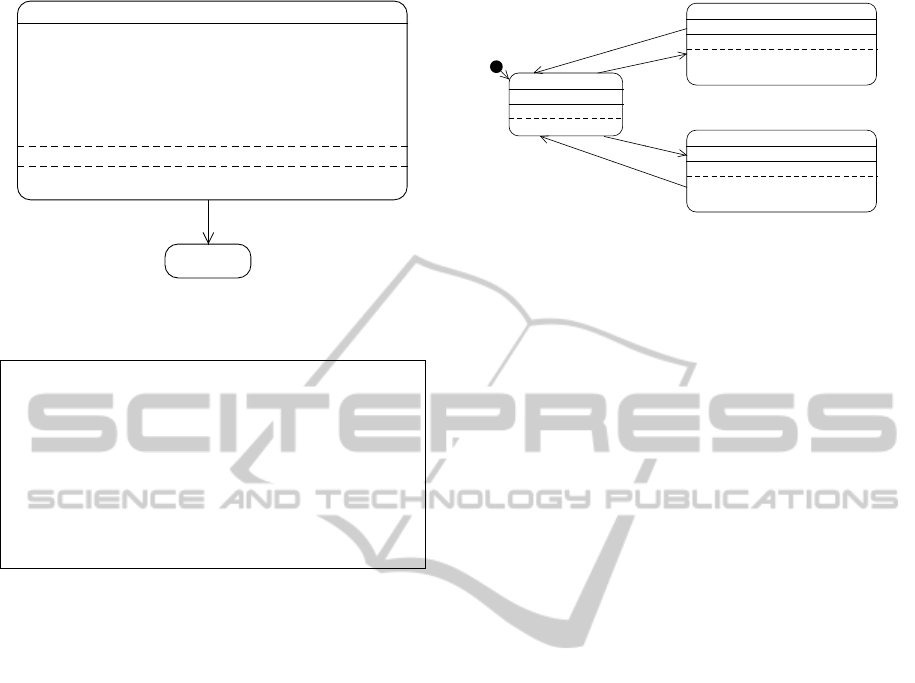

Figure 6: Section of the vision pipeline to recognise a blob

of orange as a ball.

% BallConditions.d

name{BALLCONDITIONS}.

input{badProportionXY}.

input{badProportionYX}.

input{badDensityVsDensityTolerance}.

BC0: {} => is_it_a_ball.

BC1: badProportionXY => ˜is_it_a_ball. BC1 > BC0.

BC2: badProportionYX => ˜is_it_a_ball. BC2 > BC0.

BC3: badDensityVsDensityTolerance => ˜is_it_a_ball. BC3 > BC0.

output{b is_it_a_ball, "is_it_a_ball"}.

Figure 7: Theory that deﬁnes when a blob is a ball.

lustrates the language independence and platform in-

dependence of this MDD approach. The model can

also be simulated (Coleman et al., 2012) and has been

subjected to fault injection to produce FMEA tables

for the analysis of failure-robustness (Estivill-Castro

et al., 2012c; Estivill-Castro et al., 2012a).

Two examples where this approach has been suc-

cessful in performing simulation, model-checking,

and execution across platforms, are a Mine Pump and

an Industrial Press (Coleman et al., 2012; Estivill-

Castro et al., 2012c; Estivill-Castro et al., 2012a).

A fourth case study where simulation and model-

checking has been very effective has been the Ambu-

latory Infusion Pump (Estivill-Castro et al., 2012b).

That case study utilises multiple submachines.

In a ﬁfth example, these FSMs have also been

used to include a planner, with re-planning (in the

sense of artiﬁcial intelligence) into the capabili-

ties of a robot while maintaining platform indepen-

dence (Ferrer Mestres, 2012).

Our FSMs are used by the MiPal team at

RoboCup. We now show here a sixth example

of combining a non-monotonic logic with a vision

pipeline to illustrate how powerful the combination

of a declarative language with the arithmetics facili-

tated of an imperative language can be. To illustrate

the power of combining the arithmetic provided by

WAIT_FOR_BALL

OnEntry {}

OnExit {}

{}

HEAD_RIGHT

OnEntry {}

OnExit {}

{

post("NaoHeadPositionChange", "-9 0 .3");

}

BallIsRight

BallIsLeft

~BallIsRight

~BallIsLeft

HEAD_LEFT

OnEntry {}

OnExit {}

{

post("NaoHeadPositionChange", "9 0 .3");

}

Figure 8: A simple ball tracker.

simpleC with the declarative nature of DPL we show

a simple example of ﬁltering for image recognition

of objects in robotics. In particular, in robotic soccer

(RoboCup), images are processed at a frame rate of

30 frames per second by a vision pipeline that, after

segmentation, builds blobs of colours. We illustrate

the ﬁltering of blobs by the declarative language (this

is basically a description of when a blob is considered

a ball, and, for simplicity, we ignore many other as-

pects). Sufﬁce it to say that usually, a blob of orange

should be recognised as a ball (this is rule BC0 in the

DPL ﬁle; see Fig. 7).

However, if the blob’s size on the X axis is much

larger than the blob’s size in the Y direction, it is con-

sidered a rectangular blob, far from the more square-

shaped blob that corresponds to a ball (the blob is the

smallest bounding rectangle that contains the orange

pixels); thus, this is not a ball (rule BC1). Similarly, if

the blob’s size for Y with respect to the X size (this is

rule BC2) and both of these rules defeat rule BC0; thus

we have the relations BC1 > BC0 and BC2 > BC0. Fi-

nally, if the number orange of pixels is much smaller

than the area of the blob in pixels, there are many

gaps of non-orange and it should not be considered

a ball (rule BC3 which also defeats BC0). Incremen-

tally, more sophisticated and reﬁned revisions on the

conditions can be made by adding rules to the theory

of Fig. 7, while the arithmetic is kept in Fig. 6.

Also, in robotics, a traditional topic is the track-

ing of an object by a feedback control (and can also

be illustrated by Robotic soccer) as the robot tracks

the ball. Such tracker can be coded in our modelling

language and it appears in Fig. 8.

REFERENCES

Agrawal, A., Simon, G., and Karsai, G. (2004). Seman-

tic translation of simulink/stateﬂow models to hybrid

automata using graph transformations. Electr. Notes

Theor. Comput. Sci., 109:43–56.

Baldwin, C. Y. and Clark, K. (2000). Design Rules, The

Power of Modularity. MIT Press, Cambridge, MA.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

188

Billington, D., Estivill-Castro, V., Hexel, R., and Rock, A.

(2010). Non-monotonic reasoning for requirements

engineering. In 5th Int. Conf. on Evaluation of Novel

Approaches to Software Engineering (ENASE), pages

68–77, Athens. SciTePress (Portugal).

Breen, M. (2004). Statecharts: Some critical observations.

Coleman, R., Estivill-Castro, V., Hexel, R., and Lusty, C.

(2012). Visual-trace simualtion of concurrent ﬁnite-

state machines for valdiation and model-checking of

complex behavior. In SIMPAR 3rd Int. Conf. on Sim-

ulation, Modeling and Programming for Autonomous

Robots, volume 7628, pages 52–64, Tsukuba, Japan.

Springer-Verlag LNCS.

Eshuis, R. (2009). Reconciling statechart semantics. Sci-

ence of Computer Programming, 74(3):65–99.

Estivill-Castro, V., Hexel, R., and Rosenblueth, D. A.

(2012a). Efﬁcient model checkign and FMEA analy-

sis with deterministic scheduling of transition-labeled

ﬁnite-state machines. In 2012 3rd World Congress

on Software Engineering (WCSE 2012), pages 62–72,

Wuhan, China. IEEE CPS.

Estivill-Castro, V., Hexel, R., and Rosenblueth, D. A.

(2012b). Efﬁcient modelling of embedded soft-

ware systems and their formal veriﬁcation. In

The 19th Asia-Paciﬁc Software Engineering Conf.

(APSEC 2012), Hong Kong. IEEE. to appear.

Estivill-Castro, V., Hexel, R., and Rosenblueth, D. A.

(2012c). Failure mode and effects analysis (FMEA)

and model-checking of software for embedded sys-

tems by sequential scheduling of vectors of logic-

labelled ﬁnite-state machines. In System Safety, The

7th Int. IET System Safety Conf.,, Edinburgh, UK.

Ferrer Mestres, J. (2012). Implementation of a planning

module for a Nao robot. Universitat Pompeu Fabra,

Escola Superior Polit

ecnica. Projecte Fi de Carrera.

Grunske, L., Winter, K., Yatapanage, N., Zafar, S., and

Lindsay, P. A. (2011). Experience with fault injec-

tion experiments for FMEA. Software, Practice and

Experience, 41(11):1233–1258.

Harel, D., Lachover, H., Naamad, A., Pnueli, A., Politi, M.,

Sherman, R., Shtull-trauring, A., and Trakhtenbrot,

M. (1990). Statemate: A working environment for

the development of complex reactive systems. IEEE

Transactions on Software Engineering, 16:5.

Harel, D. and Naamad, A. (1996). The STATEMATE se-

mantics of statecharts. ACM Transactions on Software

Engineering Methodology, 5(4):293–333.

Harel, D. and Politi, M. (1998). Modeling Reactive Sys-

tems with Statecharts: The STATEMATE Approach.

McGraw-Hill.

Hayes-Roth, B. (1988). A blackboard architecture for con-

trol. In Distributed Artiﬁcial Intelligence, pages 505–

540, San Francisco, CA, USA. Morgan Kaufmann.

Hopcroft, J., Motwani, R., and Ullman, J. (1979). Introduc-

tion to Automata Theory, Languages, and Computa-

tion. Addison-Wesley Publishing Co., Reading, MA.

Klotzbuecher, M. (2012). rFSM v1.0-beta6.

www.orocos.org/rfsm.

Kopetz, H. and Bauer, G. (2003). The time-triggered archi-

tecture. Proc. of the IEEE, 91(1):112–126.

otzsch, M., Bach, J., Burkhard, H.-D., and J

ungel, M.

(2004). Designing agent behavior with the extensi-

ble agent behavior speciﬁcation language XABSL. In

7th Int. Workshop on RoboCup, volume 3020, pages

114–124. Springer LNAI.

Mellor, S. J. and Balcer, M. (2002). Executable UML: A

foundation for model-driven architecture. Addison-

Wesley Publishing Co., Reading, MA.

Merz, T., Rudol, P., and Wzorek, M. (2006). Control system

framework for autonomous robots based on extended

state machines. In Int. Conf. on Autonomic and Au-

tonomous Systems, ICAS, page 14, Silicon Valley, CA.

Michel, O. (2004). Webots: Professional mobile robot sim-

ulation. J. Advanced Robotics Systems, 1(1):39–42.

Risler, M. and von Stryk, O. (2008). Formal behavior speci-

ﬁcation of multi-robot systems using hierarchical state

machines in XABSL. In AAMAS08-Workshop on For-

mal Models and Methods for Multi-Robot Systems,

Estoril, Portugal.

Rumbaugh, J., Blaha, M. R., Lorensen, W., Eddy, F., and

Premerlani, W. (1991). Object-Oriented Modelling

and Design. Prentice-Hall, Englewood Cliffs, NJ.

Samek, M. (2008). Practical UML Statecharts in C/C++,

Second Edition: Event-Driven Programming for Em-

bedded Systems. Newnes.

Simons, A. (2000). On the compositional properties

of UML statechart diagrams. In Rigorous Object-

Oriented Methods 2000, York, UK. Electronic Work-

shops in Computering (eWiC).

Sommerville, I. (2010). Software engineering (9th ed.).

Addison-Wesley Longman, Boston, MA, USA.

von der Beeck, M. (1994). A comparison of statecharts

variants. In 3rd Int. Symp. Organized Jointly with the

Working Group Provably Correct Systems on Formal

Techniques in Real-Time and Fault-Tolerant Systems,

ProCoS, pages 128–148, UK. Springer-Verlag.

W3C (2012). State chart XML (SCXML): State

machine notation for control abstraction.

www.w3.org/TR/2012/WD-scxml-20120216/.

Working Draft.

Wagner, F., Schmuki, R., Wagner, T., and Wolstenholme,

P. (2006). Modeling Software with Finite State Ma-

chines: A Practical Approach. CRC Press, NY.

Winter, K. and Yatapanage, N. The mine pump case study.

Technical report, University of Queensland. supple-

ment in www.itee.uq.edu.au/˜docs/FMEA.

ArrangementsofFinite-stateMachines-Semantics,Simulation,andModelChecking

189
