Visualizing OCL Constraint Patterns with VOCL

Ali Hamie

Computing Division, Brighton University, Brighton and Hove, U.K.

Keywords:

Constraint Pattern, Template Package, OCL, Visualization.

Abstract:

A speciﬁcation pattern is a generic constraint expression that can be instantiated to solve a class of speciﬁcation

problems. It captures and generalizes frequently used logical expressions in models. Speciﬁcation patterns

have been deﬁned and represented in the Object Constraint Language OCL for UML/OCL modelling. The

notation of visual OCL (VOCL) is a visualization of OCL and can be considered as an alternative solution

to the textual OCL. This paper provides the visualization of some OCL constraint patterns in VOCL. For this

purpose, we introduce constraint pattern templates in VOCL to represent constraint patterns in a diagrammatic

form. The beneﬁts of the visualization is that some patterns will be available in a intuitive diagrammatic

notation that follows the UML notation.

1 INTRODUCTION

Constraint patterns (Ackermann and Turowski, 2006;

Costal et al., 2006; Wahler et al., 2006; Wahler et al.,

2010) are essential to developing constraint speciﬁ-

cations for UML class models (OMG, 2006). Using

constraint patterns accelerates the development and

maintenance of constraint speciﬁcations. This is be-

cause a pattern abstracts from concrete textual syn-

tax and thus reduces typical syntactic and semantic

errors by providing predeﬁned constraint templates.

Patterns also overcome the difﬁculty of writing con-

straints because class models can express complicated

relations between classes, including subtyping, re-

ﬂexive relations, or potentially dealing with inﬁnitely

large instances, and specifying such facts requires ad-

dressing this complexity. A pattern captures and gen-

eralizes frequently used logical expressions. It is a

parameterizable constraint expression that can be in-

stantiated to solve a class of speciﬁcation problems.

In the context of UML modelling, the Object

Constraint Language OCL (Warmer and Kleppe,

2003) has been used to deﬁne and represent constraint

patterns. OCL is a formal speciﬁcation language

that was developed as an extension to the Uniﬁed

Modelling Language UML . The main purpose is to

describe additional constraints on UML models that

are difﬁcult to describe using the diagrammatic no-

tation of UML. OCL is based on textual syntax and

provides basic data types and a library of collection

types such as sets, bags and sequences. The type of

constraints that can be described in OCL include in-

variants on classes and types, preconditions and post-

conditions of operations or methods. However, mod-

eling with UML and OCL may lead to some difﬁculty

in that the user has to learn two different languages

to represent common modelling elements such as ob-

jects and links.

The Visual OCL (VOCL) (Winkelmann, 2005;

Bottoni et al., 2001) is a graphical representation of

OCL capable of visualizing the textual constraints of

UML models. It was developed to overcome the prob-

lem stated above. Based on the OCL meta model,

VOCL follows the UML notation and its graphical

representation as far as possible. This makes a direct

integration of OCL in UML diagrams easier. Like

OCL, VOCL is a formal, typed and object-oriented

language. Since the user does not need to learn an-

other textual language, it is claimed to be an advan-

tage over the textual OCL. The language uses sim-

ple diagrams to represent new data types such as col-

lections, and operations such as forall, select, union,

etc. Logical expressions are represented as Peircian

graphs using different kinds of box to express con-

junctions and disjunctions.

In this paper we provide a visualization of OCL

speciﬁcation patterns using VOCL. The basic tool for

representing and combining constraint patterns is a

generic form of package, called a pattern or template

package. In the package, a generic constraint frame-

work can be deﬁned which acts as a macro-like tem-

plate that can be applied in many places. A tem-

plate can contain modeling constructs in the form of

both diagrams and text. In addition, any name can

129

Hamie A..

Visualizing OCL Constraint Patterns with VOCL.

DOI: 10.5220/0004317801290134

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2013), pages 129-134

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

be written as a <placeholder>, which will be sub-

stituted when it is applied to a model. The process

of building and composing constraint patterns using

template packages will be explained. The advantage

of the visualization is that some constraint patterns

will be available to users in a intuitive diagrammatic

notation that follows the UML notation. With the help

of appropriate tools, constraint frameworks simplify

the process of developing diagrammatic constraints in

VOCL. The approach will be illustrated using an ex-

ample.

2 VIDEO STORE MODEL

In this section, we present a partial class model

for the video rental store system that we will use

as an example throughout the remainder of this pa-

per. Figure 1 illustrates the model of the video

rental store using a UML class diagram. The

main classes are VideoRentalStore, Title, Member

and Rental. The video rental store has a collec-

tion of members which is represented by the as-

sociation with role name members between classes

VideoRentalStore and Member. The association be-

tween VideoRentalStore and Title indicates that a

store has many titles and a title belongs to exactly

one store. The association between Title and Rental

indicates that a title has many rentals and a rental be-

longs to one title. The association between Member

and Rental indicates that a member has many rentals

and a rental is only for one member. In addition the

diagram shows a number of attributes for each class.

VideoRentalStore

1 members

store

catalog

store

rentals

title

rentals

member

Rental

address: String

totalNoCopies: Integer

Title

name: String

noOfCopies : Integer

availCopies: Integer

Member

name: String

age: Integer

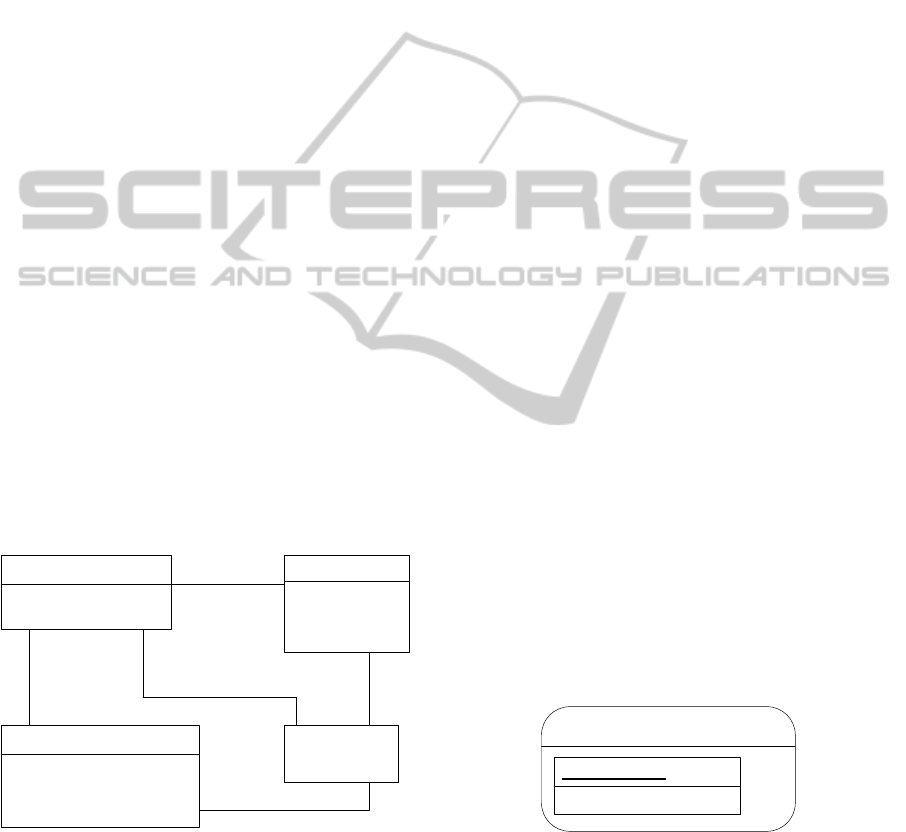

Figure 1: A partial class model for video rental store.

3 CONSTRAINTS AND

PATTERNS IN VOCL

An OCL constraint is visualized as a rounded rectan-

gle with two sections, the section of the context and

the section of the body which can contain a condition.

The context section includes the keyword context fol-

lowed by the model element which can either be a

class, type or operation, of the constraint followed by

the kind of the constraint e.g. inv, pre, post or def. In

the body section, the body of the constraint is visu-

alized. The condition section contains the conditions

of the constraint declared using variables deﬁned in

the body. If there is a condition section it is separated

from the rest of the body by a dashed line. In order

to represent constraint patterns we use a generic, or

template, form of package. Inside the template, some

types and their features can be deﬁned using place-

holder names. These names can be substituted for ac-

tual values. the package is designed to be imported

with substitutions. Unfolding the package provides a

version of its contents that is specialized based on the

substitution made.

3.1 Attribute Value Restriction

Consider the constraint that each member in the

video store should be over 18 years old. This can be

speciﬁed textually in OCL as follows.

context Member inv :

self.age > 18

The ﬁrst line declares the context of the constraint

Member followed by the type of the constraint inv,

indicating that the constraint is an invariant. The sec-

ond line is the actual invariant represented as an OCL

boolean expression using the variable self that refers

to an object of class Member.

The visualization of this simple constraint in

VOCL is shown in Figure 2. The main difference here

is that the object self of class member has been visu-

alized using UML as a rectangular box. The context

is speciﬁed like in OCL.

context Member inv:

self: Member

age > 18

Figure 2: Properties of an object attribute.

Restricting the value of an attribute is a com-

mon kind of constraint. Abstractly, the above con-

straint restricts the value of an attribute of the context

class (age) to be greater than a given value (18). We

therefore generalize this constraint by introducing the

Attribute Value Restriction pattern, which can be used

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

130

to restrict the values of attributes for all instances of

the attributes’class. We deﬁne it as VOCL template

package, as shown in Figure 3. The template has

place holders (parameters) that specify classes and

objects that can be substituted when the pattern is in-

stantiated in a particular context. For this pattern the

parameters are the class C, the attribute att, the com-

parison operator operator and the value value. Place-

holders within the constraint template are written with

angle brackets (<>). An alternative way is to include

the parameters after the name of the pattern.

context <C> inv:

self: <C>

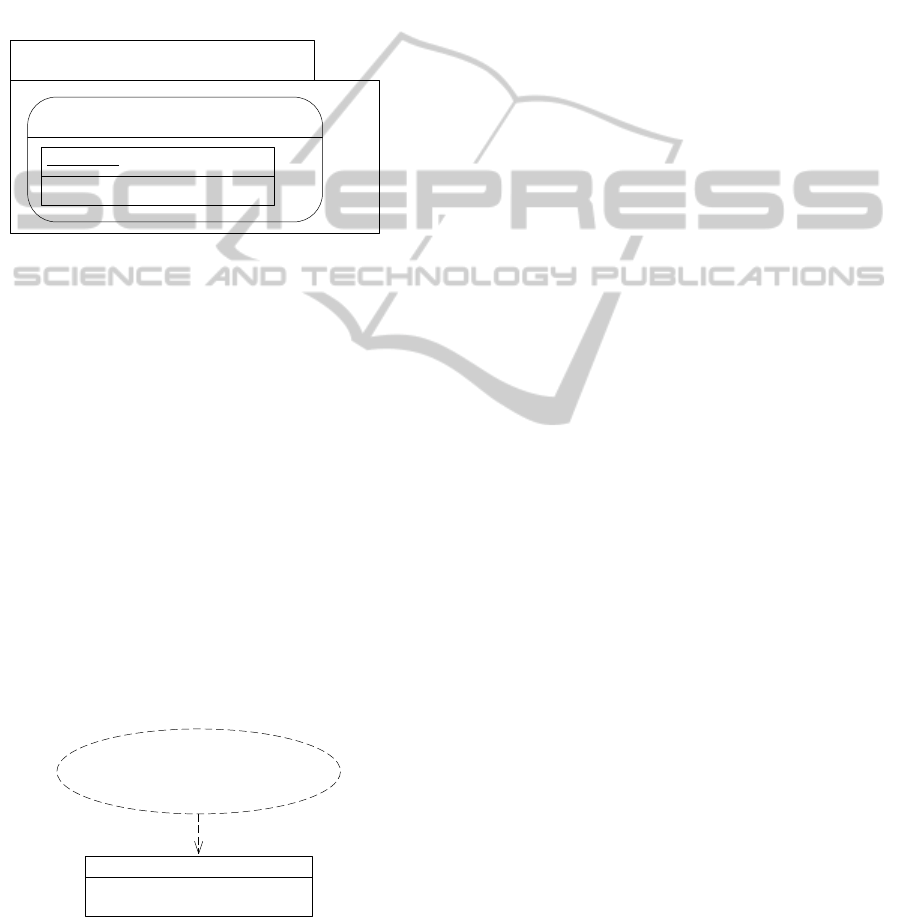

AttributeValueRestriction «pattern»

Figure 3: Properties of an object attribute pattern.

Now the constraint that members must be over 18

can easily be generated from a pattern application

(see Figure 4). The place holders inside the pattern

deﬁnition are identiﬁed with actual type names

when the pattern is applied. This is the effect of

the labeled arrows when the pattern is applied. The

example also shows name substitution in the form

[pattern-name\applied-name], we have used to

substitute values for the attribute att and parameters

value and operator. This text form and the arrows

are equivalent. It is sometimes convenient to write

instead of drawing pictures:

AttributeValueRestriction[C\Member, att\age,

value\18,operator\ >]

This indicates that Member, age, 18 and > are

substituted for C, att, value and operator respectively.

Member

age: Integer

C [att\age]

AttributeValueRestriction

[operator\>, value\18]

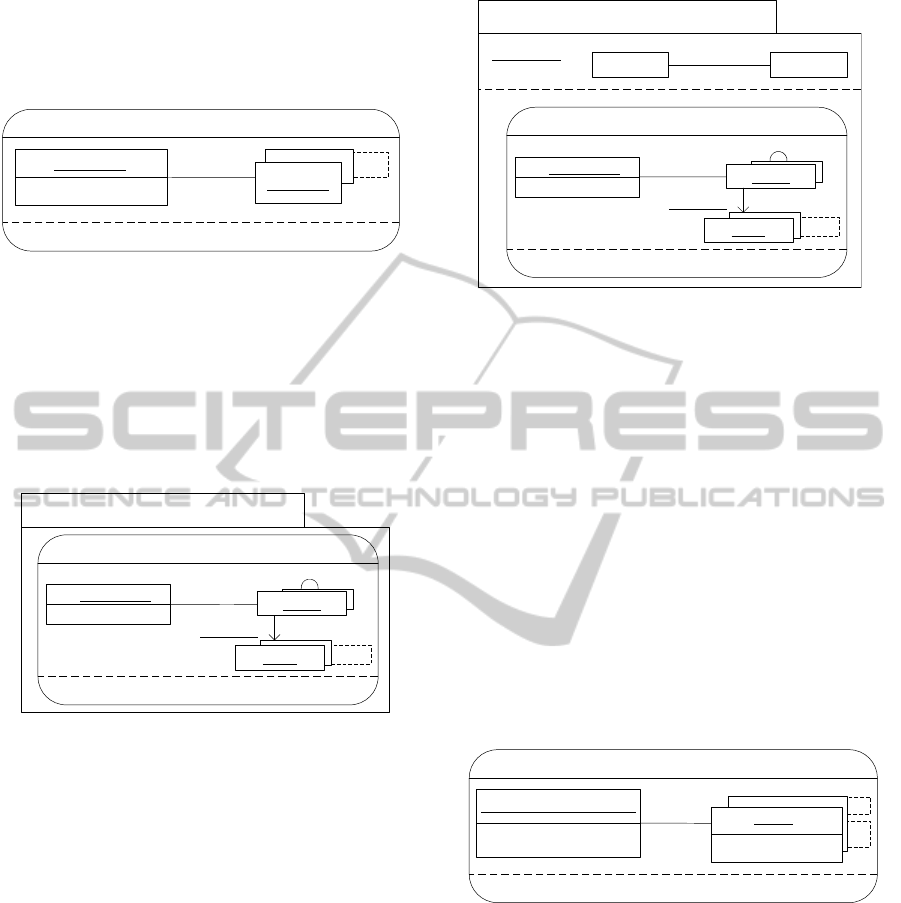

Figure 4: Example of applying a constraint pattern.

In the resulting constraint, the context will be a

predeﬁned class or type with features appearing in

the body, the condition also includes features de-

ﬁned by the pattern, as name-substituted by the ap-

plication. Working out the complete constraint is

called un f olding. A good tool can show an unfolded

version on demand.

In the context of OCL a constraint pattern named

AttributeValueRestriction is deﬁned in (Wahler et al.,

2010) to capture this kind of constraints. The pattern

is deﬁned as an OCL template as follows.

pattern AttributeValueRestriction

(property: Property,

operator, value: OclExpression) =

self.property operator value

The pattern has three parameters. property repre-

sents the attribute of the object, operator represents

the comparison operator, and value represents the ac-

tual value.

Using the pattern, we can express the constraint

in Figure 2 as follows.

context Member inv :

AttributeValueRestriction(age, >, 18)

The VOCL pattern can be regarded as a visualization

of the OCL constraint pattern. The only difference is

that the OCL pattern does not include the context of

the constraint whereas the VOCL pattern does. How-

ever, it is possible to formulate the OCL pattern by

including an additional parameter for the context of

the constraint.

3.2 Restricting the Multiplicity of

Associations

The multiplicities of properties (associations) can

only be roughly constrained in a diagrammatical

way in class models. However, there are situation

where the multiplicity of an association depends on

the value of an attribute. For example, an object of

class Title can have an arbitrary number of rentals

which cannot exceed the total number of copies for

that title. So there is a dependency between the

association with role name rentals and the attribute

noOfCopies. The following OCL constraint captures

this dependency.

context Title inv RentalsRestriction :

self.rentals−>size() <= noOfCopies

The above constraint can be visualized in VOCL

as shown in Figure 5. This constraint speciﬁes that

a title has less than noOfCopies rentals. In this con-

VisualizingOCLConstraintPatternswithVOCL

131

straint the OCL operation size is visualized and ap-

plied to a collection (in this example a set) of rentals.

The variable n contains the number of elements in this

collection.

context Title inv:

n <= x

rentals

: Rental

self: Title

noOfCopies = x

Figure 5: Restricting association multiplicity.

This constraint can be represented as an instance

of the Multiplicity Restriction pattern. This pattern

restricts the multiplicity of associations. The multi-

plicity of associations can be restricted in UML class

models, however this pattern allows model developers

to deﬁne multiplicity restrictions that depend on prop-

erties of the model instance, e.g. an attribute value.

The pattern is deﬁned by the template in Figure 6.

MultiplicityRestriction «pattern»

context <A> inv:

n <= x

<r.s.t>

:

asSet()

self: <A>

att = x

Figure 6: Restricting association multiplicity pattern.

This pattern has four parameters: A, B, representing

classes, att, attribute of the context class and <r.s.t>,

which represents a sequence of properties, thus allow-

ing the use of expressions such as self.catalog.rentals.

Since in OCL the navigation of more than one associ-

ation may result in a bag, the OCL operator asSet() is

used to convert the resulting collection into a set.

In some cases, there may not be a direct link be-

tween the object self and an object of class B, however

the the link can be regarded as a derived link. This is

the case when the navigation uses more than one as-

sociation.

In general, when you build a pattern one must

make certain assumptions about the things that are

substituted for the placeholders in order for the appli-

cation of the pattern to work as intended. For exam-

ple, to apply the pattern in Figure 6, as a prerequisite,

the classes substituted for <A> and should be

linked by an association with appropriate role name

and multiplicity; if they do not, they are not suited for

the MultiplicityRestriction template.

MultiplicityRestriction «pattern»

context <A> inv:

n <= x

<r.s.t>

:

asSet()

self: <A>

att = x

<A>

<r.s.t>

provided

Figure 7: Explicit substitution provisions in

MultiplicityRestriction pattern.

In a separate section of the package we provide

information for the modeler of a template to state the

conditions under which the pattern can be meaning-

fully applied. Figure 7 shows an improvement of

MultiplicityRestriction template. It says that if you have

two types reachable via a sequence of associations,

then it is OK to say that the navigation results in a

collection with restricted size.

In the precondition section, one can put any model

to which the substituted types must already conform.

Thus, one can require that substituted types have

some relationship or satisfy some predicate. When

the pattern is applied one must check, perhaps with

the help of a tool, that all other parts of his or her

model imply the properties laid down as precondi-

tions.

Σ x <= y

context VideoRentalStore inv:

catalog

self:VideoRentalStore

totalNoCopies = y

availCopies = x

: Title

Figure 8: Sum restriction constraint.

3.3 Attribute Sum Restriction

In the video rental store model the sum of the

available copies of all titles must not exceed the

total number of copies in the store. This dependency

between the attributes totalNoCopies and availCopies

is captured by the following OCL invariant.

context VideoRentalStore inv :

self.catalog.availCopies−>sum()

<= self.totalNoCopies

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

132

This can be visualized in VOCL by the diagram in

Figure 8. In this case the operation sum has a frame

in which the element whose values are summed up,

is visualized. This element is depicted at the frame

above the

∑

symbol. To refer to the result of the sum

in the condition section, the

∑

symbol is used.

To capture this constraint, we deﬁne the Attribute

Sum Restriction pattern, which has ﬁve parameters.

Besides the parameters A, B, which represent classes,

and r.s.t, which denotes a path expression to a re-

lated class, this pattern has two parameters. Parameter

summation refers to the property in the context class

that denotes the value that must not be exceeded, and

summand refers to the property in the related class

that is accumulated. The pattern is shown in Figure 9.

AttributeSumRestriction «pattern»

Σ x <= y

context A inv:

<r.s.t>

self: <A>

summation = y

summand = x

:

Figure 9: Attribute sum restriction pattern.

3.4 Uniqueness Constraints

The unique identity constraints are very frequent in

modelling. For example, it is required that each title

in the video rental store has a unique name in order

to distinguish one title from another. Such constraint

can be expressed in OCL by using the class operation

allInstances that returns the set of existing instances

of the class. It is given as follows.

context Title inv UniqueName :

Title.allInstances−>forAll(t1,t2: Title |

t1 <> t2 implies t1.name <> t2.name)

This constraint is visualized in VOCL by the dia-

gram given in Figure 10. The feature allInstances re-

sults in a set of all instances of the type which exists

at the speciﬁc time when the expression is evaluated.

It is visualized by a set of type of the class name.

In the constraint above the navigation starts at this

set, since there is no instance self from which it could

be started. After this a forall operation is applied to

that set and inside the forall an implies operation. forall

operation is deﬁned on collections and has one or two

iterators. It has a frame which contains the expression

which has to be true for each collection element. By

isIn all instances of the set of all titles can be accessed.

context Title inv:

isIn

implies

x ≠ y

: Title

t1: Title t2: Title

≠

t2 :Title

name = y

t1 :Title

name = x

Figure 10: Unique identity constraint.

These instances correspond to the iterator/iterators.

The constraint speciﬁes that all instances of type Title

have unique names. The link labeled isIn visualizes

that single objects are contained in the collection.

By abstracting from the above constraint a visual

pattern is obtained and shown in Figure 11. The pat-

tern has a parameter for the context class and another

for the property or attribute that has to be unique.

UniqueIdentity «pattern»

context <C> inv:

isIn

implies

x ≠ y

: <C>

o1: <C> o2: <C>

≠

o2 :<C>

<att> = y

o1 :<C>

<att> = x

Figure 11: Unique identity constraint pattern.

3.5 Composing Patterns

Associations in class models represent relations be-

tween the associated classes, therefore they can have

properties such as injectivity, surjectivity and bijec-

tivity. These properties can be speciﬁed on class dia-

grams by appropriate multiplicity constraints. How-

ever, there are situation where these properties de-

pend on some model attributes making it necessary

to write textual constraints. Patterns for injective,

VisualizingOCLConstraintPatternswithVOCL

133

surjective and bijective associations have been intro-

duced in (Wahler et al., 2010) as OCL templates. Fig-

ure 12 shows a visualization of a modiﬁed formula-

tion of the In jective Association pattern.

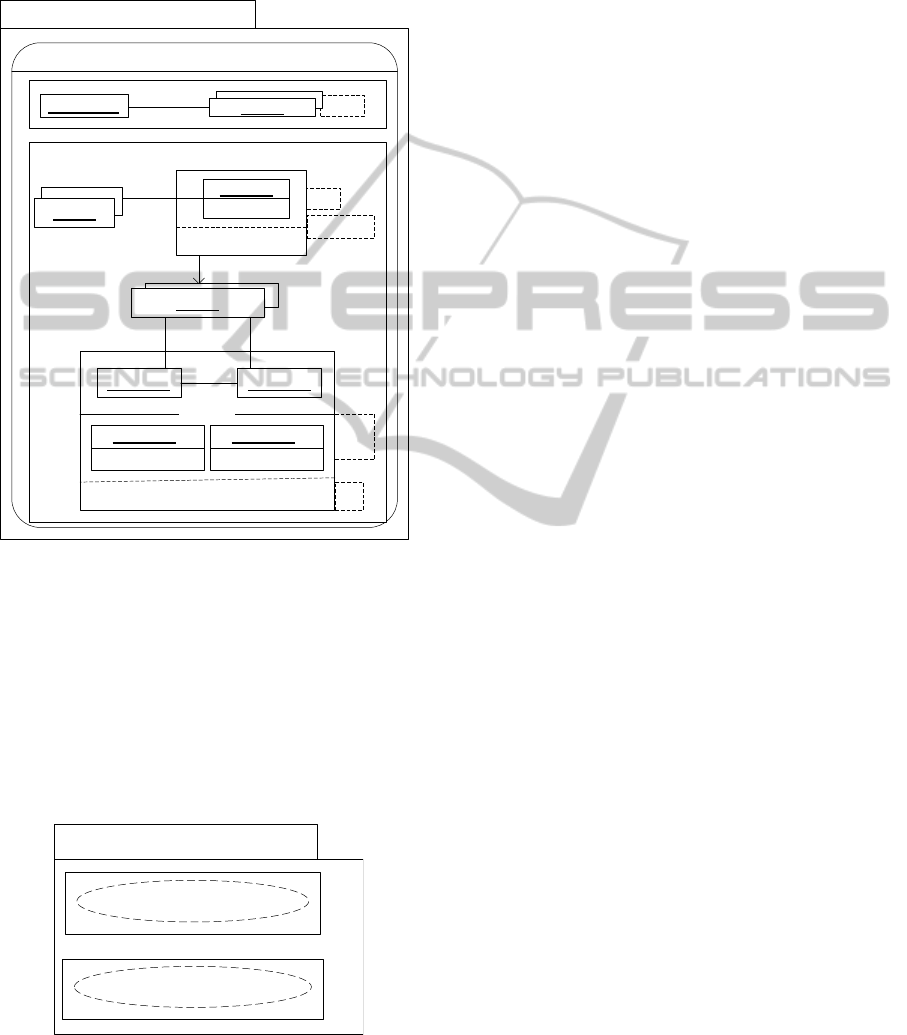

InjectiveAssociation «pattern»

context <A> inv:

self: <A>

<r>

:

select

x = true

isIn

a :<A>

<att> = x

: <A>

isIn

implies

x ≠ y

: <A>

o1: <A> o2: <A>

≠

o2 :<A>

<att> = y

o1 :<A>

<att> = x

Figure 12: Injective pattern.

The pattern uses two subexpressions which are

visualized below each other, which in VOCL are

automatically combined by and.

Assuming that a pattern called

Sur jective Association has been deﬁned, then

the Bi jective Association pattern can be deﬁned in

terms of the in jectivity and sur jectivity patterns

as shown in Figure 13. This corresponds to the

deﬁnition that a bijective association is both injective

and surjective.

BijectiveAssociation «pattern»

InjectiveAssociation[..]

SurjectiveAssociation[..]

Figure 13: Bijective pattern.

4 CONCLUSIONS

In this paper we provided a visualization of OCL con-

straint patterns using the VOCL notation. The pat-

terns are represented as generic packages containing

placeholder deﬁnitions. A placeholder is a name that

can be substituted when the pattern is used. Each use

or application of the pattern provides its own substitu-

tions of the placeholders. Placeholder names are dis-

tinguished with angle brackets (<>). The names of

attributes and associations of placeholder classes are

themselves placeholders.

The beneﬁt of the visualization is that for some

patterns it provides an intuitive way for representing

them within the UML. However there will be situ-

ations where the textual representation of a pattern

is simpler than its diagrammatic representation. The

pattern-based approach helps to avoid syntactic and

structural errors because the developer can generate

VOCL diagrams instead of drawing them by hand.

Further research based on case studies is needed to

evaluate this approach and compare the visual and

textual representations with respect to expressiveness

and readability.

REFERENCES

Ackermann, J. and Turowski, K. (2006). A library of OCL

speciﬁcation patterns for behavioral speciﬁcation of

software components. Lecture Notes in Computer Sci-

ence, 4001/2006:255–269.

Bottoni, P., Koch, M., Parisi-Presicce, F., and Taentzer,

G. (2001). A visualization of OCL using collabora-

tions. In <<UML>>’01, 4th International Confer-

ence on the Uniﬁed Modelling Language, pages 257–

271. Springer-Verlag.

Costal, D., G

omez, C., Queralt, A., Ravent

os, R., and Te-

niente, E. (2006). Facilitating the deﬁnition of general

constraints in UML. In MoDELS, volume 4199 of

Lecture Notes in Computer Science, pages 260–274.

Springer.

OMG (2006). Uniﬁed Modeling Language Speciﬁcation

2.0: Infrastructure. OMG doc. smsc/06-02-06.

Wahler, M., Basin, D., Brucker, A. D., and Koehler, J.

(2010). Efﬁcient Analysis of Pattern-Based Con-

straint Speciﬁcations. Software and Systems Model-

ing, 9(2):225–255.

Wahler, M., Koehler, J., and Brucker, A. D. (2006). Model-

driven constraint engineering. Electronic Communi-

cations of the EASST, 5.

Warmer, J. and Kleppe, A. (2003). The Object Constraint

Language: Getting Your Models Ready for MDA.

Addison-Wesley, Reading, MA.

Winkelmann, J. (2005). Specifcation of visualOCL: A vi-

sualisation of the object constraint language. Master’s

thesis, TU Berlin. (in German).

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

134
