WebRTC using JSON via XMLHttpRequest and SIP over WebSocket

Initial Signalling Overhead Findings

Michael Adeyeye

, Ishmeal Makitla

and Thomas Fogwill

Department of Information Technology, Cape Peninsula University of Technology, Cape Town, South Africa

The Next Generation Network and Architecture Research Group, CSIR, Pretoria, South Africa

Keywords:

WebRTC, IMS, SIP, Browser Communication.

Abstract:

Web Real-Time Communication (WebRTC) introduces real-time multimedia communication as native capa-

bilities of Web browsers. With the adoption of WebRTC the Web browsers will be able to use WebRTC to

communicate with one another (peer-to-peer), and with WebSocket servers such as Mobicents SIP Servlets

and other server technologies that support WebSocket communication to enable SIP-to-WebRTC commu-

nication. This position paper discusses the two common methods of doing real-time communication in Web

browsers through WebRTC. The methods are JavaScript Object Notation (JSON) via XMLHttpRequest (XHR)

and Session Initiation Protocol (SIP) via WebSocket. A three-user WebRTC video chat prototype application

was developed and used to evaluate both methods. Additional signalling overhead introduced into a browser

by each method was determined. The results showed WebRTC-SIP/WS has more overhead than WebRTC-

JSON/XHR. This signalling overhead ﬁndings are useful in informing the WebRTC working groups in terms

of additional overhead introduced by proposed WebRTC methods, the ﬁnding could also help application de-

velopers make decision on their choice of technologies and protocols when developing WebRTC-supported

applications.

1 INTRODUCTION

The Internet Engineering Task Force (IETF) and the

World Wide Web Consortium (W3C) are currently

tasked with bringing WebRTC among browsers to

an acceptable level in both the industry and the

academia. WebRTC is an open framework that of-

fers web application developers the ability to write

rich real-time multimedia applications (e.g. video and

gaming applications) on the web without requiring

plugins or extensions. Its purpose is to help build

a strong Real Time Communication (RTC) platform

that works across multiple web browsers and plat-

forms. In an implementation, the WebRTC API will

abstract several key components for real-time audio,

video, networking and signal (WebRTC. (2011a); We-

bRTC. (2011b)). While the IETF is standardizing

the signalling protocols and media technologies (e.g.

codecs) required in WebRTC, the W3C is standardiz-

ing the APIs and browsers for real time communica-

tion.

There are many implementations of RTC among

web browsers (Linner et al., 2010; SIP on the Web,

2012; SIP-JS, 2012; The Phono WebRTC, 2012;

Adeyeye et al., 2012) and the WebRTC itself (Eric-

sson WebRTC, 2012; Chrome WebRTC Implementa-

tion, 2012; RTCWeb-SIP, 2011). The standard sig-

nalling protocol for WebRTC is JavaScript Session

Establishment Protocol (JSEP), however, Remote Ob-

ject Access and Replication (ROAR) has also been

used in some existing implementations. The reason

JSEP is the preferred protocol is because it moves

control or negotiations from a browser to JavaScript

(in an application). In addition, there is a need to

make the WebRTC implementation look similar to

the SIP Offer and Answer. Although the VP8 codec

seemed to be the preferred codec for WebRTC, it is

faced with royalty problems. Hence, codecs for the

WebRTC are also being addressed.

WebRTC is built on the PeerConnection API and

represents what browser vendors will implement and

expose to web application developers. Web applica-

tion developers can choose an underlying protocol de-

pending on their project requirements. The underly-

ing protocols, also called the sub-protocols, include

SIP and XMPP (with Jingle). The Libjingle library,

like a SIP stack, supports (Session Transversal Util-

ities for NAT (STUN) and Transversal Using Relays

119

Adeyeye M., Makitla I. and Fogwill T..

WebRTC using JSON via XMLHttpRequest and SIP over WebSocket - Initial Signalling Overhead Findings.

DOI: 10.5220/0004317901190124

In Proceedings of the 9th International Conference on Web Information Systems and Technologies (WEBIST-2013), pages 119-124

ISBN: 978-989-8565-54-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

and NAT (TURN). Both these Interactive Connectiv-

ity Establishment (ICE) techniques, namely STUN

and TURN, make communication possible when the

communicating endpoints are behind a ﬁrewall.

The motivation for this work is that applica-

tion developers will soon begin to create innovative

WebRTC-supported applications with little or no con-

sideration on the total cost of usage of their applica-

tions. An application with a high signalling overhead

would incur more cost with poorer quality of experi-

ence for users having low Internet bandwidth and pay-

ing high cost for Internet access. This work examined

the additional signalling overhead introduced by We-

bRTC applications. The contribution of this research

is therefore the development of a three-user WebRTC

video chat application with a report on the signalling

overheads introduced by the two common methods of

doing WebRTC.

The remainder of this paper is arranged as fol-

lows: Section II discusses the common methods of

doing WebRTC within compliant Web browsers and

the current ways of implementing video streaming us-

ing WebSocket. Section III presents the three-user

WebRTC vide chat prototype which was used to eval-

uate the resultant signalling overhead. Section IV

then presents and discusses the resultant signalling

overhead of the two commond methods of doing We-

bRTC. In Section V the paper is concluded.

2 WEB REAL-TIME

COMMUNICATION (WebRTC)

METHODS AND ISSUES

The two prominient ways of doing WebRTC are

using pure SIP via websocket (WebRTC-SIP/WS)

and JavaScript Object Notation via XMLHttpRe-

quest (WebRTC-JSON/XHR). While the former uses

a WebRTC-SIP proxy/gateway as its application en-

gine and SIP over websocket for signalling, the latter

uses a custom engine (e.g. the Google App. Engine)

as its application engine and JSON over XHR for sig-

nalling. For the Google App. Engine, the JSON/XHR

signalling is done via its Channel API. However, both

approaches are based on JSEP, which mimics the SIP

Offer and Answer signalling.

There are however other implementations devel-

oped to meet speciﬁc requirements. An example is

the Ericsson WebRTC implementation (Ericsson We-

bRTC, 2012), which uses ROAR. In this example,

some changes were made to the webkit libraries in

the Epiphany web browser in order to support We-

bRTC. There are other kinds of implementation in the

form of an extension to a browser. An example is

the IEWebRTC extension (which uses ChromeFrame)

for Internet Explorer (webrtcie ext, 2012). As web

browsers are being extended, the number of WebRTC

applications and frameworks, such as SIPML5 (which

uses SIP over websocket) (sipml5, 2012) and SIP-

JS (with support for Flash-network) (SIP-JS, 2012),

are rapidly increasing. At the time of this research,

Google Chrome is taking the lead in the WebRTC im-

plementation. Mozilla Firefox is yet to have a version

that has the PeerConnection or getUserMedia API. A

SIP stack (called SIPCC) is now being integrated into

it (Ikran - FF as SIP endpoint, 2012). Hence, it does

not currently support WebRTC. Other browser mak-

ers, such as Microsoft and Opera, are also contribut-

ing to the WebRTC standadization.

Figure 1 shows the signalling between two UAs

(User Agents) or devices; the sequence of events

starts from top to bottom. Some of the processes (such

as PeerConnectionFactory, ProcessSignalingMessage

and OnSignalingMessage) are peculiar to Google

Chrome, which uses the libjingle. A caller ﬁrst cre-

ates a new peerconnection and adds stream using the

PeerConnection API as shown in Figure 1. In ad-

dition, a local session description (for audio and/or

video) is applied. ICE is then started in order to get

available IP (Internet Protocol) address and port num-

ber for media transfer (these additional processes are

not shown for simplicity). A peerconnection and re-

mote session description (for the callee) are later cre-

ated. When a callback at the callee’s notiﬁes that a

stream is added (via a channel), an offer is created.

It is sent and processed by the caller. An answer is

then sent back and a local session description (for the

callee) is created. The answer, which contains the re-

mote session description and some hints, is sent to the

callee. A local session description (for audio or/and

video) is then set and applied in the callee’s browser.

Lastly, ICE is also started in order to get available IP

(Internet Protocol) address and port number for media

transfer. The caller later applies the remote session

description in order to present video/audio from the

callee. Encryption of WebRTC media in Google Ap-

pEng is achieved by sending the UDP (User Datagram

Protocol) data via SCTP (Stream Control Transmis-

sion Protocol) and DTLS (Datagram Transport Layer

Security).

On the other hand, there are still NAT and ﬁre-

wall issues in the WebRTC. In addition, SBCs (Ses-

sion Border Controllers) could be required to handle

connections between two or more domains. ICE tech-

niques (STUN and TURN) are likely to increase du-

ration to set-up a call. Security of media and per-

missions are also hot issues in the WebRTC, though

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

120

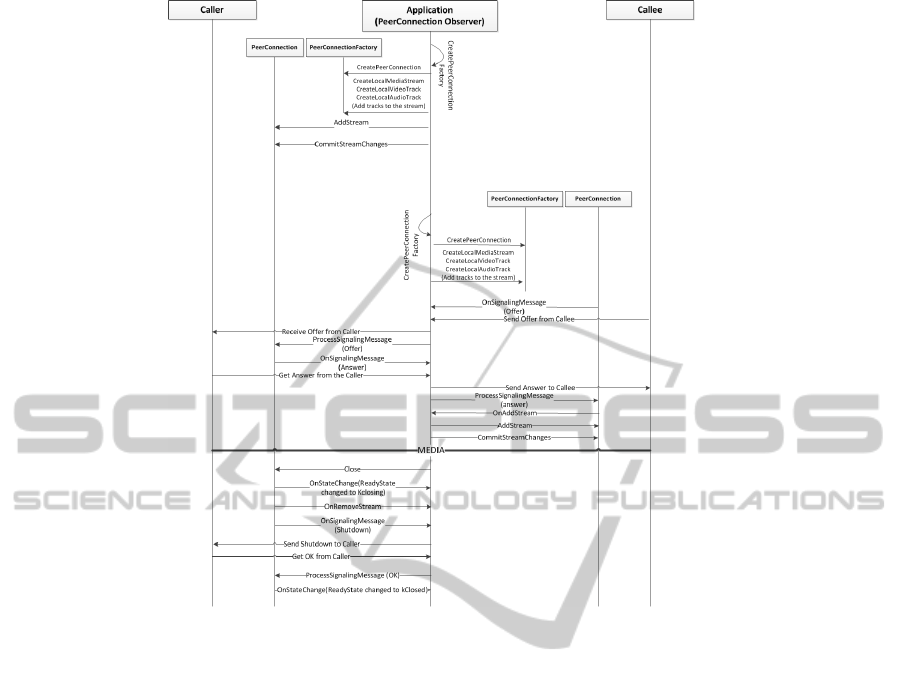

Figure 1: The WebRTC Signalling in a Call Session.

there are a couple of solutions that can be used. Other

issues of interest include recording video, support-

ing other SIP/SIMPLE features, such as presence and

messaging, and doing multi-user video chat using the

WebRTC framework.

As of this writing, and whereas the issues men-

tioned above are receiving sufﬁcient attention, the is-

sue of additional overhead introduced by WebRTC

methods has not been investigated. The next section

describes a prototype application which was used to

investigate additional signalling overhead.

3 A THREE-USER WebRTC

VIDEO CONFERENCE

PROTOTYPE

To determine the additional signalling overhead in-

troduced by WebRTC applications, a three-user We-

bRTC video chat application was developed as a pro-

totype for this research using the PeerConnection

API. The prototype application used both WebRTC

communication methods discussed in Section III

namely WebRTC-SIP/WS and WebRTC-JSON/XHR.

Google Chrome Web browser which integrated libjin-

gle (with XMPP) was used for experimentation as it is

the only browser with an acceptable level of WebRTC

support required for this research. As at the time

of writing, this is the only work that has considered

signalling overhead introduced by the two WebRTC

methods, In addition, the three-user WebRTC video

chat application is one of the few WebRTC video

chat applications that support three or more users.

Most WebRTC video chat applications are only for

two users, since WebRTC is currently being standard-

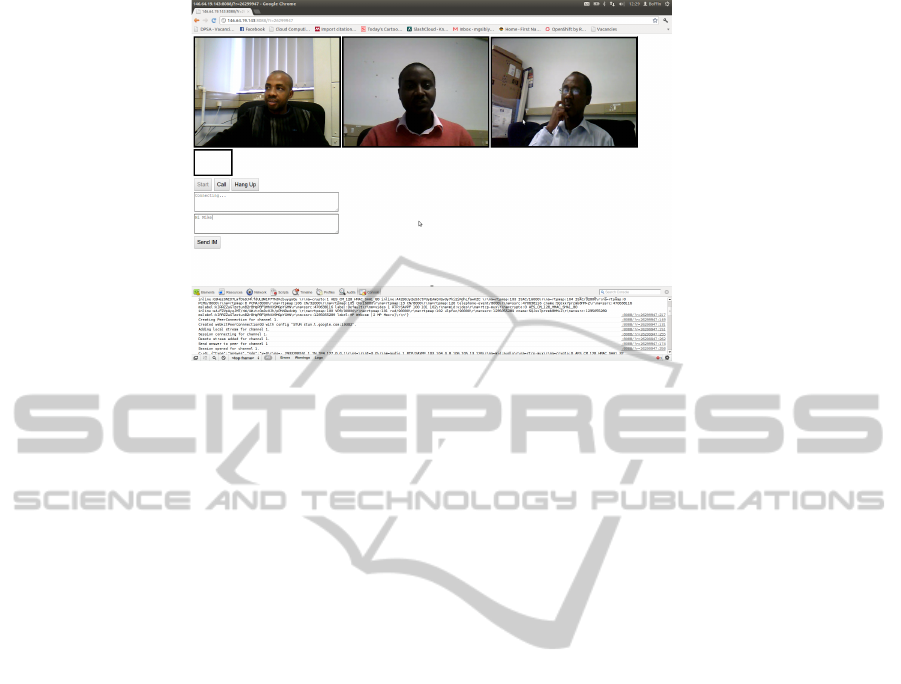

ized. The Three-user WebRTC video chat is depicted

in Figure 2.

Although the application was built for no more

than three users (as shown in Figure 2), the signalling

between two users is shown here (Figure 1) for sim-

plicity reasons. The application in-between the two

User Agents (UAs) acts as a B2BUA and is com-

mon feature among multi-user conference applica-

tions. The video conference application was ﬁrst de-

veloped and deployed in Google AppEngine (i.e. the

WebRTC-JSON/XHR). It used the Channel API in

the Google AppEngine for WebRTC signalling and

the getUserMedia and PeerConnection APIs in the

Google Chrome browser for media streaming. Since

WebRTCusingJSONviaXMLHttpRequestandSIPoverWebSocket-InitialSignallingOverheadFindings

121

Figure 2: The Three-user WebRTC demo.

the PeerConnection API only works for two devices,

each device created two instances of “webkitPeer-

Connnection00” and each instance was used to set-up

a peer-to-peer connection with the other device. In

order to demonstrate WebRTC-SIP/WS, a SIP servlet

application was modiﬁed and deployed into the Mo-

bicents AS (Application Server) as a SIP proxy in an

IMS. The Mobicents SIP Servlets AS used Apache

Tomcat 7.0, which supports WebSocket. The SIP

proxy acted as a B2BUA, which sets up a video chat

among the three users. The source of the application

is published on the Internet for contributions from in-

terested parties and the Open Source (OS) community

[project-source]. It is one of the few WebRTC works

on the Internet that support more than two users. Fig-

ure 2 also shows the signalling in a browser using the

browser’s developer tools.

4 WebRTC-JSON/XHR AND

WebRTC-SIP/WS SIGNALLING

OVERHEAD

As stated in Section II, the issue of signalling over-

head introduced by the two WebRTC methods has

not been studied before. Therefore, in order to report

the performances and differences between WebRTC-

JSON/XHR and WebRTC-SIP/WS method of doing

WebRTC, an experiment was performed using each

method. The signalling overhead in a peer-to-peer

connection was measured. The upload and download

speed for the network were 0.15Mbps and 0.81Mbps,

respectively. The test was carried out on a Lo-

cal Area Network (LAN), and the WebRTC-SIP/WS

application played the role of both a WebRTC-SIP

proxy/gateway and a SIP Registrar. Hence, there

were no outbound connections. Like every applica-

tion, its QoS (Quality of Service) depends on the net-

work speed. Connection time (latency) and signalling

overheads are two factors that can be used to evaluate

the performance of the two WebRTC methods. The

connection time and delay were determined by run-

ning Network Time Protocol (NTP) on all machines

used in the experiment. While connection time among

peers in a video chat was inﬁnitesimal or not notice-

able (being a test performed on a LAN), the signalling

overhead was noticeable. As a result, this work fo-

cuses on the signalling overheads of each WebRTC

method. The payload of each application was not in-

cluded in the values of signalling overheads. Table

1 shows the signalling overheads in a web browser

when the browser runs the WebRTC prototype appli-

cations for the three-urse video chat. In addition, the

values were compared with overheads introduced by

a regular SIP client - PJSIP. The result shows the sig-

nalling overheads as they increases in both WebRTC

approaches. The experiment was repeated multiple

times in order to report mean values and, for each

value, its variance in brackets for the overheads.

As reported on Table 1, all results show a limited

variance. A basic HTTP request-response (with no

payload) is 150B. The HTTP overhead is higher than

the WebRTC-JSON/XHR overhead for a completed

session (104B) because the HTTP server (Apache) re-

sponded with some additional information in its re-

sponse header. It is however possible for a devel-

oper to compress HTTP response headers or reduce

the response information to the essential ones. The

WebRTC-SIP/WS overhead can affect quality of ex-

perience, where access to the Internet is costly and the

Internet connection speed is low.

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

122

Table 1: Signalling Overhead in WebRTC via JSON/XHR and SIP/WS.

WebRTC-JSON/XHR WebRTC-SIP/WS A SIP

Client (PJSIP)

On Register 13B (0.58) 34B (1) 2.5kB (1.1)

On Invite 39B (0.58) 204kB (0.88) 4.9kB (1.02)

During Call 78B (0.78) 204kB (1) 9.6kB (1)

Session

Ending Call 104B (0.78) 275kB (1) 10.4kB (1.02)

Session

Shown in Table 1 are initial signalling over-

head ﬁndings from the experiment that was con-

ducted. These results open up a number of issues

such as why is there such a big difference (i.e. 39B

versus 204KB) between WebRTC-JSON/XHR and

WebRTC-SIP/WS. Could this be the fact that SIP is

XML based and that XML uses too many bytes sim-

ply to structure its content (i.e opening and closing

tags) which may account for this big difference in

byte-sizes? These and many other issues we hope to

investigate as part of our continued WebRTC experi-

mental research.

5 CONCLUSIONS

A three-user WebRTC video chat has been developed

and released to the OS community and researchers

exploring WebRTC. In addition, the signalling over-

heads for the two WebRTC approaches have been

reported.The support for WebRTC would create an

additional ways of communicating between two de-

vices. Voice services in existing telecommunication

networks may likely drop as customers will pay more

for data services in order to use WebRTC. Like there

are unique attributes in CSS for different browsers,

developers may need use some browser-speciﬁc fea-

tures, most notably in JavaScript, after the standard-

ization effort. They would have to choose what ap-

proach they want to use to develop their applications,

and one of their considerations would be the sig-

nalling overhead.

With a Web browser becoming a real-time com-

munication application, its installer ﬁle size is ex-

pected to drastically increase as it will now support

new features, such as WebRTC and WebGL. While

libjingle (with XMPP) is integrated into Google

Chrome, a SIP stack is integrated in Mozilla Fire-

fox to implement WebRTC. The integration of these

protocols would open enormous opportunities for de-

velopers. On one hand, web developers can develop

websites and applications that would run in a browser

using HTML5 with the APIs exposed to webpages.

On the other hand, application developers can develop

applications that work with a browser internals (e.g.

a XULRunner or Chrome Application) thereby di-

rectly communicating with the underlying protocols

and mechanisms in that browser.

Interoperability between WebRTC and current SIP

servlets and VoIP services have great potential to cre-

ate new markets. Necessarily current efforts within

IETF and other working groups for WebRTC seek

to address WebRTC-SIP interoperability. This means

that further experiments and analyses of potential sig-

nalling overhead that this will introduce are very cur-

cial to inform the direction taken by these WebRTC

working groups.

REFERENCES

WebRTC, http://www.webrtc.org, accessed on October 13,

2011.

IETF WebRTC, http://tools.ietf.org/wg/rtcweb, accessed on

October 13, 2011.

David Linner, Horst Stein, Ulrich Staiger and Stephan

Steglich, “Real-time Communication Enabler for Web

2.0 Applications,” in: Proceedings of the Sixth In-

ternational Conference on Networking and Services

(ICNS ’10), Cancun, Mexico, March 7-13, 2010, pp.

42 - 48.

SIP on the Web, http://sip-on-the-web.aliax.net, accessed on

June 11, 2012.

SIP-JS, http://code.google.com/p/sip-js, accessed on June

11, 2012.

The Phono WebRTC, http://phono.com/webrtc, accessed on

June 11, 2012.

Michael Adeyeye, Neco Ventura and Luca Foschini,

“Converged Multimedia Services in Emerging

Web 2.0 Session Mobility Scenarios ,” in: the

Springer Wireless Networks (WINET) Journal. DOI:

10.1007/s11276-011-0394-z.

Ericsson WebRTC, https://groups.google.com/group/ericsson-

labs-web-rtc, accessed on June 11, 2012.

Chrome WebRTC Implementation, http://www.w3.org/

2011/04/webrtc/wiki/images/7/7f/Webrtc-chrome-

impl-status.pdf, accessed on June 11, 2012.

IETF RTCWeb-SIP WG, http://tools.ietf.org/html/draft-

kaplan-rtcweb-sip-interworking-requirements-01, ac-

cessed on October 13, 2011.

The IMS World Forum Summary, http://

www.alanquayle.com/blog/2012/04/the-ims-world-

WebRTCusingJSONviaXMLHttpRequestandSIPoverWebSocket-InitialSignallingOverheadFindings

123

forum-summary-pa.html, accessed on June 11,

2012.

WebRTC for IE, http://code.google.com/p/webrtc4ie/, Ac-

cessed on January 17, 2012.

SIPML5, http://www.sipml5.org/, accessed on June 11,

2012.

FF as SIP Endpoint, https://github.com/ethanhugg/ikran,

Accessed on January 17, 2012.

Three User WebRTC Chat Source, https://github.com/

micadeyeye/three-user-webrtc, Accessed on August

3, 2012.

Vijay K. Gurbani, Xian-He Sun and A. Brusilovsky, “In-

hibitors for Ubiquitous Deployment of Services in

the Next-Generation Network,” in: the IEEE Com-

munications Magazine, Vol. 43, No. 9, pp. 116-121,

September 2005.

Karim Sbata, Houda Khrouf, Sabine Zander and Monique

Becker, “Converging Web and IMS Services: Stakes

and Solution Proposals,” in: Proceedings of the Inter-

national ACM Conference on Management of Emer-

gent Digital EcoSystems (MEDES ’09), Lyon, France,

October 27-30, 2009.

Haruno Kataoka, Masashi Toyama, Yoshiko Sueda, Osamu

Mizuno and Kenji Takahashi, “Demonstration of Web

Contents Collaborative System for Call Parties,” in:

Proceedings of the 7th IEEE Consumer Communica-

tions and Networking Conference (IEEE CCNC ’10),

Las Vegas, Nevada, USA, January 9-12, 2010.

Google Chrome Frame, http://www.google.com/

chromeframe?quickenable=true, Accessed on

January 17, 2012.

Google WebRTC Samples, http:// code.google.com/p/

webrtc-samples/, Accessed on January 17, 2012.

Google AppRTC, https://apprtc.appspot.com, Accessed on

January 17, 2012.

Hideo Nishimura, Hiroyuki Ohnishi and Miki Hirano, “Ar-

chitecture for Web-IMS Co-operative Services for

Web Terminals ,” in: Proceedings of the 13th Interna-

tional Conference on Intelligence in Next Generation

Networks (ICIN ’09), Bordeaux, France, October 26 -

29, 2009, pp 1-6.

The PJSIP Project, http://www.pjsip.org, April 12, 2012.

The Mozilla Firefox Web browser, http://www.mozilla.org,

April 12, 2012.

M. Handley and V. Jacobson, “SDP: Session Description

Protocol,” IETF RFC 2327, April 12, 2012.

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

124
