Engineering Model Recommender Foundations

From Class Completion to Model Recommendations

Andreas Ganser and Horst Lichter

Software Construction, RWTH Aachen University, Ahornstr. 55, 52074 Aachen, Germany

Keywords:

Model Completion, Model Recommendation, Model Repository, Model Reuse, MDE, MDD, EMF.

Abstract:

Reuse has been widely carried out successfully, but not with models in Model Driven Engineering. Reasons

seem manifold and conceptual issues and poor tool support are among them. A closer look at the tools available

shows that models are often held in repositories which merely exceed versioning and indexing support. But

model reuse requires mature approaches and tool support to become successful.

We created a solid conceptual foundation and found recommendations as one solution, which in turn need

appropriate data. We engineer these data subsequently and explain our design rationales. In a nutshell, we

create a knowledge library comprising of elements which are connected on generic, semantic, and syntactic

level. This knowledge library forms an enhanced knowledge graph enabling chain recommendations.

1 SETTING THE SCENE

Software development has been becoming more and

more complex and increasing “IT-demand” is un-

likely to put this to an end. Unsurprisingly, numerous

approaches emerged to handle increasing complex-

ity in order to try to ease the challenges in develop-

ment. One of these approaches is Model-Driven De-

velopment (MDD) and it suggests the Uniﬁed Mod-

eling Language (UML) as a language to formulate ar-

tifacts. The reasons why UML is used might be, be-

cause “especially for larger and distributed projects,

UML modeling is believed to contribute to shared un-

derstanding of the system and more effective commu-

nication” (Chaudron et al., 2012).

A closer look at MDD unveils, that it describes a

means for designing and developing software at a rel-

atively high level of abstraction. This means, that ob-

jects from the real world are mapped to abstract arti-

facts called models (Muller et al., 2009), (Rodriguez-

Priego et al., 2010), (Muller et al., 2012). As a conse-

quence, information needs to be omitted while model-

ing. This is why modelers often needs to reason if an

entity can or does contribute to the overall solution. In

other words, to ﬁnd the appropriate level of abstrac-

tion became the major challenge in modeling. But the

challenge starts in domain modeling already. If the

domain model is not met precisely, the entire system

under development is at the verge of failing. Briand

et al. investigated this and recommend to “build a do-

main model as early as possible” (Briand et al., 2012).

Another common way to approach development

risks and improve quality is reuse. Looking back into

computer science history, reuse has been applied for

a long time already. It was done by approaching re-

curring problems by applying conserved solutions or

best practices. Functions are probably one of the sim-

plest examples for reuse. Of course, MDD addresses

reuse on a conceptual level. Surprisingly, though,

only few efforts are undertaken in industries or re-

search to bolster model reuse. Existing approaches

barely offer more than simple repository functional-

ity which merely suits a modelers needs.

We believe, that the domain of model reuse is

not well understood, and, consequently, approaches

and tools offer potential for improvement. Model

repositories and model management are available for

decades already (sec. 2), but all these do not seem

to address the modeler’s needs (any more), or we,

to the best of our knowledge, are not aware it. It

seems, that a well designed knowledge library con-

necting its elements could bolster model reuse. This

is why we would like to ﬁll this gap, by provid-

ing the foundations in terms of engineering the do-

main (sec. 3), modeling the domain (sec. 4), organiz-

ing the data (sec. 4.2), enhancing the data (sec. 4.3),

and discussing the beneﬁts (sec. 5). These results led

to a solid framework in form of an enhanced knowl-

edge graph for tool support which is discussed as an

evaluation of the ideas and concepts presented below.

135

Ganser A. and Lichter H..

Engineering Model Recommender Foundations - From Class Completion to Model Recommendations.

DOI: 10.5220/0004320801350142

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2013), pages 135-142

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED STATE OF THE ART

We distinguish model reuse in terms of model repos-

itories and model management, both including re-

trieval mechanism. This adheres to deﬁnitions of

repositories in general (IEEE Computer Society and

ISO/IEC, 2012). But we intend to go one step further

and take into account recommender systems.

2.1 Model Repositories

Most approaches in model reuse store models and of-

fer powerful querying. The most prominent systems

are contrasted to our system subsequently.

First, MOOGLE, a model search engine, spe-

cializes in XMI persisted model ﬁles omitting tags

and indexing only relevant content (Lucrdio et al.,

2010). It distinguishes itself from other model reposi-

tories with advanced search options, browsing func-

tionality, and claims to be the most user friendly

tool using a website interface. Our system differs

from MOOGLE, because we seamlessly integrate our

back-end in Eclipse, interlink the stored models and

can integrate MOOGLE elements through URIs.

Second, ReMoDD is the “Repository for Model

Driven Development” from Colorado State Univer-

sity (France et al., 2007). It has mostly documen-

tary purpose and aims to offer models to a commu-

nity. Hence, the models are not connected as in our

system. But, since the data is externally accessible,

we can refer to these models via URIs.

Third, the “Model Repository”, which was de-

veloped by University of Leipzig, is slightly differ-

ent. It uses almost the same technologies as we do

but follows a different approach (Uni-Leipzig, 2012).

The Model Repository handles model data as graphs

and mirrors this entirely in a graph structure. Hence,

classes become nodes and associations become edges.

In contrast, we handle entire models in a node and use

the graph structure as a meta structure which connects

the nodes, i.e. the models with each other.

Last, AMOR (Altmanninger et al., 2008), the

“adaptable model versioning repository”, follows a

research approach investigating conﬂicts between

model versions and approaches how to resolve them.

It is a closely related project to modelCVS (G. Kap-

pel, 2005), and SMoVer, a semantic model version

control system (Altmanninger, 2008). A survey on

model versioning approaches summarizes such sys-

tems (Altmanninger et al., 2009). Our system is dif-

ferent, since we use the results for our evolution and

quality extension and build on top of it, but conﬂict

resolution and versioning are not our primary con-

cerns.

2.2 Model Management

Other approaches in model reuse are summarized as

model management. This has been under research for

a long time already. Hence, a survey from the early

nineties (Bharadwaj et al., 1992), which is on math-

ematical models, already categorizes model manage-

ment in database-, knowledge-, and graph-based sys-

tems. Our system belongs in all of these categories.

A glance at generic database model management by

Melnik (Melnik, 2004) shows that relationships be-

tween models were not considered.

One issue often addressed in model man-

agement is checking models while editing, e.g.

SmartEMF (Hessellund, 2007). It considers consis-

tency checking, validating operations while editing,

and evolution support. We, in contrast, see our ap-

proach as editing support in domain modeling and do

not consider these aspects except for evolution.

Another issue is categorizing models, as e.g. ex-

plained in a facet library (Schmidt et al., 2010).

Schmidt et al. introduce a system which supports

faceted classiﬁcation and faceted browsing. This idea

is similar to categories as known from web shops, e.g.

Amazon. We have such a mechanism as well, but go

beyond and interlink our models and offer grouping

which is more generic.

Architecturally speaking, the universal repository

architecture attempts to handle systems on a more

generic level. These attempts have been undertaken

in the nineties (Iyengar, 1998) but with different tech-

nologies. Petro et al. have build a reuse reposi-

tory which remains in one domain fostering domain

speciﬁc software architectures (DSSA) (Petro et al.,

1995). We look at a broader, more common perspec-

tive, and see this as a special case of our system. What

we do not address, though, is mappings between re-

quirements and artifacts yet.

In general, our system was inspired by code com-

pletion as offered by JDT in Eclipse. This was re-

cently enhanced by Code Recommenders (Weimer

et al., 2009), (Eclipse, 2012a). This is a more clever

code completion which includes rankings for code

suggestions derived from the editing context. Due to

that, recommender systems are related as well as con-

text management (Jannach et al., 2010), (Ricci et al.,

2010), (Bettini et al., 2010).

3 ENGINEERING FOUNDATIONS

We started our project with a vision which was ignited

by looking at content assist in Eclipse. Getting this for

classes was the very ﬁrst idea long ago ...

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

136

3.1 Model Completion Vision

We transformed our idea of “Class Completion” into

a paper prototype (ﬁgure 1). It shows a class diagram

in the top left corner, which comprises of few classes.

Now, the question is how to continue from here? Why

not ask a supporting system (see center)?

name : EString

ingredients : EString

Cocktail

name : EString

ingredients : EString

name : EString

Ingredient

name : EString

ingredients

2..*

ingredients

0..*

name : EString

gender : Gender

chat(Person)

Person

name : EString

gender : Gender

chat(Person)

date : EDate

start(EDate)

end(null)

Party

date : EDate

start(EDate)

end(null)

blend()

Bartender

blend()

party

guests

0..*

host

0..1

Figure 1: Realization of “Class Completion” Vision.

Invoking Crtl+Space should open a query bar

provided by the supporting system and while typ-

ing Cock the supporting system should query a

database and provide suggestions in a drop down list.

These suggestions should be preview-able by step-

ping through the list. Placing the selected suggestion

into the current canvas should be possible as well. For

example, ﬁgure 1 shows how the supporting system

ﬁnds three suggestions which are not alphabetically

ordered on purpose. This is why ﬁgure 1 lists the most

related entry Cocktail ﬁrst.

Hence, ﬁlling the list needs to consider the envi-

ronment of the query. In our example, the Bartender

is the determining element which causes the list show-

ing Cocktail atop. This is due to the supporting sys-

tem knowing, that a Bartender blends Cocktails and

this information is preserved in the database. Con-

sequently, placing the Cocktail elements provided by

the suggestion should reestablish as much knowledge

as possible. Hence, we use the term recommendation

from here on.

3.2 Model Completion Use Cases

Starting with a vision to get “class completion”, we

extended the idea to “model completion” and identi-

ﬁed the use cases depicted in ﬁgure 2. It only shows

an excerpt of the actual diagram but everything nec-

essary to understand the requirements.

In more detail, the Store Model use case allows

a Modeler to extract some elements from a class di-

agram and store them in the system. While doing

so, the Modeler can describe the model by setting a

name, purpose, description, and so on. Moreover, the

Modeler can link the model with other models.

The Query Recommendations use case describes

Figure 2: Excerpt of Use Case Diagram.

how the system reacts on queries. But, this requires

conﬁgured recommendation strategies, which can

be achieved through the Configure Recommender

Strategies use case. Since, the architecture of the

recommender system is not the main focus of this pa-

per, we do not go into further details here. Essentially,

the conﬁguration and querying allows multiple strate-

gies for multiple data sources providing recommen-

dations for multiple editors on a ﬂexible architecture.

This means, the architecture is open for other ser-

vices. For example, we implemented a recommender

strategy which bases on WordWebOnline (Wordweb

Software, 2012). Querying displays the parsed web-

site in the drop down menu and, e.g. conﬁrming

a ”House” as ”type of Building” inserts an abstract

class Building and a class House on the canvas which

are connected by inheritance.

Note, that the use case Edit Model is most essen-

tial for this paper, but the other use cases contributed

to its requirements; often in a sense that they require

a specialization of Edit Model.

Moreover, we analyzed users and actors which are

not all shown in ﬁgure 2. First, Domain Experts

model the domain concepts, describe, and review

models. The Programmers view and review models

since they are the ones who tailor the generated source

code in the end. Last, Modelers are involved in al-

most every use case.

3.3 Model Completion Architecture

We subdivided the model completion system into ﬁve

EngineeringModelRecommenderFoundations-FromClassCompletiontoModelRecommendations

137

Recommender

System

Context

Manager

Model

Evoluon

Model

Mining

Figure 3: Architectural Overview.

components as illustrated in ﬁgure 3. It comprises

of a core, which is the knowledge library, and of

surrounding components; each of which maps to an

Eclipse Feature. Before we go into details regard-

ing the knowledge library, we brieﬂy explain the other

components and how they evolved. This will help un-

derstanding design rationales.

We build the components as follows. First, we

added storing and querying support. Second, we

extended the querying to a recommender system.

Roughly at the same time, we added evolution as-

pects, so we could add model mining, and the context

manager.

The simple querying was quickly extended to a

ﬂexible recommender system because our knowledge

library offered much more than just exporting the key

word matches. In fact, the underlying knowledge

graph enabled us right away to attach properties on

edges and nodes. But to get the most out of such an

enhanced knowledge graph requires a recommender

system which is conﬁgurable in at least two ways.

First, multiple recommender strategies are needed to

serve different recommendation requirements, and,

second, multiple user interface support is needed, so

recommendations can be applied in different editors.

The third way to conﬁgure the recommender sys-

tem component is provided by the context manage-

ment. It manages the query and insert contexts which

can be taken into account by the recommender strate-

gies. A query contexts could be an editor, a position,

a graph neighbor, or a domain glossary. The editor is

relevant, because applying a graphical recommenda-

tion into a textual editor must be prohibited. More-

over, a class must not be inserted into the name ﬁeld

of a class. Instead, it is desirable that recommenda-

tions are adjusted according to neighbor models from

previously inserted models or according to a project

glossary.

The simple storing was enhanced to model min-

ing. The initial storing offered slicing for class dia-

grams preserving relationships in the knowledge li-

brary. For example, in our vision (cf. ﬁgure 1)

imagine an inserted Cocktail and a restored rela-

tionship between Bartender and Cocktail. The

storing mechanism could slice this into two mod-

els, storing them in the knowledge library, while

preserving the information about the connection be-

tween Bartender and Cocktail. This is ﬁne, but the

knowledge library was not involved except for stor-

ing. Enhancing the storing to model mining takes this

into account.

Since reusability is barely met at once, our evolu-

tion component enhances the knowledge library with

evolution and quality aspects. Every model stored

is put under evolution and quality control, and can

evolve from a vague stage until it becomes depre-

cated. Without going into further detail, we have three

evolution stages which are bound to quality gates.

Those are assured by quick reviews and metrics.

Our incremental way building the system derived

from the architecture shown in ﬁgure 3 proved very

reasonable. This way our surrounding components

validated and evaluated our design decision let alone

the user studies we carried out.

3.4 Model Completion Concepts

From the conceptual point of view, we started “Model

Completion” as a reuse approach. Beginning with an

existing class diagram it should be possible to slice

models or extract reusable parts in terms of sets of

classes and relationships. In terms of reuse this is

a copy-and-modify approach because we do not ex-

pect modelers to use the recommendations as they are.

For example, a Cocktail as shown above could have

pricing information if used as part of a menu.

Moreover, we intend extracted models to pre-

serve external connectors as they are stored in an

enhanced knowledge graph, if possible. In the ex-

ample mentioned above, we extracted two models

(Party, Cocktail) from a model containing ﬁve

classes. These two models would represent two nodes

in a graph which are connected with an edge. The

nodes would hold the information about the models

and the edge would hold the information about the re-

lationship. This means, we use a graph and add prop-

erties to nodes and edges. Conceptually speaking this

forms an unidirectional property graph, and becomes

a weighted graph at the time of the recommendations.

From a technological point of view, we started

“Model Completion” since ecore ﬁles are commonly

used in EMF for code generation but they are often

modiﬁed in the ecore diagram editor shipped with the

Ecore Tools (cf. ﬁgure 1). This is why EMF (Stein-

berg et al., 2009) and the Ecore Tools (Eclipse, 2012b)

are our basic dependencies which were given.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

138

4 REASONING KNOWLEDGE

LIBRARY ELEMENTS

A usual knowledge library comprises of basic build-

ing blocks and meta information. Our basic build-

ing blocks are Library Elements. They can con-

tain MetaInformation which is designed as the cen-

tral extension point for the Library Elements. We

did so, because this information is supposedly gen-

erated separately in components and then linked to

MetaInformation through extension points.

4.1 Isolated Library Elements

Storing a single element in our knowledge library

results in a single LibraryElement comprising of

properties (see ﬁgure 4). A name and a list of ﬁles,

which holds at least one ﬁle, are compulsory. Provid-

ing an owner is optional. The files are deﬁned as

a list of URIs, since this makes resource handling in

EMF much easier.

The reason why we needed to support differ-

ent files per LibraryElement was initially caused

by the ecore tools, since they keep the content (i.e.

.ecore-ﬁles) separate from the layout information

(i.e. .ecorediag-ﬁles). Moreover, we did not want to

burden our server to generate previews for class dia-

grams on the ﬂy. This is why we choose to store png-

ﬁles which are loaded for previews as shown in ﬁg-

ure 1. A nice side effect of this design decision is, that

the preview png-ﬁles might be manipulated separately

for e.g. highlighting certain aspects in a preview.

This, to our mind, outweighs the manual maintenance

of previews. Anyhow, previews are a specialty to

Models as the method getPreview() implies. Other

kinds of LibraryElements are not implemented so

far, but textual LibraryElements would be a very

reasonable extension. They could keep textual de-

scription of class diagrams.

For every extension which LibraryElements

might face, we want to rely on the provided libraries

and this is why we do not store related ﬁles in the

database but in the ﬁle system. This even allows

distributing ﬁle locations among servers using URIs.

Moreover, our indexing becomes much more ﬂexible

since we can make use of the ﬁle’s native format and

implement new indexing strategy leveraging the dis-

tributors libraries.

Currently, we use the ecore tools to extract data

and put them in our indexing. Hence, we can not only

query for name and owner, but class names, attributes,

associations and so on.

So far the knowledge library distinguishes itself

from every other system available, just because it sup-

LibraryElement

name : String

files : URI

owner : String

getPurpose ( )

getQualityLevel ( )

getNeigbors ( )

Connector

generics : String

syntactics : String

semantics : URI

Model

getPreview ( )

getModel ( )

Example

project : String

projectInfo : String

projectURL : URI

TemplateInformation

extensionPoints : String

extensions : String

formalDescription : String

Group

name : String

description : String

Category

name : String

description : String

1..*

- members

- groups

source

1..*

- tgtlinks

- src

target

1..*

- srclinks

- tgt

- categories

- elements

- examples

- templateInformation

- subcategory

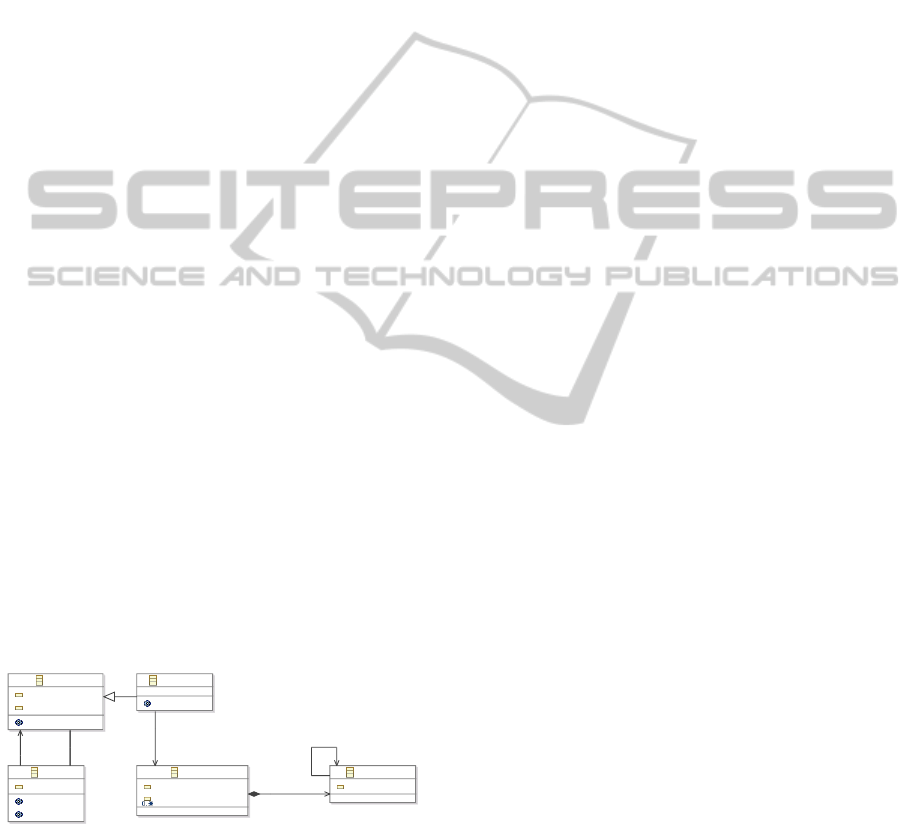

Figure 4: Basic Building Blocks and Graph Support.

ports indexing and querying through strategies. But

this is not enough to foster multiple and complex rec-

ommender strategies. Consequently, we enhanced the

structure developed so far and interlinked, grouped

and structured LibraryElemens.

4.2 Connected Library Elements

There are two different approaches to interlink

LibraryElements. First, there are meta connec-

tors like grouping and category mechanism which

associate LibraryElements to meta concepts in

order to arrange them indirectly. Second, there

are concrete connectors between LibraryElements

which establish immediate relationships between

LibraryElements. Figure 4 depicts, how these el-

ements are related. Mind, that it makes perfect sense

to generalize these connectors at a conceptual level,

but this does not reﬂect into the modeled domain, i.e.

there is no super-class in ﬁgure 4.

The meta connectors are Group and Category.

First of which arranges one or more LibraryElement

to a set of elements. Since several LibraryElements

often occur in groups, though they are independent,

we introduced this concept. For example, we could

have a class diagram which models a Person. This,

as a Model, could be part of a group with either a

BankAccount or ClinicalRecord or both. Clearly, a

Person becomes a client or patient, which will be de-

scribed below. But altogether, these Models do not

belong to one Group or Category.

EngineeringModelRecommenderFoundations-FromClassCompletiontoModelRecommendations

139

The other meta connector, which is Category,

also groups LibraryElements, but as intuitively im-

plied by the name. Taking the examples from above,

the ClinicalRecord would belong to a Category

health-care and the BankAccount would belong to a

Category ﬁnancing. Finding categorically related,

but not grouped LibraryElements is the purpose of

Categories.

The concrete connectors have three different

natures, namely generic, syntactic, and semantic.

Generic connectors establish a link between two

LibraryElements without providing any more de-

tails. This is reasonable, if the details are unknown

or at least one of the LibraryElements is held out-

side of the knowledge library. In case, that the details

of the connector are unknown, the generic connector

can be seen as “these two models have been used to-

gether in the past”. In our Party, Cocktail example

this would mean, that the information about the asso-

ciation between Bartender and Cocktail is not in the

knowledge library.

The second nature of concrete connectors is called

syntactic and provides additional information about a

connection between two LibraryElements. In our

above mentioned example, the syntactic information

would be the association, which would be attached to

the connector. Hence, placing the Party-Model ﬁrst,

getting the Cocktail-Model recommended and plac-

ing it, would, this time, reestablish the association be-

tween Bartender and Cocktail and look like ﬁgure 5.

In fact, syntactical connectors allow much more than

that. They can hold entire bridge models. As an ex-

ample, imagine a person as a customer in one do-

main and as a patient in another domain as mentioned

above. Then it makes not much sense to adjust the

person-Model, but instead place an adapter, facade,

or proxy in the syntactical connector. This model then

actually holds all the “dangling” references.

name : EString

gender : Gender

chat(Person)

Person

name : EString

gender : Gender

chat(Person)

date : EDate

start(EDate)

end(null)

Party

date : EDate

start(EDate)

end(null)

blend()

Bartender

blend()

name : EString

ingredients : EString

Cocktail

name : EString

ingredients : EString

name : EString

Ingredient

name : EString

party

guests

0..*

host

0..1

cocktails

1..*

ingredients

2..*

ingredients

0..*

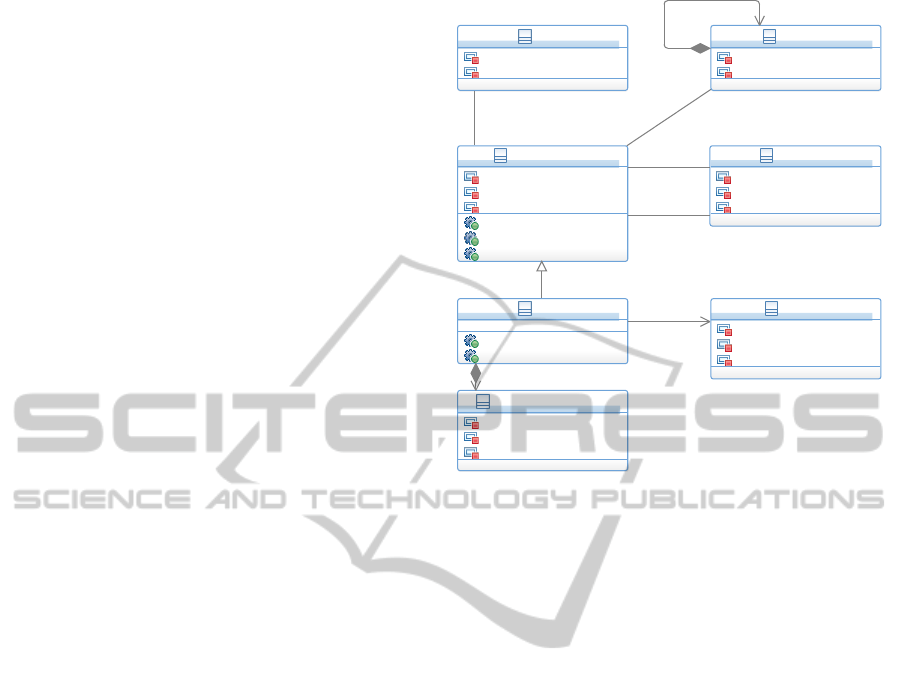

Figure 5: Model Restored with Syntactic Connector Nature.

The last nature of concrete connectors is of type

semantic and puts design rationales in focus. There-

fore, the purpose of this connector is mostly docu-

mentary, but not only. For example, taking our above

example, it might be patently obvious to the mod-

eler, who has put this in the knowledge library, that

the ClinicalRecord-Model is connected to the Person-

Model via a proxy-adapter. That means, the techni-

cal connector adapts the person and at the same time

prohibits access to certain information in the Person-

Model. But is that obvious to a modeler who wants to

reuse this information and has never seen this model

before? This is why we need to enhance connectors

with this information in the mining process or manu-

ally.

A closer look at the concrete connectors unveils,

that they are easy extendable in graph structures to

hyper-edges. This means, generic connectors become

multi-generic connectors, syntactical connectors be-

come multi-syntactical connectors and so on. But

what does this mean and what are the beneﬁts and

drawbacks?

Hyper-edges are certainly needed if we extend our

example from our vision in ﬁgure 1 with a billing-

Model. This billing-Model could have a printRe-

ceipt() method which requires a Guest and a list of

Cocktails. This means, that the billing-Model has two

dependencies from one element to two different mod-

els but a property graph allows edges of cardinality

one only. A hyper-edge would solve this problem and

simply create a hyper-edge which comprises of a set

of nodes which are supposedly connected.

Putting all these information together, the devel-

oped knowledge library offers a very ﬂexible and

powerful source for recommender strategies. This is

due to, ﬁrst, data, second, grouping and categorizing,

third, the connector concept, and, fourth, the traversal

mechanism which can beneﬁt from each as needed.

But this needs the concepts mapped to a property

graph structure which is straight forward. Unfortu-

nately, the graph structure with its nodes and edges

are only one side of the coin, because the information

content of the nodes is rather simple so far. Due to

that, we enhanced the LibraryElements.

4.3 Enhanced Library Elements

Models stored for reuse as LibraryElements in

a property graph are a good start, but this struc-

ture proofed “only good” for recommender strate-

gies and other components. Therefore, we intro-

duced MetaInformation which can be contained in

LibraryElements. This means, MetaInformation

serves as an extension point for extra information.

As an example, we extended MetaInformation

with evolution and quality aspects as shown

in ﬁgure 6. Note, that some of the in-

formation deﬁned in MetaInformation is ac-

cessible from LibraryElements; e.g. through

getQualityLevel() or getPurpose(). Without

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

140

going into further detail, we use the purpose as

a lightweight speciﬁcation mechanism, so we have

an anchor for reviews and quality aspects as men-

tioned in section 3.3. Last of which even intro-

duces VersionInfo and attaches semantics in terms

of quality levels to LibraryElements.

MetaInformation

purpose : String

description : String

pending : Boolean

deprecated : Boolean

VersionInfo

commitID : Integer

semantics : QualityLevelType

Review

reviewtype : ReviewType

completed : Boolean

«enumeration»

QualityLevelType

vague

decent

fine

«enumeration»

ReviewType

BackHat

RedHat

YellowHat

WhiteHat

GreenHat

«enumeration»

CommentType

Hunch

Feeling

Dislike

Smell

Difficulty

Danger

Request

Text

Comment

commentType : CommentType

comment : String

- versionsInfo

- reviews

- comments

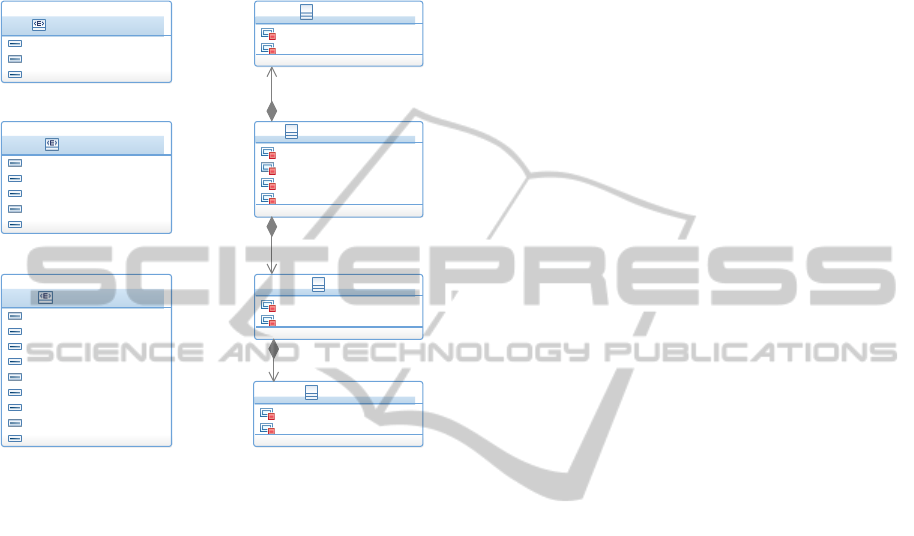

Figure 6: Additional Meta Information.

Other extensions we created are Examples and

TemplateInformation as depicted in ﬁgure 4.

While Examples are intended to guide users how to

apply a Model, TemplateInformation is intended

to generalize Models for recommendations. Simple

placeholder, linked variables, extension points, exten-

sions, and guided completion in terms of extending,

pruning or adapting are currently under research for

the template mechanism.

5 DISCUSSING BENEFITS

The developed knowledge library supports “Model

Completion” in multiple ways. First, our in-

dexing strategies support querying for name,

description, and purpose attributes. Moreover,

MetaInformation, description, LibraryElement

files-content are indexed. Consequently, depending

on how the query is formulated, certain indexed

information can be omitted. This is independent of

the graph structure, but we can limit query results

to certain ranges by that. This limitation of queries

becomes very handy during model mining, because

a query limited to class names can unveil “known”

information. Moreover, this is very useful if a query

context limits to recommendations which are actually

applicable in the editing context.

Other beneﬁts arise due to the graph structure and

allow follow-up or chain recommendations. Going

back to our initial example from ﬁgure 1, we think of

our knowledge library containing the Cocktail-Model

with a linked Party-Model. Starting from an empty

canvas, invoking Ctrl+Space and typing Party, con-

ﬁrming the Model recommendation, gaining the can-

vas as in ﬁgure 1 a chain recommendation could im-

mediately insert the Cocktail-Model, granted there is

a very high likelihood, that this Model usually “fol-

lows” in a modeling process.

But the graph structure as designed even sup-

ports context management for recommender strate-

gies. For example, the example from our vision in

ﬁgure 1 could be completed with the Cocktail-Model

and keep the neighbors of the previously inserted

LibraryElements in an editing context. This would

hold all neighbors from the Cocktail-Model in the ﬁrst

level of the history context and all the neighbors of the

Party-Model in the second level of the history context.

Now querying the recommender strategies could con-

sider the query history.

6 SUMMARY & FUTURE WORK

Starting with a vision of “Class Completion” as

shown in ﬁgure 1, we analyzed the domain, shifted

the vision to “Model Completion”, build use cases

and pointed out the major requirements. This lead

to a coarse grain architecture (ﬁgure 3) comprising of

a core, which is the knowledge library and surround-

ing components. These were taken into account, since

they had either impact on the design of the core or

they evaluated and validated the conceptual design of

the core.

The core itself was explained in detail by, ﬁrst,

pointing out how isolated library elements are mod-

eled, and then extending them to interlinked library

elements. There we introduced different natures of

connectors, i.e. generic, syntactic, semantic. Finally,

we enhanced the interlinked elements with additional

concepts which foster recommender strategies and

ease their design.

The work in progress comprises of the template

mechanism, context management, and model mining.

We do so, in order to make the system as seamlessly

integrated in a development environment and support

quick starts as much as possible. Therefore, query

contexts managed by context management for recom-

mender strategies are as much of vital importance for

usability as model mining is for usefulness.

EngineeringModelRecommenderFoundations-FromClassCompletiontoModelRecommendations

141

ACKNOWLEDGEMENTS

We would like to thank all our reviewers for their

comments! We would also like to thank Felix Bo-

huschke, Andrej Dyck, Christian Fuchs, Ruslan Rag-

imov, and Alexander Roth for their contributions.

REFERENCES

Altmanninger, K. (2008). Models in Conﬂict Towards a

Semantically Enhanced Version Control System for

Models. In Giese, H., editor, Models in Software

Engineering, volume 5002 of LNCS, pages 293–304.

Springer Berlin / Heidelberg.

Altmanninger, K., Kusel, A., Retschitzegger, W., Seidl, M.,

and Wimmer, M. (2008). AMOR Towards Adaptable

Model Versioning. http://www.modelversioning.org.

Altmanninger, K., Seidl, M., and Wimmer, M. (2009). A

survey on model versioning approaches. volume 5,

pages 271–304.

Bettini, C., Brdiczka, O., Henricksen, K., Indulska, J.,

Nicklas, D., Ranganathan, A., and Riboni, D. (2010).

A survey of context modelling and reasoning tech-

niques. Pervasive and Mobile Computing, 6(2):161

– 180.

Bharadwaj, A., Choobineh, J., Lo, A., and Shetty, B.

(1992). Model management systems: A survey. An-

nals of Operations Research, 38:17–67. 10.1007/

BF02283650.

Briand, L., Falessi, D., Nejati, S., Sabetzadeh, M., and

Yue, T. (2012). Research-Based Innovation: A Tale

of Three Projects in Model-Driven Engineering. In

France, R., Kazmeier, J., Breu, R., and Atkinson,

C., editors, Model Driven Engineering Languages

and Systems, volume 7590 of LNCS, pages 793–809.

Springer Berlin / Heidelberg.

Chaudron, M., Heijstek, W., and Nugroho, A. (2012). How

effective is UML modeling ? Software and Systems

Modeling, pages 1–10.

Eclipse (2012a). Code Recommenders. http://

www.eclipse.org/ recommenders/.

Eclipse (2012b). Ecore Tools. http://wiki.eclipse.org/

index.php/Ecore Tools.

France, R., Bieman, J., and Cheng, B. (2007). Reposi-

tory for Model Driven Development (ReMoDD). In

Kuehne, T., editor, Models in Software Engineer-

ing, volume 4364 of LNCS, pages 311–317. Springer

Berlin / Heidelberg.

G. Kappel, G. Kramler, E. K. T. R. W. R. W. S. (2005). Mod-

elCVS - A Semantic Infrastructure for Model-based

Tool Integration. Technical Report, Johannes Kepler

University of Linz and Vienna University of Technol-

ogy.

Hessellund, A. (2007). SmartEMF: guidance in modeling

tools. In Companion to the 22nd ACM SIGPLAN con-

ference on Object-oriented programming systems and

applications companion, OOPSLA ’07, pages 945–

946, New York, NY, USA. ACM.

IEEE Computer Society and ISO/IEC (2012). SEVO-

CAB: Software and Systems Engineering Vocabulary.

http://pascal.computer.org/sev display/index.action.

Iyengar, S. (1998). A universal repository architecture using

the OMG UML and MOF. In Enterprise Distributed

Object Computing Workshop, 1998. EDOC ’98. Pro-

ceedings. Second International, pages 35 –44.

Jannach, D., Zanker, M., Felfernig, A., and Friedrich, G.

(2010). Recommender Systems: An Introduction.

Cambridge University Press.

Lucrdio, D., de M. Fortes, R., and Whittle, J. (2010).

MOOGLE: a metamodel-based model search engine.

Software and Systems Modeling, 11:183–208.

Melnik, S. (2004). Generic Model Management, volume

2967 of LNCS. Springer Berlin / Heidelberg.

Muller, P.-A., Fondement, F., and Baudry, B. (2009). Mod-

eling modeling. In Schuerr, Andy and Selic, Bran, ed-

itor, Model Driven Engineering Languages and Sys-

tems, volume 5795 of LNCS, pages 2–16. Springer

Berlin / Heidelberg.

Muller, P.-A., Fondement, F., Baudry, B., and Combemale,

B. (2012). Modeling modeling modeling. Software

and Systems Modeling, 11:347–359.

Petro, J., Fotta, M., and Weisman, D. (1995). Model-

based reuse repositories-concepts and experience. In

Computer-Aided Software Engineering, 1995. Pro-

ceedings., Seventh International Workshop on, pages

60 –69.

Ricci, F., Rokach, L., Shapira, B., and Kantor, P. (2010).

Recommender Systems Handbook. Springer.

Rodriguez-Priego, E., Garca-Izquierdo, F., and Rubio, n.

(2010). Modeling Issues: a Survival Guide for a Non-

expert Modeler. In Petriu, D., Rouquette, N., and Hau-

gen, y., editors, Model Driven Engineering Languages

and Systems, volume 6395 of LNCS, pages 361–375.

Springer Berlin / Heidelberg.

Schmidt, M., Polowinski, J., Johannes, J., and Fernndez,

M. (2010). An Integrated Facet-Based Library for Ar-

bitrary Software Components. In Kuehne, T., Selic,

B., Gervais, M.-P., and Terrier, F., editors, Modelling

Foundations and Applications, volume 6138 of LNCS,

pages 261–276. Springer Berlin / Heidelberg.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF: Eclipse Modeling Framework 2.0.

Addison-Wesley Professional, 2nd edition.

Uni-Leipzig (2012). Eclipse Model Repository. http://

modelrepository.sourceforge.net/.

Weimer, M., Karatzoglou, A., and Bruch, M. (2009). Maxi-

mum margin matrix factorization for code recommen-

dation. In Proceedings of the third ACM conference on

Recommender systems, RecSys ’09, pages 309–312,

New York, NY, USA. ACM.

Wordweb Software (2012). WordWeb Online Dictionary

and Thesaurus. http://www.wordwebonline.com/.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

142
