Using File Systems for Non-volatile Main Memory Management

Shuichi Oikawa

Faculty of Engineering, Information and Systems, University of Tsukuba, 1-1-1 Tennodai, Tsukuba, Ibaraki, Japan

Keywords:

Operating Systems, Memory Management, Non-volatile Memory.

Abstract:

Non-volatile (NV) memory is next generation memory. It provides fast access speed comparable to DRAM

and also persistently stores data without power supply. These features enable NV memory to be used as both

main memory and secondary storage. While the active researches have been conducted on its use for either

main memory or secondary storage, they were conducted independently. This paper proposes the integrated

memory management methods, by which NV memory can be used as both main memory and secondary

storage. The proposed methods use ﬁle systems as their basis for NV memory management. Such integration

enables the memory allocation for processes and ﬁles from the same source, and processes can take advantage

of a large amount of physical memory used for both main memory and storage. We implemented the proposed

memory management methods in the Linux kernel. The evaluation results performed on a system emulator

show that the memory allocation costs of the proposed methods are comparable to that of the existing DRAM

and are signiﬁcantly better than those of the page swapping.

1 INTRODUCTION

Non-volatile (NV) memory is next generation mem-

ory. It provides fast access speed comparable to

DRAM and also persistently stores data without

power supply. These features enable NV memory to

be used as main memory and secondary storage. Es-

pecially, the active researches have been conducted to

utilize phase change memory (PCM) as main memory

from the computer architecture’s point of view (Lee,

et. al., 2009; Qureshi, et. al., 2009; Zhou, et. al.,

2009; Qureshi, et. al., 2010). Since these were the

researches on the computer architecture, the operat-

ing system (OS) takes only a minor role (Zhang and

Li, 2009; Mogul, et. al., 2009). There are also the

researches that construct ﬁle systems on NV memory

by taking advantage of its byte addressability (Condit,

et. al., 2009; Wu and Reddy, 2011).

While these researches on the use of NV mem-

ory for either main memory or storage have been per-

formed as described above, they were conducted in-

dependently. Since NV memory can be used for both

main memory and storage, their management can be

integrated. Such integration enables the memory al-

location for processes and ﬁles from the same source,

and processes can take advantage of a large amount

of physical memory used for both main memory and

storage. Therefore, integrating memory management

with a ﬁle system on a NV main memory system en-

ables the improvement of system performance by re-

moving the paging swapping between main memory

and storage. While the advantage brought by the in-

tegration were discussed (Bailey, et. al., 2011; Jung

and Cho, 2011), there has been no research effort to

realize it in an actual OS.

This paper proposes the integrated memory man-

agement methods, by which NV memory can be used

as both main memory and storage. The two, direct

and indirect, methods that use ﬁle systems as their ba-

sis for NV memory management are described. The

direct method directly utilizes the free blocks of a ﬁle

system by manipulating its management data. The

indirect method indirectly allocates blocks through a

ﬁle that was created in advance for the use of main

memory. These methods have their own advantages

and disadvantages; thus, each method meets different

requirements.

We implemented these memory management

methods in the Linux kernel. When the kernel tries to

allocate a physical memory page from the NV mem-

ory, the kernel directly or indirectly consults the ﬁle

system and takes a free block from it. By making

the block size of the ﬁle system the same as the page

size and using the XIP (eXecution In Place) feature,

allocated ﬁle system blocks can be used as physical

memory pages and be directly mapped into a virtual

memory address space without copying. The evalua-

tion results performed on a system emulator show that

the memory allocation costs of the proposed methods

are comparable to that of the existing DRAM and are

208

Oikawa S..

Using File Systems for Non-volatile Main Memory Management.

DOI: 10.5220/0004330702080213

In Proceedings of the 3rd International Conference on Pervasive Embedded Computing and Communication Systems (PECCS-2013), pages 208-213

ISBN: 978-989-8565-43-3

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

signiﬁcantly better than those of the page swapping.

To the best of our knowledge, we are among the ﬁrst

to design and implement the integration of main mem-

ory and storage.

This paper focuses on the integration of the main

memory and ﬁle system management; thus, the eval-

uation results presented in Section 4 do not take into

account the difference of access latencies and treat

DRAM and NV memory the same. This is because

NV memory technologies are still under active de-

velopment and it is possible that some of them will

perform comparably to DRAM. For example, the per-

formance of STT-RAM is comparable to DRAM, and

there is no need to treat it differently (Park, 2012).

The rest of this paper is organized as follows. Sec-

tion 2 describes the related work. Section 3 presents

the design and implementation. Section 4 describes

the current status and shows experiment results. Fi-

nally, Section 5 concludes this paper.

2 RELATED WORK

There are only a few papers that describe the inte-

gration of main memory and storage. (Bailey, et. al.,

2011) discusses various possibilities, including the in-

tegration of main memory and storage, made possible

by employing NV memory as main memory. (Jung

and Cho, 2011) describes the policy and possible ef-

fect of the integration. Neither of them, however, real-

ized the integration. This paper describes the methods

to realize it and presents their design and implemen-

tation in the Linux kernel.

There are a number of researches conducted to en-

able byte addressable NV memory to be used as main

memory (Lee, et. al., 2009; Qureshi, et. al., 2009;

Zhou, et. al., 2009; Qureshi, et. al., 2010; Zhang and

Li, 2009; Mogul, et. al., 2009). Since these are the re-

searches of the computer architecture to integrate NV

memory into main memory by overcoming its lim-

itations, there is no consideration to integrate main

memory and storage. On the other side, there are the

researches that construct ﬁle systems on NV memory

by taking advantage of its byte addressability (Condit,

et. al., 2009; Wu and Reddy, 2011). Although these

researches utilize the feature that enables NV mem-

ory to be used as main memory, they do not consider

NV memory as main memory at all.

FlashVM (Saxena and Swift, 2010) and SSDAl-

loc (Badam and Pai, 2011) propose the methods to

make usable memory spaces virtually larger by utiliz-

ing SSDs and making page swapping faster than the

existing mechanism. While these improve the virtual

memory system of the OS kernel, main memory and

CPU

DRAM( NV(Memory(

Figure 1: Target system memory structure.

storage remain separated.

3 DESIGN AND

IMPLEMENTATION

This section describes the design and implementation

that enable the integration of the main memory and

storage management by employing byte addressable

NV memory.

3.1 Target System Structure

Since there is no publicly available system that em-

ploys byte addressable NV memory as its main mem-

ory, we need to construct a reasonable target system

structure. In this paper, we assume that 1) DRAM

and byte addressable NV memory constitute the main

memory of a system, and 2) DRAM and byte address-

able NV memory are placed in the same physical ad-

dress space. DRAM and byte addressable NV mem-

ory are connected to the memory bus(ses) of CPUs,

and they are mapped in the same physical address

space; thus, they can be accessed in the same way

with appropriate physical addresses, and there is no

distinction between them from the OS kernel. Figure

1 depicts the memory architecture of the target sys-

tem.

Since our goal is to integrate the main memory

and storage management, byte addressable NV mem-

ory takes the roles of both main memory and storage.

Our methods construct a ﬁle system on NV memory.

The ﬁle system is used to store directories and ﬁles,

and these contents persist across the termination and

rebooting of the OS kernel. The free blocks of the ﬁle

system are used for main memory while a system is

running. They are returned to the ﬁle system when a

system terminates.

We consider this structure is reasonable when our

primary target systems are clients devices, such as

note PCs, tablets, and smart phones. Since these

client devices do not require a large amount of stor-

UsingFileSystemsforNon-volatileMainMemoryManagement

209

Memory'Allocator

NV'Memory'

Virtual'Memory

DRAM'

File'System

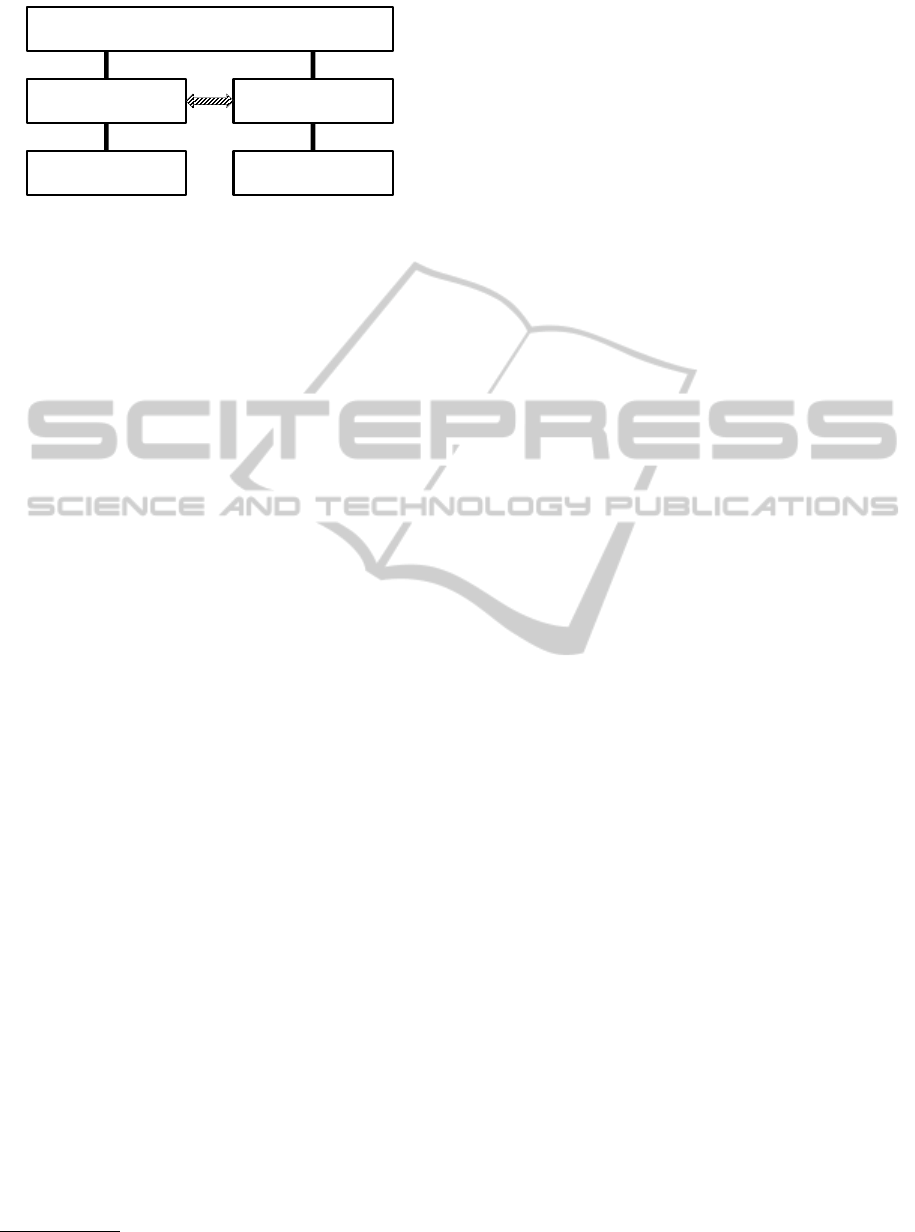

Figure 2: Virtual memory system architecture and its rela-

tionships with the memory allocator and a ﬁle system.

age spaces, NV memory sufﬁces the needs of storage.

While NV memory can constitute the whole memory

of a system, DRAM is also useful to hold data regions,

which are known to be volatile and overwritten soon.

Examples of such regions include stacks and buffers

used for data transfer. Thus, it should be reasonable

to consider that a target system’s memory consists of

both DRAM and NV memory.

We employ the QEMU system emulator to con-

struct the target system described above and to exe-

cute Linux on it. The more details of the emulation

environment is described in Section 4.1.

3.2 Virtual Memory System

This section describes the virtual memory system ar-

chitecture and its relationships with the memory allo-

cator and a ﬁle system. Figure 2 depicts the architec-

ture. The virtual memory system of the Linux kernel

is built upon the memory allocator and ﬁle systems.

Traditionally, the memory allocator manages

DRAM, and ﬁle systems manage storage. The virtual

memory system uses the memory allocator to allocate

physical memory pages from DRAM. It then maps the

allocated DRAM pages in virtual address spaces.

The virtual memory system can also use XIP

enabled ﬁle systems, such as Ext2 and PRAMFS,

to directly map ﬁles in user process address spaces.

Since the physical memory pages of the ﬁles are

mapped through the virtual memory system, no copy-

ing of pages occurs between DRAM and NV memory.

Since Ext2 and PRAMFS are the only XIP-enabled

ﬁle systems that support both read and write, these

are our target ﬁle systems to implement the integrated

memory management methods described in the next

section.

3.3 Integrating Main Memory and File

System Management

This section describes the integrated memory man-

XIP stands for eXecution In Place.

agement methods, by which NV memory can be used

for the memory allocation for both processes and ﬁles.

In order to use NV memory as main memory, physical

memory pages need to be allocated from a ﬁle system.

Therefore, in Figure 2, the double arrowed line that

connects the memory allocator and a ﬁle system is a

missing link. Making the memory allocator allocate

physical memory pages from a ﬁle system connects

the link; thus, it enables the integration of the main

memory and storage management.

This paper proposes the two, direct and indirect,

methods to connect the link. Both of them use ﬁle

systems as their basis for NV memory management.

The direct method directly utilizes the free blocks of a

ﬁle system by manipulating its management data. The

indirect method indirectly allocates blocks through a

ﬁle that was created in advance for the use of main

memory. These methods have their own advantages

and disadvantages; thus, each method meets different

requirements. The details of these methods are de-

scribed below.

3.3.1 Direct Method

The direct method allocates free blocks from a ﬁle

system for the use of main memory just as those are

allocated for ﬁles. The allocation is done by ﬁnding

free blocks and marking them allocated. Such in-

formation is stored in the management data of a ﬁle

system; thus, this method requires the direct manip-

ulation of the management data, and the additional

code for the allocation and freeing needs to be imple-

mented.

The advantage of the direct method is the tight in-

tegration of main memory and ﬁle system manage-

ment. Any of the free blocks of a ﬁle system can be

used for both main memory and ﬁles. The use of the

free blocks is not decided and they remain free until

their allocation; thus, this method does not waste the

free blocks. The disadvantages are the dependency on

the implementation of a ﬁle system and the crash re-

covery. The dependency issue involves two aspects,

the effect of the internal structure to the performance

and the implementation cost of the additional code.

The crash recovery is required because the allocated

blocks for the use of main memory do not belong to

any ﬁle; thus, these blocks cause the inconsistency of

a ﬁle system when crashed.

3.3.2 Indirect Method

The indirect method utilizes the blocks of a ﬁle that

was created in advance to be used for main memory.

This method does not need to consult the management

data of a ﬁle system, but indirectly uses the blocks that

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

210

were allocated for a ﬁle. The content of the ﬁle is ini-

tialized by creating a linked list of its blocks; thus, all

of the ﬁle’s blocks need to be allocated when created.

The allocation for main memory is done by simply

taking blocks out of the linked list.

The advantages of the indirect method are con-

trary to the direct method. The indirect method does

not depend on the implementation of a ﬁle system.

The provision of the XIP feature of a ﬁle system re-

quires the implementation of get_xip_mem() inter-

face. The interface converts a ﬁle offset to its block

address. By using this interface, the initialization of

a ﬁle used for main memory can be done indepen-

dently from the internal implementation of a ﬁle sys-

tem. The linked list of the free blocks also makes the

allocation cost independent from the internal imple-

mentation. Moreover, since the blocks used for main

memory are allocated for a ﬁle, they do not cause the

inconsistency of a ﬁle system when a system crashes.

The disadvantage is that the blocks of a ﬁle used for

main memory are preallocated; thus, their use is ﬁxed

for main memory. It is desirable to adjust the size of

the preallocated ﬁle. While it is easy to extend the

ﬁle size as more blocks need to be allocated for main

memory, more work is necessary to shrink it.

4 EXPERIMENT RESULTS

This section ﬁrst describes the evaluation method and

then shows the experiment result that measures the

allocation costs of main memory from ﬁle systems.

4.1 Evaluation Method

We employ the QEMU system emulator to construct

the target system described in Section 3.1. The ver-

sion of QEMU used for the evaluation is 1.0.1, and

QEMU emulates x86 64. QEMU was modiﬁed to

emulate NV memory that persists its contents across

the termination and rebooting of the emulator. A ﬁle

is used for the persistence of the NV memory. The

ﬁle is mapped into the physical address space emu-

lated by QEMU. The experiments described in this

section were performed on QEMU invoked with the

following options:

% qemu -m 128 -nvmemory \

file=nvmemory.img,physaddr=0x100000000

With the above options, QEMU is invoked with

128MB DRAM along with the NV memory mapped

from 0x100000000 of the physical address. The size

of the ﬁle emulating NV memory (nvmemory.img) is

4GB. While the size of DRAM is passed to the Linux

kernel through BIOS, the information of NV memory

is not passed in order to make their management sep-

arate.

The modiﬁed QEMU executes the Linux kernel

that includes the modiﬁcations of the proposed meth-

ods. The version of the Linux kernel modiﬁed and

used for the experiments is 3.4.

The evaluation of execution costs needs to mea-

sure execution times. Times counted by the interrupts

from a timer device are not accurate enough on sys-

tem emulators. Instead, the number of instructions

executed is used as the measure of execution costs.

The -icount 0 option of QEMU lets the TSC (time

stamp counter) register count the number of instruc-

tions executed. The RDTSC instruction reads the

value of TSC.

As described in Section 1, the following evalua-

tion results do not take into account the difference of

access latencies and treat DRAM and NV memory the

same.

4.2 Page Allocation Costs

This section shows the measurement results of the al-

location costs of main memory from ﬁle systems and

compares them with those that use the page swapping

mechanism. Integrating the main memory and ﬁle

system management on NV memory brings a large

amount of physical memory to processes; thus, such

integration should be able to remove the necessity of

the paging swapping and to improve the performance

to allocate a large amount of memory. In order to ver-

ify the effectiveness of the integration, we executed

a program that allocates a memory region by using

malloc() and performs writes to the beginning of the

page boundaries for the actual allocation of physical

memory pages.

The measurements were performed for several

cases, and Figure 3 shows the results. The ﬁgure com-

pares the eight cases. DRAM (w/o swap) and DRAM

(w/ swap) show the costs when only DRAM is used

as main memory without and with a swap device, re-

spectively. In these cases, a swap device for DRAM

is a ramdisk created on NV memory. PRAMFS NV

mem (direct) and PRAMFS NV mem (indirect) show

the costs when PRAMFS is constructed on NV mem-

ory and the direct and indirect methods are used for

main memory allocation from the ﬁle system, respec-

tively. PRAMFS swap ﬁle shows the cost when only

DRAM is used as main memory and a swap ﬁle cre-

ated on PRAMFS is used as a swap device. In the

cases of Ext2 NV mem (direct), Ext2 NV mem (indi-

rect), and Ext2 swap ﬁle, Ext2 was constructed on NV

memory.

UsingFileSystemsforNon-volatileMainMemoryManagement

211

!""

#!!$!!!""

%!!$!!!""

&!!$!!!""

'!!$!!!""

($!!!$!!!""

($#!!$!!!""

($%!!$!!!""

($&!!$!!!""

($'!!$!!!""

(" )#" &%" (#'" #*&" *(#"

+,-./0"12"34560,78145"9(:(!!!;"

<==17>814"53?/"9@A;

BC<@"DE:1"5E>FG"

BC<@"DE:"5E>FG"

HC<@IJ"+K"-/-"DL30/76G"

HC<@IJ"+K"-/-"D34L30/76G"

HC<@IJ"5E>F"M=/"

NO6#"+K"-/-"DL30/76G"

NO6#"+K"-/-"D34L30/76G"

NO6#"5E>F"M=/"

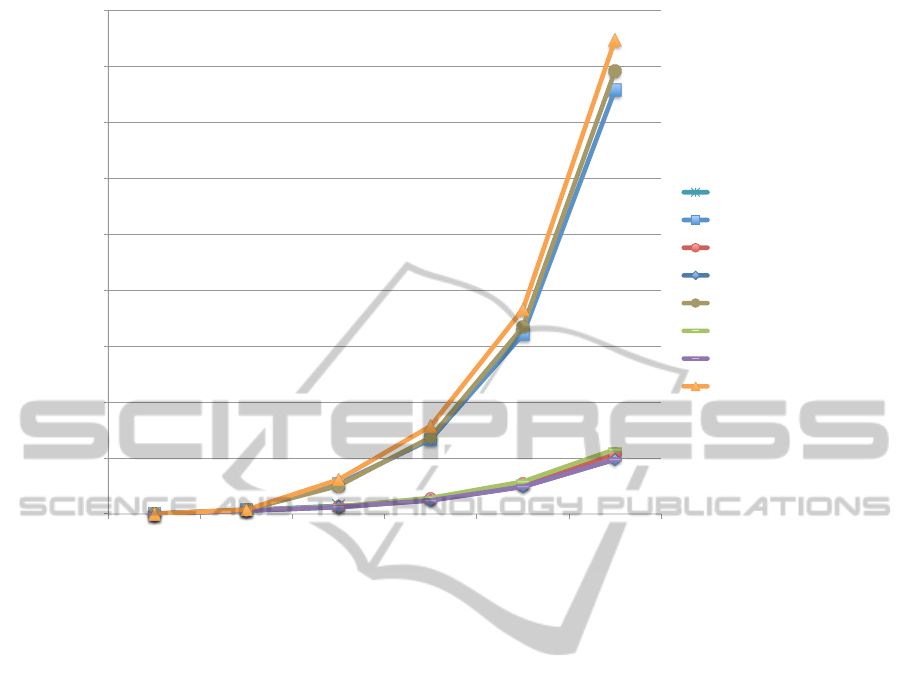

Figure 3: Comparison of page allocation costs.

The measurement results apparently show the ef-

ﬁciency of the memory allocation from NV memory

and the inefﬁciency of the cases that use the page

swapping. The cases that use the indirect method per-

forms the best, and their results are basically the same

because of their implementation independent from the

underlying ﬁle systems. PRAMFS NV mem (direct)

comes next to the indirect method with 10% overhead

for the allocation of 512MB of memory. Ext2 NV

mem (direct) poses 18% overhead. DRAM (w/ swap),

PRAMFS swap ﬁle, and Ext2 swap ﬁle are approxi-

mately 7.8, 8.1, and 8.7 times as much as the indirect

method, respectively.

For the both cases that use the direct method

and the page swapping, Ext2 performs slower than

PRAMFS, and Ext2 poses approximately 7% over-

head over PRAMFS. Since these cases depend on the

internal implementations of the ﬁle systems, the com-

plicated mechanisms of Ext2, which have been devel-

oped and optimized for hard disk drives (HDDs), had

a negative impact for the use for NV memory. There-

fore, the internal implementations of the ﬁle systems

affect the performance of the integrated management

of main memory and a ﬁle system.

5 SUMMARY AND FUTURE

WORK

Non-volatile (NV) memory is next generation mem-

ory. It achieves performance comparable to DRAM

and also persistently stores data without power sup-

ply. These features enable NV memory to be used

as main memory and secondary storage. While the

active researches have been conducted on its use for

either main memory or secondary storage, theses re-

searches were conducted independently. This paper

proposed the integrated memory management meth-

ods, by which NV memory can be used as both main

memory and storage. The two methods that use

ﬁle systems as their basis for NV memory manage-

ment were described. The direct method utilizes the

free blocks of a ﬁle system by manipulating its man-

agement data. The indirect method allocates blocks

through a ﬁle that was created in advance to be used

for main memory. We implemented these mem-

ory management methods in the Linux kernel. The

evaluation results performed on a system emulator

showed that the memory allocation costs of the pro-

posed methods are comparable to that for the existing

DRAM and are signiﬁcantly better than those of the

page swapping. To the best of our knowledge, we are

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

212

among the ﬁrst to design and implement it.

The integration of the main memory and ﬁle sys-

tem management creates new possibilities of the us-

age of NV memory. This paper is just the starting

point of various further investigations. We will inves-

tigate new possibilities of the use of NV memory.

REFERENCES

A. Badam and V. S. Pai. SSDAlloc: hybrid SSD/RAM

memory management made easy. In Proc. of 8th

USENIX conference on Networked systems design and

implementation (NSDI ’11), 2011.

K. Bailey, L. Ceze, S. D. Gribble, and H. M. Levy. Oper-

ating system implications of fast, cheap, non-volatile

memory. In Proc. of the 13th USENIX conference on

Hot topics in operating systems (HotOS 13), 2011.

J. Condit, E. B. Nightingale, C. Frost, Engin Ipek, Benjamin

Lee, Doug Burger, and Derrick Coetzee. Better I/O

through byte-addressable, persistent memory. In Proc.

of the ACM SIGOPS 22nd symposium on Operating

systems principles (SOSP ’09), pp. 133-146, 2009.

J-Y. Jung and S. Cho. Dynamic co-management of persis-

tent RAM main memory and storage resources. In

Proc. of the 8th ACM International Conference on

Computing Frontiers (CF ’11), 2011.

B. C. Lee, B. C. E. Ipek, O. Mutlu, and D. Burger. Architect-

ing phase change memory as a scalable dram alterna-

tive. In Proceedings of the 36th annual international

symposium on Computer architecture (ISCA ’09), pp.

2-13, 2009.

J. C. Mogul, E. Argollo, M. Shah, and P. Faraboschi. Oper-

ating system support for NVM+DRAM hybrid main

memory. In Proc. of the 12th conference on Hot top-

ics in operating systems (HotOS ’09), 2009.

Sung Wook Park: Overcoming the Scaling Problem for

NAND Flash. Flash Memory Summit, 2012.

Protected and Persistent RAM Filesystem. http://

pramfs.sourceforge.net/, 2012.

M. K. Qureshi, V. Srinivasan, and J. A. Rivers. Scalable

high performance main memory system using phase-

change memory technology. In Proc. of the 36th an-

nual international symposium on Computer architec-

ture (ISCA ’09), pp. 24-33, 2009.

Qureshi, M.K.; Franceschini, M.M.; Lastras-Montano,

L.A.; ”Improving read performance of Phase Change

Memories via Write Cancellation and Write Paus-

ing,” In Proc. of 2010 IEEE 16th International Sym-

posium on High Performance Computer Architecture

(HPCA), pp.1-11, 2010.

M. Saxena and M. M. Swift. FlashVM: virtual memory

management on ﬂash. In Proc. of 2010 USENIX con-

ference on annual technical conference (USENIX ATC

’10), 2010.

X. Wu and A. L. N. Reddy. SCMFS: a ﬁle system for stor-

age class memory. In Proc. of 2011 International Con-

ference for High Performance Computing, Network-

ing, Storage and Analysis (SC ’11), pp. 1-11, 2011.

W. Zhang, T. Li, ”Exploring Phase Change Memory and 3D

Die-Stacking for Power/Thermal Friendly, Fast and

Durable Memory Architectures,” In Proc. of 18th In-

ternational Conference on Parallel Architectures and

Compilation Techniques, pp. 101-112, 2009.

P. Zhou, B. Zhao, J. Yang, and Y. Zhang. A durable and en-

ergy efﬁcient main memory using phase change mem-

ory technology. In Proc. of the 36th annual inter-

national symposium on Computer architecture (ISCA

’09), pp. 14-23, 2009.

UsingFileSystemsforNon-volatileMainMemoryManagement

213
