HMM based Classifier for the Recognition of Roots of a Large
Canonical Arabic Vocabulary
Imen Ben Cheikh and Zeineb Zouaoui
LaTICE Research lab,University of Tunis, ESSTT, 5.AV. Taha Hussein, BP.56, 1008, Tunisia
Keywords: Natural Language Processing, Arabic Writing Recognition, Large Vocabulary, Hidden Markov Models,
Canonical Vocabulary, Linguistic Properties, Viterbi Algorithm.
Abstract: The complexity of the recognition process is strongly related to language, the type of writing and the
vocabulary size. Our work represents a contribution to a system of recognition of large canonical Arabic
vocabulary of decomposable words derived from tri-consonantal roots. This system is based on a
collaboration of three morphological classifiers specialized in the recognition of roots, schemes and
conjugations. Our work deals with the first classifier. It is about proposing a root classifier based on 101
Hidden Markov Models, used to classify 101 tri-consonantal roots. The models have the same architecture
endowed with Arabic linguistic knowledge. The proposed system deals, up to now, with a vocabulary of
5757 words. It has been learned then tested using a total of more than 17000 samples of printed words.
Obtained results are satisfying and the top2 recognition rate reached 96%.
1 INTRODUCTION
Several approaches of writing recognition were the
subject of intense research in recent decades. These
approaches depend especially on writing type
(printed or handwritten) and language (Arabic,
Latin, Chinese, etc.). Moreover, direct application of
approaches proposed for Latin seems insufficient for
Arabic compared to other scripting languages due to
the cursivness and the complexity of its script. Thus,
several studies have focused on analyzing Arabic
script topology and identifying levels of complexity
of its words recognition process. The goal is to
effectively implement robust recognition systems
based on improvement and/or hybridation of
existing approaches taking into account the
specificities of the Arabic language and its cursive
nature.
Moreover, because of Arabic morphological
complexity, effective Arabic surface forms go past
60 billions (Cheriet and Beldjehem, 2006), what
makes their automatic processing unrealistic. To
deal with such problem, this number should be
reduced. To this end, word morphological analysis
and factorization seem to be one solution. Actually,
in this context, we have already proposed, in a
previous work (Ben et al., 2008); (Ben et al., 2010),
a classifiers combination based approach that uses
linguistic knowledge to simplify the enormous
number of Arabic words. The simplification was
based on word factorization in morphological
entities (root, schemes and conjugation) since we
deal with decomposable words. Our contribution is
then, in this work, to focus on the recognition of a
wide lexicon of Arabic decomposable words using
an original model embedded with language skills
and able to recognize roots from which words
derive. This modeling is based on Hidden Markov
Models (HMMs) that offer, indeed, great flexibility
in modeling the Arabic script (Ben Amara, Belaïd
and Ellouze, 2000). Furthermore, the use of HMMs
in recognizing writing has yielded interesting results
for some applications due to their ability to integrate
context and absorb noise (Avila, 1996) and (Saon
and Belaïd, 1997) and (El Yacoubi, 1996).
We perform the training and the recognition of
roots from word global structural primitives, while
proceeding 1) to simulate human reading process by
operating globally first and 2) to apply natural
language processing (NLP) by recognizing
complementary linguistic entities. Global primitives
are the result of automatic extraction of features
made on 17375 printed samples corresponding to
5757 words derived from 101 roots, following 22
schemes and presenting various flexional
conjugations.
244
Ben Cheikh I. and Zouaoui Z. (2013).
HMM based Classifier for the Recognition of Roots of a Large Canonical Arabic Vocabulary.
In Proceedings of the 2nd International Conference on Pattern Recognition Applications and Methods, pages 244-252
DOI: 10.5220/0004335202440252
Copyright
c
SciTePress
This paper is organized as follows. In section 2,
we present the human reading model. The section 3
describes the main topological and morphological
characteristics of Arabic script and presents the use
of linguistic knowledge in literature. The section 4 is
devoted to the description of the HMMs architecture
and the design of the training process. Then, in
section 5, experiments are conducted to evaluate the
approach by revealing the recognition rates and the
model limits. In section 6, we illustrate a comparison
with related works. The section 7 concludes the
paper and proposes some perspectives.
2 HUMAN READING MODELS
AND NATURAL LANGUAGE
PROCESSING
The basic experience of reading showed the "Word
Superiority Effect" identified by Mc Clelland and
Rumelhart. In order to illustrate this phenomenon,
Mc Clelland and Rumelhart proposed a reading
model (McClelland and Rumelhart, 1981) based on
three fundamental hypotheses: 1) the perception is
operated in three different processing levels, each
one of them is representing a different abstraction
level, 2) the perception implies parallel processing
on the visual information and 3) the related
processes are interactive (bottom-up and top-down).
Mc Clelland and Rumelhart focus, in (McClelland
and Rumelhart, 1985), on the fact that human builds
a complete image of his environment by
accumulating different sources of sensory data. In
these various stages of decision-making, he proceeds
by a general study of the problem. If this global
vision is not sufficient, he seeks to go into details.
In addition to the "Word Superiority Effect", we
attest that another aspect characterizes human
reading models: "Word Derivation Effect". For
example, given a vocabulary of decomposable
words, derived from roots according to specific
schemes and conjugations, the human handles with
"access" and "root" letters (Cheriet and Beldjehem,
2006) ("root" letters are the three or four letters of
the word root and "access" letters are those added by
the scheme and the conjugation). For instance,
according to Cheriet (Cheriet and Beldjehem, 2006),
even if some word letters are not recognized, the
human reading process can still guess about the
word thanks to this distinction of letters types: if
missed letters are "access", then the word
recognition will be guided by the "root" letters and
vice versa. Our point of view is also aligned with the
human reading process. In fact, the first recognition
result is not necessarily 0 or 1 but may be a quantity
of significant information which needs to be
completed. Thus, we find that word recognition can
be performed using two independent and
complementary views: recognitions of the scheme
and the root. For instance, face to some words,
human identifies, at first sight, the word scheme but
not its root and vice versa. In these cases, the
identified root or scheme helps to recognize the
word.
3 THE INTEGRATION OF
LINGUISTIC KNOWLEDGE
Many studies (Cheriet and Beldjehem, 2006), (Ben
Hamadou, 1993), (Kanoun et al., 2005) and
(Kammoun and Ennaji, 2004) highlight the richness
and the stability of Arabic in terms of morpho-
phonologic peculiar to this language. An Arabic
word is decomposable or not. If it derives from a
root, it is said to be decomposable in morphemes
(root, prefix, infix and suffix). A word is, then,
composed of root letters and access (non-root)
letters. In (Cheriet and Beldjehem, 2006), Cheriet
proposed to exploit this word vision using any
recognition approach. He suggested analyzing errors
using linguistic clues and in rejection cases,
extracting the root and doing template matching to
infer the rest. He affirmed that one must focus on
what kind of linguistic knowledge is important and
how and where it is more appropriate to incorporate.
By adopting the same vision of the word, an "affixal
approach", proposed by (El Yacoubi, 1996) then
reconsidered by (Kammoun and Ennaji, 2004) for
the recognition of Arabic typed texts, consists in the
segmentation of words in letters and the recognition
of their morphological entities. The authors used
several linguistic concepts (Affixal and semantic
restrictions) to guide the recognition process
.
3.1 Morphological Concepts
As already mentioned, thanks to the flexibility of its
derivation, with its three radical consonants, Arabic
contains verb forms derived by adding affixes and
intercalation. This complex and precise system
contributes to the richness of Arabic verbs and also
of abstract nouns that form action names (Bejaoui,
1985). We consider a decomposable word as the
derivation of the root according to a conjugated
scheme. This latter is the association of prefix and
HMMbasedClassifierfortheRecognitionofRootsofaLargeCanonicalArabicVocabulary
245
suffix (letters from the conjugation: tense, gender,
number...) to a brief scheme. The derivation of the
tri-consonant root with the brief scheme gives rise to

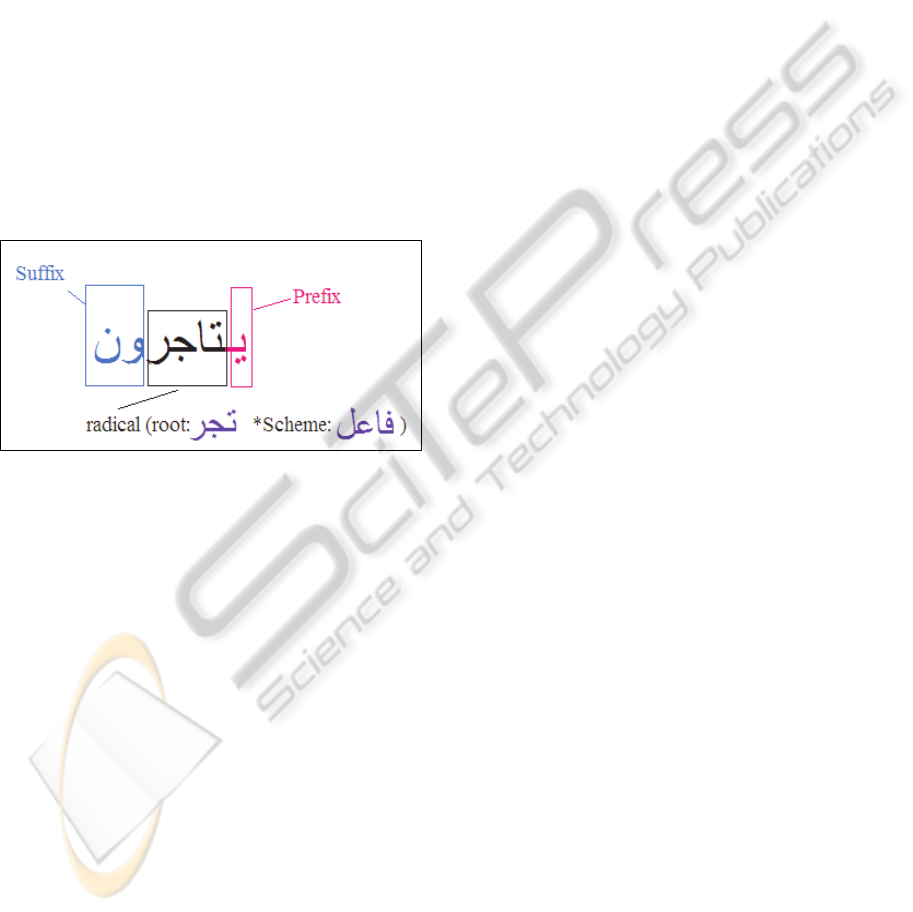

the radical (see Figure 1). The word changes
meaning depending on the combination of the
scheme: for example, derivation of the root with
the scheme (x x x ; where x denotes one of the
three consonants of the root) gives the word
(shop) and with the scheme (x x x ) gives the
word (trader). Prefix and suffix are composed
of letters corresponding to the flectional conjugation,
while other access letters belong to the radical and
depend on the scheme. Thus, according to our
vision, to recognize a word, we just need to identify
its root and conjugated scheme (brief scheme +
conjugation), without segmenting it in letters. This is
the main idea that allowed us to factorize words and
to handle with a wide vocabulary while using a
holistic approach to avoid effective segmentations
(ICMWI 2010).
Figure 1: Our Arabic word vision.
3.2 Word Factorization based
Recognition from Structural
Primitives
Factorization. We previously worked on a
recognition system of Arabic decomposable words
derived from tri-consonantal roots and belonging to
a large canonical vocabulary. Note that our work
does not consist in a morpho-syntaxic analyzer
which deals with electronic text. It is rather about
the recognition of word from sample images by 1)
recognizing their morphological characteristics and
then 2) reconstituting the whole world. The system
is based on morphological collaboration of three
classifiers specialized respectively in the recognition
of roots, schemes and conjugation elements (see

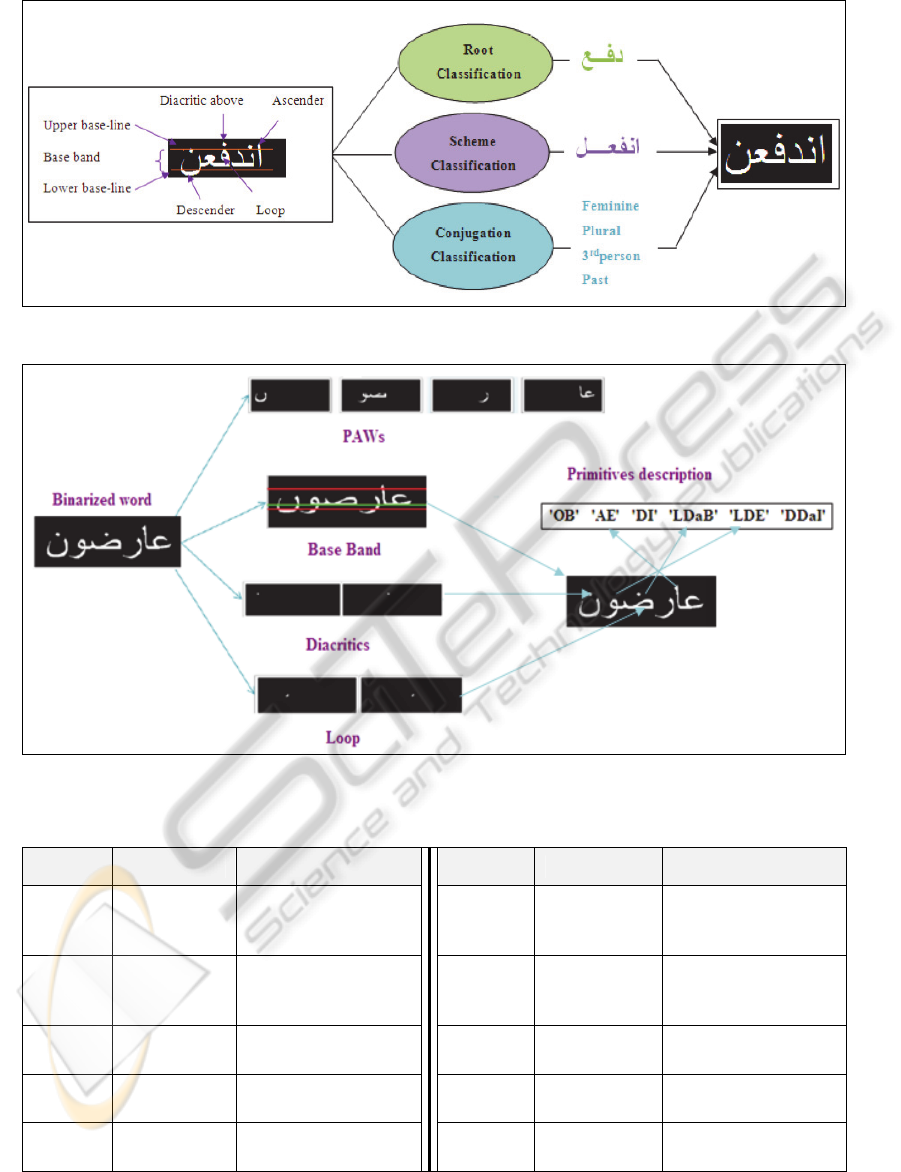

figure 2). Recognition takes place as follows: The
system takes as input global features (see Table 1)
which are structural primitives describing a word. At
first, we provide word structural primitives to
scheme classifier to recognize its scheme. Then we
provide word structural primitives to root classifier
to recognize its roots and finally, we provide word to
conjugation classifier to recognize its conjugation
elements. Then, the word will be reconstituted from
the three morphological entities that are: the root, the
scheme and the conjugation selected candidates.
Remind that the phase of word root recognition is
the scope of this work.
Notice that we are interesting only in the
treatment of words deriving from tri-consonant
roots. Dealing with tri-consonant roots, we could
easily generate large vocabularies. In fact, 808
healthy tri-consonant roots can generate a lexicon of
98000 words (Kanoun, 2002). On average, 80
frequently used word can derive from a given root in
various schemes (Ben Hamadou, 1993).
Structural Primitives Extraction. Remind that
our system learns and recognizes word roots from
structural primitives that we extract from word
images, by applying treatment illustrated in figure 3.
More details are provided in (Ben Cheikh, Kacem
and Belaïd, 2010). Note that a structural primitive
(see table 2) is a combination of global features (see
table 1).
4 PROPOSED APPROACH
Our contribution is to instantiate the root classifier
using the Markov method for the training and the
recognition of root words from their descriptions in
structural primitives. Indeed, we propose a system
based on 101 HMMs for the classification of 101
roots used in the generation of a vocabulary of 5757
words. It is important to attest that, this is the first
work which proposes HMMs that 1) use global
features instead of local ones and 2) have very
personalized architectures with specific states.
4.1 HMMS Architecture
The proposed architecture of HMMs is personalized.
It incarnates Arabic linguistic knowledge about the
construction of Arabic words around the roots. This
knowledge inspired us in the choice of states of
consonants and affixes (prefixes, infixes, suffixes)
and the choice of transitions between these states
(see figure 4).
In addition, we adopted the same architecture for
all HMMs, where each consists of six states for the
prefix, the infix, the suffix and three other states
modeling the root letters.
Moreover, our definition of affixes is not quite
different from linguists one. Indeed, a prefix is any
letter before the first root letter, the infix is any letter
ICPRAM2013-InternationalConferenceonPatternRecognitionApplicationsandMethods
246
Figure 2: Classifiers collaboration based approach for the recognition of decomposable Arabic words.
Figure 3: Extraction steps for word "".
Table 1: Global features (Ben et al., 2010).
Feature Designation Description Feature Designation Description
A Ascender
Ascending
characteristic over
the baseline
O Otherwise
No primitives listed
above
D Descender
Descending
characteristic below
the baseline
B Beginning
Primitive position
in the beginning
L Loop
Intersection between
2 closed boundaries
M Middle
Primitive position
in the middle
Da
Diacritics
above
Diacritical points
over the word body
E End
Primitive position
at the end
Db
Diacritics
below
Diacritical points
below the word body
I Isolated Isolated primitive
HMMbasedClassifierfortheRecognitionofRootsofaLargeCanonicalArabicVocabulary
247
between the first and second root letter or between
the second and third root letter and a suffix is any
letter after the third root letter. Figure 4 describes the
architecture for the HMM of the root (i.e: he
walked away). States emitted symbols are primitives
extracted from word images. We also specified the
beginning probabilities of each state.
Table 2: Examples of structural primitives.
Primitive Example Primitive Example
AB
D
b
I
AI
OB
AE
OI
DI
ADI
DE
ALI
LB
AD
a
I
LI
AD
b
I
LM
DD
a
E
LE
DD
a
I
D
a
B
DLE
D
a
I
DLI
D
b
B
DD
b
I

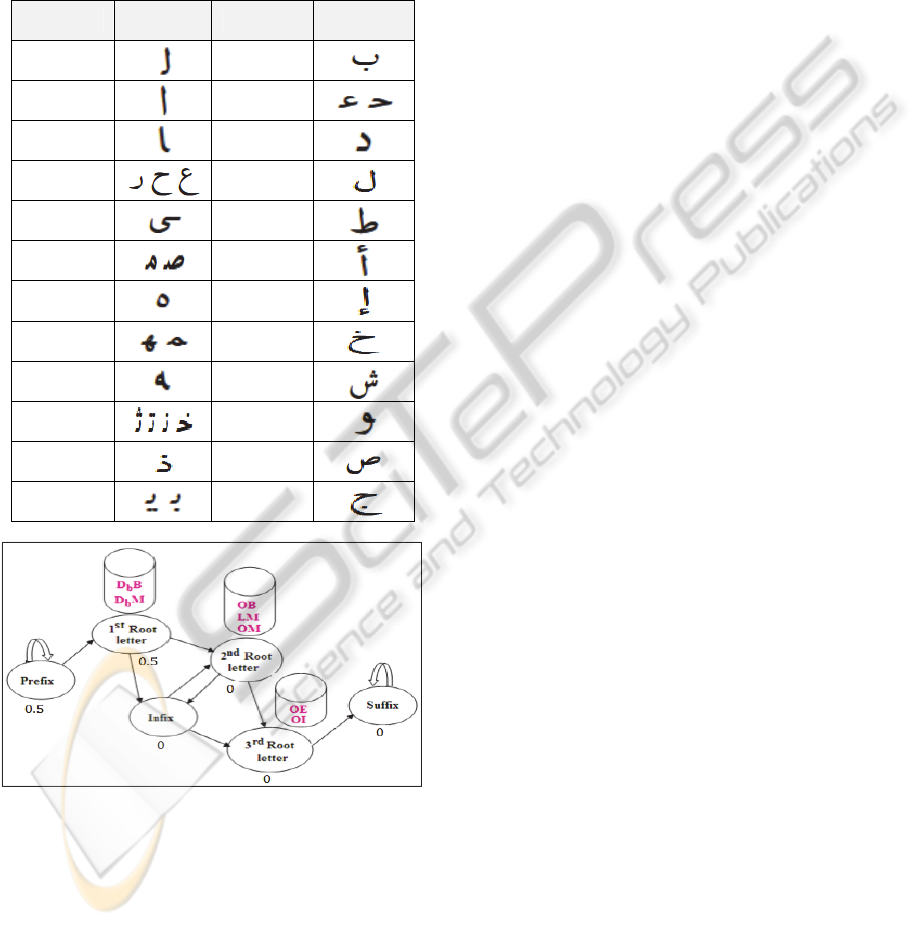

Figure 4: Architecture of a HMM_Root (i.e: he walked
away).
4.2 Training
We integrate linguistic knowledge, not only in the
architecture using states for consonants and affixes,
but also in the training, mainly in probabilities
initializations. The training supervision is as follows:
- The starting state must be either the prefix or the
first consonant; hence, we set to zero the
probabilities of beginning at other states. Figure
4 shows the behavior of the HMM of the root
"
", which starts in the prefix or the first
consonant
" ".
- For initial emission probabilities of symbols, we
have, depending on the corresponding state,
supported some symbols (primitives) against
others. Thus, we have estimated high initial
probabilities for symbols describing the
consonants of each root, prefixes and suffixes
and we set near-zero probabilities for the
primitives that may never appear for a root.
- Initial transition probabilities are closely chosen
so that they incarnate Arabic properties of letters
organization in a word: the order of prefix,
suffix, infix and the three consonants (see
transition in figure 4).
- Finally, we applied the same principle for all
HMMs and used the Baum-Welch algorithm for
training the 101 models.
It is important to mention that we propose a new
mode of training, since one root HMM is not trained
on samples of this root but through hundreds of
different word samples, presenting various
inflectional conjugations, following different
schemes but generated from the same root (see
figure 5). For example, the HMM of the root " "
in Figure 5. (b) is learned through several samples of
different words ( , , , , , ),
derived from the same root " " under different
schemes namely ( , , , and ) and
having different conjugations (past, present,
singular).
Note that if we want to expand the vocabulary by
hundreds of words derived from a root, we just need
to create a new HMM for the new root; train it on
samples of new words and add it to the system
without affecting the other already trained HMMs.
4.3 Recognition
For recognition, we use Viterbi algorithm on trained
HMMs. Indeed, the system works as follows: each
HMM takes as input the word structural primitive, in
order to calculate the probability of recognizing this
word by every HMM. Then, the system sorts these
probabilities to choose the maximum and retains the
corresponding HMM root. Figure 6 illustrates this
process for the word
" ".
ICPRAM2013-InternationalConferenceonPatternRecognitionApplicationsandMethods
248
(a)
(b)

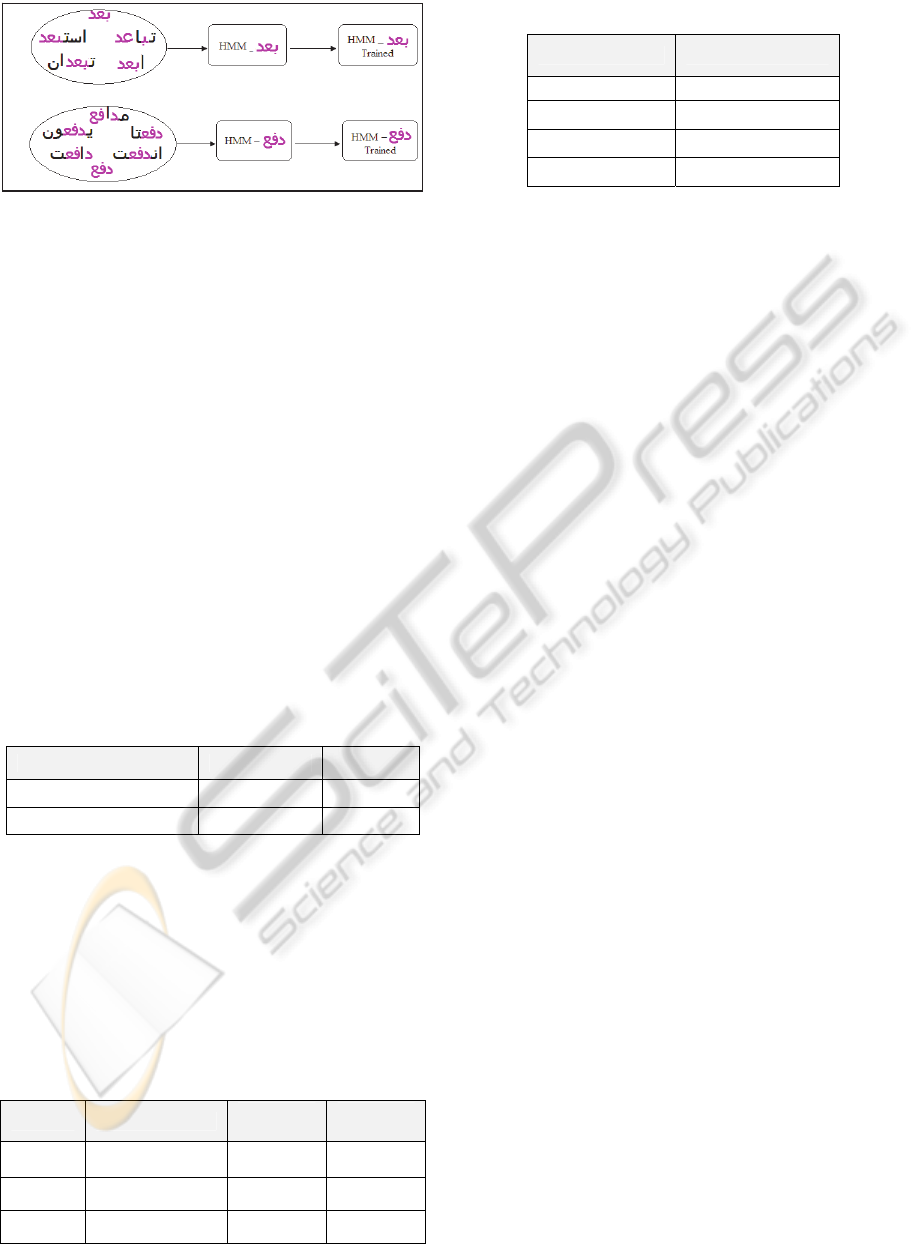

Figure 5: (a): Training of the HMM of the root (i.e: to
walk away), (b): Training of the HMM of the root (i.e:
to push).
5 EXPERIMENTATION
5.1 Training
The experiments were conducted on a database of
more than 17000 samples of words of a large
vocabulary generated from 101 Arabic tri-consonant
roots. We used 11600 samples for training and the
rest for recognition. The samples are written in 3
Arabic fonts (Regular AGA_Abasan, AF_Buryidah
and Arial) characterized by variability of the forms
of letters (disappearance of loops, missing legs,
overlapping, etc.). Note that, the extraction of
primitives has succeeded at 97%. Table 3 describes
the configuration of our experiments (training
corpus size per output, etc.).
Table 3: Training and test corpus sizes.
Number of trained outputs Training set size Test set size
101 roots 11600 5757
1 root Around 114 Around 57
5.2 Recognition
In the test phase, we obtained the following overall
recognition rate: top1= 88.18%, top2 = 96.92% and
top3 = 98.26%. Table 4 presents some word
recognition probabilities and the corresponding
Viterbi paths. Table 5 illustrates some root
classification rates.
Table 4: Word recognition probability.
Word Best path
Best
probability
Recognized
root
P R1 R2 R3 3.1 10
-4
R1 R2 R3 S S 1.582 10
-5
P R1 R2 In R3 2.946 10
-4
Table 5: Recognition rate by root HMM.
Root Recognition rate
100 %
97.5 %
100 %
95.91 %
5.3 Collisions Analysis
To study and identify collisions, we evaluated our
system in terms of recall. As shown in figure 8, most
of the words were well classified. In fact, the
majority of samples that have not been well
recognized, derive from similar roots (that have the
same structural primitives). For example, the words
and deriving respectively from roots"
" (ie: to burn) and " " (ie: to display), have
exactly the same structural primitives: OB-AE-
LDaB-DaE (see figure 7). This is the same for more
than eight couples of roots such as " " (ie. to
press) and " " (ie.
to wear) (see figure 7). Even
though many roots (consequently, many words) are
similar, ambiguities could be easily resolved by the
use, in addition to global primitives, of some local
features to distinguish similar letters.
6 COMPARISON WITH
RELATED WORKS
Our approach always produces higher success rates
than the current approaches with regard to the
vocabulary size as illustrated in table 6.
Note that we are comparing our approach to
other approaches which 1) use linguistic knowledge
like (Kanoun et al., 2005) and (Kammoun and
Ennaji, 2004) and/or 2) are conceived for large
vocabularies like (Kanoun et al., 2005), (Kammoun
and Ennaji, 2004) and (Touj et al., 2007), even
though the experimentation lexicon of some of them
is not wide enough.
7 CONCLUSIONS
This paper describes our approach based on the
Markov method for the training and the recognition
of roots of Arabic words, from their descriptions in
global structural primitives. Indeed, we have
proposed a system based on 101 HMMs for the
classification of 101 roots of 5757-sized vocabulary.
HMMbasedClassifierfortheRecognitionofRootsofaLargeCanonicalArabicVocabulary
249

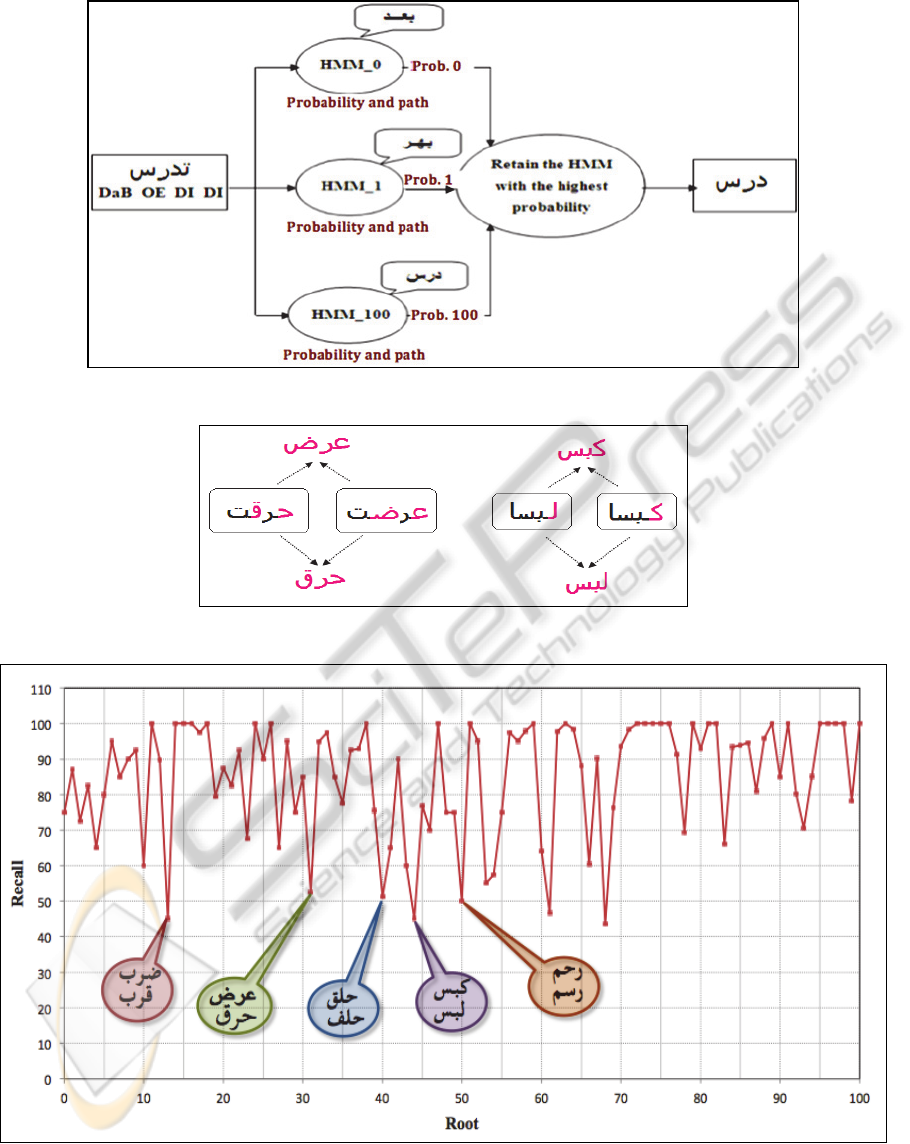

Figure 6: General architecture of word root recognition system.
Figure 7: Example of different words with similar roots (having the same primitives).
Figure 8: Scores of root HMMs.
ICPRAM2013-InternationalConferenceonPatternRecognitionApplicationsandMethods
250
Table 6: Proposed approach vs. current approaches.
Approach Writing Vocabulary size Top1 Top2 Top3
Analytic
(Kanoun et al., 2005)
Printed 1000 74 81.2 83.9
Analytic
(Kammoun and Ennaji, 2004)
Printed 1423 81.3 95.7 99.7
Analytic
(Touj et al., 2007)
Handwritten 25 88.7 - -
Holistic
(Our approach)
Printed 5757 88.1 96.9 98.2
The proposed architecture of HMMs is
personalized. It embodies knowledge about the
linguistic properties of construction of Arabic words
around the roots. This knowledge inspired us in the
choice of states of consonants and affixes (prefix,
infix, and suffix) and the choice of transitions
between these states. The learning was performed on
a database of over 11000 samples of words. The
training of one HMM of a given root is performed
via hundreds of words derived from this root
following various schemes and different
conjugations. Very satisfactory rates of recognition
(top1=88% and top2=96.92%) were obtained in a
phase of test made on more than 5700 samples.
To improve our solution, we conducted an
analysis of the collisions which allowed us to
encircle the problems of ambiguity between roots
aiming to resolve them at the level of post-treatment
phase. Indeed, the most striking problem affects the
similar roots that present the same global primitives
although their letters are different. Hybridizing the
approach, by a local refinement of these particular
letters, could significantly increase the scores of the
system. Finally, despite that models of hidden
Markov are known by their robustness absorption of
writing variability and despite that they are usually
used in analytical approaches (with local primitives),
we used global primitives and we were able to reach
an interesting rate of recognition, thanks to the
integration of morphological knowledge.
Our approach could be also directly applied on
handwriting since global primitives are easy to
extract. Then, in the mean run, since we have been
already reassured regarding the linguistic based
structures of HMMs used just on global features, we
could switch to the use of local primitives such as
densities, invariable moments, Hu moments, etc.
REFERENCES
Avila, M. (1996). Optimisation de modèles markoviens
pour la reconnaissance de l'écrit. PHD Thesis,
University of Rouen.
Ben Amara, N., Belaïd A., Ellouze, N. (2000). Utilisation
des modèles markoviens en reconnaissance de
l'écriture arabe : Etat de l’art. Colloque International
Francophone sur l'Écrit et le Document (CIFED).
Lyon, France, pp 181-191.
Ben Cheikh, I., Kacem, A. and Belaïd, A. (2010). A
neural-linguistic approach for the recognition of a
wide Arabic word lexicon. 17
th
Document Recognition
and Retrieval Conference, part of the IS&T-SPIE
Electronic Imaging Symposium, San Jose, CA, USA,
January 17-22, 2010, SPIE Proceedings, pp 1-10.
Ben Cheikh, I., Belaïd, A. and Kacem, A. (2008). A novel
approach for the recognition of a wide Arabic
handwritten word lexicon. 19
th
International
Conference on Pattern Recognition (ICPR), IEEE,
Tampa, Florida, USA, pp. 1-4.
Bejaoui, M. (1985). Etude et réalisation d’un système
expert appliqué à l’analyse morpho-syntaxique de
phrases en langue arabe: méthode ascendante. PHD
Thesis, University Paul Sabatier, Toulouse (Sciences),
France.
Ben Hamadou, A. (1993). Vérification et Correction
Automatiques par Analyse Affixale des Textes Ecrits
en Langage Naturel. PHD Thesis, Faculty of Sciences
of Tunis, Tunisia.
Cheriet, M., Beldjehem M. (2006). Visual Processing of
Arabic Handwriting: Challenges and New Directions.
Summit Arabic and Chinese Handwriting Recognition,
Springer, India, September 27-28, pp 1-21.
El Yacoubi, A. (1996). Modélisation markovienne de
l'écriture manuscrite, application à la reconnaissance
des Adresses postales. PHD Thesis, University of
Rennes 1.
George Saon, Abdel Belaïd (1997). High Performance
Unconstrained Word Recognition System Combining
HMMs and Markov Random Fields. International
Journal of Pattern Recognition and Artificial
Intelligence (IJPRAI), Volume 11(5), pp 771-788.
Kammoun, W., Ennaji, A. (2004). Reconnaissance de
Textes Arabes à Vocabulaire Ouvert. Colloque
International Francophone sur l'Écrit et le Document
(CIFED), France.
Kanoun, S., Alimi, A., Lecourtier, Y. (2005). Affixal
Approach for Arabic Decomposable Vocabulary
Recognition: A Validation on Printed Word in Only
One Font. Eighth International Conference on
Document Analysis and Recognition (ICDAR), IEEE
HMMbasedClassifierfortheRecognitionofRootsofaLargeCanonicalArabicVocabulary
251
Computer Society, Seoul, pp 1025-29.
Kanoun, S. (2002). Identification et Analyse de Textes
Arabes par Approche Affixale. PHD Thesis,
University of Science and Technology of Rouen.
McClelland, J. L., Rumelhart, D. E. (1981). An interactive
activation model of context effects in letter perception.
In Psychological Review, 88: pp. 375-407.
McClelland, J. L., Rumelhart, D. E. (1985). Distributed
memory and the representation of general and specific
information. In Journal of Experimental Psychology:
General, pp.159-188.
Touj, S., Ben Amara, N., Amiri, H. (2007). A Hybrid
Approach for Off-line Arabic Handwriting
Recognition Based on a Planar Hidden Markov
Modeling. 9th International Conference on Document
Analysis and Recognition (ICDAR), IEEE Computer
Society, Brazil, pp 964-968.
ICPRAM2013-InternationalConferenceonPatternRecognitionApplicationsandMethods
252
