On Protection of the User’s Privacy in Ubiquitous E-ticketing Systems

based on RFID and NFC Technologies

Ivan Gudymenko

Faculty of Computer Science, TU Dresden, Dresden, Germany

Keywords:

Customer Privacy, E-ticketing, NFC, RFID.

Abstract:

The issues of customer privacy in e-ticketing systems for public transport based on RFID/NFC technologies

are addressed in this paper. More speciﬁcally, having described the target system, the speciﬁc privacy threats

are identiﬁed and respectively classiﬁed. This is performed by analyzing the system under concern against

the speciﬁcally deﬁned privacy properties (pseudonymity, conﬁdentiality, unlinkability). The process of the

respective countermeasures development together with the recommendations for their integration into the real

e-ticketing system for public transportation are further discussed.

1 INTRODUCTION

Different areas of public life are being increasingly

affected by a plethora of technologies which can

be collectively referred to as Ubiquitous Computing

(UbiComp). The latter has already gone far beyond

the initial UbiComp paradigm which is believed to

have been coined by Marc Weiser in his seminal pa-

per (Weiser, 1991).

One of the areas being tangibly affected by

UbiComp is the so-called Electronic Ticketing (E-

ticketing) where a conventional ticket is represented

by an electronic medium

holding a digital proof of

possession of rights to claim a certain service, e.g.

a travel permission. E-ticketing can be used in vari-

ous application areas: public transport, event ticketing

(sport events, concerts), ﬁtness and leisure (ski pass,

ﬁtness studious tickets), etc.

The current paper focuses on public transport sys-

tems which can substantially beneﬁt from incorporat-

ing the e-ticketing concept. In this case, it enables

to automate the process of fare collection (Automated

Fare Collection, AFC) and paves the way to the so-

called seamless travel, when a customer can use a

single e-ticket between different transport companies

possibly across countries in a seamless manner (In-

tegrated Ticketing). E-ticketing has already been in

use in several developed countries around the world.

For example, Dutch OV-Chipkaart (Trans Link Sys-

tems, 2012), London Oyster Card (Transport for Lon-

For example, a Radio Frequency Identiﬁcation (RFID)

chip.

don, 2012), EZ-Link in Singapore (Land Transport

Authority,2012), Hong-Kong Octopus Card (Octopus

Cards Limited, 2012), etc.

Despite introducing various beneﬁts both for cus-

tomers and public transport companies, e-ticketing

systems raise serious concerns over the invasion of

customer privacy. This problem is in focus of the cur-

rent paper which explores possible privacy threats en-

demic to such systems and subsequently analyzes the

countermeasures.

The rest of the paper is organized as follows. Sec-

tion 2 describes the e-ticketing system under con-

cern. Privacy violation scenarios and privacy threats

together with the generic countermeasures are ana-

lyzed and discussed in Section 3. We brieﬂy review

the related work in Section 4 and conclude the paper

as well as outline future work in Section 5

2 E-TICKETING SYSTEMS

UNDER CONCERN

Before addressing privacy issues in the e-ticketing

system under concern, its concise description is per-

formed in this section creating the necessary basis for

further threat analysis and discussion.

2.1 General System Description

The public transport system under concern consists

of three parts: (1) back-end, (2) front-end, and (3)

a bridging element (i.e. terminals). The back-end

Gudymenko I..

On Protection of the User’s Privacy in Ubiquitous E-ticketing Systems based on RFID and NFC Technologies.

DOI: 10.5220/0004339300860091

In Proceedings of the 3rd International Conference on Pervasive Embedded Computing and Communication Systems (PECCS-2013), pages 86-91

ISBN: 978-989-8565-43-3

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

of such a distributed ubiquitous system incorporates

powerful internetworked processing centers control-

ling the system functionality and performing billing,

customer accounts management, etc. (see Back-end

System in Figure 1). E-tickets interacting with the

terminals compose its front-end (see E-ticket, Fig-

ure 1). In order to interconnect front-end and back-

end, a bridging element is needed essentially acting

as a bridge between the two other system components

and being represented by terminals (with incorporated

readers for e-tickets) in the public transport system

(depicted as On-board Reader in Figure 1).

Most of the current e-ticketing systems for pub-

lic transportation adhere to the so-called Check-

in/check-out (CICO) principle for fare collection and

ticket validation (see Check-in and Check-out in Fig-

ure 1). It allows for establishment of ﬂexible billing

schemes in the back-end and facilitates the creation of

various loyalty programs for customers.

It is preferable that the interface between an e-

ticket and a terminal is contactless, since it implies

faster validation times (shorter queues) and the ab-

sence of moving parts which can be worn out (the

service is intended for daily use). It, therefore, pro-

vides a higher degree of durability for the front-end

part of an e-ticketing system. There is set of dif-

ferent contactless technologies which can be used as

enablers of such an e-ticketing system. The most

suitable, however, are two lightweight technologies,

which are based on a similar principle: Radio Fre-

quency Identiﬁcation (RFID) and Near Field Com-

munication (NFC). The former has already been ex-

tensively used in smart cards area, namely RFID cards

based on ISO 14443 standard (ISO, 2011). NFC is not

so well-established but is also an extremely promising

technology that is rapidly gaining importance in the

area of lightweight contactless communication, espe-

cially in the smart phone industry.

2.2 A High-level Description of a

System Architecture

The e-ticketing system for public transport described

above functions as follows. Firstly, a customer ob-

tains an e-ticket in one of the ticket distribution ofﬁces

(see step 1 in Figure 1). Depending on the preferred e-

ticket carrier medium, this can be either a certiﬁed ap-

plication downloaded to an NFC-enabled smart phone

and respectively conﬁgured or a smart card issued

by a public transport company with a pre-installed e-

ticketing application

. A trip begins when a customer

enters a vehicle and performs check-in by putting the

In a real public transport system, a support for the con-

ventional paper tickets may be required (for example, for

electronic medium with an installed e-ticketing appli-

cation into the vicinity of an on-board reader, or a

terminal (step 2a, Figure 1). On successful e-ticket

authentication, the reader forwards the user ID (u ID)

and its own ID (terminal ID) to the Event Processing

Unit (see Figure 1). The latter registers the check-in

event by adding the time and location (e.g. geograph-

ical coordinates) and temporarily storing the resultant

record. When the trip ends, the same procedure is re-

peated (see step 2b, Figure 1). Event Processing Unit

then sends the combined record (resulted from the

check-in/check-out events) to the back-end over the

backbone network in time intervals according to the

speciﬁcation of a concrete e-ticketing system

(see

step 3, Figure 1). If a trip consists of several transits,

the aforementioned procedures are repeatedly carried

out. In the back-end, the combined travel records are

stored (Events Storage, see Figure 1) and respectively

processed for billing purposes (Distance Calculation,

Billing). Customer accounts management and travel

statistics analysis are performed in this part of the sys-

tem as well.

The system architecture described above is

generic enough to be used as an abstraction for dif-

ferent real world public transport systems based on

e-ticketing. At the same time, it enables to perform

a privacy analysis of e-ticketing systems for public

transportation, which is done in the next section.

3 PRIVACY ANALYSIS

Having described the target system, the issues of cus-

tomer privacy are addressed in this section. Firstly,

the generic privacy threats endemic to e-ticketing sys-

tems are discussed. The possible countermeasuresare

considered in Section 3.2. A further elaboration on

this issue is presented in Section 3.3.

3.1 Generic Privacy Threats in

E-ticketing Systems

Since the notion of privacy is fairly ambiguous and

not easily considerable from a technical perspective,

compatibility reasons). In this paper, however, the focus is

speciﬁcally made on e-tickets.

In this case, the system can be organized differently in

terms of the time periods when the combined travel records

are transmitted to the back-end. Two extreme cases can

be distinguished: the online system (immediate transfer of

travel records, always connected to the back-end, e.g. via

a GSM wireless channel) and the ofﬂine one (when travel

records are only transferred at certain stationary points, e.g.

at the route ﬁnal stations ).

OnProtectionoftheUser'sPrivacyinUbiquitousE-ticketingSystemsbasedonRFIDandNFCTechnologies

E-ticket

Distribution

TripBegin

E-ticket

On-board Reader

(Terminal)

Event Processing Unit

(e.g. GPS-based)

E-ticket

Check-in

Back-end System

-EventStorage

-DistanceCalculation

-Billing

-CustomerAccounts

Management

-Statistics

[u_ID,terminal_ID,in(time,coordin),out(time,coordin)]

(1) (2a) (2b) (3)

Check-out

E-ticket

Smartcard

NFC

E-ticket

Smartcard

NFC

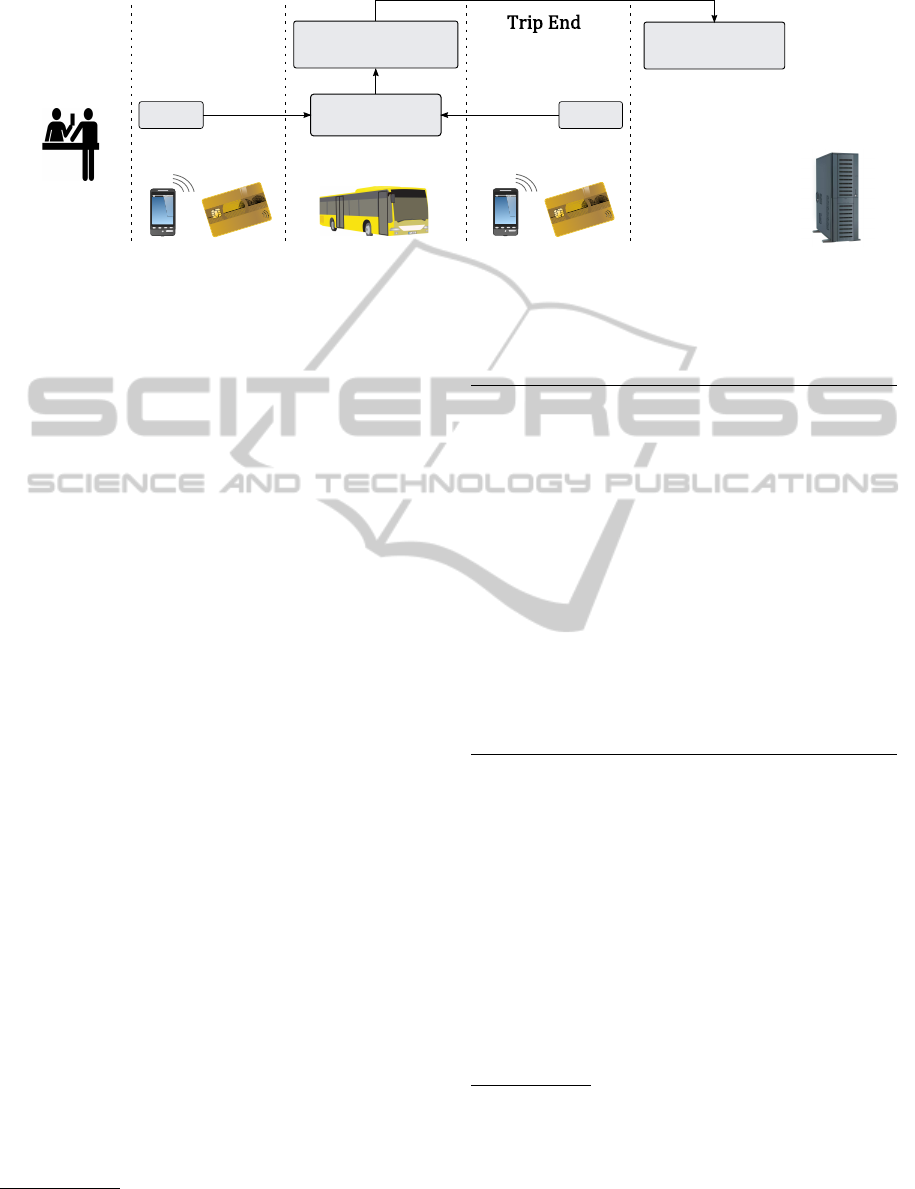

Figure 1: E-ticketing System Under Concern.

the following privacy properties similar to the clas-

sic CIA triad in information security (conﬁdentiality,

integrity, availability) are going to be deﬁned below:

(1) Pseudonymity,(2) Conﬁdentiality, and (3) Unlink-

ability. The introduction of these notions enables to

consider privacy from a technical point of view and

therefore facilitates the subsequent process of techni-

cal countermeasures development.

Deﬁnition 1. Pseudonymity enables the communicat-

ing entities to perform the necessary information ex-

change without disclosing their Personally Identiﬁ-

able Information (PII) during the communication ses-

sion. In case the exchanged information is persis-

tently stored, its pseudonymized form should prevent

malicious parties from illegal identiﬁcation of the re-

spective entities. It is, however, possible to perform

subsequent identiﬁcation

by a special entity with re-

spective authorization to ensure accountability (e.g.

for billing purposes).

Deﬁnition 2. Conﬁdentiality of information ex-

changed between communicating entities, which can

also be persistently stored, ensures that the content

of such a conversation is disclosed only to the legit-

imate parties possessing the respective authorization

(e.g. the ones being authorized to use the respective

message decryption key).

Deﬁnition 3. Unlinkability prevents a malicious

party from performing linkage of different pieces of

information which pertain to a certain entity (its infor-

mation traces) and are distributed in time and/or space

and therefore from illegally obtaining the entity’s PII.

Analyzing the e-ticketing systems described in

Section 2 against pseudonymity, conﬁdentiality, and

unlinkability, the following privacy threats can be

identiﬁed, see Table 1.

In contrast to the anonymity case when the subsequent

identiﬁcation should not be possible.

Table 1: The classiﬁcation of privacy threats in e-ticketing

systems for public transportation.

1. Unintended customer identiﬁcation:

(a) Exposure of the customer ID:

i. Personal ID exposure (direct identiﬁcation),

ii. Indirect identiﬁcation through the relevant

object’s ID

(de Chantrac and Graindorge,

2009).

(b) Exposure of a non-encrypted identiﬁer during

the anti-collision session

(Bartels et al., 2009);

ing

2. Information linkage;

3. Illegal customer proﬁling.

The ﬁrst class of the aforementioned privacy

threats (Unintented Customer Identiﬁcation) consid-

ers the front-end of a target e-ticketing system. More

speciﬁcally, the privacy issues may arise during the

customer’s check-in/check-out (see Figure 1). More-

over, the so-called ”passer-by” attack (illegally ini-

tiating a short communication with an e-ticketing

medium) is also possible. Consider the case of an ex-

posure of a non-encrypted identiﬁer during the anti-

collision session (threat 1b, Table 1) or RFID ﬁnger-

printing (threat 1c). The vulnerabilities implied by

this class of privacy threats can be exploited to mount

the following attacks which can be used to infringe on

For example, electronic medium ID (e.g. unique card

number), application ID (the unique identiﬁer of the in-

stalled e-ticketing application), etc.

For example, during the check-in/check-out events.

For instance, using the deviations in the backscat-

ter frequency of an RFID chip as a distinguishing factor,

see (Zanetti et al., 2011).

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

the customer’s privacy:

• Intervening with the Radio Frequency interface

between the e-ticket medium and the terminal:

– Communication eavesdropping;

– Relay attacks;

• Unintended interaction with the e-ticket medium

(also outside the speciﬁcally designed locations

for check-in/check-out) in order to compromise

the privacy of its owner (Threats 1b, 1c).

• Spooﬁng the e-ticket medium into interacting

with a malicious reader presenting itself as a le-

gitimate terminal.

• Compromising the legitimate terminal (e.g. to

mount replay attacks).

The second class of privacy threats (Information

Linkage) addresses the cases when different pieces

of information

directly and indirectly pertaining to

a customer are combined with the purpose of obtain-

ing an identiﬁable piece of information. This kind of

(illegal) information processing can pave the way for

subsequent violations of the customer’s privacy and

should, therefore, be considered during the develop-

ment of a privacy-respecting e-ticketing system for

public transportation.

The last threat class listed in Table 1 (Illegal Cus-

tomer Proﬁling) addresses the issue of (illegal) cre-

ation of customers’ proﬁles which is not foreseen by

the system speciﬁcation (e.g. for the loyalty pro-

grams) and therefore endangers the customer pri-

vacy and violates the privacy regulation. An example

would be selling of the collected private user data to

the third parties for marketing purposes, etc.

3.2 Countermeasures Discussion

Having provided a holistic classiﬁcation of privacy

threats in the previous section, a set of possible coun-

termeasures is discussed below.

We suggest that the classic privacy-preserving

mechanisms are used as an initial point of counter-

measures development, namely:

• Anonymization (resp. Pseudonymization) tech-

niques;

• Zero-Knowledge proofs (e.g. during the e-ticket

authentication or bill computation);

• Encryption of the privacy-relevant information;

• Data Minimization.

It can be, for example, information traces ”left” by a

customer as a result of the vulnerabilities implied by the

ﬁrst class of privacy threats listed in Table 1.

It is still an open research question how the afore-

mentioned generic countermeasures can be efﬁciently

applied to an e-ticketing system (without hindering its

performance) across the system components (back-

end, front-end) in a cross-layered fashion. Most of

the privacy-preserving frameworks developed by the

academia and implemented in real e-ticketing systems

so far are rather tailor made targeting a speciﬁc pri-

vacy issue arising in a certain part of a system (e.g.

customer anonymity in the front-end against a semi-

honest terminal). A holistic approach which would

consider the user privacy from the outset treating the

e-ticketing system as a whole is, however, still miss-

ing.

In order to address this issue, a preliminary anal-

ysis of possible countermeasures against the privacy

threats listed in Table 1 can be performed. An exam-

ple is shown in Table 2. The resultant set of generic

countermeasures forms the necessary basis for the

further countermeasures elaboration required for the

creation of a privacy-respecting solution.

3.3 Further Elaboration

Having obtained a set of generic countermeasures

against the privacy threats classiﬁed in Table 1 (a

holistic overview), a further elaboration is performed,

namely:

1. Prioritization of the privacy threats listed in Ta-

ble 1 with their respective countermeasures (de-

termine which issues are of particular importance

in a particular system).

2. Analysis (estimation) of the efﬁciency of counter-

measures implementation:

(a) A holistic system consideration (back-end,

front-end);

(b) Trade-off analysis (taking into account threat

priority, item 1) and resolution of possible con-

ﬂicts.

the respective countermeasures can not be ef-

ﬁciently implemented in a system

3. Creation of an elaborated set of countermeasures.

Prior to the countermeasures elaboration, it may

be beneﬁcial to formally assign trust levels to the sys-

tem components. In order to ensure that the direct

functionality requirements of a system are satisﬁed,

we suggest that the back-end is considered to be hon-

est. That is, the back-end can extract and process the

private information containing in the combined travel

This can be further used for privacy risk analysis and

estimation of the system privacy friendliness, e.g. for certi-

ﬁcation purposes.

OnProtectionoftheUser'sPrivacyinUbiquitousE-ticketingSystemsbasedonRFIDandNFCTechnologies

Table 2: Generic privacy threats and possible countermeasures.

Threats Countermeasures

1. Unintended customer identiﬁcation:

a) Exposure of the customer ID:

i. Personal ID exposure (direct) Privacy-respecting authentication; ID encryp-

tion/randomization; access-control functions (Juels

and Pappu, 2002)

ii. Indirect identiﬁcation ID encryption

b) Unencrypted ID during anti-collision Randomized bit encoding (Lim et al., 2008b); bit collision

masking (Choi and Roh, 2006; Lim et al., 2008a) (proto-

col dependent)

c) PHY-layer identiﬁcation Shielding; switchable antennas (Gudymenko, 2011)

2. Information linkage Anonymization (in front-end and back-end): threat 1

countermeasures; privacy-respecting data processing

3. Illegal customer proﬁling Privacy-respecting data storage (back-end); the same as in

threat 1

records (see Section 2.2) for billing purposes and loy-

alty programs. A bridging element (terminals), to the

contrary, should not be fully trusted, since it is broadly

distributed within the network for public transport and

not always can be reliably secured against attacks

(and manipulations). Therefore, a bridging element

is assigned a semi-honest trust level and treated ac-

cordingly. The e-ticket itself together with its carrier

mediums (smart cards, NFC smart phones), which

form the front-end of a system, is in the possession

of customers, out of the constant control of the public

transport company, and hence is particularly vulnera-

ble to a wide range of attacks. In order to adequately

address this issue and secure the assets of a provider

of a public transport service, the front-end should be

treated as a semi-honest component.

Based on the assigned trust levels, a trade-off be-

tween the protection of the customer privacy (impor-

tant for customers) and system security (in the direct

interest of a public transport company) can be fur-

ther considered. We believe that it can be effectively

performed using the concept of a multilateral secu-

rity (Pﬁtzmann, 1999; Rannenberg, 2000) which ad-

dresses the issues of negotiation of each party’s pro-

tection goals in a multi-party environment.

4 RELATED WORK

There are several works explicitly addressing pri-

vacy issues in public transport systems. For exam-

ple, the authors of (Sadeghi et al., 2008) developed a

cryptography-based solution for a privacy-preserving

authentication (during e-ticket validation) introduc-

ing the so-called trusted anonymizers. The latter can

be used in an add-on fashion by a customer and is

decoupled from the direct functionality of a system.

That is, the e-ticket can still be validated in a non-

privacy-preserving way if the respective customer’s

anonymizer is for some reason unavailable.

In (Hoepman et al., 2010), it was demonstrated

how a protocol for proving anonymous credentials de-

veloped in (Batina et al., 2010) can be applied to the e-

ticketing domain. The solution considers Java Cards

as a carrier medium for an e-ticket and can be used

for a privacy-preserving validation of an e-ticket.

Both of the aforementioned approaches, however,

are targeted at a speciﬁc problem (privacy-preserving

e-ticket validation) and do not holistically address the

customer privacy in the public transport environment.

A decent step towards this was made by the authors

of (Heydt-Benjamin et al., 2006) who recognized the

importance of privacy issues in e-ticketing systems

and proposed a formal framework to protect the cus-

tomer privacy using e-cash, anonymous credentials,

and proxy re-encryption. It is unclear, though, if it can

be used in the system described in Section 2.1 which

is based on the check-in/check-out principle and reg-

ular billing (involving the transfer of combined travel

records to the back-end and their subsequent process-

ing).

5 CONCLUSIONS AND FUTURE

WORK

The main focus of this paper is the protection of the

customer privacyin ubiquitouse-ticketing systems for

public transportation based on RFID/NFC technolo-

gies. In order to adequately address this issue, an ab-

straction of a target e-ticketing system was created.

It was subsequently used to holistically consider the

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

customer privacy across the system components and

to identify the generic privacy threats. The resultant

privacy threats classiﬁcation, therefore, forms a sound

basis for countermeasures development to protect the

customer privacy in real systems. We provide the dis-

cussion of possible countermeasures together with the

way of countermeasures reﬁnement (elaboration) and

their integration into a ﬁnal privacy-preserving solu-

tion.

Having speciﬁed the framework for develop-

ing privacy-respecting e-ticketing systems for public

transportation, we are going to actively use it in future

for the development of our privacy-respecting solu-

tion for such systems. It is still unclear, however, if

all of the identiﬁed privacy threats can be effectively

considered within a real system and what the possible

trade-offs are, which is left for the future work.

ACKNOWLEDGEMENTS

This work has been funded by the Free State of Sax-

ony and the European Social Fund (ESF). The author

would like to express his gratitude to the colleagues

of Chair of Privacy and Data Security, TU Dresden,

for fruitful discussions and their support.

REFERENCES

Bartels, C. et al. (2009). TR 03126 - Technische

Richtlinie fr den sicheren RFID-Einsatz. TR 03126-

1: Einsatzgebiet “eTicketing im ffentlichen Personen-

verkehr”. BSI, Deutschland.

Batina, L., , et al. (2010). Developing Efﬁcient Blinded

Attribute Certiﬁcates on Smart Cards via Pairings. In

Gollmann, D. et al., editors, Smart Card Research and

Advanced Application, volume 6035 of Lecture Notes

in Computer Science, pages 209–222. Springer Berlin

Heidelberg.

Choi, W. and Roh, B.-h. (2006). Backward Channel Pro-

tection Method for RFID Security Schemes Based on

Tree-Walking Algorithms. In Gavrilova, M. et al., ed-

itors, Computational Science and Its Applications -

ICCSA 2006, volume 3983 of Lecture Notes in Com-

puter Science, pages 279–287. Springer Berlin / Hei-

delberg.

de Chantrac, G. and Graindorge, J.-L. (2009). Fo-

cus Paper on Privacy in Transport IFM Appli-

cations. IFM Project, http://www.ifm-project.eu/

ﬁleadmin/WP2/Draft Deliverable 2.2.pdf. Draft De-

liverable 2.2.

Gudymenko, I. (2011). Protection of the Users Privacy in

Ubiquitous RFID Systems. Masters thesis, Technische

Universitt Dresden, Faculty of Computer Science.

Heydt-Benjamin, T. et al. (2006). Privacy for Public Trans-

portation. In Danezis, G. and Golle, P., editors, Pri-

vacy Enhancing Technologies, volume 4258 of Lec-

ture Notes in Computer Science, pages 119. Springer

Berlin Heidelberg.

Hoepman, J.-H. et al. (2010). Privacy and Security Is-

sues in e-Ticketing Optimisation of Smart Card-based

Attribute-proving. In Cortier, V. et al., editors, Work-

shop on Foundations of Security and Privacy, FC-

SPrivMod 2010.

ISO (2008-2011). ISO 14443 Standards family. Identiﬁca-

tion cards Contactless integrated circuit cards Prox-

imity cards.

Juels, A. and Pappu, R. (2002). Squealing Euros: Privacy

Protection in RFID-Enabled Banknotes. In Financial

Cryptography 03, pages 103–121. Springer-Verlag.

Land Transport Authority (2012). EZ-Link. http://

www.ezlink.com.sg/index.php. Accessed on

30.10.2012.

Lim, T.-L. et al. (2008a). A Cross-layer Framework for Pri-

vacy Enhancement in RFID systems. Pervasive and

Mobile Computing, 4(6):889–905.

Lim, T.-L. et al. (2008b). Randomized Bit Encoding

for Stronger Backward Channel Protection in RFID

Systems. In Proceedings of the 2008 Sixth Annual

IEEE International Conference on Pervasive Comput-

ing and Communications, PERCOM 08, pages 40–49,

Washington, DC, USA. IEEE Computer Society.

Octopus Cards Limited (2012). Octopus. http://

www.octopus.com.hk/home/en/index.html. Accessed

on 30.10.2012.

Pﬁtzmann, A. (1999). Multilateral Security in Communica-

tions, chapter Technologies for Multilateral Security,

pages 85–91. Addison-Wesley-Longman.

Rannenberg, K. (2000). Multilateral Security A Concept

And Examples for Balanced Security. In Proceedings

of the 2000 workshop on New Security Paradigms,

NSPW 00, pages 151–162, New York, NY, USA.

ACM.

Sadeghi, A.-R. et al. (2008). User Privacy in Transport Sys-

tems Based on RFID E-Tickets. In Bettini, C. et al.,

editors, Proceedings of the 1st InternationalWorkshop

on Privacy in Location-Based Applications (PiLBA),

Malaga, Spain.

Trans Link Systems (2012). OV-Chipkaart. http://

www.ov-chipkaart.nl/. Accessed on 30.10.2012.

Transport for London (2012). Oyster Online. https://

oyster.tﬂ.gov.uk/oyster/entry.do. Accessed on

30.10.2012.

Weiser, M. (1991). The Computer for the 21st Century. Sci-

entiﬁc American Special Issue on Communications,

Computers, and Networks.

Zanetti et al. (2011). On the Practicality of UHF RFID Fin-

gerprinting: How Real is the RFID Tracking Prob-

lem? In Fischer-Hubner, S. and Hopper, N., edi-

tors, Privacy Enhancing Technologies, volume 6794

of Lecture Notes in Computer Science, pages 97–116.

Springer Berlin / Heidelberg.

OnProtectionoftheUser'sPrivacyinUbiquitousE-ticketingSystemsbasedonRFIDandNFCTechnologies
