Why Do We Not Learn from Defects?

Towards Defect-Driven Software Process Improvement

Niklas Mellegård

, Miroslaw Staron

and Fredrik Törner

Dept. of Computer Science, Chalmers University of Technology & University of Gothenburg, Gothenburg, Sweden

Volvo Car Corporation, Gothenburg, Sweden

Keywords: Software Engineering, Software Quality, Metrics/Measurement, Defect Classification.

Abstract: In this paper, we put forth the thesis that state-of-the-art defect classification schemes – such as ODC and

IEEE Std. 1044 – have failed to meet their target; limited industrial adoption is taken as part of the evidence

combined with published studies on model driven software development. Notwithstanding, a number of

publications show that defect reports can provide valuable information about common, important, or

dangerous problems with software products. In this paper, we present the synthesis of two industrial case

studies that illustrate that even expert judgement can be deceptive; demonstrating the need for more

objective evidence to allow project stakeholder to make informed decisions, and that defect classification is

one effective means to that end. Finally, we propose a roadmap that will contribute to improving the defect

classification approach, which in consequence will lead to a wider industrial adoption.

1 INTRODUCTION

Software defect classification schemes – such as

ODC, HP and IEEE 1044 – have the purpose of

providing defect reports with a common structure.

Such a structure allows for efficient quantitative

analyses, which can provide evidence of the

efficiency and effectiveness of various process

activities. Following ODC, defect classification

schemes (DCS) have been around for more than two

decades – during which, software development has

evolved from being code- and document centric to

be model-driven. Based on the number of

publication in the area, however, we conjecture that

DCS have had limited industrial impact – this

limited impact is taken as a symptom of that the

approach has failed to meet its target.

Despite limited adoption, publications – our own

case study included – show that defect reports can

provide valuable information for improving

modelling when aggregated and analysed; to be an

efficient tool to draw attention of various

stakeholders to the most common, important or

dangerous problems with software products.

We approach this apparent contradiction by

addressing the question: “As academic evidence

show that DCS can be successful, why has it not had

a more industrial impact and what can be done?”

We first address this question by concretely showing

the value of DCS, using the synthesis of two

industrial case studies from our previous work. We

then provide evidence in support of the conjectured

limited industrial adoption of DCS, and present

reasons why. Finally, we provide a roadmap that

would fill the gaps in current state-of-research that

we envision would allow for a more successful

approach to DCS.

In particular, we envision that the roadmap will

contribute to making the results of defect analyses

more useful to project stakeholders in control of

resources, in particular in the system modelling

phase. This is in contrast to the current state-of-the-

art where analyses of classification data primary are

intended for developers. By refocusing the DCS

approach we envision that it will better serve as a

tool for fact-based decisions during modelling –

based on descriptive and predictive measures and

indicators. The improvement would contribute to

more accurate targeting of process improvement

initiatives, to serve as the basis for defect-driven

software improvement initiatives.

In practice, the purpose of a defect report is often

limited to facilitating the resolution of the defect.

For instance, defect reports are often free text

(Wagner, 2008) which makes quantitative analyses

effort intensive. In response, various DCS have been

297

Mellegård N., Staron M. and Törner F..

Why Do We Not Learn from Defects? - Towards Defect-Driven Software Process Improvement.

DOI: 10.5220/0004345602970303

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2013), pages 297-303

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

proposed. DCS also contribute to comparability of

defect metrics between projects and between

companies (Chillarege et al., 1992).

Classification schemes typically define a set of

attributes, where each attribute captures a specific

aspect of the defect – e.g. how the defect was

detected, its severity and type. Each attribute

typically contain a set of values that can be chosen

from; this contributes to the efficiency and reliability

of the classification. In literature, the most

commonly referred (Freimut, 2001) DCS are ODC

(Orthogonal Defect Classification) (Chillarege et al.,

1992), the HP approach (Grady, 1992) and the IEEE

Std. 1044 (IEEE, 2010).

The attributes of ODC and IEEE Std. 1044 are

organized into the defect’s life-cycle phases; ODC,

for instance, defines the phases open and close

(shown in Table 1). The attributes in the opener

section of ODC focus on aspects of the failure,

whereas the closer section focuses on aspects of the

fault.

Table 1: Overview of ODC (adapted from (Freimut,

2001)).

Process Attribute Meaning

Open

Activity When did you detect the defect?

Trigger How did you detect the defect?

Impact

What would the customer have

noticed if the defect had escaped

into the field?

Target What high level entity was fixed?

Source Who developed the target?

Age What is the history of the target?

Type What had to be fixed?

Qualifier

Was the defect caused by something

missing, incorrect or extraneous?

DCS typically focus on technical aspects of the

defects and their source code manifestations; IEEE

Std. 1044, for instance, lists 80 different values for

its Type attribute.

2 IMPORTANCE OF DEFECT

CLASSIFICATION

In our earlier work (Mellegård and Staron, 2010) we

investigated the importance of various artefact types

in the automotive software development – such as

requirements, types of software models, and

documents. Specifically, we investigated the

perceived importance of the artefacts and the relative

effort required to create them. The particular focus

of the case study was to characterize the use of

software models in relation to other types of

development artefacts.

Among the conclusions of the case study were

that most effort was spent on simulation models (e.g.

Simulink models), while the most important

artefacts were the requirements and design artefacts.

This result was in itself not surprising as the

simulation models serve as a base for the

implementation, and as development is highly

distributed – both among in-house teams and

external suppliers – the quality of specifications is

crucial to preventing eventual instegration problems.

In fact, during the case study we repeatedly

encountered statements from our interviewees –

expert opinions – that integration was a considerable

challenge, in particular during the late project

phases. Additionally, we frequently encountered

concerns about lack of more objective evidence to

support these expert opinions.

These findings directed our interest towards in-

process defects, specifically to defects detected

during late project phases; did integration issues

cause these, and could we find evidence that the

cause was as had been anticipated?

2.1 Cause of Late Defects

In a second study (Mellegård et al., 2012a), we set

out to make an in-depth examination of in-process

defects from one system developed at the

department. We found, in the initial analyses of the

existing defect data, that there was indeed a

substantial inflow of defects in late project phases;

shown in Figure 1 as the defect backlog.

Figure 1: Defect backlog.

The timing of the late spike in defects close to

software release (a major in-development milestone)

seemed to confirm the hypothesis of integration

issues. Merely examining the quantity of defects,

however, would not reveal the nature of the defects

and as the defect reports were in free text, they were

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

298

not suitable for quantitative analysis. We therefore

used IEEE Std. 1044 as base to develop a DCS

adapted to the context of our case company. The

result was the Light-Weight Defect Classification

scheme (LiDeC) (Mellegård et al., 2012b).

As part of the case study, LiDeC was applied to a

sample of defects from the late defect inflow spike

as shown in Figure 1 and reported in (Mellegård et

al., 2012a), and the analysis results were presented

and discussed at a workshop at the company.

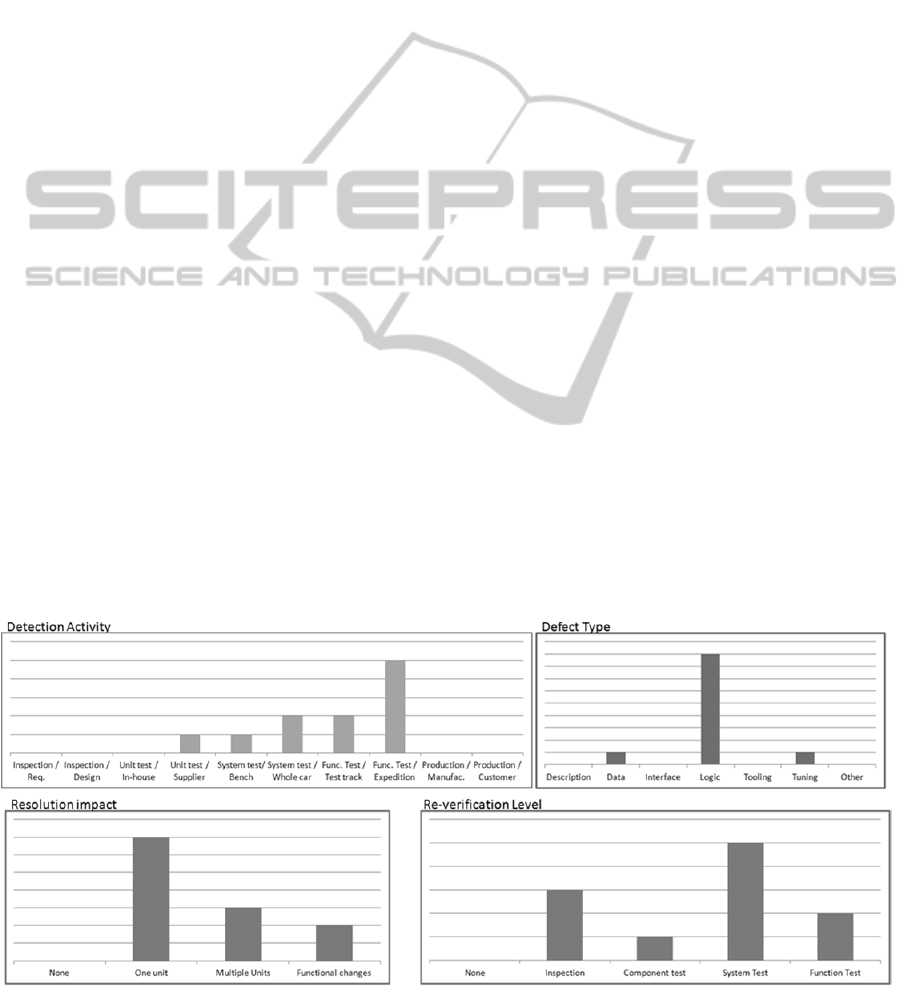

Figure 2 shows a sample of the analysis using

four attributes from LiDeC (see (Mellegård et al.,

2012b), from three perspectives: detection of the

failure, type of fault and finally product and project

impact of the resolution. Using these three

perspectives, the defects can be examined to

evaluate whether they were integration issues as

anticipated.

Figure 2 shows that while the majority of defects

was indeed detected during integration testing –

system or functional – the defect types were not

typical for integration issues. Whereas the

anticipated type would be Interface, Data or Tuning,

the majority of defects were of the type Logic –i.e.

computational or algorithmic faults. Such defects

would normally be present already in the simulation

models. This was corroborated by the Resolution

impact attribute, shown in the bottom left of Figure

2, indicating that most defects required changes to a

single unit –integration issues would typically have

an impact on multiple units, or require changes to

the specification (denoted as Functional changes).

However, the Re-verification Level attribute –

showing the activity required to test a resolution –

indicates that it is not a clear-cut case. On the one

hand, a significant amount of defects requires only

inspection or component test, indicating unit

problems. On the other hand, most defects would

require new system or functional tests, indeed

indicating integration impact – finding the root cause

of these defects could bring significant benefits.

Our (careful) conclusions from this study is that

the majority of late defects – although to a large

extent requiring new integration tests – are not of the

type typically associated with integration problems.

Thus, the classification of defects provided the

development teams with new information that may

contribute to better test planning – e.g. put effort into

improving testability of requirements on unit level.

Finally, we would like to emphasize that the

analysis presented here was conducted on a sample

of defects from a project that had finished a year

prior to the study. The results should therefore be

treated as proof-of-concept rather than as a basis for

recommended change of practice. We can however

conclude that the classification contributed with new

information that in part contradicted expert opinion.

This raised interest and inspired discussions

regarding possible causes; the case study provides

evidence that conducting defect classification and

analysis contributes to constructive review of the

state-of-practice.

3 PROBLEM DESCRIPTION

As we illustrated above, the use of DCS can be an

effective approach to extracting data from problem

reports, and can provide new information about the

development process. In addition, there have been

studies reporting similar results, e.g. Butcher et al.

(Butcher et al., 2002), or Li et al. (Li et al., 2012).

Figure 2: Preliminary analysis results.

WhyDoWeNotLearnfromDefects?-TowardsDefect-DrivenSoftwareProcessImprovement

299

However, we conjecture – partially based on our

observations – that DCS has had limited industry

adoption; we take this as a symptom that state-of-

the-art DCS as a means of extracting process metrics

has missed its target. To find evidence in support of

this conjecture we searched IEEE Explore

(http://ieeexplore.ieee.org) using the search term:

(‘defect classification’ AND ‘software’). The search,

performed Oct. 25 2012, yielded 70 publications

between 1986 and 2012. By reading titles and

abstracts, we found that the publications fell into the

following categories:

 Proposing new DCS, e.g. (Chillarege et al.,

1992); (Paul et al., 2002); (IEEE, 2010)

 Improving existing DCS, e.g. by assisting a user

in conducting the classification (Wang He et al.,

2009); (Huang et al., 2011), or adapting the

scheme to a specific context (Li et al., 2010)

 Academic evaluation of a DCS, e.g.

(Henningsson et al., 2004); (Vetro’ et al., 2012)

 Industrial evaluation of a DCS, e.g. (Butcher et

al., 2002); (Chillarege et al., 2002); (Freimut et

al., 2005); (Li et al., 2012)

 Analysis techniques for classification data (Li et

al., 2010)

 Using classification data for other purposes, e.g.

to evaluate efficiency of inspections (Nagappan

et al., 2004), to evaluate static analysis for fault

detection (Zheng et al., 2006), to propose

reliability estimation models (Paul et al., 2000),

or to evaluate fault injection techniques (Jin et

al., 2009)

Notably, we found no publications evaluating

industrial adoption of DCS, nor investigating what

companies would require from such an approach;

specifically in terms of the information that analyses

of the data need to provide.

Further support for our conjecture can be found

in the systematic literature review by Hall et al.

(Hall et al., 2011). In their paper, Hall et al.

examined 36 fault prediction models and noted that

the vast majority of the models were limited to

predicting the quantity of faults per module. In fact,

Hall et al. could only find one model that

incorporated fault severity as a predicted variable. In

their paper, Hall et al. argue that one reason may lay

in the difficulty of defining severity. An additional

reason, however, may simply be a lack of available

data; companies tend to collect only the defect data

necessary to facilitate the resolution of the defect.

This brings our thesis to a point: although defect

classification has been shown to be an effective

approach to acquiring process metrics, why has it

not had a wider industrial adoption?

We can consider this point in the context of

communication paths (Pareto et al., 2012). In their

paper, Pareto et al. argue that a source of problems

in projects is miscommunication because the needs

and concerns of developers are not expressed in

terms that managers and architects need in order to

make informed decisions – rather developers express

their needs in highly detailed and specific technical

terms. In order to make an impact on the

stakeholders in power, developers need to create

abstractions suitable for that specific stakeholder; to

provide evidence that level of abstraction.

In this context, we contend that established DCS

are too focused on the developers’ context –

illustrated, for instance, by the high granularity of

the Type attribute in both ODC and the IEEE 1044.

In particular, established DCS fail at providing

sufficient guidance to translate the results into the

language needed to make an impact on the

stakeholders that are in control of the resources.

Furthermore, unnecessarily high level of detail in

classification brings a risk that may have a double

impact: on the one hand, it adds to the effort needed

to make a classification (and thus reduces the

available resources to resolve the problem). On the

other hand, it adds to the required analysis effort

needed to adapt results to the stakeholders in control.

Consequently, effort risks being put into collecting

data that remain unused (Li et al., 2012).

4 ROADMAP

The roadmap is divided into three parts:

investigation of current DCS state-of-practice;

investigation of how the design of DCS could meet

the needs better; and finally, investigation of how to

analyse the data to meet the organizational

information needs.

4.1 State-of-practice

As we found a notable lack of research into current

DCS state-of-practice in general and in modelling

specifically, we envision surveying:

 To what extent do companies use DCS – in

particular in the context of how DCS provides

input to decision formulation and execution

processes;

 What alternative approaches are used to facilitate

analyses of defect reports on an aggregate level

(e.g. none, defect taxonomies, root-cause

analysis etc).

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

300

Furthermore, the results of the surveys should be

correlated with aspects such as the size of the

company and development teams, types of products

developed and types of development processes used.

Such an in-depth understanding of current practice

would contribute to improving state-of-the-art DCS.

Additionally, there is a need to investigate the

information needs of relevant project stakeholders –

mainly product and project managers, and architects.

In their paper Buse and Zimmerman (Buse et al.,

2011) examine general information needs among the

stakeholders at a large software organization,

exemplified by Microsoft. We, however, call for a

more targeted investigation into which stakeholders

are relevant, and what their information needs are,

with the specific focus on defect data. We envision

the needs falling into two main categories:

descriptive and predictive.

Descriptive information would characterize

project phases in terms of their defect profile

(patterns). Descriptive information could be used in-

process for benchmarking against a company base-

line (Chillarege et al., 1992), for instance to provide

evidence for evaluating process improvements.

Predictive information needs relate to the

challenges of resource planning. For instance, in

assigning resources of test phases in a project, there

may be a need to predict the anticipated amount and

type of defects – fault prediction models, such as

reviewed in Hall et al. (Hall et al., 2011) aim at that.

However, more granular defect data may enable

more precise prediction models, thus enable defect-

driven proactive decision support.

4.2 Design of DCS

The state-of-practice investigations should be

complemented with establishing a library of best

practices and lessons learned in both the design and

application of DCS. Li et al. (Li et al., 2012) made a

recent contribution in part by reporting a number of

lessons learned when applying DCS in two

organizations, however more studies are necessary.

Even though the design of DCS is already well

represented in state-of-the-art, there are aspects that

are not sufficiently developed. For instance, DCS

should be refocused from aspects of the

implementation (source code) to covering all project

phases – in particular modelling. There is,

additionally, a need to build abstraction mechanisms

into the DCS in order to reduce the required analysis

effort, and to improve the comparability of data

between projects and organizations.

LiDeC (Mellegård et al., 2012a, 2012b) contributes

to this for the automotive domain, but studies in

other domains are needed. For instance, the attribute

values in LiDeC are structured hierarchically, which

is an inherent abstraction mechanism. This allows

attributes to be extended with values at more

detailed levels while retaining comparability at

higher levels of abstraction.

In addition, the design of DCS should maintain

reference to the ISO/IEC 15939 standard (ISO/IEC,

2007) in order to facilitate integration with other

measures (e.g. predictions).

4.3 Data Analysis

The arguably most challenging aspect of DCS is in

analysing of the data. The thesis put forward in this

paper is that state-of-the-art DCS have failed partly

due to insufficient analysis methods. We propose

therefore the need for research into analysis and

visualization methods that satisfy typical

information needs and attract attention to the most

important defect patterns (as proposed in section

4.1). For instance, identifying product and project

characteristics, such as change patterns in source

code or software models (by inspecting versioning

systems), that correlate with defect inflow profiles

would enable defect inflow prediction models based

on data mined from software repositories.

We envision an analysis reference manual that

maps a stakeholder’s information need with a set of

best practices – for instance as a recommendation on

which attributes to include in the analysis and how

to visualize the data.

Moreover, we assert that reporting on industrial

case studies where specific organizational problems

have been addressed by analysis of defect

classification data would be of valuable – the work

by Li et al. (Li et al., 2012) contributes to this end.

5 CONCLUSIONS

In this paper, we have examined defect classification

schemes as a tool for collecting process metrics in

model based automotive software development

projects. Specifically, we have critically examined

the quality of state-of-the-art defect classification by

investigating its industrial adoption. Our thesis was

that defect classification has had limited industrial

adoption which we have argued to be a symptom of

knowledge gaps in state-of-the-art DCS.

One main reason for limited industrial adoption

is – in our view – that state-of-the-art DCS are

WhyDoWeNotLearnfromDefects?-TowardsDefect-DrivenSoftwareProcessImprovement

301

inadequate for their purpose. In particular, there is a

too strong of a focus on low-level aspects of the

implementation; i.e., a tool primarily intended for

developers. DCS thus fail to address that project

stakeholders in control of resources need

information on a different level of abstraction to

make informed decisions. This means that state-of-

the-art classification approaches are poorly designed

to produce the results that are needed in order to

make an impact in an organization; thus the effort

invested in collecting data risks being in vain, as a

large potential of the data remain unused.

We have proposed a roadmap for an improved

defect classification approach that would contribute

towards developing new proactive evidence-based

software process improvement strategies – defect-

driven software process improvement. The roadmap

includes: making a deeper investigation of the

current adoption rate in industry; investigation of the

typical information needs of the project stakeholders

that have control over resources; investigation of

how to design DCS to support multiple levels of

abstraction, and finally; to investigate methods of

data analyses to accommodate the information needs

of the various project stakeholders.

These actions will contribute to making DCS

more appropriately adapted to organizations’ needs.

This in turn, we conjecture, will result in wider

industrial adoption.

ACKNOWLEDGEMENTS

This research is partially sponsored by The Swedish

Governmental Agency for Innovative Systems

(VINNOVA) under the Intelligent Vehicle Safety

Systems (IVSS) programme.

REFERENCES

Buse, R. P. L., Thomas Zimmermann, 2011. Information

Needs for Software Development Analytics (Microsoft

Technical report No. MSR-TR-2011-8)

Butcher, M., Munro, H., Kratschmer, T., 2002. Improving

software testing via ODC: Three case studies. IBM

Systems Journal 41, 31 –44.

Chillarege, R., Bhandari, I. S., Chaar, J. K., Halliday, M.

J., Moebus, D. S., Ray, B. K., Wong, M.-Y., 1992.

Orthogonal defect classification-a concept for in-

process measurements. IEEE Trans. Softw. Eng. 18.

Chillarege, R., Ram Prasad, K., 2002. Test and

development process retrospective - a case study using

ODC triggers, Int'l Conf Dependable Syst. and Netw.

Freimut, B., 2001. Developing and using defect

classification schemes (IESE- Report No. 072.01/E).

Fraunhofer IESE.

Freimut, B., Denger, C., Ketterer, M., 2005. An industrial

case study of implementing and validating defect

classification for process improvement and quality

management, 11th IEEE Int'l Symp. Softw. Metrics.

Grady, R. B., 1992. Practical Software Metrics for Project

Management and Process Improvement. Prentice

Hall.

Hall, T., Beecham, S., Bowes, D., Gray, D., Counsell, S.,

2011. A Systematic Review of Fault Prediction

Performance in Software Engineering. IEEE Trans.

Softw. Eng.

Henningsson, K., Wohlin, C., 2004. Assuring fault

classification agreement - an empirical evaluation, Int'l

Symposium on Empirical Softw. Eng. (ISESE).

Huang, L., Ng, V., Persing, I., Geng, R., Bai, X., Tian, J.,

2011. AutoODC: Automated generation of Orthogonal

Defect Classifications, 26th IEEE/ACM Int'l Conf. on

Automated Softw. Eng. (ASE).

IEEE, 2010. IEEE Std. 1044-2009. Standard Classification

for Software Anomalies.

ISO/IEC, 2007. ISO/IEC 15939 - Systems and Software

Engineering – Measurement Process.

Jin, A., Jiang, J., 2009. Fault Injection Scheme for

Embedded Systems at Machine Code Level and

Verification, 15th IEEE Pacific Rim Int'l Symp. on

Dependable Comput. (PRDC).

Li, J., Stalhane, T., Conradi, R., Kristiansen, J. M. W.,

2012. Enhancing Defect Tracking Systems to

Facilitate Software Quality Improvement. IEEE Softw.

29, 59 –66.

Li, N., Li, Z., Sun, X., 2010. Classification of Software

Defect Detected by Black-Box Testing: An Empirical

Study, 2

World Congress Softw. Eng. (WCSE).

Li, N., Li, Z., Zhang, L., 2010. Mining Frequent Patterns

from Software Defect Repositories for Black-Box

Testing, 2

Int'l Worksh. Intell. Syst. and Appl. (ISA).

Mellegård, N., Staron, M., 2010. Characterizing Model

Usage in Embedded Software Engineering: A Case

Study, 8

Nordic Workshop on Model Driven Softw.

Eng. (NW-MoDE). Copenhagen, Denmark.

Mellegård, N., Staron, M., Törner, F., 2012a. A Light-

weight Defect Classification Scheme for Embedded

Automotive Software and its Initial Evaluation, IEEE

Int'l Symp. Softw. Rel. Eng. (ISSRE), Dallas Tx USA.

Mellegård, N., Staron, M., Törner, F., 2012b. A Light-

Weight Defect Classification Scheme for Embedded

Automotive Software (Technical Report No. 2012:0x,

ISSN: 1654-4870), Research Reports in Software Eng.

and Management. Chalmers Univ. of Tech., Göteborg.

Nagappan, N., Williams, L., Hudepohl, J., Snipes, W.,

Vouk, M., 2004. Preliminary results on using static

analysis tools for software inspection, 15

Int'l Symp.

Softw. Rel. Eng. (ISSRE).

Pareto, L., Sandberg, A. B., Eriksson, P., Ehnebom, S.,

2012. Collaborative prioritization of architectural

concerns. Journal of Syst. and Softw. 85.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

302

Paul, R. A., Bastani, F., I-Ling Yen, Challagulla, V. U.

2000. Defect-based reliability analysis for mission-

critical software, Comp. SW and Applications Conf.

(COMPSAC).

Paul, R. A., Bastani, F. B., Challagulla, V. U. B., Yen, I.-

L., 2002. Software measurement data analysis using

memory-based reasoning, 14

IEEE Int'l Conf. Tools

with AI, (ICTAI).

Wagner, S., 2008. Defect classification and defect types

revisited, Workshop on Defects in Large Softw. Syst.,

DEFECTS.

Wang He, Wang Hao, Lin Zhiqing, 2009. Improving

Classification Efficiency of Orthogonal Defect

Classification via a Bayesian Network Approach,

Comp. Intell. and Softw. Eng. (CiSE).

Vetro’, A., Zazworka, N., Seaman, C., Shull, F., 2012.

Using the ISO/IEC 9126 product quality model to

classify defects: A controlled experiment, 16

Int'l

Conf. Eval. Assessment in Softw. Eng. (EASE).

Zheng, J., Williams, L., Nagappan, N., Snipes, W.,

Hudepohl, J. P., Vouk, M. A., 2006. On the value of

static analysis for fault detection in software. IEEE

Trans. Softw. Eng.

WhyDoWeNotLearnfromDefects?-TowardsDefect-DrivenSoftwareProcessImprovement

303
