Engineering Service Level Agreements

A Constrained-domain and Transformation Approach

Josef Spillner, Stefan Illgen and Alexander Schill

Faculty of Computer Science, Technische Universität Dresden, 01062 Dresden, Germany

Keywords:

Service Level Agreements, Service Engineering.

Abstract:

Service Level Agreements (SLAs) are fundamental technical-juridical documents which in their function as

contract govern the rights and obligations between service consumers and providers. In today’s growing

service ecosystems, individually negotiated SLAs have powerful additional roles such as serving as the input

for automated service monitoring and health checking as well as binding service consumers through custom

incentives. These advantages, in turn, require adequate engineering techniques to let service providers express

the conditions under which a service can be consumed. While many SLA languages and tools exist, existing

approaches are either severely limited or too complex to be used by a broad set of providers. Hence, we

present a reduced effort approach based on transformations from existing domain-constrained public service

descriptions. By demonstrating the application thereof in an Infrastructure-as-a-Service scenario, we show

that SLAs can be prepared and improved in a very short time with suitable tools.

1 INTRODUCTION

Services brokered over the Internet, or even deliv-

ered through the Internet, are one of its most im-

portant functions beside the access to information

and communication channels. Custom mobile ap-

plications, attractive web applications and ﬂexible

enterprise integration systems as human and tech-

nical interfaces to these services are considered the

state of the art. Recently, cloud computing ser-

vices along with on-demand provisioning and pay-

as-you-go billing schemes have further increased the

service utility and have been driving their wide-

scale adoption (Armbrust et al., 2010). Most ser-

vices on the Internet today can be categorised into

one of the two big groups: Free services with no

guarantees at all (called service level objectives, de-

noted as set O) or little best-effort protection and

no compensation (denoted as percentage C) in the

presence of violations (denoted as condition V ), and

paid services with a range from no guarantees to full

compensation and even over-compensation for fail-

ures. Examples include the Hewlett-Packard compute

cloud (O = {availability}, V = {availability≥99%},

max

= 30%), Google Apps (O = {uptime}, V =

{uptime≥95%}, C

max

= 50%), the Google search en-

gine (O =

0, C = 0) and the DHL express delivery

(O = {executiontime}, C = 100%). The objectives,

violation rules and compensation levels are captured

as terms in legally binding agreements called Service

Level Agreements (SLAs), sometimes appearing in

the context of Terms of Service (ToS) for both techni-

cal and non-technical services (Mendes and da Silva,

2012). The conditions, monitoring periods and usage

constraints under which the full or partial compen-

sation applies are often manifold (Kotsokalis et al.,

2011; Stantchev and Schröpfer, 2009) so that we omit

their introductory discussion.

Beside these two groups with their ﬁxed binary

policy of either accepting the public SLA or not using

the service, especially in the academic world and in

privileged business contexts individually negotiated

SLAs play a major role. These are often based on

SLA templates (SLATs), either textual with natural

language or of formal structure or a mixture of both,

which are converted into SLA offers (SLAOs) during

the negotiation process. In order to support service

providers to express their ﬁxed SLAs and their nego-

tiable SLATs from the ﬁrst guarantee plans until the

submission to a web site or an open service market,

SLA languages have been created and basic SLA en-

gineering and processing tools exist (Alhamad et al.,

2010; Kearney et al., 2010). There are also a number

of general methodologies for service engineering and

provisioning in open markets which involve SLAs in

addition to other descriptive and executable service

395

Spillner J., Illgen S. and Schill A..

Engineering Service Level Agreements - A Constrained-domain and Transformation Approach.

DOI: 10.5220/0004355203950405

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 395-405

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

artefacts (Spillner et al., 2011).

However, up until now, there has been little re-

search on an effective SLA engineering in the context

of open service markets with potentially thousands

of available services. In particular, novice providers

often need many hours to even start modelling their

ﬁrst SLA due to the complexity of both the languages

and the tools. Even seasoned providers experience

consistency problems between SLA documents and

other information due to the low integration level of

SLA engineering tools and between the tools and mar-

ketplaces. Hence, we propose a much more reﬁned

and guided approach based on functional domain con-

straints and automated transformations which cuts

down the engineering time signiﬁcantly, while still

being applicable to generic services not speciﬁcally

optimised for, and ensures consistency. We evaluate

the approach with an editor which offers many in-

tegration points to reduce the engineering time even

more.

In the next sections, we ﬁrst describe previous

SLA engineering methodologies in detail, including

existing languages and tools. Then, we present our

approach and focus on the novel aspects of domain

constraints and transformations, as well as on the inte-

gration into engineering and provisioning toolchains

for a reduced time to service markets. Afterwards, we

validate our approach by observing a practical mod-

elling experiment and conclude with remarks about

anticipated future improvements.

2 SLA ENGINEERING

METHODOLOGIES

In order to establish an SLA as a technically valid

and legally binding document between a service con-

sumer and a service provider or a service hoster act-

ing on behalf of the provider, several actions need

to be performed. In the case of ﬁxed public SLAs,

the SLA needs to be expressed as a document for a

certain service or a group of services, then bound to

each service by linking it from a webpage or regis-

tering it in a directory service or on a market. It be-

comes a binding document by the conﬁrmation from

the user. In the case of negotiable SLAs, rules for

the negotiation need to be established including the

option to negotiate manually, and a template for the

SLA with placeholders for the negotiable parts need

to be expressed. The template (SLAT) needs to be

bound to the service and registered just like the SLA

in the ﬁxed case. The non-public SLA is derived in a

negotiation process after which it becomes a binding

document. Afterwards, SLA evaluation and process-

ing actions happen, for instance monitoring, violation

and dependency checking, evolutionary improvement

and feedback. These actions are not subject to this

work; we refer to (Wu and Buyya, 2010) for an exten-

sive survey on overall SLA lifecycle components.

Beside ad-hoc and copy-paste approaches to es-

tablish SLAs, a number of systematic methodologies

to create them from scratch for a certain service have

been proposed in the literature (Spillner et al., 2011).

These methodologies typically suggest a combination

of preferred SLA language, modelling and editing

tools and market integration tools. The SLA engineer-

ing scope as part of a service engineering and provi-

sioning process is shown in Figure 1. In it, a service

engineering environment under the control of a ser-

vice engineer hosts editors for all parts of a service

package, including an SLA editor. The service pack-

age, an abstract model for the purpose of combining

executable and descriptive service artefacts, is then

deployed on an open service platform on the Inter-

net or an in-house test stage platform. The executable

artefacts are then deployed in a service hosting repos-

itory, whereas all descriptive artefacts, among them

SLA templates, will be registered at a service broker.

At runtime, the SLA editor may fetch feedback in-

formation from the broker and incorporate it as part

of an SLA template re-engineering process. All the

languages and tools of relevance for SLA engineering

and provisioning will be brieﬂy presented and then

summarised with a list of shortcomings.

2.1 SLA Languages

An SLA is a time-limited agreement about a speciﬁc

service jointly enacted between the service provider

and the service consumer which determines the over-

all usage conditions and the targets for the cost and

quality of service execution and delivery. The com-

plexity of SLA documents motivates the need for cus-

tom languages for the proper formal expression of the

conditions and targets.

Languages to describe SLAs and SLA-related

documents including templates and offers have origi-

nated from the web services and grid computing com-

munities. WSLA (Keller and Ludwig, 2002), WS-

Agreement and its extensions (Andrieux et al., 2007;

Frankova et al., 2006), SLAng (Lamanna et al., 2003),

NextGRID (Mitchell and McKee, 2006) and RBSLA

(Paschke, 2005) are examples for such languages.

The Web Service Level Agreement (WSLA) lan-

guage is an XML-based format speciﬁcally designed

for web services. WSLA further deﬁnes a negotia-

tion, monitoring and notiﬁcation framework tightly

coupled to the language. Similar to WSLA, the lan-

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

396

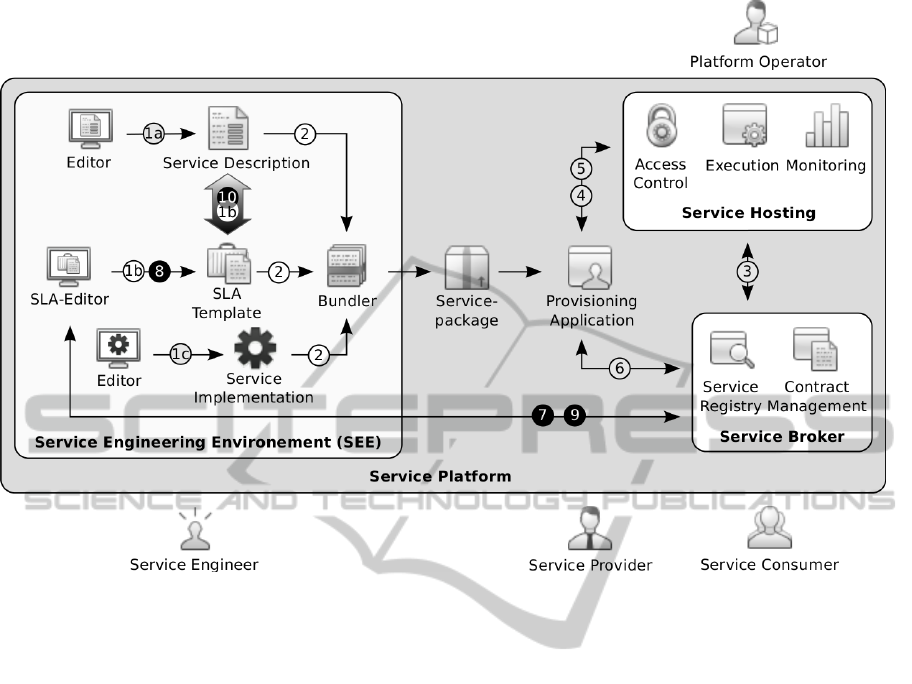

Figure 1: Engineering and provisioning toolchain for services in open markets.

guage for Web Service Agreements (WS-Agreement)

is XML-based with a structure deﬁned by XML

Schema. Beyond the language itself, the WS-

Agreement framework deﬁnes web service operations

to perform negotiation and monitoring tasks. As

the language is very generic, a number of exten-

sions have been proposed to introduce specialised sets

of guarantees and to improve the negotiation pro-

tocols (Frankova et al., 2006; Jouve et al., 2006).

SLAng is deﬁned on an abstract modelling level in

terms of meta-models in Essential Meta-Object Fa-

cility (EMOF) notation. It applies the Object Con-

straint Language (OCL) to specify quality constraints.

NextGRID’s language is another one deﬁned by an

XML Schema. Such SLAs contain three parts for the

deﬁnition of participating parties, the negotiable prop-

erties and ﬁxed statements, respectively. This lan-

guage is heavily inﬂuenced by WS-Agreement. RB-

SLA is a declarative rule language which enhances

the XML-serialised RuleML language with useful

constructs to express SLA terminology. An advantage

is that off-the-shelf RuleML engines already exist for

the processing of such SLAs.

Recently, there have also been proposals for a

conceptual SLA model for cloud services (Alhamad

et al., 2010), and one for generic services called SLA?

(Kearney et al., 2010). Nevertheless, for our work

we chose WS-Agreement due to the well-understood

scope and limitations and the existence of extensions

and tooling. This choice, however, doesn’t render

our approach inapplicable with other languages, espe-

cially because most of them are quite similar in their

syntax and semantics.

2.2 SLA Engineering Tools

Tooling around SLAs involves the tasks of SLA and

SLAT creation through modellers and editors, the reg-

istration of these documents at markets, SLA nego-

tiation before using a service, and SLA monitoring,

processing and evaluation at runtime. Our work fo-

cuses purely on the engineering perspective and hence

on the ﬁrst two tasks. Editing and modelling tools

for SLAs exist mainly for the Eclipse IDE, namely

WSAG Editor for WS-Agreement, PLASTIC SLA

Editor for SLAng, and g-Eclipse as rather generic ap-

proach for grid environments (Spillner et al., 2011;

Bertolino et al., 2007; Gjermundrød et al., 2008).

Web-based tools also exist, namely ADA and Dragon

(Müller et al., 2010; Boissel-Dallier et al., 2009).

The WSAG Editor is an extensible rich client

application to model SLAs, SLATs and SLAOs in

pure and extended WS-Agreement. Each part of the

SLA-related documents can be manipulated with a

EngineeringServiceLevelAgreements-AConstrained-domainandTransformationApproach

397

dedicated editor component, which is either a de-

fault XML text editor or a more suitable graphical

widget. Due to the binding to XML Schema, the

widgets can be reused for common data types, e.g.

SLA participant addresses or pricing terms. An in-

tegrated help system and a number of wizards make

this editor more user-friendly. The scope of the

PLASTIC SLA Editor is slightly different. It inte-

grates a framework to generate monitors for the ob-

jectives deﬁned in the SLAng language. The edi-

tor part exposes a structural UML modelling tool but

doesn’t offer further graphical support. Model-to-

model and model-to-code transformations are avail-

able. G-Eclipse offers views, editors and wizards to

manage grid resource services. SLAs can be gener-

ically modelled and published. Due to the focus on

grid environments, both a Job Submission Descrip-

tion Language (JSDL) and a NextGRID SLA editing

component are contained in g-Eclipse. A wizard ex-

ists to generate new SLAs based on the service do-

main selection, but it doesn’t import non-functional

properties from a service description. The Agree-

ment Document Analysis (ADA) project has pro-

posed WSAG4People, a human-readable syntax vari-

ant of WS-Agreement, along with a web-based ed-

itor called iAgree which has been implemented in

JavaFX. The editor is however limited to consistency

checks between SLA templates and offers while the

modelling itself requires direct syntax modiﬁcations.

Dragon is a SOA governance tool which incorporates

a registry along with contracting tools and editors

for WSDL descriptions and SLA documents. SLAs

are modelled in WS-Agreement which are linked to

WSDL documents. The editor targets administrators

rather than providers, as there is no conceptual differ-

entiation between SLATs and SLAOs.

As mentioned before, sometimes SLA engineer-

ing tools have been anticipated as part of general ser-

vice engineering projects. Representative for these

are a toolchain to connect and orchestrate separate

light-weight modelling tools (Spillner et al., 2011),

an integrated development environment with publish-

ing functionality called the ISE Workbench (Schei-

thauer et al., 2011) and the SeCSE Suite, a repos-

itory of open source instruments to create service-

centric systems (Baresi et al., 2006). In all of these

cases, the guided SLA modelling workﬂow is very

basic and less sophisticated than in the SLA-centric

approaches mentioned before. For example, SeCSE

assumes the expression of SLA conditions as com-

mercial or QoS facets of a custom service speciﬁca-

tion language without offering speciﬁc support for ex-

pressing the facets.

Overall, formalisation and tool support for SLA

engineering is available, but the state of the art is

rather weak. In particular, among the editors, only the

WSAG Editor seems to be maintained and up-to-date

with current Eclipse versions. Furthermore, all of the

editors require signiﬁcant effort and still expose syn-

tactical structures which make them unsuitable for the

casual or novice service provider. Only the g-Eclipse

editor offers integration with grid or cloud service

hosting facilities. As a result, we choose to take the

WSAG Editor and advance it with user-friendly mod-

elling techniques and seamless service marketplace

integration in order to demonstrate the usefulness of

these techniques.

For the completeness of the tools analysis, it

should be mentioned that a number of SLA frame-

works exist beyond SLA engineering without graph-

ical user interfaces or even no human interfaces at

all, for instance to support negotiation and monitor-

ing. A client-centric negotiation tool as well as the

Akogrimo and SLA@SOI architectures are examples

for such tools which run non-interactively on service

platforms (Rady, 2012; D’Andria et al., 2007; Butler

et al., 2011).

2.3 Limitations

The amount of available SLA engineering method-

ologies, languages and tools analysed in the previous

sections shows that there is a common understanding

of the importance of structured SLAs and the need to

engineer them properly. Nevertheless, certain weak-

nesses could be identiﬁed which shall be summarised

here to use them as input for the requirements analysis

leading to a more suitable approach.

Most approaches only offer a generic SLA mod-

elling perspective without taking specialised knowl-

edge about certain domains into account. In reality,

most service providers have a strong domain-speciﬁc

background (Gillam et al., 2012). Furthermore, none

of the approaches covered by the analysis strives for

ensured consistency between modelling artefacts. In-

consistencies can become a major problem if service

descriptions and SLA documents do not match or if

there are different versions of them on the engineer’s

side and published on open markets.

3 PROPOSED APPROACH FOR

SLA ENGINEERING

The proposed SLA engineering approach makes use

of functional service domain constraints. Domain

knowledge is often higher than technical or juridi-

cal knowledge with service providers, for instance

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

398

Table 1: Example for an SLA with objectives (SLOs), preconditions (QCs) and weighting (BVLs).

Service Level Objective (SLO) Qualifying Condition (QC) Business Value (BVL)

NFP Predicate Metric NFP Predicate Metric Weight

Domain-independent (Generic)

Availability ≥ 99.9% 5

ResponseTime < 40ms 3

Throughput ≥ 100Mbps NetworkBandwidth ≥ 100 MBps 1

Domain-speciﬁc: Cloud Storage

Capacity > 9999GB 1

Redundancy ≥ 200.00% 1

knowledge about the intrinsic priorities in short-term,

time-critical travel planning services or long-term,

safety-critical cloud storage services. It is implied

that the modelling and editing widgets are aware of

domain-speciﬁc guarantees and can thus be presented

to the user in a suitable form. The approach also relies

heavily on transformations so that metadata and non-

functional properties, including technical abilities and

business context like pricing information, can be im-

ported from service descriptions in order to speed up

the modelling process. The import function is logi-

cally complemented by an export function which con-

tributes further to the increased consistency and de-

creased modelling time. In the following paragraphs,

the SLA model supported by the approach is speci-

ﬁed, and all three distinct characteristics of the ap-

proach are explained in detail.

3.1 SLA Model

Our engineering approach assumes a ﬂexible model

which is aligned with existing speciﬁcations so that

tools and services can be reused. In analogy with

the WS-Agreement speciﬁcation, an Service Level

Agreement document (SLAT, SLAO or ﬁnal SLA)

consists of a number of Service Level Objectives

(SLOs) together with auxiliary information about the

agreement participants, the validity and standard legal

terms. As a minimum requirement, the objectives are

described as triples (property, predicate, metric(value,

unit)). The property corresponds to a Non-Functional

Property (NFP) of the service, which may be either

generic or domain-speciﬁc. Some SLOs may be sub-

ject to a precondition, a Qualifying Condition (QC),

which are triples referring to environmental properties

in the service execution context and thus are converse

to the objectives which refer to intrinsic service prop-

erties. Furthermore, Business Value Lists (BVLs) are

used to deﬁne precise compensation and weighting

among the SLOs. An example for an SLA which con-

tains SLOs, QCs and BVLs is shown in Table 1. The

objective values can be ranges instead of speciﬁc val-

ues, which may be ﬂattened to smaller ranges or even

single values during the offer creation (ratio scale).

Alternatively, they can be lists from which a speciﬁc

value may be picked (nominal scale). Other scale

types are in between these two and could be modelled

accordingly, although we don’t consider them for our

work.

3.2 Constrained Domains

The approach assumes that all services for which

SLAs should eventually be made available fall into

a functional domain and express this domain through

a description document. Typically, semantic web ser-

vice languages such as the Web Ontology Language

for Services (OWL-S) and the Web Service Modelling

Language (WSML) are used to create these docu-

ments. The Uniﬁed Service Description Language

(USDL) also offers vocabulary to specify the service

domain. Domains can be specialised subdomains of

one or more generalised domains.

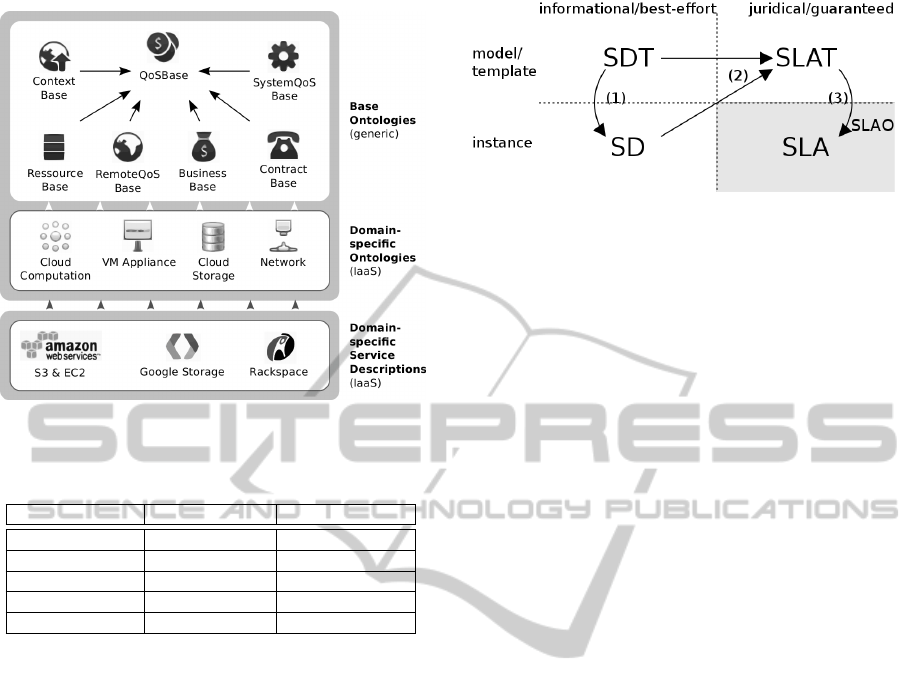

The ontology set shown in Figure 2 shows how

generic base ontologies and domain-speciﬁc ontolo-

gies for cloud computing services can be combined to

yield expressive semantic descriptions. Higher-level

concepts such as cloud storage capacity or compute

cloud burst mode are clearly domain-speciﬁc. For

these concepts, an appropriate modelling support can

be visually given by loading appropriate widgets de-

pending on the editor implementation. Whenever no

such widget exists, a generic representation down to

the basic data types present in all ontology languages

is always possible as a fallback. Nine base ontologies

and numerous domain ontologies are contained in

the WSMO4IoS catalogue which focuses especially

on non-functional properties of services from various

classes and domains (Spillner, 2012). Likewise, sim-

ilar catalogues exist for common cloud services as in

IaaS, PaaS and SaaS (Rady, 2012). For instance, if

the provider intends to model an SLA template for a

cloud storage service, the speciﬁc properties listed in

Table 2 will be queried and turned into SLOs beyond

generic business, network and service QoS properties.

This avoids the speciﬁcation of SLOs which are not of

relevance to the particular kind of service.

EngineeringServiceLevelAgreements-AConstrained-domainandTransformationApproach

399

Figure 2: WSMO4IoS service models for cloud computing

infrastructure services.

Table 2: SLOs suitable for a cloud storage service.

Property Representation Source Domain

Sign-up privacy Slider (%) Online Account

Capacity Slider (Unit) Storage

Redundancy Slider (%) Storage

Backup Option Storage

Encryption Option Storage

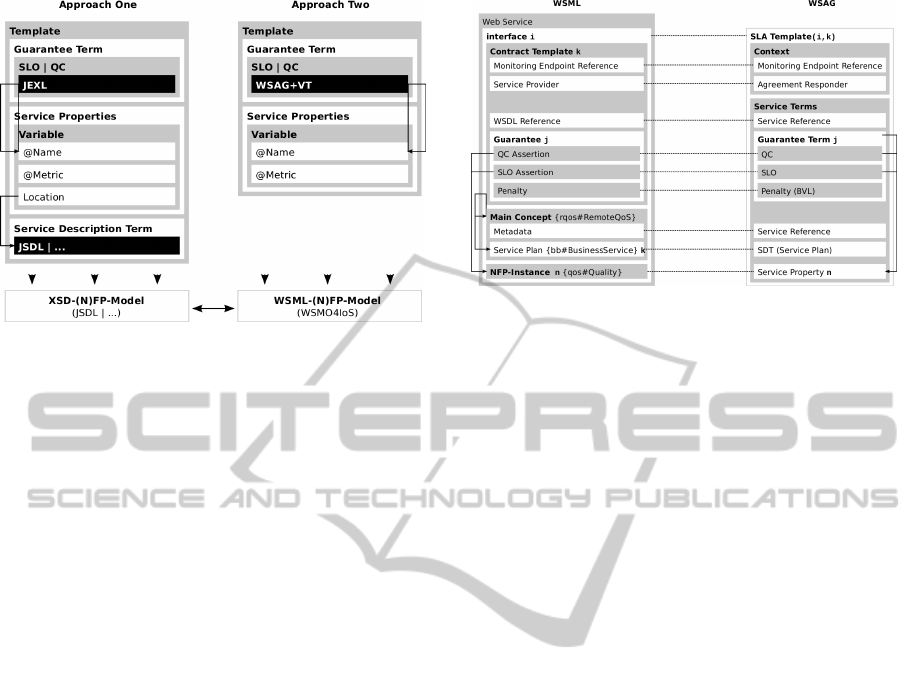

3.3 Transformations

In order to reduce the engineering effort and the po-

tential for inconsistencies to appear, the service level

objective terms in SLAs and SLA templates should be

linked to the corresponding service description doc-

uments. There are two options: A link on the syn-

tactic/interface level to mark which web service oper-

ations or resources will be protected, to be deﬁned

in a Web Service Description Language (WSDL)

or Web Application Description Language (WADL)

document, and a link on the semantic/conceptual level

to mark which service concepts, characteristics and

properties will be protected, to be deﬁned by USDL,

WSML or OWL-S as previously outlined. Our trans-

formation work focuses on non-functional property

entries in service descriptions with WSML semantics.

Figure 3 puts all ﬁve SLA-related descriptive ser-

vice artefacts and their three transformation options

into perspective. The approach assumes that in order

to transform a service description into an SLA tem-

plate (step 2), a rich service description (SD) exists

which may have been derived from a description tem-

plate (SDT) in the form of base and domain ontolo-

gies beforehand (step 1). Subsequently, the template

can be negotiated into an offer and eventually into a

Figure 3: Transformations between models and instances

(vertical) and between informational and juridical descrip-

tive service artefacts (horizontal).

valid SLA while maintaining the links as annotations

(step 3).

According to the SLA model, each SLO is de-

ﬁned by a variable with a required value and, if dy-

namically added by a service runtime, a current value

as meta-data. The target format of the variables

can follow either an fully contained non-functional

property model or a schema-driven one with ex-

ternal expressions. The Java Expression Language

(JEXL) is a language to deﬁne logical statements

with comparison operators over the variables which

are themselves deﬁned according to a model of non-

functional properties such as the one deﬁned by

the Job Submission Description Language (JSDL).

JEXL expressions are rather complex and become

hard to maintain when several of them are used in

an SLA document. The fully contained model de-

ﬁnes all values within each of the SLO terms, with-

out using WS-Agreement’s Location element. It

is used by, among others, the Value-Types exten-

sion to WS-Agreement (WSAG+VT). Speciﬁcally,

WSAG+VT allows for ﬁxed values, ranges and op-

tions with appropriate comparison operators such as

less-than and out-of-range. Figure 4 shows

how in this context the WSAG+VT extension com-

pares to JEXL expressions. Our approach assumes

an extended WSAG+VT with ontology grounding to

maintain the link to the original service description.

The grounding XML elements extend the SLO vari-

able’s @Metric attribute. A downside of this decision

is that the full conformance to the WS-Agreement

speciﬁcation is lost, although this is more a theo-

retic concern than a practical one and traded off with

much better support for extensibility without having

to modify schemas. In both cases, WS-Agreement

GuaranteeTerms are used to hold the objectives

while ServiceProperties hold the variables.

Figure 5 contains a rough outline of the trans-

formation rules between a service description ex-

pressed in WSML and the target SLA template ex-

pressed in WS-Agreement. WSML interfaces are

referenced from within SLA documents by WS-

Addressing statements. Monitoring endpoints can

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

400

Figure 4: Comparison of JEXL and WSAG+VT.

similarly be deﬁned. Non-functional properties

are converted from WSML NFPs into WSAG+VT

SLOs while pricing speciﬁcations are considered for

the deﬁnition of penalties. For them, a custom

WSAG+Business extension has been deﬁned based

on the WSMO4IoS and USDL pricing models which

include currency and price region concepts. Finally,

further metadata is converted, such as the provider-

side participant address from the WSMO4IoS con-

tract model properties to the corresponding WS-

Agreement element AgreementResponder, while the

AgreementInitiator is ﬁlled into negotiated SLAs

at runtime. The transformation quality depends on the

presence of specialised service level meta-properties

in the service description. One kind of meta-property

is the declaration of whether an NFP can be guar-

anteed or not, with the estimated guarantee levels.

Without the meta-properties, a fallback transforma-

tion takes place. Generally, these meta-properties

cause more service description modelling overhead

but have additional advantages, for instance ﬁltering

out services without certain guarantees already in the

service selection phase before attempts to negotiate a

contract.

3.4 Integration

An SLA editor is subject to integration with both

other service modelling tools and with service reg-

istries in open markets. The integration is primarily

document-based, where the documents are descriptive

service artefacts consumed or produced by the editor.

The following combinations are useful:

• Import of service description document from tool:

The SLA editor reads the service descriptions,

transforms it into a stub SLA and lets the user per-

form the modelling process.

Figure 5: Transformation rules between WSML service de-

scriptions and WS-Agreement SLA templates.

• Import of service description document from mar-

ket: Similarly, a service description is loaded and

transformed after presenting the user a list of pub-

lished services from a speciﬁed registry.

• Import of SLA document from tool: The source of

such SLA documents is supposed to be network-

transparent, which allows for access to both lo-

cal ﬁles and ﬁles served over HTTP in distributed

tooling environments.

• Import of SLA document from market: The user

selects a registry endpoint and gets a list of public

or owned SLA documents. Each imported docu-

ment is treated as a modiﬁed version of the pub-

lished one in order to control the resubmission.

• Export of SLA document to tool: This is useful

if the SLA document should not be published on

its own but rather as part of a tradeable service

package. An editor would spawn the packaging

tool with the document path as its argument.

• Export of SLA document to market: This export

uploads the document to a service registry in an

authenticated session. It needs to be associated to

an existing service entry. The upload can option-

ally lead to the rewriting of existing service de-

scriptions, for instance to update location pointers

to SLA templates.

4 SLA ENGINEERING IN

PRACTICE

We have validated the proposed SLA engineering ap-

proach by extending the former WSAG Editor with

domain constraints, document transformations and

tool and market integration points, and the subsequent

EngineeringServiceLevelAgreements-AConstrained-domainandTransformationApproach

401

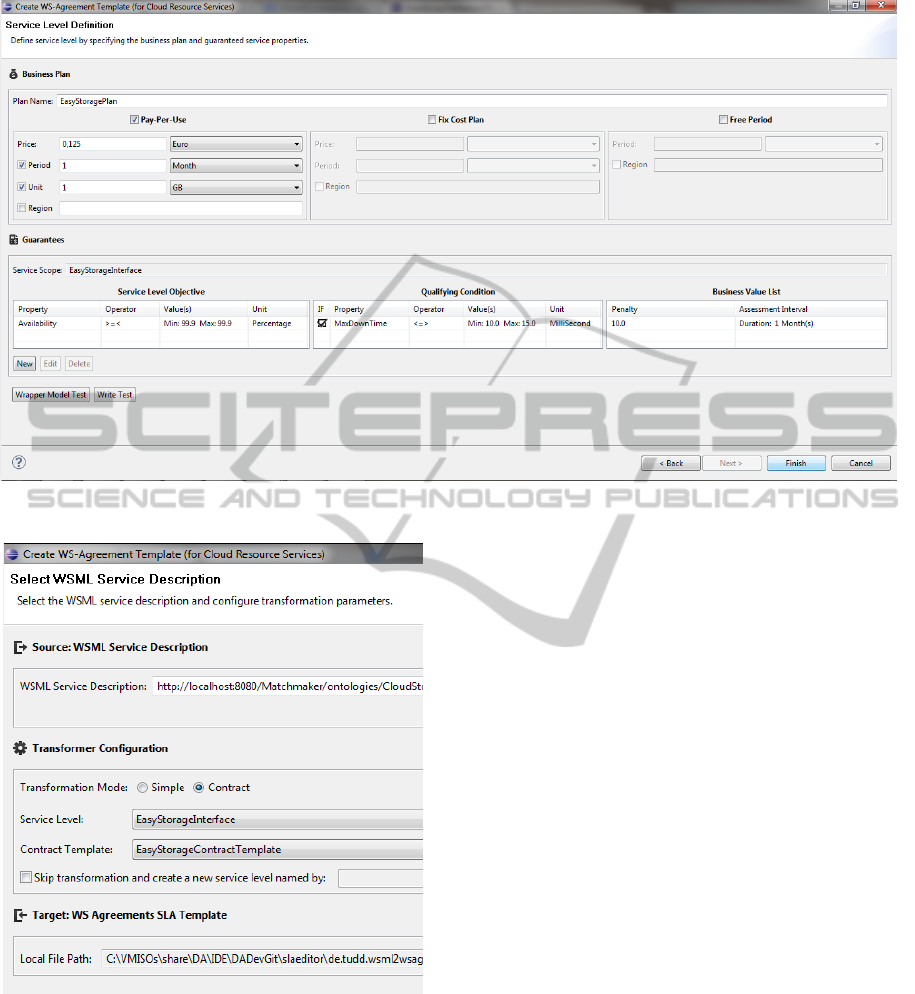

Figure 7: Editor component for business and technical SLOs.

Figure 6: Wizard to generate new SLA documents.

usage and user testing of the editor on a cloud storage

scenario service as an example of an IaaS offering.

The SLA editor which incorporates the domain-

constrained and transformation-based SLA engineer-

ing approach has been implemented as a standalone

application based on the Eclipse Rich Client Plat-

form (RCP) Java library collection with support-

ing libraries for the service artefact types, for in-

stance WSMO4J and WSAG4J. The editor uses

parametrised XSL transformations to convert WSML

artefacts into SLA documents. During this process,

WSMO4J serialises the WSML artefact into its XML

representation because typically WSML is modelled

in human-readable compact syntax. Each WSML in-

terface leads to the generation of a service level. As

a secondary option, SLA documents can be generated

from WSDL ﬁles. In this case, the service level infor-

mation will not be present.

The editor currently contains visual support for

the domain-independent modelling of services, par-

ticipants, value types (for WSAG+VT objectives) and

artefact references. Further visual support is given for

the domain-speciﬁc modelling of cloud resource ser-

vice properties. All widgets are dynamically loadable

and could hence be loaded on demand from a dedi-

cated engineering registry which is bound to the SDTs

on a service marketplace.

The initiation of an SLA document through a

graphical wizard is highlighted in Figure 6. Within

the wizard, a source service description can be se-

lected and a transformation can be applied to it.

Once a preliminary SLA document has been cre-

ated, the SLOs can be freely manipulated. Figure 7

shows a screenshot of the crucial editor component

which is responsible for the expression of objectives.

The editor integrates well into engineering environ-

ments through command-line parameters and docu-

ment passing as ﬁles. It also retrieves from and pub-

lishes into the ConQo service registry. The editor

menu with access to the integration options is con-

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

402

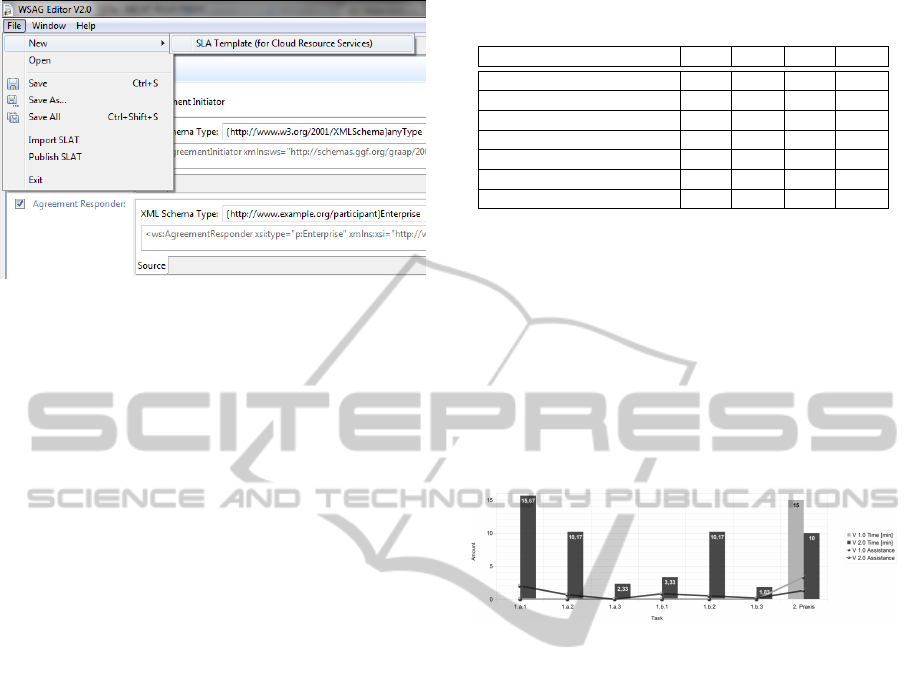

Figure 8: Menu of the editor to invoke the wizard to load

and save SLATs and to create new SLATs or transform ex-

isting service descriptions into SLATs.

tained in Figure 8.

For the user testing, we have developed a cus-

tom cloud storage service called EasyStorage with a

WSDL and a WSML description. Both the WSAG

Editor and the EasyStorage service have been in-

stalled into SPACEﬂight, a completely integrated re-

search and education environment with many pre-

conﬁgured platforms, tools and scenarios for experi-

encing advances in service sciences and cloud com-

puting (OSSPRI, 2012). SPACEﬂight is accessible as

a native installation on a desktop or notebook com-

puter, as a virtual machine running in full-screen

mode, or as a remote desktop instance running in the

cloud. This way, the participants could concentrate on

the editor usage instead of being side-tracked by in-

stallation or conﬁguration procedures. We have then

deﬁned a number of modelling tasks which together

with a set of evaluation questions were included in

a survey for user testing. The test methodology in-

cludes a comparison with a previous testing round in

which the former WSAG Editor (version v1) without

any of the characteristics introduced in this work had

been evaluated. The participants were assisted with

the new editor’s (version v2) integrated help system

and an SLA expert.

The ﬁrst modelling task required the modelling of

four SLOs, three of them with QCs. The second task

required service innovation by taking imaginary feed-

back into account to adapt the SLA templates to more

appropriate ones. The third task added the modelling

of an existing commercial cloud storage service. Over

these three tasks, seven subtasks were deﬁned and

measured in terms of how much time was spent on

them. In addition, 16 general usability questions were

asked. Table 3 outlines the central questionnaire per-

formance metrics, including both the time spent on

each task (T) and number of help inquiries with the

expert present during the evaluation (H). Most tasks

Table 3: Performance metrics in the evaluation question-

naire.

Task Tv1 Hv1 Tv1 Hv2

Create/Skip transform - -

Create/Simple transform - -

Create/Contract transform - -

Upgrade SLA level - -

Add level, w/ WSML - -

Add level, w/o WSML - -

Custom SLAT

were not available with the editor version v1.

The evaluation was conducted with six partici-

pants. On average, the participants needed 28.17 min-

utes with 2.67 help inquiries for the ﬁrst three tasks,

15.33 minutes with 1.5 inquiries for the second group

of three, and 10.00 with 1.33 inquiries for the last

task. The highest complexity has been measured with

the modelling of compensation rules in case of SLA

violations, which hints at a potential for improved

presentation and interaction regarding the compensa-

tion strategies. The results are visualised in Figure 9.

Figure 9: Performance comparison of the editing process

between versions v1 and v2 of the editor.

In addition to the performance, the efﬁciency of

ﬁlling out all SLAT ﬁelds was measured. Without

the transformation support, the users needed on av-

erage 15 minutes at the ﬁrst time and 10.17 min-

utes for consecutive modelling sessions. The sim-

ple transformation of the SLAT from the service de-

scription with partially pre-ﬁlled ﬁelds required just

10.17 minutes for the ﬁrst run and 7.33 for the con-

secutive ones. Finally, the full transformation based

on the WSMO4IoS ContractBase ontology required

2.33 minutes for the ﬁrst and 1.83 for consecutive ses-

sions. This means that a speed-up factor of 1.38 can

be achieved for simple transformations without any

additional modelling effort, and a factor of 5.55 when

the service descriptions are already enriched with ap-

propriate contract statements. The factors are out-

standing in Figure 10.

Due to the nature of performing a user testing

evaluation, all results are subjective and provide little

empirical evidence of the improvements from using

our approach. The initial feedback from the user test-

ing is however highly positive. Participants are able

to better understand the purpose of the SLA contents

and can better express their guarantees compared to

EngineeringServiceLevelAgreements-AConstrained-domainandTransformationApproach

403

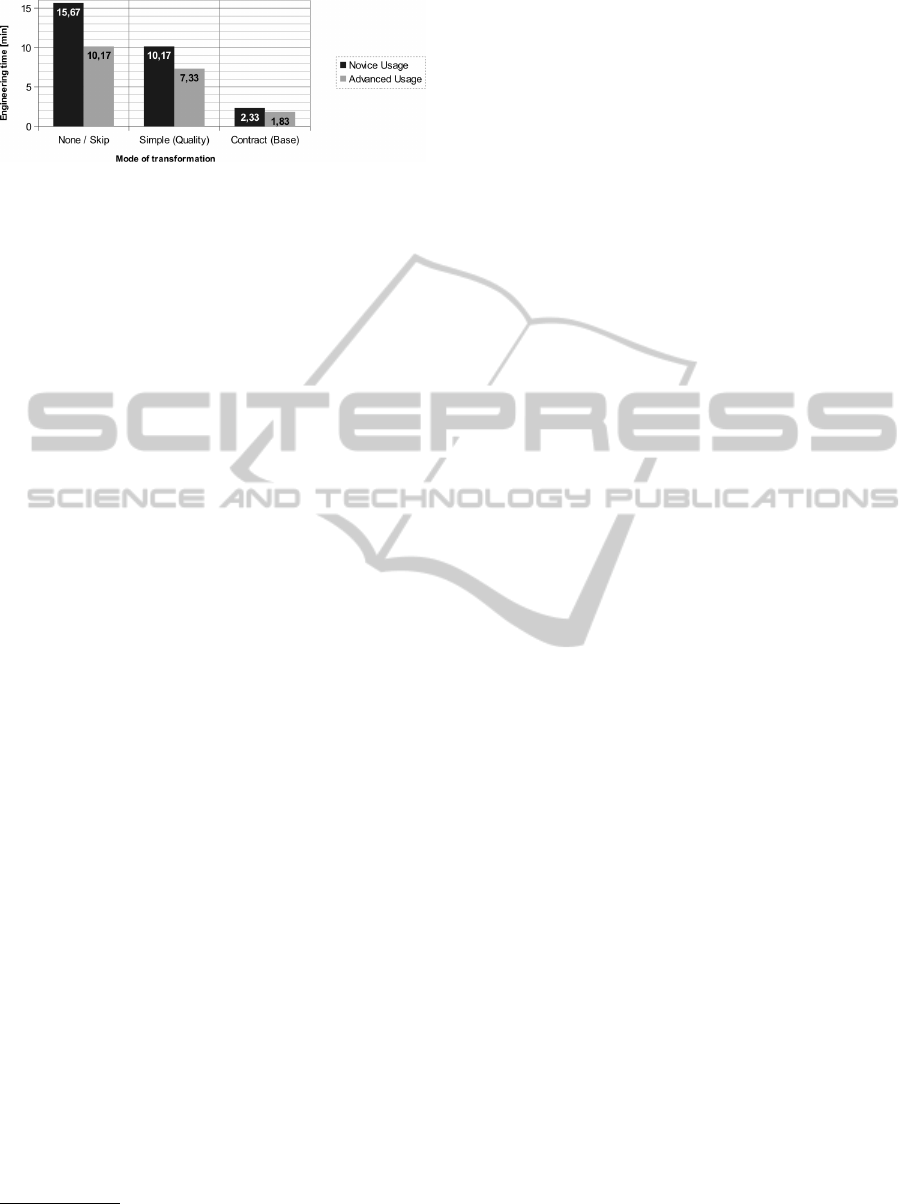

Figure 10: Efﬁciency comparison between the

transformation-less and transformation-supported editing

processes.

the earlier version of the editor. Hence, we assume

that the approach is a valuable contribution to the ﬁeld

of service engineering and service management.

5 CONCLUSIONS

The presented SLA engineering approach brings

signiﬁcant improvements for service engineers and

providers in service and cloud computing ecosys-

tems. It helps providers to more rapidly achieve the

desired expression of which service levels can be

guaranteed. The three main distinct characteristics

over previous modelling approaches are (1) domain-

constrained service level objective modelling to ac-

knowledge the differences in domain knowledge, (2)

consistency-preserving transformation from service

descriptions to SLA documents to avoid data cura-

tion problems, and (3) publishing and re-engineering

integration with service marketplaces and other en-

gineering tools. The WSAG editor, which has been

extended by the authors of this work to evaluate the

engineering approach, has been made freely available

for download

under the auspices of the Open Source

Service Platform Research Initiative to spur its adop-

tion and ensure its long-term availability.

For the future, we see further potential improve-

ments to the approach and the tool support for it.

First, it shall be possible to model multiple SLA levels

in one document with ﬂexible combinations of WS-

Agreement All and ExactlyOne block semantics.

Second, constraints should be bundling so that mul-

tiple non-functional properties can be covered by a

single constraint, as SLO or QC assertions. Third, the

modelling of linear and more complex penalty func-

tions should be supported. Finally, the widgets for

visually supported domain-speciﬁc modelling should

be dynamically retrieved from an engineering market-

place.

WSAG editor website: http://serviceplatform.org/wiki/

Service_Engineering

ACKNOWLEDGEMENTS

This work has received funding under project number

080949277 by means of the European Regional De-

velopment Fund (ERDF), the European Social Fund

(ESF) and the German Free State of Saxony.

REFERENCES

Alhamad, M., Dillon, T., and Chang, E. (2010). Conceptual

SLA framework for Cloud Computing. In 4th IEEE

International Conference on Digital Ecosystems and

Technologies (DEST), pages 606–610. Dubai, United

Arab Emirates.

Andrieux, A., Czajkowski, K., Dan, A., Keahey, K.,

Ludwig, H., Nakata, T., Pruyne, J., Rofrano, J.,

Tuecke, S., and Xu, M. (2007). Web Services

Agreement Speciﬁcation (WS-Agreement). Grid

Resource Allocation Agreement Protocol (GRAAP)

WG of the Open Grid Forum, available online:

www.ogf.org/documents/GFD.107.pdf.

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A. D., Katz,

R., Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,

and und Matei Zaharia, I. S. (2010). A view of cloud

computing. Communications of the ACM, 53(4):50–

58.

Baresi, L., Nitto, E. D., and Ghezzi, C. (2006). Toward

Open-World Software: Issues and Challenges. IEEE

Computer, 39(10):36–43.

Bertolino, A., Bianculli, D., Angelis, G. D., Frantzen, L.,

Kiss, Z. G., Ghezzi, C., Polini, A., Raimondi, F.,

Sabetta, A., Carughi, G. T., and Wolf, A. (2007).

PLASTIC Test Framework: Prototype Implementa-

tion. PLASTIC Deliverable D4.2.

Boissel-Dallier, N., Lorré, J.-P., and Benaben, F. (2009).

Management Tool for Semantic Annotations in

WSDL. In Proceedings of the Confederated Inter-

national Workshops and Posters on On the Move

to Meaningful Internet Systems: Beyond SAWSDL

(OTM), pages 898–906. Vilamoura, Portugal.

Butler, J., Lambea, J., Nolan, M., Theilmann, W., Torelli, F.,

Yahyapour, R., Chiasera, A., and Pistore, M. (2011).

SLAs Empowering Services in the Future Internet. In

The Future Internet – Future Internet Assembly 2011:

Achievements and Technological Promises, number

6656 in Lecture Notes in Computer Science (LNCS),

pages 327–338. Budapest, Hungary.

D’Andria, F., Martrat, J., Kirkham, T., Naqvi, S., Gal-

lop, J., and Arenas, A. (2007). The evolving use of

Service Level Agreements and the inﬂuence of Trust

within the support and development of Grids to enable

a next generation of business models. In Proceedings

of Service Oriented Computing: A Look at the Inside

(SOC@Inside’07) at ICSOC.

Frankova, G., Malfatti, D., and Aiello, M. (2006). Seman-

tics and Extensions of WS-Agreement. Journal of

Software, 1(1):23–31.

Gillam, L., Li, B., and O’Loughlin, J. (2012). Adding

Cloud Performance to Service Level Agreements. In

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

404

Proceedings of the 2nd International Conference on

Cloud Computing and Services Science (CLOSER),

pages 621–630. Porto, Portugal.

Gjermundrød, H., Dikaiakos, M. D., Stümpert, M., Wol-

niewicz, P., and Kornmayer, H. (2008). g-Eclipse -

an integrated framework to access and maintain Grid

resources. In Proceedings of the 9th IEEE/ACM Inter-

national Conference on Grid Computing (Grid), pages

57–64. Tsukuba, Japan.

Jouve, W., Lancia, J., Consel, C., and Pu, C. (2006). A

Multimedia-Speciﬁc Approach to WS-Agreement. In

Proceedings of the European Conference on Web Ser-

vices (ECOWS), pages 44–52. Zürich, Switzerland.

Kearney, K. T., Torelli, F., and Kotsokalis, C. (2010). SLA?:

An Abstract Syntax for Service Level Agreements.

In Proceedings of the 11th IEEE/ACM International

Conference on Grid Computing (GRID), pages 217–

224. Brussels, Belgium.

Keller, A. and Ludwig, H. (2002). The WSLA Framework:

Specifying and Monitoring Service Level Agreements

for Web Services. Technical Report RC22456, IBM

Research.

Kotsokalis, C., Rueda, J. L., Gomez, S. G., and Chi-

meno, A. E. (2011). Penalty Management in the

SLA@SOI Project. In Wieder, P., Butler, J. M., and

und Ramin Yahyapour, W. T., editors, Service Level

Agreements for Cloud Computing, pages 105–121.

Springer New York.

Lamanna, D., Skeene, J., and Emmerich, W. (2003).

Speciﬁcation Language for Service Level Agreements

(SLAng). TAPAS Deliverable D2.

Mendes, C. and da Silva, M. M. (2012). DEMO-Based Ser-

vice Level Agreements. In Third International Con-

ference on Exploring Service Sciences (IESS), volume

103 of Lecture Notes in Business Information Process-

ing (LNBIP), pages 227–242. Geneva, Switzerland.

Mitchell, B. and McKee, P. (2006). SLAs: A Key Com-

mercial Tool. In Cunningham, P. and Cunningham,

M., editors, Innovation and the Knowledge Economy:

Issues, Applications, Case Studies. IOS Press, Ams-

terdam, Netherlands.

Müller, C., Durán, A., Resinas, M., Ruiz–Cortés, A., and

Martín–Díaz, O. (2010). Experiences from build-

ing a WS–Agreement document analyzer tool (Includ-

ing use cases in WS–Agreement and WSAG4People)

v1.0. Technical Report ISA-10-TR-03, University of

Seville.

OSSPRI (2012). SPACEﬂight - Live Demonstrator for In-

ternet of Services and Cloud Computing Technolo-

gies. Software appliance, available online: http://

serviceplatform.org.

Paschke, A. (2005). RBSLA - A declarative Rule-

based Service Level Agreement Language based on

RuleML. In International Conference on Intelli-

gent Agents, Web Technology and Internet Commerce

(IAWTIC), volume 2, pages 308–314. Vienna, Austria.

Rady, M. (2012). Parameters for Service Level Agreements

Generation in Cloud Computing – A Client-Centric

Vision. In Advances in Conceptual Modelling: Third

International Workshop on Conceptual Modelling of

Services (CMS), volume 7518 of Lecture Notes in

Computer Science (LNCS), pages 13–22. Florence,

Italy.

Scheithauer, G., Voigt, K., Winkler, M., Bicer, V., and

Strunk, A. (2011). Integrated Service Engineering

Workbench: Service Engineering for Digital Ecosys-

tems. International Journal of Internet and Enterprise

Management, 9(5):392–413.

Spillner, J. (2012). WSMO4IoS – Ontology concept

collection for the Internet of Services. Speciﬁ-

cation, available online: http://serviceplatform.org/

spec/wsmo4ios/.

Spillner, J., Kümpel, A., Uhlig, S., Braun, I., and Schill, A.

(2011). An Integrated Provisioning Toolchain for the

Internet of Services. In Proceedings of the 10th IADIS

International Conference WWW/Internet, pages 566–

570. Rio de Janeiro, Brazil.

Stantchev, V. and Schröpfer, C. (2009). Negotiating and En-

forcing QoS and SLAs in Grid and Cloud Computing.

In Proceedings of the 4th International Conference on

Advances in Grid and Pervasive Computing (GPC),

number 5529 in Lecture Notes in Computer Science

(LNCS), pages 25–35. Geneva, Switzerland.

Wu, L. and Buyya, R. (2010). Service Level Agree-

ment (SLA) in Utility Computing Systems. Techni-

cal Report CLOUDS-TR-2010-5, Cloud Computing

and Distributed Systems Laboratory, The University

of Melbourne, Australia.

EngineeringServiceLevelAgreements-AConstrained-domainandTransformationApproach

405
