Towards a Model-driven Development of Web Applications

José Luis Herrero, Pablo Carmona and Fabiola Lucio

Department of Computer and Telematics Systems Engineering, University of Extremadura,

Avda de Elvas s/n, Badajoz, Spain

Keywords: Model-driven Architecture, Web Services, Web Applications, Rich Internet Applications.

Abstract: In the last years, traditional web applications have evolved from static web pages to dynamic applications,

and this is the reason why the complexity of this type of applications has been increased. With the

appearance of AJAX and Web 2.0 technology, a new breed of applications for the Internet has emerged.

However, as web applications become more and more complex, the quality degree is negative affected,

since initial stages of software life cycle are not considered in the development process of this type of

applications. In order to solve this problem, this paper proposes a model-driven architecture to support web

application development from the design to the implementation model. With this aim, the following tasks

have been performed: a new profile extends UML metamodel with new concepts from the web domain, a

new framework supports the developing of web applications by composing web elements, and also provides

different types of communication patterns, and finally, a transformation model generates web applications

from the UML extension proposed. The main contribution of this work is an increase in the quality degree

of web applications provided by the model-driven architecture proposed, but other advantages that can be

mentioned are a high performance degree achieved by a prefetching cache mechanism, and a high

reusability, since web elements can be reused in different web applications.

1 INTRODUCTION

The rapid evolution of Internet has transformed the

development process of web applications and

different types of applications for the Web have

arisen. Traditional web pages were based on HTML

tags and script code, but however the type of

applications that could be developed was limited and

a low degree of interactivity was achieved. With the

appearance of Web 2.0, and the introduction of

Asynchronous JavaScript and XML (Garret 1995),

which supports the modification of individual web

elements without refreshing the entire web page, the

performance degree of this type of applications has

been increased, achieving a new breed of web

applications with a high degree of interactivity has

emerged.

Rich Internet Applications, RIA (Paulson, 2005)

have emerged under the umbrella of these new

technologies, and have gained much attention and

acceptance, because a web browser is the only

execution environment required avoiding users the

*installation of new software or plugin. For this

reason, software vendors are actually adapting their

applications to this new trend: Adobe has presented

Adobe Integrated Runtime (AIR) that extends web

development to the desktop, Google has introduced

Google Docs as is a new technology to work with

online documents, and Microsoft has developed

Windows Presentation Foundation to provide

support for web browser applications (WBAs). The

interest exposed by all these software vendors

demonstrates the attention this technology is

gaining. However, as web applications become

more and more complex, the quality degree is

negative affected because initial stages of software

life cycle are not considered in the development

process of this type of applications. Another

important implication of this evolution is that the

size of web applications is increasing in exponential

rate, which provokes a severe increment in latency,

since web applications are required to be

downloaded before they can be used.

In order to solve these problems, the Model

Driven Architecture (MDA), has been adopted to

increase the quality degree of web applications. This

architecture unifies and simplifies modelling, design,

implementation, and integration of applications by

defining software fundamentally at the model level,

which increases the quality of complex software

Luis Herrero J., Carmona P. and Lucio F..

Towards a Model-driven Development of Web Applications.

DOI: 10.5220/0004355800710076

In Proceedings of the 9th International Conference on Web Information Systems and Technologies (WEBIST-2013), pages 71-76

ISBN: 978-989-8565-54-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

systems based on creating high level system models

and automatically generating system architectures

from the models. Also, a new framework is

proposed to minimize latency by incorporating

prefetching cache mechanisms.

The objective of this paper is to propose a

model-driven architecture to develop web

applications with a high quality degree. This task has

been achieved at three levels: first a new profile

incorporates web application concepts and extends

UML metamodel, then a new framework supports

downloading web components dynamically only

when they are required, and incorporates several

communication patterns between web applications

and remote resources, and finally a transformation

model generates web applications from the UML

extension proposed.

The paper is organized as follows: section 2

presents the motivation with an example of a

scenario and related works are summarized, a UML

profile is proposed in section 3. Then a new

framework to develop web applications is explained

in section 4, while web components are defined in

section 5. Next, the transformation model from a is

proposed in section 6, and finally the paper

concludes in section 7.

2 MOTIVATION AND RELATED

WORKS

The rapid evolution of web technologies has

contributed to the appearance of new type of web

entities to support client’s requirements. Currently,

web applications are complex software composed by

different types of components, and this is the reason

why the development process of this type of

software is so difficult. Different AJAX frameworks

have been proposed to provide additional benefits

for web applications; as such the push-based

concepts have been applied to develop web

applications that require real time event

notifications. According to this, Echo3 is a platform

for building web applications that approaches the

capabilities of rich clients, and presents a JavaScript

client-side, which is executed directly by the client’s

web browser, while a Java server-side is stored in a

Servlet Container. GWT is a Google proposal for

building and optimizing complex web applications,

AJAX applications are written in Java and compiled

into a highly optimized JavaScript code that runs

across all browsers. Dojo Offline is a cross-

framework that enables web applications to work

offline, where the information generated by the user

is stored inside the web browser. In (Mesbah, 2008)

presents a comparative of these approaches, and

proposes a new architectural style (SPIAR) which

captures the essence of AJAX applications.

Trends in web application development are not

limited to the specification of new frameworks, the

design level is also considered. A review of the

principles of structured programming and the

preferred characteristics of web applications is

presented by (Marquis 2002). This work presents a

mapping of how the traditional guidelines may be

applied to web applications development. In the

field of MDA, there is a consensus about the

benefits that this technology offers to web

application development: a reduction of sensitivity

to the inevitable changes that affect a software

system (Atkinson and Kuhne, 2002), a reduction of

cost and complexity (Miller and Mukerji, 2003), and

provides an increase of abstraction (Booch et al.,

2004). An interesting analysis about the existing

problems in the field of web engineering and how

they can be solved by model-driven development

approaches is presented in (Gitzel et al., 2007),

identifying the problems encountered in the

development process of web applications such as

their dependence on the HTTP protocol,

compatibility issues due to the heterogeneity of web

browsers, and the lack of performance because of

the increase in the latency degree.

A variety of methodologies to develop web

applications have been proposed. First, we can

mention OOHDM (Lange, 1995) which defines

abstraction and composition mechanisms in an

object-oriented framework to, on one hand, allow a

concise description of complex information items,

and on the other hand, allow the specification of

complex navigation patterns and interface

transformations. Other interesting researches are a

proposal for modeling web applications extending

UML (Conallen, 1999), and UWE-R (Koch et al.,

2002) that defines a UML extension with new

stereotypes, which is focus on navigation,

presentation and server interaction. Finally, WebML

(Ceri et al., 2000) is a visual language for specifying

the content structure of web applications and the

organization and presentation of contents in one or

more hypertexts. A more extensive work on the

evolution of Web engineering methodologies can be

found in (Fraternali 2010).

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

3 WEB APPLICATION

MODELING

This section proposes an extension of UML that

incorporates specific concepts of the web application

domain, and with this aim a new profile is presented

(Figure 1).

The main element of this profile is the <<Web

Resource>> stereotype that represents a general

element in the web. A software entity in the web is

represented by the <<URL resource>> stereotype

which incorporates its description and a set of

keywords to facilitate searching tasks. A general

application for the web is represented by the <<Web

application>> stereotype which can included several

web elements represented by the <<Web Element>>

stereotype. Web components are defined using the

<<Web component>> stereotype which can be

active or paused according to the requirements of the

application.

External entities are represented by the <<Web

service>> stereotype, and can be bound to a web

application or to a web component. A web service

must specify the communication port (<<Port>>

stereotype), the operations that provides

(<<Operation>> stereotype), the type of in/out

messages and out messages of all its operations

(<<inMessage>> and <<outMessage>> stereotypes

respectively). Finally, web services can be invoked

using different communication protocols

(<<Synchronous>>, <<Callback>> and <<Poll>>

stereotypes). These protocols are explained in a later

section.

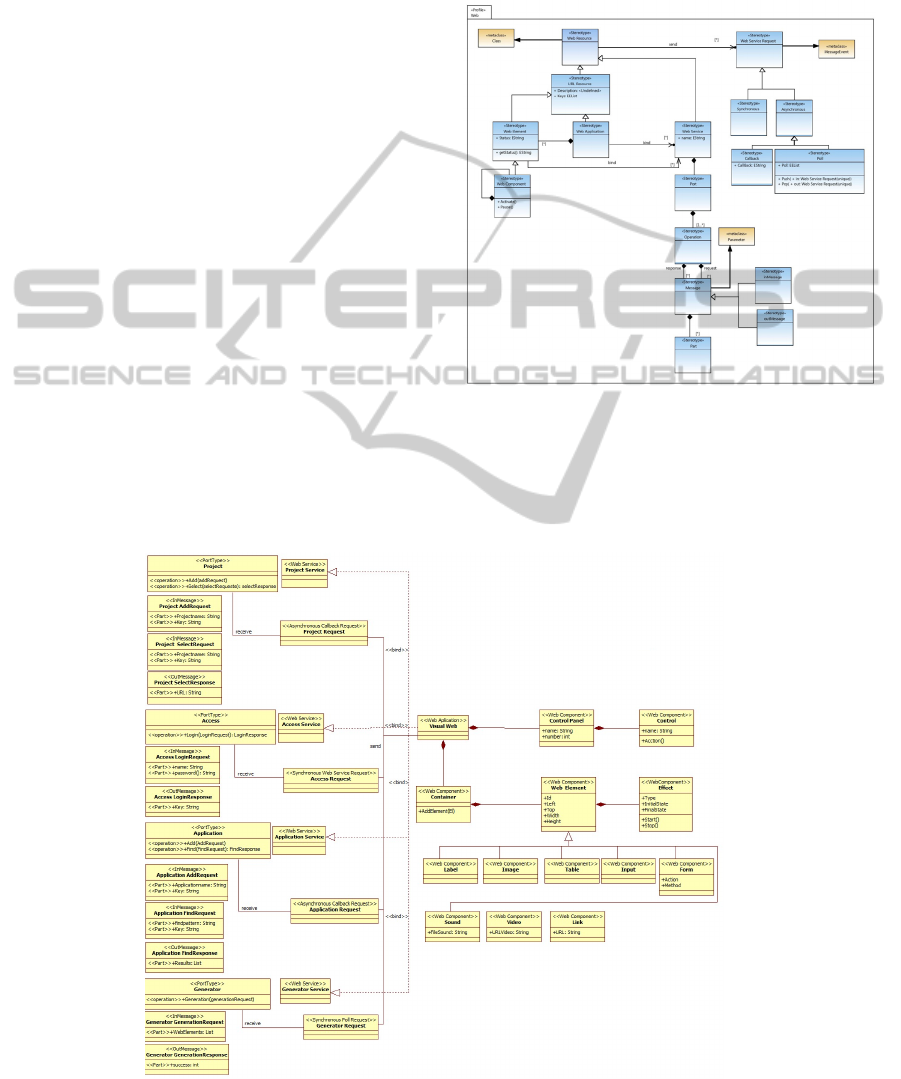

Figure 1: UML extension.

An example of a web application is shown in Figure

2. The example presents a web editor which

provides different types of controls to define web

content.

Figure 2: Web editor design.

TowardsaModel-drivenDevelopmentofWebApplications

This application is downloaded and activated in

the user’s web browser, and it is composed by

different elements that support visual modelling,

project management, code generation and access

control. In this scenario, a web application is built by

composing different software entities that can be

activated in the client’s side (web components), and

remote operations, which are invoked using services

technology.

4 THE FRAMEWORK

In this paper we considered that web applications are

characterized by the following properties:

 Downloaded: they are downloaded from the web

and activated in a web browser environment.

 Heterogeneous: web applications are composed by

different types of web entities. Local entities are

downloaded while external entities can be invoked

using web services technology.

 Distributed: The elements that conforms a web

application can be distributed in the web and can be

executed locally or remotely.

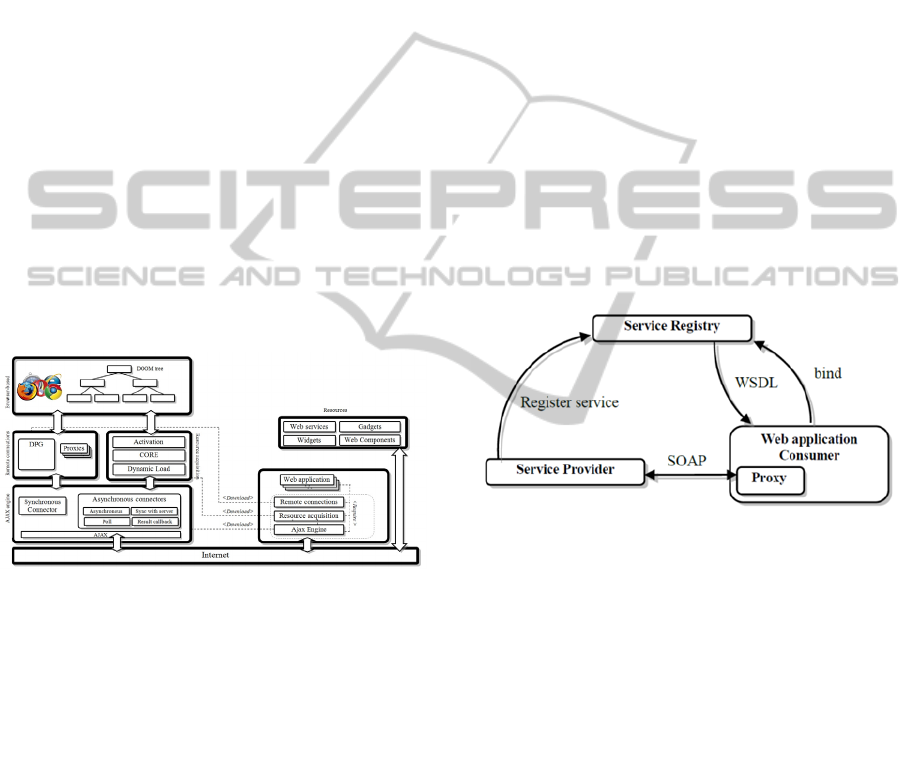

Figure 3: The framework.

This type of applications requires new mechanisms

to provide the downloading and activation of web

components at the client side, and the invocation of

remote services. The framework (Figure 3) is deeply

explained in our previous work (Herrero et al.,

2011).

4.1 Web Services

Complex tasks may require special computers to be

performed, or may demand too much time to be

downloaded (latency). For these reasons web

elements are not the best approach in these

situations. The solution comes from computer

networking, where resources are distributed across

multiple computers, providing a highly load-

balanced application. According to this trend,

complex tasks are hosted in remote computers and

can be requested through a communication

mechanism.

A web service is a software system designed to

support interoperable machine-to-machine

interaction over a network. It has an interface

described in a machine-processable format

(specifically WSDL), and other systems interact in a

manner prescribed by its description using SOAP

messages. Web services is the model selected to

connect web applications for two reasons: i) offers

cross-platform, cross-programming and internet-

firewall-friendly, and ii) can be invoked from web

applications using the HTTP protocol and SOAP

messages, which simplifies the connection

mechanism.

The binding process proposed in this paper

(Figure 4), asks a service registry for a specific

service, and generates a proxy object from the

WDSL specification returned. This proxy is

responsible for marshaling the invocations and sends

them to the correct service provider.

Figure 4: Binding process.

In this proposal web applications are composed by

heterogeneous web components. A web component

is a web resource that can be downloaded and

activated in a web application.The specification of a

web component is divided into the following

elements:

 Definition: the name of the web component,

according to a namespace, and a description are

included in this element. The set of requirements

required.

 Interface: this element provides a successful

interaction mechanism with the web application and

specifies the set of operations provided by the web

component using the IDL language.

 Functionality: the code of all the operations is

stored in this element.

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

4.2 Web Component Activation

The activation mechanism of web components is

supported by the resource acquisition component of

the frame proposed in a previous section. The

protocol to activate a Web component is as follows:

1. When a web application requires an external

URL resource, a message is sent to the resource

acquisition component which builds a request and

passes it to the Ajax engine module.

2. The Ajax engine module transforms the request

into several asynchronous calls according to the

callback pattern.

3. When the responses have been received, the

dynamic load module parses the answers and builds

a local object.

4. Finally, the core module activates the local

object into the web application by adding new

modules in the DOM tree. At this point, all the

operations provided by the web component can be

invoked by the web application.

4.3 Performance Quality Factor

The main problem of this proposal is that

performance degree is severely affected by latency,

because web components are required to be

downloaded before they can be used, and this is the

reason why performance is negative affected. In

order to reduce this problem and increase the

performance quality degree of web applications, we

propose a proxy cache mechanism that intercepts

requests from the web application and performs the

following tasks:

 Stores a list of downloaded web elements.

 Checks if a requested web element has been

downloaded previously, avoiding duplicated

requests.

 Applies a prefetching algorithm that identifies the

web elements to be downloaded before they are

requested.

Data prefetching has been widely used in

memory cache strategies, where it has been used to

anticipate cache misses and fetch data from the

memory system before the processor needs the data

(Tien-Fu, 1997) and (Kai-feng et al., 2005). In this

section a software prefetching technique is adopted

to minimize latency in web applications. However,

the main problem of this technique is to predict the

web elements that will be requested, and to

download them without interrupting the normal

workflow of the web application.

In order to identify the web elements that will be

downloaded in advance, the cache proxy intercepts

the source code when a web application is

downloaded, and performs a searching process to

locate the web elements that will be required. This

process identifies specific patterns in the source code

of the web application that correspond with the

requesting or manipulation of web elements. The

result of this process is a list of predicted web

elements that will be downloaded in a background

process.

5 MODEL GENERATION

One of the keys of MDA is the capacity of defining

transformations from higher-level models to

platform specific models, guided by a set of

transformation rules. This section describes the

process to transform an UML design, according to

the extension proposed, into a web application.

 The web application stereotype is transformed into

the specific components of the framework (Remote

Connections, Object Acquisition and Ajax Engine).

 The web service stereotype activates a binding

process that compares the WDSL specification of

the web service with the UML design. The bind

relationship must provide new information in order

to achieve this task (service location,

authentication).

Figure 5a, 5b, and 5c show the code generated

automatically by a generation tool.

Figure 5a: Container web component definition.

Figure 5b: Container web component interface.

Interface Container{

void add (Element el)

}

<NAME>Container</NAME>

<TYPE> LOCAL</TYPE>

<DESCRIPTION….</DESCRIPTION>

Web Application

</WEBCOMPONENT>

TowardsaModel-drivenDevelopmentofWebApplications

Figure 5c: Container web component functionality.

The generation tool has been developed using

Eclipse with the following plugins:

 Papyrus Project: this plug in is used to define the

new profile and model the web application example.

 Acceleo project: a model can be covered according

to Acceleo primitives.

6 CONCLUSIONS

In this paper a model-driven architecture to develop

web applications is proposed and, with this aim,

different stages of software development process are

considered. At design level, a new profile extends

UML metamodel with new concepts from the web

application domain. It is also proposed a new

framework to support the dynamic download of web

elements, and provides different communication

patterns (synchronous, asynchronous: one way

message, pool and callback) with remote web

services. Finally, a transformation model generates

web applications from the UML extension. The

main benefits provided by this proposal are:

 The quality degree of web applications is

increased, because early stages of software

development process are considered.

 The delegation of tasks to other computers through

web service technology provides a highly load-

balanced application.

 As web elements are deployed independently, the

can be reused in different web applications, and

therefore, the reusability degree is increased.

A prototype of a web editor application has been

presented along this paper, the scenario of the

example has been introduced, the design, according

to the UML extension, has been presented, and

finally, an example of a generated a web component

(container) have been defined.

Future works will try to incorporate new types of

web entities such as applets or dynamic web

contents generated by server languages into the

development process of web applications. Moreover,

historical information will be included in the

prefetching algorithm in order to predict more

efficiently the web elements required to be

downloaded in advance.

REFERENCES

Atkinson C., Kuhne T., 2002. The role of metamodeling in

MDA, in: International Workshop in Software Model

Engineering (in conjunction with UML ’02).

Booch G., Brown A., Iyengar S., Selic B., 2004. An MDA

manifesto, MDA Journal.

Ceri, S., Fraternali, P., Bongio, A., 2000. Web modeling

language (WebML): a modeling language for

designing Web sites. In: Proceedings of the 9th World

Wide Web Conference (WWW’09), pp. 137–157.

Conallen J., 1999. Building Web Applications with UML.

Addison-Wesley Professional, pp. 320

Garrett J., 2005. Ajax: A new approach

to web applications. Adaptive path.

http://www.adaptivepath.com/publications/essays/arch

ives/000385.php, viewed on 10/03/2012.

Gitzel R., et al, 2007. Using established Web Engineering

knowledge in model-driven approaches Science of

Computer Programming, Volume 66, pp 105-124.

Herrero, J. L., Carmona P., Lucio F. 2011. Web services

and web components. Next Generation Web Services

Practices (NWeSP), 2011 7th International Conference

on , vol., no., pp.164-169, 19-21

Kai-feng Wang, et al., 2005. Path-based next N trace

prefetch in trace processors. Microprocessors and

Microsystems, Volume 29, Issue 6, pp 273-288.

Koch, N., Kraus, A., and Hennicker, R. 2001. The

Authoring Process of the UML-based Web

Engineering Approach. In First International

Workshop on Web-oriented Software Technology

(IWWOST01).

Lange D.,1995 An object-oriented design approach for

developing hypermedia information systems. In:

Sprague R, editor. 31st Annual conference on systems

science.

Marquis G. P., 2002. Application of traditional system

design techniques to web site design. Information &

Software Technology, 44(9):507-512.

Mesbah, A. van Deursen, 2008. A component-and push-

based architectural style for AJAX applications,

Journal of Systems and Software, Volume 81, Issue

12, pp. 2194-2209.

Miller J., Mukerji J., 2003. MDA. Guide version 1.0.1,

OMG document number: omg/2003-06-01, OMG,

12.6.2003.http://www.omg.org/cgi-in/doc?omg/2003-

06-01.

Paulson L. D., 2005. Building rich web applications with

Ajax. Computer, IEEE, vol.38, no.10, pp.14-17.

Tien-Fu Chen., 1997. Reducing memory penalty by a

programmable prefetch engine for on-chip caches.

Microprocessors and Microsystems, Volume 21, pp

121-130.

function Container{

this.WebElement = new Array() ;

}

Container.addElement=function(Element el){

}

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies
