Towards a Semantic Deﬁnition for a Cloud based Event Notiﬁcation

Service

Marc Schaaf

, Stella Gatziu Grivas

and Arne Koschel

University of Applied Sciences Northwestern Switzerland, Riggenbachstr. 16, Olten, Switzerland

University of Applied Sciences and Arts, Ricklinger Stadtweg 120, Hannover, Germany

Keywords:

Event Processing, Cloud Computing, Portability.

Abstract:

We propose an Activity Service as a component in cloud computing. As a particular novelty we base this Ac-

tivity Service on the well-deﬁned and proven semantics of Active Database Management Systems (ADBMS)

to overcome the challenges of developing portable cloud based event processing applications. As contribution

of this paper we provide the ﬁrst steps of the adaption of the ADBMS semantics to the distributed and highly

dynamic environment of the cloud.

1 INTRODUCTION

Cloud Computing is a new paradigm, it offers vast re-

sources and highly dynamic scalability while reduc-

ing the required upfront investment cost to a mini-

mum. However the development of cloud enabled

applications considering beneﬁts like the increased

agility resulting from the possibility to dynamically

utilize resources from a vast resource pool is still a

hard task. Suitable software architectures accompa-

nied by the appropriate cloud services are required to

develop cloud enabled applications.

We are convinced that the combination of the

cloud paradigm with event processing provides a

promising architectural approach for designing appli-

cations able to beneﬁt from the cloud’s ﬂexibility. We

see this as a natural extension of the well established

active mechanisms in database systems that over time

found their way into the world of distributed systems

in many incarnations. Furthermore for many “new”

application domains (like smart applications, emer-

gency management), event driven approaches offer a

capable foundation for coping with challenges result-

ing from the constantly increasing amount of data and

near real-time analysis requirements. However event

processing services usable for cloud applications with

well deﬁned semantics which provide a reliable foun-

dation to build scalable and portable applications are

still missing. Many cloud offerings include services

that allow building event processing applications like

for example Amazons Simple Queuing Service. How-

ever these services are highly provider speciﬁc and

don’t feature a well deﬁned and proven semantic.

Current standardization approaches like for example

OpenStack are mostly focused on infrastructure as-

pects and don’t cover any standardized support for

event processing based applications.

A simple example, which illustrates the need for

detailed semantic deﬁnitions, is the event parameter

time. A time like “04:37:21” is problematic when

considered that time indications depend on the loca-

tion where they are made. Thus, a precise time indica-

tion needs additional information, such as ’according

to UTC’. The time is one simple example required

for an event itself. But many other questions are also

unanswered as they arise from the used notiﬁcation

service like for example the handling of out of order

or missing events or the behavior of the service im-

plementation when the processing of an event fails.

As illustrated, the semantics of an event payload

and the processing conditions are not explicitly de-

scribed and require further knowledge to allow the

processing without knowledge of the event producers

and the notiﬁcation services semantics. Current cloud

based services that can be used to build event process-

ing systems lack the capability to explicitly specify

such aspects. As a result, when building an applica-

tion based on these services, the application becomes

highly depended on the implicit, provider speciﬁc se-

mantics, which results in a high risk of a vendor lock-

in. This even in addition to the risks introduced by

using a provider speciﬁc API. We see this high risk of

a vendor lock-in as one of the major challenges when

developing cloud based event applications.

345

Schaaf M., Grivas S. and Koschel A..

Towards a Semantic Deﬁnition for a Cloud based Event Notiﬁcation Service.

DOI: 10.5220/0004368503450349

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 345-349

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

To overcome this issue we propose the Activ-

ity Service as a provider independent service with

a clearly deﬁned semantic for building event driven

cloud applications. The contribution of this paper to

the Activity Service lies in the discussion of the initial

steps of its semantic deﬁnition. Discussions regarding

the architecture and ﬁrst realizations have been pre-

sented in (Schaaf et al., 2010), (Schaaf et al., 2011).

A few other approaches for cloud based event pro-

cessing exist like (Goyal et al., 2009). At least some

combination of event driven and service oriented ar-

chitecture for the cloud is discussed there but remains

quite high-level and in particular focuses on policy-

driven event processing for the cloud. Some event

monitoring and propagation within the cloud in con-

junction with complex event processing (CEP) is dis-

cussed in (Wishnie et al., 2009). However they do not

really address an Activity Service for the cloud at all

and in particular not with well-deﬁned semantics.

The remainder of this paper outlines our approach

followed by a quick overview of the Activity Ser-

vice architecture. Afterwards we discuss the required

adaption of the initial ADBMS semantic parameters

and continue with the discussion of the event seman-

tic parameters. We conclude with a brief overview of

our implementation, a summary of our results and an

outlook of our next steps.

2 OUR APPROACH

To overcome the mentioned challenges, we deﬁne the

Activity Service as a general event notiﬁcation ser-

vice for cloud environments that features a well de-

ﬁned semantic. With the availability of the Activity

Service we will help cloud application developers to

overcome the afore mentioned challenges when de-

veloping scalable and portable cloud applications.

Our approach features a speciﬁc focus on the se-

mantics of the processing system as a comprehen-

sive deﬁnition is currently missing for distributed

event based systems. The semantic foundation of our

work is based on well-established earlier work from

ADBMS (Paton, 1999), (Widom et al., 1996). In par-

ticular the ADBMS manifesto (Act-Net, 1996). For

traditional ADBMS the active functionality is usually

closely tied to the DBMS as a whole. This function-

ality was unbundled from ADBMS to be usable as

an Activity Service in other contexts (Gatziu et al.,

1998). This unbundled active functionality is a solid

starting point (which requires extensions) for our cur-

rent work. One step beyond this go approaches con-

cerning ECA rule processing in distributed environ-

ments. In (Koschel et al., 1998) active functionality

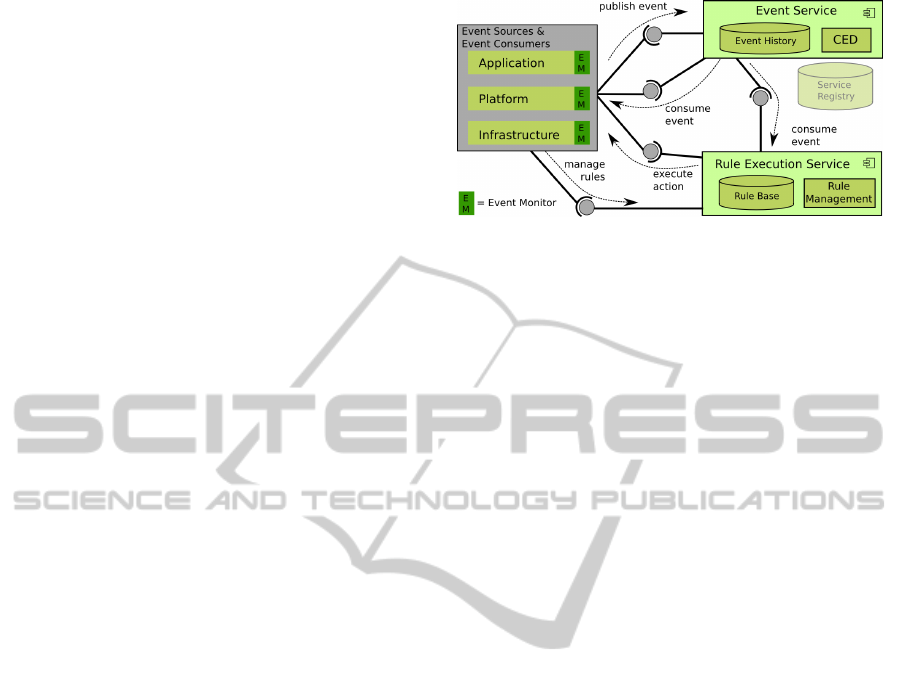

Figure 1: High-Level overview of the Activity Service ar-

chitecture.

was extended into an ECA rule service for CORBA-

based distributed, environments. Actually this ap-

proach is one initial step in our direction.

3 ARCHITECTURE

Following the unbundling approach from (Gatziu et

al., 1998) we separate the Activity Service into dif-

ferent components (Figure 1). Each of the compo-

nents provides one or more well deﬁned interfaces

with clear semantics. Thereby the concrete imple-

mentation of the different components is interchange-

able. Furthermore the communication between the

components is realized based on the concept of Ser-

vice Oriented Architecture. The roles of the different

components are outlined in the following paragraphs.

Event Service and Rule Execution Service

The event service provides all means necessary to be

informed about the occurrence of events from the dif-

ferent event sources, to preprocess the events and to

deliver them to the appropriate event consumers.

For each incoming event, it determines if there are

event consumers that are interested in this particular

event and delivers the event to them. A complex event

detector (CED) evaluates the events and derives new

complex events, which are fed back into the process-

ing mechanism. To receive events from the event ser-

vice an event consumer has to implement an appropri-

ate event handler service, which needs to be published

to the service registry. The event service discovers

those services through the service registry.

The rule execution service (RES) receives events

from the event service to evaluate them against so-

phisticated ECA rules. For the RES, the rules result

in the execution of external action handlers that are

provided by other third party components.

Event Monitors

The Activity Service suppports to obtain and process

events from heterogeneous sources as typically found

in heterogeneous information systems. We consider

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

346

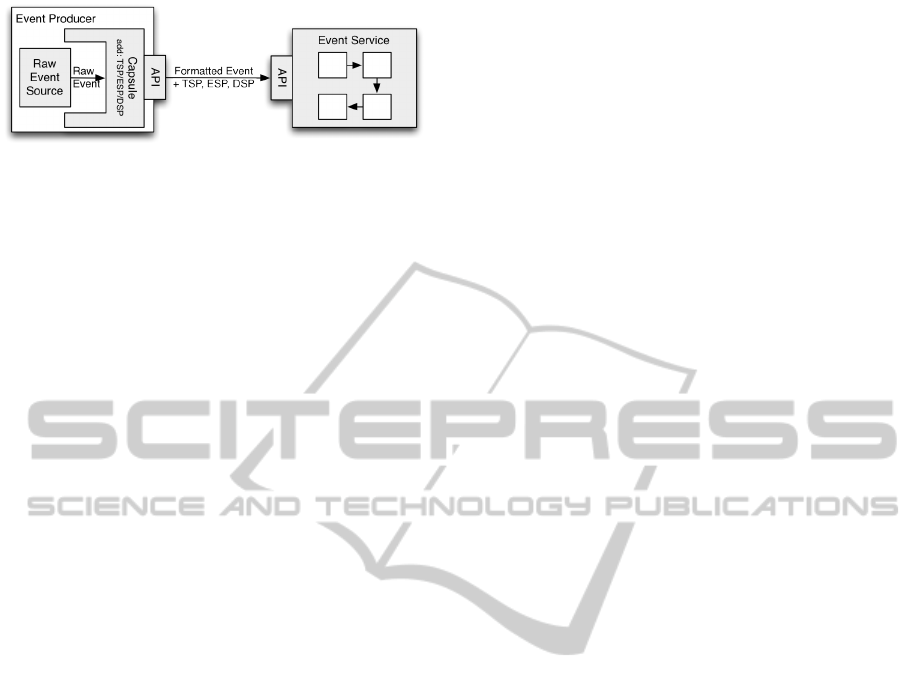

Figure 2: Capsule Concept.

on one hand ’active‘ sources like sources support-

ing triggers and callback mechanisms and sources

with internal triggers. On the other hand we con-

sider passive sources, which write all their actions

into a log ﬁle, which needs to be actively monitored

for changes. With the requirement to support several

types of heterogeneous and highly distributed event

sources we propose the capsule concept as a con-

ceptual component. The capsule allows integrating

event sources into our system and hides the raw event

source that is producing the event information in a

provider speciﬁc format. The capsule is responsible

for (1) converting the event data format to the format

used by the Activity Service and (2) to annotate the

events with event, transport and domain semantic pa-

rameters as discussed in the next section. Figure 2

illustrates the capsule as part in the overall Activity

Service architecture. The left hand part illustrates the

capsule as part of the event sources residing as part of

a cloud computing environment.

4 SEMANTIC PARAMETERS

Semantics describe the meaning of data and allow the

right interpretation of this data. One design concept

to introduce semantics to a (distributed) software sys-

tem is the use of semantic parameters, which enable a

system to deal with context-relevant information. The

concept of semantic parameters has been extensively

used in the deﬁnition of ADBMS. We utilize this well

established deﬁnition as the foundation for our Activ-

ity Service which considers the following categories

of parameters:

• Transport Semantic Parameters (TSP) describe

how data is transferred and allow the usage of het-

erogeneous transport technologies as they appear

in cloud environments. Simpliﬁed, TSPs allow in

a technology independent way to specify all re-

quirements that must be fulﬁlled by the underly-

ing transport technology like for example the need

for conﬁdential event communication or the guar-

antee that events are delivered exactly once and in

order of their occurrence.

• Event Semantic Parameters (ESP) describe the

interpretation of events and their payload from a

non-domain speciﬁc perspective. They describe

general aspects of an event like for example the

exact semantic of the given event timestamp or the

lifetime of the event. These parameters are heav-

ily inﬂuenced by the semantic parameters known

from ADBMS.

• Domain-Speciﬁc Parameters (DSP) describe the

meaning of events in the application domain and

are not deﬁned as part of the Activity Service but

allow the delivery of domain-speciﬁc information

within the event signaling.

In the remainder of the paper we will focus on the

event semantic parameters and their link to the seman-

tic deﬁnition of ADBMS.

4.1 Event Semantic Parameters

Event semantic parameters describe the non domain

speciﬁc semantic context of an event. An event itself

just contains some workload data like the temperature

read from a sensor and some contextual information

like a timestamp. However as the data needs some ba-

sic meta information to allow the processing without

detailed knowledge about the event source itself as it

was discussed during the introduction for the various

meanings of a simple timestamp. For the Activity Ser-

vice we aim to base the deﬁnition of this meta infor-

mation on the semantic deﬁnition of ADBMS and the

extensions towards distributed event based notiﬁca-

tion in (Koschel, 1999). In the following paragraphs

we will discuss those parameters from the perspective

of our Activity Service for cloud based environments.

The signaling point describes if an event was

raised before the triggering state change happens

(pre), after the state has already taken place (post)

or the event replaces the actual state change by only

giving this notiﬁcation (instead). We consider all

three parameters as a valid option with the change that

for the signaling point pre we can not guarantee that

given rules are actually triggered by such an event be-

fore the triggering activity is executed.

The granularity indicates the granularity of an

event as it can represent a simple singular state change

or an aggregation of multiple initial events or state

changes, therefore having another granularity. From

the perspective of the Activity Service we support the

same granularities as they are deﬁned for ADBMS:

instance oriented where each single state change is

considered as a single event and set oriented where

multiple state changes are considered as one event.

The net effect indicates if the event triggering ac-

tivity had any actual effect and is strongly motivated

by transaction handling in database systems. As we

TowardsaSemanticDefinitionforaCloudbasedEventNotificationService

347

are currently not supporting transaction handling, our

model does not yet handle this parameter.

The life span deﬁnes how long an event is valid

for processing. We consider the same two values (im-

plicit, explicit) for the speciﬁcation of the life span.

The consumption policy describes the order how

events are processed. (Koschel, 1999) deﬁned four

policies. Chronicle, events should be processed by the

order of the event creation. Recent, the last received

event should be processed only. Continuous, the order

of receiving is the order of processing (FIFO). And

cumulative, events are processed as one whole group.

We consider the same values but have a special focus

on the details of ordered handling as it requires some

effort in a distributed system where events are prone

to arrive unordered. Therefore we expect some exten-

sion to the traditional ADBMS model.

The coupling mode is also one parameter for

transactional behaviors in database systems. It in-

dicates if the event happened within the transaction

(coupled) or not (decoupled). It deﬁnes also if an

event is thrown immediate or at the end of the trans-

action (deferred). In our current work we don’t cover

transaction handling explicitly and thus consider only

the deferred decoupled value.

The strategy deﬁnes how the rule execution is

triggered if multiple rules would be triggered by an

event. The ADBMS semantic deﬁnition considers the

following values: parallel, all matching rules are ﬁred

in an unpredictable order; arbitrary, one matching

rule is picked randomly; priority, the rules have pri-

orities and the rule with the highest priority is ﬁred;

static, a static order is given by an administrator; dy-

namic, the order is generated in runtime. In gen-

eral we aim to support all of the available parameters,

however with one important difference. As for a dis-

tributed event processing system it is usually the case

that multiple rule execution components exist and a

global ordering of the rule executions would be hard

to achieve. Thus we consider the given attributes per

processing component and not on a global scope. So

on a global scope we only support the parallel strategy

and allow a detailed speciﬁcation per component.

4.2 Semantic Parameter Annotation

The Activity Service deﬁnes capsules as the glue be-

tween a raw event sender and the Activity Service

components. Aside from their task to translate data

formats, the capsule is responsible for the annotation

of the generated events with the semantic parameters.

As the capsule is speciﬁc to an event producer, it has

the knowledge to assign the parameters. Thus the

event source speciﬁc knowledge is encapsulated and

the the Activity Service is based on the generalized

semantic deﬁnitions.

5 CONCLUSIONS AND

OUTLOOK

Current cloud services for event processing lack a

well deﬁned and vendor independent API and seman-

tics deﬁnition, which results in a high risk of a ven-

dor lock-in. With our Activity Service concept we

address these challenges by providing a generalized

event communication and processing service that can

bridge the gaps between multiple provider speciﬁc

proprietary services. It introduces a solid semantic

deﬁnition based on three categories: transport, event

and domain semantic parameters. The discussions

showed that the semantic of ADBMS can be used

as foundation for the event semantic parameters but

also showed the importance of the transport seman-

tic parameters due to the distribution in a cloud en-

vironment. The next step will thus be the deﬁnition

of these parameters. Our current implementation ef-

forts are for the moment mostly focused on overcom-

ing technological hurdles but based on our prototype

we will realize the aforementioned semantic param-

eters to provide working system that can be used to

evaluate the concepts for real world scenarios.

REFERENCES

Gatziu, S. and Koschel, A .et al.,1998 , Unbundling active

functionality. In ACM SIGMOD Rec., vol. 27, no. 1,

pp. 35–40.

Goyal, P. and Mikkilineni, R., 2009, Policy-based Event-

driven Services-oriented Architecture for Cloud Ser-

vices Operation and Management. In Proc. 2009 IEEE

Intl. Conf. on Cloud Computing.

Koschel, A. and Lockemann, P. C.,1998, Distributed events

in active database systems: Letting the genie out of

the bottle. In Data Knowl. Eng., vol. 25, no. 1-2.

Koschel, A., 1999, Ereignisgetriebene CORBA-Dienste für

heterogene, verteilte Informationssysteme. Disserta-

tion, Universität Karlsruhe, Germany.

Paton, N. W., editor, 1999, Active Rules for Databases.

Springer, New York.

Schaaf, M., Koschel, A., Gatziu, S., Astrova, I., 2010, An

Active DBMS Style Activity Service for Cloud Envi-

ronments. In Proc. of the 1st Intl. Conf. on Cloud

Computing, GRIDs, and Virtualization. Lisbon, Por-

tugal.

Schaaf M., Koschel, A., and Gatziu, S., 2011, Event pro-

cessing in the cloud environment with well deﬁned se-

mantics. In 1st Intl. Conf. on Cloud Computing and

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

348

Services Science, SciTePress, p. 176-179, Noordwijk-

erhout, Niederlande.

The ACT-NET Consortium, 1996, The Active Database

Management System Manifesto: A Rulebase of

ADBMS Features. In ACM SIGMOD Record,

25(3):414–471.

Widom, J. and Ceri, S., editors, 1996, Active Database

Systems: Triggers and Rules for Advanced Database

Processing. Morgan Kaufmann Publishers, San Fran-

cisco, USA.

Wishnie, G. and Saiedian, 2009, H., A Complex Event Rout-

ing Infrastructure for Distributed Systems. In Proc.

33rd Int. Conf. IEEE COMPSAC.

TowardsaSemanticDefinitionforaCloudbasedEventNotificationService

349
