Real Time Access to Multiple GPS Tracks

Karol Waga, Andrei Tabarcea, Radu Mariescu-Istodor and Pasi Fränti

Speech and Image Processing Unit, School of Computing, University of Eastern Finland, Joensuu, Finland

Keywords: Geographic Information Systems, GPS Tracks, Trajectory Storage and Visualization.

Abstract: Increasing availability of mobile devices with GPS receiver gives users the possibility to record and share a

variety of location-based data, including GPS tracks. We describe a complete real-time system for

acquisition, storage, querying, retrieval and visualization of GPS tracks. The main problems faced are how

to store the data, how to access and how to visualize large amount of data. We propose to reduce the

quantity of the data to be visualized, without affecting visualization quality. In order to achieve this, our

system uses a fast polygonal approximation algorithm for different map scales along with a bounding box

solution.

1 INTRODUCTION

Mobile devices with geo-positioning facilitate the

acquisition of location-based data. This allows

people to track their outdoor movements while

performing physical exercises or when traveling.

Companies can manage their geographical

information in real-time (Martín et al., 2008) and

track the movement of their own vehicles in order to

solve problems such as fleet management (Jakobs et

al., 2001) or traffic congestion (McCullough et al.,

2011). The collected tracks are usually uploaded to

an online system in order to be viewed, managed

and analyzed. However, accessing and visualizing

large amount of data is time consuming.

We present MOPSI Routes, a complete system

for storage, retrieval and visualization of GPS tracks

that overcomes the most common disadvantages of

similar systems. For example, existing real-time web

based systems, such as www.gmapgis.com and

www.gpsvisualizer.com, do not have the possibility

to plot large number of points and tracks on the map.

In such cases, displaying becomes slow and

visualizing overlapping tracks is difficult. Other

solutions, such as TopoFusion (Morris et al., 2004),

propose combining and intersecting GPS tracks in

order to create trails and minimize the data needed to

be displayed, although the goal, creating a GPS

network of trails, is different. Our solution is to

display all the recorded tracks in real time by

reducing the number of points that are plotted. This

is done by fast multi-resolution polygonal

approximation algorithm described in (Chen et al.,

2012), which achieves better approximation result

than the existing competitive methods. Furthermore,

we minimize the time needed for drawing by using a

bounding box solution for plotting only the points

that are visible to the user.

MOPSI Routes is available as a part of MOPSI

services (cs.uef.fi/mopsi) and addresses the issues of

storage, querying, retrieval and visualization of GPS

tracks, first described in (Waga et al., 2012b). Users

voluntarily upload their GPS tracks using our mobile

application, which is available for most modern

mobile operating systems (Android, Windows

Phone, iOS and Symbian).

Similar research projects include GeoLife

(Zheng et al., 2008), the system presented in

(Alahakone et al., 2009) and StarTrack

(Ananthanarayanan et al., 2009).

GeoLife (Zheng et al., 2008) is a project which

focuses on visualization, organization, fast retrieval

and understanding of GPS track logs. The main goal

of the project is understanding people lives based on

raw GPS data. The main contribution is visualizing

GPS data over digital maps by indexing the GPS

trajectories based on uploading behavior of users.

Similarly to MOPSI Routes, tracks are searched

using spatial range and time query.

The tool described in (Alahakone et al., 2009) is

used for manipulating, integrating and displaying

geographical referenced information. The main

purposes for the tool are path planning and

navigation of mobile objects. The tool can be used in

293

Waga K., Tabarcea A., Mariescu-Istodor R. and Fränti P..

Real Time Access to Multiple GPS Tracks.

DOI: 10.5220/0004370102930299

In Proceedings of the 9th International Conference on Web Information Systems and Technologies (WEBIST-2013), pages 293-299

ISBN: 978-989-8565-54-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

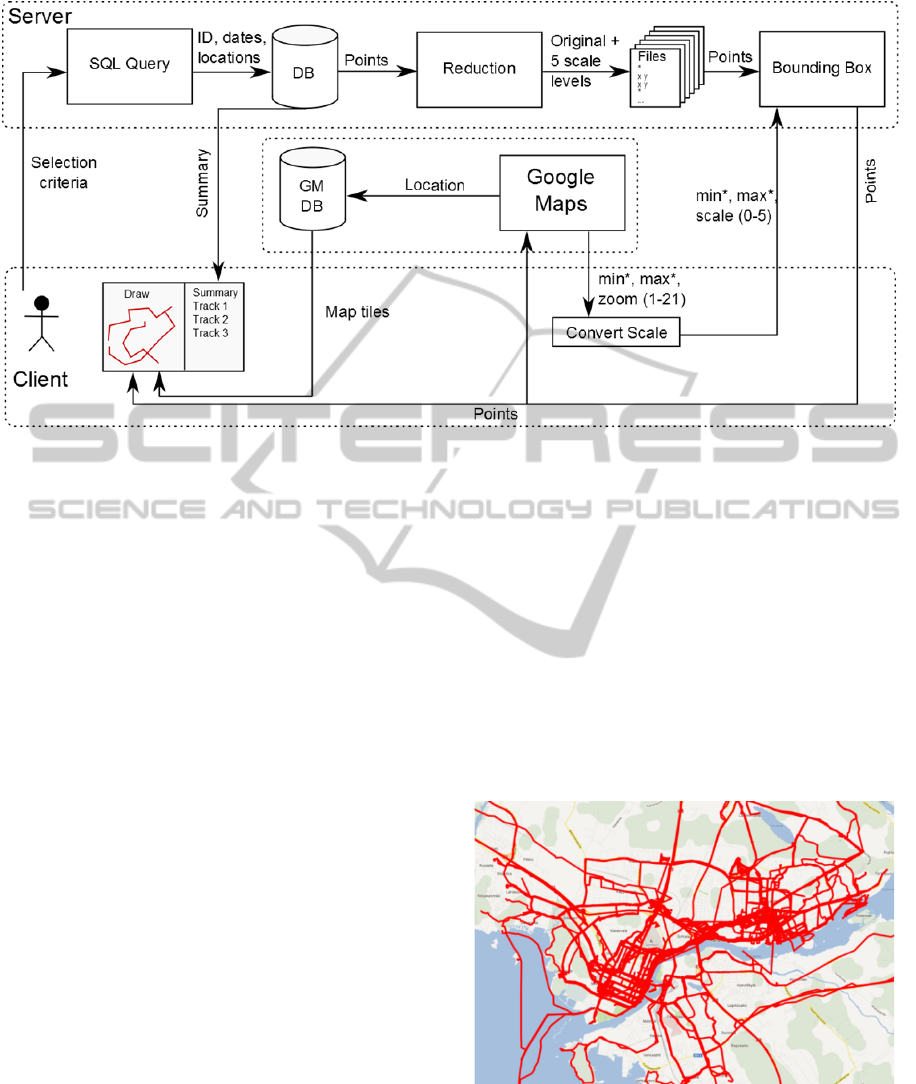

Figure 1: Typical Workflow of MOPSI Routes.

several applications such as: tracking, fleet

management, security management and industrial

robot navigation. Similarly to our system, a spatial

database is used for storing tracks and points and

Google Maps API to display the tracks. It presents a

general approach in handling GPS data and it can be

used in a variety of applications that use track

recording, navigation and track planning. It requires

that the user selects the points and defines the tracks,

whereas our application automatically detects and

segments the tracks.

StarTrack (Ananthanarayanan et al., 2009) and

its improved version (Haridasan et al., 2010)

describe tracks of coordinates as high-level

abstraction for various types of location-based

applications. The system supports recording,

comparison, clustering and querying tracks.

Experimental results show that the system is

efficient and scalable up to 10.000 tracks. The

improved version was extended to operate on

collections of tracks, delay query executions and

permit caching of query results. Other improvements

are canonicalization based on road networks, and

use of track trees for similarity.

2 SYSTEM DESCRIPTION

MOPSI Routes can be accessed at

cs.uef.fi/mopsi/routes. The typical workflow of the

system is presented in Fig. 1, whereas Fig. 2 shows

example of tracks collection from one user.

In the first step, user selects the tracks to be

displayed by several criteria such as time, location,

duration and length. Tracks that match the criteria

are retrieved from database and processed before

displaying to the user. During the processing phase,

the points belonging to the retrieved tracks undergo

approximation process that reduces the number of

points needed for the specific map scales. Points that

are outside the visible area of the map are omitted by

applying a bounding box. In the final step, the

remaining points are shown on the map and the user

can browse through them using map view (panning

and zooming) or using list view to see additional

information and statistics of each route.

Figure 2: Example of user tracks collection.

2.1 Data Acquisition and Storage

MOPSI allows collecting tracking data using

smartphones. The mobile application records the

user’s location and timestamp at a predefined

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

294

interval (usually 1-4 seconds). The data is saved to

database on server immediately if internet

connection is available, or buffered on the device if

internet connection is not available or the application

is in offline mode.

Tracks are first saved as individual points in the

database, and track objects are created and updated

real time when new points are received. Each track

object contains not only the points but includes

several basic statistics such as start and end time,

bounding box and number of points. Segmentation

and classification statistics are also stored. Analysis

and classification of GPS tracks is described in

details in (Waga et al., 2012a). Furthermore, each

track is stored in its original and in a simplified form

with reduced number of points. The approximated

tracks are computed for 5 different zoom levels in

order to speed up the visualization process. This

limits the number of points drawn on the map

without losing significant information about the

shape of the GPS track. The analyzed and the

approximated tracks are computed immediately

when the points are uploaded.

The tracks are created and updated real time and

tracking points are handled immediately after they

have been uploaded. This process requires

maintaining and updating track statistics and

information constantly when user is recording a new

track. To ensure this, there is a process running

constantly on server that checks periodically (every

1 minute) if any track needs to be updated. When

new tracking points are uploaded, they are either

used for creating a new track object or merged with

the existing points and inserted into list of the track’s

points in time order. The existing tracks are updated

in the case that new tracking points belonging to an

older track are received with significant delay

caused, for example, by poor internet connection.

2.2 Different Map Scales

The tracks recorded in our system carry far more

data than needed for visualization. Full data is

needed for analysis, and therefore, complete GPS

tracks must be stored. However, in the rendering

process for a web browser, reduced number of points

is sufficient to present the shape of track to user. We

apply here a multi-resolution polygonal

approximation algorithm described in (Chen et al.,

2012). The algorithm is fast and achieves good

quality approximation of the tracks. It is applied to

every track and returns approximation of a track in 5

different map scales. The algorithm time complexity

is O(N) (Chen et al., 2012) and the results are stored

to avoid running algorithm repeatedly when the

same track is displayed again.

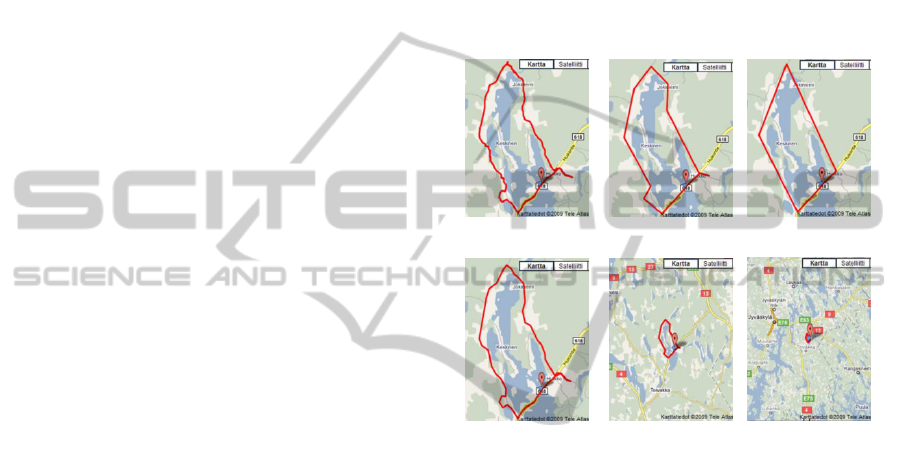

Figure 3 shows an example of the original and

approximated tracks. The original track contains 575

points and it is approximated in different map scales

with 44, 13, and 6 points respectively. Suitable

approximation error tolerance is selected for each

map scale, and the visualization quality is not

affected by the approximation, but rendering time is

reduced significantly.

Figure 3: Visualization of a sample track.

2.3 Bounding Box

The purpose of the bounding box is to draw on the

map only the points that are visible to user, see Fig.

4. Therefore, we select only points that user will see

using the current map scale and location (bounding

box of the map) at the moment of query. In addition,

we draw also points that are outside the bounding

box, but within immediate neighborhood (50%

extension of screen size). In this way, we allow fast

panning and zooming.

The bounding box is implemented as a function

that gets coordinate of north, east, south and west of

the map visible on the screen. Map scale is also

passed, so that points from the correct

approximation can be selected. The function is

applied to every track and for every point it checks if

the point lies inside the bounding box. Time

complexity of the bounding box is linear and it is

computed entirely on server.

Original track

of 575 points

Visualized for

scale 1

Approximate

d by 13 points

Approximate

d by 6 points

Visualized for

scale 2

Visualized for

scale 3

RealTimeAccesstoMultipleGPSTracks

295

Figure 4: How the bounding box works (from top to

bottom): what user sees on screen, what is drawn on map,

all tracks selected.

2.4 Displaying Tracks on Map

In MOPSI, we use Google Maps to visualize the

data (see Fig. 5). However, user can select different

type of maps that are displayed as overlay over

Google Maps. We support OpenStreetMaps and

detailed orienteering maps in Joensuu area where

most MOPSI users come from.

There are several search options available. The

main search criterion is time, thus only tracks in the

selected time period are shown. In addition, other

criteria can be applied. For example, tracks can be

filtered by minimum and maximum length and

duration. Moreover, it is possible to search for tracks

that start and end around a certain location.

Figure 5: Displaying tracks on the map.

3 RESULTS

We measure the time spent between sending request

to the system and presenting the result to the user.

The time elapsed from user’s query to the time of

displaying the tracks on the screen using our system

is compared with the same system that does not have

reduction.

In all measurements, we ignore the time needed

for data transfer. However, in weak internet access

this might become bottleneck, and therefore, we

design the system so that it minimizes data transfer.

That allows using the system on computers with

slower internet connection as well as on tablets that

usually have limited bandwidth.

Table 1: Collections used for our experiments.

User Tracks Points

Length

(km)

Duration

(h)

Pasi 784 1,216,039 8,535 669

Karol 650 1,015,939 9,655 442

Radu 429 613,684 4,604 188

We present measurements for 3 sample users from

Table 1. The original tracks consist of large number

of points. In MOPSI, there are users having over one

million points, which shows the need for reducing

the number of points being displayed as none of the

browser could handle such large number of points

(Chen et al., 2009). In Table 2, we show the number

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

296

of points from the original tracks within the selected

time period and the number of points from the

approximated tracks. The zoom level of the map is

selected in such manner that all the tracks are visible

on the map.

Figure 6 presents the time needed to display

tracks in a selected period for three test users. The

process is divided into three phases: querying

database, computing bounding box and drawing in

browser. Results show that the time needed for

showing all the tracks of the user with the biggest

collection is about 2.5 seconds.

Table 2: Number of points in original (left) and in the

approximated tracks (right) in the selected time period for

user Pasi.

Original Approximated

all 1,216,039 9,064

year 424,709 3,088

month 46,669 331

week 11,204 903

recent 3,328 141

Figure 7 shows average time percentages spent in

each of the three phases. Querying data takes most

of the time. Calculating bounding box is a fast

process that additionally speeds up drawing tracks

on map, so that it takes only 14% of time.

The approximation algorithm is necessary to

reduce the number of points displayed. Without it, it

is not possible to display all tracks because the web

browser would crash. The number of points

browsers can handle depends on available resources.

Displaying thousands of points significantly slows

down web browsers. Nevertheless, even if browser

can display all the points in tracks, the time needed

for the process increases.

Table 3: Size of files (in bytes) with original and

approximated tracks for user Karol.

Original Approximated

week 14.000 148

month 346.000 2280

year 4.056.000 69.000

all 11.595.000 129.000

Bigger number of points slows down the bounding

box algorithm and often leads to memory issues.

Moreover, approximation algorithm reduces files

sizes as shown in Table 3 and preserves bandwidth

used to retrieve data from server.

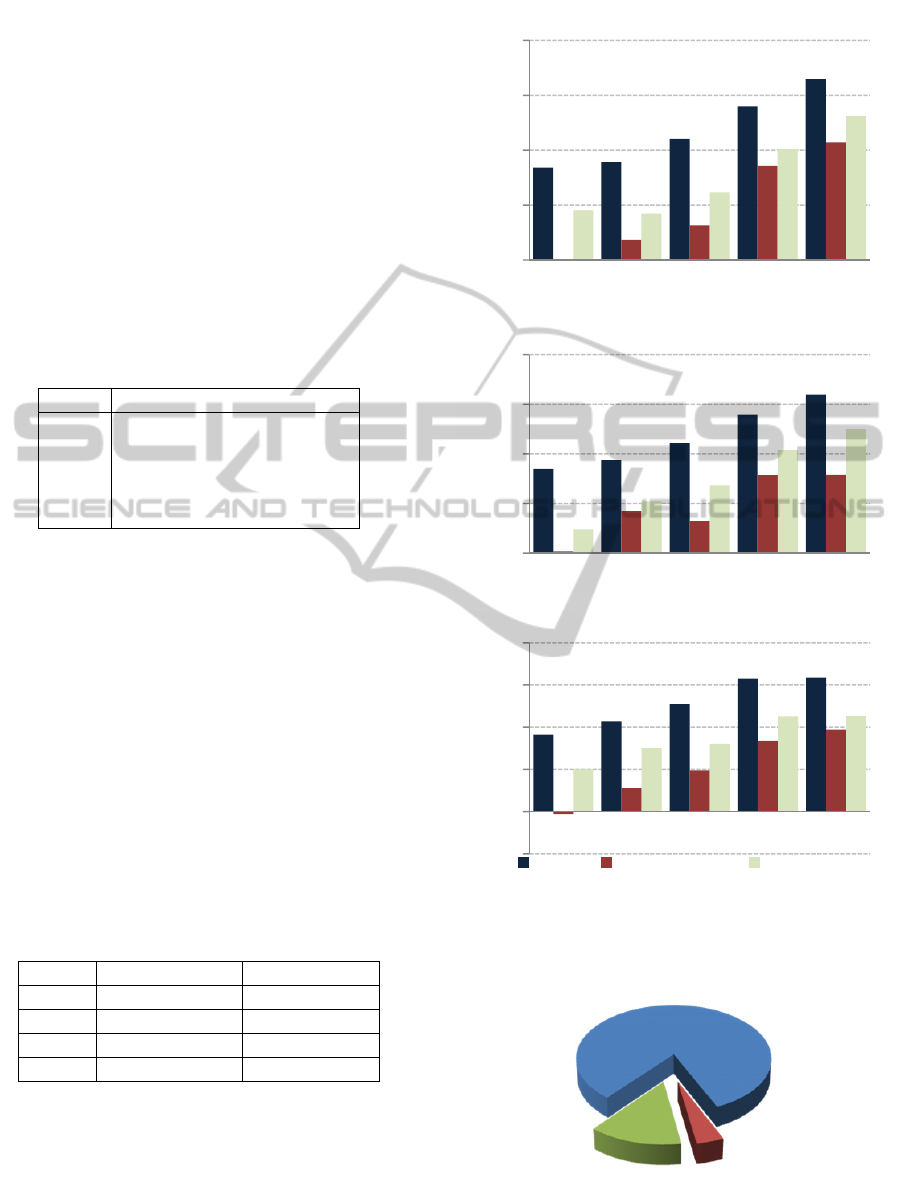

Figure 6: Display times of track collection for users Pasi,

Karol and Radu.

Figure 7: Average time percentage used for performing

each operation of the system.

181

788

2538

100

1000

10000

recent week month year all

time(ms)

Pasi

190

773

1921

100

1000

10000

recent week month year all

time(ms)

Karol

174

400

1633

1766

0,1

100

1000

10000

recent week month year all

time(ms)

query boundingbox browser

Radu

query

82%

bounding

browser

14%

RealTimeAccesstoMultipleGPSTracks

297

Experiments show that applying bounding box

decreases time needed to draw tracks on map. Fig. 8

shows a sample case from the experiments. In this

case the same set of tracks was requested at the same

zoom level, but the map was focused in two

different places, Finland and Poland. In Finland the

collection of tracks is big, whereas in Poland there

are only several tracks available. Because of

applying the bounding box solution, not all the

tracks have to be displayed and the time to show the

tracks when map shows fewer tracks (Poland area) is

significantly shorter. Figure 8 also shows how

reducing number of points affects the display time.

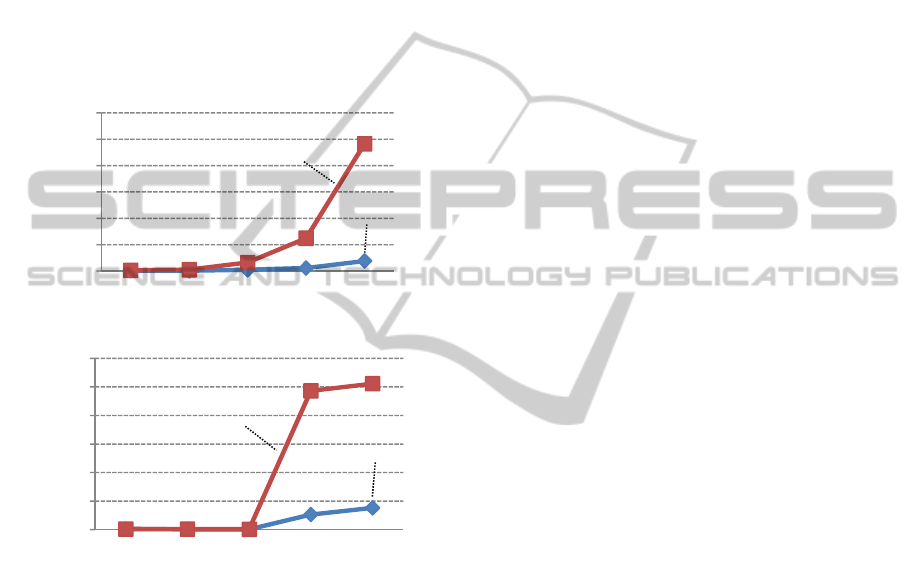

Figure 8: Example of querying the same track collection

the same zoom level and focused in Finland (large

collection, top) and Poland (small collection, bottom).

In comparison with the existing web based systems

for visualizing GPS tracks, our system can display

data consisting of significantly more points. For

example, a track with about 10.000 points is

displayed by our system in 1 second whereas GPS

visualizer (www.gpsvisualizer.com) and GMapGis

(www.gmapgis.com) need approximately 5 seconds.

Moreover, user interaction is not slowed down in our

system, when large number of points being is

displayed.

4 SUMMARY

We presented a complete real time system to

collect and visualize GPS tracks. Our motivation is

to offer a system that is capable of handling large

amount of GPS data so that user can access them in

real time. The results show that our system is

efficient even with large point collection. The most

important part is the algorithm reducing the number

of points to be displayed. Combined with a bounding

box solution, the requested tracks can be accessed

within about 2.5 seconds and the collection can be

panned and zoomed with insignificant delay. The

developed system can be used as a basis for more

advanced analysis of GPS tracks, such as similarity

and movement type detection.

Although, the system is efficient, there are still

ways to improve it. For instance, now we reduce the

number of points of one track only, but not when

multiple tracks are overlapped. Further improvement

could be achieved by clustering partial track

segments. Moreover, the query phase should be

optimized to minimize time needed to retrieve data.

REFERENCES

Alahakone, A. U., Ragavan, V. Geospatial Information

System for Tracking and Navigation of Mobile

Objects. ICAIM 09. Singapore, July, 2009.

Ananthanarayanan, G., Haridasan, M., Mohomed, I, Terry,

D., Chandramohan, A. T. StarTrack: a Framework for

Enabling Track-Based Application. ICMAS 09.

Kraków, Poland, June 2009.

Chen, M., Xu, M., Fränti, P. A Fast O(N) Multi-resolution

Polygonal Approximation Algorithm for GPS

Trajectory Simplification. IEEE Trans. on Image

Proc. 21(5). 2012.

Chen, Y., Jiang, K., Zheng, Y., Li, Ch., Yu, N. Trajectory

Simplification Method for Location-based Social

Networking Services. Int. Workshop on Location

Based Social Network. Seattle, USA, November 2009.

Haridasan, M., Mohomed, I., Terry, D., Chandramohan,

A. T., Li, Z. StarTrack Next Generation: A Scalable

Infrastructure for Track-Based Applications, 2010.

Jakobs, K., Pils, C., Wallbaum, M. Using the Internet in

Transport Logistics - The Example of a Track & Trace

System. Networking ICN, 194-203, 2001.

Martín S., Cristóbal E.S., Gil R., Díaz G., Oliva N., Castro

M., Peire J. Finding the Way: Services for a Multi-

View and Multi-Platform Geographic Information

System. WEBIST (2), pp.267-270, 2008.

McCullough, A., James, P., & Barr, S. (2011). A Service

Oriented Geoprocessing System for Real Time Road

Traffic Monitoring. Transactions in GIS, 15(5), 651-

665, 2011.

Morris, S., Morris, A., Barnard, K. Digital Trail Libraries.

ACM/IEEE-CS Joint Conf. on Digital Libraries, pp.

63-71, June, 2004.

Waga, K., Tabarcea, A., Chen, M., Fränti, P. Detecting

1000

2000

3000

4000

5000

6000

recent week month

ear all

time(ms)

Finland

100

150

200

250

300

recent week month year all

time(ms)

Poland

reduced

points

reduced

points

all

points

all

points

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

298

Movement Type by Route Segmentation and

Classification. CollaborateCom, Pittsburgh, USA,

October 2012.

Waga, K., Tabarcea, A., Mariescu-Istodor R., Fränti, P.

System for Real Time Storage, Retrieval and

Visualization of GPS Tracks. ICSTCC, Sinaia,

Romania, October 2012.

Zheng, Y., Wang, L., Zhang, R., Xie, X., Ma, W.-Y.

GeoLife: Managing and Understanding Your Past Life

over Maps. Int. Conf. on Mobile Data Mgmt., Beijing,

China, April 2008.

RealTimeAccesstoMultipleGPSTracks

299
