About an Extension of the Model-View-Controller Design Pattern for

Increasing the Flexibility of Web based Applications

Design and First Experiences

Markus Markard and Marc Jansen

Computer Science Institute, University of Applied Sciences Ruhr West, Tannenstr. 43, Bottrop, Germany

Keywords: Web based Applications, Model-View-Controller, Design Pattern.

Abstract: The development of web based applications gained enormous interests in recent years. Most of formerly

desktop based applications nowadays provide at least a web based version or are completely re-

implemented as web based applications. Nevertheless, from the development point of view, there are still a

lot of strategies for the development of web based applications borrowed from the development strategies

for desktop applications. Therefore, this paper concentrates on the description of an approach that allows to

re-use a from the development of desktop applications well-known Design Pattern with a distinct

enhancement for web based applications.

1 INTRODUCTION

In recent years, many applications that were

formerly developed as stand-alone applications,

moved towards a web based implementation. Still,

most of the development approaches like the Design

Patterns presented by Gamma, Helm and Johnson

(1994) or test strategies used in the area of the

development of web applications are borrowed from

the development of stand-alone desktop

applications. Here, this paper concentrates on the

description of an approach based on a well-known

Design Pattern, the Model-View-Controller (MVC)

pattern (Reenskaug, 1979), for the implementation

of desktop applications and shows how this pattern

can be extended in order to provide more flexibility

with respect to the development of web based

applications.

While there are already some modifications to

the MVC Design Pattern available, we believe that

the described approach still provides some more

flexibility.

Therefore, the remainder of this paper is

organized as follows: first, an overview about the

current state of the art in Design Patterns for flexible

user interface development for web based

applications is presented. Afterwards, we describe

the enhancement provided by our approach,

followed by some implementation aspects. After

this, first experiences from two industry projects are

described, in which our approach was already

successfully used. Last but not least, a discussion

about the presented approach, along with an outlook

to future work, is presented.

2 STATE OF ART

The major Design Pattern nowadays used for user

interface development is the MVC pattern. Although

there are already some refinements existing for web

applications based on the MVC, e.g., the Model-

View-Presenter pattern (Potel, 1996), still a lot of

web based applications are developed along the

MVC pattern.

One of the problems that usually occur while

developing web based applications with this pattern

is based on the usual partitioning of web

applications (Sridaran, Padmavathi, Iyakutti, 2009).

In web based applications, the view is usually

dislocated from the business logic since the view is

visualized on client side (in the web page of the

user) and the business logic, which usually is

referred to as part of the model, is deployed server

side. Therefore, communication between the model

and the view becomes difficult. Common solutions

to this problem are to keep a representation of both,

the view and the model either on server or on client

304

Markard M. and Jansen M..

About an Extension of the Model-View-Controller Design Pattern for Increasing the Flexibility of Web based Applications - Design and First Experiences.

DOI: 10.5220/0004370303040307

In Proceedings of the 9th International Conference on Web Information Systems and Technologies (WEBIST-2013), pages 304-307

ISBN: 978-989-8565-54-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

side. Here, a pattern that provides more flexibility

for the description of the view, can be beneficial in

order to minimize the requirements for the view and

to allow for a more flexible description of the

graphical representation of the data provided (and

calculated) in the model.

The next section describes the enhancement of

the MVC pattern that achieves the mentioned

flexibility.

3 ENHANCEMENT OF THE MVC

DESIGN PATTERN

The classical MVC pattern allows a distinction

between the model and the view of the application.

Here, the model represents either the data of the

application and the business logic that works on the

data of the application in order to calculate the

application results. Additionally, the controller is

needed in order to foster the communication

between the model and view.

While one of the major ideas for the

development of the MVC pattern was the idea of

providing different (visual) representations for the

same set of data, this is still an issue where some

improvements can be achieved with respect to web

based applications.

The major idea of the enhancement provided by

our approach is that we allow to further parameterize

the view. Therefore, we provide two possibilities for

controlling different parts of the view:

 Parameterization through an XML document

 Parameterization over get parameters passed

to the web application

In order to allow this kind of parameterization of

the view, we extended the standard MVC pattern by

a configurable view, as shown in Figure 1.

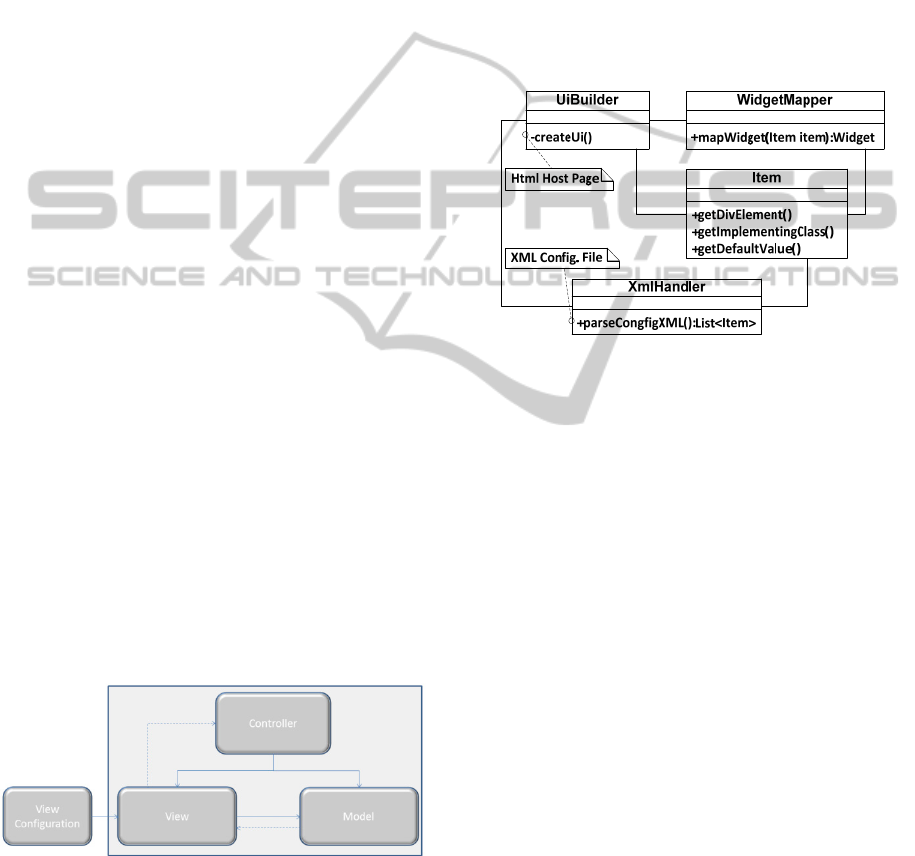

Figure 1: The extended Model-View-Controller pattern

with a View Configuration.

At the left part of Figure 1 the usual MVC

pattern can be seen. The extension is provided by the

external configuration of the View, as explained

above either via a XML document or passed as

parameters to the web application. The next section

describes some implementation details together with

an example of a XML configuration file.

4 IMPLEMENTATION

Our approach described in the previous Section was

tested in a first prototypical implementation using

the Google Web Toolkit. In this Section we present

the major parts of the prototype’s architecture as

shown in Figure 2 and the prototype’s potential to

parameterize the view.

Figure 2: The Prototype’s Architecture.

As can be seen in the lower area of Figure 2, the

server side located XML handler is responsible for

the parsing and deserialization of the XML

configuration file. To clarify the XML handler’s

purpose it is appropriate to previously introduce the

structure of the XML configuration file, as shown in

the following sample listing. For improved

readability of the listing, the attribute’s values are

only presented as single characters or a single word.

…

</item>

…

</configuration>

The root element of the XML configuration file

envelops only one type of child element called item.

In our listing the first item element is the rule, it has

three attributes, namely div, class and value. The

div-attribute contains the identifier of a specific div

element in the HTML host page. The class attribute

holds the full class name of the widget UI

component to be positioned in a specific div

AboutanExtensionoftheModel-View-ControllerDesignPatternforIncreasingtheFlexibilityofWebbasedApplications

-DesignandFirstExperiences

305

element. The last attribute named value represents a

default value of the component, e.g., an inscription

in case of a button or a default input value in case of

a textbox. The second item constitutes a special case

by extending the definition of the first item. It also

just has one div and one class attribute but can have

any number of entry child elements. Since every

entry element has a value attribute it is possibly to

set multiple default values to list-boxes or other UI

components supporting multiple values.

After this brief introduction to the XML

configuration file the purpose of the XML handler is

summarized quickly. The XML handler parses all

item elements in the configuration file and creates an

Item object with corresponding initial values for

each one. All new created Item objects are directly

added to a list. In the middle area of Figure 2 the

Item class is shown.

As the name suggests, the widget mapper class,

shown in the upper area of Figure 2, delivers a new

widget instance for each item in the item list. At

runtime, the instance of the widget mapper,

instantiates new UI components according to the

item’s class attribute.

Populating the host page with UI components is

the task of the UiBuilder class utilizing the

WidgetMapper and the item list constructed by the

XMLHandler. The UiBuilder, shown in the upper

area of Figure 2, iterates through the list of items and

the WidgetMapper returns a UI component

corresponding to the certain class attribute of each

item in the list. After identifying the according div

element in the host page the returned UI component

is added to the particular div element. Of course the

UI Builder does not only append UI components to

the host page but also handles the adding of listeners

and DOM identifiers to these components. Adding

DOM identifiers to UI components placed on the

host page gives us the opportunity to set individual

styles for every single component. The listing below

shows an example for an individual CSS that is

applied to an UI component with the DOM identifier

button_id.

#button_id {

height:20px;

padding-top:0px;

padding-bottom:3px;

font-size:10pt;

}

Positioning and appearance of the UI

components can be defined over the positions of the

according div elements in the HTML host page.

Their visual representation can be controlled by

using Cascading Style Sheets. Every widget used in

the UI has its own div element, identified by the id

of the item’s div attribute. The div elements

containing the widgets can be grouped and arranged

by using HTML and CSS, so it is possible to

rearrange the UI without altering the actual Java

source responsible for the widgets and their

functions.

Controlling the selection of classes defined in the

configuration file is an even wider reaching tool to

influence the UI. By combining CSS manipulation

and the control over selected classes it is even

possible to have completely different UIs, e.g. a

desktop UI and a mobile UI without the need to alter

the actual sourcecode.

So the UI created in our Prototype can be

modified in three different ways without touching

the sourcecode of the actual application. The first

and simplest way is to modify the default attributes

of the item elements in the configuration file. Doing

so enables quick changes to label texts or default

values of input widgets.

The second way allows the modification of the

styles associated to the div elements containing the

widgets. These styles should be used to define the

position of an UI component, so the possibility to

modify these styles allows us to gain control over

the whole layout without using a source based layout

offered by frameworks like the Google Web Toolkit

that we used for our prototype. At this point we also

have to mention a problem that has been occurred

during implementation of the prototype. While

making extensive use of CSS manipulations cross

browser CSS issues cannot be avoided.

Last but not least, the individual look of every

widget can be influenced by the modification of the

styles associated to the DOM identifier of a

particular widget.

5 FIRST EXPERIENCES

The developed approach was already used in two

independent projects with two independent

companies.

The first company is located in the business of

hotel room management and provides a framework

that allows to easily develop booking engines for

hotel rooms based on a rich database of hotels

available all over Germany. Whereas the second

company is working in the area of management

consulting, especially for IT companies.

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

306

5.1 Advantages of the Presented

Approach for a Hotel Room

Management Software

Since the company in the area of the hotel

management software provides a framework that has

to be very flexible with respect of the graphical

representation of the different components, in order

for being able to easily integrate the framework into

an already existing webpage of a customer, the

presented approach was suited for this integration.

The presented approach allowed to easily

integrate standard widgets, already used by the rest

of the webpage, into the framework, so that the look

and feel of the booking engine, in comparison to the

rest of the webpage, could be integrated smoothly.

Furthermore, our approach allowed to highly

customize the framework without even touching the

sourcecode of the framework. Just as one example,

we will present one of the customizations that was

achieved without touching the sourcecode of the

framework itself. Imagine you are the organizer of a

local event in your home town. If you want to

integrate a hotel room booking functionality within

the homepage promoting your event, some of the

fields usually available for a hotel room booking

engine are obsolete, e.g., the dates of arrival and

departure, the zip code of the town where the visitor

of your webpage is looking for a hotel, … just

because all these parameters are already predefined

by the event that you organize.

By using our approach, we were able to

customize these type of fields either with the help of

the XML configuration file and/or by defining the

appropriate values as parameters to the webpages.

Therefore, the presented approach was perfectly

suited for this kind of integration of an external

framework into an already existing webpages.

5.2 Advantages of the Presented

Approach for an IT Management

Consulting Company

The second example where we used the presented

approach was together with a management

consulting company that usually works for large IT

companies. Parts of their customers are located in

the German public sector. Therefore, our partner

also supports their customers in their complex

bidding procedures, that are very much regulated by

complex German and European laws.

Here, we developed a Web 2.0 based simulation

for planning the bidding procedures. One of the

requests from our partner was that we should

provide two different versions of the simulation, one

for internal use (available only via the intranet of the

company) and one as sort of an advertisement for

their publicly available webpage. The major

difference between these two solutions is the degree

and amount of parameters that can be set by the user

of the simulation.

Again, the presented approach allowed to easily

customize the version that was primarily developed

for internal use (with a very rich set of different

parameters available to the user of the simulation) in

order to restrict the functionality of the publicly

available simulation by strapping down and pre-

configuring certain parameters of the simulation.

6 DISCUSSION AND OUTLOOK

As the examples discussed in the previous section

show, the presented approach provides advantages

for modern web based applications on different

levels. Of course, since there is nothing like a free

lunch, these advantages of flexibility come with

some drawback, especially with respect to the

increasing complexity that the presented pattern

adds to the usual Model-View-Controller pattern.

Nevertheless, since the additional complexity is

on the one hand not too huge (in comparison to the

gained advantages) and can on the other hand easily

be tackled by an experienced programmer, we guess

that programmers will usually be willing to use the

presented approach.

Furthermore, future research will be necessary in

order to decrease the added complexity, so that the

usage of the presented extension of the Model-View-

Controller design pattern will still get easier and

therefore will most likely attract more developers.

REFERENCES

Gamma, E., Helm, R., Johnson, R. E. (1994). Elements of

Reusable Object-Oriented Software (1st ed.).

Amsterdam: Addison-Wesley

Reenskaug, T. (1979). MVC: XEROX PARC 1978-79.

Xerox

Potel, M. (1996). MVP: Model-View-Presenter: The

Taligent Programming Model for C++ and Java.

Taligent

Sridaran, R., Padmavathi, G., Iyakutti, K. (2009). A

Survey of Design Pattern Based Web Applications.

Journal of Object Technology, Vol. 8, No. 2, 2009

AboutanExtensionoftheModel-View-ControllerDesignPatternforIncreasingtheFlexibilityofWebbasedApplications

-DesignandFirstExperiences

307
