Development of Adaptive Multi-cloud Applications

A Model-Driven Approach

Javier Miranda

, Joaquín Guillén

, Juan Manuel Murillo

and Carlos Canal

Department of Information Technology and Telematic Systems Engineering, University of Extremadura, Badajoz, Spain

GloIn, Calle de las Ocas 2, Cáceres, Spain

Department of Computer Science, University of Malaga, Málaga, Spain

Keywords: Service, Component, Cloud, Adaptation, MDE, Interoperability, Vendor Lock-in.

Abstract: Cloud computing is a new paradigm that allows users to access computing resources in a dynamic, flexible

and scalable manner. It has drawn the interest of multiple users, and in a short period of time it has

experienced a notorious hype. However, its numerous strengths are mitigated by the lack of standardization

which the technology suffers from. Different cloud vendors provide and manage similar resources in a

different manner, thereby coupling the application to its targeted cloud. Companies that consume cloud

services are locked-in to a single cloud vendor due to the high costs of migrating software in the cloud,

preventing them from changing their cloud provider or having multiple providers. In this paper we explore a

solution to the cloud vendor lock-in problem based on the use of model-driven engineering and software

adaptation techniques. The proposed solution is both cloud vendor and user friendly as it allows the former

to freely define their own cloud policies, whilst users continue to be free to choose a cloud provider, even

after the application has been developed.

1 INTRODUCTION

Cloud computing is a new paradigm that allows

users to access computing resources in a dynamic,

flexible and scalable manner. The underlying

technology and its business model have drawn the

interest of multiple users, and in a short period of

time it has experienced a notorious hype (Leavitt,

2009). However, its numerous strengths are

mitigated by the lack of standardization which the

technology suffers from (Armbrust et al., 2010).

Cloud vendors provide and manage similar

resources in a different manner, thereby coupling the

application to its targeted cloud. This is known as

the vendor lock-in problem (Petcu et al., 2012), and

has immediate consequences on companies that

consume cloud services. Considering a catalogue of

cloud users composed on one end by companies that

deploy complex services and architectures which

they want to keep under a strict control, and on the

other end by companies that deploy smaller public

services where availability and performance is a

critical factor due to the high number of users,

different standardization interests may be identified

for each. The former will rarely fully deploy their

applications in a public cloud, and will be mainly

interested in standardization for enabling the

interoperability between their private and public

cloud infrastructures. The latter would look into

standardization seeking to freely scale and also

migrate their services from one cloud provider to

another and/or to distribute them among several

clouds at a time.

In this scenario different initiatives, such as OVF

(Open Virtualization Format), OCCI (Open Cloud

Computing Interface), OGF (OpenGrid Forum), or

OASIS TOSCA (Topology and Orchestration

Specification for Cloud Applications), are emerging

in order to solve the problems derived from the

aforementioned shortcomings, taking a first step

towards defining standards that would homogenize

the existent cloud services at different levels

(Rochwerger et al., 2009). However, these proposals

are currently at a very early stage; no generalized

consensus has been reached and neither of them

have been adopted massively (Celesti et al., 2010).

Application interoperability and migratability

between cloud providers was never a concern when

the technology was conceived. In fact, cloud vendors

have their own implementation and specification of

321

Miranda J., Guillén J., Murillo J. and Canal C..

Development of Adaptive Multi-cloud Applications - A Model-Driven Approach.

DOI: 10.5220/0004370603210330

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODA-2013), pages 321-330

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

the services that they provide, locking users into

their solutions and preventing the portability of

cloud applications to other providers. This situation

threatens the success of Cloud Computing as a

universal service, where users can switch between

providers as they need (Loutas et al., 2011). The

current lack of support for these standardization

attempts by the existent vendors suggests that an

agreement is not going to be reached, at least in the

short term. Even if it is so, more immediate

alternatives could take place before an agreement on

the use of standards is reached. Furthermore, the

possible consolidation of more than one of these

proposals would provoke interoperability problems

between vendors adopting different standards.

Alternatives to standardization are mostly based

on the use of middleware layers (see for instance,

(Di Martino et al., 2010); (Tsai et al., 2010);

(Maximilien et al., 2009) which isolate the

application from vendor specific services. However,

middleware solutions are often quite complex and

heavyweight. Considering that they have to be

deployed in conjunction with the application, they

will clearly penalize the performance of the software

components attached to them. Further yet, the source

code of middleware-dependent components will be

tightly coupled to the specification of the

middleware, thereby moving the lock-in effect from

vendors to middleware.

Instead, our approach is based on the integration

of Model-Driven Engineering (MDE) and Software

Adaptation (SA) techniques. Developers are

requested to tag the components indicating which

cloud they will be deployed in; MDE techniques are

then applied to generate a XML based cloud

deployment plan. The source code and the XML

deployment plan are processed to generate cloud

compliant artefacts in order to access the underlying

cloud services. Then, on-the-fly migration of cloud

components, allow service developers to easily

change the underlying cloud depending on vendor

offers, or their own market and evolving business

perspectives at any given time. Migration can be

achieved by means of SA techniques, generating the

adapters required for allowing a component to move

to a cloud it was not originally conceived for. The

most outstanding benefit of using adapters in cloud

environments is the ability to automatically generate

loosely coupled applications with a reduced impact

on their deployment, and at the same time favouring

cloud interoperability.

This paper presents ongoing work in our

proposal, which was originally presented in (Guillén

et al., Oct. 2012). There, the concept of using a

software development framework for building cloud

applications was introduced. The framework allows

developers to separate all possible dependencies

between the software being developed and the cloud

from the source code through the generation of

software adapters.

In (Guillén et al., Oct. 2012), adaptation was

briefly presented as the candidate technique to be

used in the framework in order to keep the

application source as cloud-agnostic as possible. In a

subsequent work (Guillén et al., Sept. 2012), we

analyzed in more depth every situation in which

mismatch could be produced, and how SA

techniques would of help in solving these situations.

We expect that this combined MDE/SA approach

provides several advantages in comparison with

existing alternatives, mainly because it consists on a

lightweight solution which effectively deals with

cloud interoperability and migratability issues.

The remainder of this paper is organized as

follows. Section 2 presents the motivation of our

work, describing an scenario of migratable multi-

cloud application development. Section 3, presents

our approach for developing and deploying cloud

agnostic software. Then, Section 4 identifies the

scenarios in which the use of adapters is required,

and describes our adaptation approach, pointing out

the main notation of interest and applicable

techniques to achieve adaptation at any interaction

level. Next, Section 5 contains a description of the

related work. Finally, Section 6 presents our

conclusions and future lines of work.

2 MIGRATABLE MULTI-CLOUD

DEVELOPMENT

In the recent years, cloud computing has become

overwhelmingly popular. It provides a virtually

unlimited amount of computational infrastructure to

its users at an accessible cost, as no technology has

ever done before. Its popularity has also grown due

to the possibilities that it provides for outsourcing

maintenance tasks, allowing organizations to

concentrate on their core competencies.

The great potential of this technology and its

growing acceptance have resulted in the appearance

of multiple cloud vendors which provide similar

services. The variability found at different levels of

these services has resulted in the vendor lock-in

effect. However, the ultimate goal of cloud

computing is being able to build and deployed

Service-Based Applications (SBAs) by combining

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

322

conveniently the adequate resources available in the

cloud, even though they are supplied by different

third-party providers. For that purpose, there is a

need of techniques and tools addressing a wide

range of interaction mismatch issues, caused by the

heterogeneous origin of the services one may be

interested in composing. Only the flexibility of

cloud computing provides the fabric through which

SBAs can be constructed and deployed (Nguyen et

al., 2011).

Indeed, interoperability and migratability

between cloud providers was never a concern when

the technology was conceived. As we have shown,

cloud vendors have their own implementation and

specification of the services they provide, locking

their users into specific solutions and preventing the

portability of the applications. Current cloud

services are provided as a one-size-fits-all solution,

usually with preconfigured and monolithic

IaaS/PaaS/SaaS combinations. This situation

threatens the success of cloud computing as a

universal service where users can switch between

providers as they need (Loutas et al., 2011. The

choice of a given cloud provider may prevent the use

of certain data formats demanded by users due to

incompatibilities with the underlying infrastructure

and platform.

These problem become even bigger when facing

the development of multi-cloud SBAs, trying to

combine the functionality of services hosted in

different clouds. Then, the inconsistency of cloud

resource descriptions and the use of proprietary

technologies by cloud vendors are the main barriers

that must be confronted for communicating services

deployed on clouds by different providers.

For all these reasons, cloud application

migratability and interoperability are currently hot

issues that are being strongly questioned (Armbrust

et al., 2010), due to the inability to migrate software

which has been coupled to a specific cloud, to a

different environment. Additionally, little or no

effort has been made on behalf of cloud vendors to

favour interoperability with services and

applications hosted by different clouds.

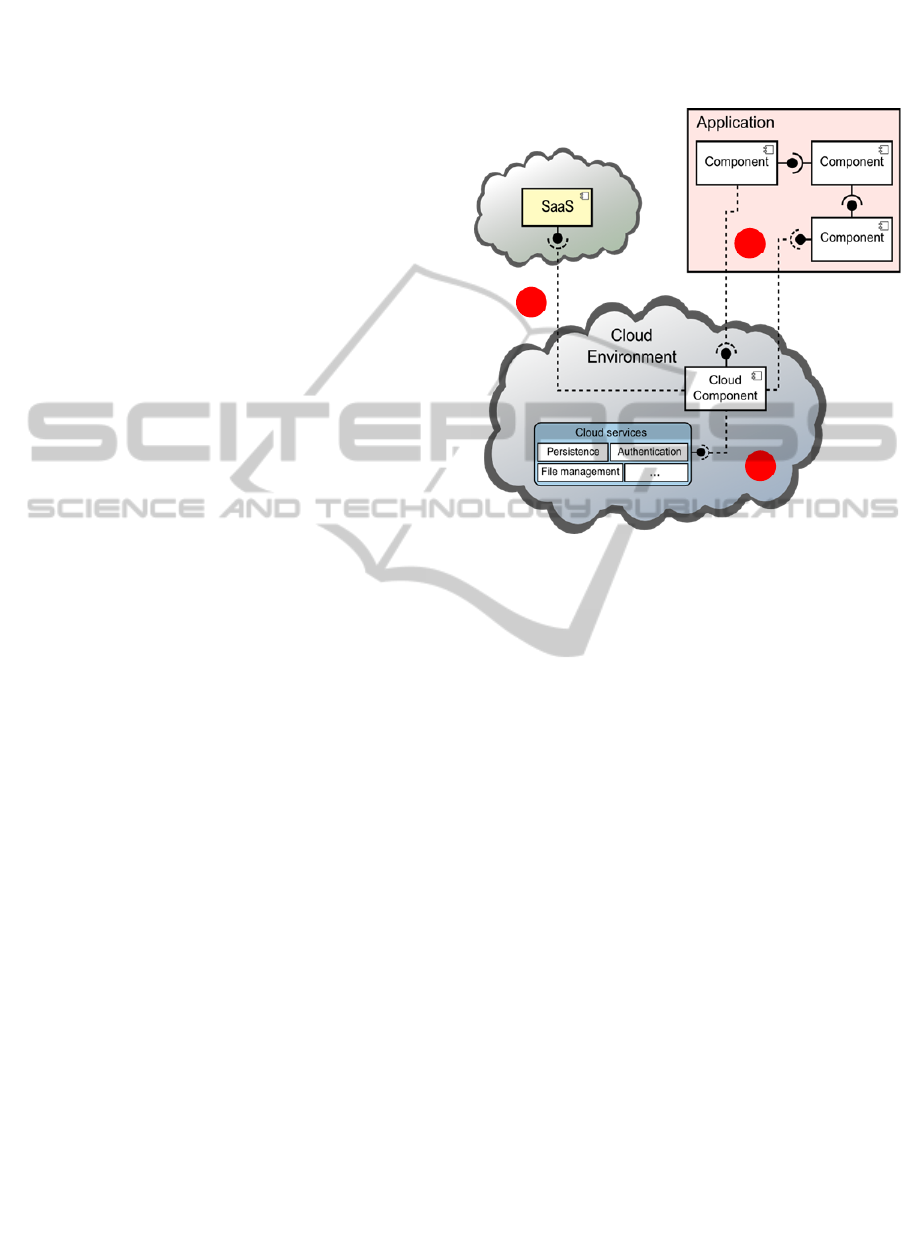

In order to illustrate the current scenario, let us

consider a generic application (see Figure 1),

designed as the composition of several service-based

components, partly hosted in-house and partly in the

cloud, as the Cloud Component in the figure.

Suppose also that Cloud Component behaves as a

service consumer for a SaaS application deployed in

a maybe different cloud environment. This scenario

is a variation of the one we previously presented in

(Guillén et al., Sept. 2012), which is retaken and

summarized here for motivating our proposal.

The dotted lines in Figure 1 represent the

different dependencies between Cloud Component

and the rest of the system:

Figure 1: Current scenario for SBA deployment in the

cloud.

1. Cloud Component communicates with the

remaining components in the SBA application.

In order to allow service provision and

consumption to and from the cloud, this

communication has to be compliant with the

specifications of the cloud provider in which

the component is hosted.

2. Cloud Component presents also dependency to

services (e.g., persistence or authentication)

supplied by the cloud it is hosted in. These

services present specific interfaces and features,

which are defined by the cloud provider.

3. Cloud Component consumes external services,

that may be hosted in one or several different

clouds. In order for this to be done, the

communication must align with the constraint

imposed by the external cloud and service

providers.

Consider now that we decided to migrate Cloud

Component to a different cloud. The reasons for that

change could be multiple; on the one hand, in the

immature market of cloud computing, providers are

likely to change their hosting or changing policies,

or they may simply disappear. On the other hand, a

new cloud vendor may become more interesting for

hosting our component, for instance ensuring a SLA

which fits better the application's QoS requirements.

DevelopmentofAdaptiveMulti-cloudApplications-AModel-DrivenApproach

323

Under these circumstances, migrating Cloud

Component will necessarily affect the

aforementioned dependencies, that would need to be

reworked in order to make the component compliant

with the constraints of the new cloud environment.

However, little effort is currently being put into

generating tools, techniques, procedures and

standard data formats with enough potential to solve

these issues, and probably we will decide to keep

Cloud Component hosted in its original cloud, or

either redevelop it from scratch, considering its new

target cloud.

To sum up, the current scenario regarding SBA

development for the cloud has the following

implications:

 Communication between components and

services is strictly conditioned by the

technology supported by each cloud and service

provider.

 The invocation mechanisms and technologies

supported by each cloud provider must be taken

into account for invoking external components

and services provided by third-parties.

 The use of vendor-specific technologies and

services provoke migration and portability

problems that have to be taken into account

during the design stage.

Hence, multi-cloud SBA interoperability and cloud

migratability require a number of conditions to be

fulfilled:

 The modelling and development of the different

artefacts that compose a cloud application and

their requirements should be done in a vendor-

independent and cloud-agnostic manner. This

way, the application constituent components are

not constrained by the technical requirements of

any cloud or service provider. Only later in the

development process it will be evaluated

whether the application requirements for each

component are supported by a specific cloud

provider, or if this is not the case, adapters can

be generated to solve the existing mismatch.

 The assignment of an application component to

a given cloud, or to in-house hosting is a

decision that may be reverted at any time in the

lifecycle of an SBA. Hence, its design and

implementation must require no additional

effort depending on which cloud platform it is

finally hosted.

 A multi-cloud SBA must be able to integrate

external services, developed by third parties and

hosted in different clouds. Interface information

on the requirements and behaviour of these

services will be used to link the SBA with these

services adequately.

According to the conditions above, the development

process for cloud SBAs should be quite similar to

the one carried out for in-house service-based

applications. Software developers should be able to

describe all of the components involved in their

applications through the use of the same set of

techniques and methodologies. Additionally, they

may choose to tag the components with information

about the specific cloud where they will be

deployed. This information will be interpreted

during the development process in order to

determine which components need to be adapted as

well as the type of adaptation that they require.

The following sections describe ongoing work on

our proposal for building multi-cloud SBAs in which

components could easily migrate from one cloud to

another one, even at runtime.

3 DEVELOPING CLOUD-

AGNOSTIC APPLICATIONS

Cloud SBA interoperability arouses a series of

concerns that can be successfully solved combining

MDE and SA techniques. The variability between

the API and service specifications of each cloud

provider can be analyzed and defined, resulting on a

feature model describing cloud platform variability.

Then, cloud applications, as well as the requirements

of the different components that make up the

developed application, can be modelled in a cloud-

agnostic way, and MDE techniques are used to

generate components tailored to the particular

features of a given cloud. Finally, component-to-

cloud adapters would be generated for solving

interoperability problems, and for allowing

component migration between different clouds, even

at runtime.

This section presents our approach based on

MDE and SA techniques for developing SBAs that

can be migrated freely from one cloud to another,

hence overcoming the vendor lock-in effect. The

development process is divided into three phases: (i)

application modelling, (ii) coding and deployment

configuration, and (iii) cloud artefact and adapter

generation. Each phase will be detailed in the

following subsections.

3.1 Application Modelling

During this phase developers will model a cloud

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

324

application for which the source code and a cloud

deployment plan will be generated through model-

to-text transformations. For that, a cloud application

metamodel has been defined. The metamodel is

based on a UML profile, which ensures that users

would not need to change their engineering process,

and that standard UML tools can be used along with

our proposal. Based on this profile, cloud

applications will be modelled as groups of

components, further referenced as cloud artefacts,

taking into account the following considerations:

 Each cloud artefact must be considered as an

atomic software entity that must be deployed in

a single cloud platform.

 Components that belong to the same cloud

artefact will communicate with one another

locally; i.e. no mediation will be required to

allow communication between these

components.

 Components that belong to different cloud

artefacts will communicate with one another

remotely; i.e. mediation will be required to

allow communication between these

components.

 Components may consume external services

provided by other applications.

Our cloud application metamodel is shown in Figure

2, and it defines cloud applications as built by the

composition of cloud elements or artefacts hosted in

one or more clouds. Cloud artefacts are tagged with

the stereotype CloudElement, and several elements

can be assigned to a specific cloud (stereotype

CloudAssignment). Assignments are associated with

the QoSParameter stereotype, which allows QoS

properties to be defined for the assignment. Finally,

the CloudInterface stereotype describes the

interfaces used by cloud artefacts to interact with

each other and with the services provided by the

cloud they are hosted in, and indicates if these

interfaces are provided by the artefact, or required to

the cloud provider. In the latter, the artefact cannot

be deployed in the cloud it is assigned to unless it

offers the services required by the artefact or an

adapter is generated to solve the existing mismatch.

That will be explained in the following subsections.

A model-to-text transformation will be then

applied on the models created during this stage in

order to generate class skeletons for establishing the

basic structure of the application. These skeletons

are cloud agnostic; i.e. all cloud related information

will be generated separately in a XML formatted

cloud deployment plan. Round-trip engineering

techniques will be used to synchronize the

application model with the actual code added to the

skeletons during the following development process,

avoiding inconsistence between these two levels.

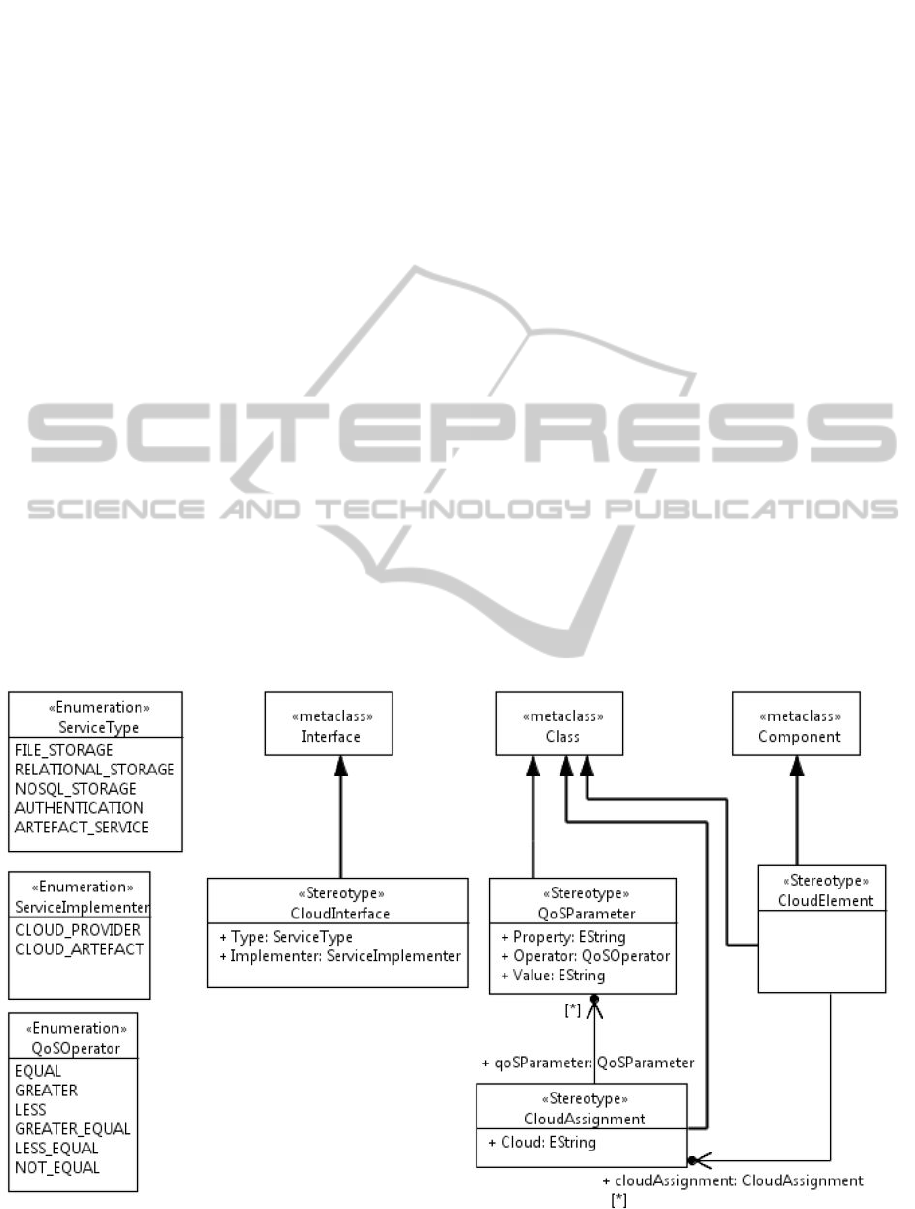

Figure 2: UML profile for cloud application modelling.

DevelopmentofAdaptiveMulti-cloudApplications-AModel-DrivenApproach

325

3.2 Coding and Deployment

Configuration

During this phase developers will code the

application’s functionality starting from the skeleton

classes generated in the previous phase.

Additionally, tools will be integrated in the

development environment in order to allow them to

configure the cloud deployment plan.

This configuration will imply the assignment of

each artefact to a specific cloud platform based on a

catalogue of supported platforms. Hence, cloud

specific information regarding the following points

will automatically be included in the deployment

plan per cloud artefact:

 Services provided and consumed by the cloud

artefact for interoperability with other

components that will be deployed in different

clouds

 Vendor specific core services consumed by the

cloud artefact.

The technological restrictions of each cloud platform

regarding these issues will also be automatically

generated and included in the deployment plan in

order to generate cloud compliant software

components during this phase. This is possible

because the approach encloses a feature model (an

engineering paradigm frequently used in the scope

of Software Product Lines) that documents the

variability of each cloud platform. This feature

model provides a knowledge base containing all the

specific features of each cloud platform; it

documents the supported service protocols, the

required configuration parameters, the cloud specific

services that are provided, etc.

Notice that we have chosen to include this

intermediate step instead of directly generating the

cloud compliant source code in order to make it

easier for developers to code the application’s

functionality. Directly generating the source ode

used for component-to-component or component-to-

cloud interoperability would hinder the development

process by forcing developers to integrate their

source code into complex generated code.

Furthermore, it would also be detrimental for round-

trip engineering and application’s maintainability.

3.3 Cloud Artefact and Adapter

Generation

The source code and the deployment plan generated

in the previous phase will be processed during this

stage to produce cloud compliant artefacts.

Considering that each cloud platform may impose a

different structure to its software projects, the cloud

artefacts generated in this phase will be enclosed in

predefined source code projects that also contain a

series of software adapters.

As a part of this phase, we propose the use of

Software Adaptation techniques in order to allow a

flexible solution for overcoming variability and

interoperability issues in clouds. SA techniques are

aimed at developing mediator elements, called

adapters, which are automatically built from their

correspondent specifications and granting

interoperability between mismatching software

elements.

Adaptation will be performed at any of the

different levels of interoperability (Becker et al.,

2004), depending on the needs of each cloud

artefact. The following section discusses in more

detail the different sources of mismatch we have

found in migratable multicloud SBAs. The detection

of mismatch, and the automatic generation of the

required adapters will help to achieve

interoperability between cloud artefacts deployed

through heterogeneous cloud providers.

4 ADAPTATION IN THE CLOUD

Software Adaptation is a field within Software

Engineering which aims at providing the

abstractions and non-intrusive techniques for

composing mismatching black-box components by

automatically generating adapters able to reconcile

interoperability problems among them. We may

distinguish different levels of interoperability at

which mismatch may occur (Canal et al., 2006), and

different adaptation techniques are applied to each of

these levels:

 Signature level. Deals with the static aspects of

interface interoperability, including operation

names, type of arguments and return values,

and exception types.

 Behavioural level. Describes the interactive

behaviour that an artefact follows and expects

from its environment, (i.e., the order in which

the operations available on an interface should

be invoked). Behavioural descriptions are

required for stateful artefacts since operation

availability depends on the internal state of the

component.

 Service level. Deals with the description of QoS

properties like temporal requirements, security,

cost, etc.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

326

 Conceptual level. This level concerns semantic

specifications (i.e., what the artefacts actually

do). Even in the absence of mismatch at any of

the preceding levels, we must ensure that the

artefacts are going to behave as expected during

their interactions.

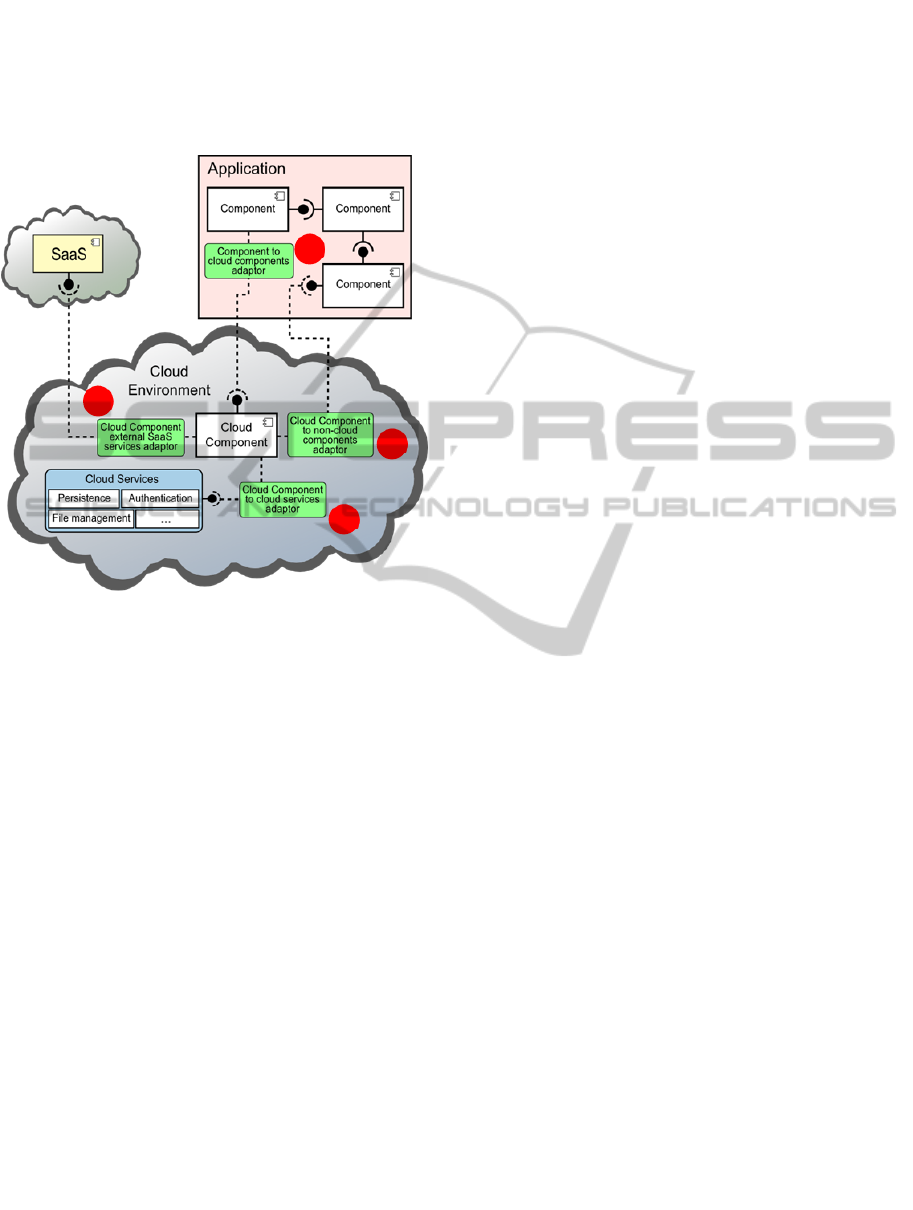

Figure 3: Cloud deployment scenario with adapters.

As we presented in (Guillén et al., Sept 2012),

three different situations where adaptation would

take place have been considered in our approach,

corresponding to the numbered tags in Figure 3:

Case 1. Adaptation between components. The way

in which a component deployed in a cloud

environment communicates with another cloud

component or a component deployed in a non-

cloud environment differs substantially from a

fully in-house approach.

Case 2. Adaptation between components and

cloud services. Cloud environments usually

provide specific services which can be

consumed by components deployed on their

platforms. The most common examples of these

services are those related with persistence,

security/authentication, file management, etc.

Case 3. Adaptation using third-party components

or services (SaaS). Cloud deployed components

consume external services differently

depending on the cloud provider in which they

have been deployed. The services being

invoked and their location also determine how

they must be consumed.

In the following subsections, we further develop the

sources of mismatch presented in (Guillén et al.,

Sept 2012) , classifying them into four adaptation

situations, each one related to one of the levels of

interoperability, and propose the use of specific

interface description and adaptation techniques for

addressing them.

4.1 Signature Adaptation

Signature adaptation deals with mismatching service

and operation names, argument types and ordering,

and naming conventions imposed by the underlying

technologies. This is the most frequent mismatch

issue that appears when trying to combine software

artefacts independently developed by third parties,

and consequently it may appear in any of the three

adaptation cases shown in the cloud scenario in

Figure 3. Either when migrating a component from

in-house to cloud hosting, or from a cloud platform

to a different one, both the location and name of its

services and operations will change, when they are

invoked by the remaining components in the

application, and also the way it invokes services and

operations from the rest of the system will be

affected. Furthermore, even though the most

common services that the migrated component may

require are provided by every cloud provider, their

names and arguments largely differ from one cloud

platform to another. Finally, the decision of hosting

a component in a particular cloud platform, may also

impose limitations on the distributed component

technologies available (e.g. SOAP, Rest, Java RMI,

etc.) which impose variations in the way these

services are invoked.

Among the different kinds of mismatch,

signature mismatch is the easiest to solve, and it has

been customarily addressed by non-invasive

techniques, like wrappers, or proxies. More specific

proposals (see as an example (Canal et al., 2008)),

advocate for the use of adaptation contracts or

mappings, abstract specifications of how mismatch

can be solved, based on the description of

component interfaces and service APIs. These

mappings establish correspondences between

dissimilar names of operations in the interfaces of

the artefacts to be adapted, allowing also reordering

and synthesis of operation arguments when required.

From them, the corresponding adapters can be

generated (Canal et al., 2008), allowing successful

interaction of the counterparts despite the different

naming conventions. For instance, the adapter can

easily transform what for the invoking component

seems to be a local call to its target component or

DevelopmentofAdaptiveMulti-cloudApplications-AModel-DrivenApproach

327

cloud service, while solving any kind of signature

mismatch by translating the name of the operation,

redirecting to a remote location if required, and

switching between different naming conventions and

invocation technologies.

4.2 Behavioural Adaptation

Behavioural mismatch refers to different granularity

of services and operations, and to incompatible

interaction protocols, in which the partial ordering of

operations does not fit among the counterparts

engaged on a service transaction. This kind of

mismatch can only be present in stateful software

artefacts, as many complex cloud services are.

Again, behavioural mismatch may be detected in

any of the three adaptation cases in Figure 3. For

instance, a frequent scenario of behavioural

mismatch appears when a stateful service is

deployed in a cloud environment that only supports

SOAP invocations. Here, WS-Resource and WS-

Addressing mechanisms can be used to perform

changes in the communication schema in order to

continue supporting a stateful behaviour.

Even more typically, the operation granularity

and ordering of equivalent cloud services may differ

between vendors. For instance, the same generic

‘get’ operation of a persistence service could imply

several different operation invocations and/or

orderings from one provider to another one. The

same occurs when comparing equivalent external

services.

Several recent research efforts (see as an

example (Canal et al., 2008); (Seguel et al., 2010)

concentrate on behavioural interoperability,

extending interfaces with a description of the

protocol followed during interactions, using either

automata-based notations or industrial standards like

WS-BPEL, and ensuring their correctness and

termination. The works in this category explain how

to generate adapters able to capture, store, remember

and reorder messages and operation calls and their

arguments, that are transmitted to their destinations

only at the point they are prepared to receive them.

For that, and starting from an empty or null

behaviour, the adapter is extended with input/output

actions reflecting those of the counterparts to be

adapted, and that serve to remove a deadlock in their

interaction, while at the same time ensuring other

properties of interest which can be specified by the

designer. The process continues until all deadlocks

have been removed, returning a full adaptor able to

ensure successful and correct interaction among the

participants.

4.3 QoS Adaptation

Service mismatch refers to interoperability issues

related to non-functional properties, such as client

QoS requirements and SLAs offered by cloud

platforms Thus, this kind of mismatch is likely to

appear in both component-to-cloud and component-

to-SaaS interactions. Indeed, each cloud provider

defines a specific API for cloud intrinsic

characteristics. Again, migrating a component to a

different cloud will affect the way in which QoS and

other non-functional properties are queried and

established. Similarly, providers enforce very

different SLAs for their services. Hence, switching

between service providers may cause mismatch

between the SLA imposed by the cloud and the QoS

required by the application.

Service adaptation is probably the least explored

adaptation level. QoS description models and their

related notations, such as the QoS Modeling

Language (QLM), are usually highly customizable,

and the possible specifications include mean values,

standard deviations and a set of quantiles

characterizing the distribution of any self-defined

quality metric. This ensures that QoS mismatch can

be easily detected, but once the mismatch is found

not so many actions can be performed to solve it,

especially if the mismatch comes from the SLA

policies enforced by a cloud provider. In that case,

only changing to a different cloud or service

provider, or replicating a component among

different clouds may help in solving the problem.

4.4 Conceptual Adaptation

Conceptual mismatch is produced by differences in

the functionality of the services offered and

requested. This kind of mismatch is mainly related

to the use of external services, and hence, it may

appear in the third adaptation case in Figure 3.

Indeed, in order to avoid external dependencies,

the consumption of external services must be

specified without determining the identity and

location of the targeted service. For example, a

component may indicate that it requires a translation

service, without specifying the exact service it is

going to consume. During the adaptation process,

the most convenient matching service will be

selected according to the requirements.

In the service-oriented computing field, there are

several notations for providing semantic information

about services using ontology-based notations such

as OWL-S or WSMO, which are particularly

interesting for service discovery. Once a semantic

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

328

match is selected, adaptation will be performed at

the remaining levels, in order to ensure correct

interaction.

5 RELATED WORK

Considering that no standardization initiative has

been consolidated, and that the outcome of the

existent initiatives is yet unknown, different

proposals have been made to mitigate this absence.

This section describes the cloud application

migratability and interoperability proposals that are

most closely related to ours.

In the scope of MDE for the cloud, (Hamdaqa et

al., 2011) proposes a meta-model for modelling

cloud applications focused in the definition of cloud

tasks as composable units, each one consisting of a

set of actions that make use of services to provide a

specific functionality. The approach detaches the

application modelling process from specific cloud

platforms; nevertheless, model transformations will

generate code that will be coupled to a specific cloud

platform. Our approach models cloud applications

from a different perspective since it allows us to

generate source code that is not coupled to the cloud.

Instead, all cloud related data is included in a

separate deployment plan, thereby favouring the

code’s cloud agnosticism and maintainability.

Another proposal based on MDE techniques is

presented by (Frey and Hasselbring, 2010) as a

means of mapping models of existent cloud

environments to legacy software models and

transforming the result to cloud-specific code

through a series of iterations and result evaluations.

This approach is fully oriented towards legacy

software; additionally, any subsequent changes will

have to be integrated into the generated software,

which may result more difficult to work with and

understand by the developers. In our work a

different approach for modelling the variability of

cloud platforms, based on feature models, is used

based. Both newly developed and legacy software

can be migrated easily to the cloud without coupling

the application’s source code to a cloud platform.

Other proposals for combating the vendor lock-

in effect are based on the use of middleware and

intermediate software layers intended to create an

abstraction between cloud platforms and the

generated software. One of the closest to our work is

mOSAIC, a reference initiative carried out as a

Europe funded project. Its perspective of how cloud

development should be accomplished matches our

criteria. Cloud migratability, interoperability and the

deployment of applications across more than one

cloud is tackled in mOSAIC through a robust

solution based on an API and a middleware platform

for cloud brokering (Di Martino et al., 2011). Our

approach deals with these issues through a different

perspective based on the use of SA techniques,

which present beneficial results in alternative

scenarios where lightweight software components

may be required.

A Service Oriented Cloud Computing

Architecture (SOCCA) is presented in (Tsai et al.,

2010). An architecture is provided where cloud

computing resources are componentized,

standardized and combined in order to build a

“cross-platform virtual computer” which operates

upon an ontology mapping layer that is used to

abstract the differences between cloud providers.

SOCCA applications can be developed using the

standard interfaces provided by the architecture or

the platform unique APIs of a cloud provider. In

both cases the developed applications will be

coupled to a specific platform, thereby hindering

their migration to alternate scenarios. In our

approach the applications are not coupled to any

platform; the use of SA allows us to easily migrate

components between clouds without having to

modify their source code.

6 CONCLUSIONS AND FUTURE

WORK

In this paper we have presented an alternative

approach to the existent standardization initiatives

and middleware-based solutions for achieving cloud

application migratability and interoperability. This

solution has been conceived with cloud providers

and customers in mind, trying to offer them

maximum flexibility.

The underlying technology and tools for putting

our approach into practice is currently under

development, as a proof-of-concept development

framework. Our future work includes the extension

of its current capabilities, supporting more cloud

platforms and programming languages, as well as

exploring the use of dynamic adapters in order to

support run-time changes in cloud artefact

compositions.

ACKNOWLEDGEMENTS

This work has been partially funded by the Spanish

DevelopmentofAdaptiveMulti-cloudApplications-AModel-DrivenApproach

329

Government under Projects TIN2012-34945, and

TIN2012-35669.

REFERENCES

N. Leavitt, “Is cloud computing really ready for prime

time?” Computer, vol. 42, no. 1, pp. 15–20, Jan. 2009.

M. Armbrust, A. Fox, R. Griffith, A. D. Joseph, R. Katz,

A. Konwinski, G. Lee, D. Patterson, A. Rabkin, I.

Stoica, and M. Zaharia, “A view of cloud computing,”

Commun. ACM, vol. 53, no. 4, pp. 50–58, Apr. 2010.

D. Petcu, G. Macariu, S. Panica, and C. Craciun, “Portable

cloud applications - from theory to practice,” Future

Generation Computer Systems, Jan. 2012.

B. Rochwerger, D. Breitgand, E. Levy, A. Galis, K.

Nagin, I. M. Llorente, R. Montero, Y. Wolfsthal, E.

Elmroth, J. Cáceres, M. Ben-Yehuda, W. Emmerich,

and F. Galán, “The reservoir model and architecture

for open federated cloud computing,” IBM J. Res.

Dev., vol. 53, no. 4, pp. 535–545, Jul. 2009.

A. Celesti, F. Tusa, M. Villari, and A. Puliafito, “How to

enhance cloud architectures to enable cross-

federation,” Cloud Computing (CLOUD), 2010 IEEE

3rd International Conference on, July 2010, pp. 337 –

345.

N. Loutas, E. Kamateri, F. Bosi, and K. Tarabanis, “Cloud

computing interoperability: The state of play,” Cloud

Computing Technology and Science, IEEE

International Conference on, pp. 752–757, 2011.

B. Di Martino, D. Petcu, R. Cossu, P. Goncalves, T.

M´ahr, and M. Loichate, “Building a mosaic of

clouds,” Euro-Par 2010 Parallel Processing

Workshops, ser. Lecture Notes in Computer Science.

Springer Berlin / Heidelberg, 2011, vol. 6586, pp.

571–578.

W. Tsai, X. Sun, J. Balasooriya. “Service-Oriented Cloud

Computing Architecture,” ITNG10 7th International

Conference on Information Tech-nology: New

Generations, pp. 684-689, 2010.

E. M. Maximilien, A. Ranabahu, R. Engehausen, and L. C.

Anderson. “Toward cloud-agnostic middle-wares,”

OOPSLA09: 14th conference companion on Object

Oriented Programming Systems Languages and

Applications, pp. 619–626, 2009.

J. Guillén, J. Miranda, and J. M. Murillo. “Decoupling

Cloud Applications From The Source - A Framework

for Developing Cloud Agnostic Software,”

Proceedings of CLOSER 2012, Oct. 2012.

J. Guillén, J. Miranda, J. M. Murillo, and C. Canal.

“Identifying Adaptation Needs to Avoid the Vendor

Lock-in Effect in the Deployment of Cloud SBAs,”

Proceedings of WAS4FI 2012, Sept. 2012.

D. K. Nguyen, F. Lelli, Y. Taher et al.. “Blueprint

template support for engineering cloud-based

services,” Proceedings of ServiceWave’11, pp. 26–37,

2011.

S. Becker, A. Brogi, I. Gorton, S. Overhage, A.

Romanovsky, and M. Tivoli. “Towards an engineering

approach to component adaptation,” R.H. Reussner,

J.A. Stafford, and C.A. Szyperski, editors,

Architecting Systems with Trustworthy Components,

vol. 3938 of Lecture Notes in Computer Science, pp.

193–215. Springer, 2004.

C. Canal, J. M. Murillo, and P. Poizat. Software

adaptation. Special Issue on Coordination and

Adaptation Techniques for Software Entities. L’Objet,

12(1):9–31, Hermes-Lavoisier, 2006.

C. Canal, P. Poizat, and G. Salaün. Model-based

adaptation of behavioural mismatching components.

IEEE Transactions on Software Engineering,

4(34):546–563, 2008.

R. Seguel, R. Eshuis, and P. Grefen, “Generating minimal

protocol adaptors for loosely coupled services,” Web

Services, IEEE International Conference on, pp. 417–

424, 2010.

M. Hamdaqa, T. Livogiannis, and L. Tahvildari, “A

reference model for developing cloud applications.”

CLOSER, pp. 98–103. SciTePress, 2011.

S. Frey and W. Hasselbring, “Model-Based Migration of

Legacy Software Systems into the Cloud: The

CloudMIG Approach,” Proceedings of the 12th

Workshop Software-Reengineering (WSR 2010), May

2010, pp. 59–60.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

330
