Running Sensor Data Analysis Programs on a Cloud Computing Infrastructure

Jan Sipke van der Veen

, Bram van der Waaij

, Matthijs Vonder

, Marc de Jonge

Elena Lazovik

and Robert J. Meijer

1,2

TNO, Groningen, The Netherlands

University of Amsterdam, Amsterdam, The Netherlands

eywords:

Data Analysis, Data Science, Sensor Data, Cloud Computing.

Abstract:

Sensors have been used for many years to gather information about their environment. The number of sensors

connected to the internet is increasing, which has led to a growing demand of data transport and storage

capacity. In addition, evermore emphasis is put on processing the data to detect anomalous situations and to

identify trends. This paper presents a sensor data analysis platform that executes statistical analysis programs

on a cloud computing infrastructure. Compared to existing batch and stream processing platforms, it adds the

notion of simulated time, i.e. time that differs from the actual, current time. Moreover, it adds the ability to

dynamically schedule the analysis programs based on a single timestamp, recurring schedule, or on the sensor

data itself.

1 INTRODUCTION

Sensors have been used for many years to gather in-

formation about both physical and virtual environ-

ments. Typical applications of these sensors include

prediction of the weather based on the current condi-

tions (Blackwell, 2005), adjusting the number of vir-

tual machines of a webservice based on its measured

quality of service (Rao et al., 2011), and monitoring

physical structures to detect anomalies (Pyayt et al.,

2011).

Since sensors are becoming cheaper and simpler

to use, the number of sensors connected to the inter-

net has grown rapidly over the years. This has led to a

growing demand of sensor data transport and storage

capacity (Sheng et al., 2006), but also on systems that

make sense of the data and decide on useful actions.

The ﬁeld of autonomic computing (IBM Corporation,

2001) provides a number of steps that such systems

should have, see Figure 1. The process starts with a

sensor that measures the environment. The Monitor,

Analyze, Plan, Execute (MAPE) loop then monitors

the output of the sensor, analyzes the measured values

to detect problems, plans on a set of actions to rem-

edy the problem, and executes the selected actions.

The process ends with an effector to inﬂuence the en-

vironment. This paper focuses on the second step in

the MAPE loop, the analysis of the sensor data.

Monitor

Analyze Plan

Execute

Sensor Effector

Environment

Figure 1: The MAPE loop.

A distinction can be made between general statis-

tical analysis and large scale scientiﬁc models to anal-

yse sensor data. Scientiﬁc models are typically devel-

oped by experts in the ﬁeld and are executed on high

performance computer systems such as supercomput-

ers or grid computing infrastructures. The running

time of these models may range from minutes to days

or even months. Because of these relatively long run-

ning times, it is feasible to use a virtual machine (VM)

for each model.

Statistical analysis programs are typically exe-

cuted on a single computer. They are used to gain

a ﬁrst insight into the sensor data and, if necessary,

may lead to further analysis. The running time of

these programs is typically in the order of millisec-

onds to seconds. Because of these relatively short

running times and possibly large number of concur-

rent analysis programs, it is not feasible to use a VM

358

van der Veen J., van der Waaij B., Vonder M., de Jonge M., Lazovik E. and Meijer R..

Analysis Cloud - Running Sensor Data Analysis Programs on a Cloud Computing Infrastructure.

DOI: 10.5220/0004371503580365

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 358-365

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

for each program. Therefore, the need arises for a

ﬁner-grained distributed platform for the execution of

statistical analysis programs.

Processing of data can be performed in batches

and in continuous streams. In batch processing, in-

put data is aggregated into a single batch that will all

be analysed at one time. Typically, the output of a

batch is only visible at the end of the run. An ex-

ample of a batch process is a retailer taking all sales

data of the past week and then calculating sales per-

formance. If the start of the week contains anomalous

data, the retailer must wait until the end of the week

for the output of the batch process. Historical analysis

of sensor data, e.g. calculating the standard deviation

for the sensor values of the previous day, ﬁts perfectly

into the category of batch processing.

In stream processing, input data is analysed as it

arrives and (partial) output is available immediately.

This means that one can act on the data as soon as it

arrives. However, this may lead to skewed results as

the analysis is never actually ﬁnished. In the case of

the retailer, comparing partial results from one coun-

try to the next is difﬁcult because of possibly different

time zones and business hours. To be able to quickly

respond to anomalous situations, the analysis of cur-

rent sensor data is performed soon after the data ar-

rives. The stream processing approach, e.g. calcu-

lating the moving average of the twenty latest sensor

values, is a good ﬁt for this kind of analysis.

A combination of stream processing (for detect-

ing current anomalous situations) and batch process-

ing (for historical analysis) is therefore needed for a

multi-purpose sensor data analysis platform. This pa-

per describes the analysis cloud, a platform for the

reliable execution of large numbers of small scale sta-

tistical analysis programs for sensor data. The plat-

form supports both batch processing and stream pro-

cessing.

2 RELATED WORK

2.1 Batch Processing

Hadoop (White, 2009) (Hadoop Website, 2012) is one

of the most well-knownbatch processing systems cur-

rently in use. It is a frameworkfor distributedprocess-

ing of large data sets across a cluster of machines. The

design and implementation is inspired by the papers

on MapReduce (Dean and Ghemawat, 2004) and the

Google File System (GFS) (Ghemawat et al., 2003).

At its core, Hadoop consists of the MapReduce en-

gine and the Hadoop Distributed File System (HDFS).

The ﬁle system ensures that the data is stored reliably

on the nodes in the cluster. The engine allows appli-

cations to be split up into many small fragments of

work. These fragments are executed on nodes in the

cluster in such a way that the input data is close in

terms of latency.

Disco (Disco Website, 2012) is a large scale data

analysis platform. Its goals and design are very simi-

lar to those of Hadoop. Disco also provides a MapRe-

duce engine and the Disco Distributed File System

(DDFS). The main difference lies in the chosen pro-

gramming languages. The MapReduce engine of

Disco is written in Erlang, which is a language de-

signed for building robust, fault-tolerant, distributed

applications. The user applications themselves are

written in Python.

Spark (Zaharia et al., 2010) (Spark Website, 2012)

is a cluster computing system that aims to make data

analysis fast. It provides primitives for in-memory

cluster computing, so that repeated access to data

is much quicker than with disk-based systems like

Hadoop and Disco. Although Spark is a relatively

new system, it can access any data source supported

by Hadoop, making it easy to run over existing data.

Akka (Munish, 2012) (Akka Website, 2012) is a

toolkit for building distributed, fault tolerant, event-

driven applications on the Java Virtual Machine

(JVM). Akka uses actors, lightweight concurrent en-

tities, to asynchronously process messages. This raise

in abstraction level relieves developers from low-level

issues in distributed systems, such as threads and

locks. Actors are location transparent by design,

which means that the distribution of an application

is not hardcoded, but can be conﬁgured based on a

certain topology at runtime.

Hadoop, Disco and Spark can all be used for his-

torical sensor data analysis. However,because of their

batch processing nature, it is awkward or even impos-

sible to use them for detecting current anomalous sit-

uations. Akka is a toolkit for developing distributed

applications and a lot of framework functionality is

therefore still missing. Akka also does not guarantee

message arrival, which makes it less suitable for data

analysis.

2.2 Stream Processing

Esper (Esper Website, 2012) is a software component

for processing large volumes of incoming messages

or events. It is not an application or framework of

itself, but can be plugged into an existing Java appli-

cation. Esper is a Complex Event Processing (CEP)

engine with its own domain speciﬁc language, called

EPL, for processing events. EPL is a declarative

language for dealing with high frequency time-based

AnalysisCloud-RunningSensorDataAnalysisProgramsonaCloudComputingInfrastructure

359

event data. It can be seen as an extension of SQL with

support for time, causality and pattern matching.

S4 (Neumeyer et al., 2010) (S4 Website, 2012) is

a distributed, scalable platform that allows program-

mers to develop applications for processing continu-

ous unbounded streams of data. It does not have a

distributed ﬁle system such as HDFS or DDFS, but

relies on its own adapters to pull in data from external

sources. S4 is not a CEP engine like Esper, because it

does not have provisions to match patterns.

Storm (Storm Website, 2012) is comparable to S4

as it is also a scalable platform for processing contin-

uous unbound streams of data. While S4 targets the

Java language, Storm is designed to be used with any

language that supports the Thrift interface. There is

no internal distributed ﬁle system, instead Storm re-

lies on integration with existing data sources such as

databases and queuing systems such as Java Message

Service (JMS).

Because Esper is a software component that can

be plugged into an existing application, there is a lot

of framework functionality still missing before it can

be used to execute data analysis programs in a dis-

tributed and scalable way. Both S4 and Storm are

platforms capable of running data analysis programs

to detect current anomalous situations, and they can

also be used for the analysis of historical sensor data.

However, both lack speciﬁc support for sensor data

analysis. The notion of simulated time, i.e. time that

differs from the actual, current time, and the ability to

ﬂexibly schedule the analysis programs is missing.

3 SENSOR DATA ANALYSIS

REQUIREMENTS

3.1 Scalability and Reliability

The analysis cloud is designed to execute analysis

programs on a large number of computing nodes.

The probability that one or more of these nodes fail

increases with the number of nodes, so the analy-

sis cloud should assume that computing nodes some-

times fail and handle this in a graceful way. If, for

example, one node in a cluster of ﬁve nodes fails to

perform its task, we expect the system to run at lower

capacity, e.g. 80 percent, but not fail altogether. In

other words, there should not be a critical single point

of failure in the system. It is, however, acceptable if a

non-critical function of the system becomes unavail-

able when a single component or node fails. Restart-

ing the failed component or node should then restore

that functionality without signiﬁcant negative impact

on the rest of the system.

In addition, adding nodes to the system should re-

sult in (near-)linearimprovement in the overall capac-

ity. For example, doubling the number of computing

nodes in the system should result in (almost) twice the

capacity. This horizontal scalability allows the man-

ager of the system to add as many nodes to the system

as needed to reach the desired overall performance.

3.2 Modules

The main purpose of the analysis cloud is the execu-

tion of analysis programs. It should be easy for de-

velopers to create these software modules. The inter-

face that the module must adhere to should therefore

contain as few methods as possible and each method

should have a clear meaning.

The smallest conceivable interface would contain

only a single callback function in the module, i.e. an

execution function which is repeatedly called. How-

ever, this could result in a bad performance as the

module is forced to create and destroy any connec-

tions to external data sources in this single function.

To avoid such a performance penalty, the interface

should also contain an initialization and termination

callback function.

The creation of the module may depend on sev-

eral parameters, such as deﬁnitions for the input and

output sensors, or connectivity settings for external

data sources. It should be left to the developer to con-

struct and provision these parameters to the module

as needed, based on a list of parameters supplied by

the platform.

3.3 Timers and Schedules

Each module in the analysis cloud is given a time-

stamp to act upon in the execute callback function.

This allows the module to select a speciﬁc sensor

value from its external data source. To facilitate both

batch and stream processing of data, it is necessary to

have a notion of time that may differ from the actual,

current time.

In the case of stream processing, each timestamp

presented to the module may be equal to the current

time. Shortly after the sensor data is stored in an ex-

ternal data source, the module asks for the data and

processes it. In this case the analysis cloud is acting

as an event processing engine.

In the case of batch processing, however, time

should run from a moment in the past to a newer mo-

ment in time, likely also in the past. For example, in

the case of the retailer running their sales performance

batch, the time would run from Monday 0:00 hours to

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

360

Sunday 23:59, while the run itself may be performed

at any time after that.

Besides a live timer, it is therefore required to have

the concept of a simulation timer, containing a time

that is different from the actual time. It should also

have an associated speed, which is a factor relative to

the actual time. This is needed to pause the execu-

tion of a batch process (value equal to 0) or make the

process go faster than the actual time window of the

sensor data (value greater than 1).

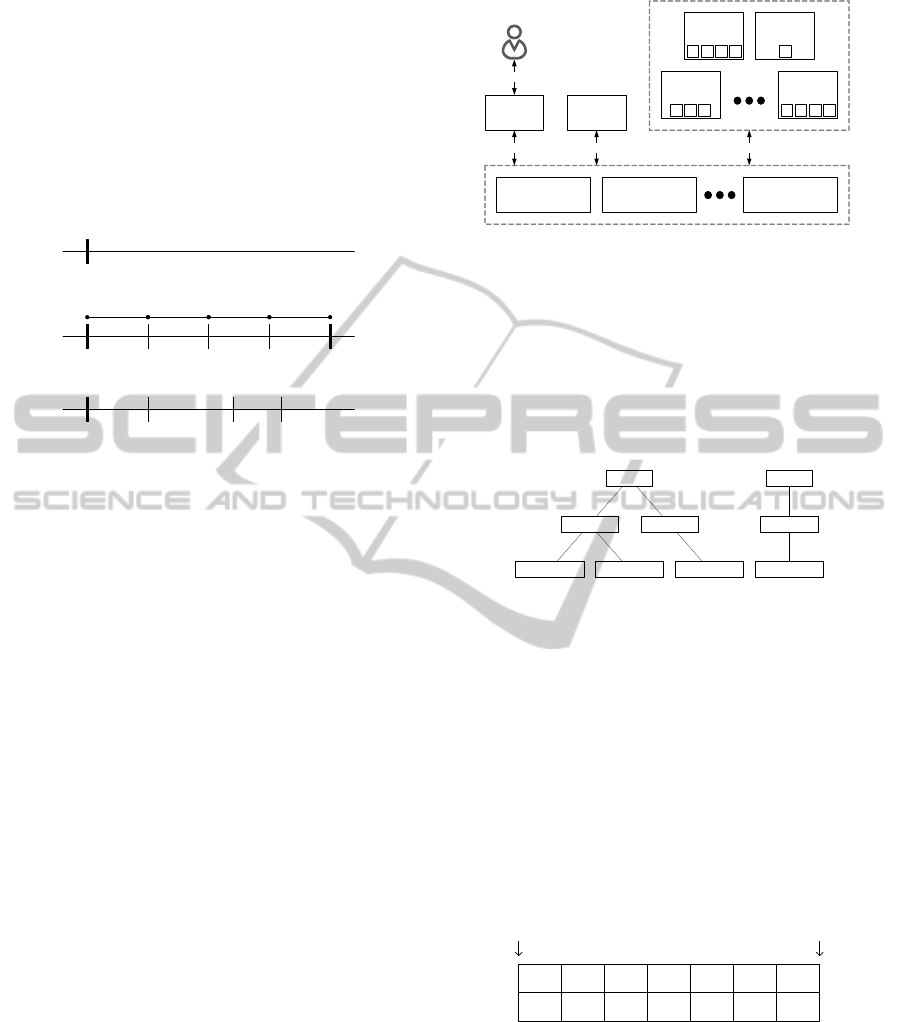

timestamp

start end

step step step step

start t

(a)

(b)

(c)

Figure 2: Different kinds of schedules: (a) Single schedule

(b) Recurring schedule (c) Module driven schedule.

The analysis cloud should support different kinds

of schedules. In the case of the retailer, the batch

should run from a speciﬁc start time to a speciﬁc end

time. This recurring schedule should also contain a

step size, which denotes how much time there is be-

tween consecutive timestamps. The analysis cloud

should also have the notion of a single schedule,

which executes a module only for a single timestamp.

Finally, it should be possible to have a schedule that

depends on the sensor data at hand, e.g. to schedule

based on the sample frequency. This leads to the need

for a module driven schedule in which it is left to the

module to decide what the next timestamp should be.

See Figure 2 for a comparison of the different kinds

of schedules.

4 ARCHITECTURE OF THE

ANALYSIS CLOUD

The requirements listed in the previous chapter can be

fulﬁlled with the architecture shown in Figure 3. Each

solid block is a node in the system, either a physical

machine or a virtual machine. The dotted lines denote

a cluster of nodes containing the same kind of func-

tionality. Sections 4.1 to 4.5 describe each component

in more detail and section 4.6 shows how the whole

system fulﬁlls the mentioned requirements.

4.1 Tasks

There are multiple ways to link timers, schedules and

Orchestration

Server 1

Orchestration

Server 2

Orchestration

Server m

Global

Manager

Web

Server

ZooKeeper ZooKeeper ZooKeeper

HTTP

User

Node

Manager 3

W W W

Node

Manager n

W W W W

Node

Manager 1

W W W W

Node

Manager 2

Figure 3: Architecture of the Analysis Cloud.

modules. At least one timer is always available (the

live timer) and there are possibly several simulation

timers. The number of schedules is typically in the

order of dozens, i.e. a bit higher than the number of

timers. Finally, the number of modules is anywhere

from a handful to a few thousand. Figure 4 shows

an example of two timers, three schedules and four

modules and their relationships.

Timer 1

Schedule 1.1 Schedule 1.2

Module 1.1.1 Module 1.1.2 Module 1.2.1

Timer 2

Schedule 2.1

Module 2.1.1

Figure 4: Hierarchy of Timers, Schedules and Modules.

The nodes executing the modules need to know in

which order and from which timestamp each module

should be executed. To keep track of this, there is

the notion of tasks and a work queue containing these

tasks. When a module enters the system, its ﬁrst exe-

cution time is noted and the combination of this time-

stamp and a reference to the module is placed in the

work queue. The tasks in the work queue are sorted

by timestamp which means that the system can sleep

until the timestamp at the front of the work queue has

passed. The corresponding module is then executed

and the new timestamp (if any) is determined, based

on the module’s linked schedule and timer.

mod A

mod B

mod A

mod C

mod A

mod D

...

Front Back

Figure 5: Work queue containing Tasks.

See Figure 5 for an example of a work queue con-

taining tasks. Each black task is currently present, ev-

ery grey one will be added as soon as its black coun-

terpart has ﬁnished. In this example, the task for mod-

ule A at timestamp t

is added as soon as the execu-

tion of the module at timestamp t

has ﬁnished. The

same applies to t

in combination with t

for the same

module.

AnalysisCloud-RunningSensorDataAnalysisProgramsonaCloudComputingInfrastructure

361

4.2 Managers and Workers

A node manager is a necessary part of every comput-

ing node. Each node manager supervises a part of the

work of the total analysis cloud. The actual execu-

tion of the modules is performed by workers. Each

worker listens to the work queue of the node manager

and fetches a task as soon as one becomes available.

Using multiple workers can speed up the processing

when there is more than one processor core available

or one analysis module is fetching data while another

is using the processor. Typically there are two or more

node managers present in the system, and one or more

workers per node manager.

A node manager has two main functions. Its ﬁrst

function is supervising the execution of user mod-

ules. It uses its work queue containing tasks to de-

cide which modules should be executed at what time.

Its second function is to listen for additions, deletions

and changes in the desired conﬁguration of timers,

schedules and modules. Based on this information,

it makes changes in its internal conﬁguration and re-

ports on its current conﬁguration.

There is a single global manager present in the

system, which coordinates the work among all node

managers. It listens to requests for changes in the total

conﬁguration of the system, i.e. the timers, schedules

and modules. Based on this information it distributes

the work among the node managers. It also listens to

the current conﬁguration of each node manager and

reports on the combined conﬁguration.

4.3 Orchestration

Except for the communication between the user and

the web server, all communications between com-

ponents of the analysis cloud are performed through

an orchestration system. The ZooKeeper distributed

coordination service (Hunt et al., 2010) (ZooKeeper

Website, 2012) is used for the implementation of this

part of the analysis cloud.

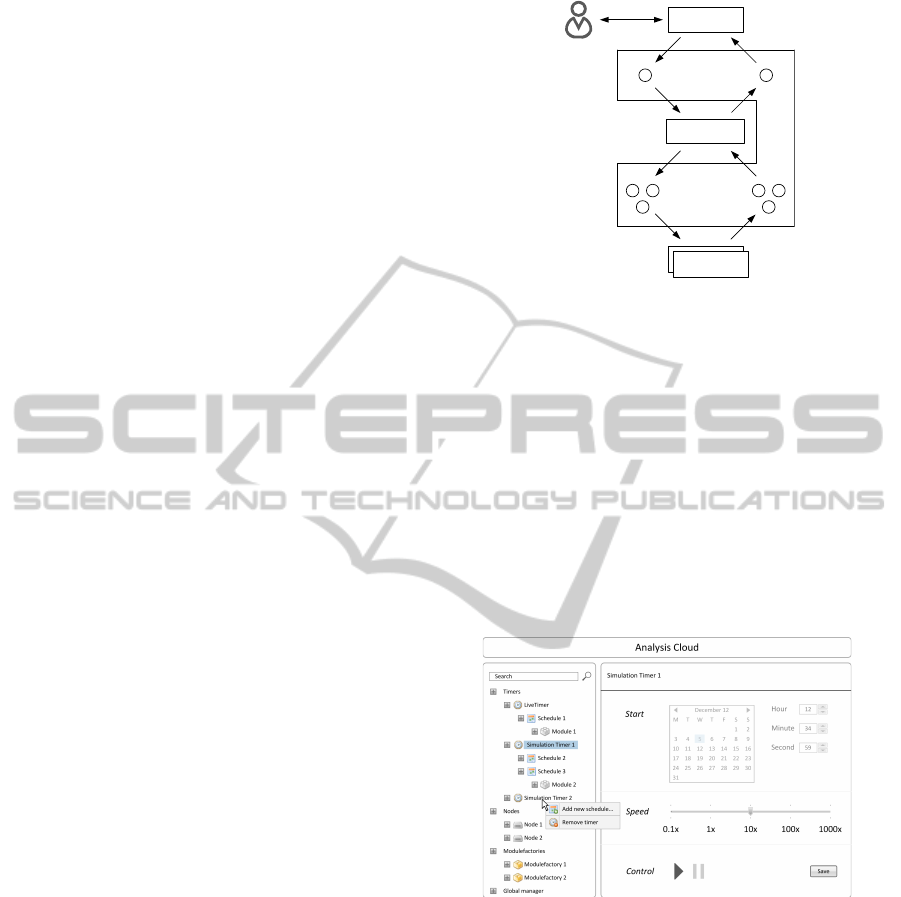

Figure 6 shows how the orchestration works for

the communication of conﬁguration data inside the

system. Starting at the top, the user sets a desired

global conﬁguration, which is a combination of in-

formation about timers, schedules and modules. This

information is automatically picked up by the global

manager, which translates the global desired conﬁg-

uration into smaller parts, one for each node man-

ager. The node managers automatically pick this up

and use the conﬁguration data to change their internal

state. This state is then set in the current conﬁgura-

tion of each node manager. The global manager auto-

matically picks up these conﬁgurations and translates

desired

global

desired

nodes

current

nodes

current

global

WebserverUser

Global Manager

Node Manager

Orchestrati

Node Manager

Figure 6: Orchestration. Each circle is a key/value pair con-

taining conﬁguration information.

them into a global current conﬁguration. The result of

this is presented to the user.

4.4 Web Interfaces

There are two web interfaces present in the platform.

One is a RESTful (Fielding, 2000) interface that uses

the orchestration system to set the desired conﬁgura-

tion of the analysis cloud and read its current con-

ﬁguration. It contains methods for listing all timers,

schedules and modules, and methods to create and re-

move individual instances of those.

Figure 7: Website intended for the users of the Analysis

Cloud and the developers of analysis modules.

The other interface is a set of web pages intended

for users of the analysis cloud and the developers of

analysis modules. Figure 7 shows the design of the

website. The current hierarchy of timers, schedules

and modules is shown on the left side of the screen,

while the right side shows information on the cur-

rently selected item. At the moment, the right mouse

key is pressed and a pop-up menu is shown to add a

schedule to the simulation timer or remove the timer

altogether.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

362

4.5 Programming Interfaces

The analysis cloud and its modules are written in Java.

The developer of a module must implement a factory

that is able to create a module with supplied parame-

ters. The mandatory interface for factories looks like

this:

Module create(

Map<String, String> parameters);

When the create function is called, the factory must

create a new module and conﬁgure it with the sup-

plied parameters, e.g. by using setters on the module.

Modules must also adhere to a speciﬁc interface

to be used on the analysis cloud:

void init(long timestamp);

void execute(long timestamp);

long next();

void terminate();

The init function is called just after the module has

been constructed by the factory. The timestamp pa-

rameter tells the module which timestamp will be

used for the ﬁrst execution. This helps the module

in its initialization, e.g. by being able to pre load

data from an external source. The execute function

is called one or more times after that for ascending

timestamps. If the module driven schedule is used, the

next function is called after each execution, to ask the

module at which timestamp it would like to be sched-

uled again. Finally, the terminate function is called

when the module is no longer needed, e.g. when the

schedule has ﬁnished or the user deletes the module

from the system.

Table 1: Callback functions with the number of calls to each

function for the different types of schedule.

Single

Sched-

ule

Recur-

ring

Sched-

ule

Module

Driven

Sched-

ule

init 1 1 1

execute 1 s

next 0 0 m

terminate 1 1 0 or 1

depends on schedule: ⌊

end−start

step

+ 1

depends on module: [0, ∞]

depends on module

Table 1 lists the four callback functions of a mod-

ule and shows how many times each function will be

called for each type of schedule.

4.6 Fulﬁllment of Requirements

Section 3.1 states that there should not be a critical

single point of failure in the system. Iterating through

the components of the analysis cloud shows that this

requirement is fulﬁlled by the following system fea-

tures:

• If an orchestration server fails, the clients auto-

matically connect to one of the remaining servers.

Since all orchestration servers contain the same

conﬁguration data, there is no loss in functional-

ity.

• If one of the node managers fails, the global man-

ager will redistribute the work among the remain-

ing node managers. A part of the work that the

failed node manager has performed may be per-

formed again by the node manager that took over.

• If the web server fails, the user is unable to mon-

itor and control the analysis cloud. However, the

node managers will continue with the currently

conﬁgured work.

• If the global manager fails, the node managersstill

continue with the work they were given. Any up-

dates the user provided on the website are post-

poned until the global manager is restarted.

Section 3.2 states that it should be easy for developers

to create modules for the analysis cloud. Only two in-

terfaces are mandatory, one for the factory and one for

the module. The factory interface contains only one

function and the module interface contains four func-

tions, a compromise between ease of implementation

and performance.

Finally, section 3.3 shows that it is necessary to

have a notion of time that may differ from the ac-

tual, current time. For this purpose, the analysis cloud

provides zero or more user-deﬁned simulation timers

with their own independent time and speed. The plat-

form also provides three types of schedules to support

multiple use cases.

5 EXPERIMENTS ON THE

ANALYSIS CLOUD

Two experiments are performed to show how the anal-

ysis cloud behaves in practice. The ﬁrst experiment,

described in Section 5.1, shows that the platform is

capable of running multiple modules with the same

schedule. Modules started at a later time gradually

catch up with the modules that were started earlier,

without overloading the system. The second exper-

iment, described in Section 5.2, shows that the plat-

AnalysisCloud-RunningSensorDataAnalysisProgramsonaCloudComputingInfrastructure

363

form is capable of distributing its workload over mul-

tiple computing nodes. Adding nodes to the system

results in a shift of some tasks from the old nodes to

the new ones.

5.1 Single Node

An external data source serves sensor data through a

web interface. A single module fetches data from this

web interface in its execute function and performs var-

ious calculations on the data, taking roughly 150 to

200 milliseconds. A recurring schedule is used with

a step size of one second and a simulation timer with

normal speed.

At the start of the experiment, a single module

is created. Two minutes later, a second module is

started with the same schedule and four minutes from

the start a third module is started, also with the same

schedule. Each module uses its own set of input and

output sensor values. A single node manager is ac-

tive during this experiment to be sure that all module

executions take place on the same machine.

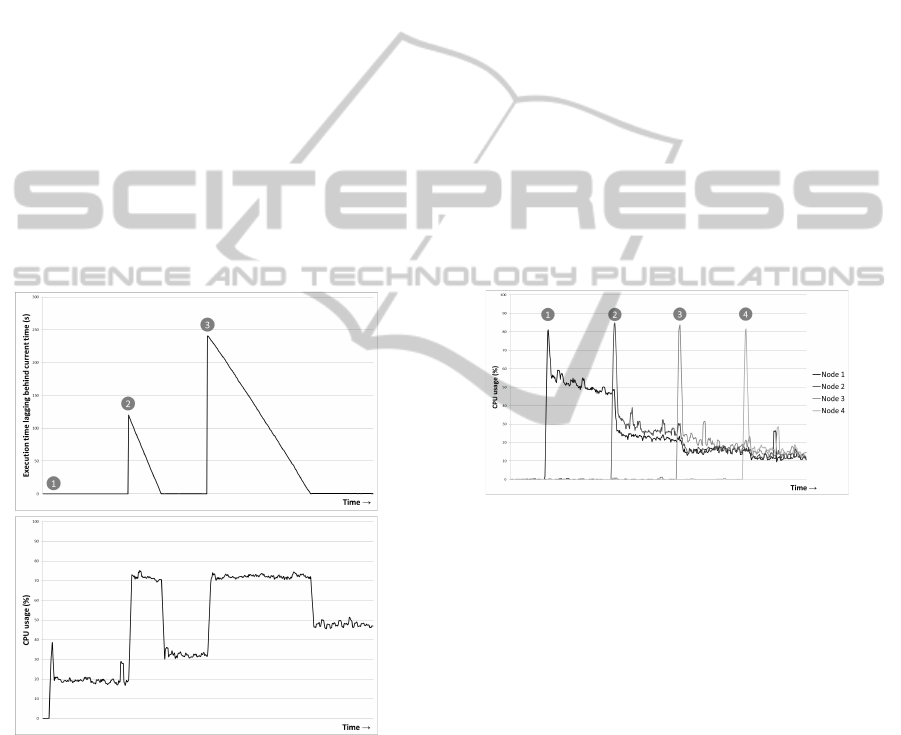

Figure 8: Result of the single node experiment. The top

chart shows the number of seconds the timestamp for the

module execution lags behind the actual time. The bottom

chart shows the corresponding CPU usage.

Figure 8 shows the results of the experiment. The

ﬁrst module is started at moment 1. A small peak

in the CPU load is seen, followed by a steady line at

about 20 percent.

The second module is started at moment 2. The

schedule and its timer were started when the ﬁrst

module was created, which means that the current

time is now two minutes (120 seconds) ahead of the

start time of the schedule and the module is executed

repeatedly to catch up. This leads to a CPU usage of

about 75 percent until the time gap is gone and the

CPU usage drops to about 35 percent.

The third module is started at moment 3. The gap

between the current time and the timestamp used for

the execution of the module is now four minutes (240

seconds). Catching up now takes even more time, not

only because of this larger gap, but also because the

system now runs three modules instead of two. This

again leads to a CPU usage of about 75 percent until

the time gap is gone and the CPU usage drops to about

50 percent.

5.2 Multiple Nodes

Multiple computing nodes are active in the analysis

cloud during this experiment. At the start of the ex-

periment, a large number of modules is conﬁgured

and a single node is started. Two minutes later a sec-

ond node is started, four minutes later a third, and six

minutes later a fourth.

Figure 9: Result of the multiple nodes experiment. The

chart shows the CPU usage over time as nodes are added to

the analysis cloud.

Figure 9 shows the results of the experiment. The

ﬁrst node is started at moment 1. A peak in the CPU

usage is seen, followed by a fairly steady line of about

50 percent. The CPU usage of the other (inactive)

nodes is then still about 0 percent.

The second node is started at moment 2. At that

moment the global manager redistributes the modules

among both node managers, which results in a lower

CPU usage of node 1. The CPU usage of node 2 is

roughly the same, about 25 percent. The same applies

to moments 3 and 4 where a third and a fourth node

are started. The CPU usage of all four nodes is then

roughly the same at about 15 percent.

6 CONCLUSIONS

Several platforms and frameworks exist for the anal-

ysis of data. However, none of the currently existing

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

364

solutions is tailored for the needs of sensor data anal-

ysis.

This paper presents a system that supports the pro-

cessing of both live sensor data feeds and batches of

historical sensor data. It contains simulation timers

and different schedules including single, recurring

and module driven. Moreover, the analysis cloud has

simple programming interfaces, which makes it easy

to develop analysis modules.

Experiments demonstrate that the system is capa-

ble of running analysis modules in a robust manner,

and can catch up quickly when there is a discrepancy

between the timestamp for an execution of a module

and the actual time. Also, the capacity of the analysis

cloud can be scaled up or down on demand by adding

or removing computing nodes from the system.

The current analysis cloud leaves the actual re-

trieval and storage of sensor data to the module, i.e.

each module must communicate with an external stor-

age system before and after it performs calculations

on the sensor data. It is therefore possible that mul-

tiple modules extract the same data from the storage

system. In a future version of the analysis cloud, we

would like to avoid the cost of this redundantretrieval.

The experiments in this paper are limited in scale

and time. Using the analysis cloud for a longer period

of time, with a larger number of nodes, will result in

better understanding of its features and weaknesses.

In future work we would like to assess this usage to

better answer questions about scalability and limiting

factors.

ACKNOWLEDGEMENTS

This publication is supported by the Dutch national

programs Flood Control 2015 and COMMIT.

REFERENCES

Akka Website (2012). Akka toolkit for event-driven appli-

cations on the jvm. http://akka.io.

Blackwell, W. (2005). A neural-network technique for

the retrieval of atmospheric temperature and moisture

proﬁles from high spectral resolution sounding data.

IEEE Transactions on Geoscience and Remote Sens-

ing.

Dean, J. and Ghemawat, S. (2004). Mapreduce: Simpli-

ﬁed data processing on large clusters. Symposium on

Operating Systems Design and Implementation.

Disco Website (2012). Disco distributed computing frame-

work. http://discoproject.org.

Esper Website (2012). Esper complex event processing.

http://esper.codehaus.org.

Fielding, R. T. (2000). Architectural styles and the design

of network-based software architectures. http://

www.ics.uci.edu/∼ﬁelding/pubs/dissertation/ﬁelding

dissertation.pdf.

Ghemawat, S., Gobioff, H., and Leung, S.-T. (2003). The

google ﬁle system. ACM Symposium on Operating

Systems Principles.

Hadoop Website (2012). Apache hadoop. http://

hadoop.apache.org.

Hunt, P., Konar, M., Junqueira, F. P., and Reed, B. (2010).

Zookeeper: Wait-free coordination for internet-scale

systems. USENIX Annual Technical Conference.

IBM Corporation (2001). Autonomic computing: Ibms

perspective on the state of information technology.

http://www.research.ibm.com/autonomic/manifesto/

autonomic computing.pdf.

Munish, K. G. (2012). Akka Essentials. Packt Publishing.

Neumeyer, L., Robbins, B., Nair, A., and Kesari, A. (2010).

S4: Distributed stream computing platform. IEEE In-

ternational Conference on Data Mining Workshops.

Pyayt, A., Mokhov, I., Lang, B., Krzhizhanovskaya, V., and

Meijer, R. (2011). Machine learning methods for en-

vironmental monitoring and ﬂood protection. Interna-

tional Conference on Artiﬁcial Intelligence and Neu-

ral Networks.

Rao, J., Bu, X., Xu, C.-Z., and Wang, K. (2011). A dis-

tributed self-learning approach for elastic provision-

ing of virtualized cloud resources. IEEE International

Symposium on Modelling, Analysis, and Simulation of

Computer and Telecommunication Systems.

S4 Website (2012). S4 distributed stream computing plat-

form. http://incubator.apache.org/s4.

Sheng, B., Li, Q., and Mao, W. (2006). Data storage place-

ment in sensor networks. ACM International Sympo-

sium On Mobile Ad Hoc Networking and Computing.

Spark Website (2012). Spark cluster computing framework.

http://www.spark-project.org.

Storm Website (2012). Storm distributed realtime compu-

tation system. http://storm-project.net.

White, T. (2009). Hadoop: The Deﬁnitive Guide. O’Reilly

Media.

Zaharia, M., Chowdhury, M., Franklin, M. J., Shenker, S.,

and Stoica, I. (2010). Spark: Cluster computing with

working sets. HotCloud.

ZooKeeper Website (2012). Apache zookeeper. http://

zookeeper.apache.org.

AnalysisCloud-RunningSensorDataAnalysisProgramsonaCloudComputingInfrastructure

365
