Making Data Citable

A Web-based System for the Registration of Social and Economics Science Data

Dimitar Dimitrov, Erdal Baran and Dennis Wegener

GESIS – Leibniz Institute for the Social Sciences, Unter Sachsenhausen 6-8, 50667 Cologne, Germany

Keywords: Citable Research Data, DOI, Registration Agency, Information System.

Abstract: Reliable identification and citation of research datasets, used to answer particular research questions, is

currently limited. Even with well agreed standards, classic bibliographic methods of data citation have their

limits when research datasets have been used several times or are stored in different locations. In this paper,

we present the web-based information system da|ra, which aims at addressing this issue. We introduce a

technical architecture which allows the registration of metadata of research datasets. The system allows a

user to get a DOI name for these datasets, to search for registered datasets and to resolve DOI names. To-

day, our system is used by 12 publication agents and includes more than 6,000 research datasets that can be

searched and cited using their DOI name.

1 INTRODUCTION

Today, we are experiencing an explosion of data,

since producing data has become very easy and

inexpensive. This is not only true for the common

Internet user who, e.g., writes blogs and publishes

photos, but also for the scientific community. Dif-

ferent tools support producing research datasets of

various types. However, the exact citation and refer-

encing of these datasets poses a problem for re-

searchers and thus limits, e.g., the reproducibility of

experiments on scientific data. This is surprising, as

the possibility of getting citations for datasets would

intrinsically encourage researchers to publish their

data to earn reputation and acknowledgement.

A solution to this problem is the use of persistent

identifiers for datasets as, e.g., offered by the DOI

(Digital Object Identifier) system (DOI Foundation,

2012). In cooperation with DataCite (DataCite,

2012), an international initiative to establish easier

access to research data, the Leibniz institutions

GESIS (GESIS, 2012) and ZBW (ZWB, 2012) offer

DOI registration for social science and economic

data in Germany. The registration agency for social

and economics science data da|ra (http://www.da-

ra.de) aims at developing an infrastructure to attach

DOI names to research data and make them findable

and citable (Hausstein and Zenk-Möltgen, 2011).

In this paper, we present the current web-based

information system for the registration and retrieval

of social and economic science data, which was

developed in the da|ra project. The key objective of

the system is to capture metadata of social and eco-

nomic datasets, making them citable by registering a

DOI names as persistent identifier, and making them

searchable on the Web. The data centres that register

data, also called publication agents, are responsible

for providing the metadata and specifying the correct

landing page for resolution, as well as for taking

care of their up-to-dateness. da|ra is responsible for

the DOI registration and the metadata maintenance.

The remainder of the paper is as follows: An

overview over prior and related work is given in

Section 2. Section 3 introduces the domain-specific

metadata schema of the da|ra system. In Section 4

we present the da|ra system architecture and intro-

duce the process for the registration of a dataset with

da|ra. Finally, Section 5 concludes and presents an

outlook.

2 PRIOR & RELATED WORK

Data available on the Web can be very dynamic and

often changes over time. However, this can be a

curse if we want the data to be accessible and re-

usable. Thus, we can attach a reference to the data

that can be resolved and points to the recent location

of the data. Such a reference is called persistent

identifier (PID). The most important properties of a

155

Dimitrov D., Baran E. and Wegener D..

Making Data Citable - A Web-based System for the Registration of Social and Economics Science Data.

DOI: 10.5220/0004371601550159

In Proceedings of the 9th International Conference on Web Information Systems and Technologies (WEBIST-2013), pages 155-159

ISBN: 978-989-8565-54-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

persistent identifier are uniqueness, which can be

addressed by defining namespaces or using special

identifier generation strategies, and resolvability,

which means that the identifier can be resolved per-

sistently. Further important properties in the context

of PID systems are, e.g. the association of metadata

with the identifier, the ability to incorporate legacy

identifiers or identifiers of other types, or the han-

dling of versioning, granularity and management of

the PIDs (Ball and Duke, 2012). In general, we can

distinguish two categories among the systems as-

signing persistent identifiers: systems that store

metadata associated with the PID and systems that

do not store metadata. The main part of the systems

storing metadata has a basic metadata schema,

which often consists of Dublin Core elements.

The DOI Foundation provides a managed resolu-

tion system for identifiers. A DOI name may be

represented as a URL by prefacing the string

http://dx.doi.org/ to the DOI of the document (e.g.,

the DOI name 10.4232/1.11380, can be resolved by

http://dx.doi.org/10.4232/1.11380).

One of the biggest PID systems is Crossref

(Crossref, 2012), which is mainly registering DOI

names for different literature types. DataCite is reg-

istering DOI names, but their focus is on PIDs for

datasets. DataCite also provides a very general

metadata schema for datasets of all types. Further-

more, several institutions exist, e.g. national librar-

ies, which allow registration of URNs (Daigle et al.,

2002) for publications. We build our system on the

services provided by DataCite, since the purpose of

DataCite is to promote science and research, which

perfectly matches our use cases. Thus, we use DOI

names as PIDs (Hausstein, 2012).

3 METADATA SCHEMA

The main goal of the da|ra information system is the

registration of scientific social and economic da-

tasets and to allow for searching for metadata of

research datasets. Typical data in social sciences is

empirical primary data from survey research, histor-

ical social research and texts for content analyses.

The typical economics data is statistical data collect-

ed with surveys of individuals, companies or states

but also data representing experiment results.

The main requirements when developing the

da|ra metadata schema to describe the data were the

following: (1) Interoperability with other standards

such as the DDI metadata specification (DDI, 2012)

and the Dublin Core Metadata Initiative (DCMI); (2)

Quality assurance of metadata; (3) Sustainability,

e.g. the availability for semantic web applications.

The metadata schema of da|ra is implemented as

XML Schema Definition (Hausstein et al., 2012) and

is partially based on the metadata schema of the

Metadata store of DataCite (Starr et al., 2011). As

we are interfacing with the DataCite services, we

incorporated all required fields of the metadata store

schema in our schema, but also adapted and intro-

duced new fields. The following fields are consid-

ered as the minimal set of fields required for a cita-

tion of a dataset: Title; Principal Investigator; Publi-

cation Agent; DOI; URL; Publication Date. Since

da|ra does not store the data itself but only the

metadata, the mandatory field ‘Availability’ addi-

tionally holds information about the access status of

the dataset.

The da|ra schema includes 28 optional fields to

give users the possibility to describe social and eco-

nomic science data in detail, e.g. by fields such as

Data Collector, Sampled Universe, Sampling, Tem-

poral Coverage, Time Dimension, Collection Mode,

Data, and Publication. These additional fields also

increase the visibility of the datasets and make them

easier to be found by a domain expert.

In the da|ra system, editing of metadata is sup-

ported by controlled vocabularies in order to support

quality assurance and standardization. Hence, some

fields of the da|ra metadata schema accept only

values from controlled vocabularies from the social

and economic sciences, such as TheSoz (Thesaurus

Social Sciences) (Zapilko et al., 2012) or STW

(Thesaurus for Economics)

(Gastmeyer, 1998). For

each controlled field there exists also a free text field

to increase flexibility.

Versioning and granularity are issues in the con-

text of persistent identifiers. In da|ra, we offer a

comprehensive versioning mechanism and let the

publication agents decide how to use it. For exam-

ple, publication agents can register a new DOI name

for each version of the metadata or update the exist-

ing metadata in order to, e.g., remove typos. Publica-

tion agents are also free to decide on the granularity

of the datasets, which means that it is also possible

to assign a DOI name for a package, e.g. a CD con-

taining several datasets.

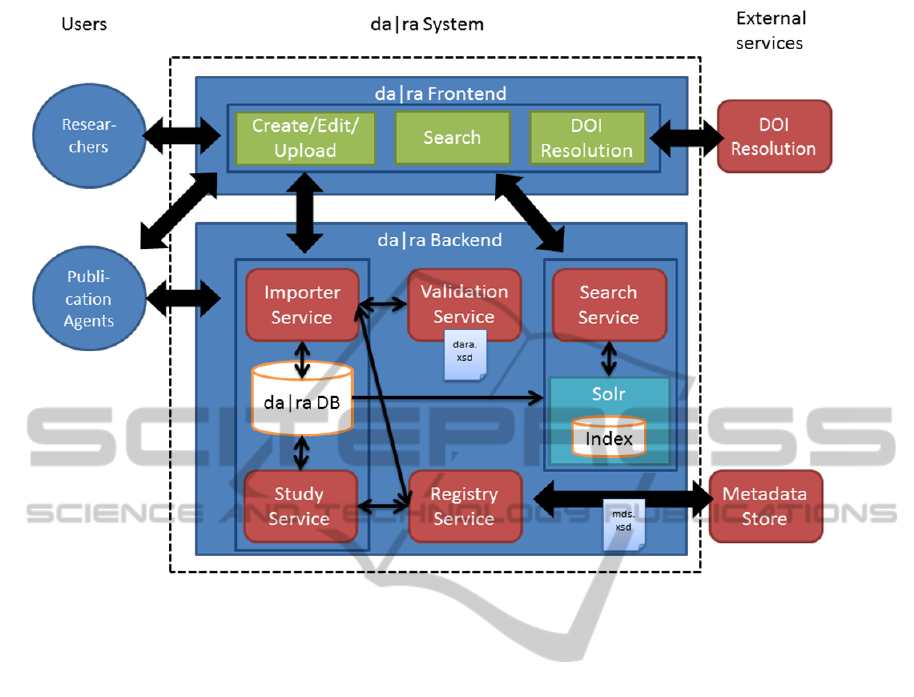

4 SYSTEM ARCHITECTURE

In this section, we give an overview over the archi-

tecture of the da|ra information system. The architec-

ture of our system is visualized in Figure 1. On the

left, we see the two types of user groups, Publication

Agents and Researchers. The main difference be-

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

156

tween these is that the researcher cannot create or

edit a dataset. On the right, the external services

interacting with da|ra - the DOI resolution and

Metadata Store services - are visualized. In the mid-

dle, the details of the frontend and the backend of

our system are visualized. The main frontend com-

ponents are Search, Create/Edit/Upload, and DOI

resolution. In the following, we present the details of

the internal components and how they interface with

the external services.

4.1 Create, Edit & Upload

A publication agent can use the da|ra frontend to

create and then edit a dataset. To create a dataset one

has to fill out the create form, which covers the basic

metadata fields. After that the data is saved as a

dataset and, if chosen by the publication agent, reg-

istered. Then, the dataset can be edited and the addi-

tional domain-specific metadata fields can be filled

out in the edit form. When creating a dataset, one

can choose whether to provide a DOI proposal or to

let the system generate one. As mentioned before,

versioning is crucial in the context of PIDs. With our

system, a publication agent selects either to use only

a ‘Study ID’ and let the system generate the ‘Ver-

sion’, or to provide both manually, or to let the sys-

tem generate both.

The importer and study service are the only ser-

vices that have reading and writing access to the

da|ra database. These two services are supporting the

‘create/edit and upload’ components offered in the

frontend. The study service supports the form-based

data manipulation. The importer service takes an

XML based data description valid with the dara.xsd

as input. This request will create an entry in our

database if there does not yet exist an entry with the

given ‘Study ID’ and ‘Version’. Otherwise, it will

update the existing entry. The importer service can

be used via the frontend by a form for XML upload,

or via the service API.

The DOI registration is performed by the registry

service. The registry service acts as a proxy of the

services of the metadata store. These provide the

functionality for ‘DOI registration’ and ‘metadata

upload’. In addition, they can be used to set the

status of a DOI name ‘inactive’ to deactivate a DOI,

e.g. if the landing page of the DOI is unreachable.

When registering a DOI, two key-value pairs with

DOI name and URL have to be passed. If the DOI

name already exists, it will be reminted. Otherwise it

will be registered. The metadata upload stores a new

version of the metadata for a given DOI. It takes an

Figure 1: Technical overview of the da|ra information system.

MakingDataCitable-AWeb-basedSystemfortheRegistrationofSocialandEconomicsScienceData

157

XML, which is valid against the Metadata Store

schema, as input.

4.2 Search & Doi Resolution

The search component is supported by the search

service through the Solr framework. We offer quick

and advanced search forms. The quick search is

performed over all metadata fields. In the advanced

search, one can narrow the search by stating explicit-

ly the title, DOI, version, principal investigator,

publication date or data centre (publication agent).

Furthermore, the search result of a request can be

filtered/narrowed with facets, which allows faster

and easier finding of specific information about a

dataset. We defined seven facets: Data Center, Prin-

cipal Investigator, Data Collector, Collection Mode,

Keywords, Availability and Publication Date.

The structure of the Solr index is given through

the Solr indexing schema. In this schema, we de-

fined the advanced and faceted search fields as static

fields and all other as dynamic fields. In addition, for

the quick search, we defined also a static field called

default search. All dynamic and static fields are

copied to this field to perform a quick overall search.

Every new dataset created by da|ra is integrated

into the Solr index by the search service. In addition,

the search service manages updates. Depending on

whether logged-in or not, the user gets different

search results. For a non-logged user, we present

only the registered datasets. The logged-in user gets

additionally his/her own not yet registered datasets

as search result.

The DOI resolution component is based on a ser-

vice that is used to resolve a given DOI name, pro-

vided by the DOI Foundation.

5 CONCLUSIONS & OUTLOOK

Reproducibility of research processes is essential for

every science discipline. Often, the reproduction of a

research process is impossible without the primary

data that was used in the process. The da|ra system

supports the demand for the ability to find and to

precisely cite primary data. In this paper, we

presented the architecture of the da|ra information

system, which allows registering and citing datasets

by using DOIs as persistent identifiers. It is based on

the da|ra metadata schema, which matches the needs

of the social science and economics to describe their

datasets. The da|ra information system is

implemented using the Grails framework and is

publicly available at http://www.da-ra.de (see Figure

2 for a screenshot). Today, our system is already

used by 12 publication agents and includes more

than 6,000 registered research datasets that can be

cited using their DOI. Based on the resolution statis-

tics from DataCite, we can see that the DOIs are

frequently used: in total, about 10700 registered

DOIs of the datasets in our system are resolved per

month; these covered 4170 unique DOIs (average

over July-September 2012).In future work, we will

focus on linking the datasets in our system with

other repositories, e.g. literature repositories. For

doing so, techniques from InFoLiS (Boland et al.,

2012) could be integrated.

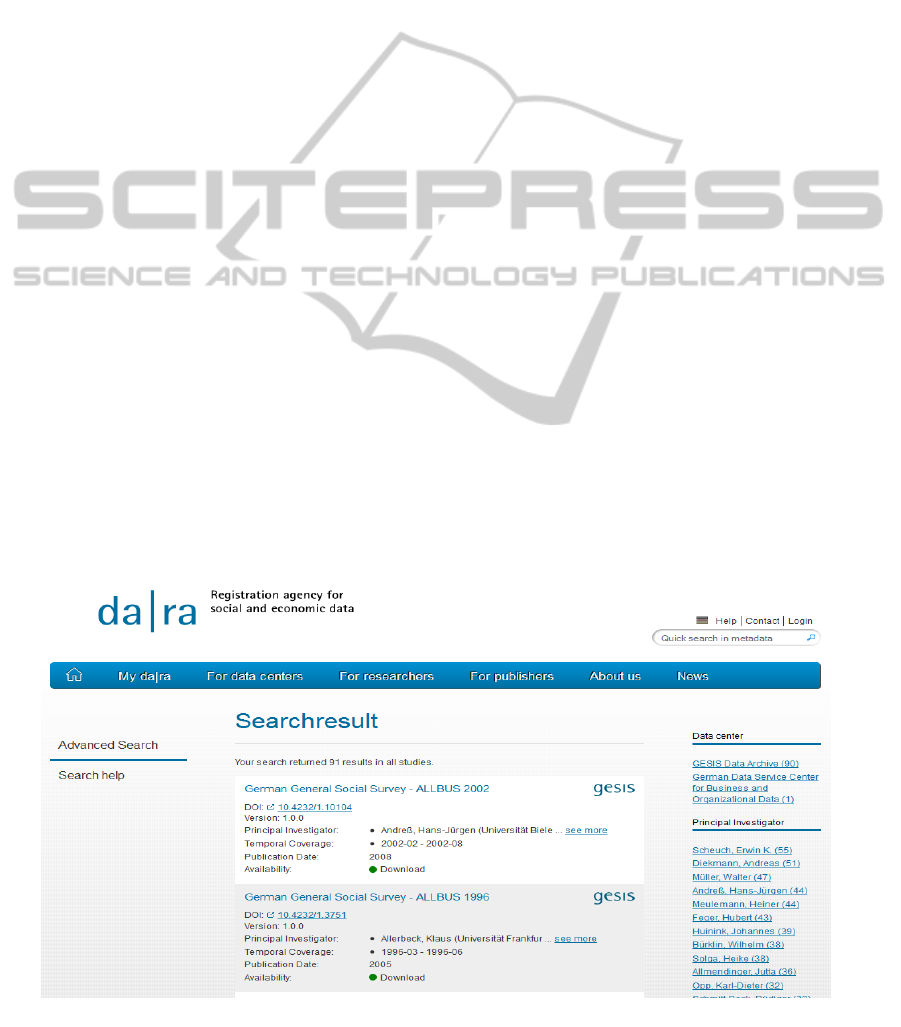

Figure 2: Screenshot of the da|ra system.

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

158

ACKNOWLEDGEMENTS

This work is jointly funded by the German Research

Foundation (DFG) and GESIS as part of the da|ra

project. We would like to thank the members of the

da|ra team for their comments and support.

REFERENCES

Ball, A. and Duke, M. (2012). Data Citation and Linking.

DCC Briefing Papers. Digital Curation Centre.

Boland K., Ritze D, Eckert K. and Mathiak B. (2012),

Identifying References to Datasets in Publications.

TPDL 2012: Theory and Practice of Digital Libraries.

Paphos, 23.-27.09. 2012.

Crossref (2012). Crossref. http://www.crossref.org

Daigle, L. et. al. (2002). URN Namespace Definition

Mechanisms. The Internet Society.

DataCite (2012). DataCite e.V. – International Data Cita-

tion. http://datacite.org.

DDI Data Documentation Initiative (2012).

http://www.ddialliance.org/

DOI Foundation (2012). DOI Handbook. doi:10.1000/182.

Gastmeyer, M. (1998). Standard-Thesaurus Wirtschaft.

Deutsche Zentralbibliothek für

Wirtschaftswissenschaften, Kiel.

GESIS (2012). Leibniz Institute for the Social Science.

http://www.gesis.org

Hausstein, B., Zenk-Möltgen, W. (2011). da|ra – Ein

Service der GESIS für die Zitation

sozialwissenschaftlicher Daten. In: Digitale

Wissenschaft: Stand und Entwicklung digital

vernetzter Forschung in Deutschland. Beiträge der

Tagung vom 20./21. September 2010, Köln, pp. 139-

147.

Hausstein, B. (2012). Die Vergabe von DOI-Namen für

Sozial- und Wirtschaftsdaten - Serviceleistungen der

Registrierungsagentur da|ra. SSRN Electronic Journal.

DOI: 10.2139/ssrn.2008192

Hausstein, B.; Quitzsch, N., Jeude, K., Zenk-Möltgen, W.,

Schleinstein, N., (2012). da|ra Metadatenschema

Version 2.2.1

Starr, J., Ashton, J.,Brase, J., Bracke, P., Gastl, A., Gillet,

J., Heller, A., Krog, B., McAvoy, L., Morgenroth, K.,

Newbold, E., de Smaele, M., Wilde, A., Yeadon, S.,

Zenk-Möltgen, W. and Ziedorn, F. (2011). DataCite

Metadata Schema for the Publication and Citation of

Research Data. doi:10.5438/0005.

Zapilko, B., Schaible, J., Mayr, P. and Mathiak, B. (2012).

TheSoz: A SKOS Representation of the Thesaurus for

the Social Sciences. in: Semantic Web Journal.

ZBW (2012). Leibniz Information Centre for Economics.

http://www.zwb.eu

MakingDataCitable-AWeb-basedSystemfortheRegistrationofSocialandEconomicsScienceData

159
