Precise VM Placement Algorithm Supported by Data Analytic Service

Dapeng Dong and John Herbert

Mobile and Internet Systems Laboratory, Department of Computer Science, University College Cork, Cork, Ireland

Keywords:

Cloud Computing, VM Placement, Forecast, Decision Support.

Abstract:

The popularity and commercial use of cloud computing has prompted an increased concern among cloud

service providers for both energy efﬁciency and quality of service. One of the key techniques used for the

efﬁcient use of cloud server resources is virtual machine placement. This work introduces a precise VM

placement algorithm for power conservation and SLA violation prevention. The mathematical model of the

algorithm is supported by a sophisticated data analytic system implemented as a service. The precision of

the algorithm is achieved by allowing each individual VM to build, on demand, its own data model over

an appropriate time horizon. Thus the data model can reﬂect the characteristics of resource usage of the

VM accurately. The algorithm can communicate synchronously or asynchronously with the data analytic

service which is deployed as a cloud-based solution. In the experiments, several advanced data modelling

and use forecasting techniques were evaluated. Results from simulation-based experiments show that the

VM placement algorithm (supported by the data analytic service) can effectively reduce power consumption,

the number of VM migrations, and prevent SLA violation; it also compares favourably with other heuristic

algorithms.

1 INTRODUCTION

Cloud computing has gained hugely in popularity in

recent years. As the utility computing paradigm re-

quires massively server deployment, one of the main

concerns for a cloud service provider is the opera-

tional cost, especially the cost of power consumption.

Research indicates that servers in many organizations

typically run at less than 30% of their full capacity

(Barroso and Holzle, 2007) (Sargeant, 2010). Thus it

is possible to reduce power consumption of the hard-

ware by means of allocating more Virtual Machines

(VMs) to less hosts. VM placement is one of the

key techniques used for this purpose, and is exten-

sively studied. The basic principle of VM placement

is to allocate as many VMs on a physical server as

possible, while satisfying various constraints speci-

ﬁed as part of the system requirements. Previous

work (prompted by business strategy or user pref-

erence) has focused on improving VM performance

and availability(Jayasinghe et al., 2011), scalability

(Jiang et al., 2012) (Biran et al., 2012) (Meng et al.,

2010), energy conservation (Verma et al., 2008), SLA

(Service Level Agreement) violation prevention (Be-

loglazov and Buyya, 2012), VM live migration cost

(Clark et al., 2005) (Liu et al., 2011), or a combina-

tion (Goudarzi et al., 2012) (Xu and Fortes, 2010). In

this work, both power conservation and SLA violation

prevention are considered.

The commercial use of cloud computing continues

to expand. An SLA is one of the main ways to deal

legally with QoS guarantees, and, as such, is of con-

cern to both consumers and service providers. Theo-

retically, QoS (Quality of Service) can be guaranteed

through appropriate resource provisioning via predic-

tion. Due to the dynamic and heterogeneous nature of

cloud services, predictions are often inaccurate. An

improved prediction accuracy is achieved in this work

by allowing each individual VM to build (on demand)

its own data model over an appropriate time horizon.

Thus the data model can reﬂect the characteristics of

resource usage of the individual VM accurately. The

mathematical modelling of the algorithm is supported

by a sophisticated data analytic system implemented

as a service. More speciﬁcally, the R open source data

analytic framework (R, 2012) is employed as deci-

sion support and a modelling engine. The R Decision

Support System (rDSS) is designed and deployed as

a cloud-based solution, providing services to the VM

placement algorithm.

The rDSS system architecture along with its use

in a simulation environment are described in later

sections. The system is used to evaluate the pro-

posed precise VM placement algorithm. The ex-

463

Dong D. and Herbert J..

Precise VM Placement Algorithm Supported by Data Analytic Service.

DOI: 10.5220/0004371904630468

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 463-468

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

perimental results show that our forecast-based ap-

proach, supported by the data analytic service, saves

0.03 ∼ 1.14kW /h in power consumption with up to

70% fewer VM migrations and a low rate of SLA vio-

lation (0.05% on average) over a six hour period when

compared to a non-forecast based power aware best ﬁt

decreasing algorithm.

2 RELATED WORK

VM placement falls into the ﬁeld of multi-objective

optimization, and it is often formulated as a Bin Pack-

ing or a Constraint Programming problem. Chen

et al. (Chen et al., 2011) proposed an Effective

Sizing guided VM placement algorithm. The pro-

posed Effective Sizings were calculated by comput-

ing least workload correlations with other VMs on

the target host. As VM consolidation is often an NP-

complete task, many researchers employ heuristic al-

gorithms in order to provide optimal solutions in a

timely fashion. A Power Aware Best Fit Decreasing

(PABFD) heuristic was proposed in the study of Be-

loglazov et al.(Beloglazov and Buyya, 2012). More

advanced heuristic algorithms were also employed by

researchers. such as Genetic Algorithms (GAs) as

used by Xu and Fortes (Xu and Fortes, 2010). Al-

though GAs may provide better solutions than simple

heuristic algorithms, but it’s not able to provide opti-

mal solutions in a timely fashion.

Recent research found that network communica-

tion consumes a considerable portion of energy in

cloud data centres (Meng et al., 2010)(Biran et al.,

2012). This is not surprising if one considers mov-

ing a number of VMs with memory footprint rang-

ing from a few hundred MB to tens of GB. Us-

ing VM migration as a technique for VM consolida-

tion can therefore cause both network performance

and VM performance to degrade signiﬁcantly (Liu

et al., 2011)(Clark et al., 2005). Meng et al. (Meng

et al., 2010) present a trafﬁc-aware algorithm for

VM placement. The authors formulate VM place-

ment as a Quadratic Assignment Problem and make

their solution aware of network topologies and net-

work trafﬁc patterns. Cloud service providers rely

on forecasting for resource provisioning. Beloglazov

at el.(Beloglazov and Buyya, 2012) illustrate some

simple statistical and curve ﬁtting techniques in their

study. More advanced techniques have also been cho-

sen by other researchers. In the study by Kusic at el.

(Kusic et al., 2008), the authors used a trained Kalman

ﬁlter to produce estimates of the number of workload

requests and to forecast the future state of the system.

Storage

1. Log history

2. Data address

& method

4. Forecast results

5. Consolidation

process

Cloud

Servers

rDSS

Controller

Cloud Simulator

i. Embedded data and methods

3. Read data

ii. Forecast results

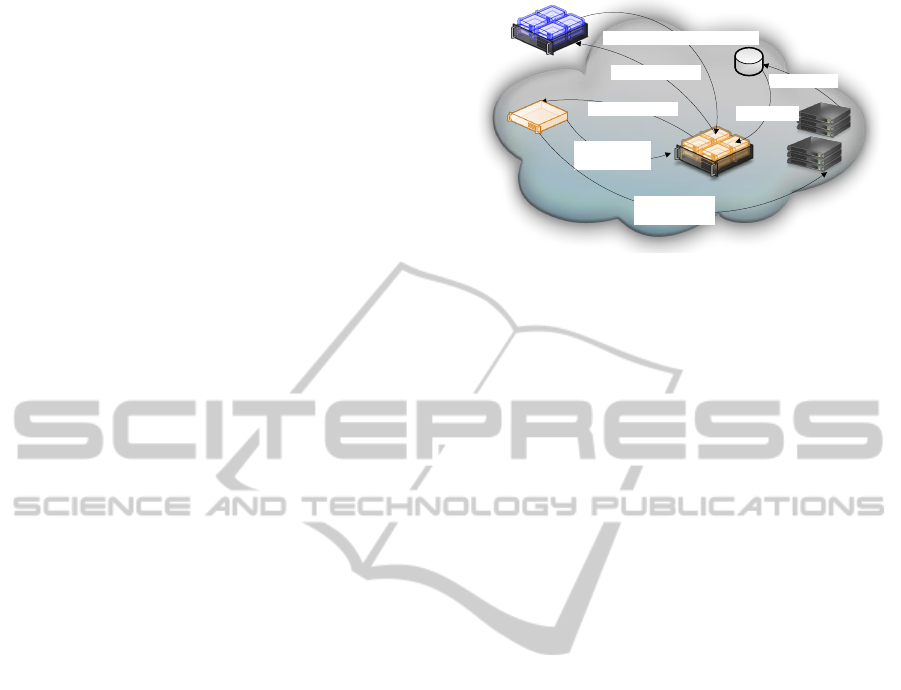

Figure 1: rDSS system architecture.

3 SYSTEM ARCHITECTURE

The rDSS system is a cloud-based solution. Resource

utilization information from each VM and host is

logged to a centralised cloud location (Figure 1). The

data collection process can be done by a hypervisor

or third party software. Data analytic servers that em-

ploy the R framework as an engine, are pre-packaged

Linux images that can run on VMs. The number

of data analytic servers can be scaled up on demand

since it’s cloud-based. A group of host machines are

controlled by a Controller. The Controller has three

responsibilities. Firstly, it segments historical data to

a speciﬁed length for each VM or host; this segmented

data will be used for building forecast models. Sec-

ondly, the Controller passes the address of data and

the speciﬁc modelling algorithm to the rDSS. Infor-

mation is sent programmatically by calling program

functions which have embedded R language clauses.

Communication can also be done asynchronously via

queues. In this case, information will be sent/received

as messages through queues. The asynchronous com-

munication approach is particularly useful when the

data set is large. The returned results can also be

received synchronously or asynchronously. Finally,

based on the forecast model and prediction results re-

turned from rDSS, the Controller carries out a consol-

idation process.

4 PROBLEM FORMULATION

Given a set H of hosts, a set V of virtual machines in

the cloud data centre and power consumption models

for each host, the objective is to decide how to rear-

range V on H such that the total power consumption

in the data centre is minimized, and the SLA violation

rate is kept as low as possible. All v ∈ V requirements

, must be satisﬁed by the targeting host; all v ∈ V

predicted CPU requirements {ˆr

i(t+n)

} must be satis-

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

464

ﬁed by the target host in order to minimize SLA vi-

olations; each h has a resource capacity limit C. The

total power consumption is the sum of power p

i j

con-

sumed by CPUs of each VM i on host j, plus a ﬁxed

power f

consumed by the other components of host

j. Let h

= 1 represent choosing host j to be switched

on, and 0 otherwise. Also, let v

i j

= 1 represent the

assignment of VM i to host j, and 0 otherwise. The

mathematical model is outlined as follows:

min

∑

i∈V

∑

j∈H

i j

∑

j∈H

s.t.

∑

i∈V

i j

6 Ch

∀ j ∈ H

∑

i∈V

{ˆr

i(t+n)

i j

6 Ch

∀ j ∈ H

∑

j∈H

i j

= 1 ∀i ∈ V

i j

6 h

∀i ∈ V, j ∈ H

i j

, h

∈ {0,1} ∀i ∈ V, j ∈ H

One of the main causes of SLA violation is that

the requested resources (from VMs) can not be sat-

isﬁed by the resource providers (hosts). SLA viola-

tion minimization is done in two parts. In the ﬁrst

part, forecast models are built for each VM based on

a certain length of historical data. The forecast model

is then used to predict the future CPU requirements

for each VM. The SLA is controlled as follows. Let

the matrix A ∈ R

+m∗n

denote the total m VMs in the

cloud; a list is associated with each VM which con-

tains n step-ahead forecast values, the number of steps

is adjusted according to the consolidation process fre-

quency; ˆr

i(t+n)

denotes the predicted CPU require-

ment for VM i at time t + n. For all VMs that have

been placed and/or going to be placed on host j con-

struct a matrix A

, A

⊆ A, i 6 m.







ˆr

0(t+1)

ˆr

0(t+2)

·· · ˆr

0(t+n)

ˆr

i(t+1)

ˆr

i(t+2)

·· · ˆr

i(t+n)







Such that

SLA(A

) |= {α

∑

k=0

ˆr

k(t+n)

6 Ch

, ∀n} (1)

Forecasting often contains errors. The second part of

SLA protection is to reserve a certain amount of re-

sources on each host to tolerate forecast errors and ac-

commodate sudden bursts in CPU requests indicated

by α in condition 1. The resource reservation strategy

is outlined as follows. If a host has less resources to

offer than the required buffers, it will be seen as over

utilized, then one or more VMs will be selected to mi-

grate to other host(s). The result of VM(s) migrating

to the target host(s) must not violate the conditions

1. VM migration results in VM performance degra-

dation, extra load on the network burden, and energy

cost (Liu et al., 2011)(Clark et al., 2005). The conclu-

sion of (Beloglazov and Buyya, 2012) is that smaller

VM migration time produces better results; and (Liu

et al., 2011) asserts that VM live migration time is

mainly determined by memory size, memory dirtying

rate, and network bandwidth. Based on these con-

clusions, the principle of smallest memory size ﬁrst

is used in the selection of VMs for migration. For

simplicity, it is assumed that the memory dirtying rate

and network bandwidth are constants. In this work,

we reserve resources on each host statically.

As the proposed VM placement algorithm relies

heavily on the forecast results, an accurate forecast

model is at its foundation. As VMs are continu-

ously running in the cloud, the CPU utilization of

each VM at the sampling times generates a time se-

ries. It should be noted that due to the heterogeneity

of workloads, the time series of VMs often exhibit

different properties, and we need an adaptive way of

building forecast models without prior knowledge of

the types of workloads. Employing the powerful R

framework as decision support system, allows us to

produce forecasts based on advanced data modelling

techniques.

A prerequisite for the proposed algorithm is of

establishing connections between VMs and rDSS

servers. Once the connections are established, VMs

remain connected during their lifetime and the algo-

rithm maintains a map of VMs to connections. The

map is used as an input to the algorithm. Every

VM join/leave event will correspond to a map re-

freshment action. The VM placement process fol-

lows the same principle as the PABFD algorithm (Be-

loglazov and Buyya, 2012). The differences are that

any successful placement needs to satisfy both hard-

ware requirements (such as memory and storage) and

SLA requirements; over utilized hosts are determined

by examining the condition SLA(A

host

). Given the

power consumption model of each host, the reason for

choosing PABFD is that it allows VMs to be placed

on more power efﬁcient hosts in a heterogeneous en-

vironment.

5 EVALUATION

The simulated environment is IaaS (Infrastructure as

a Service). It consists of 80 HP ProLiant ML110

G4, G5 hosts, randomly selected to build a heteroge-

neous cloud environment. Power consumption mod-

els of hosts were collected from (Spe, 2008). Mem-

PreciseVMPlacementAlgorithmSupportedbyDataAnalyticService

465

2.61

2.6

2.5

2.66

2.63

2.49

0.0

0.5

1.0

1.5

2.0

2.5

3.0

ARIMA ETS IID PABFD RW STS

Power (kW/h)

(a)

14.9

14.87

14.97

15.25

15.21

14.81

0.0

2.5

5.0

7.5

10.0

12.5

15.0

ARIMAETS IID PABFD RW STS

Power (kW/h)

(d)

0.12

0.17

0.21

0.23

0.11

0.09

0.00

0.05

0.10

0.15

0.20

0.25

0.30

ARIMAETS IID PABFD RW STS

SLA Overall (%)

(b)

1.82

1.97

1.95

2.31

2.89

2.09

0.0

0.5

1.0

1.5

2.0

2.5

3.0

ARIMA ETS IID PABFD RW STS

SLA Overall (%)

(e)

226

287

172

444

1139

408

250

500

750

1000

1250

ARIMAETS IID PABFD RW STS

Num of Migration

(c)

794

854

555

1032

2459

1023

500

1000

1500

2000

2500

ARIMAETS IID PABFD RW STS

Num of Migration

(f)

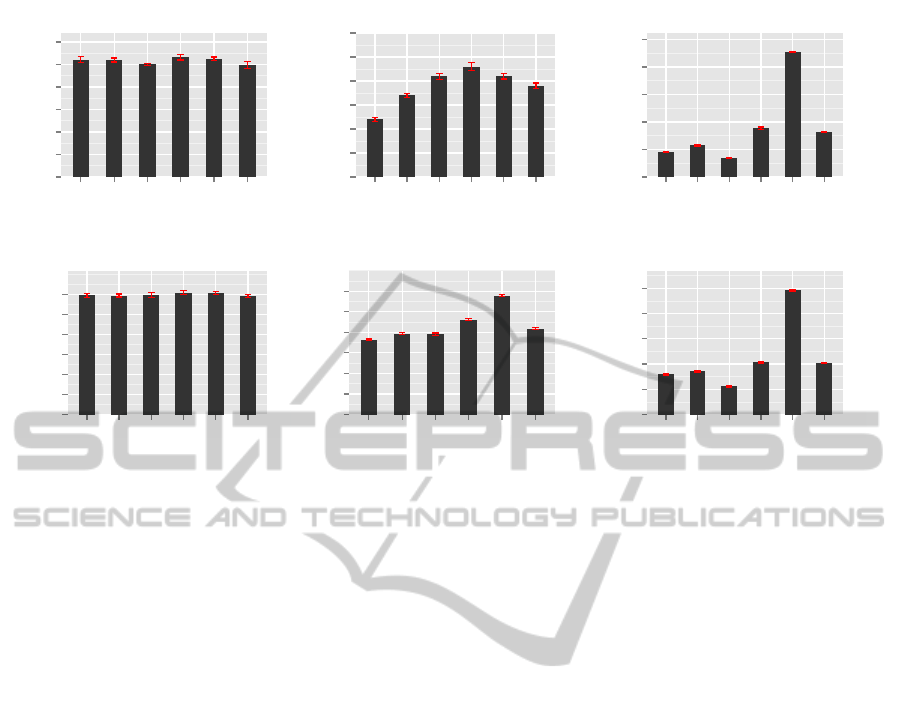

Figure 2: Experiment results from real-world server workloads and random workloads.

ory assignment for VMs are uniformly distributed in

the range 256MB ∼ 1GB. A set of mixed, real-world

server workloads were collected from (Beloglazov

and Buyya, 2012). They were given to each VM

during simulation. We use three sets of experiments

to evaluate the One-step ahead Forecast-based Power

Aware Best Fit Decreasing(F1PABFD) algorithm. All

sets of experiments use a conﬁguration of one hun-

dred VMs and eighty hosts. The experiments sim-

ulated a cloud environment continuously operational

for six hours, with the consolidation frequency set to

ﬁve minutes.

Forecast models were built for each VM based on

two hours of historical data. We also compared our al-

gorithm with the PABFD (Local Regression and Min-

imum Migration Time) heuristics approaches (Bel-

oglazov and Buyya, 2012). Figure 2(a)(b) and (c)

show results from the ﬁrst set of experiment. A set

of mixed, real-world server workloads were given to

each VM during simulation. The workloads are di-

rectly mapped to the CPU utilization of each VM.

They reﬂect 10.74% CPU utilization of each VM

on average. Figure 2(a),(b),(c) show comparison of

the total power consumption, number of VM migra-

tions, and overall SLA violation for each of the al-

gorithms respectively. It can be observed that our

F1PABFD algorithm is able to save 0.03 ∼ 0.17 elec-

tricity unit (kW/h) over the six hours operation com-

pared to PABFD. Among the algorithms, F1PABFD-

IDD produced the lowest power consumption. How-

ever, our forecast-based algorithm has a signiﬁcantly

reduced number of VM migrations - up to 39% of that

achieved by F1PABFD-IDD. Based on accurate fore-

casting, our algorithm effectively prevented SLA vio-

lations by reducing overall SLA violation to the best

result of 0.12%, compared with 0.23% given by non-

forecast PABFD.

In the second set of experiments, we evaluated

the robustness of our algorithms. We performed ex-

actly the same experiments but with random work-

loads. The generated random workloads reﬂect ap-

proximately 53.2% CPU utilization of each VM on

average. In Figure 2(d), the power consumption

trends are similar to that produced in Figure 2(a). Be-

cause of the obvious reason that the workloads were

heavier, the power consumption is higher. With ran-

dom and heavier workloads, our algorithms start sav-

ing more energy – 0.03 ∼ 0.44 kW/h energy saving

for six hours operation compared with Figure 2(a).

We further prove this in the third set of experiments.

In Figure 2(f), we still observe a signiﬁcant drop in

the number of VM migrations. In Figure 2(e) we

see a signiﬁcant increase of SLA violations. There

are three possible reasons. 1) It’s caused by ran-

domness, because the randomness has a general neg-

ative effect on our forecast-based algorithm; 2) It’s

caused by the increased average CPU utilization on

each VM; 3) or both. The third set of experiments

aims to answer this question. For these more detailed

experiments, F1PABFD-IID, -STS, and -ARIMA al-

gorithms were selected for further evaluation, elimi-

nating F1PABFD-RW due to having the highest num-

ber of VM migration and F1PABFD-ETS due to hav-

ing lowest performance (Figure 4).

In the third set of experiments, we evaluated how

the weight of workloads effect our algorithms. We

generated eight sets of workloads artiﬁcially based on

the real-world server workloads used in the ﬁrst ex-

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

466

●

200

400

600

0.00

0.05

0.10

0.15

0.20

Power (kW/h)

Num of Migration

Overall SLA (%)

10 20 30 40 50 60 70 80 90

Average CPU utilization (%)

Algorithm

●

ARIMA

IID

NONE

STS

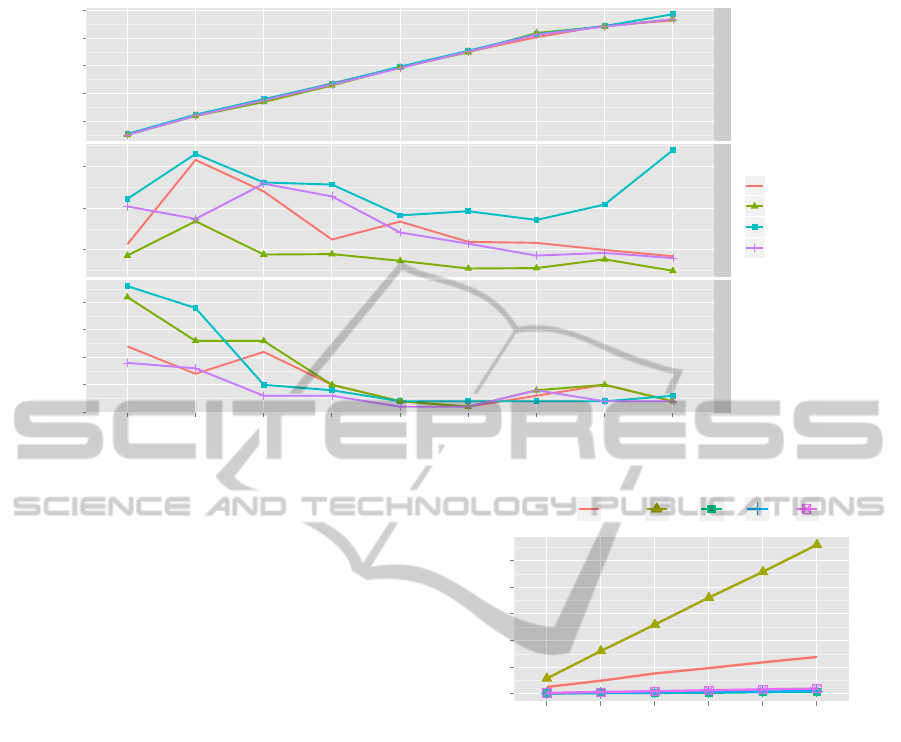

Figure 3: Experiment results from real-world workloads.

periment. To preserve the characteristics of the origi-

nal workloads as much as possible, such as trends and

periodicity, etc, we added a constant to each workload

value; and gradually increased the weight of the aver-

age workloads from 10.74% (original) up to 90%. In

Figure 3, we calculated that all F1PABFD-based al-

gorithms consume 0.03 ∼ 1.14kW/h less power than

the non-forecast PABFD. A signiﬁcant power drop is

observed at the average weight of workloads of 90%.

The reason is as follows. When the average workload

(average CPU utilization of each VM) is reaching full

capacity, the changes in the CPU utilization curves

become more smooth. Our forecast results become

more accurate; VM placement decisions based on the

forecast results can be more accurate, and fewer active

hosts are required. Consequently power consumption

is reduced. The more accurate forecasting also re-

sults in lower SLA violations. This can be observed

in the end portion of Figure 3. Another observation

is that SLA violation becomes higher when average

workloads become lower. This is because when CPU

utilization of each VM is lower, more VMs will be as-

signed to a host. When a host becomes more compact,

it increases uncertainty of resource requirements. An

improvement can be made by dynamically reserving

more resources on each host according to the level

of the average workloads. This is planned for future

implementation. We also noticed that SLA violation

didn’t increase with the increasing weight of work-

loads. Therefore, we concluded that the observed sig-

niﬁcant increase in SLA violation in Figure 2 (e) was

caused by the randomness of the workload. Overall,

our F1PABFD algorithm performs much better than

●

25 50 75 100 125 150

Number of VMs

Seconds

Algorithm

●●●●●

ARIMA ETS IID RW STS

Figure 4: Algorithm performance.

the original PABFD, and especially in reducing the

number of VM migrations. In the middle facet of Fig-

ure 3, we observe that F1PABFD-IID, -STS, -ARIMA

algorithms can reduce the number of VM migra-

tions by 3/1.5/1.5 times on average respectively, com-

pared with PABFD. Among them, F1PABFD-STS, -

ARIMA performed consistently well; F1PABFD-IID

was best at reducing VM migrations. Considering that

F1PABFD-ARIMA is much slower (Figure 4) than -

STS and -IID, F1PABFD-STS and -IID are recom-

mended. Depending on the status of the network for

the cloud, F1PABFD-IID may be preferred over -STS.

Therefore, there is an opportunity for researching dy-

namic algorithm switching based on network status.

6 CONCLUSIONS

This paper has described a forecast-based VM place-

ment algorithm with power aware best ﬁt decreasing

PreciseVMPlacementAlgorithmSupportedbyDataAnalyticService

467

heuristic algorithms for cloud server consolidation.

Our main concerns are power consumption and SLA

violation. We designed and deployed an architecture

using cloud-based R servers as the decision support

system. Forecast models were built for each VM, and

predictions made as to their future CPU resource re-

quirements. The simulation-based experiments anal-

ysed the proposed algorithms with respect to their

consistency, robustness, and performance. The re-

sults demonstrate that the proposed approach, com-

pared with other heuristics, can signiﬁcantly reduce

power consumption, the number of VM migrations,

and number of SLA violations. The analytical model

has not taken load-balancing into consideration, and

this will be addressed in future work.

ACKNOWLEDGEMENTS

This work is supported by the Telecommunications

Graduate Initiative (TGI) program which is funded by

the Higher Education Authority under the Programme

for Research in Third-Level Institutions (PTRLI) Cy-

cle 5 and co-founded under the European Regional

Development Fund (ERDF).

REFERENCES

(2000 - 2012). R porject. http://www.r-project.org.

(2008). Spec. http://www.test.org/doe/.

Barroso, L. and Holzle, U. (2007). The case for energy-

proportional computing. Computer, 40(12):33 –37.

Beloglazov, A. and Buyya, R. (2012). Optimal online de-

terministic algorithms and adaptive heuristics for en-

ergy and performance efﬁcient dynamic consolidation

of virtual machines in cloud data centers. Concur-

rency and Computation: Practice and Experience,

24(13):1397–1420.

Biran, O., Corradi, A., Fanelli, M., Foschini, L., Nus, A.,

Raz, D., and Silvera, E. (2012). A stable network-

aware vm placement for cloud systems. In Proceed-

ings of the 2012 12th IEEE/ACM International Sym-

posium on Cluster, Cloud and Grid Computing (ccgrid

2012), pages 498 –506.

Chen, M., Zhang, H., Su, Y.-Y., Wang, X., Jiang, G., and

Yoshihira, K. (2011). Effective vm sizing in virtual-

ized data centers. In Integrated Network Management

(IM), 2011 IFIP/IEEE International Symposium on,

pages 594 –601.

Clark, C., Fraser, K., Hand, S., Hansen, J. G., Jul, E.,

Limpach, C., Pratt, I., and Warﬁeld, A. (2005). Live

migration of virtual machines. In Proceedings of the

2nd conference on Symposium on Networked Systems

Design & Implementation - Volume 2, NSDI’05, pages

273–286.

Goudarzi, H., Ghasemazar, M., and Pedram, M. (2012).

Sla-based optimization of power and migration cost

in cloud computing. In Cluster, Cloud and Grid Com-

puting (CCGrid), 2012 12th IEEE/ACM International

Symposium on, pages 172 –179.

Jayasinghe, D., Pu, C., Eilam, T., Steinder, M., Whally,

I., and Snible, E. (2011). Improving performance

and availability of services hosted on iaas clouds with

structural constraint-aware virtual machine place-

ment. In Services Computing (SCC), 2011 IEEE In-

ternational Conference on, pages 72 –79.

Jiang, J., Lan, T., Ha, S., Chen, M., and Chiang, M. (2012).

Joint vm placement and routing for data center trafﬁc

engineering. In INFOCOM, 2012 Proceedings IEEE,

pages 2876 –2880.

Kusic, D., Kephart, J., Hanson, J., Kandasamy, N., and

Jiang, G. (2008). Power and performance man-

agement of virtualized computing environments via

lookahead control. In Autonomic Computing, 2008.

ICAC ’08. International Conference, pages 3 –12.

Liu, H., Xu, C.-Z., Jin, H., Gong, J., and Liao, X. (2011).

Performance and energy modeling for live migration

of virtual machines. In Proceedings of the 20th inter-

national symposium on High performance distributed

computing, HPDC ’11, pages 171–182. ACM.

Meng, X., Pappas, V., and Zhang, L. (2010). Improving the

scalability of data center networks with trafﬁc-aware

virtual machine placement. In INFOCOM, 2010 Pro-

ceedings IEEE, pages 1 –9.

Sargeant, P. (2010). Data centre transformation: How ma-

ture is your it? Gartner. Inc.

Verma, A., Ahuja, P., and Neogi, A. (2008). pmapper:

power and migration cost aware application place-

ment in virtualized systems. In Proceedings of the

9th ACM/IFIP/USENIX International Conference on

Middleware, Middleware ’08, pages 243–264.

Xu, J. and Fortes, J. (2010). Multi-objective virtual machine

placement in virtualized data center environments. In

Green Computing and Communications (GreenCom),

2010 IEEE/ACM Int’l Conference on Int’l Conference

on Cyber, Physical and Social Computing (CPSCom),

pages 179 –188.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

468
