A Versatile and Scalable Everything-as-a-Service Registry and Discovery

Josef Spillner and Alexander Schill

Faculty of Computer Science, Technische Universität Dresden, 01062 Dresden, Germany

Keywords:

Service Registry, Service Model, Service Description, Matchmaking.

Abstract:

Networked humans and autonomous systems rely increasingly on service-oriented architectures. Conventional

systems often focus on digitally delivered web services or on business services with varying degrees of formal-

isation. According to service integration principles, the service registry as the pivotal point between providers

and consumers determines the types of services which can be found and delivered. With the growing impor-

tance of cloud computing topics in research and industry, more generic service models, description languages

and registry architectures are proposed to extend the breadth towards truly reusable Everything-as-a-Service

(XaaS) registration entries. Despite the proposals, there is a shortage of capable and extensible XaaS registries.

In this paper, we present such a system and share our experience in using it for service-related experiments.

1 INTRODUCTION

Everything-as-a-Service (XaaS) describes a spectrum

of functionality which can be uniformly described,

negotiated and brokered through uniform means, and

executed and delivered through non-uniform ways.

The term has been increasingly popular in service-

oriented architectures, cloud computing and service

science circles (Banerjee et al., 2011; Didoné and

de Queiroz, 2011; Ferrario et al., 2011). It encom-

passes several delivery-related service classes. In

particular, software- and hardware-provided web ser-

vices, data and human services, as well as further

emerging service classes such as gamiﬁcation or elec-

tricity services which are all somehow incorporated

into or orchestrated by information systems. Beside

the service class, each service belongs to a certain

functional domain. Hotel booking, e-car charging,

text mining, data storage and many more services can

thus be expressed as a combination of service class

and service domain. Finally, each service of a par-

ticular combination can be distinguished with non-

functional properties. Service pricing, location, qual-

ity, safety and security are among the vast possible

properties.

Researchers have been concerned with service se-

lection and substitution problems based on required

properties or dynamic composition based on service

functions and coincidence for some time (Cavalcante

et al., 2012). In order to ﬁnd the best suitable ser-

vice for a certain demand, service registries have been

established as pivotal systems between providers and

consumers. Based on those, service offering and dis-

covery workﬂows have been proposed to guide the

user from having a service idea to offering a ser-

vice and from expressing the demand to achieving

the desired result through matchmaking, respectively

(Guinard et al., 2010). Yet, despite having existed for

a long time, there are several shortcomings in how the

current generation of registries work, scale and ﬁt the

XaaS spectrum.

In this paper, we argue analytically about the

shortcomings in existing service models and descrip-

tion languages, registration models and registry and

discovery systems. We then use this knowledge to de-

rive a suitable problem statement and present our so-

lution approach which results in a versatile and scal-

able XaaS registry. Finally, we evaluate this registry

experimentally with thousands of imported services

from various domains and service classes.

2 EXISTING WORK

Previous research about service registration and dis-

covery focuses on three disjoint and yet closely re-

lated topics: description languages, registration mod-

els, and realised registry and discovery systems. The

state of the art in these topics will be summarised in

the following paragraphs. For extensive reviews and

surveys, we refer to (D’Mello and S., 2010) and (Nair

and Gopalakrishna, 2010).

175

Spillner J. and Schill A..

A Versatile and Scalable Everything-as-a-Service Registry and Discovery.

DOI: 10.5220/0004373301750183

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 175-183

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2.1 Existing Description Languages

A service description contains valuable information

about a service. It is produced by the service provider

and inspected by prospective and actual service con-

sumers. Therefore, it needs to be uniform, precise,

correct and complete (D’Mello and S., 2010). Typi-

cal descriptions convey information about the service

class and domain, interfaces to access the service, the

behaviour along with input and output parameters,

preconditions and effects (IOPEs), as well as arbitrary

non-functional properties about pricing, service qual-

ity (QoS), security and other distinguishing factors.

Table 1 gives a comprehensive overview about ap-

proaches to describe services with various domain

and technology assumptions. Not included are com-

plementary languages to describe message structures,

agreements, guarantees and policies about the ser-

vice usage. The language characteristics encom-

pass completely domain-independent services (e.g.

OWL-S (Solanki et al., 2004), WSML (de Bruijn

et al., 2006), USDL (Barros et al., 2012)), domain-

independent services with a restriction to a certain

interaction paradigm (e.g. WSDL and WADL (Pau-

tasso et al., 2008), RIDDL (Mangler et al., 2009)) as

well as mostly domain-dependent ones, with permis-

sible subdomains for specialisation, without any spe-

ciﬁc requirement on the format of the interaction (e.g.

MSDL, IDNL (Ghijsen et al., 2012), CoCoOn (Zhang

et al., 2012), DEMODS (Vu et al., 2012) and the Text

Mining Service Ontology (Pfeifer and Schill, 2012)).

OCCI is a special case because it mandates a certain

RESTful protocol to obtain the descriptive elements

and is hence restricted to both a domain and an in-

teraction protocol. The description languages have a

varying degree of suitability for any given use case,

maturity and adoption. Hence, it becomes clear that

a generic XaaS registry should accomodate arbitrary

combinations of instances of these languages.

2.2 Existing Registration Models

Registration models deﬁne how declarative service

artefacts are mapped onto the structures present in

service registries. In particular, they mandate the ac-

ceptable artefacts, certain granularities – e.g. full or

partial updates – and cardinalities of documents per

registration entry. Universal Description, Discovery

and Integration (UDDI) is a service registry spec-

iﬁcation which mandates both a registration model

and a registry system with web service interfaces.

The registration model encompasses technical mod-

els, the so-called tModels, to represent unique con-

cepts (Paolucci et al., 2002), along with industry tax-

Table 1: Overview about service description languages.

Acronym Name Service Types Adoption

WSDL Web Service Descrip-

tion Language

SOAP and

REST web

services

huge

WADL Web Application De-

scription Language

REST web ser-

vices

academic

RIDDL RESTful Interface

Deﬁnition and Decla-

ration Language

REST web ser-

vices

academic

USDL Uniﬁed Service De-

scription Language

web and hu-

man services

small

OWL-S Web Ontology Lan-

guage for Services

generic academic

WSML Web Service Mod-

elling Language

generic academic

OCCI Open Cloud Comput-

ing Interface

infrastructure

services

small

INDL Infrastructure and

Network Description

Language

infrastructure

services

academic

CoCoOn Cloud Computing On-

tology

infrastructure

services

academic

MSDL Mobilis Service De-

scription Language

collaboration

services

academic

DEMODS Description Model for

Data as a Service

dataset ser-

vices

academic

– Text Mining Service

Ontology

information

services

academic

onomies and enterprise models. Models are shared

between entries of the same type of service. For in-

stance, a WSDL description would be split into its ab-

stract (interface description) and concrete (provision-

ing) parts, with only the former relating to the model

and the latter being mapped onto a businessService

entry. Going beyond web services, the ebXML Reg-

istry Information Model (Hofreiter et al., 2002) con-

trols which content and metadata types can be regis-

tered in an appropriate registry. Each entry is called

a RepositoryItem whereas metadata on it is called

RepositoryObject. While the UDDI model is fo-

cusing on web services as a subset of XaaS, and

ebXML manages content as a superset of XaaS arte-

facts, the Dragon registration model supports sev-

eral service-related documents. Speciﬁcally, WS-

Agreement SLA documents can be registered along-

side informative WSDL descriptions. Further artefact

types such as policies are not supported.

Table 2 summarises our analysis of registration

models. It becomes obvious that the specialisation of

Dragon is too limited to cater for new developments

(e.g. security policies) whereas the generalisation of

UDDI and ebXML makes it ambiguous how exactly

multi-artefact services are to be registered.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

176

Table 2: Overview about service registry models.

Name Service Descriptions Characteristics

UDDI various through tModels focus on web ser-

vices

ebXML any for any content

Dragon WSDL, WS-Agreement focus on web ser-

vices

2.3 Existing Registry Systems

Architectures and software systems to register and

ﬁnd services are layered as follows: the storage area

(repository) to persist submitted service descriptions,

the programmatic interface (registry) to perform the

registration and retrieval operations, and the user-

centric interface (marketplace) which appears as bro-

ker, portal or other user interface to let the user

perform the offering and discovery processes. The

systems can further be classiﬁed as centralised, de-

centralised (peer-to-peer) or federated architectures.

Some are freely available or have hosted instances.

Our analysis compares representative systems with-

out the claim for completeness given the multitude of

systems available.

UDDI and ebXML registries implement the afore-

mentioned UDDI and ebXML registration models.

Apache jUDDI and OpenUDDI are open-source im-

plementations of UDDI. Commercial UDDI products

are available from many companies, including Ora-

cle Service Registry, Novell UDDI Server and SAP

NetWeaver. While the former UDDI-based Univer-

sal Business Registry (UBR) has not survived, some

publicly operated registries still support the UDDI

speciﬁcation, including xmethods.net. UDDI reg-

istries have been found to not be a sufﬁcient basis for

dynamic service selection. The reasons include the

lack of a sophisticated full-text search for unstruc-

tured content, the lack of support for non-functional

properties, the assumption about the services being

offered by an enterprise and the asymmetric require-

ments speciﬁcation, among others (Field and Hoffner,

2002). Nevertheless, researchers are attracted by its

standard nature and have proposed distributed UDDI

ﬂavours such as Ad-UDDI (Du et al., 2005).

The USDL Marketplace contains a registry ded-

icated to the exchange of USDL artefacts. It is

business-oriented in a way that it recommends ser-

vices for business scenarios and allows for business

value network creation based on contracts and sub-

contract relationships. The marketplace is built as a

J2EE application with various Java frameworks (Hi-

bernate, Spring, Seam) connected to a SQL database.

It has been designed taking into account experiences

from previous USDL registries such as Agora (Car-

doso et al., 2010). There is no known public installa-

tion. The Membrane SOA Registry and the Service-

Finder are registries dedicated to WSDL-described

services. Both are active registries which monitor

the service availability. The Service-Finder even

actively crawls the web for additional descriptions

and meta-data to enrich the entries (Steinmetz et al.,

2009). Public instances with convenient human in-

vocation interfaces run at service-repository.com

and webservices.seekda.com, respectively. The

IBM Dynamic Matchmaking Engine has support for

functional and non-functional properties which can

be either ﬁxed or dynamic so that their value will

be determined in the procurement process (Field and

Hoffner, 2002). As such, this registry takes over con-

tract negotiation tasks which in other architectures

are performed in separate components. Depot (Abu-

Jarour, 2010) has been proposed to increase the qual-

ity of service descriptions in a registry. It pro-actively

crawls information sources for new descriptions sim-

ilar to the Service-Finder.

A fully decentralised architecture based on peer-

to-peer hashtables and gradient topologies has been

proposed to keep deployment costs low and to handle

high scalability (Sacha et al., 2007).

All architectures and software systems for the reg-

istration and discovery of services are summarised in

Table 3. The variety regarding the status and free

availability of the implementation, the existence of

a hosted instance and the architectural choices is re-

markably high.

Table 3: Overview about service registries.

Name Characteristics

jUDDI centralised; available

Ad-UDDI decentralised; architecture pro-

posal; monitoring

USDL Marketplace centralised; available

Membrane SOA Registry centralised; available; hosted

Service-Finder centralised; proprietary; hosted;

crawling

IBM Dynamic MME centralised; proprietary

Depot centralised; proprietary; crawling

P2P Registry decentralised; architecture proposal

2.4 Problem Deﬁnition

Existing registration models and registry systems are

inadequate for the exchange of information about

XaaS. All of the analysed models were too speciﬁc or

too general regarding the possible and the customary

declarative service artefact types. The analysis of reg-

istries reveals a lack of easily usable, freely available,

versatile, extensible and scalable systems: Just three

out of the analysed eight systems are freely available.

AVersatileandScalableEverything-as-a-ServiceRegistryandDiscovery

177

Out of the three (jUDDI, USDL Marketplace, Mem-

brane SOA Registry), only one (the USDL Market-

place) targets versatile services ranging from human

to web services. However, its extensibility is lim-

ited by the highly capable and yet quite complex ser-

vice model, its scalability is unknown and its usability

is severely restricted by the lack of easily installable

software packages. Furthermore, it doesn’t ship with

service domain deﬁnitions. Today’s requirements of

research projects and pilot studies in enterprise ser-

vice and cloud environments are thus best fulﬁlled

with a novel kind of XaaS registry beyond the scope

of just web services.

3 SOLUTION APPROACH

We propose a three-concerns solution consisting of an

appropriate open and extensible description language

for services covering as many XaaS domains as possi-

ble, a registration model and a system to perform the

registration and subsequent service discovery.

3.1 Description Model and Language

Description languages for services capture all aspects

of fundamental service models. The service classes

and domains shown in Figure 1 represent both fully

automated virtual and cyber-physical services as well

as human services. A requirement for a truly versatile

XaaS registry which operates in an open Internet of

Services, and hence a requirement for a correspond-

ing description language, is to unify these services

as much as possible while restricting the domain-

speciﬁc service characteristics as little as possible.

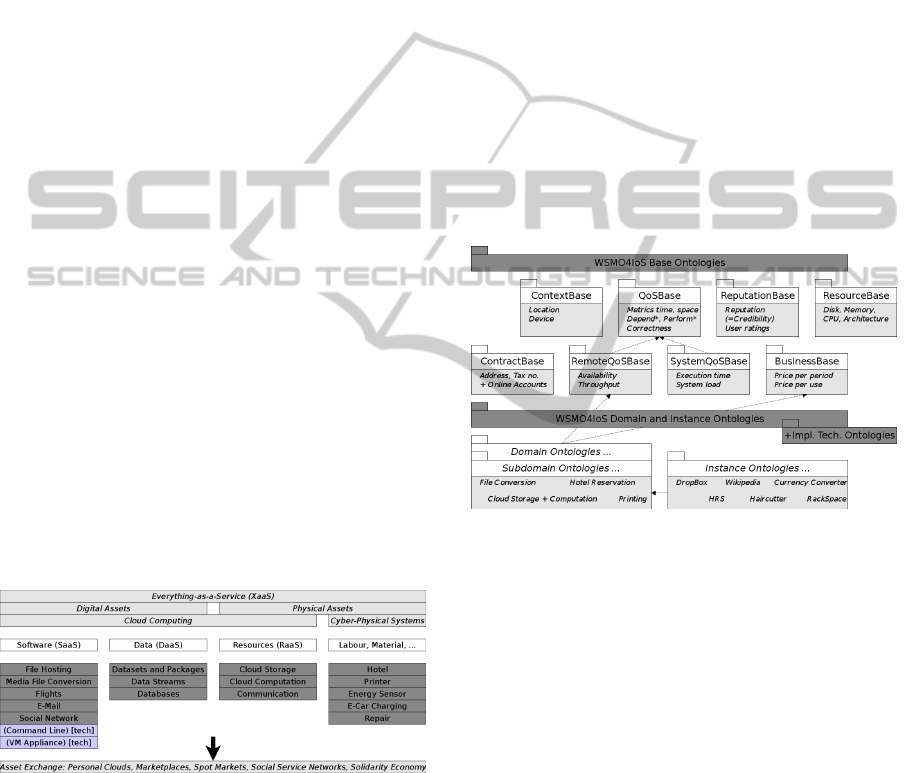

Figure 1: Scope of Everything-as-a-Service (XaaS) in an

Internet of Services.

Following the analysis of existing service de-

scription languages, we conclude that semantic lan-

guages are very suitable for XaaS due to their sep-

aration of language and extensible vocabulary. On

the other hand, the lack of vocabulary in the lan-

guages themselves leads to the requirement of intro-

ducing a speciﬁc catalogue of vocabulary and con-

cepts on top of the languages. We have chosen

WSML as the unintrusive modelling language of

choice due to its strong support for non-functional

properties and general service orientation. WSML is

a syntactical representation of the Web Service Mod-

elling Ontology (WSMO) (de Bruijn et al., 2006).

Hence, we propose a speciﬁc WSML ontology cat-

alogue, called WSMO for the Internet of Services

- WSMO4IoS, as XaaS vocabulary collection which

covers both reusable domain-independent base con-

cepts and domain-speciﬁc concepts. WSML can

be transformed to OWL so that the modelling and

reasoning support among the semantic service tools

should be high enough for all use cases. Figure 2

demonstrates the scope of WSMO4IoS for both base

and domain ontologies. The term unintrusive refers

to the fact that a service doesn’t need to be described

in WSML prior to the registration into our registry.

In such a case, appropriate minimal descriptions can

be generated automatically based on information ex-

tracted from the present artefacts.

Figure 2: WSMO4IoS: Ontologies for the Internet of Ser-

vices and Everything-as-a-Service

WSMO4IoS is maintained as a growing versioned

catalogue of both base and domain ontologies as

well as corresponding imaginary and real instance

services. The catalogue is made available publicly

alongside its speciﬁcation document (Spillner, 2013).

The subsequent sections assume the use of the Jan-

uary 2013 version with 10 base and 13 domain on-

tologies. The domain-speciﬁc modelling complexity

ranges from two concepts for social services to nine

concepts for Cloud storage services. The latter one is

described in detail in (Spillner et al., 2013).

3.2 Registration Model

The Tradeable Services Model introduces the notion

of logical service packages which can be exchanged

and traded through open markets. Service providers

and potential consumers meet through these markets

for search and subsequent matchmaking. Registries

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

178

as core elements of markets support the search and

matchmaking with registration models which allow

for a precise evaluation of service functionality and

non-functional properties. In the Tradeable Services

Model, declarative service description artefacts are

combined with executable implementation artefacts.

The implementation artefacts are however considered

external to the registry and typically would be stored

in a service execution container or repository, whereas

the description artefacts are stored by the registry it-

self. Figure 3 shows one possible structure of a ser-

vice package. It can be seen that services can be com-

plex entities with heterogeneous descriptions of dif-

ferent cardinality. Some descriptions are related to

others.

Figure 3: Service package according to the Tradeable Ser-

vices Model.

A generic registry must therefore accomodate cer-

tain hierarchies. For instance, web services often

mandate different technical interfaces, ports and pro-

tocols, whereas business services often can be deliv-

ered with varying guarantees based on the same tech-

nical implementation. Figure 4 proposes a two-level

artefact registration model where both on the top level

and within each interface descriptive artefacts can be

registered. There can also be references between the

artefacts themselves, for instance a SAWSDL refer-

ence from a WSDL ﬁle to an ontology.

Figure 4: Structure of entries in the registry.

No strong assumption is made about the artefact

types. The model allows for generic artefacts of ei-

ther single or multiple occurrence at each level. It is

the registry’s concern to govern which artefact types

can be registered with which multiplicity. Table 4

contains a suitable conﬁguration which has developed

over time in several research projects with our in-

volvement. It should be noted that even in the case

of single occurrence, the artefact type may itself be

structured in a way that multiple entries be present.

For example, an Agents description lists multiple soft-

ware agents which autonomic service integration sys-

tems use to interact with the service.

Table 4: Tradeable Services Model permissible artefact

conﬁguration.

Artefact Type Multiplicity

WSDL service description 1

WADL service description 1

USDL service description 1

RDF resource description 1

UISDL user interface service 1

GUIDD deployment descriptor 1

WSAG agreement template multiple

Applet for interaction multiple

Clients descriptor 1

Agents descriptor 1

Source/Implementation package 1

Manual page 1

Resource locator 1

Dependency reference 1

Icon 1

3.3 Registry and Discovery System

Service registries should themselves be services in

order to streamline their integration into service-

oriented landscapes and the Internet of Services. In

terms of complete service platforms built around

registries, each platform component acts as a plat-

form service with multiple role-speciﬁc program-

matic and interactive interfaces. Typical roles are

service providers, consumers and platform operators,

among others. The ConQo semantic service reg-

istry is such a platform service. It has initially been

proposed to facilitate the discovery of context- and

quality-tagged web services (Stoyanova et al., 2008).

We have fully implemented and extended ConQo sig-

niﬁcantly towards a generalisation regarding the ser-

vice classes, functional service domains and non-

functional properties. All properties can be dynami-

cally updated through a monitoring submission end-

point (ConQoMon) beyond the coarse-grained up-

dates of complete service artefacts. This evolution has

turned ConQo into a versatile XaaS registry whose

behaviour is controlled by the deployed artefact con-

ﬁguration and base and domain ontologies. Fur-

thermore, we have refactored the code and substi-

tuted some algorithms for a much higher scalabil-

ity. In particular, the former purely centralised ar-

AVersatileandScalableEverything-as-a-ServiceRegistryandDiscovery

179

chitecture has been extended into a passively master-

slave-replicable/federated architecture in which en-

tries from several registries can be downstreamed into

another instance. Two WS-* extensions to ConQo’s

SOAP interface have been developed for this purpose:

WS-DiffTransfer allows for a differential transfer of

only modiﬁed entries instead of all entries, and WS-

Paging adds a pagination similar to browsing results

known from web search sites. The evaluation section

refers to this current version of ConQo.

Figure 5 outlines the high-level architecture of

the registry components, the artefact repository, and

the web service interfaces to the registry. ConQo

is not a pro-active (crawling, self-updating) registry

like Service-Finder or Depot. However, additional

tools exist which make use of ConQo’s interfaces to

achieve an equivalent functionality. In particular, a

service crawler registers services and a monitor su-

pervises them (Spillner, 2010).

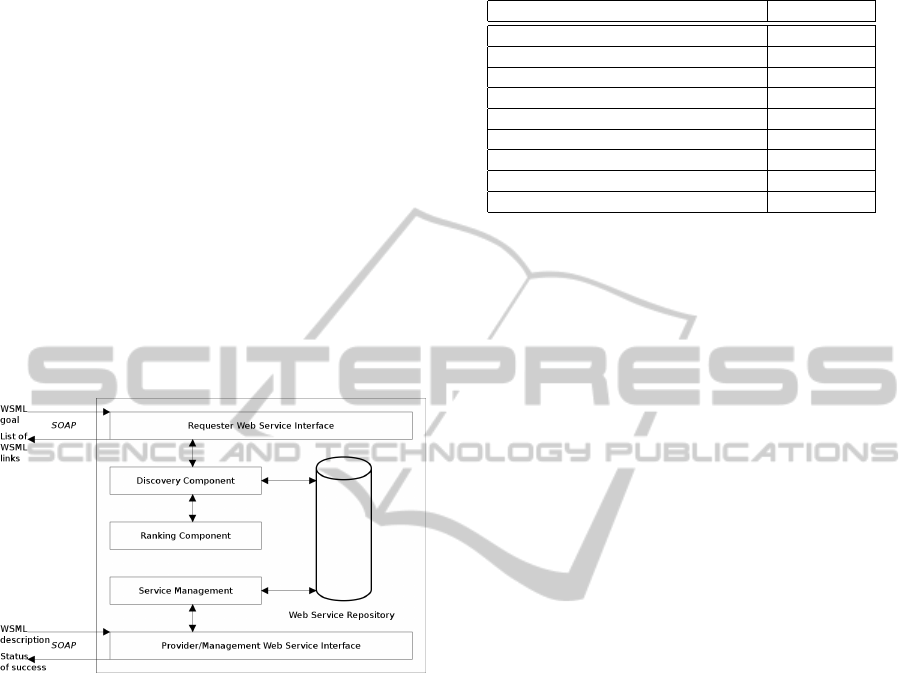

Figure 5: Architecture of the ConQo registry and discovery.

ConQo has several unique features not found in

other registries, such as the ability to save searches for

subsequent reverse auctions of providers who want to

more precisely target the needs of the prospective ser-

vice consumers, and the ability to assign reputation

scores to the advertised service features. The search

can be initiated from both full-text queries and de-

scending domain browsing, with reﬁnements through

subdomain and non-functional property ﬁlters. An se-

lected overview of the role-speciﬁc service interfaces

to perform discoveries, rate services and update non-

functional properties is given in Table 5. In total, there

are 28 web service methods. Access to the methods is

not protected, because this concern is better handled

by platform services which authenticate and redirect

requests.

Table 5: Some of the web service methods offered by

ConQo.

Method Name and Signature Role

initMatchmaker() Admin

getAllMonitors() Admin

addServiceComplete(wsml,img,user) Provider

addInterfaceDocument(iri,doctype,doc) Provider

getSearches() Provider

getWebServices(domain) Consumer

getInterfaceDocuments(iri) Consumer

getReputationParameters(iri) Consumer

achieveGoalText(wsml) Consumer

4 EVALUATION

We evaluate our work by ﬁrst presenting the resulting

registry system as implementation of the proposed ar-

chitecture and an ecosystem of tools around it. Then,

we look at integration perspectives, measure the sys-

tem’s scalability and take a look at its usability.

ConQo has been implemented as a Java Servlet,

called Matchmaker, which runs in an application

container and offers service interfaces for graphical

user interfaces. It uses the DIP QoS-Enabled Ser-

vice Discovery Component as described in (Stoy-

anova et al., 2008), the WSML2Reasoner frame-

work with a choice of reasoning engines, WSMO4J

to parse WSML descriptions and a JDBC connector

to a relational database such as MySQL for storing

all service description concepts, service instance en-

tries and artefacts. The registry is made available as

open source software from http://serviceplatform.org

to promote its wide use in academic and industrial re-

search.

Over time, the ConQo matchmaker has been

used in a number of scenarios and hence been in-

tegrated into various marketplaces and tools. Fig-

ure 6 summarises these efforts. The ConQo Cock-

pit is the native web interface for service discov-

ery based on functional domain selection and subse-

quent non-functional property ﬁltering. Specialised

web interfaces exist for scenarios like application-

like service stores and user interface services. Social

service networks such as Servomat (Spillner, 2011)

and Crowdserving (Spillner, 2010) combine service

trading with professional service offers in social net-

works. A desktop data provider enhances the KDE

desktop environment with services in addition to local

applications in the user’s application selection menu.

Finally, command line applications exist to interact

with the matchmaker and to register both WSML

descriptions and other artefacts which are converted

to WSML based on templates. For experience re-

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

180

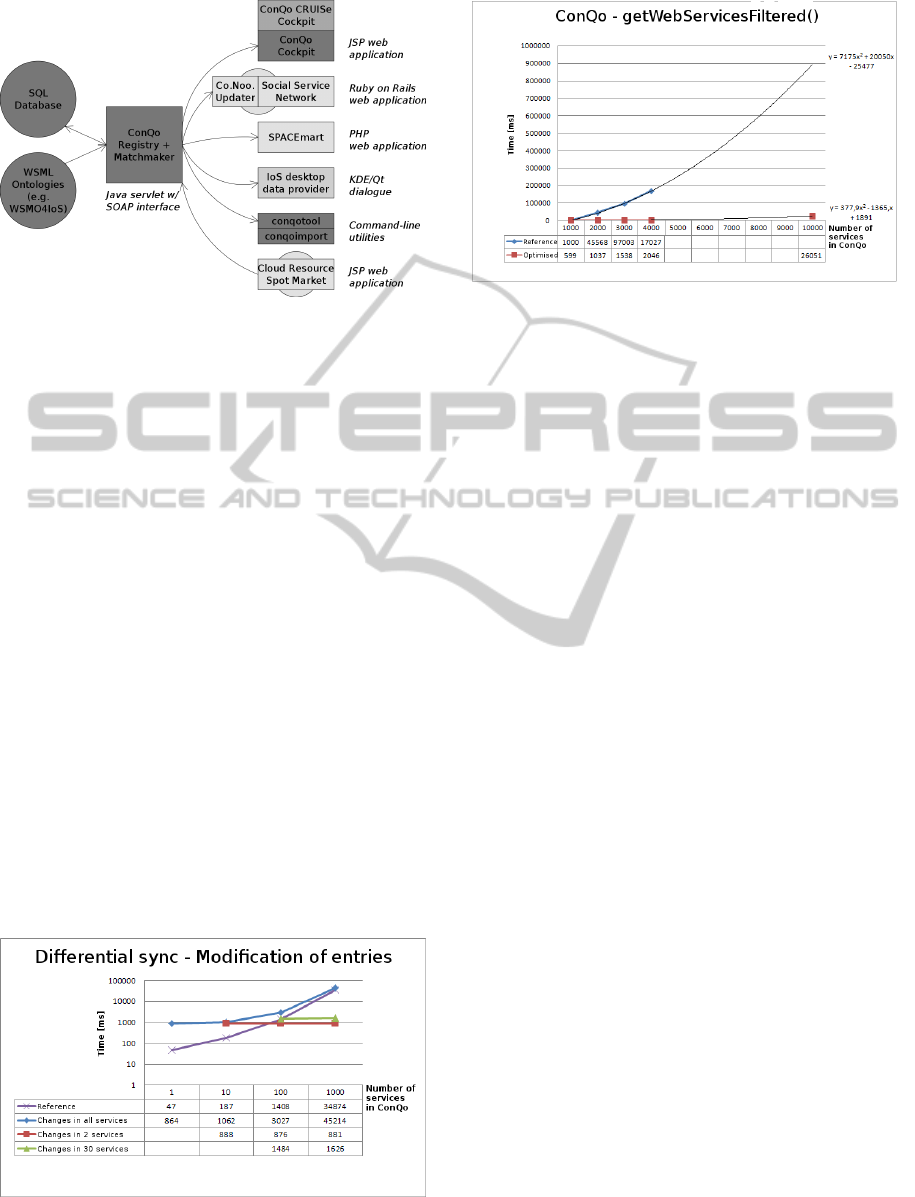

Figure 6: Usage and integration scenarios for the ConQo

service registry.

ports about combinations of the ConQo matchmaker

with its interfaces, we refer to the publications of the

BMWi THESEUS/TEXO, BMBF CRUISe and EU-

/ESF/SAB FlexCloud research projects which have

contributed signiﬁcant feedback for the continuous

development.

In order to determine the scalability and suitability

of ConQo for XaaS, it has been evaluated in experi-

ments which involve thousands of existing and artiﬁ-

cally generated service descriptions. Figure 7 shows

the effect of the differential synchronisation exten-

sion (WS-DiffTransfer). Compared to the reference

baseline of synchronising the entire contents of one

ConQo instance into another one, WS-DiffTransfer

causes a 20X overhead in the worst case, which is

quickly offset by both a high number of entries and a

low number of modiﬁcations. In most practical cases,

there are even extreme performance gains due to the

near-O(1) complexity of WS-DiffTransfer. The im-

plementation improvements are summarised in Figure

8. One of the most-used methods, the parametrised

discovery entry point getWebServicesFiltered(),

has been improved to a point where a ConQo in-

stance with 4000 entries only requires 2s instead of

Figure 7: Scalability measured during a differential master-

slave transfer of modiﬁed entries.

Figure 8: Increased scalability after combined refactoring

and code improvements.

17s and higher service counts such as 10000 become

even possible with tolerable timing.

Finally, we have integrated the optimised reg-

istry into an experiment in which about 30000 ser-

vice descriptions were collected from catalogues and

crawlers, inserted into a scientiﬁc data repository, and

injected into ConQo (Spillner, 2010). Given that

30000 is about the upper bound of unique publicly

accessible services, this stresses the registry’s scala-

bility and ﬁtness for real-world use cases.

The usability of ConQo is best demonstrated

through screenshots of its user interfaces. Figures 9,

10 and 11 contain screenshots of the administrative

service listing, discovery result and service browsing,

respectively. The ﬁrst two screenshots are taken from

the ConQo Cockpit, whereas the third one is a na-

tive desktop dialogue on KDE connected to a remote

ConCo instance. In both clients, selected services can

be either just used or, in case a service level agreement

template is found, used with contract protection after

a negotiation in case the service platform supports this

capability.

5 CONCLUSIONS

Service registries are essential pivotal elements in

service-oriented architectures. With a clear trend to-

wards marketplaces in an Internet of Services and

Everything-as-a-Service (XaaS), the existence of ver-

satile, scalable and yet simple registries becomes cru-

cial. Our research motivates a three-concerns de-

coupling of registry systems implemented in soft-

ware, abstract registration models supported by them,

and concrete service description artefacts bound to

registration entries following the models. The reg-

istry ConQo, with its role-oriented service interfaces

and efﬁcient query and synchronisation mechanisms,

AVersatileandScalableEverything-as-a-ServiceRegistryandDiscovery

181

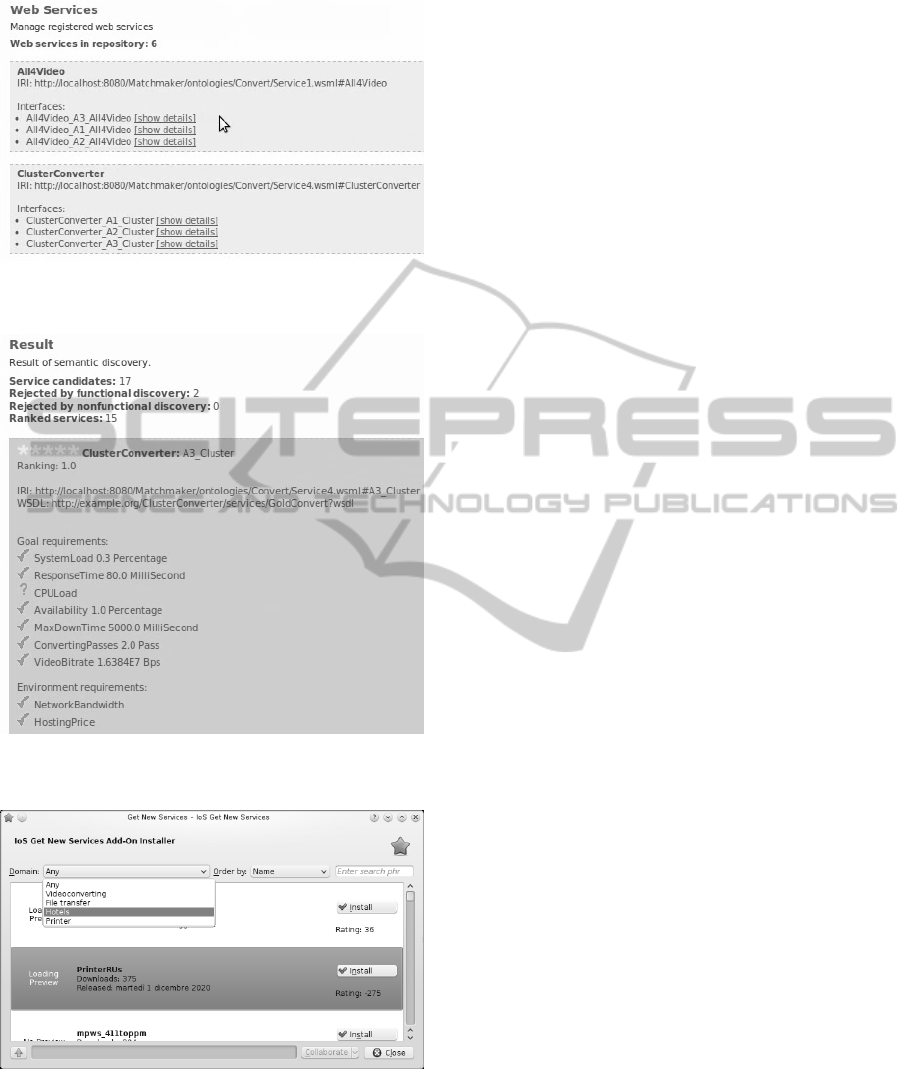

Figure 9: Screenshot of a service listing in the ConQo Cock-

pit administration menu.

Figure 10: Screenshot of the weighted result listing follow-

ing a query in the ConQo Cockpit discovery menu.

Figure 11: Screenshot of the KDE Get Hot New Services

dialogue.

avoids the overhead and complexity of fully dis-

tributed registries while still achieving suitable scal-

ability. Our future work concentrates on the speciﬁ-

cation of additional domain ontologies to accomodate

more XaaS use cases.

ACKNOWLEDGEMENTS

This work has received funding under project num-

ber 080949277 by means of the European Regional

Development Fund (ERDF), the European Social

Fund (ESF) and the German Free State of Saxony.

Many ConQo improvements have been contributed by

Thomas Muckwar and Aleksander Heimrath based on

the initial implementation by Bastian Buder.

REFERENCES

AbuJarour, M. (2010). A Proactive Service Registry With

Enriched Service Descriptions. 9th Retreat of the HPI

Research School. Neuruppin, Germany.

Banerjee, P., Bash, C., Friedrich, R., Goldsack, P., Huber-

man, B. A., Manley, J., Patel, C., Ranganathan, P., and

Veitch, A. (2011). Everything as a Service: Powering

the New Information Economy. Computer, 44(3):36–

43.

Barros, A., Oberle, D., Kylau, U., and Heinzl, S. (2012). An

Overview of USDL. In Barros, A. and Oberle, D., edi-

tors, Handbook of Service Description - USDL and its

Methods, pages 185–215. Springer Berlin Heidelberg.

Cardoso, J., Barros, A., May, N., and Kylau, U. (2010). To-

wards a Uniﬁed Service Description Language for the

Internet of Services: Requirements and First Develop-

ments. In Proceedings of the IEEE International Con-

ference on Services Computing (SCC), pages 602–

609. Miami, Florida, USA.

Cavalcante, E., Batista, T., Lopes, F., Rodriguez, N.,

de Moura, A. L., Delicato, F. C., Pires, P. F., and

Mendes, R. (2012). Optimizing Services Selection in

a Cloud Multiplatform Scenario. In 1st Latin Amer-

ican Conference on Cloud Computing and Commu-

nications (LatinCloud), pages 31–36. Porto Alegre,

Brazil.

de Bruijn, J., Lausen, H., Polleres, A., and Fensel,

D. (2006). The Web Service Modeling Language

WSML: An Overview. In Proceedings of the 3rd Eu-

ropean Conference on The Semantic Web: Research

and Applications (ESWC), pages 590–604. Budva,

Montenegro.

Didoné, D. and de Queiroz, R. J. G. B. (2011). Forensic

as a Service - FaaS. In Proceedings of the Sixth In-

ternational Conference on Forensic Computer Science

(ICoFCS), pages 202–210. Florianópolis, Brazil.

D’Mello, D. A. and S., A. V. (2010). A Review of Dynamic

Web Service Description and Discovery Techniques.

In First International Conference on Integrated Intel-

ligent Computing (ICIIC), pages 246–251. Bangalore,

India.

Du, Z., Huai, J., and Liu, Y. (2005). Ad-UDDI: An Active

and Distributed Service Registry. In Proceedings of

the 6th International Conference on Technologies for

E-Services (TES), volume 3811 of LNCS, pages 58–

71. Trondheim, Norway.

Ferrario, R., Guarino, N., Janiesch, C., Kiemes, T., Oberle,

D., and Probst, F. (2011). Towards an Ontological

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

182

Foundation of Services Science: The General Service

Model. In 10. Internationale Tagung Wirtschaftsinfor-

matik, page P47. Zurich, Switzerland.

Field, S. and Hoffner, Y. (2002). In search of the right part-

ner. In Collaborative Business Ecosystems and Virtual

Enterprises, chapter 7, pages 55–62. Kluwer.

Ghijsen, M., van der Ham, J., Grosso, P., and de Laat,

C. (2012). Towards an Infrastructure Description

Language for Modeling Computing Infrastructures.

In 10th IEEE International Symposium on Parallel

and Distributed Processing with Applications (ISPA),

pages 207–214. Madrid, Spain.

Guinard, D., Trifa, V., Karnouskos, S., Spieß, P., and Savio,

D. (2010). Interacting with the SOA-Based Internet of

Things: Discovery, Query, Selection, and On-Demand

Provisioning of Web Services. IEEE Transactions on

Services Computing, 3(3):223–235.

Hofreiter, B., Huemer, C., and Klas, W. (2002). ebXML:

Status, Research Issues, and Obstacles. In Proc. of

12th International Workshop on Research Issues on

Data Engineering (RIDE), pages 7–16. San Jose, Cal-

ifornia, USA.

Mangler, J., Schikuta, E., and Witzany, C. (2009). Quo

Vadis Interface Deﬁnition Languages? Towards a In-

terface Deﬁnition Language For RESTful Services. In

IEEE International Conference on Service-Oriented

Computing and Applications (SOCA), pages 1–4.

Taipei, Taiwan.

Nair, M. K. and Gopalakrishna, D. V. (2010). Look Be-

fore You Leap: A Survey of Web Service Discovery.

International Journal of Computer Applications, 7(5).

Paolucci, M., Kawamura, T., Payne, T. R., and Sycara, K.

(2002). Importing the Semantic Web in UDDI. In Web

Services, e-Business and the Semantic Web, volume

2512 of LNCS, pages 225–236. Toronto, Canada.

Pautasso, C., Zimmermann, O., and Leymann, F. (2008).

Restful Web Services vs. "Big" Web Services: Making

the Right Architectural Decision. In Proceedings of

the 17th international conference on World Wide Web

(WWW), pages 805–814. Beijing, China.

Pfeifer, K. and Schill, A. (2012). Semantic Description of

Text Mining Services. In Second International Con-

ference on Advances in Information Mining and Man-

agement (IMMM). Venice, Italy.

Sacha, J., Biskupski, B., Dahlem, D., Cunningham, R.,

Dowling, J., and Meier, R. (2007). A Service-Oriented

Peer-to-Peer Architecture for a Digital Ecosystem. In

2007 Inaugural IEEE International Conference on

Digital Ecosystems and Technologies (DEST), pages

205–210. Cairns, Australia.

Solanki, M., Martin, D., Paolucci, M., McIlraith, S.,

Burstein, M., McDermott, D., McGuinness, D., Par-

sia, B., Payne, T., Sabou, M., Solanki, M., Srinivasan,

N., , and Sycara, K. (2004). Bringing Semantics to

Web Services: The OWL-S Approach. In First In-

ternational Workshop on Semantic Web Services and

Web Process Composition (SWSWPC), volume 3387

of LNCS, pages 26–42. San Diego, California, USA.

Spillner, J. (2010). Methodik und Referenzarchitektur zur

inkrementellen Verbesserung der Metaqualität einer

vertragsgebundenen, heterogenen und verteilten Di-

enstausführung. PhD thesis, Technische Universität

Dresden. Faculty of Computer Science.

Spillner, J. (2011). An Environment for Educational Ser-

vice Communities. International Research Journal of

Telecommunication Sciences, 2(2):22–27.

Spillner, J. (2013). WSMO4IoS Speciﬁcation and Ontology

Catalogue. Online: http://serviceplatform.org/ spec/

wsmo4ios/.

Spillner, J., Müller, J., and Schill, A. (2013). Creat-

ing Optimal Cloud Storage Systems. Future Gen-

eration Computer Systems, 29(4):1062–1072. DOI:

http://dx.doi.org/10.1016/j.future.2012.06.004.

Steinmetz, N., Lausen, H., and Brunner, M. (2009).

Web Service Search on Large Scale. In Service-

Oriented Computing: 7th International Joint Con-

ference, ICSOC-ServiceWave, volume 5900 of LNCS,

pages 437–444. Stockholm, Sweden.

Stoyanova, G., Buder, B., Strunk, A., and Braun, I. (2008).

ConQo – A Context- and QoS-Aware Service Discov-

ery. In Proceedings of IADIS International Confer-

ence WWW/Internet. Freiburg, Germany.

Vu, Q. H., Pham, T.-V., Truong, H.-L., Dustdar, S., and

Asal, R. (2012). DEMODS: A Description Model

for Data-as-a-Service. In Proceedings of the 26th

IEEE International Conference on Advanced Informa-

tion Networking and Applications (AINA), pages 605–

612. Fukuoka, Japan.

Zhang, M., Ranjan, R., Haller, A., Georgakopoulos, D.,

Menzel, M., and Nepal, S. (2012). An Ontology based

System for Cloud Infrastructure Services Discovery.

In 8th IEEE International Conference on Collabora-

tive Computing: Networking, Applications and Work-

sharing (CollaborateCom). Pittsburgh, Pennsylvania,

USA.

AVersatileandScalableEverything-as-a-ServiceRegistryandDiscovery

183
