Characterising the Power Consumption of Hadoop Clouds

A Social Media Analysis Case Study

Javier Conejero

, Omer Rana

, Peter Burnap

, Jeffrey Morgan

, Carmen Carri´on

and Blanca Caminero

Department of Computing Systems, University of Castilla-La Mancha, Albacete, Spain

School of Computing & Informatics, Cardiff University, Cardiff, U.K.

School of Social Sciences, Cardiff University, Cardiff, U.K.

Keywords:

Cloud Computing, Power Consumption, Hadoop, OpenNebula, Social Media Analysis.

Abstract:

Energy efﬁciency is often identiﬁed as one of the key reasons for migrating to Cloud environments. It is

often stated that a data centre hosting the Cloud environment is likely to achieve greater energy efﬁciency (at

a reduced cost) compared to a local deployment. With increasing energy prices, it is also estimated that a

large percentage of operational costs within a Cloud environment can be attributed to energy. In this work, we

investigate and measure energy consumption of a number of virtual machines running the Hadoop system, over

an OpenNebula Cloud. Our workload is based on sentiment analysis undertaken over Twitter messages. Our

objective is to understand the tradeoff between energy efﬁciency and performance for such a workload. From

our results we generalise and speculate on how such an analysis could be used as a basis to establish a Service

Level Agreement with a Cloud provider – especially where there is likely to be a high level of variability (both

in performance and energy use) over multiple runs of the same application (at different times).

1 INTRODUCTION

Various companies (ranging in size and computing

maturity) are adopting Cloud computing technology

to perform their business processes, mainly driven by

the fact that it reduces the cost of computing infras-

tructure deployment and management. At the same

time, environmental concerns of many large scale

computing infrastructure operators – primarily large

data centres – have prompted the need for consider-

ing more energy efﬁcient operation of computational

infrastructure. This coupled with the need to con-

sider new sources of energy, such as solar/wind en-

ergy, leads to important challenges in understanding

how more energy efﬁcient Cloud computing could

be provided to end users. It is also useful to note

that the business case for migrating to Cloud com-

puting systems has often centered on the cost sav-

ings that would arise due to reduced use of energy

at a client site. Currently, energy costs account for a

large percentage of operational expenditure for com-

putational infrastructure. It is often stated that due

to the economies of scale, the ability to negotiate

cheaper energy tariffs and the use of renewable en-

ergy sources, data centre operators are able to offer

both cost and energy efﬁcient operational systems.

With increasing outsourcing of computational capa-

bility comes the need to specify Service Level Agree-

ments (SLAs) with infrastructure providers. Such

SLAs may also include support for pay-per-use scal-

ability of backend servers, enabling a company to dy-

namically grow its computational usage based on de-

mand (using an incremental charging model for the

excess capacity used). Determining how such SLAs

should be speciﬁed and subsequently monitored for

conformance remains a challenge with many com-

mercial Cloud providers – where repeatable perfor-

mance is difﬁcult to guarantee in many instances (due

to the use of virtualisation and a variable mapping be-

tween virtual and physical resources). Increasingly,

there is also the demand to include “green” metrics

into an SLA, to enable a company using a data cen-

tre to display its environmentally friendly credentials

to customers. Consequently, there is increasing inter-

est in making Cloud computing environmentally sus-

tainable (Garg and Buyya, 2012) – thereby requiring

techniques to improve power efﬁciency at all levels

of the data centre (from resource scheduling of work-

233

Conejero J., Rana O., Burnap P., Morgan J., Carrion C. and Caminero B..

Characterising the Power Consumption of Hadoop Clouds - A Social Media Analysis Case Study.

DOI: 10.5220/0004373502330243

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 233-243

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

loads to the operation of Computing Room Air Condi-

tioning (CRAC) units). Hence, understanding the be-

haviour of the various systems that make up a Cloud

environment becomes the key in order to design a

green datacenter, from the hardware deployed to the

usage policies used to exploit each resource. Due to

increasing ﬂexibility of Cloud systems and the variety

of conﬁguration options now being made available,

this becomes a difﬁcult and challenging task. There is

also currently signiﬁcant interest in performing var-

ious types of analysis over “big–data” with Cloud-

based infrastructures using Hadoop (commercial ex-

amples include Radian 6 and Palantir). Hadoop (Lam,

2010; White, 2009) is a framework for data intensive

(analysis) applications on large computing clusters by

the use of the Map/Reduce paradigm (Dean and Ghe-

mawat, 2008). It has become very popular within so-

cial media data analysis projects in order to tackle

the scalability of analysis required across large data

volumes that could not be performed with traditional

paradigms or technologies. Furthermore, MapReduce

has also become a useful benchmarking tool (Cloud-

Suite 1.0, 2012) due to its high storage, computing

power and network requirements – for comparing the

performance of various computing architectures.

Understanding how Hadoop could be efﬁciently

deployed across a Cloud environment remains an im-

portant challenge, as Cloud infrastructure parame-

ters and virtual cluster conﬁgurations can inﬂuence

Hadoop performance and have an impact on resource

usage. The lack of any behaviour models for achiev-

ing such resource management provides an opportu-

nity to consider various optimization techniques for

Cloud computing resource usage. The objective of

this work is to address this challenge, by determining

how data intensive computation could be carried out

over a Cloud computing environment and how its sub-

sequent energy footprint could be monitored and opti-

mised. We make use of the Cardiff Online Social Me-

dia Observatory (COSMOS) platform (Cardiff On-

line Social Media Observatory (COSMOS), 2013),

which aims to provide mechanisms to capture, anal-

yse and visualize data harvested from online reposito-

ries and feeds, in particular interactive and openly ac-

cessible social networking sites such as Twitter. COS-

MOS provides a research framework for social media

data analysis, in particular supporting what-if inves-

tigations from the social sciences community (Pang

and Lee, 2008) – which are often difﬁcult to realise

in other similar commercial systems. COSMOS en-

ables sentiment analysis (by using the SentiStrength

tool (SentiStrength: The sentiment strength detection

in short texts, 2012)) to be carried out, that can involve

several gigabyte sized data ﬁles by using the Hadoop

Map/Reduce paradigm.

The main motivation of this article is to under-

stand the impact of high throughput computing (such

as Hadoop) on Cloud computing power consumption,

validated through an example of “big–data” process-

ing using COSMOS. Our focus in this work is to high-

light how the power consumption: (i) can be moni-

tored and understood (in particular, focusing on the

variability of consumption across multiple execution

runs of the application) – and subsequently exposed

to the user; (ii) can be related to the number of virtual

machines and the associated workload generated on a

physical server. We also investigate how power-usage

metrics can be included within an SLA and how vari-

ability in power use can impact what can/cannot be

included.

The rest of this article is organized as follows.

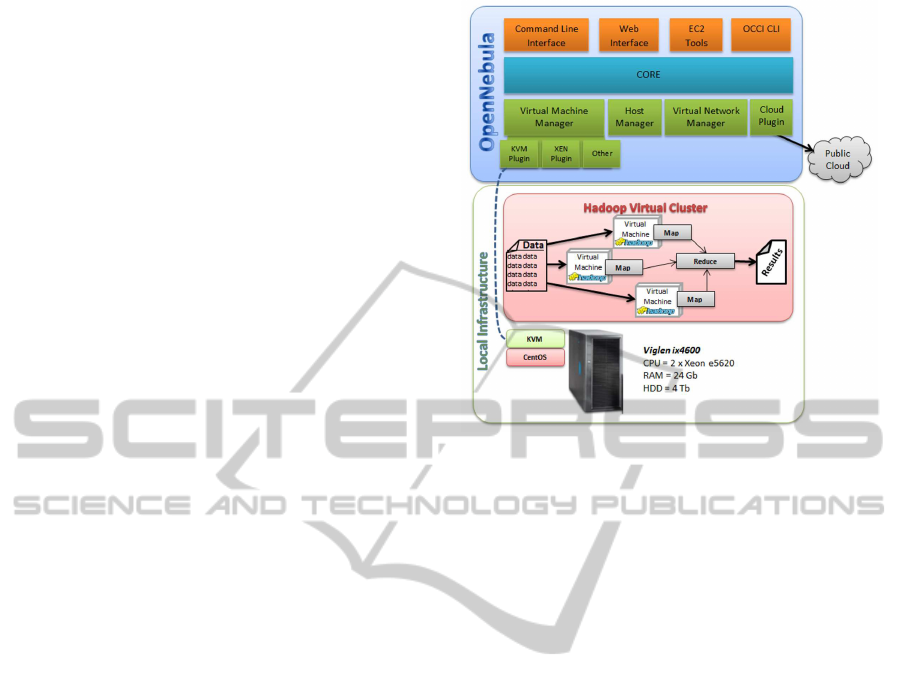

Section 2 presents related work. In Section 3 the

Cloud infrastructure, the workload base, the exper-

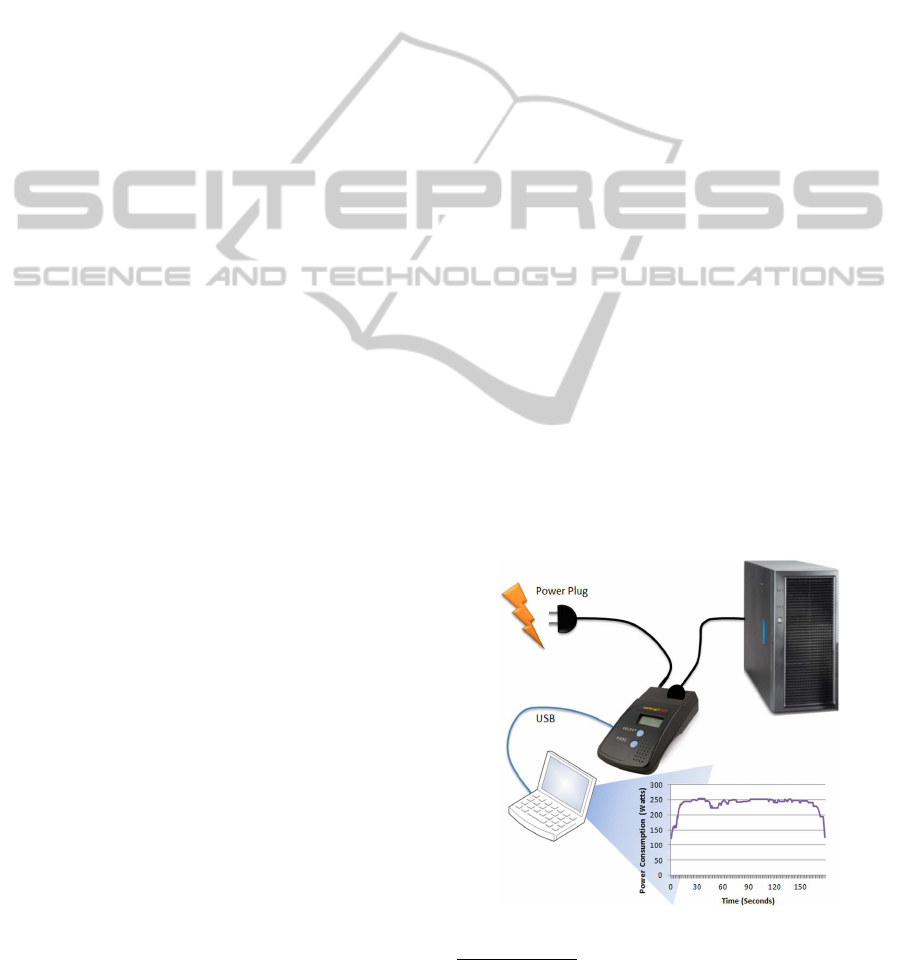

iments carried out for the study and the instrumen-

tation used to record power usage data is presented.

The system behaviour is described in Section 4. Con-

clusions and future work are subsequently outlined in

Section 6.

2 RELATED WORK

Power consumption (synonymously referred to as

‘Green IT’), is being considered within a number

of areas in Computer Science – for example CPU

(their development is heavily conditioned by power

dissipation (and consequently consumption) require-

ments), network and disk power management. Sim-

ilarly, in the context of Cloud computing, signiﬁ-

cant efforts have already been documented to support

power-consumption aware Green Clouds (Sood and

Kumar, 2010).

Companies like APC (by Schneider elec-

tric) (UPS Selector Sizing Application, 2012) and

VMware (Green IT Calculator, 2012) have designed

static power consumption models and provide in-

terfaces (for Uninterrupted Power Supply (UPS)

sizing and Virtualization impact, for instance), in

order to help users determine the power consumption

of a speciﬁc computer (depending on its internal

components). The approaches identiﬁed by these

companies can be helpful in the general design of

a datacenter’s power and UPS requirements; but

they are not workload aware nor take into account

how such infrastructure is subsequently used. Such

models often focus on developing a database of

motherboards, their associated components and the

recorded power consumption. Given a particular

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

234

system conﬁguration and motherboard, it is therefore

possible to search through such a database to estimate

the likely power consumption one is likely to see

when using the same (or similar) motherboard. Such

a database also contains information about idle and

full workload power consumption on such hardware,

but does not record any usage for particular types of

workloads.

There are also various proposals that suggest

the development of a Cloud architecture (Garg and

Buyya, 2012; Liu et al., 2009) to provide and use

power saving mechanisms while guaranteeing the

performance from a user’s perspective. In (Garg and

Buyya, 2012) a survey of Cloud computing systems is

provided, in order to support environmental sustain-

ability and a generic Green Cloud computing archi-

tecture introducing the concept of a “Green Broker” is

proposed; while (Liu et al., 2009) base their proposal

on live virtual machine migration while monitoring

the power consumption of resources using dedicated

hardware – an expensive option to support in most

cases.

Other proposals go further and try to distribute the

Cloud workload amongst geographically dispersed

datacenters (Ghamkhari and Mohsenian-Rad, 2012)

such that they exploit different renewable energy

sources depending on the time of day and the ob-

served workloads. This enables a more effective use

of green power sources depending on computing de-

mand at particular times in the day.

Hadoop has also been extensively researched

focusing on its power efﬁciency within clusters.

In (Leverich and Kozyrakis, 2010) the authors out-

line the main problems and inefﬁciencies inherent

within the Hadoop Map/Reduce paradigm, while

(Goiri et al., 2012) and (Kaushik and Bhandarkar,

2010) propose developing energy saving mechanisms

for the ﬁle system used in Hadoop (HDFS) and the as-

sociated job scheduling in Hadoop, known as Green-

HDFS and GreenHadoop respectively. In Green-

HDFS an energy-conserving, hybrid, logical multi-

zoned variant of HDFS is presented, whose main ob-

jective is to reduce energy consumption costs by using

low-power, high-energy-savinginactive power modes

during idle periods of utilization. GreenHadoop is a

framework for datacenters powered by photovoltaic

solar arrays of an electrical grids, which schedules the

Map/Reduce jobs depending on the solar prediction

(that this framework performs) in order to maximize

the green energy consumption. Both proposals try to

make more effective use of computational resources

and relate these to the availability of renewable en-

ergy at particular times of day.

In (Shi and Srivastava, 2010) the authors explore

the impact of Hadoop based storage clusters, based on

the HDFS ﬁle system, in thermal terms. It proposes a

thermal and power-aware task scheduler for Hadoop

that is focused on the minimisation of the total power

consumption in the air conditioning (A/C) system,

by balancing the load between cluster nodes in or-

der to keep them under a deﬁnite thermal threshold.

Identifying a suitable operating threshold remains a

challenge in many such systems – with an ambient

temperature of between 25 to 30 degrees celsius sug-

gested by many authors.

There is also current work focusing on specifying

SLA using power consumption metrics. For exam-

ple (Laszewski and Wang, 2010) identiﬁes several pa-

rameters that could be used within an SLA, such as:

amount of CO

correlated with environmental mea-

surements that are easier to measure and understand

for a user. This work also introduces a framework

where such metrics could be integrated to support

decision making and resource management. Finally,

there are additional efforts that aim to monitor power

consumption such as PowerTop – although it is not

always possible to effectively measure these (such as

basic I/O operations) and associate a value with such

metrics.

A key metric used in data centres to measure the

effectiveness of power usage and efﬁciency is Power

Usage Effectiveness (PUE), developed by the Green

Grid Association (Green Grid Association, 2013) (a

multi-industry association focusing on power efﬁ-

ciency of data centres). It is used as a ratio of the

amount of power entering a data center divided by

the power used to run the computational infrastruc-

ture within it – with an ideal value being 1.0. As such,

it is much broader in scope and takes account all the

various infrastructure available within a data centre

(such as building, computing room air conditioning

systems, etc). It is useful to note that most data cen-

tres use almost the same amount of energy to support

the “non-computing” capabilities they provide (such

as cooling and air conditioning) as the energy used

to run their servers and networks. Our focus in this

work is much more ﬁner grained than calculating the

PUE – as we attempt to determine how power con-

sumption can be associated with a particular applica-

tion workload across a server. Our attempt is there-

fore to characterise the impact on power usage of a

particular type of VM conﬁguration and application

workload. The outcome of this work can be used to

subsequently provide different PUE analysis given a

particular workload.

CharacterisingthePowerConsumptionofHadoopClouds-ASocialMediaAnalysisCaseStudy

235

3 METHODOLOGY

The objective of our work is to characterise the

performance-power tradeoff when deploying Hadoop

over an IaaS Cloud environment. We describe the in-

frastructure over which our validation has been car-

ried out – outlining the key challenges faced when

attempting to measure power consumption. We also

elaborate on the characteristics of the workload and

the monitoring instrument we used in our experi-

ments.

3.1 Cloud Infrastructure

The Cloud infrastructure used in this work (Figure 1)

is composed of one cluster compute node, consist-

ing of a Viglen ix4600 with 2 Xeon e5620 CPUs (4

Cores + with support for hyperthreading in each) (In-

tel Xeon Processor e5 Family, 2012), 24GB of main

memory, and 4TB of storage). The Operating Sys-

tem is CentOS 6.2 Linux (CentOS: The Community

ENTerprise Operating System, 2012).For the man-

agement and coordination of the Cloud environment,

OpenNebula (OpenNebula: The Open Source Solu-

tion for Data Center Virtualization, 2012) software

is deployed. It is a mature open source project fo-

cused on the development of an open, ﬂexible, exten-

sible and comprehensivemanagement layer for build-

ing and managing Cloud infrastructures. OpenNebula

was developed within the European Reservoir project

and has since been extended to support a number of

different application types and contexts. It provides

Infrastructure as a Service (IaaS) by managing differ-

ent hypervisors (such as KVM, XEN, etc.). We make

use of KVM (Kernel Based Virtual Machine (KVM),

2012) as the hypervisor – which is a full virtualiza-

tion open source hypervisor (with support for hard-

ware virtualization extensions) for Linux widely used

in Cloud computing environments and it is supported

by RedHat. It provides support for virtualization by

the use of a

/dev/kvm/

interface.

On this Cloud environment we deploy a social me-

dia data analysis application using Hadoop, described

in section 3.2. The decision about using such a pri-

vate and controlled Cloud environment was to enable

us to more accurate measure power consumption with

a variation in workload.

3.2 Social Media Analysis Workload

Social media can involve a variety of different types

of content – such as video (YouTube), audio (Spo-

tify), images (Facebook, Flickr) to text (Twitter, Face-

book). The type of analysis often undertaken on such

Figure 1: Cloud computing infrastructure.

content depends on the particular demands of the user

community involved. In this work, we make use of

text analysis using the Apache Hadoop system (Lam,

2010; White, 2009), with a user community consist-

ing mainly of researchers in social sciences. Hadoop

implements the Map/Reduce paradigm (Dean and

Ghemawat, 2008), where the input data is divided into

blocks and distributed across multiple computational

resources during the Map stage, processed, and the

results combined during the Reduce stage. Hadoop

also provides data transfer transparently, limited fault

tolerance mechanisms (achieved through replication)

and a distributed ﬁle system to store data across the

compute nodes (HDFS). Hadoop requires a cluster

environmentin order to perform the Map/Reduce pro-

cess (Figure 1). This cluster consists of a master node

and 1...n worker nodes. In order to provide Hadoop

as a service on the Cloud it is necessary to deploy

multiple VMs and create a virtual cluster for Hadoop

following the master/worker structure. Virtualization

enables us to customize the size and characteristics of

each virtual machine. Furthermore, it provides elas-

ticity, portability and the ability to dynamically re-

place the underlying hardware if needed. As a draw-

back, a computational overhead is introduced.

The Cardiff Social Media Observatory (COS-

MOS) aims to support social scientists in analysing

socially signiﬁcant data (e.g. tweets, blogs and news

stories). The volume of data produced on a daily basis

requires signiﬁcant computational resources to anal-

yse. For example, COSMOS collects around 3.5 mil-

lion tweets a day. To perform a longitudinal analysis

of say public opinion and sentiment, around a socially

signiﬁcant event (e.g. a political campaign, change

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

236

of legislation, world sporting event etc.) could re-

quire analysis of several weeks’ worth of data. An

example study may be public opinion surrounding the

London 2012 Olympics, where a study of opinion

for two weeks before, during and after would require

the analysis of 21 million tweets. On a single desk-

top computer this could take approximately 20 min-

utes. This is perfectly acceptable as a batch-processed

computational exercise, but the reality is that social

media analysis may require several “tweaks” to the

study parameters, and therefore requires a more inter-

active way of analysing data. For example, age, gen-

der, location and topic of study within the event may

change, as hypotheses are formed and tested. There-

fore, the computational analysis must be able to com-

plete much faster to give a more acceptable wait-time

for the researcher. The researcher should be able to

invoke the computational resources to support large-

scale data analysis on-demand and resources need to

be dynamically allocated depending on the size of the

job. Hadoop has been used within the COSMOS sys-

tem in order to scale the underlying analysis. This

process undertakes analysis on a large archive of pre-

viously recorded tweets in order to determine the sen-

timent of each one (by using SentiStrength tool (Sen-

tiStrength: The sentiment strength detection in short

texts, 2012)), following the Map/Reduce paradigm. It

is a very heavy process due to the fact that it has been

designed to perform this analysis through several gi-

gabytes of data. This workload was made use of in

this work in order to provide a realistic benchmark

application to stress test the underlying Cloud infras-

tructure deﬁned in section 3.1 by using different vir-

tual cluster conﬁgurations.

For the experimentation carried out in this work, a

test tweet archive is used consisting of up to 15 mil-

lion tweets to extract their sentiment. COSMOS cur-

rently harvests and archives the ‘spritzer stream us-

ing the Twitter Streaming API, and makes it available

to researchers for inspection and analysis. Even at

1%, the API provides COSMOS with approximately

3.5 million messages (or tweets) per day. The tweet

ﬁles are archived using a specialised hierarchical ﬁl-

ing system, which stores tweets based on the day in

which the collection was made. Hadoop also repli-

cated these ﬁles multiple times in order to improve

fault tolerance – this is achieved automatically.

3.3 Instrumentation and Monitoring

We focus on the power consumption of the whole

compute node, due to the fact that high throughput

computing (within distributed environments) exploits

almost all resources (CPU, Main memory, Storage

and Network) in an aggressive way. In order to get

the power consumption from a compute node, an ex-

ternal monitoring device is needed, since this met-

ric cannot be obtained from local monitoring soft-

ware. Although various attempts have been made

to approximate this value from system conﬁgration

data (such as type of CPU, disk, motherboard, op-

erating system, etc) – generally by interpolating be-

tween the system conﬁgration and previous recorded

data – such attempts remain of limited beneﬁt and ac-

curacy. There are several commercial products to di-

recly measure the energy consumption of as service –

the most widely used are Kill-A-Watt

and WattsUp

We make use of WattsUp PRO in this work to

monitor and log all the information related to power

consumption. This meter aims to provide an indepen-

dently managed and accessed power data collecting

mechanism, and must be positioned between the com-

puting node power supply and the mains power plug

(Figure 2). Therefore, a second computer is needed

in order to get the logging information stored in the

WattsUp PRO non-volatile memory. The reason for

choosing WattsUp Pro rather than Kill-A-Watt is due

to the fact that the latter does not provide the storage

feature (needed for long term experimentation). The

information obtained by the use of WattsUp PRO re-

ﬂects the power consumption behaviour of the com-

pute node during the monitoring interval – and en-

ables a user to either collect data at predeﬁned time

intervals, or only record data when particular events

(i.e. the power consumption exceeds a pre-deﬁned

threshold) occur. The monitoring frequency has been

set to one sample per second for all experiments de-

scribed in this work.

Figure 2: Power consumption monitoring.

http://www.p3international.com/products/special/

p4400/p4400-ce.html

https://www.wattsupmeters.com/secure/index.php

CharacterisingthePowerConsumptionofHadoopClouds-ASocialMediaAnalysisCaseStudy

237

4 SYSTEM BEHAVIOUR

MONITORING

In order to understand the power consumption of the

Cloud system, we devise a number of experiments –

results of which are described in subsequent sections.

Our approach consists of three main parts:

1. Basic Power Consumption: the power consump-

tion of the running cluster is monitored. Monitor-

ing in this part involves understanding the power

consumption when turning on/off the system, and

the power consumption of keeping the cluster up

and running but without any workload (i.e. when

the cluster is in the idle state).

2. Power Consumption Range: this part is focused

on measuring the maximum and minimum power

consumption, that is, the power consumption

range of the cluster.

3. Virtualization Power Consumption: this stage in-

volves monitoring the power consumption with

different virtualized workloads executed on the

cluster.

4.1 Basic Power Consumption

This stage involvesanalysing the powerdemand when

turning on/off the system described in Section 3.1

without any workload. The power consumption pro-

ﬁle, illustrated in Figure 3) behaves as expected: par-

ticularly high when the server is switched on and

off and stable once it has booted (and reached stable

state). There is a peak in power consumption at start

up time, which stabilizes after the operating system

(OS) ﬁnishes loading all services (at ∼105 Watts).

Stopping the server (470-510 seconds in the ﬁgure)

requires an increased use of power to stop all the OS

services and to perform a controlled switch off. Fur-

thermore, when the server is stopped, a power con-

sumption of ∼10 Watts is observed which is due to

the standby state of the server. The standby state

power consumption seems to be very low for one

compute node, but this fact needs to be taken into

account within big infrastructures, as it increases lin-

early with the number of computing nodes. The ex-

cess power required to turn on/off a server needs to

be balanced against the standby state power usage.

Hence, if a server is likely to remain inactive over

long time frames, it is possibly better to incur the ex-

tra power usage hit when it is turned on/off – alterna-

tively, if the server is likely to be required for ad hoc,

bursty workloads, keeping it in standby mode is likely

to be more efﬁcient.

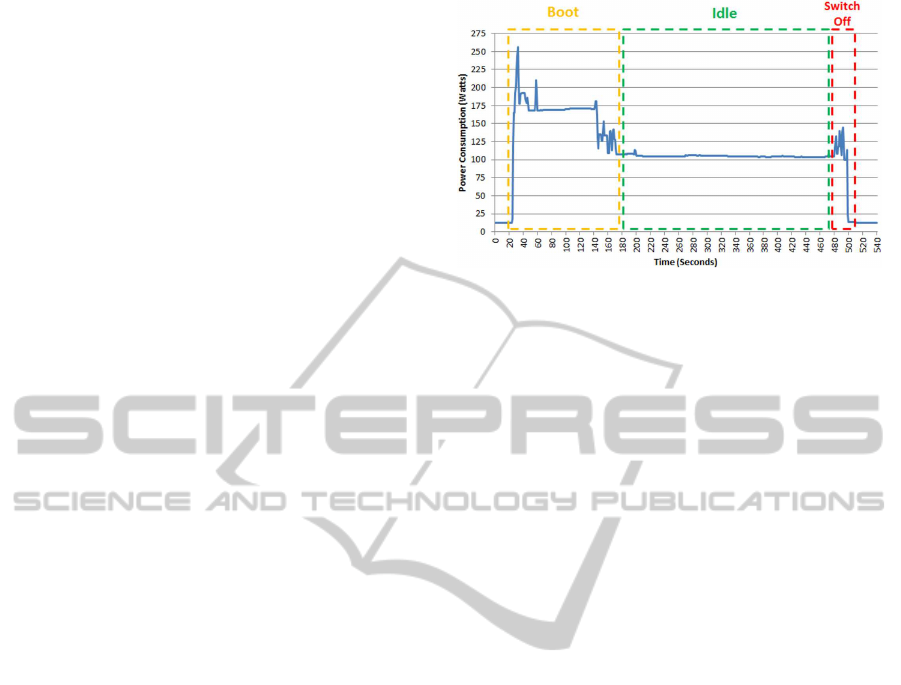

Figure 3: Simulation results.

The server needs about 140 seconds to boot and

be ready to enable virtual machines to be deployment

on it. But for stopping the server, the time needed is

less than 15 seconds.

4.2 Power Consumption Range

In this stage we attempt to measure the power con-

sumption during an idle period and also measure the

subsequent increase when a particular workload is

executed on the server. The idle power consump-

tion value determines the minimum power required

by the server to be up and running, ready for host-

ing any virtual machines or any equivalent workloads.

Our approach therefore considers two types of work-

loads: (i) virtual machines deployed on the server; (ii)

data analysis algorithms executed over the virtual ma-

chine. Before continuing with the analysis of the in-

frastructure under virtualized Hadoop workloads, we

are also interested in measuring the maximum power

consumption of the server. In order to achieve this, it

is necessary to chose a workload that fully stresses all

the physical hardware (CPU, memory and disk) avail-

able on the server. The MD5 Message-Digest Algo-

rithm (Rivest, 1992) is a widely used cryptographic

hash function that produces a 128-bit hash value. It

has been utilized in a wide variety of security appli-

cations, and is also commonly used to check data in-

tegrity. MD5 is a process which exploits the CPU,

main memory and disk simultaneously and can be

scaled to run on large data ﬁles (in size and number).

As the server has a multicore subsystem, there is a

need of launching multiple MD5 threads in order to

stress it completely.

The results obtained from the execution of multi-

ple MD5 threads (Figures 4,5) show that the CPU us-

age increases as the number of threads also increases,

reaching the top CPU usage with 16 threads and keeps

this utlisation at 100% for higher number of threads

(Figure 4). It is also interesting to observe the vari-

ability in CPU usage when executing less than 16

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

238

Figure 4: MD5 CPU usage per thread number.

Figure 5: Power consumption under MD5 process threads.

threads, and how the CPU usage variability experi-

ences a reduction from 16 threads and converges to

100%. The power consumption behaviour can be

seen to correlated directly with CPU usage but with

two major differences (Figure 5). The ﬁrst one is the

slope of the illustrated curve for power consumption,

which reduces in value as the number of threads in-

creases, while the second is the signiﬁcantly smaller

variability experienced in the power consumption (of

<2%) compared with the variability in CPU usage

with less than 16 threads. Using this experiment, we

ﬁnd that the maximum power consumption seen with

the server is 268 Watts.

Once we have measured the maximum and min-

imum power consumption limits, the possible be-

haviour of a pre-determined number of threads (in

terms of CPU usage and power consumption), and the

cost of switching on and off the server, we now pro-

ceed to measure power consumption for virtualised

workloads.

4.3 Virtualization and Power

Consumption

The next stage focuses on analysing the behaviour of

the system under a realistic Hadoop workload, per-

formed across different virtual clusters. In this sce-

nario, the number of worker nodes and their char-

acteristics are modiﬁed, whilst keeping constant the

number of resources allocated in all of the virtual

clusters. The evaluation is performed with 1 Hadoop

server virtual machine (VM) and 4 different VMs for

Hadoop worker conﬁgurations, as described in Ta-

ble 1.

These virtual cluster conﬁgurations are designed

Table 1: Hadoop virtual cluster VM conﬁgurations.

VM # VMs CPU RAM HDD

Conf. (Gb) (Gb)

Server 1 20% 6 100

1 Worker 1 70% 14 200

2 Workers 2 35% 7 100

4 Workers 4 17,5% 3,5 50

8 Workers 8 8,75% 1,75 25

Figure 6: Hadoop Virtual Cluster idle power consumption.

to maximize the usage of the Cloud infrastructure

and reserve 10% of the CPU power and 4GB of

RAM for the Operating System and Cloud manage-

ment tools within the infrastructure. Each conﬁgura-

tion is evaluated independently from the others, and

involves stopping the workers that are not going to

be used and deploy the ones that will be used. Vir-

tual clusters are composed of multiple virtual ma-

chines, each one which runs the Ubuntu 10.04 oper-

ating system. Hence, the greater the number of VMs

deployed on the same physical node, the greater the

size of the workload introduced, even only with the

OS processes of each VM. But when running more

processes, like Hadoop, the workload increases, and

so does the impact on the node directly related to the

number of deployed VMs.

Any deployed virtual cluster adds an overhead on

the workload of the server, and as seen with the MD5

scenario, there is a relationship between workload and

power consumption. With a bigger Hadoop Virtual

Cluster deployed, the power consumption is increased

when the Cluster is idle (Figure 6). Hence the size

of the Hadoop Virtual Cluster also has an impact on

power consumption, even when not performing any

Hadoop application.

We subsequently modify the workloads we deploy

within the Hadoop virtual cluster. The results ob-

tained from the execution of the sentiment analysis

over twitter data application in the Cloud (sequential

and Hadoop versions) are shown in Figure 7 – the ﬁg-

ure shows the maximum and minimum power con-

sumption (vertical lines) and the 90% observed val-

CharacterisingthePowerConsumptionofHadoopClouds-ASocialMediaAnalysisCaseStudy

239

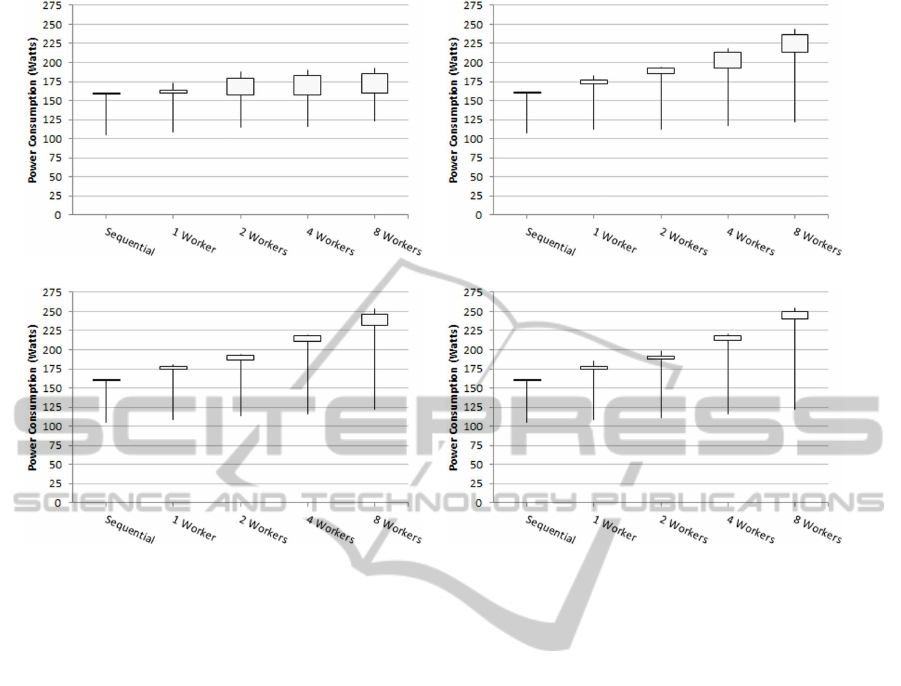

a) 1.000.000 Tweets b) 5.000.000 Tweets

c) 10.000.000 Tweets d) 15.000.000 Tweets

Figure 7: Sentiment Analysis for Hadoop Power Consumption.

ues (box). It can be observed that with 8 VMs, the

maximum power consumption is achieved. If bigger

virtual clusters are deployed, there is a correspond-

ing increase in power consumption. It should also

be noted that the highest power consumption level,

as measured when applying 16 MD5 threads, can be

achievedbut not exceeded. The sequential version ex-

periences less power consumption than the Hadoop

version when running on any virtual cluster, but on

the contrary, its performance is unacceptable (main

reason to develop the Hadoop version). Hence the

objective of a user deploying an analysis application

over such an infrastructure should decide the partic-

ular power consumption proﬁle they have in mind,

and therefore chose the number of VMs based on this

proﬁle. In this instance, we can also map power con-

sumption into a cost, by associating a unit cost for

each KWh consumed when running the VM work-

load.

The size of the problem, and consequently the

length of the executions, reduces the variability ex-

perienced in power consumption (evolution from Fig-

ure 7(a) to Figure 7(d)). This makes easy to forecast

the power consumption expected during the execution

of the Sentiment Analysis application over Hadoop.

More speciﬁcally, the variability observed (Ta-

ble 2) behaves in two different ways depending on the

increase in the number of tweets processed (# Tweets)

or the number of virtual machines (# Workers). Re-

peating the experiment for the same number of tweets

but increasing the number of workers, it can be seen

that the variability increases in all cases. On the other

hand, for the same number of workers, the increase in

the number of tweets analysed produces a reduction

in the variability.

Finally, it can be observed that the range of power

consumption values are similar for the same conﬁg-

uration (i.e. 8 workers). However, when comparing

across different conﬁgurations there is a clear differ-

ence; but the power consumption trend is maintained

from 5M to 15M tweets (independently of the sce-

nario and amount of tweets).

5 POWER CONSUMPTION

CHARACTERISATION

The behaviour of the Cloud environment running

Hadoop can be derived from the analysis undertaken

in Section 4. Synthesising the results obtained, we

can identify a power consumption proﬁle as illus-

trated in Figure 8. Hence, six power consumption

levels (clearly deﬁned and differentiated in the ﬁgure)

can be observed – starting from the physical machine

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

240

Table 2: Sentiment Analysis for Hadoop Power Consumption details (90%).

# Tweets # Workers Min Power (W) Max Power (W) Average (W) Variability (W)

1.000.000 1 160.0 163.7 161.85 ±1.85

1.000.000 2 157.5 179.8 168.65 ±11.15

1.000.000 4 157.3 183.3 170.30 ±13.00

1.000.000 8 159.4 185.8 172.60 ±13.20

5.000.000 1 172.4 176.6 174.50 ±2.10

5.000.000 2 185.2 192.3 188.75 ±3.55

5.000.000 4 192.7 213.6 203.15 ±10.45

5.000.000 8 212.7 236.9 224.80 ±12.10

10.000.000 1 174.4 177.9 176.15 ±1.75

10.000.000 2 186.4 192.2 189.30 ±2.90

10.000.000 4 211.4 218.3 214.85 ±3.45

10.000.000 8 231.6 246.1 238.85 ±7.25

15.000.000 1 174.1 178.0 176.05 ±1.95

15.000.000 2 187.8 191.3 189.55 ±1.75

15.000.000 4 212.5 217.7 215.10 ±2.60

15.000.000 8 239.6 250.1 244.85 ±5.25

Figure 8: Energy consumption proﬁle.

being initialised at boot up time to the point where it

is eventually shut down. These difference in power

consumption observed across these different stages of

machine use is inﬂuenced by the choice of particular

infrastructure capabilities – such as the type of hy-

pervisor and virtualization software chosen. As there

can be some variation in power consumption in each

stage (as observed in Section 4.3), an average value is

reported to demonstrate the representative behaviour

seen. with more than one virtual machine deployed

within the same physical node, as observed in Sec-

tion 4.3.

Furthermore, the Cloud usage, in terms of de-

ployment policy also has an impact on the power

consumption (not only affecting variability in values)

since the number of virtual machines deployed con-

ditions the peak power consumption that the system

reaches (Figure 8(W

)).

Each of the six power consumption levels identi-

ﬁed is related to a determined machine state (Table 3).

The ﬁrst of these levels is observed when the machine

is connected to the electrical grid. It is known as

Standby mode (W

) and the machine consumes some

power in this state. This consumption, although small

compared to the consumption when the machine is

running, is very important when the amount of physi-

cal nodes is increased and must be taken into account

to achieve a particular energy usage threshold. Subse-

quently, when the physical machine is switched on, an

important increase in power consumption is observed

), but it is temporarily de-limited (this value can be

further reduced by the use of solid state (hard) disks

(SSD) and faster main memory technologies). Hence,

there is signiﬁcant power consumption due to the use

of I/O operations on the machine. Once the physical

machine has booted it reaches the idle state (W

), in

which the machine is ready to host virtual machines.

When virtual machines are deployed, two differ-

ent power consumption levels are identiﬁed: the ﬁrst

as a consequence of the deployment and idle state of

the virtual machines (W

) (increasing the power con-

sumption due to the fact that there are a higher num-

ber of services running at the same time), and the sec-

ond as a consequence of Hadoop job executions (W

As it has been observed in the experiments performed

in this work, Hadoop stresses the system and con-

sequently the power consumption increases signiﬁ-

cantly (even reaching the maximum power consump-

tion value for the physical machine). However,as pre-

viously discussed in section 4.3, the actual power us-

age value depends on the number of virtual machines

currently deployed and the total execution time asso-

ciated with these VMs (Table 2).

The completion of processing jobs by Hadoop

makes the system go back to idle state (with idle vir-

tual machines deployed) (W

). The system in this

state is ready to process additional Hadoop jobs. This

corresponds to the state where the machine has VMs

available to execute additional workload to be sub-

mitted by a master node. If the virtual machines are

stopped, the system goes back to idle state (W

). It

CharacterisingthePowerConsumptionofHadoopClouds-ASocialMediaAnalysisCaseStudy

241

Table 3: Energy consumption proﬁles.

Time Energy Concept

(range) Consumption

0 ≤ x < t

Standby

≤ x < t

Switch On (Boot)

≤ x < t

Idle

≤ x < t

VMs running

≤ x < t

Hadoop working

≤ x < t

VMs running

≤ x < t

Idle

≤ x < t

Switch Off (Shut down)

≤ x W

Standby

is then ready to host additional virtual machines (e.g.

another virtual cluster). Finally, the physical machine

can be stopped and reaches the Standby mode (W

and as a consequence due to the need to stop associ-

ated operating system services an increase in power

consumption is observed (W

) – although this surge is

only temporary.

The methodology used in this article can be ex-

trapolated to other computing systems, but the char-

acterisation of energy proﬁles identiﬁed within this

section can not be easily generalised for other types

of infrastructure. However, we note that the general

trend observed is likely to be common when deploy-

ing the OpenNebula and Hadoop environments on

other physical machines.

The information that this model may be used to

select and subsequently optimize a deployment pol-

icy. That is, to decide the proper virtual cluster for

each user requirement taking into account the power

consumption that it is going to require. Thus, it is im-

portant to decide when to stop the physical node (de-

pending on time restrictions and user requirements) in

order to estimate the additional beneﬁt in performance

vs. the corresponding increase in power. Hence, if

only a small additional performance beneﬁt can be

achieved with a signiﬁcant power consumption in-

crease (and consequently the associated energy costs),

then a user may decide not to optimise performance

further to limit power usage. Our characterisation en-

ables such decisions to be supported across different

types of workloads.

6 CONCLUSIONS AND FUTURE

WORK

The objective of this work has been to measure and

characterise power consumption for high through-

put workloads (using Hadoop). Such measurement

can be used as the basis for developing a workload

power consumption model for analysing social me-

dia data. As sentiment analysis remains one of the

most widely performed operation on social media

data streams, our approach can provide a useful basis

for understanding how a system should be conﬁgured

to achieve a particular performance-energy proﬁle.

The main conclusion obtained from this study is

that there is a non-linear relationship between the

number of virtual machines, the workloads that these

VMs execute and the power consumption seen on the

physical machine. Identifying how many VMs are

needed to achieve a particular throughput at a given

power usage proﬁle can be undertaken based on the

results reported in his work. Consequently, deploy-

ing and using 8 or more VMs on the same physical

machine suggests the maximum power consumption

possible for the particular Cloud infrastructure we in-

vestigated in this work. The infrastructure makes use

of OpenNebula, Hadoop and the KVM hypervisor –

as all of these systems are widely used in the research

community, we believe the outcome of this analysis is

usable in a number of similar contexts. Our methodol-

ogy used to analyse and compare power consumption

(using the three stages outlined in section 4) could be

adapted for other applications – and other Cloud en-

vironments.

Furthermore, we have also observed a variability

in power consumption over multiple runs of the same

workload. However such variation is generally small,

although there are uncontrollable variations (such as,

sudden drops or peaks is power usage that cannot be

easily explained). This variability reduces as execu-

tion times increase. Hence, for short running jobs, us-

ing power related metrics in service level agreements

can be limiting – even on private clouds. We believe

such variation is likely to be signiﬁcant within pub-

lic Cloud environments that use a multi-tenancy ap-

proach, where workloads and number of VMs can

change over time (and from a users perspective are

hard to characterise). The approach we advocate in

this work can also be used to include metrics such as

power usage within such a Service Level Agreement

– alongside more traditional performance related met-

rics. This is particularly important when the client

requiring access to a service needs to demonstrate

“green” credentials to its customers. The objective

is therefore to understand how signiﬁcant the change

in performance is likely to be with an increase in the

powerconsumed, to execute a particular type of work-

load.

Future work guidelines are: (i) perform a simi-

lar type of study over a distributed Cloud Computing

infrastructure (with different VM deployment strate-

gies) and extend the model for these environments;

(ii) better understand how metrics related to key per-

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

242

formance indicators (such as revenue, penalty, etc)

can be mapped into operational metrics which include

both performance and power – and subsequently how

these could be used within a service level agreement;

(iii) design and implement policies (by applying the

power characterisation described in this work) to han-

dle Cloud computing environments in an optimized

way in terms of power saving and/or performance.

Although PUE metrics already exist for a data cen-

tre, our aim is to develop similar metrics for particular

applications.

ACKNOWLEDGEMENTS

This work was supported by the Spanish Government

under Grant TIN2012-38341-C04-04 and through a

FPI scholarship associated to TIN2009-14475-C04-

03 project.

REFERENCES

Cardiff On-line Social Media Observatory (COSMOS)

(Last access: January 30, 2013). Web page at http://

www.cs.cf.ac.uk/cosmos/.

CentOS: The Community ENTerprise Operating System

(Last access: 13th October, 2012). Web page at http://

www.centos.org/.

CloudSuite 1.0 (Last access: 16th October, 2012).

Web page at http://parsa.epﬂ.ch/cloudsuite/

cloudsuite.html.

Dean, J. and Ghemawat, S. (2008). Mapreduce: simpli-

ﬁed data processing on large clusters. Commun. ACM,

51(1):107–113.

Garg, S. and Buyya, R. (2012). Green Cloud Computing

and Environmental Sustainability, Harnessing Green

IT: Principles and Practices. Wiley Press, UK.

Ghamkhari, M. and Mohsenian-Rad, H. (2012). Optimal

Integration of Renewable Energy Resources in Data

Centers with Behind-the-Meter Renewable Genera-

tor. In Proc. of the IEEE International Conference

in Communications (ICC’2012), Ottawa, Canada.

Goiri, I. n., Le, K., Nguyen, T. D., Guitart, J., Torres, J., and

Bianchini, R. (2012). Greenhadoop: leveraging green

energy in data-processing frameworks. In Proceed-

ings of the 7th ACM european conference on Com-

puter Systems, EuroSys ’12, pages 57–70, New York,

NY, USA. ACM.

Green Grid Association (Last access: January 30, 2013).

Web page at http://www.thegreengrid.org/.

Green IT Calculator (Last access: 22th November, 2012).

Web page at http://www.vmware.com/solutions/

green/calculator.html.

Intel Xeon Processor e5 Family (Last access: 13th October,

2012). Web page at http://www.intel.com/content/

www/us/en/processors/xeon/xeon-processor-5%000-

sequence.html.

Kaushik, R. T. and Bhandarkar, M. (2010). Greenhdfs: to-

wards an energy-conserving, storage-efﬁcient, hybrid

hadoop compute cluster. In Proceedings of the 2010

international conference on Power aware computing

and systems, HotPower’10, pages 1–9, Berkeley, CA,

USA. USENIX Association.

Kernel Based Virtual Machine (KVM) (Last access: Oc-

tober 13, 2012). Web page at http://www.linux-

kvm.org/.

Lam, C. (2010). Hadoop in Action. Manning Publications.

Laszewski, G. and Wang, L. (2010). GreenIT Service

Level Agreements. In Wieder, P., Yahyapour, R., and

Ziegler, W., editors, Grids and Service-Oriented Ar-

chitectures for Service Level Agreements, pages 77–

88. Springer US.

Leverich, J. and Kozyrakis, C. (2010). On the energy

(in)efﬁciency of hadoop clusters. SIGOPS Oper. Syst.

Rev., 44(1):61–65.

Liu, L., Wang, H., Liu, X., Jin, X., He, W. B., Wang,

Q. B., and Chen, Y. (2009). Greencloud: a new ar-

chitecture for green data center. In Proceedings of the

6th international conference industry session on Au-

tonomic computing and communications industry ses-

sion, ICAC-INDST ’09, pages 29–38, New York, NY,

USA. ACM.

OpenNebula: The Open Source Solution for Data Center

Virtualization (Last access: 13th October, 2012). Web

page at http://opennebula.org/.

Pang, B. and Lee, L. (2008). Opinion Mining and

Sentiment Analysis. In Foundations and Trends

in Information Retrieval 2(1-2) – Available at:

http://www.cs.cornell.edu/home/llee/opinion-mining-

sentimen%t-analysis-survey.html, pages 1–135.

Rivest, R. (1992). The MD5 Message-Digest Algorithm.

RFC 1321 (Informational). Updated by RFC 6151.

SentiStrength: The sentiment strength detection in short

texts (Last access: 10th October, 2012). Web page

at http://sentistrength.wlv.ac.uk/.

Shi, B. and Srivastava, A. (2010). Thermal and power-

aware task scheduling for hadoop based storage cen-

tric datacenters. In Proceedings of the International

Conference on Green Computing, GREENCOMP ’10,

pages 73–83, Washington, DC, USA. IEEE Computer

Society.

Sood, D. D. and Kumar, S. (2010). Cloud Computing &

Green IT. Technical report.

UPS Selector Sizing Application (Last access: 22th

November, 2012). Web page at http://www.apc.com/

template/size/apc/.

White, T. (2009). Hadoop: The Deﬁnitive Guide. O’Reilly.

CharacterisingthePowerConsumptionofHadoopClouds-ASocialMediaAnalysisCaseStudy

243
