CloudSurfer

A Cloud Broker Application for Security Concerns

Milena Frtunic

, Filip Jovanovic

, Mladen Gligorijvic

, Lazar Dordevic

, Srecko Janicijevic

Per H

akon Meland

, Karin Bernsmed

and Humberto Castejon

Norwegian University of Science and Technology, Trondheim, Norway

SINTEF ICT, Trondheim, Norway

Telenor Research and Future Studies, Trondheim, Norway

Keywords:

Cloud, Security, Broker, Requirements, SLAs.

Abstract:

The broker is foreseen to take an important role in the future Cloud ecosystem. A Cloud broker will simplify

the relationships between Cloud providers and customers, by aggregating, integrating and customizing services

in accordance to the customers’ needs. This paper demonstrates how security requirements can be a part of

the Cloud brokering model. We present CloudSurfer, which is a prototype implementation of an independent

Cloud broker that allows the customer to search for services that fulﬁll a set of security requirements. The

application has been evaluated by representatives from the software industry and academia, and is freely

available for further research.

1 INTRODUCTION

Cloud Computing has seen an tremendous growth in

recent years. As more providers are entering the ﬁeld

and the competition in the Cloud service market is in-

creasing, new business models for integrating and re-

selling services are emerging. The Cloud broker rep-

resents a promising and ambitious approach. Accord-

ing to NIST (Liu et al., 2011), a Cloud broker is “An

entity that manages the use, performance and deliv-

ery of cloud services, and negotiates relationships be-

tween Cloud Providers and Cloud Consumers”. The

main role of the Cloud broker is hence to help po-

tential Cloud customers to navigate through the jun-

gle of Cloud service offerings by acting as an inter-

mediate layer between the customer and the different

providers.

Existing Cloud brokers are often concerned with

functional requirements, i.e. ﬁnding a Cloud service

that fulﬁls one or more technical goals. Recent re-

search has pointed out the need for brokering based

on non-functional requirements, such as availability,

performance, scalability and security. In particular

security, which often is cited as a showstopper for the

uptake of Cloud computing services, has been identi-

ﬁed as one of the main priorities for Cloud brokering.

The purpose of this paper is to demonstrate how

security requirements can be a part of Cloud service

brokering. Our method is based on design science

research (DESRIST) (Hevner and Chatterjee, 2010)

and we have created CloudSurfer, a prototype im-

plementation of a broker that allows the customer to

search for services and browse through service offer-

ings, based on a set of security requirements. These

requirements are selected from a repository tailored

for Cloud computing based on standards and guide-

lines from organisations such as NIST (Jansen and

Grance, 2011) Cloud Security Alliance (Cloud Secu-

rity Alliance, 2012) and Enisa (Hogben and Dekker,

2012).

2 RELATED WORK

Cloud services brokerage has become one of the

hottest Cloud topics. This is reﬂected by the num-

ber of Cloud brokering platforms commercially avail-

able today. Vendors such as Jamcracker

, Parallels

NEC

, AppDirect

and CE On-demand

, to name but

a few, all offer white-label Cloud brokering solutions

to communication and IT service providers. While the

amount of features offered by these platforms varies,

http://www.jamcracker.com/

http://www.parallels.com/products/pacm/

http://www.nec.com/en/global/solutions/cloud/

index.html

http://www.appdirect.com/

http://www.ceondemand.com/EN/whatwedeliver/

product/Pages/default.aspx

199

Frtunic M., Jovanovic F., Gligorijvic M., Dordevic L., Janicijevic S., Meland P., Bernsmed K. and Castejon H..

CloudSurfer - A Cloud Broker Application for Security Concerns.

DOI: 10.5220/0004375001990206

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 199-206

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

all of them implement a one-stop-shop concept for

IaaS, PaaS and SaaS services. End-users of these

platforms, normally SMBs or enterprises, are offered

a marketplace where they can ﬁnd and access cloud

services ﬁtting their needs. Users can search for ser-

vices based on the service type, but very few of the

platforms allow end-users to ﬁnd services based on

non-functional requirements, such as QoS or secu-

rity. A notable exception is the Cloud Finder from

Intel

, which allows the user to specify high-level

security requirements such as ”Provider has a local

datacenter in Europe” and “Dedicated private cloud

with physical isolation offering available”. However,

SLA management support is also minimum in all plat-

forms, if at all existent.

In the research arena, a number of projects are

also working on Cloud brokering solutions. The OP-

TIMIS project (OPTIMIS Consortium, 2010) aims at

deﬁning a framework and toolkit for multi-Cloud ar-

chitectures, such as broker-based architecture (Ferrer

et al, 2012). In OPTIMIS, QoS parameters are used

for the selection of Cloud infrastructure providers,

with special emphasis on trust, risk, eco-efﬁciency

and cost. Security requirements are however not con-

sidered. The mOSAIC project (mOSAIC Consor-

tium, 2012) intends to create an open source Cloud

API and platform targeted for developing SLA-aware

multi-Cloud oriented applications. From the end-

user’s point of view, the main component is the Cloud

Agency, a broker that will assist applications in dis-

covering Cloud resource providers, negotiating SLAs

with these providers, and monitoring the SLA fulﬁll-

ment. The platform will use an ontology for Cloud

services (Moscato et al., 2011), where security is

included as a non-functional requirement, but only

on a high level. Another related project is Con-

trail (Contrail Consortium, 2010). It aims at designing

and implementing an open source solution for SLA-

aware federation of Clouds, such as allowing Cloud

resources from different providers to be aggregated

and exploited as if they belong to the same Cloud.

In Contrail, SLAs include both traditional QoS re-

quirements, such as availability, as well as Quality

of Protection requirements, such as data conﬁnement

mechanisms and data location (Jensen, J. et al., 2011).

Tordsson et al. (Tordsson et al., 2012) have proposed

an IaaS Cloud broker mechanism intended to provide

Cloud users with the requested number of virtual ma-

chines from multiple providers with the best cost/per-

formance ratio, according to a given budget. Their

focus is on the total infrastructure capacity and price,

but they do not mention security requirements as pos-

sible constraints when selecting Cloud providers. Va-

http://www.intelcloudﬁnder.com/

quero et al. (Vaquero et al., 2012) have described

a rule-based architecture for managing service be-

haviour in the Cloud, which is comparable to a bro-

ker architecture. A similar approach is described with

the Claudia in-between management layer for han-

dling multiple Cloud providers (Rodero-Merino et al.,

2010).

3 THE CLOUDSURFER

PROTOTYPE

CloudSurfer is a prototype Cloud broker that can be

used to search for and browse through Cloud service

offerings that fulﬁll a set of security requirements.

This section presents an overview of the development,

design and implementation of the prototype.

3.1 Development Method

CloudSurfer was developed as a part of project course

at the Norwegian University of Science and Technol-

ogy (NTNU) during fall 2012

. The software was

developed by a group of M.Sc. in computer science

students in their forth year of study, using the Scrum

methodology. The ﬁrst six weeks of the projects were

spent on planning, background research on machine-

readable languages and software design. The imple-

mentation was conducted through six sprints, each

of them lasting one week, including brief evaluations

and requirement adjustments between the sprints. The

ﬁrst four sprints were used to implement the user

interface and the translation tool, which is used to

translate the customer’s security requirements into a

machine-readable language. These two tasks were

performed in parallel. The last two sprints were used

to merge the user interface with the translation tool

and to develop a matching system. Finally, the ap-

plication was subject to functional testing and a more

thorough usability evaluation

3.2 Design and Interaction

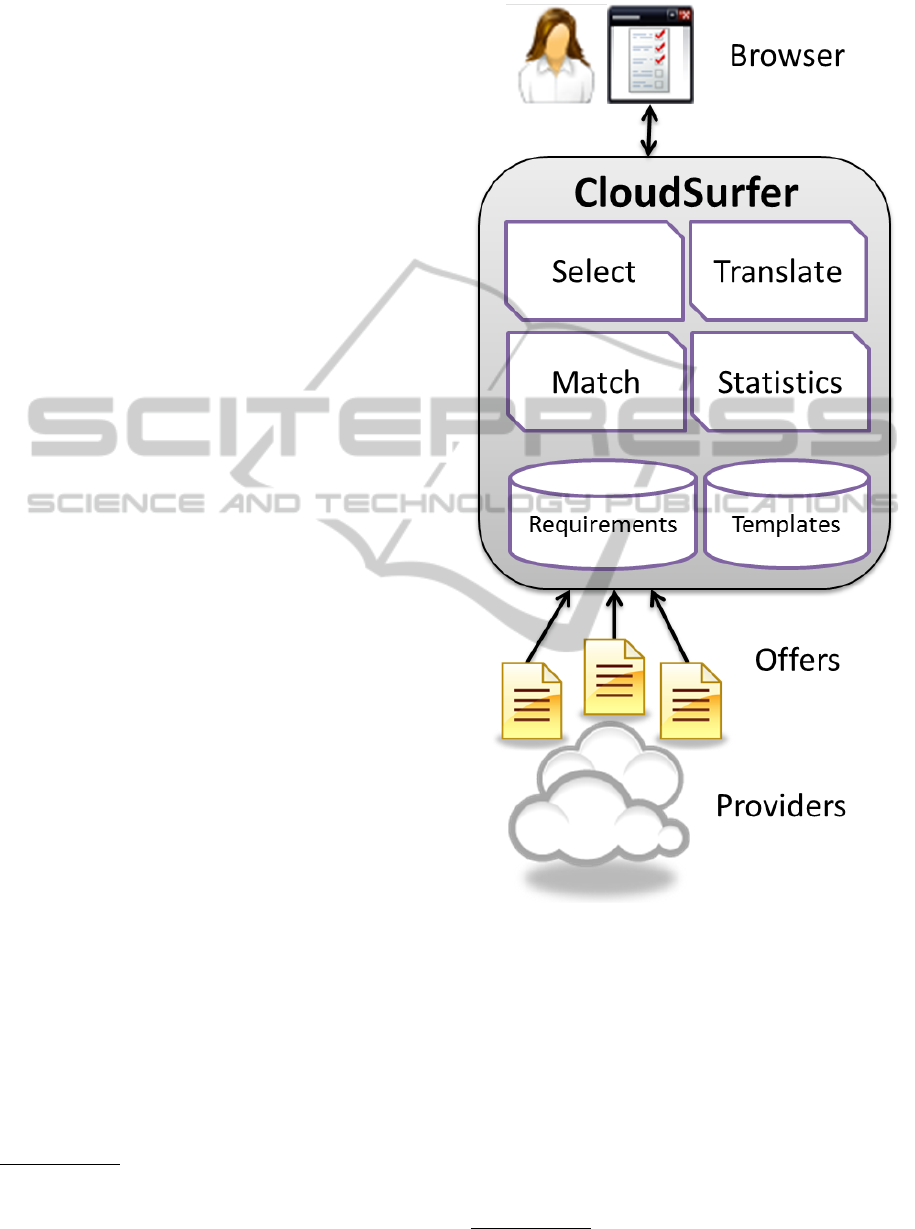

CloudSurfer was designed as a classical client-server

application, and a conceptual overview is shown in

Figure 1. The customer, or future Cloud consumer,

utilizes a Web-based graphical user interface, which

is further described in section 3.3. The business logic

resides on the server side with the main main logical

components:

• Select. Allows the user to select which require-

http://www.idi.ntnu.no/emner/tdt4290/

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

200

ments to consider, and further specify them with

attribute values.

• Translate. Translates the selected requirements

into a machine readable language.

• Match. Reasons on which Cloud providers are

capable of fulﬁlling the security requirements.

• Statistics. Part of the administrative interface that

allows you to see which security requirements are

most popular.

• Requirements Storage. A repository of typical

security requirements for Cloud computing, orga-

nized according to service type and category.

• Template Storage. Sets of pre-deﬁned require-

ments for given service types.

The details on the server-side technology is described

in section 3.4.

CloudSurfer depends on that the Cloud providers

advertise their offered security controls in a machine-

readable form, as shown in the lower-most part of

Figure 1. There is no prevalent standard for express-

ing contract requirements and offerings, but based on

the recommendations by Meland et al. (Meland et al.,

2013), WS-Agreement (Andrieux et al., 2003) was

chosen. This language is extensible and allows the

use of any service terms, but has no built-in predi-

cates for security. Therefore an XML schema extend-

ing WS-Agreement was deﬁned. Note that a provider

may very well advertise several service offerings, de-

pending for instance on pricing range.

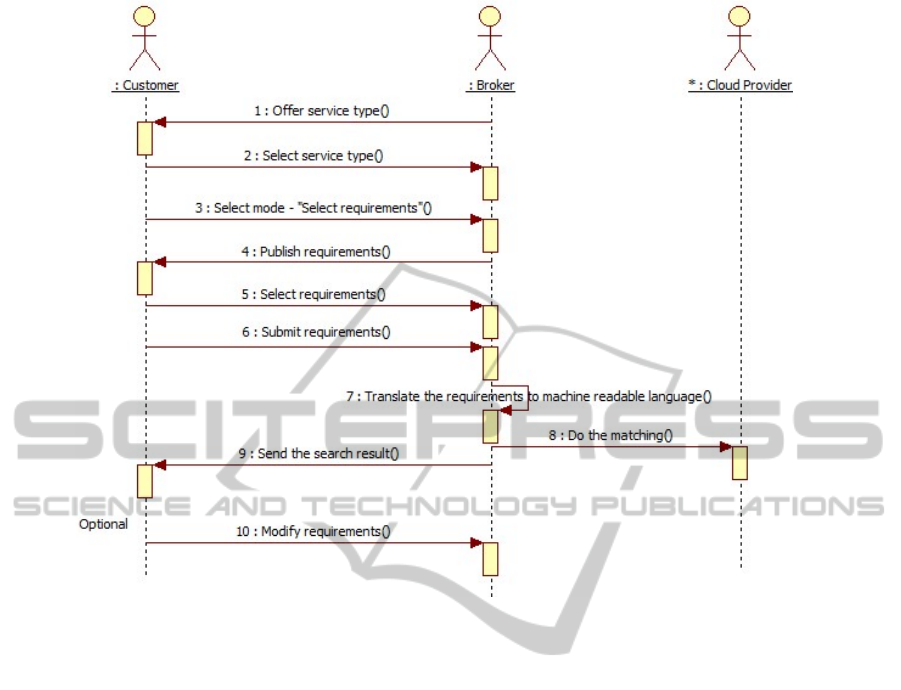

The sequence diagram, displayed in Figure 2,

represents the most typical use case where a cus-

tomer (service consumer) wants to search for a Cloud

provider based on his own choice of security require-

ments. The sequence starts with a selection of a ser-

vice type, in order to do an initial ﬁltering of require-

ments. After this, the customer asks for the inter-

face to specify requirements. The selected require-

ments are then submitted and the broker transforms

these into an XML ﬁle which is used for matching

against the offered security controls from the Cloud

providers. The resulting conformance is sent back to

the customer, who has the possibility of modifying the

requirements.

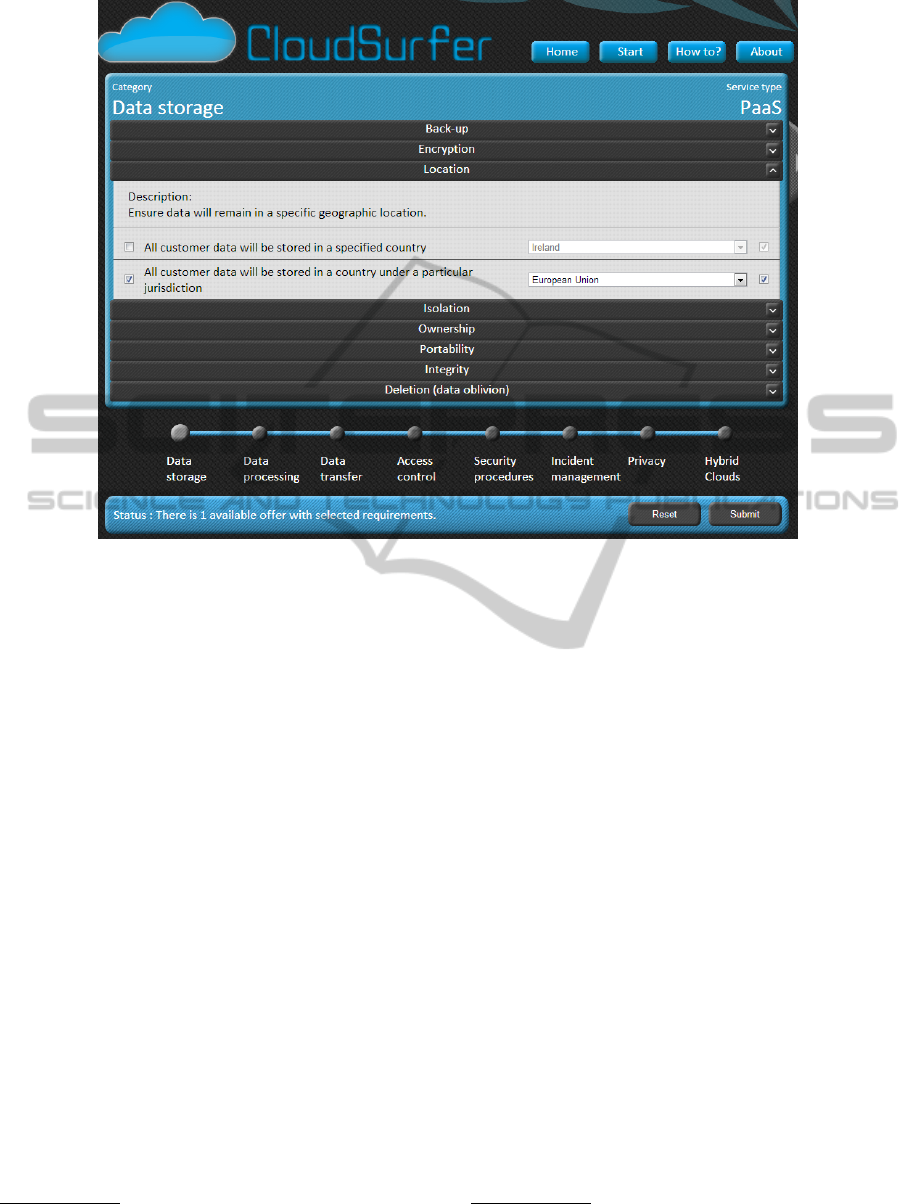

3.3 The User Interface

The user interface is based on standard web technol-

ogy such as HTML

and CSS

, with dynamic features

enabled by JavaScript

. CloudSurfer makes use of

http://www.w3.org/html/

http://www.w3.org/Style/CSS/

http://www.ecma-international.org/publications/

standards/Ecma-262.htm

Figure 1: Conceptual design for CloudSurfer.

the jQuery

library for HTML document traversing,

event handling, animating and Ajax interactions.

Usability was one of the main concerns for this

prototype. The requirements storage consists of a

large number of possible security requirements, and

in order to make selection manageable by the cus-

tomer the user interface has adopted a wizard-based

approach. The user will be guided through a series of

eight categories of requirements; namely

• Data Storage. This category includes security re-

quirements related to the storage of customer data

http://docs.jquery.com/

CloudSurfer-ACloudBrokerApplicationforSecurityConcerns

201

Figure 2: Logical sequence diagram for Cloud brokering.

in the Cloud. Here we include issues related to

backup of customer data, encryption, the physical

location of the data center where the data is being

stored, the isolation of the customer’s data from

other tenants, the ownership of data, portability,

integrity and the secure disposal of customer data.

• Data Processing. This category includes security

related to the processing of customer data in the

Cloud. Here we include requirements related to

isolation, monitoring, location, migration and en-

cryption of customer data that is being processed

in the Cloud.

• Data Transfer. This category includes security re-

lated to the transferring of customer data; both

regarding the upload and download link to the

Cloud as well as internally in the Cloud and be-

tween different Cloud data centers.

• Access Control. This category includes secure ac-

cess to the Cloud service management interface,

secure access for Cloud service users, physical ac-

cess control and the availability of APIs for access

control.

• Security Procedures. This category includes

aspects related to auditing, certiﬁcation, coun-

termeasures and detection mechanisms, security

testing procedures, communication between the

provider and customer and key management pro-

cedures.

• Incident Management. This category includes

requirements for incident response management,

logging of incidents, reporting and forensic is-

sues.

• Privacy. This category ensures the privacy and

anonymity of the customer and the customer’s

data.

• Hybrid Clouds. This category includes issues re-

lated to the outsourcing of services to 3rd parties,

the surveillability of hybrid Clouds and the bind-

ing and separation of duties.

These categories are divided into a ﬁner grain of

subcategories, which typically contain 3-5 security re-

quirements each. Figure 3 shows an example screen-

shot where there are two requirements under Data

storage - Location. The check boxes on the left side

must be selected for the requirement to be considered,

and the check box on the right side can be selected

for requirements that are not mandatory but rather

“nice to have”. For requirements that need an attribute

value, this must be ﬁlled in by using input ﬁelds or se-

lecting boxes. A status bar at the bottom of the screen

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

202

Figure 3: Requirements are selected and detailed.

is constantly updated based on the number of match-

ing Cloud providers.

When the form has been submitted the user will

be presented with an overview over the most suitable

providers, ranked by how well they match. The user

can at any time go back and modify the requirements

in order to ﬁnd more candidates. Figure 4 shows a

screenshot where the user can inspect in more detail

how the requirements match against the offered secu-

rity controls.

3.4 Server-side Technology

The server-side part of CloudSurfer consists of

an Apache HTTP server

that interacts with the

browser, and all the business logic is written in PHP.

All information about security requirements and ser-

vice types are stored in a MySQL

database. Inter-

action with the database is always done through SQL

queries from the business logic, never from the client

directly. The business logic validates and handles the

data from the upper layer and hands it over to the data

storage layer. The server also has an administrative

set of functionalities, e.g. showing statistics and for

managing the security requirements.

http://httpd.apache.org/

http://www.mysql.com/

3.5 License and Availability

CloudSurfer has been designed and implemented as a

part of a research project as a mean to gain experience

and feedback on Cloud brokering. In order to facili-

tate further work on this topic the prototype has been

made freely availability under a MIT license

and the

source code is downloadable from SourceForge

4 RECOMMENDATIONS

After the last sprint the prototype was evaluated by a

group of 15 people both from the software industry

and students at the university. This was done through

live demonstrations where feedback was given di-

rectly, and by ﬁlling in an online questionnaire af-

terwards. The questionnaire covered application-

speciﬁc topics related to usability, organization of in-

formation, presentation, performance and design, but

also on the general concept of Cloud brokering and

ideas for improvement. More details on the question-

naire and the responses can be found in the project

report (Frtunic et al., 2012). This section provides

recommendations, which are based on the main ﬁnd-

ings from the evaluation.

http://opensource.org/licenses/MIT

http://sourceforge.net/projects/cloudsurfer/

CloudSurfer-ACloudBrokerApplicationforSecurityConcerns

203

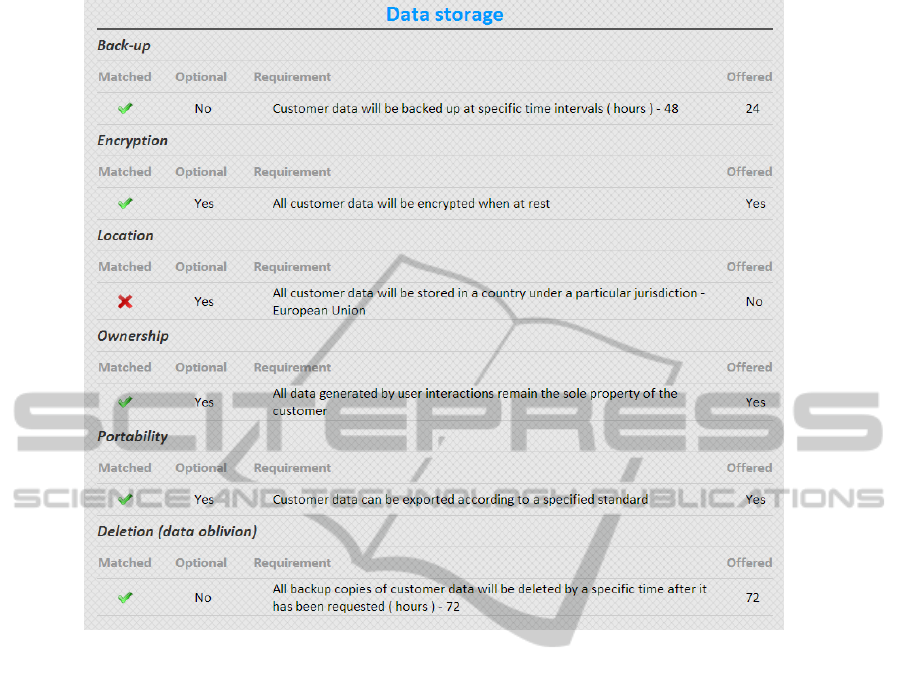

Figure 4: Matching results based on category.

4.1 A Personalized Customer Panel

Customers that visit CloudSurfer and specify their de-

sired security requirements may wish to save their set

of requirements, or even create multiple sets, for fu-

ture use. That would save time if the customer is look-

ing for another Cloud service that needs to comply

with the same security policy. It would also allow the

customer to check if the requirements are still fulﬁlled

if the provider changes the offered security controls.

4.2 Registration of Offers and

Authentication of Providers

CloudSurfer currently requires the providers to man-

ually upload XML ﬁles describing their offered secu-

rity controls, but it is an open question if these offers

should be stored and managed centralized or made

available by the providers in a way that allows the

broker to crawl around and ﬁnd them. If there is any

change in the security controls the broker needs to be

notiﬁed immediately so that it can relay this to the

customer. The broker is likely to be held accountable

if there is some kind of violation and it has based its

matching on an outdated set of security controls. One

of the evaluators suggested utilizing natural language

processing on the terms that are already published at

the providers’ web sites. Though these are intended

for human readers, it might be possible to extract this

information into a deontic form; however, it would be

difﬁcult for the broker to give strong guarantees that

the offerings are correct.

During the evaluation it was also pointed out that

without proper authentication of providers, it would

be possible to create false offerings in the name of

reputable providers. To mitigate this threat there

should be mechanisms that certify the identity of the

providers and allow them to digitally sign their offers.

4.3 Negotiation Support

Currently CloudSurfer matches the static offers from

Cloud providers with the requirements from the cus-

tomer. The customer may interactively modify the re-

quirements in order to accommodate an offer, but the

provider is not actively involved in this process. The

provider can of course make available several offers

for the customer to choose from, but we also see the

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

204

need of having two-sided dynamic negotiations be-

tween the customer and the provider, with the bro-

ker as the middle-man. SLA negotiations are today

considered to be a very resource demanding manual

process, often involving lawyers and exchange of am-

biguous terms and conditions. Since it often takes so

long to settle an agreement, the contracts usually have

a long time-span and are seldom re-negotiated. A

Cloud broker application where requirements and se-

curity controls are clearly stated according to a com-

mon vocabulary would simplify and make this a much

cheaper process. It is even plausible that the negoti-

ation can be automatically done by software agents

for much shorter time frames (e.g. weeks instead of

years). Agent-based negotiation is a ﬁeld that has ex-

isted for quite some time, and could potentially be of

great beneﬁt for Cloud brokering.

4.4 Useful Statistics

The current support for statistics in CloudSurfer is

limited to show the most popular requirements re-

quests. This type of functionality has a lot of poten-

tial, and should be speciﬁed according to for instance

service types. A possible business model for the bro-

ker is to provide information about which require-

ments are of particular concerns for the customers so

that the providers will have a market advantage.

It was also suggested that the broker could take the

role of gathering feedback from the customers, e.g.

whether they experienced that the services were de-

livered according to the agreed upon terms. This in-

formation would be of great value to other customers,

but there is also a danger that such reputation systems

could be poisoned with false reports by competitors.

4.5 Composite Matching

CloudSurfer only matches single sets of requirements

against atomic sets from the providers. However,

there should be an option for the customers to match

their requirements against Cloud services that are

composed by multiple providers. The broker can act

as an aggregator of Cloud services, but must make

sure that the increased service complexity complies

with the security requirements.

4.6 Requirements on the Service

Customers

As we have already pointed out, CloudSurfer is de-

signed to help customers ﬁnd Cloud providers based

on requirements from the customer. However, in

some cases a Cloud provider may also provide strict

requirements that the customer must fulﬁll, for in-

stance what kind of services that may be deployed on

their infrastructure. Service discovery based on the

Surfer, but should deﬁnitively be considered for a full-

ﬂedged system.

4.7 Requirements Linked to extended,

External Sources

The evaluation revealed that some of the requirements

fail to be self-explanatory and that further explana-

tions are needed in order to understand what they ac-

tually mean and how important they are. Therefore

it would be beneﬁcial to the user to link some kind

of help for each requirement in the form of question

mark next to the requirement. This link could lead

to standards documents for security requirements, ex-

amples, user stories, etc.

4.8 Easy Comparison of Similar Offers

It sometimes happens that two different offers get the

same score from the matching module. For example,

let us say that the customer requested the back-up in-

terval for his stored data to be at least 12 hours. The

ﬁrst offer has a 24 hrs. back-up interval and the sec-

ond offer has back-up interval of one week. Currently

these two offers are presented to the customer as being

equal, and it would be helpful if the broker could in-

dicate which offer is the closest one to the customer’s

needs. An alternative would be to replace the sim-

ple binary match with some kind of distance metric,

in order to better visualize the difference between the

different service offerings.

The evaluation also revealed the need for an eas-

ier way of comparing offers, for instance by present-

ing them next to each other on the same screen. This

way a user can see exact differences between similar

offers. It is not always the case that the offer with the

highest number of matching security controls is the

one the customer would prioritize.

4.9 Create and Sign Contracts

Our broker is limited to service discovery, but once

this is done the next step would be to create and sign

an SLA. The broker application should have func-

tionality that automatically generates an agreed-upon

contract and provide a mechanism for digitally sign-

ing the contract by all the involved parties.

CloudSurfer-ACloudBrokerApplicationforSecurityConcerns

205

4.10 Templates for Application Types

The initial ﬁltering of requirements is based on a high-

level classiﬁcation of Cloud services types, notably

SaaS, IaaS, PaaS and hybrids. We believe it would

be very helpful to create a larger set of templates

for more speciﬁc service types (e.g., e-mail, docu-

ment sharing, video storage, back-up, etc.) and even

within speciﬁc domains (e.g., healthcare, education,

e-Governance, etc.). Knowing what the right require-

ments are for your service is considered to be a great

challenge by itself, and quality-assured templates can

be excellent starting-points for many customers. The

broker should over time be able to create such tem-

plate libraries and could offer them to new customers.

5 CONCLUSIONS

The CloudSurfer prototype implementation has been

our vehicle of research for the Cloud brokering

paradigm, and we have exploited it to identify future

needs and challenges that we will try to address. The

evaluation studies of the application itself showed a

very good user experience, and there is certainly a

need to simplify the process of ﬁnding Cloud service

providers that fulﬁll the requirements of a customer.

Our focus has been limited to security requirements,

since they tend to be among the great show-stoppers

for Cloud uptake, but we think that the application

itself can easily be extended to support other types

of requirements as well, for instance related to cost,

functionality, performance and other QoS attributes.

Though we have been able to identify many new

needs, it seems obvious to us that the major obstacle

today is the lack of a standardized machine-readable

contract language that can be used for automatic dis-

covery and reasoning. It is imperative that the Cloud

provider industry come to an agreement on what to

describe and how to do it. In the end, it is the

providers that are able to provide clear and distinct

contract terms that will win the customers.

ACKNOWLEDGEMENTS

The research leading to these results has been sup-

ported by Telenor through the SINTEF-Telenor re-

search agreement and the European Union Seventh

Framework Programme (FP7/2007-2013) under grant

no 257930. We would also like to thank the anony-

mous reviewers that provided us with excellent feed-

back and suggestions for improvements.

REFERENCES

Andrieux, A., Czajkowski, K., Dan, A., Keahey, K.,

Ludwig, H., Nakata, T., Pruyne, J., Rofrano, J.,

Tuecke, S., and Xu, M. (2003). Web Services

Agreement Speciﬁcation (WS-Agreement). https://

forge.gridforum.org/projects/graap-wg/.

Cloud Security Alliance (2012). CSA Cloud Con-

trols Matrix. Technical report. https://

cloudsecurityalliance.org/research/ccm/.

Contrail Consortium (2010). Contrail FP7 EU Project.

http://contrail-project.eu/.

Ferrer et al (2012). OPTIMIS: A holistic approach to cloud

service provisioning. Future Gener. Comput. Syst.,

28(1):66–77.

Frtunic, M., Jovanovic, F., Gligorijvic, M., Dordevic, L.,

and Janicijevic, S. (2012). CloudSurfer. Security Re-

quirements for Cloud Brokering. Customer Driven

Project, project report, NTNU.

Hevner, A. and Chatterjee, S. (2010). Design Research in

Information Systems: Theory and Practice. Springer

Publishing Company, Incorporated, 1st edition.

Hogben, G. and Dekker, M. (2012). Procure Secure:

A guide to monitoring of security service lev-

els in cloud contracts. Technical report. http://

www.enisa.europa.eu/activities/Resilience-and-CIIP/

cloud-computing/.

Jansen, W. and Grance, T. (2011). Guidelines on Security

and Privacy in Public Cloud Computing. NIST Spe-

cial Publication 800-144.

Jensen, J. et al. (2011). SLA Management Services Terms

and Initial Architecture. Contrail deliverable D3.2.

Liu, F., Tong, J., Mao, J., Bohn, R., Messina, J., Badger, L.,

and Leaf, D. (2011). NIST Cloud Computing Refer-

ence Architecture. NIST Special Publication 500-292.

Meland, P., Bernsmed, K., Jaatun, M., Castejon, H., and

Undheim, A. (2013). Expressing cloud security re-

quirements for SLAs in deontic contract languages for

cloud brokers. International Journal of Cloud Com-

puting (to appear).

mOSAIC Consortium (2012). mOSAIC Cloud. http://

www.mosaic-cloud.eu/.

Moscato, F., Aversa, R., Di Martino, B., Fortis, T., and

Munteanu, V. (2011). An analysis of mOSAIC ontol-

ogy for Cloud resources annotation. In Computer Sci-

ence and Information Systems (FedCSIS), 2011 Fed-

erated Conference on, pages 973 –980.

OPTIMIS Consortium (2010). OPTIMIS FP7 EU Project.

http://www.optimis-project.eu/.

Rodero-Merino, L., Vaquero, L. M., Gil, V., Gal

an, F.,

Font

an, J., Montero, R. S., and Llorente, I. M. (2010).

From infrastructure delivery to service management

in clouds. Future Gener. Comput. Syst., 26(8):1226–

1240.

Tordsson, J., Montero, R. S., Moreno-Vozmediano, R., and

Llorente, I. M. (2012). Cloud brokering mechanisms

for optimized placement of virtual machines across

multiple providers. Future Gener. Comput. Syst.,

28(2):358–367.

Vaquero, L., Morn, D., Galn, F., and Alcaraz-Calero, J.

(2012). Towards runtime reconﬁguration of applica-

tion control policies in the cloud. Journal of Network

and Systems Management, 20:489–512.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

206
