Pattern-based Runtime Management of Composite Cloud Applications

Uwe Breitenb

ucher, Tobias Binz, Oliver Kopp and Frank Leymann

Institute of Architecture of Application Systems, University of Stuttgart, Stuttgart, Germany

Keywords:

Application Management, Composite Cloud Services, Deployment, Patterns, Planlets.

Abstract:

The management of composite Cloud applications is a challenging problem as current available technologies

provide management solutions that are tightly coupled to individual applications. Reusing and transferring

management knowledge from one application to another in an automated way is a major issue. In this paper,

we present a pattern-based approach which enables the decoupling of high level and low level management

knowledge and show how both can be applied together fully automated to various kinds of applications.

1 INTRODUCTION

To beneﬁt from Cloud computing properties such as

elasticity and pay-on-demand pricing models, the au-

tomation of provisioning and management of Cloud

applications is of vital importance and still a big chal-

lenge for enterprises today. To tackle this, several

technologies and frameworks such as Chef, Puppet,

or Juju were developed. However, the available so-

lutions are targeted to a deep technical level as they

mainly deal with scripts and their orchestration. They

are tightly coupled to individual applications causing

new effort to apply existing knowledge to other appli-

cations. Thus, automating the management of appli-

cations needs a lot of experience and knowledge for

application operators and often acquiring new knowl-

edge is needed what is costly and time-consuming.

Especially the management of distributed Cloud

applications is a challenging problem as there is a lack

of mapping between high level management knowl-

edge, such as how to scale-out application components,

and low level, i. e., deep technical, management knowl-

edge capturing which operations have to be executed

on the actual components to perform the high level

task in an automated manner. In this paper, we pro-

pose an extendable approach tackling these issues. The

approach enables the management of composite ap-

plications including their deployment on a high level

of abstraction without requiring the deep technical

knowledge needed in other approaches. We present

how high level and low level management tasks can

be implemented separately by experts in a generic and

reusable way and how these tasks can be integrated

and applied fully automated to individual applications

to operate and manage them on runtime. The paper

shows that (i) high level management tasks can be cap-

tured by Management Patterns, (ii) a newly introduced

management layer, called Management Planlets, can

be used to provide executable low level management

tasks, and (iii) that both concepts can be integrated

seamlessly. Thus, our approach separates concerns

and supports collaboration across different domains.

Application developers and providers beneﬁt as they

get various management possibilities for individual ap-

plications without the need for acquiring new manage-

ment knowledge. We evaluate the approach through a

prototype and show that it is applicable to real world

scenarios.

The main contribution of this paper is presented

in Section 2. Section 3 evaluates the presented ap-

proach by showing our prototypical implementation.

In Section 4, we discuss related work and ﬁnally give

a conclusion and outlook on future work in Section 5.

2 APPROACH

In this section, we introduce our pattern-based ap-

proach for managing applications. We explain how

management tasks can be executed fully automated on

various kinds of applications based on Management

Patterns and Management Planlets. Our approach is

subdivided into three steps illustrated in Figure 1: (i)

Applying Management Patterns, (ii) generating Man-

agement Plans by orchestrating Management Planlets,

and (iii) execution of the generated plans. In the ﬁrst

Step, management tasks such as scaling out an appli-

cation are mapped to so-called Management Patterns

475

Breitenbücher U., Binz T., Kopp O. and Leymann F..

Pattern-based Runtime Management of Composite Cloud Applications.

DOI: 10.5220/0004376104750482

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 475-482

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

Apply

Pattern

Management

Plan

Application

State Model

Desired Application

State Model

Generate

Plan

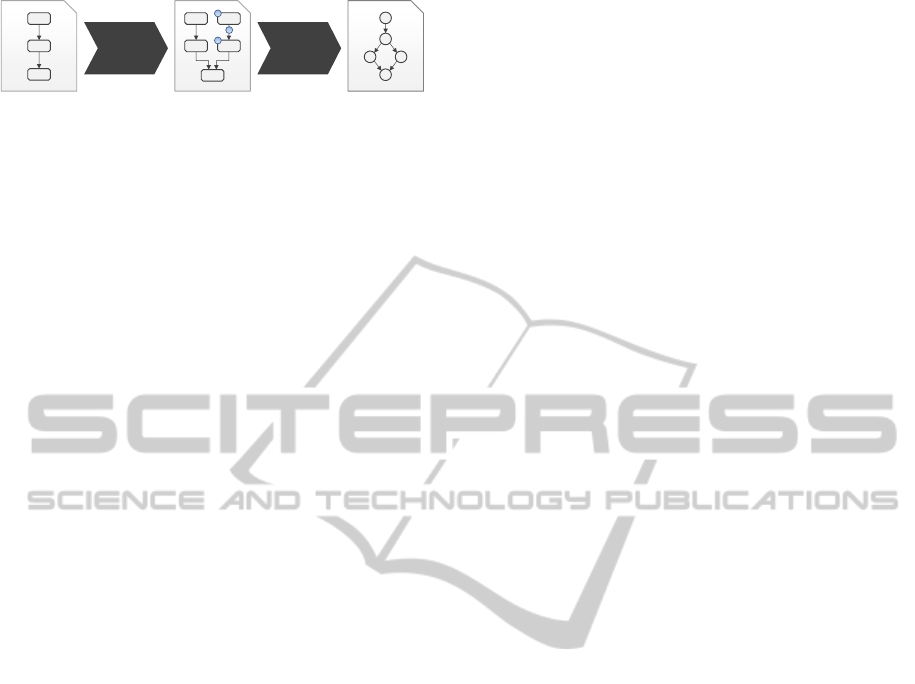

Figure 1: Conceptual overview of the approach.

which capture the high level management knowledge

needed to perform the desired management task. Pat-

terns are a proven way to capture reusable solutions

for recurring challenges and problems based on ex-

pert’s knowledge. They have been ﬁrst proposed in

architecture (Alexander et al., 1977). We use patterns

to provide an extendable way of modeling knowledge

into automatically executable transformations which

express the effects of the respective management tasks,

e. g., a scale out task has the effect that multiple compo-

nents and a load balancer are added. Management Pat-

terns transform Application State Models of (running)

applications fully automated into so-called Desired

Application State Models , which reﬂect the desired

state the applications shall have after a pattern was

applied. This model reﬂects all the modiﬁcations and

structural changes on the application, its components,

and relations which have to be made to execute the

task, e. g., it contains two additional components in-

jected by the pattern in order to scale out. In Step 2, a

Plan Generator generates a Management Plan which

brings the application from its current state to the state

deﬁned by the Desired Application State Model by

orchestrating so-called Management Planlets. These

planlets capture generic low level management knowl-

edge needed to execute the overall task. The generated

plans are workﬂows which can be executed fully auto-

mated in Step 3 to perform the changes deﬁned by the

pattern. Thus, the strength of the approach is capturing

expert knowledge on different levels independently

and integrating both through fully automated plans.

Before we explain Management Patterns and the gen-

eration of Management Plans in detail, we deﬁne and

explain the terms Application State Model and Desired

Application State Model in more detail.

An Application State Model (ASM) contains in-

formation about the current state of an application. It

consists of an Application Topology, which is a graph

describing the structure of an application with all its

components and relations among them. Components

and relations are called elements of the topology and

may have arbitrary key-value-properties which hold

runtime information about them, e. g., the IP-address

of a virtual machine. Thus, the ASM represents a snap-

shot of the current application state. Elements have

a type which may extend a parent type, e. g., a com-

ponent of type Java Web Server may have the parent

type Web Server. Components offer management in-

terfaces providing management operations which can

be used to operate them, e. g., a Java Web Server may

offer operations to deploy WAR-ﬁles. The type of the

component deﬁnes which interfaces are provided. The

interfaces are well-deﬁned by the component type but

the implementation is up to the component itself. In

contrast, a Desired Application State Model (DASM)

represents the desired state in which an application

shall be transformed. Therefore, it contains several

annotations on elements which express that the respec-

tive element shall be created, removed, or a domain-

speciﬁc task processed on it.

2.1 Management Patterns

In this section, we deﬁne Management Patterns in de-

tail and show how they transform an Application State

Model into a Desired Application State Model. A Man-

agement Pattern represents a high level management

task, such as scaling out an application or migrating

parts of the application from an on premise private

Cloud to a public Cloud at runtime. They capture high

level management knowledge into reusable transforma-

tions which can be applied fully automated to various

kinds of applications. The result of such a transfor-

mation is a Desired Application State Model which

represents the state the application shall have after the

pattern was applied. Thus, the goal of these patterns is

not performing a certain management task directly on

the real running application but only transforming the

current state model of an application into the desired

state model reﬂecting all the changes which have to be

made on the real application to execute the represented

task. As the initial deployment and the termination of

an application are also part of its lifecycle management,

a generic provisioning pattern and a generic termina-

tion pattern provide these functionalities. Therefore,

Management Patterns can be used to capture generic

knowledge about the whole management lifecycle of

applications in a reusable way.

Management Patterns consist mainly of two parts

shown in Figure 2: (i) Target Topology Fragment (left)

and (ii) Topology Transformation (right). Target topol-

ogy fragments are used to analyze if a pattern can be

applied to a certain ASM while topology transforma-

tions apply the pattern to ASMs. In addition, they

provide information such as name, icon, or a textual

description following the pattern format of Hohpe and

Woolf (Hohpe and Woolf, 2003). In the following, we

explain these two main parts in detail.

2.1.1 Target Topology Fragment

A Target Topology Fragment deﬁnes a topology con-

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

476

Topolo

( WAR )

( * )

(HostedOn)

( WAR )

( Tomcat )

(HostedOn)

( Amazon EC2 )

(HostedOn)

Migrate-WAR-To -Amazon Pattern

( WAR )

( * )

(HostedOn)

( Ubuntu Linux )

Target Topology Fragment Topology Transformation

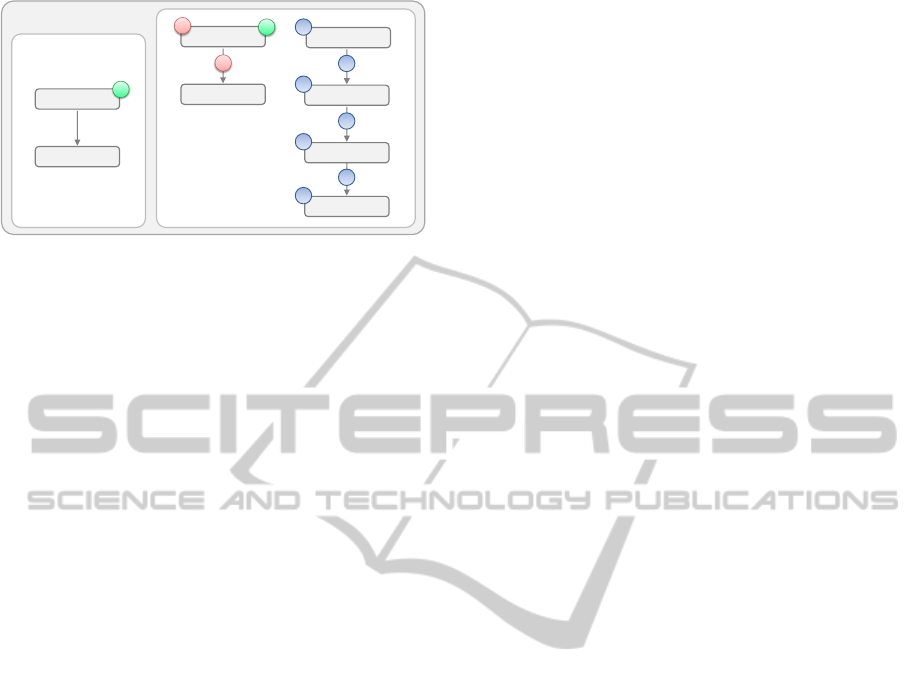

Figure 2: Management Pattern which migrates a Java Web

Application to Amazon EC2.

taining components and relations which are the target

of the management task represented by the pattern.

This fragment is used for matchmaking between the

components and relations contained in the ASM and

the ones that are the target of the pattern. Thus, frag-

ments can be used to ﬁnd Management Patterns which

are applicable to a certain ASM. A detailed description

of this matchmaking is given in Section 2.3. For visu-

alizing topology models we use Vino4TOSCA (Bre-

itenb

ucher et al., 2012). Figure 2 shows an example

on the left: The shown pattern is applicable to ASMs

which contain a WAR-component hosted on any other

component. According to Vino4TOSCA, the type of

components and relations is emphasized by parenthe-

ses while

denotes wildcard, i. e., the corresponding

element is of any type. In addition, Focus-Annotations

on elements in the fragment are used to deﬁne which

components are affected directly by the pattern while

all other elements in the fragment only deﬁne the con-

text, e. g., the fragment in Figure 2 deﬁnes that only

the component of type WAR is affected directly and

not the component it is hosted on.

2.1.2 Topology Transformation

A Topology Transformation applies a pattern to an

Application State Model by transforming it into a De-

sired Application State Model. The transformation

gets three input parameters: (i) The ASM which has

to be managed by the pattern, (ii) a mapping which

maps elements of the ASM to elements contained in

the target topology fragment to indicate on which ele-

ments of the ASM the pattern has to be applied, and

(iii) pattern-speciﬁc parameters, e. g., a scale out pat-

tern needs to know how much additional components

should be created. The mapping is required because a

topology fragment possibly matches multiple different

parts of the model and this way the transformation gets

informed which one is the target. Applying a pattern

to a topology model may result in several structural

changes such as insertions, deletions, transformations,

and modiﬁcations of components or relations. To re-

ﬂect these changes, patterns use Management Anno-

tations which represent low level management tasks

which have to be performed. Thereby, the complexity

of applying a high level management task is divided

into smaller tasks, which can be applied generically to

various kinds of applications.

Management Annotations are subdivided into two

disjoint classes: Structural Management Annotations

and Domain-Speciﬁc Management Annotations. The

ﬁrst class represents annotations which structurally

change the topology and are used by patterns to indi-

cate which elements have to be created or removed: If

an element gets inserted by the pattern and has to be

explicitly instantiated, the element is annotated with

a Create-Annotation, if an element gets removed and

should be terminated, it is annotated with a Remove-

Annotation. If a Management Pattern inserts an al-

ready running component or instantiated relation, e. g.,

a database whose endpoint is known by the pattern,

it adds the respective element without the Create-

Annotation because no task has to be performed. Only

if the pattern wants to establish a new connection to

the already running database, this relation needs to be

inserted with attached Create-Annotation to indicate

that this has to be performed. Thus, the topology trans-

formation of the pattern shown in Figure 2 deﬁnes that

the focused element of type WAR and its hostedOn-

relation has to be removed and that a new application

stack has to be created on Amazon EC2.

In addition to structural modiﬁcations, the second

class of Management Annotations can be used to ex-

press domain-speciﬁc management tasks: A pattern

may annotate elements with Domain-Speciﬁc Anno-

tations to express low level management tasks of a

certain domain such as doing a database backup or

updating a component. Domain-Speciﬁc Annotations

may deﬁne several properties which can be used by

patterns to inﬂuence their processing, for example, a

Management Pattern doing database backups gets the

location to store the backups as input and writes this lo-

cation into a property of the Backup-Annotation to tell

the plan generator what to do. Thus, applying a pattern

on the one hand may change the topology structurally

and on the other hand add domain-speciﬁc tasks. Fig-

ure 3 shows how the Migrate-War-To-Amazon-Pattern

of the previous section is applied to an example topol-

ogy: The ASM on the left gets transformed into the

DASM on the right. The structural annotations are

inserted by the transformation to deﬁne the low level

tasks which have to be performed. Components and

relations may have properties which hold information

such as the IP-address of a Web Server or the database

endpoint an application connects to. Patterns may add

Pattern-basedRuntimeManagementofCompositeCloudApplications

477

( PHP Application)

( Apache )

(HostedOn)

( Server )

(HostedOn)

( Windows 7 )

(HostedOn)

( WAR )

( Tomcat )

(HostedOn)

( PHP Application)

( Apache )

(HostedOn)

( Server )

(HostedOn)

( Windows 7 )

(HostedOn)

( WAR )

( Tomcat )

(HostedOn)

( Calls )

( WAR )

( Tomcat )

(HostedOn)

( Amazon EC2 )

(HostedOn)

( Ubuntu Linux )

(HostedOn)

( Calls )

Apply

Pattern

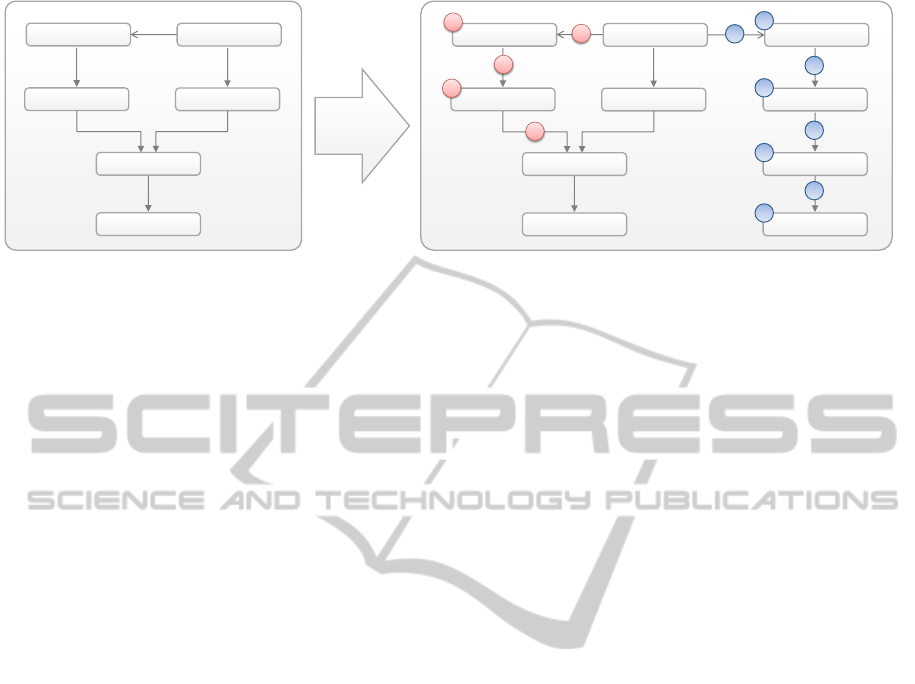

Figure 3: Transformation of an example ASM (left) to a DASM (right) by applying the Migrate-WAR-To-Amazon-Pattern.

properties to elements they create but they are not

allowed to remove or change attributes of already ex-

isting components and relationships. Thus, if a pattern

wants to change the database an application connects

to by replacing its endpoint, it has to attach a Domain-

Speciﬁc Management Annotation which represents

that task. To summarize, a topology transformation

may do the following ﬁve changes:

•

Insert explicitly new components and relations

with attached Create-Annotation

•

Insert already existing components and relations

without attached Create-Annotation

•

Remove components and relations by attaching the

Remove-Annotation

•

Deﬁne properties for components and relations

which are explicitly created

• Add Domain-Speciﬁc Management Annotations

2.2 Plan Generation

After the Desired Application State Model was created

by applying a Management Pattern, this model gets

transformed into a Management Plan. In this section,

we ﬁrst describe different management layers which

differ in their management granularity. Furthermore,

we introduce a new layer called Management Planlets

which are used to encapsulate low level management

knowledge into reusable subprocesses. These Man-

agement Planlets are orchestrated by a plan generator

into a Management Plan that can be executed fully

automated to get the real running application into the

state deﬁned by the Desired Application State Model.

2.2.1 Management Layers

In this section, we deﬁne three management layers

which differ in the level of granularity: (i) Manage-

ment Plans, (ii) Management Planlets, and (iii) Man-

agement Operations.

The highest management layer is provided by Man-

agement Plans which are workﬂows used to execute

management tasks fully automated. Management

Plans implement high level management functionali-

ties such as scaling out an application or the migration

of an application component from a private Cloud

into a public Cloud. They inherit features from work-

ﬂow technology such as recoverability, compensation,

and fault mechanisms and offer a much more robust

and reliable way for application management than the

(manual) execution of scripts on a deep technical level.

One possibility to implement plans is provided by the

Business Process Execution Language, which is, e. g.,

used for the provisioning of applications (Keller and

Badonnel, 2004). Management Plans are typically cou-

pled very tightly to single applications and are there-

fore of limited value as they are sensitive to topology

changes and hardly reusable for the management of

other applications. In practice, application developers

create plans by hand and every change in the appli-

cation’s topology needs changing the corresponding

plans. In contrast to this, the lowest management layer

is represented by the so-called Management Opera-

tions, which are provided by components themselves.

These operations offer functionalities which are tightly

coupled to the components providing them such as

copying a ﬁle onto an operating system. They are or-

chestrated by Management Plans in order to provide a

higher level of management functionality.

Management Plans often need the same set of

lower level functionalities affecting multiple compo-

nents all at once such as installing an operating system

onto a virtual machine or functionalities aggregated

out of multiple single management operations offered

by a single component. To enable reuse, we intro-

duce Management Planlets. Planlets are subprocesses,

which cover these aggregated management functional-

ities in a reusable and self-contained way. Thus, they

can be used as generic building blocks for creating

Management Plans for different applications as they

are not coupled to individual applications. They are re-

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

478

( PHP Application)

( Apache )

(HostedOn)

( Server )

(HostedOn)

( Windows 7 )

(HostedOn)

( WAR )

( Tomcat )

(HostedOn)

( Calls )

( WAR )

( Tomcat )

(HostedOn)

( Amazon EC2 )

(HostedOn)

( Ubuntu Linux )

(HostedOn)

( Calls )

( Amazon EC2 )

(HostedOn)

( Ubuntu Linux )

( Tomcat )



Annotated Topology Fragment

Workflow

Tomcat on Amazon Management Planlet

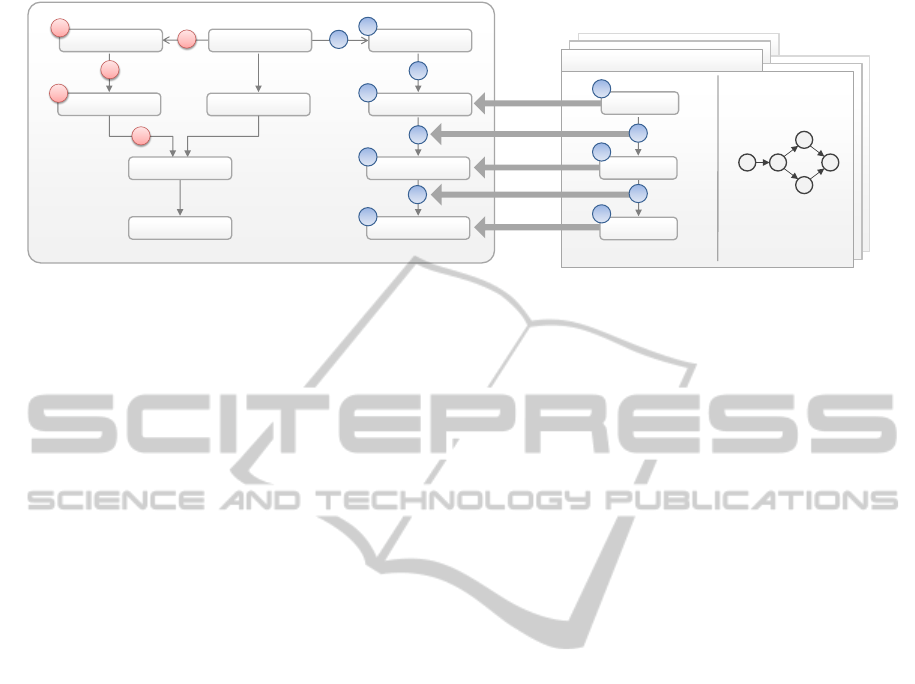

Figure 4: Matchmaking of elements in a DASM (left) and a Topology Fragment of a Management Planlet (right).

sponsible for managing small parts of applications but

are still on a higher level than management operations.

2.2.2 Management Planlets

In this section, we explain the concept of Management

Planlets and their structure in detail. Planlets are small

single-entry single-exit workﬂows which implement

low level management tasks involving multiple man-

agement operations such as installing a Web Server on

an operating system or copying ﬁles from one compo-

nent to another. A major requirement is that they can

be executed fully automated and support recoverability,

compensation, and transactional behaviour.

Each Management Planlet has an associated an-

notated topology fragment, similar to Management

Patterns. The Management Annotations in this frag-

ment represent the low level management tasks the

planlet executes on the respective elements and is used

by the plan generator to ﬁnd an appropriate set of

Management Planlets whose execution transforms the

application into the desired state. For example, a frag-

ment may contain a single component of type MySQL-

Database with a domain-speciﬁc Backup-Annotation.

Thus, the planlet is responsible for doing this backup.

A detailed description for matchmaking of topology

fragments and state models is given in Section 2.3. Fig-

ure 4 shows the concept of Management Planlets visu-

ally. The planlet on the right deﬁnes the provided func-

tionality by an annotated topology fragment, which in

turn shows that the planlet creates an Amazon EC2

node, installs an operating system and thereon a Tom-

cat Web Server. As this combination of elements and

annotations is equally contained in the Desired Appli-

cation State Model on the left (indicated by the arrows

with checkmarks), the planlet can be used to perform

these tasks. The small plan on the right of the plan-

let indicates the workﬂow providing the functionality.

Management Planlets have typically several individ-

ual input parameters needed to perform the provided

tasks, e. g., credentials for Cloud providers needed

to acquire a VM. On the other hand, they create in-

formation such as the IP-address of the created VM

which may be needed by other planlets, e. g., if an-

other one shall install a Web Server on the acquired

VM. Thus, information needs to be shared between

planlets. To make this kind of runtime information

accessible for different planlets in a uniform manner,

Management Planlets also get a reference to a globally

accessible representation of the ASM, the DASM, and

an element mapping generated by the plan generator

as input. The latter maps the elements in the topology

fragment to the target elements in the ASM that shall

be managed by the planlet. The globally accessible

ASM is, therefore, used to store all runtime informa-

tion about applications. Thereby, planlets have access

to the affected elements of the ASM and may write

information directly to the properties of the respec-

tive elements which can be retrieved by other planlets.

Thus, Management Planlets get their information from

two sources: (i) their individual input parameters and

(ii) per extraction from the mapped elements of the ref-

erenced ASM and DASM. The mapping is also needed

to tell the planlet which elements are the target as an

ASM may contain multiple combinations of elements

matching the topology fragment of the planlet.

Beside the tasks, which are expressed by the anno-

tations, topology fragments also express which proper-

ties the planlet creates or removes on runtime. This is

done by attaching Create- or Remove-Annotations to

the respective property. If a planlet changes or updates

an already existing property of an element, it uses the

Create-Annotation as the effect of executing the plan-

let is the same as the property is instantiated with the

speciﬁed value. As there are many properties, such as

IP-addresses of components, to be instantiated which

can be determined not until runtime, fragments may

use wildcards to express that the planlet sets this prop-

erty with any value on runtime. This explicit modeling

of behaviour in terms of property handling is important

for the following plan generation as the applicability

Pattern-basedRuntimeManagementofCompositeCloudApplications

479

of a planlet may depend on preconditions considering

the existence of a certain property.

2.2.3 Orchestration of Planlets

In this section, we describe how a Desired Application

State Model gets transformed into an executable Man-

agement Plan which transitions the application into

the deﬁned state through orchestrating Management

Planlets. Plan generation involves two issues: (i) Iden-

tifying which planlets can be used in (ii) which order

to create an efﬁcient plan.

In general, graph covering techniques can be used

to ﬁnd for a certain set of elements of the DASM a

suitable planlet to perform the tasks speciﬁed by the

annotations they have attached. This approach is lim-

ited as it allows applying only one planlet for each

element (component or relation) to get it in its desired

state. However, this is sufﬁcient only for the deploy-

ment of applications (Eilam et al., 2011). Managing

applications typically needs more than one operation

per element, because it may have multiple annota-

tions which cannot be processed by a single planlet.

Thus, we cannot employ graph covering techniques as

an element may be in several different states before

it reaches its desired state and several planlets with

different tasks have to be executed to process all the

element’s annotations. A solution for this problem is

using planning techniques. Planning algorithms are

used to ﬁnd a certain order of actions which transform

a given initial model, which represents the current state

of a system, into a given desired state model, which

denotes the goal state of the system to be achieved.

The advantage of these techniques in contrast to graph

covering is that they enable multiple actions on a sin-

gle element to get it into its desired state. A planning

algorithm has in general three input values: (i) A de-

scription of the initial world state, (ii) a description of

the desired goal, and (iii) a list of atomic actions of a

certain planning domain which can be used to trans-

form the initial model to the model representing the

desired goal (Weld, 1994). Actions change the state

of the system and have preconditions which must be

fulﬁlled to enable the execution of the action and post-

conditions expressing effects on the state of the system

which hold if the action was executed successfully.

We employ a Partial Order Planning (POP) algo-

rithm which searches the plan space and generates a

partially ordered plan of actions (Weld, 1994). The

partial order is used to improve the performance of a

generated plan as actions are executed in parallel if pos-

sible. We map its concepts to our approach as follows:

(i) The initial state is represented by the Desired Ap-

plication State Model which was created by applying

a pattern. (ii) The goal state is deﬁned as the input De-

sired Application State Model without all annotations.

Thus, the goal is processing all annotations by actions.

(iii) An action is implemented by a planlet. Thus, the

goal of planlets is processing annotations. (iv) The

types and annotations of components and relations

deﬁned in the topology fragment of a planlet as well

as their properties are treated as preconditions which

have to be fulﬁlled by the corresponding elements

in the current state model. (v) Each annotation on a

component or relation in the topology fragment of the

planlet is processed by the planlet and removed from

the state model after processing. Thus, this removal is

an effect as well as setting element properties which

are annotated with the Create-Annotation: These prop-

erties are set or updated by the planlet and thus also

effects on the state they are applied. To match the

preconditions of actions, i. e., the topology fragment

of a planlet, with the current state we use a (sub)graph

isomorphism algorithm called VF2. A detailed expla-

nation of this matchmaking is provided in Section 2.3.

In each step the POP algorithm adds an action, i. e., a

planlet, to the partial plan, it attaches the respective

mapping of elements in the ASM to elements of the

topology fragment. This is needed to tell the planlet

for which elements in the current state it is responsible

for (see Section 2.2.2).

If the POP algorithm terminates successfully it

outputs a partially ordered plan consisting of several

Management Planlets with attached element mappings.

This plan gets then transformed into an executable

Management Plan in the following way:

•

All causally ordered planlets are executed in se-

quence, all others in parallel

•

Speciﬁc input parameters of planlets are exposed

to the input message of the generated plan and

mapped back to the planlet’s input message

•

Each planlet gets the reference to the globally

accessible ASM as well as the respective target-

element mapping as input

Thus, the generated plan may have several individ-

ual input parameters such as credentials or security

conﬁgurations which have to be set. All other run-

time information the planlets produce and retrieve are

shared over the globally accessible ASM.

The concept of Management Annotations de-

creases the runtime of the algorithm as each action

processes at least one annotation and, thus, brings the

state one step closer to the ﬁnal desired goal state

where all annotations were processed. In addition, we

assume that the number of actions for a certain par-

tial plan during the search is small as there is no need

to implement multiple planlets processing the same

annotations on the same combination of elements.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

480

2.3 Topology Fragment Matchmaking

For matchmaking of topology fragments and elements

in (Desired) Application State Models we use the VF2

algorithm presented by Cordella et al. (P. Cordella

et al., 2004). VF2 is a deterministic matching method

for verifying isomorphism as well as subgraph isomor-

phism between two graphs. To employ this algorithm,

we have to deﬁne the compatibility of elements. As

nodes and relations have types, annotations, and prop-

erties, we do not distinguish between them and refer

to both as element. Two elements are compatible iff

the following conditions hold:

•

The annotations of the element in the topology

fragment must be a subset of the annotations of the

element in the Desired Application State Model.

•

Each property of the topology fragment element

must have a wildcard as value, equally contained

in the properties of the element in the DASM, or

being annotated with the Create-Annotation.

•

The type of the element in the topology fragment

must either be deﬁned as wildcard, exactly the

type of the element in the DASM, or any of its

descending sub types

For matchmaking of Management Planlets, which call

operations provided by management interfaces of com-

ponents, these conditions are also sufﬁcient as the set

of interfaces a component provides is deﬁned by its

type, e. g., each component of type Java Web Server

offers certain well-deﬁned interfaces to deploy WAR-

ﬁles. Thus, the matchmaking does not need to consider

interfaces and operations separately.

3 EVALUATION

To evaluate the approach we implemented a Java

prototype which employs the Topology and Orches-

tration Speciﬁcation for Cloud Applications, short

TOSCA (OASIS, 2012). TOSCA provides a portable

format to describe application topologies and man-

agement plans (Binz et al., 2012). A TOSCA Cloud

Service Archive (CSAR) packages a ServiceTemplate,

which describes the topology, and all required software

artifacts to provide the components, i. e., functional

artifacts and so-called ImplementationArtifacts imple-

menting the component’s management operations. For

ImplementationArtifacts, the system currently sup-

ports Java Axis Web Services. During importing a

CSAR, the management operations are provided au-

tomatically through deploying the Implementation-

Artifacts and the generated Management Plans get

bound to these operations automatically. The system

employs two repositories, one contains patterns, the

other planlets. Pattern topology transformations are

implemented in Java while planlets are implemented

in BPEL. Topology fragments are represented as an-

notated TOSCA ServiceTemplates. The prototype pro-

vides a runtime database used to store ASMs which

can be accessed by Planlets. To deploy applications,

a standard pattern is provided which annotates all el-

ements in the ASM with Create-Annotations. The

topology fragment of this pattern is completely empty,

thus, it matches all models. A termination pattern is

provided similarly. To customize and inﬂuence the

generated plans, we enable developers to store their

own planlets in CSARs. These planlets have a higher

priority as the planlets in the repository and the plan

generator uses them if possible. We implemented var-

ious patterns and planlets, e. g., for migrating a Java

Web Application to Amazon to prove the approach.

4 RELATED WORK

The work of (Eilam et al., 2011) focuses on deploy-

ment of applications and is similar to our approach for

the actual low level operation logic as they attempt to

bridge the gap between imperative logic implemented

as scripts and workﬂows and a declarative model rep-

resenting the desired state. The subject of their work

is the automated transformation of this desired state

model into a partially ordered workﬂow model by us-

ing so-called automation signatures which are similar

to planlets. Their workﬂow generation algorithms are

based on graph covering techniques, which limit the

approach to deployments where only one single oper-

ation is needed to get a resource in its desired state.

This is not sufﬁcient for management as it needs inter-

mediary planning states as discussed in Section 2.2.3.

In a previous work (Maghraoui et al., 2006) the

authors present an approach based on AI Planning

similar to our workﬂow generation. However, this

work orchestrates provisioning operations provided

by existing provisioning platforms and is, thus, much

more restricted than using planlets and management

operations provided by the application components

themselves. In contrast to both works, our approach

enables the application developer to provide own man-

agement logic contained in CSARs by implementing

own Management Operations and planlets. Thus, we

introduce an additional level of granularity and provide

reusable customization possibilities for plan genera-

tion. In addition, both works focus only on deployment

and assume a desired state model as input which is in

our approach generated by applying patterns.

The work of (Arnold et al., 2007) presents a plat-

Pattern-basedRuntimeManagementofCompositeCloudApplications

481

form supporting the construction of DASMs for de-

ployment. They use model-based patterns to capture

abstract deployment topologies. In contrast to our

work, they focus on deployment and creating DASMs

by composing topology patterns. We apply transfor-

mation patterns to transform ASMs to DASMs.

The CHAMPS System (Keller et al., 2004) focuses

on Change Management which modiﬁes IT systems

through so-called Requests For Change (RFC), e. g.,

installation, upgrade, or conﬁguration requests. RFCs

are on a lower level than Management Patterns and

targeted to a single component or small group of com-

ponents while Management Patterns are intended to

affect multiple components directly at once. After re-

ceiving an RFC, the CHAMPS System assesses the

impact of the RFC on components by analyzing the de-

pendencies between the directly affected components

and their neighbours and generates a so-called Task

Graph which is afterwards used to generate an exe-

cutable Change Plan. Thus, the Desired Application

State Model is not generated by a single operation like

applying a Management Pattern but evolves by ana-

lyzing the inﬂuences of an RFC to other components

recursively. In contrast, we enforce a strict separa-

tion between change requests, which are expressed

as patterns in our work, the Desired Application State

Model, and the operational model which is represented

by planlets. This allows capturing high level expert

knowledge much more concrete in the automated exe-

cutable transformations of patterns.

The DevOps community also provides higher level

tooling such as Marionette Collective. These tools pro-

vide more convenience to manage application topolo-

gies as it turned out that large and complex topologies

are hard to manage with plain conﬁguration manage-

ment only (Loope, 2011). The larger the topologies,

the higher the probability of mistakes when reusing ar-

tifacts. However, all these tools do not provide the high

level of abstraction provided by Management Patterns.

5 CONCLUSIONS AND

OUTLOOK

In this paper, we presented how high level and low

level management tasks can be implemented separately

in a generic and reusable manner by using Manage-

ment Patterns and Management Planlets and that they

are applicable fully automated to different applications.

To evaluate the approach, we implemented a prototype

based on TOSCA and showed that the concept also

enables application developers to inﬂuence the actual

management by implementing custom Management

Planlets. In future work, we plan to extend the sys-

tem towards applying patterns fully automated based

on certain application states and rules, e. g., to handle

peak workloads. In addition, multiple patterns should

be applicable at once.

ACKNOWLEDGEMENTS

This work was partially funded by the BMWi project

CloudCycle (01MD11023).

REFERENCES

Alexander, C. et al. (1977). A Pattern Language. Towns,

Buildings, Construction. Oxford University Press.

Arnold, W., Eilam, T., Kalantar, M., Konstantinou, A. V., and

Totok, A. A. (2007). Pattern based SOA deployment.

In ICSOC. Springer-Verlag.

Binz, T., Breiter, G., Leymann, F., and Spatzier, T. (2012).

Portable Cloud services using TOSCA. IEEE Internet

Computing, 16(03):80–85.

Breitenb

ucher, U., Binz, T., Kopp, O., Leymann, F., and

Schumm, D. (2012). Vino4TOSCA: A visual notation

for application topologies based on TOSCA. In CoopIS.

Springer-Verlag.

Eilam, T., Elder, M., Konstantinou, A. V., and Snible, E. C.

(2011). Pattern-based composite application deploy-

ment. In Integrated Network Management. IEEE.

Hohpe, G. and Woolf, B. (2003). Enterprise Integration Pat-

terns: Designing, Building, and Deploying Messaging

Solutions. Addison-Wesley.

Keller, A. and Badonnel, R. (2004). Automating the pro-

visioning of application services with the BPEL4WS

workﬂow language. In DSOM. Springer.

Keller, A., Hellerstein, J. L., Wolf, J. L., et al. (2004). The

CHAMPS system: change management with planning

and scheduling. In NOMS. IEEE.

Loope, J. (2011). Managing Infrastructure with Puppet.

O’Reilly Media, Inc.

Maghraoui, K. E., Meghranjani, A., Eilam, T., and Konstanti-

nou, E. V. (2006). Model driven provisioning: Bridg-

ing the gap between declarative object models and

procedural provisioning tools. In ACM/IFIP/USENIX

Middleware 2006.

OASIS (2012). Topology and Orchestration Speciﬁcation

for Cloud Applications Version 1.0 Committee Speciﬁ-

cation Draft 03.

P. Cordella, L., Foggia, P., Sansone, C., and Vento, M. (2004).

A (sub)graph isomorphism algorithm for matching

large graphs. IEEE Trans. Pattern Anal. Mach. Intell.,

26(10):1367–1372.

Weld, D. S. (1994). An introduction to least commitment

planning. AI Magazine, 15(4):27–61.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

482
