Monitoring of SCA-based Applications in the Cloud

Mohamed Mohamed, Djamel Bela¨ıd and Samir Tata

Institut MINES-TELECOM, TELECOM SudParis, UMR CNRS Samovar, Evry, France

Keywords:

Cloud Computing, Monitoring, Component Model, Scalability, Service Containers, SCA.

Abstract:

Cloud computing is a recent paradigm in information technology enabling an economic model for virtual

resources provisioning. Monitoring remains an important task to efﬁciently manage the Cloud, but it is still

a challenge to ﬁnd a monitoring solution that reconciles the scalability, the memory consumption, and the

efﬁciency. In this paper, we propose an extension for Service Component Architecture to allow the description

of monitoring needs, and a framework that adds monitoring facilities to components and encapsulates them

in a scalable micro-container that could be deployed in the cloud. Unlike the existing initiatives in the state

of the art, our SCA-extension allows the architect to describe monitoring needs between components and our

framework allows the transformation from the extended SCA description to a standard SCA that could be

handled by any SCA runtime. This makes the task of developers and architects easier letting them focusing

on the business of their components instead of the non functional property of monitoring. Moreover, our

framework uses a scalable micro-container for components’ deployment in the Cloud to be in line with the

scalability of this environment. The evaluation that we performed proves the efﬁciency and the ﬂexibility of

our approach of monitoring applications in the Cloud.

1 INTRODUCTION

Over the last years, there has been an enormous shift

in Information Technologies (IT) to Cloud Comput-

ing. Cloud Computing is a recent paradigm enabling

an economic model for virtual resources provision-

ing. It refers to a model for enabling ubiquitous, con-

venient, on demand network access to a shared pool

of conﬁgurable computing resources (e.g., networks,

servers, storage, applications and services) that can

be rapidly provisioned and released with minimal ef-

fort or service provider interaction (NIST, 2011). In

this paradigm, there are basically three layers of ser-

vices known as ”IaaS” for Infrastructure as a Service,

”PaaS” for Platform as a Service and ”SaaS” for Soft-

ware as a Service.

As it is, the Cloud is well adapted to host Service-

based applications that follow Service Oriented Ar-

chitecture (SOA). SOA is a collection of services

which communicate with each other. Such type of

applications can be described using Service Compo-

nent Architecture (SCA) as a composite description

that contains a detailed description for different com-

ponents of the application and links between them.

All the elements in a composite must be described as

one of the standard artefacts of the SCA meta-model.

A well described composite can be transmitted to a

SCA runtime (e.g. TUSCANY (Laws et al., 2011),

Newton(Dunne, 2008)) that instantiates the different

components and links them as described in the com-

posite, these aspects among others will be detailed in

section 2. In this paper we will focus in monitoring

Component-based applications in the Cloud which re-

mains a critical issue and should be done at the gran-

ularity of a component to keep its good QoS.

Monitoring process consists of informing the in-

terested part (user or application component) about

the changes of the monitored system properties or

notifying it on a regular way or whenever a change

has occurred. When applied on a Service Compo-

nent Architecture in a Cloud environment, monitor-

ing becomes a complicated problem that has to face

many challenges: ﬁrst, the description of the need

to consume monitoring information must be explic-

itly described in different granularities independently

of the type of the components (i.e., Network, Com-

pute, Storage, Software, etc.). Moreover, the nature

of monitored components and the way their status

should be retrieved depends on the component being

monitored which renders this task complicated. Fi-

nally, any monitoring solution must respect the scala-

bility of the Cloud.

In this paper, we propose a framework that en-

ables monitoring SCA-based applications in cloud

Mohamed M., Belaïd D. and Tata S..

Monitoring of SCA-based Applications in the Cloud.

DOI: 10.5220/0004376500470057

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 47-57

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

environments and our contributions are: an exten-

sion for SCA meta-model to enable the description

of a component’s need to monitor properties of other

components (subsection 3.1), a list of transformations

that render a component monitorable even if it was

designed without monitoring facilities showing how

our frameworktransforms the extended-SCA descrip-

tion to a standard one (subsection 3.2), the integra-

tion of our monitoring solution with a scalable micro-

container to respect the scalability of the cloud (sub-

section 3.3), and the implementation details and the

primer experimentation that prove the efﬁciency of

our approach (section 4).

Many attempts to provide monitoring applications

in the Cloud exist in the state of the art detailed in sec-

tion 5, but as we will explain, almost all the proposed

solutions give tooling solutions to monitor Cloud ap-

plications behaviour. Furthermore, there is no ap-

proach that expects to monitor components that were

not designed with monitoring facilities. In addition,

almost all of the existing monitoring solutions either

do not take care of scalability issue, or do not include

an efﬁcient solution to that problem. In our work, we

propose a granular description of monitoring require-

ments, we are independent of the components types,

we alleviate the developer task who can ﬁnally focus

just in the business of his components and leave the

non functional properties of monitoring to our frame-

work and ﬁnally we respect the scalability constraint

by the use of the technique of micro-containers.

2 BACKGROUND

In this section, we will present the background of our

work, in which we aim at adding the description of

monitoring facilities to Service Component Architec-

ture (SCA) (Open SOA Collaboration, 2008). We will

start by deﬁning SCA and its basic elements, then, we

will deﬁne monitoring and its different models and

related aspects.

2.1 Service Component Architecture

OASIS describes SCA (Open SOA Collaboration,

2008) as a programming model for building applica-

tions and solutions based on a Service Oriented Ar-

chitecture (SOA). One basic artifact of SCA is the

component, which is the unit of construction for SCA.

” A component consists of a conﬁgured instance of a

piece of code providing business functions. It offers

its functions through service-oriented interfaces and

may require functions offered by other components

through service-oriented interfaces as well. SCA

components can be implemented in Java, C++, and

COBOL or as BPEL processes. Independent of what-

ever technology is used, every component relies on a

common set of abstractions including services, refer-

ences, properties and bindings ” (Open SOA Collabo-

ration, 2008). A service describes what a component

provides, i.e. its external interface. A reference spec-

iﬁes what a component needs from the other compo-

nents or applications of the outside world. Services

and references are matched and connected using wires

or bindings. A component also deﬁnes one or more

properties (Open SOA Collaboration, 2008).

As deﬁned by Szyperski (Szyperski, 2002) ”A

software component is a unit of decomposition with

contractually speciﬁed interfaces and explicit context

dependencies only”. Thus, a component not only ex-

poses its services but it also speciﬁes its dependen-

cies. Most of the existing component models (Becker

et al., 2004) (Bruneton et al., 2006) (OSGI, 1999)

(Open SOA Collaboration, 2008) allow speciﬁcation

of their dependencies for business services external

to the component. However, they do not allow spec-

iﬁcation of their dependency for external properties.

The ability to specify dependency for external prop-

erties has two important implications. First, it re-

sults in speciﬁcation at relatively ﬁne granularity thus

helping the architects and designers in ﬁne tuning the

component’s requirements. Second, this ﬁne tuning

helps in elaborating the contract between two compo-

nents because the properties can be enriched with ad-

ditional attributes that constrain the nature of the con-

tract through appropriate policies. In a component-

based application, monitoring must be deﬁned at the

granularity of a component to get a global view of the

application.

In the next subsection, we introduce monitoring and

its different aspects.

2.2 Monitoring

Monitoring consists of informing interested parts of

the status of a property or a service. In our work, we

consider two models of monitoring: monitoring by

polling or by subscription. Polling is the simpler way

of monitoring, as it allows the observer to request the

current state of a property whenever there is a need.

The interested component can generally interact with

a speciﬁc interface that provides a getter of the needed

property. Monitoring by subscription model is based

on a publish/subscribe system which is deﬁned as a

set of nodes divided into publishers and subscribers.

Subscribers express their interests by subscribing for

speciﬁc notiﬁcations independently of the publish-

ers. Publishers produce notiﬁcations that are asyn-

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

chronously sent to subscribers whose subscriptions

match these notiﬁcations (Baldoni et al., 2004). Sub-

scription allows an observing component to be noti-

ﬁed about changes of monitored properties using one

of the following modes: 1) The subscription on in-

terval: it implies that the publisher (producer) broad-

casts the state of its properties periodically to the sub-

scribers (consumers); 2) The subscription on change:

it implies that the publisher has to notify the sub-

scribers whenever its properties changed. The mon-

itoring by subscription on change mode contains var-

ious types of monitoring: (i) Property Changed Mon-

itoring (PCM): the monitored component has to send

notiﬁcations to all subscribers whenever a monitored

property is changed, (ii) Method Call Monitoring

(MCM): the monitored componentsends notiﬁcations

wheneverone of the service’s methods is invoked, and

(iii) Execution Time Monitoring (ETM): the moni-

tored component notiﬁes the subscribers about the ex-

ecution time whenever a service invocation occurred.

Our objective is to add monitoring aspects to SCA

description and to use this latter to monitor deployed

applications in the cloud.

3 OUR APPROACH

To overtake the explained problems, we propose an

extension to SCA meta-model to add monitoring ca-

pabilities to components.

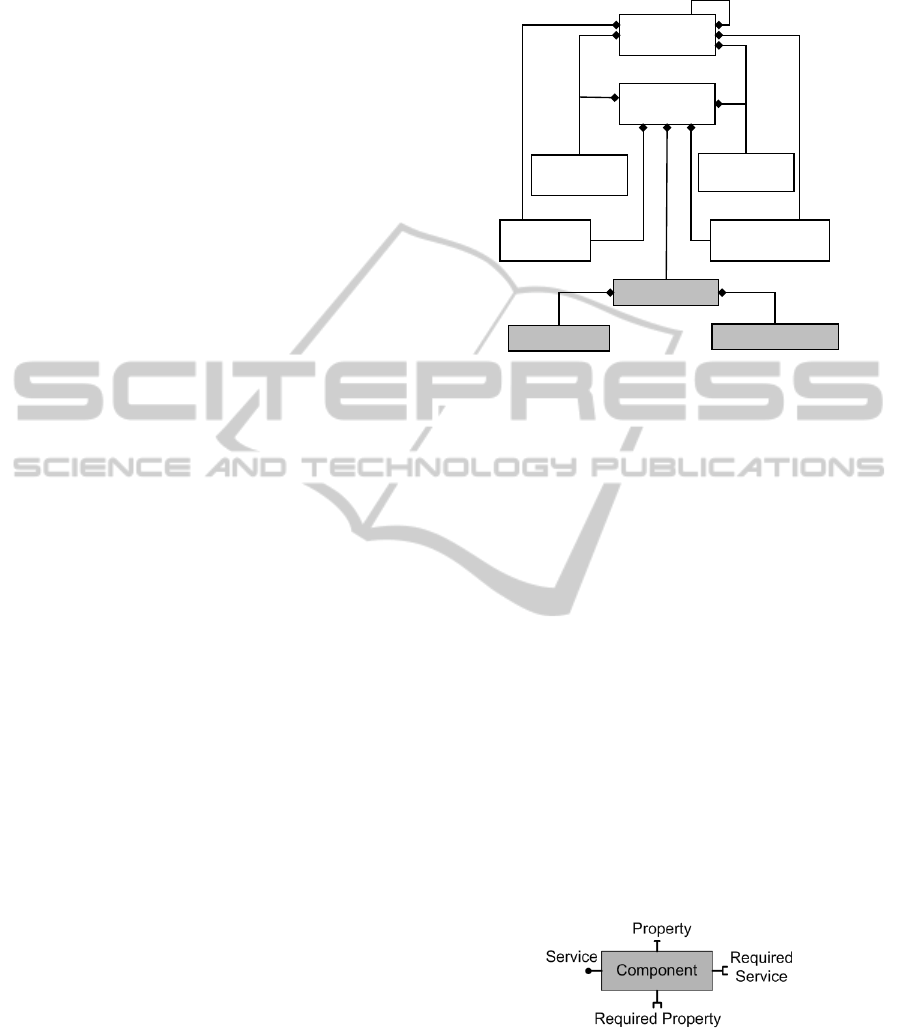

3.1 Extended SCA Meta-model

Since the existing SCA meta-model does not support

the explicit description of Required Properties of a

component, we decided to extend this meta-model

by adding some artifacts allowing the description of

monitoring capabilities for component-based appli-

cations. These new artifacts allow a component to

express its need to monitor properties of other com-

ponents with a speciﬁc monitoring model (i.e. by

polling or by subscription) and with needed aspects

related to monitoring. The newly added artifacts are

the following:

• RequiredProperty: used to describe the need of a

component to monitor one or more properties of

another component;

• MonitoringByPolling: used to say that the re-

quired property is monitored using the monitoring

by polling model;

• MonitoringBySubscription: used to say that the

required property is monitored using the monitor-

ing by subscription model.

The extended SCA meta-model is shown in Figure 1.

Component

Composite

Property

Implementation

ReferenceService

RequiredProperty

MonitoringByPolling

MonitoringBySubscription

Figure 1: Extended SCA with monitoring artifacts.

Some attributes related to monitoring may be de-

clared for these artifacts like Start time of the sub-

scription, Duration of the subscription, Notiﬁcation

mode (on change or on interval) and, Notiﬁcation In-

terval if the Notiﬁcation mode is on interval. The de-

scription of an application can be done with the help

of an Architecture Description Language (ADL). In-

stead of inventing a new ADL, we prefer to use one

of the existing description languages. In this regard,

SCA provides a rich ADL that details most of the as-

pects that we are looking for.

Figure 2 shows the main characteristics of the ex-

tended component. It provides a service through an

interface and may require a service from other com-

ponents through a reference. The component may ex-

pose properties through which it can be conﬁgured.

In addition, it can specify its dependency on certain

property. This required property, which appears at the

bottom of the component, will be satisﬁed if we can

link this component with another component that of-

fers the requested property, thus, solving the depen-

dency.

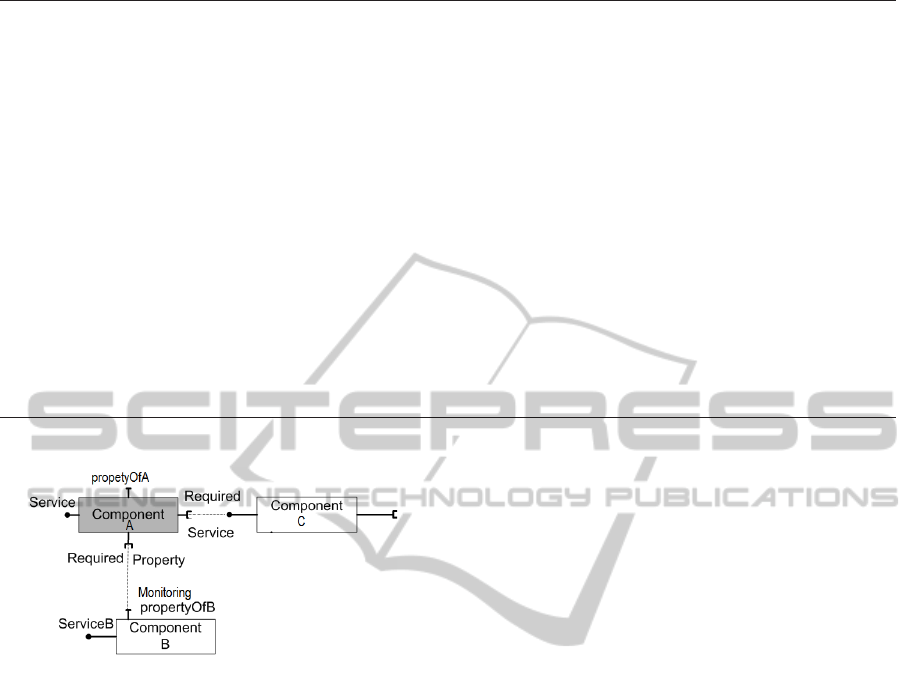

Figure 2: Component model describing required properties.

Components can be combined together in a com-

posite as an assembly of components to build com-

plex applications as shown in Figure 3. A component

(A) can specify its need to monitor properties of an-

other component (B) and use the service offered by

the component (C).

MonitoringofSCA-basedApplicationsintheCloud

1<composite name="LoadBalancerNetworkSensorComposite">

2 <service name="locateDestination" promote="LoadBalancer/locateDestination"/>

3 <component name="LoadBalancer" resource="Software.LoadBalancer">

4 <service name="locateDestination" >

5 <interface.java interface="example.locateDestinationInterface"/>

6 </service>

7 ........

8 <requiredProperty resource="NetworkSensor.networkConsumption" remotable="true" monitoring=

9 "BySubscription" notificationMode="ON_CHANGE">

10 <property name="networkConsumption"/></requiredProperty>

11 ....

12 </component>

13 <component name="NetworkSensor" resource="Software.NetworkSensor">

14 <property name="networkConsumption">

<service name="scanNetworkService" ><interface.java

15 interface="example.scanNetworkServiceInterface"/></service>

16 ........

17 </component>

18</composite>

Figure 4: Description of the LoadBalancer Application using our extended SCA ADL.

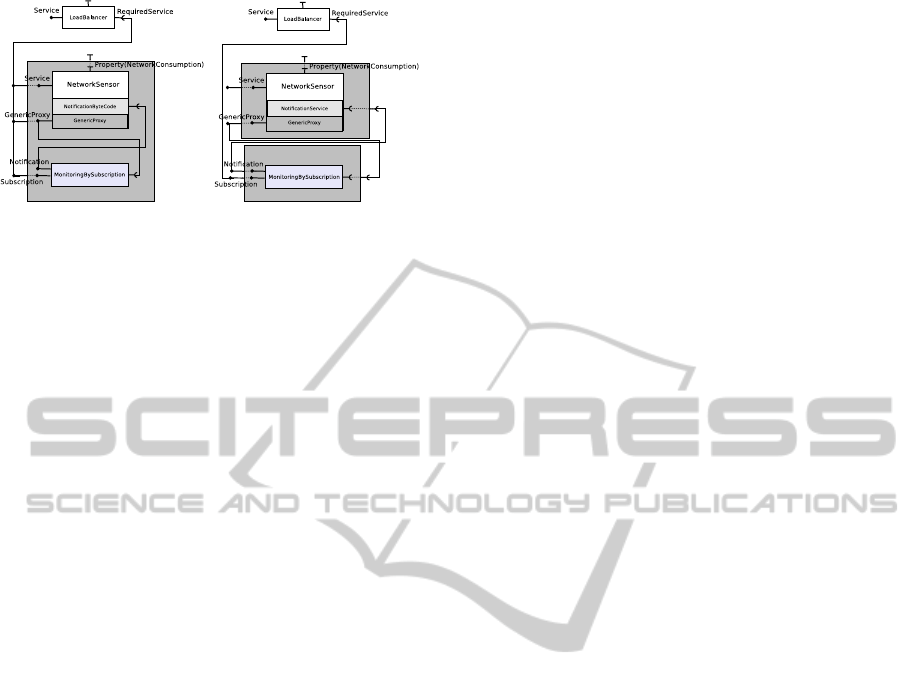

Figure 3: Component-based Application.

To explain our SCA extension, we take the ex-

ample of a classic Load Balancer application. A

Load Balancer is a componentthat deviates costumers

queries to dedicated servers. This component may re-

quire to monitor the network consumption which is a

property provided by a Network Sensor component.

Using the extended meta-model of SCA, we can

describe the described assembly application using our

extended SCA ADL as shown in Figure 4.

The extended SCA allows components to specify

their needs to monitor other components’ properties.

However, these components can be designed without

monitoring capabilities and cannot provide the status

of their properties. To avoid this problem, our frame-

work provides a list of transformations to apply to

components to render them monitorable.

In the next subsections, we introduce the main fea-

tures of the monitoring mechanisms and their trans-

formation processes.

3.1.1 GenericProxy Service

We have deﬁned a general purpose interface Gener-

icProxy that provides four generic methods. These

methods are described in Figure 5. Each implemen-

tation of this interface is associated with a component

for which the ﬁrst method getProperties() returns the

list of the properties of the component, the getProper-

tyValue() returns the value of a property, the setProp-

ertyValue() changes the value of a property and the

invoke() method invokes a given method on the asso-

ciated component and returns the result.

public interface GenericProxy {

Property[] getProperties();

Object getPropertyValue(String propertyName);

void setPropertyValue(String propertyName,

Object propertyValue);

Object invoke(String methodName,

Object[] params);}

Figure 5: Description of the GenericProxy interface.

The transformations that render a component

monitorableuse a GenericProxy Component provided

by our framework. It implements the GenericProxy

Interface and the (proxy) services of that component.

The byte-code of this implementation is generated dy-

namically by our framework.

3.2 Monitoring Transformations

Monitoring process consists in informing the inter-

ested component about the changes of required prop-

erties or notifying it on a regular way or for each

variation. In (Mohamed et al., 2012) we have pre-

sented an approach for adding monitoring capabili-

ties to components in the cloud in which we have

considered two types of monitoring: monitoring by

polling and monitoring by subscription. To complete

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

(a) Multi-channel monitoring (b) One channel monitoring

Figure 6: Transformation for monitoring by subscription

with notiﬁcation mode on change.

the monitoring of any component from only the name

and type of a property, the interested componentoften

uses an appropriate interface that provides the method

getPropertyValue(propertyName) to request the cur-

rent state of a property.

If the component does not deﬁne its properties as

monitorable, we need to transform it to make them

to be monitorable, this can be done dynamically by

our framework by adding to the byte code of the com-

ponent an implementation of the predeﬁned Gener-

icProxy interface deﬁned above and the needed byte

code to send notiﬁcations (PCM, MCM or TEM).

The component can be then monitored by polling us-

ing the getPropertyValue() method provided by the

newly added implementation. Our framework adds

also a predeﬁned component named MonitoringBy-

Subscription which plays the role of a channel. This

component accepts clients subscriptions, receives no-

tiﬁcations sent by the modiﬁed component and dis-

patches them to the interested subscribers. If the de-

ployment scenario is one channel monitoring (Fig-

ure 6(b)), all the newly generated composites will use

one shared composite containing the channel (Moni-

toringBySubscription). During the transformation for

a multi channel monitoring scenario (Figure 6(a), our

framework makes sure that in one composite we ﬁnd

a unique shared channel for all its components.

When the notiﬁcation mode is on change for

a required property of the monitored component

(Figure6), the MonitoringBySubscription component

offers a (callback) service of notiﬁcation Notiﬁcation

to the modiﬁed component (NetworkSensor) so that it

can be notiﬁed of the changes of a required property

and in turn inform all the subscribers (e.g. LoadBal-

ancer) of this change.

3.2.1 Transformation Example

Going back to the Load Balancer example that we

described in paragraph 3.1, we would like to trans-

form the Network Sensor, that it was designed with-

out monitoring facilities, to render it monitorable by

subscription on change.

After applying the needed transformations on the

Network sensor component to render it monitorable

by subscription on change, we get a new composite

offering the NetworkSensor services and new moni-

toring services. The Figure 6 describes the assembly

after the transformations.

The newly created composite is described in the

Figure 7. As shown in the ﬁgure, the transformation

mechanisms transform the extended ADL description

of the composite to a standard ADL description that

could be instantiated using any SCA runtime.

At this stage, we did not resolve yet the scalability

issue related to the Cloud. To tackle this issue we

use a framework based on scalable micro-containers

technique. The next section describes this framework

that we use to deploy components in the Cloud.

3.3 Deployment within a Scalable

Micro-container

In (Yangui et al., 2011), we introduced a new scal-

able and platform independent micro-container that

enables components’deployment and execution in the

Cloud. In this paper, we want to add monitoring ca-

pabilities to this micro-container.

For optimality and performance constraints, fea-

tures of the micro-container are as minimal as pos-

sible. After studying the features provided by the

container architectures of Axis2 (Perera et al., 2006),

Tomcat 6 (Foundation, 2011) and WSCRA (Dhe-

siaseelan and Ragunathan, 2004), we drew up a

list of basic features that should satisfy our micro-

container which directly reﬂects the different mod-

ules that make up its architecture. These basic mod-

ules ensure the minimal functionalities of our micro-

container which are: 1) enabling the communication

with clients, 2) query marshalling and demarshalling

and 3) hosting a component and its context.

We thought of designing a deployment framework

able to generate this micro-container. This framework

should contain not only processing modules to ensure

minimal micro-containers generation process (Parser,

Compiler, etc.) but also a set of generic elements for

the submission and treatment of non-functional fea-

tures to be included in the micro-container (HTTP,

RMI or another generic communication, service ad-

ministration tools, service billing, etc.).

To add monitoring capabilities to the micro-

container, we use the component model that we pre-

sented in paragraph 3.1 to represent components.

Since some components can be designed without

monitoring capabilities, we integrated the transforma-

MonitoringofSCA-basedApplicationsintheCloud

1<composite name="NetworkSensorComposite">

2 <service name="scanNetworkService" promote="NetworkSensor/scanNetworkService" />

3 <service name="GenericProxy"promote="NetworkSensor/GenericProxy" />

4 <service name="PCSubscriptionService" promote="MonitoringBySubscription/PCSubscriptionService" />

5 <reference name="notification" promote="NetworkSensor/notification"/>

6 <component name="NetworkSensor" resource="Software.NetworkSensor">

7 <service name="scanNetworkService">

8 <interface.java interface="example.scanNetworkServiceInterface"/>

9 </service>

10 <implementation class="example.impl.ModifiedNetworkSensorImpl"/>

11 <service name="GenericProxy">

12 <interface.java interface="GenericProxy"/>

13 </service>

14 <implementation class="impl.GenericProxy"/>

15 <reference name="notification" target="OneChannelComposite/NotificationService"/>

16 </component>

17</composite>

18<composite name="OneChannelComposite">

19 <service name="NotificationService" promote="MonitoringBySubscription/NotificationService"/>

20 <service name="PCSubscriptionService" promote="MonitoringBySubscription/PCSubscriptionService"/>

21 <reference name="GenericProxy" promote "MonitoringBySubscription/GenericProxy" />

22 <component name="MonitoringBySubscription">

23 <service name="PCSubscriptionService">

24 <interface.java interface="PCSubscriptionServiceInterface" callback="NotificationServiceInterface"/>

25 </service>

26 <implementation class="impl.MonitoringBySubscription"/>

27 <service name="NotificationService">

28 <interface.java interface="NotificationServiceInterface"/>

29 </service>

30 <implementation class="impl.Notification"/>

31 <reference name="GenericProxy" target="NetworkSensorComposite/GenericProxy"/>

32 </component>orca

33</composite>

Figure 7: Description of the NetworkSensor after its transformation (one channel scenario) using SCA ADL.

tions presented in subsection 3.2 to render these com-

ponents monitorable. And in order to integrate these

transformations in our framework, we added the mon-

itoring module to the deployment framework. This

latter contains several modules shown in Figure 8 and

are as follows:

• Processing Module: orchestrates all the steps to

generate a micro-container;

• Parser: extracts data from composite description;

• Communication Generic Package: contains dif-

ferent packages implementing communication

protocols;

• Monitoring Module: supports different monitor-

ing models;

• Assembly Module: generates a micro-container

with monitoring capabilities.

To generate a micro-container with a composite

hosted in, one must provide the needed implemen-

tations and the composite descriptor which describes

how to assemble and deploy the micro-container into

a Cloud environment (Figure 8 Actions 1 and 2). The

processing module sends directly this descriptor to

the assembly module before analyzing the implemen-

tation and generating the corresponding description

(Figure 8 Action 3). Then, the generated compos-

ite description is transmitted to the Parser which no-

tiﬁes the processing module by componets’ binding

types and monitoring aspects (Figure 8 Actions 4 and

5). The processing module instantiates the commu-

nication packages implementing the described bind-

ings available at the Communication Generic Package

(Figure 8 Actions 6 and 7) and uses the chosen moni-

toring module to apply the needed transformations on

the composite (Figure 8 Actions 8 and 9). Finally, it

sends the new resulting implementation to the assem-

bly module (Figure 8 action 10) whose responsibility

is to generate the new micro-container enhanced with

monitoring capabilities (Figure 8 Action 11).

As shown in Figure 8, the Monitoring module

supports monitoring by polling and monitoring by

subscription with its two modes: on interval and on

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

(a) Deployment Framework.

Communication Module

Processing Module

Service

Property

Client

Composite

Service

Subscription

GenericProxyService

(b) Generated micro-container.

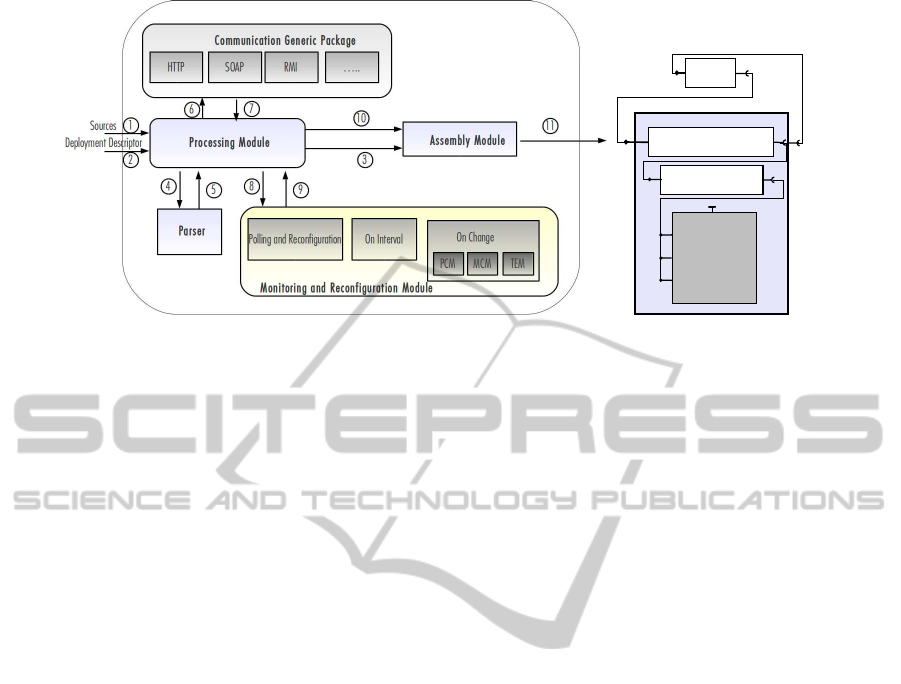

Figure 8: Extension of the Micro-container architecture with monitoring.

change. Monitoring on change mode includes Prop-

erty Changed Monitoring, Method Call Monitoring

and Time Execution Monitoring.

The generated micro-container (Figure 8(b)) is re-

sponsible of managing its communication with the

clients, holding its service and processing all incom-

ing or outgoing messages. Moreover, it is important

to notice that the client can interact with the micro-

container either to invoke the contained service, or to

request monitoring information. It can also send sub-

scription requests to receive notiﬁcations on change

or on interval.

To provethe efﬁciencyof our approach, in the next

section, we describe the implementation of our scal-

able micro-container enhanced with monitoring.

4 IMPLEMENTATION AND

EXPERIMENTATION

In order to test our work we implemented the previ-

ously described framework and we performed a list of

experimentations. In this section, we describe the im-

plementation aspects and chain up by presenting the

experiments results.

4.1 Implementation

The implementation process took place in 5 phases.

We have ﬁrst developed a minimal Java deployment

framework, which allows developers to deploy a Java

component on a hard-coded micro-container before

deploying both of them in the Cloud. After that, we

developed the processing module for generating and

deploying an optimal and minimal micro-container.

All generation steps were then carried out exclusively

by this module before implementing gradually any

other module. The purpose of the distribution of

workload across multiple modules enhances the per-

formance of the platform and facilitates updates and

future changes. We have also developed Java clients

which send requests and subscriptions to the micro-

containers and display results and notiﬁcations re-

turned by the deployed component.

To alleviate as much as possible the generated

micro-container for performance reasons and scala-

bility constraints, we had to reﬁne the generation pro-

cess. For this purpose, we deﬁned a generic commu-

nication package in the deployment platform to iden-

tify and contain all the communication protocols that

can support a component (e.g. HTTP, RMI, etc.).

The generation process is based primarily on Bind-

ings components and monitoring aspects detected by

the parser and secondly on the activation of corre-

sponding communication modules from the generic

communication package and the needed transforma-

tion to add monitoring facilities. The interactions be-

tween these platform modules are orchestrated by the

processing module.

The last phase was implementing a prototype of

the monitoring framework as services that offer the

transformation mechanisms to the applications. The

byte-code of a GenericProxy component is generated

dynamically. For this required byte-code level ma-

nipulation we used the Java reﬂection API and the

open source software JAVA programming ASSISTant

(Javassist) library (Chiba, 2010). The Java reﬂection

API provides classes and interfaces for obtaining re-

ﬂective information about classes and objects (Java 2

Platform API Speciﬁcation, 2010). Reﬂection allows

programmatic access to information about the ﬁelds,

methods and constructors of loaded classes, and the

use of reﬂected ﬁelds, methods, and constructors to

MonitoringofSCA-basedApplicationsintheCloud

operate on their underlying counterparts on objects.

Javassist is a class library for editing Java byte-codes;

it enables Java programs to deﬁne a new class and

to modify a class ﬁle when the Java Virtual Machine

(JVM) loads it.

The next subsection presents some experiments of

our micro-container enhanced with monitoring capa-

bilities, related to memory consumption and notiﬁca-

tions’ latency time.

4.2 Experimentation

In our work, we propose a platform able to deploy

components in the Cloud on top of scalable micro-

containers, with the capability of transforming com-

ponents to be monitorable even if they were not de-

signed with monitoring facilities. The proposed mon-

itoring system is ﬂexible in the way of choosing the

best deployment scenario to meet the deployer re-

quirements. As far as we know, almost all of the ex-

isting monitoring solutions use one channel to deliver

monitoring information, but in our approach we ex-

hibit the possibility of using a channel at the granular-

ity of a component. In our experiments, we compare

the results obtained using one channel for all publish-

ers and using one channel per publisher. For our ex-

periments, we have considered two criteria:

• Memory consumption: Memory size consumed

by the micro-container with or without monitor-

ing facilities.

• Notiﬁcation Latency Time: The elapsed time be-

tween the occurrence of the event and the notiﬁ-

cation reception from all subscribers.

To perform these tests we used the NCF (Network and

Cloud Federation) experimental platform deployed at

Telecom SudParis France. The NCF experimental

platform aims at merging networks and Cloud con-

cepts, technologies and architectures into one com-

mon system. NCF users can acquire virtual resources

to deploy and validate their own solutions and ar-

chitectures. The hardware component of the net-

work is in constant evolution and has for information:

380 Cores Intel Xeon Nehalem, 1.17 TB RAM and

100 TB as shared storage. Two Cloud managers al-

low managing this infrastructure and virtual resources

i.e. OpenNebula (OpenNebula, 2012) and OpenStack

(Openstack, 2012). In our case, we used OpenNeb-

ula which is a virtual infrastructure engine that pro-

vides the needed functionality to deploy and manage

virtual machines (VMs) on a pool of distributed phys-

ical resources. To create a VM, we can use one of the

three predeﬁned templates offered by OpenNebula i.e.

SMALL, MEDIUM and LARGE, or we can specify

a new template. During our experiments, we used our

speciﬁc template with the following characteristics: 4

cores (2.66 GHZ each core) and 4 Gigabytes of RAM.

To perform our tests, we deﬁned two scenarios that

reﬂect the objectives that we want to highlight in our

experiments. The details of these experiments are as

follows:

• Compare micro-container memory consumption

before and after adding monitoring facilities to es-

timate the overhead of the monitoring module on

the micro-container consumption.

• Compare notiﬁcation latency time in the micro-

container using monitoring system with one chan-

nel or monitoring system with multi-channels (i.e.

one channel per micro-container).

In the different series of tests, we deployed dif-

ferent numbers of services on top of the micro-

container. The used service in these experiments is

a service that has a changing property. Whenever this

property changes the service sends a notiﬁcation to

its channel (MonitoringBySubscription component)

which pushes this notiﬁcation to all the subscribers.

In the ﬁrst series we deployed services on micro-

containers without monitoring capabilities and we

took memory consumption measurements for each

number. Then, we deployed the same number of ser-

vices on top of the micro-container enhanced with the

monitoring module.

The purpose of this experimentwas to estimate the

overhead of the monitoring module on the memory

consumption of the micro-container. Figure 9 shows

the different values stored during these series includ-

ing the JVM size.

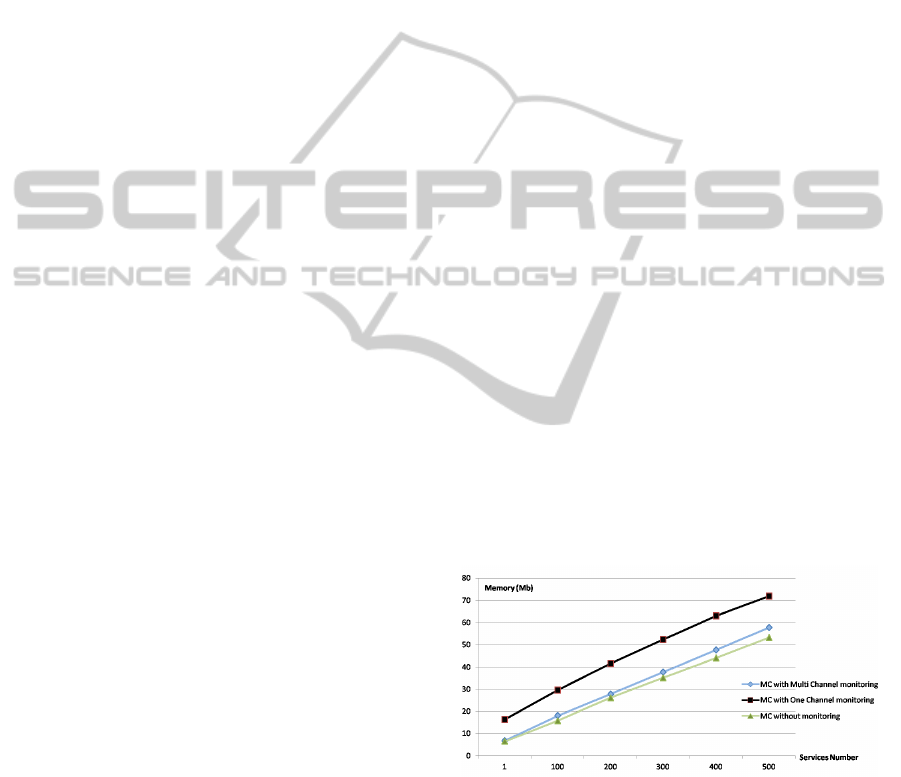

Figure 9: Memory consumption using micro-containers

(MC).

These experiments show that the overhead of the

monitoring module on the memory consumption of

the micro-container is fair. In fact, the memory con-

sumption is linear, increasing with the number of de-

ployed services. The results show that the overhead of

the memory consumption using one channel is more

important than the overhead using multi-channel sce-

nario. That can be explained by the fact of adding an

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

extra JVM containing the channel and that adds the

extra memory consumption noticed in the Figure 9.

In the second series of tests, we aimed to com-

pare the notiﬁcation latency time using the micro-

container enhanced with monitoring mechanisms in

the two cases: using one channel and multi chan-

nel monitoring. Each series, we ﬁxed the number of

deployed services and we changed the frequency of

events occurrence. After storing these measurements,

we calculate the average latency time for each series.

The stored values are shown in the Figure 10.

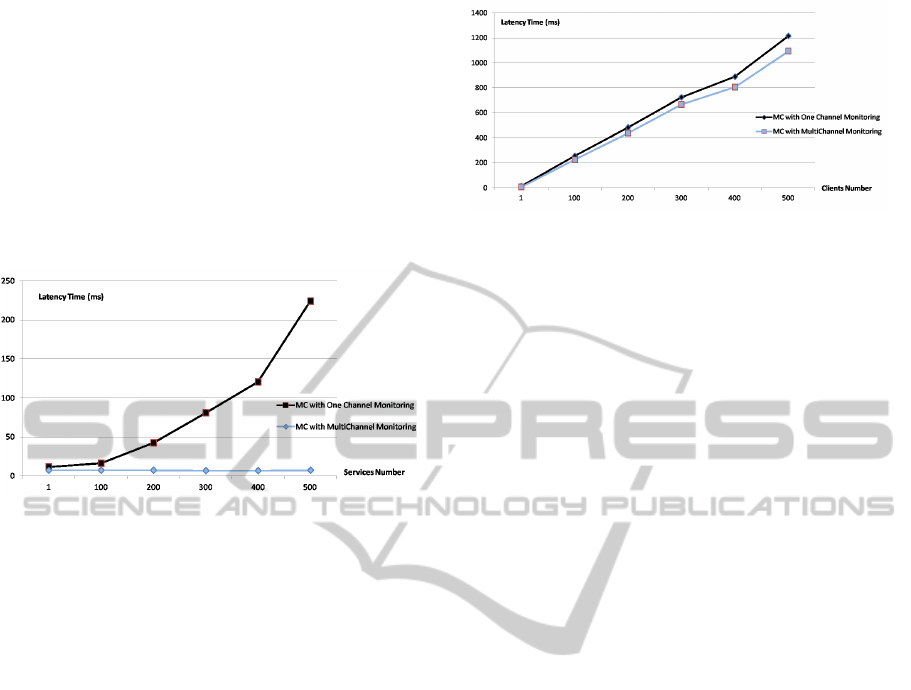

Figure 10: Notiﬁcation latency time with one client using

One Channel monitoring and Multi Channel monitoring.

The Figure 10 shows the evolution of notiﬁca-

tion latency time during the experimentation. Speciﬁ-

cally, these values represent the needed time from the

event’s raise till the reception of the notiﬁcation by

all subscribers. When the number of events becomes

important, the channel is exposed to a big number of

notiﬁcations, since all notiﬁcations are targeting the

same channel. This latter should forward each notiﬁ-

cation to the list of the interested subscribers. When

using a multi-channel system, every micro-container

contains its own channel. Consequently, it is asked

to manage just its own notiﬁcations. It will deal with

a less number of notiﬁcations and subscribers. That

explains the results shown in the Figure 10 where the

notiﬁcations’ latency time is almost the same using

the multi-channel monitoring system and it is increas-

ing proportionally with the number of services when

we use micro-containers with one channel monitoring

system.

The third series of experiments aimed at compar-

ing notiﬁcation latency time using one channel moni-

toring and multi-channel monitoring with a changing

number of clients. For all the tests we used one ser-

vice as a publisher and one channel. Each time, we

considered a ﬁxed number of clients and we changed

the frequency of events occurrence. The stored val-

ues shown in Figure 11 presents the needed time for a

notiﬁcation to reach all the subscribers.

The Figure 11 shows that the values obtained us-

ing one channel monitoring are a little higher then

Figure 11: Notiﬁcation latency time with Multi Clients us-

ing One Channel monitoring and Multi Channel monitor-

ing.

those obtained using multi-channel monitoring. This

difference is explained by the needed time for a notiﬁ-

cation to reach the channel when we use one channel

monitoring, this value is relatively small when we use

multi channel monitoring because the publisher and

the channel are located in the same machine.

The next section exposes some approaches that

tackled monitoring in cloud environments and ends

with comparing these approaches against our ap-

proach.

5 RELATED WORK

In the literature, there are many attempts to pro-

vide monitoring applications in the Cloud and in dis-

tributed systems. In this section, we present some

proposed approaches in the monitoring area. We

conclude by explaining the limitations of these ap-

proaches.

Nagios (Nagios, 2010) is an open-source core sys-

tem for network monitoring. It allows monitoring IT

infrastructure to ensure that systems, applications and

services are functioning properly. Monitoring can be

applied on private or public services (private services

are services and attributes of a server and public ser-

vices are those available across network). To monitor

any target, Nagios uses a list of plug-in that would be

executed to poll the target status. Plug-ins acts as an

abstraction layer between the monitoring daemon and

the monitored targets. It enables remote command ex-

ecution to know the status of the monitored target.

There are several plug-ins for different protocols as

SNMP, NRPE or SSH. Monitoring using Nagios can

result in high load on the monitoring server if applied

on a large number of targets.

Ganglia (Massie et al., 2004) is an open-source

monitoring system for high-performance computing

systems. It is based on a hierarchical design targeted

at federations of clusters. It uses a multi-cast-based

listen/publish protocol within a cluster. Within each

MonitoringofSCA-basedApplicationsintheCloud

cluster, Ganglia uses heart beats messages on a well

known multi-cast address as the basis of a member-

ship protocol. Membership is maintained by using

the reception of a heartbeat as a sign that a node is

available. Each node monitors its local resources and

sends multi-cast packets containing monitoring data

on a well known multi-cast address. All nodes listen

for monitoring packets on the agreed multi-cast ad-

dress to collect and maintain monitoring data for all

other nodes (Massie et al., 2004). Each cluster can be

represented with one node, since all the nodes con-

tain a complete copy of the cluster monitoring data.

Aggregation of monitoring data is done by polling

child nodes at periodic intervals. Monitoring data is

exported using a TCP connection to the node being

polled followed by a read operation of its monitoring

data. Ganglia Monitoring is implemented by a mon-

itoring daemon, which is organized as a collection of

threads, each assigned a speciﬁc task:

• Collect and publish thread: collects local node in-

formation and publishes it on a well known multi-

cast channel. It sends periodic heartbeats.

• Listening threads: listen on the multi-cast channel

for monitoring data from other nodes and updates

monitoring data storage.

• XML export threads: accept and process client re-

quests for monitoring data.

Ganglia Monitoring system assumes the presence of

a native multi-cast capability, an assumption which

does not hold for the Internet in general.

The mOSAIC framework (Rak et al., 2011) of-

fers a Monitoring/Warning system that monitors ap-

plications’ components and cloud resources. From

authors’ point of view, this system should realize the

following tasks: monitor cloud resources, monitor ap-

plications’ components and discover warning condi-

tions. The proposed framework contains four basic

elements:

1. Monitoring event buses that collects monitoring

events from the resources,

2. Connectors related to the event buses to enable the

interception of monitoring events by the suitable

components,

3. Connectors receiving the events from applications

to the event buses, and

4. Monitoring/Warning component.

Only one archiver collects monitoring information

from different collectors and stores the messages in

a storage system, and one component called the ob-

server accesses the storage ﬁlled by the archiver and

generates events in order to distribute selected infor-

mation to all the interested components.

H. Huang et al. (Huang and Wang, 2010) pro-

posed an approach to monitor resources in the cloud

using a hybrid model combining the push and the pull

models. In these models, there are three basic compo-

nents, the Producer, the Consumer and the Directory

services. In the Push model, whenever the producer

detects a change in a resource’s status, it sends infor-

mation to the consumer. Otherwise, in the Pull model,

it’s the consumer who asks the producer periodically

about the resource’s status. It is obvious that these

two models have advantages and weakness. The au-

thors propose a hybrid model that can switch to the

best suited model according to the user requirements.

The user can deﬁne his tolerance to the status inaccu-

racy between the producer and the consumer. Using

this value, an algorithm can switch between pull and

push models. This approach does not use the concept

of channel. Thus, the producer is in charge of sub-

scriptions and sending notiﬁcations for all interested

subscribers.

Almost all of these monitoring approaches do not

offer a granular description of monitoring require-

ments. They do not tackle the case where compo-

nents are not designed to be monitored. Moreover,

in the stated works, the monitoring systems do not

address scalability issues. In contrast, in our ap-

proach, we provide a model to describe the monitor-

ing requirements with a tunable granularity. We also

provided needed mechanisms to render components

monitorable even if they were not designed with mon-

itoring facilities. Finally, we proposed to use a scal-

able micro-container enhanced with monitoring facil-

ities to reconcile monitoring and scalability issues.

Our approach adds more deployment ﬂexibility en-

abling one channel monitoring (i.e., one channel for

all monitored components) and multi-channel moni-

toring (i.e., one channel per monitored component).

6 CONCLUSIONS AND FUTURE

WORK

Monitoring remains an important task to efﬁciently

manage the cloud, but is still a challenge to ﬁnd a

monitoring solution to reconcile the granular descrip-

tion for monitoring requirements, the efﬁciency of the

monitoring solution and its scalability. In this paper,

we provided an extension for Service Component Ar-

chitecture to allow components to describe their need

to monitor other components properties with a tunable

granularity. Moreover, we proposed a framework that

provides the needed mechanisms to apply transforma-

tions on components to render them monitorable even

if they were not designed with monitoring capabili-

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

ties. Then, we proposed a platform that encapsulates

the transformed components on top of scalable micro-

containers and deploys them in the Cloud. Finally, to

show the efﬁciency of our framework, we described

its implementation and we performed different exper-

imentations.

In our future work, we aim at using monitoring in-

formation to apply adaptations or reconﬁgurations on

components during the runtime. We aim also to ren-

der monitoring transformations feasible even at run-

time and not only at deployment time as it is the case

currently. So if the monitoring service is not in use,

we can turn it off to decrease the energy consump-

tion for example. To this end, we will challenge the

fact that we have to apply a live transformation of the

component and to dynamically adapt its links with the

outside during the runtime. And ﬁnally, we want to

experiment this work at different levels in the Cloud

(i.e. Networking, Hardware and Software levels).

ACKNOWLEDGEMENTS

The work presented in this paper was partially

funded by the French FUI CompatibeOne, the French

FSN OpenPaaS and the European ITEA Easi-Clouds

projects.

REFERENCES

Baldoni, R., Beraldi, R., Piergiovanni, S., and Virgillito,

A. (2004). Measuring notiﬁcation loss in pub-

lish/subscribe communication systems. In IEEE Pa-

ciﬁc Rim International Symposium on Dependable

Computing.

Becker, C., Handte, M., Schiele, G., and Rothermel, K.

(2004). PCOM - A Component System for Perva-

sive Computing. In IEEE International Conference

on Pervasive Computing and Communications, PER-

COM ’04.

Bruneton, E., Coupaye, T., Leclercq, M., Qu´ema, V., and

Stefani, J.-B. (2006). The FRACTAL component

model and its support in Java: Experiences with Auto-

adaptive and Reconﬁgurable Systems. Software Prac-

tice and Experience, 36.

Chiba, S. (2010). JAVA programming Assistant. http://

www.csg.is.titech.ac.jp/∼chiba/javassist.

Dhesiaseelan, A. and Ragunathan, A. (2004). Web services

container reference architecture (WSCRA). In IEEE

International Conference on Web Services.

Dunne, R. (2008). Introduction to the Newton Project Dis-

tributed OSGi & SCA .

Foundation, A. S. (2011). Apache Tomcat Architecture.

ENI.

Huang, H. and Wang, L. (2010). P&P: A Combined Push-

Pull Model for Resource Monitoring in Cloud Com-

puting Environment. In IEEE International Confer-

ence on Cloud Computing.

Java 2 Platform API Speciﬁcation (2010). http://

download-llnw.oracle.com/javase/1.4.2/docs/api/java/

lang/reﬂect/package-summary.html.

Laws, S., Combellack, M., Mahbod, H., and Nash, S.

(2011). Tuscany SCA in Action.

Massie, M. L., Chun, B. N., and Culler, D. E. (2004). The

ganglia distributed monitoring system: design, im-

plementation, and experience. Parallel Computing,

30(7).

Mohamed, M., Bela¨ıd, D., and Tata, S. (2012). How to

Provide Monitoring Facilities to Services When They

Are Deployed in the Cloud? In CLOSER.

Nagios (2010). Nagios Documentation. http://

www.nagios.org/documentation.

NIST (2011). Final Version of NIST Cloud Comput-

ing Deﬁnition Published. http://www.nist.gov/itl/csd/

cloud-102511.cfm.

Open SOA Collaboration (2008). Service Component Ar-

chitecture (SCA): SCA Assembly Model v1.00 speci-

ﬁcations. http://www.osoa.org/.

OpenNebula (2012). OpenNebula. http://opennebula.org.

Openstack (2012). Openstack. http://www.openstack.org.

OSGI (1999). Open Services Gateway Initiative. http://

www.osgi.org.

Perera, S., Herath, C., Ekanayake, J., Chinthaka, E., Ran-

abahu, A., Jayasinghe, D., Weerawarana, S., and

Daniels, G. (2006). Axis2, Middleware for Next Gen-

eration Web Services. In International Conference on

Web Services, ICWS ’06. .

Rak, M., Venticinque, S., Mahr, T., Echevarria, G., and Es-

nal, G. (2011). Cloud Application Monitoring: The

mOSAIC Approach. In IEEE International Confer-

ence on Cloud Computing Technology and Science.

Szyperski, C. (2002). Component Software: Beyond

Object-Oriented Programming. Addison-Wesley/

ACM Press, 2nd edition.

Yangui, S., Mohamed, M., Tata, S., and Moalla, S. (2011).

Scalable Service Containers. In IEEE International

Conference on Cloud Computing Technology and Sci-

ence.

MonitoringofSCA-basedApplicationsintheCloud
