Extending Cloud-based Object Storage with Content Centric Services

Michael C. Jaeger

, Alberto Messina

, Spyridon V. Gogouvitis

, Elliot K. Kolodner

Dimosthenis Kyriazis

, Enver Bahar

and Uwe Hohenstein

Siemens AG, Corporate Technology, D-80200 Munich, Germany

RAI Radiotel. Italiana, Centre for Research and Technological Innovation, Corso Giambone 68, I-10135 Turin, Italy

National Technical University of Athens, Heroon Polytechniou, 15773 Athens, Greece

IBM Haifa Research Lab, Haifa, 31905, Israel

Keywords:

Cloud Computing, Cloud Storage, Metadata Management, Object Storage.

Abstract:

Content centric storage refers to a paradigm where data objects are accessed by applications through informa-

tion about their content, rather than their path in a hierarchical structure. Applications are relieved from having

knowledge about the data store organization or the place in a (physical) storage hierarchy. Instead, applications

can use metadata associated with objects in order to to query for the desired content. In this paper, we explain

the new functionality added to our ﬁrst version of the content centric storage (Jaeger et al., 2012): We present

a new REST API for the management of relations and the ability to use schemas for enforcing metadata. The

need for such a content centric storage is presented with examples from the media production domain.

1 INTRODUCTION

There are an increasing number and a variety of ap-

plications that face a growing need for digital storage.

For example, there are many media authoring appli-

cations that work with video ﬁles beyond high deﬁ-

nition video: Ultra HD represents the next generation

video format which deﬁnes sizes up to 7680 by 4320

pixels. Archives for large virtual machine disks also

require growing quantities of storage due to the vir-

tualization trends in today’s enterprise IT. Moreover,

mobile devices are producing multimedia content in

an exponentially growing manner.

All this contributes to an ever increasing number

and size of storage objects, which mostly are large

and unstructured. New challenges arise not only from

the numbers and sizes of objects, but also through dis-

tributing data in order to increase fault tolerance and

the availability of data anytime and anywhere, by any

device. To satisfy applications, storage systems must

be capable of handling large objects or ﬁles and/or

a large number of ﬁles. This includes the ability to

easily ingest content of any type, to quickly ﬁnd the

desired content, and to smoothly access the content

through any desired device. This functionality ex-

tends the plain data storage features offered by cloud

storage providers or database systems today.

A common way to handle large content is to put

them into ﬁles and to organize them in a hierarchical

structure. This enables a user to navigate the hierar-

chy. However, when the amount of data gets huge, it

becomes more and more difﬁcult to set up an appro-

priate hierarchy that provides ﬂexible search options

with a acceptable performance for access.

We present in this paper a new approach to con-

tent centric storage in which the user is not restricted

to organizing his content in hierarchies. Rather, the

user describes the content through metadata and then

accesses the content based on its associated metadata.

Moreover, the storage system itself is also able to de-

rive metadata from usage statistics or access mecha-

nisms. The basis for this approach to content centric

storage are efﬁcient mechanisms to automatically cre-

ate or ingest and later retrieve any kind of metadata

about the content, which is the entry point to objects.

Our goal is to provide similar functionality in a

more generalized form, in particular that extends the

scope to any type of data, not just videos. We expect

that all kinds of data become ever more valuable since

more and more areas of life are touched by all types

of data, no matter whether text, pictures and moving

images with updates from sensors, mobile clients etc.

Nowadays, handling and using metadata in a conven-

tional data object storage system is often restricted

279

Jaeger M., Messina A., V. Gogouvitis S., K. Kolodner E., Kyriazis D., Bahar E. and Hohenstein U..

Extending Cloud-based Object Storage with Content Centric Services.

DOI: 10.5220/0004376602790289

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 279-289

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

(for example, not offering support for queries).

The EU project VISION Cloud (Kolodner et al.,

2011) aims at developing a cloud storage system that

allows for efﬁcient and federated storage of all types

of content-centric data. In contrast to public cloud of-

ferings such as Amazon S3 (Amazon Web Services,

2012a), Microsoft Blob Service (Microsoft Corpora-

tion, 2012) or speciﬁc hardware appliances, VISION

Cloud stresses supporting metadata ﬂexibly and as an

integral part of the storage. VISION Cloud supports

private cloud installations and does not require the use

of specialized hardware.

Overall we present the motivation, the require-

ments, and the design for a metadata-enhanced large

storage system, called content centric storage in de-

tail. The structure is as follows: In Section 2, we

introduce a motivating scenario and derives the cor-

responding requirements. In Section 3, we provide an

overview of our approach to content centric storage.

In Sections 4 and 5, we describe our solutions for two

aspects of content centric storage, relations and meta-

data schema, respectively. In Section 6we present a

request throughput evaluation and its results. Finally,

we explain related work in Section 7 and we conclude

the paper in Section 8.

2 THE MEDIA PRODUCTION

AND BROADCASTING USE

CASE

One of the business domains in which metadata-

based access is crucial, is that of media production

and broadcasting. In this environment, the ability to

search and retrieve objects from an archive for new

productions constitutes a key enabler. Media Asset

Management Systems are the systems in charge of

this task. However, very often the focus of these

systems is to provide separate indexing and retrieval

functionality from the actual storage. This results in

limited or no possibility to integrate systems that op-

erate on the same content, and in the necessity to

introduce complex metadata import/export/adaptation

modules, which in most cases are not lossless from

the information point of view.

An approach that treats metadata as an integral

part of the content, instead, has the beneﬁt of mak-

ing media content items more re-usable across sys-

tems and applications, since all its informative con-

tent (metadata) is natively attached to them. Meta-

data can be of several types: technical (e.g., related to

the parameters that describe the encoding of the me-

dia), descriptive (e.g., about the content of pictures,

the people that took part), administrative (e.g., costs

related to production), content-related (e.g., color re-

lated features or loudness) and relational or structural

(e.g., information about interlinked media items).

Speciﬁcally with respect to the last metadata type,

it should be pointed out that the ability to retain the

relations between content items allows for more pow-

erful access to many aspects concerned with con-

tent, e.g., derivation history, editorial versions, equiv-

alent content items, related items, and enrichments.

The data items, scenes, videos, audio tracks, differ-

ent sequences etc. have important relations between

them that should be supported by the storage. A pro-

ducer searching an archive requires information about

which audio tracks belong to which video tracks, or,

which material belongs together because it represents

a sequence of shots, etc. Therefore the storage needs

to support relations between the items. Finally, meta-

data often already exists in different forms or as part

of different domain speciﬁc ﬁle formats. This meta-

data is very important for searching across the con-

tent. Therefore, the metadata capabilities of the stor-

age must support the metadata data models already

established in the media domain.

3 GENERAL OVERVIEW OF THE

CONTENT CENTRIC

APPROACH

The ﬁrst version of our approach was presented

in (Jaeger et al., 2012). In this paper, we present in

the subsequent three sections new functionality and

ﬁndings based on this work. The cornerstones of our

approach did not change: Our work focuses on the

content centric functionality not on the implementa-

tion of a storage system. Therefore, the implemen-

tation is separate from the data object store. It can

be combined with several ”classic” data object stores.

For our development, we work with either the storage

of the project VISION Cloud or the CouchDB docu-

ment database (Anderson et al., 2010).

The anticipated deployment for the content cen-

tric service is a cloud-deployment. When the service

components are combined with a data object store

or CouchDB, the components are deployed on every

node where the actual storage can be requested. It

acts as a wrapper to the underlying storage. The ap-

proach is to store metadata in the form of key-value

pairs with data objects and implement the additional

functionality on top of it. A REST-based service im-

plementation is provided, similar to existing storage

services, such as Amazon S3 or the Microsoft Azure

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

280

Blob Service. In fact, the content centric REST inter-

face is oriented towards the Cloud Data Management

Interface Version 1 from the SNIA consortium (Stor-

age Networking Industry Association (SNIA), 2011).

The general technical structure features a Java

servlet application with a three tier design: An inter-

face layer to decode the REST requests, a logic layer

to perform the actual request, and a storage client

layer that allows for a pluggable access to different

underlying storage system. The handling of REST re-

quests is based upon the Jersey framework (Java.net,

2012). Jersey is a javax-rs implementation and part

of the Glassﬁsh project. Every application can store

metadata with data objects in the underlying stor-

age service. The content centric service provides ad-

vanced capabilities on top. Consider the requirements

from the media use case to support relations: For ex-

ample, different media assets can form a sequence.

This sequence information should be also placed at

the media assets in the storage. However, this implies

a systematic approach for expressing relations. Other-

wise, different applications develop their own propri-

etary way of expressing the relation information and

then reuse of this metadata becomes difﬁcult. Thus,

in our approach is domain-independent, and appli-

cations, e.g., media applications, can concentrate on

managing the relations with a stable API.

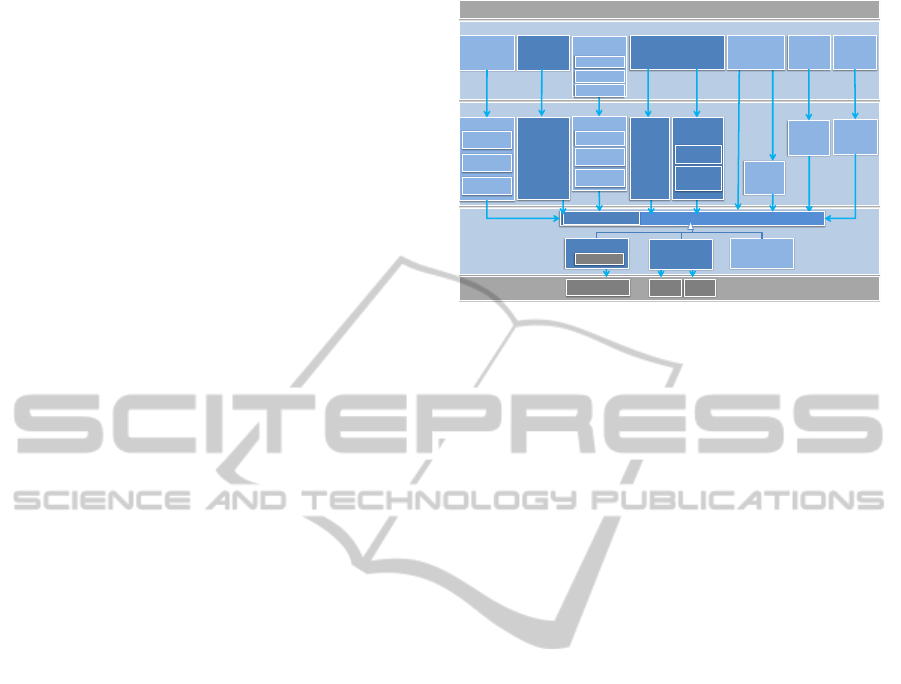

Figure 1 shows the subcomponents of the content

centric service. Applications can access this compo-

nent via the top layer, the access layer. The separa-

tion from the actual implementation, placed one layer

below, allows for supporting different interface tech-

nologies in future, if necessary. All implementation

code accesses an abstract storage adaptor, which is

placed in the third layer, the storage layer. Currently,

the CouchDB and the VISION Cloud storage are pri-

marily supported. Additional storage services can be

added, if an adaptor is implemented that adheres to

the abstract storage interface. The Figure 1 also ex-

poses the functional modules: An upload service al-

lows for the batch import of existing metadata for

multiple objects. As a conﬁguration, a mapping ﬁle

is uploaded that explains how the information in the

XML document is translated into the key-value meta-

data pairs. This service allows to import metadata for

data objects from existing sources. A schema service

allows for uploading a metadata schema which is used

for checking the metadata of data objects. The CDMI

Storage Service follows the Cloud Data Management

Interface (CDMI) for normal metadata operations as

well as adding additional query capability. In addi-

tion, this part implements the REST interface for the

relations. CDMI is a standard from the Storage Net-

working Industry Association (Storage Networking

Access Layer:

eu.visioncloud.cci.access.*

Logic Layer: eu.visioncloud.cci.core.*

Interface Layer: eu.visioncloud.cci.javaxrs.*

Metrics

Service

Relations

Service

Admin

Service

Upload Service

Upload Impl

Relations Impl

Parallel

Query

Processor

Metrics

Impl

Admin Impl

Java In-memory

Test Storage

Adaptor

Storage

Container

Service

Object

Service

Upload

Processing

Schema

Mapping

Social Network

Data Mapping

Set Impl

Equivalence

Impl

List Impl

Set Ressource

List Ressource

Equiv Ressource

CouchBase

IBM Object Service

Adaptor

Tomcat Web Application / Jersey REST Servlet (Year 2)

Abstract Adaptor

Basic Object

Service

CDMI Storage Service

Basic Object

Storage

Template

Schema

Service

Query

Processing

CouchDB Adaptor

Ektorp Lib

Relations

Impl

CciDataObject

Schema Impl

Figure 1: Overview of the Content Centric Service Compo-

nent.

Industry Association (SNIA), 2011) The Basic Object

Service allows for basic object and metadata creation,

update and delete methods. It represents a simpliﬁed

version of CDMI Storage Service. The Metrics Ser-

vice offers an interface for addint metrics to data ob-

jects as metadata.

4 RELATIONSHIP CONCEPT

The support for relations between entities is funda-

mental for the querying capabilities provided by con-

tent centric service. The ﬁrst content centric service

implementation (Jaeger et al., 2012) supported the

following relations: a) a set relation, b) a list rela-

tion and c) an equivalence relation. In a nutshell, a

set relation can mark several content items that be-

long together. A list relation adds ordering informa-

tion to the set property. If two different data objects

actually contain the same content, maybe at different

video screen resolutions for example, an equivalence

relation can be used. However, the ﬁrst version re-

quired a REST service implementation for each rela-

tion, which implies that for each new relation, a new

service must be implemented and deployed. Here, we

present the new more general approach which allows

for new relations to be implemented in the future. The

relation information is entirely stored as metadata of

the data objects. More relations are required, for ex-

ample if we consider the idea of storing relations is

similar to the Subject-Predicate-Object approach in

the Resource Description Framework (RDF, (World

Wide Web Consortium, 2004)).

4.1 Storing Relation Metadata in a

Key-value Storage

An important design decision of this implementation

ExtendingCloud-basedObjectStoragewithContentCentricServices

281

is to avoid separate data entities in the store that

contain information about relations. Our goal was

to avoid distributing metadata over several entities,

because the physical storage location of two dif-

ferent data entities can be distributed in a cloud-

oriented architecture. Then, access latencies would

be likely. Instead, we place information about the

relations directly in the data object’s metadata. The

implementation makes use of metadata keys and val-

ues. The use of key and values in a metadata of a

data object bears some issues: For example, a set

membership can be deﬁned using key-value meta-

data as key:"set", value:"somesetid1". This raises

the problem that in order to express two set mem-

bership for the same data object at once, the value

needs to contain the set ids of both sets. For example:

key:"set", value:"somesetid1,somesetid2". How-

ever, our underlying key-value storage may not sup-

port wildcard queries (i.e. querying for items that be-

long to set id 2: ”*somesetid2*”). Therefore the

next approach is to denote a relation membership

with the key of a key-value pair only, for example:

key:"@setid-somesetid1". The set is represented by

a key @setid − somesetid1, i.e., each member of the

set contains the same key @setid −somesetid1. Here,

”@” denotes that this metadata key is not explicitly

set by the user. And the ”setid”-part deﬁnes that this

key refers to a set relation. Searching for all mem-

bers of a set means that a query can just search for

data objects where the key @setid − somesetid1 ex-

ists. To denote a second membership for the same ob-

ject, another key can be easily added to the metadata

catalogue of a data object.

This approach works if the storage system allows

for searching for keys that are in use by a preﬁx. Then,

the implementation can query for keys beginning with

@setid − ∗. The sets actually in use (or already as-

signed set ids) can efﬁciently be queried, so that an

application does not need to keep track of the sets in

use. An issue arises, if the underlying storage sys-

tem does not support removing metadata items from a

data object’s metadata catalogue. In a distributed ver-

sioned storage, consistency problems can be solved if

metadata keys are not erased but invalidated at some

version while the values can be changed. However, if

the key remains in the metadata catalogue of a data

object once it was created, the membership of a re-

lation cannot be removed. As a solution, the value

of the referring key can be toggled between true or

false denoting whether the relation membership is ac-

tive or not. For example, a set membership decla-

ration is represented through key-value metadata as:

key:"@setid-somesetid1", value:"true" in order to

denote that set membership for set somesetid1 is cur-

rently valid for this data object.

While these issues refer to the approach for stor-

ing relations, the design of the REST API has also

some issues. The general way of integrating the rela-

tions into the hierarchy of containers and objects was

to see the relations as a concept valid within one con-

tainer. And, the relations refer to one or more data

objects. Accordingly a natural way of expressing a

resource path in the REST sense is for example PUT

/container/someset1id/myDataObject1 to deﬁne the

set relation membership for an existing data object.

Or, the request path GET /container/someset1id/ re-

quests the objects of the relation. We introduced

a new Content-Type header value for the HTTP re-

quests in order to distinguish a data object resource

path from a relation resource path. Therefore, re-

quests on relations use the Content-Type cdmi −

relation. Note that this is aligned with the other con-

tent types of the CDMI standard from SNIA, such as

cdmi − query or cdmi − container.

Besides the resource path, the content for the

Content-Type cdmi − relation is used to place or

request information about the relation. Existing

industry standards already cover general schemes

for expressing relations. Popular examples are

the MetaObject Facility (MOF, (Object Management

Group (OMG), 2006)) by the OMG, which covers

relations between entities in software or data mod-

els or the RDF. As related work, also Zygmuntowicz

has discussed how to express relations in a key-value

store (Zygmuntowicz, 2010). So continuing with the

previous example expressing set membership for the

set with the id somerelid1 at a data object looks like:

@reltype : set

@relid-somerelid1 : true

However, this way of expressing it bears the con-

ﬂict that only one membership per relation is allowed,

otherwise it would be unclear what the relation type

refers to. Therefore we use the following metadata

scheme instead:

@reltype-somerelid1 : set

@relid-somerelid1 : true

Continuing, a list needs a number, or a rank. And this

brings us to RDF where we have a triple consisting of

a subject, a predicate and an object:

@reltype-somerelid1 : list

@relid-somerelid1 : true

@relobj-somerelid1 : 3

The above example denotes that the data object (to

which the metadata is attached) is a member of a list

with Id somerelid1 at index/rank/position 3. This di-

rectly corresponds to an RDF scheme for data proper-

ties of objects: (1) A subject which is data object that

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

282

has the metadata information attached, (2) a predi-

cate, which is a combination of @reltype value and

encoded relation id in attribute, and (3), the object,

which is the value of the @relob j − ∗attribute. Stay-

ing with the RDF comparison, a different situation

holds when we want to represent object properties,

i.e., relations that hold among objects. In this case the

following scheme should be applied:

@reltype-somerelid1 : list

@relid-somerelid1 : true

@relobj-somerelid1 : 3

@relcontext-somerelid1: someobjid

Above, the ”relcontext” speciﬁes the object in the

context of which this relation is valid. We consider a

concrete example. If we store both a PhotoCollection

object and the list of its contained photos, we want to

represent: a) the position of all the photos in the list;

b) the fact that the list is valid in the context of a spe-

ciﬁc photo collection. The following example states

that the photo ”myphoto101” is in position 3 of the

list named ”contained photos” for the parent object

”PhotoCollection1”.

id : "myphoto101"

@reltype-contained_photos : list

@relid-contained_photos : true

@relobj-contained_photos : 3

@relcontext-contained_photos: PhotoCollection1

This solution allows to search for speciﬁc relations

in which an object is involved without ﬁltering out

the part of the key which encodes the context ob-

ject. One could search for the presence of ”@relid-

contained photos” as a key to know what photos are

in any possible collection. By making this exten-

sion, we als extend the RDF relation model, by intro-

ducing a ”role speciﬁer” represented by the attribute

”@relobj-somerelid”. Please note that we provide an

example application REST request ﬂow using the re-

lations in the appendix.

4.2 Application in the Media Use Case

As anticipated, media production processes are

metadata-eager. This is true both from the descrip-

tive and the structural perspective, as outlined in Sec-

tion 2. In this Section, we provide a couple of ex-

amples of how the functionalities of the content cen-

tric relations have been employed in this domain. The

MXF (Material eXchange Format, (SMPTE, 2011)) is

the master reference nowadays for professional media

production. MXF ﬁles are metadata-rich both in de-

scriptive and in structural terms, being able to repre-

sent a full range of possible operational patterns with

media ﬁles and to carry user-deﬁned and standard sets

of metadata. In one of the VISION Cloud experi-

ments an MXF ﬁle is uploaded starting with an XML

metadata import descriptor using the upload service

of the content centric service. As part of the subse-

quent metadata imports, also two lists of objects are

created: one that groups the video frames together and

another that groups the audio clips from the MXF ﬁle

import. These lists allow one later to respectively ac-

cess the individual video frames and audio clips of the

ﬁle with plain HTTP GET requests:

GET /container/Materialid_videoframes

GET /container/Materialid_audioclips

In this example, ”Materialid videoframes” is the list

id that holds objects of the container named ”con-

tainer”.

A signiﬁcant functional progress w.r.t. the previ-

ous example is represented by the integration with ex-

ternal enterprise-level media production applications

like cross-media aggregators for news (Messina et al.,

2011). This import operation involves complex mul-

timedia data rather than just plain MXF ﬁles. An ag-

gregation platform (Messina et al., 2011) performs

complex analysis operations on data sources which

result in hybrid aggregations of Web and television re-

sources around automatically detected topics. These

aggregations form the basis for further editorial work

performed by journalists who want to enrich or fol-

low a detected story. It is therefore very important

being able to losslessly transfer the information struc-

ture that links together the resources of a determined

topic in the production environment. Using a set rela-

tion, the items are grouped together. The set relation

is created at import of the metadata using the Upload

service. From then, the items belonging to the set can

be accessed by HTTP GET requests:

GET /container/AggregationId_webnews

GET /container/AggregationId_tvnews

GET /container/AggregationId/TVClipId_keyframes

The ﬁrst call returns the web articles included in a

speciﬁed aggregation (topic), the second call returns

the television news items of the same aggregation, the

third call returns the list of key frames of a speciﬁc

television resource of the same aggregation.

5 METADATA SCHEMA

CHECKING

The metadata items associated with objects in the un-

derlying storage service, e.g., CouchDB and the VI-

SION Cloud object service, are schema-less. That

means the number of keys and their designation is

ﬂexible. Arbitrary metadata keys can be attached to

ExtendingCloud-basedObjectStoragewithContentCentricServices

283

each data object. This can be useful, as it provides

ﬂexibility. However, for certain use cases, some con-

trol on the metadata use is desired. For example, an

application would like to ensure that uploads of data

objects comply with a certain schema in order to en-

able further processing of this data. An application

must be able to deﬁne a schema for the metadata keys

to be used. When such a schema exists, creating or

changing metadata should be checked for compliance.

As a ﬁrst step, such a check should ensure that certain

metadata keys are actually present for a data object.

A challenge arises when considering a classic XML

Schema deﬁnition for metadata information derived

from standard data formats. An example schema that

is used to deﬁne the metadata items to check for looks

like the following listing:

...<xs:element name="shiporder"> <xs:complexType>

<xs:sequence>

<xs:element name="orderperson" type="xs:string"/>

<xs:element name="shipto">

<xs:complexType> <xs:sequence>

<xs:element name="name" type="xs:string"/>

<xs:element name="address" .../>

<xs:element name="city" .../>

<xs:element name="country" .../>

</xs:sequence> </xs:complexType>

</xs:element>

<xs:element name="item" maxOccurs="unbounded"

minOccurs="0">

<xs:complexType> <xs:sequence>

<xs:element name="title" type="xs:string"/>

<xs:element name="note".../>

<xs:element name="quantity" type="xs:pos...Int"/>

... </xs:sequence> </xs:complexType>

</xs:element> </xs:sequence>

<xs:attribute name="orderid" type="xs:string"/>

</xs:complexType> </xs:element></xs:schema>

In this example, the data is structured hierarchically:

an ”orderperson” consists of several subelements. In

this case, ”item” and ”orderperson” are elements that

contain several subelements and also form together

the complex element ”shiporder”. In contrast, the un-

derlying key-value storage offers only metadata key-

value pairs. Therefore, the implementation of the

schema check must also provide a means for ex-

pressing the hierarchy of XML tags in the hierarchy-

agnostic metadata format. Consider the following hi-

erarchical JSON example:

{ metadata={ "shiporder"={ "orderperson"={

"name"="J.A.",

"address"="Flat 3B, 3 Hans Crescent",

"city"="London SW1X 0LS",

"country"="UK" },

"item" ={

"title"="...", "note"="...",

"quantity"="...", "price"="..." },

"orderid"="12345678"

} } }

If the hierarchy remains without cross references,

which is the assumption made, then the equivalent

representation using ﬂat key-value metadata looks as

follows:

{ "shiporder.orderperson.name"="J.A.",

"shiporder.orderperson.address"=

"Flat 3B, 3 Hans Crescent",

"shiporder.orderperson.city"=

"London SW1X 0LS",

"shiporder.orderperson.country"="UK",

"shiporder.item.title"="...",

"shiporder.item.note"="...",

"shiporder.item.quantity"="...",

"shiporder.item.price"="..." }

The schema deﬁnes the metadata information to be

present. Because schemas could be either XML

Schema or equivalently use a hierarchical JSON rep-

resentation, for this schema a representation for a hi-

erarchy agnostic metadata such as that supported in

the underlying storage services is created.

5.1 Functionality of the Provided

Service

We implemented a REST service that allows for the

upload, listing and deletion of such schemas. It pro-

vides the general translation of hierarchical JSON /

hierarchical XML into ﬂat keys or key-value pairs for

an ”internal schema” and storing them for further pro-

cessing. The internal representation uses ﬂattened key

names where the hierarchy is transformed into a dot-

separated chain of hierarchy elements. In our imple-

mentation, the ”internal schema” is stored in the meta-

data section of a data container. Then, also the meta-

data of the data object must be translated from hierar-

chical JSON into ﬂat keys. Contrary to the previous

point, a schema (not necessarily an XML schema) is

uploaded to the VISION Cloud ﬁrst. Then, the subse-

quent upload of metadata of a data object’s in JSON

or XML is translated accordingly and compared with

the schema. If the upload of data object metadata does

not conform, the request fails ( HTTP response code

400). Conformance is deﬁned that the deﬁned meta-

data keys must exist at metadata creation or metadata

modiﬁcation.

A metadata schema, to which object metadata

must conform, is known to VISION Cloud. It is

stored at container level of the VISION Cloud stor-

age or at the level of the CouchDB database. Accord-

ingly, every object in a container can be covered by

this schema. In addition, the application can also de-

ﬁne a schema for a particular mime-type. In this case,

the schema check is only applied to objects that have a

speciﬁc mime-type deﬁned. Note that the application

can upload such a schema for a speciﬁc mime-type,

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

284

but this applies to the coverage of a single container

as well. The usage ﬂow is as follows:

1. The developer or user deﬁnes an application meta-

data schema, or uses an existing metadata schema

using the XML Schema syntax.

2. The developer or user uploads this schema. Either

this schema deﬁnes the metadata structure for all

objects of a container or only for objects with a

speciﬁc mime-type of a container.

3. The developer or user uploads data objects with

metadata or changes metadata. The content cen-

tric service checks for conformance with the

schema. In the negative case, a response code 400

is returned and the request is not fulﬁlled.

6 REQUEST THROUGHPUT

VALIDATION

The requests to the underlying storage pass through

the content centric service component. Therefore, it

is important to ensure that this component handles re-

quests in an efﬁcient way and must not represent a

bottle neck. In order to verify its efﬁciency, we have

conducted a set of performance tests in order to eval-

uate the query performance of the content centric ser-

vice component’s layered approach, presented in our

previous work (Jaeger et al., 2012). In our recent de-

velopment, we have performed the validation again,

considering more statistical measures in order to also

assess the volatility of the results; our validation goals

were as follows: (1) If the implementation shows

a continuous and repeatable level of query through-

put. (2) Check for an acceptable query handling time:

How much milliseconds are spent on each individual

request? (3) Gain a deeper understanding about how

to process queries internally: a) work with multiple

threads or work in a single thread behavior?, and b)

when a set of metadata ﬁelds is fetched, how does it

impact performance if we get all the metadata at once

or fetch a couple of individual items?

For this run of tests, we have used the same com-

puter (virtual) hardware and the same test application

as in our previous work (Jaeger et al., 2012). This

has the advantage that the results are directly compa-

rable. The scenario originates from the media domain

and is a test application of the VISION Cloud project,

developed by Deutsche Welle (DW). The query is as

follows: from a repository of news video material,

ﬁnd all news video assets within a given date range

sorted by popularity, grouped by news channels. For

the request throughput evaluation of the content cen-

tric service component, video material data objects

were considered with metadata information attached

to them. The size of the metadata, not the data ob-

jects, amounts to 450MB in total. These items were

stored in a CouchDB server.

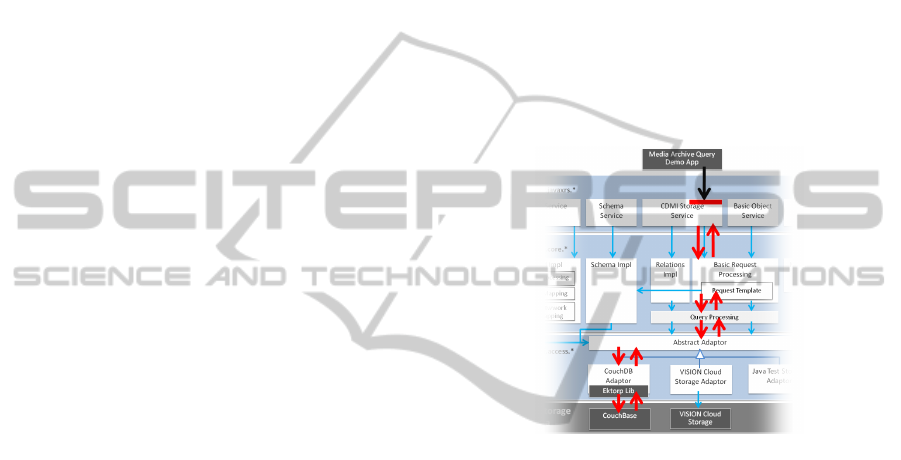

Figure 2 is based on Figure 1 and shows the re-

quest path in the software stack for this test. The

measured time started when the REST request from

the test application arrived at the REST service im-

plementation and ended before the request was passed

back. This is indicated by the top horizontal line in

the Box ”CDMI Storage Service” of Figure 2. Tech-

nically, these times correspond to the time from when

the Jersey servlet calls the REST service implemen-

tation to the point when the service implementation

”returns” to the Jersey servlet. It also includes the

query to the underlying storage. For the evaluation,

Figure 2: Technical View on the Test Path.

the following cases were investigated:

• Evaluate the request response time on a single

core and a multi core machine.

• Evaluate the request response time for three dif-

ferent query date ranges: 1 day, 2 weeks and 4

weeks. Each of the query date range resulted in

a different number of data objects that should be

part of the result set (30, 663, and 969 data sets

respectively).

• For the elements of the result set, additional meta-

data key-values must be queried. We evaluated

the response time when querying for the meta-

data items in individual queries to the underly-

ing storage (”channel’, ”popularity” and ”date”)

compared to querying for all of the metadata as-

sociated with the data object at once. The average

size of metadata for each data object was about

1KB.

6.1 Evaluation Results

We have conducted the tests on two test platforms

summarized in Table 1.

ExtendingCloud-basedObjectStoragewithContentCentricServices

285

Table 1: Overview of the Two Test Setups.

Name CPU Cores Speed L2 RAM OS Storage

Virt. 1-core 1/1 2.13Ghz 4MB 8GB RHEL 500GB

Vir. 4-core 4/4 2.13Ghz 4MB 8GB RHEL 500GB

For the evaluation, a plain setup of the VISION

Cloud software stack was used, disabling services

such as authorization and monitoring. Also, the log

level was set to f atal in order to avoid efforts for con-

sole I/O. It should also be noted that schema checks

did not apply, because no metadata was modiﬁed or

created. The measurements were analyzed with basic

statistics, such as the deviation and a 95% conﬁdence

interval. The results are presented in Table 2 for a sin-

gle core deployment of the test setup and in Table 3

for a quad core deployment of the test setup.

In both tables, the ﬁrst column speciﬁes the test

conﬁguration: a) using either a single threaded ap-

plication or using a thread pool, and b) the setting of

querying each metadata value in individual REST re-

quests or querying the entire metadata catalogue of

the data object in one REST request. The next col-

umn lists the resulting number of requests to the un-

derlying key-value storage which the content centric

service has used in the test. The measured times

(”mean”) are given in milliseconds and represent the

average mean of 20 runs. For the mean calculation

the longest and shortest run of the measured execu-

tion times have been omitted. The last column con-

siders the overall run time of the application requests

and the number of resulting requests issued to the un-

derlying storage. From these two values the fractional

response time per each request to the underlying key-

value storage is given.

Table 2: Second Test Run Results: Single Core Virtual Ma-

chine (times in milliseconds).

Individual Req. Av.Tot. Std 95% Single

Count (msec) Devia. Conf. msec

Single Separate 90 823,8 117,8 42,1 9,2

Thread Metadata 1989 12761,8 1189,1 425,5 6,4

Calls 2907 18310,3 273,0 97,7 6,3

Combined 30 320,6 26,7 9,5 10,7

Metadata 663 6632,6 59,8 21,4 10,0

Calls 969 9409,9 126,9 45,4 9,7

Thread Separate 90 431,8 24,6 8,8 4,8

Pool Metadata 1989 8807,6 207,4 74,2 4,4

Calls 2907 12842,6 200,7 71,8 4,4

Combined 30 226,2 12,0 4,3 7,5

Metadata 663 4596,4 115,1 41,2 6,9

Calls 969 6631,2 125,2 44,8 6,8

These results show the following w.r.t. to our eval-

uation goals:

• Continuous and repeatable level of query pro-

cessing throughput: The conﬁdence intervals and

the deviations let us conclude that response times

show low deviation. It must be noted that the dif-

ferent measurements on one machine were con-

Table 3: Second Test Run Results: Quad Core Virtual Ma-

chine (times in milliseconds).

Individual Req. Av.Tot. Std 95% Single

Count (msec) Devia. Conf. msec

Single Separate 90 836,8 54,4 19,4 9,3

Thread Metadata 1989 13735,0 785,5 281,1 6,9

Calls 2907 20276,4 963,8 344,9 7,0

Combined 30 358,0 32,5 11,6 11,9

Metadata 663 7790,4 234,0 83,7 11,8

Calls 969 11344,2 420,7 150,6 11,7

Thread Separate 90 172,2 13,3 4,7 1,9

Pool Metadata 1989 3217,1 158,1 56,6 1,6

Calls 2907 4574,4 99,2 35,5 1,6

Combined 30 101,1 12,5 4,5 3,4

Metadata 663 1823,0 102,2 36,6 2,7

Calls 969 2546,0 117,4 42,0 2,6

ducted without restarting the components.

• Check for an acceptable query handling time:

When performing the largest setup, the average

response results in a few milliseconds. Since

the underlying storage is also queried by using a

REST call, which is also included, this represents

an acceptable value.

• Gain a deeper understanding about how to pro-

cess queries internally: (a) Working with threads

or work in a single thread behavior: The evalua-

tion shows that parallel queries to the same stor-

age results in lower response times. (b) Get all the

metadata at once or fetch individual items: Given

three individual metadata items to query, lower re-

sponse times were yielded when querying the en-

tire metadata set from the storage and ﬁlter the

three relevant values locally.

7 RELATED WORK

One of the known commercial solution is Amazon

S3 (Amazon Web Services, 2012a). S3 allows the

storage of large objects along with a set of metadata

values. Nevertheless, there is no support for ﬁnd-

ing speciﬁc objects based on their metadata. More-

over, there is no support for user metadata to fol-

low a speciﬁc schema. Some of this functionality

can be achieved by storing object metadata exter-

nally through Amazon’s SimpleDB (Amazon Web

Services, 2012b). Such a solution relies on building

proper functionality on top of S3 and simpleDB to en-

sure consistency and is not provided inherently. The

Microsoft Windows Azure platform provides storage

services in the form of the Blob Storage service (Mi-

crosoft Corporation, 2012), the Table service, and the

Windows Azure Drives service which provides single

volumes (NTFS VHD). Similar to S3, objects can also

have metadata, but the platform does not allow for the

advanced queries. Other storage cloud solutions such

as (Google, 2012) or (Rackspace, 2012) have the sim-

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

286

ilar characteristics. EMC Atmos (EMC Corporation,

2012a) is a storage platform that can be used to build

private or public clouds. EMC Atmos allows queries

by metadata key but it does not provide the schema

checking support or setting relations between objects

for example.

Object database such as Versant Store (Versant,

2012), Objectivity/DB (Objectivity, 2012) or Veloc-

ityDB (Velocitydb.com, 2012) could be also used.

While fault-tolerance, high-performance and scal-

ability can be achieved, this is accompanied by

a high technical effort. Moreover, the maximum

size of the stored objects is limited compared to

cloud offerings. Apache HBase (Apache Founda-

tion, 2012b) is a distributed data store built on top

of Hadoop/HDFS (Apache Foundation, 2012a). The

solution is inherently scalable; but it is more oriented

towards table storage and lacks features needed to en-

able content centric access. VISION Cloud, through

the content centric service, allows accessing stored

objects, the content they hold, their relationships and

the interpretation of their metadata.

Content-addressable storage (CAS) systems, such

as EMC Centera (EMC Corporation, 2012b) and

Venti (Quinlan and Dorward, 2002), assign a unique

name to objects that is produced based on the object

contents. This makes the location of the object ir-

relevant, since it can be retrieved solely based on its

unique name. CAS systems are tailored for archiv-

ing data and are therefore not suited for general pur-

pose. A notable research effort is CIMPLE (Delaet

and Joosen, 2009). In CIMPLE, every content item is

represented with a unique key that is calculated from

the content and it is associated with a set of attributes

that contains information regarding the owner, the key

used to create the unique ID etc. Moreover, metadata

can be associated with every item that can be used

to carry out search operations. Metadata is expressed

through RDF, queried through SPARQL and stored in

a separate database. While some of the ideas of CIM-

PLE are also applicable in our effort, there are differ-

ences. First of all, it is a stand-alone system whereas

our solution is part of a complete cloud storage solu-

tion. Secondly, CIMPLE relies on a separate database

to handle metadata, which is in direct contrast to our

data model, where data and metadata are treaded as

one entity. Moreover, the solution also not covered

scalability issues, as acknowledged by the authors.

8 CONCLUSIONS

The approach of content centric storage enables an

application or user to access storage items based on

their content, rather than a path in a hierarchical di-

rectory tree. In particular, an application or user de-

scribes the content of a storage object through meta-

data associated with the object and then ﬁnds or ac-

cesses a storage object based on its associated meta-

data. In this paper, we extend our work on content

centric storage, including a generalized approach to

expressing relations between data objects, metadata

schema checking and a performance evaluation.

Our earlier approach to implementing relations

was not easily extensible; each new relation required

a new implementation. In this paper, we describe a

uniﬁed and extensible scheme for the metadata ﬁelds

used to express relations. We also demonstrate how

to apply it to express the relations required by the me-

dia production process. Given the number and size

of metadata ﬁelds that can be associated with an ob-

ject, we introduce metadata schema to describe and

enforce the use of metadata. The metadata schema

checker allows the application to input hierarchical

metadata; it ﬂattens the hierarchical metadata to a

representation expected by the lower level storage

service. Finally, we did a performance evaluation

to check implementation alternatives and the request

throughput in order to make sure that the implemen-

tation meets the expectations from a cloud computing

enviroment: scalability and performance.

ACKNOWLEDGEMENTS

The research leading to these results is partially

supported by the European Community’s Seventh

Framework Programme (FP7/2001-2013) under grant

agreement nr. 257019 - VISION Cloud Project.

REFERENCES

Amazon Web Services (2012a). Amazon Simple Storage

Service. http://aws.amazon.com/s3/.

Amazon Web Services (2012b). Amazon Simpledb. http://

aws.amazon.com/simpledb/.

Anderson, J. C., Lehnardt, J., and Slater, N. (2010).

CouchDB: The Deﬁnitive Guide Time to Relax.

O’Reilly Media, Inc., 1st edition.

Apache Foundation (2012a). Apache Hadoop. http://

hadoop.apache.org/.

Apache Foundation (2012b). Apache HBase. http://

hbase.apache.org/.

Delaet, T. and Joosen, W. (2009). Managing your content

with CIMPLE - a content-centric storage interface. In

IEEE 34th Conf. on Local Computer Networks, 2009.

LCN 2009, pages 491 –498.

ExtendingCloud-basedObjectStoragewithContentCentricServices

287

EMC Corporation (2012a). EMC Atmos. http://

www.emc.com/storage/atmos/atmos.htm.

EMC Corporation (2012b). EMC Centera. http://www.

emc.com/products/family/emc-centera-family.htm.

Google (2012). Google Cloud Storage. http://

cloud.google.com/products/cloud-storage.

Jaeger, M. C., Messina, A., Lorenz, M., Gogouvitis, S. V.,

Kyriazis, D., Kolodner, E. K., Su, X., and Bahar, E.

(2012). Cloud-based content centric storage for large

systems. In Fed. Conf. on Computer Sc. and Infor-

mation Systems - FedCSIS 2012, Wroclaw, Poland,

September 2012, pages 987–994.

Java.net (2012). Java.net / glassﬁsh: Jersey project page,

accessed in september 2012 at http://jersey.java.net/.

Kolodner, E. K., Tal, S., Kyriazis, D., Naor, D., Al-

lalouf, M., Bonelli, L., Brand, P., Eckert, A., Elm-

roth, E., Gogouvitis, S. V., Harnik, D., Hern

andez, F.,

Jaeger, M. C., Lakew, E. B., Lopez, J. M., Lorenz,

M., Messina, A., Shulman-Peleg, A., Talyansky, R.,

Voulodimos, A., and Wolfsthal, Y. (2011). A cloud

environment for data-intensive storage services. In

CloudCom, pages 357–366.

Messina, A., Montagnuolo, M., Di Massa, R., and Bor-

gotallo, R. (2011). Hyper media news: a fully au-

tomated platform for large scale analysis, production

and distribution of multimodal news content. Multi-

media Tools and Applications.

Microsoft Corporation (2012). Microsoft Azure Blob Ser-

vice API. http://msdn.microsoft.com/en-us/library/

dd135733.aspx.

Object Management Group (OMG) (2006). Meta Object

Facility (MOF) Core Speciﬁcation Version 2.0, 2006,

http://www.omg.org/cgi-bin/doc?formal/2006-01-01.

Objectivity (2012). Objectivity DB. http://

www.objectivity.com/pages/objectivity/default.asp.

Quinlan, S. and Dorward, S. (2002). Venti: A New Ap-

proach to Archival Storage. In FAST’02, pages 89–

101.

Rackspace (2012). Rackspace Cloud Files. http://

www.rackspace.com/cloud/public/ﬁles/.

SMPTE (2011). S377m-2011 Material Exchange Format.

Storage Networking Industry Association (SNIA) (2011).

Cloud data management interface, version 1.0.1,

september 2012 at http://snia.org/sites/default/ﬁles/

CDMI SNIA Architecture v1.0.1.pdf.

Velocitydb.com (2012). VelocityDB. http://

velocitydb.com/.

Versant (2012). Versant website http:// www.versant.com.

World Wide Web Consortium (2004). RDF Primer, feb.

2004, at http://www.w3c.org/TR/rdf-primer/.

Zygmuntowicz, E. (2010). Redis - remote dictionary server,

at http://nosql.mypopescu.com/post/408913109/

presentation-redis-remote-dictionary-server-by-ezra.

APPENDIX

The following lists the HTTP request trace of a unit

test implementation for the relations functionality. It

shows how the relations API works on HTTP request

level. The requests perform the following steps: (1)

Creation of a test container at tenant ”siemens” for

placing data objects. (2) Creation of one data ob-

ject named ”ccs test object 8”. (3) Adding this data

object to a set named ”ccstest sets 14”. Please note

that the header ﬁelds ”Date”, ”Transfer-Encoding”

and ”User-Agent” have been omitted due to space re-

strictions.

>>>>

PUT /CCS/_c/siemens/sietestcontainer HTTP/1.1

X-CDMI-Specification-Version: 1.0

Authorization: Basic bWNqQHNpZW1lbnM6c2VjcmV0

Accept: application/cdmi-container

Content-Type: application/cdmi-container

Host: 10.0.1.101:8080

Connection: keep-alive

<<<<<

HTTP/1.1 200 OK

Server: Apache-Coyote/1.1

X-CDMI-Specification-Version: 1.0

Content-Type: application/cdmi-container

{ "objectName": "sietestcontainer/",

"children": [],

"metadata": {},

"capabilitiesURI": "/cdmi_capabilities/container",

"completionStatus": "Complete",

"objectURI": "/sietestcontainer/",

"parentURI": "/",

"childrenrange": "0-0" }

>>>>>

PUT /CCS/_c/siemens/sietestcontainer/ccs_test_object_8 HTTP/1.1

Authorization: Basic bWNqQHNpZW1lbnM6c2VjcmV0

X-CDMI-Specification-Version: 1.0

Accept: application/cdmi-object

Content-Type: application/cdmi-object

Host: 10.0.1.101:8080

Connection: keep-alive

Content-Length: 56

{"value":"some data","metadata":{"examplekey":"value"}}

<<<<<

HTTP/1.1 200 OK

Server: Apache-Coyote/1.1

X-CDMI-Specification-Version: 1.0

Content-Type: application/cdmi-object

{ "value": "some data",

"objectName": "ccs_test_object_8",

"metadata": {

"cdmi_owner": "mcj@siemens",

"mimetype": "text/plain",

"valuetransferencoding": "utf-8",

"cdmi_size": 11,

"cdmi_acl": "[{\u0027aceflags...}]",

"asdf_": "true"

"mimetype": "text/plain",

"capabilitiesURI": "/cdmi_capabilities/dataobject",

"completionStatus": "Complete",

"objectURI": "/sietestcontainer/ccs_test_object_8",

"parentURI": "/sietestcontainer/" }

>>>>>

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

288

PUT /CCS/_c/siemens/sietestcontainer/

ccstest_sets_14/ccs_test_object_8 HTTP/1.1

X-CDMI-Specification-Version: 1.0

Authorization: Basic bWNqQHNpZW1lbnM6c2VjcmV0

Accept: application/cdmi-relation

Content-Type: application/cdmi-relation

Host: 10.0.1.101:8080

Connection: keep-alive

Content-Length: 14

<<<<<

HTTP/1.1 200 OK

Server: Apache-Coyote/1.1

X-CDMI-Specification-Version: 1.0

Content-Type: application/cdmi-relation

{ "context": "0-0",

"type": "set",

"children": [ "ccs_test_object_8" ],

"childrenRange": "0-0" }

ExtendingCloud-basedObjectStoragewithContentCentricServices

289
