Detecting VM Live Migration using a Hybrid External Approach

Sebastian Fiebig, Melanie Siebenhaar, Christian Gottron and Ralf Steinmetz

Multimedia Communications Lab (KOM), Technische Universit¨at Darmstadt, Darmstadt, Germany

Keywords:

VM Theft, Virtualization, VM Live Migration, Monitoring, Taxonomy.

Abstract:

Cloud computing has become a paradigm of our time. It is not only a technical solution, but a business

model to sell and rent computing power and servers. Virtual machines (VMs) are used to allow a dynamic

and transparent server utilization, which is made possible by VM live migration. VM live migration allows

to move VMs within and out of data centers while the VM is still running. Thus, resource usage becomes

more efﬁcient. However, VM live migration also provides an opportunity for new attack vectors, which

can be used by malicious attackers. They can compromise hypervisors and afterwards steal VMs from data

centers to gain control over resources. In the worst case scenario, the theft remains undetected by both system

administrators and customers. In this paper, we present the ﬁrst taxonomy of possible VM live migration

detection approaches. There are two different monitoring approaches, i.e., internal or external monitoring,

as well as different detection approaches, which correspond to the different approaches to detect migration.

Moreover, we propose a hybrid external approach using delay measurement with ICMP ping and time-lag

detection with the network time protocol (NTP) to detect VM live migration. We show that VM live migration

can be detected by using a prototype of our hybrid external approach.

1 INTRODUCTION

Cloud computing has become a paradigm of our time.

It is not a mere technical solution but also a business

model. One of the key concepts of cloud computing

is its dynamic resource provisioning. Through that,

computing power can be co-located in data centers

that can be shared by just one enterprise, but also be

outsourced and used by different enterprises.

Cloud computing is based on the so-called virtu-

alization. This feature allows dynamic resource pro-

visioning and adaption with VMs. One of the fea-

tures made possible by using virtualization is live mi-

gration. Live migration allows to move a VM be-

tween different servers using the underlying hypervi-

sor, while the VM is running. Therefore, a seamless

use of services is made possible. Because no or only

barely measurable downtimes occur, it is in general

hard to detect an ongoing VM live migration process.

While VM live migration has manyadvantages, it also

allows for completely new attack vectors. If the hy-

pervisor is compromised by any means whatsoever,

the live migration can be used to steal or copy VMs.

Having no information from the hypervisor, a detec-

tion of a VM live migration is hardly possible without

further monitoring. Thus, while on the one hand the

invisible VM live migration has the advantage of en-

suring a seamless VM utilization, on the other hand,

it offers an opportunity for attackers to hide their ac-

tions. In this paper, we extend the work of (K¨onig

and Steinmetz, 2011) and present the ﬁrst taxonomy

of VM live migration detection, giving two general

distinct approaches and several detection approaches.

We choose a hybrid external approach to detect VM

live migration.

This paper is organized as follows: First, we dis-

cuss relevant literature in this ﬁeld and give relevant

background information. This includes virtualization

and live migration as well as a description of a sce-

nario of how VM theft can be realized. In Section 4,

we show the detection taxonomy of VM live migra-

tion. Our hybrid external approach is discussed in

Section 5. The corresponding prototypical implemen-

tation follows in Section 6. This prototypeis an exam-

ple of how to realize a monitoring system for a virtu-

alized infrastructure. After that, our experimental re-

sults, which give rationales for preferring the hybrid

approach, are presented and the applicability of our

prototype is shown. Finally, we conclude and present

suggestions for future improvements.

483

Fiebig S., Siebenhaar M., Gottron C. and Steinmetz R..

Detecting VM Live Migration using a Hybrid External Approach.

DOI: 10.5220/0004376904830488

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 483-488

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

An overall summary of the different types of virtual

migration exploitation is given in (Oberheide et al.,

2008). Oberheide et al. describe three general attack

vectors: Control Plane, Data Plane, and Migration

Module. These differ in the way the migration pro-

cess is compromised.

There are several publications covering the prob-

lem of malicious hypervisors as well as counter-

measures to prevent attacks on them. (Xia et al.,

2012) show the attack vector of rollback attacks, i.e.,

reestablishing a previous state of a VM without the

user’s awareness. This can lead to a state with open

security holes. Xia et al. propose a so-called safe log-

ging to prevent such rollback attacks on VMs. (Wang

et al., 2010) describe a mechanism for securing the

process of VM migration. The process is measured

by using speciﬁc policies, e.g., allowed user roles that

can migrate or allowed target hosts for the migration

process. A general overview of cloud computing se-

curity is given by (Tsai et al., 2012).

The performance of VM live migration depends

on a number of metrics. Two key parameters de-

termining the speed of live migration are memory

changes, namely the page dirty rate, and the network

transfer speed, which both have a non-linear inﬂuence

on the migration performance (Akoush et al., 2010).

(K¨onig and Steinmetz, 2011) show that ICMP

ping is an appropriate mechanism to detect the live

migration of VMs. The round-trip time of pings

shows a higher average while migrating and at the

end of the migration process packets might be lost.

ICMP ping was also used as detection characteristic

by (Nirschl, 2011). K¨onig et al. have discovered that

the CPU load does not highly inﬂuence the ICMP

ping round-trip times if it is made sure that as few

memory changes as possible occur. This can be seen

as corresponding to the fact that the VM live migra-

tion performance can be predicted without taking the

CPU load into consideration (Akoush et al., 2010).

In previous publications, it has been shown that

it is possible to use appropriate mechanisms to auto-

matically detect changes in pings in order to detect a

VM live migration (Gottron et al., 2012). Administra-

tors can use this to monitor their server infrastructure

and to apply countermeasures if needed, e.g., in case

a malicious migration is happening.

To the best of our knowledge, in Section 4 the ﬁrst

taxonomy of different VM live migration detection

approaches is given.

3 BACKGROUND

In this section, the VM live migration process is dis-

cussed and a simpliﬁed migration sequence for this

paper is introduced. Additionally, an attacker scenario

for VM theft is proposed to show how a malicious mi-

gration is realized.

The VM live migration process is described by

(Clark et al., 2005) using six steps. For the under-

standing of this paper, the VM live migration can be

divided in only three phases:

1. Memory Copy: Memory copy and mapping from

source to target host while the VM runs on the

source host. Detecting a migration in this phase

is preferable, because only then the full migra-

tion can be prevented. Nevertheless, a detection

is more difﬁcult in this phase.

2. CPU Copy: Stopping the CPU and copy registers

from source to target host. In this phase, the VM

must be stopped, which causes detectable traces.

These can be more easily tracked.

3. Switch: Removing the VM from the source host

and starting the VM on the target host. After this

phase, the VM runs on a new host. If the new host

is not identical in software and hardware, these

changes could be detected.

The three phases are the basis for the understanding

of the detection taxonomy and experiments. Never-

theless, a detection of the live migration process even

after phase 3 is important to prevent further damage.

In the following, a possible scenario for a VM

theft is discussed. The steps for a successful attempt

to steal a VM from a cloud infrastructure are as fol-

lows (see Figure 1 for a structure of the scenario):

1. Compromise the hypervisor migration module to

gain access over the migration management.

2. Optional: Setup a corresponding subnet agent in

the hypervisor network (as described in (Silvera

et al., 2009)) to support migration across different

subnets.

3. Migrate the VM to another host, that can be lo-

cated in another subnet.

The attacker does not necessarily need to be an out-

sider, the cloud provider himself could be the attacker.

He/she could try to optimize the resource utilization

in his/her data center. In order to do so, he/she could

move VMs out of overloaded European data centers

to the USA without consent and knowledge of the

SaaS (Software as a Service) provider and SaaS user.

This becomes even worse when EU data protection

directives must be obeyed. Given that, the cloud

provider has the possibility to more or less hide all of

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

484

Connection

IP-tunnel

4. Migration

Connection

SaaS

Provider

VM 1

SaaS

Provider

VM 2

Migration

Module

Cloud Provider

Server

Attacker

Server

Attacker

Using Services

Subnet

Agent

Subnet

Agent

SaaS User

1. Infiltrate Hypervisor

2. Create Subnet Agent

3. Initiate Migration

Internet

After Attack:

Using Services

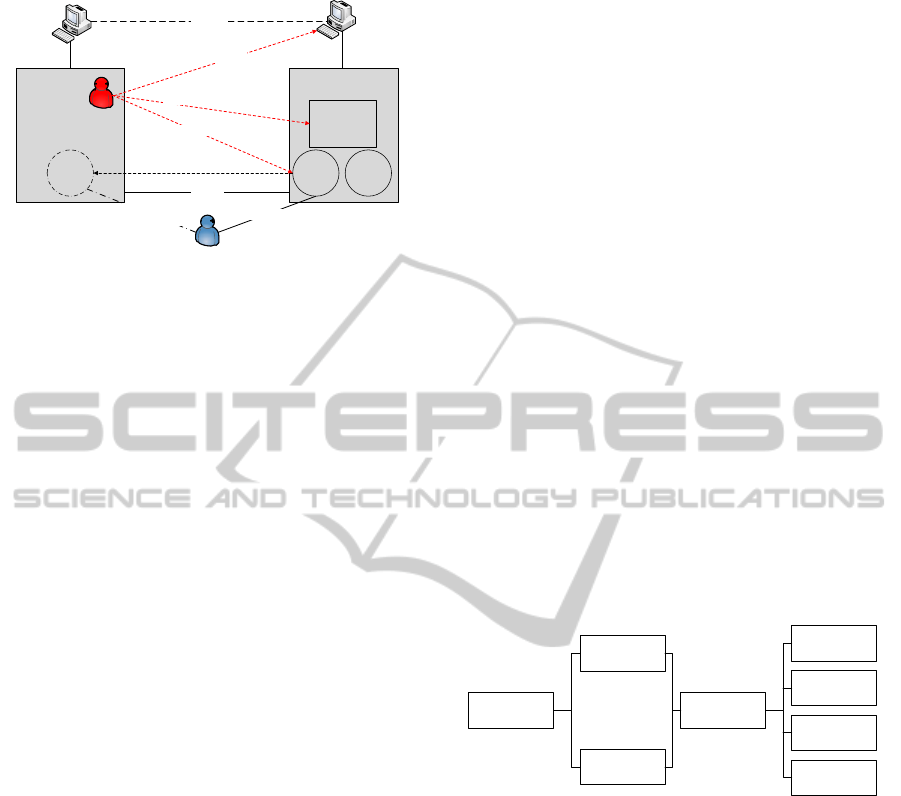

Figure 1: A scenario for VM theft to a different subnet

(based on (Silvera et al., 2009)).

his/her actions. Compared to an attack coming from

outside, this scenario is also easier to realize. With

this slightly changed scenario, the hypervisor does not

even need to be compromised. The cloud provider

could simply present wrong information to the SaaS

provider.

4 VM LIVE MIGRATION

TAXONOMY

We now present the ﬁrst taxonomy of VM live mi-

gration detection. There are two general monitoring

approaches and four detection approaches that can be

distinguished when trying to detect a live migration of

VMs (see Figure 2):

• Internal Approach: When using an internal detec-

tion approach, a monitor inside of a VM is used to

detect a malicious migration. These approaches

include hypervisor detection, hardware detection,

time-lag detection, and delay measurement. Inter-

nal approaches have the advantage of lower net-

work usage and of not needing an extra monitor-

ing server. They do not apply, however, if only a

copy attack is performed to copy a consistent state

of VMs leaving the original VM untouched.

– Hypervisor Detection: Different types of hy-

pervisors have different ﬁngerprints (e.g., (Fer-

rie, 2006)) that can be used to detect a change

or replacement of the hypervisor, e.g. another

version.

– Hardware Detection: Hardware benchmarks

can be used to reveal a changed server con-

ﬁguration. They could for example reveal a

changed CPU execution speed or link speed

of the new physical host of the VM. This can

be seen as the so-called VM footprint (Sonnek

and Chandra, 2009). Two different footprints

can be distinguished between the – dynamically

changing, but location independent – amount of

resources a VM wants to use (virtual footprint)

and the amount of resources the VM actually

uses on its physical host (physical footprint).

Migrating a VM to a different host may lead to

a changed physical footprint, which would then

be detectable.

– Time-lag Detection: Measure the NTP time to

detect a lag in time. In phase 2 of the migra-

tion process, the VM is stopped for a certain

amount of time and is then started on a new

host again. Being stopped for a certain amount

of time leads to a sudden time-lag, which can

reveal a migration.

– Delay Measurement: This is the original ap-

proach described in (K¨onig and Steinmetz,

2011) applying internal monitoring to deﬁned

network entities.

• External Approach: When using an external de-

tection approach, mechanisms outside the super-

vised VMs are used to detect a malicious mi-

gration. The detection approaches are the same,

but the speciﬁc realization differs. External ap-

proaches need an extra server to monitor VMs, but

therefore not every VM needs to monitor itself.

Internal

External

Hypervisor

Detection

Delay

Measurement

Hardware

Detection

Monitoring

Approach

Time-lag

Detection

Approach

Figure 2: VM Live Migration Taxonomy that distinguishes

between monitoring approach and detection approach. For-

mer describes from where and latter how to monitor.

All these approachesallow either for a detection while

live migration is in progress or only when the mi-

gration has been ﬁnished. Obviously, detection ap-

proaches that detect a change in the VM environment

(e.g., hypervisor detection) are only able to detect mi-

gration after the last phase.

5 HYBRID EXTERNAL

APPROACH

We use a combined approach of delay measurement

with ICMP ping and time-lag measurement using

NTP to detect a malicious VM live migration. Be-

cause the delay measurement using ICMP ping has

DetectingVMLiveMigrationusingaHybridExternalApproach

485

the disadvantage of needing a relative high monitor-

ing frequency, the second approach is added. Thus,

we can use a lower interval for the ﬁrst approach and

be nevertheless sure to detect a migration.

Based on the work of (K¨onig and Steinmetz,

2011) and similar to (Nirschl, 2011), we use the

ICMP ping to detect the main characteristic features

to assume a VM live migration. To do so, a heuristic

based on the characteristic features of the ICMP ping

round-trip times is used. These are increased average

round-trip time, very high outliers mainly at the start

of a migration and, additionally, unanswered pings in

the second and third phase of migration.

As stated above, the main disadvantage is that

the high monitoring interval can be counteracted with

the time-lag measurement. However, in cases where

a high monitoring interval is possible, the proposed

heuristic is a possibility to abort the migration process

before it has ﬁnished.

The NTP allows computers to synchronize their

time with an external server. In (Broomhead et al.,

2010), the problem that time does lag after a VM live

migration as well as the possibility of using a clock

mechanism called RADclock (Robust Absolute and

Difference Clock) to prevent those time-lags, are dis-

cussed. For VM live migration detection, this time-

lag is a valuable information to be able to detect a mi-

gration. After a migration, the time continues from

the exact time as before the migration. This shift

in time can be detected. This time converges to the

proper time, as time jumps would not be appropri-

ate for running programs that rely on a proper time

progression. The slow converging of time allows a

detection in a large time frame. This is even larger,

the more time the second (CPU copy) and third phase

(Switch) of the migration takes.

6 PROTOTYPE

Our approaches have been prototypically imple-

mented as a software demo. This prototype is able to

detect if a VM is migrated and can give the user a no-

tiﬁcation about the likelihood of a migration process.

To detect migration, the proposed hybrid external ap-

proach is used as described above in Section 5.

The system interface is built as follows: The user

has the ability to specify his/her VM servers, i.e., host

name or IP address. In addition, the monitoring in-

terval can be adjusted. A migration process needs

at least the time to transfer the whole memory con-

tent once. One minute might not be sufﬁcient for

VMs with only small memory size and high band-

width connection within a data center. Results are ei-

ther presented in a detailed chart using the LiveGraph

API

or a simpliﬁed view with only a status of the

migration likelihood.

7 EXPERIMENTS

We used two different testbeds to perform our experi-

ments. The ﬁrst series was carried out in the German-

Lab (G-Lab)

testbed. The installed hypervisor was

Proxmox 1.9

with four SUN Fire X4150 servers.

The servers were connected by a Cisco 4500 L3 series

switch having a bandwidth of 1Gbit/s. On Server 2 a

NFS server was installed with a 32-bit Ubuntu 12.04.

For the experiments, a similar Ubuntu version us-

ing the KVM virtualization was also installed on the

test VMs. The migration VM was migrated between

server 2 and 3. The ﬁle system for the migrating VM

was on the NFS server, as the migration did not in-

volve the ﬁle system.

The second series was carried out in a hetero-

geneous testbed using two desktop computers with

Proxmox installed. The ﬁrst server was an Intel Core

2 Duo with 2.13 GHz, 2 GB RAM and a Gigabit net-

work card. The second server was an Intel Core 2

Duo with 2.53GHz, 4GB RAM and a Gigabit net-

work card. A third computer was used as monitor. All

were connected with a Netgear switch with a band-

width of 100MBit/s.

There are several metrics that are interesting for

VM live migration. The metrics can be derived from

the parameters inﬂuencing the migration performance

as given in (Akoush et al., 2010). These are page dirty

rate, link speed, VM memory size, and migration

overhead. Together with the results from (K¨onig and

Steinmetz, 2011), a useful set of metrics, besides gen-

eral hardware differences for the hypervisor servers

are memory, CPU use, and network bandwidth and

distance.

The network bandwidth was restricted using

WANem

as proxy. To create CPU load, a bash script

with an endless loop was used, so that the page dirty

rate could be minimized.

On the ﬁrst testbed, we could replicate the results

given in (K¨onig and Steinmetz, 2011). That is, the

ICMP ping to a VM gives a characteristic round-trip

times pattern while migrating. Some of the more

interesting test results were obtained using the sec-

ond testbed with heterogeneous setup. This is also

http://www.live-graph.org/

http://www.german-lab.de

http://pve.proxmox.com/wiki/Main Page

http://wanem.sourceforge.net/

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

486

−20

100

120

140

160

0 50 100 150 200 250 300 350

RTT [ms]

Ping #

(a)

0 50 100 150 200 250 300 350

RTT [ms]

Ping #

(b)

−40

−20

100

120

140

0 50 100 150 200 250 300 350

RTT [ms]

Ping #

(c)

100

150

200

250

300

350

0 50 100 150 200 250 300 350

RTT [ms]

Ping #

(d)

−20

100

120

140

0 50 100 150 200 250 300

RTT [ms]

Ping #

(e)

0 50 100 150 200 250 300

RTT [ms]

Ping #

(f)

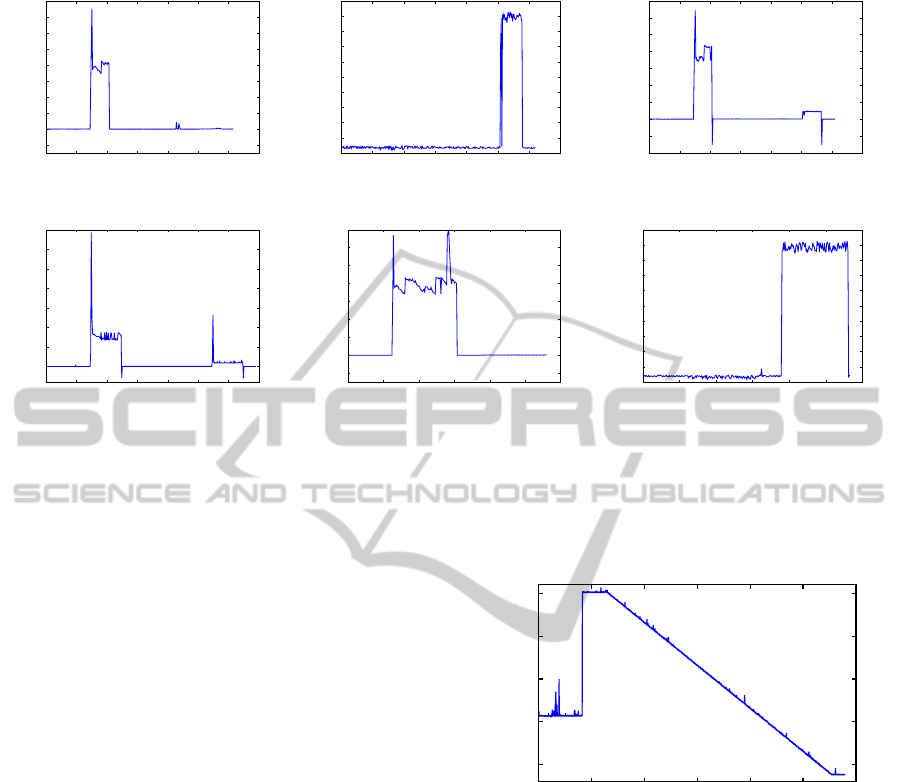

Figure 3: Measurements in the heterogeneous network topology. Measuring migration from ﬁrst to second server and vice

versa with ICMP ping every second. Negative values mark unanswered pings, not round-trip times. (a) Ping to ﬁrst server.

(b) Ping to second server. (c) Ping to VM. (d) CPU load 100 percent on VM, ping to VM. SCP transfer measurements in a

similar way, copy from ﬁrst to second server and vice versa. (e) Ping to ﬁrst server. (f) Ping to second server.

more realistic in case of an attacker stealing VMs into

his/her own subnet. The most interesting result mea-

surements are shown in Figure 3. The ﬁrst three Fig-

ures 3(a)–3(c) show the ICMP ping measurement for

both servers involved in the migration and the VM

itself. The migration is ﬁrst performed from server

1 to server 2 and afterwards from server 2 to server

1. As can be seen, not only the measurement for the

VM shows a characteristic trace, but also the hyper-

visor servers do so. The characteristics are signiﬁ-

cantly more pronounced when pinging the less pow-

erful server (in terms of CPU power). In addition,

the characteristics are almost only measurable for the

server initiating the migration process, independent

from the computing power.

We used the ﬁrst testbed described and measured

the occurring time course. As can be seen in Fig-

ure 4, the time-lags after a migration are over 100ms.

That time correspondsto phase 2 of the migration pro-

cess that largely depends on the speed at which the

last remaining VM resources are copied. The time

converges after a synchronizing event with an NTP

server. A low monitoring interval is possible, because

the time to converge takes more than several minutes

and only after an NTP update occurs.

In addition, we performed a simulation approach

for the VM live migration. To do so, we used the

second testbed and copied ﬁles using SCP (Secure

CoPy). The characteristics while pinging the ﬁrst and

the second server are depicted in 3(e) and 3(f) for a

−50

100

150

0 100 200 300 400 500 600

Time−lag [ms]

Time [s]

NTP detection

Figure 4: Measuring a time-lag when migrating a VM. This

induces a time-lag of more than 100 ms.

ﬁle with a size of 2 GB. The SCP copy shows simi-

lar characteristics as a migration process. When com-

pared to Figure 3(a) and 3(b), the round-trip times and

general pattern are similar. Outliers at the beginning

and an increase in average ping round-trip time can

be seen. Only the unanswered pings are not present,

as could be expected. This supports the need for a

hybrid approach.

We used the prototype to test VM live migration

detection in both testbeds. As expected, several early

detections using the ICMP ping approach occurred.

Using a high ping interval to detect unanswered pings

as well as time-lag detection we were able to detect a

migration in all of our simulations.

To sum up, the experiments produced the fol-

DetectingVMLiveMigrationusingaHybridExternalApproach

487

lowing interesting results: The ping measurement as

shown by (K¨onig and Steinmetz, 2011) have not only

characteristic patterns for the VM itself, but also for

the hypervisor servers. Not only a migration, but also

a copy process of a ﬁle, as performed with SCP, leaves

a characteristic trace, and so will other network activ-

ities. Only the unanswered pings are unique in com-

bination with the other two characteristics. If a high

monitoring interval is not possible, our approach can

detect a migration process after its execution.

8 CONCLUSIONS

In this paper, we presented the ﬁrst taxonomy of

VM live migration detection, showing different ap-

proaches that were categorized in two general groups.

Only the delay measurement approach allows a detec-

tion during the ﬁrst migration phase, i.e., during the

copying of memory. This is the only way to prevent

the migration process. Nevertheless, a detection after

migration has ﬁnished is also very valuable in order

to prevent further damage.

We proposed a hybrid external approach that com-

prises an ICMP ping detection and a time-lag detec-

tion using NTP. Our approach has been tested us-

ing a prototype on different testbed conﬁgurations to

show the suitability of our hybrid external detection

approach. This applies especially to the detection of

migrations when using a low monitoring interval and

having certainty in cases where ICMP ping character-

istics have another origin than a VM live migration.

Further issues have to be addressed in future work.

The mobile IP scenario has to be thoroughly tested

and attacker scenarios have to be evaluated against the

prototype. Especially, the speciﬁcs of different server

types, e.g., video servers or webshop servers, could

be used to create even more improved monitoring ap-

proaches. In speciﬁc terms, that means that mecha-

nisms providing a correct classiﬁcation for migration

cases and non-migration cases even while using low

monitoring intervals, are needed. In this ﬁeld, tests

with machine learning have been performed, but their

applicability is very restricted. Finally, experiments

in real cloud environments, e.g., Amazon EC2, have

to be conducted. In this paper, we focused on the

scenario of VM theft; however, the case of copying

VM data without actually migrating the original VM

leaves even less possibilities for detection. Therefore,

more advanced detection approaches which also ad-

dress this aspect must be developed.

REFERENCES

Akoush, S., Sohan, R., Rice, A., Moore, A., and Hopper,

A. (2010). Predicting the Performance of Virtual Ma-

chine Migration. In IEEE International Symposium

on Modeling, Analysis Simulation of Computer and

Telecommunication Systems (MASCOTS’10), pages

37–46.

Broomhead, T., Cremean, L., Ridoux, J., and Veitch, D.

(2010). Virtualize Everything but Time. In Proceed-

ings of the 9th Conference on Operating Systems De-

sign and Implementation (OSDI’10), pages 1–6.

Clark, C., Fraser, K., Hand, S., Hansen, J. G., Jul, E.,

Limpach, C., Pratt, I., and Warﬁeld, A. (2005). Live

Migration of Virtual Machines. In Proceedings of the

2nd Symposium on Networked Systems Design and

Implementation (NSDI’05), pages 273–286.

Ferrie, P. (2006). Attacks on Virtual Machine Emulators.

Symantec Security Response.

Gottron, C., Fiebig, S., K¨onig, A., Reinhardt, A., and Stein-

metz, R. (2012). Visualizing the Migration Process

of Virtual Machines. In Proceedings of the 12th Eu-

roview.

K¨onig, A. and Steinmetz, R. (2011). Detecting Migration

of Virtual Machines. In Proceedings of the 11th Eu-

roview.

Nirschl, J. (2011). Virtualized guest live migration proﬁl-

ing and detection. Graduate Theses and Dissertations.

Paper 12055.

Oberheide, J., Cooke, E., and Jahanian, F. (2008). Empir-

ical Exploitation of Live Virtual Machine Migration.

BlackHat DC convention.

Silvera, E., Sharaby, G., Lorenz, D., and Shapira, I. (2009).

IP Mobility to Support Live Migration of Virtual Ma-

chines Across Subnets. In Proceedings of SYSTOR

2009: The Israeli Experimental Systems Conference

(SYSTOR’09), pages 13:1–13:10.

Sonnek, J. and Chandra, A. (2009). Virtual Putty: Reshap-

ing the Physical Footprint of Virtual Machines. In

Proceedings of the 2009 conference on Hot topics in

cloud computing (HotCloud’09).

Tsai, H.-Y., Siebenhaar, M., Miede, A., Huang, Y., and

Steinmetz, R. (2012). Threat as a Service?: Virtu-

alization’s Impact on Cloud Security. IT Professional,

14(1):32–37.

Wang, W., Zhang, Y., Lin, B., Wu, X., and Miao, K.

(2010). Secured and Reliable VM Migration in Per-

sonal Cloud. In 2nd International Conference on

Computer Engineering and Technology (ICCET’10),

pages 705–709.

Xia, Y., Liu, Y., Chen, H., and Zang, B. (2012). Defend-

ing against VM Rollback Attack. In IEEE/IFIP 42nd

International Conference on Dependable Systems and

Networks Workshops (DSN-W’12), pages 1–5.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

488
