Verifying the Availability of Cloud Applications

Melanie Siebenhaar, Olga Wenge, Ronny Hans, Hasan Tercan and Ralf Steinmetz

Multimedia Communications Lab (KOM), Technische Universit

at Darmstadt, Darmstadt, Germany

Keywords:

Cloud Computing, Service Level Agreements, Veriﬁcation, Monitoring, Performance, Availability.

Abstract:

Cloud-based services provide a high level of ﬂexibility and eliminate large up-front IT investments by trading

capital expenditure for operational expenditure. However, performance, availability, and security still remain

dominant barriers when deciding whether to move to the cloud or not. Although cloud providers already try

to tackle these issues by offering SLAs and corresponding monitoring solutions, the ability of these solutions

to control the performance of cloud-based services is still considered as unsatisfactory by consumers. In

this paper, we present an approach for verifying availability guarantees from a consumer’s perspective, since

availability is one of the very few performance parameters that is considered in the SLAs of today’s cloud

providers. The aim of our research is to facilitate the veriﬁcation of performance guarantees independently

from a cloud provider, which will help to increase cloud service adoption in the future.

1 INTRODUCTION

Cloud computing promises to provide a high level of

ﬂexibility when using cloud-based services. Highly

conﬁgurable computing resources are provided on-

demand and with minimal management effort over the

Internet (Mell and Grance, 2011) similar to utilities

like electricity or water (Buyya et al., 2009). How-

ever, this also includes a shift of responsibility to the

cloud provider and thus, a loss of control for the cloud

consumer. In order for a cloud consumer to still main-

tain control, cloud providers typically offer so-called

service level agreements (SLAs). Basically, a service

level agreement represents a contract between a cloud

provider and a cloud consumer and speciﬁes certain

quality levels a cloud provider is willing to provide

(e.g., minimum values for performance parameters

such as availability ) and the penalties in case of vi-

olating the speciﬁed guarantees. However, this solu-

tion does not seem to be sufﬁcient. According to a

cloud market maturity study conducted by the Cloud

Security Alliance and ISACA in the second quarter of

2012, there is only a low degree of conﬁdence on con-

sumer side, that providers effectively monitor perfor-

mance against SLAs (CSA and ISACA, 2012). (Pa-

tel et al., 2009) also state that consumers may not

completely trust these measurements and that cloud

providers often put the burden of reporting SLA vio-

lations on their customers. Although cloud providers

often implement particular monitoring solutions and

provide some monitoring information to their cus-

tomers, these solutions cannot be perceived to pro-

vide a sufﬁcient and independent evidence base for

reliably detecting and documenting SLA violations

from a consumer’s perspective. When solely rely-

ing on provider-speciﬁc monitoring solutions, cloud

providers can modify some monitoring data or restrict

the provided information so that it becomes very hard

to prove SLA violations. This raises the question how

compliance with SLAs can be veriﬁed from a con-

sumer’s perspective. Such a solution not only requires

to obtain reliable data of a cloud-based service, but

also requires to provide a holistic view of the end-

to-end performance of a cloud-based service to con-

sumers.

In this paper, we present such an approach for ver-

ifying the availability of cloud applications from a

consumer’s perspective, since availability is one of the

very few performance parameters that are part of the

SLAs of today’s cloud providers. The remainder of

the paper is structured as follows. Section 2 discusses

related approaches to our work. Section 3 describes

the current SLA landscape, introduces some basic in-

formation about availability and presents a taxonomy

for downtimes of cloud applications. Section 4 de-

scribes our approach for availability veriﬁcation and

Section 5 presents the corresponding prototypical im-

plementation as well as some experimental results.

The paper closes with a conclusion and future direc-

tions in Section 6.

489

Siebenhaar M., Wenge O., Hans R., Tercan H. and Steinmetz R..

Verifying the Availability of Cloud Applications.

DOI: 10.5220/0004377604890494

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 489-494

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

Although several monitoring approaches in the ﬁeld

of cloud computing have been proposed so far, only

a few approaches exist which address the problem of

SLA veriﬁcation from a consumer’s perspective.

(Chazalet, 2010) presents a generic framework

that does not depend on a speciﬁc cloud service

model. However, the framework focuses either on

server-side or client-side monitoring.

In (Haberkorn and Trivedi, 2007), the authors

present a generic approach for monitoring high-

availability systems that consist of different compo-

nents. Again, no client-side monitoring is considered.

A performance model based on runtime moni-

toring data is suggested by (Shao and Wang, 2011).

Availability is calculated based on the number of suc-

cessful requests. Hence, a sufﬁcient number of re-

quests is required in order to obtain accurate results.

(Michlmayr et al., 2009) apply client-side and

server-side monitoring for SLA violation detection.

It is not clear, how the authors combine the results

from both monitors to determine the overall perfor-

mance. Again, availability is only calculated based

on the number of successful requests.

(Mastelic et al., 2012) present a generic approach

for monitoring application level metrics in resource-

shared cloud environments. Availability and client-

side monitoring are not part of their work.

In contrast, our approach allows to verify avail-

ability from a consumer’s perspective and to achieve

visibility of the entire cloud service delivery chain.

3 AVAILABILITY OF CLOUD

APPLICATIONS

3.1 SLA Landscape and Availability

In comparison to, e.g., Web services, cloud services

exhibit a higher complexity due to the three differ-

ent service models (Mell and Grance, 2011), software

as a service (SaaS), platform as a service (PaaS), and

infrastructure as a service (IaaS), and the fact that

cloud applications on the upper SaaS layer often com-

prise several different components. The complexity

further increases due to the utilization of virtualiza-

tion so that surrounding conditions may change in

the background without being noticed by consumers.

Unfortunately, current cloud SLAs do not completely

cover this new inherent complexity. There is often

a gap between lower-level monitoring data collected

by providers and higher-level guarantees provided to

consumers (CSCC, 2012). Hence, besides the de-

mand for more speciﬁc SLAs, also corresponding

means for monitoring higher-level metrics of cloud-

based services must be provided to consumers.

The paper at hand focuses on the availability of

cloud applications, since availability is business criti-

cal and one of the very few performance guarantees

that are currently offered by cloud providers (e.g.,

Elastic Compute Cloud (EC2) by (Amazon, 2008)).

In order to develop an availability monitoring ap-

proach, availability must be deﬁned in a cloud com-

puting context. (Jain, 1991) basically deﬁnes the

availability of a system as “the fraction of the time

the system is available to service users’ requests”.

He further states that it is often more reasonable to

use the mean uptime (MTTF), because small up-

time and downtime combinations may result in high-

availability values although the service cannot be de-

livered. Using MTTF and MTTR as the mean down-

time results in the following formula:

availability =

MT T F

MT T F +MT T R

(1)

Since errors on different layers or failures of compo-

nents can lead to downtimes of the cloud application,

different types of availability must be combined in or-

der to measure the overall availability. Hence, the rea-

sons for downtimes must be analyzed ﬁrst in order to

derive an appropriate deﬁnition.

3.2 Reasons for Downtimes

In order to successfully invoke a speciﬁc functional-

ity, in the following denoted as service, provided by a

cloud application, consumer’s require working IT sys-

tems on-premise and a proper network connectivity to

the cloud provider. Furthermore, due to the variety of

resources involved in service delivery, many reasons

for downtimes exist. In the following, we present a

taxonomy for downtimes of cloud applications from

a consumer’s perspective (Figure 1).

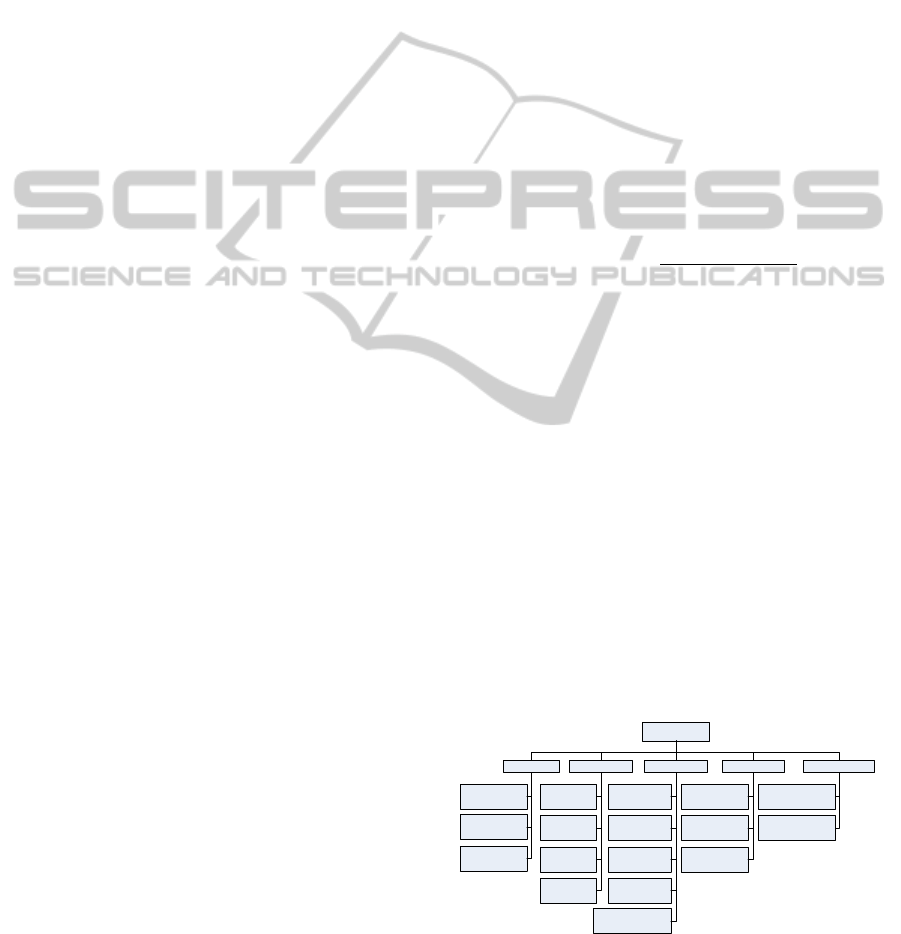

Location

Consumer-

Side

Provider-

Side

ISP-Side

Network

Software

Physical

Machine

Virtual

Machine

Failure

Overload

Outage

Migration

Maintenance

Planned

Unplanned

Attack

Downtime

Resource Incident Intent Significance

SLA Violation

No SLA

Violation

Figure 1: Taxonomy for downtimes of cloud applications.

First of all, downtimes can be distinguished accord-

ing to the location, where incidents happen. There-

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

490

fore, we describe their location according to the fol-

lowing spheres of control: consumer, Internet service

provider (ISP), and cloud provider. Furthermore, dif-

ferent types of resources can be responsible for caus-

ing downtimes due to several incidents. Hence, we

added the two categories resource and incident to our

taxonomy. Besides the actual downtimes, also their

pre- and postconditions must be taken into account in

order to determine if an SLA violation occurred.

Basically, downtimes can happen with or without

intent, and even with criminal intent when a system is

under attack. Depending on the negotiated terms, all

three types of intent can either be covered by SLAs

or not. For example, SLAs can specify a maximum

length of time for planned downtimes such as sched-

uled maintenance, unplanned downtimes can either

refer to failures of physical machines or to emergency

maintenance, and even attacks can happen due to neg-

ligence of consumers or due to an insufﬁcient amount

of implemented security mechanisms by providers.

Therefore, downtimes must always be considered in

conjunction with the negotiated SLAs. Moreover, our

solution must be able to attribute incidents to their

root cause, since cloud providers can only make guar-

antees with respect to their own IT systems.

4 A HYBRID APPROACH FOR

AVAILABILITY VERIFICATION

We will now elaborate on how to use the knowledge

about downtimes presented before in order to develop

an approach for verifying the availability of cloud

applications from a consumer’s perspective. In this

paper, we will focus on unplanned downtime only,

since planned downtimes will be usually announced

by cloud providers in advance and the detection of at-

tacks is not in the scope of our work. The next section

presents the requirements for such an approach.

4.1 Requirements

First of all, our approach should be able to detect

all relevant downtimes precisely without affecting the

overall performance and should be still applicable

when the number of users and components changes.

An SLA violation is considered to be relevant either

if the duration of a single downtime or the aggrega-

tion of several downtimes may exceed the threshold

deﬁned in the respective SLA. Furthermore, our solu-

tion should be able to compute the overall availability.

Finally, a trusted third party could generally provide

the components of our monitoring approach to con-

sumers in order to ensure reliability.

4.2 Design

Now, considering all the requirements stated above,

we propose a hybrid monitoring approach that com-

bines consumer- and cloud-side monitoring. In addi-

tion, we make use of a broker acting as a coordinating

entity that collects and aggregates all data (Figure 2).

cloud applications

VM 1

VM 2

Consumer-side

Monitor A

Consumer-side

Monitor B

App

VM Monitor

Cloud-side

Monitor

Broker

push to pull from

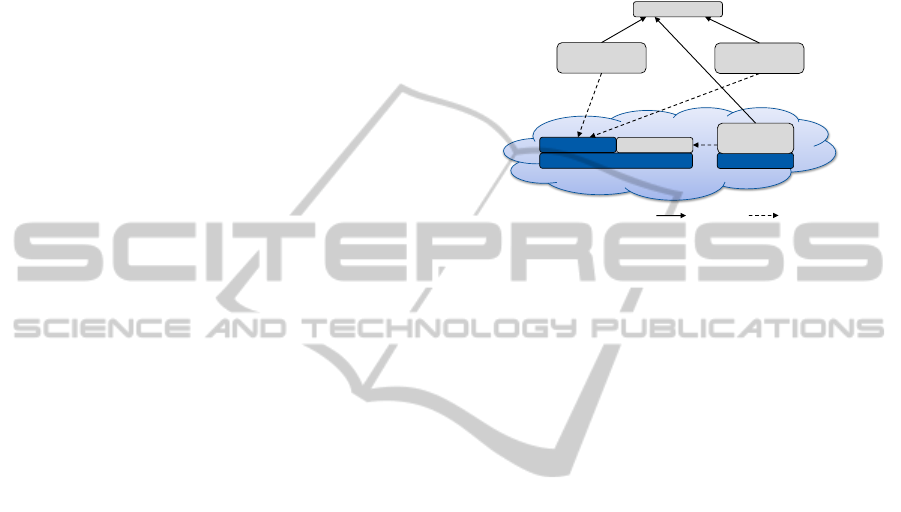

Figure 2: Overview of the monitoring framework.

Consumer-side Monitoring. The consumer-side

monitor invokes predeﬁned services (e.g., speciﬁed in

the SLAs) that are essential for the proper functioning

of a cloud application using a periodical pull model.

The monitoring frequency can be adapted to the

required resolution of an application’s availability.

We consider a cloud application to be unavailable if

one of the essential services fails (i.e., no/incorrect

response). In order to determine the overall avail-

ability, the consumer-side monitor communicates

with the broker using an event-based push approach.

Whenever a consumer-side monitor is started or

the start or the end of a downtime is detected, a

message is sent to the broker. Failures in the network

could also prevent consumers from detecting all

downtimes. Hence, we assume that an enterprise uses

two different monitors at different network domains.

Since a high monitoring frequency (e.g., in case of

many consumers) will affect system performance,

additional cloud-side monitoring must be considered.

Cloud-side Monitoring. For our approach we as-

sume that a consumer has access to the VM where a

cloud application is hosted. Since a monitor placed on

this VM 1 would not be able to report any downtimes

if the VM 1 crashes, we need an additional VM 2

within the provider’s data center in order to place our

cloud-side monitor. Nevertheless, we also require ac-

cess to the VM 1 in order to check the status of prede-

ﬁned processes that are essential for running the cloud

application. Therefore, a lightweight software com-

ponent (VM monitor) must be installed on the VM 1.

We apply a periodical pull model in order to invoke

the VM monitor from the cloud-side monitor and an

event-based push model to send data to the broker.

VerifyingtheAvailabilityofCloudApplications

491

4.3 Broker and Availability Calculation

The broker maintains a downtime list for each moni-

tor and periodically computes the overall availability.

For this purpose, the broker ﬁrst determines the over-

lap of the downtimes reported by both consumer-side

monitors in order to separate cloud application down-

times from network errors and afterwards, merges

the consolidated downtimes with the downtimes of

the cloud-side monitor. For the latter, we assume

that whenever two detected downtime intervals from

consumer- and cloud-side overlap, these downtime

intervals belong to the same outage. In this case,

the broker decides which downtime interval better

reﬂects the real downtime by evaluating the follow-

ing conditions. ∆

represents the difference between

the reciprocals of the monitoring frequencies (i.e.,

T = 1/ f ) of both monitors and d

and d

are the du-

rations of the downtime monitored at consumer- and

provider-side, respectively.

− d

)











> ∆

→ consumer-side monitor

= ∆

→ cloud-side monitor

< ∆

→ impossible

(2)

The conditions above result from the difference in

precision of both monitors. They express that when-

ever the difference between the durations is not

caused by the inaccuracy of the consumer-side mon-

itors (case 2), the downtime of some essential ser-

vices of the application must exceed the downtime

of the underlying processes monitored at cloud-side

(case 1). Finally, the broker obtains a list of down-

times and calculates the overall availability based on

the calculation proposed by (Haberkorn and Trivedi,

2007) as described in the following. For the calcula-

tion, we introduce a set of variables (Table 1).

Table 1: Variables for calculating the overall availability

total service time

aggregated downtime

aggregated uptime

n number of downtime intervals

m number of uptime intervals

,...,d

completed downtime intervals

,...,u

completed uptime intervals

The aggregated downtime D

and uptime U

of a

cloud application can then be calculated as follows:

∑

i=1

and U

= T

− D

(3)

Since U

varies depending on whether the overall

availability is calculated during a downtime or an up-

time (Figures 3 and 4), two different cases U

and U

must be distinguished (Haberkorn and Trivedi, 2007).

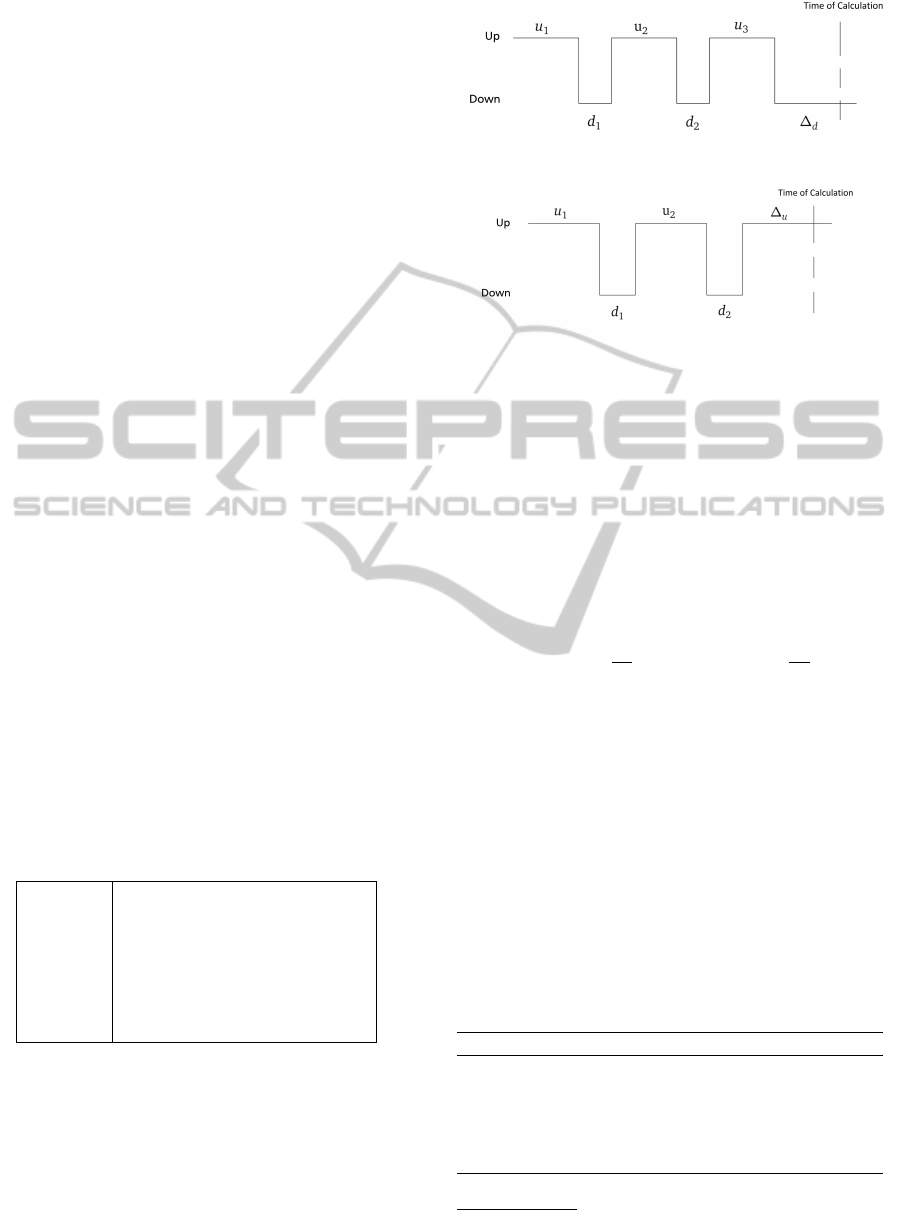

Figure 3: U

at downtime (Haberkorn and Trivedi, 2007).

Figure 4: U

at uptime (Haberkorn and Trivedi, 2007).

When calculating the availability during an uptime,

has to be calculated as follows:

= (T

− D

) + ∆

(4)

In contrast, when calculating the availability during a

downtime, U

can be determined as follows:

= (T

− D

) = (T

−

∑

i=1

− ∆

) (5)

Finally, the overall availability can be calculated using

Equation 1 (Haberkorn and Trivedi, 2007):

MT T F =

and MT T R =

(6)

5 EXPERIMENTS

Our approach has been prototypically implemented

using the (Kaltura, 2012) video platform, that we de-

ployed on a VM in our blade center. On this VM,

we also installed our VM monitor and on a second

VM, we deployed our cloud-side monitor. Further-

more, we placed consumer-side monitor A as well as

the broker on a local desktop computer and consumer-

side monitor B on a laptop. The technical speciﬁca-

tion is shown in Table 2.

Table 2: Technical setup of the implementation.

App Cloud Mon. Mon. A Mon. B

VM VM PC Laptop

CentOS 5

Win. 7 Win. 7 Win. 7

2×vCPU

2×vCPU 4×CPU 1×CPU

2.13 GHz 2.13 GHz 2.67 GHz 2 GHz

4 GB 2 GB 4 GB 4 GB

CentOS: free Linux based on Red Hat Enterprise

vCPU: virtual CPU assigned to a VM

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

492

We used Java as programming language to imple-

ment all components of our monitoring framework.

The communication between the different monitoring

components is realized by TCP/IP sockets, except for

the invocation of the cloud services provided by the

Kaltura cloud application. These service invocations

are based on REST and HTTP. For cloud-side moni-

toring, we used httpd, mysql, and memcached as es-

sential processes responsible for a proper Web server

functionality, database access, and memory caching.

On consumer-side, we used a small sample video ﬁle

that we uploaded to the Kaltura platform and that was

also stored locally at consumer-side. Based on this

sample video ﬁle, we periodically sent a ﬁrst request

to the Kaltura platform to retrieve the metadata of this

video ﬁle and a second request to download the video

ﬁle. In doing so, our solution veriﬁed the storage ac-

cess and transmission capabilities of the platform.

5.1 Setup

The experiments have been performed using monitor-

ing intervals of 3 minutes for the consumer-side mon-

itors and 5 seconds for the cloud-side monitor. Every

60 seconds, the broker calculates the overall availabil-

ity. The timeouts at consumer-side and cloud-side for

receiving responses are set to 15 seconds and 4 sec-

onds, respectively. In order to simulate outages of the

cloud application as well as network impairments, we

have used the wide area network emulator (WANem,

2011). In the ﬁrst two experiments, we have simu-

lated downtimes in order to evaluate the detection rate

of our framework and in the last experiment, we have

simulated network impairments in order to evaluate

the behaviour under real network conditions.

5.2 Short, Periodical Downtimes

In this experiment, we simulated short, periodical

downtimes over a period of 15 minutes with each

downtime and uptime lasting 20 seconds and 60 sec-

onds, respectively. We have repeated this experiment

for 5 times. While the cloud-monitor detected all 11

downtimes in each run, the consumer-side monitors

only detected 1.8 downtimes on average. The results

(Figure 5) show that our monitoring framework is ba-

sically able to detect all downtimes, but also point out

the lower precision of consumer-side monitoring.

All in all, our monitoring framework only achieved

a deviation of 0.826% from the real availability due

to the accurate cloud-side monitoring. However, the

next experiment will show that the cloud-side monitor

not always delivers reliable results, which emphasizes

the need for a hybrid approach.

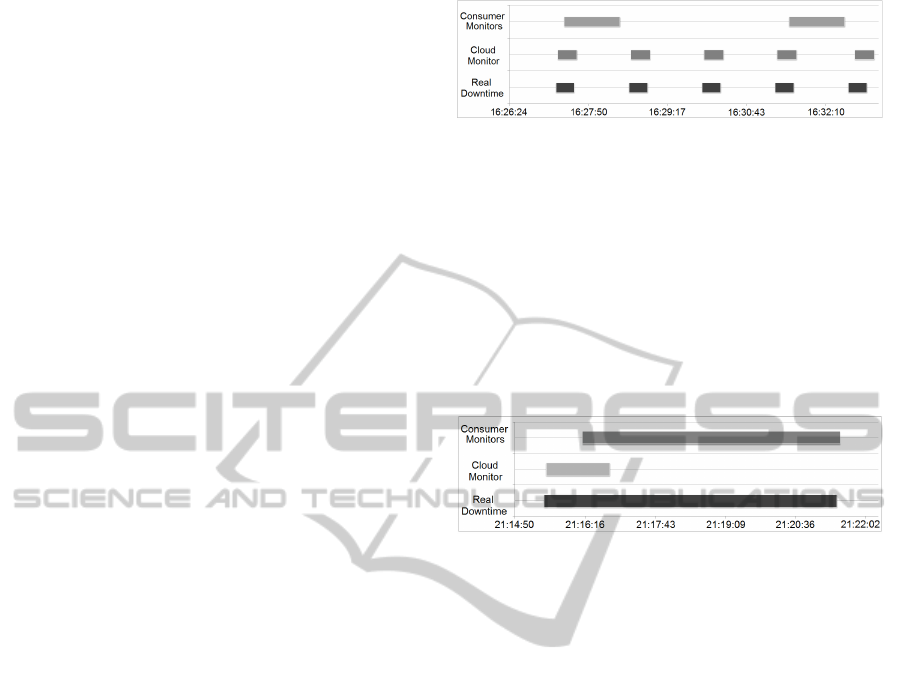

Figure 5: Difference in precision of both monitor types.

5.3 Higher Precision at Consumer-side

The second experiment simulates only a single down-

time of 6 minutes during a total service time of 11

minutes. Again, this experiment has been repeated for

5 times. From the perspective of the cloud-side mon-

itor, the failure of the cloud application is corrected

after 78 seconds on average during each run. Figure 6

shows that the consumer-side monitors show a higher

precision than the cloud-side monitor.

Figure 6: More precise detection by consumer monitor.

Although our framework chose the correct downtime,

i.e., the result from the consumer-side monitors in or-

der to calculate the availability, the resulting devia-

tion of 6.03% from the real value is quite high, so that

the monitoring intervals for consumer-side monitor-

ing should be further decreased.

5.4 Network Impairments

This experiment was conducted to evaluate our moni-

toring framework under different network conditions.

For this purpose, we applied WANem to induce sev-

eral impairments into the network. As a prerequisite

for our experiment, we deﬁned six different network

quality classes ranging from a network without any

impairments T

to a network T

1500

with a delay of

1500ms, 10% packet loss, and 10% corrupted pack-

ets. Different tests, each lasting 530 seconds and sim-

ulating a downtime of 130 seconds, were conducted

at each quality level. The impairments were induced

in all networks inside and outside the cloud. Although

the actual availability of 75.471% of the cloud appli-

cation did not change during the tests, Figure 7 shows

that the difference between the actual availability and

the monitored availability considerably decreases (to

56.63%) with an increasing amount of network im-

pairments. This experiment shows that our monitor-

ing approach is very sensitive to failures in the net-

work, which have to be addressed in future work.

VerifyingtheAvailabilityofCloudApplications

493

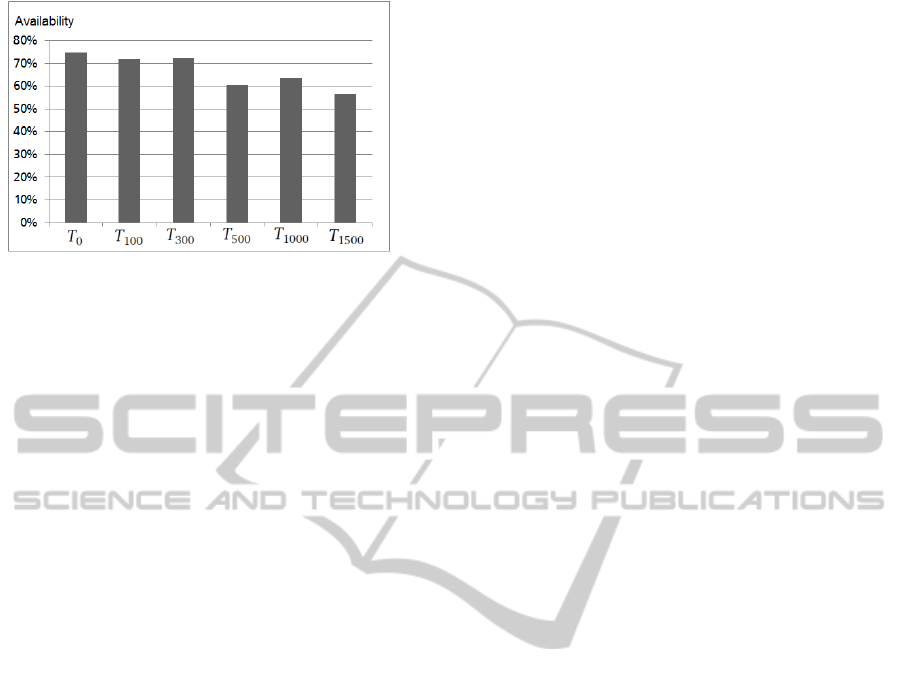

Figure 7: Precision decreases with network impairments.

6 CONCLUSIONS AND

OUTLOOK

In this paper, we introduced a taxonomy for down-

times of cloud applications and presented a hybrid

approach for verifying the availability of cloud appli-

cations from a consumer’s perspective. The approach

combines consumer- and cloud-side monitoring in or-

der to be able to attribute downtimes to their root

cause and to distinguish SLA violations from other

types of downtimes. Our framework periodically pro-

vides an updated overall availability to consumers.

The results of our experiments reveal that a hybrid ap-

proach is indeed required in order to allow for a pre-

cise calculation of the overall availability. However,

the experiments also reveal that in case of network im-

pairments, the detection accuracy decreases. Hence,

we will develop approaches to increase the robustness

of our monitoring framework in future work. Further-

more, we will conduct experiments in real cloud en-

vironments and we will explore how to determine an

appropriate ratio between the monitoring frequencies

on consumer- and cloud-side.

ACKNOWLEDGEMENTS

The work presented in this paper was partially funded

by the German Federal Ministry of Education and

Research (BMBF) under grant no. ”01|C10S05” in

the context of the Software-Cluster project SWINNG

(www.software-cluster.org). In addition, this work

is supported in part by E-Finance Lab Frankfurt am

Main e.V. (http://www.eﬁnancelab.com). The authors

assume responsibility for the content.

REFERENCES

Amazon (2008). Amazon EC2 Service Level Agreement.

http://aws.amazon.com/ec2-sla/, [last access: 3 De-

cember 2012].

Buyya, R., Yeo, C. S., Venugopal, S., Broberg, J., and

Brandic, I. (2009). Cloud Computing and Emerging

IT Platforms: Vision, Hype, and Reality for Deliver-

ing Computing as the 5th Utility. Future Generation

Computer Systems, 25(6):599–616.

Chazalet, A. (2010). Service Level Checking in the Cloud

Computing Context. In Proceedings of the 3rd IEEE

International Conference on Cloud Computing, pages

297–304.

CSA and ISACA (2012). Cloud Computing Market

Maturity. Study Results. Cloud Security Alliance and

ISACA. http://www.isaca.org/Knowledge-Center/

Research/Documents/2012-Cloud-Computing-Market-

Maturity-Study-Results.pdf, [last access: 28 Novem-

ber 2012].

CSCC (2012). Practical Guide to Cloud Service Level

Agreements. Cloud Standards Customer Coun-

cil. http://www.cloudstandardscustomercouncil.org/

04102012.htm, [last access: 30 November 2012].

Haberkorn, M. and Trivedi, K. (2007). Availability Moni-

tor for a Software Based System. In Proceedings of

the 10th IEEE High Assurance Systems Engineering

Symposium (HASE 2007), pages 321–328.

Jain, R. (1991). The Art of Computer Systems Performance

Analysis. Wiley.

Kaltura (2012). Kaltura Inc. http://corp.kaltura.com/, [last

access: 3 December 2012].

Mastelic, T., Emeakaroha, V. C., Maurer, M., and Brandic,

I. (2012). M4Cloud - Generic Application Level

Monitoring for Resource-shared Cloud Environments.

In Proceedings of the 2nd International Conference

on Cloud Computing and Services Science (CLOSER

2012), pages 522–532.

Mell, P. and Grance, T. (2011). The NIST Deﬁnition of

Cloud Computing. http://csrc.nist.gov/publications/

nistpubs/800-145/SP800-145.pdf, [Last access: 28

November 2012].

Michlmayr, A., Rosenberg, F., Leitner, P., and Dustdar,

S. (2009). Comprehensive QoS Monitoring of Web

Services and Event-Based SLA Violation Detection.

In Proceedings of the 4th International Workshop on

Middleware for Service Oriented Computing (MW-

SOC 2009), pages 1–6.

Patel, P., Ranabahu, A., and Sheth, A. (2009). Service Level

Agreement in Cloud Computing. Technical report,

Knoesis Center, Wright State University, USA.

Shao, J. and Wang, Q. (2011). A Performance Guaran-

tee Approach for Cloud Applications Based on Mon-

itoring. In Proceedings of the 35th Annual Com-

puter Software and Applications Conference Work-

shops (COMPSACW 2011), pages 25–30.

WANem (2011). The Wide Area Network Emulator. Perfor-

mance Engineering Research Centre, TATA Consul-

tancy Services. http://wanem.sourceforge.net/, [last

access: 5 December 2012].

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

494
