Automated Throughput Optimization of Cloud Services via

Model-driven Adaptation

Javier Troya, Javier Cubo, Jos

e Antonio Mart

ın, Ernesto Pimentel and Antonio Vallecillo

Department of Computer Science, University of M

alaga, M

alaga, Spain

Keywords:

Model-driven Engineering, DSVL, QoS Adaptation, Throughput Optimization, Cloud Service Provisioning.

Abstract:

Cloud computing promises easy access, low entry cost and elasticity. However, elastic service provisioning

is usually delivered via service replication, which must be supervised manually, hand-picking the services

to replicate and ensuring their proper load balance. Automated service provisioning, i.e., the function of

automatically scaling the services to cope up with their runtime demand, is a research challenge in cloud

computing. In this work, we include such scalability analysis early in its development cycle, right at the design

stage. We propose a model-driven approach where various QoS parameters can be simulated and analyzed

using the e-Motions tool. Additionally, the model is automatically transformed to ﬁt the given throughput

requirements by replicating the services which cause the bottleneck. In order to evaluate the proposal, we

present some initial experimental results run over the e-Motions tool.

1 INTRODUCTION

Cloud computing promises low entry cost and elastic

scalability. The service provider pays for the amount of

resources consumed by its services, and thus this elas-

ticity allows to have fewer or more service instances

(properly balanced) depending on the current demand.

However, elastic scalability is usually delivered by

easily replicating service instances, what must be su-

pervised manually (Expert Group Report, European

Commission, 2010). Automated service provision-

ing (Zhang et al., 2010) is a research challenge in

cloud computing.

In this ongoing work, we present an approach to

include the scalability analysis of our system early in

its development cycle, right at the design stage. Specif-

ically, we propose a model-driven approach where var-

ious Quality-of-Service (QoS) parameters can be sim-

ulated and analyzed using the e-Motions tool (Rivera

et al., 2009a; Troya et al., 2013). Additionally, the

model is automatically transformed to ﬁt the given

throughput requirements. This is done by analyzing

the services which pose the bottleneck of our system,

replicating them and balancing the load of the work-

ﬂow while minimizing their cost at the same time.

The main contributions of our approach are i) to in-

clude QoS requirements in the model of the cloud

system using a Domain-Speciﬁc Visual Language

(DSVL), ii) to be able to simulate their performance

at design time, and iii) to automatically devise replica-

tion strategies in order to fulﬁll the throughput require-

ments.

We illustrate our approach with a model of a work-

ﬂow which spans over several cloud services in 2. The

initial design of this choreography cannot handle the

tight throughput requirements. Instead, this is sim-

ulated and analyzed by the QoS observers placed in

the model. And, using the simulated values, model-

transformation rules are automatically applied to repli-

cate the least performing services, effectively adapt-

ing the system to ﬁnally fulﬁll the throughput require-

ments. In 3, we brieﬂy describe related work which

support our approach. We conclude this work with

some ﬁnal remarks in 4.

2 APPROACH

In this section, we present a Model-Driven Engineer-

ing (MDE) approach for the deﬁnition of a Domain-

Speciﬁc Visual Language (DSVL) to describe cloud

infrastructures. Such DSVL is able to model both func-

tional and non-functional properties. Furthermore, it

may self-adapt in terms of elastic scalability by repli-

cating service instances, in order to satisfy the desired

non-functional requirements.

356

Troya J., Cubo J., Antonio Martín J., Pimentel E. and Vallecillo A..

Automated Throughput Optimization of Cloud Services via Model-driven Adaptation.

DOI: 10.5220/0004381903560362

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODA-2013), pages 356-362

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

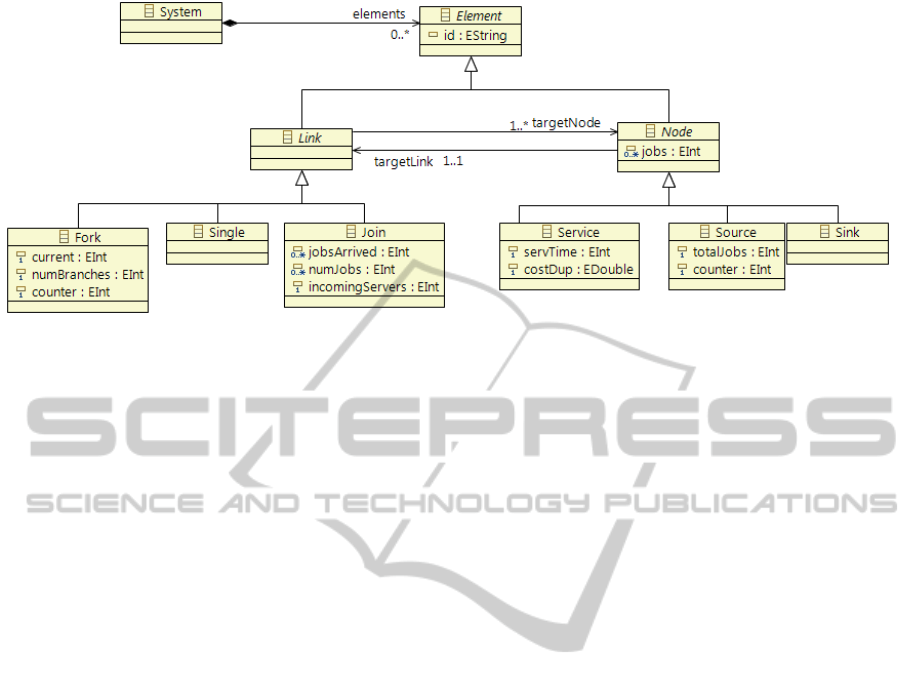

Figure 1: Metamodel of a cloud system.

2.1 Deﬁning Cloud Infrastructures with

DSVL

In MDE, any domain-speciﬁc language is deﬁned in

terms of its abstract and concrete syntaxes, and of its

semantics.

2.1.1 Abstract and Concrete Syntaxes

The abstract syntax describes the static structure and

it is deﬁned by means of the metamodel shown in 1.

A System is composed by a set of Elements, which

can be either Links or Nodes. The latter represent the

Services of the cloud systems, and also those entities

that start the data ﬂow (Source) and those where the

data eventually arrives or is consumed (Sink). Services

count the number of jobs they serve, and they have

information about their service time and the cost of the

service (which is also the cost of duplicating it). As for

Links, they can be of three types, Fork, Single and Join.

Fork links are used to split a job into many, Single links

transmit jobs between two Nodes, and Join links are

used to combine several jobs into a single one.

A model conforming to this metamodel is shown

in 2. It is the initial model used in the case study we

use to illustrate our approach. Our case study models a

geolocation, photographic service, where the input of

the system (the source src) provides a constant stream

of geolocalized pictures. These pictures are then sent

in parallel to services s1, which provides the map of

their location, and s2, which escalates the pictures to

an appropriate size and resolution. The resized pictures

are then processed by service s3 which applies some

image ﬁlters. The results coming from s1 and s3 are

ﬁnally combined and ready to be stored or delivered

by the sink (snk) of the system.

The concrete syntax chosen for our model can be

seen in 2. It consists of a visual icon assigned to every

non-abstract class. The objects with glasses represent

our observers, and they are used to record the non-

functional properties of the system. In order to be

able to introduce them in the models, they need to be

deﬁned. As the system, they are deﬁned by means of a

metamodel, the one shown in 3. Then, this metamodel

is merged together with the system metamodel, so

that observer objects can be included in the system

speciﬁcations.

An observer is an object whose purpose is to mon-

itor the state of the system: the state of the objects,

of the actions, or both. Observers, as any other ob-

jects, have a state and a well-deﬁned behavior. The

attributes of the observers capture their state, and are

used to store the variables that we want to monitor.

There are two types of observers: individual and gen-

eral. The former are used to monitor speciﬁc objects

in the system, while the latter are used to monitor prop-

erties of the system as a whole. In our case study,

individual observers are aimed at monitoring both the

percentage of the time that the monitored service is

busy (TimeBusyOb observer) and the evolution in the

cost of a service (CostOb observer), considering it

can be replicated. The general observers measure the

throughput of the system (ThroughputOb observer)

and control the logic that deals with the replication of

services in each iteration (ControllerOb observer).

2.1.2 Semantics

One way of specifying the dynamic behavior of a

DSVL is by describing the evolution of the modeled

artifacts along some time model. In MDE, this can be

done using model transformations supporting in-place

update (Czarnecki and Helsen, 2003). The behavior of

the DSVL is then speciﬁed in terms of the permitted ac-

tions, which are in turn modeled by the transformation

rules.

AutomatedThroughputOptimizationofCloudServicesviaModel-drivenAdaptation

357

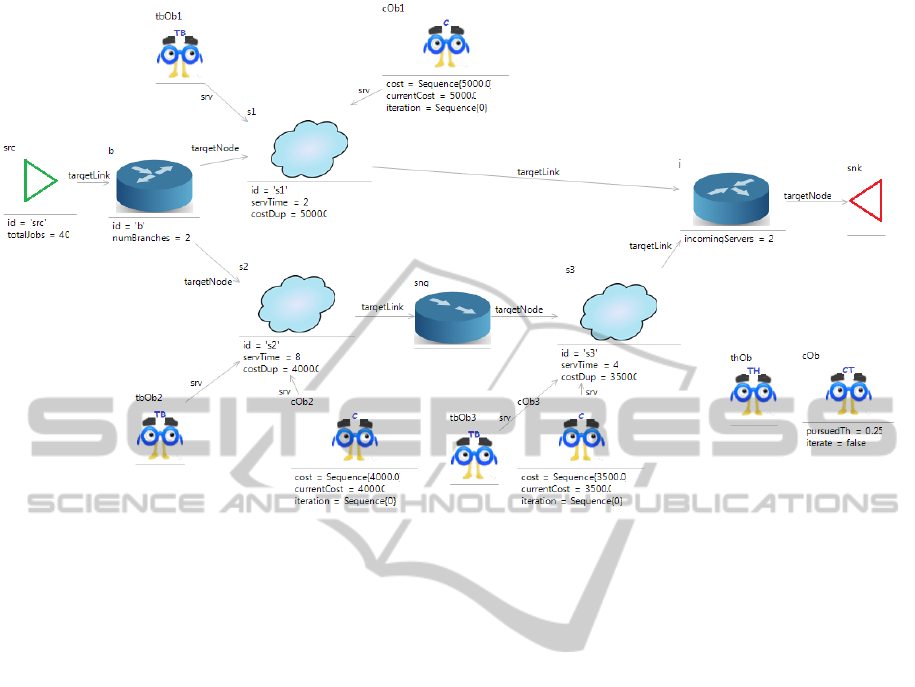

Figure 2: Initial model of our case study.

There are several approaches that propose in-place

model transformations to deal with the behavior of a

DSVL, from textual to graphical (see (Rivera et al.,

2008) for a brief survey). Our approach provides a very

intuitive way to specify behavioral semantics, close to

the language of the domain expert and the right level

of abstraction (de Lara and Vangheluwe, 2008).

In-place transformations are composed of a set

of rules, each of which represents a possible ac-

tion of the system. These rules are of the form

l : [NAC]

∗

× LHS → RHS

, where

is the rule’s label

(its name); and LHS (Left-Hand Side), RHS (Right-

Hand Side), and NAC (negative application conditions)

are model patterns that represent certain (sub-)states

of the system. The LHS and NAC patterns express the

precondition for the rule to be applied, whereas the

RHS one represents its postcondition, i.e., the effect of

the corresponding action. Thus, a rule can be applied,

i.e., triggered, if an occurrence (or match) of the LHS

is found in the model and none of its NAC patterns

occurs.

Generally, if several matches are found, one of

them is non-deterministically selected and applied, pro-

ducing a new model where the match is substituted by

the appropriate instantiation of its RHS pattern (the

rule’s realization). The model transformation proceeds

by applying the rules in a non-deterministic order, un-

til none is applicable — although this behavior can be

usually modiﬁed by some execution control mecha-

nism (Rivera et al., 2009c).

In (Rivera et al., 2009b), the authors showed how

time-related attributes can be added to rules to repre-

sent features like duration, periodicity, etc. Moreover,

they also included the explicit representation of action

executions, which describe actions currently execut-

ing.

There are two types of rules to specify time-

dependent behavior, namely, atomic and ongoing rules.

Atomic rules represent atomic actions, with a speciﬁc

duration. They can be cancelled, but cannot be inter-

rupted. Ongoing rules represent interruptible continu-

ous actions. Atomic rules can be periodic, and atomic

and ongoing rules can be scheduled, or be given an

execution interval, by the lower and upper bounds of

the rules.

A special kind of object, named Clock, represents

the current global time elapse. This allows designers

to use it in their timed rules.

The semantics of our system are speciﬁed by means

of a set of behavioral rules that model the permitted

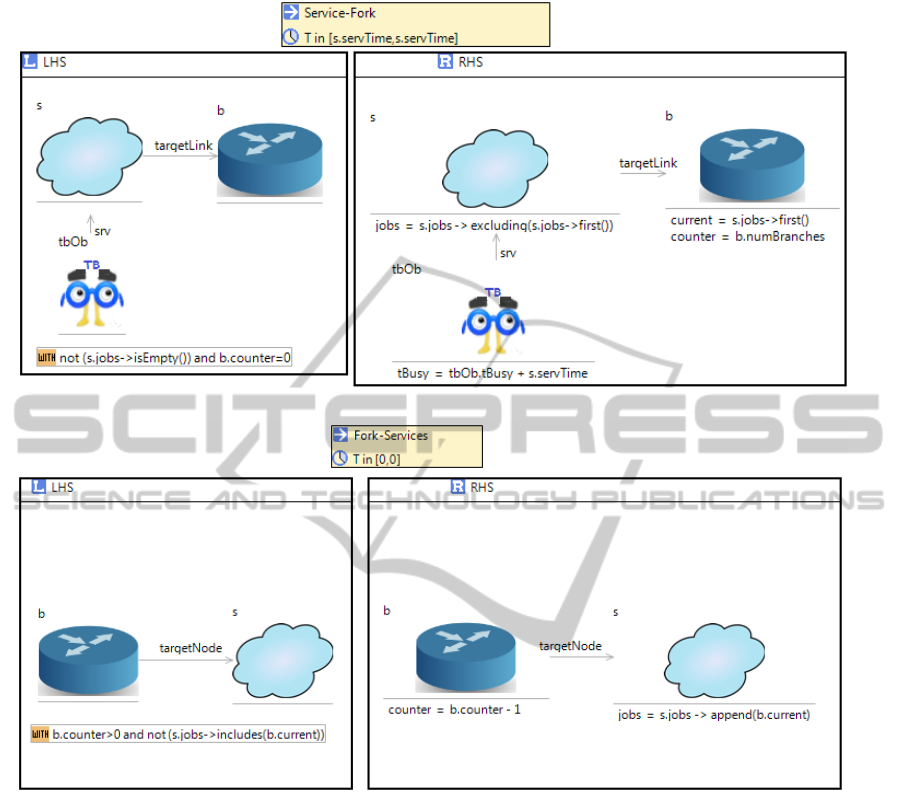

actions in the system. Examples of such rules are

shown in Figures 4(a) and 4(b), which model how a

job is sent from a service to many services through a

fork link. Two rules are used to model this.

In the ﬁrst rule, Service-Fork, the job is forwarded

from the service to the link connected to it. The con-

dition in the LHS, written in the Object Constraint

Language (OCL), checks that the service contains at

least a job and that the counter of the link is set to

. This counter attribute is used by the link to subse-

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

358

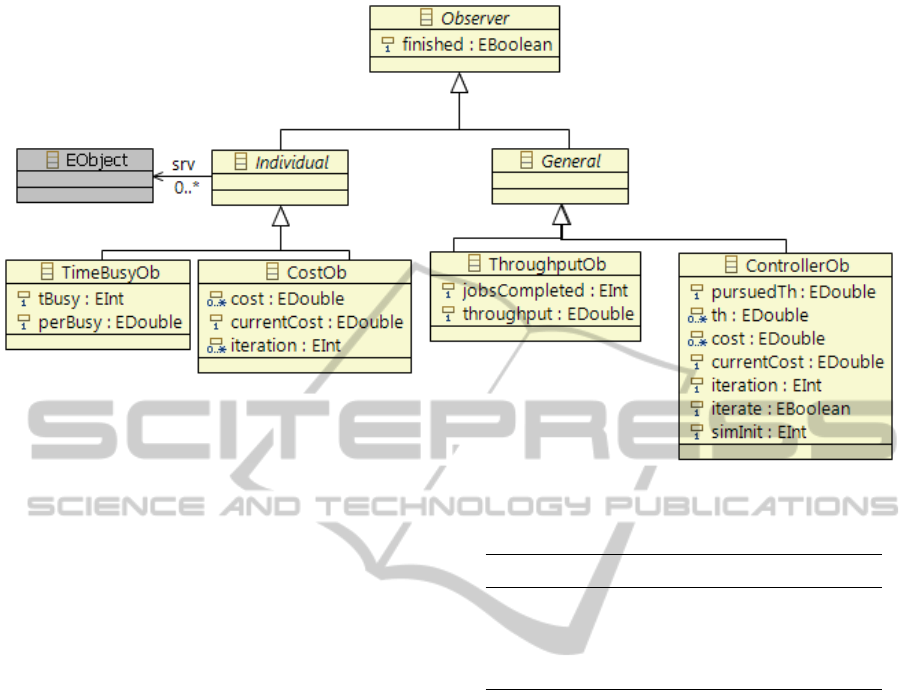

Figure 3: Observers metamodel.

quently send the job to all its outgoing services. In

the rule’s RHS, the job is removed from the service

and placed in the link, and the number of outgoing

services is given to the counter attribute of the link.

The TimeBusyOb observer associated to the service

is updated with the addition of the time consumed by

this rule, which is the service time of the service.

The other rule, Fork-Services, models the second

part of this process. The OCL condition in the LHS

checks that the job is not already within the service

doing the matching and that the link’s counter is bigger

than 0 (modeling that there are still services to which

the job must be sent). In the RHS, the counter value

is decreased and the job is added to the service’s jobs.

This rule is instantaneous (its duration is

), since it has

been added to model the logic of the fork links. Similar

rule have been deﬁned for single and join links. The

complete set of behavioral rules is shown in (Atenea,

2012).

2.2 Simulation and Model

Transformation

Once we have the cloud application modeled using

our DSVL, we are ready to perform simulations and

check how the system auto-scales in order to satisfy

a required level of throughput. Since the observers

are objects included in the system, we simply have to

check the value of their attributes after the simulation

in order to see the performance measures and how

the system has evolved and self-adapted. The whole

approach is implemented in the e-Motions tool (Rivera

Table 1: Evolution of the throughput and the system.

Iteration Throughput Service Cost

0 0.12 – 12500

1 0.24 s2 16500

2 0.24 s3 20000

3 0.48 s2 24000

et al., 2009a), which runs as an Eclipse plugin and

executes the model transformation rules by encoding

them as rewriting rules over Maude.

The auto-scaling criteria in our approach is intu-

itively explained as follows. If the observed through-

put is lower than the expected value, then the service

with the slower service time is duplicated. If there are

more than one service with the same service time, then

it duplicates the cheapest.

In our case study (see the model in 2), it was re-

quired a minimum throughput of

0.25

jobs per time

slot. Table 1 presents, for each iteration in our model,

the throughput and cost of the system, and the service

that was duplicated from the previous iteration. In

each iteration, a ﬁxed number (

in our case) of pack-

ets are sent from the source to the sink, after which

the QoS properties are calculated. If the throughput

constraint is not satisﬁed, the system auto-scales and a

new iteration is launched automatically.

We can see that the initial cost of the services was

12500

. The simulation of the original version of the

model (2) obtained a throughput of

0.12

. Then the

model is transformed so as to duplicate the number

of instances of the least performing service (service

AutomatedThroughputOptimizationofCloudServicesviaModel-drivenAdaptation

359

(a) Service-Fork rule

(b) Fork-Services rule

Figure 4: Rules for sending a job through a fork link.

s2) in iteration

. This increased the cost of the whole

system to a total of

16500

and the resulting through-

put increased to

0.24

. After iteration

, we have two

instances of service s2 and one of s3. Consequently,

the service time of both is now the same:

(recall

that the service time in service s1 is

, see 2, so it is

not considered for duplication). However, duplicating

service s3 is cheaper. For this reason, s3 is duplicated

after iteration

, so the cost of the system increases to

20000

, but the throughput remains as

0.24

. The reason

why this value remains the same is that services s2 and

s3 are connected in series. Thus, if one service is faster

than the other, a bottleneck is caused in the latter, and

viceversa. So, in order to avoid this local bottleneck,

both services should have the same service time. After

iteration

, the system automatically duplicates service

s2, achieving a ﬁnal throughput of

0.49

and with a

total cost of 24000.

3 RELATED WORK

In this section, we comment on related work in two

dimensions: (i) adaptation of QoS, and (ii) model-

driven simulation.

There are several efforts towards QoS adaptation of

cloud-based systems (Stantchev and Schr

opfer, 2009;

Cao et al., 2009; Calheiros et al., 2011). Speciﬁcally,

in (Stantchev and Schr

opfer, 2009) the authors propose

an approach to negotiate, monitor and enforce Service-

Level-Agreements (SLAs) when the infrastructure is

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

360

not owned by the controller of the system. Their work

is applicable to cloud and grid computing scenarios.

They promote the replication of services as an effective

way to boost performance and dependability, but they

achieve this via predeﬁned replication strategies. Our

approach, however, is able to generate such strategies

automatically based on a simulation of the system and

its performance.

OPTIMIS (Ana Juan Ferrer et al., 2012) is a holis-

tic approach which enables ﬂexible and dynamic pro-

visioning of cloud services, based on adaptive self-

preservation. This mechanism is a key to meet pre-

dicted and unforeseen changes in resource requirement.

This approach deserves further consideration once the

tools are delivered. Our work is less ambitious than

theirs but, nonetheless, our contribution towards the

simulation and analysis of various QoS parameters,

including automatic model transformation to ﬁt the

given throughput requirements, will complement other

solutions for elastic service provisioning.

As regards model-driven simulation efforts,

ARENA (Rockwell Automation, 2011) offers simi-

lar analysis tools where the model can be visually

simulated in a MDE fashion. However, they use their

proprietary notations and therefore it cannot be ex-

tended with its own DSVLs. Our approach, based in

e-Motions, supports the creation of new metamodels

and their domain-speciﬁc visual notation. Addition-

ally, we provide transformation rules which reﬁne the

model so as to fulﬁll the throughput requirements.

The observers used in our approach are reminiscent

of those used in the MARTE (OMG, 2008) speciﬁca-

tion. The advantage of including these observers into

a DSVL (as it is done in our approach) is that we

were able to i) make explicit the throughput require-

ments in the speciﬁcation, ii) simulate and reason over

the model, and iii) automatically transform the model

according to the information extracted via these ob-

servers. This is not possible with MARTE observers.

4 CONCLUSIONS AND

PERSPECTIVES

In this ongoing work, we have presented an approach

to tackle automatic service provisioning via service

replication and supported by a DSVL. We proposed to

include the scalability analysis at the design stage. Our

proposal is based on model-driven adaptation mecha-

nism, where various QoS parameters can be simulated

and analyzed using the e-Motions tool. Furthermore,

with the purpose of fulﬁlling the required throughput,

we have made the system to automatically transform

by replicating and load-balancing the services which

cause the bottleneck.

Our approach has been evaluated with a concrete

case study of cloud services. We obtained promising

results since the tool was able to automatically reﬁne

the initial models so as to ﬁt the throughput require-

ments.

As regards future work, we are moving on to ex-

plicitly include the concept of load-balancer in our

model, to analyze in detail its impact on the perfor-

mance of the system, and to ﬁnally implement the

resulting model and the transformation rules in the

clouds.

In addition, although our approach is to replicate

services as a mean to address service provisioning, we

perform the scalability analysis at the design stage, and

thus we do not address dynamic adaptation. However,

we plan to study and compare other strategies such as

adaptive self-preservation or dynamic reconﬁguration

of Virtual Machines.

ACKNOWLEDGEMENTS

This work has been partially supported by the projects

TIN2008-05932 (ReSCUE), TIN2008-031087,

TIN2011-23795 and TIN2012-35669 (SOFIA), all

funded by the Spanish Ministry of Science and

Innovation and FEDER, and the project P11-TIC-7659

funded by the Andalusian Government.

REFERENCES

Ana Juan Ferrer et al. (2012). Optimis: A holistic ap-

proach to cloud service provisioning. Future Gen-

eration Comp. Syst., 28(1):66–77.

Atenea (2012). Modeling of Cloud System Infrastruc-

tures. http://atenea.lcc.uma.es/index.php/Main Page/

Resources/E-motions/Cloud.

Calheiros, R., Ranjan, R., and Buyya, R. (2011). Virtual

machine provisioning based on analytical performance

and QoS in cloud computing environments. In Proc. of

ICPP, pages 295–304.

Cao, B.-Q., Li, B., and Xia, Q.-M. (2009). A service-oriented

qos-assured and multi-agent cloud computing architec-

ture. In Jaatun, M., Zhao, G., and Rong, C., editors,

Cloud Computing, volume 5931 of LNCS, pages 644–

649. Springer.

Czarnecki, K. and Helsen, S. (2003). Classiﬁcation of model

transformation approaches. In OOPSLA’03 Workshop

on Generative Techniques in the Context of MDA.

de Lara, J. and Vangheluwe, H. (2008). Translating model

simulators to analysis models. In Proc. of FASE 2008,

number 4961, pages 77–92. Springer.

Expert Group Report, European Commission (2010). The

future of cloud computing - opportunities for european

AutomatedThroughputOptimizationofCloudServicesviaModel-drivenAdaptation

361

cloud computing beyond 2010. http://cordis.europa.eu/

fp7/ict/ssai/docs/cloud-report-ﬁnal.pdf.

OMG (2008). A UML proﬁle for MARTE: Modeling and

analyzing real-time and embedded systems. Technical

report, OMG.

Rivera, J., Dur

an, F., and Vallecillo, A. (2009a). A graphi-

cal approach for modeling timedependent behavior of

DSLs. In In Proc. of VLHCC’09.

Rivera, J. E., Dur

an, F., and Vallecillo, A. (2009b). A graphi-

cal approach for modeling time-dependent behavior of

dsls. In Proc. of the IEEE Symposium on Visual Lan-

guages and Human-Centric Computing (VL/HCC’09),

Corvallis, Oregon (US). IEEE Computer Society.

Rivera, J. E., Guerra, E., de Lara, J., and Vallecillo, A. (2008).

Analyzing rule-based behavioral semantics of visual

modeling languages with Maude. In Proc. of SLE’08,

number 5452, pages 54–73, Tolouse, France. Springer.

Rivera, J. E., Vallecillo, A., and Dur

an, F. (To appear in

2009c). Formal speciﬁcation and analysis of domain

speciﬁc languages using Maude. Simulation: Trans-

actions of the Society for Modeling and Simulation

International.

Rockwell Automation (2011). Arena simulation software.

Available at: http://www.arenasimulation.com/ Last

checked: Dic. 2012.

Stantchev, V. and Schr

opfer, C. (2009). Negotiating and

enforcing qos and slas in grid and cloud computing.

In Proceedings of the 4th International Conference on

Advances in Grid and Pervasive Computing, GPC ’09,

pages 25–35, Berlin, Heidelberg. Springer-Verlag.

Troya, J., Vallecillo, A., Dur

an, F., and Zschaler, S. (2013).

Model-driven performance analysis of rule-based do-

main speciﬁc visual models. Information and Software

Technology, 55(1):88 – 110.

Zhang, Q., Cheng, L., and Boutaba, R. (2010). Cloud com-

puting: state-of-the-art and research challenges. Jour-

nal of Internet Services and Applications, 1:7–18.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

362
