Automatic Test Item Creation in Self-Regulated Learning

Evaluating Quality of Questions in a Latin American Experience

Gudrun Wesiak

, Rocael Hernández Rizzardini

, Hector Amado-Salvatierra

, Christian Guetl

1,3

and Mohammed Smadi

IICM, University of Technology, Graz, Austria

GES department, Galileo University, Guatemala, Guatemala

Curtin University, Perth, Western Australia, Australia

Keywords: Self-Regulated Learning, Automatic Test Item Generation, Evaluation Study, e-Assessment.

Abstract: The research area of self-regulated learning (SRL) has shown the importance of the learner’s role in their

cognitive and meta-cognitive strategies to self-regulate their learning. One fundamental step is to self-assess

the knowledge acquired, to identify key concepts, and review the understanding about them. In this paper,

we present an experimental setting in Guatemala, with students from several countries. The study provides

evaluation results from the use of an enhanced automatic question creation tool (EAQC) for a self-regulated

learning online environment. In addition to assessment quality, motivational and emotional aspects,

usability, and tasks value are addressed. The EAQC extracts concepts from a given text and automatically

creates different types of questions based on either the self-generated concepts or on concepts supplied by

the user. The findings show comparable quality of automatically and human generated concepts, while

questions created by a teacher were in part evaluated higher than computer-generated questions. Whereas

difficulty and terminology of questions were evaluated equally, teacher questions where considered to be

more relevant and more meaningful. Therefore, future improvements should especially focus on these

aspects of questions quality.

1 INTRODUCTION

Learners are increasingly faced with a huge amount

of knowledge and with new learning tasks that

require abilities to improve the organization of their

learning process. Therefore there is a shift from

learning controlled by the teacher to a process where

the students regulate themselves (Kroop et al.,

2012). There is a relevant amount of research effort

on student’s self-regulated learning (SRL) strategies,

mostly focused on highly controlled learning

environments such as intelligent systems for

tutoring, self-reflection, formative assessment and

feedback (Zimmerman, 1989; Bannert, 2006; Nicol

and Macfarlane-Dick, 2006; Conati and Vanlehn,

2000). Also there is a need to foster the students’

SRL skills when they are not able to predict the

output of a learning activity or the best learning path

in virtual learning environments. Good SRL skills

will help to adapt the learning process and improve

the learning outcome. Therefore providing tools for

continuous assessment and feedback is a key for the

learning process. In this sense, in their introduction

to assessment as a tool for learning Dochy and

McDowell (1997) already pointed out how

important assessment and evaluation are at all stages

of a learning process. For a deeper understanding of

a learning content reflection, feedback, learning path

and an integration of learning and assessment are

crucial elements. In SRL students often perform

individual online searches regarding some learning

topic and therefore their learning resources differ

from those of their peers. In general, learning

materials found in the web do not have integrated

assessment tools (such as quizzes or short

knowledge tests) and students are therefore not able

to get feedback on their understanding of the

materials. With an automatic question creation tool

for natural texts, learners receive a possibility to

generate their own little quizzes for any textual

learning resource found in the web - independent of

time, place, or the input of a teacher or tutor. Thus,

they can deepen their understanding and learn more

effectively by answering questions and obtaining

351

Wesiak G., Hernandez Rizzardini R., Amado-Salvatierra H., Guetl C. and Smadi M..

Automatic Test Item Creation in Self-Regulated Learning - Evaluating Quality of Questions in a Latin American Experience.

DOI: 10.5220/0004387803510360

In Proceedings of the 5th International Conference on Computer Supported Education (CSEDU-2013), pages 351-360

ISBN: 978-989-8565-53-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

feedback to their chosen learning context.

There has been extensive work on the idea of

automatic creation of assessment items. One key

component is the extraction and identification of the

most relevant concepts used in natural language

texts of the learning contents, still being a current

research focus (Villalon and Calvo, 2009). There are

a variety of experiences for automatically or semi-

automatically generated test items from a given

input text (e.g. Stanescu et al., 2008; Liu and Calvo,

2009). As an example, Liu and Calvo (2009)

provided a tool that is capable to generate open-

ended questions out of essays. Chen, Aist and

Mostow (2009) created a tool that generates also

open-ended questions but from informational texts.

According to Agarwal, Shah, and Mannem (2011)

the two main challenges in automatic test item

generation are (a) to identify a content for which an

item should be created and (b) to find a

corresponding test-item type. Most research in this

field deals with only one type of test item (mostly

open-ended or multiple choice) generated for one

specified content, e.g. a given sentence (Goto et al.

2010). Exceptions are for example Brown, Frishkoff,

and Eskenazi (2005), who generated multiple choice

and assignment items for vocabulary assessment or

Myller (2007), who used multiple choice, single-

choice, and open ended questions in his work on

prediction questions for visualizations. Guetl,

Lankmayr, Weinhofer, & Hoefler (2011) have

developed a tool which generates four types of

questions out of natural text.

In our proposed approach, a learning

environment scenario enables students to read a text,

then select key concepts from this text, and finally

get an automatic assessment that will help to

improve their understanding and knowledge

acquisition. The test items are either based on the

concepts selected by the student or on concepts

extracted by the tool itself. We used the EAQC by

Guetl et al., (2011) integrated in an online learning

environment (Intelligent Web Teacher, IWT, by

Capuno et al., 2009) to generate test items for two

different topics. EAQC has already been evaluated

with several quality criteria (Hoefler et al., 2011;

2012). However, previous studies were set up as

stand-alone experiences with undergraduate students

as participants and no direct involvement of the

teacher. To test the quality of the EAQC in a more

realistic, broader, and more discerning setting, this

study was carried out in Guatemala with participants

from different countries in Latin America. Students

were enrolled in a full online SRL course and are for

the most part teachers with different cultural

background. Furthermore, EAQC test items were

compared to items generated by participants’ actual

teacher. The main goal of the study was to evaluate

the quality of the concepts and questions generated

with the EAQC.

This paper is organized as follows: after a

description of the EAQC and IWT tools, the

research methodology including participants,

instruments used, and the experimental design, is

presented. The next section reports the results, which

are followed by a discussion and final conclusions.

2 THE ENHANCED AUTOMATIC

QUESTION CREATION TOOL

(EAQC)

The Enhanced Automatic Question Creator EAQC

(Guetl et al., 2011) is a tool that automatically

creates test items from textual learning material.

EAQC has the functionality to generate different

types of test items from textual input. The item types

supported by the EAQC are: open end (OE),

multiple choice (MC), true or false (TF), and fill-in-

the-blank (FiB) questions. EAQC processes the

textual input, which can come in a diversity of file

formats, then extracts the most important content

from the text provided and performs a relation of

concepts. EAQC creates the different test items and

also creates reference answers. The EAQC

architecture provides a flexible extension to multiple

languages, an important feature to test the tool with

international scenarios. Furthermore, the EAQC is

capable to export the test items in a standard

compliant format (e.g. IMS Question and Test

Interoperability QTI).

EAQC supports mainly the following scenarios:

First, a totally automatic question creation scenario

where students and teachers cannot control the

assessment authoring but they only select the

learning materials. Second a more interactive setting

where students and teachers can select not only the

learning material but also they can tag and select

concepts using an online editor. These concepts are

used for creating the questions, which finally results

in an assessment that has been created automatically,

but is based on users’ selection of relevant concepts.

The generation of questions in EAQC can be divided

into two processes. In a first step, the EAQC extracts

concepts out of the text, which can be viewed by the

user. In a second step, questions are generated based

on the extracted concepts. Therefore, the user can

choose which concepts are to be used for the

CSEDU2013-5thInternationalConferenceonComputerSupportedEducation

352

generation of questions, and which types of

questions are to be generated (e.g. two multiple

choice, three true/false questions, etc.). The

generated questions are presented as test to the user

and right after taking the test, students receive

feedback on their performance. Thereby, the EAQC

lists again all questions but this time with the answer

given by the student, the correct answer, and the

received points.

2.1 The e-Learning Platform (IWT)

The EAQC was used by the students within the

Intelligent Web Teacher (IWT) platform. IWT

provides flexibility and extensibility characteristics

for contents and services at a low level and for

strategies and models at a higher level (Capuano et

al., 2009). Furthermore, IWT platform provides easy

to adopt didactic experiences based on user

preferences for a personalized learning.

The EAQC was integrated into the IWT after

previous studies (Al-Smadi et al., 2011; Hoefler et

al., 2011; 2012) and further improved with two new

features. These features were the implementation of

a function for adding concepts and other function for

tagging concepts. To add new concepts in the tool,

the user open the list of concepts the EAQC

extracted from a text and then is chooses further

concepts from a list of words and phrases contained

in the text. Furthermore, the user can order the final

list by relevance and choose only the most relevant

concepts to generate questions. The function for

tagging concepts allows students to simply highlight

a concept within the text and then save it to their

concept list. Afterwards, they can generate questions

on the basis of their self-extracted concepts.

3 RESEARCH METHODOLOGY

3.1 Motivation and Goals

The main goals of this study were (a) to

systematically test the quality of concepts and

questions generated with EAQC by comparing them

to those generated by a real teacher (with course

material used in an actual learning setting), and (b)

to provide an automatic assessment tool that

motivates and supports students in a SRL

environment.

3.2 Participants

The experiment was carried out in the Institute Von

Neumann (IVN) of Galileo University, Guatemala.

IVN is an online higher education institute.

Thirty students enrolled in a course on “Learning

models and processes for e-Learning” participated in

the study. From these students, 27 were from

Guatemala, 2 from the United States, and 1 from

Colombia. The course is part of a complete online

learning Master degree program in “e-Learning

Management and Production”. The students are

university professors, consultants and instructors at

corporations.

Twelve students were male and 18 were female.

Participants were between 22 and 48 years with an

average of 36 years (SD = 10.45). Concerning the

highest level of education, 11 students finished their

Bachelor, 16 held a Master’s degree and 3 a PhD.

Participants’ native language was Spanish, but they

indicated (on 5pt.-rating scales) that they had good

writing (M = 3.57, SD = 0.84) and reading (M =

4.13, SD = 0.72) skills in English. Participants were

familiar with e-learning environments (M = 4.43, SD

= 0.63) and slightly preferred online-courses over

face-to-face courses (M = 3.57, SD = 0.94). Students

gave their consent to participate in the study by

filling out the first out of four questionnaires.

Due to their enrollment in the master degree

program, all students had already acquired basic

skills for online learning. The activities for this study

were introduced by the course professor (teacher) to

increase students’ motivation for fulfilling the

required tasks (Ko and Young, 2011).

3.3 Experimental Design

One main goal of the study was to test the generated

questions quality with a balanced design covering

the following aspects: The first factor concerns the

question type and comprises the three factor levels

multiple choice (MC), true or false (TF) and fill-in-

the-blank (FiB) questions. Open ended questions

were not included, because the automatic assessment

cannot account for different wordings. The second

factor refers to the creator of the concepts on which

the questions are based on and has two levels,

teacher and EAQC. Hence, the concept is either

extracted by the teacher or automatically by the

EAQC. The third independent variable refers to the

creator of the questions. As the question is either

generated by the teacher or by the EAQC, there are

also the two factor levels, teacher and EAQC. Thus,

the evaluation of the questions’ quality is based on a

3 x 2 x 2 design. All questions were presented for

two learning contexts, namely Problem-based

learning and Project-based learning.

AutomaticTestItemCreationinSelf-RegulatedLearning-EvaluatingQualityofQuestionsinaLatinAmerican

Experience

353

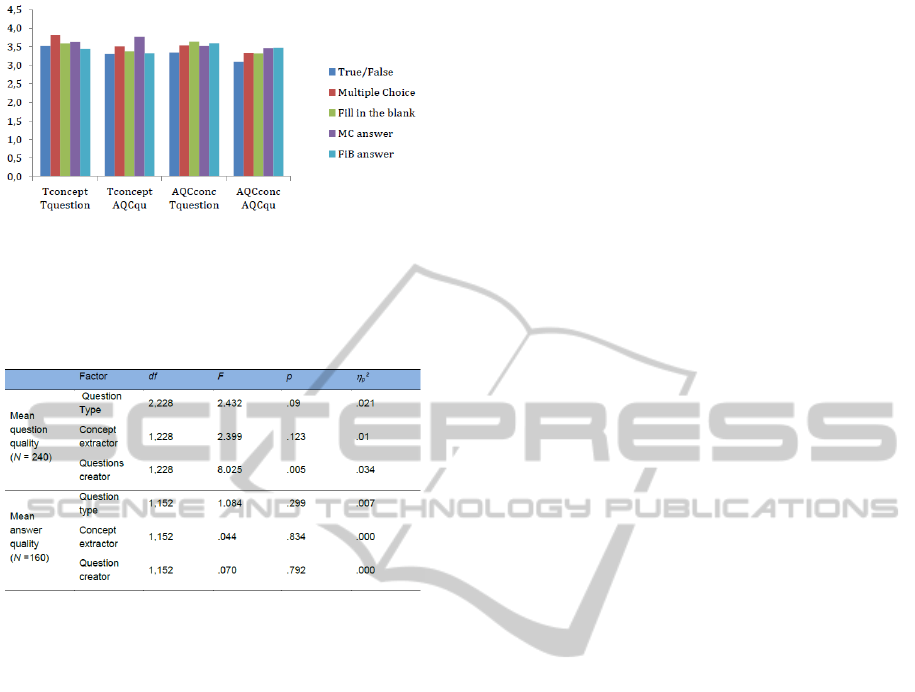

The dependent variables concern the quality and

difficulty of the questions and their respective

answers. The following evaluation criteria have

already been applied by Hoefler et al. (2012) and go

back to the work of Cannella et al. (2010). Quality

of questions is measured by the four aspects

pertinence, level, terminology, and difficulty.

Pertinence denotes the relevancy of a question with

respect to the topic. Level addresses whether a

question is trivial or expresses a significant meaning.

Terminology focuses on the appropriateness of the

words chosen and difficulty refers to the perceived

difficulty of a question. Quality of answers is

measured for FiB and MC questions by means of the

aspects terminology of the correct answer, ambiguity

of the answer, and for MC questions also by the

quality of the given distracters. For both, question

and answer quality mean scores were calculated

from the 4 respectively 2 (or 3) single aspects. All

aspects were evaluated by the participants on 5-pt.

rating scales with 1 indicating a low quality and 5

indicating a high quality (except for ambiguity,

where 5 indicates high ambiguity and therefore low

answer quality). According to the experimental

design, we calculated a multivariate ANOVA with

three factors.

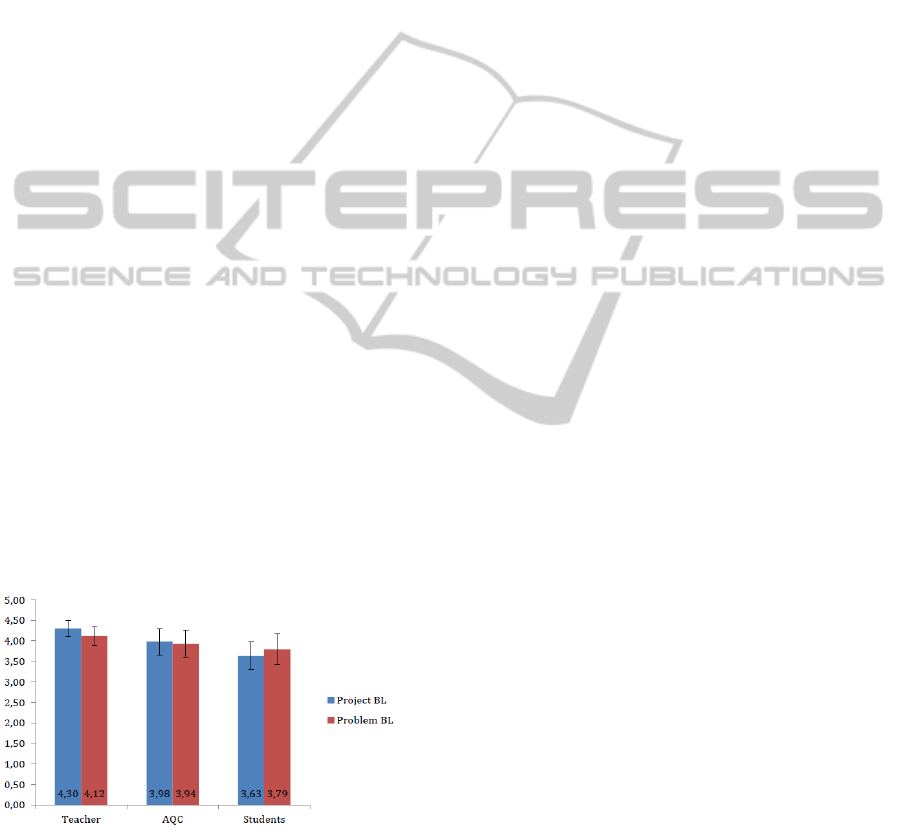

Regarding the concepts extracted from the two

learning contexts, we differentiated between teacher,

EAQC, and student concepts. To evaluate the quality

of these concepts participants rated their relevancy

on a 5pt. rating scale.

3.4 Research Instruments

and Procedure

During the self-regulated learning experiment,

participants had to read two texts, extract concepts

from these texts, take knowledge tests, and fill out

four questionnaires. The questionnaires which were

presented via Lime Survey, an open source survey

application tool (see http://www.limesurvey.org/). It

took five weeks to carry out the entire study starting

with the selection of learning material until the

presentation of the last questionnaire.

The two texts were provided by the teacher of

the course and concerned the topics “Problem-based

learning” and “Project-based learning”. They had

1307 and 1002 words respectively and dealt with

basic knowledge (definition, history, theoretical

foundations, etc.) on the two topics.

The experiment consisted of four phases (Phases

1 – 4). The first phase took place before the students

started working on IWT. In this pre-phase students

were asked to fill in a pre-questionnaire (Q1), which

covered the following sections: demographic data,

previous knowledge regarding e-learning, general

questions about learning preferences, evaluation of

question types, and students’ English skills.

Furthermore, in Phase 1 the two learning resources

were selected by the teacher. For both texts the

EAQC and the teacher extracted 10 concepts each

and put them in an order of relevance. For each

topic, the extracted concepts were collected in an

evaluation questionnaire (Q2), which was given to

the students in Phase 2 in order to evaluate the

concepts’ relevancy. In the case of equivalent

concepts, the next one in the order of relevancy was

chosen. The 20 concepts in each questionnaire were

randomized, i.e. students did not know which

concepts were extracted by the EAQC and which

ones by the teacher. Hence, we could check whether

the quality of the EAQC concepts is as good as the

quality of the teacher’s concepts.

For the second phase students were assigned to

two groups (Group 1 and Group 2). First, each group

was asked to read one learning resource presented

via IWT. Group 1 read the text on Problem-based

learning, Group 2 the text on Project-based learning.

Second, the students, in this phase, had to extract at

least 6 concepts from the text by tagging and

highlighting keywords. Additionally they were

asked to put their concepts in an order of relevance.

At the end of Phase 2 students answered the

evaluation questionnaire Q2 with the teacher and

EAQC concepts concerning the learning resource

they had just read before.

In the third phase of the study questions based on

the 20 concepts extracted in Phase 1 were generated

by the teacher and the EAQC as follows: For each

learning resource, the teacher was asked to generate

one question for each of the six most relevant

concepts extracted and ordered by herself and by the

EAQC, four teachers’ and EAQC concepts were

discarded. The only constraint was to use each

questions type (MC, TF, FiB) twice for the teacher

as well as for the EAQC concepts. Thereafter, the

EAQC questions were generated for the same 12

concepts under consideration of the question type

chosen by the teacher. Thus, we obtained two

parallel questions for each concept. This approach

was taken to make sure that for each concept a

suitable question type was chosen and to ensure a

fair comparison of teacher and EAQC questions.

Summarized, for each learning resource, 24

questions (12 teacher / 12 EAQC questions) based

on 12 concepts (6 teacher / 6 EAQC concepts) were

generated. This resulted in four different variants of

questions: teacher questions based on teacher

CSEDU2013-5thInternationalConferenceonComputerSupportedEducation

354

concepts, teacher questions based on EAQC

concepts, EAQC questions based on teacher

concepts, and EAQC questions based on EAQC

concepts. Combining the four question variants with

the three types (MC, TF, FiB) yielded 12 different

sorts of questions. From these questions the

evaluation sections of Q3 and the knowledge tests

for Phase 4 were constructed. For each topic, two

parallel test forms were created and students were

assigned to 4 groups (Group A, B, C and D).

Students from Group 1 were assigned to Groups A

and B, Group 2 was divided into Group C and D.

Each pair of groups received parallel test and

evaluation forms. Group A for example received a

teacher question based on the first concept and an

EAQC question based on the second, whereas Group

B received those backwards, and so on.

Phase 4 was the second unit with students

working in the IWT. First, students learned the text

on IWT, which they had read in Phase 2. Second,

they were asked to extract six concepts as in Phase 2

in order to compare consistency of the extracted

concepts. Then, the students should generate “on-

the-fly” questions from the EAQC based on their

self-extracted concepts. After that, students received

the knowledge tests created in Phase 3 about the

text, they had just learned before. Groups A and B

received the parallel tests on Problem-based

learning, and Groups C and D the tests on Project-

based learning.

After this, the students switched topics and read

through the other learning resource. Groups A and B

read the text on Project-based learning, and Groups

C and D the one on Problem-based learning. Then,

the students received Q3, in which they were asked

to evaluate (a) the tool’s usability, (b) the 10 most

frequent student concepts extracted by their peers in

Phase 2, and (c) the 12 questions generated by the

teacher and the EAQC. Groups A and B evaluated

the concepts and questions regarding the text

Project-based learning, Groups C and D the concepts

and questions related to Problem-based learning.

Thus, Groups A and B evaluated the concepts

extracted by students which were in Group C or D

and the questions which Groups C and D had

received in their knowledge tests and vice versa.

Finally, after students had finished their tasks in

Phase 4, a post-questionnaire (Q4) was sent out

concerning their motivation during the study. It

contained the subscale “Task Value” from the

MSLQ by Pintrich et al. (1991). This scale measures

students’ perception of the course material in terms

of interest, importance, and utility. High task value

should lead to more involvement in one’s learning

outcome and Pintrich et al. (1991) found a high

correlation between task value and intrinsic goal

orientation (r = .68). More specifically, students

have to indicate their (dis)agreement to six questions

regarding the task value. Furthermore, Q4 contained

questions regarding students’ motivation to do the

different tasks involved in the study, e.g. reading the

texts, extracting concepts, or working with the IWT.

Answers were given on a 5pt. rating scale ranging

from (1) not motivated at all to (5) very motivated.

Additionally, a post-questionnaire for the teacher

was provided, which included questions on the

usability of IWT, emotional aspects, and some open

questions. We used the SUS (System Usability

Scale) by Brooke (1996) in order to investigate the

tool’s usability. For the emotional status of the

participant we added a scale (Computer Emotion

Scale) by Kay and Loverock (2008) developed to

measure emotions related to learning new computer

software, describing four emotions: Happiness,

Sadness, Anxiety and Anger.

4 RESULTS

From the 30 participants filling out the pre-

questionnaire (Q1), 25 took part in Phase 2, in which

they evaluated the relevancy of 20 concepts

extracted by the teacher and EAQC. In Phase 4, we

collected data from 20 participants, who all

evaluated 10 student concepts and the 12 questions

created by the teacher and EAQC. The knowledge

tests which also contained the EAQC and teacher

questions were taken by only 13 students. The data

of one student was not included in the analysis

below, because she called and saved the test, but did

not answer a single question. Thus, for each of the

two topics, six students took the prepared knowledge

test. Furthermore, four students took an on-the-fly

test with a total of 21 generated questions (seven for

each question type).

The two texts were not chosen by the

experimenters, but by the teacher of the course

herself. Independent samples t-tests performed for

concept relevancy (RelConc), mean question quality

(QualQu), and mean answer quality (QualAns)

yielded no differences between the two topics

Problem-based and Project-based learning

(RelConc:

t(68)=.155, p=.877; QualQu:t(238)=.715,

p=.475; QualAns:

t(158)=.243, p=.808). Thus, for the

following statistical analysis the data were

aggregated across the two topics.

AutomaticTestItemCreationinSelf-RegulatedLearning-EvaluatingQualityofQuestionsinaLatinAmerican

Experience

355

4.1 Relevancy of Extracted Concepts

One important requirement for the generation of

high quality questions is the extraction of relevant

concepts within a given context. Thus, in Phase 2 of

the experiment (see Section 3.4) the 10 most

relevant concepts extracted by teacher and EAQC

were given to the students to be evaluated (Q2).

Additionally, 10 concepts extracted by the students

in Phase 1 were presented to the other half of

students in Phase 4 (Q3) and also evaluated with

regard to relevancy. Thus for the comparison of

EAQC and teacher concepts paired samples are

available, whereas comparisons with student

concepts involve independent samples. Figure 1

shows the average ratings for the three concept types

for each topic. Across the topics mean ratings,

teacher concepts, from 25 (for teacher and EAQC

concepts) and 20 (for students) had the best rating

over 4.12 (SD = .44).

A one-way ANOVA for the three concept

extractors showed a significant effect (F

(2,67) = 3.66,

p = .031). Post-hoc tests after Scheffé’s method

revealed a difference between teacher and student

concepts (p = .032) but not between EAQC and

teacher or student concepts (p = .353 and .42

respectively). Since teacher and EAQC concept

evaluations are based on the same sample, we also

performed a repeated measures t-test for a stricter

comparison of these ratings; however, with t

(24) = 2.0

and p = .057 EAQC concepts do still not differ

significantly from the concepts extracted by the

teacher. Thus, it can be stated that concepts

extracted from the EAQC are as relevant as concepts

extracted by humans.

Figure 1: Relevancy ratings for concepts extracted by

EAQC, teacher, and students.

4.2 Quality of Questions

To evaluate the quality of questions 3x2x2

MANOVAs were performed by aggregating the data

from both topics (Problem-based and Project-based

learning).

With 20 students performing the evaluation and

12 questions per student, 240 answers were collected

for each criterion. These are divided equally over the

question types (80 data points for TF, MC and Fib

questions each), concept extractors (120 from

teacher and EAQC each), as well as question

creators (also 120 from teacher and EAQC each).

The evaluation metrics consisted of four

measures for the quality of the questions themselves

(pertinence, level, terminology, and difficulty) and

two and three measures for the quality of the

answers of FiB and MC questions (terminology of

answer and ambiguity of answer for both, plus

quality of distractors for MC). Since TF questions

are not included in this analysis, the number of data

points for answer quality decreases to 160 (80 for

distractor quality). Figure 2 shows the mean ratings

for question and answers quality per question variant

(concept extractor x question creator) and question

type (TF, MC, FiB). Because of the different

numbers of questions types (TF, MC, Fib) involved,

we performed two 3x2x2 ANOVAS for mean

questions and mean answer quality.

The results are summarized in Table 1. Whereas

none of the three factors had an effect on mean

answer quality, we found one significant effect on

mean question quality. More specifically, with

Mteacher= 3.57 and MAQC = 3.32 (SE = .063)

questions created by the teacher were evaluated

significantly higher, than those created by the

EAQC. However, with a partial eta

² value of .034

the effect size is rather small. Interactions are also

non-significant. To investigate, in which aspect the

questions differ, we had a closer look at the different

aspects contributing to question (and answer)

quality.

A three-way MANOVA including the four

aspects of question quality yielded the expected

effect of question creator for the multivariate results

(4,225) = 2.51, p = .043, 

²=.043) and no other

main effects or interactions. Univariate results

showed that the effect is due to higher evaluations of

teacher questions’ pertinence and level. For

pertinence teachers questions reached a mean rating

of M = 3.95 as compared to M = 3.58 for EAQC

questions with SE = .092 (F

(1,228) = 7.82, p = .006,



² = .033).

CSEDU2013-5thInternationalConferenceonComputerSupportedEducation

356

Figure 2: Mean rating for question and answer quality of

T/F, MC, and FiB question (Tconcept = concept extracted

by teacher, EAQCqu = question created by EAQC, etc.).

Table 1: Effects from three-way ANOVAS on mean

question and answer quality.

Ratings for level imply that teacher questions are

more meaningful (M = 3.62) than EAQC questions

(M = 3.27, SE = .096), with F

(1,228) = 6.56, p = .011,



² = .028. However, for both aspects the effects are

only small in size. Ratings for questions’

terminology and perceived difficulty did not differ

significantly, and there were no significant

interactions among the three factors.

With respect to the quality of answers, a closer

look at the three aspects revealed no significant

effects and no interactions for the multivariate

results of the performed MANOVA (for MC and

FiB questions), for the aspect terminology of the

answer, and for the quality of distracters (ANOVA

for only MC questions). However, we did find an

effect of question type on the ambiguity of answers.

With M = 2.35 (SD = 1.17) for MC and M = 2.8 (SD

= 1.26) for FiB questions, participants evaluated

answers of the latter question type to be more

ambiguous.

The results presented in this section clearly show

that the answers to the questions provided from the

tool are relevant. Moreover, participants evaluated

the quality of answers generated by the EAQC as

equally high as the quality of answers generated by

the teacher. By using teacher concepts for half of the

questions created by the EAQC, we could also show

that the tool is able to generate questions from

concepts entered by users. Regarding the question

whether all types of questions generated from the

tool are as high in quality as questions generated by

humans, the answer is two-fold. Whereas the quality

of answers, the terminology, and the perceived

difficulty of EAQC questions are evaluated equally

high as those of teacher questions, the level and

pertinence of questions received lower ratings. Thus,

teacher questions seem to be less trivial and address

the topic in a more meaningful way.

4.3 Difficulty of Questions

To further investigate if all types of questions

generated from the tool are as high in quality as

questions generated by humans, we also collected

data concerning the real difficulty of questions.

Therefore, the same questions which were presented

for evaluation were also prepared as knowledge test

and uploaded to the courses in the IWT. To avoid an

influence of the evaluation process on the test taking

or vice versa, each test was given to half of the

students as test and to the other half for evaluation

purposes. Whereas 20 students did the evaluation of

questions only 13 took the knowledge test. Data of

12 students who each answered 12 questions could

be analysed. All together 45.83% of the questions

were answered correctly, which equals 66 out of 144

questions. Table 2 gives an overview on how many

items per questions variant have been answered

correctly. Since there is no difference between the

topics Problem-based and Project-based learning (32

vs. 34 correct responses), the data are aggregated

across the two topics. We calculated ² tests to

compare the frequencies for questions that (a) are

based on EAQC vs. Teacher concepts, (b) are

generated by EAQC or teacher, and (c) are designed

as either TF, MC, or FiB question. Except for the

question type, the critical ² values exceeded the

empirical ones. With ² = 22.46, the differences

between the three question types are statistical

significant, which can clearly be attributed to the

very low solution rate for fill-in-the blank questions

(8% correct solutions compared to 69% for MC and

60% for TF).

To investigate the relationship between

perceived difficulty of actual difficulty, we

correlated the mean ratings and number of correctly

solved items per questions variant (i.e. for 12

different item types, as e.g. TF with teacher concept

and teacher questions or MC with EAQC concept

and teacher questions, etc.). The resulting correlation

of r

(12)

= -0.71 (p = .009) indicates that questions

which are perceived as more difficult are also solved

AutomaticTestItemCreationinSelf-RegulatedLearning-EvaluatingQualityofQuestionsinaLatinAmerican

Experience

357

by less participants.

We also looked at the difficulty of the on-the-fly

questions. From seven questions per type, five TF,

six MC and 1 FiB have been answered correctly,

which is in line with the findings reported above

(high difficulty of FiB, no difference between TF

and MC).

Table 2: Number of correctly answered questions per

question type.

4.4 Usability of the EAQC Integrated

in IWT

The basis for the validity of usability measures is the

time participants spent in the system. Log data show

that students accessed the IWT on average 3.31

times (SD = .72, MIN = 1, MAX = 7) and spent M =

103.78 min (SD = 89.3) within the system. The

teacher (and her assistant) spent together 39 hours

28 minutes in the IWT, accessing it 102 times.

To evaluate the usability of the integrated

EAQC, the SUS scale (see Section 3.4) was

presented to students as well as the teacher.

Students’ mean SUS scores amount to 57.59 (SD =

16.99) with a rather large range from 23.75 up to

87.5. The SUS score provided by the teacher was

48.13. Thus students perceived the usability of the

EAQC integrated in the IWT very differently, but on

average higher than the teacher. However, both

student and teacher scores are below the average of

68, which is the reference value suggested by

Brooke (1996). Despite the low SUS score and the

great amount of time the teacher spent in the IWT,

ratings from the Computer Emotion Scale (see

Section 3.4) show very positive emotions while

working with the system (mean scores for

happiness/sadness/anxiety/anger in the given order

are 3/1/1.25/1).

4.5 Motivational Aspects and Task

Value

To evaluate whether the tool had a positive impact

on users’ motivation concerning their learning, an

analysis with results from 14 students filling out the

post-questionnaire is presented. A requirement for

having a positive impact on students’ motivation is

that they are generally comfortable with SRL

settings. Participants of this study indicated that they

like SRL environments (M = 3.77, SD = .76) and

that they prefer learning on their own over being

supervised all the time (M = 3.8, SD = 1.01).

Furthermore, they agreed on the statements that

testing themselves helps when they learn something

(M = 3.87, SD = .72) and that they need clear

instructions when they learn something (M= 3.93,

SD = 1.03). These results are in line with the

comments on the tool itself, namely that they liked

the EAQC and automatic assessment as well as the

possibility to highlight and save important concepts

to support their learning process.

The task value scale by Pintrich et al. (1991),

which was presented in the post-questionnaire

showed that students were highly interested in the

task and also perceived it as being important and

useful. Mean ratings to the six single questions

ranged between 4.5 (SD = .65) and 4.71 (SD = .47)

resulting in a mean task value of 4.58 (SD = .48).

Due to the high correlation of task value and

intrinsic goal orientation reported above, it can be

assumed, that students were also intrinsically

motivated and involved in their learning activities.

This result is also supported by the high motivation

ratings for the single tasks required during the study,

which ranged between 3.77 (SD = 1.01) and 4.31

(SD = .85). Figure 3 shows the mean ratings for task

value and motivation for doing different task.

Figure 3: Mean task value (MSLQ) and level of

motivation for various tasks.

4.6 Support of Self-regulated Learning

To investigate the pedagogical and psychological

impact of the tool, we checked, whether the tool

supports self-regulated learning and students can

thus benefit from using the tool. According to the

teacher the tool constitutes a support for students in

the self-study process. From a teacher’s point of

CSEDU2013-5thInternationalConferenceonComputerSupportedEducation

358

view, the functions tested by the teacher were too

few to judge the worth of the tool for teachers.

From student’s point of view, testing themselves

with questions had a positive impact on their

learning activities (M = 4.43, SD = .76), taking the

course improved their understanding of domain

concepts (M = 4.5, SD = .65), and the course was a

worthy educational resource (M = 4.43, SD = .76).

In their open comments, all 14 students stated that

they would benefit from self-assessments (self-

generated tests) when learning in general. More

specifically, they said, that self-assessments are a

good preparation for real assessments, that they help

to know one’s level of knowledge or progress, and

that it helps to improve the understanding and

retention of concepts. Only one student indicated

that he wouldn’t go through a self-generated test,

because for him reflection on his knowledge is more

important. Another student stated that the self-

assessments help to study a text, but that the

questions were not good.

5 CONCLUSIONS

The aim of the conducted study was to evaluate a

tool for automatic question creation (EAQC) and its

application within the IWT. All questions generated

by the EAQC are based on concepts, which are in a

first step automatically extracted from a given text.

In a second step the EAQC creates for each concept

the required types of questions (up to four different

questions per concept). Thus, the quality of the

extracted concepts is an important factor for the

achieved quality of the generated questions.

In this study the teacher of an online course on e-

learning provided two texts and extracted the 10

most relevant concepts out of each text.

Simultaneously, the EAQC extracted concepts out

the same texts and put them into an order of

relevance (see Section 3.4). We compared the

relevancy of concepts extracted by the EAQC, by

the teacher, and by students. The obtained results

show comparable quality of automatically and

human (teacher and students) generated concepts.

Thus, we can conclude that the tool is able to extract

relevant concepts from a text, which form a suitable

basis for knowledge questions.

The quality of questions and their respective

answers was evaluated by comparing it to the quality

of questions created by a teacher (both EAQC and

teacher questions were based on an equal number of

EAQC and teacher concepts). A three-way

MANOVA including the factors questions type (TF,

MC, FiB), concept extractor (teacher, EAQC), and

question creator (teacher, EAQC) revealed an effect

of question creator for the dependent variables

pertinence and level. Thus, EAQC questions are

equally well formulated as teacher questions (no

effect on terminology) and are perceived as equally

difficult, but they are evaluated as more trivial and

less relevant than teacher questions.

However, considering that the factor “question

creator” accounts for only about 3% of the overall

(effect and error) variance (

² =.033 and .028 for

the two measures) and that the EAQC is mainly

meant as tool to support self-regulated learning, the

outcome of the evaluation is definitely positive.

Results from the evaluation of answers revealed

no difference between teacher and EAQC

terminology, ambiguity, or distractor quality. The

same is true for the actual difficulty of questions,

indicated by the number of correctly solved items.

Thus, the application of the EAQC in a real learning

setting and the evaluation of the tool by postgraduate

students yielded very promising results. In a next

step, the evaluation process should also involve

domain experts (e.g. a group of teachers) as well as

experts in the field of assessment.

Regarding the tool’s usability, SUS scores from

both teacher and students were below average, but

the teacher was still in a very positive emotional

state and open comments from both sides show that

they appreciate the tool and its functions. Students

indicated that they would benefit from automatic

self-assessments and that the course is a worthy

educational resource. The results show high task

values and high motivational ratings for the different

tasks performed during the study. Thus, we can

conclude that the EAQC and in general automatic

question creators are able to motivate students in

their learning activities and should be a fundamental

part of SRL environments.

The results from the evaluation of questions

generated automatically by EAQC in a broader

setting are encouraging. The study, including

participants with different cultural background in

Latin America, allowed the researchers to test the

tool and perception of the assessment in PLEs in

order to look for worldwide solutions.

Besides the above mentioned evaluation studies

with experts, future work needs to focus on

improving the tool’s usability, clarity, and

performance. Also a focus on the quality of

extracted concepts and questions with text in

different languages should be considered.

AutomaticTestItemCreationinSelf-RegulatedLearning-EvaluatingQualityofQuestionsinaLatinAmerican

Experience

359

ACKNOWLEDGEMENTS

This research was supported by the EC under the

Project ALICE "Adaptive Learning via

Intuitive/Interactive, Collaborative and Emotional

Systems", Grant Agreement n.257639. We are very

grateful to Isabella Pichlmair, Dominik Kowald,

Marcello Rosciano, Patricia Lavin and GES Team

for their great support in conducting this study.

REFERENCES

Agarwal, M., Shah, R., & Mannem, P. (2011). Automatic

question generation using discourse cues. In

Proceedings of the Sixth Workshop on Innovative Use

of NLP for Building Educational Applications: 1–9.

AL-Smadi M., Hoefler M., & Guetl, C. (2011). Integrated

and Enhanced e-Assessment Forms for Learning:

Scenarios from ALICE Project. Proceedings of

Special Track on Computer-based Knowledge & Skill

Assessment and Feedback in Learning Settings ICL

2011, Piestany, Slovakia, 2011, pp. 626-631.

Bannert, M. (2006), Effects of Reflection Prompts when

learning with Hypermedia, Journal of Educational

Computing Research, vol. 35, no 4, pp. 359–375.

Brooke, J. (1996). SUS: A “quick and dirty” usability

scale. In Usability evaluation in industry. London:

Taylor & Francis.

Brown, J. C., Frishkoff, G. A., & Eskenazi, M. (2005)

“Automatic Question Generation for Vocabulary

Assessment”, Proc. of the Human Language

Technology Conference on Empirical Methods in

Natural Language Processing: Canada, pp 819- 826.

Canella, S., Ciancimino, E., & Campos, M.L. (2010)

“Mixed e-Assessment: an application of the student-

generated question technique”, Paper read at IEEE

International Conference EDUCON 2010, Madrid.

Capuano, N., Gaeta, M., Marengo, A., Miranda,

S.,Orciuoli, F., & Ritrovato, P. (2009). LIA: an

Intelligent Advisor for e-Learning.

InteractiveLearning Environments, Taylor & Francis,

vol. 17, no. 3, pp. 221-239.

Chen, W., Aist, G., & Mostow J. (2009).Generating

questions automatically from informational text. In

Proceedings of the 2nd Workshop on Question

Generation: 17- 24. UK: Brighton.

Conati C., & Vanlehn K. (2000), “Toward computer-based

support of meta-cognitive skills: A computational

framework to coach self-explanation ”International

Journal of Artificial Intelligence in Education, vol. 11,

pp. 389–415, 2000.

Dochy, F. J. R. C., & McDowell, L. (1997). “Assessment

as a tool for learning.” Studies in Educational

Evaluation, 23 (4), pp. 279-298.

Goto, T., Kojiri, T., Watanabe, T., Iwata, T., & Yamada,

T. (2010). "Automatic Generation System of Multiple-

choice Cloze Questions and its Evaluation",

Knowledge Management & E-Learning: An

International Journal (KM&EL), Vol 2, No 3, 2010.

Guetl, C., Lankmayr, K., Weinhofer, J., & Hoefler,

M.(2011). Enhanced Automatic Questions Creator –

EAQC: Concept, development and evaluation of an

automatic test item creation tool to foster modern e-

education. Electronic Journal of e-Learning, 9, 23-38.

Hoefler, M., AL-Smadi, M., & Guetl, C. (2011).

Investigating content quality of automatically and

manually generated questions to support self-directed

learning. In D. Whitelock, W. Warburton, G. Wills,

and L. Gilbert (Eds.).CAA 2011 International

Conference, University of Southampton.

Hoefler M., AL-Smadi M., & Guetl C. (2012).

Investigating the suitability of automatically generated

test items for real tests. The International Journal of

eAssessment, 2(1) [Online]. Available: Doc.

No.26.http://journals.sfu.ca/ijea/index.php/journal/-

article/viewFile/27/26.

Kay, R. H., & Loverock, S. (2008). Assessing emotions

related to learning new software: The computer

emotion scale. Computers in Human Behavior. 24,

1605-1623.

Ko, C., & Young, S. (2011). Explore the Next Generation

of Cloud-Based E-Learning Environment.

Edutainment Technologies. EG LNCS, Vol. 6872,

2011, pp 107-114

Kroop S., Berthold M, Nussbaumer A., & Albertet D.,

(2012). “Supporting Self-Regulated Learning in

Personalised Learning Environments” 1st Intl

Workshop on Cloud Education Environments, CEUR

Vol. 945 ISSN 1613-0073, 2012.

Liu, M., & Calvo, R.A. (2009). An automatic question

generation tool for supporting sourcing and integration

in students essays. 14th Australasian Document

Computing Symposium, Sydney, Australia.

Myller, N. (2007). Automatic generation of prediction

questions during program visualization. Electronic

Notes in Theoretical Computer Science 178: 43–49.

Nicol, D.J. & Macfarlane-Dick, D. (2006) Formative

assessment and self-regulated learning: a model and

seven principles of good feedback practice, Studies in

Higher Education, 31(2),198–218.

Pintrich, P.R., Smith, D.A.F., Garcia, T., & McKeachie,

W.J. (1991). A Manual for the Use of the Motivated

Strategies for Learning Questionnaire (MSLQ).

Technical Report, 91, 7-17.

Stanescu, L., Spahiu, C. S., Ion, A., & Spahiu, A.

(2008).Question generation for learning evaluation.

Proceedings of the International Multiconference on

Computer Science and Information Tech, 509-513.

Villalon, J. and Calvo, R. A. (2009) “Concept Extraction

from student essays, towards Concept Map Mining”,

Proceedings of the 9th IEEE International Conference

on Advanced Learning Technologie, pp 221-225.

Zimmerman, B. J. (1989). 'Models of self-regulated

learning and academic achievement.' In B. J.

Zimmerman & D. H. Schunk (Eds.), Self-regulated

learning and academic achievement: Theory, research

and practice. New York: Springer-Verlag.

CSEDU2013-5thInternationalConferenceonComputerSupportedEducation

360
