1 INTRODUCTION

This work addresses the general question of observa-

tion and analysis of learners’ activities in a situation

of professional training. More speciﬁcally, we ad-

dresse the case of full scale simulators (FSS) designed

to maintain and enhance the knowledge and skills of

Nuclear Power Plant (NPP) control room staff (Cham-

palle et al., 2011) (Blanc et al., 2010). In this context,

the observation, analysis and debrieﬁng of individual

and collective interactions of trainees is a dense activ-

ity that require attention and constant alertness of the

trainers throughout the simulation.

Indeed, during each simulation session, the in-

structor runs the simulation scenario, observes be-

haviour of trainees, drives the simulator based on the

actions performed by trainees and ﬁlls an observation

balance sheet to prepare and conduct the debrieﬁng.

Observation balance sheet contains a set of expected

operations that trainees should be able to satisfy (see

for example the Annexe G of (Agency, 2004)). These

operations correspond to the knowledge and skills

that are necessary to insure safety of the plant.

To assist trainers in their tasks, the NPP FSS pos-

sesses several tools to follow, record and replay the

parameters of the simulator and the actions of the

trainees. These tools have however their limitations:

• The data stored in the logs are very low level. In

such a context, understanding and following the

activity require a strong expertise that all trainers

don’t have;

• The amount of data collected during a simulation

is so big that it is very difﬁcult to analyse them

manually and extract high level information re-

ﬂecting the behaviour of trainees;

• The synchronization of these different types of

data (video, sound, logs,...), is difﬁcult and expen-

sive. Indeed, the data are stored in different places

and ﬁles and do not share the same time line.

With the aim of going beyond these difﬁculties our

proposals are the following:

• assist trainers in observation and analysis of activ-

ity by:

– providing a visual synthesis of the activity with

the expected observations of the trainees (real-

ized or not realized);

627

Champalle O., Sehaba K. and Mille A..

Capitalize and Share Observation and Analysis Knowledge to Assist Trainers in Professional Training with Simulation - Case of Training and Skills

Maintain of Nuclear Power Plant Control Room Staff.

DOI: 10.5220/0004388806270632

In Proceedings of the 5th International Conference on Computer Supported Education (CSEDU-2013), pages 627-632

ISBN: 978-989-8565-53-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

– allowing exploration of the abstraction levels to

facilitate the analysis of the activity;

– allowing trainers to add their own observations

corresponding to their expertise to save time

during the phases of observation and analysis.

• strengthen the debrieﬁng by:

– providing trainees a visual synthesis of their ac-

tivities in a self-reﬂexive way;

– providing trainers factual information to ex-

change with the trainees.

• favour sharing of observation and analysis knowl-

edge between trainers by:

– allowing trainers to exchange on their practices;

– allowing new trainers to reuse the knowledge of

the conﬁrmed trainers.

To improve the actual tools for trainers and con-

cretize our proposals we base our reﬂections on a bet-

ter exploitation of simulation data.

This article is organized as follow: section 2

presents a state of the art on related works. Section

3 presents our approach, models and tools for obser-

vation and analysis activities. Section 4 present the

evaluation of our approach and the results. The last

section is devoted to a conclusion and perspectives.

2 RELATED WORKS

Exploitation of the trace of trainees’ activities is a

spread practice in the computerized dedicated envi-

ronments for training. With the term Digital Traces

we mean all numerical data produced by an activity

or set of activities. These activities result from hu-

man system interactions and/or between a system on

another system.

In order to ﬁnd the most relevant approaches for

our proposals, we have conducted a state of the art

in two steps. At ﬁrst we have compared approaches

close to our context and research proposals. In a sec-

ond step, we focused our study in the ﬁeld of knowl-

edge engineering to determine the approaches best

suited to capitalize knowledge from observation and

analysis of the activity, whatever it is.

Approaches on Similar Research Context

In the domain of Nuclear Power Plant Full-Scope

Simulator, the SEPIA system (Dunand et al., 1989),

a computer training system by artiﬁcial intelligence,

was designed for operators training of EDF Group

on pre-deﬁned scenarios. SEPIA is based on an ex-

pert system constructed from the knowledge of driv-

ing procedures and expert trainers. Once the simula-

tion over, SEPIA gives a feedback by analysing and

correcting the operators’ actions. During the debrief-

ing, SEPIA allows the operators to obtain explana-

tions concerning any registered parameters.

In Aircraft simulation (IIPDSS), (Bass, 1998) in-

troduces an intelligent trainer pilot decision support

system that use trace of trainee-pilot’ activities to help

trainer during the simulation, debrieﬁng, and perfor-

mance evaluation. During the practice, the system

displays in real time to the trainer a list of message

to help him understand and guide the trainee. For the

evaluation, the system collects and displays the evalu-

ation criteria applicable to a particular simulated mis-

sion and instances when the trainee failed to meet the

criteria. At the end of the simulation, the system pro-

vides a complete trace of the divergent actions of the

trainee, associated with the corresponding data of the

aircraft simulation environment. The system provides

also a summary of the skills with which the trainee

has difﬁculty.

The PPTS project (Pedagogical Platoon Training

System) (Joab et al., 2002) assists trainers to observe

and analyse the tactical behaviour of a platoon net-

work of four LECLERC tank simulators. The PPTS

integrates an ITS which reproduces the expertise of

trainers in order to exploit and analyse the numerical

traces of the simulation to highlight the three skills

levels expected from each crews: technical, tactical

and strategic. Each level being constructed on the ba-

sis of lower level. At the end of the simulation, the

PPTS generates a summary document and comment

on the skills of the crews to assist trainers in the de-

brieﬁng phase.

Works cited above use the digital traces of activity

to diagnose and analyse behaviour of trainees but miss

important properties. Indeed, the tools proposed in

these approaches are based on closed systems. Their

implementation is generally heavy (ITS, expert sys-

tem) and requires a long and close collaboration with

experts. Another limitation lies in the ”static” knowl-

edge used by these systems. Indeed, once these sys-

tems are built, it is not possible for the trainers to

create and share their own observation and analysis

knowledge. It is also not possible to deﬁne the levels

of expected skills.

To meet this speciﬁc need of creation and sharing

of observation and analysis knowledge based on dig-

ital traces, we studied other approaches from knowl-

edge engineering.

CSEDU2013-5thInternationalConferenceonComputerSupportedEducation

628

Knowledge Engineering

(Dyke, 2009) proposes the analysis tool Tatiana

(Trace Analysis Tool for Interaction Analysts) which

implements the concept of replayable in order to as-

sist the analysis of heterogeneous data (videos, logs,

..). A replayable is a generic analytic artefact that

models and capitalizes an analysis methodology built

from user trace. A replayable can be visualised, re-

played, enriched, transformed to produce a new re-

playable and synchronised with other like artefacts.

The system ABSTRACT (Analysis of Behaviour

and Situation for menTal Representation Assessment

and Cognitive acTivitiy modeling)(Georgeon et al.,

2011) is used to analyse human activity from succes-

sive transformations of low level trace. Transforma-

tions are based on SPARQL rules and can be reused

in different contexts. Abstract provided the possibil-

ity to visualize traces and their transformations.

The TBS-IM (Trace Based System Indicators

Moodle) (Djouad et al., 2010) allows the creation of

individual and collective indicators for educational

activities on the learning platform Moodle. TBS-

IM supports the user in the elaboration of indicators

masking successive abstraction levels necessary for

their construction. These indicators calculations can

be capitalized for the purpose of reuse.

These approaches are similar to our research ob-

jective. Their advantage lies in the common use of

the concept of Modelled Trace (see Section 3) and the

principle of reuse of transformation for abstracting a

low level trace in order to highlight higher levels of

knowledge. There are however differences and limits.

In (Dyke, 2009), there is nothing to assist the trainers

in the creation of the transformations rules, TBS-IM

(Djouad et al., 2010) can not view the activity on dif-

ferent levels of abstraction and ABSTRACT (Geor-

geon et al., 2011) does not allow transformation with

several rules.

If these approaches do not ﬁt all the searched

properties, the approach based on modelled trace and

transformation rule, enhanced in ABSTRACT and

TBS-IM, seems to be more ﬂexible, facilitating the

analysis and knowledge sharing.

3 CONTRIBUTIONS

Our research is based on the concept of modelled

trace developed by the SILEX

team (Settouti et al.,

2009). A Modelled Trace, noted M-Trace, is a set

of observed elements associated to the trace model it-

http://liris.cnrs.fr/silex

self. We call observed element, noted obsel any struc-

tured information generated from the observation of

an activity (Georgeon et al., 2011). In our research

context, activity observed is a training simulation on

a NPP FSS of EDF. The obsels collected are the re-

sult of users interactions (trainees and trainers) with

the FSS, and the simulation of the NPP process it-

self. Formally, each observed element has a type, a

label and a time stamp in the M-Trace. According to

his type an obsel can have a set of attributes/values,

which characterizes it. An obsel can potentially be in

relation with other obsel of the same M-Trace through

relation type deﬁned in the Trace Model. The Trace

Model deﬁnes the types of observed elements (i.e the

attributes that characterize them) and the types of re-

lationships they can have between them. A Modelled

Trace is then a structure of data (obsels and relations)

explicitly associated with its trace model. Modelled

Traces are managed with a Trace-Based Management

System (TBMS) (Settouti et al., 2009). The TBMS is

responsible for managing the storage of traces (rights

management, database...) and their transformations.

A Transformation process performs transformations

on M-Traces like applying ﬁlters, rewriting and ag-

gregating elements, etc. so as to interpret and abstract

M-Trace.

Visual Synthesis of the Activity

For reasons we have explained above, the data col-

lected by the simulators are difﬁcult to analyse. It’s

why we distinguish three levels of m-traces:

• Primary M-Trace whose obsels arise from data

collected by the sources of the simulator;

• M-Trace of Pedagogical Objectives, which repre-

sents the ﬁrst level of expected obsels that trainees

have to realize and trainers to check;

• M-Trace of Pedagogical Objectives Family. This

higher M-Trace shows obsels that describe ”peda-

gogical objectives family” (realized or not) as ex-

pressions of the expected trainees’ capacities.

These different levels of M-traces are obtained

by applying rule-based transformations. These rules

makes explicit the observation knowledge of expert.

As shown in ﬁgure 1, each obsel belonging to a trace

of level n is in relation with its origin obsel(s) from

the trace of level n − 1. The obsels of the Primary

M-Trace are in relation with the data collected by the

simulator. Such structure allows trainers to explore,

analyse the trainees’ activities with a top-down inves-

tigation to understand the reasons, be they individ-

ual or collective, of failure. Consequently, trainers

would also be able to better prepare and conduct the

CapitalizeandShareObservationandAnalysisKnowledgetoAssistTrainersinProfessionalTrainingwithSimulation-

CaseofTrainingandSkillsMaintainofNuclearPowerPlantControlRoomStaff

629

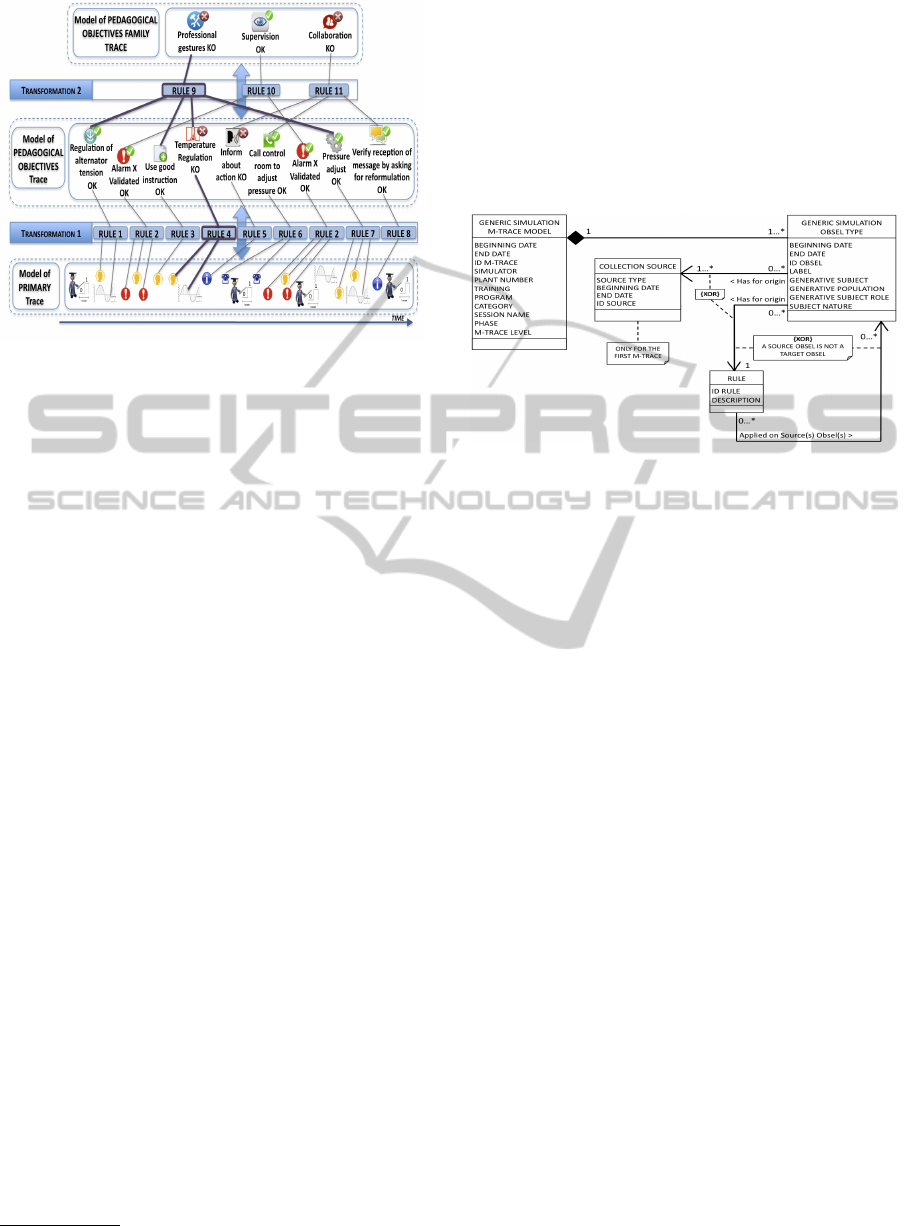

Figure 1: Principle of analysis by transformation and visu-

alization of trace.

session’s debrieﬁng with trainees. On the other hand

it would be possible to help new trainers to improve

their skills by helping them in observing Trainees. For

example, if the trainers want to understand the reasons

why the obsel ”Professional Gestures” of the M-Trace

of Pedagogical Objectives Family is KO

, they have

just to navigate through their different origin obsels of

the M-Trace of Pedagogical Objectives. According to

the Rule 9, the obsel ”Professional Gestures” is OK

only if all of these four origin obsels are OK.

Generic Trace Model

Whatever the level of M-Trace, its model and the

simulator used, we believe that a simulation M-Trace

must ”pick-up” its own identity to be locatable and

usable over time. This ”identity card” of the M-Trace

would be particularly useful for large-scale statisti-

cal research and/or analysis on a set of M-Trace cor-

pus, and particularly to feed experience feedback, de-

scribed in the Trace-Based framework presented in

(Champalle et al., 2011). Through experience feed-

back, trainers try to understand good or bad practices

on several simulations in order to improve contents of

the future training courses.

So, as described in the class diagram of Figure

2, all the M-Traces of our model have an ID, a be-

ginning and end date, the level of M-Trace (Primary,

Pedagogical Objectives,...), type of simulator, type of

training (Initial or Retraining), category (Summative,

Formative), with the scenario of simulation and the

training program (Op Reactor, Op Turbine,...). In our

context, the obsels are the direct result of users’ in-

teractions (trainees and trainers) with the FSS, and

the message of the NPP simulation process (Primary

M-Trace) or result from execution of transformations

The operator did not validate this objective

(M-Trace of Pedagogical Objectives and M-Trace of

Family Pedagogical Objectives). Therefore each ob-

sel type has common attributes: an ID, a begin and

a end date, a label, the ID of the Generative subject

(Person, Group, Simulator), a SubjectNature (evalu-

ated or not), the RoleSubject (Op Reactor, Op Tur-

bine, Supervisor, etc.) and a realization attribute (OK

or KO). This model can be specify for each M-Trace

model and obsel as needed.

Figure 2: Generic Trace Model.

Transformation Model

Transformation allows generating a target trace of

level n from a source trace of level n-1. Each Trans-

formation is composed of a set of rules which have

a part Condition and a part Construction (Figure 3).

The condition part expresses constraints on the el-

ements (obsel type, relationship type, values of at-

tribute, etc.) of the M-Trace(s) source(s).

The construction part allows deﬁning the obsel

and the relationships of the new target M-Trace if

all the constraints of the condition part are satisﬁed.

For each part of a rule (condition and construction),

it’s possible to use speciﬁc operators as arithmetic,

boolean and/or comparison in order to express con-

straints on the attribute values of sources obsels (con-

dition) or make calculations to initialize the values of

the attributes of the obsel target (construction).

D3KODE

D3KODE as ”Deﬁne, Discover, and Disseminate

Knowledge from Observation to Develop Expertise”

is a Web application, which stores and transforms

traces according to the organization and the models

presented in previous sections. D3KODE also allows

the user to interactively view the various trace levels.

So the trainers can explore the different abstraction

levels in purposes of investigation and/or education to

target gaps and difﬁculties of each trainee.

The storage of M-Trace and transformation mod-

els and rules is based on the kTBS (kernel for Trace

CSEDU2013-5thInternationalConferenceonComputerSupportedEducation

630

Figure 3: Transformation model.

Base System). The kTBS

is a Trace-Based Manage-

ment System architecture (Settouti et al., 2009) de-

veloped by the SILEX team. Data of the kTBS are

encoded in RDF

(Resource Description Framework).

The transformation rules, are written in SPARQL1.1

D3KODE is multi-user and multi-language.

4 EVALUATION AND RESULTS

In order to evaluate the properties of our approach we

have deﬁned an evaluation protocol based on a qual-

itative comparative method (Per and Martin, 2009).

It consists in comparing the observation, analysis and

debrieﬁng of the trainees’ activities with and without

D3KODE. This evaluation was driven on a summa-

tive scenario on a FSS of an NPP of EDF Group. It

mobilized 8 people: 2 conﬁrmed trainers to drive the

simulation and observe trainees, 4 trainees to drive

the simulator (2 for each simulation) and 2 experts

to observe the simulations and to assess the support

provided by D3KODE. The trace models and trans-

formation rules of the scenario were modelled by an

expert trainer who did not attend the evaluation. In

this way, we ensure the correct evaluation of the shar-

ing of knowledge between trainers.

Simulation with D3KODE

The ﬁrst simulation lasted 1 hour and 14mn and gen-

erated 3591 obsels which were collected and injected

into D3KODE. The trainers have observed 2 No Real-

izations (NR) tracked in the simulation logs and view-

able by D3KODE.

http://liris.cnrs.fr/sbt-dev/ktbs/

http://www.w3.org/RDF/

http://www.w3.org/TR/sparql11-query/

During the analysis, the obsels displayed by

D3KODE were faithful with the simulation. Never-

theless, their visualization, did not bring more infor-

mation to trainers. They have however considered

valuable and useful the quick access to information

such as begin and end date, obsel’s label, rule’s de-

scription, etc. This possibility has facilitated the anal-

ysis and exchanges between trainers. The presence,

in D3KODE, of the 2 NR was a signiﬁcant contribu-

tion for the trainers. No Realization are indeed what

is traditionally harder to be conﬁrmed.

During the debrieﬁng, D3KODE was used by

trainers as a visual aid to re-trace the chronology of

observation and exchange with the trainees. During

this phase D3KODE has also helped to highlight a NR

which was ”forgotten” by the trainers.

Traditional Simulation

The second simulation lasted 1 hour and 13mn.

According with the evaluation protocol, D3KODE

wasn’t used for analysis and debrieﬁng. During this

simulation, The trainer have observed 3 No Realiza-

tions (NR) tracked in the simulation logs. The analy-

sis and debrieﬁng phase of the operators took place in

much the same way that the simulation 1.

Global Analysis of the Results

The analysis of the results allowed us to collect sev-

eral remarks on the contribution of D3KODE.

First of all, the trainers, showed themselves partic-

ularly interested in the visual synthesis of the activity

on several levels. It would allow them, in the phase

of analysis, to compare and verify the observations

noted during the session, in order to be sure that noth-

ing has been forgotten and so to raise all ambiguities.

In this way our proposal concerning the revealing of

observable KO was very relevant.

This evaluation also conﬁrmed that the approach

of D3KODE, based on rules and transformations in

order to share knowledge of observation and of analy-

sis, was understood and validated by all trainers. They

have also validated the interest of our approach for

the creation of additional speciﬁc observation (out-

side of the balance sheet of the evaluation) to attend

their analysis and decision on the conduct of trainees.

D3KODE would be used for post-analysis and cal-

culations that trainers can not do in real time and/or

analysis.

For the phase of debrieﬁng, the essential contri-

bution of D3KODE lies in the factual data presented

through the visual synthesis of the activity. This func-

tionality is indeed considered by the trainers as a good

mean to encourage the reﬂexive self-analysis of the

CapitalizeandShareObservationandAnalysisKnowledgetoAssistTrainersinProfessionalTrainingwithSimulation-

CaseofTrainingandSkillsMaintainofNuclearPowerPlantControlRoomStaff

631

trainees and highlight the axes of improvement.

Globally, the evaluation of D3KODE in real con-

dition demonstrated that the trainers considered the

contribution of D3KODE as relevant to enrich their

activity. In particular D3KODE could strengthen the

current tools of the follow-up and the analysis of the

trainees’ activities mainly a posteriori.

To wider scale, D3KODE would be even of a par-

ticular interest to analyse traces of simulation in quan-

tity to highlight the recurring errors of the trainees and

integrate them to the EXperience Feedback and build

new more adapted trainings.

It should be added that if the trainers perceive

D3KODE as potentially beneﬁcial, they have pointed

out that the use of D3KODE would introduce a

change in their practices.

5 CONCLUSIONS

This article addresses the problem of observing and

analysing trainees’ behaviour on Nuclear Power Plant

Full-Scope Simulator. This work, conducted in part-

nership with the UFPI of EDF Group, is applied in

the context of training and maintaining the knowledge

and skills of NPP control room staff. The objective of

our work is to propose models and tools to help train-

ers capitalize and share their observation and analy-

sis knowledge in order to improve observation, analy-

sis and debrieﬁng of trainees’ activities during forma-

tive/summative assessment.

The approach we proposed is to transform the raw

traces, based on data collected from the simulator, in

order to extract high level information on the activ-

ities of trainees. For this we have proposed a ded-

icated trace model and transformation. In order to

guarantee the exploration between various levels of

M-Trace, each obsel possesses a link on its origin.

We have also developed a prototype, called,

D3KODE which favour share of trainers’ observation

knowledge, and which stores, process and visualize

the traces. This prototype implements the various

models we have created. So as to validate our ap-

proach, we have conducted an evaluation based on a

comparative method. This experiment was conducted

with a team of trainers from UFPI of EDF Group in

a real context. The result of the evaluation demon-

strated that our approach was favourably welcomed

by the trainers and could be really relevant to enrich

their activity.

Our future work will aim to address the second

objective of the project: exploitation of traces for the

experience feedback to reﬁne the needs and optimize

training programs for years to come.

REFERENCES

Agency, I. A. E. (2004). Use of control room simulators

for training of nuclear power plant personnel. Report

36017984, International Atomic Energy Agency, Vi-

enna (Austria).

Bass, E. J. (1998). Architecture for an intelligent instructor

pilot decision support system. In IEEE International

Conference on Systems, Man, and Cybernetics, vol-

ume 1, pages 891 –896, San Diego, CA.

Blanc, K. L. L., Boring, R. L., and Gertman, D. I.

(2010). Review of methods related to assessing

human performance in nuclear power plant control

room simulations. In Conference: American Nu-

clear Society International Topical Meeting on Nu-

clear Plant Instrumentation, Control and,Las Vegas,

NV,11/07/2010,11/11/2010, pages 411 – 422. Idaho

National Laboratory (INL).

Champalle, O., Sehaba, K., Mille, A., and Prie, Y. (2011).

A framework for observation and analysis of learners’

behavior in a full-scope simulator of a nuclear power

plant - approach based on modelled traces. In ICALT

2011 - The 11th IEEE International Conference on

Advanced Learning Technologies, pages 30–31. Com-

munication afﬁch

ee.

Djouad, T., Benmohammed, M., and Mille, A. (2010). Indi-

cators computation from modeled traces in the context

of computer human learning environment. In Interna-

tional Symposium on Modelling and Implementation

of Complex systems, pages 1–7.

Dunand, R., Dravers, F., and Guillermard, J. (1989). Sepia

: un syst

eme d’enseignement par intelligence arti-

ﬁcielle pour les op

erateurs d’edf. Revue g

erale

nucl

eaire, 3:254 – 257.

Dyke, G. (2009). Un mod

ele pour la gestion et la capital-

isation d’analyses de traces d’activit

es en interaction

collaborative. PhD thesis, Ecole Nationale Sup

erieure

des Mines de Saint-Etienne, St Etienne.

Georgeon, O., Mille, A., Bellet, T., Mathern, B., and Ritter,

F. (2011). Supporting activity modelling from activity

traces. Expert Systems.

Joab, M., Auzende, O., Futtersack, M., Bonnet, B., and

Leydour, P. L. (2002). Computer aided evaluation of

trainee skills on a simulator network. ITS 2002 : Pro-

ceedings of the 6th International Conference on Intel-

ligent Tutoring Systems, pages 521–530.

Per, R. and Martin, H. (2009). Guidelines for conduct-

ing and reporting case study research in software en-

gineering. Empirical Software Engineering, 14:131–

164.

Settouti, L. S., Prie, Y., Marty, J.-C., and Mille, A. (2009).

A trace-based system for technology-enhanced learn-

ing systems personalisation. In The 9th IEEE Inter-

national Conference on Advanced Learning Technolo-

gies.

CSEDU2013-5thInternationalConferenceonComputerSupportedEducation

632
