Hierarchical Supporting Structure for Dynamic Organization in

Many-core Computing Systems

Liang Guang

, Syed M. A. H. Jafri

1,2

, Bo Yang

, Juha Plosila

and Hannu Tenhunen

1,2

University of Turku, Turku, Finland

Royal Institute of Technology, Stockholm, Sweden

Keywords:

Many-core Systems, Dynamic Organization, Dependability, Software/Hardware Co-design.

Abstract:

Hierarchical supporting structures for dynamic organization in many-core computing systems are presented.

With profound hardware variations and unpredictable errors, dependability becomes a challenging issue in the

emerging many-core systems. To provide fault-tolerance against processor failures or performance degrada-

tion, dynamic organization is proposed which allows clusters to be created and updated at the run-time. Hier-

archical supporting structures are designed for each level of monitoring agents, to enable the tracing, storing

and updating of component and system status. These supporting structures need to follow software/hardware

co-design to provide small and scalable overhead, while accommodating the functions of agents on the cor-

responding level. This paper presents the architectural design, functional simulation and implementation

analysis. The study demonstrates that the proposed structures facilitate the dynamic organization in case

of processor failures and incur small area overhead on many-core systems.

1 INTRODUCTION

With constant technology scaling, many-core com-

puting systems have become a reality (Vangal et al.,

2008). By exploiting massive parallelism, such sys-

tems are expected to provide much higher theoretical

performance than single-core or few-core chips. For

instance, TeraFLOPS (Vangal et al., 2008), an 80-core

processor, achieves over 1.0 TFLOPS ( 10

ﬂoating-

point operations per second). To provide interconnec-

tion in a scalable manner, Network-on-Chip (NoC)

is widely adopted as the communication architecture

for many-core systems (Jantsch and Tenhunen, 2003;

Vangal et al., 2008). In particular, regular network

layout (e.g. mesh) with predictable link delay and

electrical properties are favoured for general-purpose

NoCs (Pamunuwa et al., 2004).

Dependability is a major design challenge on

many-core systems. While an increasing number of

resources can be integrated onto a single die, the fault

occurrence is also rising (Shamshiri et al., 2008). For

one thing, due to the small feature size, process vari-

ation and aging, the probability of permanent and

transient faults increases in VLSI chips (Collet et al.,

2009). For another, the deviation in the supply volt-

age and threshold voltage may lead to longer criti-

cal paths and consequent worse performance (Unsal

et al., 2006). When certain resources in a many-

core system fail, the system should still properly per-

form with the remaining resources, in order to pro-

vide dependable computing and improve the yield

(Shamshiri et al., 2008).

Hierarchical agent-based adaptation (H2A) is a

systematic and generic approach to achieve self-

adaptive parallel computing (Guang et al., 2010).

Software and hardware agents are embedded on dif-

ferent organization levels, to monitor and reconﬁg-

ure global and local services, including energy man-

agement and dependable computing. The top-level

agent, platform agent, is responsible for system-level,

coarse-grained resource allocation. Regional-level

agents, cluster agents, are managing intra-cluster ser-

vices, e.g., energy management. In particular, the

agents need to enable run-time resource reconﬁgura-

tion in case of component failures.

This paper proposes hierarchical supporting struc-

tures on agent-based many-core systems, to enable

the run-time status tracing, storing and updating. We

present the concept of dynamic organization, which

allows a cluster to be dynamically created and up-

dated in case of permanent failures or performance

degradation. In addition, to offer scalability towards

100s-1000s future chips, the structures need to follow

software/hardware (SW/HW) co-design techniques to

252

Guang L., M. A. H. Jafri S., Yang B., Plosila J. and Tenhunen H..

Hierarchical Supporting Structure for Dynamic Organization in Many-core Computing Systems.

DOI: 10.5220/0004389702520261

In Proceedings of the 3rd International Conference on Pervasive Embedded Computing and Communication Systems (SANES-2013), pages 252-261

ISBN: 978-989-8565-43-3

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

reduce the overhead. We will present the architec-

ture design, SW/HW co-synthesis, simulation and im-

plementation analysis for the hierarchical supporting

structures.

The rest of the paper is outlined as follows: Sec-

tion 2 describes the most relevant existing works.

Section 3 explains dynamic organization in H2A plat-

forms. Section 4 presents the architectural design and

implementation of the hierarchical supporting struc-

tures. Section 5 presents functional simulation and

implementation overhead analysis. Section 6 dis-

cusses the assumption of fault types. The paper is

concluded in Section 7.

2 RELATED WORK

Core-level redundancy is a well-proven technique for

fault-tolerance and dependability in many-core sys-

tems. (Zhang et al., 2008) proposes to employ core-

level redundancy in homogeneous many-core sys-

tems. In particular, it presents reconﬁguration heuris-

tics to transform any physical topologies into a uniﬁed

logic topology. In this way, core failures will lead

to the same network topology as seen by the oper-

ating system and the programmer. (Shamshiri et al.,

2008) identiﬁes that employing spares for in-ﬁeld re-

covery can improve the manufacturing yield and re-

duce the overall cost. (Chou and Marculescu, 2011)

presents resource management techniques on NoCs to

address several fault-tolerance metrics (e.g. weighted

Manhattan distance and link contention). While these

works provide a foundation for utilizing core-level re-

dundancy, this paper focuses on the dynamic organi-

zation against failures in a hierarchically monitored

system.

Clustering, instead of deploying an algorithm or

a conﬁguration on the whole system, is a technique

to improve application performance and efﬁciency in

parallel and distributed systems. (Lu et al., 2008)

proposes a fast simulated annealing based approach

for application mapping on NoCs. It narrows the

search space from the whole NoC down to network

regions (clusters), thus signiﬁcantly reduces the tim-

ing complexity of the mapping algorithm. (Guang

et al., 2009) proposes clustering algorithm to locate

network regions with similar trafﬁc density, so that

the same frequency can be applied within these clus-

ters to reduce the synchronization overhead. For any

clusterization algorithms, the system needs to trace

the run-time organization for future reconﬁguration.

The hierarchical supporting structure proposed in this

paper is a systematic and low-complexity approach to

enable the dynamic clusterization process.

Our previous work (Guang et al., 2010) presents

hierarchical agent-based architecture for parallel and

embeddedsystems. It proposed the initial idea of trac-

ing system parameters using look-up tables. How-

ever, our work at that stage had not concretely for-

mulated the motivation and architectural design of

dynamic organization in the agent-based platform.

Another existing work (Ostroumov and Tsiopoulos,

2012) presents formal-method-based design of the

hierarchical agent architecture, formulating agents’

functions in managing run-time faults. Compared to

these previous efforts, this paper presents the architec-

tural design of the hierarchical supporting structures,

and proposes SW/HW co-synthesis of these structures

based on the implementation of agents on the cor-

responding level. Functional simulation and imple-

mentation overhead analysis are provided to further

demonstrate the proposed structures.

3 DYNAMIC ORGANIZATION

To provide efﬁcient and scalable management, a

many-core system can be hierarchically organized. To

account for the processor errors and failures, such or-

ganization needs to be dynamically created and main-

tained. This section motivates and overviews dy-

namic organization in hierarchically agent-based par-

allel systems.

3.1 Hierarchical Agent-based

Adaptation

Hierarchical Agent-based Adaptation (H2A) is a scal-

able design approach for self-aware and adaptive sys-

tem. An overview is provided based on the previous

work (Guang et al., 2010) (Fig. 1).

The system is monitored, at the highest level, by

the platform agent, which is responsible for coarse-

granular system management. The platform agent is

aware of all the available resources, and can provide

run-time resource allocation. To alleviate the moni-

toring and control bottleneck of the platform agent,

the system is divided into a number (application-

speciﬁc) of clusters. Each cluster is a group of com-

ponents, and may execute a particular application in a

multi-application system. The cluster agent monitors

and decides on the intra-cluster conﬁguration, e.g.,

power management or energy-performance tradeoff.

Each component in a cluster, a cell, as the basic

organizational unit, is monitored by one cell agent.

The cell agent senses the local component status, re-

ports to the cluster or platform agents, and actuates

HierarchicalSupportingStructureforDynamicOrganizationinMany-coreComputingSystems

253

Application

Platform Agent

Manage

clusters

Application

requirements

Cluster

performance

Generic Functional Partition

System-level Resource allocation

e.g. Mapping,

fault-triggered remapping,

Implementation

Cluster Agent

Manage cells

Cell

performance

Cell Agent

Intra-cluster resource

configuration

energy management

e.g. Run-time energy-

performance tradeoff

Software

e.g. microprocessor

Software/hardware Co-

design

e.g. Software thread plus

hardware accessory

Hardware

Local monitoring

and actuating

Figure 1: Overview of Hierarchical Agent-based Adaptation.

the conﬁguration. The hierarchical function parti-

tioning among agents is designed to serve both lo-

cal and global services on speciﬁc levels. To offer

physical scalability in terms of agent overheads, soft-

ware/hardware (SW/HW) co-design is applied to dif-

ferent level of agents. Given the diversity of services

for system-level management, software-based design

(i.e., a dedicated core) is a proper design choice for

the platform agent. For the cell agents, as local ser-

vices are usually modular and fast, hardware-based

design is suitable. Cluster agents, with intermediate

granularity, may combine both software and hardware

components to tradeoff ﬂexibility and speed.

3.2 Agent-based Dynamic Organization

As processing cores suffer from unpredictable fail-

ures, clusters in H2A architecture need to be dynam-

ically reconﬁgured. Broken cells need to be removed

from a cluster, with proper replacement of spares. In

addition, the performance of clusters may degrade,

e.g. when the working frequency decreases due to the

variation of threshold voltage (Borkar et al., 2003). In

this case, spares may be integrated into a cluster to

speed up the application. The dynamic organization,

which provides dependable computing in case of pro-

cessor failures or performance degradation, requires

agents and their afﬁliated structures to track the run-

time organization and system parameters.

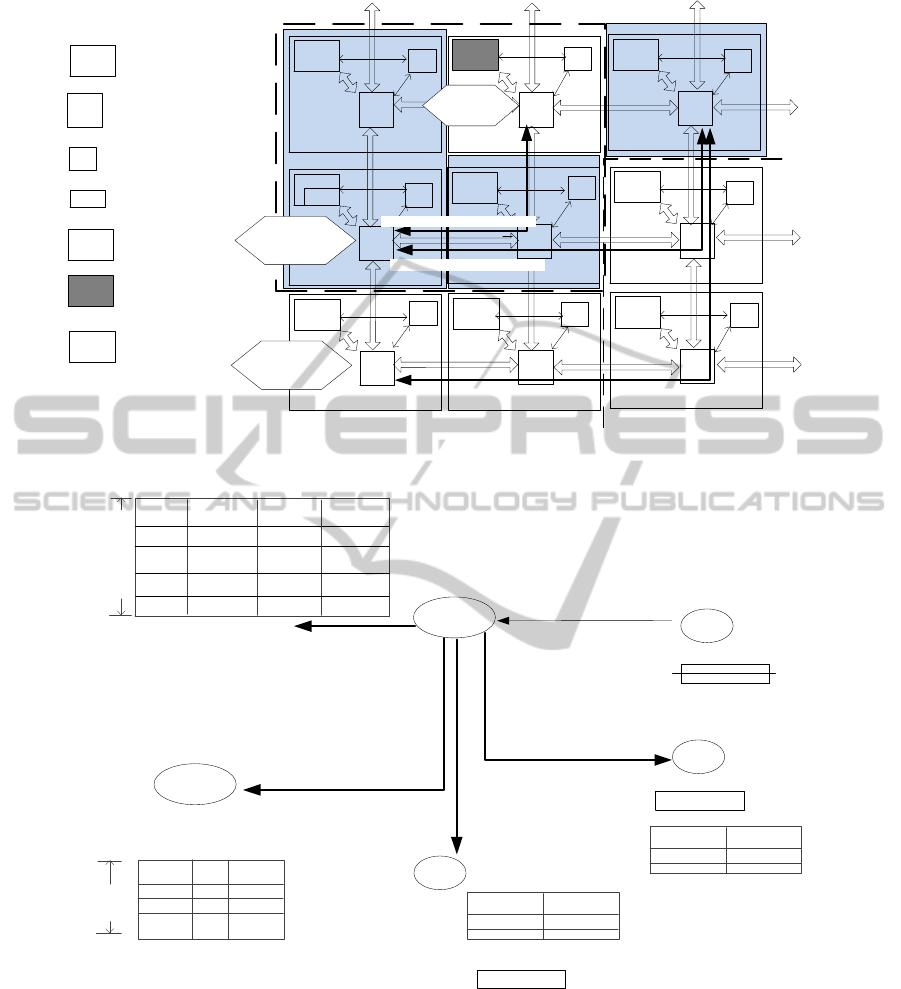

A motivational example, illustrated with the NoC

platform, is given in Fig. 2. The dynamic organiza-

tion involves a monitoring, decision-making and re-

conﬁguration process:

• Monitoring. This stage identiﬁes processor fail-

ures or variation-inducedtiming errors (leading to

performance degradation). The detection of pro-

cessor failures can be performed in a variety of

manners, for instance, by running test programs

on a processor to compare the outputs (Oh et al.,

2002). In addition, the timing errors induced by

the process variations can also be detected by

comparing the register output with a delayed latch

output (Das et al., 2009). Such run-time test-

ing can be issued by the platform, cluster or cell

agents, for instance, by temporarily taking a pro-

cessor from normal operation and running the test

program. As the testing techniques for processor

failures are beyond the scope of this paper, it is

assumed that cell agents can detect processor fail-

ures and notify their occurrences to the platform

agent.

• Decision-making. As the platform agent is aware

of all cells’ status (Section 4 will explain how),

it is the platform agent that decides on a proper

spare for a cluster with broken cells. The choice

can be made, for instance, to minimize the total

communication energy after replacement. If nec-

essary, a complete application remapping can be

performed for the involved cluster. The removal

of broken cells and the replacement of spares will

be actuated in the reconﬁguration stage.

• Reconﬁguration. In particular, spares for replace-

ment will be notiﬁed of the cluster agent’s loca-

tion. Similarly, the cluster that receives new cells

will be updated with the cells’ locations. The re-

conﬁguration not only applies to spares, but also

to cells that are reconﬁgured to a different clus-

ter. In case a system is short of resources ac-

commodating all applications, the platform agent

may decide to reallocate a processor from a lower-

prioritized cluster (based on its application) to a

cluster running a more critical task.

The partitioning of agents’ roles can be ﬂexibly

designed. Here the choice of spares is made by the

platform agent to prevent conﬂicts when two cluster

agents attempt to utilize the same spare. As an al-

ternative, if spares are reserved for speciﬁc clusters,

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

254

the allocation of spares can be made as part of cluster

agents’ services.

4 HIERARCHICAL SUPPORTING

STRUCTURE

As agents are implemented with SW/HW co-design,

speciﬁc supporting structures are needed to facilitate

the agent-based dynamic organizationprocess. In par-

ticular, the run-time tracing, storing and updating of

cell/cluster/platform status need to be realized with

simple, low-overhead and scalable designs. This sec-

tion will present the hierarchical supporting structures

with proper SW/HW co-synthesis as suitable to the

corresponding level of agents.

4.1 Functional Design

The supporting structures include Resource Look-up

Table (RLT) on the platform agent, Cluster Look-up

Table (CLT) on the cluster agent, Cluster Identiﬁer

agents. Fig. 3 illustrates the functional overview of

these structures.

The system is initially conﬁgured with a number

of spare cells, and divided into a number of clus-

ters, e.g. one cluster for one application. At the run-

time, before loading a new stream (assuming stream-

ing applications without implying restrictions), all

cell agents perform a self-test. Any processor failure

will be notiﬁed to the platform agent. Upon receiving

the fault status, the platform agent attempts to locate

the most suitable spare cell for the broken cell. As

the platform agent is aware of the processor status in

all clusters, it can assign the spare cells without lo-

cating the same spare in two clusters. Based on the

replacement decisions, the platform agent continues

with dynamic organization. It writes the CIR of the

chosen spare cell with the address of the cluster agent.

The RT of each router is also updated by the platform

agent, so that the spare cell’s address will replace that

of the broken cell. For the cluster agent, the platform

agent updates its CLT by removing the broken cell

and adding the new cell. Lastly, the platform agent

updates its own RLT, based on the new cluster infor-

mation. Then on the properly conﬁgured platform,

a new stream can be processed, with other potential

services, e.g. energy management. The initial clus-

terization is decided by the platform agent, and will

be actuated via conﬁguring the RLT, CLT and CIR.

Spares can be allocated per system, with the platform

agent deciding on the suitable spare cell. As an al-

ternative, if spares are reserved for each cluster, the

cluster agent can decide on the proper spare cell.

Detailed structures of RLT, CLT and CIR are as

follows:

• Resource Look-up Table (RLT). Afﬁliated with

the platform agent, RLT is a reconﬁgurable stor-

age of all cells’ monitored parameters, which are

accessible to the platform agent. As illustrated in

Fig. 3, RLT has the number of entries as large as

the total number of cells in the system. In each

entry, ﬁelds related to the cell’s utilization status

(used or spare) and fault status (proper or broken).

The utilization and fault status are needed for the

platform agent to determine the mapping, for in-

stance, choosing the closest replacement for a bro-

ken core. The entries in RLT are updated by the

platform agent, either upon receiving new cell sta-

tus from the cell agents, or after the platform agent

decides on a new clusterization.

• Cluster Look-up Table (CLT). On each cluster

agent, CLT holds the status of cells currently al-

located to the cluster, and the information of ap-

plication(s) currently running in the cluster. As

illustrated by Fig. 3, the number of entries in

CLT is the number of cells and applications al-

located to the cluster. Any broken cell will be

cleared by removing its entry in CLT. Each en-

try for cells include the cell ID (the address of

the cell in the network), and the run-time param-

eters (usually design speciﬁc such as buffer load,

cache hit rate). The run-time parameters are used

for adaptive optimization. For instance, the buffer

load can indicate network congestion in energy-

performance trade-off. Each entry for applica-

tions include the application ID and timestamps of

monitored milestones (e.g., the starting/end time).

Compared to the content in RLT, CLT does not

include the ﬁelds of cell utilization and fault sta-

tus, as all cells stored in CLT are actually being

utilized. When new cells are allocated to a clus-

ter, or broken cells are removed from the cluster,

the platform agent will update the CLT accord-

ingly. On the other hand, the run-time optimiza-

tion (such as the energy management) is done at

the cluster level, thus the cell and application pa-

rameters, as reported by each cell agent, are stored

only in the CLT.

• Cluster Identiﬁer Register (CIR) and Re-routing

Table (RT). On each cell agent,there is a CIR,

which stores the location of the cluster agent. As

a cell (utilized or spare) can be allocated to any

cluster at the run-time, CIR, being reconﬁgurable

by the platform agent, is written with the current

cluster agent’s address. In addition, to support the

data communication after fault-triggered remap-

HierarchicalSupportingStructureforDynamicOrganizationinMany-coreComputingSystems

255

Decision-Making/

Spare replacement

CEA

CLA

CEA

Processing

element

Router

Cell agent

Cluster agent

Platform agent

CEA

Original Cluster

PLA

Other Clusters

CEA

CLA

PLA

Processor failure

Spare

Monitoring/

Fault

detection

Broken cell

removed/

Spare added

New Cluster

Spare added in cluster

Failed cell removed

Locating the best spare for

replacement

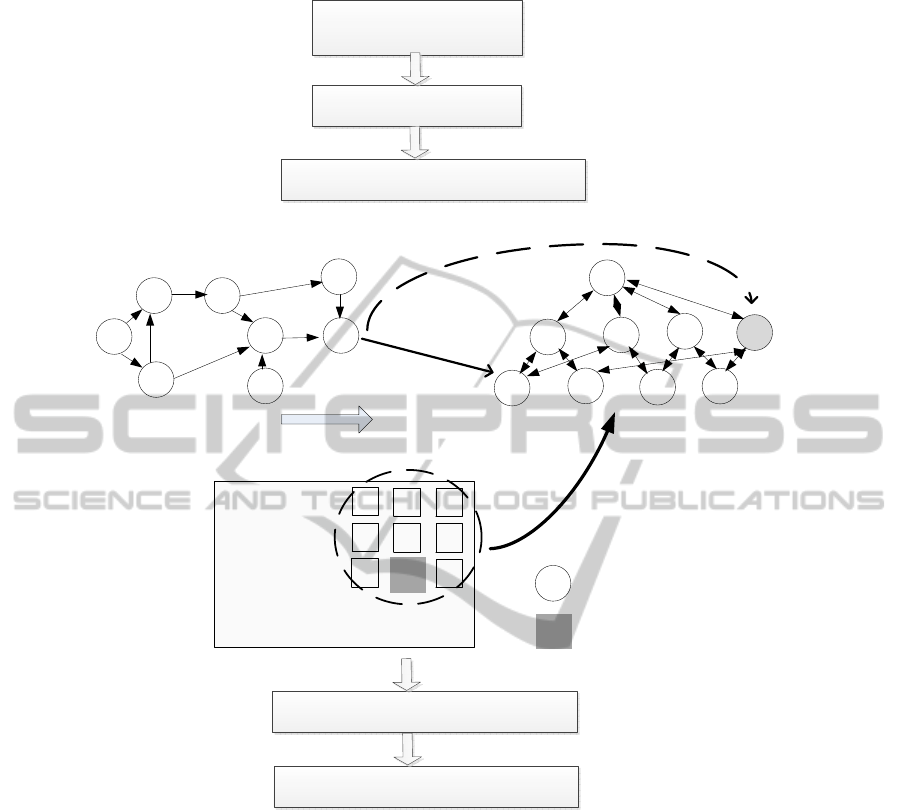

Figure 2: Monitoring, Decision-Making and Reconﬁguration in Dynamic Organization.

Re-Routing Table (RT)

Broken

processor

1) Cell agent of the broken

cell reports the fault status

to the platform agent.

CIR

Platform

Agent

Cell

Agent 1

Spare

Cluster Identifier Register (CIR)

Cell

Agent 2

Cluster Agent1

Cell

Agent 3

2) The platform agent

assigns the spare to

cluster agent 1

The platform agent removes the

broken cell from the cluster table,

and adds the new spare.

The platform agent updates its

own resource table.

Cell ID

Cluster ID

Fault status

Utilization

status

The number

of cells in

the platform

Cluster 1

Faulty

Cell 1

Resource Look-up Table (RLT)

Cluster 1

Proper

Cell 2

Cluster 1

Proper

Cell 3

For storing and tracing the status of

all cells

Load

Cell ID

Maximal

cluster size

Other

parameter

Cluster

Agent 1

Cluster Look-up Table (CLT)

Tracing the status of all CURRENT

cells in the cluster

3) The platform agent updates

the re-routing table of cells

New

destination

Original

destination

Cell 1

Cell 3

CIR

Cluster Agent1

Application

Time

New

destination

Original

destination

Cell 1

Cell 3

Figure 3: Functional Overview of Hierarchical Supporting Structures.

ping, a RT is attached to each router, which is also

written by the platform agent. When a broken pro-

cessor is replaced by a new processor, all packets

destined for the broken processor will be modiﬁed

with a new destination (in the header ﬂit).

4.2 SW/HW Co-synthesis

Following the SW/HW co-design of agents, RLT is

implemented as part of the local memory of the plat-

form agent (software agent). CLT is implemented as

a pre-processing hardware unit for the cluster agent (a

thread on one processing core). CIR and RT are sim-

ply hardware registers in each cell. Fig. 4 presents

the SW/HW co-synthesis of the hierarchical support-

ing structures.

RLT, where utilization status of all cells is stored,

is implemented in the distributed memory of the plat-

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

256

PLA

CEA

Memory

CLA

CLT

CEA

RLT

CIR

RLT

(1,0)

Status

(0,0)

used

faulty

(0,1)

spare

Cell index

used

(1,1)

Cluster

Agent

Local Memory

Memory

Wakeup

Interrupt_out=1

Cell 0

Cell 1

Row selection

mask (RSM)

Parameter

selection

mask

(PSM)

Cell 2

CLT

Cell/

Application

Application 1

Load

0.2

0.1

Updated Time

Updated:

Is the value updated?

1-updated; 0- old data

None-applicable

Application 2

0.1

Updated

X X

0 0

X X

500

Select the

interested

cells

1 0

Select the

interested

parameters

”00"

waiting

”01"

All loads

returned

”10"

Cluster Agent

Thread

The maximal

allowed number

of cells in one

cluster

Memory

PLA: Platform agent

CEA: Cell agent

CLA: Cluster agent

PE: processing element

R.: Router

RLT: Resource look-up table

CLT: Cluster look-up table

CIR: Cluster identifier register

RT: Re-routing table

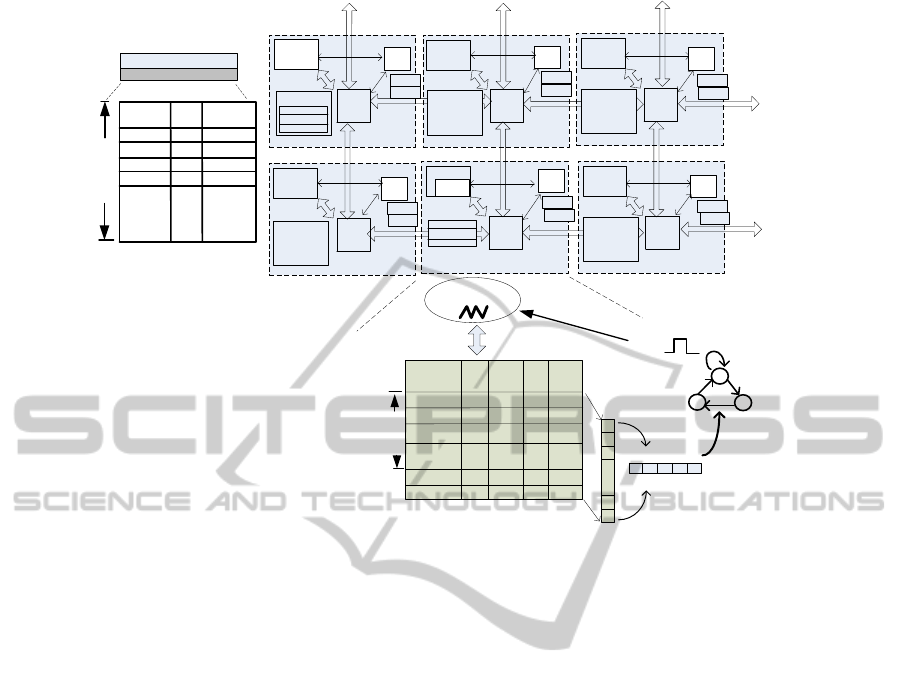

Figure 4: SW/HW Co-synthesis of Hierarchical Supporting Structures.

form agent. Implementing RLT in the existing mem-

ory space instead of a dedicated hardware unit is

based on two-fold considerations:

• The size of RLT can easily ﬁt into a distributed

memory space. The entry width of RLT is

log

N + 2 + log

N in bits, as the status ﬁeld re-

quires 2 bits (3 states: faulty, used, spare) and

cell/cluster location each requires log

N bits (N

is the maximal number of nodes in NoC). Given

1000 nodes in NoC, each entry becomes 22-bit

wide covering 3 bytes. Even assuming an entry

uses one 32-bit memory line (e.g. Leon3 proces-

sor is 32b), the RLT can ﬁt in 4KB memory space,

which is a small portion of common processor’s

memory space (for instance, a Leon 3 processor

in (Chen and Zhonghai, 2010) (Chen et al., 2010)

has 64KB local memory).

• ImplementingRLT in the distributed memory pro-

vides high ﬂexibility for the platform agent to ac-

cess the table as memory operations. In addi-

tion, any processor can be conﬁgured as the plat-

form agent (during compilation). If RLT is im-

plemented as a dedicated hardware unit, only the

cells attached with RLTs can be conﬁgured as the

platform agent (unless a RLT is attached to every

node).

CLT is implemented as a pre-processing unit to

the cluster agent (Fig. 4). Each cluster agent is im-

plemented as a software thread, sharing a process-

ing core with computation threads. When the clus-

ter agent perform, e.g., energy-performance tradeoff,

it may wait on speciﬁc information (e.g., the local

loads), which suspends the thread. When the infor-

mation is sent from each cell agent, it will be stored

in the CLT. When a certain criteria is met, e.g., the

loads of all routers are returned, an output signal is

generated from CLT to wake up the suspended cluster

agent thread. Each entry of CLT contains the mon-

itored parameters of one cell or the timestamps of a

running application. At the run-time, these parame-

ters will be updated in an unpredictable order. The

local load of each router, as an example, may be re-

ported by the corresponding cell agent in a random

order. The interrupt triggering criteria can be dynam-

ically conﬁgured with RSM (row selection mask) and

PSM (parameter selection mask) (Fig. 4). The RSM

can be written by the cluster agent to choose the inter-

ested cells or applications. To choose the interested

parameters, the PSM can be conﬁgured by the clus-

ter agent. In case of dynamic organization, complete

entries in CLT will be updated. For instance, the row

for a broken cell will be replaced by one for the spare

cell.

HierarchicalSupportingStructureforDynamicOrganizationinMany-coreComputingSystems

257

Implementing CLT in hardware is an alternative to

the software-based implementation of a look-up table

(e.g., the RLT). The design choice is based on two-

fold considerations:

• The pre-processing unit only wakes up the thread

when all needed information is ready, instead of

triggering a context-switch every time one piece

of information is received. Such technique re-

duces the timing overheads caused by excessive

context switching.

• If the platform needs to support the scenario

where every node can host a cluster agent, one

CLT should be attached to each node. Consider-

ing 32-entry (thus accommodating 32 cells in the

cluster) 16-bit wide CLT, it only covers 2.2% of

a 64-bit router(Section 5). Surely the size of CLT

is application dependent, though its small over-

head can be clearly identiﬁed. Thus the hardware-

based CLT implementation is highly feasible.

As each cell agent is a hardware-based unit

wrapped within a NoC node, implementing RT and

CIR as registers becomes a natural design choice. It

should be noted that these registers are writable by the

platform agent. In the dynamic clusterization process,

CIR will be updated with the cluster agent address,

and the RT will be updated with the failure and spare

cells’ indexes.

5 QUANTITATIVE EVALUATION

With a registertransfer level implementation of many-

core systems, this section validates the function of the

proposed hierarchical supporting structures and ana-

lyzes the physical overhead.

5.1 Experimental Setup

Agents and the supporting structures are implemented

upon the McNoC platform (Chabloz and Hemani,

2012). The platform is composed of Leon 3 proces-

sors connected with mesh network-on-chip, as sim-

ilar to the illustration in Fig. 4. It adopts dis-

tributed shared memory. Each processor has 64KB

shared memory (Chen and Zhonghai, 2010) (Chen

et al., 2010). The network utilizes wormhole switch-

ing and hot-potato routing, as in Nostrum architecture

(Jantsch, ). Each router can be conﬁgured dynami-

cally with different voltages and frequencies based on

GRLS (globally ratiochronous, locally synchronous)

timing (Chabloz and Hemani, 2010). In particular,

any local clock needs to be rationally related to a ref-

erence clock (f

, N is an integer). Synthesis

of a router in 65nm CMOS technology identiﬁes the

maximum speed of a router is 300MHz with 1.32V.

Thus four voltage and frequency pairs can be recon-

ﬁgured for each router: (300MHz, 1.32V), (100MHz,

1.1V), (50MHz, 1.1V) and (20MHz, 1.1V)

. The

agents and the hierarchical supporting structures are

implemented as described in Section 4.

5.2 Functional Simulation

To validate the function of the hierarchical supporting

structures, two streaming applications are simulated

on the experimented platform. The ﬁrst application

is for image processing BASIZ (Roig et al., 2007),

which requires 26 cores, mapped on a 6 × 5 network

area and conﬁgured into one cluster. The other ap-

plication, MPEG encoding (Khan and Ahmed, 2008),

requires 21 cores. It is mapped on a 5 × 5 NoC area,

also conﬁgured into a cluster. Both clusters will con-

tain 4 spare cores as redundancy.

To simulate the dynamic organization, three ran-

dom processor failures are injected into each clus-

ter. As illustrated in Fig. 5, the many-core system

goes through the following reconﬁguration: each ap-

plication is mapped onto the designated cluster with

randomly injected errors. The mapping utilizes tree-

model based mapping algorithm (Yang et al., 2010)

as an example of energy-aware mapping without im-

plying limitation. The RLT, CLT, CIR and RT (Sec-

tion 4) are accordingly conﬁgured. Afterwards each

cluster agent performs dynamic energy management

in each cluster. In particular, each cluster is initially

conﬁgured with the highest voltage and frequency

(300MHz, 1.32V). After one application stream com-

pletes, the cluster agent identiﬁes the router with max-

imal load (measured as the buffer occupancy ratio in

any passed period), and then applies a lower level of

voltage and frequency. The dynamic energy manage-

ment is only designed to validate if the system works

properly after processor failures.

Fig. 6 illustrates the energy consumption of 45

streams of both applications after failure-triggered

dynamic organization. The energy value is normal-

ized with the energy consumption of the ﬁrst stream

(highest voltage and frequency setting). It can be

observed that the energy management works prop-

erly in both clusters. The energy savings are 16.53%

and 13.62% respectively. This demonstrates that both

clusters maintain their functions with the processor

failures resolved by the dynamic organization.

The minimum supported voltage of the experimented

technology library is 1.1V.

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

258

P1 P2

P5 P4

C07

V12

C23

C75

C65

C25

C34

1) Mesh network with

spares abstracted as a tree

Processor failure injection

Initial setting

Spares in each cluster’ rectangle

n2 n3

n4 n6

S Spare cell

Tree-based Energy-Aware Remapping

Updating RLT, CLT, CIR and RT

Dynamic Energy Management in Each

Cluster

Application

Chracterization Graph

Broken cell

When error-free,

P4 should be

mapped to n2

2) map the application on

the tree with spares

Figure 5: Functionally Validating Dynamic Organization.

5.3 Overhead Analysis

The overheads of RLT and CLT need to be analyzed

differently. RLT is a memory-mapped look-up table,

and each entry can ﬁt into a 32-b memory line (Sec-

tion 4.2). Therefore, the overhead of RLT can be an-

alyzed as a percentage of the platform agent’s local

memory. CLT, on the other hand, is hardware cir-

cuitry, thus its overhead is obtained from synthesis of

ters used for CIR and RT are negligible.

The overheads of RLT and CLT are summarized

in Table 1. Considering a system with as many as

1000 processing cores, RLT only incurs a small 6.3%

memory usage of the 64KB local memory of the plat-

form agent. CLT incurs 9451 um

area overhead if

designed with 32 entries (accommodating at maxi-

mum 32 cells in the cluster), which is only 2.2% of

a 64b wormhole router in the McNoC (Chabloz and

Hemani, 2012). In particular, the size of CLT is not

dependent on the system size, but the cluster size. As

long as the maximum size of a cluster is bounded, the

CLT will incur scalable overhead when more cells are

integrated into the system.

6 DISCUSSION

The dynamic clusterization presented here assumes

permanent processor failures. Addressing the link er-

rors will expand the fault tolerance of the NoC plat-

form, as partially discussed in an existing work (Asad

HierarchicalSupportingStructureforDynamicOrganizationinMany-coreComputingSystems

259

0 5 10 15 20 25 30 35 40 45 50

0.6

0.7

0.8

0.9

Normalized Per−Stream Energy Consumption for MPEG

0 5 10 15 20 25 30 35 40 45 50

0.6

0.7

0.8

0.9

Normalized Per−Stream Energy Consumption for BASIZ

Per−Stream Energy for MPEG

Per−Stream Energy for BASIZ

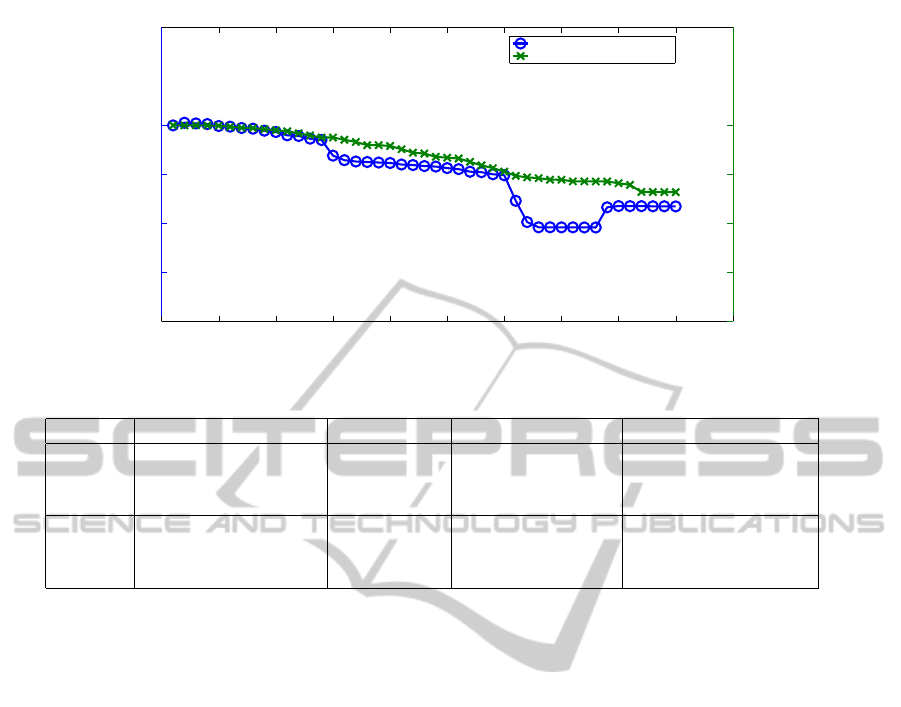

Figure 6: Per-stream Energy Consumption in Dynamically-Reconﬁgured Clusters.

Table 1: Overheads of Hierarchical Supporting Structures.

Type Description Value Analysis Scalability

SW Relative RLT Overhead 1000 memory very small linear to the system size

/memory in the local memory lines (one for 6.3% of each

each cell) 64KB local memory

HW Area overhead of CLT 9451 um

minimal not grow with

32 entries, each 16 bits only 2.2% the system size,

of a 64b router thus scalable

et al., 2012). If there are spare wires, the connec-

tivity can still be maintained with the same dynamic

clusterization process. In case a link is permanently

disconnected, adaptive rerouting may be needed for

data and monitoring communication. In addition, the

remapping algorithm should consider the inaccessi-

bility of disconnected cells. This paper focuses on the

architectural support of the hierarchical organization,

so that a broken cell does not interrupt the function

of the involved cluster and the whole platform. The

problems of recovering from other types of errors or

failures are for future work.

7 CONCLUSIONS

This paper presented hierarchical supporting struc-

tures for dynamic organization in many-core comput-

ing systems. While agents provide run-time adaptiv-

ity, supporting structures are needed to trace, store

and update the system status. The design of these

structures needs to consider the SW/HW co-design of

agents on the corresponding level. In particular, re-

source look-up table, which keeps track of all cells’

status, is implemented as part of the local memory of

the platform agent. Cluster look-up table, which has

both storage and pre-processing functions, is imple-

mented as a dedicated hardware unit for each cluster

agent. Cluster identiﬁer register and re-routing table

are small registers on each cell agent.

The paper motivated the dynamic organization for

dependability, and explained the agents’ roles in the

involved process. It elaborated the architectural de-

sign and SW/HW co-synthesis of the hierarchical sup-

porting structures. The functional simulation vali-

dates that the system continues working properly after

the clusters are reorganized from processor failures.

The implementation analysis reports small area over-

head of the structures. For the next step, we will take

other types of faults into consideration, for instance

link failures and the errors of agents themselves.

REFERENCES

Asad, M., Guang, L., Hemani, A., Paul, K., Plosila,

J., and Tenhunen, H. (2012). Energy-aware fault-

tolerant network-on-chips for addressing multiple

trafﬁc classes. In Proc. of 15th Euromicro Conference

on Digital System Design.

Borkar, S., Karnik, T., Narendra, S., Tschanz, J., Ke-

shavarzi, A., and De, V. (2003). Parameter variations

and impact on circuits and microarchitecture. In Proc.

Design Automation Conference, pages 338–342.

Chabloz, J. M. and Hemani, A. (2010). Distributed DVFS

using rationally-related frequencies and discrete volt-

age levels. In Proc. ACM/IEEE Int Low-Power Elec-

tronics and Design (ISLPED) Symp, pages 247–252.

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

260

Chabloz, J.-M. and Hemani, A. (2012). Scalable Multi-

core Architectures: Design Methodologies and Tools,

chapter Power Management Architecture in McNoC,

pages 55–80. Springer New York.

Chen, X., Lu, Z., Jantsch, A., and Chen, S. (2010). Support-

ing distributed shared memory on multi-core network-

on-chips using a dual microcoded controller. In Proc.

Design, Automation & Test in Europe Conf. & Exhibi-

tion (DATE), pages 39–44.

Chen, X. and Zhonghai, L. (2010). DME User Guide. KTH,

School of Information and Communication Technol-

ogy, release 4.0 edition.

Chou, C.-L. and Marculescu, R. (2011). Farm: Fault-

aware resource management in noc-based multipro-

cessor platforms. In DATE, pages 673–678.

Collet, J. H., Psarakis, M., Zajac, P., Gizopoulos, D.,

and Napieralski, A. (2009). Comparison of fault-

tolerance techniques for massively defective ﬁne- and

coarse-grained nanochips. In Proc. MIXDES-16th Int.

Conf. Mixed Design of Integrated Circuits & Systems

MIXDES ’09, pages 23–30.

Das, S., Tokunaga, C., Pant, S., Ma, W.-H., Kalaiselvan, S.,

Lai, K., Bull, D., and Blaauw, D. (2009). RazorII: In

Situ Error Detection and Correction for PVT and SER

Tolerance. IEEE JSSC, 44(1):32–48.

Guang, L., Nigussie, E., Rantala, P., Isoaho, J., and Ten-

hunen, H. (2010). Hierarchical agent monitoring de-

sign approach towards self-aware parallel systems-on-

chip. ACM Transactions on Embedded Computing

Systems (TECS), 9(3):25:1–25:24.

Guang, L., Nigussie, E., and Tenhunen, H. (2009). System-

level exploration of run-time clusterization for energy-

efﬁcient on-chip communication. In Proceedings of

the 2nd International Workshop on Network on Chip

Architectures, pages 63–68. ACM.

Jantsch, A. Nostrum home. http://www.ict.kth.se/nostrum/.

Accessed Jan.6, 2013.

Jantsch, A. and Tenhunen, H. (2003). Networks on Chip.

Kluwer Academic Publishers.

Khan, G. and Ahmed, U. (2008). Cad tool for hardware

software co-synthesis of heterogeneous multiple pro-

cessor embedded architectures. Design Automation

for Embedded Systems, 12:313–343.

Lu, Z., Xia, L., and Jantsch, A. (2008). Cluster-based sim-

ulated annealing for mapping cores onto 2d mesh net-

works on chip. In Proc. DDECS, pages 1–6.

Oh, N., Mitra, S., and McCluskey, E. J. (2002). ED4I: Error

detection by diverse data and duplicated instructions.

IEEE Trans. Comput., 51(2):180–199.

Ostroumov, S. and Tsiopoulos, L. (2012). Formal devel-

opment of hierarchical agent-based monitoring sys-

tems for dynamically reconﬁgurable NoC platforms.

IJERTCS, 3(2):40–72.

Pamunuwa, D., Oberg, J., Zheng, L.-R., Millberg, M.,

Jantsch, A., and Tenhunen, H. (2004). A study on the

implementation of 2-d mesh based networks on chip

in the nanoregime. Integration - The VLSI Journal,

38(1):3–17.

Roig, C., Ripoll, A., and Guirado, F. (2007). A new task

graph model for mapping message passing applica-

tions. IEEE Transactions on Parallel and Distributed

Systems, 18(12):1740–1753.

Shamshiri, S., Lisherness, P., Pan, S.-J., and Cheng, K.-T.

(2008). A cost analysis framework for multi-core sys-

tems with spares. In Proc. IEEE International Test

Conference ITC 2008, pages 1–8.

Unsal, O., Tschanz, J., Bowman, K., De, V., Vera, X., Gon-

zalez, A., and Ergin, O. (2006). Impact of parameter

variations on circuits and microarchitecture. IEEE Mi-

cro, 26(6):30–39.

Vangal, S., Howard, J., Ruhl, G., Dighe, S., Wilson, H.,

Tschanz, J., Finan, D., Singh, A., Jacob, T., Jain, S.,

Erraguntla, V., Roberts, C., Hoskote, Y., Borkar, N.,

and Borkar, S. (2008). An 80-tile sub-100-w teraﬂops

processor in 65-nm cmos. IEEE JSSC, 43(1):29–41.

Yang, B., Xu, T. C., S¨antti, T., and Plosila, J. (2010).

Tree-model based mapping for energy-efﬁcient and

low-latency network-on-chip. In Proc. of 13th IEEE

DDECS, pages 189–192.

Zhang, L., Han, Y., Xu, Q., and Li, X. (2008). Defect

tolerance in homogeneous manycore processors us-

ing core-level redundancy with uniﬁed topology. In

Proc. Design, Automation and Test in Europe DATE

’08, pages 891–896.

HierarchicalSupportingStructureforDynamicOrganizationinMany-coreComputingSystems

261
