A Low Overhead Self-adaptation Technique for KPN Applications

on NoC-based MPSoCs

Onur Derin

, Prasanth Kuncheerath Ramankutty

, Paolo Meloni

and Giuseppe Tuveri

ALaRI - Faculty of Informatics, University of Lugano, Via G. Bufﬁ 13, 6904 Lugano, Switzerland

DIEE - Faculty of Engineering, University of Cagliari, 09123 Cagliari, Italy

Keywords:

Kahn Process Networks, Networks-on-Chip, Self-adaptation, Event-based Control.

Abstract:

Self-adaptive systems are able to adapt themselves to mutating internal/external conditions so as to meet

their goals. One of the challenges to be tackled when designing such systems is the overhead introduced

in making the system monitorable and adaptable. A large overhead can easily compensate the beneﬁts of

adaptation. In this work, we are addressing this challenge within the context of KPN applications on NoC-

based MPSoCs. In particular, parametric adaptations at the application level are considered. We present a low

overhead technique for the implementation of the monitor-controller-adapter loop, which is present in self-

adaptive systems. The technique is fundamentally based on an extended network interface which provides the

ability to interrupt remote tiles on a NoC-based multiprocessor platform. Results from the MJPEG case study

show that the proposed interrupt-based approach incurs an overhead as low as 0.4% without compromising

the quality of the adaptation control. Our new technique provides an improvement of approximately 6.25%

compared to another state-of-the-art technique that interacts with the application using KPN semantics (i.e.,

blocking channels). Moreover, the sensitivity of the overhead to the complexity of the adaptation controller is

much lower in case of our interrupt-based technique as compared to the blocking channel based scheme.

1 INTRODUCTION

There has been a paradigm shift in the design of pro-

cessors in order to achieve scalable performances by

moderately increasing the power consumption. Pro-

cessors are being integrated on the same chip with

ever-increasing numbers alongside a network-on-chip

(NoC) (Micheli and Benini, 2006) as the communica-

tion backbone. Memory organization and program-

ming models are also affected by these changes. No

remote memory access (NORMA) and message pass-

ing models allow scalability on such platforms.

As systems become more complex, modeling their

behavior and analyzing their performances become

more challenging. Ofﬂine analysis may prove to be

more difﬁcult or impossible. Even if possible, chang-

ing internal or external conditions may turn the opti-

mal conﬁguration chosen at design time into a non-

optimal one. Self-adaptivity has emerged as a solu-

tion to these issues. Self-adaptivity is the ability of a

system to adapt itself dynamically to changing inter-

nal and external conditions. It allows systems to meet

their non-functional goals such as high performance,

high dependability and low power consumption.

An important challenge in designing self-adaptive

systems is the implementation of monitoring and

adaptation capabilities with low overheads. There

are two types of overhead. The steady state over-

head is the overhead experienced simply due to the

additional hardware or software for enabling moni-

toring and adaptation capabilities. It is present even

when there are no ongoing adaptations. This overhead

should be minimized because it has to be afforded at

all times. The transient overhead is the overhead ex-

perienced while an adaptation is taking place. The

major sources of this overhead are the adaptation con-

trol logic and the realization of an adaptation. If the

system is expected to have frequent adaptations, then

care must be taken to minimize this type of overhead.

The techniques to be developed for implement-

ing self-adaptive applications depend heavily on the

adopted model of computation. In this paper, we

adopt Kahn Process Networks (KPN) (Kahn, 1974)

model due to its suitability for NORMA-based NoC

multiprocessor systems-on-chip (MPSoCs). KPN is

a stream-oriented computation model, where an ap-

plication is organized as streams and computational

blocks; streams represent the ﬂow of data, while com-

262

Derin O., Kuncheerath Ramankutty P., Meloni P. and Tuveri G..

A Low Overhead Self-adaptation Technique for KPN Applications on NoC-based MPSoCs.

DOI: 10.5220/0004389802620269

In Proceedings of the 3rd International Conference on Pervasive Embedded Computing and Communication Systems (SANES-2013), pages 262-269

ISBN: 978-989-8565-43-3

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

putational blocks represent operations on a stream of

data, making it a suitable computation model to rep-

resent most of the signal processing and multimedia

applications of the embedded systems world.

The particular focus of this paper is the self-

adaptivity overhead in the context of streaming ap-

plications based on the KPN model and running on

NORMA-based NoC multiprocessors. The main con-

tribution of this work is a low overhead technique for

the implementation of the monitor-controller-adapter

(MCA) loop based on an extension in the Network In-

terface (NI) which allows interrupting remote tiles on

the NoC platform. In doing so, the realization of self-

adaptation is investigated with regard to two interac-

tion styles between the MCA and the application. Ex-

perimental results are provided comparing these ap-

proaches.

The rest of the paper is organized as follows. An

overview of the related work is provided in Section 2.

Section 3 describes the NoC-based platform and inter-

processor interrupt support. Section 4 presents the

proposed interrupt-based self-adaptation technique.

Section 5 explains shortly the MJPEG case study, fol-

lowed by the experimental results in section 6. Fi-

nally, section 7 concludes the paper.

2 RELATED WORK

Run-time management on MPSoC platforms have

gained an increasing attention in the recent years. It

can be used for various purposes such as management

of quality of service, power, temperature, variability

as well as load balancing and fault tolerance. (Nollet

et al., 2010) surveys several works from the academia

and the industry that address different aspects of run-

time adaptation. In terms of their classiﬁcation cri-

teria, our work can be classiﬁed as quality manage-

ment since we address application-level performance

goals. It can be incorporated into the generic self-

adaptive run-time environments proposed in (Nollet

et al., 2010; Derin et al., 2009) and reside alongside

other self-adaptation services such as fault-tolerance

(Meloni et al., 2012).

Some emerging NoC-based multi-core architec-

tures provide inter-processor interrupt (IPI) support.

For example, Tilera’s Tile64 can deliver interrupts to

notify user-space processes of message arrival (Went-

zlaff et al., 2007). This allows it to support both

polling and interrupt-based message delivery. In-

tel’s SCC also provides a hardware message passing

mechanism that triggers an interrupt on the receiv-

ing core, before returning from a write() call (Matt-

son et al., 2010). The OpenScale platform (Busseuil

et al., 2011), which is quite similar to the presented

NoC-based MPSoC, can handle packet reception by

both interrupt and polling methods; the interrupt oc-

curs when the number of elements inside the incom-

ing FIFO reaches a given threshold. Anyway, to the

best of our knowledge there are no works evaluating

the impact of the use of interrupts on the overhead

related to the self-adaptivity of the system.

The self-adaptation framework presented in (De-

rin et al., 2012) (hereafter referred to as MCA-EB,

short for event-based MCA using blocking channels)

uses blocking FIFO channels for the interaction be-

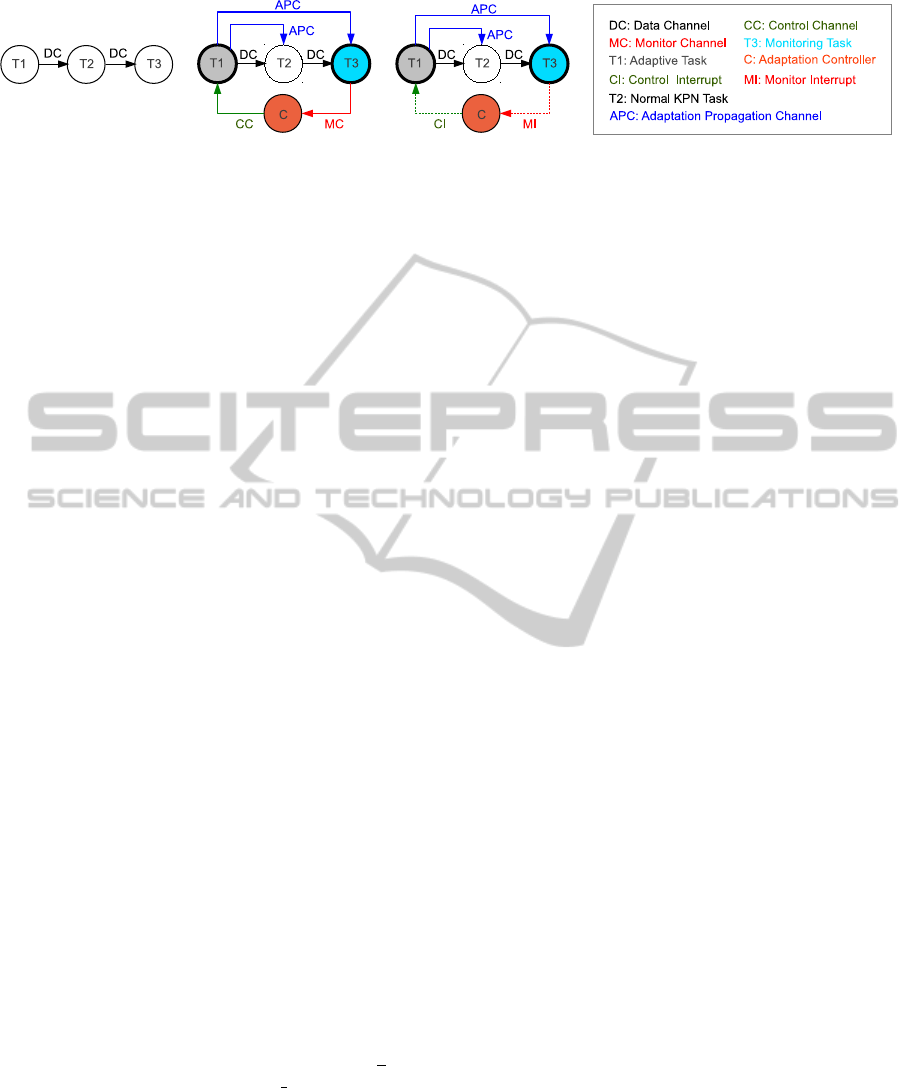

tween MCA and the application tasks. Fig. 1(a)

and Fig. 1(b) shows a simple KPN application and

its self-adaptive version based on this framework re-

spectively. MCA-EB represents a self-adaptive ap-

plication in terms of the following entities: adap-

tive tasks implementing adapter functions, monitoring

tasks calling monitoring functions, adaptation con-

troller(s) and adaptation propagation channels (APC)

alongside the original task graph. MCA-EB deploys

event-driven control (Sandee, 2006), where the mon-

itor and control actions are triggered upon the gener-

ation of a speciﬁc application event. Such an event

causes the monitoring task to measure the required

application parameter and sent it to the controller task

using the monitor channel (MC). The controller task

reads this data from the blocking channel, runs the

control algorithm to generate the control command

and sends it to the adaptive task using the control

channel (CC). Adaptive task reads these commands

from the blocking channel (at a predeﬁned place in

the code) and performs the adaptation.

Self-adaptive applications built using MCA-EB

approach suffer from reduced throughput due to

pipeline stalls caused by the blocking-channel inter-

action between the application tasks and the con-

troller. That is, for every event that triggers the adap-

tation control, the adaptive tasks in the application

pipeline have to wait for the control algorithm to ﬁn-

ish, thus preventing the processing of subsequent in-

put data by them. This causes the pipeline to be emp-

tied and ﬁlled often, thus reducing the throughput.

In P

N (Zhai et al., 2011), a parameterized poly-

hedral process network model is deﬁned to support

run-time parametric adaptations. P

N allows analyz-

ing where and how parameter values can be changed

dynamically and consistently according to depen-

dence relations between parameters. It also enables

extracting the dependence relation between depen-

dent parameters at design time. As explained later, in

our approach, the identiﬁcation of the adaptation ex-

ecution points and adaptation propagation channels is

to be done manually by the application programmer.

ALowOverheadSelf-adaptationTechniqueforKPNApplicationsonNoC-basedMPSoCs

263

3 INTER-PROCESSOR

INTERRUPT SUPPORT IN NoCs

The platform proposed in (Meloni et al., 2012) is

adopted as the hardware base for this work. In the pro-

posed approach the system architecture can be seen as

a network of tiles, interconnected by means of a NoC

communication infrastructure.

The communication network is built by using an

extended version of the the ×pipes-lite library of syn-

thesizable components (Bertozzi and Benini, 2004).

Network Interfaces (NI) are in charge of construct-

ing the packets on the basis of the communication

transactions requested by the cores. NIs have been

extended with support for message-passing commu-

nication model. A programmable message manager

with DMA capabilities is integrated with the NI inside

a module called Network Adapter (NA). Communi-

cation and synchronization mechanisms are managed

accessing memory-mapped registers at the network

interfaces.

3.1 Programming Model

Reference primitives implementing message-passing

communication are built, according to the general

deﬁnition of such model, upon two base functions:

send() and receive(). These two primitives are imple-

mented in C, and interact with memory mapped reg-

isters inside the NA. According to the usual message-

passing signatures, to send a message with a send(),

the programmer has to specify the address (SendAd-

dress hereafter) inside the private memory that con-

tains the information to be sent (message data), a tag

assigned to the message (SendTag), the size of the

transfer (SendDim), and the ID of the destination pro-

cessor (SendID). The receive() parameters are the tag

of the expected message (ReceiveTag), the sender ID

(ReceiveID) and the address where the received mes-

sage data has to be stored (ReceiveAddress). Two

implementations of the receive() are provided, with

blocking and non-blocking behavior.

3.2 Message Passing Support

The Network Adapter architecture is connected to

dual port data and instruction private memories, in or-

der to allow the processor to continue with the execu-

tion while the other ports are used to load/store data

from/to the memory in case of message send/receive.

The NA integrates a module called DMA message-

passing handler (MPH), embedding the memory-

mapped registers to be programmed by the processor,

when controlling send and receive operations, to set

the needed primitive parameters.

It also includes an address generator in charge of

generating the addresses when the private memories

must be accessed from the port reserved for message

passing.

When the processor wants to call a send(), the mi-

crocode that implements the primitive stores the val-

ues of primitive parameters into a set of send-related

memory-mapped registers. As soon as the registers

are programmed, the address generator starts to load

SendDim words from the memory, starting from ad-

dress SendAddr, and propagates them to the NA of the

processor that has SendID as network address. The

SendTag is an identifying tag assigned to the speciﬁc

message and is sent, together with the size and the

destination address inside the packet header, to be de-

coded by the receiving network interface. The storing

inside the SendTag register triggers the starting of the

NoC transaction.

At the other end of the communication, the pro-

cessor needs to execute a receive() to complete the

transaction. The receive() microcode, as a ﬁrst step,

stores the primitive parameters inside three memory-

mapped registers. Once such registers are pro-

grammed, the processor keeps polling the DMA han-

dler, where a dedicated circuitry is in charge of com-

paring the incoming messages with the contents of

the three registers. In case of matching, the message

data is stored in memory, at the location identiﬁed by

ReceiveAddress. It is useful to point out that, when

the receive is not already executed at the time that the

message reaches the destination NA, the address gen-

erator is capable of temporarily store the data in a re-

served region of the memory used as buffer until it is

needed.

3.3 Interrupt Generation Support

As a further extension, a tag decoder has been instan-

tiated inside the Network Adapter. It is in charge of

detecting a set of predetermined tag conﬁgurations,

that are reserved for the purpose of remote interrupt

generation. In case of matching, the tag decoder trig-

gers an interrupt signal that is connected to the pro-

cessor interrupt controller. This feature can be used to

allow a processor in the system to generate an asyn-

chronous event on another processor, such as, for ex-

ample, the monitoring and control related signaling

that is exploited in this paper. The number and the

range of reserved tag conﬁgurations are conﬁgured at

design time. By default, the tag is 16 bits wide, and 16

different conﬁgurations generate a different interrupt

signal to the processor. This means that 16 compara-

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

264

(a) KPN application (b) MCA-EB (c) MCA-EI (d) Legend

Figure 1: Self-adaptation approaches for KPN applications on NoC.

tors and 16 registers are instantiated inside the NA

netlist after synthesis. If the interrupt signal is gener-

ated directly by the comparing logic, some spurious

ﬂuctuations can be generated at the receiving of the

message, during the transient of the circuitry switch-

ing. Being the interrupt controller set to be sensitive

on rising edge of the interrupt signal, in order to avoid

such ﬂuctuations to generate an interrupt in the pro-

cessor, the interrupt signal is buffered in a register be-

fore being forwarded to the interrupt controller. This

hardware overhead can be customized reducing the

number of reserved tags according to the application

features.

Besides implementing the monitoring and control

interrupts that will be described more in detail in the

following, the interrupt generation is used to imple-

ment a request based ﬂow control between KPN tasks

mapped on the NoC platform. Such ﬂow control re-

lies on two software FIFOs created for every com-

munication channel in the task graph, more in de-

tail respectively in the producer and consumer private

memory. The producer keeps writing the produced

data inside the software FIFO and blocks only when

it is full. The consumer, at the other end of the chan-

nel, keeps reading input data from its software FIFO.

When this FIFO is empty, a request interrupt message

is sent from the consumer to the producer, triggering

it to perform a send of all the data inside its software

FIFO.

4 INTERRUPT-BASED

SELF-ADAPTATION FOR KPN

APPLICATIONS ON NoC

In this section, we present our new approach, event-

based MCA using inter-processor interrupts (MCA-

EI), for implementing self-adaptive KPN applications

on NoC-based MPSoCs. Similar to MCA-EB, MCA-

EI introduces an MCA feedback loop into the ap-

plication pipeline. The monitor (equivalent to sen-

sors) measures various parameters to check whether

the application meets its goals. The controller takes

decisions so as to steer the system towards the goal,

whereas adapters (similar to actuators) are in charge

of actually performing adaptations. Since processes

are generally mapped to different resources on MP-

SoCs, it is quite possible that the parameter to be mon-

itored is present on one tile, whereas the task to be

adapted may exist on a different tile. This forces the

monitor,controller and adapters to be implemented on

different tiles in a distributed manner. Both MCA-EB

and MCA-EI incorporate a generic fuzzy logic based

adaptation controller and implement similar monitor-

ing and adaptation techniques. Similarly both uses

event-based control; which means the adaptation con-

trol is triggered upon the occurrence of speciﬁc events

in the system. However they differ based on how

the MCA mechanism interacts with the application.

MCA-EB uses blocking-channels to this end, whereas

MCA-EI is based on inter-processor interrupts.

Similar to MCA-EB scheme, MCA-EI also repre-

sents a self-adaptive application in terms of the fol-

lowing entities: monitoring tasks calling monitoring

functions, adaptive tasks implementing adapter func-

tions, adaptation controller(s) and adaptation propa-

gation channels alongside the original task graph. A

simple self-adaptive application pipeline built using

MCA-EI framework is shown in Fig. 1(c). The design

and usage of monitoring functions, adapter functions

and fuzzy adaptation control algorithm are as detailed

in (Derin et al., 2012). Hence only the main differ-

ences in comparison with the MCA-EB is presented

here.

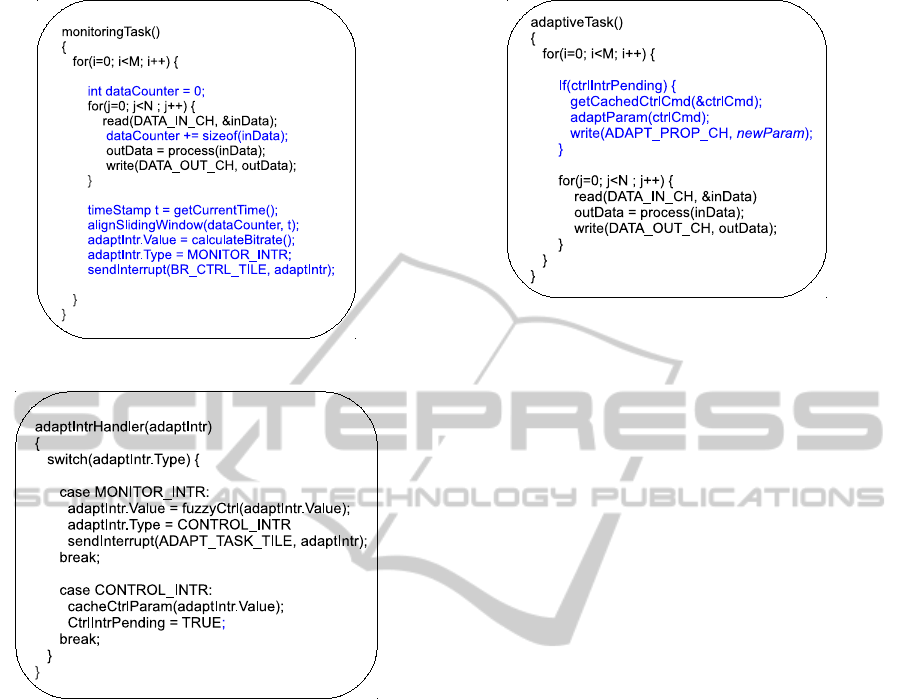

Fig. 2 depicts the pseudo-code representing a

monitoring task in MCA-EI scheme. The modiﬁca-

tion done on a normal KPN task to convertit to a mon-

itoring task (i.e.; by adding calls to monitoring func-

tions) is colored in blue. In this example the task is

equipped with throughput (in terms of bit-rate) mon-

itoring capabilities. The difference to be noted com-

pared to MCA-EB is that, instead of sending the mon-

itored parameter value over blocking channel it is sent

as an interrupting message to the NoC tile where the

controller is run.

As compared to MCA-EB (where the controller

is a separate task), the control algorithm is run as

part of interrupt handler in MCA-EI. As shown in

the pseudo-code of the controller given in Fig. 3,

ALowOverheadSelf-adaptationTechniqueforKPNApplicationsonNoC-basedMPSoCs

265

Figure 2: A monitoring task in MCA-EI scheme.

Figure 3: Adaptation interrupt handler in MCA-EI scheme.

the interrupt handler handles two kinds of interrupts;

a) monitor interrupts (MI) - from monitoring task’s

tile to adaptation controller’s tile, b) control inter-

rupts (CI) - from adaptation controller’s tile to adap-

tive task’s tile. Upon receiving an MI, the interrupt

handler runs the fuzzy control algorithm with the re-

ceived monitored parameter value as the argument to

generate the control command. Subsequently it in-

terrupts the adaptive task’s tile (using CI) to send the

control command. On the other hand, CI is handled

as follows; ﬁrst the received control command will be

cached so that it can be processed by the adaptive task

later, second a ﬂag is set to inform the adaptive task

that a control interrupt had occurred.

An adaptive task in MCA-EI is shown in Fig. 4. It

checks for any previous interrupts from the controller

tile at a ﬁxed location in the task body. In case of

any previous interrupts the adaptive function will be

invoked (with the cached value of control command)

to perform the required actions. Further it also sends

the modiﬁed values of the adapted parameter to other

Figure 4: An adaptive task in MCA-EI scheme.

tasks (using APC) which need these updated param-

eters. In KPN model, processes can receive external

input only via blocking FIFO channels. Checking the

pending controller interrupt ﬂag is a non-blocking op-

eration, thus it does not affect the liveness of the ap-

plication.

The functioning of MCA-EI can be summarized

as follows. When the event which triggers the

adaptation control is generated, the monitoring task

performs monitoring and interrupts the adaptation-

controller’s tile. The controller tile receives this in-

terrupt and runs the control algorithm as part of the

interrupt handler. Subsequently, the controller inter-

rupts the tile of the adaptive task to send the control

command. The interrupt handler of the adaptive task

tile caches the interrupts received, to be processed by

the adaptivetasklater. When the adaptivetask reaches

the predeﬁned point of execution, it checks for any

cached interrupts and performs the required adapta-

tions if necessary.

The MCA-EI approach increases the application

throughput by using an interrupt mechanism instead

of blocking FIFO channels in the MCA feedback

loop. MCA-EI scheme has the advantage of not

stalling the application pipeline since the adaptive

tasks never wait for blocking control commands from

the controller. This helps the system to attain higher

throughput as compared to the MCA-EB scheme.

In our work, the correctness of the reconﬁgura-

tion relies on the KPN processes reaching an execu-

tion point at which their state does not relate to any

computation done using the parameter to be updated.

An adaptation command via a control channel or an

adaptation propagation channel can only be served at

such points. For a general KPN application, the iden-

tiﬁcation of the adaptation execution points and adap-

tation propagation channels is to be done manually by

the application programmer. It should be done care-

fully to guarantee a correct parameter reconﬁguration.

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

266

(a) MJPEG Encoder Pipeline (b) MCA-EB (c) MCA-EI

Figure 5: Self-adaptive MJPEG encoder using different approaches.

Otherwise, the functional correctness may be compro-

mised and also deadlocks may be introduced. In the

speciﬁc case of polyhedral process networks (PPN)

(Verdoolaege, 2010), the state of processes reduce to

the iterator values at the top of the for-loops of each

process. Therefore such locations, as shown in Fig. 4,

are ideal candidates for adapting PPN processes.

5 CASE STUDY: MOTION JPEG

(MJPEG)

This section presents MJPEG (Lieverse et al., 2001),

as a case study to demonstrate our technique. A typ-

ical MJPEG encoder pipeline is shown in Fig. 5(a),

where all the components are modeled as KPN tasks.

The SRC task captures the input video frame-by-

frame and feeds it to the DCT task one block (8×8

pixels) at a time, to perform the discrete cosine trans-

form. The Q task quantizes each video block using an

8×8 QMatrix, whereas VLE task does entropy cod-

ing on the video blocks before generating the ﬁnal

MJPEG stream by inserting headers/markers to indi-

cate the start/end of each frame.

5.1 Self-adaptive MJPEG

We implemented two self-adaptive MJPEG encoders

on our 2× 2 NoC-based FPGA platform using the

MCA-EB and MCA-EI approaches respectively as

shown in Fig. 5. Our implementations support au-

tonomous control of bit-rate (BR) and frame-rate (FR)

at run-time. Bit-rate adaptation is achieved by con-

trolling the quality of encoding (by scaling the QMa-

trix accordingly), whereas frame-size scaling is used

to control the frame-rate. The implementation de-

tails of the sliding-windowbased monitor,fuzzy-logic

controller and the bit-rate/frame-rateadapters are pro-

vided in (Derin et al., 2012).

Table 1: Comparison of steady-state overheads.

FR-Overhead (%) BR-Overhead (%)

MCA-EI 0.385 0.386

MCA-EB 6.663 6.667

6 RESULTS

In this section, the results from the adaptive MJPEG

case study using a 128×128 test video are presented.

The MCA-EI approach is compared against MCA-

EB in terms of the adaptation overhead and the con-

trol quality. Adaptation overhead is measured as the

reduction in frame-rate and bit-rate, whereas control

quality is quantiﬁed using rise-time/fall-time (RT/FT)

and mean-absolute-error (MAR). To calculate these

two metrics for a monitored parameter, the encoder is

run for a ﬁxed number of frames of a test video with

an initial value of the parameter. Then its value is

changed to the target value and the system is allowed

to adapt. The time taken for the parameter to reach

within a tolerance band (±5%) about its target value

is the rise/fall time. The absolute error value for the

parameter is calculated for all measurements starting

from where it reached the tolerance band till the last

frame. The mean of these absolute error values gives

the MAR.

6.1 Adaptation Overhead

To measure the overhead due to the introduction of

the MCA feedback loop in the application pipeline,

the following procedure is used. First, the encoder is

run without the feedback loop as well as the adapta-

tion propagation channels to obtain the average val-

ues of FR and BR without the framework. The ex-

periment is repeated after introducing the MCA loop

and the additional channels to obtain the reduced val-

ues. In this case both BR and FR control is turned off

inside the controller, since only the overhead due to

the framework needs to be measured. Table 1 com-

ALowOverheadSelf-adaptationTechniqueforKPNApplicationsonNoC-basedMPSoCs

267

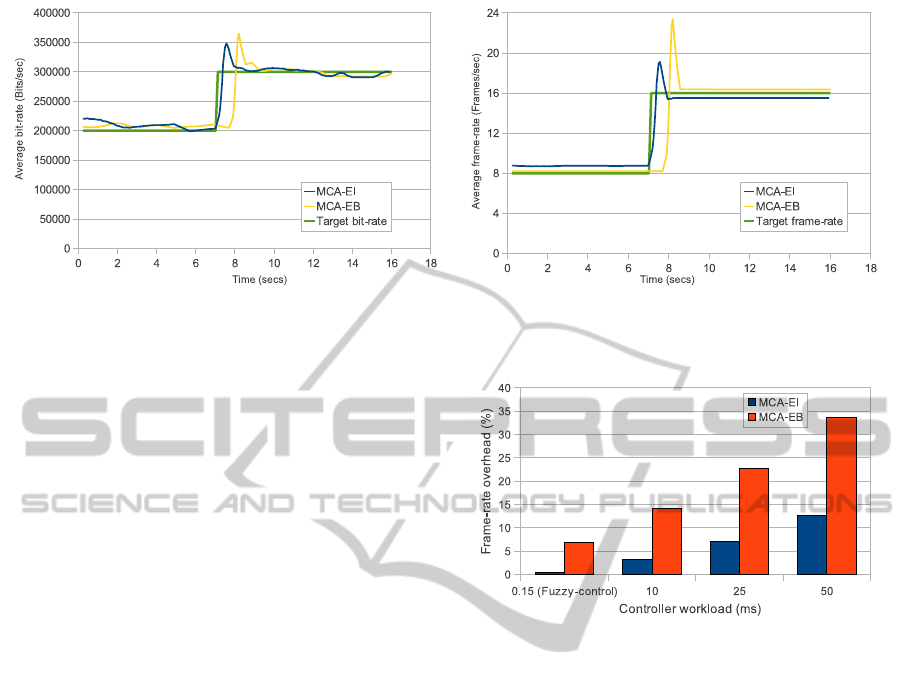

(a) Bit-rate adaptation (b) Frame-rate adaptation

Figure 6: Results for initial BR = 200000 bps, initial FR = 8 fps and ﬁnal BR = 300000 bps, ﬁnal FR = 16 fps.

pares the steady-state overhead (in terms of bit-rate

and frame-rate reduction) for MCA-EI and MCA-

EB schemes. It can be seen that the overhead in

case of the MCA-EB is much more than MCA-EI

because the application pipeline is stalled at the end

of every frame. Firstly, the tasks from adaptive tasks

till the monitoring task are stalled consecutively un-

til the ﬁnal frame block is processed by the moni-

toring task. Only then, the monitoring can be per-

formed and the controllers can provide the control

command required to unblock the adaptive tasks. In

case of MCA-EI the pipeline is never stalled, yield-

ing higher throughput. Also in MCA-EI, the adapter

tiles will not be interrupted by the controller during

steady-state; whereas in MCA-EB, the adaptive tasks

have to wait for the control command for every frame

even in the steady-state. The throughput reduction in

the MCA-EI scheme (about 0.4%) is due to the ex-

ecution of the controller inside the interrupt service

routine (in our experiments, the controller is mapped

on the processor with the heaviest workload).

6.2 Control Quality

Fig. 6 shows how the framework adapts (using MCA-

EB and MCA-EI) when the encoder is run with ini-

tial BR = 200000 bits/s (bps), initial FR = 8 frames/s

(fps), ﬁnal BR = 300000 bps and ﬁnal FR = 16 fps.

Here the goals are changed from initial to ﬁnal at the

frame and the framework is conﬁgured such that

the control algorithm is run for every third frame.

Table. 2 compares the two schemes in terms of

rise-times (RT) and mean-absolute-errors (MAR) for

this experiment. It can be seen that the rise-times

for the MCA-EB scheme is considerably higher than

MCA-EI due to the stalling of the pipeline at the end

of each frame. However, the MAR is within tolerable

limits (±5% of ﬁnal values) for both.

Figure 7: Effect of controller workload on adaptation over-

head.

6.3 Adaptation Overhead vs. Controller

Workload

Workload of the controller - represented as the cal-

culation time of the control decision, is simulated by

introducing delay in the controller code. To obtain

the steady-state overhead, the MJPEG encoder is run

with the MCA feedback loop in place but the bit-

rate and frame-rate control being turned off. Fig. 7

shows the variation in the steady-state overhead (as

percentage frame-rate reduction) with respect to the

controller workload for the MCA-EB and MCA-EI

schemes. As obvious, the overhead increases with

increasing controller workload. But this increase is

far less in interrupt-based scheme as compared to

the blocking-channel case. In case of the MCA-EB

scheme the entire encoder pipeline is stalled while the

control algorithm is run, irrespective of on which tile

the controller is located. The throughput reduction in

the MCA-EI scheme is due to the controller stealing

several cycles from the application task that runs on

its tile. These experiments are carried out with the

controller running on the processor with the heaviest

workload (i.e., the tile of DCT) and shows that the in-

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

268

Table 2: Comparison of control-quality.

RT-BR (secs) RT-FR (secs) MAR-BR (bits) MAR-FR (frames)

MCA-EI 0.364 0.364 6551 (2.2%) 0.57 (3.6%)

MCA-EB 0.579 0.579 7958 (2.7%) 0.63 (4.0%)

terrupt based approach is much superior for complex

controllers that consume more time. Furthermore,

the overhead can be almost eliminated in the MCA-

EI scheme by running the controller on a tile where

no application task is present. However, such an im-

provement is not possible for the MCA-EB scheme.

7 CONCLUSIONS

In this paper, we presented the MCA-EI approach

aimed towards developinglow-overheadself-adaptive

KPN applications on NoC-based MPSoCs. Com-

pared to the MCA-EB scheme (Derin et al., 2012),

it makes use of inter-processor interrupts to increase

the application throughput. Results from the MJPEG

case study show that the MCA-EI scheme outper-

forms MCA-EB in terms of overhead (about 6.25%

reduction) while offering similar or better quality of

control. The sensitivity of adaptation overhead to

controller workload is also much less in case of MCA-

EI. However, MCA-EI requires platform support to

send data to remote tiles using interrupting messages

over the NoC. This support is implemented by extend-

ing the network interface with a tag decoder.

ACKNOWLEDGEMENTS

This work was funded by the European Commission

under the project MADNESS (No. FP7-ICT-2009-4-

248424). The paper reﬂects only the authors’ view;

the European Commission is not liable for any use

that may be made of the information contained herein.

REFERENCES

Bertozzi, D. and Benini, L. (2004). Xpipes: a network-on-

chip architecture for gigascale systems-on-chip. Cir-

cuits and Systems Magazine, IEEE, 4(2):18 – 31.

Busseuil, R., Barthe, L., Almeida, G. M., Ost, L., Bruguier,

F., Sassatelli, G., Benoit, P., Robert, M., and Torres, L.

(2011). Open-Scale: A scalable, open-source NOC-

based MPSoC for design space exploration. In Pro-

ceedings of the International Conference on Reconﬁg-

urable Computing and FPGAs (ReConFig’11), pages

357–362, Los Alamitos, CA, USA.

Derin, O., Ferrante, A., and Taddeo, A. V. (2009). Coor-

dinated management of hardware and software self-

adaptivity. J. Syst. Archit., 55(3):170–179.

Derin, O., Ramankutty, P. K., Meloni, P., and Cannella, E.

(2012). Towards self-adaptive KPN applications on

NoC-based MPSoCs. Advances in Software Engineer-

ing, 2012(Article ID 172674):13 pages.

Kahn, G. (1974). The semantics of a simple language for

parallel programming. In Information Processing ’74:

Proceedings of the IFIP Congress. North-Holland.

Lieverse, P., Stefanov, T., van der Wolf, P., and Deprettere,

E. (2001). System level design with SPADE: an M-

JPEG case study. In Proceedings of the IEEE/ACM

International Conference on Computer Aided Design

(ICCAD’01).

Mattson, T. G., Riepen, M., Lehnig, T., Brett, P., Haas, W.,

Kennedy, P., Howard, J., Vangal, S., Borkar, N., Ruhl,

G., and Dighe, S. (2010). The 48-core SCC processor:

the programmer’s view. In Proceedings of the Interna-

tional Conference for High Performance Computing,

Networking, Storage and Analysis, SC ’10.

Meloni, P., Tuveri, G., , Raffo, L., Cannella, E., Stefanov,

T., Derin, O., Fiorin, L., and Sami, M. (2012). System

adaptivity and fault-tolerance in NoC-based MPSoCs:

the MADNESS Project approach. In Proceedings of

15th EUROMICRO Conference on Digital System De-

sign Architectures, Methods and Tools (DSD’12).

Micheli, G. D. and Benini, L. (2006). Networks on Chips:

Technology and Tools. Morgan Kaufmann, San Fran-

sisco, 1st edition.

Nollet, V., Verkest, D., and Corporaal, H. (2010). A safari

through the mpsoc run-time management jungle. J.

Signal Process. Syst., 60(2):251–268.

Sandee, J. (2006). Event-driven control in theory and prac-

tice - trade-offs in software and control performance.

PhD thesis, Eindhoven University of Technology.

Verdoolaege, S. (2010). Polyhedral process networks.

Handbook of Signal Processing Systems, pages 931–

965.

Wentzlaff, D., Grifﬁn, P., Hoffmann, H., Bao, L., Edwards,

B., Ramey, C., Mattina, M., Miao, C.-C., Brown III,

J. F., and Agarwal, A. (2007). On-chip interconnec-

tion architecture of the Tile processor. IEEE Micro,

27(5):15–31.

Zhai, J., Nikolov, H., and Stefanov, T. (2011). Model-

ing adaptive streaming applications with parameter-

ized polyhedral process networks. In Proceedings of

the 48th Design Automation Conference, pages 116–

121. ACM.

ALowOverheadSelf-adaptationTechniqueforKPNApplicationsonNoC-basedMPSoCs

269
