A Single Performance Characteristic for the Evaluation

of Seeker Tracking Algorithms

Leo Doktorski, Eckart Michaelsen and Endre Repasi

Fraunhofer-IOSB, Gutleuthausstrasse, 1, 76275 Ettlingen, Germany

Abstract. This paper presents a single numerical performance characteristic for

the evaluation of seeker tracking algorithms. It concentrates on ship IR seeker

tracking algorithms. Assessing the threat from guided missiles needs a sound

evaluation of their performance. The main goal is to introduce a characteristic

which is able to assess the threat for ships depending on various scenario pa-

rameters. It is shown that for these applications such a single characteristic is

sufficient. In order to achieve this seven popular tracking algorithms are used

for this. Synthetic IR image sequences are generated to simulate a large set of

attack approaches and assemble sufficient statistics on the behavior of the algo-

rithms. The introduced characteristic can also be used for investigations on al-

gorithms themselves, e.g. for sensitivity analyses and parameter optimization of

a single algorithm, and for comparison of different algorithms.

1 Introduction and Related Work

Automated tracking is essential in a wide area of applications. In order to determine

the best tracking algorithm for a given application and to optimize the parameters of

the algorithm, comprehensive quantitative evaluation characteristics are required.

Different scenarios may require different characteristics, but in particular for optimi-

zation and comparison a single numeric characteristic is desirable.

Characterizing trackers on image sequences with multiple objects of interest, clut-

ter objects and complex background – such as in surveillance applications – is quite a

challenge. For those scenarios a lot of different metrics have been proposed. But

defining a single characteristic in those cases is particularly difficult (see e. g. [1, 2, 3,

10, 17]).

For simpler scenarios - single object of interest and relatively homogenous back-

ground – that is easier. For such applications usually simple tracking algorithms are

used. This relative simplicity should allow finding a single appropriate quantitative

characteristic of the tracking algorithm.

The application also dictates whether it is preferable to integrate the performance

characteristic over the whole video sequence or only on the last frame. E.g. for auto-

mated tracking of vehicles or people in a surveillance task the behavior of the tracker

should be averaged over the whole sequence. However, for a seeker head only the last

Doktorski L., Michaelsen E. and Repasi E..

A Single Performance Characteristic for the Evaluation of Seeker Tracking Algorithms.

DOI: 10.5220/0004391100030013

In Proceedings of the 4th International Workshop on Image Mining. Theory and Applications (IMTA-4-2013), pages 3-13

ISBN: 978-989-8565-50-1

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

frame is of interest – intermediate detours do not alter the overall success. This idea

was implicitly used in [13, 14].

This paper concentrates on the protection of ships against infrared (IR) guided

missiles. This application requires assessing the behavior of an IR missile seeker in its

perception/action control loop in the scenario of interest. Today such threat assess-

ment is regarded very important and intensively researched [6, 7, 12, 11, 13, 14].

Quantitative, automatically acquired performance measures were not in the focus of

these works. Instead, for example in [13, 14] the tracker performance has been ana-

lyzed manually and only hit point positions were registered. Thus it is difficult to get

a representative statistic and to compare the results of these papers with results of

other authors. Additionally a method for automatic quantitative analysis of the effec-

tiveness of the countermeasures is needed.

Real data – i.e. videos from real flights of IR missiles against ships – are not

available. Alternatively, partially synthetic image sequences (based on real IR videos

of ships) can be used, where approaching is simulated by zooming. This also causes

high costs. Moreover, results based on such data cannot be compared and reproduced

by other authors. Synthetic data – i.e. rendered image sequences - for the characteri-

zation are standard in literature (see e. g. [13, 14, 16]).

This allows rendering the next image according to the tracker results and thus

simulating control actions based on previous images. Such procedure is called closed

loop simulation. So called “open loop simulation” renders one high resolution video

first. The size of the images is much bigger than the field of view (FOV) of the seek-

er. Seeker actions are modeled by simply choosing an appropriate section from each

image. This causes much less computational efforts for extensive experimenting and

allows simple repeating of the process with for example different start positions or

different algorithm parameters. Discussions on open and closed loop simulation can

be found in [13, 14].

2 Data and Algorithms

2.1 Sources of Synthetic Imagery

Open loop seeker simulation is used in this investigation. Inputs are synthetic se-

quences of 16-Bit images of a target ship with sea foreground and sky background.

The sequences were rendered using three simulation tools: SeaSimul (Fraunhofer-

IOSB-tool), ShipIR/NTCS (http://www.wrdavis.com) and POV-Ray (http://

www.povray.org). All these programs allow simulating 16-Bit sequences and syn-

chronously simulating binary sequences with the contour of the target, the so called

mask-sequences (See Fig. 1). These mask-sequences together with the knowledge

about the distance to the target are used as ground-truth information.

Preliminarily, the objective is to develop a numerical characteristic for seeker

simulations. Therefore simple sequences are simulated: without effects caused by

atmospheric transmission, sun radiation, vibration and so on. All sequences have 25

fps and 800*600 pixels with FOV 109.08x81.81 mrad. As starting distance 25 km

were chosen. The approach velocity was fixed to 300 m/sec.

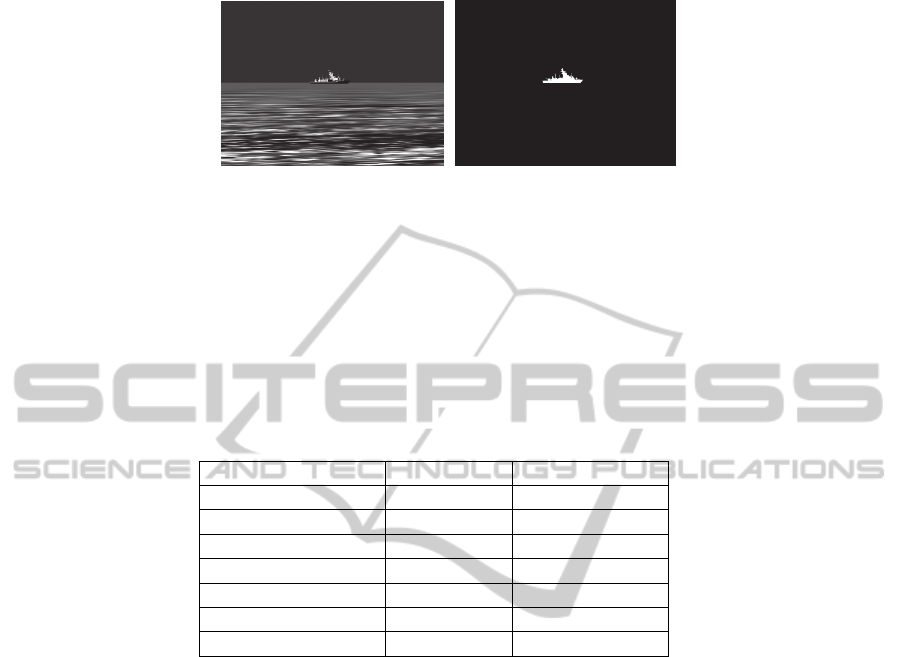

Fig. 1. Example created by the SeaSimul program: one frame from the synthetic sequence and

from the corresponding mask-sequence.

2.2 Seeker Tracking Algorithms

Seven known seeker tracking algorithms [4, 5, 8, 9, 15] were implemented for charac-

terizing. A priory there are good arguments to assume that at least two of them (Cen-

troid and FixedCorrelation; see Table 1) cannot perform well for the considered

scenarios. The analysis below approved this fact.

Table 1. Infrared seeker algorithms and corresponding FOVs.

Algorithm Abbreviation FOV (mrad)

RisingSun RSun 6 x 6

Centroid Cent 16 x 8

BinaryCentroid BCent 16 x 8

ThresholdCentroid TCent 16 x 8

FixedCorrelation FCor 16 x 8

RefreshCorrelation RCor 16 x 8

AverageCorrelation ACor 16 x 8

The first one, the rising-sun reticle algorithm, simulates non-imaging system. Its

field of view (FOV) is a circle. Other algorithms simulate imaging systems with rec-

tangular FOVs.

2.3 Description of the Experiments

Each approach simulation is started at one of the frames (the starting frame) and ends

at the last frame corresponding to the distance of about 3 km. At that distance the

final homing algorithm is assumed to take over. Such special final homing algorithms

are not a topic of this contribution.

The simulation terminates on the last frame and it will be characterized there and

only there. So only the last frame will be used for construction of the characteristics.

The position of the seeker’s FOV (blue rectangle: see Fig. 2) is known. Its middle

point will be called hit point (HPT). This point and the real position of the target (the

corresponding mask) are used in the construction of all characteristics.

The number of pixels within the FOV (FOVArea) and the number of pixels on the

target within the FOV (IntersectionArea) can be registered.

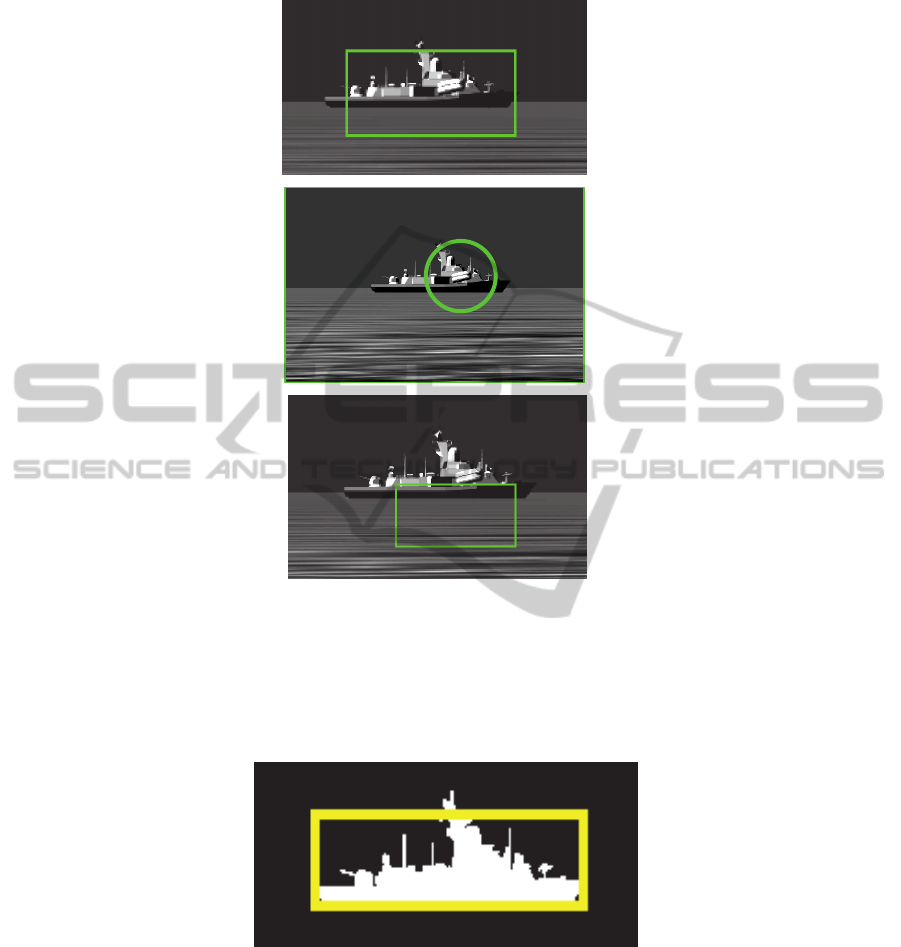

Fig. 2. Three examples of the terminal position after simulation. The rectangle (circle) is the

seeker’s FOV.

On the last image a rectangle RLast is constructed including the most important

part of the ship. It is the circumscribing rectangle of the mask shrunk on all sides

while the number of target’s pixels in each “row” and in each “column” is smaller

than 10% of the complete rectangle’s length or height respectively (See Fig. 3.).

Fig. 3. A rectangle RLast includes the most important part of the ship.

Each simulation may also terminate prematurely either because of interior break

criteria of the algorithm or because the open-loop simulation tries to leave the image.

3 Used Characteristics

The construction of the performance characteristics is done in three steps.

3.1 Single Simulation Characteristics

If the simulation is terminated prematurely it will be counted as complete failure and

all five characteristics defined below get the value 0. Otherwise the following five

characteristics can be calculated. By these constructions we have used some ideas of

[11, 13, 14].

The first characteristic H (Hit) takes value 1 if HPT lies on the target and 0 oth-

erwise.

Further the feature CQ (Covering Quota) can be calculated:

CQ := IntersectionArea/ FOVArea.

(Compare with [11] where the performance is based on the amount of overlap be-

tween the ground-truth and tracker boxes. See also [1].)

It depends extremely on the contour of the target, on the seeker’s FOV, and on

HPT. Under all possible HPTs the Largest Covering Quota (LCQ) can be estab-

lished. The second characteristic NCQ (Normalized Covering Quota) is defined as

follows:

NCQ := CQ/LCQ.

It does not depend so much on these parameters.

The third characteristic HR (Hit Rectangle) gets the value 1 if HPT lies in the

RLast and 0 otherwise. The fourth and fifth characteristics PA1 and PA2 (Proba-

bility Assessments) are defined via formulas:

PA1 :=









PA2 :=

)

2/2/

exp(

































Here l and w are the length and the width of the rectangle RLast. The vector (ΔX,

ΔY) is the difference between centers of the rectangle RLast and HPT (see Fig. 4).

(In [17] analogically distance is defined as

YX 

and accordingly it does

not depend on the width and height of the target.)

Fig. 4. FOV with HPT and Rlast.

3.2 Volley’s Characteristics

Each simulation needs a lock-on position in the starting frame. As default value the

center of gravity of the target will be taken. Experiments indicated that small varia-

tions of the lock-on position can lead to large differences of HPTs and all the five

characteristics. In order to characterize the track algorithm this effect has to be re-

duced. One possibility to do this is starting several simulations with lock-on positions

in a regular grid around the default value. In this investigation 25 simulations are used

where the position is moving ±10 and ±20 pixels in horizontal and vertical directions.

Such a set of simulations is called a volley.

For each element of such volley all five simulation’s characteristics were regis-

tered. Corresponding averages AH, AHR, ANCQ, APA1 and APA2 (The first letter

A stands for Averages) were taken as characteristics of a volley. Note that all these

values lie between 0 and 1. Each of them can be interpreted as probability assessment

for the seeker’s homing phase to score a hit. It will be shown that it is sufficient to use

only one of them.

The first experiments registered the behavior of the characteristics AH, AHR,

ANCQ, APA1 and APA2 as functions of the starting distance. A series of volleys

was started from frame numbers 1, 51, 101, and so forth to the frame number 1751

(corresponding to distances between 25 km and 4 km). Fig. 4 shows exemplarily the

characteristics as function of starting frame number for RisingSun and ThresholdCen-

troid trackers.

It can be seen that all the characteristics are well correlated. This is a general ex-

perience from almost all our experiments. Particular good correlation is found be-

tween

the characteristics APA1, APA2 and ANCQ. Three situations can be distin-

guished:

1) Good situations (bad for the ship): all characteristics are nearly constant with

small standard deviations. In this case the correlation coefficient can be relatively

small (>0.25). This situation is characterized with relatively large values for large

distances to target (small frame numbers).

2) Bad situations (good for the ship): all characteristics increase if the starting dis-

tance decreases and have large standard deviations. In this case the correlation coeffi

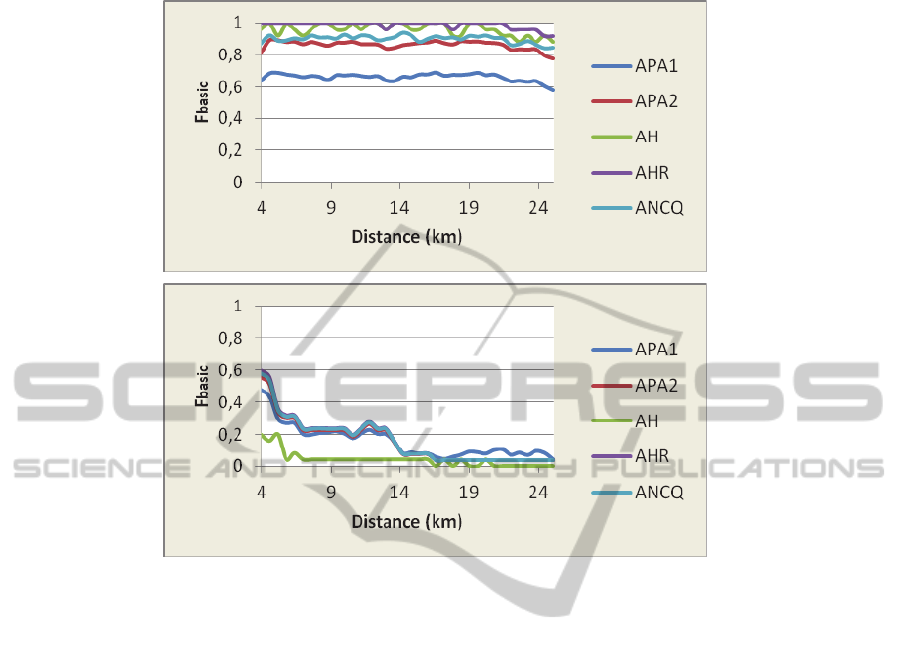

Fig. 5. Typically dependences of the characteristics on the starting distance (km) for two algo-

rithms: RisingSun – above and ThresholdCentroid – below.

cients are greater than 0.6. This situation is characterized with relatively small values

for large distances to target.

3) Very bad situation (ideal for the ship): all characteristics are extremely small. In

this case the correlation coefficients are not interesting.

The characteristics AH and AHR are discrete. So they are not appropriate as an

objective function for optimization. The three other characteristics can be considered

as continuous. They are preferred. The calculation of the characteristic ANCQ is

more difficult to automate than that of the characteristics APA1 or APA2. Finally, the

characteristic APA2 is less sensitive than APA1 for small values of ΔX and ΔY.

In conclusion it can be stated that

 The behavior of these five volley’s characteristics can be used to estimate the

quality of a track algorithm and to compare two algorithms or two simulations;

 Because these characteristics are well correlated, it is sufficient and preferable to

use only one of them;

 It is reasonable to use only the characteristic APA2 for further work.

3.3 Integrated Characteristic

Calculating diagrams as displayed in Fig. 5 causes considerable computation even for

APA2 only. But it is not necessary, because the values of APA2 for few large dis-

tances characterize the overall behavior well enough. On the other hand using the

value of APA2 for only one fixed distance may be error prone because of random

spikes in such curves. Three values of different starting distances, namely 20, 15, and

10 km were picked, and as proposed singular characteristic the averaged integrated

characteristic is defined as

basic:=(APA2(20)+APA2(15)+APA2(10))/3.

All following experiments were made with this characteristic.

4 Applicability of the Integrated Characteristic

The characteristic Fbasic can be used as well for investigation how the tracking algo-

rithms react on different scenario parameters (see the following section) as for estima-

tion of algorithms themselves and for optimization of their parameters. But we em-

phasize that the characteristic F

basic can also be used for a wide variety of other in-

vestigations.

4.1 Assessment of Algorithms

Here F

basic is used for the assessment of the seven algorithms. Three experimental

sequences were conducted using the three available rendering tools (see above) with

the same parameters and similar ships as targets. For each sequence and for each

track algorithm values of the characteristic F

basic were calculated. The results are

summarized in Table 2.

Table 2. Assessment of the algorithms.

Fbasic

Algorithm SeaSimul ShipIR POV-Ray

RSun 0.87 0.41 0.32

Cent 0 0 0.07

BCent 0.08 0 0.07

TCent 0.11 0 0.07

FCor 0.02 0.11 0.11

RCor 0.34 0.20 0.31

ACor 0.41 0.26 0.52

Characteristic Fbasic obviously arranges the algorithms in a similar order for all

three sequences. Four of the algorithms seem to be not useful at all. Recall that for

algorithms Centroid and FixedCorrelation this was expected. Only three algorithms

(RisingSun, RefreshCorrelation and AverageCorrelation) show acceptable values of

the characteristic Fbasic. Therefore only these were used for further investigations.

4.2 Assessment of Scene Parameters

Exemplarily, the influence of the frame rate and vibration were tested.

In order to find the impact of the frame rate on the performance of the algorithms

the tool SeaSimul was used to generate three image sequences with frame rate 5, 10

and 50 fps additionally to the sequence with the frame rate 25 used above. The values

of the characteristic

Fbasic for these sequences are summarized in Table 3. It turns out

they do not depend seriously on the frame rate. For further investigations this means

that the parameter ‘Frame rate’ in not very relevant. This can also help saving effort

for future experiments.

Table 3. Dependence on frame rate.

Frame rate

10 25

Algorithm

basic

RSun 0.83 0.83 0.87 0.86

RCor 0.35 0.34 0.34 0.35

ACor 0.36 0.39 0.41 0.43

In order to test the influence of the vibration a lot of sequences with different val-

ues for yaw, pitch and roll vibration separately were generated. The results for yaw

and roll vibrations are summarized in Tables 4 and 5 respectively.

Table 4. Dependence on yaw.

Yaw parameter

0 0.05 0.1 0.2 0.3

Alg.

basic

RSun 0.87 0.86 0.62 0.42 0.27

RCor 0.34 0.35 0.06 0 0

ACor 0.41 0.41 0.10 0 0

The algorithms that use correlation strongly react on yaw-vibration. The Rising-

Sun algorithm is more stable. The results for the pitch-vibration are similar.

Table 5. Dependence on roll.

Roll parameter

0 0.1 0.2 0.3 0.4 0.5 0.6

Alg.

basic

RSun 0.87 0.86 0.77 0.77 0.8 0.79 0.78

RCor 0.34 0.38 0.40 0.44 0.42 0.42 0.32

ACor 0.41 0.49 0.39 0.49 0.46 0.54 0.55

The roll-vibration is less important for the seekers algorithms because the target is

always near the center of the image.

5 Discussion and Conclusions

The experiments indicate that a small number of simulations cannot characterize track

algorithms properly, not even for a fixed starting frame. Very large numbers of simu-

lated approaches are needed. Open loop simulation on synthetic data opens the way to

perform such experiments with acceptable effort.

In order to characterize a seeker tracking algorithm with single characteristic five

different numeric characteristics have been introduced and investigated for a selected

number of scenarios. It was shown that they are tightly correlated. In the end only one

quantitative and continuous characteristic F

basic was constructed. It allows automatic

analysis of the tracking results.

Further experiments showed that it can be used for numeric characterization of

combinations of tracking algorithms and image sequences. Exemplarily, it was shown

how the different algorithms can be compared and how the influence of different

scenario parameters can be investigated. Important conclusions for the reduction of

the over-all run time of the simulation work were possible.

The scenario used here is admittedly limited. Such statements as “algorithm is

bad” may not be generalized too far. Maybe, the parameters of the algorithm should

be chosen differently or maybe for sequences of different nature other characteristic

values emerge. This does not concern the appropriateness of F

basic for assessing such

purposes.

Preliminary, the characteristic should be used as objective function for the optimi-

zation of parameters inside of the algorithms. The optimal setting of parameters is of

great interest and importance for further experiments. Only a quantitative and contin-

uous characteristic allows finding of such optimal setting.

As future work also the influence of such parameters like atmospheric transmission,

sun radiation, etc. will be investigated.

References

1. Anderson D. R., Moore J., Montgomery J., Chambliss M.: Infrared Seeker Performance

Metrics. SBIR A02-158: Phase I SBIR, Final Report (2003) http://www.dtic.mil/cgi-

bin/GetTRDoc?AD=ADA419746

2. Bernardin K., Stiefelhagen R.: Evaluating Multiple Object Tracking Performance: The

CLEAR MOT Metrics. EURASIP J. on Image and Video Processing (2008)

3. Edward K. K., Matthew P. D., Michael B. H.: An Information Theoretic Approach for

Tracker Performance Evaluation. Computer Vision, 2009 IEEE 12th International Confer-

ence on 2009, (2009) 1523–1529

4. Gerlach H.: Digitale Bildfolgenauswertung zum Wiederfinden von Objekten in natürlicher

Umgebung. FGAN-FIM, Karlsruhe, Final Report (1979)

5. Hudson R. D.: Infrared System Engineering. John Wiley & Sons, New York, (1969)

6. de Jong W., Dam F. A., Kunz G. J., Schleijpen R. M. A.: IR Seeker Simulator and IR

Scene Generation to Evaluate IR Decoy Effectiveness. Proc. SPIE 5615, (2004) 100-11

7. de Jong W., van den Broek S. P., van der Nol R.: IR Seeker Simulator to Evaluate IR De-

coy Effectiveness. Proc. SPIE 4718, (2002) 164–172

8. Legault R.: Reticle and Image Analyses. Chap. 17 in The Infrared Handbook, W. L. Wolfe,

G. J. Zissis, Eds., Office of Naval Research, Department of the Navy, Washington, DC

(1989)

9. Nasburg R. E.: Tracking and Control Systems. Chap. 5 in Electro-Optical Systems Design,

Analysis, and Testing, M. C. Dudznik, Ed., Vol. 4, Infrared Information Analysis Center,

Environmental Research Institute of Michigan, Ann Harbor, Michigan, USA (1993)

10. Needham C.J., Boyle D.: Performance Evaluation Metrics and Statistics for Positional

Tracker Evaluation. Proc. of the Computer Vision Systems: Third International Confer-

ence, ICVS 2003, 2626, Graz, Austria (2003) 278–289

11. Lavailee P. D., Lightfoot J. A., Chambliss M. A., Kimbel C., Griffin J. R.: Methodology

for Evaluating Autonomous IR Tracker Performance. 2002 Ground Targets Modeling and

Validation Conference Houghton, MI, August 5-8, (2002)

12. Schleijpen H. M. A.: Evaluation of Infrared-Signature Suppression of Ships. Proc. SPIE

2742, (1996) 245–254

13. Schleijpen R. H. M. A.: Toolset for Evaluating Infrared Countermeasures and Signature

Reduction for Ships. Proc. SPIE 7836, (2010)

14. Schoemaker R., Schleijpen R.: Evaluation Tools for the Effectiveness of Infrared Counter-

measures and Signature Reduction for Ships. Proc. SPIE 7662, (2010)

15. Suzuki K.: Analysis of Rising-Sun Reticle. Opt. Eng. 18(3), (1979) 350–351

16. Vaitekunas D. A.: IR Susceptibility of Naval Ships Using ShipIR/NTCS. Proc. SPIE 7662,

(2010)

17. Yujue L., Jinglong Y.: Performance Evaluation of Imaging Seeker Tracking Algorithm

Based on Multi-Features. International Symposium on Photoelectronic Detection and Imag-

ing 2011: Advances in Infrared Imaging and Applications. Proc. SPIE, 8193, (2011)

81932A–81932A-7
