Enhancing Clustering Technique with Knowledge-based System to

Plan the Social Infrastructure Services

Hesham A. Salman

, Lamiaa Fattouh Ibrahim

2, 3

and Zaki Fayed

Department of Information Systems, Faculty of Computing and Information Technology, King Abdulaziz University,

Jeddah, Saudi Arabia

Department of Computer Sciences and Information, Institute of Statistical Studies and Research,

Cairo University, Cairo, Egypt

Department of Information Technology, Faculty of Computing and Information Technology, King Abdulaziz University,

Jeddah, Saudi Arabia

Department of Computer Science, Faculty of Computer and Information Sciences, Ain Shams University,

B.P. 42808 Zip Code 21551- Girl Section, Jeddah, Saudi Arabia

Keywords: DBSCAN Clustering Algorithm, Infrastructure City Planning, Spatial Clustering Algorithm, Urban Plan-

ning, Public Service Facility.

Abstract: This article present new algorithm for clustering data in the presence of obstacles. In real world, there exist

many physical obstacles such as rivers, lakes, highways and mountains..., and their presence may affect the

result of clustering significantly. In this paper, we study the problem of clustering in the presence of obsta-

cles to solve location of public service facilities. Each facility must serve minimum pre-specified level of

demand. The objective is to minimize the distance travelled by users to reach the facilities this means also to

maximize the accessibility to facilities. To achieve this objective we developed CKB-WSP algorithm (Clus-

tering using Knowledge-Based Systems and Weighted Short Path). This algorithm is Density-based cluster-

ing algorithm using Dijkstra algorithm to calculate obstructed short path distance where the clustering dis-

tance represents a weighted shortest path. The weights are associated with intersection node and represent

the population number. Each type of social facility(schools, fire stations, hospitals, mosque, church…) own

many constraints such as surface area and number of people to be served, maximum distance, available lo-

cation to locate these services. All these constraints is stored in the Knowledge-Based system. Comparisons

with other clustering methods are presented showing the advantages of the CKB-WSP algorithm introduced

in this paper.

1 INTRODUCTION

Clustering is one of the most useful tasks in data

mining process. The different algorithms can be

classified regarding different aspects. These methods

can be categorized into partitioning methods (Han et

al., 2001); (Bradly et al., 1998

) hierarchical methods

(Zhang and Rousseeuw,

1996); (Guha et al., 1998),

density based methods (Ester et al., 1996); (Ankerst

et al., 1999),

grid based methods (Sheikholeslami et

al., 1998); (Agrawal et al., 1998) and model based

methods (Kohonen, 1982). The clustering task con-

sists of separating a set of objects into different

groups according to some measures of goodness that

differ according to the application. The applications

of clustering in spatial databases present important

characteristics. Spatial databases usually contain

very large numbers of points (Nanopoulosl et al.,

2001).

In spatial databases, objects are characterized

by their position in the Euclidean space and, natural-

ly, dissimilarity between two objects is defined by

their Euclidean distance (Tan et al., 2006).

Civil engineers often play a major role within the

complex planning processes needed to determine the

infrastructure location (or layout) and its capacity

(Bigotte and Antunes, 2007).

The social infrastructure planning problems

faced by public authorities typically consist of de-

termining where the facilities of some infrastructure

network should be located and what should be the

capacity of these facilities.

Very often, the number of possible solutions for

401

A. Salman H., Fattouh Ibrahim L. and Fayed Z..

Enhancing Clustering Technique with Knowledge-based System to Plan the Social Infrastructure Services.

DOI: 10.5220/0004391504010408

In Proceedings of the 5th International Conference on Agents and Artiﬁcial Intelligence (ICAART-2013), pages 401-408

ISBN: 978-989-8565-39-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

social infrastructure planning problems is extremely

large and it is advantageous to handle them through

a type of optimization model called location (or

location-allocation) models. These models are clas-

sified as continuous or discrete depending on wheth-

er the facilities can be located anywhere on the plane

or only in some pre-specified points of the plane.

Discrete location models are used more often than

continuous location in real-world applications. For

this reason they have been extensively studied since

the early 1960s, and there is a vast body of literature

describing models and solution methodologies.

Clustering technique will be used for helping en-

gineers to determine where the facilities of some

infrastructure network should be located and what

should be the capacity of these facilities and layout.

In many real applications the use of direct Eu-

clidean distance has its weaknesses (Tan, et al.,

2006). The Direct Euclidean distance ignores the

presence of streets, paths and obstacles that must be

taken into consideration during clustering.

In this paper, a clustering–based solution is pre-

sented depending on using the obstructed short path

distance and density-Based Clustering techniques.

A typical real-world application of the model is

school network planning. In this case, the model

would aim to determine the locations and capacities

of schools to minimize the distance traveled by stu-

dents, taking into account that the students must be

assigned to the school that is closer to the place

where they reside. In section 2 Motivation is discuss.

In section 3, the

CKB-WSP algorithm is introduced.

A case study is presented in section 4. Section 5

discusses related work. The paper conclusion is

presented in section 6.

2 MOTIVATION

Spatial clustering algorithms can be classified into

four categories. They are the partition based, the

hierarchical based, the density based and the grid

based. Among all the clustering methods, we found

that the partitioning based and density algorithms to

be most suitable since our objective is to discover

good locations that are hidden in the data. Partition-

ing based clustering methods include two major

categories, k-means and k- medoids. The common

premise of these two methods is to randomly parti-

tioning the database into k subsets and refine the

cluster centers repeatedly to reduce the cost func-

tion. The cost function in the spatial domain is the

sum of distance error distance E from all data ob-

jects to their assigned centers.

The non center data points are assigned to the

centers that they are nearest to it. The k-means algo-

rithm is one of the first clustering algorithms pro-

posed. It is easy to understand and implement, and

also known for its quick termination. The k-means

algorithm defines the cluster centers to be the gravi-

ty center of all the data points in the same cluster. In

regular planar space, the cluster gravity center guar-

antees the minimum sum of distances between the

cluster members and itself. However, the research

proof (Nanopoulosl et al., 2001) that the characteris-

tic of the gravity center does not behave the same as

in obstacle planner space. Instead of representing the

clusters by their gravity centers, the k-medoids algo-

rithm chooses an actual object in the cluster as the

clusters representative (medoid). Using the real ob-

ject decreases the k-medoids sensitivity to outliers.

This technique also guarantees that the center is

accessible by all data objects within the same clus-

ter.

By comparing CLARA and CLARANS with

PAM, CLARA first draws random samples of the

data set and then does PAM on these samples. Un-

like CLARA, CLARANS draws a random sample

from all the neighbor nodes of the current node in

the searching graph. Efficiency depends on the sam-

ple size and a good clustering based on samples will

not necessarily represent a good clustering of the

whole data. The PAM (Partioning Around Medoids)

algorithm, also called the K-medoids algorithm,

represents a cluster by a medoid (Tan et al., 2006).

Initially, the number of desired clusters is input and

a random set of k items is taken to be the set of me-

doids. Then at each step, all items from the input

dataset that are not currently medoids are examined

one by one to see if they should be medoids. That is,

the algorithm determines whether there is an item

that should replace one of the existing medoids. By

looking at all pairs of medoids, non-medoids objects,

the algorithm choose the pair that improves the

overall quality of the clustering the best and ex-

changes them. Quality here is measured by the sum

of all distances from a non-medoid object to the

medoid for the cluster it is in.

The total impact to quality by a medoid change

is given by:





hCn

nndis

),(

(1)

An item is assigned to the cluster represented by the

medoid to which it is closest (minimum distance or

direct Euclidean distance between the customers and

the center of the cluster they belong to).

PAM is not suitable for our problem because the

ICAART2013-InternationalConferenceonAgentsandArtificialIntelligence

402

Euclidian distance did not represent the actual in the

presence of obstacle. The second reason, the number

of facilities is not known before work. The last rea-

son we need each facility service a predefine number

of population (density population).

The DBSCAN algorithm is a well-known algo-

rithm of type Density-Based (Yiu and Mamoulis,

2004) algorithm which is used when a cluster is a

dense region of points, which is separated by low-

density regions, from other regions of high density.

This algorithm found clusters with different shapes.

This algorithm also is not suitable where our problem

has not this property. We search a clustering algo-

rithm which construct cluster with a density within a

given range and also a point in this cluster which

represent this cluster such that the cost is minimum.

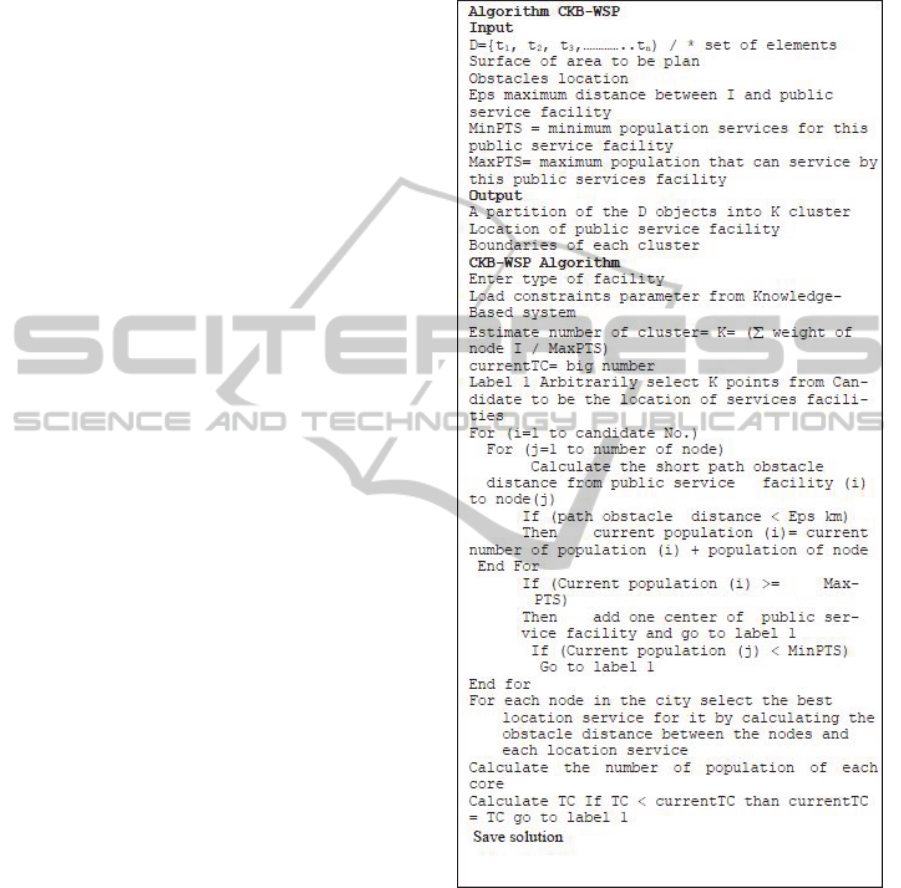

3 CKB-WSP ALGORITHM

The existing of the natural obstacles are affecting on

distribution of the service facility on the regions.

The responsible civil engineers determine the infra-

structure location and layout. Very often, the number

of possible solutions for social infrastructure plan-

ning problems is extremely large and it is advanta-

geous to handle them through a type of optimization

model. These models are classified as continuous or

discrete depending on whether the facilities can be

located anywhere on the plane or only in some pre-

specified points of the plane. Discrete location mod-

els are used more often than continuous location in

real-world applications.

In a certain city, we need to determine the num-

ber of public service facility requirements and define

their boundaries in such away that satisfy shortest

path between users and facilities. We must take into

account that each facility must serve a minimum

level of demand to be economically viable and that

each user must assign to the closest work facility.

The solution we propose in this paper applies to

social infrastructure planning problems with the

following features:

- The objective is to minimize the demand-

weighted total distance (or travel time, or travel

cost).

- A facility can only be opened if it serves a mini-

mum level of demand. Thus the capacity of each

facility must exceed that given minimum to be eco-

nomically viable.

- The number of facilities to be opened is an out-

put of the model.

- Users must be assigned to the closest open facili

ty. If the travel distance is the same for two or more

different facilities, users should be assigned to one

and only one of those facilities.

The problem statement:-

 Inputs:

- A set T data points {t

, t

… t

} in 2-D map.

- Surface of area to be plan.

- Obstacles location.

MinPTS = minimum population services for

this public services facility.

- MaxPTS= maximum population that can ser-

viced by this public services facility.

- Candidate locations of services facilities.

 Objectives:

- Partitioning the city into k clusters C1, .., Ck

that satisfy clustering constraints (minimum and

maximum services population) such that the cost

function is minimized.

Min TC=  obstacle distance (i, j)* wi

Where:

TC is the cost function to be minimize

Obstacle distance (i, j) = min path obstacle distance

between node i and facility j of the cluster which is

calculate by Dijkstra algorithm

wi = weight of node i = population of node i

Output:

- Optimal number of clusters which satisfy the

required objectives.

- locations of public services facility

- boundaries of each cluster.

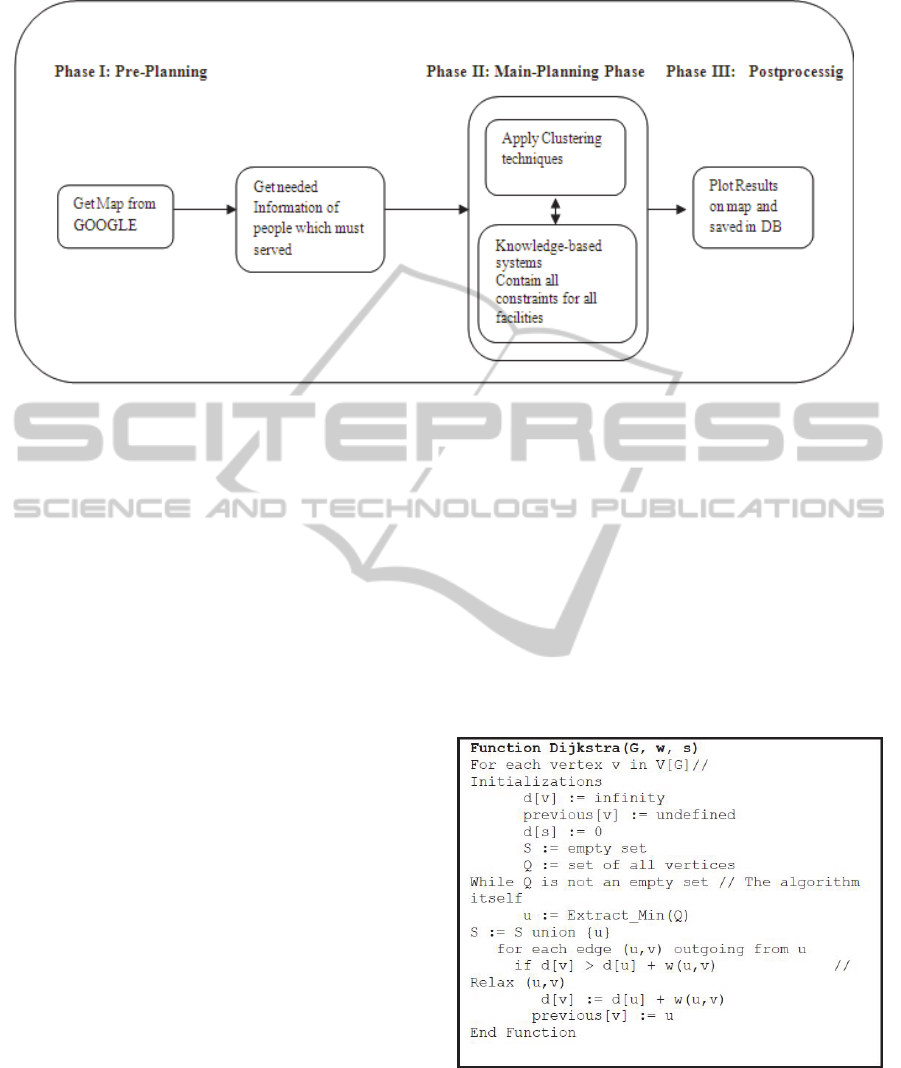

The proposed algorithm contains three phases. Fig-

ure 1 shows the block diagram of the overall system.

The following sections describe these three phases.

3.1 Phase I: Pre-planning

The maps used for planning are scanned images

obtained by the user from GOOGLE map. It needs

some preprocessing operations before it used as

digital maps, we draw the streets and intersection

nodes on the raster maps, the beginning and ending

of each street are transformed into data nodes, de-

fined by their coordinates. The streets themselves

are transformed into links between data nodes. The

populations are considered to be the weights for

each node.

3.2 Phase II: Main-planning Phase

CKB-WSP is divided into two step:

1- Step 1: Preprocessing.

2- Step 2:

CKB-WSP algorithm.

EnhancingClusteringTechniquewithKnowledge-basedSystemtoPlantheSocialInfrastructureServices

403

Figure 1: Block diagram of overall the CKB-WSP system.

3.2.1 Preprocessing

During clustering the CKB-WSP often needs to

compute the short obstructed path distance between

a point and a temporary cluster center. Our aim of

pre-processing here is to manipulate information

which will facilitate such computation.

CKB-WSP algorithm used Dijkstra algorithm to

calculate shortest path from one source to many

destinations; in the

CKB-WSP we need to calculate

the shortest path from public service facility to all

nodes (the reason is to determine the suitable loca-

tion and layout of public service facility) and from

one node to all public service facility (the reason is

to determine the nearest suitable public service facil-

ity that will serve this node). Figure 2 shows the

pseudo code of the Dijkstra algorithm.

3.2.2 CKB-WSP Algorithm

Figure 3 shows implementation of pseudo code of

CKB-WSP algorithm used. The algorithm begins

with estimate number of clusters which is equal to

sum of population of all points divided by MaxPTS,

where MaxPTS is the maximum population this

facility can served.

The user first inserts the location of candidate. Our

package arbitrarily selects K points from candidates

to be the initial location of services facilities. After

this step the package determines the boundaries of

cluster by calculating the obstacle distance from

each node to each facility. The algorithm iterate until

chooses one which satisfies the conditions and min-

imize the cost function. Each type of facility has his

constraints. These constraints differ from one to

another. To open school, government determines

two constraints MinPTS which is the minimum

number of students that can open a school and Max-

PTS the maximum number of students which deter-

mine from the surface of the school.

The maximum

distance which can the students wake to go to school

Eps must be know. If the government needs to open

mosque, any human to pray need .5m*1 m to know

how many humans can pray in this mosque (Max-

PTS), divide surface of mosque by .5 m

. The max-

imum distance which can the human can wake to go

to mosque, Eps, must be know.

Figure 2: Pseudo code of the Dijkstra algorithm.

Knowledge-Based system is constructed and

contain all constraints which is affected the plan of

facilities services.

ICAART2013-InternationalConferenceonAgentsandArtificialIntelligence

404

3.3 Phase III: Post Processing

The output mined knowledge is presented graphical-

ly and as data in data base. The following section

shows case study and demonstrates the output

knowledge.

4 CASE STUDY

For real application, the proposed algorithm is ap-

plied on a map representing a district in Mecca in

Saudi Arabia. This area suffer of mountains the big-

ger one called Al Nour mountain. The actual map is

scanned, then the beginning and the ending of each

street are transformed into data points, defined by

their coordinates; the streets themselves are trans-

formed into linkages between data points; after that

the population of each node is added.

The CKB-WSP algorithm divided the map into

convenient number of clusters in which the popula-

tion is distributed.

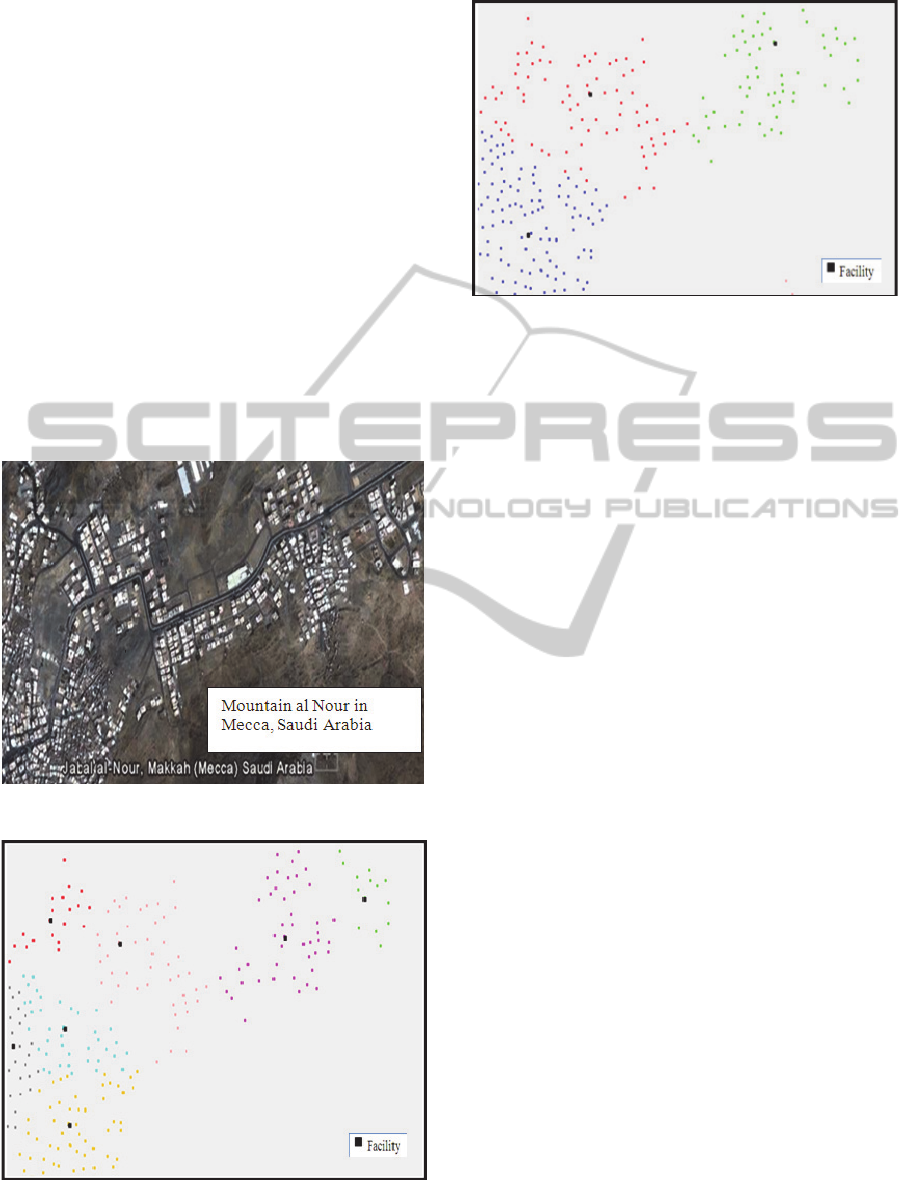

Figure 4 shows this area; all dark areas represent

mountains area. Figure 5 shows the map after apply-

ing CKB-WSP algorithm which divides the map into

7 clusters when Eps= 50 and Minpnt= 4000. Figure

6 shows the map after applying CKB-WSP algo-

rithm which divides the map into 3 clusters when

Eps= 70 and Minpnt= 6000. From figure 5 and 6, the

location of facilities is not showed in the center of

cluster but move towards heavy nodes (population)

due to the weight parameter whish is introduced in

the cost function.

In the proposed algorithm you can enter in each

run the values of the minimum number of population

(MinPNT), maximum number of population (Max-

PNT) the facility can served and the radius of region

(Eps) which the facility will be serve. This makes

the algorithm more flexible to plan any facility (e.g.

preschool, hospital, telecommunication ser-

vice……).

5 RELATED WORK

In (Cornuejols et al., 1990), the most common objec-

tives is the minimization of costs. However, in the

authors’ experience, using this objective in participa-

tory social infrastructure planning processes often

poses problems. The main reason is that users are

reluctant to accept a cost minimization objective,

especially when the matter is the location of facili-

ties as important as schools or hospitals. Another

relevant reason is that cost information is often

scarce and poor, and cost values can be difficult to

estimate (particularly the value of fixed costs).

Figure 3: Implementation of CKB-WSP algorithm.

On the contrary, the maximization of accessibility to

facilities tends to be a more consensual objective

among the different stakeholders. This objective is

usually represented in location models by the mini-

mization of the demand-weighted total (or average)

distance traveled to obtain the service. One classic

model that considers this objective is the p-median

model (Mirchandani, 1990) originally; the p-median

model is based upon two important assumptions: one

EnhancingClusteringTechniquewithKnowledge-basedSystemtoPlantheSocialInfrastructureServices

405

knows a priori how many facilities should be opened

and the capacity of facilities does not have to satisfy

maximum and/or minimum limits. However, in a

social infrastructure planning problem, the number

of facilities to locate is typically one of the desired

outcomes (rather than a parameter) and the capacity

of facilities must be within certain limits.

Although there is an abundant literature on inca-

pacitated p-median models, capacitated versions

have been less studied. Moreover, most of the exist-

ing models only take into account maximum capaci-

ty constraints (recent examples include (Lorena and

Senne, 2004); (Ceselli and Righini, 2005)

; (Diaz and

Fernandez, 2006). However, minimum capacity

constraints are important because they model the

minimum level of demand that facilities must satisfy

to be economically viable. Above this level, possible

economies of scale have already been made, and unit

facility costs can be considered to be constant.

Figure 4: Area in Macca City in Saudi Arabia.

Figure 5: Using CKB-WSP algorithm considering the

location of obstruct Eps= 50 and Minpnt= 4000.

Figure 6: Using CKB-WSP algorithm considering the

location of obstruct Eps= 70 and Minpnt= 6000.

In (Bigotte, 2007), the model solve small-size

instances exactily using exact method. For large-size

instances, it uses heuristic methods. First, Using a

classic local search heuristic (Add + Interchange)

and classic population heuristic (GA) failed to iden-

tify optimum or near-optimum solutions but the

solutions provided by the (Add + Interchange) heu-

ristic were better than those given by the GA. Sec-

ond, Using, Tuba Search TS and Specialized Local

Search Heuristic SLSH in which the neighborhood

structure was improved to better represent the spe-

cific features of the model. SLSH generally provides

better solutions than TS, though requiring a larger

computing effort.

Table 1 described the different comparison be-

tween the proposed method and other methods using

in facilities planning. There are two methods that are

frequently used here: Tabu search (Bigotte and

Antunes, 2007 )and Genetic Algorithms (Bigotte

and Antunes, 2007).

6 CONCLUSIONS

Clustering analysis is one of the major tasks in vari-

ous research areas. The clustering aims, to identify

and extracting significant groups in underlying data.

Based on certain clustering criteria; the data are

grouped so that the data points in a cluster are more

similar to each other than points in different clusters.

In this paper, we introduced a clustering solution to

the problem of locate public Service facility in the

presence of physical obstacles, the CKB-WSP algo-

rithm. This algorithm is density-based clustering

algorithm using distances which are weighted short-

est obstacle path distance (not Euclidian distance)

and satisfying facilities constraints due to use of

knowledge-based system. The result is a realistic

ICAART2013-InternationalConferenceonAgentsandArtificialIntelligence

406

solution representing the population demand with

minimum costs due to modify in cost function.

The application of the CKB-WSP algorithm was

illustrated through a case study in a location of dis-

tricts in Mecca in Saudi Arabia. Experimental results

and analysis indicate that the CKB-WSP algorithm

is effective to satisfy populations demand for facility

constructed in an area where population is non-

homogeneous due to the presence of obstacles.

The existence of Knowledge-Based System helps

us to plan any new facility serves after define the

constraints of this facility in the Knowledge-based.

REFERENCES

Agrawal, R., Gehrke, J., Gunopulos, D., Raghavan,P.,

(1998). Automatic subspace clustering of high

dimensional data for data mining application. In Proc.

1998 ACM-SIGMOD Int. Conf. Management of Data

(SIGMOD’98).

Ankerst, M., Breunig, M., kriegel, H. and Sander, J.,

(1999). OPTICS: Ordering points to identify the

clustering structure. In Proc. 1999 ACM-SIGMOD Int.

Conf. Management of data ( SIGMOD’96).

Bigotte, J. F., Antunes, A. P., Social Infrastructure

Planning: A Location Model and Solution Methods,

Computer-Aided Civil and Infrastructure Engineering

22 (2007) 570–583.

Bradly, P., Fayyad, U., and Reina, C., (1998). Scaling

clustering algorithms to large databases. In proc. 1998

Int. Conf. Knoweldge Discovery and Data mining.

Ceselli, A.,&Righini,G. (2005),A branch-and-price

algorithm for the capacitated p-median problem,

Networks, 45(3), 125–42.

Cornuejols, G., Nemhauser, G. L. &Wolsey, L. A. (1990),

The uncapacitated facility location problem, in P.B.

Mirchandani and R. L. Francis (eds.), Discrete

Location Theory, JohnWiley & Sons, New York, pp.

119–71.

Diaz, J. A. & Fernandez, E. (2006), Hybrid scatter search

and path relinking for the capacitated p-median

problem, European Journal of Operational Research,

169(2), 570– 85.

Ester, M., Kriegel, H., Sander, J. and Xu, X., (1996). A

density based algorithm for discovering clusters in

large spatial databases. In Proc. 1996 Inc. Conf.

Knowledge discovery and Data mining (KDD’96).

Guha, S., Rastogi, R., and Shim, K. (1998). Cure : An

efficient clustering algorithm for large databases. In

Proc. 1998 ACM-SIGMOD Int. Conf. Management of

Data (SIGMOD’98).

Han, J., and Kamber, M., Data Mining Concepts and

Techniques, Elsevier, 2011.

Han, J., Kamber, M., and Tung, A., (2001). Spatial

Clustering Methods in data mining: A Survey,

Geographic Data Mining and Knowledge Discovery.

Ibrahim, L. F., (2011) Enhancing Clustering Network

Planning Algorithm in the Presence of Obstacles,

KDIR International Conference on Knowledge

Discovery and Information Retrieval, KDIR is part of

IC3K, the International Joint Conference on

Knowledge Discovery, Knowledge Engineering and

Knowledge Management, Paris, France 26- 29 October

2011.

Kohonen, T.,(1982). Self organized formation of

topologically correct feature map. Biological

Cybernetics.

Lorena, L. A.N.&Senne, E. L. F. (2004), A column

generation approach to capacitated p-median

problems, Computers and Operations Research, 31(6),

863–76.

Mirchandani, P. B. (1990), The p-median problem and

generalizations, in P. B. Mirchandani and R. L.

Francis, (eds.), Discrete Location Theory, John Wiley

& Sons, New York, pp. 55–117.

Nanopoulosl, A., Theodoridis , Y., Manolopoulos, Y.,

(2001). C2P: Clustering based on Closest Pairs.

Proceedings of the 27th International Conference on

Very Large Data Bases, p.331-340, September 11-14.

Sheikholeslami, G., Chatterjee, S. and Zhang, A., (1998).

Wave Cluster : A multi- resolution clustering approach

for very large spatial databases. In Proc. 1997 Int.

Conf. Very Large Data Bases ( VLDB’97).

Tan, P., Steinback, M., and Kumar, V., (2006).

Introduction to Data Mining. Addison Wesley.

Yiu, M., Mamoulis, N. (2004). Clustering Objects on a

Spatial Network. SIGMOD Conference p 443-454.

Zhang, T., Ramakrishnan, R., and Livny, M., (1996).

BIRCH: an efficient data clustering method for very

large.

EnhancingClusteringTechniquewithKnowledge-basedSystemtoPlantheSocialInfrastructureServices

407

Table 1: Relative works.

Algorithm Input Parameters Results Location of facility Constraints Type of distance

Consider

obstacles

Genetic

- Data points

- Population

- Initial probability

- Mutation probability

- Crossover probability

- Number of iteration

- Selection pressure

# of facilities Optimal placement Fitness Function Euclidean distance NO

Tabu Search

- Data points

- Init probability

- Generation probability

- Recency factor

- Frequency factor

- Number of iteration

- Number of neighbors

# of facilities Optimal placement Tabu List Euclidean distance NO

CKB-WSP

- Data points

-Eps

- MinPNT

- MaxPNT

- Core points

- # of facilities

Core point

MinPts, Eps and

obstacles

Short path obstacles

distance

YES

ICAART2013-InternationalConferenceonAgentsandArtificialIntelligence

408
