Service Call Graph (SCG)

Information Flow Analysis in Web Service Composition

Ziyi Su

and Fr´ed´erique Biennier

Department of Computer Science, Northeast Normal University, Changchun, China

Lab. LIRIS CNRS, INSA-lyon, Avenue Albert Einstein, Villeurbanne, France

Keywords:

Web Service Composition, Workﬂow, Service Call Graph, Context Slicing, Dependency.

Abstract:

This paper presents a method for analyzing Web Service-based dynamic business process, using a business

process slicing method to capture the asset (service or information) derivation pattern, allowing to maintain

providers’ policies during the full lifecycle of assets in a collaborative context. Firstly, we propose a Service

Call Graph (SCG) model, extending the System Dependency Graph, to describe dependencies among partners

in a business process. Analysis can be done based on SCG to group partners into sub-contexts. Secondly, for

analyzing SCG, we propose two slicing strategies, namely ’asset-based’ and ’request-based’ slicing, to deal

with the scenarios of both pre-processing business process scripts and on-the-ﬂy analyzing service composi-

tions. Security analysis can be achieved focusing on each sub-context, by examining downstream consumers’

security proﬁles with upstream asset providers’ policies.

1 INTRODUCTION

Service-Oriented Architecture provides an environ-

ment for partners to share digital assets, including

computing capability (e.g. Web Service) and infor-

mation (e.g. data), in order to produce ﬁnal artifacts

(e.g. composed service or new information generated

from data aggregation). As assets are shared beyond

ownership boundary, the risk of intellectual property

infringement (e.g. circumventing of trade secret, or

even leakage to a competitor) associated to ’loss of

governance’ is a major barrier for moving toward col-

laborative business model (Linda et al., 2010) (Ka-

gal and Abelson, 2010) (Daniele and Giles, 2009).

Therefore security requirement is brought to an end-

to-end scale, to ensure the protection of corporate pat-

rimony value during its full lifecycle in the collabora-

tive business process (covering the creation, dissem-

ination, aggregation and destruction stages), paying

particular attention to the way asset is used and pro-

tected by partners. Overcoming this barrier relies on a

comprehensivemethod that can make a ’pre-decision’

for selecting partners, as well as continuously regulat-

ing the partners behaviors.

In a collaborative context, such requirements in-

volve that downstream recipients must gain assets

provider’s approval for re-disseminating such assets

(or a new digital asset including it) (Park and Sandhu,

2002) (Bussard et al., 2010), .

In the Web-based collaborative scenario, the de-

cision of choosing partners (and therefore, the exact

paths of asset dissemination) is related to the busi-

ness logic. Then from the perspective of security en-

gineering for the collaborative context as a whole,

ensuring that all the providers’ security criteria are

maintained during the full lifecycle of their assets is

the essence. This involves analyzing the collabora-

tive business process to track the dissemination paths

of each asset, so that the co-effect of providers’ poli-

cies can be calculated when assets merge and the con-

sumers’ security proﬁles are checked when assets are

consumed.

This paper develops a method for analyzing com-

plex collaborative context and applying ﬁne-grained

security policy to manage assets sharing activities.

The basic thoughts involve that security foundation

for a successful collaborative process is built when

each provider’s policy upon its asset is fulﬁlled dur-

ing the whole business process.

Our solution is based on a Service Call Graph

(SCG) extending the System Dependency Graph

(SDG), for mining partners asset sharing relations in

collaborative business processes. A data structure

’service call tuple’ corresponding to the SCG is also

proposed to capture dependencies among partners.

Then, we present both asset-based and request-

Su Z. and Biennier F..

Service Call Graph (SCG) - Information Flow Analysis in Web Service Composition.

DOI: 10.5220/0004401900170024

In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 17-24

ISBN: 978-989-8565-60-0

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

based context slicing methods, for mining the ’as-

sets aggregation’ and ’requests aggregation’ from the

service call tuple list that represents a business pro-

cess. Such aggregations decide the partitions of sub-

contexts, where ﬁne-grained security policies can be

applied.

We analyze the sub-context developments, using

’pre-processing’ and ’on-the-ﬂy processing’ strate-

gies, and describe how down-stream provider assets

security is achieved by managing sub-context devel-

opments.

Section (2) introduces the security policy model

we use as foundation for security management. The

Service Dependency Graph (SDG) is also introduced,

based on which we develop a business process slicing

method. Combined with the security policy model,

ﬁne-grained security conﬁguration can be achieved in

a Web Service composition scenario.

Section (3) proposes the SCG-based approach to

describe assets aggregation patterns usually involved

in a business process. Dependency between system

partners, through asset sharing, is represented by the

SCG and corresponding ’service call tuple’.

Section (4) introduces the business process analy-

sis method, illustrated by the motivating use case. We

propose two slicing strategies, namely ’asset-based’

and ’request-based’ slicing, to deal with the scenar-

ios of both pre-processing business process scripts

and on-the-ﬂy analyzing service compositions. Se-

curity analysis can be achieved focusing on each sub-

context, by examining downstream consumers’ secu-

rity proﬁles with upstream asset providers’ policies.

2 BACKGROUND AND RELATED

WORK

Web Service enables the openess of corporate Infor-

mation System, the inter-operable interaction, agile

work-ﬂow and efﬁcient values exchange. Such fed-

erated business paradigm brings new concerns about

how to conﬁgure security among decentralized part-

ners and how to protect resource in life-long scale.

Fitting the open and collaborative Internet-based sys-

tem paradigm, more adaptive attribute-based secu-

rity policies (OASIS, 2005) (Su and Biennier, 2010)

have been brought forward to express enriched secu-

rity factors as well as consumption ’actions’ upon re-

source. When applied to service composition scenar-

ios, full lifecycle security for exchanged assets can be

achieved with analysis of business process and adap-

tion of security policies.

2.1 Attribute-based Security Policy

Model

An attribute-based security policy has the ability to

express ﬁne-grained security factors related to system

entities, through elements as Rights, Conditions and

Obligations (see formula 1).

Assertion = (O, S, R,C, Rn, Ob, L) (1)

The semantics of the factors are as follows: ’O’ (Ob-

ject) is the resource bearing corporate asset value (ser-

vice or information). ’S’ (Subject) is the party that

requests accessing the Right to the resource. ’R’

(Right) is the Operation upon the resource that the

Subject can be allowed to exercise. ’Rn’ (Restriction)

is the constraints upon the Right. For example a re-

striction ’three times’ may be used to reﬁne the right

’rendering a piece of multi-media ﬁle’. ’C’ (Con-

dition) is the requirements that must be satisﬁed for

the Subject to access Rights upon the Object, includ-

ing subject attributes (SAT), object attributes (OAT)

or context related attributes (CNAT) – attributes of

transaction context, environment, infrastructure, etc.

’Ob’ (Obligations) is the action that ’must’ be exer-

cised. For example the obligation ’to delete acquired

data in 10 days’ can be associated to rights like ’read

stock amount’ and ’read client data’. ’L’ (Logic Op-

erator)represents the logic operators as ’imply’(←),

’and’ (∧) and ’or’ (∨).

Such a policy model has the ability to accommo-

date ’point-to-point’ security factors such as the the

subjects and environment attributes. The ’due use’

factors can also be expressed to regulate consump-

tion actions. Nonetheless, such a security model is

oriented to the one-to-one cooperation scenario. In a

Web Service composition scenario, security requires

that an upstream provider’s policy should be met by

downstream consumers that directly or indirectly re-

ceive information assets from the provider, in order to

guarantee end-to-end security to assets. In such con-

texts the asset sharing pattern in the service composi-

tion should be analyzed.

2.2 System Dependency Graph

In a Web Service-based business federation, informa-

tion assets are transferred across organization bound-

aries, possibly merging with other assets. In order to

give a full lifecycle protection to an asset, it’s neces-

sary to capture the asset derivations. This is analo-

gous to program slicing (GrammaTech, ) (Zhao and

Rinard, 2003) based on System Dependency Graph

(SDG) (GrammaTech, ) (Gu et al., 2008). Program

slicing asks about which statements inﬂuence (back-

ward slicing), or are inﬂuenced by (forward slicing),

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

the current statement under exam, whereas collabo-

rative process analysis asks about which processes

(functionalities provided by a partner can be seen as

a process, e.g. implemented with a Web Service) in-

ﬂuence which processes, therefore tracing asset ex-

change and derivations.

We use a similar approach to ’slice’ a collabora-

tive context into sub-contexts. Each sub-context con-

ﬁnes a scope of partners interrelated by assets ex-

changes (in other words, partners in different sub-

context don’t exchange asset, although they are in

the same collaborative process). We ﬁrstly give an

overview of the sub-context modes we may encounter

when analyzing a collaborative context, before intro-

ducing the analysis method.

In the following sections, we discuss the analysis

of a collaborative context of Web Service composi-

tion, guided by a use case, in order to introduce the

basic thoughts of our analysis method.

3 SERVICE CALL GRAPH-BASED

SERVICE COMPOSITION

REPRESENTATION

We use a simple use case (see ﬁgure 1) of Web Service

composition to facilitate our discussions.

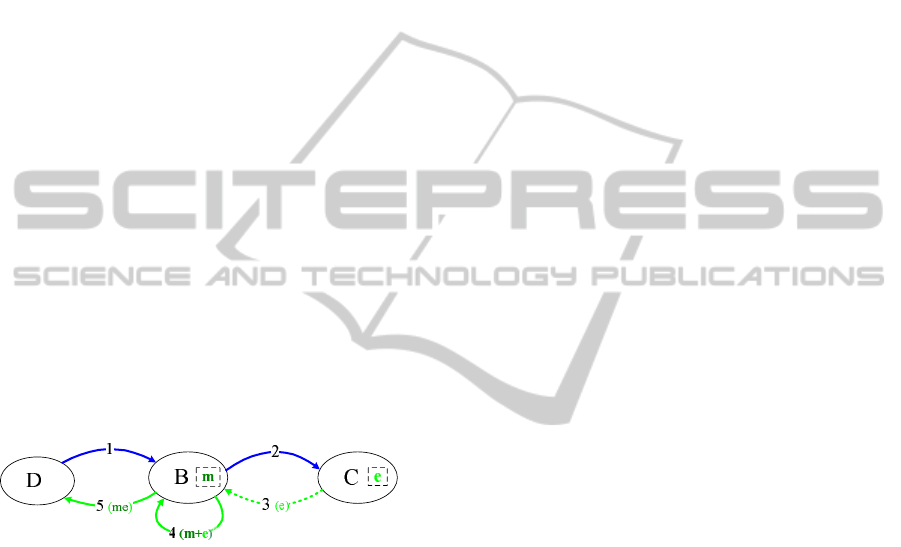

Figure 1: Service composition represented with SCG.

Use Case 1. An assurance enterprise ’Deirect

assure’(D) consults ’medical information’ (m) from

’Bonetat clinique’(B). Part of the information, ’car-

diac exam’ (e), is taken from a medical examination

laboratory ’Cardis health’(C). The business process

includes the following steps:

(1) D contacts B, requiring m;

(2) B contacts C, requiring e, in order to reply D;

(3) C sends e to B;

(4) B merges e with m; if success,

(5) B answers to D.

As B and C are asset (information) providers in

this use case, a full lifecycle security management

means that their policies should be respected during

the whole lifecycle of their assets. This involves an-

swering two questions:

(1) By which partners will an asset be accessed? A

question of this type for use case 1 is ”The ’Car-

diac exam info’ provided by C will be accessed by

B or D, or both of them?”

(2) Which assets will a party be given access to? In

use case 1 a question of this type is ”Will D access

the assets provided by B and C, either directly or

indirectly?”.

While both of these questions can be answered in-

tuitionally for use case 1, the pondering procedure re-

ﬂects the goal and method of context slicing. Ques-

tion (1) is related to QoP aggregation among part-

ners. Question (2) is linked to RoP aggregation. The

goal is to enable down-stream asset security (Bussard

et al., 2010), so that consumers should comply with

the policies of the O-Assets (assets provided by part-

ners) involved in the C-Asset (the artifacts of collabo-

rative work, which aggregates several O-Assets) they

want to access. Our method is based on a Service Call

Graph resulting from the modiﬁcation and extension

of System Dependency Graph (SDG) (GrammaTech,

) (Gu et al., 2008).

3.1 Service Call Graph

A participant in a collaborative contexts is analogous

to a procedure in SDG: it receives calling information

and yields results. We use P

←− P

to denote that

a party P

depends on another party P

with ’control

dependency’: whether P

will be activated or not de-

pends on P

. We use P

←− P

to denote that a party P

depends on another party P

with ’data dependency’:

data provided by P

are involved in data produced by

. We propose a data structure ’Service Call Graph’

(SCG) based on extensions of SDG to represent part-

ners interactions in the collaboration context. These

extensions can be illustrated with use case 1 (ﬁgure 1

is a SCG of use case 1):

• The ﬁrst extension in our SCG model is that data

dependency can belong to two types:

– an aggregation dependency means that P

in-

volves data of P

(the same as SDG);

– a non-aggregation dependency denotes that

data produced by P

do not involve data from

(an extension of SDG).

For example, in the SCG presented in ﬁgure (1),

the blue edges (step 1 and 2) represent control de-

pendency. The green edges (steps 3, 4 and 5) rep-

resent data dependency. Besides, the solid green

lines (edge 4 and 5) mean that the output data (re-

sponses) include information from the input data

(aggregation dependency). The dashed green line

(edge 3) means that the output data do not include

information from the input data (non-aggregation

dependency).

ServiceCallGraph(SCG)-InformationFlowAnalysisinWebServiceComposition

• The second extension is that the assets carried by

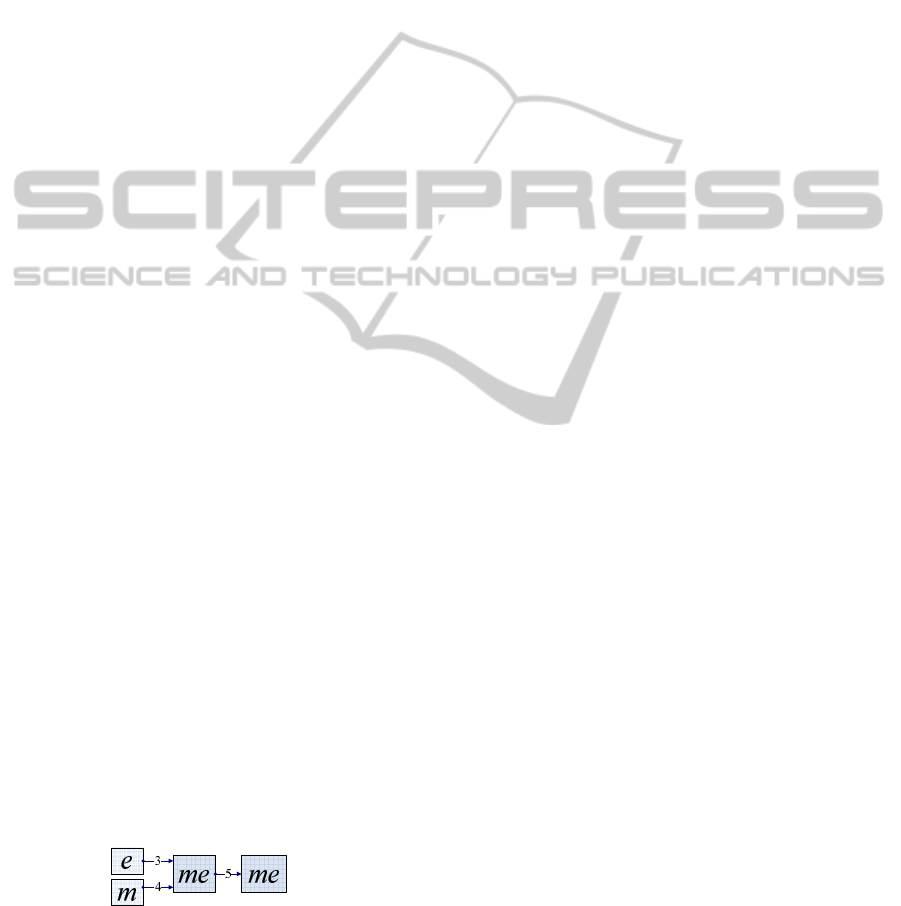

the message exchanges are attached directly to the

edges in SCG (see edges 3, 4 and 5 in ﬁgure 1).

Furthermore, to capture assets derivation pattern,

the indirect dependency relation should be retrieved,

based on partner service calls in a business collab-

oration: ∀P

, P

, ∀α ∈ {c, d} where P

, P

and P

are partners in a collaboration, c and d are control

dependency and data dependency relations respec-

tively, then P

is indirectly dependent on P

if P

←−

∧P

←− P

. There are two types of indirect depen-

dency.

• Indirect data dependency is the situation where

each relation in a dependency chain is data de-

pendency. We sum it up as an axiom:

Axiom 1 (Indirect Data Dependency).

∀P

, P

: P

←− P

∧ P

←− P

⇒ P

←− P

For example, in use case 1, whether D gets the

results or not depends on the response of B. B’s

response in turn depends on response from C.

• Indirect control dependency is the situation where

(one or more) control dependency relations exist

in the dependency chain:

Axiom 2 (Indirect Control Dependency).

∀P

, P

, ∀α ∈ {c, d}: (P

←− P

∧ P

←− P

) ∨

←− P

∧ P

←− P

) ⇒ P

←− P

As an example for indirect control dependency, in

use case 1, whether C will be called or not de-

pends on B. In turn, whether B will be called or

not depends on D. So C is indirectly ’control de-

pendent’ on D.

We can see the slight difference between axiom 1

and axiom 2: Data dependency is transitive only when

the edges in the dependencychain are all associated to

’data dependency’,whereas when control dependency

exists in a dependency chain, it propagates ’control

dependency’ to the chain.

When analyzing complex business process, e.g.

those deﬁned using WS-BPEL, one must consider the

impact of ’variables’, which are used to carry infor-

mation inside the process. As information carried

by variables are eventually exchanged between part-

ners, the information exchanges between variables

(e.g. through ’value assignment’) also lead to assets

derivation.

These variables can be complex data type (e.g. de-

ﬁned by XML schema). In this case, if a part of one

variable is valued-assigned to a part of another vari-

able (see the ’sample process’ in WS-BPEL speciﬁca-

tion (OASIS, 2007)), the later variable is ’data depen-

dent’ on the former one. Thus we have the following

axiom:

Axiom 3 (Direct Data Dependency between Vari-

ables).

∀V

, c

←− c

⇒ V

←− V

where P

and P

stand for variables. c

is a component

of (a part of) P

. c

is a component of P

This axiom describes the situation that, as in WS-

BPEL a ”variable” can have plural components, each

of them a container that can be assigned value, the

value exchange between components of two ”vari-

ables” incurs data dependency between the two ”vari-

ables”. There are only data dependency relations

between variables, as the only form of interactions

between variable is data exchange. Therefore the

conditions leading to indirect data dependency be-

tween variables can be described by axiom 1. In the

following discussion about dependency relation, we

don’t need to differentiate variables from partners (i.e.

’partnerLink’ in WS-BPEL), as we can see that de-

pendency relations for partners and for variables can

be described by the same set of axioms.

3.2 Service Call Tuple

We use a tuple < P

←→ P

, ∆ > to denote the ser-

vice call from P

to P

, ∆ being the exchanged asset.

We can have the following basic types of service call

tuple:

• < P

−→ P

> denotes that P

calls P

with a mes-

sage carrying no asset.

• < P

←− P

> denotes that P

receives a message

from P

that carries no asset.

An example scenario including these two types of

service call is when a mail agent queries a mail

service for whether a mail is sent or not, and re-

ceives conﬁrmation from the server. In such case

the calling message and the response message are

deemed as not carrying any asset (i.e. information

needing protection). We can see that whether a

message carries asset or not depends on the strain-

ing criteria of security in a speciﬁc application

context.

• < P

−→ P

, ∆

> denotes that P

calls P

, by send-

ing asset ∆

• < P

←− P

, ∆

> denotes that P

receives a re-

sponse from P

that carries asset ∆

• < P

←→ P

, ∆

> denotes that P

calls P

sending asset ∆

, receiving response carrying as-

set ∆

, where ∆

includes information from ∆

• < P

←→ P

, ∆

, 6⊂> denotes that P

calls P

sending asset ∆

and receives a response carrying

asset ∆

, where ∆

does not include information

from ∆

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

• < P

←→ P

, 6⊂> denotes that the interaction be-

tween P

and P

is failed, due to negative result of

policy negotiation.

These tuples represent the edges of SCG. We can

see that asset exchanges (and aggregations) occur

with service calls.

3.3 Assets Aggregation

Usually, assets derivations (basically, either ’merg-

ing’ or ’splitting’) occur with partners’ interactions.

Therefore, recognizing assets derivation relations in-

volves ﬁrstly formalizing partner interactions with

service call tuples. Then the service call tuples list

can be analyzed to track the asset merging or splitting

activities. There are three situations that may incur

such activities:

• If X sends information containing asset value to

Y, who aggregates it with its own information (ex-

pressed as Y calling itself) and further sends it to

Z. In this situation, we can identify the following

service call tuple sequence:

< X

−→ Y, ∆

< Y

←→ Y, ∆

, ∆

< Y

−→ Z, ∆

(2)

• If X sends information within its request to Y and

gets response(s) fromY that includes X’s informa-

tion. This situation is represented by the following

service call tuple:

< X

←→ Y, ∆

, ∆

> (3)

Extra attentions should be paid in this case, as we

can not be sure that the response message includes

information from the request message. Whether

the output (responses) from a partner integrates

the input (request) or not depends on the business

logic of this partner’s system. An example of such

a case is when X sends some personal informa-

tion to Y to calculate the insurance premium. If

the response from Y consists in the insurance pre-

mium and the person’s information, there is an as-

sets derivation, otherwise if Y answers with only

the insurance premium, there is no assets deriva-

tion. The decision of which information includes

’asset value’ and should be protected is closely re-

lated to the application domains. In any case, we

need to knowrelations between inputs and outputs

to conclude whether assets derivation exists dur-

ing a direct interaction or not. This can be done

by analyzing partner’s service functional descrip-

tion, e.g. WSDL in a Web Service context. It

can also be done at the business process level, by

adding extra indicators to a WS-BPEL script. In

the modeling level, we use the following notations

to deﬁne whether the partner response includes in-

formation from a request or not:

– Most of the time, request information (or part

of it) is included in the response, therefore we

use the default tuple to represent it:

< Y

←→ Y, ∆

, ∆

> (4)

– whereas 6⊂ is used to indicate that no informa-

tion of the request is included in the response:

< Y

←→ Y, ∆

, ∆

, 6⊂> (5)

• If X fetches (expressed by ’

−→’, as there is no

asset value in the request) information from Y and

aggregates its own information with it. We get the

following tuples:

< X

−→ Y >

< X

←− Y, ∆

< X

←→ X, ∆

, ∆

(6)

As an example, we build the list of service call tu-

ples for use case 1 (See formula 7, where the tuples in

the list are indexed by the steps of business process):

< τ1, D

−→ B >

< τ2, B

−→ C >

< τ3, B

←− C, (e) >

< τ4, B

←→ B, (e), (me) >

< τ5, D

←− B, (me) >

(7)

The assets derivation relations between partners

are equivalent to data dependency relations between

them. Therefore assets derivation trail, which decides

the sub-context pattern, can be mined from the list of

service call tuples.

4 SUB-CONTEXT SLICING

Like the information reachability questions in SDG,

the assets derivation trail can be tracked by scanning

the service call tuples list, paying particular atten-

tion to asset aggregation. Based on this, providers’

policies upon assets can be maintained during assets

derivations. This involves ﬁrstly allocating corelated

assets in the same sub-contexts.

ServiceCallGraph(SCG)-InformationFlowAnalysisinWebServiceComposition

We use a data structure ’context development tu-

ple’ < N

, P

, L

, τ > to record the informa-

tion of sub-context development, where:

• N

is the name of the sub-context,

• V

its version,

• P

its parent sub-context,

• L

a list of all the asset involved in the sub-

context,

• L

the collection of policies in the sub-context,

• τ the step of business process.

This tuple is built by the sub-context slicing pro-

cess which scans the SCG (e.g. service call tuple list)

according to two strategies: asset-based slicing and

request-based slicing.

4.1 Asset-based Slicing

The asset-based slicing method focuses on capturing

the aggregation relation among assets. Using this

method, a sub-context is created when the ﬁrst O-

Asset is launched into the collaborative context by the

owner. When a new partner joins the context with a

new O-Asset, the sub-context consisting of the exist-

ing asset is updated, if the new partner’s O-Asset is

merged with the existing C-Asset. Otherwise (i.e. the

new partner’s O-Asset is not merged with existing C-

Asset), a new sub-context is created. In use case 1,

the list of sub-context tuples is as following:

< R

, 1, (φ), (e), (RoP

), τ3 >

< R

, 2, (R

.1), (e, m), (RoP

, RoP

), τ4 >

< R

, 3, (R

.2), (e, m), (RoP

, RoP

), τ5 >

(8)

We can see that in step 3 (represented by τ3), the

ﬁrst sub-context is created, including the asset e and

its related RoP

. We name the context after the in-

teraction leading to the creation of it, e.g. R

(’re-

source’ sent from C to B). Its version is ’1’. It has

no parent context (φ). Then in step 4, as a new asset

m merges with e, the sub-context R

.1 is updated to

.2. In step 5, it remains unchanged.

This list describes the evolution of the sub-

contexts. There is only one sub-context for use case

1, which can be represented with an assets derivation

diagram (see ﬁgure 2).

Figure 2: Assets derivation in the sample use case.

Using the asset-based slicing method, policy ne-

gotiation and aggregation (including conﬂicts detec-

tion) can not be done until the ﬁrst asset is launched

into the context (step 4 of use case 1). If there is a con-

ﬂict, steps τ2 and τ3 are actually wastes of partners’

resources and don’t need to be proceeded. Therefore

the asset-based slicing method should be used for pre-

processing a business process script (e.g. WS-BPEL

documents) before it is executed. To analyze a col-

laborative context on-the-ﬂy, we need a request-based

slicing method.

4.2 Request-based Slicing

The request-based slicing method creates a sub-

context when the ﬁrst request is made. Then, when a

new partner joins the business process, either its QoP

can be aggregated into an existing sub-context, or it

will lead to the creation of a new sub-context. The de-

cision is also straight forward: the QoPs of two part-

ners should be aggregated, if they will access the same

asset in future steps of the collaboration context. By

this method, we get the following list of sub-context

tuples for use case 1:

< Q

, 1, (φ), (QoP

), τ1 >

< Q

, 2, (Q

.1), (QoP

, QoP

), τ2 >

(9)

This tuple list captures QoP aggregations. When

the ﬁrst request is made by D in step 1, a sub-context

is created, including the QoP of D. We name the con-

text after the interaction leading to the creation of it,

e.g. Q

(’query’ sent from D to B). In step 2, as B is

requesting assets from C ’on behalf of’ D, QoP

and

QoP

are aggregated. Therefore sub-context Q

.1 is

updated to Q

However, deciding who will access the same asset

is more tricky than it may ﬁrstly look like, especially

when partners work asynchronously, (e.g. if after a

partner X receiving a request from partner Y, another

partner Z also sends request to X, before X responds

to Y). We provide basic protocols for dealing with

such cases:

• Protocol 1. After X receiving a request from Y,

all requests X sends to other partners are deemed

as being on behalf of Y, until X responds to Y,

or X receives a request from another partner Z.

This involves that a request from Y to X estab-

lishes an ’on behalf of’ relation. Consequently,

the QoP

should be aggregated into QoP

for all

the requests X sends after receiving the request

from Y, until that X gets the result and responds

to Y. The ’on behalf of’ relation between X and Y

ends when X responds to Y. It also can, however,

be interrupted before that X responds to Y. The

following two protocols regulate such cases.

• Protocol 2. An ’X on behalf of Y’ relation is in-

terrupted by another ’X on behalf of Z’ relation if

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

Z makes a request after that X receives a request

from Y and before that X responds to Y.

• Protocol 3. An ’X on behalf of Y’ relation inter-

rupted by another request from Z can be resumed

after X responding to Z, if X receives a response

from a partner P, who was called by X ’on behalf

of Y’. This means that the ’on behalf of’ relation

can be nested. For example, with the following

request-response sequence (i.e. service call tuple

list in formula 10), we can say that the ’on behalf

of’ relation between X and Y is restored after X

responding to Z (step 5), by the interaction where

’P responds to X’, as P is a partner that X has re-

quested on behalf of Y.

< τ1,Y

−→ X, ∆

< τ2, X

−→ P, ∆

< τ3, Z

−→ X, ∆

< τ4, X

←→ Q, ∆

, ∆

< τ5, Z

←− X, ∆

< τ6, X

←− P, ∆

< τ7,Y

←− X, ∆

(10)

These are basic protocols because they handle the

primary cases in service composition. When dealing

with real-world complex business federations, more

information concerning the business process and part-

ner functionalities should be taken into consideration.

Nevertheless this basic reasoning process remains in

accordance with those described in these protocols.

In the following we discuss the employment of

asset-based and request-based methods for context

slicing. For this, we ﬁrstly give an overview of sub-

context developments that can occur in a collaborative

business process.

4.3 Context Development

During each step (partner interaction) of the business

process, different types of sub-context development

are caused by the partners service calls:

• Create. The creation of a new sub-context is al-

ways based on an independent QoP or RoP from

a partner. In other words, if the partner provides

an asset which is not aggregated with other assets

in the current step, a new sub-context consisting

of this asset and the corresponding RoP is created.

Analogously, if the partner is calling others on its

own behalf (i.e. not because it is doing so for

responding to another partner) a new sub-context

consisting of its QoP should be created.

• Update. On the contrary, updating an existing

sub-context happens if the partner’s asset has data

dependency (according to discussions in section

3.3) with the assets belonging to an existing sub-

context, or if this partners’ assets are merged with

existing assets. It also happens when the partner is

requesting assets on behalf of another ’former’ re-

questor, that is, it’s QoP and the QoP of the former

requestor should be ’transmitted’ to the requested

party. Therefore the QoPs are in the same sub-

context.

• Merge. Merging sub-contexts is a special kind of

update operation. It happens when two existing

assets in two sub-contexts merge, or when the re-

quest sent by a partner is on behalf of several for-

mer requestors from different sub-contexts. In the

later case, the different sub-contexts are corelated

by the asset value in the responding message.

• Split. While ’splitting’ a sub-context, several new

sub-contexts are created. They all ’inherit’ the as-

sets and policies of the previous context. Context

splitting can be caused by three types of interac-

tions:

– a party sends copies of the same asset to sev-

eral partners and the copies are developed dif-

ferently;

– a party sends copies of the same request to sev-

eral partners at the same time;

– the business process has a control structure

deﬁning parallel activities.

• End. Ending a sub-context occurs when it is

merged, split or when the whole business process

ends.

These sub-context developments occur as asset

sharing relations change, hence the context analysis is

proceeded according to business process logic. In the

Web Service contexts, one need to consider both sce-

narios of service orchestration guided by WS-BPEL

and on-the-ﬂy service compositions. We propose both

a pre-processing method and an on-the-ﬂy processing

method for these scenarios.

4.4 Pre-processing and On-the-Fly

Processing

In context slicing, pre-processing refers to the cir-

cumstances where a pre-deﬁned business process (e.g.

WS-BPEL script) is analyzed before the execution, to

see whether it can be carried out or not, w.r.t. part-

ners’ security proﬁle-request satisﬁability. This can

be done with the asset-based slicing method, using

the policies and attributes of partners.

On the contrary, for on-the-ﬂy processing, part-

ServiceCallGraph(SCG)-InformationFlowAnalysisinWebServiceComposition

ners’ RoPs and QoPs must be aggregated as soon as

they join the collaboration context, in order to ﬁnd

out security policy conﬂicts more timingly. This re-

quires using both asset-based and request-based slic-

ing methods.

In our use case 1, on-the-ﬂy slicing strategy ﬁrst

builds the QoP tuples (see formula 9) from the be-

ginning of the business process, using request-based

slicing. Then from step ’τ3’, RoP tuples are built (see

formula 8), using asset-based slicing.

The RoP aggregation relations and QoP aggrega-

tion relations are used to generate the security polices

and proﬁles of each sub-context. When a new partner

joins the collaboration context, it is allocated to a sub-

context according to whether it’s an asset provider or

consumer (or both). Its policy and proﬁle are aggre-

gated to the security policy and proﬁle of that sub-

context.

5 CONCLUSIONS AND FUTURE

WORK

This paper develops a method for analyzing informa-

tion assets sharing patterns in Web Service composi-

tion scenarios, therefore security conﬁguration can be

done in a ﬁne-grained manner and ensure the overall

security level in inter-enterprise level business feder-

ation. We introduce a ’Service Call Graph (SCG)’

and a corresponding data structure ’service call tuple’

extending the System Dependency Graph (SDG), to

capture asset aggregation (and derivation) in a col-

laborative business process. A ’context slicing’ op-

eration can be made based on the SCG, to categorize

partners that have direct and indirect assets exchange

relations to the same ’sub-contexts’. Security policy

negotiation and aggregation in the scope of each sub-

context can ensure the full lifecycle security for as-

sets. A detailed discussion has been given on the

rational of our method, facilitated by a sample use

case. Basically, ’data dependency’ between partners

incurs assets (and RoP policies) aggregation, whereas

’control dependency’ between partners leads to the

’on behalf of’ relation and QoP aggregation. Accord-

ing to data dependency, ’asset-based’ slicing is sufﬁ-

cient for pre-processing a business process script (e.g.

WS-BPEL script). Nevertheless our on-the-ﬂy pro-

cessing strategy applied to a business federation (e.g.

dynamic service composition) requires both ’request-

based’ (due to control dependency) and ’asset-based’

slicing. Future work involves the construction of se-

curity management paradigm with assets tagging sys-

tems and the context slicing engine for both asset-

based and request-based analysis.

ACKNOWLEDGEMENTS

This work is supported by ”the Fundamental Research

Funds for the Central Universities” under grant Num-

ber 12QNJJ025.

REFERENCES

Bussard, L., Neven, G., and Preiss, F.-S. (2010). Down-

stream usage control. In Proceedings of the 11th IEEE

International Symposium on Policies for Distributed

Systems and Networks, POLICY ’10, pages 22–29,

Washington, DC, USA. IEEE Computer Society.

Daniele, C. and Giles, H. (2009). Cloud Computing: Bene-

ﬁts, risks and recommendations for information secu-

rity. Technical report, European Network and Infor-

mation Security Agency (ENISA).

GrammaTech. Dependence graphs and program slicing-

codesurfer technology overview. Technical report,

GrammaTech, Inc.

Gu, L., Ding, X., Deng, R. H., Xie, B., and Mei, H. (2008).

Remote attestation on program execution. In STC,

pages 11–20.

Kagal, L. and Abelson, H. (2010). Access control is an

inadequate framework for privacy protection. In W3C

Privacy Workshop. W3C.

Linda, B. B., Richard, C., Kristin, L., Ric, T., and Mark, E.

(2010). The evolving role of IT managers and CIOs–

ﬁndings from the 2010 IBM global IT risk study.

Technical report, IBM.

OASIS (2005). eXtensible Access Control Markup Lan-

guage (XACML) version 2.0. http://docs.oasis-

open.org/xacml/2.0/.

OASIS (2007). Web services Business Process Ex-

ecution Language (WS-BPEL). http://docs.oasis-

open.org/wsbpel/2.0/wsbpel-v2.0.html.

Park, J. and Sandhu, R. (2002). Originator control in usage

control. In Proceedings of the 3rd International Work-

shop on Policies for Distributed Systems and Net-

works (POLICY’02), POLICY ’02, pages 60–, Wash-

ington, DC, USA. IEEE Computer Society.

Su, Z. and Biennier, F. (2010). End-to-end security policy

description and management for collaborative system.

In Sixth International Conference on Information As-

surance and Security, IAS 2010, pages 137 – 142.

Zhao, J. and Rinard, M. (2003). System dependence graph

construction for aspect-oriented programs. Technical

Report MIT-LCS-TR-891, Laboratory for Computer

Science.MIT.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems
