Towards Cloud Data Management for MMORPGs

Ziqiang Diao and Eike Schallehn

Institute of Technical and Business Information Systems, Otto-von-Guericke University Magdeburg,

Universitaetsplatz 2, Magdeburg, Germany

Keywords:

MMORPG, Data Management, Cloud Storage System.

Abstract:

Massively multiplayer online role-playing games (MMORPG) provide a persistent and collaborative world

for millions of players. With increasing numbers of players and growing volumes of data, architectures based

on conventional RDBMS limit the development of MMORPGs, because issues related to the availability and

scalability of the storage system become a big challenge. These properties are typically well supported by

Cloud data storage systems, while other typical requirements of MMOPRGs are not or not yet supported,

as we will show in this paper. Furthermore, in a current project we assess the usability of Cassandra and

possibly extend its functionality for MMORPGs. In this paper, we will classify data based on its management

requirements, highlight limitations of the existing architecture and identify potentials and issues of Cassandra

in the management of diverse data in MMORPGs.

1 INTRODUCTION

Worldwide revenues for Massively multiplayer online

role-playing games (MMORPG) like World of War-

craft and Star Wars: The Old Republic have increased

to billions of dollars each year. Unfortunately, the

complex architecture of MMORPGs makes them hard

to maintain, resulting in considerable costs and devel-

opment risks. In this paper, we propose to use and

extend Cloud storage systems to address these issues.

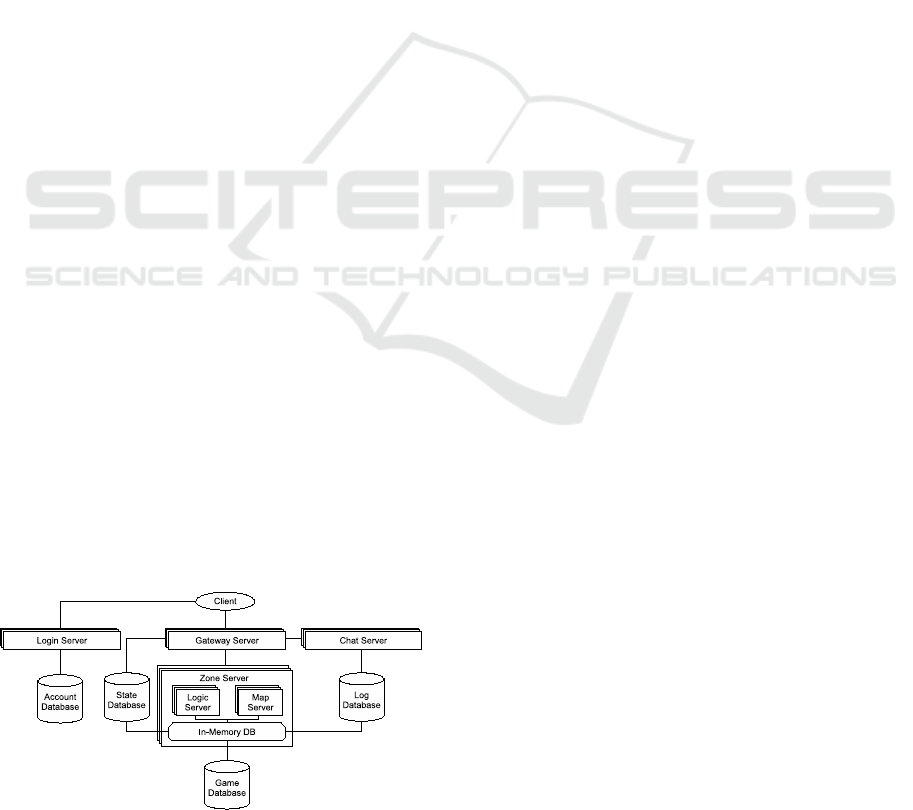

Figure 1: A simpliﬁed architecture of MMORPGs.

In order to support player interaction and ensure

system security (Zhang et al., 2008) the MMORPG

typically employs a Client-Server model. Figure 1

shows a simpliﬁed architecture of an MMORPG

(White et al., 2007; MuchDifferent, 2013). The lo-

gin server is responsible for determining the validity

of players login requests. It cooperates with an ac-

count database that stores user account information.

If the validation is passed, then players communicate

with the gateway server, which maintains the connec-

tion state of a player, monitors the player’s requests

and transmits them to an appropriate server. In order

to reduce the response time, servers are usually de-

ployed in parallel in several data centers (zone servers

from the perspective of players), which locate around

the world. However, according to the choice made

by a player, only one zone server provides services.

The zone server is responsible for maintaining a vir-

tual game world for players, executingthe game logic,

simulating interactions among characters, and syn-

chronizing the simulation results to the relevant play-

ers. In order to balance the server workload, a zone

server is composed by multiple map servers and logic

servers. The zone server reads game scripts and rules

from a game database, accesses state data of charac-

ters from a state database, and processes data in an in-

memory database in real-time. Moreover, all player

operations and sometimes also the chat history are

monitored for data mining and intrusion detection.

Note that the data size grows signiﬁcantly with the

continuation of time. Furthermore, MMORPGs usu-

ally have a large amount of concurrentplayers, for ex-

ample, World of Warcraft has millions of concurrent

players, which also exacerbates the burden of manag-

ing data. A qualiﬁed database system for data persis-

tence in MMORPGs must guarantee the data consis-

tency, and also be efﬁcient and scalable (Zhang et al.,

303

Diao Z. and Schallehn E..

Towards Cloud Data Management for MMORPGs.

DOI: 10.5220/0004404403030308

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 303-308

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2008). However, the existing RDBMS cannot fully

satisfy all these requirements simultaneously (White

et al., 2007). Therefore, with the increasing data

volume, the storage system becomes a bottleneck in

MMORPGs, and solving scalability and availability

issues become a major cost factor and development

risk.

As a Cloud storage system, Cassandra (Apache,

2013), which has the ability to support highly concur-

rent data accesses and huge storage, may become a

solution. Unfortunately, in contrast with the conven-

tional DBMS, Cassandra is designed for Web applica-

tions that have different access characteristics and re-

quire lower or different consistency levels. In this pa-

per, we try to apply Cassandra to MMORPGs in order

to assess the usability of Cassandra for MMORPGs,

open issues, and possible solutions. The rest of the pa-

per is structured as follows. In Section 2, we classify

data of MMORPGs into four groups and discuss their

requirements. In Section 3, we analyze potentials of

Cloud-based data management for MMORPGs. In

Section 4, we discuss the usability and challenges of

applying Cassandra to MMORPGs, and, ﬁnally, con-

clude and summarize this paper in Section 5.

2 DATA MANAGEMENT

REQUIREMENTS OF

MMORPGs

According to data management requirements, for our

following considerations we classify data slightly

different into four data sets because these different

classes should be managed according to their require-

ments.

• Account Data: this category of data include user

account information, such as user ID, password,

recharge records, and account balance. This data

is usually only used when players log in or log out

of a game or for accounting purposes.

• Game Data: data such as world geometry and ap-

pearance, object and NPC (Non Player Character)

metadata (name, race, appearance, etc.), system

logs, conﬁguration and game rules/scripts in an

MMORPG are generally only modiﬁed by game

developers. Some signiﬁcant part of the game

data is often stored on the client side to minimize

network trafﬁc for unchangeable data.

• State Data: as we discussed above, PC (Player

Character) metadata, position and state of char-

acters and objects, and inventory in MMORPGs

are modiﬁed constantly. Currently, the change of

state data is executed by an in-memory database in

real-time and recorded in a disk resident database

periodically.

• Log Data: analyzing user chat history and oper-

ation logs in an MMORPG is the most objective

and direct way for game providers to evaluate a

game, ﬁnd out the operating habits of players, ex-

plore the game development trends, and even su-

pervise the ﬁnancial system of the game world.

For these classes we summarize data management

requirements in Table 1 and discuss them in the fol-

lowing.

Support for Different Levels of Consistency: in a

collaborative game players interact with each other.

Changes of state data must be synchronously propa-

gated to the relevantplayers within an accepted period

of time. For this purpose we need a continuous con-

sistency model in MMORPGs (Li et al., 2004). The

state data and account data changes must be recorded

in the database. It is intolerable if players are sur-

prised to ﬁnd that their last game records are lost when

they log in the game again. As a result, a strong or at

least a Read Your Writes consistency (Vogels, 2008)

is required for such data. However, strong consistency

is not necessary for log data and game data, for exam-

ple, the existence of a tree in the map, the synchro-

nization of a bird animation, or the clothing style of a

game character can be different in the client side. Log

data is generally not analyzed immediately. Hence,

eventual consistency (Vogels, 2008) is sufﬁcient for

these two classes of data.

Performance/Real-time: state data is modiﬁed

constantly by millions of concurrent players in

MMORPGs, which brings a large amount of data

throughput to game servers and thousands of concur-

rent database connection operations. It has become a

challenge to the database performance. Such changes

must be executed in real-time and persisted on disk

efﬁciently.

Availability: as an Internet/Web application, an

MMORPG system should be able to respond to each

user request within a certain period of time. The sys-

tem also needs to have the ability to tolerate data loss.

This can be achieved by increasing data redundancy

and setting up fail-over servers.

Scalability: typically, online games start with a

small or medium number of users. If the game is

successful, the number can grow extremely. To avoid

problems of a system laid out for too few users or the

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

304

Table 1: Data classiﬁcation and requirements analysis.

Data Consistency Performance Availability Scalability Partitioning Flexible model Simpliﬁed processing Security

Account Data ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆

Game Data ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆

State Data ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆

Log Data ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆

costs of a system initially laid out for too many users,

the data management needs to be extremely scalable

(Gupta et al., 2008). Furthermore, log data will be ap-

pended continually and retained in the database stati-

cally for a long time (White et al., 2007). The expan-

sion of data scale should not affect the database per-

formance. Hence, the database should have the ability

to accommodate the growth by adding new hardware

(Iimura et al., 2004).

Data Partitioning: performing all operations on

one node can simplify the integrity control, but that

may cause a system bottleneck. Therefore, data must

be partitioned into multiple nodes in order to balance

the workload, process operations in parallel and re-

duce processing costs. Current partitioning schemes

are most often based on application logic, such as par-

tial maps (map servers). This does not easily integrate

with the requirement of scalability, i.e. re-partitioning

is not trivial when new servers are added. Accord-

ingly, suitable partitioning schemes are a major re-

search issue.

Flexible Data Model: part of the state data does not

have a ﬁxed schema, for example PCs have dynamic

skills, tasks, and inventory and MMORPGs are typ-

ically bug-ﬁxed and extended during their runtime.

Therefore, it is difﬁcult to adopt the relational model

to manage such data. A ﬂexible data model without a

ﬁxed schema is more suitable.

Simpliﬁed Data Processing: in MMORPGs only

changes of account data and a part of state data must

be executed in the form of transactions. In addition,

the transaction processing in the database of a game is

very different from in a business database. For exam-

ple, in MMORPGs, there are many transactions, but

most of the small size. Parallel operations with con-

ﬂicts occur rarely. Strong consistency is not always

necessary. Hence, a simpliﬁed data processing mech-

anism is possible.

Security: game developers always have to be con-

cerned about data security. User-speciﬁc data, such

as account data and chat logs, must be strongly pro-

tected. Furthermore, it must be possible to recover

data after being maliciously modiﬁed.

Ease of Use, Composability, and Re-usability:

the data management method should be easy for

developers to use, and can be applied to other

MMORPGs. Companies developing and maintaining

MMORPGs should be able to re-use or easily adapt

existing data management solutions to new games,

similar to the idea separating the game engine from

the game content currently widely applied. This re-

quirement is independent of the class of data.

3 DATA MANAGEMENT FOR

MMORPGs

State of the Art: when a player starts an

MMORPG, all character state data of this player must

be read from the state database at one time. This data

is cached and managed in an in-memory database in

real-time, and written to the disk periodically. When

the player quits the game, this state data is persisted

to the state database, and deleted from the in-memory

database.

A disk resident database is not directly used be-

cause that it cannot cope with the heavy I/O work-

load of MMORPGs, and executing transactions in it

will inevitably pause the game. This pause may oc-

cur at any time, which cannot be tolerated by a real-

time system. However, an in-memory database can-

not guarantee the data persistence when it fails, and

its storage cost is high. Therefore, game providers

still employ the disk resident database to backup data

(White et al., 2007). In order to reduce the database

I/O workload, data is asynchronously (5 to 10 min-

utes) written to the disk in a batch mode.

Currently, MMOPRGs apply distributed RDBS

for data persistence, which can commit complex

transactions and are proven to be stable. As an ex-

ample, consider MySQL Cluster(Oracle, 2013) and

it’s characteristics. MySQL Cluster adopts a shared

nothing architecture to ensure the system scalability.

It automatically partitions data within a table based on

the primary key across all nodes. Each node can help

clients to access correct shards to satisfy a query or

commit a transaction. For the purpose of guarantee-

TowardsCloudDataManagementforMMORPGs

305

ing availability, data is replicated to multiple nodes.

MySQL Cluster applies a two-phase commit (2PC)

mechanism to propagate data changes to the primary

replica and one secondary replica synchronously, and

then modiﬁes other replicas asynchronously. In this

case, at least one secondary replica has the consistent

and redundant data, which can be used as a fail-over

server while the primary server fails. When MySQL

Cluster maintains tables in memory, it can support

real-time responses. The result is that it can also be

used as an in-memory DBS in MMORPGs.

The Case for Cloud-based Data Management:

unfortunately, RDBMS cannot fulﬁll some data man-

agement requirements well, or there must be some

provisos(Cattell, 2010). In contrast to RDBMS,

Cloud-based storage systems have inherent advan-

tages regarding their major characteristics like scal-

ability and availability. Nevertheless, some typical

requirements are neither fully supported by any of

the two alternatives. Accordingly, we discuss key

requirements and the suitability of the RDMS vs.

Cloud-based storage systems.

• High Performance: traditional RDBMS are not

designed for managing data with a large number

of attributes, such as PC state data. If we cre-

ate a wide table, i.e. with hundreds of columns,

RDBMS often fail to manage it well. If we par-

tition a wide table into several tables, the mas-

sive join operations would bring a great impact on

the system performance. Different from RDBMS,

Cloud-storage systems can manage all attributes

by applying a simpliﬁed data model as well as

data redundancy. Although this solution increases

the storage burden on the system, it improves the

query performance.

• Scalability: for large-scale Internet/Web appli-

cations, a single or a few servers cannot satisfy

the user demand for data access. The only solu-

tion is scaling out. Although some RDBMS (e.g.

MySQL Cluster, Oracle RAC, etc.) also have used

the shared-nothing architecture, the system scala-

bility is limited by its complex schema. Further-

more, data set volume growth has a signiﬁcant

impact on the system performance (Franke et al.,

2011; Cattell, 2010). With their simpliﬁed data

model, Cloud storage systems are proven to havea

great potential for scalability (Franke et al., 2011).

• Flexible Data Model: the relational model of

RDBMS is good at normalizing table schema and

removing data redundancy, but not at adapting

to a dynamic schema and processing big data.

Cloud storage systems typically adopt a ﬂexible

data model, such as a key-valuedata model. There

is no ﬁxed schema for items. Each item consists

of a key and a dynamic set of attributes.

• Simpliﬁed Data Processing: RDMS usually fol-

low a strict transaction mechanism, such as a

table-level or a row-level atomicity, multi-version

concurrency control mechanism, transaction iso-

lation, and rollback. As we discussed above,

this is not necessary for all data in MMORPGs.

Cloud systems are designed for Web applications,

in which strong consistency is not as necessary as

it in business applications. For this reason, they

generally do not support transaction processing.

4 USING CASSANDRA FOR

MMORPGs

For the above reasons, in this paper, we try to as-

sess the usability of a Cloud storage system for

MMORPGs. The existing RDBMS mainly has trou-

ble in the management of state data and log data.

Therefore, we tend to choose a Cloud storage system

based on the access characteristics of these data.

State data is backed up to disk in frequent inter-

vals, so the state database in MMORPGs should be

write-intensive and have the ability to access large

amounts of data in parallel. Cassandra has a simi-

lar application scenario with state database. It is de-

signed for Web applications that perform more equal

shares of concurrent write than read operations, such

as a social networking website. Additionally, Cassan-

dra is always writable, which makes it more suitable

for managing state data than other Cloud storage sys-

tems. Therefore, we choose Cassandra as the object

of the assessment.

In the following, we evaluate and predict poten-

tials and open issues of Cassandra in the management

of diverse data in MMORPGs by analysis of charac-

teristics of Cassandra.

Management of State Data: state data must be per-

sisted to the disk. In this process, a high performance

for concurrent data access, a ﬂexible data model, sim-

pliﬁed data processing, and system scalability are re-

quired.

Cassandra has a decentralized structure (Laksh-

man, 2010), i.e., each node is identical and is able

to initiate reads and writes independently. Data are

automatically replicated to multiple nodes. There-

fore, there is no network bottleneck and single

points of failure, which can satisfy the write per-

formance requirements of state data. This is differ-

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

306

ent with RDBMS (e.g., MySQL Cluster) and some

other Cloud storage systems (e.g., Google Bigtable

(Chang et al., 2006)), which usually adopt a pri-

mary/secondary model (the primary node may be-

come a system bottleneck).

Cassandra provides a column family based data

model, which is richer than a simple key-value store.

Every row in a super column family in Cassandra

consists of a row key and a dynamical set of super

columns, each of which maintains a different num-

ber of columns. In this way, we can manage the PC

data of one player in a single row, and partition data

based on row key across multiple nodes in the cluster.

Hence, there is no more join operation during reading

data, and the read performance can be increased.

Cassandra adopts a shared-nothing architecture

and a simpliﬁed data model as we mentioned above.

As a result, it can scale out easily by adding new hard-

ware, and reach a linearly increasing read and write

throughput.

Another advantage is that Cassandra provides a

quorum based data replication mechanism. That

means as long as a write can receive a quorum re-

sponses, it can complete successfully. In this way,

Cassandra ensures availability and fault tolerance.

Additionally, by controlling the number of replicas

that must respond to a read request, Cassandra offers

a tunable data consistency.

On the other hand, there are still some open issues

that cannot be well solved by Cassandra directly.

Real-time: as discussed above, managing the state

data in real-time is a big challenge for a disk resident

RDBMS. Unfortunately, Cassandra with its shared

nothing architecture is not intended to provide real-

time support. Although Cassandra ﬁrstly manages

data in Memtable in memory, we cannot limit all re-

lated data to one node. The changes of data must be

propagated to other nodes in the form of messages,

which will increase the response time. Therefore, we

have to continue applying an in-memory database in

each zone server.

Data consistency: Cassandra employs Read Re-

pair to guarantee data consistency. It means that all

replicas must be compared in order to return the up-

to-date data to users. In MMORPGs, state data may

have hundreds of attributes and are distributed in mul-

tiple data centers. Hence, such a feature will signif-

icantly reduce the read performance and increase the

network trafﬁc. A common method for solving this

problem is to limit the data consistency in the appli-

cation layer of the system(Gropengieß er et al., 2011).

Note that Cassandra records timestamps in each col-

umn, and uses it as version identiﬁcation. Therefore,

a possible solution is that we record the timestamps

from a global server in both server side and columns

in Cassandra. When we read state data from Cassan-

dra, the timestamp recorded on the server side will be

sent with the read request. In this way, we can ﬁnd out

the most recent data easily. We set all columns in a

single row with the same timestamp, so that only one

row key and one timestamp are stored for a single row

on the server side. In addition, these timestamps are

partitioned and managed by servers in parallel. For

these two reasons, accessing these timestamps in the

server side will be not a challenge.

Customized functions: we need to develop some

new functions based on features of MMORPGs.

There are two examples: the mainly task of state

database is data backup. Each value that has been

written in the database must be persistent until it is out

of date. Therefore, if an update operation fails in the

committing process, values that have been recorded

in the database should be applied and other values

must try to update again. To comply with this rule,

a column-level atomicity is sufﬁcient (Cassandra of-

fers an atomicity at the column family level.); note

that writes and queries in games are relatively ﬁxed.

Hence, we propose to add a stored procedure to each

node to optimize the system performance. The stored

procedure is also responsible for splitting a write op-

eration into column-level, which is convenient for of-

fering a column-level atomicity.

Data partitioning: in order to get a high perfor-

mance of accessing the entire state data of a character

or object, we manage these data in a single row and

partition them based on row key horizontally. How-

ever, this method increases the processing costs of

querying data across characters. We can partly relieve

this problem by creating indexes. Unfortunately, it

increases the response time of write. Cassandra can-

not solve this problem autocratically, so a more ef-

ﬁcient data partitioning method based on semantics

(e.g., map zones) or a mix of both has to be proposed.

Management of Log Data: log data has a large

scale. Once it has been written to disk, it does not

need to be modiﬁed. In addition, log data is usually

analyzed after a long time, so strong consistency is

not important. Generally speaking, in addition to the

demand for scalability, management requirements of

log data are not difﬁcult to meet. Cassandra provides

scalability, availability, tunable data consistency and

high fault tolerance, as we mentioned. Cooperating

with Hadoop MapReduce, it can also process and an-

alyze large data set in parallel. As a result, Cassandra

can manage log data well.

If there is an update conﬂict on two nodes in Cas-

sandra, the last write wins. However, update of Log

TowardsCloudDataManagementforMMORPGs

307

data is append operation. That means, all values need

to be persisted. Therefore, the conﬂict values need to

be sorted by timestamps and combined. When two

write operations with different timestamps modify a

same log data concurrently, the write operation with

lower timestamp should win, and another needs to put

in the queue. This is convenient for sorting.

Management of Account Data: account data must

be processed carefully because that an operation error

may cause an economic dispute or a player’s informa-

tion disclosure. As a result, each operation needs to be

executed in the form of a transaction. Unfortunately,

Cassandra cannot perform transactions. Furthermore,

account data has no strong requirements for scalabil-

ity and high performance, so RDBMS as a service is

more suitable for it.

Management of Game Data: game data exists typ-

ically in the form of ﬁles. However, Cassandra be-

longs to the Cloud structured data system. Moreover,

game data processing does not pose a challenge to the

existing solutions. Unless it is stored on the client

side, we can manage it in a Cloud-based ﬁle system,

such as HDFS (Shvachko et al., 2010).

5 CONCLUSIONS

In this paper, we have shown that a single storage sys-

tem cannot meet management requirements of all data

sets of MMORPGs. Although RDBMS are intended

to provide a high-level of consistency, it falls short of

fulﬁlling requirement regarding scalability and avail-

ability. In this paper, we proposed how to apply

Cloud storage systems, and speciﬁcally Cassandra to

MMORPGs. By matching characteristics of Cassan-

dra with application requirements, we found that Cas-

sandra basically can meet the persistence requirement

of state data and log data. However, a Cloud storage

system speciﬁcally designed for these data sets still

needs to be developed. Additionally, Cassandra fails

to manage account data and game data well, and pro-

cess state data in real-time. Accordingly, we believe

that a set of co-operating services for MMORPGs,

such as RDBMS as a Service and Cloud-based ﬁle

storage systems need to be developed.

REFERENCES

Apache (2013). Cassandra. http://cassandra.apache.org/.

Cattell, R. (2010). Scalable SQL and NoSQL Data Stores.

ACM Special Interest Group on Management of Data

(SIGMOD), 39(4):12–27.

Chang, F., Dean, J., Ghemawat, S., Hsieh, W. C., Wallach,

D. A., Burrows, M., Chandra, T., Fikes, A., and Gru-

ber, R. E. (2006). Bigtable: A distributed storage sys-

tem for structured data. In Proceedings of 7th Sym-

posium on Operating System Design and Implementa-

tion(OSDI), pages 205–218.

Franke, C., Morin, S., Chebotko, A., Abraham, J., and Bra-

zier, P. (2011). Distributed Semantic Web Data Man-

agement in HBase and MySQL Cluster. In IEEE Inter-

national Conference on Cloud Computing, CLOUD

2011, pages 105–112.

Gropengieß er, F., Baumann, S., and Sattler, K.-U. (2011).

Cloudy transactions cooperative xml authoring on

amazon s3. In Datenbanksysteme fr Business, Tech-

nologie und Web (BTW), pages 307–326.

Gupta, N., Demers, A., and Gehrke, J. (2008). SEMMO :

A Scalable Engine for Massively Multiplayer Online

Games [ Demonstration Paper ]. In ACM SIGMOD

Conference 2008, pages 1234–1238.

Iimura, T., Hazeyama, H., and Kadobayashi, Y. (2004).

Zoned Federation of Game Servers : a Peer-to-peer

Approach to Scalable Multi-player Online Games. In

Proceedings of the 3rd Workshop on Network and

System Support for Games, NETGAMES 2004, pages

116–120.

Lakshman, A. (2010). Cassandra - A Decentralized Struc-

tured Storage System. Operating Systems Review,

44(2):35–40.

Li, F. W., Li, L. W., and Lau, R. W. (2004). Supporting

continuous consistency in multiplayer online games.

In 12. ACM Multimedia 2004, pages 388–391.

MuchDifferent (2013). Mmo architecture. http://

www.muchdifferent.com/?page=game-unitypark-

architecture-mmo.

Oracle (2013). Mysql cluster overview. http://

dev.mysql.com/doc/refman/5.5/en/mysql-cluster-

overview.html.

Shvachko, K., Kuang, H., Radia, S., and Chansler, R.

(2010). The Hadoop Distributed File System. In IEEE

26th Symposium on Mass Storage Systems and Tech-

nologies (MSST), pages 1–10.

Vogels, W. (2008). Eventually consistent. ACM Queue,

6(6):14–19.

White, W., Koch, C., Gupta, N., Gehrke, J., and Demers, A.

(2007). Database research opportunities in computer

games. ACM Special Interest Group on Management

of Data (SIGMOD), 36(3):7–13.

Zhang, K., Kemme, B., and Denault, A. (2008). Persis-

tence in massively multiplayer online games. In Pro-

ceedings of the 7th ACM SIGCOMM Workshop on

Network and System Support for Games, NETGAMES

2008, pages 53–58.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

308
