Tweedback: A Live Feedback System for Large Audiences

Jonas Vetterick, Martin Garbe and Clemens Cap

Department of Computer Science, University of Rostock, Rostock, Germany

Keywords:

Feedback, Live Feedback, Lecture, Peer Instruction, Chatwall, Web Application.

Abstract:

Live feedback systems have been proven to be suitable for teachers’ needs. Especially in classes with a lot of

participants feedback in an electronic form can create additional value by getting feedback from all students.

The live feedback system Tweedback incorporates three feedback possibilities. One form of feedback is

Peer Instructions to test people’s knowledge using multiple choice questions. Additionally the possibility

for students to rate the teachers’ Speech Parameters could improve the lecturers course value. Furthermore

the ability to ask questions anonymously could lower the threshold for students and may result in a better

understanding.

1 INTRODUCTION

Nowadays students often use mobile devices, such as

smartphones or tablets, during a lecture to commu-

nicate with each other. This offers an opportunity to

use mobile devices as a new communication channel

between a teacher and her students.

Often teachers want to check students’ under-

standing of a previously explained issue, for exam-

ple the functionality of a complex concept in com-

puter science or the diagnose of a patient’s symp-

toms in medicine. Asking a small group of students

is feasible, but asking a larger group can be very in-

convenient, where this may lead to turmoil in class

and will often be focused only on a small number of

participants. There are solutions, which utilize a re-

mote control to allow the students to choose prede-

ﬁned answers (for example ”Qwizdon Q5” (Qwizdom

Ltd, 2012), ”Powervote” (Powervote, 2013) or ”vot-

ing4life” (Art4live GmbH, 2013)). This simpliﬁes

this proposal to ask a large group of students. Imag-

ine a medical course, where the lecturer describes the

symptoms of a disease. The lecturer then frames four

possible diseases as answers and each student has to

vote for one.

Solutions for this kind of feedback, which use an

extra device, are on the one hand very comfortable.

The usage is simple for both, students and lecturers,

so there is no need for an extra explanation. On the

other hand there are a lot of disadvantages. All de-

vices have to be maintained by replacing empty bat-

teries, keeping them clean, retaining them and ensur-

ing they are complete in quantity and quality.

To avoid these disadvantages, another possible so-

lution is to use the mobile devices, the students own

already. By using their own devices, a lecturer could

ask a question to a large group of students without

providing extra devices.

All in all there are three different types of feed-

back, which will be explained in the following. All

three types have the possibility in common to get live

feedback. Live feedback means the ability of getting

instant feedback from a large group of people in a

classroom scenario. Our goal is the implementation

of a tool, that allows teachers to use all three types of

live feedback in their lectures, without having to care

about technical details.

The previously presented scenario describes the

Peer Instruction concept (PI), where ”the instructor

presents students with a qualitative (usually multiple

choice) question that is carefully constructed to en-

gage student difﬁculties with fundamental concepts.

After that the students consider the problem on their

own and contribute their answers in a way that the

fraction of the class giving each answer can be deter-

mined and reported.” (Redish, 2005)

The second type of live feedback is the Chat-

wall (CW), also known from facebook.com and twit-

ter.com. Students have the possibility to ask questions

and are able to vote for other students’ questions to

make them more important. Then the lecturer can use

this information to clarify obstacles. This concept is

very similar to the backchannel idea, ﬁrst mentioned

by the research group of Franois Bry. (Gehlen-Baum

et al., 2012)

Whereas the Peer Instruction concept and the

194

Vetterick J., Garbe M. and Cap C..

Tweedback: A Live Feedback System for Large Audiences.

DOI: 10.5220/0004414501940198

In Proceedings of the 5th International Conference on Computer Supported Education (CSEDU-2013), pages 194-198

ISBN: 978-989-8565-53-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

Chatwall/Backchannel have been well-known for sev-

eral years, the third kind of live-feedback is not yet

popular and has not yet been fully investigated. The

main idea is that the students are able to mark a single

Speech Parameter as inconvenient. The talking speed

is for example a possible Speech Parameter. By giv-

ing the audience the ability to mark the talking speed

as too fast, the lecturer can reduce her talking speed

to improve the comprehensibility.

All three kinds of live feedback are presented in

detail in the following chapter. After that we de-

ﬁne the functional and nonfunctional requirements

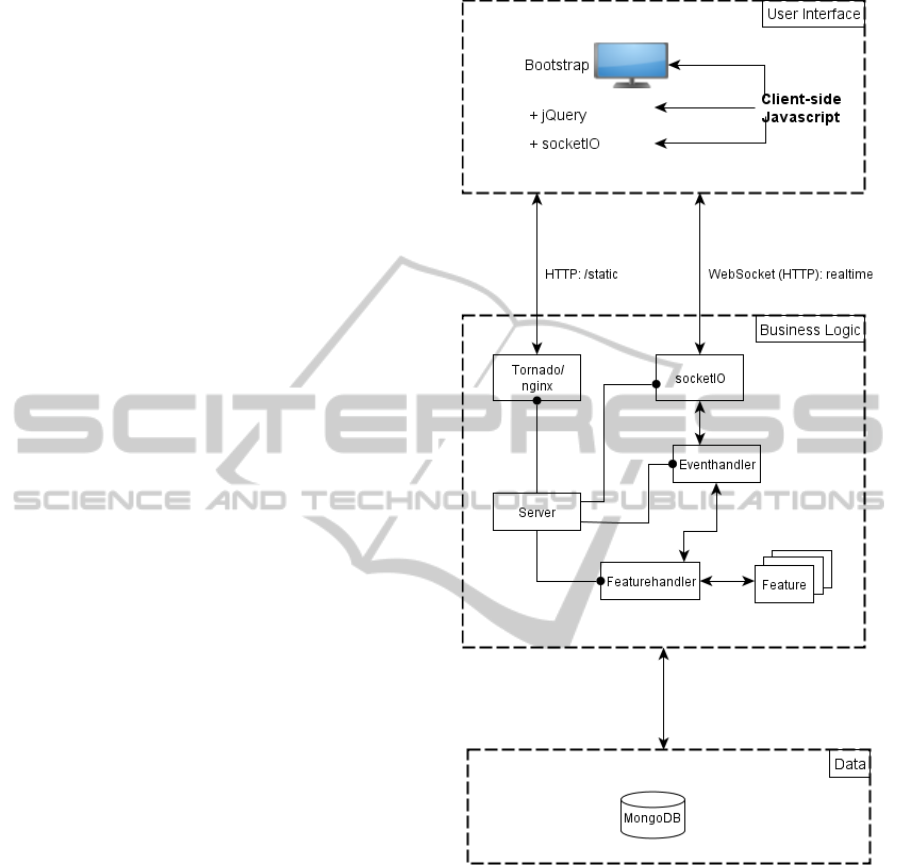

of a general live feedback system. In the following

we present our architecture and illustrate design deci-

sions we made for Tweedback to fulﬁll these require-

ments. The last chapter summarizes all the work we

have done and outlines our future work.

2 STATE OF THE ART

As previously mentioned, there are three kinds of live

feedback. This chapter overviews existing solutions,

which either implement one kind of live feedback or

a composition of two or more. We introduce ﬁrst the

implementations of the Peer Instruction concept and

then a solution for giving feedback based on a lec-

turer’s Speech Parameters.

The University of Paderborn realized the Peer In-

struction concept as a closed-source web application

called PINGO (Reinhardt et al., 2012). They built an

application that is accessible on any device, mobile or

not. Using this application a lecturer, who must have

an account at the University of Paderborn, can add

surveys during the lecture. A survey thereby exists of

a multiple choice question. The participants, mostly

students, do not need to have an account and answer

anonymously to the lecturer’s questions. It is not pos-

sible to add free text questions and the source code is

not open.

The Peer Instruction concept is also realized as a

prototypical web application (University of Rostock,

2012) at the University of Rostock. Thereby the fo-

cus is rather on the usability and performance than the

stability. So this application has a minimalistic user

interface and thus provides maximum compatibility

with mobile devices.

One solution, that also handles just a single kind of

live feedback has been developed at the University of

Freiberg and is called myTU (Technische Universit

Bergakademie Freiberg, 2012). It is available for the

mobile operating systems Android and iOS. It is more

a manager for student’s life than instrument for live

feedback, but students can use it to rate the speed of

lecturer’s speech.

Combining a Chatwall and the ability to rate the

lecturer’s Speech Parameter is the idea behind the web

application Backstage (Gehlen-Baum et al., 2012),

developed and researched by F. Bry. Backstage was

designed to investigate the use and the design of a

digital backchannel by implementing a prototype that

looks and acts like twitter, but is used for a lecture.

The students may ask questions to the whole audi-

ence, including the lecturer. The lecturer also may

ask questions to the students using Backstage. Back-

stage is focused on large classes, but is used only with

a small number of students for the experimental stud-

ies (approx. 20 students). Due to its design using a

synchronous Java web server as Jetty, it may be slow

under heavy use with multiple large lectures (more

than 100 participants) in parallel.

A project, which is most similar to our approach

is called SMILE 2.0 (Feiten, 2012). It has been

developed by the University of Freiburg and allows

students to ask free questions and rate the lecturer’s

Speech Parameters using a social platform. Further-

more it has the functionality of a Peer Instruction ap-

plication. Unfortunately it is not open, neither to use

nor the source code, so we could not evaluate it.

Our goal is a composition of different types of live

feedback, namely PI, CW and SP.

3 AIMS AND REQUIREMENTS

OF TWEEDBACK

The major aim of our system is to enable feedback

for students and give lecturers the possibility to react

on the feedback in time. Especially in large classes

verbal one to one communication with many people

is not feasible. Here feedback systems can assist the

teacher.

3.1 Functional Requirements of Live

Feedback System

Feedback can be given in different ways. We con-

centrate on three categories. The ﬁrst functional re-

quirement is Peer Instruction (PI). Teachers should be

able to start surveys ad-hoc in lecture or start prepared

ones. A survey is implemented as a multiple choice

question. Results of these surveys should be accessi-

ble for the lecturer at all time.

Besides Peer Instruction, students have additional

possibilities to give feedback regarding the content of

course and form of presentation. Speech Parameters

(SP) can be rated throughout the lecture. Example

Tweedback:ALiveFeedbackSystemforLargeAudiences

195

categories are speed and understanding. A threshold

regulates how many votes are needed in a given pe-

riod of time to notify the lecturer. The teacher will be

notiﬁed on a small screen about the current situation.

The third functional requirement, called Chatwall

(CW), is feedback in form of asking particular ques-

tions, rating and answering them. For lecturers it is

hard to give a presentation and read questions from

the audience at the same time. Therefore an unﬁltered

forwarding of audience questions will not be conve-

nient. The system gives the audience the possibility

to ask questions on a Chatwall-like platform. At the

beginning questions are proposed and displayed only

on students’ devices. After questions have been pro-

posed others can vote for these. This can result in high

rated questions concerned by many others. A thresh-

old decides which question will be presented to the

lecturer. A log of the Chatwall can also be used by

the lecturer afterwards to evaluate his presentation.

3.2 Non-functional Requirements

Besides the functional features as described above,

Tweedback has many other requirements which aim

best possible user experience. First of all, interac-

tion with the system has to be fast and responsive.

Waiting while interacting with the application is de-

creasing acceptance of users. A second requirement

with direct impact on acceptance rate is an intuitive

and minimalistic user interface, that even ﬁts on very

small mobile devices. Tweedback will be used by

many laypersons. According to (N)ONLINER Atlas

2012 (Initiative D21 e.V., 2012), which represents the

situation in Germany, 96.9% of young people (20–29

years) have Internet experience. So we can assume

that they are able to use even complicated websites.

According to the lecturer’s view, it is assumed that

teachers have less experience with the Internet (e.g.

60–69 years, 60.4%). We do not know what people

will use our system in the future, how old they are or

what preferences they have. So we cannot suppose

that teachers are familiar with complex websites and

their navigation features. According to the students’

side it can be assumed that there is more experience

in dealing with complex websites due to the age of

students.

Students use their mobile devices to access

Tweedback. It is not possible to control which de-

vice will be used. This is a design decision. The ad-

vantage is that users maintain their own devices. The

disadvantage is that the interface of a live feedback

system needs to be as ﬂexible as possible on students’

devices.

With a growing number of users the system needs

to be scalable. This is especially a matter of concern

when many surveys start at the same time. In these

cases many students take part at a survey simultane-

ously. This causes an access peak. Situations with

thousands of connections need to be handled.

For users we want to make the ﬁrst step of partici-

pation in Tweedback as easy as possible, which leads

to an anonymous access for students. We do not want

users to pass an initial account creation procedure. We

believe in success of open systems.

To generate additional value compared to ”ofﬂine“

feedback, users can not be blamed for wrong answers.

It is a common phenomenon that people do not partic-

ipate in surveys because they are afraid to say wrong

answers in the front of others. But these people are

able to participate in a feedback system when users

are anonymous. This is the second reason why anony-

mous access is preferred.

Finally the system has to be modular to easily im-

plement new forms of audience interaction in the fu-

ture.

4 ARCHITECTURE OF

TWEEDBACK

In order to provide an application for many mobile de-

vices, it is sensible to build a web application that sim-

ply serves HTML. Because most mobile devices are

able to render HTML5, Javascript and CSS, there is

no need to develop a native app for all the mobile op-

erating systems (namely the most common used: An-

droid, iOS and Windows Phone) (Kamboj and Gupta,

2012). By using just one browser-related client inter-

face, we do not have to manage and maintain multiple

different platform variants. Even if there are frame-

works that promise to handle these issues, there would

always be multiple different code repositories. This

would unnecessarily increase the development effort

and support.

Furthermore the user interface shipped by the

web application should not only ﬁt on most kinds

of screens (for example on a mobile device and/or a

notebook), but it should be easy to use, too. While the

ﬁrst can be assumed by using a well-known frame-

work for web user interfaces, the last is hard to

achieve. Our approach is to use the bootstrap frame-

work from twitter. It provides a set of common user

interface elements, such as a header bar or a button,

and organizes the way it is visually structured. Addi-

tionally we want to subdivide the user interface into

different views, in such a way that each feature has its

own view. Offering the lecturer a choice of features,

students are able to see which feature is enabled by

CSEDU2013-5thInternationalConferenceonComputerSupportedEducation

196

recognizing which view is currently activated. A fea-

ture implements one of the previously explained func-

tional requirements, namely the Peer Instruction, the

Chatwall and Speech Parameter.

To implement anonymousness there has to be a

concept to ensure that a lecturer can not trace back

the students id. Technically we solve this issue by al-

lowing everybody to participate. Nobody has to reg-

ister herself or login with her university account. An-

other fact arises with the ability to be anonymous.

It is maybe possible to manipulate the system by

overusing a function or trying to distract the lecturer.

We prevent such manipulations by deﬁning certain

thresholds and time locks. A student for example can

not ask multiple questions at a short time (<1 sec-

ond), so we disable her functionality to ask questions

right after a question is asked.

Responsiveness and scalability are difﬁcult to

achieve, so we need sophisticated technologies to

solve these requirements. Fortunately both can be

handled at once by using an asynchronous web server

working with two-way communication channel in

tandem. Investigating in numerous solutions for asyn-

chronous web servers, we decided to use the tornado

web server, developed by facebook. It is event-based,

well-known for stability and very good performance.

It is possible to handle more than 5000 connections

simultaneously on commodity hardware. A two-way

communication channel is necessary, because both,

the server and the client, have to send messages to

each other. The client hereby is the browser, of the

lecturer as well as of the students. Imagine for exam-

ple the use of the Chatwall, where one student asks a

question. To view this message to all the other stu-

dents, it has to be delivered to their browsers. Here

the student’s browser sends the question to the server.

Then the server has to push this message to all the

other students (and lecturers maybe, too) browsers.

Without the use of a two-way communication this

would not be possible.

We plan to use the library socketIO as the two way

communication layer. It makes use of WebSockets,

deﬁned in HTML5. Furthermore, it is well imple-

mented for Javascript and for the tornado web server.

Additionally, it has several fallbacks for browsers not

supporting Websockets. These fallbacks make use

of AJAX to emulate a two-way communication over

HTTP 1.1.

Figure 1 summarizes the technology stack previ-

ously presented. All permanent data will be stored in

a non-relational database, because there is a ﬂexible

scheme necessary to develop this web application.

Figure 1: Technology Stack.

5 CONCLUSIONS

Many people have mobile devices for communicat-

ing with others or simple Internet browsing. These

devices can be used to give feedback within large

classes. The presented live feedback system Tweed-

back uses these mobile devices. People can give feed-

back in one of three ways: Peer Instruction, Chatwall

or rating Speech Parameters. Besides these functional

requirements the feedback system has to be fast and

responsive, easy to use by laypersons, compatible to

many mobile devices and scalable. These require-

ments are accomplished with user interface frame-

Tweedback:ALiveFeedbackSystemforLargeAudiences

197

works for mobile web which assure compatibility to

most user devices. Event-based asynchronous com-

munication is used for scalability and anonymous ac-

cess is allowed to assure an easy participation and

to give users the chance to give feedback which they

would have refused in front of many other people.

REFERENCES

Art4live GmbH (2013). voting4live: http://

www.voting4live.de/ [23.01.2013].

Feiten, L., . B. B. (2012). Smile smartphones in lectures:

Initiating a smartphone-based audience response sys-

tem as a student project. 4th International Conference

on Computer Supported Education (CSEDU 2012).

Gehlen-Baum, V., Pohl, A., Weinberger, A., and Bry, F.

(2012). Backstage designing a backchannel for large

lectures. In Ravenscroft, A., Lindstaedt, S., Kloos, C.,

and Hernndez-Leo, D., editors, 21st Century Learning

for 21st Century Skills, volume 7563 of Lecture Notes

in Computer Science, pages 459–464. Springer Berlin

Heidelberg.

Initiative D21 e.V. (2012). (N)ONLINER Atlas 2012. Eine

Topographie des digitalen Grabens durch Deutsch-

land. TNS Infratest, Mnchen.

Kamboj, V. and Gupta, H. (2012). Mobile operating sys-

tems. IJEIR, 1(2):115–120.

Powervote (2013). Powervote: http://www.powervote.com

[23.01.2013].

Qwizdom Ltd (2012). Qwizdom q5: http://www.qwizdom.

co.uk/q5.php [23.01.2013].

Redish, E. F. (2005). Peer instruction problems: Introduc-

tion to the method.

Reinhardt, W., Sievers, M., Magenheim, J., Kundisch, D.,

Herrmann, P., Beutner, M., and Zoyke, A. (2012).

Pingo: Peer instruction for very large groups. In

Ravenscroft, A., Lindstaedt, S., Kloos, C., and

Hernndez-Leo, D., editors, 21st Century Learning for

21st Century Skills, volume 7563 of Lecture Notes

in Computer Science, pages 507–512. Springer Berlin

Heidelberg.

Technische Universit

at Bergakademie Freiberg (2012).

mytu app: http://mytu.tu-freiberg.de/ [22.02.2013].

University of Rostock (2012). Wwm-hro: http://

wwm-hro.tk [22.01.2013].

CSEDU2013-5thInternationalConferenceonComputerSupportedEducation

198
