Situation-awareness as a Key for Proactive Actions

in Ambient Assisted Living

Alencar Machado

1,2

, Ana Marilza Pernas

, Iara Augustin

, Lucinéia Heloisa Thom

Leandro Krug Wives

and José Palazzo Moreira de Oliveira

PPGC, Instituto de Informática, Universidade Federal do Rio Grande do Sul (UFRGS), Porto Alegre, Brazil

Politécnico, Universidade Federal de Santa Maria (UFSM), Santa Maria, Brazil

Programa de Pós-Graduação em Informática, Universidade Federal de Santa Maria (UFSM), Santa Maria, Brazil

Centro de Desenvolvimento Tecnológico, Universidade Federal de Pelotas (UFPEL), Pelotas, Brazil

Keywords: Situation-aware, Ambient Assisted Living, Context-aware, Proactive Actions.

Abstract: With the augmentation of population's life expectancy as a whole, there is a need for intelligent applications

to assist citizens in their daily activities. Ambient Assisted Living – AAL – are emerging as a way to allow

technology and medical assistance to help people who need special supervision, providing support to medi-

cal emergencies. AAL are equipped with ubiquitous technologies, and use sensors as their main element for

environmental data collection, providing systems with updated information. To offer personal home assis-

tance, these computer-supported environments detect situations of interest such as the patient´s current

health state, and proactively act to adapt the home environment accordingly to the patient´s specific needs.

This paper presents results from an approach to support adaptive behavior in AAL. In particular, we discuss

the design of intelligent systems for monitoring and adaptation of AAL. Additionally, we describe a mid-

dleware for the management of pervasive applications, which is capable of detecting the current situation of

a citizen and identifying the most suitable action.

1 INTRODUCTION

Recent studies show that population is aging (Chris-

tensen et al., 2009). Diseases associated with ageing

or decreased ability to perform individual activities

make people with reduced cognition more prone to

risky situations in their daily activities. Proactive

Ambient Intelligence could improve the quality of

life in a residence, providing a semi-automated as-

sistance for people who reside in it. Ambient Assist-

ed Living (AAL) are environments equipped with

ubiquitous technologies, which provide technology

in a non-invasive way, offering contextual data

needed to achieve environment´s adaptations that are

specific to personal preferences (Sun et al., 2009).

The inclusion of context-aware systems (Dey and

Abowd, 2006) in AAL makes these systems more

intelligent, proactive and reactive to support the life

of citizens with decreased cognitive ability. The

identification of the current citizen’s situation in

different contexts helps the adaptation of environ-

ments to individual features. Situation-aware behav-

ior is especially useful in AAL, where the situation

abstraction allows the modeler or pervasive applica-

tion (appPerv) designer to manage each piece of the

world being represented in order to deduce the spe-

cific situations in which each entity being evaluated

is, or to detect a situation change (Ye et al., 2012).

To design situation-aware applications in AAL,

it is necessary to model the infrastructure of these

environments. Thus, this paper presents a conceptual

model to determine the vision of world for appPerv,

allowing triggering proactive actions according to

the situations detected. To enable these features, we

developed a middleware that provides the manage-

ment of SItuations as a Service (SIaaS) for any ap-

pPerv being developed. The proposed SIaaS mid-

dleware is able to manage the context and the situa-

tions of interest for an appPerv. We also developed a

solution to build generic appPerv (deployed in SI-

aaS) to be executed in specific domains.

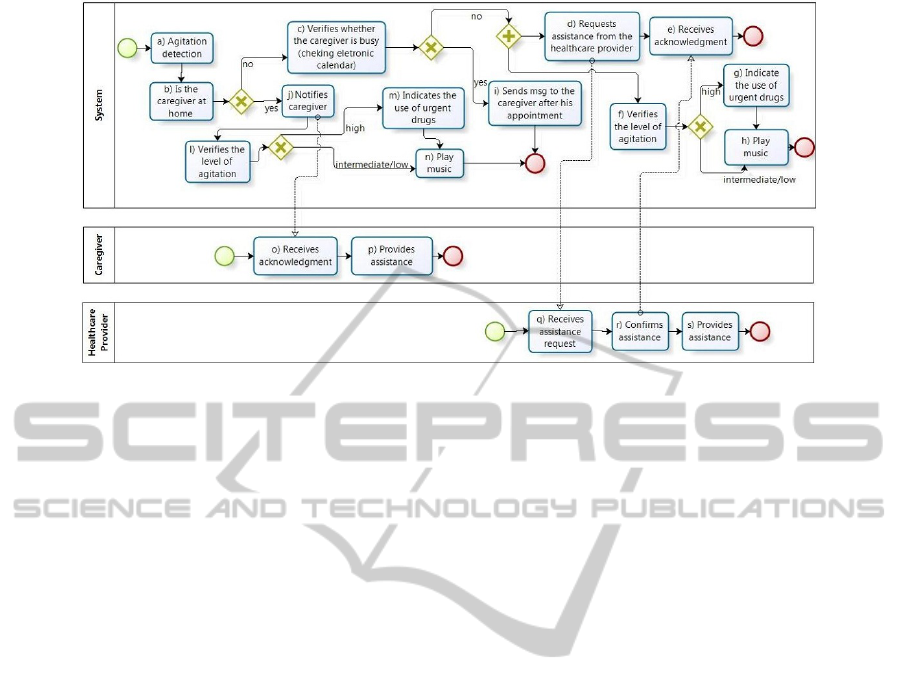

We have applied our approach in a specific case

study that is based on an agitation behavior model.

In fact, it is a process model that describes an elderly

person presenting mood and behavior changes. In

418

Machado A., Marilza Pernas A., Augustin I., Heloisa Thom L., Krug Wives L. and Palazzo Moreira de Oliveira J..

Situation-awareness as a Key for Proactive Actions in Ambient Assisted Living.

DOI: 10.5220/0004418004180426

In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 418-426

ISBN: 978-989-8565-60-0

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

particular, an appPerv based on this process model

was implemented. To support appPerv, we have

implemented a SIaaS prototype. The prototype can

detect situations of interest defined by the appPerv

and is able to send proactive actions supported by

simulated environment. This paper is organized as

follows: section 2 discusses our vision of ubiquitous

environments; section 3 presents the proposed archi-

tecture for deploying and running appPerv based on

our approach; section 4 presents the appPerv devel-

oped to analyze the case study already discussed;

section 5 present our conclusions and future work.

2 UBIQUITOUS

ENVIRONMENTS

In a ubiquitous environment, sensors represent ob-

jects in the world. In this work, the worldview is

obtained by information captured by the sensors but

the action in the world is achieved by functionalities

implemented as Web services that are embedded in

objects as mobile phones, televisions, microwave

ovens, among other incorporated in the environment.

The ubiquitous environment can be characterized

as a flow for aggregation of data that the sensors

collect, thus seeking to express what is happening.

From a high-level of aggregation, called as “situa-

tion”, it is possible to act on the environment

through capabilities that electronics provide, thus

seeking to automate the environment according to

the detected situation and preferences of citizens.

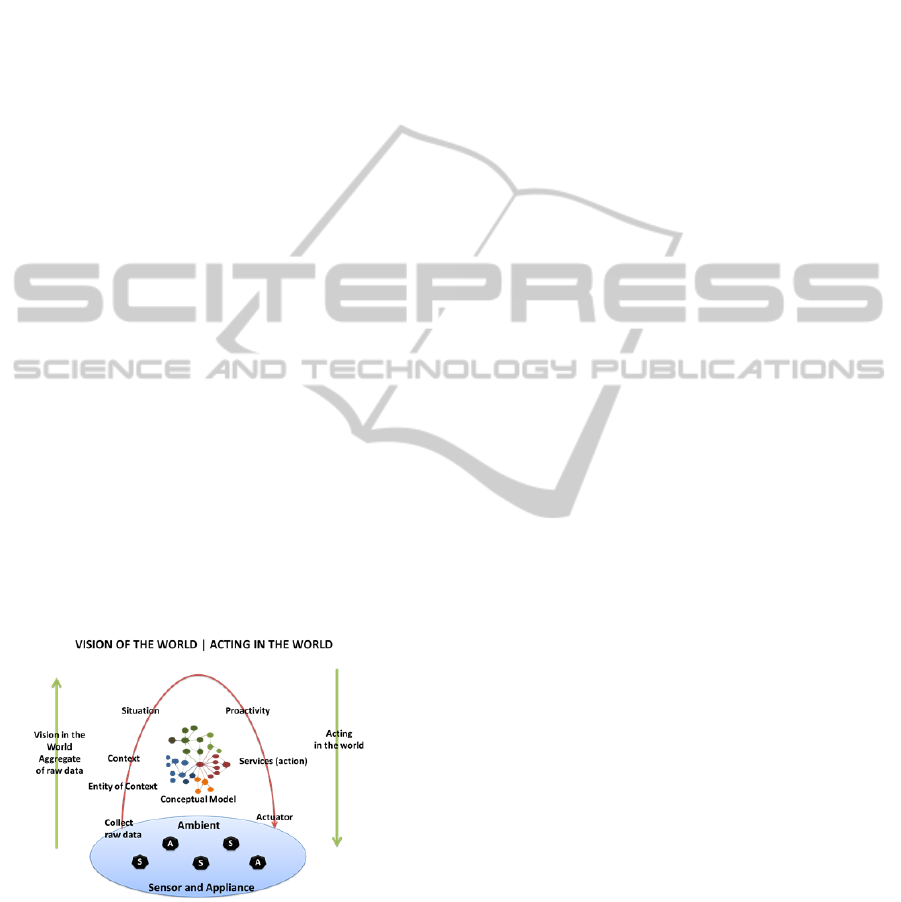

Figure 1: Viewing and Acting in the World.

These concepts are represented in Figure 1, where

the arrow means the flow for: (i) aggregate raw data

collected from sensors, to (ii) process this data, and

to (iii) infer the world and the current situation. The

part most accentuated of the curved arrow (Situa-

tion/Proactivity) contains algorithms that employ the

services to act proactively in the environment ac-

cording to a detected situation. These algorithms are

inside the appPerv

and implement solutions for

managing specific situations.

2.1 Defining Situation

Proactive systems in smart environments act on

behalf of the user. The key problems of proactivity

in computer-supported systems are (i) to meet ade-

quately and satisfactorily the needs of the user,

without explicitly or intrusively showing this control

and (ii) to allow users to maintain the perception of

control about the environment. To meet these re-

quirements, we consider situation-awareness as the

key element for designing the system.

To ensure an accurate understanding of the pro-

posed model and how the user’s situation is repre-

sented, some definitions are illustrated in Figure 2

and explained as: Sensor (S): According to Compton

et al. (2009), sensors are observers of the physical

quality (temperature, depth, among others) of a re-

source; they also publish these observations. These

are represented in Figure 2 by rectangles; Context

Data (D): Raw data captured from the environment

without semantic characterization. These data con-

nected to an entity become abstract or physical qual-

ity. In Figure 2, context data is represented by solid

circles; Entity (E): Concrete or abstract concepts

used to reason about a domain of interest. For exam-

ple: person, place, time, sensor, electronic device

and appliance. They are the source under which data

is captured and contextualized Entities are repre-

sented by circles with the letter E inside, in Figure 2.

Dey and Abowd (2006) characterize context as

the situation of an entity. In the present work, the

environment is represented by a set of entities and

their semantic relations which characterize the con-

text of the environment. All appPerv that make sub-

scriptions in the proposed SIaaS middleware are

interested in a subset of the context, which is known

as the context of interest of an appPerv, as shown in

Figure 2. The context of interest of an application is

all contextualized data (entities and their data) and

their semantic relationships. Following this defini-

tion, each appPerv has its special Context of Interest

(C), which represents a group of semantic relations

that are valid in a specific moment.

Thus, we represent the context of interest from a

specific appPerv by the following statement (1):

C: (app, {R})

(1)

Where: (C) Context of Interest; (app) a specific

appPerv; {R} consists of a set of semantic relations,

each one represented by <Es, P, Eo> where Es

Situation-awarenessasaKeyforProactiveActionsinAmbientAssistedLiving

419

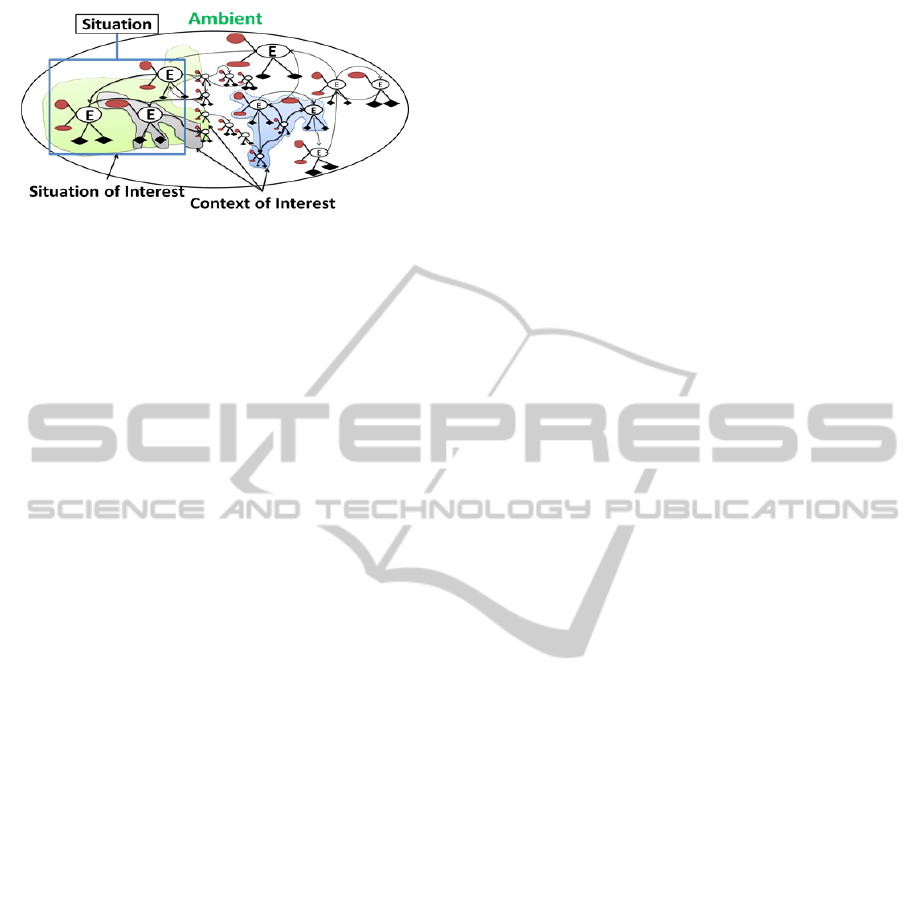

Figure 2: Representation of Ambient, Situation, Context,

Context Data, Sensor and semantic relations.

are entities that are contextualized and are the sub-

ject of the relationship; P are predicates (relations)

and Eo are entities that are and are the object of the

relationship. Therefore, the context of interest is a

subset of contextualized data (entities, their data and

semantic relations) and the application itself, i.e. the

information of interest to an application for making

decision on which proactive action triggers.

A situation of interest is viewed as the state of

the entities that characterize an event in the envi-

ronment. It is composed by {R} and logical rules {L}

that, when evaluated to true, characterize a fact in

the environment. A situation is formally represented

by the following statement (2):

S: (app, {R}, {L})

(2)

Where (S) Situation of Interest; (app) represents a

specific appPerv; {R} set of semantic relations pre-

sented in (1) and {L} logical rules. The logical rules

{L} are defined according to each situation, and are

related with specific values that are relevant in the

activity of AAL. For example: heartbeat > 100 per

minute. A formalized situation rule {L} related with

the ontology build for this work (in OWL language)

is presented inside the Environmental Architecture,

in subsection 3.2.

2.2 Defining of Proactive Actions

and Services

An environment can be impregnated of sensors for

data collection. Sensors are aggregated to provide

relevant information about the current situation. In

addition, the ambient can provide services (actions)

for the citizens who are or live in it. Objects can

provide specific actions to adapt the environment

based on the citizen's needs. In this work, services

represent features (functions) of Entities inserted in

the environment. These features are provided by

device themselves or obtained by suppliers of AAL

services. Services are defined as statements contain-

ing inputs (I) and one output (O). A service is for-

mally represented by the following statement (3):

Se: ({I}, O);

(3)

For example, a service to warn the user using sounds

could receive, as input, the specific device to be used

in a service and the warning message to be repro-

duced, as presented below:

Se: warningSound;

{I}: Radio_Device, “take drug”;

O: Device.

The set of services {Se} for Proactive Actions is

organized in a logical order (i.e., linked list) of exe-

cution, where the logical order matches correspond-

ing actions in the environment, and can be grouped

under some logical aspect (e.g., location, run time).

A proactive action is formally represented by

rule (4), as follows:

PA: ({Sp}, {Se}, {R});

(4)

Where: {Sp} consists on a situation that must be true

for the correct execution of proactive actions; {Se} is

a set of Services and {R} set of semantic relations

presented in (1). For instance, a proactive action can

have agitation as a pre-condition (Sp). This action

sends a SMS for a caregiver (Service 1) and calls

emergency (Service 2). The relations that determine

interactions with the device to activate the service

are represented by semantic relations {R}, as exem-

plified below:

(hasService(Device_Radio,Song));

(hasService(Device_TV,Image));

3 ARCHITECTURE

FOR DEPLOYING PERVASIVE

APPLICATIONS

Knowing the existing complexity in ubiquitous envi-

ronments with heterogeneous technologies of sen-

sors and electronic objects, the design of an architec-

ture that reduces the complexity to generate intelli-

gent applications (pervasive) becomes necessary.

This article proposes a software architecture to ena-

ble the execution of appPerv in the described AAL.

As represented in Figure 3, the entities of the envi-

ronment are invariant in their normal state

(a standard state with semantic links pre-defined as

stable). Occasionally, unwanted situations may be-

come true. These are situations that are pre-

requisites for firing automatic actions in the envi-

ronment. But the decision of which action should be

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

420

triggered in the environment due to some detected

situation is a task of appPerv.

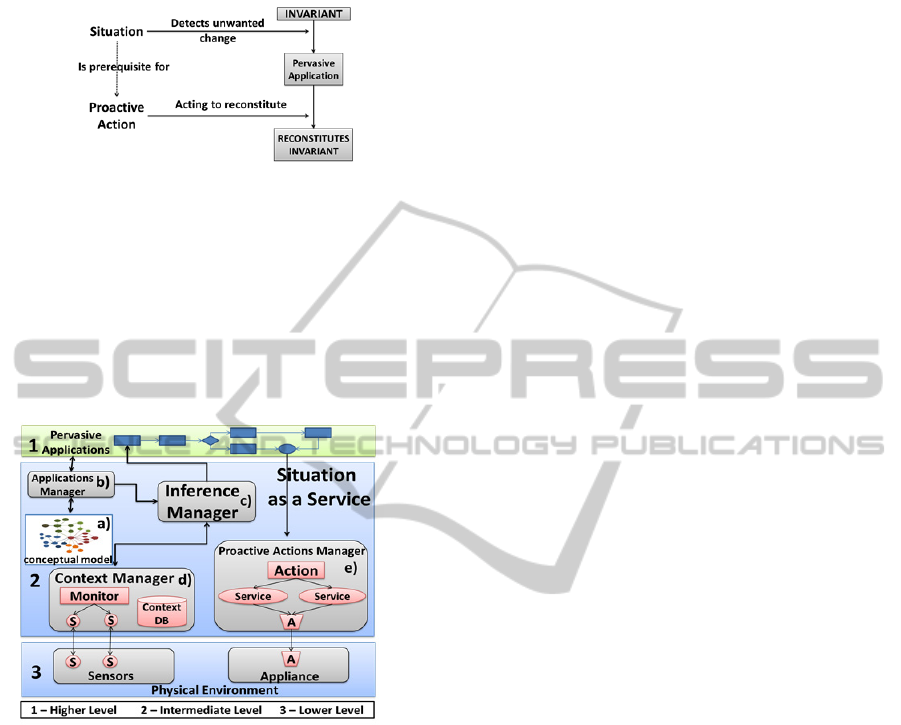

Figure 3: Flow to Trigger Proactivity Actions.

They contain the knowledge to trigger the most

suitable action to a particular situation. The proac-

tive action is triggered by the appPerv itself, which

should attempt to reconstruct the invariant to its

normal state. To support this flow, a service-oriented

architecture is employed (see Figure 4), which pro-

vides a stable environment to install third-party

solutions (appPerv).

Figure 4: Architecture for Pervasive Applications.

3.1 Physical Environment

The Lower Level (3) layer in Figure 4 corresponds

to the physical environment containing a sensor

network infrastructure and providing means for

monitoring and capturing raw data from the ambient.

This level includes the physical infrastructure of the

residence, with standardization of protocols for

communication and home automation (Domotic /

Home Automation) (Gill et al., 2009).

3.2 Situation as a Service (SIaaS)

The Intermediate Level (2) contains the software

layer (SIaaS middleware) to provide a stable and

secure environment for pervasive applications (ap-

pPerv) requesting actions for the SIaaS. It notifies

the appPerv whenever situations of interest for the

application become true. This layer monitors the

environment and provides contextualized infor-

mation (context of interest) according to the interest

of the appPerv. This layer builds a link between the

physical environment and the appPerv. SIaaS pro-

vides interfaces to context information that is gener-

ated and to the services available. So, it can be used

by third-party applications to design solutions that

could be incorporated in the residential architecture.

Conceptual Model: The conceptual model (‘a’

in Figure 4) is an ontology that describes everything

in the environment (context model). The ontology is

developed in OWL file (Ontology Web Language)

(Bechhofer et al., 2004), sublanguage OWL-DL. It

requires concept specialization at the moment of an

inclusion of the terms that describe the specific resi-

dence managed by the SIaaS middleware. Their

instances reflect the real entities in a particular home

domain.

Through a copy of this file, the applications can

identify which types of entities and semantic rela-

tions can be handled. Thus, when the application is

built, it can be preprogrammed so that the behaviors

become sensitive in relation to this conceptual mod-

el. The Situations are implemented as rules in Se-

mantic Web Rule Language (SWRL), which consists

on Horn-like rules added to the OWL language as

axioms in OWL-DL (Horrocks et al., 2005). The

rules are defined in the ontology and reason over the

current values of existent instances. The valid values

defined in the relationships will make the difference

between a situation S#1 or S#2. For this situation, we

have the following statement in FOL (First Order

Logic), according to the OWL notation defined in

(Horrocks et al., 2005), where “EC” and “ER”

means concept and relationship respectively.

(∀p, s, v, y, w ) Є EC(OWL : Thing)

( (p) Є EC (Patient)

∧ (s) Є EC (SensorHeartBeat)

∧ (p,s) Є ER (hasSensor)

(5)

∧ (s,v) Є ER (valueCollected)

∧ (v,y) Є ER (greatherThen)

→ (p,w) Є ER(isSituationOf))

The above rule (5) translated into SWRL is present-

ed in (6).

Patient(p)^SensorHartbeat(s)

^hasSensor(p,s)^valueCollect(s,v)

^swrlb:greaterThan(v, 40)

→isSituationOf(p,Emergency_Situation);

(6)

Related with the situation rule in (2), section 2.1,

where the logical rules {L} are represented, in the

example, by the SWRL operator in rule (6). Rules

are defined according to the critical values defined

Situation-awarenessasaKeyforProactiveActionsinAmbientAssistedLiving

421

to each patient, which is formulated when the ap-

pPerv development and instantiated by the Subsys-

tem to manage appPerv.

To services related with the rule in (3) and (4),

section 2.2, a proactive action is represented by a

started situation, a set of services (which implement

the action) and a group of semantic relations (that

must be true for this proactive action). The set of

services is also described in the ontology (using

Semantic Markup for Web Services - OWL-S). In

(7) and (8) we show rules, also in FOL, that repre-

sent the services and their respective group of se-

mantic relations and in (9) the composition these

services through a proactive action.

(7): service to play music in a radio device

(∀a, r, m, z) Є EC(OWL : Thing)

( (a) Є EC (PlayMusic)

∧ (r) Є EC (Radio)

∧ (m) Є EC (Music)

∧ (r, a) Є ER (hasService)

∧ (a,m) Є ER (hasInput)

∧ (a,r) Є ER (hasOutput)

→ (a,z) Є ER(executeService))

(7)

(8): service to call an ambulance of health provider

(∀ c, h, p, e, k) Є EC(OWL : Thing)

( (c) Є EC (CallAmbulance)

∧ (h) Є EC (HealthProvider)

∧ (p) Є EC (Patient)

∧ (e) Є EC (Status_Emergency)

∧ (h,c) Є ER (hasService)

∧ (c,h) Є ER (hasInput)

∧ (c,p) Є ER (hasInput)

∧ (c,h) Є ER (hasOutput)

→ (c,k) Є ER(executeService))

(8)

Proactive Action (in (9)): if emergency situation (5)

is detected in the environment, it will trigger the

service to play music (7) and call an ambulance on

the health provider (8).

(∀ f, a, c, w, v, z, w, o) Є

EC(OWL : Thing)

( (f) Є EC (ProactiveAction)

∧ (a) Є EC (Service)

∧ (c) Є EC (Service)

∧ (w) Є EC (Situation)

∧ (f,z) Є ER (hasInput)

∧ (f,k) Є ER (hasInput)

∧ (f,w) Є ER (hasPrecontition)

∧ (w,v) Є ER (situationDetect-

ed)

→ (f,o) Є

ER(executeProactiveAction))

(9)

Subsystem to Manage Pervasive Applications:

(SMPA) (‘b’ in Figure 4) registers the appPerv ac-

quired to the user´s residency. For that, it verifies if

the OWL file, which contains the situation and con-

text of interest provided by the appPerv, has the

same structure of the ontology (OWL file of the

SIaaS) that describes the environment. It also tests

the consistency in the OWL file provided by ap-

pPerv. Finally, it registers the application with their

situations and context of interest in the Subsystem to

Manage Inferences.

Subsystem to Manage Inferences: (SMI) (‘c’ in

figure 4) is part of the worldview (section 2). This

subsystem processes the conceptual model each time

that it is notified by the SMC.

Subsystem to Manage Context: (SMC) (‘d’ in

Figure 4) is part of the worldview (section 2). This

subsystem receives requests of the SMI containing

appPerv and its context of interest. It monitors this

context and detects possible changes.

Subsystem to Manage Proactive Actions:

(SMPAct) (‘e’ in Figure 4) is part of the actions of

the world (section 2). This contains a repository of

semantically described actions, a set of services that

can be requested by appPerv. This subsystem re-

ceives notifications for the execution of one or more

proactive. These actions result in the consumption of

services, which are features from the electronic

devices which are in the physical environment. This

semantic description links the services to its respec-

tive device or companies (e.g., Health Providers),

and they are described in the conceptual model.

3.3 Pervasive Applications

The Upper Level (1) offers a stable computing

environment for appPerv . In this research, appPerv

are software applications that request trigger actions

proactively due to the situations detected by SIaaS in

the environment and alter their behavior due to the

existing contextual information. Designers of ap-

pPerv must implement SWRL rules which corre-

spond (when inferred) to specific situations of the

environment and that are of interest of the appPerv.

To inform its context of interest, the designers

should generate instances of a particular type (e.g.,

Patient, Sensor, and make the linking semantics

between them, as hasSensor). Therefore, during

registration of the appPerv in SMPA, these instances

are compared to the actual instances of the environ-

ment (existing in the conceptual model of the mid-

dleware).

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

422

4 CASE STUDY

To evaluate the feasibility of the proposed approach,

the architecture was tested by developing an appPerv

that uses the concepts presented so far. This applica-

tion has the main goal to manage agitation moments

of patients with lightweight dementias.

4.1 Case Study Scenario

For the case study, the following fictitious scenario

was considered. Imagine ‘John’, a 78 years old citi-

zen without need for hospitalization, but has light-

weight dementias and needs continued treatment. In

addition, John has some memory problems. His

doctor identified he is presenting agitation behav-

iors. This situation causes problems for his health.

The residence of John is an AAL with enough tech-

nology to assist his health management and improve

his life quality as well as to adapt to his needs. To

assist with John´s implications, his daughter

Michelle purchased a software solution that interacts

with John’s residence in the case agitation situations

are detected.

Thus, there is an embedded infrastructure in

John’s residence that provides automated electronic

resource consumption. These resources are provided

in terms of services that each residential object with

some kind of communication skills can provide. To

manage this environment, there is an automated

system (SIaaS) who has knowledge of John´s needs

(i.e., a conceptual model), as well as knowledge of

what the environment can provide to assist those

needs. This system provides residential resources for

other applications can interact with the environment.

This is the scenario we have designed for a first

partial validation of our approach. In this context, an

appPerv, called appPervAgitation, was developed

and it manages agitation situations in patients with

Alzheimer disease based on the process illustrated in

Figure 5. This workflow has as objective to show

which action may be performed when a patient with

Alzheimer disease is agitated. For designing the

proposed solution, we defined relevant situations of

interest within their respective context of interest

and the proactivity actions, all described hereafter.

4.2 Situation of Interest

To identify the level of agitation of a given patient,

appPervAgitation registers three situations for agi-

tated patient, namely high, medium and low, corre-

sponding to the formalization proposed in (2), sec-

tion 2.1. The situation of interest is:

S: (appPervAgitation,{Ra,Rb},{S1,S2,S3});

where:

app = Pervasive Applications for Manage Situa-

tions of Agitation (appPervAgitation)

Ra=(hasSensor(John,Sensor_Heartbeat1);

Rb=(hasValue(Sensor_Heartbeat1,CollectValue)

L = High Agitated (S1):

Patient (John) ∧ SensorHeartbeat (Sen

sor_Heartbeat1) ∧ hasValue (Sen-

sor_Heartbeat1, CollectValue) ∧

swrlb:greaterThan(CollectValue,200) →

isSituationOf (John, Emergency_Situation)

L = Medium Agitated (S2):

Patient (John) ∧ SensorHeartbeat (Sen-

sor_Heartbeat1) ∧ hasValue (Sen-

sor_Heartbeat1, CollectValue) ∧

swrlb:greaterThanOrEqual(CollectValue,90)

∧swrlb:lessThanOrEqual (CollectValue,200)→

isSituationOf (John, Emergency_Situation)

L = Low Agitated (S3):

Patient (John) ∧ SensorHeartbeat (Sen-

sor_Heartbeat1) ∧ hasValue (Sen-

sor_Heartbeat1, CollectValue) ∧

swrlb:greaterThanOrEqual(CollectValue,50)

∧swrlb:lessThanOrEqual (CollectValue,89) →

isSituationOf (John, Emergency_Situation)

4.3 Context of Interest

To identify which proactive action must be trig-

gered, the context of interest was based on the for-

malization presented in (1), section 2.1, the context

of interest is:

C:(appPervAgitation,

{R1,R2,R3,R4,R5,R6,R7,R8});

where:

Entity Person/Patient and Caregiver: the ap-

pPerv needs to know the location of patient John and

of his caregiver (Michelle) to trigger actions when

situation of interest is detected. For example, play

music (steps “n” and “h” of Figure 5).

R1 = (hasLocation(John,Location_X);

R2 = (hasCaregiver(John,Michelle);

R3 = (hasLocation(Michelle,Location_Y);

Entity Music Services: should contain a list of

appliances (with their respective locations) that

provide such service; so, the appPerv can identify if

the patient is in a location close to some of these

devices to execute steps “n” and “h” of Figure 5

(play music);

R4 = (hasMusicService(Radio_X,Serv_1);

R5 = (hasMusicService(TV_X,Serv_2);

R6 = (hasMusicService(Smartphone_X,Serv_3);

Entity Messaging Services: should contain a list

of devices that provide this service, so that the appli-

cation can perform step “i” of Figure 5.

R7 = (hasSMSService(Smartphone_X,Serv_4);

Situation-awarenessasaKeyforProactiveActionsinAmbientAssistedLiving

423

Figure 5: Agitation behaviour process of a patient with Alzheimer Disease (Siang Fook et al., 2006).

Entity Health Provider: must contain one or more

health care providers, within their contact details, so

that the application can notify them in step “d” of

Figure 5.

R8 = (hasHealhtProvider(John,HosptalX);

4.4 Proactive Actions

To demonstrate the formalized proactive actions, we

present below steps “n”, “h” and “d” of the Figure 5.

Pervasive Application needs consumed play mu-

sic of device, based on the formalization presented

in (3) and (4) section 2.2.

Service: playMusic;

Inputs: Device, Music;

Output: Device.

Service to requests assistance for health provider:

Service: sendMessage;

Inputs: Device_Smarthphone, Emergency;

Output: HealhtProvider.

Proactive Actions to manipulate the agitation sit-

uation: PA: Proactive Action for Emergency

{Sp}: S1,S2,S3;

{Se}: playMusic, sendMessage;

{R}: R1,R4,R5,R6,R7.

This PA is described on the pool of services, this

pool is managed for SMPAct and implements

through an OWL-S file.

4.5 Results of Experiments

A pilot prototype for the proposed architecture was

developed, considering the concepts discussed in

this paper, and to evaluate the impact of SIaaS in the

execution of appPervs.

Integration testing was developed to demonstrate

the integration of the subsystems and follow the

sequence diagram of Figure 6. In (1) the application

is registered on the SIaaS. At the moment, the

SMPA reads the situations of interest of the appPer-

vAgitation (agitated high, medium, low). It also

reads the context of interest (patients, caregivers,

healthcare providers, music services and message).

After this process, (1.1) the SMPA carries the con-

ceptual model (CM) to (1.2) run the alignment con-

text. In (1.3) the application together with their sit-

uations of interest and context are subscribed in the

SMI. The SMI initially (1.3.1) subscribe the appPer-

vAgitation with its context of interest in the SMC.

The SMC subscribes in sensors (1.3.1.2) that are of

interest to the appPervAgitation (as RFID sensor to

locate the patient and caregiver) and obtains the

remaining data (1.3.1.1) contained in the context

database (DBCtx). The SMC (2) processes in pa-

rameterizable times the context data.

If identified any changes, (3) it publishes/notify

for the SMI, informing which appPervAgitation had

its context changed. In (3.1) the SMI performs the

rules to detect if these situations become true. Case

some situations were detected, (4) it notifies the

appPervAgitation sending the context of interest and

the situation detected. The appPerv is trig-

gered/initiated by the notification of SMI. The ap-

pPervAgitation executes its workflow (4.1) and

decides which proactive actions of the environment

should be triggered (steps 'n', 'h', 'd', 'i' of Figure 5)

to the agitated situation be handled. Thus, (4.2) the

appPervAgitation asks SMPAct to execute one or

more proactive actions in the environment. Later the

SMPAct processes this request (4.2.1) and con-

sumes/triggers on the correct device the desired

service by the appPerv (4.2.2).

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

424

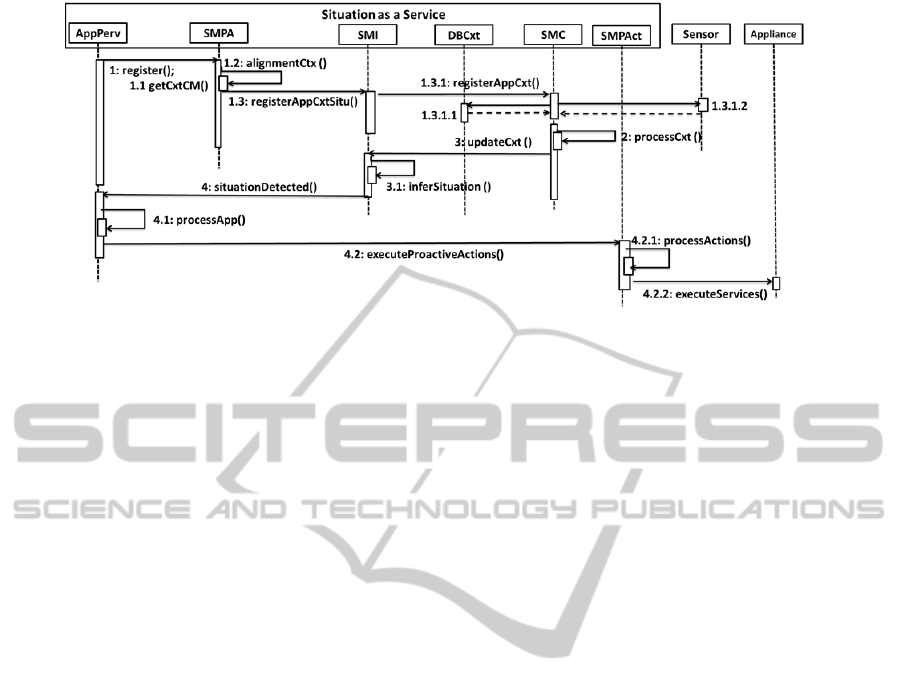

Figure 6: Sequence Diagram for proactive actions in environment.

5 CONCLUSIONS

In this paper, we presented current issues for build-

ing Ambient Assisted Living – AAL – systems.

These systems should be proactive and finely in-

tegrated with the needs of the inhabitants which

living in the AAL environment. To the system be

able to offer utility, usability and ubiquity, at the

same time that provide management of the environ-

ment and interacts with the users, it is necessary to

express situation awareness.

To support this awareness our architecture pro-

vides a Situation as a Service middleware offering a

possibility of proactive action. The middleware

SIaaS decreases the need to cope with heterogeneity

in these environments, using a shared conceptual

model and allowing its manipulation through OWL

files. Using this conceptual model, developers of

pervasive applications can generate software to be

deployed in a standard home for specific user needs.

The main contributions of this research are (i) the

formalization of the environment of AAL (situation

awareness and proactive actions); (ii) the design of

an architecture that provides resources to run third-

party pervasive applications; (iii) the use of the con-

ceptual model to semantic interoperability; and (iv)

a method to build generic pervasive applications for

specific domains.

Possible directions for future research include (i)

the study more advanced of context model in AAL

to provide wide usage of semantic to Pervasive Ap-

plications in the domotics industry; and (ii) the ex-

pansion of the prototype to real physical environ-

ment.

REFERENCES

Bechhofer, S.; van Harmelen, F.; Hendler, J.; Horrocks, I.;

McGuinness, D.L.; Patel-Schneider, P.F.; and Stein,

L.A. (2004) OWL Web ontology language 1.0 refer-

ence. W3C proposed recommendation

(www.w3.org/TR/owl-ref).

Bettini, C., Brdiczkab, O., Henricksen, K., Indulskad, J.,

Nicklase, D., Ranaganatha, Riboni, D. (2010) A survey

of Context Modelling and Reasoning Techniques. Per-

vasive and Mobile Computing, 161-180.

Christensen, K., Doblhammer, G., Rau, R. & Vaupel, J.

W. (2009) Ageing populations: the challenges ahead.

Lancet 374, 1196–1208.

Compton, M.; Henson, C., Lefort, L., Neuhaus, H.: (2009)

A survey of the semantic specification of sensors. In

International Workshop on Semantic Sensor Net-

works, CEUR-WS, 17-32,2009.

Dey, A., and Abowd, G., (2006) The Context Toolkit:

Aiding the Development of Context-Aware Applica-

tions, In Proceedings of Human Factors in Computing

Systems: Pittsburgh, PA: ACM Press, pp.434-441.

Friedman-Hill, E. (2003): Jess in Action: Java Rule-based

Systems, Manning Publications Company, June, ISBN

1930110898, http://herzberg.ca.sandia.gov/jess/.

Gill, K. S, Yang, F. Yao, and X. Lu, (2009) A ZigBee-

based home automation system. Consumer Electron-

ics, IEEE Transactions on, vol. 55, no. 2, pp. 422–430.

Horrocks, I., Patel-Schneider, P. F., Bechhofer, S., Tsar-

kov, D. (2005) OWL Rules: A Proposal and Prototype

Implementation. Journal of Web Semantics, v.3, p. 23.

Klusch, M, B. Fries, and K. Sycara. (2009) OWL-S-MX: A

hybrid Semantic Web Service matchmaker for OWL-S

services, Web Semantics: Science, Services and

Agents on the World Wide Web, 7(2):121-133.

Moore, P., Hu, B., Zhu, X., Campbell, W., Ratcliffe, M.

(2007) A Survey of Context Modeling for Pervasive

Cooperative Learning. In: Internet Symposium on In-

formation Technologies and Applications in Education

- ISITAE 07, Kunming, Yunnan, China, p. 23-25.

Sun, H. De Florio, V. Gui, N. Blondia, C. (2009), Promis

Situation-awarenessasaKeyforProactiveActionsinAmbientAssistedLiving

425

es and Challenges of Ambient Assisted Living Systems,

Sixth International Conference on Information Tech-

nology: New Generations, ITNG ’09. pp. 1201-1207.

Siang Fook, V. F., Tay, S. C., Jayachandran, M., Biswas,

J., and Zhang, D. (2006). An ontology based context

model in monitoring and handling agitation behaviour

for persons with dementia. PERCOMW ’06, Washing-

ton, DC, USA. IEEE Computer Society.

Ye, J., Stevenson, G., Dobson, and S. McKeever, (2012)

Situation identification techniques in pervasive com-

puting: a review, Pervasive Mobile Computing, pp 36-

66, Vol. 8, Issue 1, February 2012.

Ye, J., Stevenson, G., Dobson, S. (2011) A top-level on-

tology for smart environments. Pervasive and Mobile

Computing. v. 7, p. 359-378.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

426
