SourceMiner

A Multi-perspective Software Visualization Environment

Glauco de F. Carneiro

and Manoel Gomes de Mendonça

Computer Science Department, Salvador University (UNIFACS), Bahia, Salvador, Brazil

Computer Science Department, Federal University of Bahia (UFBA), Salvador, Bahia, Brazil

Keywords: Software Visualization, Software Comprehension, Multiple View Environments.

Abstract: In spite of the available resources provided by modern IDEs, program understanding remains as a very

difficult and important task in software engineering. This paper presents a software visualization

environment named SourceMiner. Implemented as an Eclipse plug-in to enhance software comprehension

activities, SourceMiner is an extensible, interactive and coordinated multi-perspective environment. It is

multi-perspective because it provides sets of views that allow programmers to look at the software from

different points of view. It is coordinated because views are linked to each other, and consistently respond to

the actions executed by the programmers on the environment. It is interactive in the sense that programmers

can dynamically configure visual scenarios to better support the building of mental models. It is extensible

because its architecture was designed to facilitate the inclusion of new views to the environment. This paper

describes the principles behind the design of SourceMiner, and discusses how it has been used to support

software comprehension activities such as the identification of code smells and the characterization of

object-oriented software systems.

1 INTRODUCTION

Many researchers have pointed out the important

role that visualization plays in interactive data

analysis and information exploration (Baldonado et

al., 2000); (Becks and Seeling, 2004). Humans have

the natural ability to track and detect visual patterns

and this ability can be exploited to improve software

comprehension. Software visualization (also known

as SoftVis) is a means to provide perceivable cues to

several aspects of software systems in order to

reveal patterns and behaviours that would otherwise

remain hidden to the programmer (Storey, 2006).

The design and use of software visualization

environments should take into account three

important issues. The first is that software is

eminently complex, hindering many of the software

comprehension activities. The second, described by

Lehman´s second law (Lehman and Belady, 1985),

is that software evolves as it is subject to

modifications over time. It is difficult to follow

those changes and more resources are needed to

understand them. The third is that software is

intangible, having no physical shape (Ball and Eick,

1996). Considering that humans acquire more

information through vision than through all the other

senses combined (Ware, 04), the comprehension is

affected by the lack of visual presence that

characterizes software as an entity. This difficulty is

increased by the complexity and constant evolution

of software systems.

Common software engineering tasks, such as the

identification of code smells, usually require

analyzing the software from multiple perspectives

(Carneiro et al., 2010). Moreover, to be effective,

software visualization environments must provide

complementary perspectives which together can

support diverse software engineering tasks. Each

perspective should present the software from a

certain point of view that focuses on the

comprehension of specific software properties. If

these properties are complex, the perspective itself

may require multiple views. A single visual

metaphor may not be sufficient to portray the

relevant peculiarities of such properties.

Multiple coordinated views can facilitate

comparison (Heer and Shneiderman, 2012). The

usage of multiple views is very difficult if the views

are not coordinated among themselves and with the

environment in which they operate. It is confusing,

for example, if two views have different meanings

de F. Carneiro G. and Gomes de Mendonça M..

SourceMiner - A Multi-perspective Software Visualization Environment.

DOI: 10.5220/0004420400250036

In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 25-36

ISBN: 978-989-8565-60-0

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

for the same visual attribute (e.g., node color). Also,

visual elements from different views should be

linked to each other when they represent the same

software entity. The selection or change in one such

element of a view must be reflected in the others.

One should also be able to easily navigate between

visual elements from different views. And actions in

these visual elements should have consistent

response over all the views. Although, view

coordination is a requirement for the use of multiple

views in information visualization (Baldonado et al.,

2000); (Heer and Shneiderman, 2012), and well used

in modern IDEs, it is still a concept that needs to be

better explored in software visualization

environments (Storey, 2006).

Views are based on visual metaphors that must

match the data and task at hand. Graphs, for

example, are very useful to visualize relational data,

but do not scale well if the number of entities and

relations grows. Information visualization and

software visualization researchers have proposed

many metaphors to visually present data.

Unfortunately, it is not yet clear what sets of visual

metaphors are best suited for most software

engineering tasks. For this reason, a software

visualization environment should facilitate the

inclusion of new visual metaphors to its workbench.

The purpose of this extensibility should be more

than simply facilitating the growth of the number of

views in an environment. It should aid

experimentation and support the identification of

which sets of views can be effectively combined for

common software engineering tasks.

Software visualization environments must also

be highly interactive. Good visualization needs to

exploit the visual and cognitive systems of human

beings. Programmers need to interact with the

environment in order to configure the visual scenario

to best fit their needs. They need widgets to filter,

zoom, navigate and browse through visual

metaphors. These mechanisms should support users

in adjusting visual scenarios in aspects such as

information content, visual mapping, and view

configuration.

The use of multiple views in SourceMiner better

handles the diversity of attributes, user profiles, and

levels of abstraction needed in software

visualization. It enables users to configure and

effectively combine views to bring out correlations

and or disparities that might otherwise remain

hidden in the code. The use of multiple views splits

complex data into more manageable chunks of

information, and this information can be further

filtered and explored through interaction with the

different visual scenarios.

This paper presents SourceMiner, a software

visualization environment that provides a set of easy

to comprehend, complementary, coordinated and

highly interactive views. It uses code as its main

data source and was implemented as an Eclipse

plug-in to interactively visualize Java projects,

complementing the native views and resources

provided by the Eclipse IDE. It provides

programmers with several ways to interact with the

views: filters to visually present information that

match filtering criteria, semantic and geometric

zooming to better adjust the views to the canvas,

arranging them in accordance with the preference of

the programmer, and transparent navigation from the

visual representation to the source code.

The rest of this paper is organized as follows.

Section 2 motivates the work with a scenario of use

of an IDE with and without SourceMiner. Section 3

introduces information visualization concepts that

are relevant to the design of multiple view

environments. Section 4 presents a conceptual model

for multiple view environments. Section 5 presents

SourceMiner architecture and design. Section 6

describes SourceMiner perspectives and their

respective views. Section 7 presents examples of use

of SourceMiner. And, Section 8 has the final

remarks of the paper.

2 CURRENT VERSUS PROPOSED

SCENARIO

This section motivates the integration of extensible

software visualization environments into modern

IDEs. It first describes an example of the use of the

Eclipse IDE. In the sequence, it illustrates how a

software visualization environment can improve this

use.

Modern IDEs are very sophisticated, but in spite

of the resources they provide, program

understanding remains a very difficult task,

especially on large and complex software systems.

Typically, different types of information are required

for executing software engineering tasks, such as

fixing errors, changing or adding new features, or

improving the code and design.

Consider the information about the code

structure presented by the Eclipse´s package

explorer (package-file-class-methods and attributes

hierarchy) as an example. This information is useful

but limited. The package explorer alone is

insufficient to support most development or

maintenance tasks. One has to combine it with other

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

views. Moreover, the package explorer itself could

be augmented with more information. It does not

present data related to software metrics, such as code

size or complexity for example. In fact, most of the

modern IDEs do not yet have specific views to show

this type of property. This is very useful information

and it is desirable to expand the IDEs with them.

The question is how to do that. There are many

forms in which an IDE can be visually enriched.

Eclipse itself provides a comprehensive

infrastructure to develop such features. A possible

approach is to extend this infrastructure further to

support common information visualization

functionalities (Baldonado et al., 2000); (Card et al.,

1999), on top of that enrich the IDE with diverse but

integrated software visualization resources, and

finally evaluate them in different software

engineering tasks.

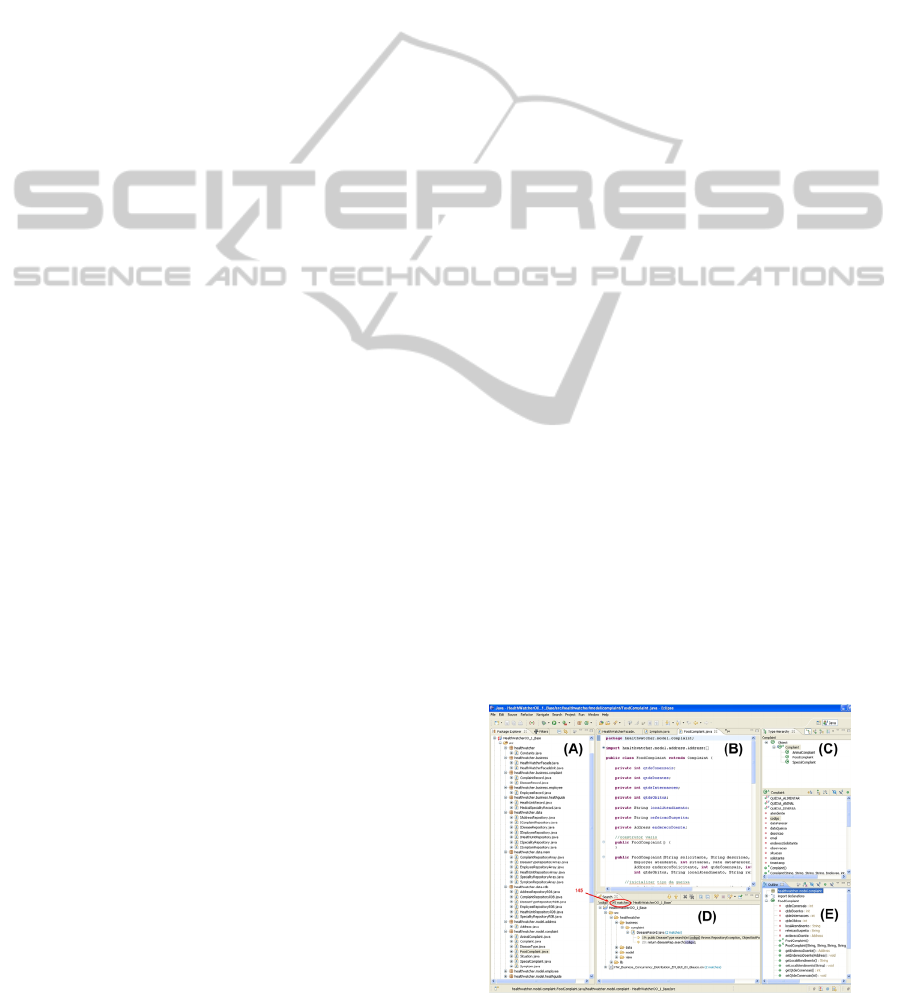

In order to discuss some of the limitation of

modern IDEs, Figure 1 shows a snapshot example of

the Eclipse IDE on a typical software engineering

task. This snapshot was taken from a real world case

study on the detection of bad smells. During the

execution of this task, the Package Explorer view

(Part A) may include hundreds of nodes just after a

few navigational clicks through project files and

classes. Hierarchical relationships, in this case, are

no longer visible without manually scrolling through

the tree. In part thanks to how easy Eclipse makes

navigating over structural relations, the number of

open files in the editor (Part B) can also increase

quickly, making the instances of the editor a poor

representation of the files currently relevant to the

task. The search in Eclipse for references to a class

within the project (Part D) can return hundreds of

items and there is no convenient way to search only

for those elements related to the task at hand.

Instead, the search results (145 in our example)

require manual inspection, if someone wants to find

the elements of interest. Even the Outline view (Part

E), that shows only the structure of the current file,

can be overloaded with dozens of elements that

might not be relevant to the task.

Modern IDEs also need to better explore

interaction resources as mentioned earlier in this

paper. The work presented here addresses these

issues from a software visualization perspective. It

enhances the IDE with an extensible software

visualization environment. Its views are integrated

among themselves and with the IDE.

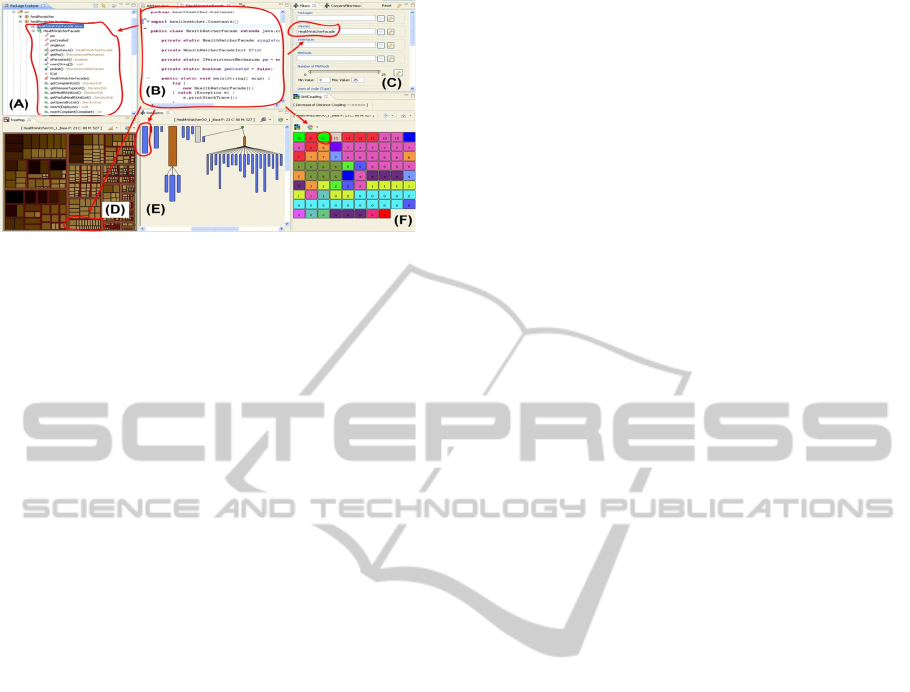

In order to illustrate the solution, Figure 2 shows

a screenshot of SourceMiner. The arrows indicate

how a specific class of a Java software system called

HealthWatcher (Greenwood et al., 2007) is

portrayed in multiple views. The editor (in Part B)

shows part of the source code of the class and the

Package Explorer (Part A) shows the structure

comprised of packages, classes, methods and

attributes using a traditional structural view. These

are native views of the Eclipse IDE. The Parts D, E

and F show three different views of SourceMiner.

Like the Package Explorer, the view in Part D

represents the package-class-method perspective of

the system. However, it does so using treemaps

(Shneirderman, 1992), a hierarchical visualization

metaphor that represents all packages, classes and

methods of a project as nested rectangles.

Programmers do not need to scroll to see any

element of the structure because they are all there.

The view in Part E represents an inheritance

hierarchy perspective of the project using a

polymetric view (Lanza and Marinescu, 2006).

Eclipse does not have a native view to portray the

inheritance hierarchy of the software system. The

view in Part F represents a coupling perspective of

the system using a grid (chessboard like) view to

indicate the most coupled modules of the software

project.

Views D, E and F are directly affected by the

view in Part C. This filtering view enables users to

apply filtering criteria to views D-F simultaneously.

In the example, a user typed the string

HealthWatcherFacade as a class name filtering

option to highlight occurrences that match the typed

string in all views. This is an example of the data

transformation interaction level discussed earlier, a

filtering resource that is not natively available in

modern IDEs.

The goal here was to highlight that the proposed

approach portrays the software from several

perspectives, enhancing IDE native views and

resources. And, that it does so with a fully integrated

set of views that support several levels of

interactions, as it will be discussed next.

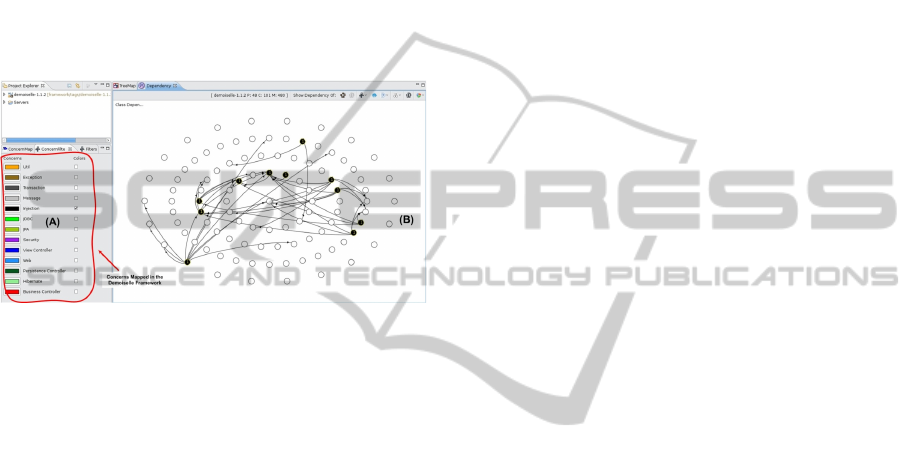

Figure 1: Eclipse IDE on a Typical Task.

SourceMiner-AMulti-perspectiveSoftwareVisualizationEnvironment

Figure 2: An Example of Use of SourceMiner.

3 INFOVIZ CONCEPTS

Software visualization is a specialization of

information visualization. For this reason, a

reference model for a Multi-Perspective

Environment (MVE) must use concepts drawn from

the InfoVis field. Information visualization

researchers identified three main levels of

interactions in multi-perspective environments (Card

et al., 1999). The first, and most common, is

interface interaction for view configuration. It is

related to how the visual elements are configured

and arranged in the visual scenario.

The second level of interaction deals with the

dynamic mapping between the real attributes (of the

software, in our case) and the visual attributes that

are used to represent them on the canvas. Users

should be able to configure the way software

properties such as size or complexity will be

represented on the views. The third level consists in

dynamically filtering and selecting the data to be

represented on the canvas. Selective data

visualization is very useful to locate relevant

information, to restrict visualization to interesting

portions of the data and to control the level of detail

at which the information is presented. Too much

data may hinder visual scene interpretation, and too

little neglects potentially important information.

As mentioned before, information visualization

systems usually require this process to be highly

interactive. In it, the user should be able to change

the selected data to be presented on the canvas,

modify the mapping between real and visual

attributes, and alter the way views are rendered on

the canvas (zooming or panning over it). To be

effective, the response time between these

interactions and reassembling the views should be as

short as possible.

Multiple Perspectives and Multiple Views. A

view is a particular visual representation of a data

set. Complex data sets typically require multiple

views, each revealing a different aspect of the data.

Multiple view systems have been proposed to

support the investigation of a wide range of

information visualization topics. The reference

model proposed by Card and colleagues is adapted

in this paper to explicitly emphasize the use of

multiple views on software visualization.

Distinct views should be used if they reveal

dissimilar aspects of the conceptual entity presented.

In complex domains, such as software engineering,

no single all-inclusive view is likely to lead to

insight. In this context, multiple view systems

portray complementary information that supports

complementary cognitive processes. One view can

be used to constrain possible (mis)interpretations in

the use of another. In fact, multiple views encourage

users to construct a deeper understanding of the

analyzed data.

Multiple views must be consistently designed to

provide integration and coordination among

themselves. Users should be able to select a subset

of views in a coordinated fashion to perform a task

(Baldonado et al., 2000). The visualization

environment should support the interactive

exploration of views to uncover facts or

relationships that otherwise would remain hidden

(Baldonado et al., 2000). Each single view should

have affordances (e.g. selection capabilities or

navigation functionalities such as panning and

zooming). These affordances should be tied together

so that actions in one view have an effect in another

view (Baldonado et al., 2000). These observations

are expressed as three important concepts proposed

by information visualization researchers and adopted

in our work: a) navigational slaving – multiple

views systems should enable that actions in one

view are automatically propagated to the others

(Shneiderman and Plaisant, 2009); b) linking –

multiple views systems should connect data in one

view with data in the other views (Shneiderman and

Plaisant, 2009); c) brushing – multiple views

systems should enable that corresponding data items

in different views are highlighted simultaneously

(Shneiderman and Plaisant, 2009).

4 A CONCEPTUAL MODEL

FOR MULTIPLE VIEW

SOFTWARE VISUALIZATION

Many software visualization projects have been

conceived as standalone systems, but we consider

IDEs as the ideal substrata on which a Multiple

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

View Environment (MVE) should reside. Integrating

software visualization environments into IDEs is a

natural way to support software comprehension

activities. In fact, current IDEs already offer several

resources to support software comprehension. Most

of them offer at least a syntax directed editor that

uses pretty printing and colour textual representation

of the code, as well as some sort of hierarchical

representation of the project structure. Usually,

several other views present valuable information to

programmers, representing the software from many

different perspectives (e.g., the package explorer of

Eclipse and outliner). They also provide different

ways of searching, navigating and browsing

software entities. A natural consequence of using an

IDE as an MVE substratum is that programmers will

be able to interchangeably and concurrently access

source code, the views originally provided by the

IDE and the views from the MVE (Lintern et al.,

2003).

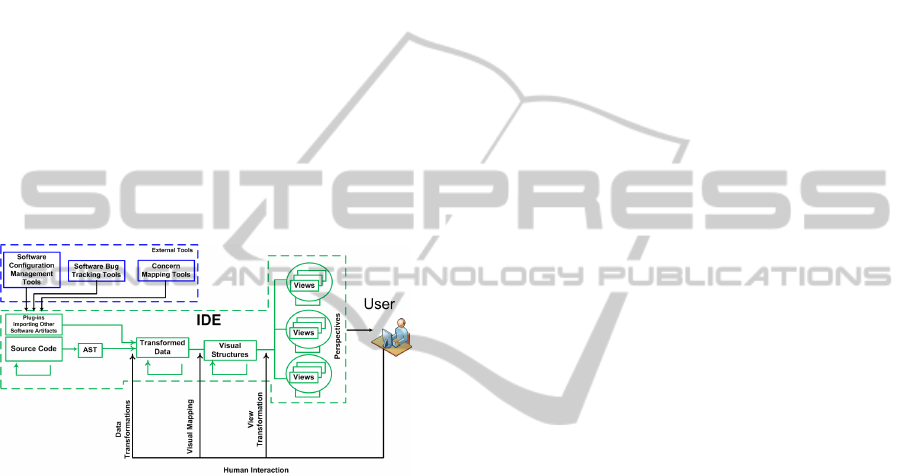

Figure 3: A Reference Model for SoftViz.

Figure 3 illustrates how we adapted the Card et al.

reference model to the software engineering domain.

The goal here is to provide a set of coordinated and

cross-referenced views integrated to a modern IDE.

Similarly to the original, the adapted model also has

three main interaction levels: data transformations,

visual mapping and view transformation

interactions.

The multiple views are used to represent

different properties of the software. For example,

one can build a visualization of module inheritance

and another of module coupling. Different

representations can also be employed to portray the

same property in various ways. For example, module

coupling can be represented by interactive graphs or

relationship matrices. In this case, each

representation should emphasize a different aspect

of the property under analysis or should have

complementary affordances to facilitate the visual

interpretation of the portrayed information. In order

to be precise, we use the expression multiform

visualization when referring to different views

(forms) being used to describe the same software

property. Also, as discussed previously in this paper,

multiple views should be coordinated so an action

taken in one view should be reflected on all the other

views of the environment. In this scenario, we use

the expression multiple coordinated views as

opposed to simply multiple views

Figure 2 emphasizes view coordination in the

model. The feedback arrows around the views

indicate this fact. The use of multiple coordinated

views and multiform representations are suitable to

support programmers in exploring over complex

information spaces (Wu and Storey, 2000); (Graham

and Kennedy, 2008). The idea of having multiple

coordinated views strives for visually combining

different aspects of data in different displays (Becks

and Seeling, 2004). In software engineering,

multiple views are intended to help raising the level

of abstraction and reduce the amount of information

required to perform recurrent software engineering

tasks, especially when they are coordinated and

cross referenced (Storey, 2006).

The model also emphasizes that the IDE is the

main data source of a software system. The data

available at the IDE is accessed, transformed,

mapped to visual structures and rendered as views.

Current IDEs allow for easy extraction of source

code information from native resources such as the

software system Abstract Syntax Tree (AST).

Additional information – such as concern maps,

churning information and defect data – can be

captured from external data sources and used to

enrich the views (Carneiro and Mendonça, 2013), as

shown on the top-left box of Figure 3.

5 A MULTIPLE VISUALIZATION

ENVIRONMENT

FOR THE ECLIPSE IDE

The challenge of building and coordinating multiple

views and multiform systems far exceeds the

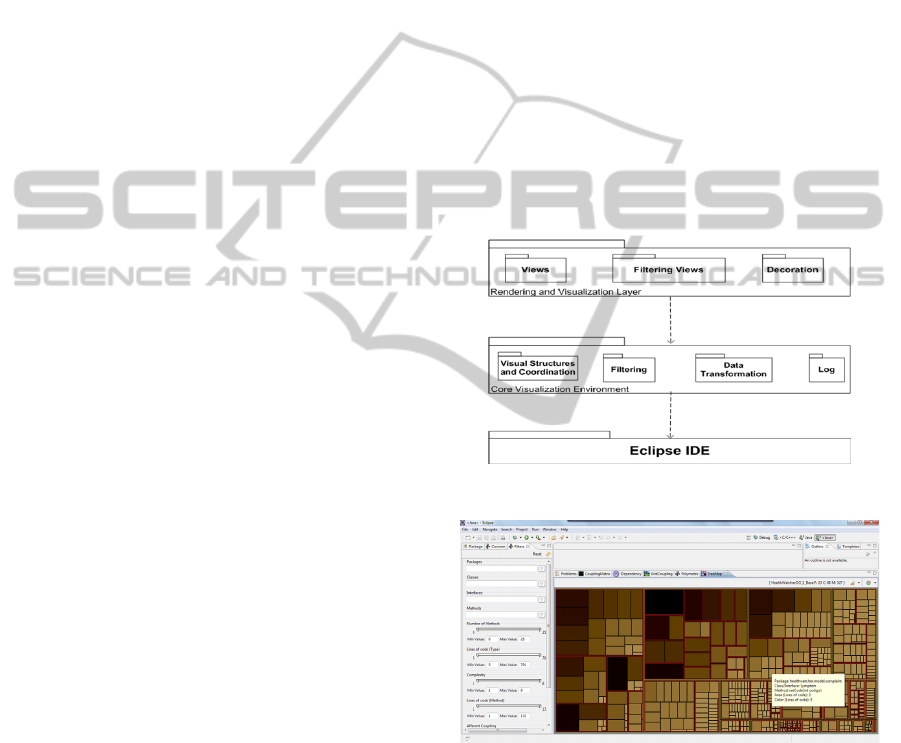

challenge of building a single view system. Figure 4

presents the layers and the modules of SourceMiner.

This high level architecture is divided into a two

layers. The Rendering and Visualization (RV) Layer

is responsible for rendering the views provided by

SourceMiner. The Core Visualization Environment

(CVE) is responsible to capturing information from

the IDE and structuring it for the RV Layer. It also

coordinates all views among themselves and the

IDE. The following subsections describe the

functionalities provided by each of these layers.

SourceMiner-AMulti-perspectiveSoftwareVisualizationEnvironment

The Core Visualization Environment (CVE) is

the kernel of SourceMiner. It is responsible for

extracting data from a project source code using the

resources provided by the Eclipse Java Development

Tool (JDT) to this end. JDT provides fundamental

information on software entities avoiding the

creation of such functionality from scratch. This

made it possible to focus most of our efforts on how

to extend the environment with views, coordination

and interaction resources, and it is a clear advantage

of using an open IDE as a substratum for a MVE.

Besides extracting and structuring data about the

software system under analysis, the CVE provides

services of coordination among views, filters the

data to be presented in the views and logs the

primitive operations performed by the users while

they use the environment. The CVE uses IDE

resources to coordinate the environment with the

IDE itself. The next subsections present the modules

that comprise the CVE layer.

The Rendering and Visualization (RV) layer is

responsible for rendering the views in SourceMiner.

To accomplish this task, this layer relies on the

services provided by the Core Visualization

Environment (CVE). The modules that comprise the

RV layer are the Views, the Filtering Views and the

Decorator modules. The following subsections

describe these modules.

6 PERSPECTIVES AND VIEWS

IN SOURCEMINER

Currently SourceMiner has three classes of views or

perspectives: the package class method,

inheritance hierarchy and coupling views. As

described earlier, a perspective is a set of views that

represent the same type of software properties. The

combined use of these perspectives provides a broad

range of information to programmers when

executing software engineering tasks.

We considered several metaphors from the

InfoVis and we ended-up adopting the following

ones: (i) treemaps (Shneirderman, 1992) for the

package-class-method perspective; (ii) polymetric

views (Lanza and Marinescu, 2006) for the

inheritance hierarchy perspective; and (iii) several

views for the coupling perspective, namely, class

and package node-link-based dependency graphs,

grids and spiral egocentric graphs, and methods,

classes and package relationship matrices.

All SourceMiner views were implemented from

scratch. Two of them, the grid and spiral egocentric

graph, are novel contributions. The others were not

proposed by the authors, but completely re-

implemented by us according to our software

visualization needs.

The Package Class Method View. Structural

information like the package-class-method structure

plays an important role in software comprehension

activities (Storey, 2006). Most of the IDEs provide

at least one view that portrays the PCM structure.

One such example is the Package Explorer in the

Eclipse IDE. This traditional view does not scale

well and usually present only the structure per se.

There is room for enriching such views with other

visual clues such as colors, position and the size of

figure elements. These cues can be used to represent

important software properties such as size, version,

churning, and element type. We selected Treemaps

as an alternative visual metaphor to create a PCM

view in SourceMiner. Treemaps are 2D

visualizations that map a tree structure using

recursively nested rectangles (Shneirderman, 1992).

Figure 4: SourceMiner Layers.

Figure 5: Treemaps in SourceMiner.

They are a very effective way of representing

large hierarchies. And, besides the hierarchy itself,

they can show other data attributes using the

rectangle size (area) and color. Each rectangle of the

treemap portrays a node of the represented the PCM

hierarchy. The structure is scalable and facilitates

the discovery of patterns and outliers. It makes it

easy to spot outliers in terms of module size and

number of sub‐modules, for example. An example of

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

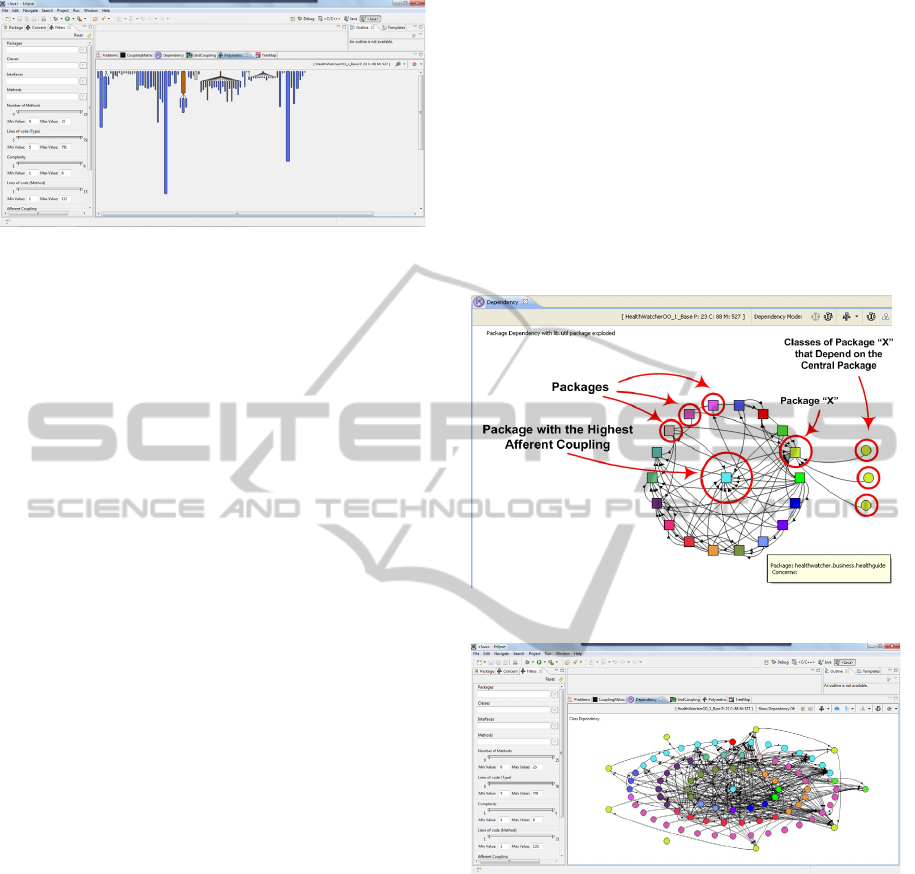

Figure 6: Polymetric in SourceMiner.

treemap in SourceMiner is portrayed in Figure 5.

As with any SourceMiner view, users can apply

filtering criteria to eliminate elements from the

treemap PCM view. The views provide direct access

to their corresponding source code. For that, the user

has just to control-click on a graphical element. The

RV layer will then request that the Integration and

Coordination Module on the CVE Layer activates

the Eclipse Editor for the corresponding source code

element (method, class or interface).

The Inheritance Hierarchy View. The

polymetric view (Lanza and Ducasse, 2003) was

selected to portray the inheritance hierarchy of a

software system. It portrays inheritance relationships

between the software entities (class/interface) as a

forest of round rectangles. Originally proposed for

this very purpose, polymetric views help to

understand the structure and detect problems of a

software system in the initial phases of a reverse

engineering process (Lanza and Ducasse, 2003). As

can be seen in Figure 6, the view is a two-

dimensional display that uses rectangles to represent

software entities, such as classes and interfaces, and

edges to represent inheritance relationships between

them. The dimensions of the rectangles are used to

represent properties of the entities. In SourceMiner,

the width corresponds to the number of methods

while the height to the number of lines of code of a

class or interface. The color is used for decoration

just like discussed before. A geometric zoom is

available to better display the polymetric view in

accordance with the number of elements on the

canvas. A semantic zoom can also be used to

navigate over specific sub-trees of a portrayed

hierarchy.

The Coupling Views. Portraying coupling

relationships is significantly more complex than the

two previous perspectives. There are many types of

coupling relationships: classes extend classes, call

methods, use fields, implement interfaces, just to

name a few. One may also be interested in other

types of information, such as coupling direction or

strength. Also, some views are good to portrait

detailed information, but for this very reason they do

not scale well. As a result, one single view cannot

efficiently support all coupling visualization goals.

SourceMiner provides three sets of coupling views:

graph-based coupling views, matrix-based coupling

views and grid/egocentric-based coupling views. All

these views are represented in Figures 3-9 in

(Carneiro and Mendonça, 2013). They illustrate the

use of the multiform visualization concept, i.e.,

many views are used to represent the same type of

property.

Figure 7: Package Dependency in SourceMiner.

Figure 8: Class Dependency in SourceMiner.

Figure 7 conveys a package graph coupling view. It

uses square nodes to highlight this fact. As seen in

the figure, any of the peripheral package nodes can

be selected to have its composing classes revealed as

round nodes. In this case, SourceMiner only shows

the classes that justify the coupling relations with the

central node.

The node-link-based graph in Figure 8 clearly

exhibits a high amount of visual clutter as a result of

edge congestion. We decided to implement matrix

views as an option to the graph views. They have a

cleaner and more uncluttered layout. In

SourceMiner, a matrix of rows and columns are

configured to show different levels of coupling

SourceMiner-AMulti-perspectiveSoftwareVisualizationEnvironment

relationships between software elements (package,

classes and methods). Figure 9 portrays an example

of a package dependency matrix and Figure 10

shows an example for classes.

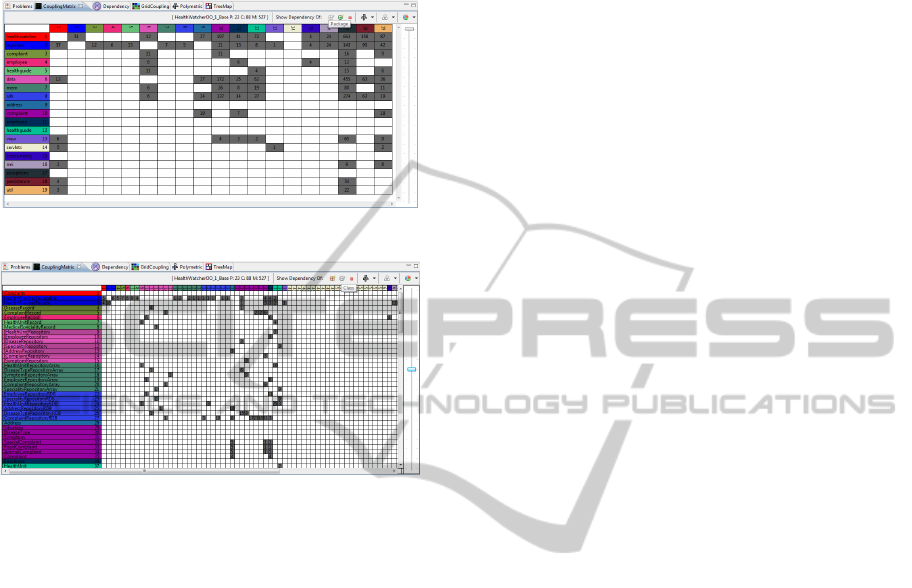

Figure 9: Package Dependency Matrix in SourceMiner.

Figure 10: Class Dependency Matrix in SourceMiner.

SourceMiner also allows for semantic zooming over

the matrices. This is achieved by double clicking on

a gray cell. This action brings out a new coupling

matrix that semantically details the selected

dependency. For example, by clicking on a package

dependency cell of Figure 9, the user will obtain a

class dependency matrix involving all classes that

originated the selected dependency as portrayed in

Figure 10. This type of action also works from class

to method dependency matrices. The transition is

bidirectional, meaning that the user can backtrack to

the original matrix by simply right clicking on the

view canvas.

The grid view conveyed in Figure 6 in (Carneiro

and Mendonça, 2013) was especially conceived and

implemented for SourceMiner. The goal of this view

is to specifically focus on the strength of

dependency between modules of a software system,

i.e. the number of syntactic references from a

module to another. This is quite different from the

previous two views which focused on the degree of

dependencies. The grid is a chessboard-like view

that plots all classes of the system as rectangles

arranged in decreasing order of dependency strength

value (DSV). The rectangle representing the class

with the highest DSV is placed on the top left corner

of the grid. The DSV of a class is the sum of the

values of the dependencies between this class and all

the others. Colors are used for decoration of grids in

the same way as discussed earlier for the other

views.

7 SOURCEMINER IN PRACTICE

This section illustrates the use of SourceMiner in a

typical software comprehension activity: the

identification of code smells. It was conducted as an

observational study in which SourceMiner was used

to identify code smells in an in-vitro setting. We also

briefly describe two ongoing works using

SourceMiner in industrial settings. The first is a case

study in which professional programmers used

SourceMiner to characterize a heavily used web

development framework. The second is a case study

in which SourceMiner was used to analyze how a set

of similar java-web applications are being developed

in a public administration organization. The three

situations reveal initial evidences that the execution

of the described activities would be harder or even

impossible to do through the use of a single view.

The first study illustrates how SourceMiner aids

the identification of code smells. It consisted of an

observational study (Carneiro et al., 2010), where

developers identified a set of well-known code

smells on an open source system called Mobile

Media. Participants were asked to identify the

following code smells using SourceMiner: God

Class (GC) (Lanza and Marinescu, 2006), Divergent

Change (DC) (Fowler, 1999) and Feature Envy (FE)

(Lanza and Marinescu, 2006).

The following descriptions of the code smells

summarize the ones presented to the study

participants. Feature Envy (FE) occurs when a piece

of code seems more interested in a class other than

the one it actually is in (Fowler, 1999). This code

smell can be seen as a misplaced piece of concern

code, i.e., code which does not implement the main

concern of its class. Hence, the concern realized by

this misplaced code is probably located mainly in a

different class. God Class (GC) is characterized by

non-cohesiveness of behavior and the tendency of a

class to attract more and more features (Riel, 1996).

In a different perspective, we can look at GC as

classes that implement too many concerns and, so,

have too many responsibilities. It violates the idea

that a class should capture only one key abstraction,

and breaks the principle of separation of concerns.

Divergent Change (DC) occurs when one class

commonly changes in different ways for different

reasons (Fowler, 1999). Depending on the number of

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

responsibilities of a given class, it can suffer

unrelated changes. The fact that a class suffers many

kinds of changes can be associated with a symptom

of concern tangling. In other words, a class that

presents mixed concerns is likely to be changed for

different reasons.

In the context of the study, programmers were

asked to detect these code smells using SourceMiner

over the five versions of Mobile Media. They were

not allowed to access the source code neither

perform any search directly on it.

Two important results came out of it. First,

SourceMiner provided useful support to identify the

code smells. Second, based on the programmers

observed actions, we uncovered strategies for smell

detection supported by the use of SourceMiner.

Participants that identified God Class made

synergistic use of the treemap and polymetric views

with concern decoration. Based on the log files, we

uncovered that participants first configured the

views to visually represent all concerns. They latter

used the package-class-method structure to spot the

classes and interfaces that were candidate outliers in

terms of size and the realization of many concerns.

Additionally, the polymetric view was also used to

identify outliers. An interesting result was that all

participants successfully identified BaseController

as a God Class of Mobile Media (MM) using this

strategy.

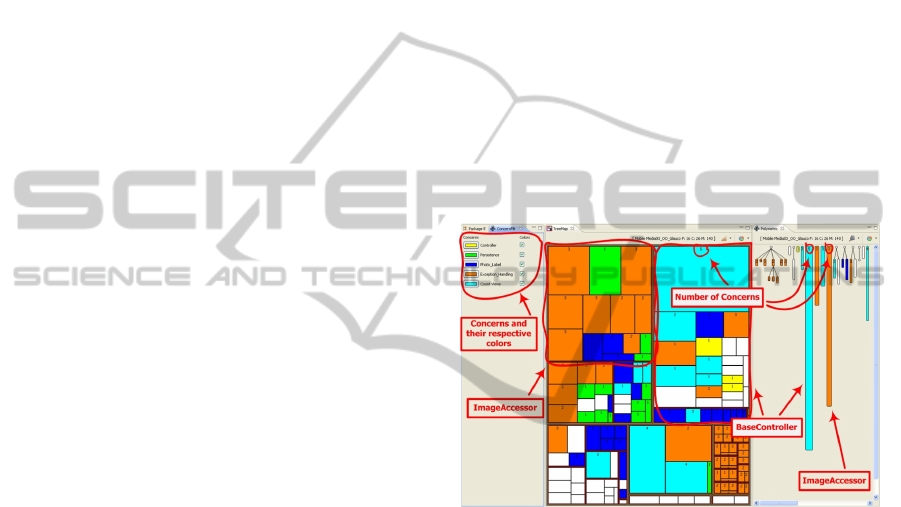

Figure 11 portrays a scenario of MM version 3

where BaseController and ImageAccessor clearly

stand out as God Class candidates. In Figure 4,

BaseController is the largest rectangle as indicated

by the arrows in Treemap and Polymetric View.

Moreover, it contains methods with different

concerns (colors). The same is true for the class

ImageAccessor, also indicated by arrows in the

figure.

In the case of the Feature Envy, the grid and the

spiral views were used to spot the code smell.

Considering that these views present classes and

interfaces in decreasing dependency order, the grid

view was used to first present classes with higher

dependency weight. In this view, the user selected

the BaseController class (Figure 11) and then double

clicked on it so that the spiral view could display its

dependency relationships. Using these two sets of

views, it is possible to easily spot BaseController as

Feature Envy candidate as presented in Figure 15 in

(Carneiro and Mendonça, 2013). This class stands

out due to its interest in other classes.

An uncovered strategy to identify Divergent

Change candidates was the combined use of the

Treemap and Polymetric views to spot classes that

may have been frequently changed for different

reasons.

A concern is tangled when it is mixed with other

concerns within a module which can easily be

observed in the treemaps. Moreover, if the

ascendants of a given class realize different

concerns, this class is change prone, a characteristic

that can be observed in the polymetric view. This is

again the case of the BaseController class in MM

version 3 as illustrated in Figure 15 in (Carneiro and

Mendonça , 2013).

The results that came out from this study present

initial evidences that SourceMiner can play an

important role in software characterization and, in

this particular case, helped to detect God Class,

Divergent Class and Feature Envy code smells.

The second study describes how SourceMiner

helped programmers to characterize the

Demoiselle framework (Demoiselle, 2013).

Figure 11: Identifying Outlier Classes.

This study was run with two members of the

Demoiselle core team at SERPRO. Initially, the

members of the Demoiselle core team, aided by a

SourceMiner expert, identified and mapped to the

source code a set of 13 concerns they considered

most relevant to the framework comprehension.

These concerns were mapped to the source code

using the ConcernMapper plug-in (Robillard and

Murphy, 2007). Afterwards, this information was

imported into SourceMiner. Part A of Figure 12

shows the concerns mapped during the study.

The second part of the second study consisted in

characterizing some concerns in terms of

modularity, including their level of scattering and

tangling. The Demoiselle core team had the goal to

change the dependency injection implementation of

the framework from AspectJ to the Java

Specification Recommendation JSR 299. The

concerns of interest for this activity were injection,

JDBC, JPA, Hibernate and Persistence Controller.

SourceMiner-AMulti-perspectiveSoftwareVisualizationEnvironment

The following important results that came out of this

study: (i) the specialists could visually realize the

way concerns were related among themselves. As an

example, part B of Figure 12 shows classes that are

affected by the concern dependency injection using

the class dependency graph. Based on this view, the

specialists were able to identify classes that have any

relationship with the dependency injection concern

and which other concerns affected these same

classes; (ii) considering the results presented before,

the specialists were then able to plan and execute the

change of the dependency injection technology

without any major incident.

Figure 12: Identifying Outlier Classes.

The third study describes the use of SourceMiner to

support the characterization of Java web-based

systems developed in an organization. The

organization where the case study took place is a

Brazilian public company which has its own

development sites settled in different cities. The sites

develop software systems to their internal clients.

The central office provides a core Java web-based

system upon which all sites develops web

applications.

SourceMiner was used to analyze to which

extent the applications followed the original

structure of the core java web-based system and in

which cases it did modify or did not follow it. The

idea was to use SourceMiner to detect such

occurrences and to support the decision to develop

applications in the company using a framework such

as the one mentioned before.

Two versions of the core Java web-based system

and three applications developed using them were

analyzed. The applications 1 and 2 were developed

using the first version of the core java web-based

system, while application 3 used the second version.

We compared the applications using the three

perspectives from SourceMiner: package class

method, inheritance and coupling.

The analysis indicated that the approach adopted

in the organization is not suitable for code reuse and

contributes to degenerate the original architecture of

the core Java basic project. Figures 17 and 18 in

(Carneiro and Mendonça, 2013) show an example of

a utility class that increased from 701 lines of code

and 47 methods in the first version core system to

2089 lines of code and 160 methods in the derived

application. This increase is due to new utility

functionalities that were added by the application

development team. These utility functionalities

should have been requested from the core system

development team, or at the very least fed back to

them, by the application development team, in order

to make them available to other applications. In

interviews, we found that as the software systems

developed in different sites evolve, they tend to

include functionalities that originally were to be

provided by the basic project. That revealed a clear

flaw of this approach of application derivation.

8 RELATED WORKS

Software visualization has been extensively studied

as a means to support software engineers to build

mental models of software systems (Diehl, 2007);

(Storey et al., 1999); (Koschke, 2003). Software has

been visualized at various levels of detail, from the

module granularity seen in Rigi (Müller and

Klashinsky, 2008) to the individual lines of code

depicted in SeeSoft (Eick et al., 1992).

Many interesting and novel metaphors have been

proposed, but much debate and study are still needed

to validate them. Consider software visualization

techniques that use 3D representations as an

example. These techniques attempt to make more

efficient use of the available screen space and apply

intuitive metaphors to represent data (Teyseyre and

Campo, 2009). In spite of their positive points, they

also have negative points such as user adaptation

and cognition overload. The interaction with 3D

presentations and possibly the use of special devices

demand considerable adaptation efforts to these

technologies (Teyseyre and Campo, 2009). These

trade-off scenarios are common for any family of

visualization metaphors. For this reason, it is useful

that software visualization infrastructures provide

means of extensibility and resources to empirically

evaluate its use and effectiveness in software

engineering tasks, as we have implemented in

SourceMiner.

While there are many works on the use of novel

metaphors, there is not that many on the

combination of metaphors in multiple views

environments. Rigi was one of the pioneers in this

aspect (Müller and Klashinsky, 2008). It uses

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

multiple views in a reverse engineering

environment. It is extensible in the sense that new

visualization techniques can be included in the

environment through the use of Rigi Command

Language (RCL), which is based on the Tcl/Tk

scripting language. Several tools were implemented

on top of it, where SHriMP is probably the most

known (Storey and Müller, 1995). They all employ

multiform visualization using module relationships

as their main software analysis perspective.

Mature open standard IDEs, such as Eclipse, are

nowadays the substratum of many software

engineering tool implementations. However, the

number of software visualization tools that explore it

is still relatively small (Malnati, 2012); (Callendar,

2012). Among the main initiatives to move software

visualization closer to practitioners, by integrating

them in popular IDEs, one can mention Creole

(Callendar, 2012), an Eclipse plugin by Lintern et al.

and X-Ray (Malnati, 2012). Most of those were

developed as Eclipse’s plug-ins. Unfortunately they

cannot be classified as interactive and coordinated

multiple view environments, as they do not

completely explore environment integration, having

limited roundtrip, multiple view coordination and

interactive dynamic filtering resources.

As a concluding remark, it is important to

observe that the use of multiple, interactive, and

coordinated visualization resources are by no means

a novel idea in the information visualization field

(Baldonado et al., 2000); (Becks and Seeling, 2004);

(Roberts, 2000); (Roberts, 2007); (Pattison and

Phillips, 2001); (Ainsworth, 1999). They just have

not fully reached the software visualization field yet.

9 CONCLUSIONS

Most software visualization published work focuses

on introducing new metaphors to represent software

data, behaviour and evolution. This work highlights

that the study and implementation of extensible,

interactive, and coordinated multi-perspective

software visualization environments is an important

part of the software visualization research. Software

is very complex and multi-faceted. The literature has

already shown that no single view is able to depict

all software properties of a software system (Storey,

2006). One needs several views. Moreover, it is not

clear what the best metaphors are for presenting

many of these properties. One needs to test many

view combinations and those views need integration

and coordination.

We believe that only part of software

visualization promising benefits are being observed

in practice by the software development industry,

because we have not yet seen a tight integration of

software visualization tools with current popular

software development environments. This paper

described SourceMiner as an extensible multiple

view environment to enhance software

comprehension activities. In its development, we

considered guidelines proposed and already used in

the information visualization domain to bring forth

relevant information from the software source code

and associated information.

The model envisioned for SourceMiner is based

on the reference model by (Card et al., 1999) and

allows for consistent coordination among the views.

SourceMiner and the model upon which it was built

have the following characteristics: (i) views that

represent a specific software property are grouped in

perspectives to portray information of relevant

software properties such as coupling, inheritance and

the package-class-method structure; (ii) through the

use of multiple view and interaction mechanisms,

users to configure visual scenarios suitable to the

task at hand; (iii) the model was conceived

considering the IDE as its substratum; (iv) the

source code is the main data source for the

visualization environment; (v) other data sources are

used to enrich the views with information such as

concerns, and bug track information. We foresee the

use of several other types of data in SourceMiner as

way to broaden the range of software comprehension

activities supported by the multiple view interactive

environment; (vi) the environment is extensible, in

the sense that it is designed to support the inclusion

of new views. During its development, new views

were included following this principle.

The use of multiple views in SourceMiner better

handles the diversity of attributes, user profiles, and

levels of abstraction needed in software

visualization. It enables users to configure and

effectively combine views to bring out correlations

and or disparities that might otherwise remain

hidden in the code. The use of multiple views splits

complex data into more manageable chunks of

information, and this information can be further

filtered and explored through interaction with the

different visual scenarios.

Despite its focus on static software visualization,

we believe that the lessons learned in the design of

SourceMiner can be applied to other types of

software visualization, such as those that represent

dynamic software behavior or evolution (Diehl,

2007).

The environment was built for experimentation

SourceMiner-AMulti-perspectiveSoftwareVisualizationEnvironment

and we plan to continue to empirically studying it to

determine whether or not it actually decreases

cognitive load and increases performance on

specified software engineering tasks.

SourceMiner is being expanded to convey

software evolution attributes, churning and bug

analysis information. In addition, we are adapting it

to support collaborative software comprehension

activities in a distributed environment.

This paper described SourceMiner that is

available at www.sourceminer.org.

REFERENCES

Baldonado, M., Woodruff, A. Kuchinsky, A., 2000.

Guidelines for Using Multiple Views in Information

Visualization, In ACM AVI 2000, Italy, pp. 110-119.

Ball, T and Eick, S., 1996. Software visualization in the

large. Computer, 29(4):33–43, 1996.

Becks, A., Seeling, C., 2004 SWAPit: A Multiple Views

Paradigm for Exploring Associations of Texts and

Structured Data. In AVI'2004, Italy.

Callendar, C., 2012. Creole: Integrating Shrimp to the

Eclipse IDE. Available at http://www.

thechiselgroup.org/creole. Accessed in May.

Card, S. K., Mackinlay, J. and Shneiderman, B., 1999.

Readings in Information Visualization Using Vision to

Think. San Francisco, CA, Morgan Kaufmann.

Carneiro, G., Silva, M., Mara, L., Figueiredo, E.,

Sant'Anna, C., Garcia, A., and Mendonca, M., 2010.

Identifying Code Smells with Multiple Concern

Views. In proceedings of the 24th Brazilian

Symposium on Software Engineering (SBES).

Carneiro, G., Mendonça, M., 2013. SourceMiner.

Technical Report. Available at http://www.

sourceminer.org/screenshots.html.

Demoiselle, F., 2013. Demoiselle Framework. Available

at http: //demoiselle.sourceforge.net/.

Diehl, S., 2007. Software Visualization: Visualizing the

Structure, Behaviour, and Evolution of Software, 1st

Edition. Springer.

Eick, S.; Steffen, J.; Eric S., 1992. SeeSoft—a tool for

visualizing line oriented software statistics. IEEE

Transactions on Software Engineering, 18(11):957–

968, November.

Fowler, M., 1999. Refactoring: Improving the Design of

Existing Code. Addison Wesley.

Graham, M. And Kennedy, J., 2008. Multiform Views of

Multiple Trees. In CMV2008. London, UK.

Greenwood, P., Bartolomei, T., Figueiredo, E., Dosea, M.,

Garcia, A., Cacho, N., Sant’Anna, C., Soares, S.,

Borba, P., Kulesza, U., Rashid, A.., 2007. On the

Impact of Aspectual Decompositions on Design

Stability: An Empirical Study. ECOOP, Germany.

Heer, J., Shneiderman, B., 2012. Interactive Dynamics for

Visual Analysis. Communications of the ACM, 55(4),

pp. 45-54, April.

Koschke, R., 2003. Software Visualization in Software

maintenance, Reverse Engineering, and Re-

engineering: A research Survey. Journal of Software

Maintenance and Evolution: Research and Practice.

Lanza, M., Ducasse, S., 2003. Polymetric Views-A

Lightweight Visual Approach to Reverse Engineering,

IEEE Trans. Softw. Eng. 29, 9 (Sep.), 782-795.

Lanza, M.; Marinescu, R., 2006. Object-Oriented Metrics

in Practice - Using Software Metrics to Characterize,

Evaluate, and Improve the Design of Object-Oriented

Systems. Springer-Verlag.

Lehman, M and Belady, L., 1985. Program Evolution:

Processes of Software Change. London Academic

Press, 1985.

Lintern, R., Michaud, J., Storey, M-A and Wu, X., 2003.

Plugging-in Visualization: Experiences Integrating a

Visualization Tool with Eclipse. In Proceedings of

SoftVis ’

03, pages 47– 56. ACM Press.

Malnati, J., 2012. X-Ray Open Source Software

Visualization. Available at http://xray.inf.usi.ch/

xray.php. Accessed in May.

Müller, H. A. and Klashinsky K., 2008. Rigi: A system for

programming-in-the-large. In Proceedings of the 10th

International Conference on Software Engineering,

pp. 80–86. Singapore.

Riel, A., 1996. Object-Oriented Design Heuristics.

Addison-Wesley Professional, 1996.

Robillard, M. and Murphy, G., 2007. Representing

Concerns in Source Code. ACM Transactions on

Software Engineering and Methodology, 16(1):1-38,

February.

Shneirderman, B., 1992. Tree Visualization with Tree-

Maps: A 2-D Space-Filling Approach. ACM

Transactions on Graphics (ToG) 11, 1, 92–99.

Shneiderman, B. and Plaisant, C., 2009. Designing the

User Interface: Strategies for Effective Human-

Computer Interaction, 5th ed. Addison Wesley, March.

Storey, M.; Fracchia, F.and Muller, H., 1999. Cognitive

design elements to support the construction of a

mental model during software exploration. Journal of

Systems and Software, vol. 44, no. 3, pp. 171-185,

January.

Storey, M. D., Müller, H. A., 1995. Manipulating and

documenting software structures using SHriMP views,

in: 11th IEEE International Conference on Software

Maintenance, ICSM'95, pp. 275-284.

Storey, M., 2006. Theories, tools and research methods in

program comprehension: past, present and future.

Software Quality Journal, 14(3):187–208.

Teyseyre, A. R., and Campo, M. R., 2009. An Overview

of 3D Software Visualization. IEEE Transactions on

Visualization and Computer Graphics (TVCG) 15, 1,

87–105.

Ware, C., 2004. Information visualization: perception for

design. Morgan Kaufmann Publishers Inc., 2 edition,

2004.

Wu, J., and M.-A. Storey., 2000. A Multi-perspective

Software Visualization Environment. In Proceedings

of CASCON'2000, November, pp. 41-50.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems
