Overview of an Approach Describing Multi-views/ Multi-abstraction

Levels Software Architecture

Ahmad Kheir

1,2

, Hala Naja

, Mourad Oussalah

and Kifah Tout

LaMA Laboratory, Lebanese University, Tripoli, Lebanon

LINA Laboratory, Nantes University, Nantes, France

Keywords:

Software Architecture, Viewpoints, Views, Abstraction Levels, Dependency, Consistency Rules.

Abstract:

Views and abstraction levels are two major concepts introduced in the software engineering domain in order to

enhance the architectural organization of complex systems’ requirements. Despite numerous and substantial

works that built and reﬁned those concepts, they still less secure and less standardized to be part of a rough

software architecture.

This paper begins with a survey of evolution of the role and usage of those concepts in software architecture,

and ends with an overview of an approach integrating the views and abstraction levels concepts within a single

rough multi-views/multi-abstraction levels software architecture and respecting their usage in an evolutionary

architectural speciﬁcation analysis.

The main beneﬁts of this contribution was to allow system architects to solve more efﬁciently the complexity

problems; and allow them to build a complex, organized and coherent architecture; and ﬁnally enhance the

communication and harmony among different stakeholders.

1 INTRODUCTION

In large scale and complex systems, always different

people are involved in the system development pro-

cess and having for each of them different interests

knowledge backgrounds and tools. Thus, these peo-

ple, usually known as stakeholders, have their own

look to the designed system, or their own viewpoints.

Unfortunately, these stakeholders’ viewpoints

could be often complex and hard to be understood by

the architect, which will be reﬂected as extra com-

plexity in the system’s architecture and difﬁculty to

cover the entire system’s domain. As mentioned in

(Rozanski and Woods, 2011), ”a widely used ap-

proach is to attack the problem from different direc-

tions simultaneously. In this approach, the architec-

tural description is partitioned into a number of sepa-

rate views, each of which describes a separate aspect

of the architecture.” Informally, a view is an archi-

tectural design of a stakeholder’s viewpoint that cov-

ers delicately all its interests and required function-

alities, and represents them formally in a structured

architecture. An abstraction level represents a level

of details deﬁned in order to treat the extra complexi-

ties retained after decomposing our system into mul-

tiple viewpoints, by relegating some viewpoints’ de-

tails which appear to be irrelevant in the ﬁrst stages of

the modeling process to lower abstraction levels, so

we can zoom into a speciﬁc viewpoint to the desired

level of details.

In this paper, a survey is presented dealing with

the evolution of role and usage of two major concepts

in software engineering, which are the views and ab-

straction levels. Also an overview of our architectural

modeling approach called MoVAL (Model, View and

abstraction level) is suggested. In MoVal, both views

and abstraction levels concepts are integrated allow-

ing the architect to build robustly a multi-views and

multi-granularities software architectures.

This paper is further structured as follows: In

sections 2 and 3, studies and proposed solutions re-

lated to the views and abstraction levels ﬁelds are

presented. Section 5 and 6 presents our comparative

analysis and the deducted limitations of current so-

lutions, respectively, in order to motivate the contri-

bution of our approach presented in section 4, where

we will suggest the beginning of theory and practice

of views and abstraction levels suitable for software

system architectures. Finally section 7 concludes the

paper.

140

Kheir A., Naja H., Oussalah M. and Tout K..

Overview of an Approach Describing Multi-views/ Multi-abstraction Levels Software Architecture.

DOI: 10.5220/0004421001400148

In Proceedings of the 8th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2013), pages 140-148

ISBN: 978-989-8565-62-4

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 HISTORY OF VIEWS

Viewpoints are the perspectives of different people or

stakeholders towards an information system (Finkel-

stein and Sommerville, 1996). Consequently, a view,

which is a formal representation of an associated

viewpoint, is an abstraction of the whole system’s ar-

chitecture suppressing some out-of-focus details.

Actually, this notion have been introduced in four

different ﬁelds of the software engineering domain,

which are: requirements engineering ﬁeld, software

systems modeling ﬁeld, software architecture con-

struction ﬁeld and software systems implementation

ﬁeld.

2.1 Views in Requirements Engineering

One of the ﬁrst and leading researchers that worked

with viewpoint concept in requirements speciﬁcation

was A. Finkelstein in (Finkelstein and Fuks, 1989),

where he and Fuks proposed a formal model aim-

ing to construct system’s speciﬁcations through a di-

alog in which the viewpoint negotiate. Robinson also

worked on the requirements speciﬁcation through di-

alog (Robinson, 1990), in 1990’s and presented his

tool, Oz, but he focused more on the representation of

conﬂicting viewpoints and an automated way to pro-

duce resolutions.

Meanwhile, H. Delugash (Delugach, 1990) was

working on the representation of each viewpoint’s re-

quirements in a conceptual graph in order to merge

them by analyzing those conceptual graphs and per-

forming a join so that we obtain a single coherent set

of requirements for the target system.

In 1994, B. Nuseibeh et al. have introduced in

(Nuseibeh et al., 1994), the relationships that could

exist between viewpoints (overlapping, complemen-

tary, contradiction) in requirements speciﬁcation and

have proposed a framework to describe those relation-

ships.

Finally, in 1997, Sommerville have contributed in

this domain in (Sommerville and Sawyer, 1997) by

proposing, Preview, a model for requirements discov-

ery, analysis and negotiation.

2.2 Views in Software Systems

Modelling

Prior to the incomparable commonness of UML in

software systems modeling ﬁeld, Mullery has devel-

oped a method, called CORE, for requirements spec-

iﬁcation and design in 1979 (Mullery, 1979). CORE

is a modeling approach supported by diagrammatic

notation which decompose the modeling process to

many steps, and deﬁne for each of them a deﬁni-

tion level and a set of viewpoints for which they will

model their requirements and establish, in an iterative

way, the consistency among them.

In the early 1990s, Booch et al. have developed

the Uniﬁed Modeling Language (UML), which was

adopted by the OMG in 1997. In the current version

of UML, 13 types of diagrams, where each diagram

type has an implicit viewpoint. Several researchers

have worked to extend UML model in order to add

the concept of dynamic views and viewpoints like in

(da Rocha, 2007; Nassar, 2003).

In 2003, a view-based UML extension, VUML

(Nassar, 2003), have been introduced to offer a UML

modeling tool in which the multiple viewpoints of the

system are taken into account in the modeling phase,

so they offered a methodology to construct multiple

class models one for each viewpoint and merge them

to obtain a single VUML model describing all the

viewpoints. Then in 2009 (Nassar et al., 2009), they

proposed a code generation tool that generates object

code of the corresponding VUML model. Finally,

they worked on the automation of the composition

process of VUML model (Anwar et al., 2010; An-

war et al., 2011) and included the attributed graphs in

order to reach this goal.

Also one of the important works done in this ﬁeld

was (Dijkman et al., 2008) where they presented a

framework allowing the architect to model a system

from different perspectives or viewpoints by deﬁning

a collection of basic concepts common to all view-

points and deﬁning for each viewpoint its associated

level of abstraction for its basic concepts. In this work

they focused on the deﬁnition of consistency relation-

ships between the views.

2.3 Views in Software Architecture

In Software Architecture, various models have been

proposed of how to create a documentation (i.e. an ar-

chitectural description) by the separation of concerns.

Each model describes a set of viewpoints and identi-

ﬁes the set of concerns that each of them address. The

different models cover the same software architecture

domain, including the associated structural, organiza-

tional, business and technological environment. The

concept of Views appears in one of the earliest pa-

pers, Perry and Wolf’s classic (Perry and Wolf, 1992)

on Software Architecture in the early 1990s. In (Sowa

and Zachman, 1992), the approach presents an exten-

sive set of constructs called columns which is very

similar to views. In 1995, Philippe Krichten pro-

posed four different Views (Kruchten, 1995) of a sys-

tem and the use of a set of scenarios (use cases) to

OverviewofanApproachDescribingMulti-views/Multi-abstractionLevelsSoftwareArchitecture

141

check their correctness. In (Hilliard, 1999), the au-

thor proposes a Architecture Description Framework

(ADF) in which views are ﬁrst-class entities governed

by type-like entities called viewpoints characterized

in terms of a set of properties pertaining to their ap-

plication, a viewpoint language. This study was the

basis of the IEEE Standard 1471 (Group, 2000) which

has formalized concepts used in Software Architec-

ture and brought some standardization of terminol-

ogy used in this ﬁeld. It recognized the importance

of Views in architectural description and adopted the

Viewpoint concept deﬁned earlier in (Hilliard, 1999).

Deﬁnitions of Terms Views and Viewpoints as given in

the Standard are at follows:

• View: is a representation of a whole system from

the perspective of a related set of concerns.

• Viewpoint: is a speciﬁcation of the conventions

for constructing and using a view. A pattern or

template from which to develop individual views

by establishing the purposes and audience for a

view and the techniques for its creation and anal-

ysis. A viewpoint is a realization of the concerns

of one or more stakeholders.

Here, it is useful to review some of the approaches,

which are based on the above deﬁnitions of Views and

Viewpoints, for their salient characteristics:

• In (Rozanski and Woods, 2011), the authors pro-

pose a Viewpoint Catalogue for Information Sys-

tems, extending the 4+1 set of viewpoints identi-

ﬁed by Kruchten (Kruchten, 1995) comprising 6

core viewpoints including: the Functional, Infor-

mation, Concurrency Development, Deployment

and Operational.

• In (Clements et al., 2002), 3 viewpoints, called

viewtypes, are identiﬁed which are: Module,

Component-and-Connector and Allocation. Also,

the author deﬁnes a three-step procedure for

choosing the relevant views for a system based

on stakeholder concerns. Also, this approach uses

the concept of combined views and prioritization

to bring the view set into manageable size for real-

world projects.

• the valuable surveydone in (May, 2005) compares

between several view-based models and tries to

ﬁnd out the correspondencies between the differ-

ent views proposed and the divergence between

them. It proposes an optimum framework cover-

age encompassing a viewpoint set selected from

different models with the greatest coverage of the

framework concepts. The limitation of this ap-

proach is that despite the selected views are not

independent, no connections or relationships are

deﬁned between views.

2.4 Views in Software Development

In Software Development ﬁeld, the Aspect-oriented

development techniques consider that a number of

software development concerns could not be han-

dled using the modularization boundaries inherent in

object-oriented languages and propose new artifacts

(beyond method, class or package) to separate new

kinds of concerns that tend to be amalgamated in

object-oriented paradigms (Mili et al., 2006). In this

area, several methods are proposed:

• the Subject-Oriented Programming (SOP) (Os-

sher and al., 1995) technique addresses the func-

tional requirements. It views object oriented ap-

plications as the composition of several applica-

tion slices representing separate functional do-

mains. Each slice called subject consists of a self-

contained, object-oriented program, with its own

class hierarchy. Then, a composition language is

deﬁned allowing the composition of class hierar-

chies (subjects).

• the Aspect-Oriented programming (AOP) tech-

nique, such in (Kiczales et al., 1997) and (Ma-

jumdar and Swapan, 2010), addresses the non-

functional requirements, including architectural

aspects, error handling, security, distribution, per-

sistence, etc. It deﬁnes aspect as an implementa-

tion of a concern that pertain to several objects in

a collaboration. An aspect is a code module ad-

dressing speciﬁc concern and that cross-cut vari-

ous components in an application.

• the View-Oriented programming technique (Mili

and al, 1999) considers each object of an applica-

tion as a set of core functionalities available, di-

rectly or indirectly, to all users of the object, and

a set of interfaces speciﬁc to particular uses, and

which can be added or removed during run-time.

Hence, we found that also in software development,

researchers always try to apply this concept of views

decomposition, presented in many forms (subjects,

aspects and views) in order to beneﬁt from its orga-

nization and complexity resolution advantages.

3 HISTORY OF ABSTRACTION

LEVELS

Abstraction levels is a core concept in software engi-

neering, it is a way to deal with software systems’

complexities giving the architect or the analyst the

ability to examine different topics of the system at dif-

ferent levels of details (i.e. abstraction levels) accord-

ing to the purpose.

ENASE2013-8thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

142

The abstraction levels was deﬁned by Jeff Kramer

in (Kramer, ) as ”a cognitive means according to

which, in order to overcome complexity at a speciﬁc

stage of a problem solving situation, we concentrate

on the essential features of our subject of thought, and

ignore irrelevant details.”

Actually there were not so many researches in this

domain as it was the case in viewpoints domain, but

among the valuable works done in this ﬁeld (Regnell

et al., 1996) could be considered, where the authors

have proposed a hierarchical modeling approach that

consists of three static distinct abstraction levels:

• The environment level, which could be seen simi-

lar to the scenario view of UML.

• The structural level, in which they decomposed

each use case of the precedent level to multiple

units named episodes.

• The event level, in which episodes are described

in further details through a Message Sequence

Chat annotation.

In (Medvidovic et al., 1996), authors have proposed

a software architecture’s modeling process of compo-

nent based architectures, composed of four modeling

process abstraction levels or, actually, four modeling

layers, which are: architectural components speciﬁca-

tion, components’ interfaces deﬁnition, architectural

description and architectural styles rules. Actually,

they used in their work the pipe-and-ﬁlter and the C2

architectural styles as illustrations.

In (Monperrus et al., ), authors have proposed a

decomposition approach of meta-model to multiple

abstraction levels. In this approach they deﬁned a

lower abstraction level as a specialization of the up-

per abstraction level and proposed splitting rules that

are based on the inheritance and specialization rela-

tionships of the meta-model.

4 MoVAL APPROACH

MoVAL (Model, View, Abstraction level) is an archi-

tectural modeling approach that comply to the IEEE

recommended practice for architectural descriptions

(Group, 2000) with some additions in order to as-

sist the system’s architect solving some types of com-

plexities that was not been treated in the existing ap-

proaches, and give him additional ﬂexibility in the

development process comparing to those approaches.

So, MoVAL was designed in order to contribute in

complex systems architectural modeling and develop-

ment process independently of the adopted develop-

ment technology. Thus, the viewpoints concept was

involved in order to reduce the system’s complexities

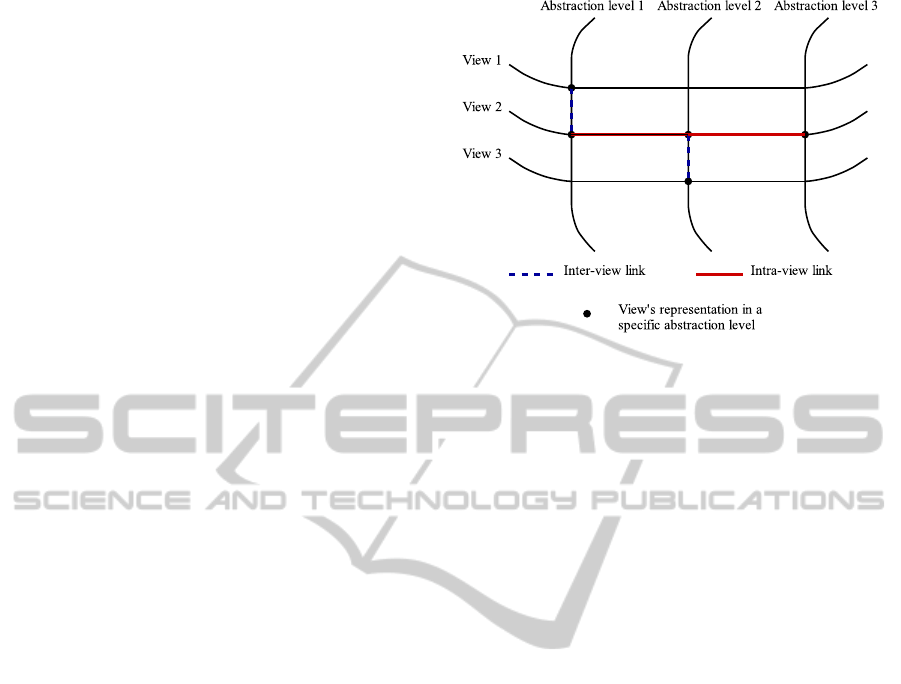

Figure 1: Matrix representation of the MoVAL model.

by splitting vertically its requirements. In addition,

the abstraction levels concept was involved in order

to allow the system architect to also split horizontally

the system’s requirements into many abstraction lev-

els, and to allow other participants in the development

process to move between those abstraction levels ac-

cording to the purpose of the current task.

Hence, the main beneﬁts of MoVAL is to allow

system architects to solve more efﬁciently the com-

plexity problems; and allow them to build a complex,

organized and coherent architecture coordinated in a

set of models related one to the other via links hold-

ing the coherence constraints; and ﬁnally enhance the

communication and harmony among different stake-

holders by giving each of them the appropriate tools

to express his interests.

Actually, a MoVAL model could be represented,

as shown in ﬁgure 1, by a matrix deﬁning its views

and abstraction levels, and illustrating for each view

either it’s represented or not in each abstraction level.

Also, this matrix illustrates, where exists, the link be-

tween two view’s representations, either belonging to

two different views and the same abstraction level

(inter-views link), or belonging to the same view and

different abstraction levels (intra-view link). Those

links actually will hold the consistency rules that will

be deﬁned later in our approach, and that will ensure

the consistency of the resulting software architectural

description.

Each column of the matrix represents a distinct

view of the model, and each line represents an ab-

straction level deﬁned for this model. In reality, a

view of the model does not have necessarily repre-

sentations in all of the deﬁned abstraction levels due

to the absence of the isomorphism between model’s

views. So, each view could have one or more rep-

resentations respectively in one or more abstraction

OverviewofanApproachDescribingMulti-views/Multi-abstractionLevelsSoftwareArchitecture

143

levels deﬁned by the architect, depending on the sys-

tem’s requirements.

Note that the system decomposition to views and

abstraction levels should be done, for now, manually

based on the architects’ expertise in the system’s ap-

plication domain, and there is no deﬁned mechanisms

offered in MoVAL helping architects to determine the

architectural views and abstraction levels.

4.1 Views in MoVAL

A view is a representation of the entire target system

considering a speciﬁc sub-set of the system’s con-

cerns that are directly related to the view’s associ-

ated viewpoint. This viewpoint could be considered

as a speciﬁcation of the conventions for construct-

ing and using the view or a pattern or template from

which to develop this view. Consequently, a view in a

MoVAL architecture represents the vision of its asso-

ciated stakeholders and its associated requirements or

concerns. Those concerns, as deﬁned by Sommerville

in (Sommerville, 2007), as the statements of services

the system should provide, how the system should re-

act to particular inputs and how the system should

behave in particular situations.

Actually, even though each viewpoint (conse-

quently a view) is often related to a speciﬁc category

of stakeholders, but always it’s up to the architect to

select the appropriate viewpoints and views to be con-

sidered in the architecture, and it’s up to him also to

decide if those viewpoints will be indirectly related to

different stakeholders.

Thus, a MoVAL architectural description always

contains a set of views that are connected one to the

other from certain points via well-deﬁned connectors,

the links.

For example, for a stock management system, we

can identify the merchants’ viewpoint and some of its

concerns:

• A merchant shall be able to monitor his stock at

any time.

• A merchant shall be able to reﬁll his stock by

making orders from the stock of his associated

sub-distributor.

• A merchant shall be able to make sale operations

on items of his own stock.

We can identify also the web developer’s viewpoint

and some of its concerns that could overlap some of

the merchants’ concerns:

• A merchant shall be able to make sale operations

on items of his own stock.

• Merchant’s sale operation shall be done in a se-

cured way using the https protocol.

4.2 Abstraction Levels in MoVAL

An abstraction level represents a level of details de-

ﬁned by the system architect and included in the

MoVAL architecture in order to reduce the complex-

ity of the problem and to relegate some details, which

appear to be irrelevant in the ﬁrst stages of the model-

ing process, to lower abstraction levels. For now, this

deﬁnition should be done in MoVAL manually by de-

scribing for each abstraction level its level of details

or what to be included in the views at this abstraction

level, and what to be relegated to other abstraction

levels.

For example, for the stock management system in-

troduced above, we could identify three levels of de-

tails for this model, which are:

• The global data, presenting only the deﬁnition of

the main entities of the related view.

• The stock data, presenting the stock elements in

the vision of the concerned actors.

• The transaction data, in which we deﬁne also the

supported transactions of each view point imple-

menting this abstraction level.

From another side, an abstraction level is meant to

accept some speciﬁc formalisms, specifying the as-

sociated modeling languages and tools (UML, MDA,

AGM, etc ...), in which some participants in the de-

velopment process might deﬁne its associated rep-

resentations. Note that a formalism could be de-

pendent to a speciﬁc technology, called in this case

concrete formalism, like the class model formalism

of UML which is dependent to the object oriented

programming technology. Also, a formalism could

be independent of any technology like the use case

model formalism of UML, in which we can represent

a set of requirements formally and independently of

the adopted technology, in this case the formalism is

called abstract formalism.

Normally, an abstraction level can be eventually

consistent with a subset of the architecture’s deﬁned

views but not necessarily all the views, what gives

birth to a set of architectural representations associ-

ated each to a speciﬁc abstraction level and aggregat-

ing together the views of MoVAL architecture.

4.3 Architectural Representations in

MoVAL

An architectural representation is a view and abstrac-

tion level dependent. It is a group of models repre-

senting a speciﬁc architectural view in a speciﬁc ab-

straction level. This architectural representation could

be considered by itself as a sub-system that could be

ENASE2013-8thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

144

described and modeled, separately of all the architec-

tural description process, by a set of models. Archi-

tectural representations are illustrated in ﬁgure 1 by a

black point inside the model’s matrix.

In general, the views of a MoVAL architecture

do not have an isomorphism among them, so each

of them could have architectural representations as-

sociated to a subset of the architecture’s deﬁned ab-

straction levels, not necessarily all of those abstrac-

tion levels, by the mean that each architectural view

could have a different number of architectural repre-

sentations, and each abstraction level would not be

necessarily associated to all of the deﬁned architec-

tural views.

4.4 Links in MoVAL

In MoVAL approach, relations between architectural

representations are deﬁned. They connect the archi-

tectural views among them. Those relations are rep-

resented via the Links. A link is a simple architectural

connector having some properties, like the source and

destination architectural representations, a semantic

role and a semantic link. It holds the dependency,

dominance and consistency rules that might be orga-

nized and described in the architectural description.

In MoVAL,two distinct categories of links are dis-

tinguished:

• The Intra-View links, having the source and des-

tination architectural representations belonging to

the same architectural view.

• The Inter-Views links, having the source and des-

tination architectural representations belonging to

two different architectural views.

4.5 MoVAL Meta-model

Actually, MoVAL meta-model extends the IEEE stan-

dard 1471-2000. Thus we have kept some deﬁnitions

like the deﬁnition of a system, architecture, architec-

tural description, stakeholder, viewpoint, view, con-

cern and model, and we have equally added some

other deﬁnitions like the deﬁnition of an abstraction

level, architectural representation, formalism, and

link.

A System, as it was deﬁned in the IEEE standard

1471-2000, is not limited to individual applications

but it encompasses them to cover also the subsys-

tems, systems of systems and all kind of software in-

terests’ aggregations. A system always has different

categories of Stakeholders, which are the participants

in every phase of his life cycle. They could be indi-

viduals, teams or even organizations interested in this

system, like the system architects, developers, ana-

lysts, experts contributing in the system development,

users, etc. ...

Each of those stakeholders focuses on a speciﬁc

part of the system requirements saturating his inter-

ests. Hence, those interests of different stakeholders

are deﬁned as different sets of Concerns overlapping

in certain cases and contradicting in other cases.

In order to be constructed, a system might be de-

composed to a set of Models representing each, for-

mally, a part of that system. This set of models and

the way they are related is called the system’s Archi-

tecture, described and documented in an Architectural

Description (AD) in order to allow different stake-

holders to understand the structure of the system.

Each AD comprises different Views (Section 4.1),

and each of these views conformsto a Viewpoint spec-

ifying the set of concerns that might be considered in

the view’s deﬁnition, and specifying also the candi-

date Formalisms that could be used in the model deﬁ-

nition.

Normally, the viewpoint is not the only factor re-

stricting the candidate formalisms that could be used

in the model deﬁnition but also the abstraction level

(Section 4.2) for which this model belongs should ac-

cept the selected formalism.

In addition, to illustrate the multi-hierarchy, or the

multi-abstraction levels aspect of an architectural de-

scription in MoVAL, the hierarchy or the decomposi-

tion of an architectural view to different Architectural

Representations was deﬁned, and those architectural

representations were associated to different abstrac-

tion levels and related one to the other via the Inta-

view Links, if the architectural representations belong

to the same view, and via the Inter-views Links, if the

architectural representations belong to two different

views (Section 4.4).

Figure 2 represents the proposed meta-model.

5 ANALYSIS

Table 1 presents an elicitation of ﬁve main character-

istics of several approaches sharing similar purposes

with MoVAL’s approach.

• The inter-views relations support column gives

idea about the considered approach, if it repre-

sents the relations that exist between the views,

and what types of relations it represents.

• The stakeholder roles column deﬁnes the consid-

ered set of stakeholders for each approach.

• The Fixed/Not Fixed views column indicates ei-

ther if the number of considered views in each ap-

OverviewofanApproachDescribingMulti-views/Multi-abstractionLevelsSoftwareArchitecture

145

Figure 2: Conceptual model of MoVAL

proach is ﬁxed or not.

• The hierarchy support column tells if each ap-

proach represents multiple levels of details/ ab-

straction levels/ hierarchy levels and gives a hint

about its support if exists.

• Finally the methodology support column indi-

cates for each approach either it offers, or not, a

methodology or process to be applied on a real

case in order to obtain the resulting model or ar-

chitecture.

Actually, this table illustrates the fact that some

approaches do not represent the relations that may

exist between different viewpoints, marked as Not

Available (NA) in the table, and some other ap-

proaches admit the existence of some kind of relations

(overlapping relations in (Sommerville and Sawyer,

1997; Mullery, 1979) and consistency relations in

(Hilliard, 1999; Group, 2000; Rozanski and Woods,

2011)) but also do not represent them formally. Other

approaches represent special kinds of relations be-

tween views as in (Delugach, 1990), where they rep-

resent formally the dependency and overlapping rela-

tions between different views.

In addition, the hierarchy support column indi-

cates, for each approach, if it has support for hier-

archy levels, but unfortunately, as mentioned in table

1, all of those approaches do not give a deﬁnition for

such levels, except for (Dijkman et al., 2008) in which

authors have associated, for each viewpoint, a single

and speciﬁc abstraction level, and in (Mullery, 1979)

in which author have deﬁned the steps in his approach

which hold in reality some kind of levels of details.

6 RELATED WORKS

LIMITATIONS

As mentioned in (Rozanski and Woods, 2011), us-

ing views and viewpoints to describe the architecture

of a system beneﬁts the architecture deﬁnition pro-

cess in a number of ways that are: Separation of con-

cerns, Communication with stakeholder groups, Man-

agement of complexity and Improved developer focus.

However, some limitations remain when using exist-

ing view-based approaches. We can summarize some

of these limitations, which were solved in MoVAL, as

follows:

• Needs to Move between Different Abstraction Lev-

els. Despite software architecture is deﬁned as the

high-levelsystem structure, we assume that a soft-

ware architect should deﬁne views at different lev-

els of details. In fact, some stakeholders may set-

tle for an overview information, while others re-

quire detailed information and those whose needs

are between (i.e. require some details). So, the

software architect needs to think in terms of differ-

ent abstraction levels and to be capable to move

between abstraction levels. Actually, in all the

studied related works, an architect cannot specify

a view or one of its models in multiple abstraction

levels, however in MoVAL he could identify for

each view as many abstraction levels as he needs,

like the example mentioned in section 4.2.

• Lack of an Architectural Description Process.

In almost all the studied approaches, except in

(Clements et al., 2002), it is unclear what the soft-

ware architect has to do to deﬁne the suitable ar-

chitectural description. This task is based mainly

ENASE2013-8thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

146

Table 1: Existing works and their main characteristics.

Inter-Views

Relations

Support

Stakeholder

Roles

Fixed/Not Fixed

Views

Hierarchy

Support

Methodology

Support

(Finkelstein and

Fuks, 1989;

Robinson, 1990)

NA End user Not ﬁxed NA Yes

(Delugach, 1990;

Nuseibeh et al.,

1994)

Dependency,

Overlapping

Development

participants, End

user

Not ﬁxed NA Yes

(Sommerville

and Sawyer,

1997)

Admits

overlapping

Development

participants, End

user

Not ﬁxed NA Yes

(Mullery, 1979) Admits

overlapping

Analyst, End user Not ﬁxed Steps Yes

(Nassar, 2003) NA End user not ﬁxed NA Yes

(Dijkman et al.,

2008)

Reﬁnement,

Overlapping

Development

participants, End

user

Not ﬁxed Single

abstraction level

per viewpoint

Yes

(Sowa and

Zachman, 1992)

NA Planner, Owner,

Designer, Builder

and

Subcontractor

Fixed (Data,

Function,

Network, People,

Time and

Motivation)

NA No

(Kruchten, 1995) NA Development

participants

Fixed (Scenario,

Logical,

Development,

Process and

Physical)

NA No

(Hilliard, 1999;

Group, 2000;

Rozanski and

Woods, 2011)

Admits

consistency

relationships

existence

Development

participants, End

user

Not ﬁxed NA No

MoVAL Formal

consistency

relationships

Development

participants,

End user

Not ﬁxed Multiple

abstraction

levels per

viewpoint

Yes

on his (her) experience and skills. So, MoVAL ap-

proach aims at deﬁning an Architectural Descrip-

tion Process (ADP) which guides the software ar-

chitect while deﬁning the software architectural

description. The ADP should be ﬂexible, non-

constraining and iterative. Actually, MoVAL’s

ADP is out of this paper’s focus and won’t be pre-

sented.

• Views Inconsistency. Using a number of Views to

describe a system inevitably brings inconsisten-

cies problems. So we need to achieve a cross-

view consistency within an architectural descrip-

tion, which is not offered by the majority of the

studied related works, but MoVAL has deﬁned the

links (section 4.4) which hold the needed coher-

ence rules in order to solve those inconsistencies

problems.

7 CONCLUSIONS

This paper has presented a preliminary approach for

documenting intensive software systems architecture

based on views and abstraction levels. This approach

complies with the view-based approach of IEEE-1471

and aims at extending it in three different ways that

are: (1) providing the software architect means to de-

ﬁne views at different levels of detail and to move be-

tween them; (2) deﬁning relationships that solve the

inconsistencies between the architectural views; (3)

the speciﬁcation of an architectural description pro-

cess which guides the architect while selecting perti-

nent views, documenting them and reﬁning them at

different abstraction levels.

Actually, we are validating MoVAL’s methodol-

ogy or development process that will allow system

OverviewofanApproachDescribingMulti-views/Multi-abstractionLevelsSoftwareArchitecture

147

architects to build a rough and coherent multi-

views/multi-abstraction levels software architecture.

REFERENCES

Anwar, A., Dkaki, T., Ebersold, S., Coulette, B., and Nas-

sar, M. (2011). A formal approach to model compo-

sition applied to VUML. In Engineering of Complex

Computer Systems (ICECCS), 2011 16th IEEE Inter-

national Conference on, page 188197.

Anwar, A., Ebersold, S., Coulette, B., Nassar, M., and Kri-

ouile, A. (2010). A rule-driven approach for com-

posing viewpoint-oriented models. Journal of Object

Technology, 9(2):89114.

Clements, P., Bachmann, F., Bass, L., Garlan, D., Ivers, J.,

Little, R., Nord, R., and Stafford, J. (2002). A practi-

cal method for documenting software architectures.

da Rocha, E. S. Guidelines for business modeling elabora-

tion based on views from domain information.

Delugach, H. S. (1990). Using conceptual graphs to analyze

multiple views of software requirements.

Dijkman, R. M., Quartel, D. A. C., and van Sinderen, M. J.

(2008). Consistency in multi-viewpoint design of en-

terprise information systems. Information and Soft-

ware Technology, 50(7):737752.

Finkelstein, A. and Fuks, H. (1989). Multiparty speciﬁca-

tion. In ACM SIGSOFT Software Engineering Notes,

volume 14, page 185195.

Finkelstein, A. and Sommerville, I. (1996). The view-

points FAQ. BCS/IEE Software Engineering Journal,

11(1):24.

Group, I. A. W. (September 2000). Ieee recommended prac-

tice for architectural description of software-intensive

systems. Technical report, Institute of Electrical and

Electronics Engineers, NY, USA.

Hilliard, R. (1999). Views and viewpoints in software sys-

tems architecture. In First Working IFIP Conference

on Software Architecture,WICSA, pages 13–24.

Kiczales, G., Lamping, J., Mendhekar, A., Maeda, C.,

Lopes, C., Loingtier, J., and Irwin, J. (1997).

Aspect-oriented programming. In ECOOP’97Object-

Oriented Programming, pages 220–242.

Kramer, J. Abstraction in computer science $0 software

engineering: A pedagogical perspective.

Kruchten, P. (1995). The 4+ 1 view model of architecture.

Software, IEEE, 12(6):42–50.

Majumdar, D. and Swapan, B. (2010). Aspect Oriented Re-

quirement Engineering: A Theme Based Vector Ori-

entation Model. Journal of Computer Science, Info-

Comp, ?(?).

May, N. (2005). A survey of software architecture view-

point models. In Proceedings of the Sixth Aus-

tralasian Workshop on Software and System Architec-

tures, pages 13–24. Citeseer.

Medvidovic, N., Taylor, R. N., and Whitehead Jr, E. J.

(1996). Formal modeling of software architectures at

multiple levels of abstraction. ejw, 714:8242776.

Mili, H. and al (1999). View programming : Towards a

framework for decentralized development and execu-

tion of oo programs. In Proc. of TOOLS USA’ 99,

pages 211–221. Prentice Hall.

Mili, H., Sahraoui, H., Lounis, H., Mcheick, H., and Elkhar-

raz, A. (2006). Concerned about separation. Fun-

damental Approaches to Software Engineering, pages

247–261.

Monperrus, M., Beugnard, A., and Champeau, J. A deﬁni-

tion of ”abstraction level” for metamodels.

Mullery, G. P. (1979). CORE-a method for controlled re-

quirement speciﬁcation. In Proceedings of the 4th in-

ternational conference on Software engineering, page

126135.

Nassar, M. (2003). VUML: a viewpoint oriented UML ex-

tension. In Automated Software Engineering, 2003.

Proceedings. 18th IEEE International Conference on,

page 373376.

Nassar, M., Anwar, A., Ebersold, S., Elasri, B., Coulette,

B., and Kriouile, A. (2009). Code generation in

VUML proﬁle: A model driven approach. In Com-

puter Systems and Applications, 2009. AICCSA 2009.

IEEE/ACS International Conference on, page 412419.

Nuseibeh, B., Kramer, J., and Finkelstein, A. (1994). A

framework for expressing the relationships between

multiple views in requirements speciﬁcation. Software

Engineering, IEEE Transactions on, 20(10):760773.

Ossher, H. and al. (1995). Subject-oriented composition

rules. In OOPSLAS’95, pages 235–250.

Perry, D. and Wolf, A. (1992). Foundations for the study of

software architecture. ACM SIGSOFT Software Engi-

neering Notes, 17(4):40–52.

Regnell, B., Andersson, M., and Bergstrand, J. (1996). A

hierarchical use case model with graphical represen-

tation. In Engineering of Computer-Based Systems,

1996. Proceedings., IEEE Symposium and Workshop

on, page 270?277.

Robinson, W. N. (1990). Negotiation behavior during re-

quirement speciﬁcation. In Software Engineering,

1990. Proceedings., 12th International Conference

on, page 268276.

Rozanski, N. and Woods, E. (2011). Software Systems Ar-

chitecture: Working with Stakeholders Using View-

points and Perspectives. Addison-Wesley.

Sommerville, I. (2007). Software Engineering. Interna-

tional Computer Science Series. Addison-Wesley.

Sommerville, I. and Sawyer, P. (1997). Viewpoints: prin-

ciples, problems and a practical approach to require-

ments engineering. Annals of Software Engineering,

3(1):101130.

Sowa, J. and Zachman, J. (1992). Extending and formal-

izing the framework for information systems architec-

ture. IBM systems journal, 31(3):590–616.

ENASE2013-8thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

148
