Advanced Analytics with the SAP HANA Database

Philipp Große

, Wolfgang Lehner

and Norman May

SAP AG, Dietmar-Hopp-Allee 16, Walldorf, Germany

TU Dresden, N

othnitzer Str. 46, Dresden, Germany

Keywords:

MapReduce, Advanced Analytics, Machine Learning, Data Mining, In-memory Database.

Abstract:

Complex database applications require complex custom logic to be executed in the database kernel. Traditional

relational databases lack an easy to-use programming model to implement and tune such user deﬁned code,

which motivates developers to use MapReduce instead of traditional database systems. In this paper we

discuss four processing patterns in the context of the distributed SAP HANA database that even go beyond

the classic MapReduce paradigm. We illustrate them using some typical Machine Learning algorithms and

present experimental results that demonstrate how the data ﬂows scale out with the number of parallel tasks.

1 INTRODUCTION

There is a wide range of sophisticated business anal-

ysis and application logic—e.g., algorithms from the

ﬁeld of Data Mining and Machine Learning—, which

is not easily expressed with the means of relational

database systems and standard SQL. This is particu-

lar true for algorithms such as basked analysis or data

mining algorithms, which are typically not part of the

database core engine.

To realize such algorithms MapReduce as a pro-

gramming paradigm (Dean and Ghemawat, 2004) and

frameworks like Hadoop scaling the Map and Reduce

tasks out to hundred and thousand of machine have

become very popular (Apache Mahout, 2013).

However, the data of most companies are still

primarily located in (distributed) relational databases

systems. Those distributed database systems—like

the SAP HANA database (Sikka et al., 2012)—have

their own means to efﬁciently support the scale out

of queries. Instead of operating on a key-value store

organized through a distributed ﬁle system, the SAP

HANA database operates on in-memory tables orga-

nized through a distributed relational database sys-

tem. However, both have in common that execution

plans can be distributed over a number of different

machines and work will be orchestrated by the over-

all system.

Nevertheless databases have failed in the past to

provide an easy to use programming paradigm for the

parallel execution of ﬁrst-order functions.

In contrast to this, MapReduce as a programming

paradigm provides a simple to use yet very powerful

abstraction through two second-order functions: Map

and Reduce. As such, they allow to deﬁne single se-

quentially processed tasks while at the same time hid-

ing many of the framework details of how those tasks

are parallelized and scaled out.

However, classic MapReduce frameworks like

Hadoop are missing support for data schemas and

native database operations such as joins. Further-

more the lack of knowledge on the framework side

and the required context switches between the appli-

cation layer and the parallel processing framework

makes optimizations, as they are commonly applied

in databases, very difﬁcult if not impossible.

From performance perspective it would be desir-

able to have a tightly integration of the custom logic

into the core of the database. But this would require

hard coding the algorithm into the core and thereby

limiting the extensibility and adaptability of the algo-

rithm integrated.

In this paper we will outline that the SAP HANA

database with its distributed execution goes be-

yond the expressiveness of the classic MapReduce

paradigm, adding the advantage of processing ﬁrst-

order functions inside a relational database system.

Instead of integrating Hadoop MapReduce into the

database, we rely on a native execution of custom

code inside the database.

The contributions in this paper are summarized as

follows:

• We characterize four different processing pattern

found in Machine Learning and Data Mining ap-

Große P., Lehner W. and May N..

Advanced Analytics with the SAP HANA Database.

DOI: 10.5220/0004430800610071

In Proceedings of the 2nd International Conference on Data Technologies and Applications (DATA-2013), pages 61-71

ISBN: 978-989-8565-67-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

plications and discuss their mapping to MapRe-

duce.

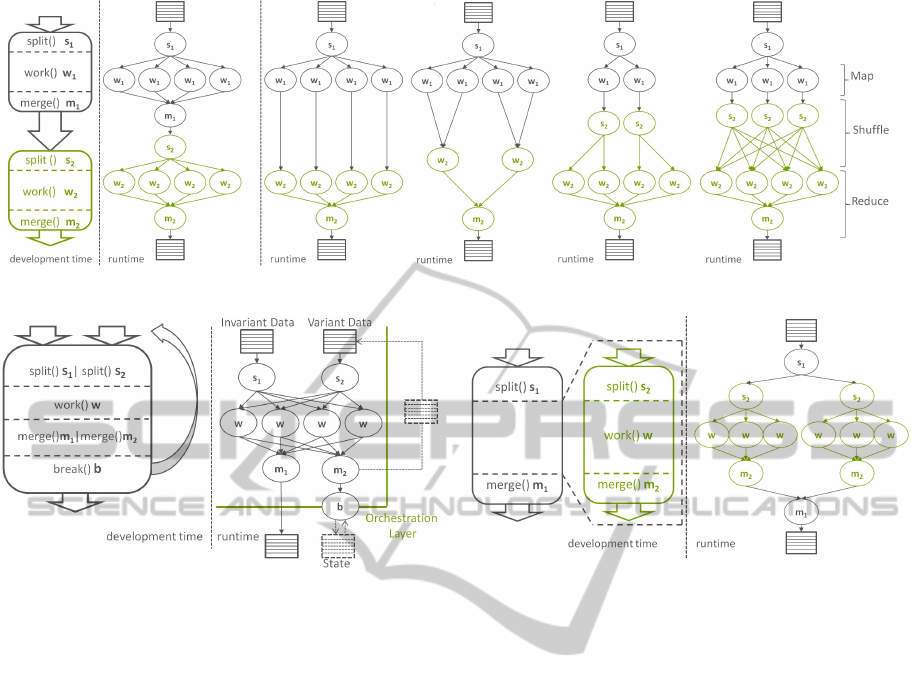

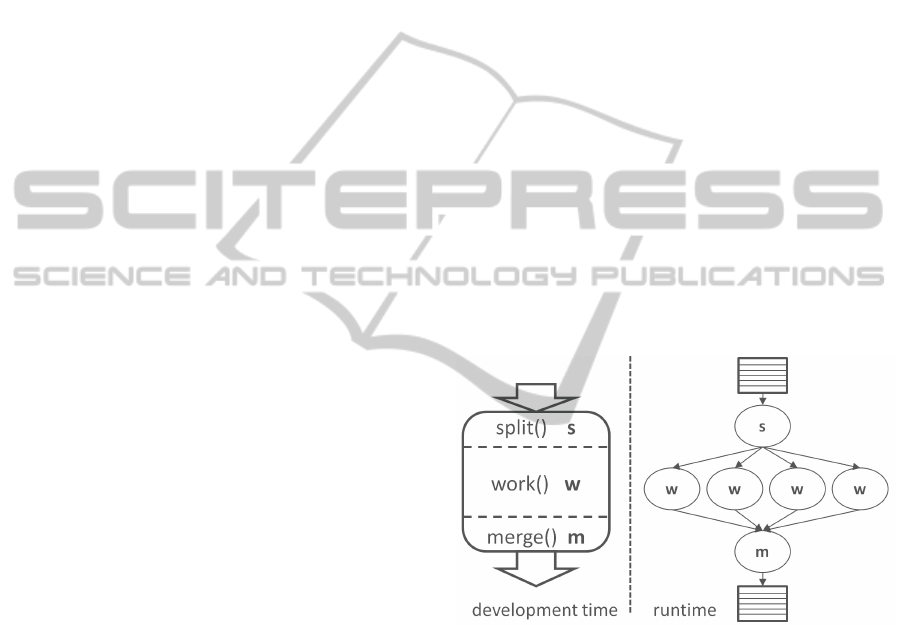

• We describe a ﬂexible parallel processing frame-

work as part of the SAP HANA database and a

number of basic programming skeletons to ex-

ploit the framework for the different processing

patterns discussed.

• We implement each of the four processing pat-

terns using the basic programming skeletons and

evaluated them using real-world data.

The remainder of this paper is structured as fol-

lows. In section 2 we derive four different processing

patterns to map out the requirements of supporting so-

phisticated business analysis and application logic.

This is followed by section 3, where we discuss

how the presented processing pattern can be applied

in the context of the SAP HANA database. In sec-

tion 4 we present the evaluation of our approach and

discuss in section 5 related work.

2 MACHINE LEARNING

AND MapReduce

To support application developers to implement com-

plex algorithms, we present four basic processing pat-

tern commonly found in standard machine learning

algorithms. Many standard machine learning (ML)

algorithms follow one of a few canonical data pro-

cessing patterns (Gillick et al., 2006), (Chu et al.,

2006), which we will discuss in the context of the

MapReduce paradigm.

• Single-pass: where data has to be read only once.

• Cross Apply: where multiple data sources have to

be considered and jointly processed.

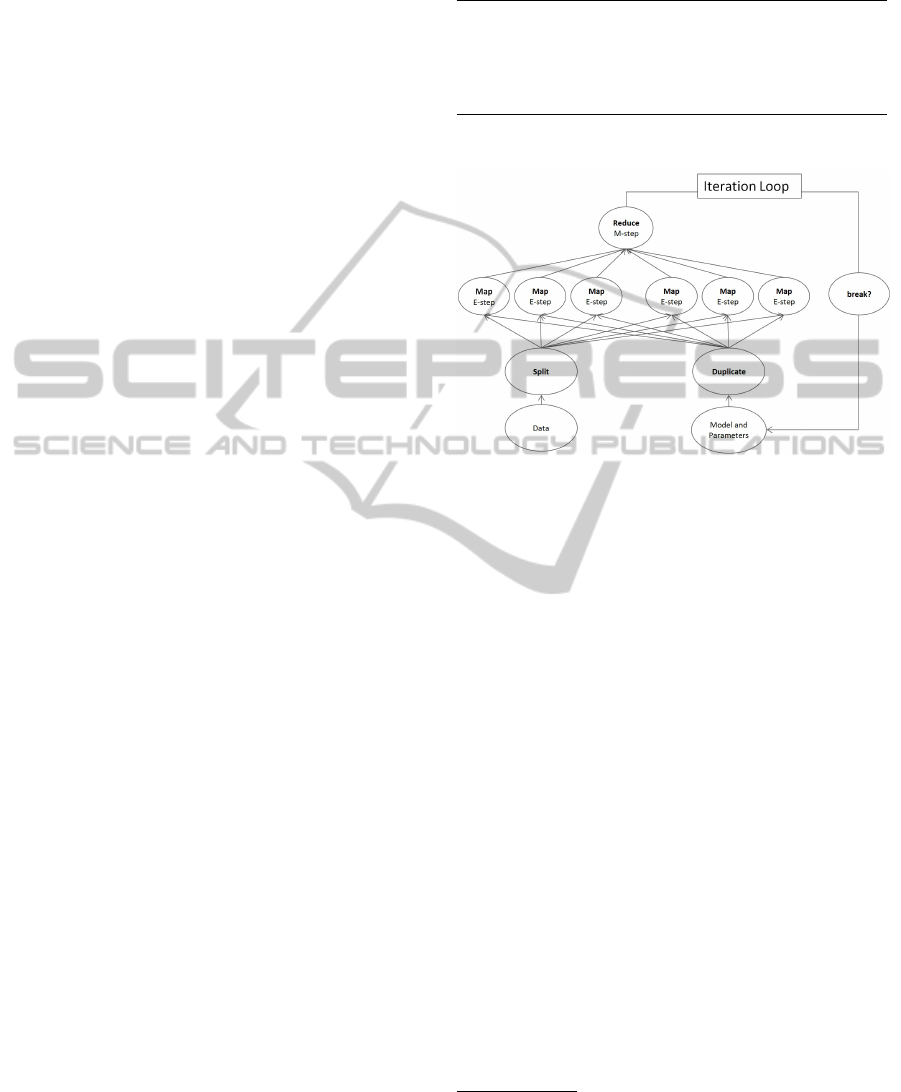

• Repeated-pass: where data has to be read and ad-

justed iteratively.

• Cross Apply Repeated-pass: where the iterative

adjustment has to be processed on multiple data

sources.

To the best of our knowledge the two processing

patterns ’Cross Apply’ and ’Cross Apply Repeated-

pass’ have never been discussed before as full-ﬂedged

patterns in the context of Machine Learning and

MapReduce and are therefore new.

2.1 Single-pass

Many ML applications make only one pass through

a data set, extracting relevant statistics for later use

during inference. These applications often ﬁt per-

fectly into the MapReduce abstraction, encapsulating

the extraction of local contributions to the Map task,

then combining those contributions to compute rele-

vant statistics about the dataset as a whole in the Re-

duce task.

For instance, estimating parameters for a naive

Bayes classiﬁer requires counting occurrences in the

training data and therefore needs only a single pass

through the data set. In this case feature extraction

is often computation-intensive, the Reduce task, how-

ever, remains a summation of each (feature, label) en-

vironment pair.

01. for all classes c

∈ c

,...,c

02. for all documents x

∈ x

,...,x

of class c

03. for all feature l

∈ l

,...,l

of document x

04. sum

) = count(l

);

05. od;

06. od;











MAP

07. for all feature l

∈ l

,...,l

in all x of class c

08. tsum

∑

k=1

sum

);

09. µ

= tsum

/count(x|c

);

10. for k ∈ 1,...,n

11. di f f

= (sum

) − µ

)

12. od;

13. σ

1/(n − 1) ∗

∑

k=1

di f f

14. G

= N (µ

,σ

)

15. od;

16. M

j=1











REDUCE

17. od;

Script 1: Pseudo code to calculate Gaussian distributions

for a set of features and different classes.

To illustrate this: let us assume we want to train a

very rudimental language detector, using some sam-

ple text documents each labeled with its respective

language. To keep things very simple we train a

naive Bayes classiﬁer based on the letter distribution

each language has and assume an equal prior prob-

ability for each language and documents of normal-

ized length. The Bayes classiﬁer relies on the Bayes

theorem, whereby P(A|B) = P(A) ∗ P(B|A)/P(B). In

order to be able to predict the probability P(c

) of

a language (i.e., class c

) given a document (i.e., ob-

servation x

), we need to train a model M

for each

language, which helps us to calculate the probability

P(x

) for an observation x

given the class c

. A

very simple way to represent such a model is by us-

ing Gaussian distributions. Script 1 shows the Pseudo

code for calculating a set of Gaussian distributions to

represent such a model. The training task based on

the letter distribution of documents is very similar to

the well known word count example usually found for

MapReduce. We can distribute our sample documents

equally over a number of Map jobs. Each Map job

DATA2013-2ndInternationalConferenceonDataManagementTechnologiesandApplications

will count the number of occurrences for each letter

returning the letter distribution of the document x

The key value we use to pass our Map results to the

Reduce job is the language label c

of each text docu-

ment, so ideally we will have as many Reduce jobs as

we have different languages, respectively classes, in

our training set. The task of the Reduce job is to ag-

gregate the statistics gained for each document x

summarizing the results in a statistic model M

. As

we use Gaussian distributions to model M

for lan-

guage i, the language will be described by the means

and standard deviations σ

for each letter l

in the

alphabet. Based on those Gaussian distribution mod-

els, we can calculate the probability P(x

) for an

unlabeled document x

, which is—as we will see in

section 2.2—the basis for our naive Bayes classiﬁer.

2.2 Cross Apply

A second class of ML applications repeatedly apply

the same logic on a set of models or reference data,

while broadcasting the other. There is only a very

small yet very distinctive difference compared to the

ﬁrst class of Single-pass algorithms: The aspect of

broadcasting. The repeated apply without the need to

loop is perfectly suited for the MapReduce paradigm,

but the broadcasting aspect introduces a new chal-

lenge. It effectively means that a set of data, respec-

tively models, has to be copied to a number of paral-

lel working threads independent of the data distribu-

tion of the main data set. This requirement of mul-

tiple independent data sets is not properly supported

in most MapReduce frameworks and therefore usu-

ally involves an additional preprocessing step to bun-

dle the data sets under common keys and introduce

custom logic to distinguish between them.

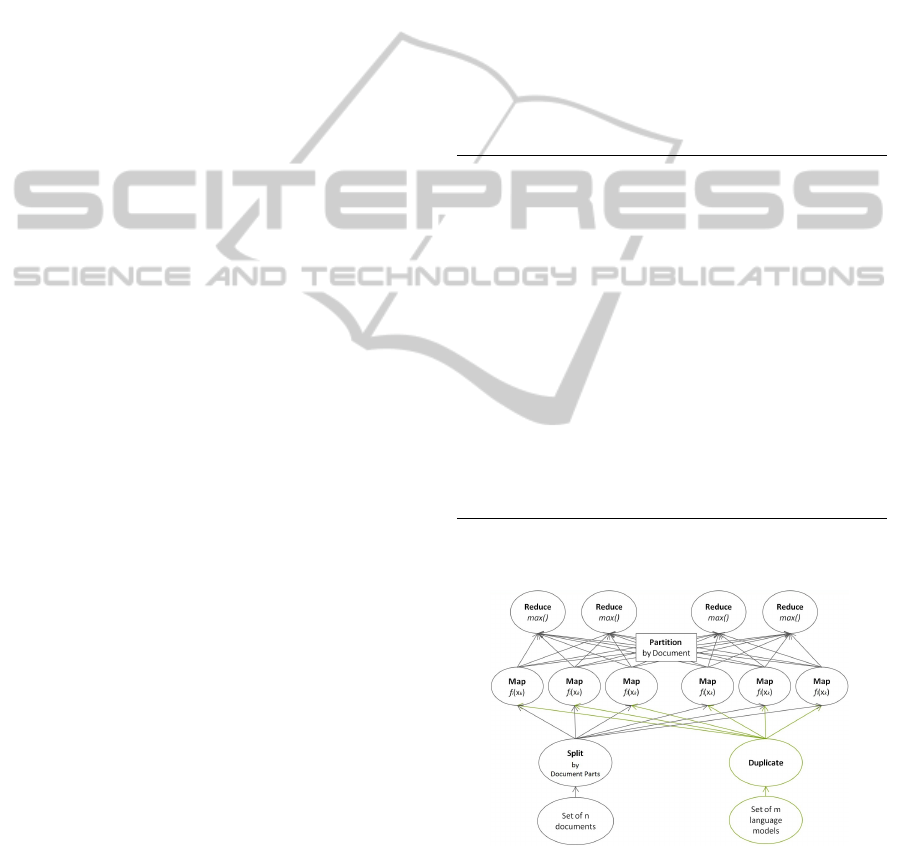

The Cross Apply pattern can be found in a number

of ML concepts such as model choice or meta classi-

ﬁcation, where multiple ML models are applied to the

same data. The data is duplicated and each Map task

processes a different ML model, or even the same ML

model with different conﬁguration parameters. The

Reduce task is used to pick the best model, does a

majority vote of the Map results or aggregates the re-

sults for a ﬁnal classiﬁcation result. In any of those

cases, sharing common data over a number of Map

jobs is essential. Besides the broadcasting another

difference to our previous Single-pass pattern is that

in those scenarios there is no need for multiple paral-

lel reduce operations, but rather one central decision

maker collecting the results of all the Map jobs. Ap-

plying this pattern not only for a single classiﬁcation

or model choice task but a number of them, we again

end up with the same data distribution using multiple

Reduce jobs. The same pattern can also be found in

query-based algorithms like nearest neighbor classi-

ﬁcation, where two independent data sets (the query

set and the reference set) are to be compared (Gillick

et al., 2006).

To illustrate this we go back to the language mod-

els discussed in section 2.1. Since we have already

shown how a naive Bayes language model can be

trained, we focus on using those models for classi-

ﬁcation. Applying those trained language models on

an unknown set of documents < x

,...,x

> and their

subparts x

with the features (i.e., letters) < l

,...,l

for classiﬁcation is again a straight forward Map-

Reduce task. The pseudo code for a maximum-

likelihood based naive Bayes classiﬁcation is shown

in script 2.

01. for all documents x

∈ x

,...,x

02. for all documents parts x

⊂ x

03. for all feature l

∈ l

,...,l

of document x

04. sum

) = count

);

05. od;

06. for all classes c

∈ c

,...,c

07. comp. P(c

);←− Model M

required

08. for all feature l

∈ l

,...,l

of part x

09. comp. P(sum

)|c

);←− Model M

required

10. od;

11. P(x

) =

∏

j=1

P(sum

)|c

);

12. f

) = P(c

) ∗ P(x

);

13. od;

14. od;











MAP

15. f

) =

∏

j=1

( f

));

16. Assign x

to the class of max( f

),..., f

))

)

REDUCE

17. od;

Script 2: Pseudo code of Maximum-likelihood based naive

Bayes classiﬁcation.

Figure 1: Dataﬂow for Script 2.

Even though the pseudo code denotes with

∑

∏

and max many obvious aggregation functions to be

chosen for multiple Reduce tasks, we kept the struc-

ture simple, for the sake of the example, and chose

only a single Map and a single Reduce task. As in

the training phase we have to get the statistics of a

AdvancedAnalyticswiththeSAPHANADatabase

document during the Map phase, but this time we do

not directly pass them to the Reduce task. Instead we

compare the statistic to the language models to calcu-

late the conditional probability P(l

), which means

that each Map job has to have a copy of the language

models. The models must therefore be broadcast to

each Map task. To minimize the data transportation

between Map and Reduce tasks, it is advisable to cal-

culate the discriminate function in line 12 as part of

the Map job—or as an additional Combine task—and

leave the ﬁnal class assignment with max to the Re-

duce task.

Figure 1 illustrates the MapReduce data ﬂow of

the discussed naive Bayes classiﬁcation.

Since the ﬁnal assignment for the class (e.g., lan-

guage) has to be done centrally for each document,

the maximal number of parallel Reduce tasks is lim-

ited by the number of documents to be classiﬁed. The

degree of parallelization of the Map job however is

only limited by the combination of document parts

and classes, since each document part has to be com-

pared to each class. However if only few documents

and classes have to be considered, it may as well make

sense to separate the Map jobs further along different

features.

2.3 Repeated-pass

The class of iterative ML algorithms—perhaps the

most common within the machine learning research

community—can also be expressed within the frame-

work of MapReduce by chaining together multiple

MapReduce tasks (Chu et al., 2006). While such al-

gorithms vary widely in the type of operation they

perform on each datum (or pair of data) in a training

set, they share the common characteristic that a set of

parameters is matched to the data set via iterative im-

provement. The update to these parameters across it-

erations must again decompose into per-datum contri-

butions. The contribution to parameter updates from

each datum (the Map function) depends on the output

of the previous iteration.

When ﬁtting model parameters via a perceptron,

boosting, or support vector machine algorithm for

classiﬁcation or regression, the Map stage of train-

ing will involve computing inference over the train-

ing example given the current model parameters. A

subset of the parameters from the previous iteration

must be available for inference. However, the Re-

duce stage typically involves summing over parame-

ter changes. Thus, all relevant model parameters must

be broadcast to each Map task. In the case of a typ-

ical featurized setting, which often extracts hundreds

or thousands of features from each training example,

the relevant parameter space needed for inference can

be quite large.

01. do{

02. E-step: z

(m)

= argmax

z∈Z(x)

P(z|x,θ

(m)

) } MAP

03. M-step: θ

(m+1)

= argmax

θ∈Ω

P(x,z

(m)

|θ) } REDUCE

04. } while(θ

(m)

− θ

(m+1)

> ε) } BREAK

Script 3: Pseudo Code for the EM-Algorithm.

Figure 2: Dataﬂow for Script 3.

To illustrate this we return to our previous exam-

ple of Gaussian distributions to model language prop-

erties based on the letter distribution. In section 2.1

we kept things simple and described the letter distri-

bution of a single letter with a single Gaussian func-

tion deﬁned by a single means and standard devia-

tions. This is a simplifying assumption commonly

found to be able to solve a given problem with the

ﬁrst class of Single-pass algorithms. But in fact a sin-

gle Gaussian function may not be good enough to de-

scribe the observed letter distribution. We may have

to use a different distribution function or model like

a Gaussian mixture model (GMM), consisting of a

weighted combination of multiple Gaussian distribu-

tions. The problem here is that given the letter ob-

servations in our training data set, we can not deduce

multiple Gaussian distributions. We just would not

know which letter observation in which document has

to be associated with which distribution. But with-

out this knowledge we are not able to describe the

different Gaussian distributions in the ﬁrst place, be-

cause we can not calculate the means and standard

deviations for the different distributions and in conse-

quence can not ﬁt the GMM weights to describe the

observed distribution.

This is a classic situation where on the one hand latent

variables (the association of observation to distribution) are

missing, which would be needed to ﬁt a optimized model.

But on the other hand to approximate the latent variables, a

model is missing to derive the variable from.

DATA2013-2ndInternationalConferenceonDataManagementTechnologiesandApplications

The well-known EM algorithm (A. P. Dempster,

2008) is an iterative approach to solve this kind of

situations, by maximizing the likelihood of a train-

ing set given a generative model with latent variables.

The pseudo code for the EM algorithm is shown in

script 3. The expectation step (E-step) of the algo-

rithm computes posterior distributions over the latent

variables z given the current model parameters θ

(m)

and the observed data x. The maximization step (M-

step) adjusts model parameters θ

m+1

to maximize the

likelihood of the data x assuming that latent variables

(m)

take on their expected values.

In our GMM example the aim of the EM-

algorithms is to estimate the unknown parameters rep-

resenting the mixing value τ

between the Gaussians

and the means µ

and standard deviations σ

with

θ = (τ

,τ

,µ

,σ

), based on the latent vari-

able z assigning each letter to one of two possible

Gaussian distributions. The naive representation of z

is a very high dimensional vector with an entry for

each single occurring letter in all documents. Ap-

proximating such a high dimensional vector may not

make sense, so a simpliﬁcation could be to assume

that all letters of a document can be assigned to the

same Gaussian distribution. This assumption in par-

ticular does make sense, if we know that the docu-

ments used for the training task come from different

sources. For instance, some documents contain politi-

cal speeches, whereas others are taken from technical

reports, and we can therefore assume that the different

vocabulary in the documents inﬂuence different letter

distributions even within the same language.

Projecting onto the MapReduce framework (see

Figure 2), the Map task computes posterior distri-

butions over the latent variables of a datum using

the current model parameters; the maximization step

is performed as a single reduction, which sums the

statistics and normalizes them to produce updated pa-

rameters. This process has to be repeated until a break

condition is reached, which is usually deﬁned by a de-

crease of model parameter modiﬁcations during the

iterations.

2.4 Cross Apply Repeated-pass

The previous sections 2.2 and 2.3 both discussed clas-

sic processing patterns found in common ML algo-

rithms, which are beyond the standard MapReduce

paradigm. Section 2.2 introduced the repeated but in-

dependent application of the same logic to variations

of data or models, whereas section 2.3 introduced the

repeated and dependent application of the same logic

in an iterative fashion. In many ML algorithms you

ﬁnd only one of those pattern at a time, but in fact they

are orthogonal and can also appear both at the same

time. This combined pattern of repeated apply with

iterative learning can in particular be seen when ML

algorithms are combined, which is commonly done

in the ﬁeld of machine learning. Often this pattern

can be mapped to a number of independent instances

of the iterative learning pattern, each processing its

iterative loop independently. But it is not always pos-

sible to keep the iterative loop on the outermost part

of the combined algorithm. In particular if a sepa-

ration between per-processing and loop processing is

unwanted.

01. for all classes c

∈ c

,...,c

02. for all documents d

∈ d

,...,d

of class c

03. for all feature l

∈ l

,...,l

of document d

04. sum

) = count(l

);

05. od;

06. od;











MAP

07. for all feature l

∈ l

,...,l

in all d

of class c

08. x

k=1

sum

) } RED

09. do{

10. z

(m)

= argmax

z∈Z(x

)

P(z

,θ

(m)

) } MAP

11. θ

(m+1)

= argmax

θ∈Ω

P(x

(m)

|θ

) } RED

12. } while (θ

(m)

− θ

(m+1)

> ε) } BRK

13. GMM

= θ

(m)

14. od;

15. M

j=1

GMM

} RED

16. od;

Script 4: Pseudo code to calculate GMM distributions for a

set of features and different classes.

To illustrate this we return to our previous ex-

ample. In section 2.3 we discussed how the EM-

Algorithm can be used to iteratively retrieve all re-

quired parameters for a Gaussian mixture model

(GMM) to describe a single letter distribution, but in

fact for our naive Bayes model we do not need a sin-

gle GMM, but one for each letter-class combination.

So for a GMM version of the naive Bayes model the

Pseudo code of script 1 in the lines 9-14 would have

to be replaced with the Pseudo code from script 3,

as denoted in script 4. Consequently the code part

(lines 7-16), that was before handled by a single Re-

duce task, now splits further apart into smaller tasks

including the Map/Reduce tasks and the loop of the

EM algorithm.

2.5 Summary

In the previous sections we introduced four machine

learning processing patterns. The ﬁrst pattern ’Single-

pass’ had a very close match to the classic MapRe-

duce programming paradigm. Data is read once dur-

ing a single data pass in the Map phase and results

AdvancedAnalyticswiththeSAPHANADatabase

are combined and aggregated during a ﬁnal Reduce

phase.

The second processing pattern ’Cross Apply’ ex-

tends the classic MapReduce paradigm such that more

than one data source (typically data and model) has

to be jointly processed and the cross combination of

both (data and model) spans the degree of parallel

processing.

The third pattern ’Repeated-pass’ further intro-

duces the data dependent loop. Again data can be pro-

cessed in parallel using Map and Reduce tasks, but the

process has to be iteratively repeated, typically with a

data dynamic break condition. Since classic MapRe-

duce frameworks do not provide a solution for loops,

this iterative loop has usually to be handled in an ap-

plication layer on top of the MapReduce framework.

Performance wise this kind of context switch is to be

avoided, but moreover it is only feasible if the loop is

at the outermost part of the algorithm.

Our fourth processing pattern ’Cross Apply

Repeated-pass’ however introduced loops as being

part of the parallel processing threads, where this is

not true anymore.

Additionally the fourth example clearly illustrates

that the algorithms in our examples demand more

ﬂexible combinations of Map and Reduce tasks than

the ordinary closely coupled MapReduce. In fact we

ﬁnd many examples of multiple Reduce tasks, per-

forming aggregations and preaggregations at differ-

ent stages of the algorithm, similar to discussion in

MapReduceMerge (Yang et al., 2007).

Already in our ﬁrst example in script 1 the brack-

ets indicating a single Map followed by a single Re-

duce, are in fact a simpliﬁcation. Having a closer look

at the pseudo code we see that the count(l

) Opera-

tion in line 4 is equivalent to the well known word

count example normally used to illustrate a classic

Map-Reduce task. Counting the features for docu-

ment parts and aggregating the count documentwise,

would be the usual MapReduce approach. But in

the context of our algorithm we thereby introduce a

MapReduceReduce. Having an even closer look at

the pseudo code we see that the union operation in

line 16 is again a decoupled Reduce (or merge) task,

which can be done independent and on top of the par-

allel calculated Gaussian distributions. So already

our ﬁrst Script shows an example for MapReduce-

ReduceReduce rather then just MapReduce.

The text classiﬁcation example of the previous

sections has been primarily chosen for illustration

purpose and because of its close relation to clas-

sic MapReduce tasks. Although text classiﬁcation

applications usually do not require data schemas,

it is not uncommon that systems like Customer-

Relationship-Management indeed store text content

in a database. This is in particular the case for the

SAP HANA database, which has a text search origin.

Other machine learning algorithms, such as k-Means,

k-Nearest Neighbor and Support Vector Machines,

can beneﬁt even more from being implemented in

a database context because of the support of data

schemas.

3 WORKER FARM

The goal of our architecture is to embed second-order

functions, such as Map and Reduce, as seamless as

possible into the otherwise relational concept of the

SAP HANA database. As such, we attempt to in-

clude custom code, written in non-relational program-

ming languages, such as R, into the parallelized exe-

cution plan of the database. As basic structure for

embedding second-order functions into the Database

we chose one of the most classical task parallel skele-

tons: the Worker Farm (Poldner and Kuchen, 2005).

The Worker Farm skeleton consists of the following

three basic methods.

Figure 3: The Worker Farm parallel architecture.

1. The split() method is responsible for distributing

the incoming dataset.

2. The work() method provides individual runtime

environments for each dataset executing the pro-

vided ﬁrst-order function.

3. The merge() method combing the individual re-

sults from all workers.

Figure 3 illustrates the three methods and the run-

time behavior of the database including those meth-

ods as logical database operators.

Instead of operating on a key-value store orga-

nized through a distributed ﬁle system, the SAP

HANA database operates on in-memory tables orga-

nized through a distributed relational database sys-

DATA2013-2ndInternationalConferenceonDataManagementTechnologiesandApplications

tem. Consequently the methods split(), work() and

merge() operate on relational in-memory tables.

The split() method may for example implement

any kind of distribution and partitioning schema,

which guarantees for n following worker operations

n distinct in-memory tables references. This may be a

duplication of the input table by multiple reference,

this may be a partitioning of the input table using

hash, round-robin or range partitioning or even a cus-

tom partitioning provided through custom code.

The work() method is a placeholder for custom

code, provided though one of the custom code lan-

guages supported by the SAP HANA database, such

as R (R Development Core Team, 2005) or L.

Open source R is a very ﬂexible and extension-rich

programing language particularly designed for ma-

chine learning and data mining tasks. R comes with

its own runtime, and input tables consumed by a cal-

culation Engine R operator (Große et al., 2011) are

copied to it for processing.

L is a SAP-internal, LLVM-based, just in time com-

piled programming language and provides a safe sub-

set of C/C++. L is statically typed and allows to deﬁne

and call functions, or use methods deﬁned on SAP

HANA database objects, but it does not have unsafe

access to pointers. As such, an L operator allows to

directly manipulate in-memory tables provided as in-

put to the operator.

The merge() method ﬁnally combines the results

form all workers. The simplest and maybe most com-

mon merge method is a union all. But also any kind

of aggregation function or custom merge maybe used.

3.1 Stacked Worker Farm

In many cases of machine learning applications that

follow the Single-pass pattern (see section 2.1), a

single Worker Farm with an aggregation function as

merge()-method is sufﬁcient to express the neces-

sary logic. For other cases, where custom coded Re-

duce tasks are required, stacking two or more Worker

Farms is necessary.

Multiple Worker Farm skeletons and their exe-

cuted custom code can be stacked on top of each other

in a way that the output of one Worker Farm will

be used as input to the next. Different from clas-

sic MapReduce frameworks, recurring Map or Re-

duce tasks do neither involve writing intermediate re-

sults to the ﬁle system nor jumping between applica-

tion layer and MapReduce framework for orchestra-

tion of repeated executions. Instead, intermediate re-

sults are kept as temporal in-memory tables (and only

persisted if explicitly enforced), and the orchestration

of repeated executions is handled inside the database

by building a uniﬁed plan, which can further be opti-

mized.

Depending on the used split and merge methods

and the involved list of key columns, the Optimizer

may choose to combine different Worker Farm layers

to a combined execution plan avoiding intermediate

steps. For instance, with an hash split and union all

merge, it is possible to exploit key/superkey relation-

ships and reuse partitioning done for the ﬁrst Worker

Farm also for the second Worker Farm, or—as illus-

trated in ﬁgure 4—introduce a Shufﬂe step between

two Worker Farm layers instead of single point merge

and followed by another split. This is possible be-

cause the framework is—different to classic MapRe-

duce implementations—aware of key/superkey rela-

tionships since combined keys are not hidden from

the framework, but exposed by the list of key columns

used for the split-method.

Figure 4 illustrates four possible optimizations,

which result from four different relationships be-

tween the split criteria of the ﬁrst Worker Farm s

and the second s

. The rightmost execution plan

shows the case where s

and s

are independent and

a repartitioning—in the context of MapReduce called

Shufﬂe—of the output of the ﬁrst Worker Farm is re-

quired. From this ﬁgure we can see that the classic

Map-Shufﬂe-Reduce is just one possible outcome of

combining two Worker Farms.

Since our framework is embedded inside a

database we can not only stack multiple Worker

Farms, we can also combine a Worker Farm with a

relational operator like a Join. This is exactly what

is needed to implement the Cross Apply Pattern (see

section 2.2). Multiple Data Sources are combined

using a join operation followed by one or several

stacked Worker Farms. Depending on the relationship

of Worker Farm split and join conditions, the join op-

eration can be included into the parallel processing of

the Worker Farm.

3.2 Worker Farm Loop

In oder to support loops within the engine, we extend

the basic Worker Farm as illustrated in Figure 5.

The ﬁrst extension is that the work methods con-

sume two distinct input sets. Invariant data and vari-

ant data, feed to the worker with possible two differ-

ent but compatible split methods. The main reason

to distinguish between the two different input sets is

the optimization that invariant data only has to be dis-

tributed once and can be kept in the cache, while vari-

ant data has to be distributed for each iteration.

A second extension is that the work method

may—but does not have to—return two distinct out-

AdvancedAnalyticswiththeSAPHANADatabase

Figure 4: Stacking two Worker Farms.

Figure 5: The Worker Farm Loop.

put sets.

The most important extension however is the in-

troduction of a break() method. The break() method

is a placeholder for custom code, which consumes the

merge results m

of the worker and returns a boolean

indicating whether or not another iteration is to be

triggered. If no further iterations are to be trigged,

the results of the merge m

is returned, otherwise the

result if the merge m

is put to the cache and fed back

as variant data for the processing of another iteration.

An engine-internal orchestration layer is responsible

for keeping track of the cached in-memory tables and

to trigger further iterations.

With the extended Worker Farm Loop we are able

to express algorithms described with the processing

pattern Repeated-pass (see section 2.3).

3.3 Embedded Worker Farm

With the ability to handle loops inside the engine, as

discussed in previous section 3.2, we already fulﬁll an

imported requirement of our fourth processing pattern

’Cross Apply Repeated-pass’ (see section 2.4). How-

ever, missing is a construct to express loops as being

part of an otherwise parallel processed execution. For

this another extension of the Worker Farm skeleton is

required. The ability to embed a Worker Farm or a

Worker Farm Loop inside another Worker Farm. To

Figure 6: Worker Farm as part of another Worker Farm.

support this, we allow to reference another Worker

Farm in place of the work method. Figure 6 illus-

trates the embedding of a Worker Farm without Loop

as part of another Worker Farm.

4 EVALUATION

We have implemented the different Worker Farmer

Patterns within the SAP HANA database using the

calculation engine, which allows to deﬁne a database

execution plan by expressing it through an abstract

data ﬂow graph (calculation model). Details regard-

ing calculation models can be found at (Große et al.,

2011). Source nodes represent either persistent table

structures or the outcome of the execution of other

calculation models. Inner nodes reﬂect the data pro-

cessing operations consuming either one or multiple

incoming data ﬂows. Those data processing opera-

tions can be intrinsic database operations like pro-

jection, aggregation, union or join, but in our Map-

Reduce context more importantly they can also be

custom operators processing custom coding. With

this we can express Map and Reduce as well as any

other second-order function as custom operator, in-

troducing the actual data processing though custom

code.

In the following section we discuss our evalua-

DATA2013-2ndInternationalConferenceonDataManagementTechnologiesandApplications

tions for each of the discussed processing pattern. The

hardware used for our evaluation is an Intel



Xeon



X7560 processor (4 sockets) with 32 cores 2.27 GHz

using hyper-threading and 256 GB of main memory.

All experiments where conducted based on the Cana-

dian Hansard Corpus (The Canadian Hansard Corpus,

2001), a multilingual text corpus derived from debates

of the Canadian Parliament published in the country’s

ofﬁcial languages English and French.

4.1 Single-pass

For the evaluation of the Single-pass pattern (see sec-

tion 2.1) we extracted 994,475 text documents of

length 1000 characters from the Hansard Corpus and

implemented the naive Bayes Training example from

Script 1 using a Stacked Worker Farm (see section

3.1). The ﬁrst Worker Farm (Map) implements the

character counting as indicated in Script 1 and par-

allelizes over the number of documents. The sec-

ond Worker Farm (Reduce) implements the mean and

standard deviation calculation, parallelizing over the

feature (26 letters) class (2 languages) combinations.

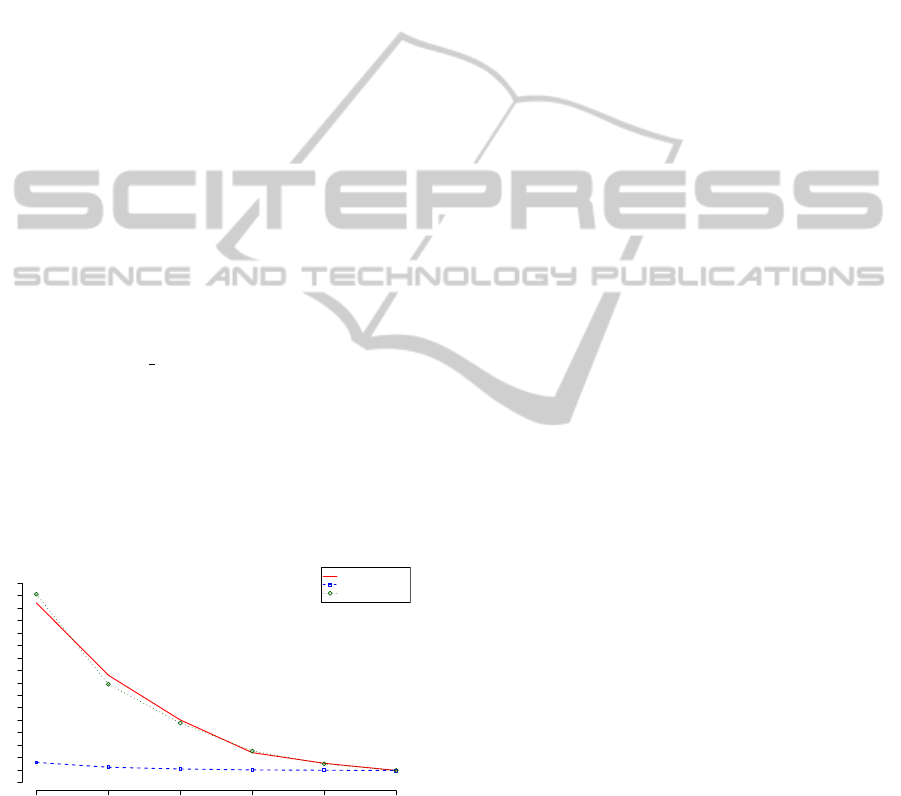

Figure 7 shows the actual execution time, when

varying the number of Map and Reduce tasks. The

curve label Map-X Reduce-32 for instance means

that the measurements we conducted were using a

constant number of 32 Reduce tasks and varying num-

ber of X Map tasks. It can easily be seen that the over-

all execution time is mainly dominated by the number

of Map jobs, whereas the Reduce task of calculating

mean and standard deviation does not scale, because

the calculation is just to simple too keep the CPUs

busy.

●

Number of Map/Reduce tasks

Execution time (seconds)

1 2 4 8 16 32

0 200 400 600 800 1000 1200 1400 1600

●

Map−X_Reduce−32

Map−32_Reduce−X

Map−X_Reduce−X

Figure 7: Execution time for naive Bayes Training.

4.2 Cross Apply

For the evaluation of the Cross Apply pattern (see sec-

tion 2.2) we implemented the Maximum-likelihood

classiﬁcation example from Script 2 by stacking three

Worker Farms. The classiﬁcation was conducted

based on 198,895 text documents of length 5000 char-

acters. The ﬁrst Worker Farm (Map1) does the let-

ter counting analogous to the Map-task in the Train-

ing example, calculating the counting statistic for sub

documents of length 1000 characters. The second

Worker Farm (Map2) implements the actual classiﬁ-

cation, comparing the sub document statistics against

each language model (letter mean and standard de-

viation trained during a previous evaluation) and as-

signing each sub document to a class. Both Map

tasks parallelize over the number of sub documents

and are therefore scheduled together building concep-

tional one joined Map-task. The third Worker Farm

(Reduce) however combines the sub document clas-

siﬁcation by majority voting and ﬁnally assigns each

document a class. It parallelizes over the original doc-

uments.

Figure 8 shows the execution time, when varying

the number of Map and Reduce tasks. As expected

the Map, doing both counting and actual classiﬁca-

tion scales, whereas the Reduce doing only the the

ﬁnal aggregation does not. Note the minimal increase

of the Reduce curve, indicating the overhead of the

system. It also shows that the saturation of the Map

curve is mainly caused by too few workload per CPU

and not by the systems overhead for scheduling the

tasks.

4.3 Repeated-pass

For the evaluation of the Repeated-pass pattern (see

section 2.3) we used the Worker Farm Loop skele-

ton from section 3.2 implementing a data ﬂow sim-

ilar to ﬁgure 2. The evaluation was conducted us-

ing three datasets: 465,115 English (ENG) docu-

ments, 529,235 French (FRA) documents, and a su-

perset (ALL) containing both classes. Each of the

datasets had been preprocessed to extract the letter

counting. The E-Step (Map) calculates the distance

between each document and its 26 letter counts and 5

Gaussian distribution models per class with mean and

standard deviation for each letter, assigning the best

ﬁtting model. The M-Step (Reduce) recalculates the

mean and standard deviation, given the assignment

from the E-Step. In this setup the EM-Algorithm is

not much different from a k-Means Clustering, except

that the overall goal is not the clustered documents but

the Gaussian models and the weights between them,

given by the distribution of documents to the models.

To guarantee comparable results between multiple ex-

ecutions we use a ﬁxed number of ten iterations, in-

stead of a dynamic break condition.

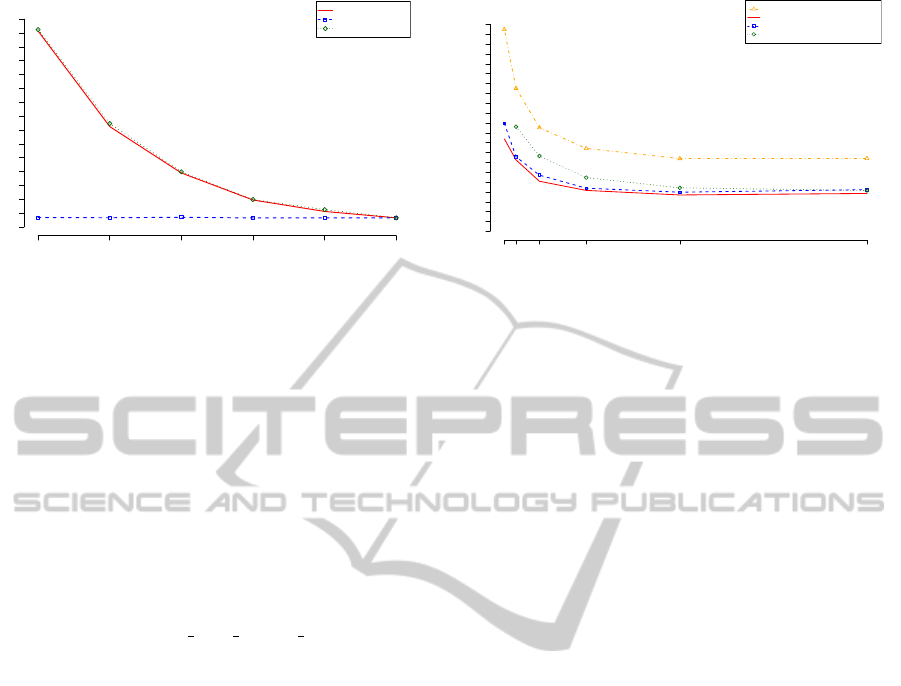

The measurements in Figure 9 show a quick satu-

ration after already 8 parallel Map tasks and a slight

AdvancedAnalyticswiththeSAPHANADatabase

●

Number of Map/Reduce tasks

Execution time (seconds)

1 2 4 8 16 32

0 200 400 600 800 1000 1200 1400

●

Map−X_Reduce−32

Map−32_Reduce−X

Map−X_Reduce−X

Figure 8: Execution time for naive Bayes Classiﬁcation.

increase between 16 to 32 map job due to the system

scheduling overhead. Furthermore we can see that the

execution time for the superset (ALL) is more or less

a direct aggregation of the execution times of the two

subsets (ENG and FRA).

4.4 Cross Apply Repeated-pass

We have argued in section 2.4 that the GMM model

ﬁtting of the EM-Algorithmn for two or more classes

(FRA and ENG) contain two or more independent

loops, which can be modeled and executed as such.

The curve ”ParallelLoop ALL Map-X Reduce-2” in

Figure 9 shows the execution time for such indepen-

dent loops. We implemented it using an embedded

Worker Farm (see section 3.3) including two Worker

Farm Loops. The outer Worker Farm splits the data

into the two classes English and French, whereas the

inner embedded Worker Farm Loops implement the

EM-Algorithm, just like in previous Repeated-pass

evaluation.

The curve for the embedded parallel loops with p

Map tasks, corresponds to the two single loop curves

for FRA and ENG with p/2 Map tasks. As expected

we can see that the execution time of the embedded

parallel loop is dominated by the slowest of the in-

ner loops (here FRA). Nevertheless we can also see

that executing independent parallel loops is still faster

than one loop with multiple parallel Map tasks. This

is because even if we have multiple Map and Reduce

tasks, we still have for each loop iteration a single

synchronization point deciding about the break con-

dition.

5 RELATED WORK

Most related to our approach are extensions to

Hadoop to tackle its inefﬁciency of query processing

●

Number of Map tasks

Execution time (seconds)

1 2 4 8 16 32

0 40 80 120 160 200 240 280 320 360 400

●

SingleLoop_ALL_Map−X_Reduce−2

SingleLoop_ENG_Map−X_Reduce−1

SingleLoop_FRA_Map−X_Reduce−1

ParallelLoop_ALL_Map−X_Reduce−2

Figure 9: Execution time for EM-Algorithm (Script 3).

in different areas, such as new architectures for big

data analytics, new execution and programming mod-

els, as well as integrated systems to combine MapRe-

duce and databases.

An example from the ﬁeld of new architectures is

HadoopDB (Abouzeid et al., 2009), which turns the

slave nodes of Hadoop into single-node database in-

stances. However, HadoopDB relies on Hadoop as its

major execution environment (i.e., cross-node joins

are often compiled into inefﬁcient Map and Reduce

operations).

Hadoop++ (Dittrich et al., 2010) and Clydes-

dale (Kaldewey et al., 2012) are two examples out

of many systems trying to address the shortcomings

of Hadoop, by adding better support for structured

data, indexes and joins. However, like other sys-

tems, Hadoop++ and Clydesdale cannot overcome

Hadoop’s inherent limitations (e.g., not being able to

execute joins natively).

PACT (Alexandrov et al., 2010) suggest new ex-

ecution models, which provide a richer set of opera-

tions then MapReduce (i.e., not only two unary oper-

ators) in order to deal with the inefﬁciency of express-

ing complex analytical tasks in MapReduce. PACT’s

description of second-order functions with pre- and

post-conditions is similar to our Worker Farm skele-

ton with split() and merge() methods. However, our

approach explores a different design, by focusing on

existing database and novel query optimization tech-

niques.

HaLoop (Bu et al., 2010) extends Hadoop with

iterative analytical task and particular addresses the

third processing pattern ’Repeated-pass’ (see section

2.3). The approach improves Hadoop by certain op-

timizations (e.g., caching loop invariants instead of

producing them multiple times). This is similar to our

own approach to address the ’Repeated-pass’ process-

ing pattern. The main difference is that our frame-

work is based on a database system and the iteration

handling is explicitly applied during the optimization

DATA2013-2ndInternationalConferenceonDataManagementTechnologiesandApplications

phase, rather then implicitly hidden in the execution

model (by caching).

Finally, major database vendors currently include

Hadoop as a system into their software stack and

optimize the data transfer between the database and

Hadoop e.g., to call MapReduce tasks from SQL

queries. Greenplum and Oracle (Su and Swart, 2012)

are two commercial database products for analytical

query processing that support MapReduce natively in

their execution model. However, to our knowledge

they do not support extensions based on the process-

ing patterns described in this paper.

6 CONCLUSIONS

In this paper we derived four basic parallel processing

patterns found in advanced analytic applications—

e.g., algorithms from the ﬁeld of Data Mining

and Machine Learning—and discussed them in the

context of the classic MapReduce programming

paradigm.

We have shown that the introduced programming

skeletons based on the Worker Farm yield expres-

siveness beyond the classic MapReduce paradigm.

They allow using all four discussed processing pat-

terns within a relational database. As a consequence,

advanced analytic applications can be executed di-

rectly on business data situated in the SAP HANA

database, exploiting the parallel processing power of

the database for ﬁrst-order functions and custom code

operations.

In future we plan to investigate and evaluate op-

timizations which can be applied combining classical

database operations - such as aggregations and joins -

with parallelized custom code operations and the lim-

itations which arise with it.

REFERENCES

A. P. Dempster, N. M. Laird, D. B. R. (2008). Maxi-

mum Likelihood from Incomplete Data via the EM

Algorithm. Journal of the Royal Statistical Society,

39(1):1–38.

Abouzeid, A., Bajda-Pawlikowski, K., Abadi, D., Silber-

schatz, A., and Rasin, A. (2009). HadoopDB: an

architectural hybrid of MapReduce and DBMS tech-

nologies for analytical workloads. Proc. VLDB En-

dow., 2(1):922–933.

Alexandrov, A., Battr

e, D., Ewen, S., Heimel, M., Hueske,

F., Kao, O., Markl, V., Nijkamp, E., and Warneke, D.

(2010). Massively Parallel Data Analysis with PACTs

on Nephele. PVLDB, 3(2):1625–1628.

Apache Mahout (2013). http://mahout.apache.org/.

Bu, Y., Howe, B., Balazinska, M., and Ernst, M. D. (2010).

HaLoop: Efﬁcient Iterative Data Processing on Large

Clusters. PVLDB, 3(1):285–296.

Chu, C.-T., Kim, S. K., Lin, Y.-A., Yu, Y., Bradski, G. R.,

Ng, A. Y., and Olukotun, K. (2006). Map-Reduce for

Machine Learning on Multicore. In NIPS, pages 281–

288.

Dean, J. and Ghemawat, S. (2004). MapReduce: Simpliﬁed

Data Processing on Large Clusters. In OSDI, pages

137–150.

Dittrich, J., Quian

e-Ruiz, J.-A., Jindal, A., Kargin, Y., Setty,

V., and Schad, J. (2010). Hadoop++: making a yellow

elephant run like a cheetah (without it even noticing).

Proc. VLDB Endow., 3(1-2):515–529.

Gillick, D., Faria, A., and Denero, J. (2006). MapReduce:

Distributed Computing for Machine Learning.

Große, P., Lehner, W., Weichert, T., F

arber, F., and Li, W.-

S. (2011). Bridging Two Worlds with RICE Integrat-

ing R into the SAP In-Memory Computing Engine.

PVLDB, 4(12):1307–1317.

Kaldewey, T., Shekita, E. J., and Tata, S. (2012). Clydes-

dale: structured data processing on MapReduce. In

Proc. Extending Database Technology, EDBT ’12,

pages 15–25, New York, NY, USA. ACM.

Poldner, M. and Kuchen, H. (2005). On implementing the

farm skeleton. In Proc. Workshop HLPP 2005.

R Development Core Team (2005). R: A Language and

Environment for Statistical Computing. R Foundation

for Statistical Computing, Vienna, Austria. ISBN 3-

900051-07-0.

Sikka, V., F

arber, F., Lehner, W., Cha, S. K., Peh, T., and

Bornh

ovd, C. (2012). Efﬁcient transaction processing

in SAP HANA database: the end of a column store

myth. In Proc. SIGMOD, SIGMOD ’12, pages 731–

742, New York, NY, USA. ACM.

Su, X. and Swart, G. (2012). Oracle in-database Hadoop:

when MapReduce meets RDBMS. In Proc. SIGMOD,

SIGMOD ’12, pages 779–790, New York, NY, USA.

ACM.

The Canadian Hansard Corpus (2001). http://www.isi.edu/

natural-language/download/hansard.

Yang, H.-c., Dasdan, A., Hsiao, R.-L., and Parker, D. S.

(2007). Map-Reduce-Merge: simpliﬁed relational

data processing on large clusters. In Proc. SIGMOD,

SIGMOD ’07, pages 1029–1040, New York, NY,

USA. ACM.

AdvancedAnalyticswiththeSAPHANADatabase
