Creating Domain-Speciﬁc Modeling Languages with OPM/D

A Meta-modeling Approach

Arieh Bibliowicz and Dov Dori

Technion, Israel Institute of Technology, Haifa, Israel

Keywords:

Domain-speciﬁc Modeling Languages, Object-process Methodology, Meta-modeling.

Abstract:

Domain-speciﬁc languages and model-driven development are two promising approaches for tackling the

complexity of software systems development. However, creating domain-speciﬁc modeling languages is a

complex and lengthy task which makes the creation of DSMLs only feasible in large and complex projects. To

alleviate this difﬁculty, we developed OPM/D, a visual meta-modeling language for the deﬁnition of domain-

speciﬁc modeling languages. Languages in OPM/D are deﬁned via a static structural meta-model of the

language and a set of validation rules that deﬁne the non-structural constraints of the language. The language

editor is created on-the-ﬂy through interpretation of the static structure and validation rules, minimizing the

time between language deﬁnition and its use. Our approach has been applied to deﬁne a subset of the OPM

modeling language, and a prototype tools is being developed using the Eclipse platform and technologies.

1 INTRODUCTION

Developing and evolving complex software systems

is difﬁcult. A large portion of software-intensive

projects get behind schedule, many of the features

they provide do not correspond to the ones the user

had required, they are not stable after delivery, and

their total costs are well above their initial estimated

ones. Several publications ((United States Govern-

ment Accountability Ofﬁce, 2008), (White et al.,

2007) and (The Standish Group International, 2009))

show recent examples of these ailments. In the clas-

sical software engineering essay ”No Silver Bullet”

(Brooks, 1987), Fred Brooks noted two kinds of com-

plexity in software: essential and accidental. Since

”essential” complexity cannot be removed from soft-

ware, we must try to reduce the ”accidental” complex-

ity in the development of software systems. Two ad-

vances in software development propose ways to cope

with this ”accidental” complexity: Model Driven De-

velopment (MDD) and Domain-speciﬁc Languages

(DSLs). To join these two ﬁelds together, there is

need to create Domain-speciﬁc Modeling Languages

(DSMLs).

Developing DSLs is not a simple task, and it be-

comes even more complex when developing DSMLs.

To help reduce this complexity barrier, we have cre-

ated and implemented OPM/D, a simple yet powerful

modeling language for deﬁning domain-speciﬁc mod-

eling languages. OPM/D is the ﬁrst step in our goal of

creating fully executable DSMLs in a visual and intu-

itive way. This work is structured a follows: Section

2 surveys related work on the subject of DSML cre-

ation tools. Section 3 describes our approach for cre-

ating new DSMLs through OPM/D using a simpliﬁed

version of OPM as the language being deﬁned, and

Section 4 discusses the approach and presents ideas

and plans for future development.

2 RELATED WORK

There are three basic approaches for developing

DSMLs: class frameworks, code generation toolkits

and meta-tool platforms.

Class frameworks (software development com-

ponents) provide the lowest level of abstraction to

the language creator, but allow a very high level of

customization. Developing languages using these

frameworks requires experienced software develop-

ers and long development times. Languages cre-

ated with these frameworks cannot be deﬁned di-

rectly by domain experts (since most of them are

not software developers), neither do they allow lan-

guage prototyping because of their long development

cycles. Some examples of existing graphical class

frameworks are GEF (Eclipse Foundation, 2012a),

Netbeans Visual Library (Netbeans, 2010), JGraphX

473

Bibliowicz A. and Dori D..

Creating Domain-Speciﬁc Modeling Languages with OPM/D - A Meta-modeling Approach.

DOI: 10.5220/0004431704730479

In Proceedings of the 8th International Joint Conference on Software Technologies (ICSOFT-PT-2013), pages 473-479

ISBN: 978-989-8565-68-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

(JGraph Ltd., 2013), Graphiti (Eclipse Foundation,

2012c), and JUNG (JUNG Framework Development

Team, 2010).

Code generation toolkits provide a higher level of

abstraction to the language creator. In these toolk-

its, the language editor is created by generating code

based on some type of language speciﬁcation. While

these tools allow for both faster and easier deﬁnition

of DSMLs, customizing the code generated by these

tools is usually a complex task. Furthermore, changes

made to the generated code complicate changing the

original language speciﬁcation and re-generating the

editor code. Some examples of generation toolkits are

GMF (Eclipse Foundation, 2012b), Visual Studio Vi-

sualization and Modeling SDK (Microsoft Corpora-

tion, 2012) and VisualDiaGen (Minas, 2004).

Meta-tool platforms provide a higher level or

ﬂexibility by using meta-model language interpreta-

tion instead of code generation. In these platforms,

the language creator deﬁnes the meta-model of the

language using the deﬁnitions available in the tool.

When the user wants to create a model for a desired

language, the platform interprets the meta-model and

creates a matching editor for the model. Meta-tool

platforms support better meta-model evolution and in

some cases are able to validate meta-model changes

that may invalidate existing models. Some exam-

ples of meta-tool platforms are MetaEdit+ (MetaCase,

2013), GME (Davis, 2003), and Marama (Grundy

et al., 2013). Version 2 of the UML language (OMG,

2010) provides a mechanism that can be used to de-

scribe DSMLs using the proﬁles mechanism (Selic,

2007), but the authors are unaware of any systems

that implement the deﬁnition of a new DSML using

this mechanism.

OPM/D uses the meta-tool platform approach.

The main differences between OPM/D and existing

meta-tool approaches is that with OPM/D the en-

tire language deﬁnition is done visually. This is

in contrast with MetaEdit+, where the language is

deﬁned using dialogs; GME, where language con-

straints are deﬁned using OCL (OMG, 2012); and

Marama, which also uses OCL to deﬁne constraints.

3 CREATING DSMLS WITH

OPM/D

OPM/D provides a visual language and a methodol-

ogy to deﬁne domain-speciﬁc modeling languages.

New DSMLs are deﬁned by creating a language meta-

model, which speciﬁes the syntax of the language be-

ing deﬁned and what operations the modeler can ap-

ply at each point during the model construction pro-

cess. This language meta-model is created using the

OPM/D meta-modeling language, which is a subset

of the graphical language used by the Object-Process

Methodology (OPM) (Dori, 1999). We decided to

use OPM as the basis our meta-modeling language

because of the following reasons:

1. OPM has been used to model real-world prob-

lems from different domains such as biological

systems (Dori and Choder, 2007) (Somekh et al.,

2012), ERP (Soffer, 2003) and Web Applications

(Reinhartz-Berger et al., 2002). This variability in

application domains provides a high level of con-

ﬁdence that the language is rich enough to model

complex systems in general, and DSMLs in par-

ticular.

2. OPM allows for the modeling of both static and

dynamic aspects of a system. When deﬁning a

DSML, both of these traits need to be deﬁned:

static models deﬁne the static syntax of the lan-

guage, while dynamic models are used to validate

model changes at run-time.

3. Empirical experiments (Reinhartz-Berger and

Dori, 2005) suggest that OPM is easier to under-

stand than UML when modeling dynamic aspects

of a system, and at least as good as UML when

modeling structural aspects of a system.

An OPM/D language meta-model is composed of

two parts: (1) the static structure of the entities in the

language, and (2) a set of construction rules that vali-

date model construction operations done by the mod-

eler.

3.1 The OPM/D Meta-modeling

Language

An OPM/D language meta-model consist of a static

structure and a set of validation rules, both of which

are deﬁned using Object-Process Diagram (OPD). An

OPD is a directed typed graph (Bibliowicz and Dori,

2011). The nodes of the graph can be Object nodes,

Process nodes, and State nodes, which must be con-

tained inside Object nodes. The links of the graph can

be Structural links and Procedural Links. Structural

links can be Aggregation, Exhibition or Specializa-

tion links. Procedural links can be Instrument, Con-

sumption and Result. The visual representation of the

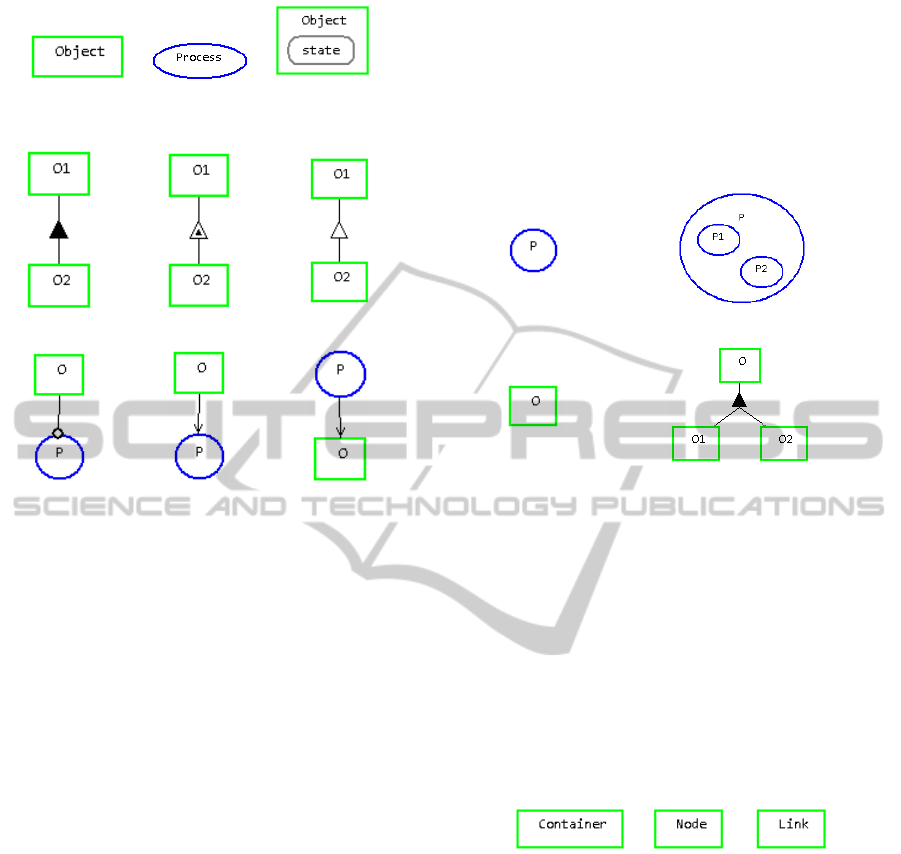

OPM/D nodes and links is shown in Figures 1 and 2.

The essential semantics of OPM/D nodes and

links are described as follows (Due to lack of space,

it is impossible to formally deﬁne them here; a com-

plete and expanded deﬁnition of them can be found in

(Dori, 1999)):

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

474

(a) Object (b) Process (c) State

Figure 1: OPM/D nodes.

(a) Aggregation

(b) Exhibition

(d) Instrument

(e) Consumption

(f) Result

Figure 2: OPM/D links.

• Object nodes deﬁne both data structures and vari-

ables. An object that contains a simple name (i.e.

Container) deﬁnes a new type named container

and an anonymous (not named) variable of that

type. An object that contains a name followed by

a colon and then another name (i.e. s : Source)

deﬁnes a new variable which named s of type

Source.

• Processes affect objects by consuming, creating or

affecting them.

• State nodes show possible states/values of the

containing object.

• Aggregation links deﬁne whole-part relations: the

whole is the source of the link, and the target is a

part of the whole.

• Exhibition links deﬁne properties: the target of

the link is a property exhibited by the source of

the link.

• Specialization links are similar to OO inheritance

relations: the target of the relation receives all the

parts and attributes from its parent, and can also

be used in place of its parent type.

• Instrument links denote that the target process

uses the source object, but it doesn’t change it.

• Consumption links show that the process con-

sumes the object, so it may not be used by other

processes occurring later.

• Result links show that a process yields an object.

Following the rules of OPM, nodes in OPM/D can

be in-zoomed or unfolded. In-zooming is used to

show the internal components that compose the node

(mostly used to describe process execution), while

out-zooming is used to show structural decomposition

of the node by placing it at the top of the diagram.

Both operations are shown in Figure 3.

(a) Process

(b) In-Zoomed Process

(d) Un-Folded Object

Figure 3: In-Zooming and UnFolding.

Having deﬁned the basic syntax and semantics of

the OPM/D language, we can now describe how it is

used to graphically deﬁne DSMLs. We will do this by

using an example language that is a simpliﬁed version

of OPM.

3.2 Deﬁning the Static Structure

Every OPM/D language starts with a basic meta-

model that contains the structure shown in Figure 4.

Figure 4: Initial language structure.

Two basic entities must be deﬁned to create a lan-

guage: the container where language diagrams are

stored, and at least one node that can be added to this

container. In OPM/D, these deﬁnitions are done by

unfolding the container and node object.

In OPM/D, the static structure of a DSML is de-

ﬁned via a meta-model that extends three primitive

objects: Container, Node and Link. These three nodes

are abstract nodes that are used as the basis for its

deﬁnition, and they cannot be instantiated in the new

language.

The following conventions deﬁne how the meta-

model is built. We will use the name ”element” for

the graphical nodes that appear in the new language:

1. All elements must inherit from the Node object.

CreatingDomain-SpecificModelingLanguageswithOPM/D-AMeta-modelingApproach

475

2. If an element can contain other elements, it must

also inherit from the Container object.

3. Non-leaf objects are abstract elements, and cannot

be drawn. Only leaf object elements can be added

to a diagram.

4. There must be at least one object which inher-

its from Container and not from Node. This el-

ement becomes the canvas in which the diagram

is drawn. More than one canvas may be deﬁned

in the meta-model to provide model kinds for the

same language.

5. The Link hierarchy only deﬁnes the static hier-

archy of the link without deﬁning how and two

which nodes the link may be connected. This is

done using validation rules, which are described

below.

Based on the above deﬁnitions, to start our exam-

ple, we need to deﬁne three types of elements: Ob-

ject, Process, and Link. This is done by unfolding the

Node object into a new diagram, as shown in Figure

5. We have added here an abstract node Thing, which

cannot be drawn on the diagram, but will be used later

on in the validation rules.

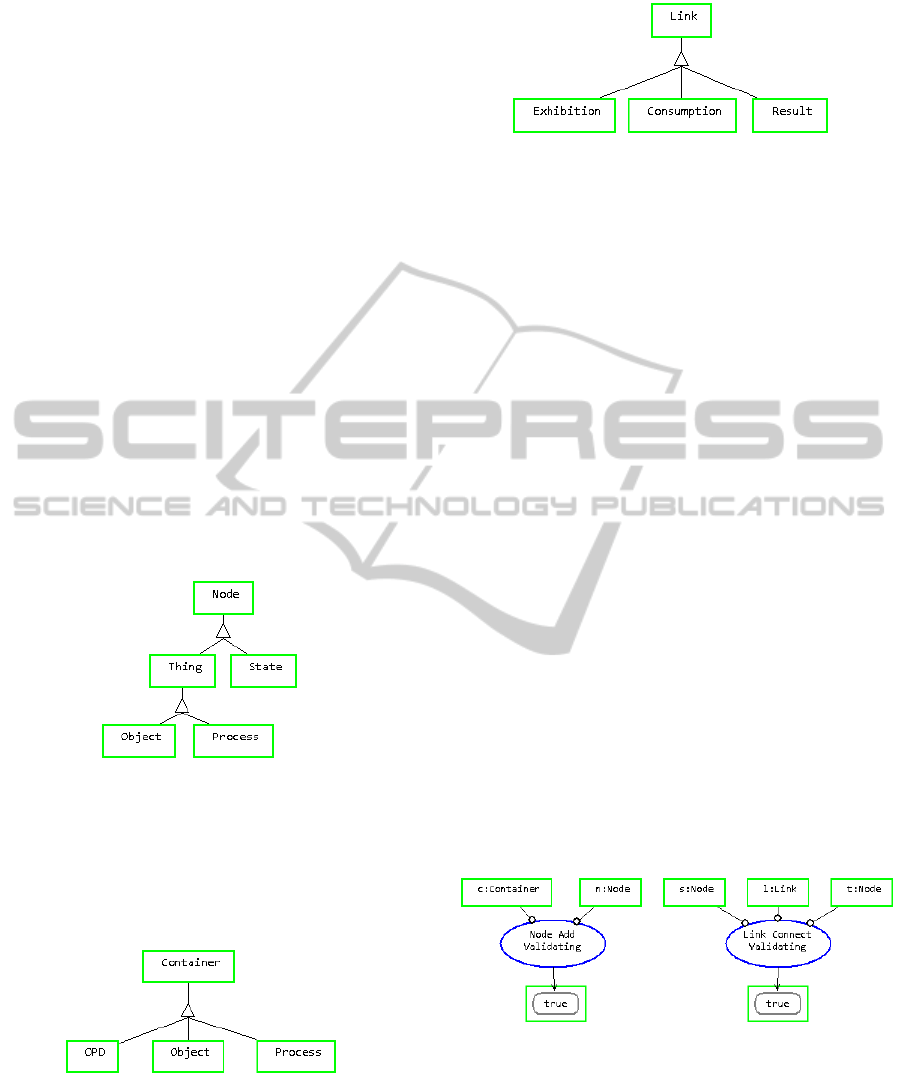

Figure 5: Unfolded Node object.

Having deﬁned the nodes, we deﬁne the contain-

ers: OPD, Object, and Process. Notice that OPD is

not deﬁned as a Node, therefore it is interpreted as

a canvas for the language. The deﬁnition is done by

unfolding the Container object as shown in Figure 6.

Figure 6: Unfolded Container object.

Finally, we deﬁne the links that may occur in the

language: Exhibition, Consumption and Result. The

unfolded Link object is shown in Figure 7.

The language deﬁned above creates a new DSML

with one canvas (OPD), three nodes types (Object,

Process, and State), of which two are also containers

Figure 7: Unfolded Links object.

(Object and Process), and three links type (Exhibi-

tion, Consumption, and Result). We have not deﬁned

validation rules or visual properties yet, therefore all

nodes in the language are drawn as rectangles, links

can connect between any two types of nodes, and con-

tainers can contain any type of nodes.

3.3 Validation Rules

Validation rules are applied when the user adds new

elements (nodes or links) to the diagram. We cur-

rently support only simple validation rules based on

the local context of the diagram. We plan to support

complex validation rules that can query the model to

verify the validity of an operation and validation rules

for other modeling operations, such as deleting ele-

ments. The built-in validation rules are:

1. Node Add Validating: validates whether a node

can be added to a container.

2. Link Connect Validating: validates whether a link

can connect two nodes.

These validation rules are shown in Figure 8. Here

we introduce a new type of notation in the object:

name : type. This notation indicates that the object

instance (data) is named name and that it if of type

is type, where type is one of the types deﬁned in the

static structure of the language or one of the built in

types of OPM/D.

Figure 8: Initial validation rules.

To add new validation rules, we unfold the built-in

validation rules and change their parameter types and

the result of the validation. Continuing our example,

note the following:

1. A state can only be contained inside an object, as

shown in Figure 9. Notice that we ﬁrst invalidate

the containment for all other containers, and then

validate only for object containers.

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

476

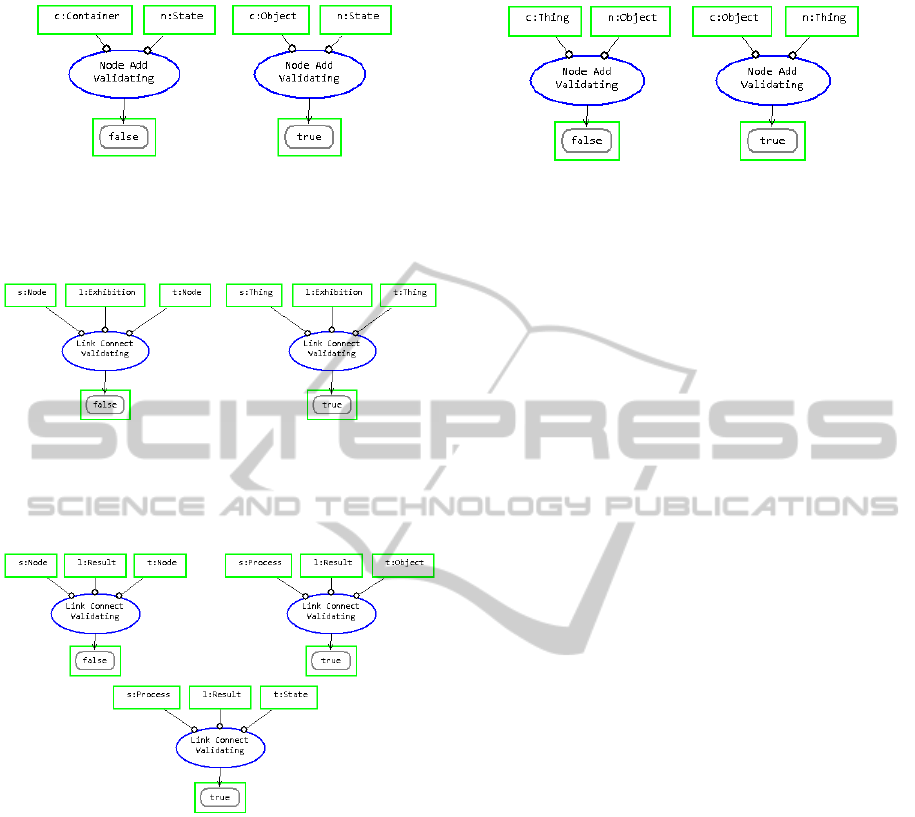

Figure 9: Validation of state containment.

2. Exhibition links can only start or end at things, as

shown in Figure 10.

Figure 10: Validation of exhibition link connection.

3. Result links must start at a process and end at an

object or state, as shown in Figure 11.

Figure 11: Validation of result link connection.

As seen in the examples, validation rules are

matched using the operation type and the types of the

parameters for which the validation rules are called.

For instance, the rule shown on the right-hand side

of Figure 9 is applied when a new node of type State

is added on top of an Object container, making the

operation valid. If another type of container were to

be selected, the rule on the left hand side of Figure 9

would be applied, invalidating the operation.

Not all operations must have a validation rule, in

which case the framework must decide what to do.

This decision is made by searching for the validation

rule that most closely matches the parameters pro-

vided by the applied operation. This may be prob-

lematic because there may be more than one match-

ing rule and it is possible to create contradictory rules.

Take for example the rules deﬁned in Figure 12.

Figure 12: Contradictory validation rules.

If an Object node is added to another Object node,

should the operation be valid or invalid? Both options

can be possible matches. To break this inconsistency,

we determined that invalid rules take precedence over

valid rules. That is, if there is more than one matching

validation rule for an operation, all of the matching

rules must be valid for the operation to be valid.

3.4 Adding Visual and Non-visual

Properties

Visual representation is one of the key features of

DSMLs. Differentiating nodes by their visual prop-

erties makes models easier and faster to understand

(Moody, 2009). Furthermore, a node may have other

properties that are not represented visually but are part

of the information that the node contains. OPM/D

supports this by allowing the deﬁnition of visual and

non-visual properties for all meta-model elements.

Each element in the OPM/D meta-model can be

un-folded to deﬁne the visual and non-visual proper-

ties that it exhibits. Visual properties affect the visual

representation of the nodes, while non-visual prop-

erties add information which has no visual represen-

tation. We currently allow for the deﬁnition of one

visual property: Figure. Since OPM/D is developed

using Eclipse GEF/draw2d, a ﬁgure is an implemen-

tation of a draw2d Figure interface. Some built-in

draw2d ﬁgures are Rectangle, Ellipse, Polygon, and

Polyline. For non-visual properties, it is possible to

deﬁne any number of properties, where each property

must be of one of the basic Java primitive types (int,

boolean, String, etc.) and enumerations (represented

as OPM/D states).

The default ﬁgure used for OMP/D nodes is Rect-

angle, and the default ﬁgure for links is Polyline.

These can be changed by overriding this deﬁnition,

as shown in Figure 13, which shows that an Object

has a Rectangle ﬁgure and two non-visual properties:

name of type String, and type of type String.

The visual properties themselves can exhibit more

properties. For example, a ﬁgure can exhibit a color

and a size; a Polyline can exhibit a sourceDecoration

and a targetDecoration. The full scope of the possible

properties that can be deﬁned is out of the scope of

CreatingDomain-SpecificModelingLanguageswithOPM/D-AMeta-modelingApproach

477

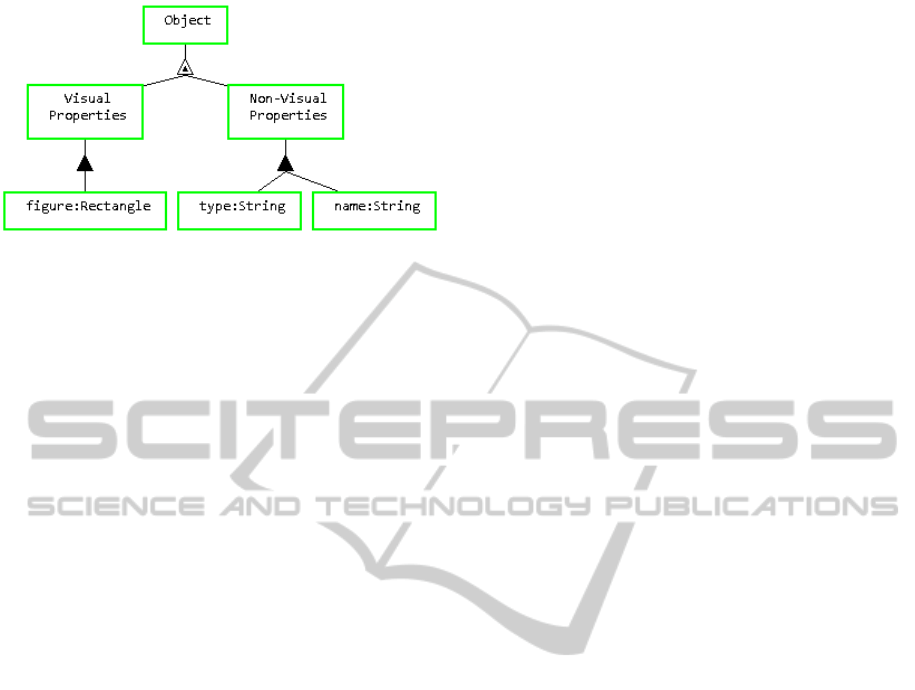

Figure 13: Deﬁning visual and non-visual properties

this work.

4 CONCLUSIONS AND FUTURE

WORK

We have presented the principles of OPM/D, a meta-

modeling language, which is a subset of Object-

Process Methodology (OPM), for deﬁning and creat-

ing DSMLs. The language is based on the graphical

language of OPM. To demonstrate the capabilities of

OPM/D, we have shown how to deﬁne a simpliﬁed

version of the OPM modeling language.

OPM/D can deﬁne not just OPM, but any DSML.

OPM/D allows for the visual deﬁnition of DSMLs in

two parts: a static model and a set of validation rules.

The static models deﬁne the elements of the language,

while the validation rules control what elements can

be added to the model and how they can be added, en-

suring that the resulting model of the deﬁned DSML

is correct by construction at all times.

A prototype OPM/D based DSML language de-

signer and interpreter has been implemented as a

proof of concept for the idea presented in this paper

(without implementing all concepts). The prototype

is implemented using an open-source plugin on top

of the Eclipse platform, woth Eclipse EMF and GEF

technologies. The source code is available at github:

https://github.com/vainolo/OPClipse.

We plan on improving the stability, usability, and

functionality of the prototype in order to perform

comparative studies of the language and tool. We re-

quire this because using unstable and incomplete tools

in a study can create incomplete or incorrect results.

ACKNOWLEDGEMENTS

This research was supported by EU FP7 Project VI-

SIONAIR, Contract 262044.

We thank the OPClipse team: Eyal Heineman,

Kobi Ravid, Ilan Tchernovitz, Alez Zhitnitsky, and

Nimrod Shenhav for their help in reviewing the

OPM/D language deﬁnitions, and for making the im-

plementation possible.

REFERENCES

Bibliowicz, A. and Dori, D. (2011). A graph grammar-

based formal validation of object-process diagrams.

Software & Systems Modeling, 11(2):287–302.

Brooks, F. (1987). No silver bullet: Essence and accidents

of software engineering. IEEE computer, 20(4):10–

19.

Davis, J. (2003). GME: the generic modeling environ-

ment. In Companion of the 18th annual ACM SIG-

PLAN conference on Object-oriented programming,

systems, languages, and applications, OOPSLA ’03,

pages 83–83, New York, NY, USA. ACM.

Dori, D. (1999). Object-Process Methodology: A Holistic

Systems Paradigm. Springer-Verlag New York, Inc.,

Secaucus, NJ, USA.

Dori, D. and Choder, M. (2007). Conceptual modeling in

systems biology fosters empirical ﬁndings: the mRNA

lifecycle. PloS one, 2(9):e872.

Eclipse Foundation (2012a). Eclipse Graphical Editing

Framework - Version 3.8.2. http://www.eclipse.

org/gef/.

Eclipse Foundation (2012b). Eclipse Graphical Modeling

Framework - Release 1.6.0. http://www.eclipse.

org/modeling/gmp/.

Eclipse Foundation (2012c). Eclipse Graphiti - Release

0.8.2. http://www.eclipse.org/graphiti/.

Grundy, J. C., Hosking, J., Li, K. N., Ali, N. M., Huh, J.,

and Li, R. L. (2013). Generating Domain-Speciﬁc Vi-

sual Language Tools from Abstract Visual Speciﬁca-

tions. IEEE Transactions on Software Engineering,

39(4):487–515.

JGraph Ltd. (2013). JGraphX. http://www.jgraph.com/

jgraph.html.

JUNG Framework Development Team (2010). JUNG -

Release 2.0.1. http://jung.sourceforge.net/

index.html.

MetaCase (2013). MetaEdit+ - Release 5.0. http://www.

metacase.com/.

Microsoft Corporation (2012). Visual Studio Visualization

and Modeling SDK 2012. http://archive.msdn.

microsoft.com/vsvmsdk.

Minas, M. (2004). VisualDiaGen - a tool for visually spec-

ifying and generating visual editors. In Applications

of Graph Transformations with Industrial Relevance,

Lecture Notes in Computer Science 3062, pages 398–

412. Springer Berlin Heidelberg.

Moody, D. (2009). The Physics of Notations: Toward a

Scientiﬁc Basis for Constructing Visual Notations in

Software Engineering. IEEE Transactions on Soft-

ware Engineering, 35(6):756–779.

Netbeans (2010). Netbeans Visual library 2.0. http://

platform.netbeans.org/graph/.

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

478

OMG (2010). OMG Uniﬁed Modeling Language (OMG

UML) version 2.3, Superstructure.

OMG (2012). Object Constraint Language (OCL).

Reinhartz-Berger, I. and Dori, D. (2005). OPM vs. UML-

Experimenting with Comprehension and Construction

of Web Application Models. Empirical Software En-

gineering, 10(1):57–80.

Reinhartz-Berger, I., Dori, D., and Katz, S. (2002).

OPM/Webobject-process methodology for developing

web applications. Annals of Software Engineering,

13(1):141–161.

Selic, B. (2007). A Systematic Approach to Domain-

Speciﬁc Language Design Using UML. 10th

IEEE International Symposium on Object and

Component-Oriented Real-Time Distributed Comput-

ing (ISORC’07), pages 2–9.

Soffer, P. (2003). ERP modeling: a comprehensive ap-

proach. Information Systems, 28(6):673–690.

Somekh, J., Choder, M., and Dori, D. (2012). Concep-

tual model-based systems biology: mapping knowl-

edge and discovering gaps in the mRNA transcription

cycle. PloS one, 7(12):e51430.

The Standish Group International (2009). CHAOS Sum-

mary 2009 - The 10 Laws of CHAOS. Technical re-

port, The Standish Group International.

United States Government Accountability Ofﬁce (2008).

Defense Acquisitions - Assessments of Selected

Weapon Programs. Technical report.

White, J., Schmidt, D. C., and Gokhale, A. (2007). Simpli-

fying autonomic enterprise Java Bean applications via

model-driven engineering and simulation. Software &

Systems Modeling, 7(1):3–23.

CreatingDomain-SpecificModelingLanguageswithOPM/D-AMeta-modelingApproach

479
