Intentional Modeling for Problem Solving in Enterprise Architecture

Sagar Sunkle, Vinay Kulkarni and Suman Roychoudhury

Tata Research Development and Design Center, Tata Consultancy Services,

54B, Industrial Estate, Hadapsar, 411013, Pune, India

Keywords:

Enterprise Architecture, Intentional Modeling, Problem Solving.

Abstract:

Taking and executing correct decisions is critical in enterprise systems which are characterized by rapid

changes along interconnected dimensions. Enterprise architecture (EA) frameworks offer holistic treatment

of enterprise systems but constitute only one part of the solution to problems arising due to organizational

changes. The other, less explored part is the ability to explicate and analyze the intentions behind major de-

cisions. We investigate a step-by-step approach where intentional modeling is treated as a problem solving

technique. In our approach, an intentional model devoid of goals is obtained from the existing EA model via

mapping. It is expanded by representing the problems due to organizational changes as goals and soft goals

and alternative solutions to them. The ﬁnal intentional model is transformed back to an actionable EA model

via the same mapping. In the case study, we re-imagine the evolution of our model-driven software develop-

ment unit as an enterprise where two stages in its evolution are treated as as-is and to-be states and the journey

is captured in terms of intentional models. Initial explorations suggest that the mapping enables a clear path

from as-is to to-be states of an EA model while preserving the reasoning behind every alternative chosen.

1 INTRODUCTION

In our experience in delivering 70+ large business-

critical enterprise applications, we have found that

the cost of incorrect decisions in building these sys-

tems and evolving them in the face of organiza-

tional changes is becoming prohibitively high (Kulka-

rni et al., 2010). One key reason that we witnessed as

to why decisions are so hard to see through in enter-

prises is that a holistic view is missed. The second

reason is that even if such a view is taken, the reasons

behind decisions are scarcely captured or utilized to

direct the change.

For an enterprise, the holistic view may be pro-

vided by enterprise architecture (EA). A number of

EA frameworks and modeling languages are now rou-

tinely used by enterprises to improve business efﬁ-

ciency. Yet, reasons behind EA construction are hard

to trace or examine and so is responding to change (Yu

et al., 2006). To circumvent this, some EA methods

and independent standards such as business motiva-

tion model (BMM) (OMG, 2010) provide additional

modeling constructs in the form of motivation exten-

sion(s). These are good for highly abstracted views

at the management level, but when it comes down

to ground level implementations these constructs act

only as blueprints rather than techniques to capture

and use whys in constructing and evolving whats and

hows of enterprises.

We approach this situation from the perspective of

problem solving. We posit that while EAs capture de-

tails of a given change context, a mapping from EA

concepts to intentional modeling concepts (Yu et al.,

2006) can be used so that eminent problems are repre-

sented as (soft) goals to be reached. What-if analyses

provided by intentional modeling (Horkoff and Yu,

2009) can then be used solve these problems which

includes exploring alternatives from the point-of-view

of involved actors/roles.

As a running case study example, we re-imagine

our model-driven software development unit as an en-

terprise. We capture in retrospect the organizational

changes that we observed over the years as problems

to be solved and model-based solutions as the an-

swers. Our speciﬁc contribution is the mapping of

core elements of EA and intentional metamodels used

to translate goals from and to EA models. Once var-

ious questions pertaining to the problems have been

answered, the results of these analyses, in terms of

addition of new actors/roles, change of responsibili-

ties of existing actors/roles, and so on, are transferred

back to EA models via the same mapping preserving

traceability from whys to whats and hows.

The rest of the paper is organized as follows. Sec-

267

Sunkle S., Kulkarni V. and Roychoudhury S..

Intentional Modeling for Problem Solving in Enterprise Architecture.

DOI: 10.5220/0004435502670274

In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 267-274

ISBN: 978-989-8565-61-7

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

Alternatives

Strategic Dependencies [SD]

and Rationale [SR] models in i*

Enterprise (Architecture)

Model

Via

EA-

Intentional

Metamodel

Mapping

As-is -> To-be

[SD]` + [SR]`

Organizational

Impact

Analysis

Revise Enterprise

(Architecture)

Model via

Mapping

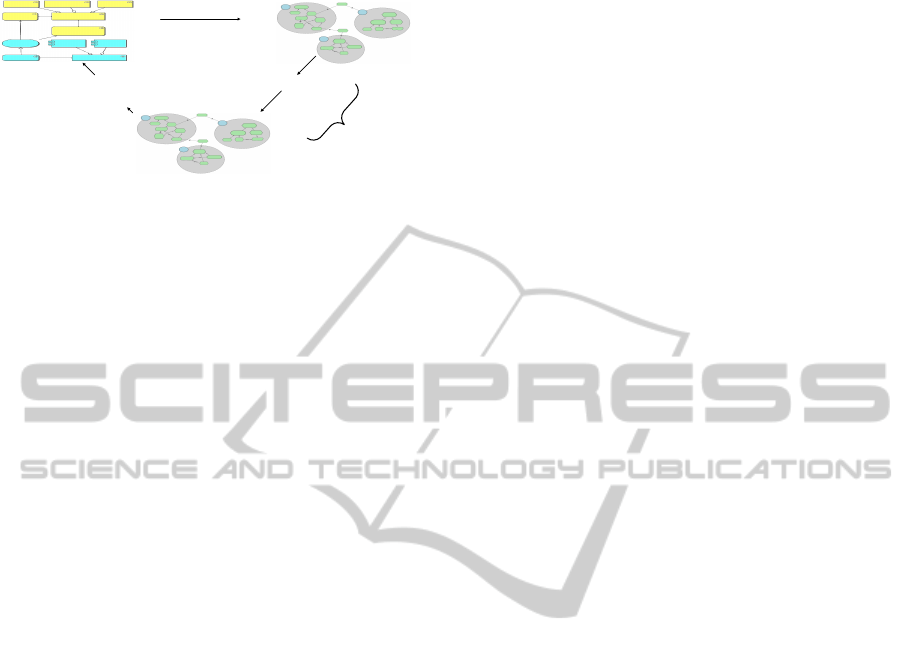

Figure 1: Solving problems in enterprise architecture with

i* intentional modeling.

tion 2 describes the mapping between generic EA and

intentional metamodels and introduces the case study.

Section 3 captures in terms of intentional models, the

problems faced by our model-driven software devel-

opment unit and presents alternative solutions. Sec-

tion 4 describes how the results of analyses over the

intentional models are transferred back to EA models

with which to take action. Section 5 reviews related

work and Section 6 concludes the paper.

2 USING INTENTIONAL

MODELS

While EA frameworks capture the working of the en-

terprise or the whats and the hows, the treatment of

whys, even with the extended constructs for motiva-

tion in them, is of blueprint nature (Wagter et al.,

2012). We believe that in order to capture the reasons

behind enterprise’s workings on ground, techniques

for modeling and analyzing goals need to be applied

in an actionable way. This means that whys are not

just documented in a blueprint manner but rather used

to direct the change by analyzing various alternative

courses of action and choosing from available alterna-

tives and reﬂecting the choices in affected dimensions

of an enterprise.

It is our belief that is better to treat EA models as

the version of truth and use intentional/goal models

only as a technique to solve speciﬁc problems, aris-

ing particularly due to profoundly important business

strategy change drivers (Buchanan and Soley, 2002),

preserving the reasoning by translating analysis re-

sults back to EA models. This is the basis of our ap-

proach which is illustrated in Figure 1.

The EA model is presumed to be in ArchiMate

while the intentional model is considered to be in

i*. We choose ArchiMate for its economy of con-

cepts and coverage of concepts pertaining to various

aspects of enterprise (Sunkle et al., 2013). The next

section details ArchiMate and i* metamodel mapping

and how i* is applied as a problem solving technique

to EA model expressed in ArchiMate. We choose

i* intentional modeling among several goal-oriented

requirement techniques because, ﬁrst, i* has already

been applied in the context of EA (Yu et al., 2006) and

second, considerable literature discussing meaning

and application of i* concepts is available along with

several metamodels (de Castro et al., 2011) which is

helpful in deciding how to map speciﬁc concepts from

EA metamodel to i* metamodel. The i* metamodel

used in the present mapping is adapted from (L

opez

et al., 2011).

2.1 EA and i* Metamodel Mapping

The ArchiMate generic metamodel deﬁnes active

structure elements (ASEs) as the entities that are ca-

pable of performing behavior. These are assigned to

behavior elements (BEs), which indicate units of ac-

tivity. The passive structure elements (PSEs) are the

objects on which behavior is performed (Haren and

Publishing, 2012). Each of these three types and the

relationships shown in Figure 2 occur in three lay-

ers of ArchiMate metamodel namely, business, ap-

plication, and technology layers. A service is the

externally visible behavior of the providing system,

from the perspective of systems that use that ser-

vice. Services are made accessible through interfaces,

which constitute the external view on the active struc-

tural aspect. Thus, the business layer offers products

and services to external customers, which are real-

ized in the organization by business processes (BE)

performed by business actors (ASE). The application

layer supports the business layer with application ser-

vices (BE) which are realized by (software) applica-

tions (ASE). The technology layer offers infrastruc-

ture services (BE) like storage and networking needed

to run applications, realized by computer and commu-

nication hardware and system software (ASE) (Haren

and Publishing, 2012).

The i* metamodel as illustrated in Figure 2, con-

siders actors performing tasks as means to an end that

is captured as (soft) goals (L

opez et al., 2011). Re-

sources may be used or created by actor while per-

forming tasks. Actors may depend on each other to

perform a task and/or to use or create a resource to

achieve a goal or soft goal. Two kinds of models

are used in i* namely, strategic dependency (SD) and

strategic rationale (SR) models, to capture dependen-

cies between actors and to model the intentions of ac-

tor in performing their appointed tasks respectively.

In the context of an enterprise, the SD model would

describe an enterprise in terms of dependencies that

enterprise actors have on each other in accomplishing

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

268

Service

Behavior

Element

Interface

Active

Structure

Element

Passive

Structure

Element

accesses

uses

realises

assignedTo

composedOf

uses

assignedTo

triggers/

flowsTo

Actor

Dependency

Participant

Dependency

Dependum

Internal

Element

[SR]

External

Element

[SD]

Intentional

Element

Task

Resource

Goal

Softgoal

Core Elements of Enterprise Architecture

Core Elements of Intentional Modeling

dependee

depender

boundary

GOALS and SOFTGOALS

mapsTo

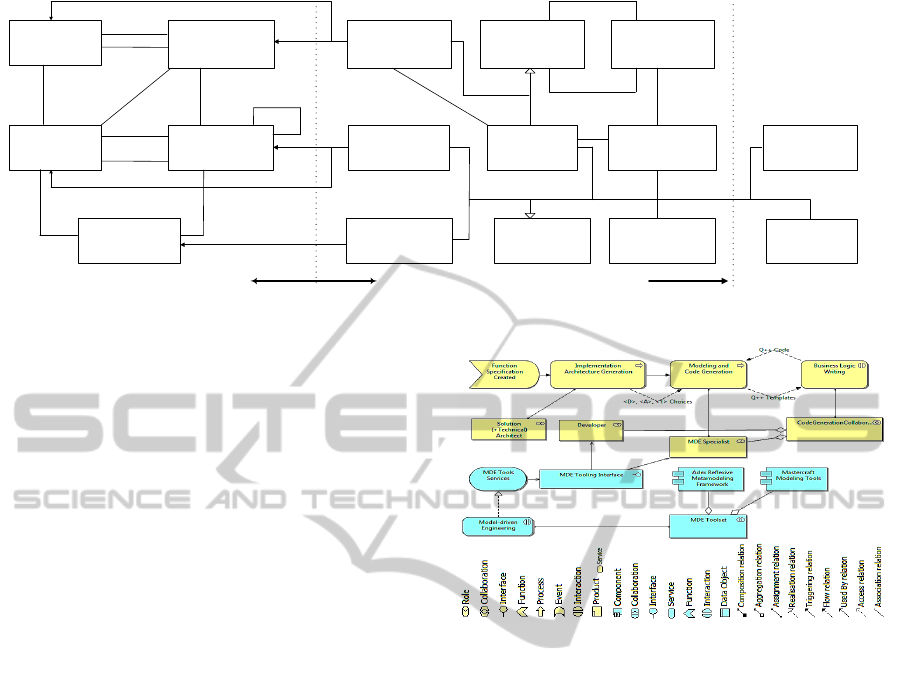

Figure 2: Mapping between generic EA metamodel and i* intentional metamodel.

their work. The SR model would describe reasoning

that actors employ in determining the merit in orga-

nizing their tasks one way or the other.

As shown in Figure 2, we map the ASEs such

as business actors, application components, hardware

and system software, as well as interfaces to actors in

i*. The BEs such as business processes, and business,

application, and infrastructure services are mapped to

tasks in i*. The PSEs are mapped to resources in i*,

which are essentially informational or physical enti-

ties used or created by actors. Via this mapping, it is

possible to say that ASEs use or create PSEs while

performing BEs as means to an end that is goal(s)

and/or soft goal(s).

As the general structure of models within the

different layers is similar, with differing granularity

and nature that is dependent on the given layer, the

mappings provided between generic metamodels of

ArchiMate and i* make it possible to extract an ini-

tial intentional model from the ArchiMate models of

business, application, and technology layers of an en-

terprise. Note that cardinalities are absent in the EA

metamodel due to its generic nature and thus we do

not show cardinalities in the i* metamodel as well as

the mapping.

In the next section, we introduce the case study

that is used to elaborate EA problem solving with in-

tentional modeling in later sections.

Case Study

In this section, we re-imagine our MDE-based soft-

ware development unit as an enterprise and present

two distinct stages in its evolution as current and fu-

ture states in retrospect.

The ﬁrst stage in our MDE-based software devel-

opment unit is characterized by the use of a uniﬁed

metamodel for specifying application, database, and

GUI layers of an application, model-aware Q++ lan-

guage for the developers to write business logic, and

Figure 3: As-Is Enterprise Architecture Model of a Model-

driven Software Development Unit.

separation of concerns in model-driven development

for design strategies, architectural speciﬁcs, and tech-

nology platforms using aspects (Kulkarni and Reddy,

2003). The second stage is characterized by the use

of multi-user multi-site repositories for models and

code with versioning and conﬁguration management

support, component abstraction and workspaces for

geographically distributed development, and change-

driven development for quick turnaround of model-

code operations (Kulkarni et al., 2010).

The organizational change which prompted tran-

sition from the ﬁrst stage to second stage was the de-

mand for onsite development of very large business

applications. This necessitated many teams perform-

ing traditional roles of software development such as

solution architecting, modeling, and developing. Fur-

thermore, the development was carried out at geo-

graphically distributed locations with operations on

same set of models and code for a given application.

We begin in the next section, by ﬁrst showing a

simpliﬁed EA model of the ﬁrst stage of MDE-based

software development unit. To restrict the scope

of this case study, we capture the network of three

roles in i* model namely, a solution architect (SA),

IntentionalModelingforProblemSolvinginEnterpriseArchitecture

269

an MDE specialist (MDESp), and a developer (D)

in a given team. The impact of the organizational

change which is large geographically distributed de-

velopment is captured by asking questions of the cur-

rent practices.

3 PROBLEM SOLVING WITH

INTENTIONAL MODELS

The current state of the enterprise is captured in the

EA model of Figure 3. Once functional speciﬁcations

of given application are available, the business pro-

cess of implementation architecture generation begins

to which SA is assigned. SA conveys the choices of

design strategies hDi, architectural speciﬁcs hAi, and

technology platforms hTi to MDESp. hDi could be

audit, persistence, caching, attribute value handling

etc., hAi could be patterns of distributed architec-

ture, middleware choices, message queuing mecha-

nism etc., and hTi could be combinations of various

technologies and frameworks that are speciﬁc to plat-

forms as well as customer preferred technologies.

MDESp’s job is to accommodate these choices

in the code generators using uniﬁed metamodel.

MDESp sends templates in model-aware language

Q++ to D who needs to write business logic and

send the templates back to MDESp for full applica-

tion generation. Both MDESp and D use reﬂexive

metamodel framework (Adex) and model processing

software (Mastercraft) for carrying out their respec-

tive tasks.

Using the mapping explained in Section 2.1 and

illustrated in Figure 2, we obtain an i* model of the

current state of enterprise explained above. This is

shown in Figure 4. Note here, that roles and appli-

cation components (ASEs) from the EA model are

mapped to roles and actors in i* respectively. Since

Adex and Mastercraft from EA model collaborate to

provide modeling service, we capture them as a sin-

gle actor in i*. The business processes and application

interactions (BEs) are captured as tasks and put into

roles who were assigned to them in the EA model.

As more and larger application requirements came

to us, we had to change the nature of teams work-

ing initially on small applications to number of sub-

teams performing several specialized tasks. These

sub-teams needed to share a single main version of

models and code in order to ensure that different mod-

els are consistent with each other and business logic

is consistent with the models. This prompted the need

for a central repository. The ﬁrst problem that we

attempt to solve therefore is how to enable secure

and synchronized access to models and code for large

teams?

Problem 1 - Access by Large Teams

MDESp, D, as well as SA teams need to make use

of models and code; MDESp needs access to models

and metamodels, D needs to access code, and SA can

search models and metamodels to make informed de-

cision about choices of hDi, hAi, and hTi for current

application. Evidently we need to introduce a sys-

tem whose main task is to provide access to models

and code for all these roles. Further requirement of

this access are that concurrent multi-user operations

should be enabled. In Figure 5, this is represented as

a goal with two alternatives namely, using an indus-

trial strength database for storing models and code or

developing a proprietary storage system ourselves.

Of the two alternatives to achieve concurrent

multi-user operations, industrial database immedi-

ately makes it possible to apply storage of models and

code, whereas creating our own proprietary database

tailored for storage of models and code could have

taken substantial time. These contribute highly posi-

tively (make) and slightly negatively (hurt) to the soft

goal of quick storage enablement. Both the alterna-

tives would contribute slightly positively to the soft

goal of secure and synchronized access differing only

in how quickly the storage can be applied to our ex-

isting models and code.

Choosing either alternative leads to adding an ac-

tor in the form of a system, which we have referred to

as X. In reality, this was the (multi-user) model repos-

itory system (Kulkarni et al., 2010). It can also be

seen that the responsibility of performing tasks that

assure secure and synchronized access to models and

code is assigned to the actor X.

We observed that without explicitly stated depen-

dencies such partitioning led to integration problems

and dependencies not only between models or code

but also between models and code. Additionally, we

were increasingly required to develop some modules

of application onsite, i.e., an application may be de-

veloped in geographically distributed manner. Here

too, proper partitioning was an important issue. The

second problem we attempt to solve is how to best

partition model-driven development so as to manage

dependencies between models and code correctly as

well as to enable geographically distributed develop-

ment with this new partitioning scheme?

Problem 2 - Distributed Development

The complete analysis of this problem is shown in

Figure 6. Reader is referred to (Kulkarni et al., 2010)

for a detailed overview of the development of such a

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

270

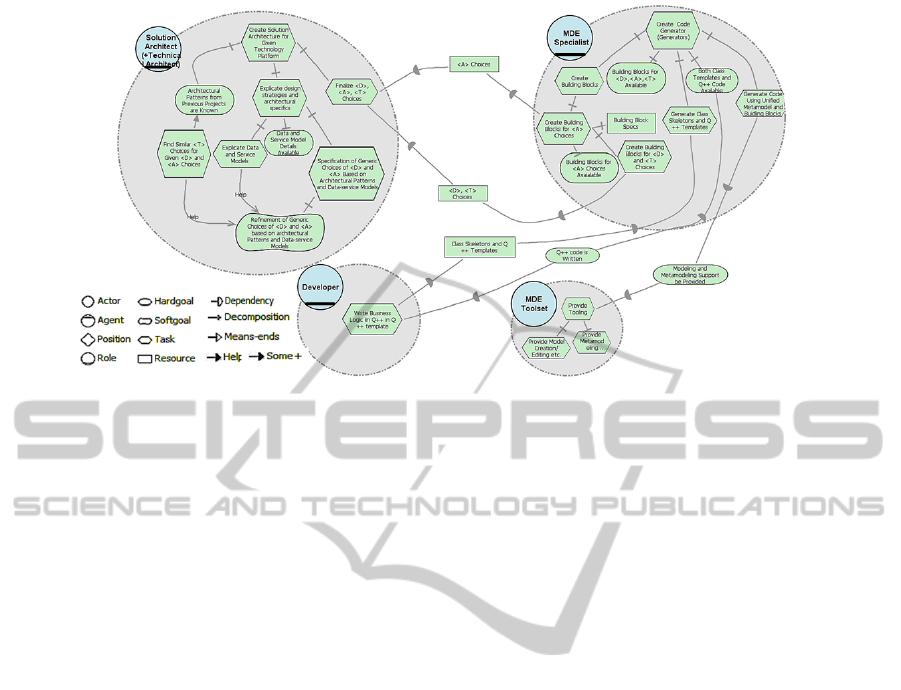

Figure 4: i* Model of current enterprise derived from Figure 3.

partitioning scheme. Here we make remarks pertinent

to the problem solving aspect of intentional modeling.

As shown in Figure 5 and now in Figure 6, the

core problem without qualitative judgment is repre-

sented as a key task of the involved role/actor. This

task provides a more generic description of the activ-

ity to be performed for addressing a speciﬁc problem.

The speciﬁc problem or problems are represented as

decomposition elements of the main task.

In the solution to the current problem, MDESp

is responsible to manage model-code development to

achieve partitioning of development effort and to pro-

vide support for geographically distributed develop-

ment. The qualitative aspects of the desired solution

are represented as soft goals, for instance in Figure

6, that dependency management be efﬁcient and geo-

graphically distributed development be ﬁne.

The problem of enabling geographically dis-

tributed development has hierarchy of soft goals, es-

sentially capturing goals of goals. For instance,

for the alternative of replicating model repositories

for distributed development, efﬁcient synchroniza-

tion soft goal helps efﬁcient implementation of per-

formance intensive model operations which in turn

helps ﬁne overall support for distributed development.

While on the right of Figure 6 is a (soft) goal hierar-

chy, immediately to the left of it, is the task hierar-

chy represented in the form of successive alternatives

that would contribute to the (soft) goals. The result

of component and workspace development (shown

on the extreme left of Figure 6) is that another role

(not shown here) called development manager (DM)

gets the information about component and workspace

from MDESp. DM uses this information to assign D

to speciﬁc components and workspaces.

As solutions of multi-user multi-site repository

and component-workspace abstraction were applied

to problem 1 and 2, we found that teams merrily used

model-code access as details of secure and synchro-

nized access were no longer the issues. Another prob-

lem surfaced at the time. As the number of classes

ranged to a few hundreds and source lines of code

to a few million (Kulkarni et al., 2010), performance

of various model processing operations plummeted,

particularly originating in model changes. The third

problem at this point that we would attempt to solve

is how to enable quick turnaround of model changes

done by geographically distributed teams?

Problem 3 - Quick Turnaround with Models

Figure 7 shows that the responsibility of the solution

to this problem is given to the actor that we added

in the solution of ﬁrst problem, i.e., model repository

system. The main task of this actor remains the same

and now this actor also tries to achieve the goal of

providing support for change management for large

models. Alternative tasks contribute to soft goal of

quick model processing operations done after a model

change which in turn helps the soft goal of quick

turnaround of model changes. For the details of delta

modeling, reader is referred to (Kulkarni et al., 2010).

In the next section, we describe preliminary anal-

ysis on altered i* model and then transform these

changes back to the original EA model.

4 FROM INTENTIONAL

MODELS TO EA MODEL

Whereas the original model shown in Figure 4 has 5

dependencies, the new combined model has 11 depen-

IntentionalModelingforProblemSolvinginEnterpriseArchitecture

271

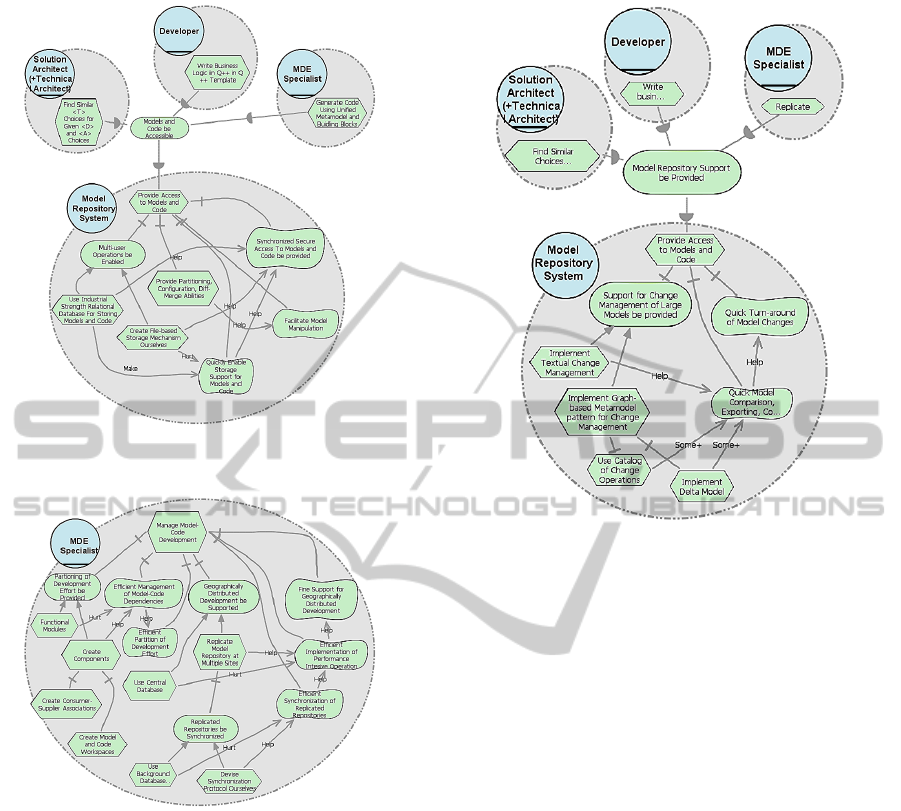

Figure 5: Enabling secure and synchronized access to

models-code for large teams.

Figure 6: Partitioning for correct dependencies and dis-

tributed development.

dencies. The combined intentional model contains 22

leaves out of which 11 represent what-if alternatives

speciﬁed. We used OpenOME (Horkoff et al., 2011)

to carry out intentional modeling and to evaluate var-

ious alternatives.

Having chosen the better alternatives and further

better sub-alternatives, with reasoning behind these

choices explicit, and responsibilities of tasks to be

performed clearly assigned, we can now use meta-

model mapping in Figure 2 to get to EA model which

captures the state that employs the solutions to the

main problem of being able to support large devel-

opment teams.

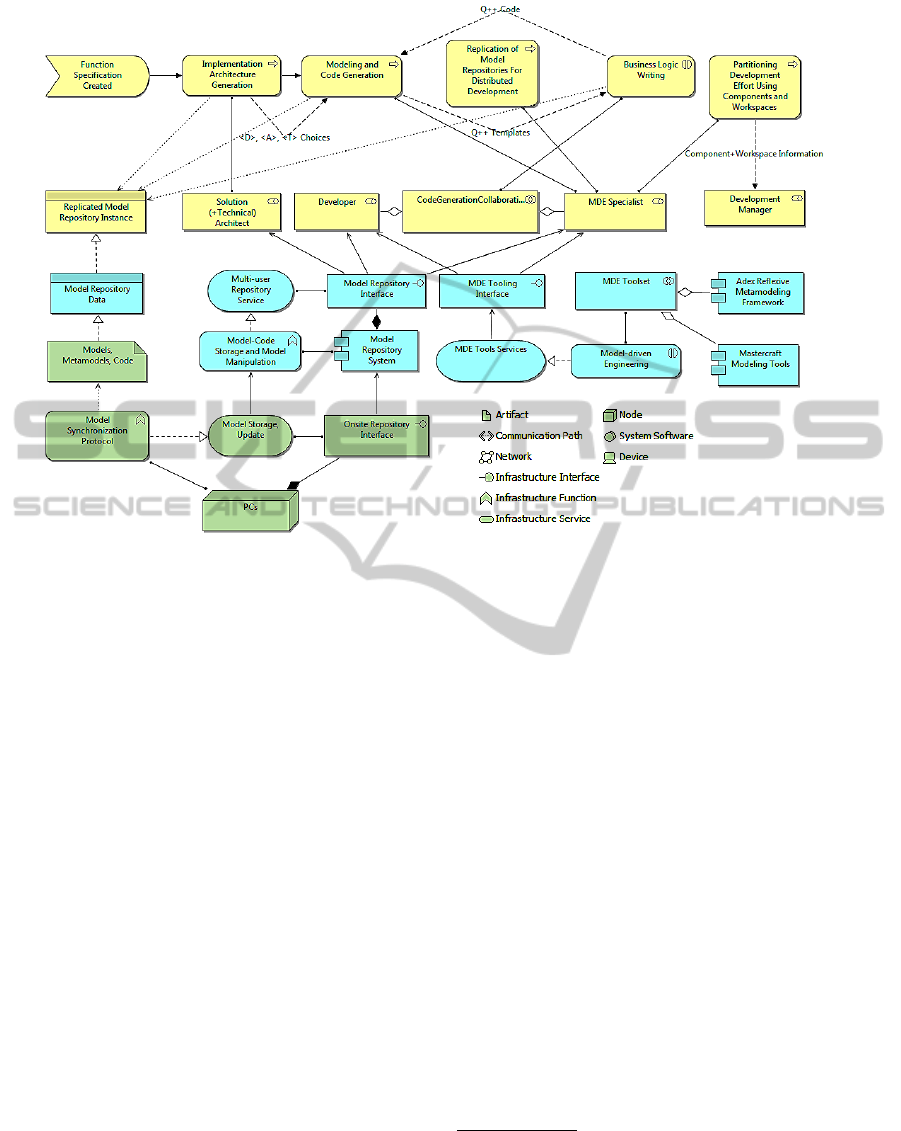

The EA model shown in Figure 8 builds on the

model illustrated in Figure 3. Solution to ﬁrst prob-

Figure 7: Change management for large models.

lem adds an actor, multi-user repository system. This

is represented as an application component in Figure

8 via actor-ASE mapping. This application compo-

nent is assigned to the application function that car-

ries out model-code storage and model manipulation

and realizes the application service which is used by

SA, D, and MDESp via repository interface.

Solution to second problem is implemented by

MDESp in terms of partitioning of development in

components and workspace, the information about

which ﬂows to DM (additional role added in the so-

lution of second problem) who uses it in assigning

D to speciﬁc components (not shown here). MDESp

also carries out replication of model repositories at re-

quired multiple sites. Note that both partitioning tasks

and replication tasks are represented as business pro-

cess via task-BE mapping.

Solution to third problem involves implementing

required delta model as synchronization protocol in-

frastructure function in the technology layer. This

function realizes the infrastructure service of actual

model storage and manipulation used by application

service via onsite repository interface. The model

synchronization protocol accesses actual infrastruc-

ture objects of models and code, which realize appli-

cation objects of model repository data. These in turn

realize replicated model repository instances which

are accessed in business processes of all the actors.

The newly constructed EA model is actionable in

the sense that it can be used for clarifying the focus

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

272

Figure 8: To-be EA Model of a Model-driven software development unit (For legends other than technology layer, please

refer to Figure 3).

with regards the reaction to organizational change, for

instance, which ASEs are responsible to implement

the solutions to problem(s) caused by the change,

in what ways the solution impacts how ASEs inter-

act and how BEs to which they are assigned get af-

fected. Both target architectures of business and ap-

plication layers are captured along with technology

(hardware infrastructure) necessary to support these

architectures.

5 RELATED WORK

Other researchers have proposed using intentional (Yu

et al., 2006) and goal modeling (Quartel et al., 2009;

Engelsman et al., 2011) concepts in conjunction with

EA frameworks. Although the general approach in

(Yu et al., 2006) is similar to ours, it is presumed

that BMM is used on the top of existing EA (created

with any EA framework) and i* is used for analysis

of goals speciﬁed in BMM. Unfortunately, no map-

ping of any kind is given either from EA framework

to BMM or BMM to i* in (Yu et al., 2006). This

means that no help is provided for the modelers to

make sense of EA entities in the context of intentional

modeling. On the other hand, it was found that the

sheer number of concepts in the language proposed in

the goal modeling approach over ArchiMate (Quartel

et al., 2009) made simultaneous construction of EA

and goal models quite confusing (Engelsman et al.,

2011) and lost the advantage of goal modeling.

We have deliberately considered generic meta-

models instead of more concrete metamodels of

ArchiMate

and i*

. Since the generic EA metamodel

(of ArchiMate) is based on natural language concepts,

it may be possible to use this mapping even when pri-

mary EA framework or modeling language is other

than ArchiMate. This is out of the scope of this paper

and ﬁrst steps toward this have been taken by others

as in (Berrisford and Lankhorst, 2009).

Motivation extensions in ArchiMate (Haren and

Publishing, 2012) and BMM by OMG (OMG, 2010)

both provide blueprint treatment of whys of an enter-

prise with a taxonomy of concepts related to moti-

vation or reasons behind decisions. The taxonomical

nature of these extensions is often not useful enough

to use the extension as a problem solving technique

but might be useful when explaining reasoning behind

decisions to management.

Apart from forward and backward evaluation of

Business, application, and technology layer metamod-

els are available in Sections 3, 4, and 5 of ArchiMate speci-

ﬁcation (Haren and Publishing, 2012) respectively.

A number of i* metamodels are available (Ayala et al.,

2005); we have adapted the i* core language metamodel

from (L

opez et al., 2011).

IntentionalModelingforProblemSolvinginEnterpriseArchitecture

273

alternatives in i*, a number of other analyses are pro-

posed such as analysis of opportunity and vulnerabil-

ity, criticality and commitment (Yu and Mylopoulos,

1994), and so on, in the context of business process

reengineering. In our ongoing work on analyzable en-

terprise models, we plan to implement such analyses

via metamodel mapping proposed in this paper.

6 CONCLUSIONS

In the face of rapid changes affecting several facets of

an enterprise, a holistic treatment is needed along with

a mechanism to represent, analyze, and use reasons

behind what enterprise is doing now and how it will

face the changes. In our approach, EA provides holis-

tic treatment of enterprise instead of point views and

analysis of whys using intentional modeling reﬂects in

all aspects of enterprise. Our initial explorations sug-

gest that the mapping enables a clear path from as-is

to to-be states of an EA model while preserving the

reasoning behind every alternative chosen. Providing

semantic foundation of the mapping between EA and

intentional metamodel as well as automating repre-

sentation and analysis of EA and intentional models

is part of our ongoing work.

REFERENCES

Ayala, C. P., Cares, C., Carvallo, J. P., Grau, G., Haya,

M., Salazar, G., Franch, X., Mayol, E., and Quer, C.

(2005). A comparative analysis of i*-based agent-

oriented modeling languages. In Chu, W. C., Juzgado,

N. J., and Wong, W. E., editors, SEKE, pages 43–50.

Berrisford, G. and Lankhorst, M. (2009). Using archimate

with an architecture method. Via Nova Architectura.

Buchanan, R. and Soley, R. (2002). Aligning enterprise

architecture and it investments with corporate goals.

OMG Whitepaper, Object Management Group, Need-

ham.

de Castro, J. B., Franch, X., Mylopoulos, J., and Yu, E.

S. K., editors (2011). Proceedings of the 5

Interna-

tional i* Workshop 2011, Trento, Italy, August 28-29,

2011, volume 766 of CEUR Workshop Proceedings.

CEUR-WS.org.

Engelsman, W., Quartel, D. A. C., Jonkers, H., and van Sin-

deren, M. (2011). Extending enterprise architecture

modelling with business goals and requirements. En-

terprise IS, 5(1):9–36.

Haren, V. and Publishing, V. H. (2012). ArchiMate 2. 0

Speciﬁcation. Van Haren Publishing Series. Bernan

Assoc.

Horkoff, J. and Yu, E. S. K. (2009). Evaluating goal

achievement in enterprise modeling - an interactive

procedure and experiences. In Persson, A. and

Stirna, J., editors, PoEM, volume 39 of Lecture Notes

in Business Information Processing, pages 145–160.

Springer.

Horkoff, J., Yu, Y., and Yu, E. S. K. (2011). OpenOME: An

open-source goal and agent-oriented model drawing

and analysis tool. In (de Castro et al., 2011), pages

154–156.

Kulkarni, V. and Reddy, S. (2003). Separation of con-

cerns in model-driven development. IEEE Software,

20(5):64–69.

Kulkarni, V., Reddy, S., and Rajbhoj, A. (2010). Scaling

up model driven engineering - experience and lessons

learnt. In Petriu, D. C., Rouquette, N., and Haugen,

Ø., editors, MoDELS (2), volume 6395 of Lecture

Notes in Computer Science, pages 331–345. Springer.

opez, L., Franch, X., and Marco, J. (2011). Making ex-

plicit some implicit i* language decisions. In Jeusfeld,

M. A., Delcambre, L. M. L., and Ling, T. W., editors,

ER, volume 6998 of Lecture Notes in Computer Sci-

ence, pages 62–77. Springer.

OMG (2010). Business Motivation Model - Version 1.1.

Quartel, D. A. C., Engelsman, W., Jonkers, H., and van Sin-

deren, M. (2009). A goal-oriented requirements mod-

elling language for enterprise architecture. In EDOC,

pages 3–13. IEEE Computer Society.

Sunkle, S., Kulkarni, V., and Roychoudhury, S. (2013). An-

alyzable enterprise models using ontology. In Proc.

CAiSE Forum. Accepted.

Wagter, R., Proper, E., and Witte, D. (2012). A practice-

based framework for enterprise coherence. In Proper,

E., Gaaloul, K., Harmsen, F., and Wrycza, S., editors,

PRET, volume 120 of Lecture Notes in Business In-

formation Processing, pages 77–95. Springer.

Yu, E. S. K. and Mylopoulos, J. (1994). Understanding

“why” in software process modelling, analysis, and

design. In Fadini, B., editor, Proceedings of the 16th

International Conference on Software Engineering,

pages 159–168, Sorrento, Italy. IEEE Computer So-

ciety Press.

Yu, E. S. K., Strohmaier, M., and Deng, X. (2006). Explor-

ing intentional modeling and analysis for enterprise

architecture. In Tenth IEEE International Enterprise

Distributed Object Computing Conference (EDOC)

Workshops, page 32.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

274
