Change Management of BPM-based Software Applications

Mourad Bouneffa and Adeel Ahmad

Universit´e Lille Nord de France, Laboratoire d’Informatique Signal et Image de la Cˆote d’Opale,

50, rue Ferdinand Buisson, BP 719, 62228 Calais Cedex, France

Keywords:

BPM, Software Evolution, Change Impact Propagation, Graph Rewriting Rules, Process Change Management.

Abstract:

Business process models are decision making tools intended to describe operations, constraints, and poli-

cies of an organisation. In this paper, we present an approach to control the evolution of Business Process

Model (BPM) based software applications. We deﬁne a BPM change taxonomy and focus on the change af-

fecting the BPMs and its impact propagation, through traceability relationships, to the software applications

implementing them. From a formal point of view, our work consists of specifying a BPM meta-model using

a typed attributed graph and a BPM change operations taxonomy based on graph rewriting rules. The speciﬁ-

cations are then implemented using an integrated software change management platform appearing as a set of

the Eclipse Workbench plug-ins.

1 INTRODUCTION

The communication means and interfaces between

human users and the automated information systems

are rapidly developing for the past decade. Thus,

the idea to automate most of the information system

processes, destined to managing an organization, is

far from being a utopia. It is therefore possible for

an external user of the organization to communicate

with the information system of such an organization

through various types of communication media and

interfaces such as voice systems, applications running

on smart-phones, etc. Moreover, these entry points

to information systems can be provided by the vari-

ous devices of operational systems to facilitate a co-

herent integration of the different organizational ac-

tors, management processes, and software applica-

tions supporting these processes.

This leads to the emergence of new software de-

velopment tools and approaches based on the Busi-

ness Process Model(BPM)(Weske, 2007; Weske,

2012) concept. In these approaches the BPMs

are speciﬁed by means of some standard nota-

tions like BPMN (Silver, 2009; Allweyer, 2010) and

XPDL (Van der Aalst, 2003; Haller et al., 2008).

The BPMs are then transformed into executable pro-

grams that are generally deployed as multi-tiered

distributed applications using platforms like J2EE,

.NET, etc. The executable programs are often built

as macro programs implementing the well known

concept of programming in the large(Emig et al.,

2005). These programs contain invocations of web

services(Gottschalk et al., 2002) provided by the var-

ious software applications which have been deployed

inside or sometimes outside the information system

boundaries. The Business Process Execution Lan-

guage(BPEL)(Juric, 2006) is one of the most known

programming in the large language.

In this paper, we precisely consider the study of

this new generation of applications. Our goal is to

demonstrate the feasibility of the implementation of a

process to control the change impact which may af-

fect these applications. For this purpose, we elaborate

a meta-model permitting to represent the most signif-

icant elements of a BPM. The major objective is to

formally construct a structure to express the several

BPM change operations.

The meta-model is formalized using typed and at-

tributed graphs. Our modelling choice of formally

specifying BPM allows to describe change operations

using graph rewriting or transformation rules. Such

rules can, indeed, permit a visual deﬁnition of the

effective change operations. These are adapted to

study the software artifact changes which are often

expressed by the graph change operations. A taxon-

omy is then elaborated to deﬁne the construction rules

and BPM transformations. The obtained speciﬁcation

is aimed at deﬁning a change impact not only on BPM

itself but also on concerned components of the BPM

based software applications. Our goal includes the

traceability between software applications, deploy-

ment platforms, software system actors and BPMs.

Bouneffa M. and Ahmad A..

Change Management of BPM-based Software Applications.

DOI: 10.5220/0004441400370045

In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 37-45

ISBN: 978-989-8565-60-0

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

The main objectivebeing to control the change impact

propagation through all, or a speciﬁed part of such a

software system.

In Section 2 we present, the meta-model for the

BPM formalization and the notions relevant to BPM

and BPM-based software applications. In section 3,

we specify a taxonomy of BPM change operations

and we give the formalization of these operations by

the graph rewriting rules. The section 4 presents

the change impact analysis and propagation process

along with its formalization by the graph rewriting

rules. The section 5 shows the prototype implemen-

tation of our speciﬁcations in regard to the integrated

platform to control the software changes(M. O. et al.,

2010). The section 6, summarizes the contribution

by a conclusion with the different perspectives of this

work.

2 BPM FORMALIZATION AND

META-MODELING

Before explaining the formalization and meta-

modeling of BPM, we ﬁrst explain the concept of

BPM and especially the life cycle of software appli-

cations based on the BPM. As shown in Fig. 1, the de-

velopment, deployment, and evolution of BPM based

software applications obey a life cycle. The phases

of BPM life cycle are described in the following sec-

tions:

Figure 1: The life cycle of BPM based applications.

2.1 The BPM Modeling

This phase involves BPM Modeling in terms of tasks

or activities which are necessary to implement the

process, the order of tasks accomplishment, the hu-

man actors involved in the performance of these tasks,

etc. In recent years, several models or notations have

been deﬁned to model the BPM. At ﬁrst, designing a

BPM is an activity within the scope of the informa-

tion system cartography. It was most often performed

as a part of BPR (Business Process Re-engineering)

projects (Lee et al., 2011). Thus, many models and

methods have been implemented such as the OS-

SAD method(Dumas et al., 1990), etc. Our present

work is particularly related to the BPM as a means

of speciﬁcation, development, and deployment of au-

tomated processes. We selected the widely consid-

ered and used notations in this area, particularly the

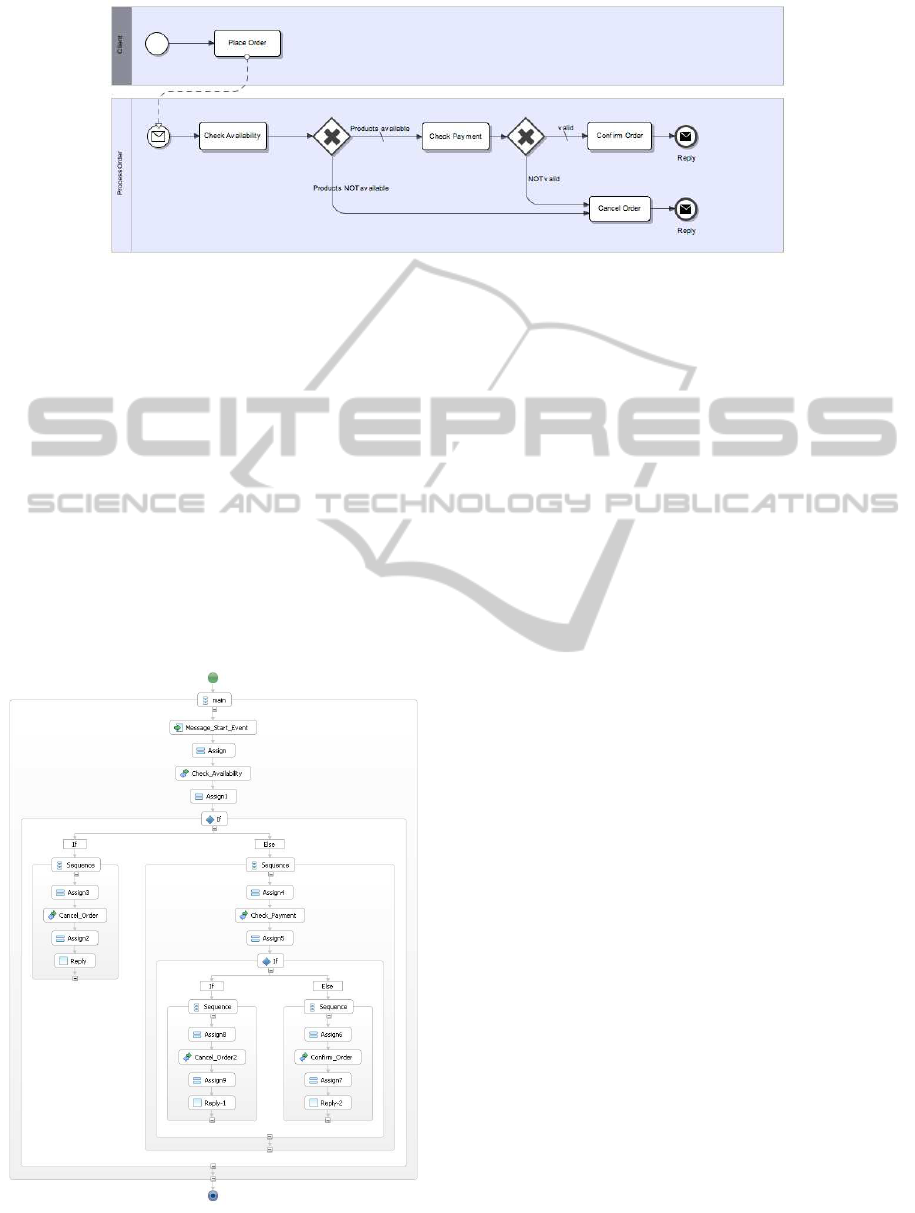

BPMN(OMG, 2011). Fig. 2 shows an example of

such a process. In this ﬁgure, the process is a partial

description of the Sales Chain Management. We ﬁrst

distinguish two important actors: the Client and the

Process Order. At the beginning, a start event repre-

sent the fact that Place Order is the ﬁrst task. This

ﬁrst task performed by the Client consists of the gen-

eration of an order that is sent as a message to the

Check Availability task, which is linked to a gateway

involving the Check Payment task. If the products are

available or the Cancel Order otherwise, etc. The pro-

cess ends by end events linked with Conﬁrm Order

and Cancel Order tasks.

2.2 The Development and the

Deployment of the BPM

The development and the deployment of a BPM are

two separate activities that can be performed manu-

ally, automatically, or usually semi-automatically. In

principle, these activities can be considered as classi-

cal operations for code generation, where the BPM

plays the role of a detailed design and the code is

represented by an application, deployed most often

on a web platform. There exists also software tools

to automate the deployment of such applications al-

most transparently. Some of these tools are Bonita

Intalio

, BizAgi

and Barium Live!

, etc. In these

tools a web application is generated and is hosted

by a Java servlet engine or in the form of ASP.NET

pages, etc. Without going to the full automation and

complete transparent development and deployment of

BPM based applications, there are intermediate lan-

guages playing the role of orchestrators or macro pro-

grams involving software components already encap-

sulated by web services. BPEL is one of the main

languages of this type and appears like a sort of stan-

dard in the matter. In one perspectiveof Model Driven

Engineering(MDE)(Schmidt, 2006), BPMN can be

considered as a Platform Independent Model (PIM)

and BPEL as a Platform Speciﬁc Model(PSM) con-

sisting of implementing BPMN in an environment us-

Bonita Open Solution url: http://www.bonitasoft.com/

Intalio—BPMS : http://www.intalio.com/

Bizagi BPM Suite : http://www.bizagi.com/

Barium Live! : http://www.bariumlive.com/

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

Figure 2: An example of Business Process Model Notation.

ing web services as a means of communication and

interoperability.

Fig. 3 shows an example of BPEL implementing

the BPM shown in Fig. 2. In this ﬁgure the BPEL is

a kind of web services orchestration. To do this, the

BPEL contains calls or invocations to web services

like Check Availability, Check Payment and Cancel

Order and ﬂow management nodes like sequence for

a sequential execution of web services invocations or

If for conditional branches. It is useful to remark that

the programming in the large concepts are quite sim-

ilar to the programming in the small (DeRemer and

Kron, 1975) ones. For our example, the tasks or ac-

tivities of the BPMs are implemented by web service

calls while gateways are implemented by If nodes.

Figure 3: An example of Business Process Execution Lan-

guage.

2.3 The Execution and Monitoring of

the BPM

The execution of the application is generally assured

by a web platform which is usually on multi-tiered

architecture etc. The BPM execution provides gener-

ally some interesting data such as response time, re-

source consumption, etc. These data are necessary

for the purpose of analyzing the process quality. In-

deed, business managers deﬁne performance indica-

tors (Key Performance Indicator(Parmenter, 2007))

for each process, to measure the performance of ac-

tivities implemented by processes. Some of these in-

formations can be obtained by dynamic analysis by

means of program proﬁling techniques(Ahmad et al.,

2008b; Ahmad and Basson, 2009; Ahmad et al.,

2009). Other information are exclusively provided

by human experts and will be explicitly taken into

account by some organizational process. They are

generally the derived data from activities within the

framework of customer satisfaction, etc. In (Dadam

et al., 2007), the authors propose, during the execu-

tion of processes, to consider particularly the excep-

tions. In some other areas, such as medical processes,

it is not possible to foresee all possible cases and to

model them through the processes. Thus, the authors

in (Dadam et al., 2007) propose and implement an ex-

ception handler, able to propose an alternative imple-

mentation or implementations of processes on the ﬂy.

A system of corporate knowledge about exceptions

can then eventually propose improvements to the ini-

tial process to take into account the various excep-

tions.

2.4 The BPM Improvement

The process improvement is a generic term that refers

primarily to the evolution of BPM processes. In real-

ity, the improvement is expected but what is actually

done, is an evolution of a process embodied by the

ChangeManagementofBPM-basedSoftwareApplications

change affecting the BPM processes. The goal is to

ﬁx certain performance anomalies or simply to com-

plete the automation of processes, a part of which is

manual, etc. In the literature, the improvement is seen

only on the process side and it ignores the software

implementation problems. In our case, we consider

both aspects, analyzing in particular the BPM change

impacts on the software and vice versa.

2.5 A Meta-model of Graph-based BPM

We propose a meta-model to represent the concepts

involved in the deﬁnition of BPMs. This meta-model

has been formalized by a typed graph that we im-

plement particularly in the context of the AGG

The result of this modeling is shown schematically

in the Fig. 4. This ﬁgure represents the main con-

cepts emerging from the BPMN. The process concept

represents the processes that contain what is called

ﬂow objects. These objects can be tasks or activi-

ties, sub-processes or macro-tasks, reﬁned by the pro-

cesses, events or gateways. A process has an actor

which is called the owner which may be one user, or

more, who has deﬁned the process and is authorized

to change this process. The process is implemented

by an application which is deployed and which can

host the execution of multiple instances or cases of

this process. Every instance involves actors that are

the users interacting with the various tasks performed

during the instance life cycle.

3 THE TAXONOMY OF CHANGE

OPERATIONS

In the development and the deployment of BPM-

oriented applications, the change seems inevitable. It

enrolls in fact, in the usual life cycle of this kind of ap-

plications. We deﬁne it as a taxonomy of change op-

erations that may affect one of the important compo-

nents of these applications to know the BPM. We con-

sider two kind of changes: the atomic change opera-

tions and composite or complex change operations.

3.1 The Atomic Change Operations

The formalization of a BPM as a typed attributed

graph allows us to compile a list of atomic change op-

erations. It is important to notify that, ”each change

operation corresponds to an insertion, deletion or

modiﬁcation of a node or an edge of this graph”. We

thus obtain the following change operations:

http://user.cs.tu-berlin.de/ gragra/agg/

• Insert a process

• Delete a process

• Modify a process(name, description, etc.)

• Insert a new task

• Delete a task

• Modify a task

– Modify an attribute of the task(name, descrip-

tion, etc.)

– Modify the type of a task (automatic, manual,

etc.)

• Insert an event

• Delete an event

• Modify an event(start event to intermediate event,

etc.)

• Insert a gateway

• Delete a gateway

• Modify a gateway(condition of application: OR

to XOR, etc.)

• Insert an edge or link(between two ﬂow objects)

• Delete an edge between two ﬂow objects

• Et cetera.

Each deﬁned atomic change operation is then for-

malized by graph rewriting rules. A graph rewriting

rule is in fact a production rule where the left and right

sides of the rule are graphs. In other words, a pro-

duction rule that transform a part of the graph which

match or corresponds to the left hand side (LHS) of

the production by another subgraph represented by

the right hand side(RHS) of the production. There

are also preconditions called negative or NAC, which

specify the need for non existence of certain sub-

graph for the rule to run.

Visually such a rule can be outlined as in the

Fig. 5. This ﬁgure depicts the partial creation or in-

sertion of a new task. It shows the three components

of a rule called InsertTask which represents the inser-

tion of a task in a process. The LHS of the rule states

that there must be a node in the graph of process type.

It would then match a process node of the graph with

that of the rule. This matching can be done manually

by the user or automatically by the graph rewriting

system following many methods that are out of the

scope of this paper. The RHS of the rule shows the

creation of a task called x connected to the process by

the relationship ”contains”. The NAC of the rule pro-

hibits the creation of a task named x if there is already

a task in the process with the same name.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

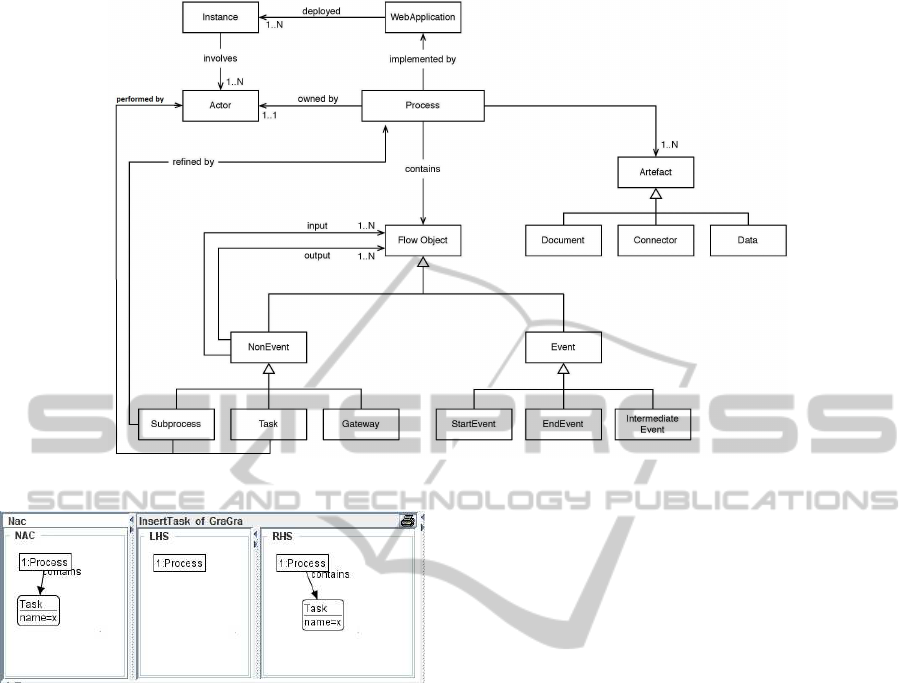

Figure 4: A UML based representation of BPM meta-model.

Figure 5: A rule to insert a task.

3.2 The Composite Change Operations

The composite change operations can be expressed in

the form of compositions of atomic operations. We

did not set a precise or exhaustive taxonomy of these

operations but we consider the most signiﬁcant and

frequent ones. It is also possible to deﬁne new com-

posite change operations.

The example of composite change operations:

• The merger of two tasks

• The decomposition of a task into two

• The merger of two processes

• The breaking down of a task into subprocess.

4 THE CHANGE IMPACT

ANALYSIS

This section deals with the BPM change impact man-

agement. A simulation of the change impact genera-

tion is presented formerly, using graph rewriting rules

and then in later part impact propagation is elaborated

to the various artifacts through the differenttype of re-

lationships.

4.1 The Change Impact Generation

All change operations are deﬁned by the precondi-

tions, which in the case of a graph rewriting rules

consist of the LHS(positive preconditions) and the

NAC (negative preconditions) and the postconditions

symbolized by the RHS. We therefore consider the

impact of a change M given the result of its execu-

tion(symbolized as the RHS), in the case of a viola-

tion of the precondition. In the case of graph rewriting

rules, this is translated into the creation of a node of

Impact type, connected to the nodes affected by the

impact and containing an attribute called explanation

which contains a narrative of the impact (see Fig. 6).

We simulate the creation of the impact by setting rules

without NAC and therefore tolerate the enforcement

of the rule with the result, in addition to that provided

by the original rule, appending a node of impact type

linked to the nodes it affects. In Fig. 6, we deﬁne a

rule to delete a task that provokes the creation of an

Impact node affecting the tasks related to the task that

has been deleted.

4.2 The Change Impact Propagation

The change impact propagation is a process of prop-

agating the impact to all nodes indirectly affected by

the impact. This propagation is done through a link or

ChangeManagementofBPM-basedSoftwareApplications

Figure 6: A rule for change impact analysis of a task dele-

tion.

relationship between nodes. Thus, some relationships

are identiﬁed as change impact conductor (Ahmad

et al., 2008a) and propagate the impact in one way

or another. For example, the Fig. 7 shows the propa-

gation of the impact affecting a task to the author of

this task with the associated explanation.

We distinguish here two types of change impact

propagations:

• The horizontal change impact propagation is to

propagate the change impact between artifacts be-

longing to the same phase of the development life

cycle of an application. This is the case of the rule

as shown in Fig. 7. It shows the impact propaga-

tion between tasks and actors.

• The vertical change impact propagation corre-

sponds to the change impact ﬂow between arti-

facts belonging to different phases of the develop-

ment life cycle of an application. This is the case

of the change impact propagation between a task

and a web service that implements a part of this

task and vice versa.

Figure 7: A rule for change impact propagation.

To show how we deal the vertical change impact

propagation, we ﬁrst deﬁne a kind of mapping rela-

tionships that are useful for the traceability purpose.

These relationships are :

• The mapedTo relationship between a BPMN pro-

cess and a BPEL process. In fact, we deﬁned a

meta-model of BPEL processes like we have done

with the BPMN but the BPEL process contains

objects like web services, etc.

• The ImplementedBy relationship between a task

of the BPM and a web service of the BPEL.

We know that this set of mapping relationships is a

restrictive one since it is generally possible that a task

may be implemented by more than one web service,

it may also be implemented by a process. In another

hand a BPMN process may be implemented by a set

of BPEL, ones. But we just want to demonstrate the

feasibility of our approach at this initial stage and then

reﬁne it more deeply in the future works.

The mapping relationships are then used by the

graph rewriting rules generating or propagating the

impact. So, the Fig. 8 shows the impact generated

by the composite change consisting of the merging of

two tasks. The question here is what to do with web

services implementing these tasks?

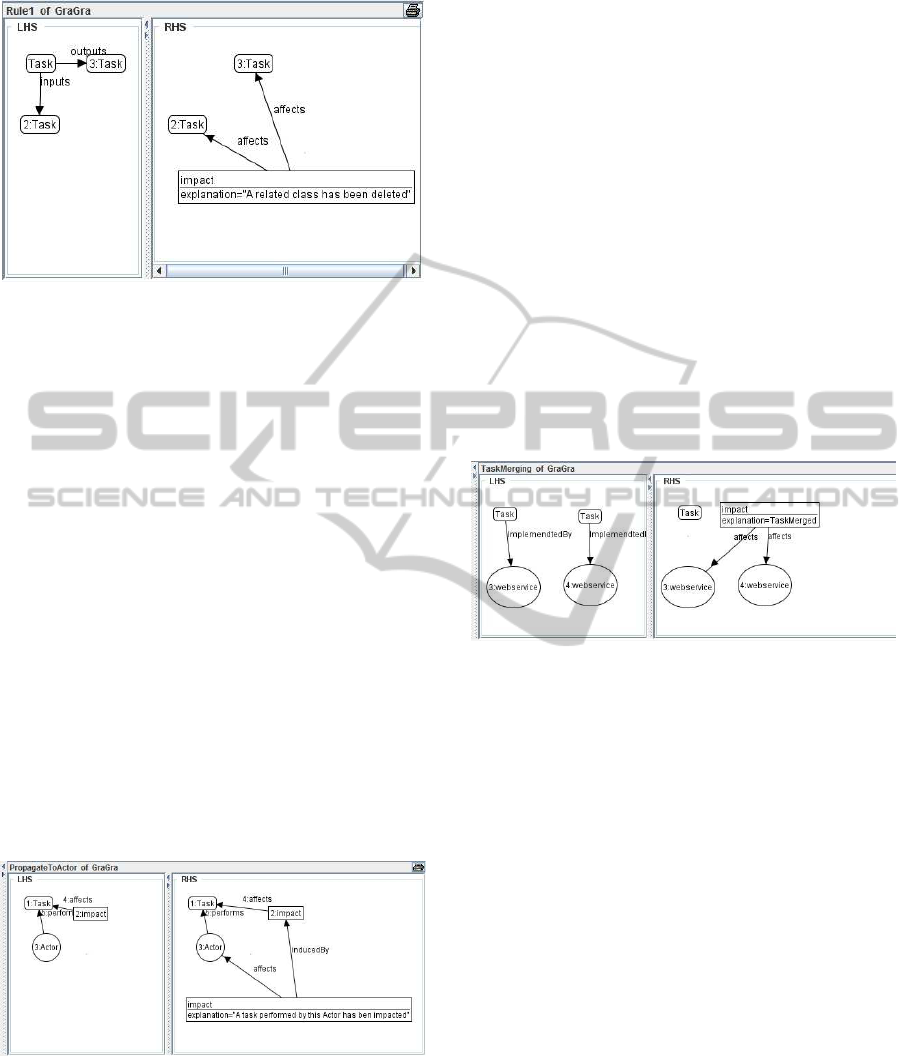

Figure 8: Rule for the impact generated by the composite

change.

On the other hand, we consider three kinds of

change impact propagation processes.

• The total change impact propagation simulates the

change operation and then execute all possible

rules of its impact propagation.

• The selective change impact propagation only

propagates the change impacts induced by a sub-

set of nodes relationships.

• The Propagation of type changes-and-ﬁx(Rajlich

and Gosavi, 2004; Rajlich, 1997) which is to

simulate a change, directly addresses the impact

of this operation (in terms of direct neighbours).

This treatment or correction of the change impact

will be a transaction which itself will directly im-

pact the address, and so on.

5 THE PROTOTYPE

OF VALIDATION

We use the graph rewriting system as a mean to for-

mally describe the BPM change operations. We also

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

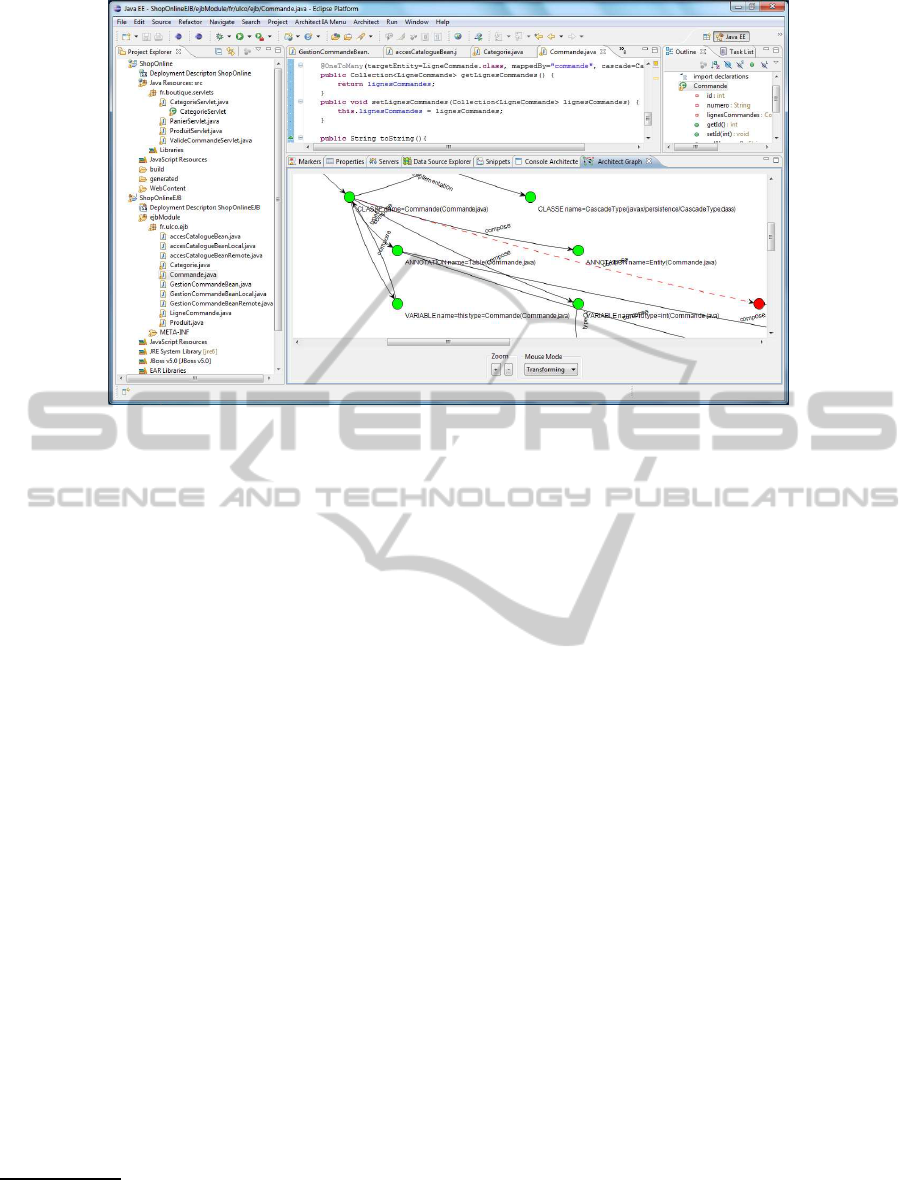

Figure 9: Screen shot of a change impact propagation scenario in Architect.

use such systems as an execution engine to evaluate

the different strategies we may adopt for the impact

management. For an operational validation of the

proposed change impact analysis and meta-model, we

implement an integrated platform prototype. It allows

friendly experimentations of graph structures associ-

ated to a software development project. Our platform,

named as Architect is a change impact analysis tool

for distributed software applications. It is built as a

set of Eclipse

IDE plug-ins. An Eclipse project man-

ages a set of resources that can be source code ﬁles,

libraries, BPEL, and BPMN ﬁlesetc. Architect ana-

lyzes these heterogeneous sources and parses their el-

ements to represent them as a homogenous interactive

graph. The Architect Graph extension of eclipse visu-

alizes the elements of the corresponding editor view.

This prototype contains a graph editor which provides

in a very simple way the nodes and arcs of the struc-

tural graph.

We have used the Java Universal Net-

work/Graph(JUNG)

Framework. This is a software

library that can be re-used for the modeling, analysis,

and the visualization of data as a graph or network.

This library allows to deﬁne the structure of data

Graph and also to use certain graph primitives for

the construction of user interfaces associated with the

graph manipulation tools. We used it in interaction

with the built-in capabilities of Java API, as well

as those of other existing third party Java libraries

i.e Drools

. We have specialized the class Graph

available in the JUNG library in a class that we

http://www.eclipse.org/

http://jung.sourceforge.net/

http://www.jboss.org/drools/

called ArchitectGraph. The large software related

information can be stored and manipulated through

a semi-automated knowledge-based system. The

Drools is a business logic platform which provides

an integrated uniﬁed platform for the graph rewriting

rules, workﬂow and the event processing. We use it

for writing dynamic expert rules as well as general

rules of propagation to improve the interactivity of

generated graph.

By using our platform, one can friendly specify a

change affecting a node. Which may be a BPM task,

a web service speciﬁcation, or a Java class, etc. The

various rules implementing the change impact propa-

gation may then be ﬁred. As a result the new graph

is displayed containing nodes of type ”impacted” re-

lated to the different impacted artifacts along with the

explanation of the propagated impact.

6 CONCLUDING REMARKS

AND FUTURE WORK

In this paper, we present an approach based on a

BPM meta-model intended to serve as a BPM arti-

facts repository data schema. We also deﬁned the ini-

tial BPM change operations taxonomy. It involves the

formalization of the change and the analysis of its im-

pact propagation by graph rewriting rules. The graph

rewriting rules have been implemented with AGG that

as a graph rewriting system. This implementation can

be considered as an operational or constructive speci-

ﬁcation.

We observe that it is possible to deﬁne a change

impact propagation process concerning both the BPM

ChangeManagementofBPM-basedSoftwareApplications

processes artifacts and their implementations which

can be BPEL processes, etc.The main concept of our

approach is implemented by a set of tools integrated

as ECLIPSE plug-ins. These plugins are parts of a

more general integrated framework which is built to

deal with the software artifacts change impact propa-

gations.

We are continuing the work by enriching the ap-

proach, in a more detailed way, with the different kind

of mapping relationships related to the BPM artifacts

and their implementation. The main goal is to be

able to automatically track the change impact prop-

agation. To achieve this, we must explicitly represent

knowledge concerningthe semantic of BPM elements

and their relationships. We are then using the BPMN

ontology(Penicina, 2013) that is expressed using the

owl language(Motik et al., 2012). We plan to en-

rich this ontology by concepts representing the var-

ious aspects of change impact and the relationships

propagating such impacts. The use of the owl lan-

guage makes it possible to deﬁne, in an explicit way,

the relationship hierarchy based on the impact prop-

agation. It is also possible to explicitly deﬁne some

semantical characteristics of relationships like transi-

tivity, etc. The reasoning capabilities provided by the

ontology languages(like owl) may assist the change

experts to deﬁne change impact rules.

Another goal is to provide some forward and re-

verse engineering tools in order to implement some

important tasks like deﬁning ﬂexible and adaptable

tools for the generation of BPM implementations and

some others for the generation of BPMs from the pro-

cess implementations.

REFERENCES

Ahmad, A. and Basson, H. (2009). Software evolution mod-

elling: an approach for change impact analysis. In

Proceedings of the 7th International Conference on

Frontiers of Information Technology, FIT ’09, pages

56:1–56:4, New York, NY, USA. ACM.

Ahmad, A., Basson, H., and Bouneffa, M. (2008a). Soft-

ware evolution control: Towards a better identiﬁca-

tion of change impact propagation. In ICET’08: Pro-

ceedings of the 4th IEEE International Conference on

Emerging Technologies, pages 286–291. IEEE Com-

puter Society.

Ahmad, A., Basson, H., and Bouneffa, M. (2009). Rule-

based approach for software evolution management.

In IEEE APSSC 2009: IEEE Asia-Paciﬁc Services

Computing Conference.

Ahmad, A., Basson, H., Deruelle, L., and Bouneffa, M.

(2008b). Towards a better control of change impact

propagation. In INMIC’08: 12th IEEE International

Multitopic Conference, pages 398–404. IEEE Com-

puter Society.

Allweyer, T. (2010). BPMN 2.0 : Introduction to the Stan-

dard for Business Process Modeling. Books on De-

mand, Norderstedt.

Dadam, P., Reichert, M., Rinderle, S., Jurisch, M., Acker,

H., Pser, K. G. A., Kreher, U., and Lauer, M. (2007).

Adept2 - next generation process management tech-

nology. In Proceedings Fourth Heidelberg Innovation

Forum, Aachen. D.punkt Verlag.

DeRemer, F. and Kron, H. (1975). Programming-in-the

large versus programming-in-the-small. SIGPLAN

Not., 10(6):114–121.

Dumas, P., Charbonnel, G., and Calmes, F. (1990). La

m´ethode OSSAD - Pour maˆıtriser les technologies de

l’information - Tome 2: Guide pratique, Les Editions

d’Organisation, Paris.

Emig, C., Momm, C., Weisser, J., and Abeck, S. (2005).

Programming in the Large based on the Business

Process Modeling Notation. In Jahrestagung der

Gesellschaft f¨ur Informatik (GI), Bonn.

Gottschalk, K., Graham, S., Kreger, H., and Snell, J. (2002).

Introduction to web services architecture. IBM Syst.

J., 41:170–177.

Haller, A., Gaaloul, W., and Marmolowski, M. (2008). To-

wards an xpdl compliant process ontology. In SER-

VICES I, pages 83–86.

Juric, M. B. (2006). Business Process Execution Language

for Web Services BPEL and BPEL4WS 2nd Edition.

Packt Publishing.

Lee, Y.-C., Chu, P.-Y., and Tseng, H.-L. (2011). Corpo-

rate performance of ict-enabled business process re-

engineering. Industrial Management and Data Sys-

tems, 111(5).

M. O., H., Deruelle, L., Basson, H., and Ahmad, A. (2010).

A change propagation process for distributed software

architecture. In ENASE 2010: Proceedings of the 5th

International Conference on Evaluation of Novel Ap-

proaches to Software Engineering.

Motik, B., Grau, B. C., Horrocks, I., Wu, Z., Fokoue, A.,

and Lutz, C. (2012). Owl 2 web ontology language:

Proﬁles. w3c recommendation (27 october 2009).

OMG (2011). Business process model and notation

(bpmn) version 2.0. OMG Document Number: for-

mal/ 2011-01-03, Standard document URL: http://

www.omg.org/spec/BPMN/2.0 Accessed 2011-03-18.

Parmenter, D. (2007). Key Performance Indicators (KPI):

Developing, Implementing,and Using Winning KPIs.

John Wiley & Sons, Inc., New York, NY, USA.

Penicina, L. (2013). Choosing a bpmn 2.0 compatible up-

per ontology. In The 5th International Conference on

Information, Process, and Knowledge Management,,

pages 89 – 96, Nice, France. IARIA.

Rajlich, V. (1997). A model for change propagation based

on graph rewriting. In Proceedings of the Interna-

tional Conference on Software Maintenance, pages

84–91, Washington, DC, USA. IEEE Computer So-

ciety.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

Rajlich, V. and Gosavi, P. (2004). Incremental Change

in Object-Oriented Programming. IEEE Softw.,

21(4):62–69.

Schmidt, D. (2006). Guest editor’s introduction: Model-

driven engineering. Computer, 39(2):25 – 31.

Silver, B. (2009). BPMN Method and Style: A levels-based

methodology for BPM process modeling and improve-

ment using BPMN 2.0. Cody-Cassidy Press.

Van der Aalst, W. M. P. (2003). Patterns and XPDL: A

critical evaluation of the XML process deﬁnition lan-

guage. Technical Report BPM-03-09, BPMcenter.org.

Weske, M. (2007). Business process management concepts,

languages, architectures. Springer, 1 edition.

Weske, M. (2012). Business process management architec-

tures. In Business Process Management, pages 333–

371. Springer Berlin Heidelberg.

ChangeManagementofBPM-basedSoftwareApplications
