QEF-LD

A Query Engine for Distributed Query Processing on Linked Data

Regis Pires Magalhães

1,2

, José Maria Monteiro

, Vânia M. P. Vidal

, José A. F. de Macêdo

Macedo Maia

, Fábio Porto

and Marco A. Casanova

Computer Science Department, Universidade Federal do Ceará (UFC), Fortaleza, Brazil

Quixadá Campus, Universidade Federal do Ceará (UFC), Quixadá, Brazil

Extreme Data Lab, Laboratório Nacional de Computação Cientíﬁca (LNCC), Petrópolis, Brazil

Informatics Department, Pontifícia Universidade Católica do Rio de Janeiro (PUC-Rio), Rio de Janeiro, Brazil

Keywords:

Linked Data, Federated Queries, Query Processing, Data Integration, Mashup.

Abstract:

Linked data applications express integrated views using the SPARQL query language. A SPARQL federated

query is submitted to a query engine that processes it over the distributed SPARQL endpoints. However,

achieving an efﬁcient execution of such a SPARQL federated query is hard. This is mainly due to the fact that

query processors have little or no statistical information about the data stored at the endpoints. Moreover, the

endpoints, usually, are autonomous and unstable. This paper presents QEF-LD, a query engine that enables

the efﬁcient execution of federated queries over multiple Linked Data sources. Experiments demonstrate the

feasibility of QEF-LD when compared to available federated query engines.

1 INTRODUCTION

The Linked Data initiative promotes the publication

of data as Web accessible resources. By using stan-

dard protocols and representing data using the RDF

model, autonomous datasources are published and

can be queried using the SPARQL query language.

The diversity of published data in a standard format

makes the basis for new kinds of applications that

combine data from different sources into a federated

view.

Linked data integration applications express fed-

erated views using the SPARQL query language. In a

SPARQL federated query (Prud’hommeaux and Buil-

Aranda, 2011), the service keyword points to the dis-

tributed data sources, while joins and unions integrate

the data in the federation. The integrated query is sub-

mitted to a federated query engine that processes it

over the distributed SPARQL endpoints.

It turns out that achieving an efﬁcient execution

of such a SPARQL federated query is hard. This is

mainly due to the fact that query processors have lit-

tle or no statistical information about the data stored

at the endpoints. As a result, traditional query opti-

mization strategies are jeopardized, making it hard to

deﬁne optimal join orderingsand to react to large bind

sets, which are common operations used in federated

query execution. Furthermore, the data sources are

usually autonomous and unstable.

There is, however, a particular kind of federated

application for which ﬁne-tuned query strategies may

be conceived. Data mashups are pre-deﬁned data

views that are computed by integrating distributed

data sources. In these applications, the designer

knows which data sources will provide the required

data and may deﬁne from experience the best strategy

to access them. Thus, inter-site join orderings, for in-

stance, can be deﬁned at design time. Note however

that, depending on the query parameters, the size of

intermediate results may vary considerably,so a query

engine must also be able to react to this variation by

dynamically setting the size of bind sets in joins.

In this paper, QEF-LD, a query engine for dis-

tributed query processing on Linked Data, is pre-

sented. The system enables designers to specify

mashup queries over federated Linked Data sources.

During mashup design, join ordering between dis-

tributed endpoints are deﬁned, while local joins re-

main speciﬁed in SPARQL subqueries to be run by

the endpoints themselves. Moreover, inter-site joins

are implemented by the SetBindJoin operator.

We conducted experiments that run ﬁve SPARQL

185

Magalhães R., Monteiro J., M. P. Vidal V., A. F. de Macêdo J., Maia M., Porto F. and A. Casanova M..

QEF-LD - A Query Engine for Distributed Query Processing on Linked Data.

DOI: 10.5220/0004443401850192

In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 185-192

ISBN: 978-989-8565-59-4

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

federated queries on three different SPARQL query

engines and on QEF-LD. The results show that QEF-

LD produces a query elapsed-time that is up to 4500

times faster than one of the query engines (Table 1).

Moreover, QEF-LD was able to run all ﬁve queries,

whereas some of the other systems suffered from

memory overﬂow or simply would not respond. This

performance gain is due mainly to two aspects: a) the

manual design of QEPs and b) the effect of SetBind

Join algorithm .

This paper is structured as follows. Section 2 cov-

ers related work. Section 3 presents the QEF-LD

component used to execute federated query plans on

Linked Data. Section 4 explains the proposed algo-

rithms used in QEF-LD. Section 5 analyses the exper-

iments performed to evaluate the feasibility of QEF-

LD, and to compare QEF-LD to other strategies for

the execution of federated queries. Finally, section

6 contains the conclusions and suggestions for future

work.

2 RELATED WORK

Jena ARQ

and Sesame

are query processors that

implement the federated query speciﬁcation for

SPARQL 1.1 (Prud’hommeaux and Buil-Aranda,

2011). The speciﬁcation deﬁnes the SERVICE oper-

ator that in turn deﬁnes the SPARQL Endpoint URI

and SPARQL query to be executed. However, the

speciﬁcation is quite simple and does not provide op-

timizations or other strategies to improve query per-

formance, such as caching or grouping of intermedi-

ate results.

DARQ (Quilitz and Leser, 2008) – Distributed

ARQ – extends Jena ARQ to allow SPARQL fed-

erated queries with transparent access to multiple

SPARQL endpoints. One limitation of DARQ is that

it can only execute queries with bound predicates.

This is because data source selection in DARQ is

based on matching query pattern predicates to pred-

icates in capability patterns. Therefore, DARQ does

not allow the use of SPARQL variables in predicates

of BGPs (Basic Graph Patterns). The DARQ project

emerged in 2006, though its development ceased as of

2008.

SemWIQ (Langegger, 2010) is another data in-

tegration system in which queries are expressed in

SPARQL. Like DARQ, it also extends the Jena ARQ

query processor. SemWIQ is based on a mediator-

wrapper architecture and uses its own optimization

http://jena.apache.org/documentation/query/

http://www.openrdf.org/

strategy to generate execution plans. SemWIQ de-

velopment is no longer maintained and its last update

was in 2010. DARQ and SemWIQ were not used in

our experiments (Section 5) since they were discon-

tinued.

FedX (Schwarte et al., 2011) – Linked Data

in a Federation – is a framework which extends

Sesame with an integration layer for transparent ac-

cess to distributed data sources. It enables efﬁcient

query processing on distributed Linked Data sources.

FedX is compatible with the SPARQL 1.0 query lan-

guage, which allows clients to integrate with available

SPARQL endpoints. It uses join reordering, bound

joins and grouping of subquery results to reduce the

number of intermediate results and thus to improve

federated query performance. FedX allows concur-

rent processing of join and union operations through

the use of threads.

We note that Jena, Sesame and FedX are de-

signed to evaluate ad-hoc SPARQL queries, dynam-

ically generating a federated query execution plan.

QEF-LD takes a different approach for dealing

with mashup integration queries. At design time, an

efﬁcient federated execution plan (described in XML)

is computed for a given mashup query, which is asso-

ciated with the corresponding SPARQL query during

execution. In this scenario, a more adequate execu-

tion proﬁle can be achieved.

3 QEF-LD

This paper describes QEF-LD, an extension of QEF –

Query Evaluation Framework (Porto et al., 2007) – to

support the execution of SPARQL endpoints integra-

tion queries.

QEF is a framework for the deployment of data

processing applications. Developers may extend QEF

with new operators, which implement the process-

ing semantics of the application, and with new data

sources, which enables access to data under hetero-

geneous formats. The application speciﬁcation is ex-

posed to QEF as an XML document, known as an ap-

plication execution plan.

There are two types of QEF operators: algebraic

and control. Algebraic operatorscorrespond to the ap-

plication semantics, whereas control operators imple-

ment the execution model and include operators for

data transformation and transfer.

QEF-LD extends QEF to allow data to be re-

trieved from SPARQL endpoints, whose underlying

data sources may be RDF stores or any other data

source with a translation to RDF, offered through a

wrapper. QEF-LD communicates with endpoints, ob-

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

186

tains results from SPARQL queries, and transforms

the results into QEF tuples [3]. Currently, QEF-LD

returns results in XML, JSON or HTML.

QEF-LD offers a set of Linked Data algebraic

operators, which capture the application semantics.

Complementarily, QEF-LD includes a set of control

operators, which access the data sources or cache in-

termediate results. The QEF-LD operators were im-

plemented using a consumer-producer strategy, deﬁn-

ing a pipeline of results from one operator to another.

In more detail, QEF-LD implements the following

operators: SPARQL Endpoint Data Source, Service

operator, Project operator, BindJoin operator, Set-

BindJoin operator, Union operator. The SetBindJoin

operator offers scalability to large result sets by the

dynamic partitioning of result sets and parallel eval-

uation. It outputs results from the parallel process-

ing of tuple sets generated by its left producer. The

grouping of tuples obtained from the left producer of

the join in sets allows a reduction in the number of

remote requests to SPARQL Endpoints related to the

right producer of the join. It also limits the number

of returned tuples, since the binding of common vari-

ables used in producers leads to the formulation of a

query with lower selectivity, i.e. a more restrictive

query.

QEF-LD stores a federated query plan, as an XML

ﬁle, represented by a URI. A plan may have named

parameters, extracted from a URI, and used to ﬁlter

the query executionresults. QEF-LD also permits that

stored plans be pre-loaded into a cache during startup,

or on demand, when the plan is requested for the ﬁrst

time.

4 ALGORITHMS

SetBindJoin Algorithm

The SetBindJoin algorithm outputs results from the

parallel processing of tuple sets generated by its left

producer. The grouping of tuples obtained from the

left producer of the join in sets allows a reduction in

the number of remote requests to SPARQL Endpoints

related to the right producer of the join. It also lim-

its the number of returned tuples, since the binding of

common variables used in producers leads to the for-

mulation of a query with lower selectivity, i.e. a more

restrictive query.

The processing of each set can be brieﬂy divided

into the following steps:

(i) Create a tuple set S with elements retrieved

from the left producer of the join.

(ii) Retrieve tuples from the right producer of the

join that are related with tuples from the tuple set S.

(iii) Return the join results between tuples from

the set S and tuples retrieved from the right producer.

The steps are detailed below:

(i) Create a Tuple Set S with Elements Re-

trieved from the Left Producer of the Join. The

SetBindJoin algorithm (algorithms 1 and 2) groups

the tuples retrieved from the left producer of the join

in sets (Lines 6–16 of Algorithm 2). The sets have

a maximum number of tuples that is pre-conﬁgured

in the SetBindJoin operator in the query plan. That

conﬁguration is represented in our algorithm by the

variable le ftTuplesSetSize.

(ii) Retrieve Tuples from the Right Producer of the

Join that are Related with Tuples from the Tu-

ple Set S. The right producer of the join is cloned

and existing queries in the right producer are refor-

mulated to bind the values of common variables be-

tween the left and right producers of the join. The

reformulation ensures that the right producer will

only retrieve results related to tuples from the tuple

set S. Clone and reformulation are performed by

the cloneAndReformulate method on line 17 of Al-

gorithm 2. The reformulation changes the original

query using UNION and FILTER features from the

SPARQL query language in order to bind variables.

Other reformulation strategies were tested, but

they were not feasible either due to some incompat-

ibility with most available SPARQL Endpoints or be-

cause their performance was worse than the adopted

strategy.

All the tuples retrieved by the left producer

of the join are stored in a hash table called

le ftTupleHashTable (Lines 4, 8, 11 and 17 of Al-

gorithm 2). The hash table key is a representation of

the values of the common variables between the join

producers and its value is a list of tuples that share the

key.

(iii) Return the Join Results between Tuples from

the Set S and Tuples Retrieved from the Right Pro-

ducer. For each tuple from the right producer of the

join, we retrieve a list with all left side tuples from the

le ftTupleHashTable that share the same key. Next,

we go over the list to join each of its elements with

the element retrieved from the right in order to return

the ﬁnal result of the operation (Lines 20–30 of Algo-

rithm 2).

The resulting tuples from all sets processed in

parallel are stored in a single linked blocking queue

called resultBu f fer. The take method from the

resultBu f fer queue (Line 7 of Algorithm 1) retrieves

and removes its ﬁrst element if the queue is not empty.

If the queue is empty, the take method waits until a

new element is added. The put method is used to in-

sert an element at the end of the queue (Lines 27 and

QEF-LD-AQueryEngineforDistributedQueryProcessingonLinkedData

187

33 of Algorithm 2). The put method waits if no space

is available to insert a new element in the queue. If

space is available, the queue exits the wait state and

allows the insertion of new elements.

The END_TOKEN element is used to ﬂag the end

of processing all tuples. It is added after the last re-

sulting tuple. The leftProducerSetCounter variable

is used to count sets that are processed in parallel. It

is incremented when a set starts to be processed and

decremented at the end of processing each set. When

its value is zero and no more tuples are retrieved from

the left producer of the join (Line 32 of Algoritm 2),

there is nothing to process and so the END_TOKEN

can be inserted (Line 33 of Algorithm 2).

Algorithm 1: SetBindJoin -

getNext

Input: leftProducer, rightProducer,

leftTuplesSetSize, resultBuffer,

processStarted,

maxNumberOfLeftProducerSets

Output: tuple

1 if not processStarted then

2 processStarted ← true

3 parallel

processTuples

(leftProducer,

rightProducer, leftTuplesSetSize,

resultBuffer,

maxNumberOfLeftProducerSets)

5 end

6 end

7 tuple ← resultBuffer.

take

()

8 if tuple = END_TOKEN then

9 tuple ← null

10 end

11 return tuple

The SetBindJoin implemented in QEF-LD is

conﬁgurable from parameters deﬁned in the query

execution plan. The parameters allow the deﬁ-

nition of (i) the maximum set size and (ii) the

maximum number of concurrent threads. The pa-

rameter (ii) is also the maximum number of sets

(maxNumberOfLeftProducerSets) that can be pro-

cessed concurrently. Line 18 of Algorithm 2 imple-

ments this restriction in order to avoid having too

many threads awaiting processing. Higher values to

parameter (ii) can open an excessive number of sock-

ets, which can interrupt the query processing.

Union Algorithm

The Union algorithm (Algorithm 3) performs the con-

current union of tuples from multiple producers. Each

thread retrieves tuples from one producer and stores

them in a linked blocking queue called resultBu f f er.

If the resultBuf fer queue is not empty, the take

method (Line 19 of Algorithm 3) retrieves and re-

moves its ﬁrst element. Otherwise, the take method

Algorithm 2: SetBindJoin -

processTuples

Input: leftProducer, rightProducer,

leftTuplesSetSize, resultBuffer,

maxNumberOfLeftProducerSets

1 leftTuple ← leftProducer.

getNext

()

2 leftProducerSetCounter ← 0

3 while leftTuple 6= null do

4 leftTuplesHashTable ←

createHashtable

()

5 numberOfLeftTuples ← 0

6 while (numberOfLeftTuples <

leftTuplesSetSize) and leftTuple 6= null do

7 key ←

getKeyBasedOnSharedVars

(leftTuple)

8 leftList ← leftTuplesHashTable.

get

(key)

9 if leftList = null then

10 leftList ←

createList

()

11 leftTuplesHashTable.

put

(key, leftList)

12 end

13 leftList.

add

(leftTuple)

14 leftTuple ← leftProducer.

getNext

()

15 numberOfLeftTuples++

16 end

17 changedRightProducer ←

rightProducer.

cloneAndReformulate

(leftTuplesHashTable)

18 Wait until leftProducerSetCounter <

maxNumberOfLeftProducerSets

19 parallel

20 leftProducerSetCounter++

21 rightTuple ←

changedRightProducer.

getNext

()

22 while rightTuple 6= null do

23 key ←

getKeyBasedOnSharedVars

(rightTuple)

24 leftTuplesList ←

leftTuplesHashTable.

get

(key)

25 foreach leftTuple in leftTuplesList do

26 tuple ←

join

(leftTuple,

rightTuple)

27 resultBuffer.

put

(tuple)

28 end

29 rightTuple ←

changedRightProducer.

getNext

()

30 end

31 leftProducerSetCounter−−

32 if leftTuple = null and

leftProducerSetCounter = 0 then

33 resultBuffer.

put

(END_TOKEN)

34 end

35 end

36 end

waits until a new element is inserted. The put method

is used to insert a new element at the end of the queue

(Lines 9 and 14 of Algorithm 3). If there is no space

available to insert a new element in the queue the put

method goes into wait state. It leaves the wait state

and allows the insertion of new elements as soon as

the required space is available.

The END_TOKEN element is used to ﬂag the end

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

188

of processing all tuples. It is added after the insertion

of the last resulting tuple. A counter of concurrent

processed producers called producersCounter is used

to help identify the end of processing all tuples. It

is incremented in the beginning of processing of each

producer and decremented after the end of processing.

Thus, when its value is zero (Line 13 of Algorithm 3)

there is nothing to process and the END_TOKEN can

be added (Line 14 of Algorithm 3).

Algorithm 3: Union -

getNext

Input: producers, processStarted, resultBuffer

Output: tuple

1 if not processStarted then

2 processStarted ← true

3 producersCounter ← 0

4 for i = 0 to producers.

size

() − 1 do

5 parallel

6 producersCounter++

7 prodTuple ← producers[i].

getNext

()

8 while prodTuple 6= null do

9 resultBuffer.

put

(prodTuple)

10 tuple ← producers[i].

getNext

()

11 end

12 producersCounter−−

13 if producersCounter = 0 then

14 resultBuffer.

put

(END_TOKEN)

15 end

16 end

17 end

18 end

19 tuple ← resultBuffer.

take

()

20 if tuple = END_TOKEN then

21 tuple ← null

22 end

23 return tuple

5 EXPERIMENTS AND RESULTS

In order to quantitatively evaluate the proposed query

engine under the mashup data integration scenario

with parameterized queries, we have performed sev-

eral experiments using QEF-LD, and the most widely

used tools, to run federated SPARQL queries: Jena,

Sesame and FedX. This section discuss the results

of the experiments we carried out. For that, we

used efﬁciency as metric that is related to query pro-

cessing time and memory footprint in each evaluated

SPARQL query processor.

To carry out the tests we used the following

datasets: diseasome, dailymed, sider, drugbank, dblp,

DBpedia and linkedgeodata. For each dataset we im-

ported its data for an RDF Store using the dumps

available on the Web. The OpenLink Virtuoso

was

http://virtuoso.openlinksw.com/

used to store the RDF data and to provide a SPARQL

Endpoint service.

The workload comprised ﬁve synthetic SPARQL

mashup queries. The Q1, Q2, and Q3 queries were

designed to evaluate the join strategies, whilst queries

Q4 and Q5 were prepared with the intention of ana-

lyzing the performance of the union operations.

Queries to Evaluate the Join Strategies

Both queries Q1 and Q2 have a single join operation,

but differ principally by the amount of data returned

(see Table 2). Query Q3 involves two join opera-

tions and retrieves a large number of results (86,516

tuples).

Query Q1 (Figure 1) gets resources’ URIs from

the linkedgeodata dataset, together with their respec-

tive latitudes and longitudes obtained from the DBpe-

dia dataset. Query Q2 (Figure 2) gets URIs of dis-

eases and possible drugs used to treat each disease

from the diseasome data source. In addition to these

data, the full names of the drugs used in treating each

disease are obtained from the dailymed data source.

PREFIX owl: <http://www.w3.org/2002/07/owl#>

PREFIX geopos: <http://www.w3.org/2003/01/geo/wgs84_pos#>

SELECT ?s ?lat ?long

WHERE {

SERVICE <http://linkedgeodata.arida.ufc.br/sparql> {

?s owl:sameAs ?geo .

}

SERVICE <http://dbpedia.arida.ufc.br/sparql> {

?geo geopos:lat ?lat ;

geopos:long ?long .

}

Figure 1: Federated SPARQL Query Q1.

PREFIX ds:

<http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseasome/>

PREFIX dm: <http://www4.wiwiss.fu-berlin.de/dailymed/resource/dailymed/>

SELECT DISTINCT ?ds ?dg ?dgn

WHERE {

SERVICE <http://diseasome.arida.ufc.br/sparql> {

?ds ds:possibleDrug ?dg .

}

SERVICE <http://dailymed.arida.ufc.br/sparql> {

?dg dm:fullName ?dgn .

}

Figure 2: Federated SPARQL Query Q2.

Query Q3 (Figure 3) gets, initially, the name of

active pharmacological agents for some drugs in the

dailymed dataset. From these values, Q3 checks:

1) the owl:sameAs links with sider, in order to get

the side effects for each drug, and 2) the links daily

QEF-LD-AQueryEngineforDistributedQueryProcessingonLinkedData

189

med:genericDrug with drugbank to retrieves chemi-

cal formulas of drugs.

PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

PREFIX owl: <http://www.w3.org/2002/07/owl#>

PREFIX dm: <http://www4.wiwiss.fu-berlin.de/dailymed/resource/dailymed/>

PREFIX db: <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/>

PREFIX sider: <http://www4.wiwiss.fu-berlin.de/sider/resource/sider/>

SELECT ?dgain ?dgcf ?sen

WHERE {

SERVICE <http://dailymed.arida.ufc.br/sparql> {

?dg dm:activeIngredient ?dgai .

?dgai rdfs:label ?dgain .

?dg dailymed:genericDrug ?gdg .

?dg owl:sameAs ?sa .

}

SERVICE <http://sider.arida.ufc.br/sparql> {

?sa sider:sideEffect ?se .

?se sider:sideEffectName ?sen .

}

SERVICE <http://drugbank.arida.ufc.br/sparql> {

?gdg db:chemicalFormula ?dgcf .

}

Figure 3: Federated SPARQL Query Q3.

Queries to Evaluate the Union Strategies

Queries Q4 and Q5 differ in the number of union

operations performed. While query Q4 has a sin-

gle union operation, query Q5 has ten union opera-

tions. Query Q4 (Figure 4) performs the union of

generic names of drugs and medical treatment indi-

cations between the datasets drugbank and dailymed.

The query Q5 (Figure 5) performs the union of re-

searchers names and their publications in the DBLP

dataset.

PREFIX owl: <http://www.w3.org/2002/07/owl#>

PREFIX db: <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/>

PREFIX dm: <http://www4.wiwiss.fu-berlin.de/dailymed/resource/dailymed/>

SELECT ?gn ?indication

WHERE {

{

SERVICE <http://drugbank.arida.ufc.br/sparql> {

?dn db:genericName ?gn ;

db:indication ?indication.

}

UNION {

SERVICE <http://dailymed.arida.ufc.br/sparql> {

?dn dm:name ?gn ;

dm:indication ?indication .

}

Figure 4: Federated SPARQL Query Q4.

Execution

To measure efﬁciency, we have submitted 10 execu-

tion cycles for each one of the ﬁve queries in the

workload. Each execution cycle involved two execu-

PREFIX dc: <http://purl.org/dc/elements/1.1/>

PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT ?label ?pub_title where {

{

SERVICE <http://dblp01.arida.ufc.br/sparql> {

?publication dc:creator ?dblp_researcher ;

dc:title ?pub_title .

?dblp_researcher rdfs:label ?label .

FILTER regex(?label, "^Aab")

}

...

} UNION {

SERVICE <http://dblp10.arida.ufc.br/sparql> {

?publication dc:creator ?dblp_researcher ;

dc:title ?pub_title .

?dblp_researcher rdfs:label ?label .

FILTER regex(?label, "^Jab")

}

Figure 5: Federated SPARQL Query Q5.

tions of the same query.

In each execution cycle, the ﬁrst query usually un-

derperformed due to the startup of the Java virtual

machine that prepares and allocates the necessary re-

sources. However, the second query run on the same

virtual machine instance, where all the resources were

already available. For this reason, for each execution

cycle, we ignored the response time of the ﬁrst query

run. That is, we took into account only the response

time of the second query run.

Testing Environment

Two nodes comprised the test environment, a server

and a client, connected by a local network. The server

machine hosted the OpenLink Virtuoso, which stored

the RDF data and provided a SPARQL endpoint ser-

vice to each dataset used in the workload: disea-

some, dailymed, sider, drugbank, dblp, DBpedia and

linkedgeodata. The client machine hosted the eval-

uated SPARQL query engines: Jena, Sesame, FedX

and QED-LD. The server machine used in the exper-

iments was an Intel Core i7 2.93GHz with 16 GB

RAM DDR3 1333 MHz. The client machine used

during the tests was an Intel Core 2 Duo 2.93GHz

with 2GB RAM 667 MHz.

Experimental Results

In order to evaluate the efﬁciency of the SPARQL

query engines, we used two metrics: 1) the query re-

sponse time and 2) the maximum amount of memory

used by the Java virtual machine during each query

run.

Performance Evaluation of Join Operations

The join operator used by QEF-LD was the SetBind-

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

190

Join. This operator uses threads to run queries in par-

allel. A maximum of one hundred concurrent threads

was chosen to be used for all queries involving the

SetBindJoin operator. This value was chosen due to

the following experimental observation: ﬁxing the

other SetBindJoin parameters and varying only the

number of concurrent threads, the best performance

results were obtained when this value was near one

hundred. Moreover, fewer concurrent threads may re-

sult in a lower throughput. Then, we observed that

there are values for the maximum number of concur-

rent threads that lead to a balance between data pro-

duction (SPARQL Endpoint) and data consumption

(QEF-LD), which maximizes the throughput. For the

environment used in our experiments, this value was

close to one hundred.

Sesame (version 2.6.5.) did not return data for

Q1 ("N.R. – no results returned" in Table 1), even

after running for hours. No error message was re-

turned. We also noted no excessive memory con-

sumption (approximately 180MB).

FedX did not return data for Q1 and Q3. During

the execution of Q1 and Q3, FedX used all available

memory for the Java virtual machine and, after some

time, threw an exception indicating lack of available

memory ("O.O.M. – OutOfMemory" in Table 1).

Figures 6 and 7 show the query response times of

queries Q1 to Q5. For queries Q1, Q2 and Q3, QEF-

LD obtained considerably smaller query response

times than the other evaluated SPARQL query en-

gines. QEF-LD ran query Q5 in slightly more time

than FedX.

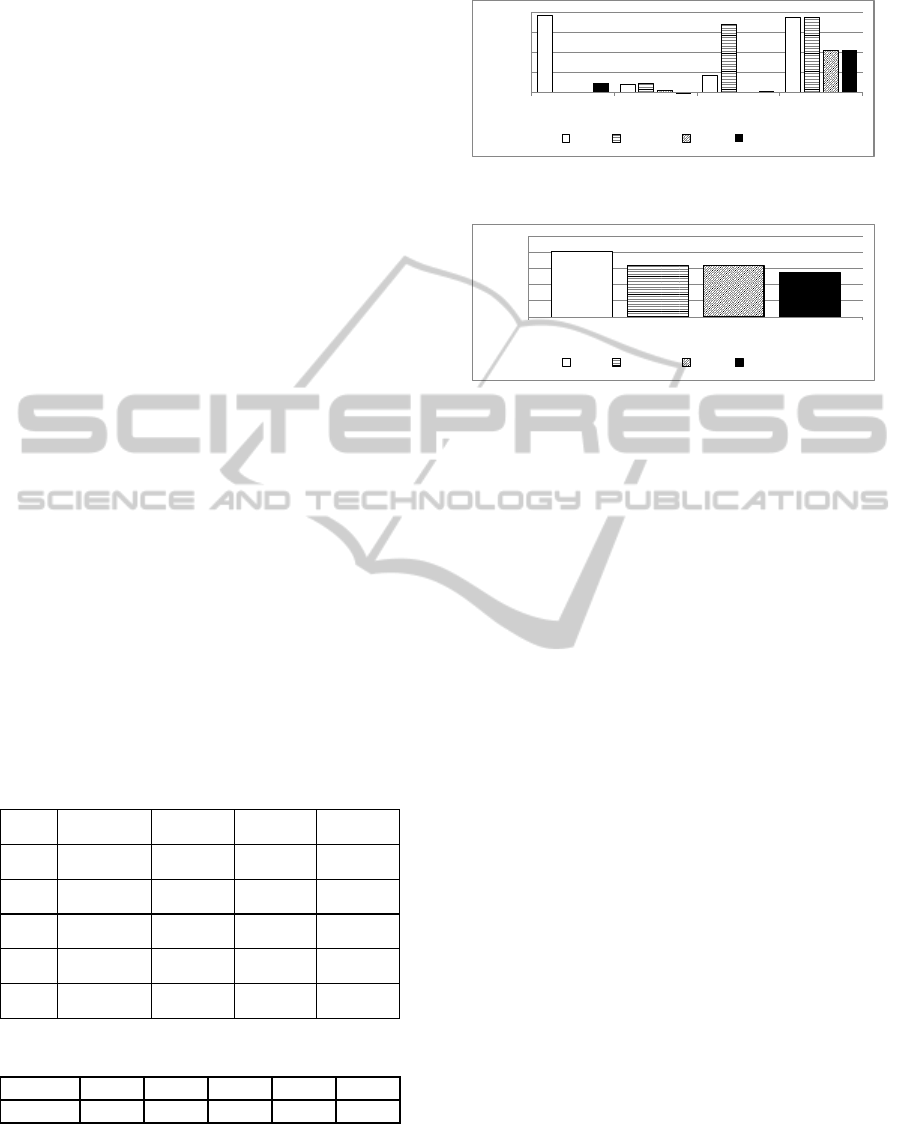

Table 1: Query execution times (in seconds) of queries Q1–

Q5.

Jena

Sesame

FedX

QEF

382.649

N.R.

O.O.M.

50.808

39.530

47.239

12.576

1.017

88.531

339.741

O.O.M.

7.416

0.813

0.642

0.636

0.556

375.226

375.900

208.155

214.457

Table 2: Number of results of queries Q1–Q5.

Query Q1 Q2 Q3 Q4 Q5

# results 43,016 6,124 86,516 5,146 18,327

Moreover, the SetBindJoin operator implemented

in QEF-LD generally consumed more memory than

the equivalent operators in others evaluated SPARQL

query engines. This memory consumption was

mainly due to the need to temporally store data re-

100

200

300

400

Time (seconds)

Jena

Sesame

FedX

QEF-LD

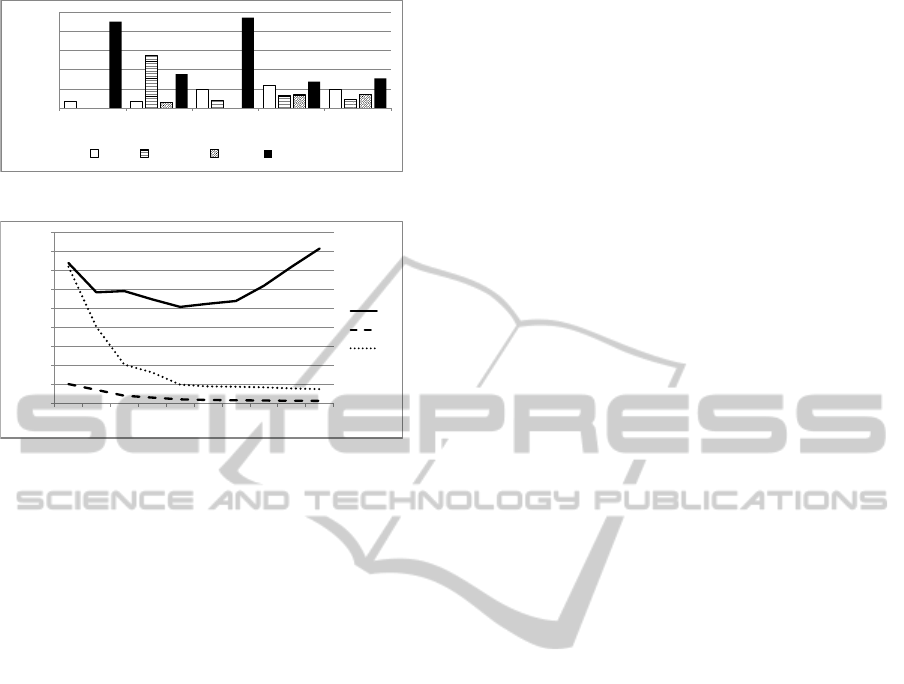

Figure 6: Comparison chart showing execution times of

queries Q1, Q2, Q3 and Q5.

0.2

0.4

0.6

0.8

Time (seconds)

Jena

Sesame

FedX

QEF-LD

Figure 7: Query execution times of query Q4.

quired to build the joins results. The use of multiple

threads also increases memory consumption.

Q3 query is quite different from Q1 and Q2, the

other queries that use join operations, since Q3 per-

forms two join operations instead of just one and re-

turns more results. It is important to note that, in Jena,

the amount of memory used by Q3 was much greater

than that used by Q1. However, in QEF-LD, queries

Q1 and Q3 did not suffer a signiﬁcant difference in

memory consumption. In addition, Sesame provided

the lowest memory consumption among the evaluated

tools.

Analyzing Figure 9, one can see that, in query Q1,

starting at sets of 20 bind values, increasing the size

of the sets makes the query evaluation slower. There-

fore, it is important to ﬁnd a balance between data

production and consumption to maximize query per-

formance. The maximum size of the sets used in

queries Q1, Q2 and Q3 was 57 QEF tuples (Porto

et al., 2007), which contains intermediate results. We

could not use larger sets because the Virtuoso server

does not allow queries with more than 57 union op-

erations. Indeed, the BINDING strategy used by Set-

BindJoin involves query reformulation using several

union operations (See Section 4).

Performance Evaluation of Union Operations

Regarding the union operation, Sesame and FedX

stood out for their smaller memory consumption com-

pared to other evaluated tools. For the ﬁrst time in the

experiments, FedX achieved satisfactory results with

respect to memory usage. The QEF-LD memory foot-

print was larger than the other query engines, which

indicate that there is room for improving the QEF-LD

Union algorithm.

In query Q5, FedX and QEF-LD had similar

QEF-LD-AQueryEngineforDistributedQueryProcessingonLinkedData

191

100

200

300

400

500

Memory (MB)

Jena

Sesame

FedX

QEF-LD

Figure 8: Memory usage of queries Q1–Q5.

Time (seconds)

Set size

Figure 9: Execution times of queries Q1–Q3 for different

set sizes.

response times. Furthermore, FedX and QEF-LD

proved to be almost twice as fast as the other eval-

uated query engines. This performance gain is due to

the use of threads. However, the memory consump-

tion was greater in QEF-LD than in the other query

engines.

We conclude with a remark on the testing envi-

ronment. We decided to store all triplesets used on

the OpenLink Virtuoso to expedite the experiments

and to shield the experiments from extraneous fac-

tors. In fact, we tried several times to run the designed

workload (queries Q1 to Q5) over the original data

available on the Web. However, these queries bur-

dened the endpoints, sometimes causing service inter-

ruption. In other cases, the endpoint servers limited

the results, threw exceptions, and added error mes-

sages (like "Premature end of ﬁle"). In the future, we

intend to design and run over the Web environment

a workload containing queries with greater selectivity

in order to reduce the amount of data retrieved and,

thereby, facilitating the experiments.

6 CONCLUSIONS AND FUTURE

WORK

This paper addresses the processing of federated

query plans on the Web of Data using QEF-LD,

which is a query execution engine that extends QEF

– Query Evaluation Framework. QEF-LD exploits

intra-operator parallelism, reduction in the number of

remote calls and reduction in the selectivity of queries

to remote endpoints in order to improve the perfor-

mance of query execution. Furthermore, QEF-LD

is fully compatible with the SPARQL 1.0 query lan-

guage that allows clients to integrate with available

SPARQL endpoints. Experiments demonstrated the

feasibility of using QEF-LD operators. The SetBind-

Join operator implemented in QEF-LD obtained con-

siderably smaller execution times than other strate-

gies.

The main challenges to be addressed in the future

include: (i) adding new efﬁcient operators to QEF-

LD; (ii) creating adaptive operators to address the

aspect of unpredictability in the Web of Data; (iii)

using data cache, indexes and statistics to improve

query performance; (iv) creating a framework to au-

tomate all steps of federated query processing, where

QED-LD will be used as the query execution engine;

(v) adding support for adaptive processing of ad-hoc

queries.

REFERENCES

Langegger, A. (2010). A Flexible Architecture for Virtual

Information Integration based on Semantic Web Con-

cepts. PhD thesis, J. Kepler University Linz.

Porto, F., Tajmouati, O., Da Silva, V. F. V., Schulze, B.,

and Ayres, F. V. M. (2007). Qef - supporting com-

plex query applications. In Proceedings of the Seventh

IEEE International Symposium on Cluster Computing

and the Grid, CCGRID ’07, pages 846–851, Washing-

ton, DC, USA. IEEE Computer Society.

Prud’hommeaux, E. and Buil-Aranda, C. (2011). SPARQL

1.1 Federated Query. http://www.w3.org/TR/

sparql11-federated-query/.

Quilitz, B. and Leser, U. (2008). Querying Distributed RDF

Data Sources with SPARQL. In Proceedings of the

5th European semantic web conference on The seman-

tic web: research and applications, ESWC’08, pages

524–538, Berlin, Heidelberg. Springer-Verlag.

Schwarte, A., Haase, P., Hose, K., Schenkel, R., and

Schmidt, M. (2011). Fedx: a federation layer for dis-

tributed query processing on linked open data. In Pro-

ceedings of the 8th extended semantic web conference

on The semanic web: research and applications - Vol-

ume Part II, ESWC’11, pages 481–486, Berlin, Hei-

delberg.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

192
