Automating the Architecture Evaluation of Enterprise Information

Systems

Felipe Pinto

1,2

, Uirá Kulesza

and Eduardo Guerra

Federal University of Rio Grande do Norte (UFRN), Natal, Brazil

Federal Institute of Education, Science and Technology of Rio Grande do Norte (IFRN), Natal, Brazil

National Institute for Space Research (INPE), São José dos Campos, Brazil

Keywords: Scenario-based Evaluation, Architecture Evaluation, Annotation, Quality Attribute, Scenario.

Abstract: Traditional scenario-based architectural analysis methods rely on manual review-based evaluation that

requires advanced skills from architects and evaluators. They are applied when the architecture has been

specified, but before its implementation has begun. The system implementation is one additional and

fundamental element that should be considered during the software architecture evaluation. In this paper, we

propose an approach to add information, which ideally should come from traditional evaluation methods,

about scenarios and quality attributes to the source code using metadata in order to allow the automatic

analysis producing a report with information about scenarios, quality attributes, source code assets and

potential tradeoff points among quality attributes. The paper also presents the preliminary results of the

approach application to an enterprise web information system and an e-commerce web system.

1 INTRODUCTION

Over the last decade several software architecture

evaluation methods based on scenarios and quality

attributes have been proposed (Clements, 2002)

(Bengtsson, 2004). These methods use scenarios in

order to exercise the software architecture what

allow the gain of architectural-level understating and

of predictive insight to achieve desired quality

attributes (Kazman, 1996).

Traditional scenario-based methods produce a

report as output which contains information about

risk analysis regarding architecture decisions.

ATAM (Clements, 2002), produce information

about tradeoff points. A tradeoff point is an

architectural decision that affects more than one

quality attribute. For example, changing the level of

encryption could have impact on both security and

performance.

All these methods are applied manually and rely

on manual review-based evaluation that requires

advanced skills from architects and evaluators. They

are classically applied when the architecture has

already been specified, but before implementation

has begun. The system implementation is one

additional element that can be useful when suitably

analyzed, for example, if the software evolves

causing critical architectural erosion (Silva, 2012)

implying on the need of executing the process of

evaluation again because the architecture designed

has several differences to the architecture

implemented (Abi-Antoun, 2009).

We believe that the usage of system

implementation during the architecture evaluation

can enable the automation of this process and the

reuse of architectural information and tests. In this

context, we propose an approach that introduces

additional information, which ideally should come

from traditional architecture evaluation methods,

about scenarios and quality attributes to the

application code using metadata. Further, it executes

an automated tool to perform the analysis producing

a report with relevant information about scenarios,

quality attributes and code asset, such as: (i) the

scenarios affected by particular quality attributes;

and (ii) the scenarios that potentially contain tradeoff

points and should have more attention from the

architecture team

The rest of this paper is organized as follows:

Section 2 introduces the approach; Section 3

presents the tool developed; Section 4 shows two

case studies where we have applied our approach;

Section 5 discusses some related works and, finally,

Section 6 concludes the paper.

333

Pinto F., Kulesza U. and Guerra E..

Automating the Architecture Evaluation of Enterprise Information Systems.

DOI: 10.5220/0004452103330340

In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 333-340

ISBN: 978-989-8565-61-7

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 APPROACH OVERVIEW

This section presents an overview of our approach.

The main goal is to automate the architecture

evaluation by adding extra information with

metadata to the application source code. The

approach presented here is independent of

programing language or platform. Figure 1

summarizes the approach steps.

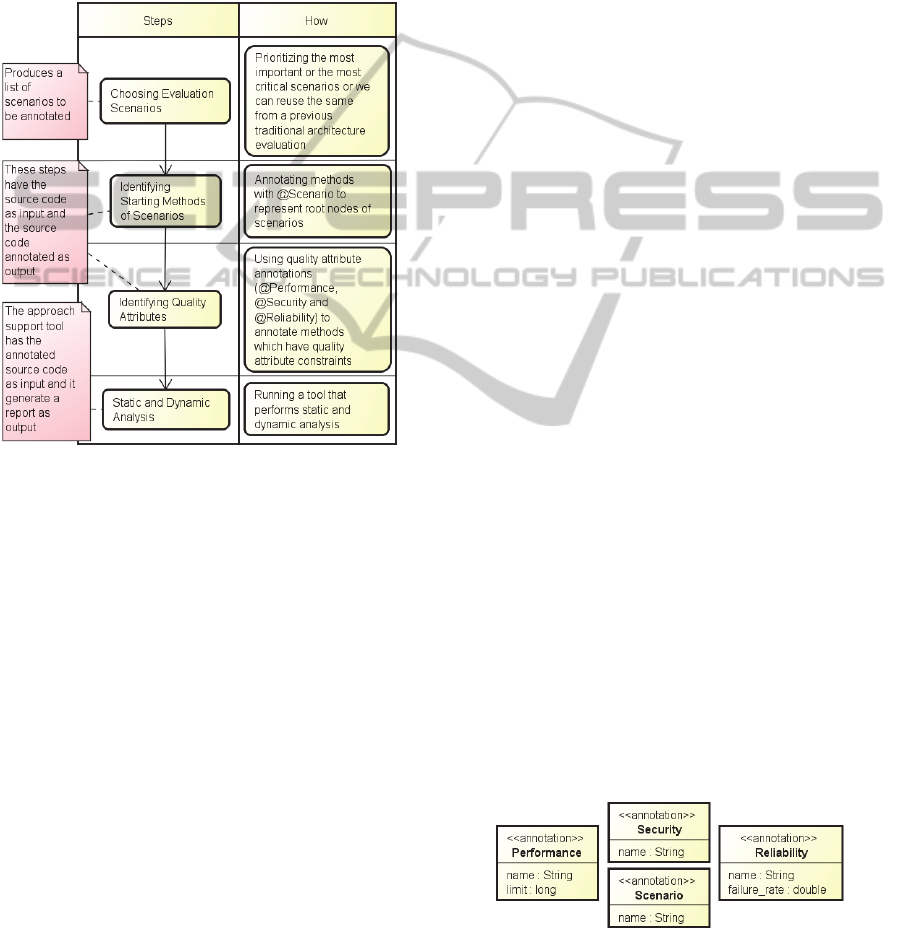

Figure 1: Approach overview.

In Figure 1, the column “Steps” presents the step

description and the column “How” shows an

example of how it is accomplished on our developed

tool. Next subsections detail each one of the steps

which are presented considering the developed tool

that uses annotation to define metadata information.

In languages that do not support annotations, the

metadata can be defined externally, such as on

databases or XML files.

2.1 Choosing Evaluation Scenarios

The first step of our approach is to choose the

scenarios from the target architecture to be

evaluated. In order to perform this step, we can reuse

information produced by previous activities from the

development process. In particular, the elicited

relevant scenarios gathered during the application of

traditional architecture evaluation methods, such as

ATAM or others (Muhammad, 2004), can be reused

during this step.

2.2 Identifying Scenarios

In this step we identify the starting points of the

execution of the chosen scenarios in the application

source code under evaluation. A scenario execution

defines paths of execution which can be abstracted

to a call graph

where each node represents a method

and each edge represents possible invocations.

Our challenge in this step is to define how

identifying scenarios or paths of execution in the

application source code. A simple solution is just

identify the method which represents the call graph

root node and after that based on the invocations of

this node to identify the complete call graph related

to this root node.

In order to allow the introduction of this

information in the source code, our tool defines an

annotation named

@Scenario which defines an

attribute to identify it uniquely. Figure 2 shows an

example of this annotation.

2.3 Identifying Quality Attributes

The identification of quality attributes in the

application source code is similar to the

identification of starting methods. We have to add

the metadata to the element that we are interested.

The tool currently defines method annotations

considering the following quality attributes:

@Performance, @Security and @Reliability. These

annotations are the ones implemented by the

developed tool, the approach can be generalized to

evaluate other quality attributes.

Figure 2 shows the annotations and their

respective attributes. Performance annotation has

two attributes: name and time limit. Name is a string

that uniquely identifies it and time limit is a long

integer that specifies a maximum time expected in

milliseconds. The annotated method must complete

its execution in a shorter time compared to the time

limit value. As a consequence, we can monitor if an

annotated method has improved or decreased its

performance in the context of an evolution among

different releases of the system.

Figure 2: Approach annotations.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

334

Security annotation has currently one attribute, a

string that uniquely identifies it. It is useful because

allows determining which execution paths of

scenarios have potential to contain tradeoff points.

For example, increasing the level of encryption

could improve the security of the system, but on the

hand it requires more processing time. That is, if a

path of scenario execution is associated to more than

one quality attribute, we need to observe and

monitor it carefully because it has potential to

contain tradeoff points.

Similarly to performance, the reliability

annotation has a unique string attribute and a double

attribute that specifies the failure rate. It represents

the maximum failure rate expected for an annotated

method from zero to one. Zero means that it never

fails and one that fails in all the cases. Currently, it is

used to check if a particular scenario has potential

tradeoff points.

2.4 Static and Dynamic Analysis

The last step of our approach involves the execution

of static and dynamic analysis implemented in a

tool. This tool parses the metadata from the source

code and performs analysis automatically in order to

enable the automate architecture evaluation based on

the configured scenarios and quality attributes.

During the static analysis the tool parses the

annotations and builds a call graph of the methods

involved in the execution paths of the system

scenarios. After that, using this information, the tool

can: (i) discover the quality attributes associated to a

particular scenario or which one has potential to

have tradeoff points; (ii) discover which methods,

classes or scenarios could be affected due to a

particular quality attribute; (iii) perform traceability

of scenarios and quality attributes in the source code.

The dynamic analysis also benefits from our

code annotations in order to perform the architecture

evaluation during the system execution. It allows

monitoring the quality attributes and, also, dynamic

reflective calls are capture only by dynamic analysis.

The following analysis can be currently

accomplished using our approach: (i) calculating the

performance time or failure rate from a particular

annotated method or from a complete path of

scenario execution; (ii) verifying if the constraints

defined by quality attribute annotations are respected

over the different evolution releases of the system;

(iii) logging of several information captured during

the runtime; (iv) adding more useful information to

detect and analyze tradeoff points.

3 APPROACH TOOL SUPPORT

This section introduces a tool that we have

developed to support our approach. It has been

accomplished as two independent components: (i)

the static analysis is implemented as an Eclipse

plugin; and (ii) the dynamic analysis is made

available as an executable JAR file.

3.1 Tool Support for Static Analysis

The static analysis tool allows executing the

architecture evaluation over Eclipse projects. It

currently parses source code from Java projects.

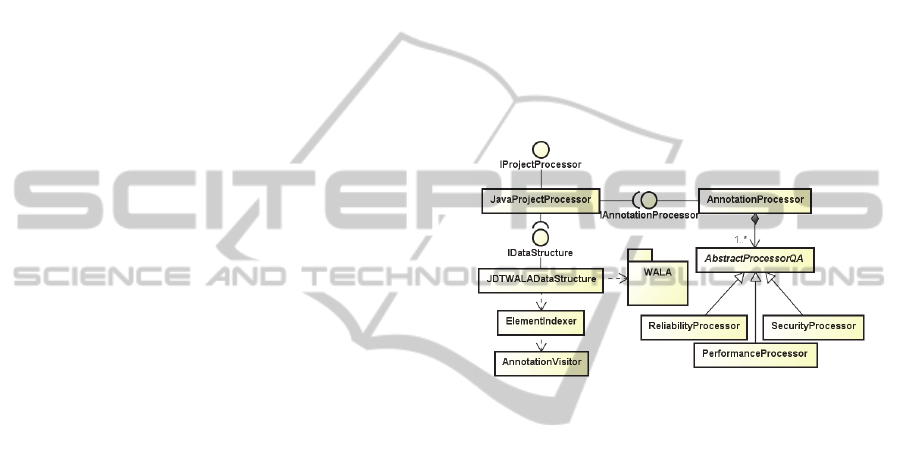

Figure 3 shows a partial class diagram.

Figure 3: UML class diagram showing tool processors.

The JavaProjectProcessor class calls other

classes in order to build the call graph of the system

under architectural evaluation. We have used the

CAST (Common Abstract Syntax Tree) front-end of

WALA (Watson Libraries for Analysis) static

analysis framework (WALA, 2012) to build the call

graph of the scenarios of interest.

AnnotationProcessor class aggregates a set of

different concrete strategy classes to process the

different quality attribute annotations. Each one of

them is responsible for the processing of a particular

kind of annotation. During the annotation parsing,

the

AnnotationProcessor class also builds the list

of scenarios annotated to complement the data

structures built previously.

JavaProjectProcessor

class also uses the

JDTWALADataStructure to access and manipulate

the application call graph and the indexes. The

JDTWALADataStructure class uses ElementIndexer

to build indexes of methods, classes and annotations

to be used during the analysis. Actually, the

annotation index is created by the

AnnotationVisitor class that reads the source code

looking for annotations.

AutomatingtheArchitectureEvaluationofEnterpriseInformationSystems

335

Figure 4 summarizes the static analysis process.

JavaProjectProcessor uses

JDTWALADataStructure to build the call graph and

the indexes.

ElementIndexer is used to build the

method index and the annotation index, but it creates

an object

AnnoationVisitor that parsers the source

code looking for annotations. Then,

AnnotationProcessor processes the scenario

annotations and builds a list of scenarios. Finally, it

processes each quality attribute annotation calling

every

AbstractProcessorQA specializations.

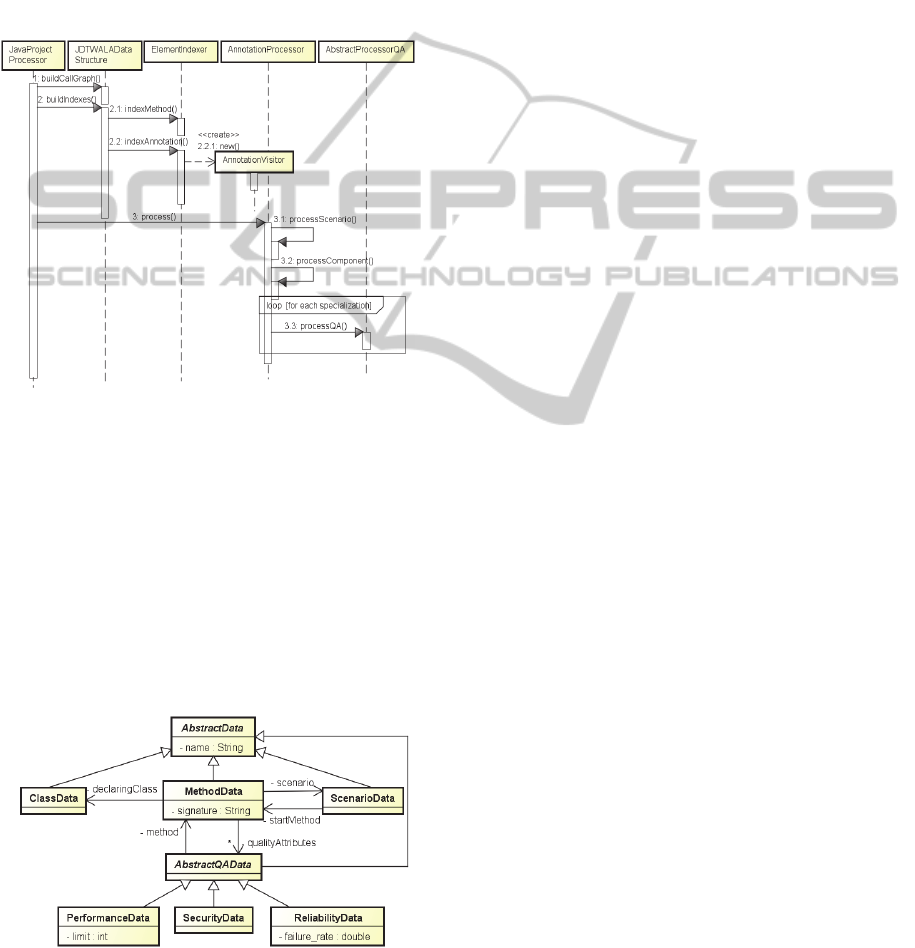

Figure 4: UML sequence diagram to static analysis.

Our static analysis tool uses a model to represent

the relationships among the system assets, such as

classes, methods, scenarios and quality attributes.

Figure 5 shows a partial class diagram of this model.

The

ScenarioData has a starting root method and

MethodData has a declaring class. Each quality

attribute is a specialization of the

AbstractQAData

which in turn keeps a reference to its related method.

Finally, every

MethodData instance has also an

attribute signature that references the method node

in the WALA call graph.

Figure 5: Class diagram of the static analysis model.

3.2 Tool Support for Dynamic Analysis

Our dynamic analysis tool has been implemented

using AspectJ language by defining aspects that

monitor the execution of annotated methods.

Essentially, the tool builds a dynamic call graph

during application execution intercepting the

approach annotations. In this way, if an annotated

method is called, a specific aspect for each kind of

annotations is automatically invoked. When a

method is intercepted, the aspects register and

monitor the method execution by gathering

information about their name, the current execution

thread and the parameters values. These information

is then stored in the dynamic call graph in order to

help the decision making about what to do when

something is wrong, for example, logging the

@Reliability annotated methods who has thrown or

handled an exception.

The current version of our tool has implemented

aspects to intercept scenarios and quality attributes

annotations (performance, security and reliability).

These aspects use concrete strategy objects, which

have a common interface in order to make possible

the aspects to call them. In that way the developers

can define their own strategies for dealing with the

quality attribute which are generally dependent on

the domain and application.

In our tool, we have implemented default

strategies to gather and store information about the

execution of the relevant architecture scenarios. In

addition, we have also implemented specific

strategies for our case studies, which will be

presented in Section 4.

4 APPROACH EVALUATION

We have applied our approach in two different

systems. In the first one, we have explored the static

analysis in an academic enterprise large-scale web

system developed for our institution, and in the

second one the dynamic analysis in an e-commerce

web system. Our main goal was to conduct an initial

evaluation of the approach in order to verify its

feasibility and how the developed tool behaves in

practice.

4.1 Static Analysis in Action

We have applied the static analysis tool of our

approach to enterprise web systems from

SINFO/UFRN. SINFO is the Informatics

Superintendence at Federal University of Rio

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

336

Grande do Norte (UFRN) in Brazil. It has developed

several enterprise large-scale information systems

(SINFO, 2012) which perform full automation of

university management activities. Due to the quality

of these systems, several Brazilian federal

institutions have licensed and extended them to their

needs.

Our main goal was to verify the approach

feasibility of static analysis in practice. In this sense,

the tool should extract useful information in order to

help developers answering some questions, such as:

(i) what scenarios does a specific method belong to?

(ii) what kinds of quality attributes can affect a

specific scenario? (iii) what are the scenarios that

contain potential tradeoff points among quality

attributes?

4.1.1 Choosing Evaluation Scenarios

In the first step we have chosen some specific

scenarios: (i) sending message – scenario used for

sending messages (emails); (ii) authenticated

document generation – scenario used to generate

authenticated documents; (iii) user authentication –

scenario used to authenticate users in the web

application; (iv) mobile user authentication –

scenario used to authenticate users from a mobile

device.

4.1.2 Identifying Scenarios

In this step the starting execution method for each

chosen scenario were identified. They are,

respectively: (i)

sendMessage(); (ii) execute(); (iii)

userAuthentication(); (iv)

mobileUserAuthentication().

4.1.3 Identifying Quality Attributes

The methods and quality attributes selected were: (i)

getJdbcTemplate()

with @Performance – it was

considered to be relevant for performance

requirements because it is accessed by several

database operations; (ii)

enqueue()with @Security

– it is used by the system to enqueue messages that

will be sent over the network; (iii)

createRegistry()

with @Security – it is used to

create the registry of an authenticated document to

ensure its legitimacy; (iv)

toMD5() with @Security

– it is used to create an MD5 hashing of strings, for

example, passwords; (v)

initDataSourceJndi()

with @Reliability – it is used to initialize the

access to the database and was considered critical

for reliability because if the database initialization

fails, the system is not going to work adequately.

4.1.4 Executing the Static Analysis Tool:

Preliminary Results

The tool execution has extracted useful and

interesting information in order to help us answering

the questions highlighted on section 4.1.

Considering the first question – (i) what

scenarios does a specific method belong to? – the

tool can determine that the

getJdbcTemplate()

method, for example, belongs to the following

scenarios: user authentication, mobile user

authentication and authenticated document

generation. This is possible because the tool builds a

static call graph of each scenario and calculates if a

call to a particular method exists in some of the

possible paths of execution.

Regarding the second question – (ii) what kinds

of quality attributes can affect a specific scenario? –

the tool verifies all the paths for a specific scenario

checking which ones have any quality attribute. Our

tool has identified, for example, all the quality

attributes related to the User Authentication

scenario: (i) performance quality attribute – because

the method

getJdbcTemplate() belongs to a

possible path; (ii) the reliability quality attribute

because the method

initDataSourceJndi() also

belongs to a possible path; and (iii) finally, the

security quality attribute for the same reason, the

method

toMD5() is used to encrypt the user

password.

Finally, for answering the third question – (iii)

what are the scenarios that contain potential

tradeoff points among quality attributes? – the tool

looks for scenarios affected by more than one

quality attribute because they contain potentially

tradeoff points among their quality attributes. The

tool has identified that: (i) user authentication and

mobile user authentication are potential scenarios to

have tradeoff because they are affected by

performance, security and reliability; (ii)

authenticated document generation is another

potential tradeoff point because it addresses the

reliability and security quality attributes; on the

other hand (iii) the sending message does not

represent a tradeoff point because it is only affected

by the security quality attribute. These results are

summarized in Table 1.

The information identified automatically by our

tool is useful to indicate to the architects and

developers which specific scenarios and code assets

they need to give more attention when evaluating or

evolving the software architecture through the

conduction of code inspections or the execution of

manual or automated testing. In that way, our

AutomatingtheArchitectureEvaluationofEnterpriseInformationSystems

337

preliminary evaluation in large-scale enterprise

systems has allowed us to answering the expected

questions previously highlighted and demonstrated

the feasibility of our static analysis approach.

Table 1: Some information about tradeoffs in scenarios.

Scenario:

User Authentication

Performance:

getJdbcTemplate()

Security:

toMD5()

Reliability:

initDataSourceJndi()

Tradeoff:

Potential

Scenario:

Mobile User Authentication

Performance:

getJdbcTemplate()

Security:

toMD5()

Reliability:

initDataSourceJndi()

Tradeoff: Potential

Scenario:

Authenticated Document Generation

Performance: -

Security:

createRegistry()

Reliability:

initDataSourceJndi()

Tradeoff: Potential

Scenario:

Sending Message

Performance:

Security:

enqueue()

Reliability:

Tradeoff:

4.2 Dynamic Analysis in Action

The evaluation of the dynamic analysis was

performed by applying our tool to the

EasyCommerce web system (Torres, 2011);

(Aquino, 2011) which is an e-commerce web system

that has been developed by graduate students at our

institution. It implements a concrete product of an e-

commerce software product line described in (Lau,

2006).

The main aim of our evaluation was to extract

execution context information in order to analyze the

aspects behaviour in practice to achieve the

following dynamic analysis: (i) monitoring of

scenario execution and the annotated methods; (ii)

calculation of the performance time (

timeSpent) of

methods and scenarios; and (iii) detection of

executed paths with potential tradeoff points.

4.2.1 Choosing Evaluation Scenarios

We have chosen some of the scenarios that represent

the main features of EasyCommerce: (i) registration

of login information – it records the user information

about login, such as user name and password; (ii)

registration of personal information – it records

personal information about the user, such as name,

address, birthday, document identification; (iii)

registration of credit card information – it records

information about users credit card such as card

number and expiration date; (iv) search for products

– It allows searching for products by its name, type

or features; (v) include product item to cart – it

allows users adding a product item to their shopping

cart.

4.2.2 Identifying Scenarios

In this step the starting execution method for each

chosen scenario were identified. They are,

respectively: (i)

registerLogin(); (ii)

registerUser(); (iii) registerCreditCard(); (iv)

searchProducts(); (v) includeItemToCart().

4.2.3 Identifying Quality Attributes

We have chosen some methods belonging to the

scenarios that appear to have potential to be relevant

to specific quality attributes. The selected ones were:

(ii)

save() with @Performance – it is used by the

system to save all its objects, because of that it

should run as fast as possible; (ii)

save() with

@Reliability – considering that this method is

executed many times and it represents a critical

action is fundamental to analyze its robustness. (iii)

registerLogin(), registerUser(),

and

registerCreditCard() with @Security – these

methods manipulate user confidential information

and they are in some way related to security.

4.2.4 Executing the Aspects of Dynamic

Analysis: Preliminary Results

We have executed the selected scenarios of

EasyCommerce web system together with the

aspects of dynamic analysis in order to perform the

evaluation of the results and benefits which are

discussed next.

Our approach defines a specific strategy to

analyze the annotated scenarios through an aspect.

For such cases, our aspect builds a dynamic call

graph structure used: (i) to monitor de scenarios

execution; (ii) to calculate the time to execute

completely the scenario or a particular method; (iii)

to get some information about the system execution

context, such as the date and time of execution.

The current stored information provided by our

scenario aspect can help architects and developers to

identify: (i) all the cases where a method has taken

more time to execute than the specified value in the

@Performance annotation; (ii) the execution time for

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

338

a given scenario; and (iii) the quality attributes

addressed in particular methods or scenarios.

Table 2 shows information collected by scenario

aspect which shows some obtained results from the

execution of the scenarios register of login, register

of personal information and register of credit card

information. Executing these scenarios we have one

occurrence of performance in

save(), three

occurrences of security in

registerLogin(),

registerUser() and registerCreditCard() and

one occurrence of reliability in

save().

Table 2: Sample of data collected by dynamic analysis.

Registration of login information

Execution time (ms): 3

Performance: -

Security: registerLogin()

Reliability: -

Registration of personal information

Execution time (ms): 2

Performance: -

Security: registerUser()

Reliability: -

Registration of credit card information

Execution time (ms): 150

Performance: save()

Security: registerCreditCard()

Reliability: save()

Analyzing the dynamic call graph generated the

tool can inform which scenarios contain potential

tradeoff points. For example,

registerCreditCard() calls record() that calls

save(). The save() method has been annotated with

the performance and reliability quality attributes.

The

registerCreditCard() method has been

annotated with the security quality attribute. Thus,

we have a scenario with three quality attributes

involved and because of that a potential tradeoff

points among them.

The dynamic analysis process in this study has

met our expectations because it has allowed us

extracting useful information of the execution

context, such as, monitoring of scenarios and quality

attributes, calculating the performance of scenarios

and specific methods and last, but not least,

detecting executed paths with potential tradeoff

points.

5 RELATED WORK

To the best of our knowledge, there is no existing

proposal that looks for the automation of

architecture evaluation methods in the same way of

ours and we have not found approaches really close

to ours. In this section, we summarize some research

work that address architectural evaluation or propose

analysis strategies similar to ours.

Over the last years, several architecture

evaluation methods, such as ATAM, SAAM, ARID

(Clements, 2002) and ALMA (Bengtsson, 2004)

have been proposed. They rely on manual reviews

before of the architecture implementation. Our

approach complements these existing methods by

providing automated support to static and dynamic

analysis over the source code of the software system.

It contributes to the continuous evaluation of the

software architecture during the system

implementation and evolution.

Also, some recent research work have proposed

adding extra architectural information to the source

code with the purpose of applying automated

analysis or document the software architecture.

(Christensen, 2011) uses annotations to add

information about components and design patterns

with the purpose of document the architecture.

(Mirakhorli, 2012) presents an approach for tracing

architecturally significant concerns, specifically

related to architectural tactics which are solutions for

a wide range of quality concerns. These recent

research work, however, do not explored the

combined usage of adding information related to

scenarios or quality attributes.

6 CONCLUSIONS

We presented an approach to automating the

software architecture evaluation using the source

code as input of this process that consists on adding

metadata to the source code providing extra

information, such as, scenarios and quality

attributes. It provides support to the execution of

static and dynamic analysis that aims the automatic

evaluating of the software architecture. Finally, it

has been applied in two systems: a large-scale

enterprise information system and an e-commerce

web system. The preliminary obtained results of the

approach usage have allowed us to provide and

quantifying several and useful information about

architecture evaluation based on scenarios and

quality attributes.

The approach presented is still under

development and we are currently evolving it in

order to apply to other large-scale enterprise

information systems. We have also identified several

possibilities for future work, for example, it is

possible to detect which paths of execution are more

often followed and their performance to suggest to

AutomatingtheArchitectureEvaluationofEnterpriseInformationSystems

339

the developers or architects team try to improve

them. Another possibility is to verify if all the

possible paths of execution for all scenarios

prioritized on the architecture evaluation have been

effectively executed and tested. It is also possible to

check missing paths (Liu, 2011) when a path exists

in the static call graph and it does not exist in the

dynamic call graph meaning a not tested path or

dead code.

REFERENCES

Abi-Antoun, M., Aldrich, J. 2009. Static extraction and

conformance analysis of hierarchical runtime

architectural structure using annotations. SIGPLAN

Not. 44, 10 (October 2009), 321-340.

Aquino, H. M. (2011). A Systematic Approach to Software

Product Lines Test. 2011. MSc Dissertation, Federal

University of Rio Grande do Norte (UFRN), Natal,

Brazil, 2011.

Bengtsson, P., Lassing, N., Bosch, J., Vliet, H. (2004).

Architecture-level modifiability analysis (ALMA).

Journal of Systems and Software. 69, 1-2 (January

2004).

Christensen, H. B., Hansen, K, M. 2011. Towards

architectural information in implementation (NIER

track). In Proceedings of the 33rd International

Conference on Software Engineering (ICSE '11).

ACM, New York, NY, USA, 928-931.

Clements, P., Kazman, R., Klein, M. 2002. Evaluating

Software Architectures: Methods and Case Studies,

Addison-Wesley.

Kazman, R., Abowd, G., Bass, L., Clements, P. 1996.

Scenario-Based Analysis of Software Architecture.

IEEE Softw. 13, 6 (November 1996), 47-55.

Lau, S. Q. 2006. Domain Analysis of E-Commerce

Systems Using Feature-Based Model Templates,

MASc Thesys, University of Waterloo.

Liu, S., and Zhang, J. 2011. Program analysis: from

qualitative analysis to quantitative analysis (NIER

track). In Proceedings of the 33rd International

Conference on Software Engineering (ICSE '11).

Mirakhorli, M., Shin, Y., Cleland-Huang, J., Cinar, M..

2012. A tactic-centric approach for automating

traceability of quality concerns. In Proceedings of the

2012 International Conference on Software

Engineering (ICSE 2012).

Muhammad and Ian Gorton. 2004. Comparison of

Scenario-Based Software Architecture Evaluation

Methods. In Proceedings of the 11th Asia-Pacific

Software Engineering Conference (APSEC '04).

Silva, L., Balasubramaniam, D., 2012. Controlling

software architecture erosion: A survey. J. Syst. Softw.

85, 1 (January 2012), 132-151.

SINFO. (2012). Informatics Superintendence, UFRN:

http://www.info.ufrn.br/wikisistemas, May 2012.

Torres, M. 2011. Systematic Assessment of Product

Derivation Approaches. MSc Dissertation, Federal

University of Rio Grande do Norte (UFRN), Natal,

Brazil, 2011.

WALA, T. J. Watson Libraries for Analysis:

http://wala.sourceforge.net, December 2012.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

340
