A Delta Oriented Approach to the Evolution and Reconciliation of

Enterprise Software Products Lines

Gleydson Lima

2,3

, Jadson Santos

1,3

, Uirá Kulesza

, Daniel Alencar

and Sergio Vianna Fialho

Department of Informatics and Applied Mathematics, Federal University of Rio Grande do Norte, Natal, RN, Brazil

Department of Computer Engineering and Automation, Federal University of Rio Grande do Norte, Natal, RN, Brazil

Informatics Superintendence (SINFO), Federal University of Rio Grande do Norte, Natal, RN, Brazil

Keywords: Software Product Line Engineering, Software Product Evolution, Software Reconciliation.

Abstract: Over the last years, software product line engineering has been applied and adopted by different companies.

Existing software product line approaches promote the development of a centralized infrastructure of core

assets that addresses the common features and provides variation points to the integration of the variable

features of the SPL. In the context of distributed development of enterprise information systems, there are

several scenarios where the adoption of these centralized approaches is not enough to accommodate the

several requests for the integration of new features and maintenance of existing ones. In such scenarios, the

SPL engineering team needs to fork the SPL core assets in order to address the customer needs and due to

the marked pressure. In this paper, we propose a delta-oriented approach that promotes the reconciliation of

software product lines that are independently evolved. Our approach allows: (i) the automated detection of

feature conflicts of the SPLs independently evolved; and (ii) the resolution and merge of such feature

conflicts.

1 INTRODUCTION

Over the last years, software product line

engineering has been applied and adopted by

different companies (Product Line - Hall of Fame,

2005). Existing software product line approaches

(Weiss and Lai, 1999); (Clements and Northrop,

2001); (Czarnecki and Eisenecker, 2000);

(Greenfield and Short, 2005) promote – during

domain engineering – the development of a

centralized infrastructure of core assets that

addresses the common features and provides

variation points to the integration of the variable

features of the SPL. In application engineering, these

reusable assets are reused and customized in order to

produce and generate specific applications

(products). The evolution of the SPL involves to

apply changes directly to its core assets, which

implement the common features (commonalities)

and respective variation points. This development

strategy promotes a better way to manage

variabilities and contribute to facilitate the evolution

of the independent products in terms of changes

applied to a centralized infrastructure that addresses

all of them. If on one hand this SPL development

strategy is very useful and has been used in many

companies in the software industry, on the other

hand there are many existing scenarios where it does

help to cope with the great demand for changing

requirements from different companies that are

benefited by SPLs (Krueger, 2006); (Rubin et al,

2012); (Mende et al., 2009); (Ernst et al., 2010).

In the context of enterprise information systems,

there are several scenarios where the adoption of

existing SPL approaches is not enough to

accommodate the requests for the integration of new

features and maintenance of existing ones. In such

scenarios, the SPL engineering team needs to fork

the core assets in order to address the customer

needs and due to the marked pressure. In addition,

each different version created during the SPL

forking need to be maintained by different teams,

thus bringing more difficulties to the SPL evolution

activities. Recent research works (Rubin et al., 2012)

(Nunes et al., 2010) have proposed preliminary

approaches for dealing with this challenge.

However, there are no existing concrete automated

approaches that support the development and

reconciliation of SPLs independently evolved from

the same reusable code assets. In particular, none of

255

Lima G., Santos J., Kulesza U., Alencar D. and Vianna Fialho S..

A Delta Oriented Approach to the Evolution and Reconciliation of Enterprise Software Products Lines.

DOI: 10.5220/0004453102550263

In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 255-263

ISBN: 978-989-8565-59-4

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

the existing research work reflects about this

problem in the context of enterprise web information

systems.

In this paper, we propose a delta-oriented

approach that promotes the reconciliation of

software product lines that are independently

evolved from the same reusable code assets. Our

approach promotes: (i) the automated detection of

feature conflicts of the SPLs independently evolved;

and (ii) the resolution and merge of such feature

conflicts in terms of changes to be applied to the

code assets with the aim of reconciling the SPLs.

We have implemented an initial version of our

approach for the context of SPLs of enterprise web

information systems. It has been developed using

model-driven and code analysis tools available in the

Eclipse platform. Our work also describes

preliminary results from the application of our

approach to the context of a product line of an

enterprise academic web information system

developed in our institution. This SPL has been

independently evolved by other 15 federal

universities in Brazil.

The remainder of this paper is organized as

follows. Section 2 details the challenges of

reconciling SPLs independently evolved by

presenting an example. Section 3 gives an overview

of our approach and describes the technologies used

in its implementation. Section 4 illustrates the

application of our approach to the reconciliation of

enterprise information product lines. Section 5

discusses related work. Finally, Section 6 concludes

the paper and indicates directions for future work.

2 PROBLEM STATEMENT

In the section, we describe a real scenario of

development related to the challenge of

reconciliation of a same SPL evolved independently

by different institutions. The Informatics

Superintendence (SINFO) from Federal University

of Rio Grande do Norte (UFRN) has been facing this

challenge during the development of enterprise

information systems. The SINFO/UFRN is currently

responsible for the development of different

enterprise information systems (SINFO, 2013). The

three main ones are: (i) SIGAA – enterprise

information system responsible for the management

of academic activities; (ii) SIPAC – enterprise

information system responsible for the management

of the finance, property and contracts of the

university departments; and (iii) SIGRH - enterprise

information system responsible for management of

human resources. Given their quality, these systems

have been licensed by different federal institutions

of Brazil, including 15 federal universities, and the

Federal Justice, Police, Culture and Planning

Brazilian Departments.

Figure 1: Feature model and code assets evolution.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

256

The deployment of these enterprise information

systems from SINFO/UFRN at different institutions

demanded their adaptation to address new

requirements and features, which implement specific

business rules and needs of our partners. In order to

deal with this scenario, each enterprise information

system has been adapted (Santos et al., 2012); (Sena

et al., 2012) to become a SPL that: (i) provides a

common infrastructure of code assets that can be

reused by different institutions; and (ii) defines

variation points that can be extended to address

specific needs. However, due to the dynamic

environment of those institutions, specially

regarding the occurrence of new demanding

requirements, there is always a need to adapt the

infrastructure to accommodate adequately all these

new requirements. The existing variation points are

not enough to address all the demanding

requirements in many cases. In such scenario, the

solution has been to create a separate branch of the

SPL to each institution, which can freely extend and

modify the implementation of the core and variation

point assets. Similar strategies have been reported by

other existing research work (Rubin, 2012); (Nunes,

2010). This approach is also known as clone-and-

own.

Figure 1 illustrates the development and

evolution scenario of the SIGAA – the enterprise

information system responsible for the management

of academic activities of the UFRN. First, the initial

version of SIGAA/UFRN SPL – called the Original

SPL – is made available to other partners, such as

Federal University of Sergipe (UFS). Every

institution then creates a fork/copy of the original

SPL – named the Target SPL. After that, they can

extend or modify the classes that implement the SPL

core and variation point assets, or even the default

variable features made available by UFRN. At the

same time, the UFRN team also independently

evolve the SPL thus generating the Source SPL

(Figure 1).

Figure 1 also details an example of how UFRN

and UFS have independently evolved one version of

SIGAA. It presents the feature models of both

universities that reflect these changes. It shows that

UFRN has introduced a new feature

Reservation as

part of the Library feature. On the other hand, the

UFS has modified the Suspension feature to include

the

Punishment and Fine features. The Suspension

feature becomes a subfeature of Punishment feature.

After the parallel evolution of the SPLs, the UFS

can request from UFRN the integration of the new

Reservation feature to its SPL code assets. The

reconciliation of the two independently evolved

SPLs involves the resolution and merge of new

source code developed for each of them. In

particular, in this scenario, there is a need to

integrate the features from Source SPL (UFRN) to

the Target SPL (UFS). Different and several classes

are introduced and modified during the evolution of

the SPLs. The reconciliation of them involves

identifying conflicting features in terms of

introduction, modification and deletion of existing

code assets. Figure 1 shows, for example, that the

Reservation and Punishment features have

demanded the creation of new classes

(

RequestReservationLibraryMaterialMBean,

LibraryUserPunishment

) and the modification of

existing ones (

LoanProcessor).

Our research problem is related to the incapacity

and inefficiency of existing software engineering

techniques and tools to promote the seamless

integration and reconciliation of the evolved features

from the source SPL to the target SPL. Existing

configuration management systems only provide

code merge low-level mechanisms that give all the

responsibility to the engineers to perform a safe

integration and reconciliation of the SPL features.

On the other hand, existing SPL approaches are

founded on the development of a centralized

infrastructure. They do not provide advanced

techniques or tools to deal with this problem.

3 EVOLVING AND

RECONCILING SOFTWARE

PRODUCT LINES

This section presents our delta-oriented approach to

support the evolution and reconciliation of software

product lines. Section 3.1 gives an overview of the

approach by describing its main components.

Section 3.2 illustrates the main technologies used in

its implementation.

3.1 Approach Overview

The main aim of our approach is to promote the

reconciliation of SPLs that are independently

evolved. In order to address this aim, our approach

allows: (i) the automated detection of feature

conflicts of the SPLs evolved independently; and (ii)

the resolution and merge of such feature evolution

conflicts. Figure 2 shows an overview of the main

components of our approach. Next we explain and

detail each one of them.

ADeltaOrientedApproachtotheEvolutionandReconciliationofEnterpriseSoftwareProductsLines

257

Figure 2: Approach overview.

3.1.1 Feature Extractor Module

The first step is executed using the feature extractor

module. The main goal of this module is to extract

the features and code of the SPLs that are being

reconciled and integrated – named target and source

SPLs. This information will be used to support the

comparison and automatic detection of conflicts

between the SPLs evolved independently. The

following strategies are used to extract the

information of interest during this approach step: (i)

the SPL features can be obtained from existing

variability management tools, such as CIDE

(Kästner, 2013), GenArch (Cirilo, 2008); (Cirilo,

2012), and pure::variants (pure::variants, 2013); and

(ii) the information regarding code assets are

extracted as abstract syntax trees of each different

asset using existing code parsing tools. This module

produces as output models that maintain the

information regarding the features, code assets, and

respective mapping between features and code assets

for each investigated SPL, which is also called

configuration knowledge (Czarnecki and Eisenecker,

2000).

3.1.2 Evolution Mining Module

The second step involves the mining of the evolution

of features and code assets from the SPLs target and

source. It is supported by the evolution mining

module, which interacts with existing change request

and configuration management systems, in order to

extract information related to the evolution of the

features and code assets from each SPL

independently evolved. Thus, this module extracts

all the changes applied to the features and code

assets of the SPLs. This information will also be

useful to allow the automatic detection of feature

conflicts between the source and target SPLs during

their evolution. It produces as output historical

change logs about the evolution of features and code

assets for each SPL analyzed.

3.1.3 Feature Conflict Analysis Module

This module is responsible for the automatic

detection of conflicts of features that evolve

independently along the SPLs target and source. It

uses as input the information generated by the

feature extractor and evolution mining modules,

which are, respectively, the source and target

models, and the historical change logs.

The module executes an algorithm that compares

the source and target models searching for changes

applied to the features and code assets of the SPLs.

It produces as output a delta model containing: (i)

the new features created in the source SPL that can

be integrated to the target; (ii) the modified features

in the source SPL compared to the target; and (iii)

the removed features in the source SPL compared to

the target.

3.1.4 Merge Engine Module

Once identified the feature conflicts from the

integration between the source and target SPLs, our

approach is prepared to analyze these conflicts in

order to promote the merge of them.

During this last step, the merge engine module

first asks to the engineer, which feature changes

from the source SPL he/she is interested to integrate

to the target SPL. After that, the module analyzes the

dependencies between the features and code assets

in order to verify if the merge of the selected

features from the source SPL can be applied

automatically, semi-automatically or manually to the

target SPL.

After this analysis, the tool can recommend and

apply specific merge actions to integrate feature

changes from the source to the target SPL. The

merge actions are implemented according to the

existing variability implementation technologies

involved in the modularization of the SPL. Finally,

the merge engine module is also responsible to

indicate which specific features (or use cases) should

be retested in order to verify that everything is

working well after the SPL integration.

3.2 Approach Implementation

Our approach has been implemented as an Eclipse

plugin using existing model-driven and code

manipulation technologies available in this platform.

Figure 3 shows the infrastructure of our tool by

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

258

illustrating the technologies used in its

implementation. It was developed based on the

Squid (Vianna et al, 2012) – an extensible

infrastructure for analyzing software product line

implementations.

Figure 3: Tool infrastructure.

The Feature Extractor module is implemented as

an extension of the Squid, which is responsible for

parsing the code assets and annotations embedded in

these code assets that indicate the implementation of

specific variable features. This parsing functionality

is implemented using the Java Developing Tooling

(JDT) API. As a result of the parsing, the module

produces Squid models as output, which maintain

information regarding the features, code assets and

mappings between these elements. Every Squid

model is implemented and manipulated using

Eclipse Modeling Framework (EMF) technology.

The current implementation of the Evolution

Mining module integrates with an in-house change

request system – called iProject – developed at

SINFO/UFRN, and the Subversion configuration

management system. The module obtains

information regarding: (i) the evolution of every

code asset from Subversion; and (ii) the change

feature request from iProject.

The Feature Conflict Analysis module

manipulates as input two Squid models and the

historical change logs (XML files), in order to

produce the delta model that indicates the changes

applied to the source SPL that are not part of the

target SPL. The delta model is also manipulated and

implemented using the EMF plugin. Finally, the

Merge Engine module is currently implemented to

manipulate the abstract syntax tree (AST) of the SPL

code assets using the JDT API. Different changes

and refactorings can be applied to the source code of

the target SPL, depending on the recommended

merge actions of this module.

4 APPROACH IN ACTION

This section describes how our approach is used in

practice by illustrating its application to the SIGAA

software product line. Next sections describe how

the different approach modules can be applied to the

resolution and merge of conflicts from SIGAA.

4.1 Extracting Feature and Code

Assets from the SPLS

The Feature Extractor module is responsible for

processing the feature annotations and for generating

the Squid target and source models as output that

contain their respective features, code assets, and

mapping between them. Our current implementation

uses the feature annotations from GenArch product

derivation tool (Cirilo, 2008); (Cirilo, 2012).

Figures 4 and 5 show a partial view of the

extracted models for the SIGAA SPL. It considers

the evolution of the

Library

feature (Section 2) for

the UFRN and UFS universities, respectively. It

shows how the sub-features of

Library

have been

evolved. Figure 4 shows, for example, that the

UFRN SIGAA SPL has introduced the

Reservation

feature and associated code assets, such as

verifyExistingMaterialForReservation()

and

verifyMaximumAmountOfReservation()

methods. On the other hand, Figure 5 illustrates that

the UFS SIGAA SPL has included the

Punishment

feature and associated code assets, such as the

PunishmentLoanDelayStrategyFactory

and

PunishmentLoanDelayStrategy

classes. It is

interesting to notice that the Squid models also

include information about the mappings between

features and code assets. For example, the

verifyUserLibraryPunishment()

method is

mapped to the

Punishment

feature (Figure 5).

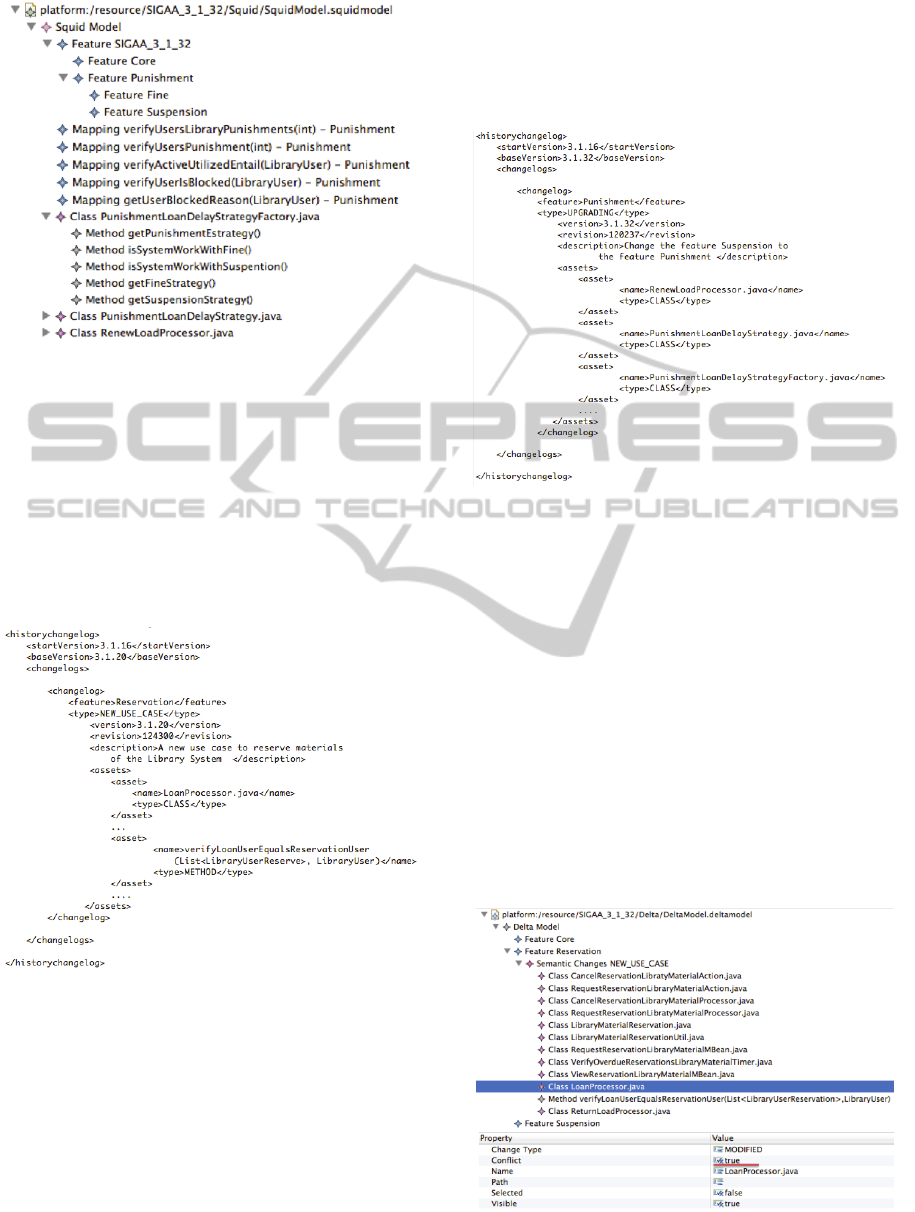

Figure 4: Extracted model of the source SPL (UFRN).

ADeltaOrientedApproachtotheEvolutionandReconciliationofEnterpriseSoftwareProductsLines

259

Figure 5: Extracted model of the target SPL (UFS).

4.2 Feature Evolution Mining

The second step consists on mining the evolution of

the features and code assets from the source and

target SPLs. The historical data of the change

request and configuration management systems from

each SPL are mined in order to generate as output

historical change logs for the source and target

SPLs.

Figure 6: Source SPL historical evolution file.

Figures 6 and 7 show a partial view of the

historical change log files produced as output for the

UFRN and UFS SPLs, respectively. As you can see,

every change log file contains a root tag called

historychangelog that has several changelogs

siblings. Each changelog specifies: (i) the feature;

(ii) the nature of the feature (UPGRADING,

NEW_USE_CASE, BUG_FIX); (iii) the version and

revision submitted to the Subversion system; (iv) a

brief description of the change; and (v) the code

assets that have been modified. For instance, Figure

6 shows that the

LoanProcessor class and the

verifyLoanUserEqualsReservationUser()

method of the

Reservation feature were modified in

the revision 124300 of the Subversion system.

Figure 7: Target SPL historical evolution file.

4.3 Detecting Feature Conflicts

between Source and Target SPLs

The third step of our approach consists on

automatically generating the delta model, which

shows the feature conflicts from the evolution of

source and target SPLs. In order to generate this

model, the Feature Conflict Analysis module

receives as input the information generated in the

previous steps for the source and target SPLs, which

are: (i) the Squid models; and (ii) historical change

logs. The module processes this information to

identify the feature conflicts in terms of changes

applied to the code assets and stores this information

in the delta model.

Figure 8: Delta model.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

260

Figure 8 illustrates the resulted delta model of

the UFRN source and UFS target SPLs. The delta

model shows if there are conflicts in terms of code

assets between the features independently created or

modified in the SPLs. For every feature presented,

the model indicates the kind of change that has been

applied to the code assets from the source to the

target SPL. Figure 8 shows, for example, that the

LoanProcessor

class has been modified in the

source SPL, when compared to the target. The

Properties View indicates the conflict in this class

for the

Reservation

feature that represents a

NEW_USE_CASE change.

4.4 Merging Source and Target SPLs

In the final step of our approach, the Merge Engine

module is used and the conflicts identified between

the source and target SPLs are prepared to be

handled. The engineer informs which feature

changes from the source SPL he/she is interested to

apply to the target SPL. The dependencies between

the features and code assets are then analyzed to

verify which strategy –

automatic, semi-automatic or

manual - of merge can be applied.

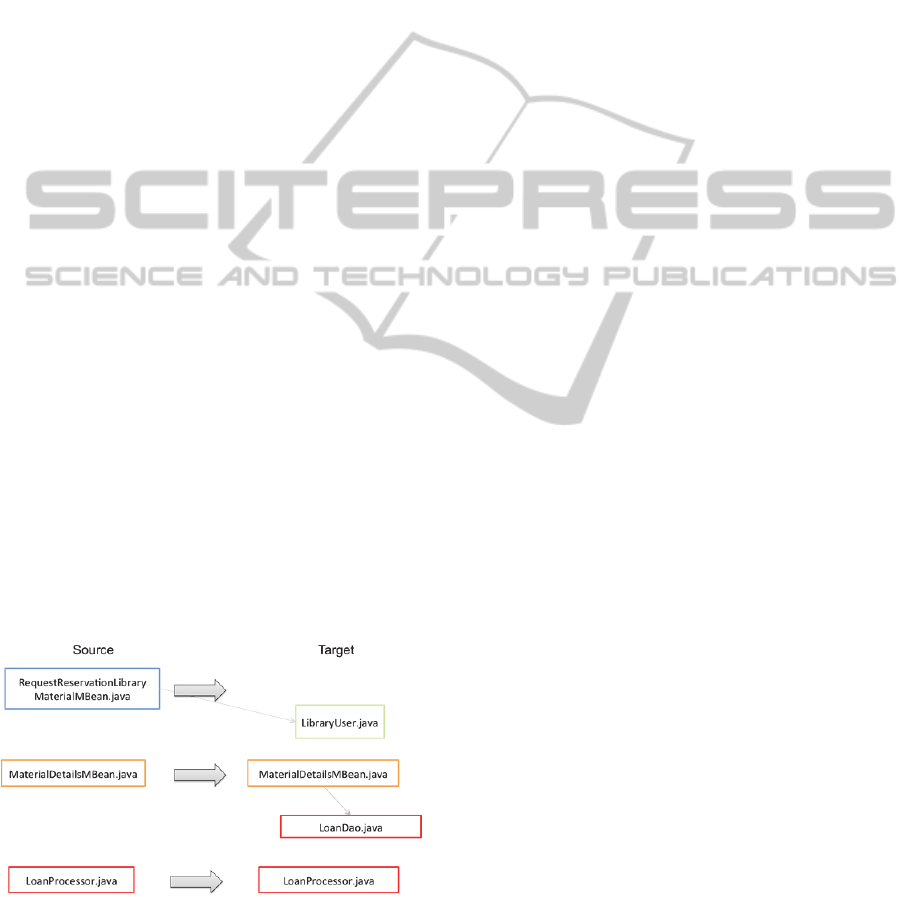

Figure 9 shows examples of the different merge

strategies executed by our tool in the context of the

Reservation

feature. The

RequestReservationLibraryMaterialMBean

class is a new asset created in the UFRN source SPL

that need to be added to the UFS target SPL. This

class only has a dependency to the

LibraryUser

class of the original SPL, which has not changed

during the evolution of both SPLs. Thus, the Merge

Engine module can automatically move this class to

the target SPL, after calculating and recognizing that

it has no dependency to any existing class.

Figure 9: Examples of merge strategies.

Figure 9 also exhibits the

MaterialDetailsMBean

class that has been

modified in the source SPL to address specific needs

of the

Reservation

feature. The modifications of this

class only involve the introduction of new

independent methods. On the other hand, the

MaterialDetailsMBean

class has not been

modified during the evolution of the target SPL. But

there is a dependent class – called

LoanDAO

– that

was modified in the target SPL. Because of that, the

Merge Engine can merge the new methods of the

MaterialDetailsMBean

class from the source

into the target SPL, but it cannot guarantee that the

integration is going to work adequately, due to the

changes applied to the

LoanDAO

class. In those

scenarios, the module uses a semi-automatic merge

strategy, where it indicates explicitly which classes

will be merged to the target SPLs, but it also notifies

the engineers about the specific needs to inspect or

re-test the merged classes due to changes in the

dependent classes, such as the

LoanDAO

class, in our

example. We are currently extending the

implementation of this merge strategy to allow the

automatic recommendation of automated testing

classes to be re-executed over the merged classes

that have modified dependent classes.

Finally, the last merge strategy currently

available in our Merge Engine module is the manual

one. It only indicates the code assets conflicts to the

software engineers during the integration of specific

features. The engineers are then responsible for

deciding the best strategy to integrate them based on

the information provided regarding the changes

applied to the existing features. Figure 9 shows that

the

LoanProcessor

class has been modified in

both source and target SPLs in order to address the

Reservation

and

Punishment

features, respectively.

Due to the large amount of conflicting changes over

similar methods of the

LoanProcessor

class, our

Merge Engine module uses the manual merge

strategy to highlight to the engineers the changes

applied to the code assets that are associated to each

new feature (

Reservation

and

Punishment

). The

information is then used to help the developers

during the manual merge of the features.

5 RELATED WORK

(Rubin et al., 2012) propose the improvement of the

efficiency of forking practices in the context of

SPLs, while mitigating their disadvantages. The

work defines the Product Line Change Set

Dependency Model (PL-CDM), which captures the

necessary information required for managing forked

product variants. PL-CDM contains information

ADeltaOrientedApproachtotheEvolutionandReconciliationofEnterpriseSoftwareProductsLines

261

about the entire product line, such as: its products,

features of these products, and relationships between

the features. This model contributes to keep

information about the SPL that will aid the

developer to manage the fork product variants. The

authors also demonstrate their approach for the

management and evolution of forked product

variants using a real example. However, the authors

have not developed a concrete implementation of

PL-CDM that automates the forking variants

management. In contrast, our work proposes a delta-

oriented approach that helps the merging of SPLs

independently developed. In this paper, we have also

presented the tool support that automates our

approach.

(Nunes et al., 2010) propose the analysis of

historical evolution of family members in order to

classify the implementation elements according to

their variability nature. The work proposes history-

sensitive heuristics for feature recovering in the code

of degenerated program families. The historical

evolution analysis considers: (i) the history of each

member of the program family, called horizontal

history; and (ii) all the family members, called

vertical history. Through the usage of such

heuristics, the authors verify how features change

considering the vertical and horizontal perspectives

and classify them. Although the authors deal with

the problem of SPL evolution by identifying how

each feature has evolved, their research work has not

proposed concrete solutions to repair the feature

degeneration in SPLs.

(Ferreira et al., 2012) propose the

implementation and evaluation of four testing based

approaches and their implementations for checking

SPL refinement. Their work considers that a SPL is

safely evolved, when it addresses at least the same

products of the previous version. The first testing

approach – called All Product Pairs – checks all

products generated by the SPL after the evolution

against all products before evolution. It verifies if

the SPL continues generating at least all products

generated before evolution. However, how this

strategy is very onerous, they have proposed and

assessed three other approaches – called All

Products, Impacted Products and Impacted Classes

– which are optimization of the first one that have

lower precision, but it improves the execution

performance. Their approach only deals with the

evolution of the same SPL. In our work, we focus on

the reconciliation of SPLs independently evolved

after they are forked from the same initial version.

The testing approaches proposed by (Ferreira, 2012)

can be used to verify if the final reconciled target

SPL is a safe evolution of the target SPL. This is an

interesting research work that we are planning to

consider in the future.

6 CONCLUSIONS AND FUTURE

WORK

In this paper, we presented a delta-oriented approach

that provides support for the reconciliation of SPLs

independently evolved by different teams. Our

approach allows: (i) the automated detection of

feature conflicts in terms of code assets of the SPLs

evolved independently; and (ii) the resolution and

merge of such feature evolution conflicts. The

preliminary tests and results of our current

implementation show the potential of our approach

to deal with such the SPL reconciliation challenge

during the evolution of SPLs.

We are currently refining its implementation to

apply it to a case study of large-scale reconciliation

scenarios using the enterprise information SPLs

from SINFO/UFRN, independently evolved by

several federal Brazilian institutions. In particular,

new extensions are being developed to support: (i)

the automatic and semi-automatic merge of XML

template documents, such as Java Server Faces

(JSF) pages – that are usually used to implement

web pages; (ii) to automatically identify which

manual or automated testing cases needs to be re-

executed to verify the behavior preservation of the

reconciled features.

ACKNOWLEDGEMENTS

This work was partially supported by the National

Institute of Science and Technology for Software

Engineering (INES) - CNPq under grants

573964/2008-4 and CNPQ 560256/2010-8.

REFERENCES

Cirilo, E., Kulesza, U., Lucena, C. J. P., 2008. A Product

Derivation Tool Based on Model-Driven Techniques

and Annotations. Journal of Universal Computer

Science, vol. 14, no. 8.

Cirilo, E., Nunes, I., Kulesza, U., Lucena, C. J. P., 2012.

Automating the Product Derivation Process of Multi-

Agent Systems Product Lines. Journal of Systems and

Software (JSS), pp 258-276, vol. 85, number 2,

February 2012 .

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

262

Clements, P. and L. Northrop. Software Product Lines:

Practices and Patterns. Addison-Wesley Professional,

2001.

Greenfield, J., and K. Short. Software Factories:

Assembling Applications with Patterns, Frameworks,

Models and Tools. John Wiley and Sons, 2005.

Czarnecki, K. and U. Eisenecker. Generative

Programming: Methods, Tools, and Applications.

Addison-Wesley, 2000.

Ernst, N. A., Easterbrook, S. M. and Mylopoulos, J. Code

Forking in Open-Source Software: a Requirements

Perspective. CoRR, abs/1004.2889, 2010.

Ferreira, F., et al. 2012. Making Software Product Line

Evolution Safer. 6th Brazilian Symposium on Software

Components, Architectures and Reuse (SBCARS

2013), Natal, Brazil, IEEE Computer.

Kästner, C. CIDE: Virtual Separation of Concerns

retrieved at http://wwwiti.cs.uni-magdeburg.de/

iti_db/research/cide/, February 2013.

Krueger, C. W. “New Methods in Software Product Line

Development.” SPLC. 2006, IEEE , 95-102.

Mende, T., Koschke, R. and Beckwermert, F. An

Evaluation of Code Similarity Identification for the

Grow-and-Prune Model. Journal of Software

Maintenance and Evolution: Research and Practice.

21(2):143–169. 2009.

Nunes, C. et al. 2010. History-Sensitive Heuristics for

Recovery of Features in Code of Evolving Program

Families. Proceedings of the Software Product Line

Conference (SPLC 2012), September 2–7, Salvador,

Brazil.

Product Line - Hall of Fame. 2005. Product Line - Hall of

Fame. Product Line - Hall of Fame. [Online]

September 2005. [Cited: 14 January 2013.]

http://splc.net/fame.html.

Pure::Variants, retrieved at

http://www.pure-systems.com/, February 2013.

Rubin, J. et al. 2012. Managing Forked Product Variants.

Proceedings of the Software Product Line Conference

(SPLC 2012). Salvador. Brazil.

Santos, J. et al. 2012. Conditional Execution: A Pattern for

the Implementation of Fine-Grained Variabilities in

Software Product Lines. Proceedings of 9

Latin-

American Conference on Pattern Languages of

Programming (SugarLoafPLoP 2012) (in Portuguese).

Sena, D. et al. 2012. Modularization of Variabilities from

Web Information Systems Software Product Lines.

Proceedings of 9

Latin-American Conference on

Pattern Languages of Programming (SugarLoafPLoP

2012) (in Portuguese).

SINFO. 2013. Informatics Superintendence of the Federal

University of Rio Grande do Norte. Available at:

http://www.info.ufrn.br/wikisistemas/doku.php

Vianna, A. et al. 2012. Squid: An Extensible Infrastructure

for Analyzing Software Product Line

Implementations. SPLC’12-Workshops. September 2–

7, Salvador, Brazil.

Weiss, D. and C. Lai. Software Product-Line Engineering:

A Family-Based Software Development Process.

Addison-Wesley Professional, 1999.

ADeltaOrientedApproachtotheEvolutionandReconciliationofEnterpriseSoftwareProductsLines

263
